6.1 method for system design for sustainability

Carlo Vezzoli
Politecnico di Milano / DESIGN dept. / DIS / School of Design / Italy
course System Design for Sustainability
Subject 6. Methods and tools for System Design for Sustainability
learning resource 6.1
MSDS Method for System Design for
Sustainability
carlo vezzoli
politecnico di milano . DESIGN dept. . DIS . School of Design . Italy
Learning Network on Sustainability (EU asia-link)
Learning Network on Sustainabile energy systems (EU edulink)

Carlo Vezzoli

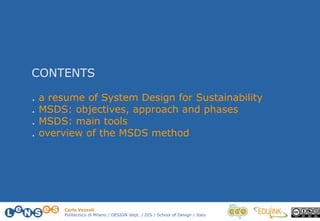

CONTENTS
. a resume of System Design for Sustainability
. MSDS: objectives, approach and phases
. MSDS: main tools
. overview of the MSDS method

Carlo Vezzoli
SYSTEM DESIGN FOR USTAINABILITY:
A DEFINITION
“the design of the system of products
and services that are together able to
fulfil a particular customer demand
(deliver a “unit of satisfaction”) based on
the design of innovative interactions of
the stakeholders (directly and indirectly
linked to that “satisfaction” system)
where the economic and competitive
interest of the providers continuously
seeks both environmentally and socio-
ethically beneficial new solutions”
[Vezzoli et al. 2014]

Carlo Vezzoli
A. “SATISFACTION-SYSTEM” APPROACH
design the satisfaction of a particular demand
(satisfaction unit) and all its related products and
services
B. “STAKEHOLDER CONFIGURATION” APPROACH
design the interactions of the stakeholder of a
particular satisfaction-system
C. “SYSTEM SUSTAINABILITY” APPROACH
design such a stakeholder interactions (offer
model) that for economic and competitive
reasons continuously seek after environmentally
and socio-ethical new beneficial solutions
SYSTEM DESIGN FOR SUSTAINABILITY:
APPROACHES/SKILLS

Carlo Vezzoli

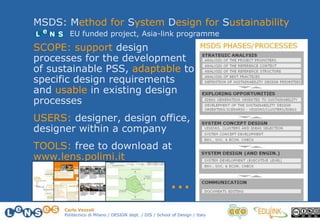

SCOPE: support design
processes for the development
of sustainable PSS, adaptable to
specific design requirements
and usable in existing design
processes
USERS: designer, design office,
designer within a company
TOOLS: free to download at
www.lens.polimi.it
MSDS: Method for System Design for Sustainability
…
EU funded project, Asia-link programme

Carlo Vezzoli
STRATEGIC ANALYSIS
EXPLORING OPPORTUNITIES
SYSTEM CONCEPT DESIGN
SYSTEM DESIGN (AND ENGIN.)
COMMUNICATION
MSDS: PHASES OBJECTIVES
Gaining the information needed to
facilitate the generation of sustainable
PSS ideas and scenarios for sustainable
system innovations
Producing a “catalogue” of promising
sustainable PSS ideas and a
sustainability design-orienting sceanario
Defining and designing one or more PSS
concept potentially sustainable
Developing the most promising sustainable
PSS concept into a detailed version
necessariy to its implementation
Producing the documents for the external
communication of the PSS characteristics
(general and the sustainability ones)
ANALYSIS OF THE PROJECT PROMOTERS
ANALYSIS OF THE REFERENCE CONTEXT
ANALYSIS OF BEST PRACTICES
ANALYSIS OF THE REFERENCE STRUCTURE
SUSTAINABILITY EVALUAAYO AND PRIORITIES DEF.
IDEAS GENERATION ORIENTED TO SUSTAINABILITY
DEVELEPMENT OF THE SUSTAINABILITY DESIGN
ORIENTING SCENARIO - VISIONS/CLUSTERS/IDEAS
VISIONS, CLUSTERS AND IDEAS SELECTION
SYSTEM CONCEPT DEVELOPMENT
SYSTEM DEVELOPMENT (EXECUTIVE LEVEL)
ENV, SOCIO-ET. & ECON. CHECK/VISUALISATIONk
MULTIMEDIA REPORTING: OVERALL QUALITIES
MULTIMEDIA REPORTING: STAINABILITY QUALITIES
ENV, SOCIO-ET. & ECON. CHECK/VISUALISATION
/PROCESSES

Carlo Vezzoli

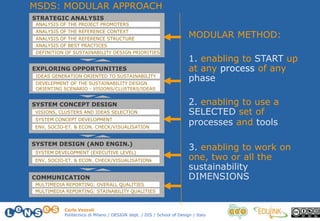

MODULAR METHOD:
1. enabling to START up
at any process of any
phase
2. enabling to use a
SELECTED set of
processes and tools
3. enabling to work on
one, two or all the
sustainability
DIMENSIONS
MSDS: MODULAR APPROACH
STRATEGIC ANALYSIS
COMMUNICATION
STRATEGIC ANALYSIS
DEFINITION OF SUSTAINABILITY DESIGN PRIORITIES

Carlo Vezzoli

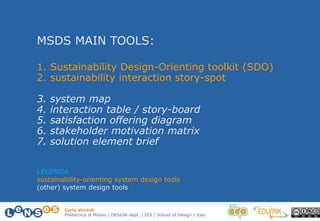

1. Sustainability Design-Orienting toolkit (SDO)
2. sustainability interaction story-spot
3. system map
4. interaction table / story-board
5. satisfaction offering diagram
6. stakeholder motivation matrix
7. solution element brief
MSDS MAIN TOOLS:
LEGENDA
sustainability-orienting system design tools
(other) system design tools

Carlo Vezzoli
1. SUSTAINABILITY DESIGN-ORIENTING (SDO)
to orientate system
design process
towards sustainable
solutions
(environmental, socio-
ethical, economic)
www.lens-sdo.polimi.it

Carlo Vezzoli
2. SUSTAINABILITY INTERACTION STORY-SPOT
(could be animated)
to visualise (only)
key interactions in
relation to
achieved criteria
of sustainability
(environmental,
socio-ethical,
economic)

Carlo Vezzoli
3. SYSTEM MAP
(could be animated)
to visualise (design
and co-design) the
configuration of the
system, describing
actors involved and
their interactions

Carlo Vezzoli
4. INTERACTION TABLE and STORY-BOARD
(could be animated)
to visualise
(design and co-
design) the
functioning of the
system in time:
the narratives
(stories) of the
front-desk (with
the clients) and
back-stage
interactions
(between other
stakeholders)
INTERACTION TABLE
INTERACTION STORY-BOARD

Carlo Vezzoli
5. SATISFACTION OFFERING DIAGRAM
to visualise
(design and co-
design) the unit
of satisfaction
offered by the
system, and how
this is delivered
to the
user/customer

Carlo Vezzoli
6. STAKEHOLDERS MOTIVATION MATRIX
to visualise
(identify) the
motivations that
actors have in
being involved in
the system

Carlo Vezzoli
7. SOLUTION ELEMENT BRIEF
to visualise
(identify) the
elements
(products,
services, labour)
needed to the
system, and who,
among the system
stakeholders, has
to design/
produce/deliver
such elements

Carlo Vezzoli
OVERVIEW OF THE MSDS METHOD

Carlo Vezzoli
STRATEGIC ANALYSIS
COMMUNICATION
SUSTAINABILITY EVALUATION & PRIORITIES DEFIN.
STRATEGIC ANALISYS
sustainability analysis of
existing system and design
priorities definition

Carlo Vezzoli

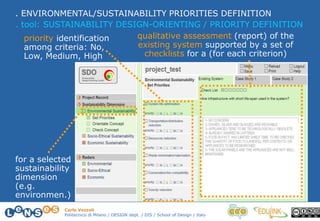

. ENVIRONMENTAL/SUSTAINABILITY PRIORITIES DEFINITION
. tool: SUSTAINABILITY DESIGN-ORIENTING / PRIORITY DEFINITION
qualitative assessment (report) of the
existing system supported by a set of
checklists for a (for each criterion)
priority identification
among criteria: No,
Low, Medium, High
for a selected
sustainability
dimension
(e.g.
environmen.)

Carlo Vezzoli
STRATEGIC ANALYSIS
COMMUNICATION
Ideas generation oriented to
sustainability

Carlo Vezzoli
. GENERATE “ENV./SUSTAINABLE IDEAS” BY BRAINSTORMING
. tool: SUSTAINABILITY DESIGN-ORIENTING / ORIENTATE CONCEPT
typed
emerged
system ideas
(for each
criterion)
for each
(environm.)
sustainability
dimension
for each criterion, an idea table
with guidelinees at system level

Carlo Vezzoli

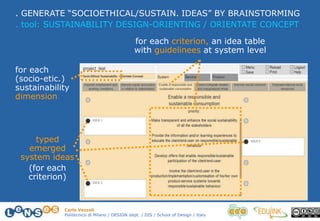

. GENERATE “SOCIOETHICAL/SUSTAIN. IDEAS” BY BRAINSTORMING
. tool: SUSTAINABILITY DESIGN-ORIENTING / ORIENTATE CONCEPT
typed
emerged
system ideas
(for each
criterion)
for each
(socio-etic.)
sustainability
dimension
for each criterion, an idea table
with guidelinees at system level

Carlo Vezzoli

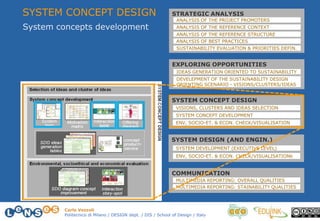

System concepts development
SYSTEM CONCEPT DESIGN STRATEGIC ANALYSIS
COMMUNICATION

Carlo Vezzoli
. tool:
SATISFACTION
OFFERING
DIAGRAMM
(could be
animated)

Carlo Vezzoli

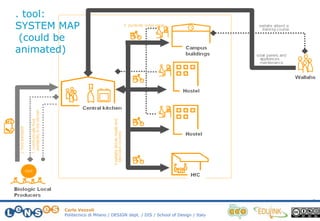

. tool:
SYSTEM MAP
(could be
animated)

Carlo Vezzoli
. INTERACTION TABLE (2 rows: 1° cllient/user; 2° providers)

Carlo Vezzoli
. tool: INTERACTION STORY BOARD
(could be animated)

Carlo Vezzoli
F. INTERACTION STORY BOARD. PRODUCT AND SUPPORT-PRODUCT CONCEPTS

Carlo Vezzoli
environmental, socio-ethical and
economic sustainability check
and visualisation
SYSTEM CONCEPT DESIGN STRATEGIC ANALYSIS
COMMUNICATION

Carlo Vezzoli

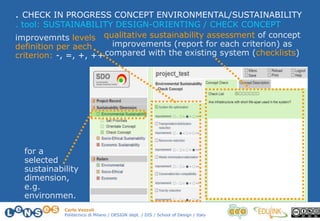

. CHECK IN PROGRESS CONCEPT ENVIRONMENTAL/SUSTAINABILITY
improvemnts levels
definition per aech
criterion: -, =, +, ++
qualitative sustainability assessment of concept
improvements (report for each criterion) as
compared with the existing system (checklists)
. tool: SUSTAINABILITY DESIGN-ORIENTING / CHECK CONCEPT
for a
selected
sustainability
dimension,
e.g.
environmen.

Carlo Vezzoli
. VISUALISE CONCEPT ENVIRONMENTAL/SUSTAINABILITY POTENT.
visualisation concept
improvement
(for each criterion)
visualisation of existing
system priorities
IMPROVEMENT…
text
synthethising
improvement
(for each
criterion)
. tool: SUSTAINAB. DESIGN-ORIENTING / ENVIRONMENTAL RADAR
for a
selected
sustainability
dimension

Carlo Vezzoli

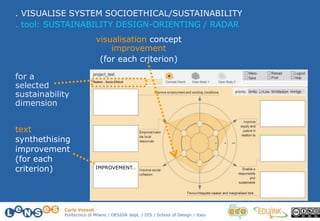

visualisation concept
improvement
IMPROVEMENT…
text
synthethising
improvement
(for each
criterion)
. tool: SUSTAINABILITY DESIGN-ORIENTING / RADAR
. VISUALISE SYSTEM SOCIOETHICAL/SUSTAINABILITY
for a
selected
sustainability
dimension

Carlo Vezzoli

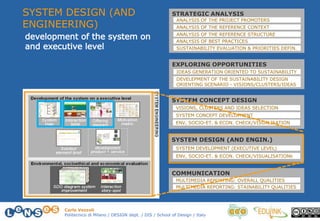

STRATEGIC ANALYSIS
COMMUNICATION
SYSTEM DESIGN (AND
ENGINEERING)

Carlo Vezzoli

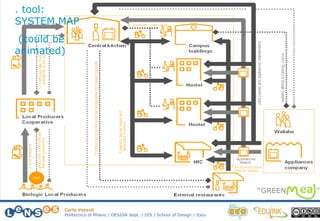

H. SYSTEM MAP (DETAILED). tool:
SYSTEM MAP
(could be
animated)

Carlo Vezzoli

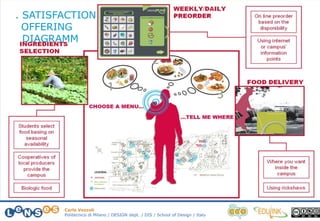

. SATISFACTION
OFFERING
DIAGRAMM

Carlo Vezzoli

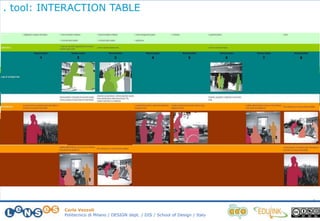

. tool: INTERACTION TABLE

Carlo Vezzoli
environmental, socio-ethical and
economic sustainability check and
visualisation
SYSTEM DESIGN
(AND ENGINEERING)
STRATEGIC ANALYSIS
COMMUNICATION

Carlo Vezzoli
. (up-date) CHECK SYSTEM ENVIRONMENTAL/SUSTAINABILITY
up-date improvemnts
levels definition per aech
criterion: -, =, +, ++
up-date qualitative sustainability
assessment of the concept improvements
(report for each criterion) as compared with
the existing system (checklists)
. tool: SUSTAINABILITY DESIGN-ORIENTING / CHECK CONCEPT
for a
selected
sustainability
dimension

Carlo Vezzoli
. (up-date) VISUALISE SYSTEM ENVIRONMENTAL/SUSTAINABILITY
up-dated visualisation
concept improvement
IMPROVEMENT…
up-date text
synthethising
improvement
(for each
criterion)
for a
selected
sustainability
dimension

Carlo Vezzoli
up-dated visualisation
concept improvement
IMPROVEMENT…
up-date text
synthethising
improvement
(for each
criterion)
. (up-date) VISUALISE SYSTEM SOCIOETHICAL/SUSTAINABILITY
for a
selected
sustainability
dimension

Carlo Vezzoli
. tool: SUSTAINABILITY INTERACTION STORY-SPOT (animated)
