1. © MIRANTIS 2013 PAGE© MIRANTIS 2013
OpenStack -
development
and testing
processes
Ruslan Kamaldinov

2. © MIRANTIS 2013 PAGE
OpenStack community
• More than a hundred commercial entities
• More than a thousand individual contributors
• 700-1000 patch-set per day
• ~250 commits per day

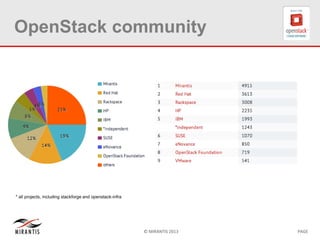

3. © MIRANTIS 2013 PAGE
OpenStack community
* all projects, including stackforge and openstack-infra

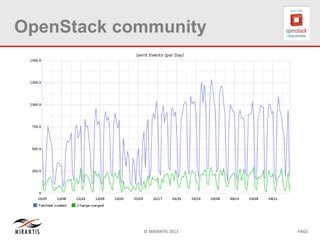

4. © MIRANTIS 2013 PAGE
OpenStack community

5. © MIRANTIS 2013 PAGE
Code review - Gerrit
• Raise bus factor
• Ensure code readability
• Catch bugs
• Everybody gets reviewed (no exceptions)

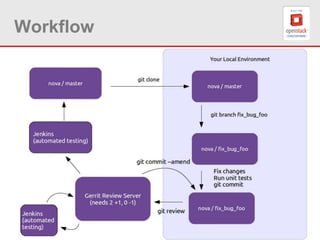

6. © MIRANTIS 2013 PAGE
Workflow

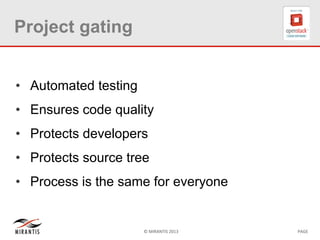

7. © MIRANTIS 2013 PAGE
Project gating
• Automated testing
• Ensures code quality
• Protects developers
• Protects source tree
• Process is the same for everyone

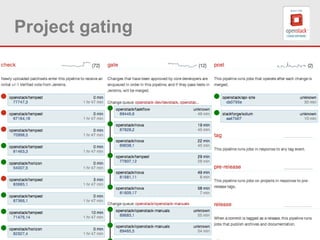

8. © MIRANTIS 2013 PAGE
Project gating

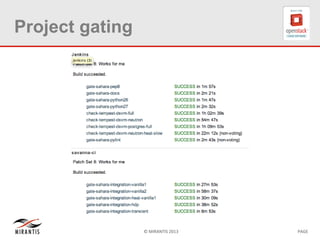

9. © MIRANTIS 2013 PAGE
Project gating

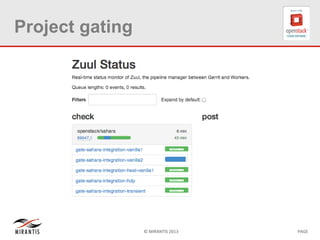

10. © MIRANTIS 2013 PAGE
Project gating

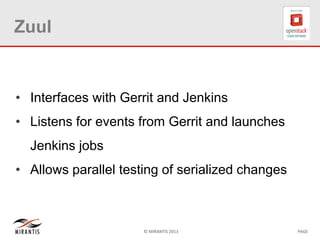

11. © MIRANTIS 2013 PAGE
Zuul
• Interfaces with Gerrit and Jenkins
• Listens for events from Gerrit and launches
Jenkins jobs
• Allows parallel testing of serialized changes

12. © MIRANTIS 2013 PAGE
Zuul
- name: openstack/sahara
template:
- name: python-jobs
- name: check-requirements
- name: integrated-gate-sahara
check:
- gate-sahara-pylint
post:
- hook-sahara-rtfd
- sahara-upstream-translation-update
pre-release:
- sahara-tarball
- hook-sahara-rtfd
release:
- sahara-tarball:
- hook-sahara-rtfd

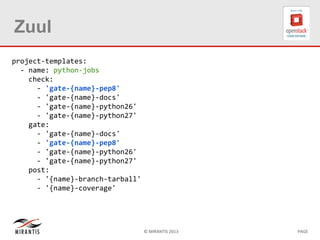

13. © MIRANTIS 2013 PAGE
Zuul
project-templates:
- name: python-jobs
check:
- 'gate-{name}-pep8'
- 'gate-{name}-docs'
- 'gate-{name}-python26'
- 'gate-{name}-python27'
gate:
- 'gate-{name}-docs'
- 'gate-{name}-pep8'
- 'gate-{name}-python26'
- 'gate-{name}-python27'
post:
- '{name}-branch-tarball'
- '{name}-coverage'

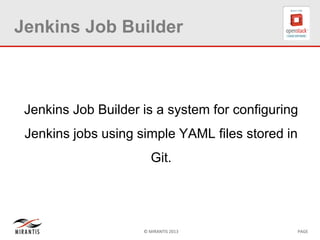

14. © MIRANTIS 2013 PAGE
Jenkins Job Builder
Jenkins Job Builder is a system for configuring
Jenkins jobs using simple YAML files stored in
Git.

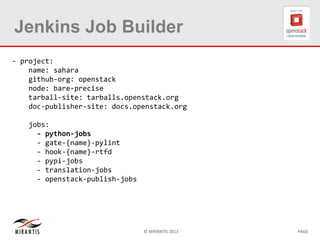

15. © MIRANTIS 2013 PAGE
Jenkins Job Builder
- project:
name: sahara
github-org: openstack
node: bare-precise
tarball-site: tarballs.openstack.org
doc-publisher-site: docs.openstack.org
jobs:
- python-jobs
- gate-{name}-pylint
- hook-{name}-rtfd
- pypi-jobs
- translation-jobs
- openstack-publish-jobs

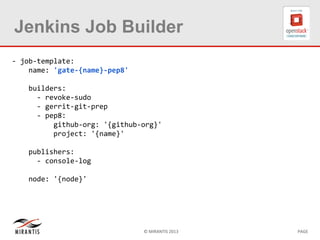

16. © MIRANTIS 2013 PAGE
Jenkins Job Builder
- job-template:
name: 'gate-{name}-pep8'
builders:
- revoke-sudo
- gerrit-git-prep
- pep8:
github-org: '{github-org}'
project: '{name}'
publishers:
- console-log
node: '{node}'

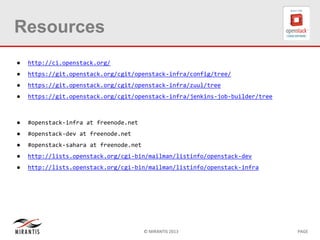

17. © MIRANTIS 2013 PAGE
Resources
● http://ci.openstack.org/
● https://git.openstack.org/cgit/openstack-infra/config/tree/
● https://git.openstack.org/cgit/openstack-infra/zuul/tree
● https://git.openstack.org/cgit/openstack-infra/jenkins-job-builder/tree
● #openstack-infra at freenode.net
● #openstack-dev at freenode.net
● #openstack-sahara at freenode.net
● http://lists.openstack.org/cgi-bin/mailman/listinfo/openstack-dev
● http://lists.openstack.org/cgi-bin/mailman/listinfo/openstack-infra

18. © MIRANTIS 2013 PAGE
Q&A
