The extraction and processing of iron ore involves a multi-staged process that begins with raw extraction and ends with delivering the completed product. Key stages include screening to improve crusher efficiency, crushing and stacking to minimize downtime, grinding, and gravity separation for material concentration. Understanding these phases is crucial for all participants in the iron ore industry, from miners to steel manufacturers.

1. Efficiency Of Screening And Steps
Involved In Processing Iron Ore

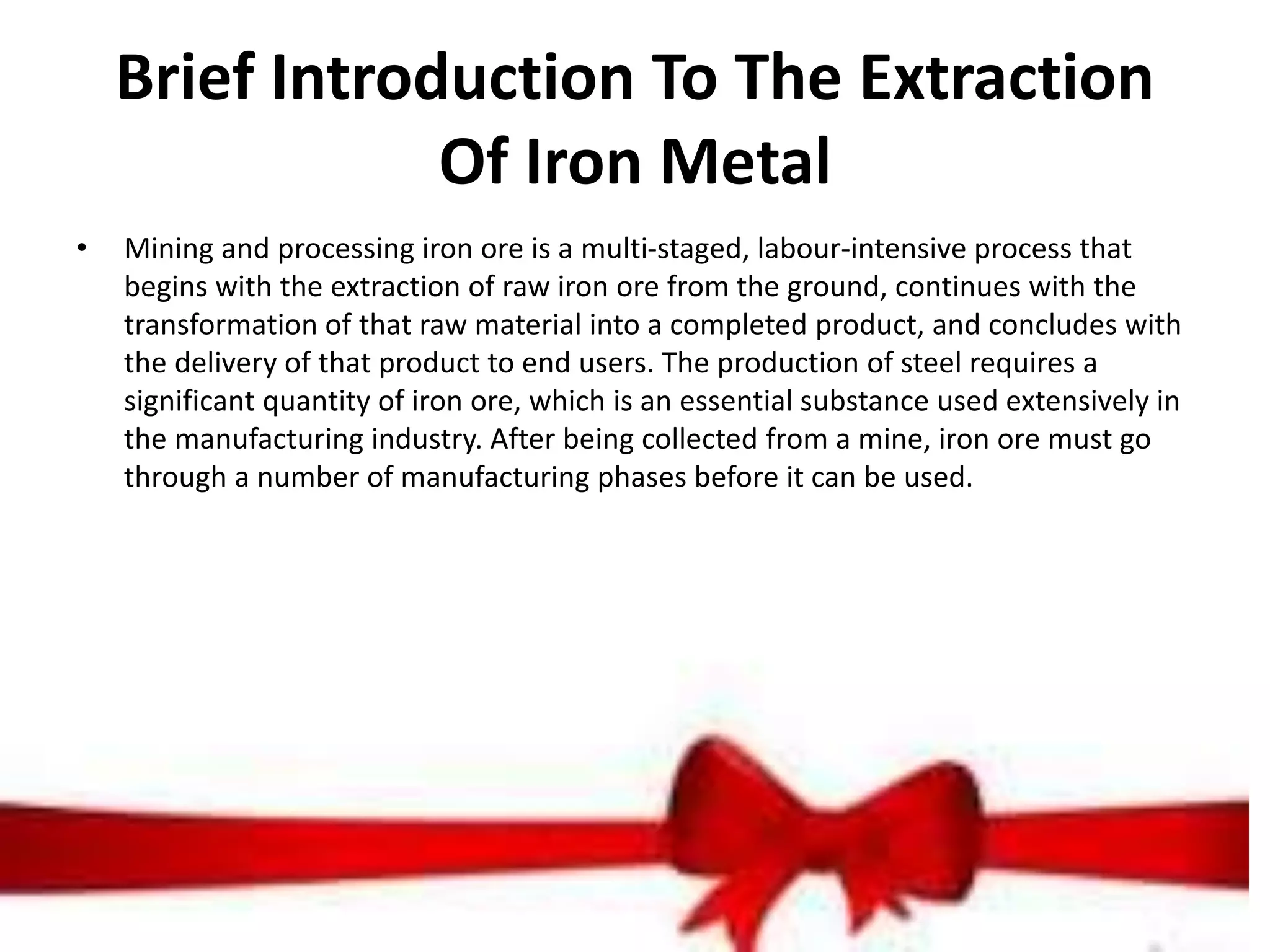

2. Brief Introduction To The Extraction
Of Iron Metal
• Mining and processing iron ore is a multi-staged, labour-intensive process that
begins with the extraction of raw iron ore from the ground, continues with the
transformation of that raw material into a completed product, and concludes with
the delivery of that product to end users. The production of steel requires a
significant quantity of iron ore, which is an essential substance used extensively in
the manufacturing industry. After being collected from a mine, iron ore must go
through a number of manufacturing phases before it can be used.

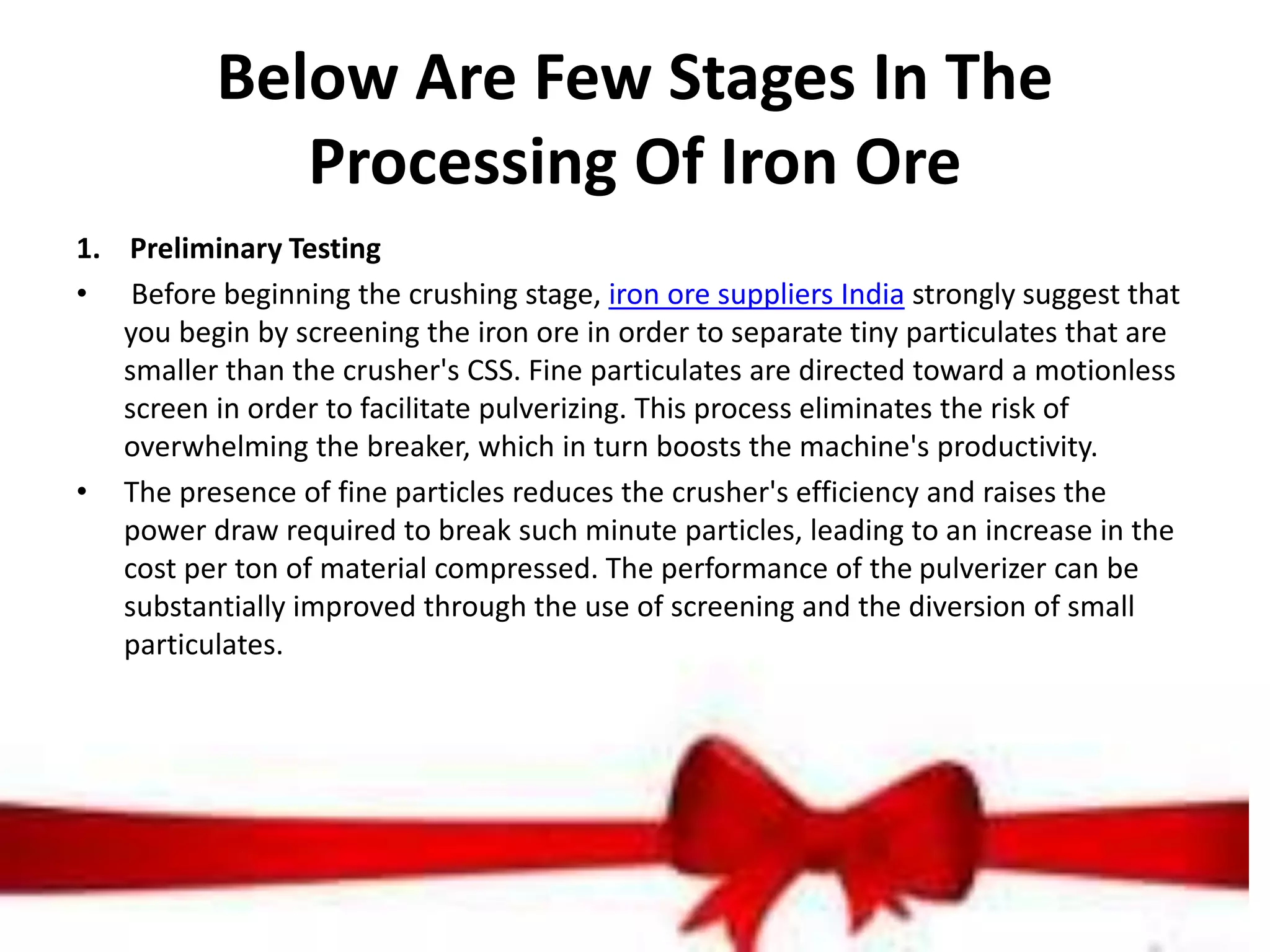

3. Below Are Few Stages In The
Processing Of Iron Ore
1. Preliminary Testing
• Before beginning the crushing stage, iron ore suppliers India strongly suggest that
you begin by screening the iron ore in order to separate tiny particulates that are
smaller than the crusher's CSS. Fine particulates are directed toward a motionless
screen in order to facilitate pulverizing. This process eliminates the risk of
overwhelming the breaker, which in turn boosts the machine's productivity.
• The presence of fine particles reduces the crusher's efficiency and raises the
power draw required to break such minute particles, leading to an increase in the
cost per ton of material compressed. The performance of the pulverizer can be
substantially improved through the use of screening and the diversion of small
particulates.

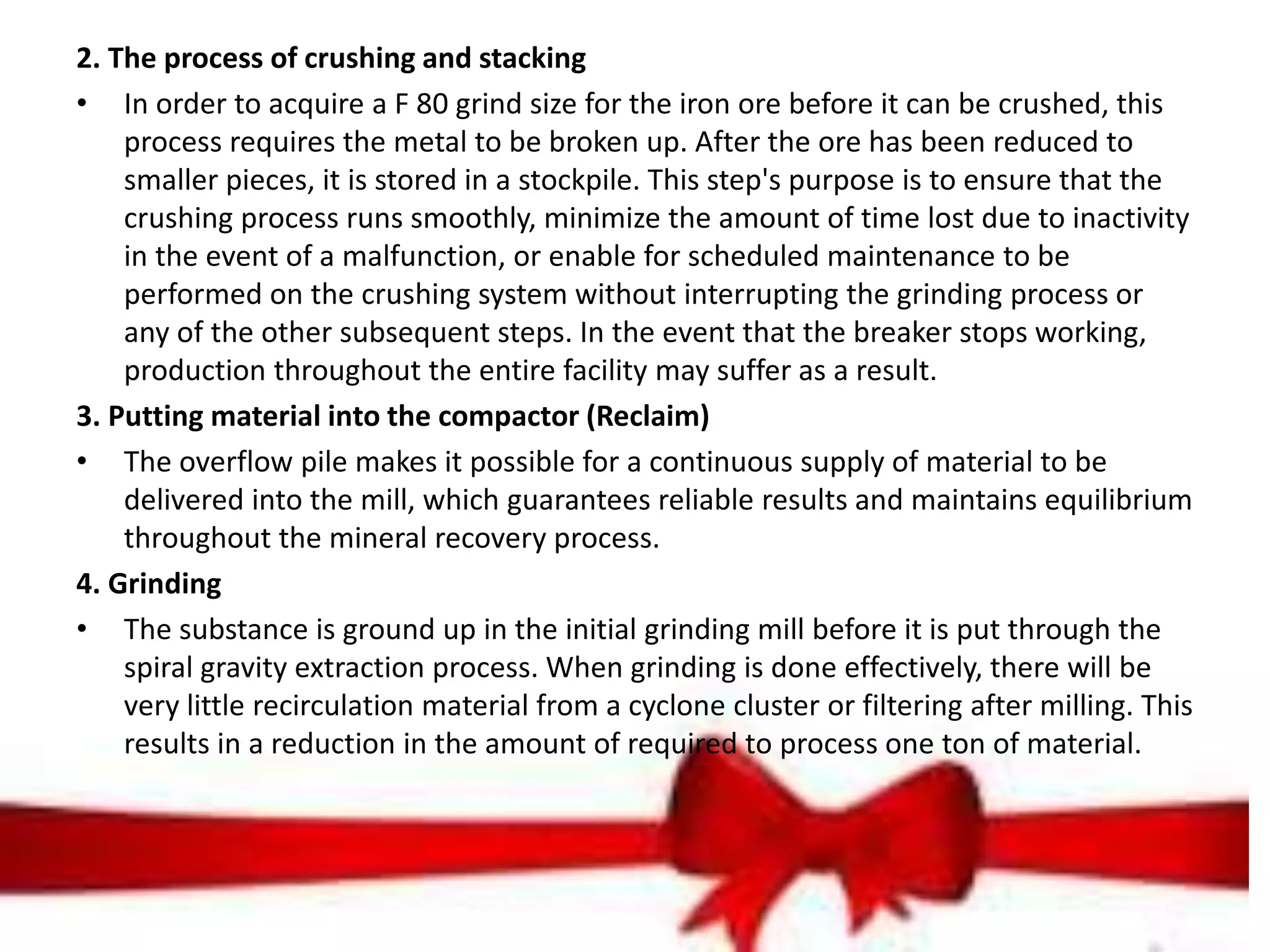

4. 2. The process of crushing and stacking
• In order to acquire a F 80 grind size for the iron ore before it can be crushed, this
process requires the metal to be broken up. After the ore has been reduced to
smaller pieces, it is stored in a stockpile. This step's purpose is to ensure that the
crushing process runs smoothly, minimize the amount of time lost due to inactivity
in the event of a malfunction, or enable for scheduled maintenance to be
performed on the crushing system without interrupting the grinding process or
any of the other subsequent steps. In the event that the breaker stops working,
production throughout the entire facility may suffer as a result.
3. Putting material into the compactor (Reclaim)
• The overflow pile makes it possible for a continuous supply of material to be
delivered into the mill, which guarantees reliable results and maintains equilibrium
throughout the mineral recovery process.
4. Grinding
• The substance is ground up in the initial grinding mill before it is put through the
spiral gravity extraction process. When grinding is done effectively, there will be
very little recirculation material from a cyclone cluster or filtering after milling. This
results in a reduction in the amount of required to process one ton of material.

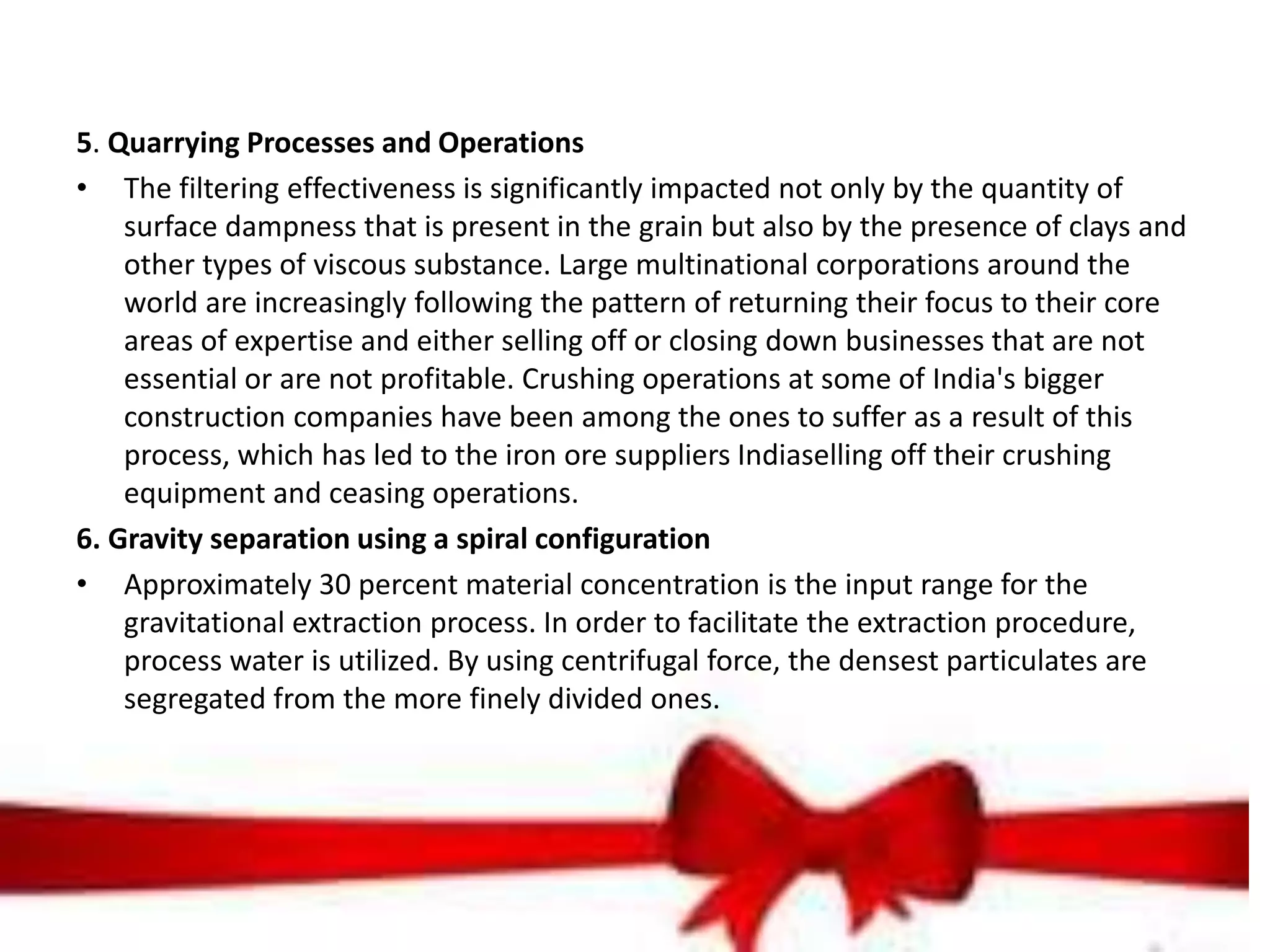

5. 5. Quarrying Processes and Operations
• The filtering effectiveness is significantly impacted not only by the quantity of
surface dampness that is present in the grain but also by the presence of clays and
other types of viscous substance. Large multinational corporations around the
world are increasingly following the pattern of returning their focus to their core
areas of expertise and either selling off or closing down businesses that are not
essential or are not profitable. Crushing operations at some of India's bigger
construction companies have been among the ones to suffer as a result of this
process, which has led to the iron ore suppliers Indiaselling off their crushing
equipment and ceasing operations.
6. Gravity separation using a spiral configuration
• Approximately 30 percent material concentration is the input range for the
gravitational extraction process. In order to facilitate the extraction procedure,
process water is utilized. By using centrifugal force, the densest particulates are
segregated from the more finely divided ones.

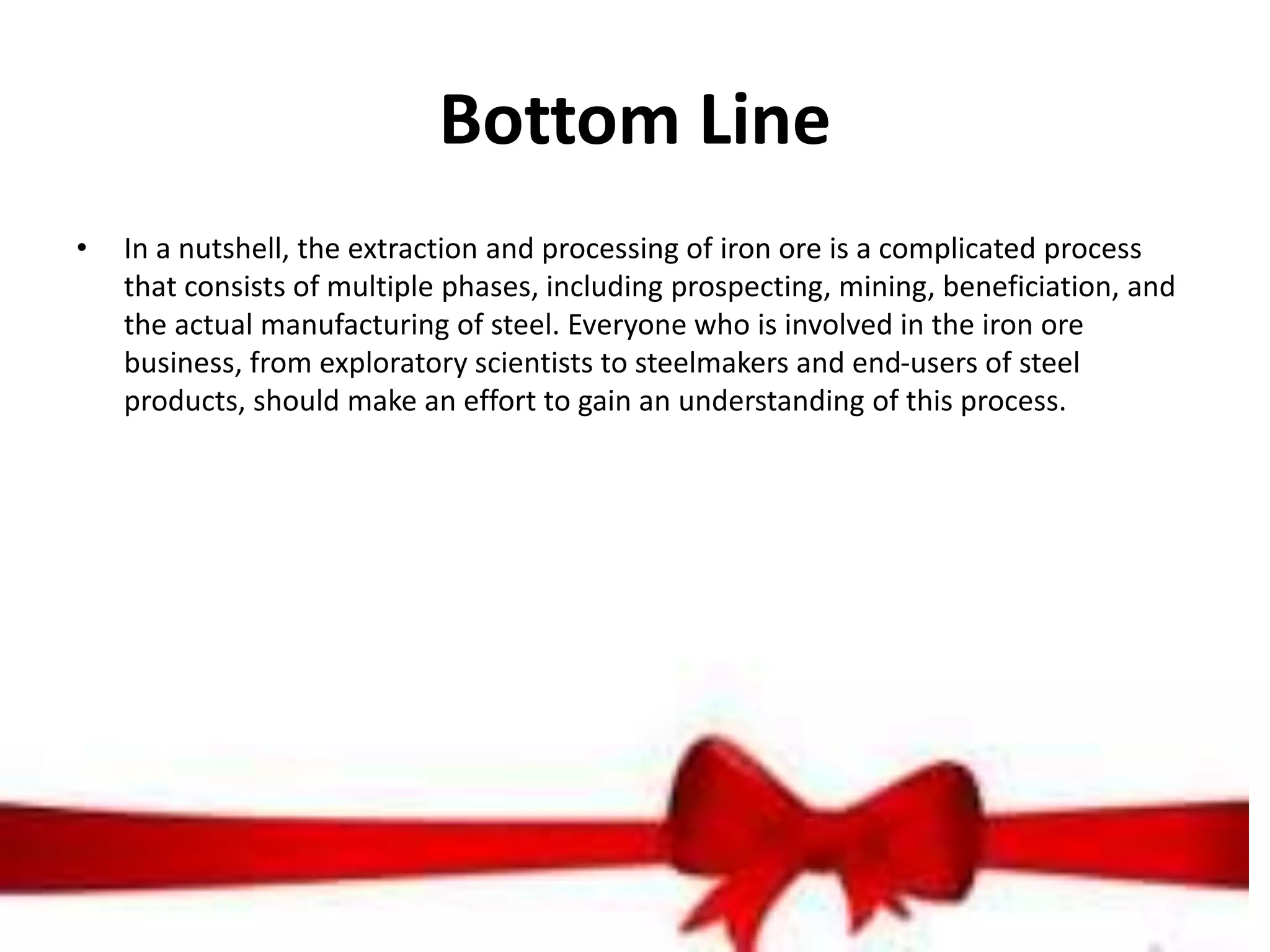

6. Bottom Line
• In a nutshell, the extraction and processing of iron ore is a complicated process
that consists of multiple phases, including prospecting, mining, beneficiation, and
the actual manufacturing of steel. Everyone who is involved in the iron ore
business, from exploratory scientists to steelmakers and end-users of steel
products, should make an effort to gain an understanding of this process.

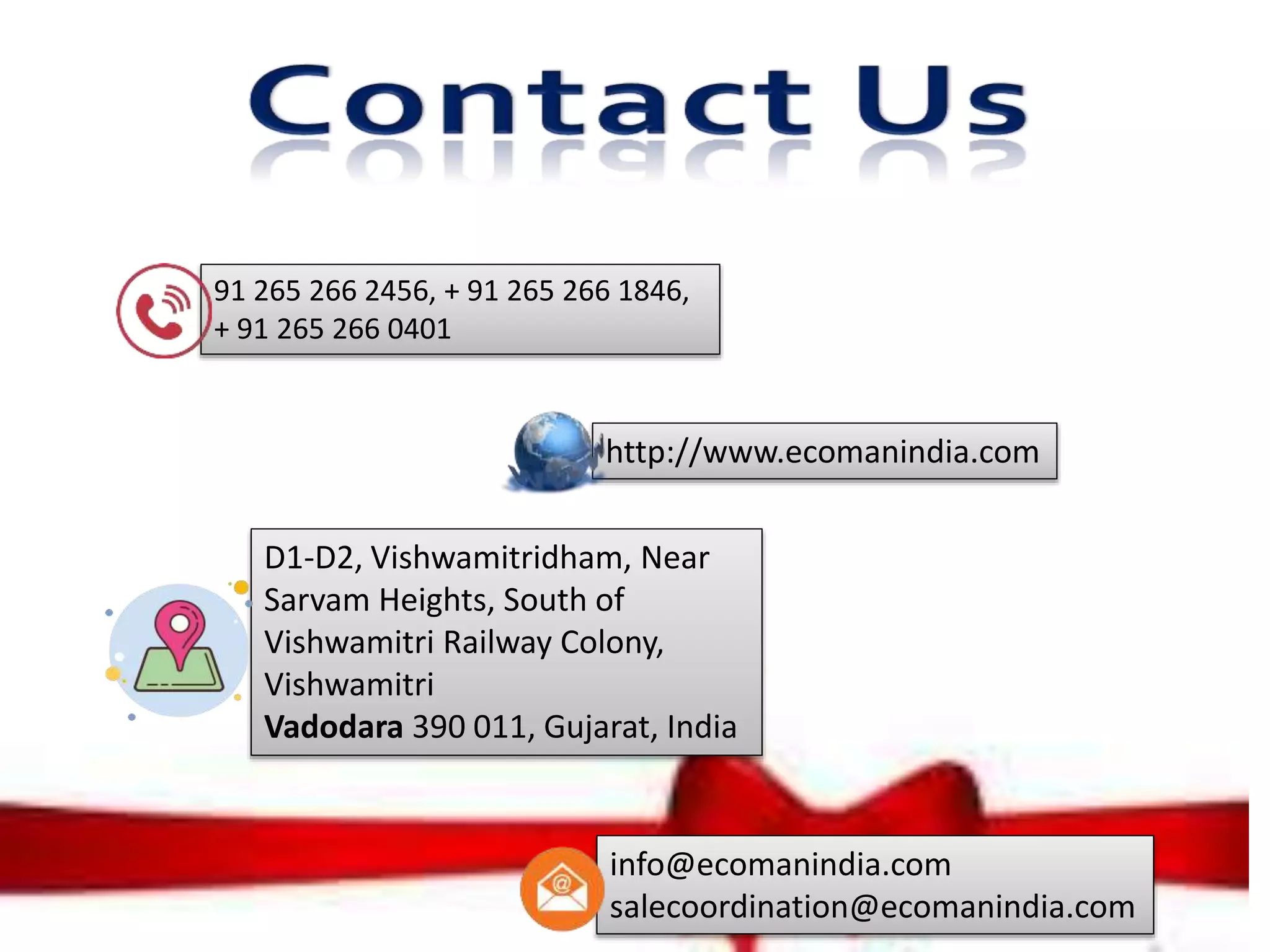

7. http://www.ecomanindia.com
