1. Rack Server Configuration guide

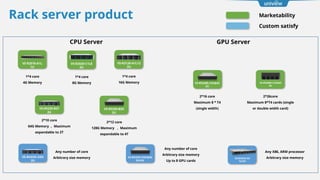

2. GPU Server
CPU Server
VS-R5220-B2T
2U
2*10 core
64G Memory ， Maximum
expandable to 2T
VS-R5320-B2X
2U
2*12 core
128G Memory ， Maximum
expandable to 4T
2*16 core
Maximum 8 * T4
(single width)
VS-R5328S-C2X@AI
2U
2*26core
Maximum 8*T4 cards (single
or double width card)
VS-R5348D-C2V@AI
4U
VS-RXXXX-XXX
2U
Any number of core
Arbitrary size memory
Any number of core
Arbitrary size memory
Up to 8 GPU cards
VS-RXXXX-XXX@AI
2U/4U
Marketability
Custom satisfy
Rack server product
VS-R2010-A1L
1U
1*4 core
4G Memory
Any X86, ARM processor
Arbitrary size memory
VS-RXXXX-XX
1U/2U
VS-R2020-C1L8
2U
1*4 core
8G Memory
VS-R3120-A1L12
2U
1*4 core
16G Memory

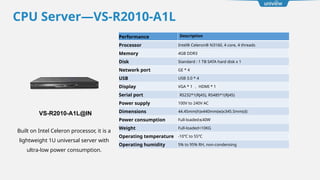

3. CPU Server—VS-R2010-A1L
Performance Description
Processor Intel® Celeron® N3160, 4 core, 4 threads
Memory 4GB DDR3
Disk Standard : 1 TB SATA hard disk x 1
Network port GE * 4
USB USB 3.0 * 4
Display VGA * 1 ， HDMI * 1
Serial port RS232*1(RJ45), RS485*1(RJ45)
Power supply 100V to 240V AC
Dimensions 44.45mm(h)x440mm(w)x345.5mm(d)
Power consumption Full-loaded 40W
≤
Weight Full-loaded<10KG
Operating temperature -10℃ to 55℃
Operating humidity 5% to 95% RH, non-condensing
VS-R2010-A1L@IN
Built on Intel Celeron processor, it is a
lightweight 1U universal server with
ultra-low power consumption.

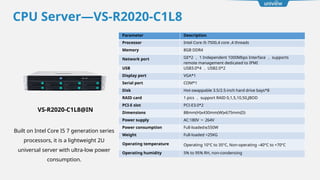

4. CPU Server—VS-R2020-C1L8
Parameter Description
Processor Intel Core i5-7500,4 core ,4 threads
Memory 8GB DDR4
Network port GE*2 ， 1 Independent 1000Mbps Interface ， supports
remote management dedicated to IPMI
USB USB3.0*4 ， USB2.0*2
Display port VGA*1
Serial port COM*1
Disk Hot-swappable 3.5/2.5-inch hard drive bays*8
RAID card 1 pics ， support RAID 0,1,5,10,50,JBOD
PCI-E slot PCI-E3.0*2
Dimensions 88mm(H)x430mm(W)x675mm(D)
Power supply AC:180V ～ 264V
Power consumption Full-loaded 550W
≤
Weight Full-loaded <25KG
Operating temperature Operating 10°C to 35°C, Non-operating –40°C to +70°C
Operating humidity 5% to 95% RH, non-condensing
VS-R2020-C1L8@IN
Built on Intel Core I5 7 generation series
processors, it is a lightweight 2U
universal server with ultra-low power
consumption.

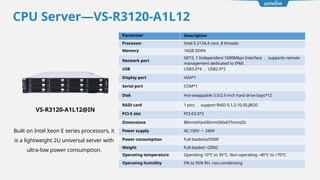

5. Parameter Description
Processor Intel E-2134,4 core ,8 threads
Memory 16GB DDR4
Network port
GE*2, 1 Independent 1000Mbps Interface ， supports remote
management dedicated to IPMI
USB USB3.0*4 ， USB2.0*2
Display port VGA*1
Serial port COM*1
Disk Hot-swappable 3.5/2.5-inch hard drive bays*12
RAID card 1 pics ， support RAID 0,1,5,10,50,JBOD
PCI-E slot PCI-E3.0*2
Dimensions 88mm(H)x430mm(W)x675mm(D)
Power supply AC:100V ～ 240V
Power consumption Full-loaded 550W
≤
Weight Full-loaded <25KG
Operating temperature Operating 10°C to 35°C, Non-operating –40°C to +70°C
Operating humidity 5% to 95% RH, non-condensing
CPU Server—VS-R3120-A1L12
Built on Intel Xeon E series processors, it
is a lightweight 2U universal server with
ultra-low power consumption.
VS-R3120-A1L12@IN

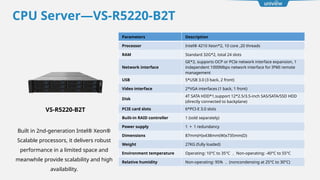

6. Parameters Description
Processor Intel® 4210 Xeon*2, 10 core ,20 threads
RAM Standard 32G*2, total 24 slots
Network interface
GE*2, supports OCP or PCIe network interface expansion, 1
independent 1000Mbps network interface for IPMI remote
management
USB 5*USB 3.0 (3 back, 2 front)
Video interface 2*VGA interfaces (1 back, 1 front)
Disk
4T SATA HDD*1,support 12*2.5/3.5-inch SAS/SATA/SSD HDD
(directly connected to backplane)
PCIE card slots 6*PCI-E 3.0 slots
Built-in RAID controller 1 (sold separately)
Power supply 1 ＋ 1 redundancy
Dimensions 87mm(H)x438mm(W)x735mm(D)
Weight 27KG (fully loaded)
Environment temperature Operating: 10°C to 35°C ， Non-operating: -40°C to 55°C
Relative humidity Non-operating: 95% ， (noncondensing at 25°C to 30°C)
CPU Server—VS-R5220-B2T
VS-R5220-B2T
Built in 2nd-generation Intel® Xeon®
Scalable processors, it delivers robust
performance in a limited space and
meanwhile provide scalability and high
availability.

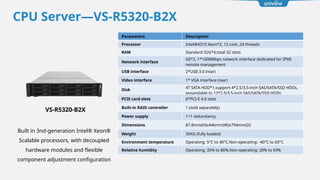

7. CPU Server—VS-R5320-B2X
VS-R5320-B2X
Parameters Description
Processor Intel®4310 Xeon*2, 12 core ,24 threads
RAM Standard 32G*4,total 32 slots
Network interface
GE*2, 1*1000Mbps network interface dedicated for IPMI
remote management
USB interface 2*USB 3.0 (rear)
Video interface 1* VGA interface (rear)
Disk
4T SATA HDD*1,support 4*2.5/3.5-inch SAS/SATA/SSD HDDs,
expandable to 12*2.5/3.5-inch SAS/SATA/SSD HDDs
PCIE card slots 6*PCI-E 4.0 slots
Built-in RAID controller 1 (sold separately)
Power supply 1+1 redundancy
Dimensions 87.8mm(H)x446mm(W)x794mm(D)
Weight 35KG (fully loaded)
Environment temperature Operating: 5°C to 40°C,Non-operating: -40°C to 60°C
Relative humidity Operating: 35% to 80%,Non-operating: 20% to 93%
Built in 3nd-generation Intel® Xeon®
Scalable processors, with decoupled
hardware modules and flexible
component adjustment configuration

8. GPU Server—VS-R5328S-C2X@AI
VS-R5328S-C2X@AI
Parameters Description
Processor Intel®4314 Xeon*2 ， 16 core ,32 threads
RAM Standard 32G*4, total 32 slots
Network interface
10GE*2, 1*1000Mbps network interface dedicated for IPMI
remote management
USB interface 4*USB 3.0 (2 rear, 2 front)
Video interface 2*VGA interfaces (1 rear, 1 front)
Disk
4T SATA HDD*1, 1.92T SATA R SSD*1, support 4*2.5/3.5-inch
SAS/SATA/SSD HDDs, expandable to 12*2.5/3.5-inch
SAS/SATA/SSD HDDs
PCIE card slots 8*PCI-E 4.0 slots
Built-in RAID controller 1 (sold separately)
Graphics card
Supports 8* low profile graphics cards (such as T4 card)
Sold separately
Power supply 1+1 redundancy
Dimensions 87.8mm(H)x446mm(W)x794mm(D)
Weight 38KG (fully loaded)
Environment temperature Operating: 5°C to 35°C,Non-operating: -40°C to 60°C
Relative humidity Operating: 35% to 80%,Non-operating: 20% to 93%
Built in 3nd-generation Intel® Xeon®
Scalable processors, supports a
maximum of 8 T4 cards to provide
services for AI applications

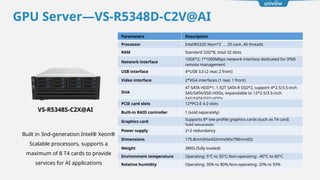

9. GPU Server—VS-R5348D-C2V@AI
VS-R5348S-C2X@AI
Built in 3nd-generation Intel® Xeon®
Scalable processors, supports a
maximum of 8 T4 cards to provide
services for AI applications
Parameters Description
Processor Intel®5320 Xeon*2 ， 20 core ,40 threads
RAM Standard 32G*8, total 32 slots
Network interface
10GE*2, 1*1000Mbps network interface dedicated for IPMI
remote management
USB interface 4*USB 3.0 (2 rear, 2 front)
Video interface 2*VGA interfaces (1 rear, 1 front)
Disk
4T SATA HDD*1, 1.92T SATA R SSD*2, support 4*2.5/3.5-inch
SAS/SATA/SSD HDDs, expandable to 12*2.5/3.5-inch
SAS/SATA/SSD HDDs
PCIE card slots 12*PCI-E 4.0 slots
Built-in RAID controller 1 (sold separately)
Graphics card
Supports 8* low profile graphics cards (such as T4 card)
Sold separately
Power supply 2+2 redundancy
Dimensions 175.8mm(H)x432mm(W)x798mm(D)
Weight 38KG (fully loaded)
Environment temperature Operating: 5°C to 35°C,Non-operating: -40°C to 60°C
Relative humidity Operating: 35% to 80%,Non-operating: 20% to 93%
