The VS-201YC is a high quality 2x1 s-video switcher that switches between two s-video input signals and sends the selected signal to a single output. It has high bandwidth of 520MHz, switching via front panel buttons or RS-232 control, and can be rack mounted with an optional adapter.

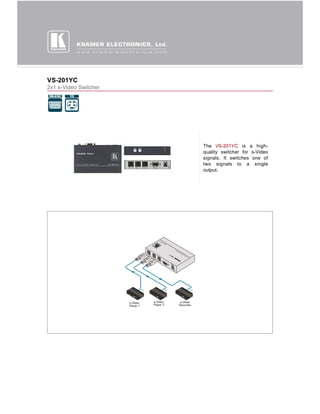

1. VS-201YC
2x1 s-Video Switcher
The VS-201YC is a high-
quality switcher for s-Video
signals. It switches one of
two signals to a single
output.

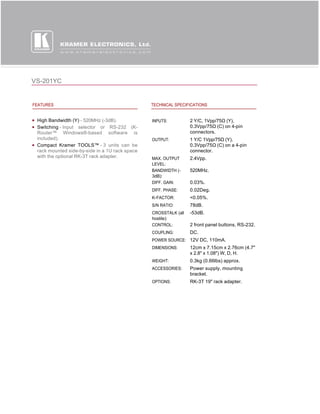

2. VS-201YC
FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth (Y) - 520MHz (-3dB). INPUTS: 2 Y/C, 1Vpp/75Ω (Y),
Switching - Input selector or RS-232 (K- 0.3Vpp/75Ω (C) on 4-pin
Router™ Windows®-based software is connectors.
included). OUTPUT: 1 Y/C 1Vpp/75Ω (Y),
Compact Kramer TOOLS™ - 3 units can be 0.3Vpp/75Ω (C) on a 4-pin
rack mounted side-by-side in a 1U rack space connector.
with the optional RK-3T rack adapter. MAX. OUTPUT 2.4Vpp.
LEVEL:
BANDWIDTH (- 520MHz.
3dB):
DIFF. GAIN: 0.03%.
DIFF. PHASE: 0.02Deg.
K-FACTOR: <0.05%.
S/N RATIO: 78dB.
CROSSTALK (all -53dB.
hostile):
CONTROL: 2 front panel buttons, RS-232.
COUPLING: DC.
POWER SOURCE: 12V DC, 110mA.
DIMENSIONS: 12cm x 7.15cm x 2.76cm (4.7"
x 2.8" x 1.08") W, D, H.
WEIGHT: 0.3kg (0.66lbs) approx.
ACCESSORIES: Power supply, mounting
bracket.
OPTIONS: RK-3T 19" rack adapter.
