The document outlines various case studies involving 3-D printed conceptual site models to represent geological and environmental conditions at different sites. Case studies include models for the EPA Region 4 NAPL and geology, distribution of zero-valent iron in clay till, and the 68th Street Landfill Superfund site. These models help visualize complex data in a tangible format, aiding in site assessment and management.

1. 3-D Printed Conceptual Site Model
Case Studies
Contact Chapman Ross for more information:
cross@geosyntec.com
978-206-5779

2. Case Study #1
EPA Region 4 NAPL and Geology Model
3-D Printed Conceptual Site Models
Virtual 3-D Model
3-D Printed
Desktop Model

3. 3-D Printed Desktop Scale Model
Front View Showing Geology and NAPL

4. 3-D Printed Desktop Scale Model
Front View Showing Geology – Large NAPL Removed

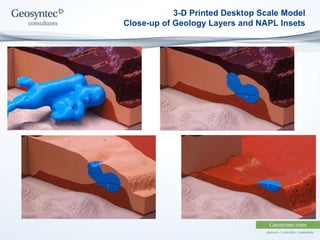

5. 3-D Printed Desktop Scale Model
Close-up of Geology Layers and NAPL Insets

6. Case Study #2
Distribution of ZVI in Clay Till
3-D Printed Conceptual Site Models
Virtual 3-D Model
(created in EVS) 3-D Printed Model

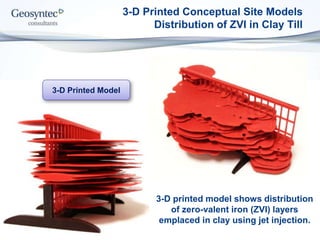

7. 3-D Printed Conceptual Site Models
Distribution of ZVI in Clay Till
3-D Printed Model
3-D printed model shows distribution
of zero-valent iron (ZVI) layers
emplaced in clay using jet injection.

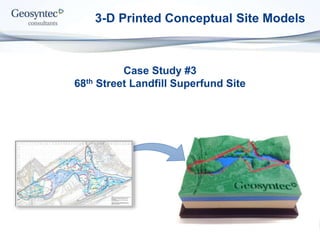

8. Case Study #3
68th Street Landfill Superfund Site
3-D Printed Conceptual Site Models

9. 3-D Printed Conceptual Site Models
68th Street Landfill Superfund Site
Bottom Layer:
Clay Aquitard
Middle Layer:
Water Table w/ Site
Boundary
Top Layer:
Ground Surface w/
Site Boundary

10. Case Study #4
Landfill Scale Model
3-D Printed Conceptual Site Models
3-D Surface (AutoCAD) 3-D Printed Scale Model

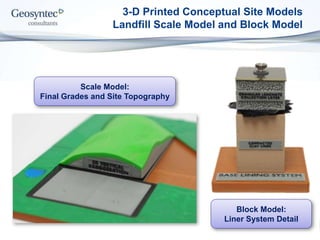

11. 3-D Printed Conceptual Site Models
Landfill Scale Model and Block Model
Block Model:
Liner System Detail
Scale Model:
Final Grades and Site Topography
