This document provides a quotation for a 3 axle 40 foot container semi-trailer from ChengLi Special Automobile Co. It includes specifications for the trailer such as a loading capacity of 40-60 tons, 3 axles, 12 tires, dimensions of 12400mm x 2480 x 1510mm, and a tare weight of 6.1 tons. Commercial terms include a unit price of $11,857 FOB Shanghai port and $12,857 CIF port, with payment by T/T of 30% deposit and balance before delivery within 40 days.

1. 程 力 专 用 汽 车 股 份 有 限 公 司
ChengLi special Automobile Co.,Ltd (Manufacturer )
Address: South Suburb Cheng Li Automobile Industry Park,,Suizhou City, HuBei province, China.
Quotation

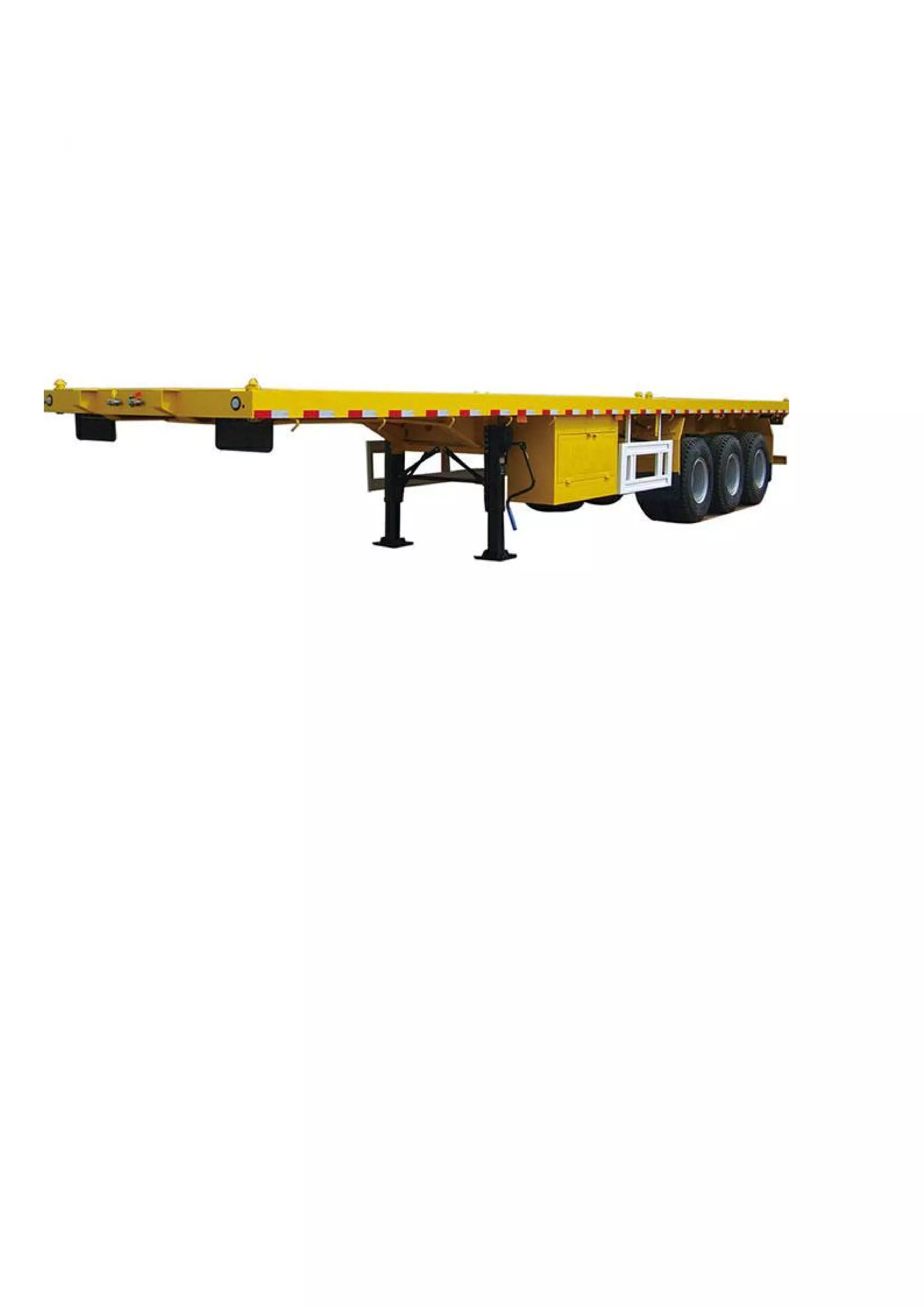

3 axle 40 feet Container semi-trailer
PART I: Technical Specification：
Items
40ft Flatbed semi trailer
QUEST - L50
Loading Capacity 40-60 tons
Axle 3 pieces, 13T FUWA/BPW axle
Tyre 12 pieces, 12R22.5
Dimensions(LxWxH) 12400mm x 2480 x 1510mm
Tare weight 6.1tons

2. Axle spacing 1310mm
Rims 9.0-22.5
Suspension System Leaf spring suspension / air suspension
Brake System Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam Height 500mm Q345 carbon steel
Chassis upper 8mm, lower 10mm. Mid web 6mm
Twist locks 12 units,THT brand
Kingpin 2’ or 3.5’ interchangeable,JOST brand
Landing Gear 28 Tons , Two speed manual operation
Electrical System 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number
plate light
Painting
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat.
Total DFT not less than 100μm;Any color will be available
Tool Box One tool box with a set of standard trailer tools
Spare Tyre Carrier One piece or two pieces
PART II: Commercial term
ITEM DESCRIPTION QTY
(unit)
UNIT PRICE
FOB Shanghai port
(USD)
UNIT PRICE
CIF port
3 axle Skeleton
semi-trailer
Same as above
specification 1unit USD 11857.00 USD
Valid time 20 days
Shipment: /
Packing Nude
Delivery time 40 DAYS SINCE RECEIVING YOUR PAYMENT
Pament term By T/T, 30% DEPOSIT, BALANCE BEFORE THE DELIVERY FROM
FACTORY.
PART IlI: introduction of Skeleton semi-trailer

7. PART IV: About our company

11. Website：https://www.wltrucks.com/
