The LA2000-MEC is a fingerprint reader that can store 8000 templates and 200,000 transactions. It uses multi-spectral fingerprint sensing and 1-second employee recognition. It has communication options like Ethernet, WiFi, USB, and Wiegand protocols. The reader has a graphic LCD, audio/visual feedback, and can operate independently or connect to access control systems.

1. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 1

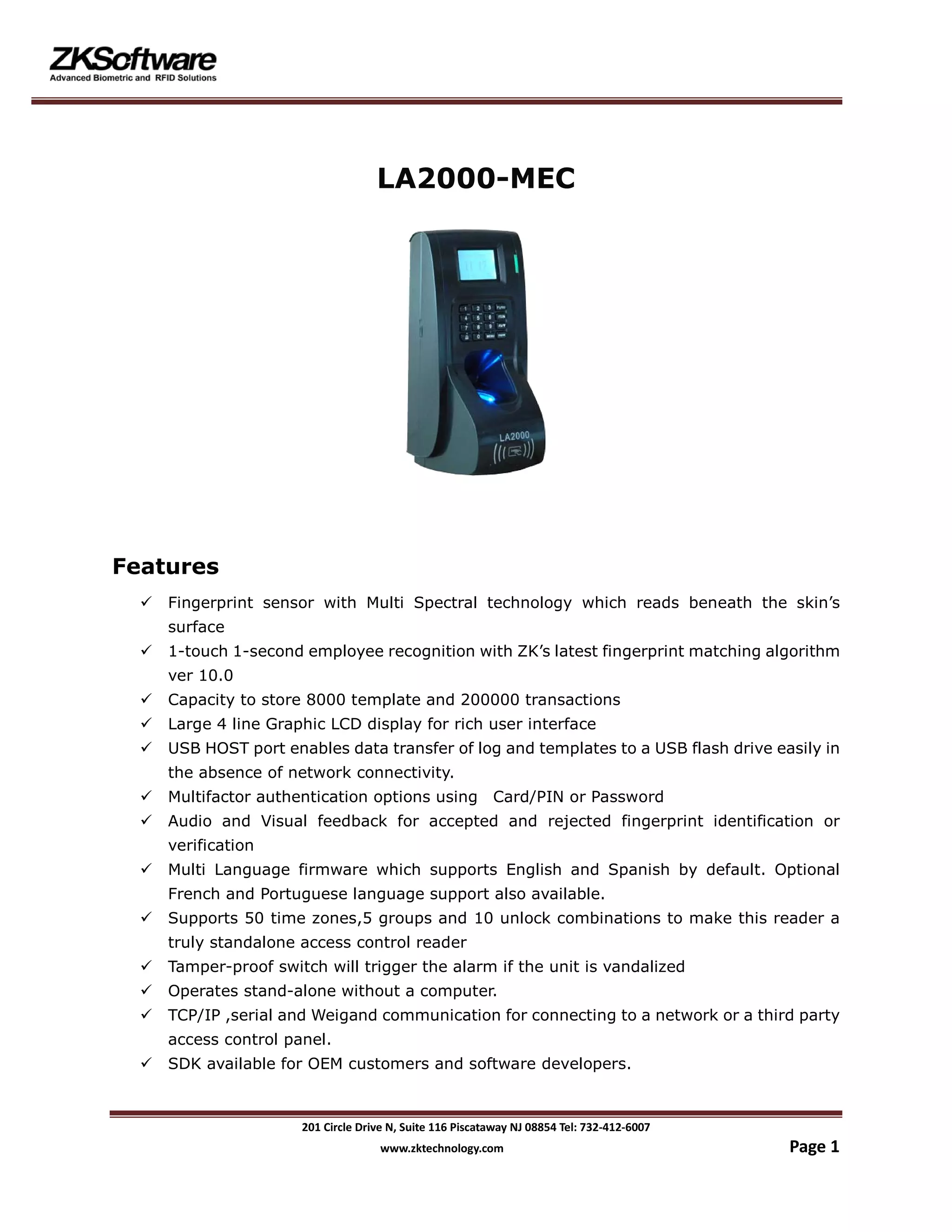

LA2000-MEC
Features
 Fingerprint sensor with Multi Spectral technology which reads beneath the skin’s
surface
 1-touch 1-second employee recognition with ZK’s latest fingerprint matching algorithm
ver 10.0
 Capacity to store 8000 template and 200000 transactions
 Large 4 line Graphic LCD display for rich user interface
 USB HOST port enables data transfer of log and templates to a USB flash drive easily in
the absence of network connectivity.
 Multifactor authentication options using Card/PIN or Password
 Audio and Visual feedback for accepted and rejected fingerprint identification or
verification
 Multi Language firmware which supports English and Spanish by default. Optional
French and Portuguese language support also available.
 Supports 50 time zones,5 groups and 10 unlock combinations to make this reader a
truly standalone access control reader
 Tamper-proof switch will trigger the alarm if the unit is vandalized
 Operates stand-alone without a computer.
 TCP/IP ,serial and Weigand communication for connecting to a network or a third party
access control panel.
 SDK available for OEM customers and software developers.

2. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 2

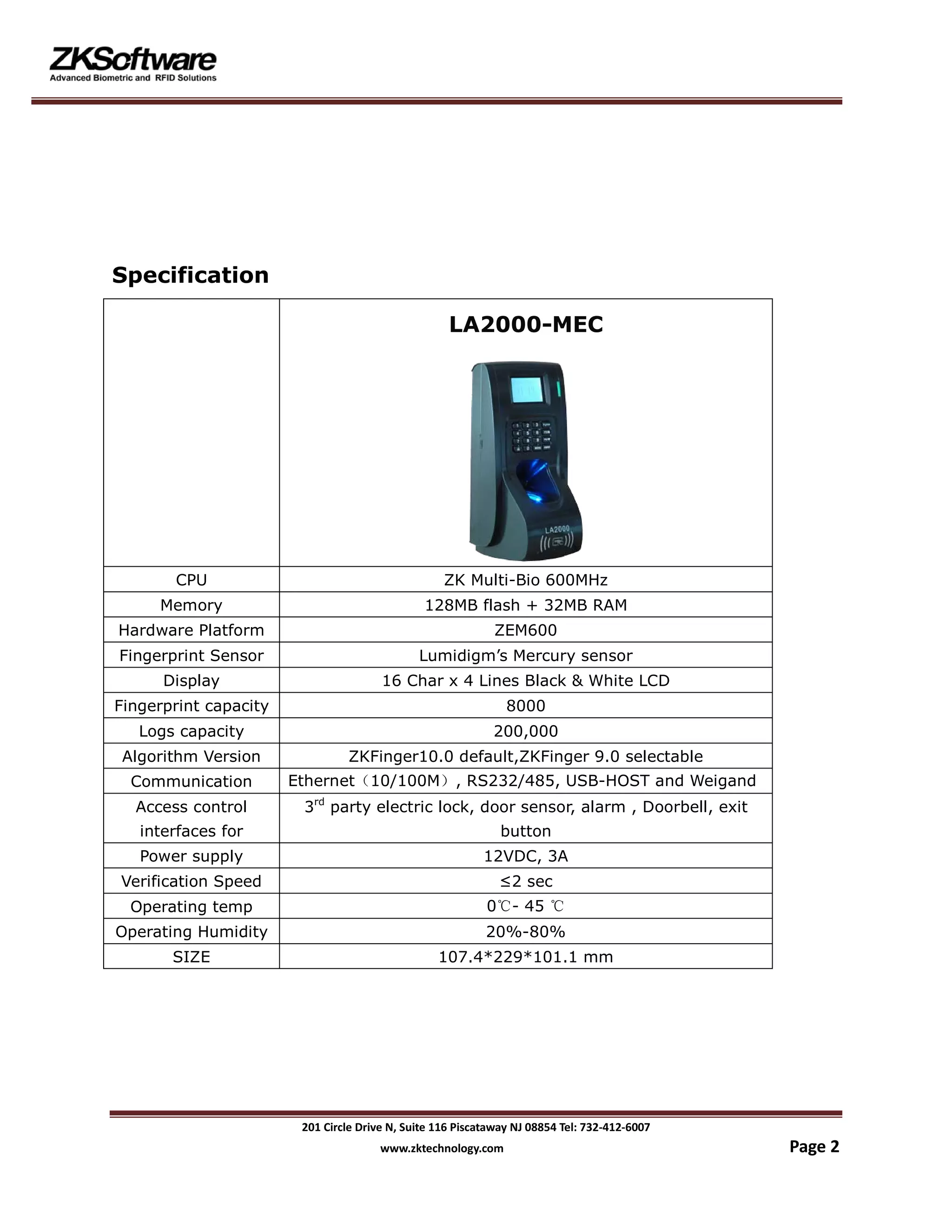

Specification
LA2000-MEC
CPU ZK Multi-Bio 600MHz
Memory 128MB flash + 32MB RAM
Hardware Platform ZEM600
Fingerprint Sensor Lumidigm’s Mercury sensor
Display 16 Char x 4 Lines Black & White LCD
Fingerprint capacity 8000
Logs capacity 200,000
Algorithm Version ZKFinger10.0 default,ZKFinger 9.0 selectable
Communication Ethernet（10/100M）, RS232/485, USB-HOST and Weigand
Access control
interfaces for
3rd
party electric lock, door sensor, alarm , Doorbell, exit
button
Power supply 12VDC, 3A
Verification Speed ≤2 sec
Operating temp 0℃- 45 ℃
Operating Humidity 20%-80%
SIZE 107.4*229*101.1 mm

3. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 3

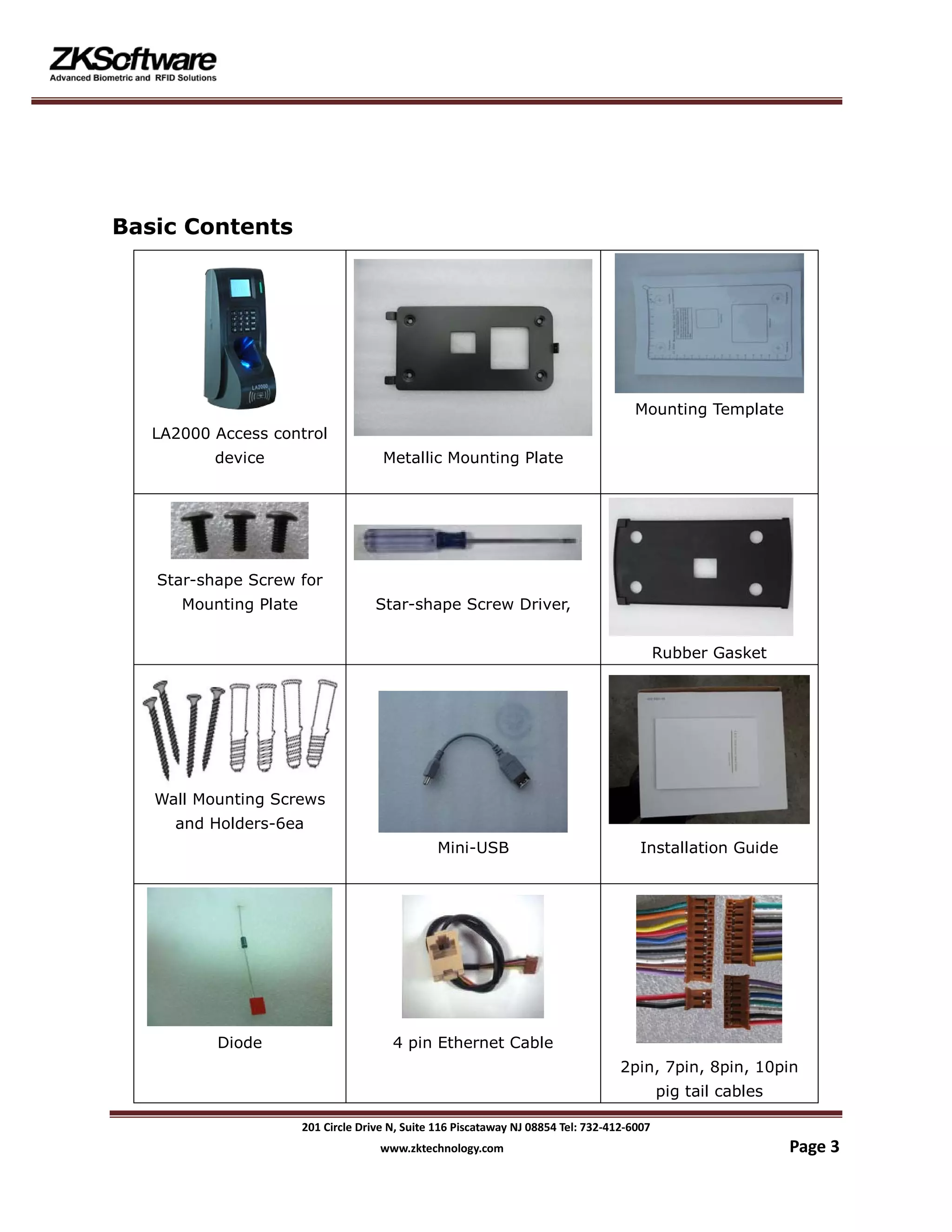

Basic Contents
LA2000 Access control
device Metallic Mounting Plate
Mounting Template
Star-shape Screw for
Mounting Plate Star-shape Screw Driver,
Rubber Gasket
Wall Mounting Screws
and Holders-6ea
Mini-USB Installation Guide
Diode 4 pin Ethernet Cable
2pin, 7pin, 8pin, 10pin
pig tail cables

4. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 4

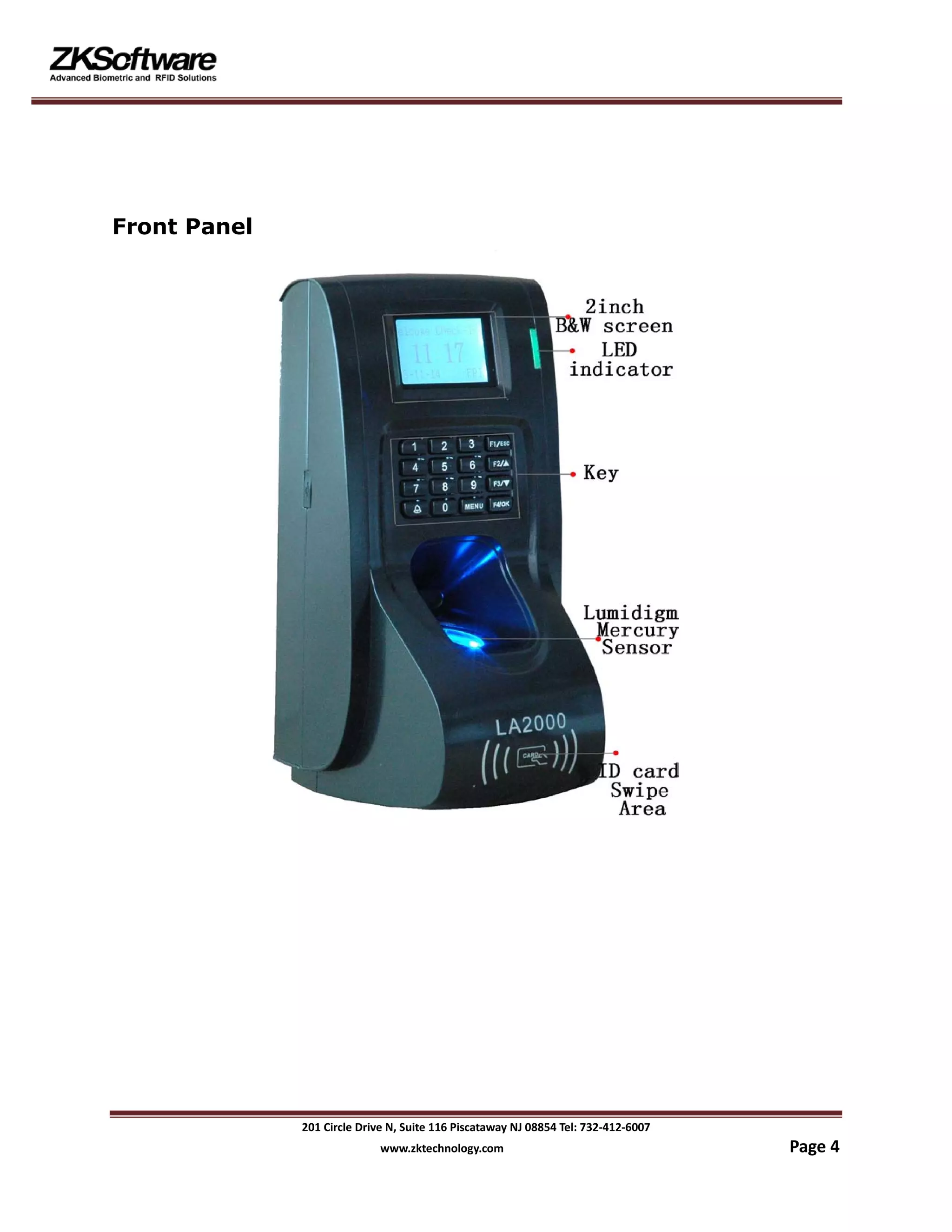

Front Panel

5. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 5

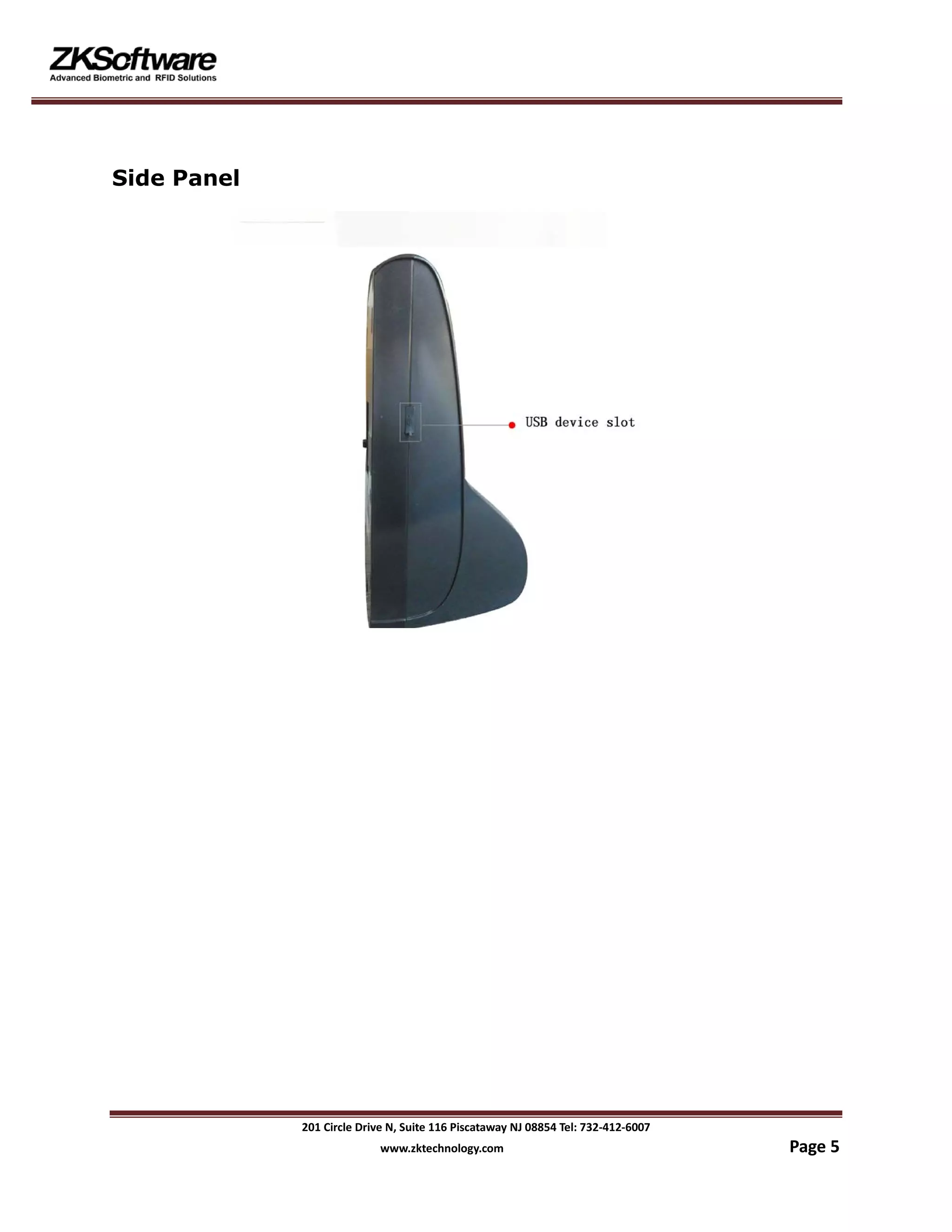

Side Panel

6. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 6

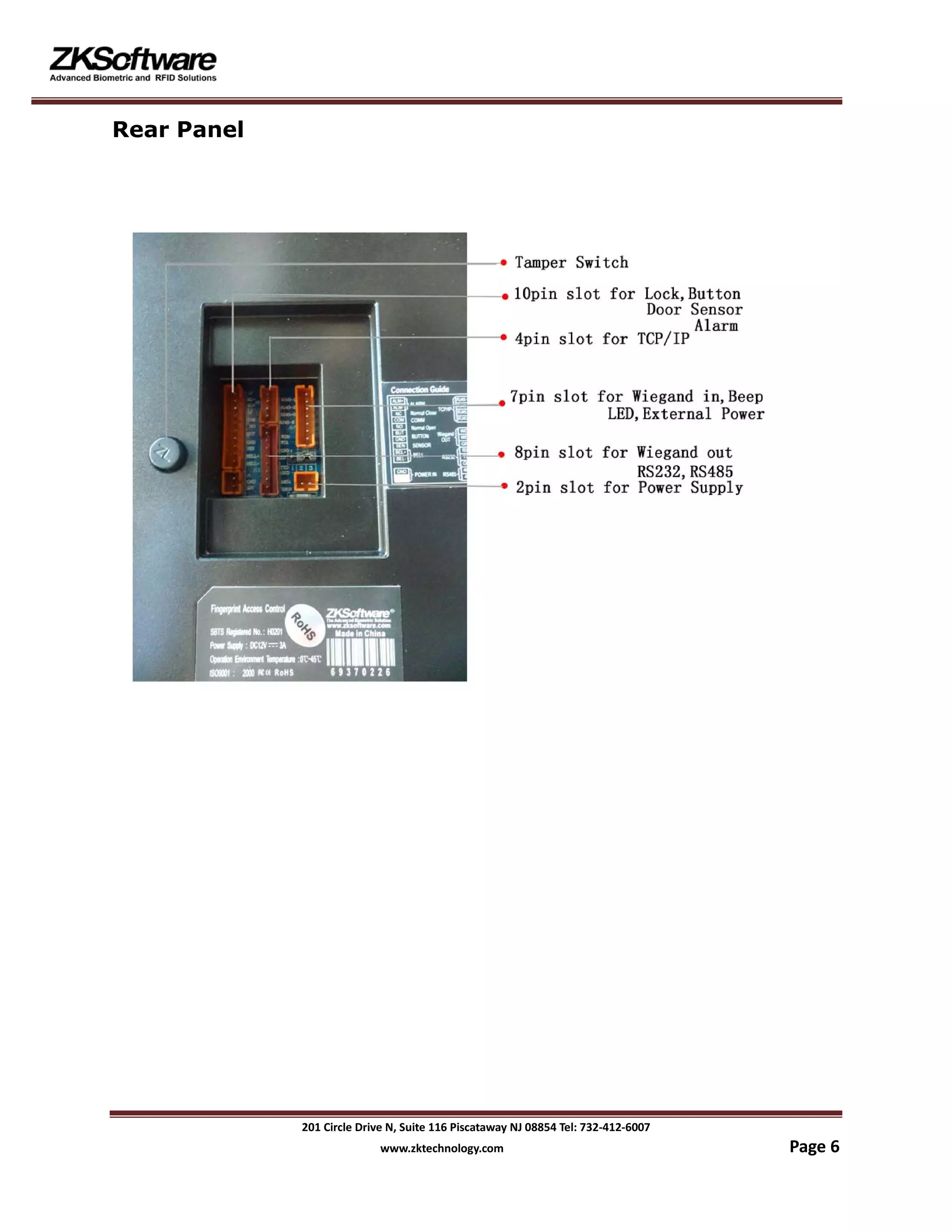

Rear Panel

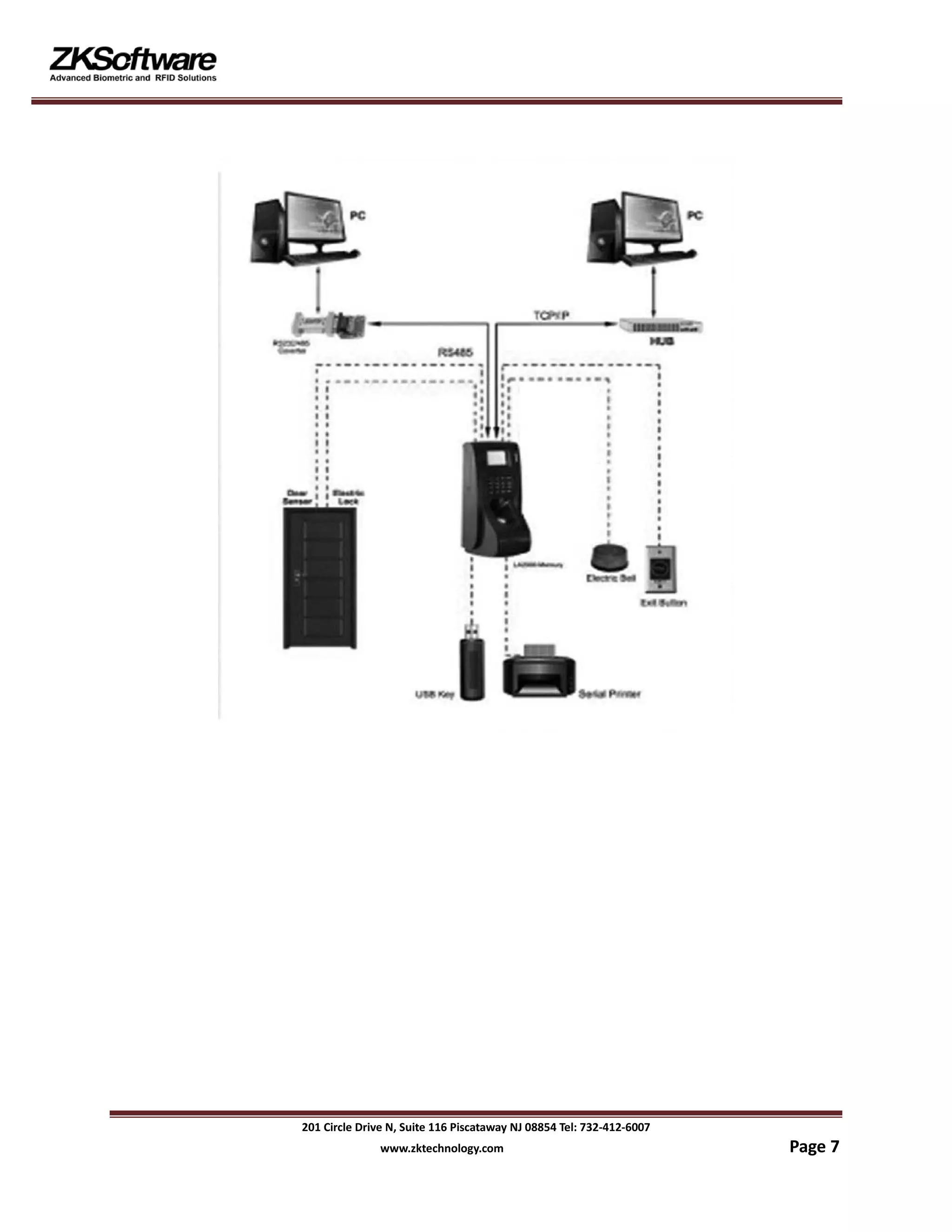

Installation Example

7. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 7

8. 201 Circle Drive N, Suite 116 Piscataway NJ 08854 Tel: 732-412-6007
www.zktechnology.com Page 8

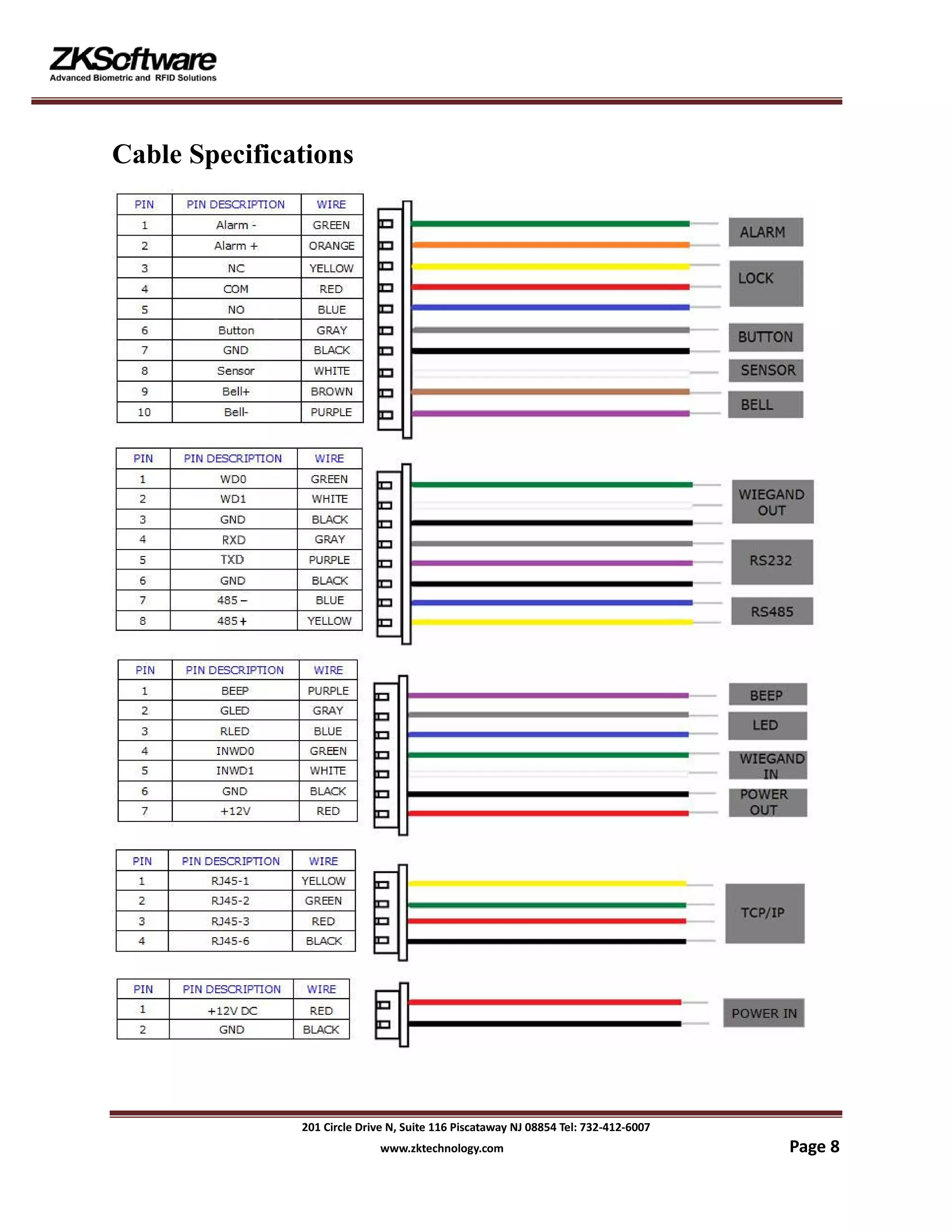

Cable Specifications
