1. Step Change in CTV Design for
Next Generation Offshore Wind
East England Energy Group
Energy Innovation Awards
July 2nd, 2014
TranSPAR Craft

2. Round 1
Scottish
Territorial
1 GW
5 GW
Round 2
8 GW
Round 3
33 GW

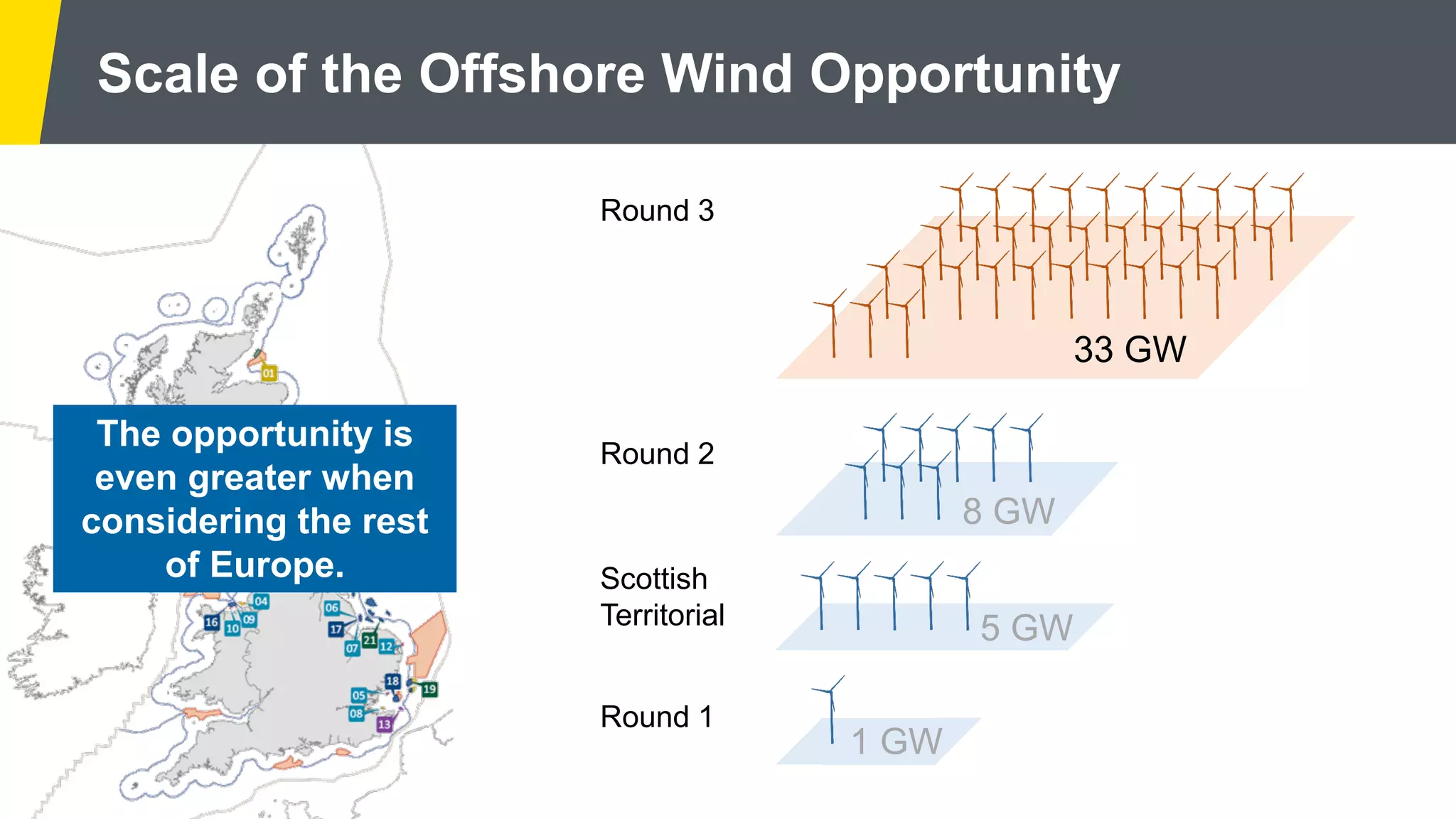

Scale of the Offshore Wind Opportunity
The opportunity is
even greater when
considering the rest
of Europe.

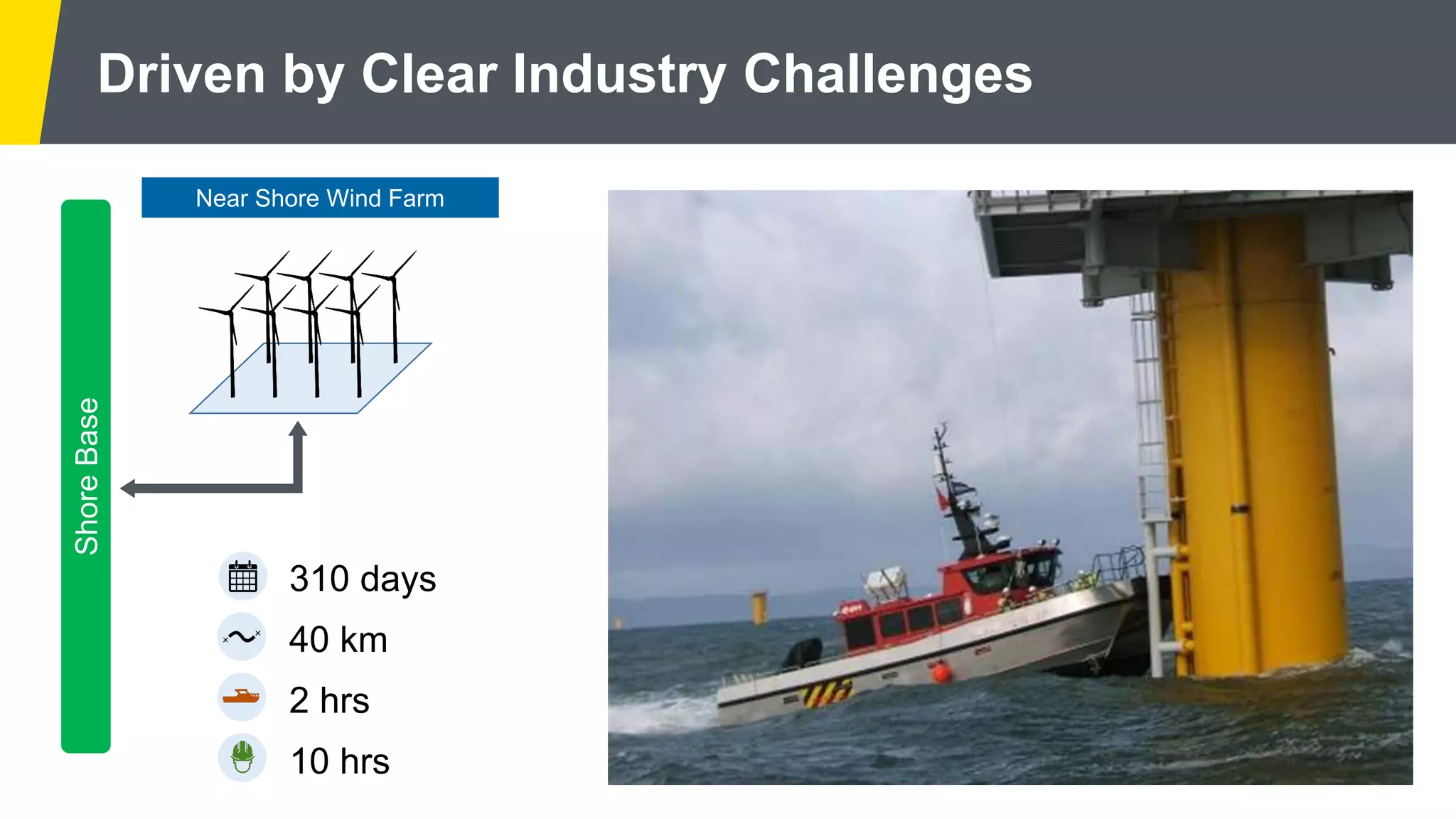

3. ShoreBase
Near Shore Wind Farm
2 hrs
10 hrs
40 km
310 days
Driven by Clear Industry Challenges

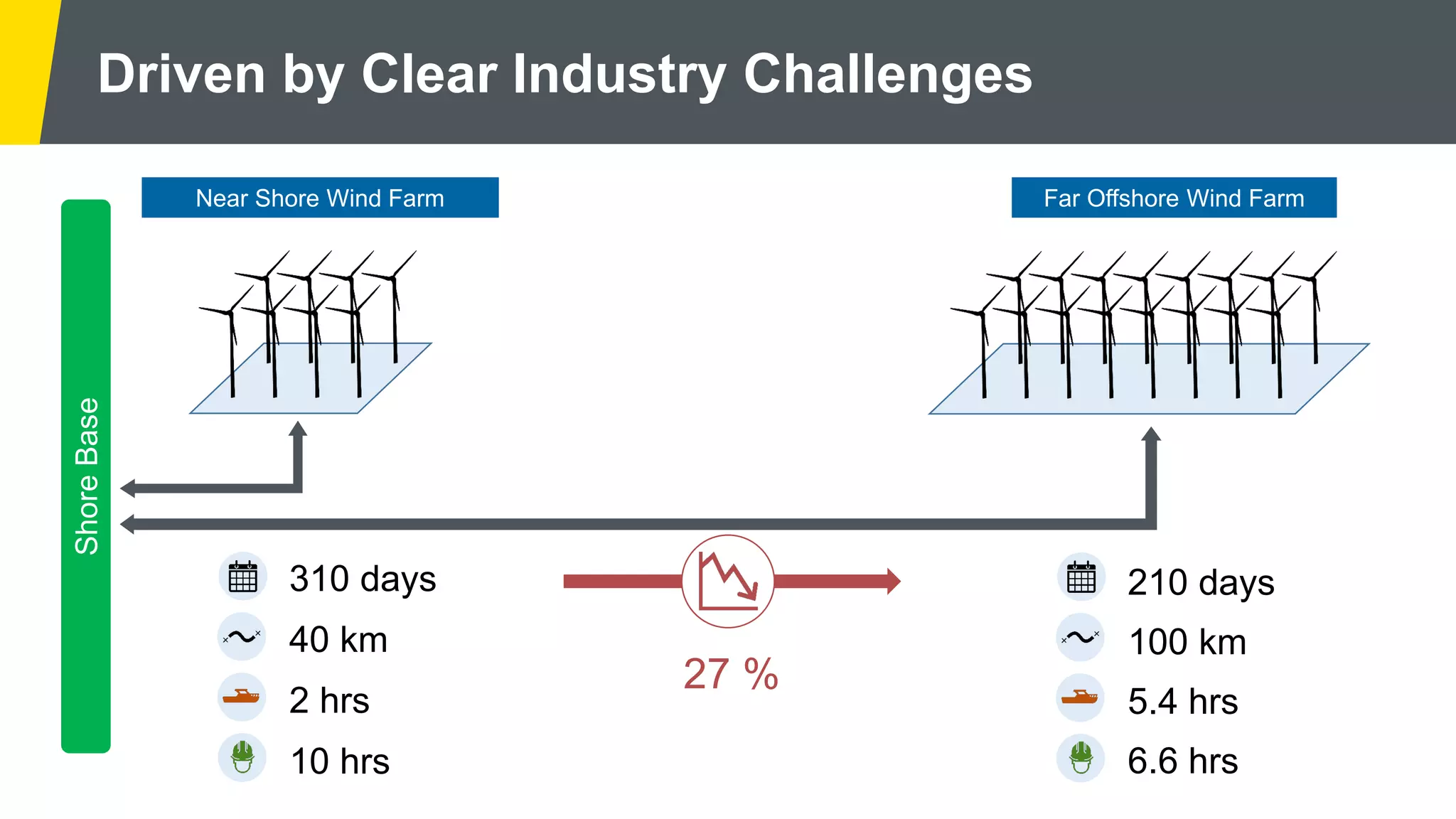

4. ShoreBase
Near Shore Wind Farm
2 hrs
10 hrs
40 km
310 days
Far Offshore Wind Farm
5.4 hrs
6.6 hrs
100 km
210 days
Driven by Clear Industry Challenges
27 %

5. ShoreBase
Near Shore Wind Farm
2 hrs
10 hrs
40 km
310 days
Far Offshore Wind Farm
5.4 hrs
6.6 hrs
100 km
210 days
Driven by Clear Industry Challenges
34 %

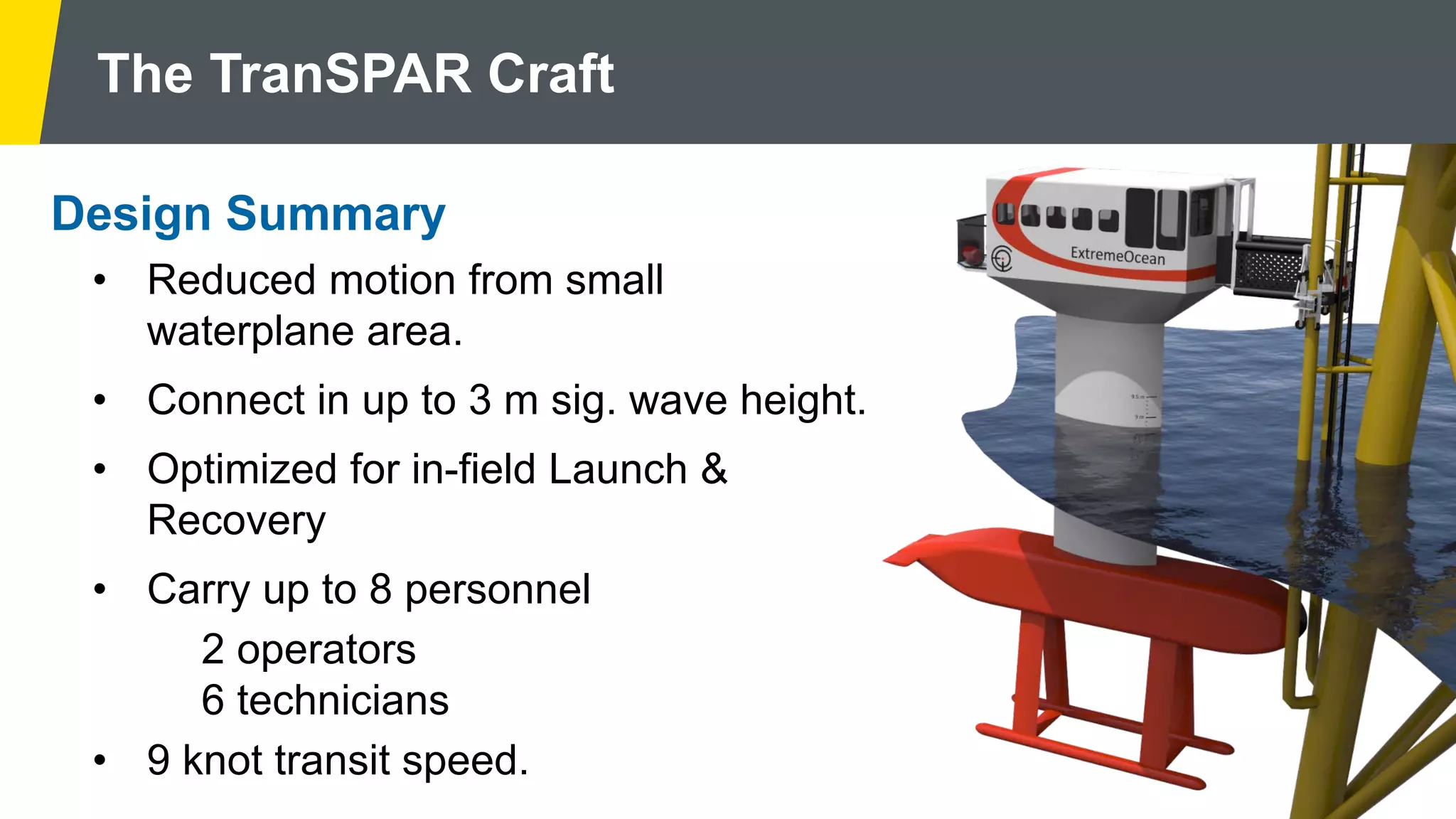

6. The TranSPAR Craft
• Reduced motion from small
waterplane area.
• Connect in up to 3 m sig. wave height.
• Optimized for in-field Launch &
Recovery
• Carry up to 8 personnel
2 operators
6 technicians
• 9 knot transit speed.
Design Summary

7. The TranSPAR Craft
Video Available at: https://xoi.wistia.com/medias/zsn8p4xyj9

8. ShoreBase
The Future of Offshore Wind
0.5 hrs
11.5 hrs
15 km
210 days
1.8 hrs
10.2 hrs
15 km
310 days
27 %
Accessibility

9. ShoreBase
The Future of Offshore Wind
0.5 hrs
11.5 hrs
15 km
210 days
1.8 hrs
10.2 hrs
15 km
310 days
20 %
Turbine Uptime

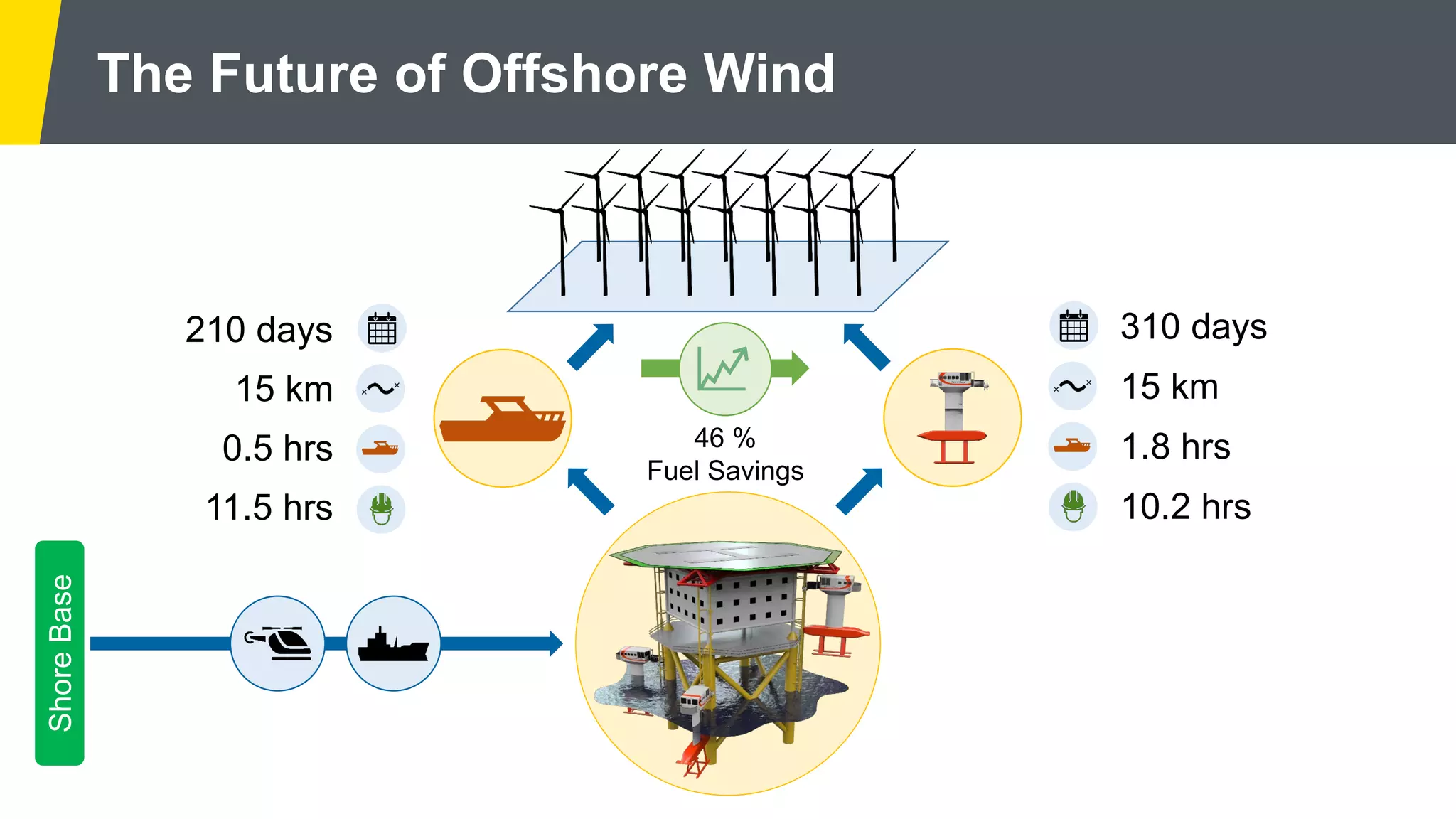

10. ShoreBase
The Future of Offshore Wind
0.5 hrs
11.5 hrs
15 km
210 days
1.8 hrs
10.2 hrs
15 km
310 days
46 %
Fuel Savings

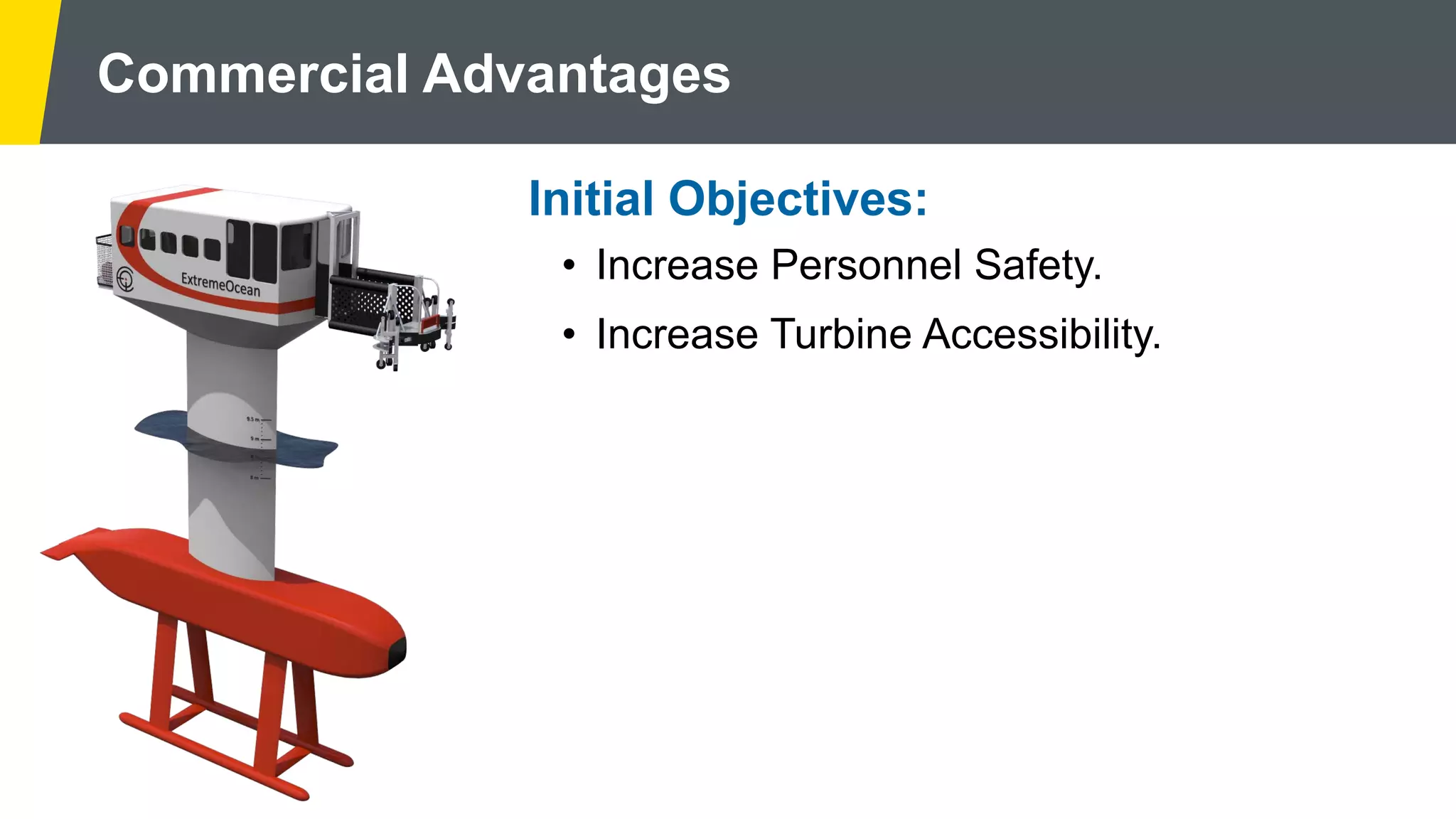

11. Commercial Advantages
• Increase Personnel Safety.
• Increase Turbine Accessibility.
Initial Objectives:

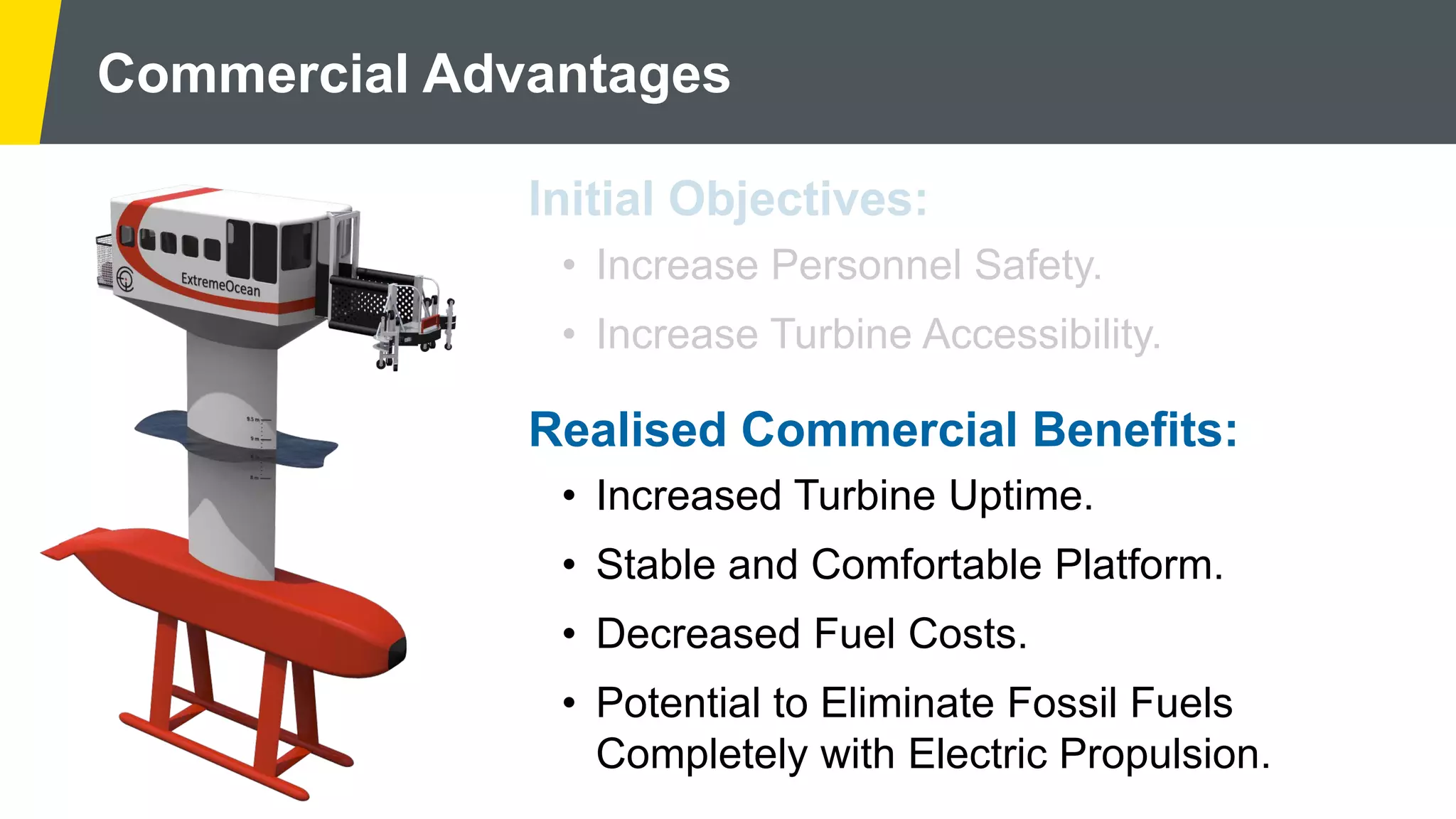

12. Commercial Advantages
• Increase Personnel Safety.
• Increase Turbine Accessibility.
Initial Objectives:
• Increased Turbine Uptime.
• Stable and Comfortable Platform.
• Decreased Fuel Costs.
• Potential to Eliminate Fossil Fuels
Completely with Electric Propulsion.
Realised Commercial Benefits:

13. Questions?
ExtremeOcean Innovation Inc.
www.ExtremeOcean.ca
info@ExtremeOcean.ca
James Fisher and Sons plc
www.james-fisher.com
renewables@james-fisher.com
“ Arguably the most radical concept that
we saw from the [Carbon Trust’s OWA]
Access Competition …”
- Phil deVilliers, Head of Offshore Wind – Carbon Trust
