PRICE LIST MARCH 24, 2014
FLOMATIC CORPORATION

LOOK AT WHAT’S NEW!LOOK AT WHAT’S NEW!
High Quality Valves Built to Last... I www.flomatic.com
WHAT’SNEWAT800.833.2040
• Federal Lead Free Legislation -
January 4th, 2014
Congress has passed the first lead free law
known as the Reduction of Lead in Drinking
Water Act, reducing lead from 8% to 0.25%
the amount of the lead allowed in "lead free" *plumbing fixtures in
potable water applications. This is similar to the laws in the state of
California and Vermont. Flomatic has been committed to providing
products that meet low lead content for over 20 years.
• We are lead free
Most products in this catalog have been tested and certified by IAPMO, an ANSI
accredited third party to comply with the laws and NSF 372. Flomatic puts “LF” on casting or an IAMPO sticker.
* The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight.
Flomatic Valves is a diversified manufacturer of valves specializing in Automatic Control Valves, Butterfly Valves, Air/Vacuum Valves,
Check and Foot Valves. Available in a wide range of sizes (1/2” thru 36”) and materials, specifically designed for the Municipal,
Industrial, Water Well and Irrigation Markets.
Our valves are specified and installed in some of the largest water and wastewater
projects in the country like The “Big Dig” in Boston, water and wastewater system in
New York City, pumping system in Los Angels to fuel systems associated with the Space
Shuttle in Texas, and irrigation systems in the heart land of the nations farm land. In
addition Flomatic Automatic Control Valves are installed in some of the largest reclaim
water systems in the City of Orlando,
Florida.
We are one of the only water and wastewater valve manufacturer in the United States that
have earned both a ISO 9001 and ISO 14001 registration as we are both passionate about
quality in all phase of our business conduct and in the environment in which we operate.
As always, Flomatic is a dedicated valve manufacturer providing customers with high qual-
ity valves built to last.
High Quality Valves Since 1933

www.flomatic.com II

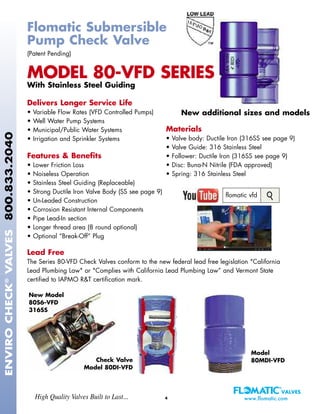

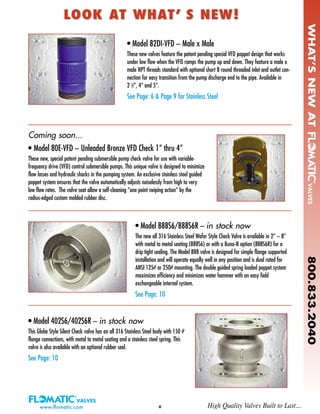

• Model 80E-VFD – Unleaded Bronze VFD Check 1” thru 4”
These new, special patent pending submersible pump check valve for use with variable-
frequency drive (VFD) control submersible pumps. This unique valve is designed to minimize
flow losses and hydraulic shocks in the pumping system. An exclusive stainless steel guided
poppet system ensures that the valve automatically adjusts noiselessly from high to very
low flow rates. The valve seat allow a self-cleaning “one point swiping action” by the
radius-edged custom molded rubber disc.
LOOK AT WHAT’ S NEW!LOOK AT WHAT’ S NEW!
• Model 888S6/888S6R – in stock now
The new all 316 Stainless Steel Wafer Style Check Valve is available in 2” – 8”
with metal to metal seating (888S6) or with a Buna-N option (888S6R) for a
drip tight sealing. The Model 888 valve is designed for simple flange supported
installation and will operate equally well in any position and is dual rated for
ANSI 125# or 250# mounting. The double guided spring loaded poppet system
maximizes efficiency and minimizes water hammer with an easy field
exchangeable internal system.
See Page: 10
• Model 82DI-VFD – Male x Male
These new valves feature the patent pending special VFD poppet design that works
under low flow when the VFD ramps the pump up and down. They feature a male x
male NPT threads standard with optional short 8 round threaded inlet and outlet con-
nection for easy transition from the pump discharge end to the pipe. Available in
2 1
⁄2”, 4” and 5”.
See Page: 6 & Page 9 for Stainless Steel
High Quality Valves Built to Last...
• Model 402S6/402S6R – in stock now
This Globe Style Silent Check valve has an all 316 Stainless Steel body with 150 #
flange connections, with metal to metal seating and a stainless steel spring. This
valve is also available with an optional rubber seal.
See Page: 10
WHAT’SNEWAT800.833.2040
Coming soon...

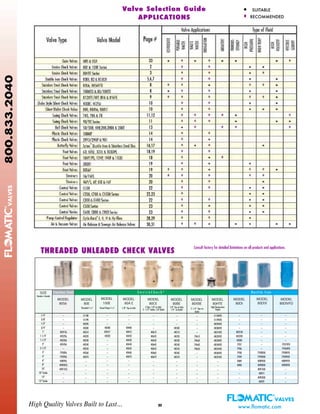

THREADED UNLEADED CHECK VALVESTHREADED UNLEADED CHECK VALVES
Consult factory for detailed limitations on all products and applications.
SIZE
Female x Female
MODEL
100E
Hexed Shape F x F
MODEL
80E
Threaded F x F
–
–
–
4030E
4201E*
4202E
–
–
–
–
–
–
–
–
–
–
–
MODEL
80A E
1/8'' Tap on Inlet
–
–
–
4040E
4041E
4042E
4043E
4044E
4045E
4046E
4047E
–
–
–
–
–
–
MODEL
80CE
4 Taps -1/8''on Inlet,
2 - 1/4'' Outlet, 1/8''Outlet
–
–
–
–
4061E
4062E
4063E
4064E
4065E
4066E
4067E
–
–
–
–
–
–
MODEL
80BE
1/8'' Tap on Inlet,
1/4'' on Outlet
–
–
–
4050E
4051E
4052E
4053E
4054E
4055E
4056E
4057E
–
–
–
–
–
–
MODEL
80XBE
2 -1/4'' Taps on
Outlet
–
–
–
–
–
7961E
7963E
7964E
7965E
–
–
–
–
–
–
–
–
MODEL
80HTE
High Temperature
Poppet
5118HTE
5159HTE
4029HTE
4030HTE
4031HTE
4032HTE
4033HTE
4034HTE
4035HTE
4036HTE
4037HTE
–
–
–
–
–
–
MODEL
80DI
MODEL
80DIVFD
–
–
–
–
4031DI
4032DI
403DI
7937
7936
7938
7939
4089
4090
–
–
–
–
MODEL
80DIX
–
–
–
–
–
–
–
–
–
7938DIX
7939DIX
4089DIX
4090DIX
4091DIX
4091T
4092DIX
4092T
–
–
–
–
–
–
–
–
–
–
7937VFD
7936VFD
7938VFD
7939VFD
4089VFD
4090VFD
–
MODEL
80S6
–
–
–
–
4031S6
4032S6
4033S6
4034S6
–
7938S6
7939S6
4089S6
4090XSS
4091XSS
–
–
–
1/4"
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
6"
8"
10"
10" Turbo
12"
12" Turbo
5118E
5159E
4029E
4030E
4031E
4032E
4033E
4034E
4035E
4036E
4037E
–
–
–
–
–
–
Stainless Steel D u c t i l e I r o n®
E n v i r o C h e c k
www.flomatic.comHigh Quality Valves Built to Last... III
800.833.2040 Valve Selection GuideValve Selection Guide
APPLICATIONSAPPLICATIONS
CORROSIVE
POTABLE
WATER
WASTE
WATER
IRRIGATION
ABRASIVE
FIBROUS
STRINGY
HIGH
PRESSURE
HIGHTEMP
HIGH
VELOCITY
VISCOUS
SLURRY
• SUITABLE
N RECOMMENDED
Valve Type Page #Valve Model
Backflow Preventers
Gate Valves
Quarter Turn Ball Valves
Enviro Check Valves
Enviro Check Valves
Ductile Iron Check Valves
Stainless Steel Check Valves
Globe Style Silent Check Valves
Silent Wafer Check Valve
Swing Check Valves
Swing Check Valves
Ball Check Valves
Plastic Check Valves
Plastic Check Valves
Butterfly Valves
Foot Valves
Foot Valves
Foot Valves
Foot Valves
Strainers
Strainers
Control Valves
Control Valves
Control Valves
Control Valves
Control Vavles
Pump Control Regulator
Air & Vacuum Valves
DCVE, PVB, RPZE & RPZE II
NRS & OSY
605E & 601E
80E & 100E Series
80HTE Series
80DI, 82 & 100DI Series
80S6
100MSS & 80/100SS
812XTF/XFF, 816 & 816FL
402BT
888
745, 78A & 78
90/92 Series
50/508, 408,208,208B & 208T
100MP
297D/290P & 901
Sylax
®
Ductile Iron & Stainless Steel Disc
63, 60SE, 333E & 333DPE
104P/PS, 124P, 190DP & 193D
302BT
80S6F
16/16FL
46P/S, 6P, 6SE & 46T
C100
C200, C700 & C1000 Series
C300 & C400 Series
C500 Series
C600, C800 & C900 Series
Cycle Gard
®
I, II, IV & Hy-Flow
Air Release & Sewage Air Release Valves
2, 3 N N
5 • N • N • • • N
4 N N N • N • • N
7,8 N N • •
8 N N • N
9,10,11 N N • •
12 N N • N N •
12 • N N • •
13 N N N N N •
14 N N • •
14 N N • • •
15, 16 N N N N • N
15 N N N • • •
17 • N N N N
18 N N
18 N •
20, 21 N • N •
22, 23 N N
22 N • N
23 N • •
23 N N • N N •
24 N N N N N
24 N N •
26 N N • •
26, 27 N • •
26 N N • •
27 N • • •
27 N N • •
30, 31 N N •
32 ,33 N N • • • • •
Valve Applications Type of Fluid
33
2
3
5,6,7
8
8
9
10
10
11,12
11
13
14
14
16,17
18,19
18
19
19
20
20
22
22,23
22
23
23
28,29
30,31

VALVES BY TYPE

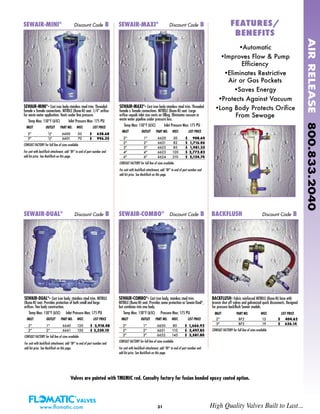

Air Release/ Vacuum Page
Miniair®
, Maxiair®
, Wellair®
30
Comboair®
, Sewair®
Series 30,31
Backflush 31
Auto-Drain - Model 70 3
Auto-Vac®
- Model 77 13

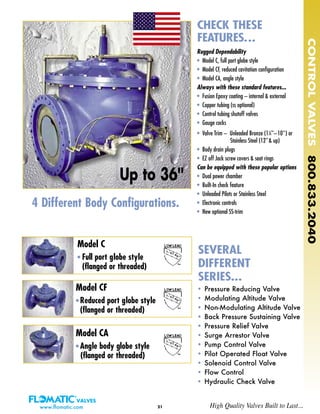

Automatic Control Valve Page
Altitude –
C201, CF201,
C205, CF205 22
Back Pressure –
C301, CF301 22
Cycle Gard®
– CB152E,
C3100, CI, CN Series, C152E 28,29
Float Valve
C701, CF701 23
Flow Control
C901, CF901 24
Hydraulic Check
C1001, CF1001 24

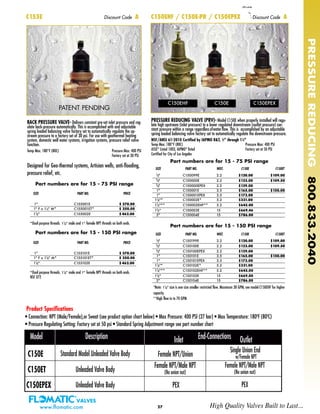

Pressure Reducing
C101, CF101, C150E 22,27
Pressure Relief
C401, CF401 23

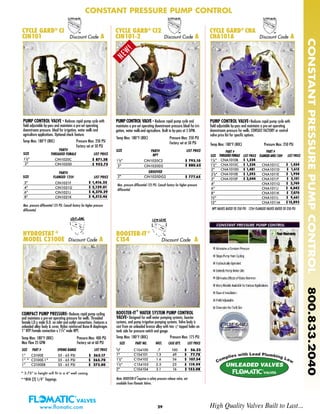

Pump Control
C601, CF601 23
Solenoid Actuated
C801-2, CF801-2 24
Surge Arrestor
C501, CF501 23

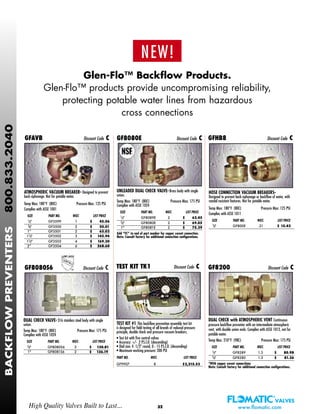

Backflow Preventers Page
Hose Connection Vacuum Breaker
GFHB8 32
Dual Check Valve, GF8080E,
GF8080SS 32
Dual Check Valve w/ Atmos. Vent
GF8200 32
Unleaded Ball Valves Page
(Quarter Turn)
SS Ball Valves 24
Butterfly Valves Page
Azure®
AWWA C504 15
Kwik-Close
®
15
Sylax®
Wafer & Lug Style 16
Sylax®
Electric Actuated 17
Break Off Plugs 5
Check Valves Page
Ball Check
508, 408,4082
,208,208T,208B 13
Globe Style Silent Check
402BT, 402BTR, 402S6, 402BTR 10
Hydraulic Check
C1001, CF1001 24
Drain Back 3
Submersible Check
80E Series, 100E, 100XLE, 2,3
80DI, 80DIVFD, 80DI8R,
80DI8R-VFD, 82DI8R-VFD,
82DP, 80M2DI-VFD, 5,6
82S6-VFD, 80MS6-VFD,
80S6VFD 9
Swing Check
78A, 78, 90/92, 93 Series 11
745, 745BF, 745PI, 745BFPI 12
Wafer & SS Check
895, 848, 888, 888S6, 812X 9,10
816, 816F, 816HS Series 7

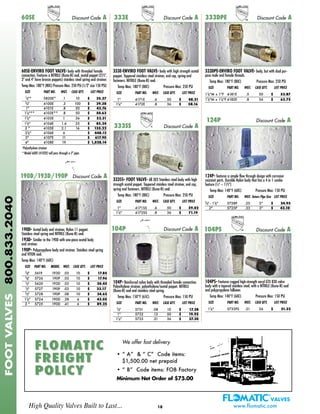

Foot Valves Page
60SE, 333 Series, 190 Series,
124P, 104 Series, 18
357, 63, 812 Series, 19
302BT Series, 19
Series 16, 16FL 20
Gate Valves Page
NRS AWWA C515, C509 33
OS&Y AWWA C509 33
Strainers Page
6P, 46 Series, 6SE 20
Y Strainers 20
Sales Agents by State 34
VALVES BY MATERIAL
Unleaded Bronze Page
Y-Strainers 20
Cast Iron Page
Air Release/Vacuum 30-31
Ball Check 13
Foot Valve 18,19
Globe Style Silent Check 10
Strainer 20
Swing Check 11,12
Wafer Check 9,10
Ductile Iron Page
Check Valves 5-7
Control Valve 21-25
Galvanized Page
Strainers 20,30
Plastic Page
Ball Check 13
In-line Check 14
Insert Check 14
Foot Valves 18
Strainers 20
Submersible Check 13

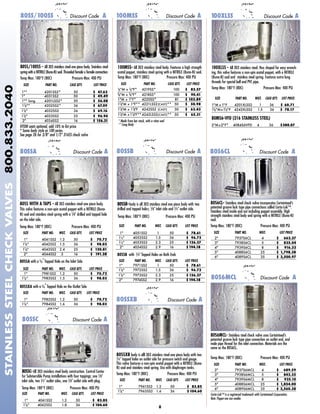

Stainless Steel Page
Foot Valve 18-19
Strainers 18
Submersible Check 8,9
Wafer Check 9
Unleaded Bronze Page
Foot Valves 18
In-line Check 2,3
Strainers 20
Submersible Check 2,3

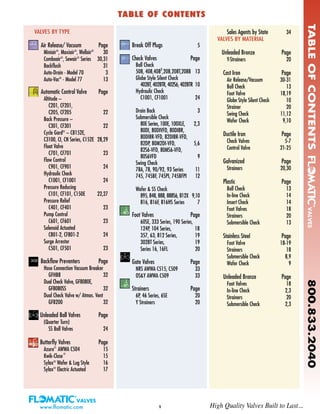

TABLE OF CONTENTSTABLE OF CONTENTS
1
TABLEOFCONTENTS800.833.2040
www.flomatic.com High Quality Valves Built to Last...

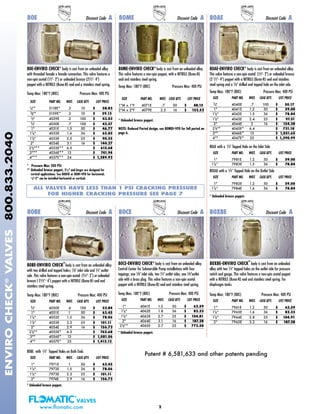

80XBE-ENVIRO CHECK
®
body is cast from an unleaded
alloy with two 1/4" tapped holes on the outlet side for pressure
switch and gauge. This valve features a non-spin acetal poppet
with a NITRILE (Buna-N) seal and stainless steel spring. For
diaphragm tanks.
Temp Max: 180°F (80C) Pressure Max: 400 PSI
SIZE PART NO. WGT. CASE QTY. LIST PRICE
1" 7961E 1.2 50 $ 63.59
11/4" 7963E 1.6 36 $ 82.33
11/2" 7964E 2.8 25 $ 104.91
2" 7965E 3.2 16 $ 187.28
80CE-ENVIRO CHECK®
body is cast from an unleaded alloy.
Control Center for Submersible Pump installations with four
tappings; one 1/8" inlet side, two 1/4" outlet sides, one 1/8"outlet
side with a brass plug. This valve features a non-spin acetal
poppet with a NITRILE (Buna-N) seal and stainless steel spring.
1" 4061E 1.2 50 $ 63.59
11/4" 4062E 1.8 36 $ 82.33
11/2" 4063E 2.7 25 $ 104.81
2" 4064E 3.1 16 $ 187.28
21/2"* 4065E 2.7 25 $ 772.50
* Unleaded bronze poppet.
80BE-ENVIRO CHECK
®
body is cast from an unleaded alloy
with two drilled and tapped holes; 1/8" inlet side and 1/4" outlet
side. This valve features a non-spin acetal (3/4"- 2") or unleaded
bronze ( 21/2"- 4") poppet with a NITRILE (Buna-N) seal and
stainless steel spring.
3/4" 4050E .6 100 $ 52.84
1" 4051E 1 50 $ 63.45
11/4" 4052E 1.5 36 $ 78.06
11/2" 4053E 2.3 25 $ 101.11
2" 4054E 2.9 16 $ 156.72
21/2"* 4055E* 6.3 $ 765.68
3"* 4056E* 13 $ 1,081.06
4"* 4057E* 25 $ 1,413.12
80BE with 1/4" Tapped Holes on Both Ends
1" 7971E 1 50 $ 63.45
11/4" 7972E 1.5 36 $ 78.06
11/2" 7973E 2.3 25 $ 101.11
2" 7974E 2.9 16 $ 156.72
80AE-ENVIRO CHECK®
This valve features a non-spin acetal (1/2"- 2") or unleaded bronze
(2 1/2"- 4") poppet with a NITRILE (Buna-N) seal and stainless
steel spring and a 1/8" drilled and tapped hole on the inlet side.
3/4" 4040E .7 100 $ 50.17
1" 4041E 1.2 50 $ 59.00
11/4" 4042E 1.5 36 $ 78.84
11/2" 4043E 2.4 25 $ 97.51
2" 4044E 3 16 $ 154.38
21/2"* 4045E* 6.4 $ 721.18
3"* 4046E* 13 $ 1,051.65
4"* 4047E* 25 $ 1,390.99
80AE with a 1/4" Tapped Hole on the Inlet Side
1" 7981E 1.2 50 $ 59.00
11/4” 7983E 1.5 36 $ 78.84
80XAE with a 1/4" Tapped Hole on the Outlet Side
1" 7982E 1.2 50 $ 59.00
11/4” 7984E 1.6 36 $ 78.84
2
80ME-ENVIRO CHECK®
This valve features a non-spin poppet, with a NITRILE (Buna-N)
seal and stainless steel spring.
1"M x 1"F 4071E .7 50 $ 48.15
2"M x 2"F 4079E 2.5 16 $ 152.52
NOTE: Reduced Ported design, see 80MDI-VFD for full ported on
page 6.
80AE Discount Code A80E Discount Code A
Patent # 6,581,633 and other patents pending
80E-ENVIRO CHECK®
body is cast from an unleaded alloy
with threaded female x female connection. This valve features a
non-spin acetal (1/2"- 2") or unleaded bronze (21/2"- 4")
poppet with a NITRILE (Buna-N) seal and a stainless steel spring.
1/4"* 5118E* .2 10 $ 58.82
3/8"* 5159E* .2 10 $ 59.13
1/2" 4029E .2 100 $ 43.03
3/4" 4030E .7 100 $ 43.57
1" 4031E 1.3 50 $ 46.77
11/4" 4032E 1.6 36 $ 65.85
11/2" 4033E 2.5 25 $ 90.55
2" 4034E 3.1 16 $ 144.27
21/2"** 4035E** 6.5 $ 615.68
3"** 4036E** 13 $ 741.94
4"** 4037E** 24 $ 1,289.92
* Pressure Max 200 PSI
** Unleaded bronze poppet, 21/2" and larger are designed for
vertical applications. See 80DIX or 80DI-VFD for horizontal.
1/4"-2” can be installed horizontal or vertical.
ALL VALVES HAVE LESS THAN 1 PSI CRACKING PRESSURE
FOR HIGHER CRACKING PRESSURE SEE PAGE 7
80CE Discount Code A 80XBE Discount Code A80BE Discount Code A
www.flomatic.com
80ME Discount Code A
ENVIROCHECK®
VALVES800.833.2040

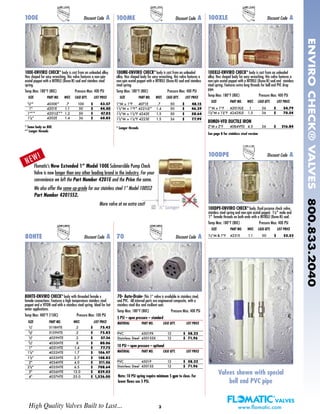

100E-ENVIRO CHECK®
Hex shaped for easy wrenching, this valve features a non-spin
acetal poppet with a NITRILE (Buna-N) seal and stainless steel
spring.
3/4"* 4030E* .7 100 $ 43.57
1" 4201E 1.1 50 $ 44.40
1"** 4201LE** 1.2 50 $ 47.82
11/4" 4202E 1.4 36 $ 60.85
* Same body as 80E
** Longer threads
100E Discount Code A 100ME Discount Code A
100ME-ENVIRO CHECK®
alloy. Hex shaped body for easy wrenching, this valve features a
non-spin acetal poppet with a NITRILE (Buna-N) seal and stainless
steel spring.
1"M x 1"F 4071E .7 50 $ 48.15
11/4"M x 1"F* 4221LE* 1.4 50 $ 46.39
11/4"M x 11/4"F 4242E 1.5 50 $ 58.64
11/2"M x 11/4"F 4223E 1.5 36 $ 77.99
* Longer threads
3
80HTE-ENVIRO CHECK®
body with threaded female x
female connections. Features a high temperature stainless steel
poppet and a VITON seal with a stainless steel spring. Ideal for hot
water applications.
SIZE PART NO. WGT. LIST PRICE
1/4" 5118HTE .2 $ 75.42
3/8" 5159HTE .2 $ 75.82
1/2" 4029HTE .2 $ 57.36
3/4" 4030HTE .8 $ 80.06
1" 4031HTE 1.4 $ 77.75
11/4" 4032HTE 1.7 $ 106.97
11/2" 4033HTE 2.7 $ 148.82
2" 4034HTE 4.0 $ 211.06
21/2" 4035HTE 6.5 $ 708.64
3" 4036HTE 13.0 $ 839.03
4" 4037HTE 25.0 $ 1,526.00
80HTE Discount Code A
70- Auto-Drain- This 1” valve is available in stainless steel,
and PVC. All internal parts are engineered composite, with a
stainless steel disc and resilient seat.
5 PSI – open pressure – standard
MATERIAL PART NO. CASE QTY. LIST PRICE
PVC 4501PX 12 $ 58.22
Stainless Steel 4501SSX 12 $ 71.96
10 PSI – open pressure – optional
PVC 4501P 12 $ 58.22
Stainless Steel 4501SS 12 $ 71.96
70 Discount Code A
100XLE-ENVIRO CHECK®
alloy. Hex shaped body for easy wrenching, this valve features a
non-spin acetal poppet with a NITRILE (Buna-N) seal and stainless
steel spring. Features extra long threads for bell end PVC drop
pipe.
1"M x 1"F 4201XLE 1 36 $ 54.79
11/4"M x 11/4"F 4242XLE 1.5 36 $ 70.54
80MDI-VFD DUCTILE IRON
2"M x 2"F 4084VFD 4.5 36 $ 216.84
See page 8 for stainless steel version
100XLE Discount Code A
100DPE-ENVIRO CHECK®
body. Dual purpose check valve,
stainless steel spring and non-spin acetal poppet. 11/4" male and
1" female threads on both ends with a NITRILE (Buna-N) seal.
11/4"M & 1"F 4231E 1.1 50 $ 55.53
100DPE Discount Code A
High Quality Valves Built to Last... www.flomatic.com
Note: 10 PSI spring require minimum 5 gpm to close. For
lower flows use 5 PSI.
ENVIROCHECK®VALVES800.833.2040
NEW!
Valves shown with special
bell end PVC pipe
Flomatic’s New Extended 1” Model 100E Submersible Pump Check
Valve is now longer than any other leading brand in the industry. For your
convenience we left the Part Number 4201E and the Price the same.
We also offer the same up-grade for our stainless steel 1” Model 100SS2
Part Number 4201SS2.
More valve at no extra cost!

ENVIROCHECK®
VALVES800.833.2040
4High Quality Valves Built to Last... www.flomatic.com
Flomatic Submersible
Pump Check Valve
(Patent Pending)
MODEL 80-VFD SERIES
With Stainless Steel Guiding
Delivers Longer Service Life
• Variable Flow Rates (VFD Controlled Pumps)
• Well Water Pump Systems
• Municipal/Public Water Systems
• Irrigation and Sprinkler Systems
Features & Benefits
• Lower Friction Loss
• Noiseless Operation
• Stainless Steel Guiding (Replaceable)
• Strong Ductile Iron Valve Body (SS see page 9)
• Un-Leaded Construction
• Corrosion Resistant Internal Components
• Pipe Lead-In section
• Longer thread area (8 round optional)
• Optional “Break-Off” Plug
Lead Free
The Series 80-VFD Check Valves conform to the new federal lead free legislation "California
Lead Plumbing Law" or "Complies with California Lead Plumbing Law” and Vermont State
certified to IAPMO R&T certification mark.
Materials
• Valve body: Ductile Iron (316SS see page 9)
• Valve Guide: 316 Stainless Steel
• Follower: Ductile Iron (316SS see page 9)
• Disc: Buna-N Nitrile (FDA approved)
• Spring: 316 Stainless Steel
Check Valve
Model 80DI-VFD
New Model
80S6-VFD
316SS
Model
80MDI-VFD
New additional sizes and models
flomatic vfd

5
80DI- High strength epoxy coated ductile iron body, disc and
follower with threaded female x female connection. Features a
NITRILE (Buna-N) seal, stainless steel spring fasteners, and ductile
iron poppet. 21/2" and larger are designed for vertical applica-
tions. See 80DIX or 80DI-VFD for horizontal.
Note: 1" through 11/2" features acetal poppet.
Temp Max: 180°F (80C) Pressure Max: 400 PSI 1”–11/2"
600 PSI 2”-8”
1" 4031DI 2 50 $ 31.08
11/4" 4032DI 1 36 $ 43.27
11/2" 4033DI 2 25 $ 59.18
2"* 7937 4 16 $ 115.00
21/2" 7936 9 1 $ 264.92
3" 7938 12 5 $ 387.07
4" 7939 26 4 $ 596.02
5" 4088 46 $ 1,106.52
6" 4089 61 $ 1,374.93
8" 4090 93 $ 2,324.43
*Longer body with stainless steel seat, use break off plug
76098-2.
To order break-off plug, add “PLG” to part number and add
$100.00 to list price, $75.00 added for composite plug installed
and add “PPLG” to end of part number.
80DI Discount Code A
80DIX-High strength epoxy coated ductile iron body features a
double-guided ductile iron poppet. Designed for vertical and hori-
zontal applications.
3" 7938DIX 13 $ 312.43
4"* 7939DIX* 17 $ 487.67
6"* 4089DIX* 51 $ 969.99
8"* 4090DIX* 89 $ 2,247.38
10" 4091DIX 150 $ 3,561.74
12" NEW 4092DIX 350 $ 7,519.59
To order with break-off plug, replace “DIX” with “XPL” in part
number and add $100.00 to list price of valve, $75.00 added
for composite plug installed and add “PPLG” to end of part
number.
* See 80DI for high capacity flow.
100MDI-High strength epoxy coated ductile iron valve features
male threaded inlet and female threaded outlet. Ideal for
submersible pumps.
11/4"M x 1"F 4221LDI 1 $ 25.07
11/4"M x 11/4"F 4242LDI* 1.4 $ 36.32
2"M x 2"F 4084VFD 4.5 $ 176.29
*Longer threads.
100MDI Discount Code A
BREAK-OFF PLUG- Stainless steel construction. Threaded 3/8"
to install into valve. When broken off, riser pipe drains.
2" 76098-2 .17 $ 64.60
2 1/2" 76098-3 .19 $ 66.29
3" 76098-6 .2 $ 66.52
4" 76098-7 .25 $ 66.52
5"–8" 76098 .3 $ 63.96
10" & 12" 76098-11 .45 $ 79.96
Consult factory for 1
⁄2" plugs
BREAK-OFF PLUG Discount Code A
New Pressure Rating:
Model 80DI
600 PSI 2'' – 8'' sizes
80DI8R-8 Round Short Threads - High strength epoxy
coated ductile iron body, disc and follower with threaded female x
female 8 round short connection. Features a NITRILE (Buna-N)
seal, stainless steel spring fasteners, and ductile iron poppet.
Designed for vertical applications.
Short Threads - consult factory for long threads
3" 7938-1 15 $ 483.84
4" 7939-1 25 $ 745.02
5" 4088-1 46 $ 1,383.41
6" 4089-1 66 $ 1,717.60
8" 4090-1 93 $ 2,905.81
To order with break-off plug, add “PLG” to part number for 3"-
8" and add $100.00 to list price of valve, $75.00 added for
composite plug installed and add “PPLG” to end of part number.
80DI8R Discount Code A
80DI-VFD - High strength epoxy coated ductile iron body,
poppet and stainless steel guide with threaded female x female
NPT connection. Features a NITRILE (Buna-N) with seal, stainless
steel shaft, and a ductile iron poppet. Designed for vertical or hor-
izontal applications.
2" 7937VFD 3.2 $ 141.51
21/2"* 7936VFD 9.5 $ 324.96
3" 7938VFD 16 $ 475.38
4" 7939VFD 47 $ 732.00
5"* 4088VFD 49 $ 1,358.98
6" 4089VFD 70 $ 1,688.62
8" 4090VFD 98.5 $ 2,854.76
*June 2014 see 80M2DI-VFD for 21/2" male threads on
page 6.
80DI-VFD Discount Code A
COMPOSITE BREAK-OFF PLUG- Threaded 3/8" to install
into valve. When broken off, riser pipe drains.
3"–8" 76098P .1 $ 25.00
Plug is pre-marked to be easily sized in the field.
COMPOSITE
BREAK-OFF PLUG Discount Code A
80DIX Discount Code A
DUCTILEIRONCHECKVALVES800.833.2040
NEW!
80DI8R-VFD - 8 Round Short Threads High strength
epoxy coated ductile iron body, poppet and stainless steel guide
with 8 round short thread connection. Features a NITRILE (Buna-
N) seal, with stainless steel shaft and a ductile iron poppet.
Designed for vertical or horizontal applications.
Short Threads - consult factory for long threads
3" 7938-1VFD 16 $ 594.23
4" 7939-1VFD 47 $ 915.00
6" 4089-1VFD 70 $ 1,698.72
8" 4090-1VFD 98.5 $ 2,110.78
80DI8R-VFD Discount Code A
NEW!

6
80DICL-Ductile iron check valve incorporates Certainteed’s
patented groove lock type pipe connections called Certa-Lok™.
Fusion epoxy coated inside and out including poppet assembly,
this valve is corrosion resistant and unleaded. High strength ductile
iron body with stainless steel spring and NITRILE (Buna-N) seal.
2" 7937CLVFD 4 $ 270.25
3" 7938CLVFD 5 $ 374.20
4" 7939CLVFD 15 $ 510.11
5" 4088CL 14 $ 711.64
6" 4089CLVFD 35 $ 1,711.32
80MDICL- Ductile iron check valve uses Certainteed’s patented
groove lock type pipe connection on outlet end, and male pipe
thread for the inlet connection. Materials are the same as the
80DICL.
2" 7937MCLVFD 4 $ 275.47
3" 7938MCLVFD 5 $ 368.97
4" 7939MCLVFD 15 $ 538.46
5" 4088MCL 14 $ 716.11
6" 4089MCLVFD 35 $ 1,735.34
Certa-Lok™ is a registered trademark with Certainteed
Corporation.
Note: RESTRICTED FLOW - REDUCED PORTED
Also available in all 316SS, Model 80S6CL. See Page 8.
80DI Turbo- Patented high efficiency ductile iron check valve.
Threaded female x female connection. High strength ductile iron
body and poppet, stainless steel spring and screws, stainless steel
shaft and with a NITRILE (Buna-N) Seal Disc. (No “O”-Ring Seals)
6" 4089T 46 $ 2,831.00
10" 4091T 155 $ 5,984.16
80DI Turbo Discount Code A 80DICL Discount Code A
82DP- Dual purpose compact ductile iron reduced ported check
valve with male and female threads on both ends. High strength
ductile iron body and poppet, with stainless steel spring and
fasteners. Designed to fit into tight fitting wells.
21/2" F & 3" M* 4094DP 7 $ 309.41
3" F & 4" M 4095DP 10 $ 411.55
4" F & 5" M 4096DP 25 $ 776.35
5" F & 6" M 4097DP 51 $ 1,560.40
Same valve as 82, extra female (internal) threads.
* Unleaded Bronze Poppet
82DP (replaces 82) Discount Code A
100% Fusion Bonded Epoxy
coated with our quality coating
operation.
80MDI- High strength epoxy coated ductile iron valve features
male threaded inlet and female threaded outlet. Ideal for
submersible pumps.
3"M x 3"F 4083 14 $ 346.83
4"M x 4"F 4077 22 $ 467.38
5"M x 5"F 4075 23 $ 815.98
6"M x 5"F 4087 48 $ 931.81
6"M x 6"F 4081VFD 50 $ 1,186.38
To order with break-off plug, add “PLG” to part
number for 4"-6" and add $100.00 to list price of valve,
$75.00 added for composite plug installed and add “PPLG” to
end of part number.
80MDI Discount Code A
80MDI-VFD- High strength epoxy coated ductile iron body,
poppet and stainless steel guide with threaded male x female NPT
connection. Features a NITRILE (Buna-N) seal, stainless steel shaft,
and ductile iron poppet. Designed for vertical or horizontal appli-
cations. Full ported valve.
2"M x 2"F 4084VFD 4 6 $ 216.84
3"M x 3"F 4083VFD 14 5 $ 416.20
4"M x 4"F 4077VFD 22 4 $ 580.86
5"M x 5"F 4075VFD 23 $ 979.18
6"M x 5"F 4087VFD 48 $ 1,118.17
6"M x 6"F 4081VFD 50 $ 1,186.38
number for 4"-6" and add $100.00 to list price of valve.
$75.00 added for composite plug installed and add pplg to end
of part number.
80MDI-VFD Discount Code A
80DI-CLVFD
Shown above with Certa-Lok™ pipe, not included.
82DI-VFD Discount Code A
82DI-VFD - High strength epoxy coated ductile iron body,
poppet and stainless steel guide with threaded male x male con-
nection. Features a NITRILE (Buna-N) seal, stainless steel shaft,
and ductile iron poppet. Designed for vertical or horizontal appli-
cations. Full ported valve.
21/2"M x 21/2"M 4093VFD 9.5 $ 148.58
4"M x 4"M 4095VFD 47 $ 499.15
5"M x 5"M 4096VFD 49 $ 768.60
Consult factory for 8 round threads.
number for 4"-6" and add $100.00 to list price of valve,
$75.00 added for composite plug installed and add “PPLG” to
end of part number.

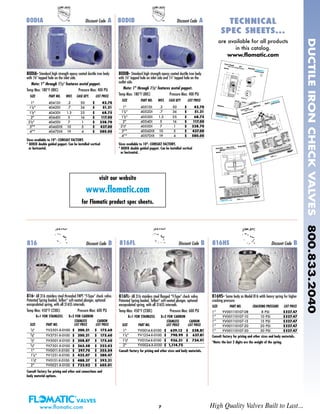

80DIB- Standard high strength epoxy coated ductile iron body
with 1/8" tapped hole on inlet side and 1/4" tapped hole on the
outlet side.
SIZE PART NO. WGT. CASE QTY LIST PRICE
1" 4051DI .2 50 $ 42.70
11/4" 4052DI .7 36 $ 51.21
11/2" 4053DI 1.3 25 $ 68.75
2" 4054DI 5 16 $ 117.00
21/2"* 4055DI 7 1 $ 338.70
3"* 4056DIX 10 5 $ 437.00
4"* 4057DIX 19 4 $ 580.00
Sizes available to 10"- CONSULT FACTORY.
* 80DIX double guided poppet. Can be installed vertical
or horizontal.
7
80DIA- Standard high strength epoxy coated ductile iron body
with 1/8" tapped hole on the inlet side.
1" 4041DI .2 50 $ 42.70
11/4" 4042DI .7 36 $ 51.21
11/2" 4043DI 1.3 25 $ 68.75
2" 4044DI 5 16 $ 117.00
21/2"* 4045DI 7 1 $ 338.70
3"* 4046DIX 10 5 $ 437.00
4"* 4047DIX 19 4 $ 580.00
Sizes available to 10"- CONSULT FACTORY.
* 80DIX double guided poppet. Can be installed vertical
or horizontal.
80DIA Discount Code A 80DIB Discount Code A
visit our website
www.flomatic.com
for Flomatic product spec sheets.
TECHNICALTECHNICAL
SPEC SHEETS...SPEC SHEETS...
are available for all products
in this catalog.
www.flomatic.com
816- All 316 stainless steel threaded FNPT “Y-Type” check valve.
Patented Spring loaded, Teflon®
soft-seated plunger, optional
encapsulated spring, with all 316SS internals.
X=1 FOR STAINLESS X=2 FOR CARBON
STAINLESS CARBON
SIZE PART NO. LIST PRICE LIST PRICE
1/4" YV2501-X-0100 $ 200.21 $ 175.60
3/8" YV3751-X-0100 $ 200.21 $ 175.60
1/2" YV5001-X-0100 $ 208.87 $ 175.60
3/4" YV7501-X-0100 $ 265.58 $ 222.02
1" YV0011-X-0100 $ 297.70 $ 255.04
11/4" YV1251-X-0100 $ 435.07 $ 380.47
11/2" YV0151-X-0100 $ 488.37 $ 392.21
2" YV0021-X-0100 $ 732.02 $ 605.01
Consult factory for pricing and other end connections and
body material options.
816HS Discount Code B
816HS- Same body as Model 816 witih heavy spring for higher
cracking pressure.
SIZE PART NO. CRACKING PRESSURE LIST PRICE
1” YV001110107-08 8 PSI $327.47
1” YV001110107-10 10 PSI $327.47
1” YV001110107-15 15 PSI $327.47
1” YV001110107-20 20 PSI $327.47
1” YV001110107-30 30 PSI $327.47
Consult factory for pricing and other sizes and body materials.
*Note: the last 2 digits are the weight of the spring.
816FL- All 316 stainless steel flanged “Y-Type” check valve.
Patented Spring loaded, Teflon®
soft-seated plunger, optional
encapsulated spring, with all 316SS internals.
X=1 FOR STAINLESS X=2 FOR CARBON
STAINLESS CARBON
1" YV0014-X-0100 $ 629.12 $ 538.81
11/4" YV1254-X-0100 $ 790.99 $ 637.81
11/2" YV0154-X-0100 $ 936.31 $ 734.91
2" YV0024-X-0100 $ 1,114.75
Consult factory for pricing and other sizes and body materials.
816FL Discount Code B816 Discount Code B

80SSB-body is all 303 stainless steel one piece body with two
drilled and tapped holes; 1/8" inlet side and 1/4" outlet side.
80SSA Discount Code A
100MSS- All 303 stainless steel body. Features a high strength
acetal poppet, stainless steel spring with a NITRILE (Buna-N) seal.
SIZE PART NO. CASE QTY. LIST PRICE
1/2"M x 1/2"F* 4219SS* 100 $ 83.57
3/4"M x 3/4"F* 4218SS* 100 $ 90.41
1"M x 1"F* 4220SS* 81 $ 103.89
11/4"M x 1"F** 4221LSS2(CAST)** 50 $ 50.98
11/4"M x 11/4"F 4242SS2 (CAST) 50 $ 63.43
11/4"M x 11/4"F**4242LSS2(CAST)** 50 $ 65.31
80SS/100SS - All 303 stainless steel one piece body. Stainless steel
spring with a NITRILE (Buna-N) seal. Threaded female x female connection.
1"* 4201SS2* 50 $ 47.62
1" 4031SS2 50 $ 49.49
1"* long 4201LSS2* 50 $ 56.08
11/4"* 4202SS2* 36 $ 67.09
11/4" 4032SS2 36 $ 69.16
11/2" 4033SS2 25 $ 96.94
2" 4034SS2 16 $ 156.31
100XLSS Discount Code A
80SSC Discount Code A
100MSS Discount Code A
100XLSS - All 303 stainless steel. Hex shaped for easy wrench-
ing, this valve features a non-spin acetal poppet, with a NITRILE
(Buna-N) seal and stainless steel spring. Features extra long
threads for special bell end PVC pipe.
1"M x 1"F 4201XLSS2 1 36 $ 60.71
11/4"Mx11/4"F 4242XLSS2 1.5 36 $ 78.17
80MS6-VFD (316 STAINLESS STEEL)
2"Mx2"F* 4084S6VFD 4 36 $380.07
80SS WITH A TAPS - All 303 stainless steel one piece body.
This valve features a non-spin acetal poppet with a NITRILE (Buna-
N) seal and stainless steel spring with a 1/8" drilled and tapped hole
on the inlet side.
1" 4041SS2 1.2 50 $ 70.72
11/4" 4042SS2 1.5 36 $ 98.03
11/2" 4043SS2 2.4 25 $ 120.81
2" 4044SS2 3 16 $ 191.28
80SSA with a 1/4" Tapped Hole on the Inlet Side
1" 7981SS2 1.2 50 $ 70.72
11/4” 7983SS2 1.5 36 $ 98.03
80SSXA with a 1/4" Tapped Hole on the Outlet Side
1" 7982SS2 1.2 50 $ 70.72
11/4” 7984SS2 1.6 36 $ 98.03
80SSXB Discount Code A
80SSXB body is alll 303 stainless steel one piece body with two
1/4" tapped holes on outlet side for pressure switch and gauge.
This valve features a non-spin acetal poppet with a NITRILE (Buna-
N) seal and stainless steel spring. Use with diaphragm tanks.
1" 7961SS2 1.2 50 $ 83.85
11/4" 7963SS2 1.6 36 $ 104.60
80SSC-All 303 stainless steel body construction. Control Center
for Submersible Pump installations with four tappings; one 1/8"
inlet side, two 1/4" outlet sides, one 1/8" outlet side with plug.
1" 4061SS2 1.2 50 $ 83.85
11/4" 4062SS2 1.8 36 $ 104.60
80SSB Discount Code A
1" 4051SS2 1 50 $ 78.61
11/4" 4052SS2 1.5 36 $ 96.72
11/2" 4053SS2 2.3 25 $ 126.37
2" 4054SS2 2.9 16 $194.18
80SSB with 1/4" Tapped Holes on Both Ends
1" 7971SS2 1 50 $ 78.61
11/4" 7972SS2 1.5 36 $ 96.72
11/2" 7973SS2 2.3 25 $ 126.37
2" 7974SS2 2.9 16 $194.18
* Made from bar stock, with a viton seal
** Long Body
VITON seats optional, add 10% to list price.
* Same body style as 100 series.
See page 26 for 3/8” and 1/2” 316SS check valve
STAINLESSSTEELCHECKVALVES800.833.2040
80SS/100SS Discount Code A
8
80S6CL- Stainless steel check valve incorporates Certainteed’s
patented groove lock type pipe connections called Certa-Lok™.
Stainless steel inside and out including poppet assembly. High
strength stainless steel body and spring with a NITRILE (Buna-N)
seal.
2" 7937S6CL 4 $ 662.37
3" 7938S6CL 5 $ 835.04
4" 7939S6CL 8 $ 916.33
5" 4088S6CL 25 $ 1,798.38
6" 4089S6CL 35 $ 3,500.97
80S6MCL- Stainless steel check valve uses Certainteed’s
patented groove lock type pipe connection on outlet end, and
male pipe thread for the inlet connection. Materials are the
same as the 80S6CL.
2" 7937S6MCL 4 $ 689.59
3" 7938S6MCL 5 $ 842.35
4" 7939S6MCL 8 $ 925.10
5" 4088S6MCL 25 $ 1,854.00
6" 4089S6MCL 35 $ 3,560.38
Certa-Lok™ is a registered trademark with Certainteed Corporation.
Note: Poppet one size smaller.
80S6CL Discount Code A
80S6MCL Discount Code A

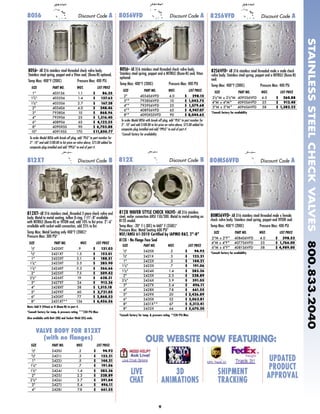

812XT- All 316 stainless steel, threaded 3 piece check valve and
body. Metal to metal seating, teflon O-ring. 11/2"–8" available
with NITRILE (Buna-N) or VITON seal, add 10% to list price. 2"–6"
available with socket weld connection, add 25% to list.
Temp Max: Metal Seating only 400°F (200C)*
Pressure Max: 300 PSI*
1/2" 2420XT .9 $ 131.03
3/4" 2421XT 1.5 $ 152.01
1" 2422XT 2.1 $ 188.51
11/4" 2423XT 3.5 $ 285.90
11/2" 2424XT 5.3 $ 366.66
2" 2425XT 7.5 $ 509.43
21/2" 2426XT 19 $ 628.31
3" 2427XT 24 $ 913.26
4" 2428XT 38 $ 1,515.18
5" 2429XT 60 $ 2,721.05
6" 2430XT 77 $ 3,868.53
8" 2431XT** 136 $ 6,456.56
Note: Add V (Viton) or R (Buna-N) to part #.
*Consult factory for temp. & pressure rating. **230 PSI Max
Also available with Butt (XB) and Socket Weld (XS) ends.
812X Discount Code B
1/2" 2420J .2 $ 94.92
3/4" 2421J .3 $ 123.21
1" 2422J .5 $ 144.21
11/4" 2423J .7 $ 191.06
11/2" 2424J 1.4 $ 283.26
2" 2425J 2.3 $ 328.89
21/2" 2426J 3.7 $ 391.04
3" 2427J 5.4 $ 496.11
4" 2428J 7.8 $ 661.55
VALVE BODY FOR 812XT
(with no flanges)
STAINLESSSTEELCHECKVALVES800.833.2040
812XT Discount Code B
9
80S6- All 316 stainless steel threaded check valve body.
Stainless steel spring, poppet and a Viton seal, (Buna-N) optional.
1" 4031S6 1.1 $ 86.35
11/
4" 4032S6 1.4 $ 127.63
11/2" 4033S6 2.7 $ 167.28
2" 4034S6 4.0 $ 248.46
3" 7938S6 10 $ 868.96
4" 7939S6 25 $ 1,316.40
6" 4089S6 65 $ 4,122.55
8" 4090XSS 90 $ 6,703.88
10" 4091XSS 170 $11,850.77
80S6 Discount Code A
To order Model 80S6 with break-off plug, add “PLG” to part number for
3”- 10” and add $100.00 to list price on valve above, $75.00 added for
composite plug installed and add “PPLG” to end of part #.
80S6- All 316 stainless steel threaded check valve body.
Stainless steel spring, poppet and a NITRILE (Buna-N) seal, Viton
optional.
2" 4034S6VFD 4.0 $ 298.15
3"* 7938S6VFD 10 $ 1,042.75
4"* 7939S6VFD 25 $ 1,579.68
6"* 4089S6VFD 65 $ 4,947.07
8"* 4090XSSVFD 90 $ 8,044.65
80S6VFD Discount Code A
82S6VFD- All 316 stainless steel threaded male x male check
valve body. Stainless steel spring, poppet and a NITRILE (Buna-N)
seal.
21/2"M x 21/2"M 4093S6VFD 4.0 $ 260.88
4"M x 4"M* 4095S6VFD 25 $ 912.40
5"M x 5"M* 4096S6VFD 58 $ 1,382.22
*Consult factory for availability
82S6VFD Discount Code A
To order Model 80S6 with break-off plug, add “PLG” to part number for
3”- 10” and add $100.00 to list price on valve above, $75.00 added for
composite plug installed and add “PPLG” to end of part #.
812X WAFER STYLE CHECK VALVE- All 316 stainless
steel, wafer connection ANSI 150/300. Metal to metal seating on
812X model.
Temp Max: -20° F (-30C) to 660° F (350C)*
Pressure Max: Metal Seating 600 PSI*
NSF/ANSI 61-2010 Certified by IAPMO R&T, 2”-8”
812X - No Flange Face Seal
1/2" 2420X .2 $ 94.92
3/4" 2421X .3 $ 123.21
1" 2422X .5 $ 144.21
11/4" 2423X .7 $ 191.06
11/2" 2424X 1.4 $ 283.26
2" 2425X 2.3 $ 328.89
21/2" 2426X 3.9 $ 391.05
3" 2427X 5.4 $ 496.11
4" 2428X 7.8 $ 661.55
5" 2429X 20 $ 2,426.89
6" 2430X 32 $ 3,062.81
8" 2431X** 67 $ 5,313.41
8" 2432X 64 $ 5,670.30
*Consult factory for temp. & pressure rating. **230 PSI Max
80MS6VFD- All 316 stainless steel threaded male x female
check valve body. Stainless steel spring, poppet and VITON seal.
2"M x 2"F* 4084S6VFD 4.0 $ 398.52
4"M x 4"F* 4077S6VFD 25 $ 1,766.00
6"M x 6"F* 4081S6VFD 58 $ 4,989.00
80MS6VFD Discount Code A

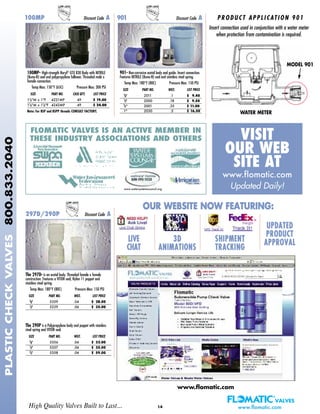

OUR WEBSITE NOW FEATURING:
LIVE
CHAT
3D
ANIMATIONS
SHIPMENT
TRACKING
UPDATED
PRODUCT
APPROVAL

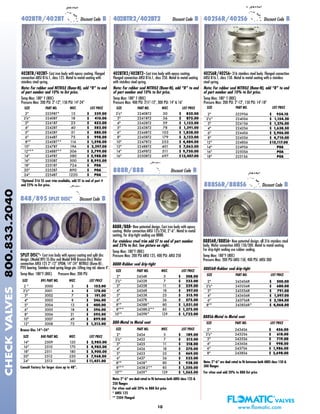

888R/888- New patented design. Cast iron body with epoxy
coating. Wafer connection ANSI 125/250, 2”-6”. Metal to metal
seating, for drip-tight sealing use 888R.
For stainless steel trim add ST to end of part number
and 25% to list. See picture on right.
Temp Max: 180°F (80C)
Pressure Max: 200 PSI ANSI 125, 400 PSI: ANSI 250
888R-Rubber seal drip-tight
2" 2434R 5 $ 208.00
21/2" 2432R 7 $ 233.00
3" 2435R 11 $ 239.00
4" 2436R 18 $ 297.00
5" 2433R 25 $ 515.90
6" 2437R 36 $ 575.00
8"* 2438R* 80 $ 1,031.00
8"** 2438R-2** 85 $ 1,375.00
10"* 2439R* 129 $ 1,722.00
888-Metal to Metal seat
2" 2434 5 $ 189.00
21/2" 2432 7 $ 212.00
3" 2435 11 $ 218.00
4" 2436 18 $ 270.00
5" 2433 25 $ 469.00
6" 2437 36 $ 523.00
8"* 2438* 80 $ 938.00
8"** 2438-2** 85 $ 1,250.00
10"* 2439* 129 $ 1,565.00
Note: 2''-6'' are dual rated to fit between both ANSI class 125 &
250 flanges
For viton seal add 20% to 888 list price
* ANSI 125
** 250# Flanged
SPLIT DISC®
- Cast iron body with epoxy coating and split disc
design. (Model 895 SS-Disc and Model 848 Bronze-Disc) Wafer
connection ANSI 125 2”-12” EPDM, 14”-24” NITRILE (Buna-N) ,
PTFE bearing. Stainless steel spring hinge pin. Lifting ring std. above 4".
SIZE 895 PART NO. WGT. LIST PRICE
2 " 3000 3 $ 152.00
21/2" 3001 4 $ 178.00
3" 3002 7 $ 191.00
4" 3003 8 $ 246.00
5" 3004 13 $ 400.00
6" 3005 18 $ 396.00
8" 3006 21 $ 595.00
10" 3007 49 $ 899.00
12" 3008 75 $ 1,213.00
Bronze Disc 14”–24”
SIZE 848 PART NO. WGT. LIST PRICE
14" 2509 120 $ 2,985.00
16" 2510 170 $ 4,985.00
18" 2511 180 $ 5,900.00
20" 2512 250 $ 7,968.00
24" 2513 360 $11,451.00
Consult Factory for larger sizes up to 48”.
10
402BTR/402BT- Cast iron body with epoxy coating. Flanged
connection ANSI B16.1, class 125. Metal to metal seating with
Note: For rubber seal NITRILE (Buna-N), add “R” to end
of part number and 10% to list price.
Temp Max: 180° F (80C)
Pressure Max: 200 PSI: 2"-12", 150 PSI: 14"-24"
2" 2239BT* 13 $ 339.00
21/2" 2240BT 18 $ 410.00
3" 2241BT 23 $ 453.00
4" 2242BT 40 $ 582.00
5" 2243BT 51 $ 880.00
6" 2244BT 75 $ 998.00
8"* 2245BT** 116 $ 1,598.00
10" 2247BT 194 $ 2,297.00
12"** 2248BT** 306 $ 3,799.00
14" 2249BT 380 $ 5,988.00
16" 2250BT 500 $ 8,995.00
18" 2251BT 724 $ POA
20" 2252BT 890 $ POA
24" 2254BT 1220 $ POA
*Optional 316 SS seat trim available, add ST to end of part #
and 25% to list price.
402BTR/402BT Discount Code B
848/895 SPLIT DISC®
Discount Code B
www.flomatic.com
CHECKVALVES800.833.2040
402BTR2/402BT2- Cast iron body with epoxy coating.
Flanged connection ANSI B16.1, class 250. Metal to metal seating
with stainless steel spring.
Pressure Max: 400 PSI: 21/2"-12", 300 PSI: 14" & 16"
21/2" 2240BT2 30 $ 825.00
3" 2241BT2 36 $ 875.00
4" 2242BT2 59 $ 1,122.00
5" 2243BT2 78 $ 1,391.00
6" 2244BT2 103 $ 1,838.00
8" 2245BT2 179 $ 3,123.00
10" 2247BT2 253 $ 4,484.00
12" 2248BT2 401 $ 7,063.00
14" 2249BT2 511 $ 9,750.00
16" 2250BT2 697 $13,407.00
402BTR2/402BT2 Discount Code B
888S6R/888S6 Discount Code B
402S6R/402S6 Discount Code B
888R/888 Discount Code B
*
402S6R/402S6- 316 stainless steel body. Flanged connection
ANSI B16.1, class 150. Metal to metal seating with a stainless
steel spring.
SIZE PART NO. LIST PRICE
2" 2239S6 $ 954.10
21/2" 2240S6 $ 1,154.20
3" 2241S6 $ 1,276.00
4" 2242S6 $ 1,638.50
6" 2244S6 $ 2,906.00
8" 2245S6 $ 4,710.00
12" 2248S6 $15,117.00
14" 2249S6 POA
16" 2250S6 POA
18" 2251S6 POA
888S6R/888S6- New patented design, all 316 stainless steel
body. Wafer connection ANSI 150/300. Metal to metal seating.
For drip-tight sealing use rubber sealing.
Pressure Max: 200 PSI ANSI 150, 400 PSI: ANSI 300
888S6-Metal to Metal seat
2" 2434S6 $ 456.00
21/2" 2432S6 $ 618.00
3" 2435S6 $ 719.00
4" 2436S6 $ 998.00
6" 2437S6 $ 1,986.00
8" 2438S6 $ 3,698.00
888S6R-Rubber seal drip-tight
2" 2434S6R $ 500.00
21/2" 2432S6R $ 680.00
3" 2435S6R $ 791.00
4" 2436S6R $ 1,097.00
6" 2437S6R $ 2,184.00
8"* 2438S6R* $ 4,068.00
Note: 2''-6'' are dual rated to fit between both ANSI class 150 &
300 flanges
For viton seal add 20% to 888 list price

11

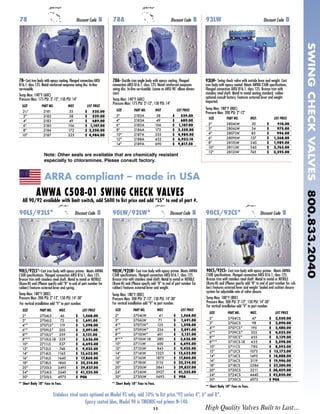

78 Discount Code B
AWWA C508-01 SWING CHECK VALVES
All 90/92 available with limit switch, add $600 to list price and add “LS” to end of part #.
78A Discount Code B
90LS/92LS* Discount Code B 90LW/92LW* Discount Code B 90CS/92CS* Discount Code B
SWINGCHECKVALVES800.833.2040
78- Cast iron body with epoxy coating. Flanged connection ANSI
B16.1, class 125. Metal reinforced neoprene swing disc. In-line
serviceable.
Pressure Max: 175 PSI: 3"-12", 150 PSI: 14"
21/2" 2181 35 $ 525.00
3" 2182 38 $ 539.00
4" 2183 49 $ 689.00
6" 2185 106 $ 1,107.00
8" 2186 172 $ 2,350.00
10" 2187 335 $ 4,984.00
Stainless steel seats optional on Model 92 only, add 10% to list price.*92 series 4", 6" and 8”.
Epoxy coated blue. Model 90 is TMEMIC red primer N-140.
Note: Other seals are available that are chemically resistant
especially to chloramines. Please consult factory.
90LW/92LW- Cast iron body with epoxy primer. Meets AWWA
C508 specifications. Flanged connection ANSI B16.1, class 125.
Bronze trim with stainless steel shaft. Metal to metal or NITRILE
(Buna-N) seal (Please specify add “R” to end of part number for
rubber) Features external lever and weight.
For vertical installation add “V” to part number.
2" 2704LW 41 $ 1,568.00
3" 2706LW 71 $ 1,691.00
4"* 3707LW* 125 $ 1,598.00
6"* 3709LW* 224 $ 2,091.00
8"* 3710LW* 401 $ 3,121.00
8"** 3710LW-18 380 $ 3,626.00
10" 2711LW 600 $ 6,695.00
12" 2712LW 843 $ 9,425.00
14" 2714LW 1323 $ 13,632.00
16" 2716LW 1875 $ 17,860.00
18" 2718LW 2110 $ 25,214.00
20" 2720LW 2841 $ 29,837.00
24" 2724LW 3927 $ 41,235.00
30" 2730LW 5693 $ POA
90CS/92CS- Cast iron body with epoxy primer. Meets AWWA
(Buna-N) seal (Please specify add “R” to end of part number for rub-
ber) Features external lever and weight. Sealed end cushion closure
system for adjustable rate of valve closure.
2” 2704CS 47 $ 2,550.00
3" 2706CS 98 $ 3,090.00
4"* 3707CS* 195 $ 3,480.00
6"* 3709CS* 325 $ 4,023.00
8"* 3710CS* 455 $ 5,139.00
8"** 3710CS-18 435 $ 5,598.00
10" 2711CS 780 $ 8,593.00
12" 2712CS 1073 $ 13,172.00
14" 2714CS 1495 $ 14,088.00
16" 2716CS 2119 $ 19,946.00
18" 2718CS 2386 $ 27,300.00
20" 2720CS 3211 $ 30,459.00
24" 2724CS 4440 $ 42,850.00
30" 2730CS 4975 $ POA
** Short Body 18” Face to Face.
78A- Ductile iron angle body with epoxy coating. Flanged
connection ANSI B16.1, class 125. Metal reinforced neoprene
swing disc. In-line serviceable. (same as ANSI 90˚ elbow dimen-
sion)
Pressure Max: 175 PSI: 3"-12", 150 PSI: 14"
SIZE PART NO. WGT LIST PRICE
3" 2182A 38 $ 539.00
4" 2183A 49 $ 689.00
6" 2185A 106 $ 1,107.00
8" 2186A 172 $ 2.350.00
10" 2187A 335 $ 4,984.00
12" 2188A 432 $ 6,953.10
14" 2189A 690 $ 9,817.50
90LS/92LS*-Cast iron body with epoxy primer. Meets AWWA
(Buna-N) seal (Please specify add “R” to end of part number for
rubber) Features external lever and spring.
2" 2704LS 46 $ 1,568.00
3" 2706LS 72 $ 1,691.00
4"* 3707LS* 119 $ 1,598.00
6"* 3709LS* 205 $ 2,091.00
8"* 3710LS* 359 $ 3,121.00
8"** 3710LS-18 339 $ 3,626.00
10" 2711LS 537 $ 6,695.00
12" 2712LS 748 $ 9,425.00
14" 2714LS 1165 $ 13,632.00
16" 2716LS 1645 $ 17,860.00
18" 2718LS 1860 $ 25,214.00
20" 2720LS 2495 $ 29,837.00
24" 2724LS 3440 $ 41,235.00
30" 2730LS 4975 $ POA
93LW Discount Code B
93LW- Swing check valve with outside lever and weight. Cast
iron body with epoxy coated. Meets AWWA C508 specifications.
Flanged connection ANSI B16.1, class 125. Bronze trim with
stainless steel shaft. Metal to metal seating standard, rubber
optional consult factory. Features external lever and weight.
Imported.
Pressure Max: 200 PSI: 2"-12"
2" 2804LW 30 $ 910.00
3" 2806LW 54 $ 975.00
4" 2807LW 85 $ 996.00
6" 2809LW 137 $ 1,268.00
8" 2810LW 240 $ 1,989.00
10" 2811LW 545 $ 3,763.00
12" 2812LW 745 $ 5,395.00
ARRA compliant – made in USA

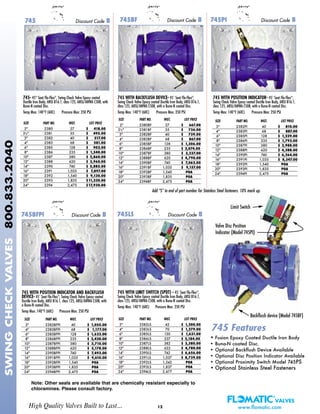

3"* 2382BFPI 40 $ 1,055.00
4"* 2383BFPI 68 $ 1,177.00
6" 2385BFPI 128 $ 1,622.00
8" 2386BFPI 235 $ 2,420.00
10" 2387BFPI 380 $ 3,710.00
12" 2388BFPI 620 $ 5,178.00
14" 2390BFPI 740 $ 7,493.00
16" 2391BFPI 1,035 $ 9,610.00
18" 2392BFPI 1,540 POA
20" 2393BFPI 1,835 POA
24" 2394BFPI 2,475 POA
2" 2380 27 $ 418.00
21/2" 2381 35 $ 495.00
3"* 2382 40 $ 517.00
4"* 2383 68 $ 581.00
6" 2385 128 $ 902.00
8" 2386 235 $ 1,540.00
10" 2387 380 $ 2,860.00
12" 2388 620 $ 3,960.00
14" 2390 740 $ 5,885.00
16" 2391 1,035 $ 7,897.00
18" 2392 1,540 $ 9,130.00
20" 2393 1,835 $11,330.00
24" 2394 2,475 $17,930.00
2" 2380BF 27 $ 667.00
21/2" 2381BF 35 $ 736.00
3"* 2382BF 40 $ 739.00
4"* 2383BF 68 $ 867.00
6" 2385BF 128 $ 1,306.00
8" 2386BF 235 $ 2,074.00
10" 2387BF 380 $ 3,337.00
12" 2388BF 620 $ 4,790.00
14" 2390BF 740 $ 7,062.00
16" 2391BF 1,035 $ 9,157.00
18" 2392BF 1,540 POA
20" 2393BF 1,835 POA
24" 2394BF 2,475 POA
3"* 2382LS 42 $ 1,200.00
4"* 2383LS 70 $ 1,279.00
6" 2385LS 130 $ 1,631.00
8" 2386LS 237 $ 2,184.00
10" 2387LS 382 $ 3,380.00
12" 2388LS 622 $ 4,780.00
14" 2390LS 742 $ 6,656.00
16" 2391LS 1,037 $ 8,739.00
18" 2392LS 1,542 POA
20" 2393LS 1,837 POA
24" 2394LS 2,477 POA
12
745 WITH POSITION INDICATOR AND BACKFLUSH
DEVICE- 45˚ Seat Flo-Flex®
, Swing Check Valve Epoxy coated
Ductile Iron Body, ANSI B16.1, class 125, ANSI/AWWA C508, with
a Buna-N coated Disc.
745 WITH BACKFLUSH DEVICE- 45˚ Seat Flo-Flex®
,
Swing Check Valve Epoxy coated Ductile Iron Body, ANSI B16.1,
class 125, ANSI/AWWA C508, with a Buna-N coated Disc.
745- 45° Seat Flo-Flex®
, Swing Check Valve Epoxy coated
Ductile Iron Body, ANSI B16.1, class 125, ANSI/AWWA C508, with
Buna-N coated Disc.
745PI Discount Code B745BF Discount Code B745 Discount Code B
3"* 2382PI 40 $ 810.00
4"* 2383PI 68 $ 887.00
6" 2385PI 128 $ 1,239.00
8" 2386PI 235 $ 1,792.00
10" 2387PI 380 $ 2,988.00
12" 2388PI 620 $ 4,388.00
14" 2390PI 740 $ 6,264.00
16" 2391PI 1,035 $ 8,347.00
18" 2392PI 1,540 POA
20" 2393PI 1,835 POA
24" 2394PI 2,475 POA
745 WITH POSITION INDICATOR- 45˚ Seat Flo-Flex®
,
745BFPI Discount Code B
SWINGCHECKVALVES800.833.2040
Note: Other seals are available that are chemically resistant especially to
chloramines. Please consult factory.
• Fusion Epoxy Coated Ductile Iron Body
• Buna-N coated Disc.
• Optional Backflush Device Available
• Optional Disc Position Indicator Available
• Optional Proximity Switch Model 745PS
• Optional Stainless Steel Fasteners
745 Features
745LS Discount Code B
Backflush device (Model 745BF)
Valve Disc Position
Indicator (Model 745PI)
Limit Switch
Add “S” to end of part number for Stainless Steel fasteners. 10% mark up.
745 WITH LIMIT SWITCH (SPDT) - 45˚ Seat Flo-Flex®
,

208T- Corrosion resistant PVC body. Threaded female x female
connection. NITRILE (Buna-N) self-cleaning ball E-Z access port
with NITRILE (Buna-N) seal. Also available with socket
weld–change part number from “T” to “S”–same pricing.
1" 2131T 1 $ 46.00
11/4" 2132T 1 $ 47.00
11/2" 2133T 2 $ 73.00
2" 2134T 2 $ 73.00
Note: For BSPP threads, change part number from “T” to “P”.
NOT FOR GROUND BURIAL.
13
508- Cast iron body with epoxy coating. Threaded female x
female connection. Standard corrosion resistant phenolic “Sinking
Ball” 2 Bolt access cover. Also available with special “Floating
Ball” for flood control or air vent application–add “FB” to part
number and 35% to list price.
1" 3232 3.5 $ 180.00
11/4" 3233 4.5 $ 183.00
11/2" 3234 6 $ 185.00
2" 3235 8 $ 225.00
21/2" 3236 11.5 $ 539.00
3" 2044 30 $ 525.00
4"* 2045* 45 $ 961.00
Note: 3" and 4", has no access cover, quick disconnect valve
system.
*Connection is flanged ANSI 125, no floating ball available.
508 Discount Code B
408 & 4082
- Cast iron body with epoxy coating and access port,
flanged connection ANSI B16.1, class 125. NITRILE (Buna-N) covered
metal ball. “Sinking Type”, stainless steel fasteners. Also available with
special “Floating Ball” for flood control or air vent applications–add FB
to `part number and 35% to list price.
3"* 2144–2* 45 $ 622.00
4"* 2145–2* 62 $ 770.00
5" 2143 90 $ 1,525.00
6" 2146 102 $ 1,550.00
8" 2147 218 $ 2,955.00
10" 2148 355 $ 6,939.00
12" 2149 624 $ 9,911.00
14" 2150 882 $14,864.00
*New 4082
model meets AWWA C508 flange to flange lay lengths,
and are ductile iron.
408 & 4082
Discount Code B
208- Cast iron body with epoxy coating and clean-out port.
Threaded female x female connection. Features NITRILE (Buna-N)
“Sinking Ball”.
11/4" 2141 4.5 $ 91.00
11/2" 2142-0 9.5 $ 117.00
2" 2142 9 $ 117.00
408PRX & 4082
PRX Discount Code B
408PRX & 4082
PRX- Model 408 ball check valve with a
proximity switch.
3"* 2144–2PRX* 45 $ 1045.00
4"* 2145–2PRX* 62 $ 1199.00
5" 2143PRX 90 $ 1,947.00
6" 2146PRX 102 $ 2,136.00
8" 2147PRX 218 $ 3,380.00
10" 2148PRX 355 $ 7,368.00
12" 2149PRX 624 $10,399.00
14" 2150PRX 882 $15,369.00
*New 4082
model meets AWWA C508 flange to flange lay lengths,
and are ductile iron.
77- Auto-Vac® Vacuum Breaker - This 1” valve is avail-
able in stainless steel and PVC. All internal parts are engineered
composite, with a stainless steel disc and resilient seat. Used to
prevent water hammer in wastewater valves.
PVC 4701P 12 $ 56.52
Stainless Steel 4701SS 12 $ 69.87
77 Discount Code B
208T Discount Code B
208 Discount Code B
Horizontal installation
requires a 20’ static
head on Ball Checks
Recommended for flow
velocity of 3’ to 5’
per sec. For higher
flow, consult factory.
BALLCHECKVALVES800.833.2040
ARRA-Compliant
Pictured with
optional Auto-Vac®
.
Add 77 to the end
of part number.
208B Discount Code B
208B- Same as Model 208 with bosses for rail mounting. Cast
iron body with epoxy coating and clean-out port. Threaded female
x female connection. Features NITRILE (Buna-N) “Sinking Ball”.
11/4" 2141B 5 $ 92.00
11/2" 2142-0B 10 $ 118.00
2" 2142B 10.5 $ 118.00
VERTICAL
MOUNTING
Seat up
HORIZONTAL
MOUNTING
Lodging of the ball below
the axis. The arrow shows
the direction in which the
liquid is rising.
OPERATION OF “THE FLOATING BALL”
APPLICATIONS for Model 408FB
TO AVOID OVERFLOW OF WATER RISING AND ALSO ALLOW GAS
EVACUATION IN FILLING OF TANKS OR PIPES (AIR-VENT).
OPTIONAL FLOATING BALL

14
100MP- High-strength Noryl®
GTX 830 Body with NITRILE
(Buna-N) seal and polypropylene follower. Threaded male x
female connection.
11/4"M x 1"F 4221MP 49 $ 19.00
11/4"M x 11/4"F 4242MP 49 $ 24.00
Note: For BSP and BSPP threads CONSULT FACTORY.
901- Non-corrosive acetal body and guide. Insert connection.
Features NITRILE (Buna-N) seal and stainless steel spring.
3/8" 2011 .1 $ 9.40
1/2" 2000 .18 $ 9.50
3/4" 2001 .35 $ 11.00
1" 2030 .5 $ 16.50
100MP Discount Code A 901 Discount Code A
The 297D- is an acetal body. Threaded female x female
construction. Features a VITON seal, Nylon 11 poppet and
3/8" 5359 .04 $ 28.00
1/2" 5239 .06 $ 35.00
The 290P is a Polypropylene body and poppet with stainless
steel spring and VITON seal.
3/8" 5356 .04 $ 33.00
1/2" 5357 .06 $ 35.00
3/4" 5358 .06 $ 59.00
297D/290P Discount Code A
FLOMATIC VALVES IS AN ACTIVE MEMBER IN
THESE INDUSTRY ASSOCIATIONS AND OTHERS VISIT
OUR WEB
SITE AT
www.flomatic.com
Updated Daily!
PLASTICCHECKVALVES800.833.2040
Insert connection used in conjunction with a water meter
when protection from contamination is required.
PRODUCT APPLICATION 901
OUR WEBSITE NOW FEATURING:
LIVE
CHAT
3D
ANIMATIONS
SHIPMENT
TRACKING
UPDATED
PRODUCT
APPROVAL
MODEL 901
WATER METER
www.flomatic.com
www.watersystemscouncil.org

BUTTERFLYVALVES800.833.2040
15www.flomatic.com
KWIK-CLOSE®
Discount Code B
SERIES 6000 (NICKEL PLATED DUCTILE IRON DISC)
Wafer Style butterfly valve,cast iron body. Seat Liner EPDM
standard ISO top flange. 10 position lever handle.
Working Temp: Max+230°F (+110C) Pressure Max: 200 PSI
SIZE SERIES 6000 WGT.
LIST PRICE
LEVER HANDLE
2" 6102000 8 $ 59.00
3" 6103000 9 $ 82.00
4" 6104000 13 $ 82.00
6" 6106000 18 $ 138.00
8" 6108000 37 $ 218.00
10" 6110000 51 $ 328.00
12" 6112000 68 $ 438.00
14"* 149U003685 80 $ 768.00
16"* 149U003686 137 $ 1,056.00
(Ductile Iron Disc) WITH GEAR
3" 450100060 43
4" 450100070 54
6" 450000090 74
8" 450000100 134
10" 450000110 188
12" 450000120 261
14" 450000140 380
16" 450000160 414
18" 450000180 532
20" 450000200 653
24" 450000240 739
$ 513.00
$ 615.00
$ 776.00
$ 1,111.00
$ 1,488.00
$ 2,251.00
$ 2,916.00
$ 4,088.00
$ 4,308.00
$ 4,968.00
$ 7,776.00
®
*Polyamide Coated DI Disc.,Gear Operated
FLANGED BUTTERFLY VALVES
Municipal Water & Waste Water
AWWA C504:
• Proof of design
available upon request.
• Metal certification
upon request.
• Fusion epoxy paint
• V-type packing
• Seat Buna-N
• Ductile Iron disc,
316SS edge
MODEL 45 (Lever Operated) - Cast ductile iron flanged
body. ASTM A536 Cast ductile iron disc with stainless type 316
edge. Seat standard NBR (EPDM optional) bonded and
vulcanized. Designed to AWWA standard C504, class 150B.
Electric/pneumatic actuation available.
Working Temp: Max+180°F (82C) Pressure Max: 200 PSI
WITH LEVER
3" 450100061 $ 484.00
4" 450100071 $ 593.00
6" 450100091 $ 754.00
AZURE®
Discount Code B
MODEL 45 - Electric actuated, Azure®
butterfly valve,
110 vac power, manual handwheel override for open/close
service.
(Ductile Iron Disc) WITH GEAR
3" 4501000620000 61 $2,299.00
4" 4501000720000 72 $2,453.00
6" 4500000920000 82 $3,144.00
8" 4500001020000 165 $4,112.00
10" 4500001120000 220 $4,942.00
12" 4500001220000 300 $6,015.00
14" 4500001420000 530 $7,203.00
16" 4500001620000 564 $10,146.00
18" 4500001820000 686 $12,699.00
20" 4500002020000 823 POA
24" 4500002420000 910 POA
*Modulating available POA
AZURE®
BUTTERFLY
w/ACTUATOR Discount Code BAZURE®
Discount Code B
MODEL 45 (Gear Operated) - Ductile iron flanged body.
ASTM A536 ductile iron disc with stainless type 316 steel edge.
Seat, standard NBR (EPDMoptional)vulcanized.Designed to
AWWA standard C504,class150B. Electric/pneumatic actuation
available.
Working Temp: Max+180°F (82C) Pressure Max: 200 PSI
SMART CARD Discount Code B
SMART CARD - New digital high resolution controller for
use in the Flomatic FCEL Series Electric Actuators.
The DHC-100 is a high resolution controller/positioner:
• for use in the FCEL series AC electric actuators
• with operating times from 2 to 120 seconds
• that can be configured for various command types (4-20mA,
1-5V, 0-5V, 0-10V, or a digital command) and a fail position
on loss of signal
With its modular design a variety of options are easily plugged
in providing other features. A wide range of data is accessible
through a digital communications module providing additional
control and information.

www.flomatic.comHigh Quality Valves Built to Last...
16
SYLAX®
LUG (DI) Discount Code B SYLAX®
WAFER (DI) Discount Code B
OPTIONS:OPTIONS:
•Gear
•Explosion & Water Proof
•Auxiliary limit switches
•Shaft extensions
•Valve disc position indicator
OPTIONAL SEATS:OPTIONAL SEATS:
•Buna-N
•Viton
•PTFE (Different valve body)
SYLAX®
WAFER (SS) Discount Code B
GEAR
OPERATOR Discount Code B
149G (DUCTILE IRON DISC) - SYLAX®
Full Lug Series Cast
iron body with epoxy coated ductile iron disc. Seat Liner EPDM
(Buna-N optional) with standard ISO top flange for direct
mounting of actuator.
Working Temp: Max+230°F (+110°C) Pressure Max: 200 PSI
SIZE PART NO. WGT LIST PRICE LIST PRICE
(Ductile Iron Disc) WITH LEVER WITH GEAR
2" 149G037290 9 $ 128.58 $ 259.49
21/2" 149G037291 11 $ 134.94 $ 261.00
3" 149G037292 12 $ 145.37 $ 280.24
4" 149G037293 19 $ 196.83 $ 351.60
5" 149G037294 22 $ 248.44 $ 376.25
6" 149G037295 26 $ 299.81 $ 442.05
8" 149G037296 51 $ 422.00 $ 603.09
10" 149G037297 61 $ 577.10 $ 807.33
12" 149G037299 93 $ 709.63 $ 923.91
Up to 24” available CONSULT FACTORY.
149G (DUCTILE IRON DISC)- SYLAX®
Wafer Style Series
Cast iron body with epoxy coated ductile iron disc.
Seat Liner EPDM (Buna-N optional) with standard ISO
top flange for direct mounting of actuator.
Working Temp: Max+230°F (+110°C) Pressure Max: 200 PSI
(Ductile Iron Disc) WITH LEVER WITH GEAR
2" 149G010894 8 $ 114.71 $ 225.65
21/2" 149G010909 8 $ 127.41 $ 238.35
3" 149G010928 9 $ 141.50 $ 252.44
4" 149G010955 13 $ 164.43 $ 284.88
5" 149G010989 17 $ 222.15 $ 342.60
6" 149G011005 18 $ 252.17 $ 372.62
8" 149G016257 37 $ 316.10 $ 483.77
10" 149G41010 51 $ 488.20 $ 655.88
12" 149G023900 73 $ 644.76 $ 866.64
149G (316SS DISC)- SYLAX®
Wafer Style Series - Cast
iron body with 316 stainless steel disc. Seat Liner EPDM
Working Temp: Max+230˚F (+110˚C) Pressure Max: 200 PSI
(316SS Disc) WITH LEVER WITH GEAR
2" 149G011266 8 $ 140.85 $ 251.79
21/2" 149G011287 8 $ 151.36 $ 262.29
3" 149G011297 9 $ 171.23 $ 282.17
4" 149G011316 13 $ 207.29 $ 327.74
5" 149G011334 17 $ 262.95 $ 383.40
6" 149G011343 18 $ 298.25 $ 418.69
8" 149G016281 37 $ 542.36 $ 684.20
10" 149G013612 51 $ 908.53 $1,032.94
12" 149G037310 57 $1,140.84 $1,487.97
SYLAX®
LUG (SS) Discount Code B
149G (316SS DISC) - SYLAX®
Full Lug Series - Cast iron
body with 316 stainless steel disc. Seat Liner EPDM
Working Temp:Max+230°F (+110°C) Pressure Max: 200 PSI
(316SS Disc) WITH LEVER WITH GEAR
2" 149G037300 9 $ 186.33 $ 265.92
21/2" 149G037302 11 $ 187.84 $ 288.04
3" 149G037303 12 $ 196.16 $ 305.15
4" 149G037305 19 $ 259.36 $ 358.39
5" 149G037306 22 $ 313.75 $ 416.43
6" 149G037307 26 $ 399.91 $ 497.72
8" 149G037308 51 $ 703.94 $ 864.64
10" 149G037309 61 $ 936.42 $1,104.09
12" 149G023904 93 $1,202.74 $1,401.04
Gear Operators for Sylax Butterfly Valves
Add “G” to Lever Operated part number for a gear
operated valve. With position indicator on top of gear box.

17
2" $ 1,951.40
21/2" $ 1,956.90
3" $ 1,969.00
4" $ 2,058.10
5" $ 2,083.40
6" $ 2,592.70
8" $ 3,289.00
10" $ 3,917.10
12" $ 4,714.60
Series 6000
SYLAX®
LUG ELECTRIC
ACTUATED(DI) Discount Code B
SYLAX®
LUG ELECTRIC
ACTUATED(SS) Discount Code B BUTTERFLY VALVE
SYLAX®
WAFER STYLE SERIES 149GA
Body: Cast Iron
Disc: Epoxy Coated Ductile Iron
Seat Liner: EPDM
SYLAX®
WAFER (DI)
ELECTRIC ACTUATED Discount Code B
SYLAX®
WAFER (SS)
ELECTRIC ACTUATED Discount Code B
SYLAX®
WAFER STYLE SERIES 149GA
Body: Cast Iron
Disc: 316 Stainless Steel
Seat Liner: EPDM
PNEUMATIC ACTUATED
Pneumatic Actuated
2”-24”
Double Acting and Spring Return
Price on Application
Butterfly Valves 3"- 24"
AWWA C504
See page 15
CHAINWHEEL OPTION
Chainwheel Option
2”-24”
(Use with gear option)
Price on Application
SYLAX®
FULL LUG SERIES 149GA
Body: Cast Iron
Disc: 316 Stainless Steel
Seat Liner: EPDM
2" 149G037300A
21/2" 149G037302A
3" 149G037303A
4" 149G037305A
5" 149G037306A
6" 149G037307A
8" 149G037308A
10" 149G037309A
12" 149G037310A
33
35
36
46
46
53
103
125
159
33
35
36
46
46
53
103
125
159
$ 1,978.90
$ 1,987.70
$ 2,002.00
$ 2,095.50
$ 2,130.70
$ 2,646.60
$ 3,395.70
$ 4,109.60
$ 4,924.70
(316SS Disc)
(Ductile Iron Disc)
149G010894A
149G010909A
149G010928A
149G010955A
149G010989A
149G011005A
149G016257A
149G41010A
149G023900A
2" $ 1,969.00
21/2" $ 1,975.60
3" $ 1,991.00
4" $ 2,082.30
5" $ 2,113.10
6" $ 2,626.80
8" $ 3,356.10
10" $ 4,041.40
12" $ 4,847.70
32
32
33
37
41
45
98
115
149
(316SS Disc)
149G011266A
149G011287A
149G011297A
149G011316A
149G011334A
149G011343A
149G016281A
149G013612A
149G023904A
2" $ 1,960.20
21/2" $ 1,966.80
3" $ 1,978.90
4" $ 2,069.10
5" $ 2,097.70
6" $ 2,609.20
8" $ 3,323.10
10" $ 3,978.70
12" $ 4,770.70
SYLAX®
FULL LUG SERIES 149GA
Body: Cast Iron
Disc: Epoxy Coated Ductile Iron
Seat Liner: EPDM
33
35
36
46
46
53
103
125
159
(Ductile Iron Disc)
149G037290A
149G037291A
149G037292A
149G037293A
149G037294A
149G037295A
149G037296A
149G037297A
149G037299A

18
333E-ENVIRO FOOT VALVE- body with high strength acetal
poppet. Tappered stainless steel strainer, end cap, spring and
fasteners. NITRILE (Buna-N) seal.
1" 4171E .6 50 $ 48.21
11/4" 4172E .8 36 $ 58.16
60SE-ENVIRO FOOT VALVE-body with threaded female
connection. Features a NITRILE (Buna-N) seal, acetal poppet (21/2",
3" and 4" have bronze poppets) stainless steel spring and strainer.
Temp Max: 180°F (80C) Pressure Max: 250 PSI (1/2" size 150 PSI)
1/2"* 5820E* .1 10 $ 35.27
3/4" 4100E .3 100 $ 39.38
1" 4101E .8 50 $ 43.76
11/4"** 4102E** .8 50 $ 50.63
11/4" 4103E 1 36 $ 52.31
11/2" 4104E 1.6 25 $ 85.24
2 " 4105E 2.1 16 $ 135.22
21/2" 4106E 6 $ 448.12
3" 4107E 11 $ 617.90
4" 4108E 19 $ 1,028.14
*Polyethylene strainer
**Model 600S (4102E) will pass through a 2" pipe.
190D- Acetal body and strainer, Nylon 11 poppet.
Stainless steel spring and NITRILE (Buna-N) seal.
193D- Similar to the 190D with one-piece acetal body
and strainer.
190P- Polypropylene body and strainer. Stainless steel spring
and VITON seal.
SIZE PART NO. MODEL WGT. CASE QTY. LIST PRICE
3/8" 5619 193D .03 10 $ 17.85
3/8" 5726 190P .03 10 $ 17.96
1/2" 5620 193D .03 10 $ 30.45
1/2" 5727 190P .03 10 $ 33.17
3/4" 5728 190P .08 10 $ 34.65
11/2" 5724 190D .28 6 $ 43.05
2 " 5725 190D .41 6 $ 89.25
104PS- Features rugged high-strength noryl GTX 830 valve
body with a tapered stainless steel, with a NITRILE (Buna-N) seal
and polypropylene follower.
11/4" 5733PS .21 36 $ 31.32
333DPE-ENVIRO FOOT VALVE- body, but with dual pur-
pose male and female threads.
11/4"M x 1"F 4181E .5 50 $ 53.87
11/2"M x 11/4"F 4182E .8 36 $ 63.75
333DPE Discount Code A333E Discount Code A60SE Discount Code A
124P- features a simple flow through design with corrosion
resistant parts. Durable Nylon body that has a 4 in 1 combo
feature (3/4" – 11/2")
SIZE PART NO. WGT. Enters Pipe Size LIST PRICE
3/4" - 11/2" 5728P .25 2'' $ 24.95
2" 5725P .33 3'' $ 43.10
FLOMATICFLOMATIC
FREIGHTFREIGHT
POLICYPOLICY
We offer fast delivery
• “ A” & “ C” Code items:
$1,500.00 net prepaid
• “ B” Code items: FOB Factory
Minimum Net Order of $75.00
333SS- FOOT VALVE- All 303 Stainless steel body with high
strength acetal poppet. Tappered stainless steel strainer, end cap,
spring and fasteners. NITRILE (Buna-N) seal.
1" 4171SS .6 50 $ 59.02
11/4" 4172SS .8 36 $ 71.19
333SS Discount Code A
104P- Reinforced nylon body with threaded female connection.
Polyethylene strainer, polyethylene/acetal poppet. NITRILE
(Buna-N) seal and stainless steel spring.
3/4" 5731 .08 10 $ 17.28
1" 5732 .13 50 $ 19.95
11/4" 5733 .21 36 $ 27.30
124P Discount Code A
190D/193D/190P Discount Code A
FOOTVALVES800.833.2040
104P Discount Code A 104PS Discount Code A

19
812XTF- All 316 stainless steel, threaded female connection.
Metal to metal seating and teflon O-ring.
2"-4" available with socket weld connection.Consult factory for
pricing.11/2"-4" available with NITRILE (Buna-N) or VITON seal,
add 10% to list (Model 812XRF/812XVF).
* Temp Max: 400°F (200C) * Pressure Max: 300 PSI
1/2" 2420XTF 2 $ 300.00
3/4" 2421XTF 4 $ 370.00
1" 2422XTF 5 $ 551.00
11/4" 2423XTF 9 $ 671.00
11/2" 2424XTF 12 $ 744.00
2" 2425XTF 14 $ 885.00
21/2" 2426XTF 14 $ 1,548.00
3" 2427XTF 25 $ 1,783.00
4" 2428XTF 39 $ 2,030.00
5" 2429XTF 62 $ 4,323.00
6" 2430XTF 80 $ 5,148.00
8" 2431XTF 140 $ 9,000.00
* Consult factory for temp. & pressure rating.
63- Cast iron body with epoxy coating. Features threaded female
connection. NITRILE (Buna-N) seal, high strength non-metallic or
unleaded bronze or ductile iron poppet, stainless steel spring.
Heavy duty polyethylene strainer.
2"* 4764 4 $ 82.49
21/2" 4765 5 $ 135.51
3" 4766 9 $ 175.31
4" 4767 17 $ 225.65
6"** 4789VFD 36 $ 895.00
*2" Acetal guide.
2 1/2" - Unleaded bronze guide. 3"-6" Ductile iron poppet.
** Galvanized Strainer Only.
For Municipal applications see 302BT below
357- Cast iron body and strainer. Threaded female connection.
Hinged leather seat.
11/4" 4962 3 $ 164.54
11/2" 4963 3 $ 160.14
2" 4964 6 $ 165.83
3" 4966 13 $ 272.44
4" 4967 20 $ 377.92
6" 4969 45 $ 638.65
8" 4970 99 $ 1,316.00
357 Discount Code A 63 Discount Code B 812XTF Discount Code B
812XFF- All 316 stainless steel. Flanged connection ANSI 150.
Metal to metal seating and teflon O-ring.
11/2"-4" available with NITRILE (Buna-N) or VITON seal, add
10% to list (Model 812XRF/812XVF).
* Temp Max: 300°F (150C) * Pressure Max: 275 PSI
1/2" 2420XFF 2.5 $ 380.00
3/4" 2421XFF 4.6 $ 488.00
1" 2422XFF 5.7 $ 733.00
11/4" 2423XFF 9.8 $ 840.00
11/2" 2424XFF 13 $ 949.00
2" 2425XFF 15 $ 1,251.00
21/2" 2426XFF 13 $ 1,726.00
3" 2427XFF 27 $ 2,053.00
4" 2428XFF 43 $ 2,801.00
5" 2429XFF 65 $ 5,591.00
6" 2430XFF 85 $ 7,450.00
8" 2431XFF 150 $12,559.00
* Consult factory for temp. & pressure rating.
812XFF Discount Code B
302BT- Cast iron body with epoxy coating, bronze disc and seat
(2"-12"). Flanged connection ANSI B16.1, class 125. Features a
Buna and stainless steel strainer.
2" 4763BT 23 $ 925.00
21/2" 4768BT 30 $ 935.00
3" 4769BT 37 $ 940.00
4" 4770BT 63 $ 1,111.00
5" 4771BT 80 $ 1,509.00
6" 4772BT 100 $ 1,694.00
8" 4774BT 160 $ 2,500.00
10" 4775BT 260 $ 3,432.00
12" 5416BT 410 $ 4,800.00
14" 5417BT 500 $ 9,200.00
16" 5418BT 650 $ 11,600.00
18" 5419BT 850 $ POA
20" 5420BT 1050 $ POA
24" 5422BT 1440 $ POA
Also available as model 302S6T with 316SS trim and model 302S6
all 316SS design.
302BT Discount Code B
80S6F - Foot Valve- All 316 stainless steel threaded check valve
body. Stainless steel spring, poppet, strainer and Buna-N seal,
VITON optional.
Temp Max: 400°F (200°C) Pressure Max: 400 PSI
1" 4031S6F 2.1 $ 238.00
11/4" 4032S6F 2.4 $ 307.00
11/2" 4033S6F 5.0 $ 316.00
2" 4034S6F 7.0 $ 513.00
3" 7938S6F 15 $ 1,097.00
4" 7939S6F 30 $ 1,650.00
6" 4089S6F 75 $ 6,458.00
8" 4090XSSF 105 $ 8,314.00
10" 4091XSSF 190 $14,500.00
80S6F Discount Code A
FOOTVALVES800.833.2040
REFER TO PAGE 34 FOR
LOCAL SALES REPS BY STATE

20
6P STRAINER- Plastic (polyethylene) with male NPT threads.
Converts a check valve to a foot valve, by screwing into the valve
threads.
STRAINER ONLY
3/4" 4300P .1 25 $ 5.75
1" 4301P .1 25 $ 6.02
11/4" 4302P .2 25 $ 6.77
11/2" 4303P .3 10 $ 6.77
6P STRAINER Discount Code A
46 STRAINER-Cast iron body with epoxy coating. Flanged con-
nection ANSI 125. Plastic 2"-4" stainless steel 5"-24" strainer.
2" 5814P 4.7 $ 165.00
21/2" 5815P 6.4 $ 167.00
3" 5816P 8.8 $ 220.00
4" 5817P 13 $ 350.00
5" 5821S 16 $ 447.00
6" 5822S 21 $ 488.00
8" 5824S 44 $ 728.00
10" 5825S 55 $ 1,150.00
12" 5826S 80 $ 1,589.00
14" 5827S 121 $ 2,524.00
16" 5828S 166 $ 3,225.00
18" 5829S 211 $ 4,043.00
20" 5830S 256 $ 4,177.00
24" 5832S 346 $ 5,513.00
P: Plastic 2"-4"
S: Stainless steel 5"-24"
46 STRAINER Discount Code B
46T STRAINER- Cast iron body with epoxy coating. Threaded
female connection. Removable polyethylene strainer.
2" 4364 2.5 $ 87.00
21/2" 4365 4 $ 140.00
3" 4366 8.2 $ 147.00
4 " 4367 14 $ 199.00
46T STRAINER Discount Code B
16FL STRAINER Discount Code B
16FL STRAINER- All 316 Stainless steel body, flanged with
316SS internal strainer. Standard 20 mesh replacement screens
optional 40, 60, 80 and 100 mesh screens (fit inside of 20 mesh).
ASME 150 Class.
Standard 20 Mesh – if optional 40, 60, 80, or 100 add to
end of part number: 40 Mesh = 040 to end of part number
60 Mesh = 060 to end of part number
X in part # below 1 for stainless steel and 2 for carbon
*Temp Max: 800°F *Pressure Max: 600 PSI
*See temperature/pressure rating.
STAINLESS CARBON
1" S0014-X-0300 $ 272.00 $ 341.00
11/2" S0154-X-0300 $ 456.75 $ 525.00
2" S0024-X-0300 $ 637.35 $ 640.00
Strainers supplied with FNPT tapped retainer cap for blow off outlet.
Strainers supplied with PTFE cap seal.
Optional graphite list price cap seal adder: $15.00
16 STRAINER Discount Code B
16 STRAINER- All 316 Stainless steel body, threaded FNPT
“Y-Type” strainer. Standard 20 mesh replaceable screens optional
40, 60, 80 and 100 mesh screens (fit inside of 20 mesh).
ASME 600 Class.
Standard 20 Mesh – if optional 40, 60, 80, or 100 add to
end of part number: 40 Mesh = 040 to end of part number
X in part # below 1 for stainless steel and 2 for carbon
*Temp Max: 800°F *Pressure Max: 600 PSI
*See temperature/pressure rating.
STAINLESS CARBON
1/4" S2501-X-0300 $ 125.00 $ 132.00
3/8" S3751-X-0300 $ 131.25 $ 132.00
1/2" S5001-X-0300 $ 131.25 $ 132.00
3/4" S7501-X-0300 $ 157.50 $ 132.00
1" S0011-X-0300 $ 183.75 $ 157.00
11/4" S1251-X-0300 $ 198.45 $ 184.00
11/2" S0151-X-0300 $ 238.35 $ 244.00
2" S0021-X-0300 $ 523.95 $ 260.00
Strainers supplied with FNPT tapped retainer cap for blow off outlet.
Strainers supplied with PTFE cap seal. Optional graphite list price cap seal
adder: $15.00 Many different types of configurations available.
STRAINER- Unleaded Bronze body, 20 mesh stainless steel
strainer. Furnished with clean out plug.
Pressure Max: 200 PSI WOG
Threaded
3/8" 8711E .5 $ 32.00
1/2" 8712E .3 $ 35.00
3/4" 8713E 2 $ 55.00
1" 8714E 4 $ 63.00
11/4" 87142E 5 $ 112.00
11/2" 87143E 6 $ 145.00
2" 87144E 9 $ 250.00
21/2"* 87145* 15 $ 267.00
3"* 87146* 25 $ 340.00
4"* 87147* 95 $ 610.00
6"* 87148* 185 $ 987.00
8"* 87149* 299 $ 1,840.00
* Cast iron and flanged connection.
www.flomatic.com
FOOTVALVES&STRAINERS800.833.2040
6SE STRAINER-Unleaded bronze body with threaded female
connection. Stainless steel strainer with unleaded bronze. Stainless
steel or plastic caps.
1/2" 4399E .1 10 $ 29.00
3/4" 4300E .2 100 $ 32.00
1" 4301E .6 49 $ 37.00
11/4"* 4302E * .6 36 $ 39.00
11/2"* 4303E * 1.2 25 $ 55.00
2"* 4304E * 2.4 16 $ 99.00
21/2" 4305E 3 $ 262.00
3" 4306E 7.2 $ 379.00
4" 4307E 14 $ 740.00
* End caps on strainer are plastic.
6SE STRAINER Discount Code A
6SS STRAINER-All 303 stainless steel body with threaded
female connection. Stainless steel strainer with stainless steel or
plastic caps.
1" 4371SS .6 49 $ 52.00
11/4" 4372SS .6 36 $ 62.00
6SS STRAINER Discount Code A
STRAINERS Discount Code C

21
Rugged Dependability
• Model C, full port globe style
• Model CF, reduced cavitation configuration
• Model CA, angle style
Always with these standard features...
• Fusion Epoxy coating – internal & external
• Copper tubing (ss optional)
• Control tubing shutoff valves
• Gauge cocks
• Valve Trim – Unleaded Bronze (11
⁄4''–10'') or
Stainless Steel (12''& up)
• Body drain plugs
• EZ off Jack screw covers & seat rings
Can be equipped with these popular options
• Dual power chamber
• Built-In check feature
• Unleaded Pilots or Stainless Steel
• Electronic controls
• New optional SS-trim
Model CA
• Angle body globe style
(flanged or threaded)
Model CF
• Reduced port globe style
Model C
• Full port globe style
• Pressure Reducing Valve
• Modulating Altitude Valve
• Non-Modulating Altitude Valve
• Back Pressure Sustaining Valve
• Pressure Relief Valve
• Surge Arrestor Valve
• Pump Control Valve
• Pilot Operated Float Valve
• Solenoid Control Valve
• Flow Control
• Hydraulic Check Valve
CHECK THESE
FEATURES...
SEVERAL
DIFFERENT
SERIES...
4 Different Body Configurations.
CONTROLVALVES800.833.2040
Up to 36''

BACK PRESSURE SUSTAINING VALVE - Sustains a
minimum upstream pressure to prevent overdrafting the supply.
11/4" $1,316
11/2" $1,325 $ 1,559 $ 1,608
2" $1,355 $ 1,587 $ 1,661
21/2" $1,685 $ 1,743 $ 1,803 $ 1,924
3" $ 1,939 $ 1,947 $ 2,037
4" $ 2,043 $ 2,638 $ 2,815
6" $ 2,843 $ 3,867 $ 4,154
8" $ 4,468 $ 6,325 $ 6,855
10 $ 6,572 $ 8,740 $ 9,513
12" $ 10,970 $ 14,233 $ 14,813
14" $ 14,607 $ POA $ POA
16” POA $ 23,176 $ POA
18" POA $ POA $ POA
20" $ 27,980 $ POA $ POA
* Reduced cavitation configuration.
22
C301/CA301 Discount Code B
C101THREADED/CF101/C101/CA101 C103/CA103 Discount Code BDiscount Code B
PRESSURE REDUCING VALVE WITH CHECK - Reduces
high upstream pressure to lower downstream pressure.
11/2" $2,330 $2,200 $2,465
2"
21/2"
3"
4"
6"
8"
10"
12"
6"
8"
10"
12"
NON-MODULATING ALTITUDE VALVE - Single Acting.
Level control of storage tanks, reservoirs, and basins.
.
SIZE THREADED C/CA C/CA
CF MODEL* C FLANGED C FLANGED
150# 150# 300#
C/CA C/CA
SIZE THREADED CF MODEL* C FLANGED C FLANGED
150# 150# 300#
SIZE C THREADED LIST PRICE CF FLANGED LIST PRICE
150# 150#
11/2"
3"
4"
6"
8"
10"
12"
14"
16"
18"
20"
SIZE C/CA
C THREADED
LIST PRICE LIST PRICECF FLANGED*
150#
11/4"
21/2"
2"
PRESSURE REDUCING VALVE - Reduces high upstream pressure to lower downstream pressure.
SIZE LIST PRICE LIST PRICEC/CA
C FLANGED
150#
C/CA
C FLANGED
300#
11/2"
2"
21/2"
3"
4"
6"
8"
10"
12”
14”
16”
18”
20”
11/2" $ 3,214 $ 3,446 $ 3,687
2" $ 3,542 $ 3,627 $ 3,881
21/2" $ 3,836 $ 3,605 $ 4,015 $ 4,296
3" $ 3,729 $ 4,065 $ 4,349
4" $ 4,395 $ 4,755 $ 5,088
6" $ 4,946 $ 5,886 $ 6,298
8" $ 6,325 $ 8,462 $ 9,054
10" $ 8,545 $ 9,335 $ 9,988
12" $ 12,967 $14,193 $15,186
14" $ 16,101 POA POA
16" POA $24,670 POA
18" POA POA POA
20" $29,473 POA POA
C/CA
C FLANGED
300#
CF MODEL*
150#
SIZE THREADED
C/CA
C FLANGED
150#
MODULATING ALTITUDE VALVE - Single acting level
control with modulation for final filling of storage tanks.
SIZE THREADED CF MODEL* C/CA C/CA
150# C FLANGED C FLANGED
150# 300#
11/2" $2,330 $2,200 $2,465
2"
21/2"
3"
4"
6"
8"
10"
12"
6"
8"
1"
12"
11/2"
2"
21/2"
3"
4"
6"
8"
10"
12”
14”
16”
18”
20”
C/CA C/CA
SIZE THREADED CF MODEL* C FLANGED C FLANGED
150# 150# 300#
NEW LARGER SIZES IN STOCK – 16”, 20”, & 30”
C101B0B00100
C101C0B00100
C101D0B00100
C101E0B00100
$ 1,244
$ 1,267
$ 1,277
$ 1,591 $ 1,590
$ 1,623
$ 1,732
$ 2,634
$ 4,261
$ 6,242
$10,686
$14,556
POA
POA
$27,928
CF101E1B00100
CF101F1B00100
CF101G1B00100
CF101J1B00100
CF101K1B00100
CF101L1B00100
CF101M1B00100
CF101N1B00100
CF101O1B00100
CF101P1B00100
CF101Q1B00100
$ 1,745
$ 1,778
$ 1,886
$ 2,788
$ 4,416
$ 6,396
$10,841
$14,710
POA
POA
$28,083
$ 1,421
$ 1,432
$ 1,746
$ 1,716
$ 1,836
$ 2,066
$ 2,105
$ 2,550
$ 3,945
$ 6,559
$ 9,297
$14,500
POA
POA
POA
POA
$ 1,510
$ 1,762
$ 1,842
$ 1,881
$ 2,373
$ 3,659
$ 6,030
$ 8,525
$ 13,920
POA
$23,279
POA
POA
$ 3,605
$ 3,729
$ 4,395
$ 4,946
$ 6,325
$ 8,545
$12,967
$16,101
POA
POA
$29,473
$ 3,214
$ 3,542
$ 3,836
$ 3,554
$ 3,880
$ 4,296
$ 4,249
$ 5,088
$ 6,298
$ 9,054
$ 9,988
$15,186
POA
POA
POA
POA
$ 3,343
$ 3,627
$ 4,015
$ 4,064
$ 4,756
$ 5,886
$ 8,461
$ 9,335
$ 14,192
POA
$24,670
POA
POA
11/2" C101C1B00100 $1,355 C101C2B00100 $1,561
2" C101D1B00100 $1,608 C101D2B00100 $1,682
21/2" C101E1B00100 $1,687 C101E2B00100 $1,912
3" C101F1B00100 $1,726 C101F2B00100 $1,951
4" C101G1B00100 $2,219 C101G2B00100 $2,396
6" C101J1B00100 $3,504 C101J2B00100 $3,790
8" C101K1B00100 $5,875 C101K2B00100 $6,405
10" C101L1B00100 $8,371 C101L2B00100 $9,142
12" C101M1B00100 $13,766 C101M2B00100 $14,346
14" C101N1B00100 POA C101N2B00100 POA
16" C101O1B00100 $23,125 C101O2B00100 POA
18" C101P1B00100 POA C101P2B00100 POA
20" C101Q1B00100 POA C101Q2B00100 POA

PRESSURE RELIEF VALVE - Protects against excessive
presssure. Model CA401 shown above.
SIZE C THREADED CF FLANGED* C FLANGED C FLANGED
150# 150# 300#
11/4" $ 1,316
11/2" $ 1,325 $ 1,559 $ 1,608
2" $ 1,355 $ 1,587 $ 1,661
21/2" $ 1,685 $ 1,743 $ 1,803 $ 1,924
3" $ 1,939 $ 1,947 $ 2,036
4" $ 2,043 $ 2,638 $ 2,815
6" $ 2,843 $ 3,867 $ 4,154
8" $ 4,468 $ 6,325 $ 6,855
10" $ 6,572 $ 8,740 $ 9,513
12" $10,970 $ 14,233 $ 14,813
14" $14,607 POA POA
16" POA $ 23,176 POA
18" POA POA POA
20" $27,980 POA POA
C601DP Discount Code B
CONTACT FACTORY FOR
G COMPLETE PRICE LISTS
G CONTROL VALVE TECHNICAL BINDER
G CD DISC
23
www.flomatic.com
SURGE ARRESTOR VALVE - Provides relief protection against
pressure surges during pump start up, shut down, or power
failure.
150# 150# 300#
11/2" $ 3,465 $ 4,114 $ 4,347
2" $ 3,944 $ 4,330 $ 4,575
21/2 $ 4,318 $ 4,250 $ 4,592 $ 4,830
3" $ 4,395 $ 4,607 $ 4,848
4" $ 4,651 $ 4,909 $ 5,084
6" $ 5,298 $ 6,053 $ 6,339
8" $ 6,847 $ 8,457 $ 8,987
10" $ 9,124 $ 11,414 $ 12,185
12" $ 14,197 $ 16,784 $ 17,364
14" $ 17,131 POA POA
16" POA $ 25,700 POA
18" POA POA POA
20" $ 30,503 POA POA
Pump Control Valve Modulating With Dual Power
Chamber-Eliminates pump station pressure surges during start up
and shut down.
C/CA C/CA
SIZE CF FLANGED* C FLANGED C FLANGED
150# 150# 300#
3" $ 4,049 $ 4,642 $ 5,093
4" $ 4,552 $ 4,957 $ 5,609
6" $ 5,825 $ 6,723 $ 7,412
8" $ 7,293 $ 9,986 $10,581
10" $10,544 $15,377 $17,148
12" $19,495 $21,741 $23,222
14" $29,889 POA POA
16" POA $33,353 POA
18" POA POA POA
20" $37,500 POA POA
PUMP CONTROL VALVE-Eliminates pump station pressure
surges during start up and shut down.
150# 150# 300#
11/2" $ 3,246 $ 3,450
2" $ 3,521 $ 3,767
21/2" $ 3,500 $ 3,898 $ 4,171
3" $ 3,749 $ 4,124 $ 4,537
4" $ 4,322 $ 4,559 $ 5,227
6" $ 5,393 $ 6,129 $ 6,558
8" $ 6,862 $ 7,621 $ 8,310
10" $ 11,157 $12,678 $14,942
12 $16,480 $18,380 $19,667
14" $23,868 POA POA
16" POA $31,495 POA
18" POA POA POA
20" $34,989 POA POA
C/CA C/CA
C/CA C/CA
PILOT OPERATED FLOAT VALVE - For level control of storage
tanks, reservoirs, or basins.
C/CA C/CA
SIZE C THREADED CF FLANGED* C FLANGED* C FLANGED*
150# 300#
11/4" $1,638
11/2" $1,638 $ 1,767 $ 1,973
2" $1,667 $ 2,020 $ 2,094
21/2" $1,990 $ 2,002 $ 2,099 $ 2,242
3" $ 2,035 $ 2,138 $ 2,320
4" $ 2,144 $ 2,771 $ 2,949
6" $ 3,046 $ 3,916 $ 4,202
8" $ 4,673 $ 6,287 $ 6,817
10" $ 6,654 $ 8,783 $ 9,554
12" $11,098 $14,178 $14,758
14" $14,556 POA POA
16" POA $23,125 POA
18" POA POA POA
20" $27,928 POA POA
Model CA Angle body valve
same pricing as Model C
Made in
USA____
ARRA-
Compliant
C/CA C/CA
150# 150# 300#

24 www.flomatic.com
HYDRAULIC CHECK VALVE - Closes to prevent flow revesal.
Adjustable opening & closing speed controls.
150# 150# 300#
11/2" $1,185 $ 1,252 $ 1,458
2" $1,256 $ 1,505 $ 1,579
21/2" $1,523 $ 1,487 $ 1,628 $ 1,849
3" $ 1,626 $ 1,715 $ 1,935
4" $ 1,742 $ 2,235 $ 2,411
6" $ 2,707 $ 3,401 $ 3,687
8" $ 4,449 $ 6,103 $ 6,633
10" $ 6,658 $ 8,268 $ 9,039
12" $ 11,324 $ 13,821 $14,402
14" $ 14,453 POA POA
16" POA $23,022 POA
18" POA POA POA
20" $ 27,825 POA POA
C/CA C/CA
FLOW CONTROL VALVE - Maintains a pre-set maximum
flow rate regardless of changing line pressures.
.
150# 150# 300#
21/2" $ 2,441 $ 3,051 $ 3,256
3" $ 2,478 $ 3,153 $ 3,272
4" $ 2,732 $ 3,765 $ 3,942
6" $ 4,029 $ 5,031 $ 5,318
8" $ 5,805 $ 7,591 $ 8,121
10" $ 7,561 $10,465 $ 11,239
12" $12,013 $15,386 $ 15,967
14" $15,071 POA POA
16" POA $23,640 POA
18" POA POA POA
20" $28,443 POA POA
316SS BALL VALVE Discount Code B
316SS BALL VALVE - Full Port, FNPT connection, 2 bolt
mounting pad, SS locking handle.
Temp Max: 400° F Pressure Max: 1000 PSI
SIZE PART NUMBER LIST PRICE
1/4" SSBV1000-02 $ 21.53
3/8" SSBV1000-03 $ 21.53
1/2" SSBV1000-05 $ 26.92
3/4" SSBV1000-07 $ 36.67
1" SSBV1000-10 $ 54.14
11/4" SSBV1000-12 $ 83.72
11/2" SSBV1000-15 $ 117.47
2" SSBV1000-20 $168.29
PRESSURE GAUGES - 2.5 inch dial, 1/4" MPT bottom
connection. 1.5% accuracy Full Scale. 304SS case liquid glycerine
filled bronze tube & connection.
RANGE PART NUMBER LIST PRICE
0-100 PSI 2-PG25-100G $20.00
0-200 PSI 2-PG25-200G $20.00
0-300 PSI 2-PG25-300G $20.00
PRESSURE GAUGES Discount Code B
C/CA C/CA
SOLENOID CONTROL VALVE - Remote actuation for valve
position. Specify N.O. (normally open C802); N.C. (normally
closed C801).
150# 150# 300#
11/4" $1,638
11/2" $1,638 $ 1,767 $ 1,973
2" $1,667 $ 2,020 $ 2,094
21/2" $1,990 $ 2,002 $ 2,099 $ 2,242
3" $ 2,035 $ 2,138 $ 2,320
4" $ 2,144 $ 2,771 $ 2,949
6" $ 3,046 $ 3,916 $ 4,202
8" $ 4,673 $ 6,287 $ 6,817
10" $ 6,654 $ 8,783 $ 9,554
12" $11,098 $14,178 $ 14,758
14" $14,556 POA POA
16" POA $23,125 POA
18" POA POA POA
20" $27,928 POA POA
C/CA C/CA
$2,068
$2,158 $ 2,282 $ 2,488
$2,178 $ 2,535 $ 2,609
$2,405 $ 2,517 $ 2,614 $ 2,757
$ 2,550 $ 2,653 $ 2,835
$ 2,844 $ 3,265 $ 3,456
$ 3,561 $ 4,431 $ 4,717
$ 5,188 $ 6,802 $ 7,332
$ 7,169 $ 9,298 $10,069
$ 11,613 $14,693 $15,273
$15,284 POA POA
POA $24,281 POA
POA POA POA
$29,324 POA POA
6
NON-MODULATING PILOT OPERATED FLOAT VALVE -
For level control of storage tanks, reservoirs, or basins.
150# 150# 300#
C705/CF705 Discount Code B
11/4"
11/2"
2"
21/2"
3"
4"
6"
8"
10"
12"
14"
16"
18"
20"
C/CA C/CA
NEW!
NEW!

25
PRP-3/8" Pressure Reducing Pilot in Unleaded
Bronze or 316 Stainless Steel – Enables automatic con-
trol valves to reduce inlet pressure to a preset outlet pressure
and maintain it irregardless to what fluctuations in flow occur.
* For stainless steel, put “S” before letter and after part number.
BPP - Back Pressure Reducing Pilot in Stainless
Steel - Enables automatic control valves to sustain a preset
inlet pressure. Also enables control valve to relieve pressure
upon reaching a preset inlet pressure.
BPP Discount Code B
MINI BALL VALVE Discount Code B
Mini Ball Valve
SOLENOID VALVE-For on off control used to alternatly apply
pressure to and exhaust pressure from the main valve body cover.
Valves are specified either valve body cove. Valves are 3 way
120V and are specified either normally open or closed.
SIZE PART NO. DESCRIPTION LIST PRICE
1/4" 8853 Open $ 280.00
1/4" 8862 Closed $ 280.00
* Other types available.
SOLENOID VALVE Discount Code B
CV80S6 CHECK VALVE- All 316SS body with Delrin poppet
and Buna-N seal. Threaded female x female connection.
Temp Max: 180° F (82 C) Pressure Max: 400 PSI
3/8" 5159 $ 84.82
1/2" 4029 $ 102.58
CV80S6 Discount Code B
PRP Discount Code B
150#
150#
3/8" 149B5369 $ 8.95
MINI BALL VALVE-Mini ball valves are a quater turn full
ported on off isolation valves used on external control valve
pilot controls.
152100A
152100B
152100C
152100D
5-80 PSI
25-125 PSI
2-35 PSI
30-300 PSI
$250.00
$250.00
$250.00
$250.00
PART NO. SPRING RANGE LIST PRICE
$300.00
$300.00
$300.00
$300.00
LIST PRICE
STAINLESS
PART NO. SPRING RANGE LIST PRICE
160100SA
160100SB
160100SC
160100SD
5-80 PSI
25-125 PSI
2-35 PSI
30-300 PSI
$365.00
$365.00
$365.00
$365.00
ACP - Accelerator Pilot in Unleaded Bronze- It is
used in systems to control flow by applying an independent
pressure to the diaphragm. Enables automatic control valves
to rapidly vent water from control diaphragm, thus allowing
quicker main valve opening.
Temp Max: Pressure Max: 300 PSI
ACP
MODEL 165 Discount Code B
1/2" $310.00
165200
180°F (80C)
FC4 Discount Code B
FC -20
FLOW CONTROL- Adjustable restrictor that has free flow in
the direction of the arrow on the body and operates as a
needle valve in the reverse direction.
3/8" FC4 $ 126.00
Manufacturing
Plant in Upstate
New York
NEW!
TEST COCKS Discount Code B
TEST COCKS- Unleaded Bronze test cocks, full port standard.
1/4"x1/4" 9383397E .05 4 $ 15.70
1/8"x1/4" 9383395E .05 4 $ 15.70
Y STRAINER- Unleaded Bronze body, 20 mesh stainless
steel strainer. Furnished with clean out plug.ction as M
3/8" Inlet x 1/4" Outlet 8710E $ 13.80
See page 20 for other sizes.
Y STRAINER Discount Code B
FLOW LIMITER DEVICE (FLD)- A manual operating
device used to restrict the flow on a control valve. It will allow
user to mount on top cover to limit the travel distance of the
stem on a control valve.
For 2” valve CIS00D-1 $ 150.00
FLOW LIMITER Discount Code B
NEW!

CONTROLVALVEACCESSORIES800.833.2040
SIZING GUIDE for THROTTLING VALVES
In order to insure pressure control and avoid excessive noise and maintenance expense, extreme care must
be taken when sizing the throttling valve for a specific application. Although both pressure conditions and flow
(velocity) are contributing factors, field experience has determined that flow rate is the most critical factor and
that proper valve sizing can be attained through consideration of the flow rate alone.
The maximum flow rates in tables below for Model C (full ported valves) are based on a velocity of 15 feet per
second, fps or (4.6 meter per second, m.s). The throttling valve is capable of handling larger flows for shorter
periods of time; however, the increase in maximum flow should be limited to 25% of the above values. Minimum
flow rates are based on 0.5 feet/second flow rate (0.15 meter per second, m/s). Valve should be selected to be
opened between 20-30% for best efficiencies and service life. The flow values for Model CF (Reduce ported
valves) in the table below are less as they have smaller valve orifice or seat areas.
The tables below indicate the desired throttling valve size (inches) for designated maximum and minimum flow
rates in gallons per minute (GPM):
Valve Body
Type (Inch)
Flow 11
⁄2” 2” 21
⁄2” 3” 4” 6” 8” 10” 12” 14” 16” 18” 20” 24” 30” 36”
Model C
Full Ported
Min
Max
2.5
90
4
150
7
230
11
340
20
600
40
1,300
80
2,400
120
3,700
180
5,200
240
7,200
300
8,500
400
12,000
500
14,000
700
21,000
1000
32,000
–
–
Model CF
Reduced
Ported
Min
Max
_
_
_
_
_
_
7
160
11
340
30
800
40
1,300
80
2,400
120
3,700
180
5,200
240
7,200
300
9,500
400
12,000
500
14,000
700
21,000
800
32,000
Model CI
Diaphragm
Min
Max
–
–
2
110
2
132
2
132
6
264
8
1020
25
1180
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–

BACK PRESSURE VALVE- Delivers constant pre-set inlet pressure and reg-
ulate back-pressure automatically. This is accomplished with and adjustable
spring loaded balancing valve factory set to automatically regulate the up-
stream pressure to a factory set of 30 psi. For use with geothermal heating
system, domestic well water systems, irrigation systems, pressure relief valve
function.
Factory set at 30 PSI
Designed for Geo-thermal systems, Artisian wells, anti-flooding,
pressure relief, etc.
27
C150EHF / C150E-PR / C150EPEX Discount Code A
SIZE PART NO. WGT. C150E C150ET
1/2" C150099E 2.2 $120.00 $109.00
3/4" C150000E 2.2 $123.00 $109.50
3/4" C150000EPEX 2.2 $129.00
1" C150001E 3.5 $165.00 $150.00
1" C150001EPEX 3.5 $173.00
11/4"* C150002E* 5.2 $331.00 $316.73
11/4"** C150002EHF** 5.2 $645.00
11/2" C150003E 15 $669.46
2" C150004E 15 $786.00 $613.07
End-ConnectionsModel
C150E Standard Model Unleaded Valve Body Female NPT/Union
Female NPT/Male NPT
(No union nut)
Female NPT/Male NPT
(No union nut)
Single Union End
w/Female NPT
Unleaded Valve BodyC150ET
PEX PEXUnleaded Valve BodyC150EPEX
Description Inlet Outlet
C155E Discount Code A
Product Specifications
• Connection: NPT (Male/Female),or Sweat (see product option chart below) • Max Pressure: 400 PSI (27 bar) • Max Temperature: 1800
F (800
C)
• Pressure Regulating Setting: Factory set at 50 psi • Standard Spring Adjustment range see part number chart
PRESSURE REDUCING VALVE (PRV)- Model C150E when properly installed will regu-
late high upstream (inlet pressure) to a lower regulated downstream (outlet pressure) con-
stant pressure within a range regardlessofwaterflow. This is accomplished by an adjustable
spring loaded balancing valve factory set to automatically regulate the downstream pressure.
NSF/ANSI 61-2010 Certified by IAPMO R&T, 1
⁄2” through 11
⁄4”
ASSE®
Listed 1003, IAPMO®
listed Factory set at 50 PSI
Certified for City of Los Angeles
Part numbers are for 15 - 75 PSI range
SIZE PART NO. PRICE
1" C155001E $ 270.00
1" F x 11/4" M* C155001ET* $ 250.00
11/4" C155002E $ 462.00
*Dual purpose threads. 11/4" male and 1" female NPT threads on both ends.
PRESSUREREDUCING800.833.2040
*Note: 11/4" size is one size smaller restricted flow. Maximum 30 GPM, see model C150EHF for higher
capacity.
**High flow in to 70 GPM
SIZE PART NO. PRICE
1" C155101E $ 270.00
1" F x 11/4" M* C155101ET* $ 250.00
11/4" C155102E $ 462.00
*Dual purpose threads. 11/4" male and 1" female NPT threads on both ends.
NSF 372
C150EHF C150E C150EPEX
PATENT PENDING
SIZE PART NO. WGT. C150E C150ET
1/2" C150199E 2.2 $120.00 $109.00
3/4" C150100E 2.2 $123.00 $109.50
3/4" C150100EPEX 2.2 $129.00
1" C150101E 3.5 $165.00 $150.00
1" C150101EPEX 3.5 $173.00
11/4"* C150102E* 5.2 $331.00 $316.73
11/4"** C150102EHF** 5.2 $645.00
11/2" C150103E 15 $669.00
2" C150104E 15 $786.00 $613.07

CONSTANT PRESSURE PUMP CONTROL
$177.65
$177.92
$209.63
$389.56
DIRECT ACTING PUMP CONTROL VALVE WITH
TAPPINGS- Reduces rapid pump cycling and maintains a pre-set
operating pressure for wells. Threaded female x female union ends
or female I.D. x male O.D. on inlet and outlet connections. Features
a unleaded alloy body & composite bell housing, Nylon reinforced
Buna-N diaphragm. Supplied with two FNPT tailpiece and union nuts.
With two (2) 1
⁄4” tappings for gage and pressure switch. One (1) 3
⁄4”
tapping for water tank.
Temp Max: 180°F (80C) Pressure Max 400 PSI
1" CB152001E 15-75 PSI $ 280.00
1" CB152101E 15-150 PSI $ 280.00
$209.6
C152003E $389.5$6
$209.6
$389.56
$177.65
$177.92
$209.63
$389.56
C152001ET
C152101ET
28
DIRECT ACTING PUMP CONTROL VALVE- Reduces rapid
pump cycling and maintains a pre-set operating pressure for wells.
Threaded female x female connection. Features a low lead alloy
body & composite bell housing, Nylon reinforced Buna-N
diaphragm. Supplied with two FNPT tailpiece and union nuts.
CYCLE GARD®
I
C152E Discount Code A
CYCLE GARD®
HY-FLOW
C152EHF Discount Code A
DIRECT ACTING PUMP CONTROL VALVE- Dual purpose
threads, reduces rapid pump cycling and maintains a pre-set operat-
ing pressure for wells. 1" threaded female I.D. x 11/4" male O.D. on
inlet and outlet connections. Features a low lead alloy body & com-
posite bell housing, Nylon reinforced Buna-N diaphragm.
CYCLE GARD®
I
C152ET Discount Code A
CYCLE GARD®
II
CN101 Discount Code A
CONSTANT PRESSURE PUMP CONTROL- Reduces rapid
pump cycle with field adjustable by-pass and maintains a pre-set
operating downstream pressure. Flow 1-5200 GPM depending on
size. For use with domestic water well, municipal water systems,
industrial water system, irrigation and agriculture.
SIZE PART NO. LIST PRICE PART NO. LIST PRICE
THREADED FLANGED150
CYCLE GARD®
IV
CB152E Discount Code A
HIGH FLOW DIRECT ACTING PUMP CONTROL VALVE-
Model C152EHF reduces rapid pump cycle with field adjustable by-
pass and maintains a pre-set operating downstream pressure for
wells. Threaded female x female NPT connection with hex end OD.
Features a low lead alloy body and cover. Nylon reinforced Buna-N
diaphragm. Ideal for flows up to 70 GPM.
1” NPT ID x 11/4" NPT OD
11/4" CN1010B $ 1,286
11/2" CN1010C $ 1,286 CN1011C
2" CN1010D $ 1,481 CN1011D
21/2" CN1010E $ 1,672 CN1011E
3" CN1010F $ 2,044 CN1011F
4" CN1011G
6" CN1011J
8" CN1011K
SIZE PART NO. SPRING RANGE
SIZE PART NO. SPRING RANGE
1 1/4" C152002EHF 15-75 PSI $702.45
1 1/4" C152102EHF 15-150 PSI $702.45
1"F & 11/4" M CB152001ET 15-75 PSI $ 245.00
1"F & 11/4" M CB152101ET 15-150 PSI $ 245.00
15 - 75 PSI
15 - 75 PSI
15 - 75 PSI
15 - 75 PSI
15 - 75 PSI
15 - 75 PSI
15 - 150 PSI
15 - 150 PSI
15 - 150 PSI
15 - 150 PSI
15 - 150 PSI
15 - 150 PSI
*Note: 11
/4” size is one size smaller restricted flow, maximum 30
GPM. See model C152EHF below for higher capacity.
NSF 61
SIZE PART NO. SPRING RANGE LIST PRICE
LIST PRICE
LIST PRICE
$208.95
$248.78
$462.32
$761.25
$929.25
LIST PRICE
$236.93
LIST PRICE
$236.93
$208.95
$248.78
$462.32
$761.25
$929.25
1"F & 11/4" M
1"F & 11/4" M
C152000E
C152001E
C152002E
C152003E
C152004E
C152100E
C152101E
C152102E
C152103E
C152104E
SIZE
SIZE
PART NO.
PART NO.
SPRING RANGE
SPRING RANGE
$ 1,454
$ 1,664
$ 1,994
$ 2,101
$ 2,749
$ 4,200
$ 7,282
CONSTANTPRESSUREPUMPCONTROL800.833.2040
3/4"
1"
1 1/4"*
11/2"
2"
3/4"
1"
1 1/4"*
11/2"
2"
• Slotted seat
• No drilled holes
• Self-cleaning
• No screen
SCREEN DRILLED
HOLE
FOR PRESSURE REDUCING VALVES SEE PG. 22 & 27!
1" NPT ID female threads
11/4" NPT OD male threads

COMPACT PUMP PRESSURE- Reduces rapid pump cycling
and maintains a pre-set operating pressure for wells. Threaded
female I.D.x male O.D. on inlet and outlet connections. Features a
unleaded alloy body & cover, Nylon reinforced Buna-N diaphragm.
1” NTP Female connection x 11/4" male NPT.
SIZE PART # SPRING RANGE LIST PRICE
1” C3100E 35 - 65 PSI $ 263.17
1” * C3100E-1* 35 - 65 PSI $ 265.70
1” C3100EB 35 - 65 PSI $ 273.00
PUMP CONTROL VALVE - Reduces rapid pump cycle with
field adjustable by-pass and maintains a pre-set operating
downstream pressure. Ideal for irrigation, water wells and
agriculture applications. Optional check feature.
Max. pressure differential 125 PSI. Consult factory for higher pressure
differential.
29
BOOSTER-IT ®
C154 Discount Code A
CYCLE GARD®
CI
CIN101 Discount Code A
BOOSTER-IT
®
WATER SYSTEM PUMP CONTROL
VALVE- Designed for well water pumping systems, booster
systems, and pump irrigation pumping systems. Valve body is
cast from an unleaded bronze alloy with two 1/4" tapped holes on
tank side for pressure switch and gauge.
3/4" C154100 .7 100 $ 56.23
1" C154101 1.3 49 $ 77.78
11/4" C154102 1.6 36 $ 107.54
11/2" C154103 2.5 25 $ 119.99
2" C154104 3.1 16 $ 153.08
Note: BOOSTER-IT
®
requires a safety pressure release valve, not
available from Flomatic Valves.
PUMP CONTROL VALVE - Reduces rapid pump cycle and
maintains a pre-set operating downstream pressure.Ideal for irri-
gation, water wellsand agriculture. Built in by-pass at 5 GPM.
CYCLE GARD®
CI2
CIN101-2 Discount Code A
CYCLE GARD®
CNA
CNA101A Discount Code A
HYDROSTAT ®
MODEL C3100E Discount Code A
NEW!
FLANGEDANSI150#
CNA1010B
CNA1010C
CNA1010D
CNA1010E
CNA1010F
CNA1011C
CNA1011D
CNA1011E
CNA1011F
CNA1011G
CNA1011J
CNA1011K
CNA1011L
CNA1011M
$ 1,224
$ 1,224
$ 1,481
$ 1,593
$ 2,044
NPT VALVES RATED TO 250 PSI 125# FLANGED VALVES RATED TO 250 PSI
CIN1021F
CIN1021G
CIN1021J
CIN1021K
3"
4"
6"
8"
Factory set at 50 PSI Temp Max: 180°F (80C) Pressure Max: 250 PSI
LIST PRICE
LIST PRICE
LIST PRICE
11/2"
2"
11/2"
2"
2"
CIN1020C
CIN1020D
CIN1020C2
CIN1020D2
CIN1020DG2
SIZE
SIZE
SIZE
PART#
THREADED FEMALE
PART#
NPT
GROOVEDPART#
FLANGED 125#
$ 871.38
$ 952.75
$ 793.10
$ 880.65
$ 777.65
$ 1,416.25
$ 2,129.01
$ 4,370.29
$ 4,513.46
PUMP CONTROL VALVE-Reduces rapid pump cycle with
field adjustable by-pass and maintains a pre-set operating
downstream pressure for wells. CONSULT FACTORY or control
valve price list for specific options.
SIZE
PART #
LIST PRICELIST PRICE
PART #
11/4"
11/2"
2"
21/2"
3"
4"
6"
8"
10"
12"
$ 1,454
$ 1,615
$ 1,994
$ 2,101
$ 2,749
$ 4,043
$ 7,070
$ 9,661
$15,893
THREADED FEMALE
Factory set at 60 PSIMax Flow 25 GPM
CONSTANTPRESSUREPUMPCONTROL800.833.2040
* 3.75” in height will fit in a 4” well casing
**With (2) 1/4” Tappings
UNLEADED VALVES
CONSTANT PRESSURE PUMP CONTROL
Max. pressure differential 125 PSI. Consult factory for higher pressure
differential.

30
MINIAIR®
- Cast iron body-stainless steel trim. Threaded female
x female connections. NITRILE (Buna-N) seat. Small orifice.
Consult bulletin # 280 for details. Vents under line pressure.
Temp Max: 150°F (65C) Inlet Pressure Max: 200 PSI
INLET OUTLET PART NO. WGT. LIST PRICE
3/8" 3/8" 6500 6 $ 157.72
1/2" 3/8" 6501 7 $ 170.53
3/4" 3/8" 6502 7 $ 194.62
1" 1/2" 6503 27 $ 216.59
2" 1/2" 6504 45 $ 640.46
3" 1/2" 6505 45 $ 1,673.51
CONSULT FACTORY for full line of sizes available.
MAXIAIR®
- Cast iron body-stainless steel trim. Threaded
female x female connections. NITRILE (Buna-N) seat. Large
orifice– equals inlet size. Vents on filling- eliminates vacuum
under pressure loss.
1/2" 1/2" 6520 7 $ 337.37
1" 1" 6521 16 $ 450.94
2" 2" 6522 42 $ 735.46
3" 3" 6523 92 $ 1,096.44
4" 4" 6524 154 $ 1,911.74
6" 6" 6525 174 $ 2,650.73
MAXIAIR®
Discount Code B
WELLAIR®
- Similar to Maxiair™ but features discharge
throttling valve. Ideal for deep well applications.
1/2" 1/2" 6560 12 $ 587.02
1" 1" 6561 22 $ 726.46
2" 2" 6562 55 $ 1,040.21
3" 3" 6563 100 $ 1,725.06
WELLAIR®
Discount Code B
COMBOAIR®
- Cast iron body-stainless steel trim. Combines
features of Miniair™ and Maxiair™ in one housing. Small orifice
is 3/32” in the 1” valve, 3/16” in the 2” and 3” sizes.
Inlet Pressure Max: 1”– 150 PSI, 2”-3” – 250 PSI
1" 1" 6540 30 $ 497.05
2" 2" 6541 75 $ 887.86
3" 3" 6542 115 $ 2,133.27
4" 4" 6543 163 $ 2,676.43
COMBOAIR®
Discount Code B
MINIAIR®
Discount Code B
AIRRELEASE800.833.2040
6BSE BUG SCREEN -Picture shown with valve not included.
Unleaded bronze body with threaded female connection. Stainless
steel strainer with unleaded bronze. Stainless steel or plastic caps,
with nipple for installation into air valve vent.
1/2" 4399E-1 0.2 $ 19.34
1" 4301E-1 1.2 $ 21.82
2"* 4304E-1 * 2.8 $ 61.20
3" 4306E-1 7.7 $ 137.25
* End caps on strainer are plastic.
6BSE BUG SCREEN Discount Code B
All Air Release, Air & Vacuum and Universal
Combination Valves meet or exceed ANSI/AWWA
C512 standards.
Valves are painted with TMEMIC red. Consulty factory for fusion bonded epoxy coated option.

31
SEWAIR-MINI®
female x female connections. NITRILE (Buna-N) seat. 1/4” orifice-
for waste water application. Vents under line pressure.
2" 1/2" 6600 50 $ 628.68
3" 1/2" 6601 70 $ 996.35
For unit with backflush attachment, add “BF” to end of part number and
add list price. See Backflush on this page.
SEWAIR-MAXI®
female x female connections. NITRILE (Buna-N) seat. Large
orifice–equals inlet size vents on filling. Eliminates vacuum in
waste water pipeline under pressure loss.
2" 1" 6620 50 $ 908.64
2" 2" 6621 82 $ 1,716.06
3" 3" 6622 85 $ 1,981.35
4" 4" 6623 120 $ 2,772.82
6" 6" 6624 210 $ 5,124.74
SEWAIR-DUAL®
- Cast iron body, stainless steel trim. NITRILE
(Buna-N) seat. Provides protection of both small and large
orifices. Two body construction.
2" 1" 6640 120 $ 2,918.48
2" 2" 6641 150 $ 3,320.10
SEWAIR-DUAL®
Discount Code B
SEWAIR-COMBO®
- Cast iron body, stainless steel trim.
NITRILE (Buna-N) seat. Provides same protection as Sewair-Dual®
,
but combines into one body.
2" 1" 6650 80 $ 1,666.92
2" 2" 6651 110 $ 2,497.85
3" 3" 6652 145 $ 3,581.80
SEWAIR-COMBO®
Discount Code B
BACKFLUSH- Fabric reinforced NITRILE (Buna-N) hose with
bronze shut off valves and galvanized quick disconnects. Designed
for pressure backflush Sewair models.
INLET PART NO. WGT. LIST PRICE
2" BF2 12 $ 404.62
3" BF3 19 $ 636.14
BACKFLUSH Discount Code B
FEATURES/FEATURES/
BENEFITSBENEFITS
•Automatic
•Improves Flow & Pump
Efficiency
•Eliminates Restrictive
Air or Gas Pockets
•Saves Energy
•Protects Against Vacuum
•Long Body Protects Orifice
From Sewage
SEWAIR-MINI®
Discount Code B SEWAIR-MAXI®
Discount Code B
AIRRELEASE800.833.2040
Valves are painted with TMEMIC red. Consulty factory for fusion bonded epoxy coated option.

BACKFLOWPREVENTERS800.833.2040
HOSE CONNECTION VACUUM BREAKERS-
Designed to prevent back-siphonage or backflow of water, with
vandal resistant features. Not for potable water.
Complies with ASSE 1011
3/4" GF800E .21 $ 15.42
UNLEADED DUAL CHECK VALVE-Brass body with single
union.
1/2" GF8089E 2 $ 62.45
3/4" GF8080E 2 $ 69.05
1" GF8081E 2 $ 75.39
Add “FC” to end of part number for copper sweat connection.
Note: Consult factory for additional connection configurations.
DUAL CHECK with ATMOSPHERIC VENT Continuous
pressure backflow preventer with an intermediate atmospheric
vent, with double union ends. Complies with ASSE 1012, not for
potable water.
1/2" GF8289 1.3 $ 80.98
3/4" GF8280 1.3 $ 81.26
*With copper sweat connections
Note: Consult factory for additional connection configurations.
GFAVB Discount Code C GFHB8 Discount Code CGF8080E Discount Code C
GF8200 Discount Code C
ATMOSPHERIC VACUUM BREAKER- Designed to prevent
back-siphonage. Not for potable water.
1/2" GF3599 1 $ 45.06
3/4" GF3500 2 $ 50.01
1” GF3501 2 $ 65.03
11/4" GF3502 3 $ 145.94
11/2" GF3503 4 $ 169.30
2” GF3504 6 $ 268.60
DUAL CHECK VALVE- 316 stainless steel body with single
union.
3/4" GF8080S6 2 $ 130.81
1" GF8081S6 2 $ 136.19
GF8080S6 Discount Code C
NEW!
Glen-Flo™ Backflow Products.
Glen-Flo™ products provide uncompromising reliability,
protecting potable water lines from hazardous
cross connections
TEST KIT TK1 Discount Code C
TEST KIT #1- This backflow prevention assembly test kit
is designed for field testing of all brands of reduced pressure
principle, double check and pressure vacuum breakers.
• Test kit with five control valves
• Accuracy: +/- .2 P.S.I.D. (descending)
• Dial size: 4 1/2" round, 0 - 15 P.S.I.D. (descending)
• Maximum working pressure: 200 PSI
PART NO. WGT. LIST PRICE
GF9907 8 $2,215.53
32

FLANGED- Resilient wedge gate valves which meet revision of
AWWA C509 standard with bronze stem. ANSI B16.1, class 125
Tapped & plugged
21/2" 8461 51 $ 663.28
3" 8462 67 $ 777.66
4" 8463 88 $ 860.45
6" 8464 138 $ 1,163.69
8" 8465 214 $ 1,790.96
10" 8466 360 $ 2,559.91
12" 8467 531 $ 3,092.01
OUTSIDE SCREW & YOKE- Resilient wedge gate valves
which meet revision of AWWA C509 standard with bronze stem
and are UL/FM listed. ANSI B16.1, class 125
Tapped & plugged
21/2" 84610SY 55 $ 1,112.42
3" 84620SY 74 $ 1,253.54
4" 84630SY 103 $ 1,354.97
6" 84640SY 158 $ 2,124.52
8" 84650SY 240 $ 3,364.83
10" 84660SY 392 $ 4,587.50
33
FLANGED- Resilient wedge gate valves which meet revision of
AWWA C515 standard, with stainless steel stem. ANSI B16.1, class 125
21/2" 8561 38 $ 269.85
3" 8562 56 $ 327.59
4" 8563 78 $ 438.57
6" 8564 138 $ 722.03
8" 8565 214 $ 1,193.35
10" 8566 360 $ 1,745.54
12" 8567 531 $ 2,478.80
14" 8568 547 $ 4,990.04
16" 8569 719 $ 6,092.09
115FL Discount Code C
PUSH-ON- Resilient wedge gate valves which meet revision of AWWA
C515 standard, with stainless steel stem. Ring-type (push-on flange)
2" 8560RT 28 $ 240.52
21/2" 8561RT 42 $ 268.89
3" 8562RT 44 $ 323.58
4" 8563RT 69 $ 420.86
6" 8564RT 119 $ 707.52
8" 8565RT 203 $ 1,241.56
10" 8566RT 278 $ 2,147.86
12" 8567RT 421 $ 3,222.87
115PO Discount Code C
MECHANICAL JOINT- Resilient wedge gate valves which meet
revision of AWWA C515 standard, with stainless steel stem.
ANSI B16.1, class 125
3" 8562MJ 44 $ 424.19
4" 8563MJ 69 $ 541.52
6" 8564MJ 119 $ 965.71
8" 8565MJ 203 $ 1,561.69
10" 8566MJ 278 $ 2,012.67
12" 8567MJ 421 $ 3,166.63
16" 8569MJ 656 $ 4,568.15
115MJ Discount Code C
GROOVED GATE VALVE- Resilient wedge gate valves with
Grooved x Grooved connections, bronze stem, grooved ends conforms
to ANSI/AWWA C606 and flanged ends conform to ANSI/ASME B16,
class 125, these valves also conform to ANSI/AWWA C550.
21/2" 8461G 43 $ 501.79
3" 8462G 57 $ 582.50
4" 8463G 63 $ 644.51
6" 8464G 92 $ 924.27
FLANGE GROOVED GATE VALVE-Resilient wedge gate valves
with Grooved x Flange connections, bronze stem, grooved end conforms
to ANSI/AWWA C606 and flanged ends conform to ANSI/ASME B16,
class 125, these valves also conform to ANSI/AWWA C550.
21/2" 8461FG 47 $ 501.79
3" 8462FG 52 $ 582.50
4" 8463FG 70 $ 644.51
6" 8464FG 106 $ 924.21
109FG Discount Code C
109OSY Discount Code C 109NRS Discount Code C 109G Discount Code C
AWWA C515 Gate Valves
AWWA C509 Gate Valves
Standard 2” operating nut, for hand wheel on all C515 Gate Valves. Add “HW” to the end of the part number and add 15 % to list.
GATEVALVES800.833.2040
www.flomatic.com
FLOMATIC FREIGHT POLICYFLOMATIC FREIGHT POLICY
We offer fast delivery
• “ A” & “ C” Code items:
$1,500.00 net prepaid
• “ B” Code items: FOB
Factory
Minimum net Order of $75.00
All gate valves standard open left. Consult factory for right hand opening.

NORTH AMERICAN SALES REPSNORTH AMERICAN SALES REPS
STATE DOMESTIC EMAIL INDUSTRIAL EMAIL MUNICIPAL EMAIL
WATER SYSTEMS
Alabama H2O Reps gregh2orep@bellsouth.net H2O Reps gregh2orep@bellsouth.net H2O Reps gregh2orep@bellsouth.net
Alaska Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com
Arizona Desert Pacific Maketing pat@dpmreps.com Desert Pacific Maketing pat@dpmreps.com Desert Pacific Maketing pat@dpmreps.com
Arkansas DJC Sales sales@dcsalesco.com McIntire Management mark@mmgonline.net McIntire Management mark@mmgonline.net
California Desert Pacific Maketing pat@dpmreps.com O'Connor Sales john@oconnorsales.net O'Connor Sales john@oconnorsales.net
Colorado Maples Sales & Service gmaples@maplesales.com Maples Sales & Service gmaples@maplesales.com Maples Sales & Service gmaples@maplesales.com
Connecticut Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com
Delaware Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net
D.C Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net
Florida Welty Inc dgwelte@gmail.com Rutt Inc Larry@ruffincompanies.com Rutt Inc Larry@ruffincompanies.com
Georgia H2O Reps gregh2orep@bellsouth.net H2O Reps gregh2orep@bellsouth.net H2O Reps gregh2orep@bellsouth.net
Hawaii Hawaii Engineering Services info@hiengineering.com Hawaii Engineering Services info@hiengineering.com Hawaii Engineering Services info@hiengineering.com
Idaho Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com
Illinois - North Rep Rite Burk jvalentine@repriteburk.com Rep Rite Burk jvalentine@repriteburk.com Rep Rite Burk jvalentine@repriteburk.com
- South GeoStarr Marketing rick@geostarr.com GeoStarr Marketing rick@geostarr.com Flo-Systems (South) info@flosystems.com
Indiana Top Marketing tom@topmktg.com Top Marketing tom@topmktg.com Watermark Engineered bboyer@watermarkeps.com
Iowa GeoStarr Marketing rick@geostarr.com GeoStarr Marketing rick@geostarr.com McIntire Management mark@mmgonline.net
Kansas GeoStarr Marketing rick@geostarr.com GeoStarr Marketing rick@geostarr.com McIntire Management mark@mmgonline.net
Kentucky Top Marketing tom@topmktg.com Top Marketing tom@topmktg.com Watermark Engineered bboyer@watermarkeps.com
Louisana WSI Corp wsiwinders@aol.com WSI Corp wsiwinders@aol.com WSI Corp wsiwinders@aol.com
Maine Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com
Maryland Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net
Massachusetts Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com
Michigan Herder Sales rherder@herdersales.com Flomatic flomatic@flomatic.com Flomatic flomatic@flomatic.com
- upper peninsula Rep Rite Burk jvalentine@repriteburk.com RS Controls roger@rscontrols.com Rep Rite Burk jvalentine@repriteburk.com
Minnesota Rep Rite Burk bcutter@repriteburk.com Rep Rite Burk bcutter@repriteburk.com Rep Rite Burk bcutter@repriteburk.com
Mississippi WSI Corp wsiwinders@aol.com WSI Corp wsiwinders@aol.com WSI Corp wsiwinders@aol.com
Missouri - West GeoStarr Marketing rick@geostarr.com GeoStarr Marketing rick@geostarr.com McIntire Management mark@mmgonline.net
- East Flomatic flomatic@flomatic.com Flomatic flomatic@flomatic.com Flo-Systems (South) info@flosystems.com
Montana Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com
Nebraska GeoStarr Marketing rick@geostarr.com GeoStarr Marketing rick@geostarr.com McIntire Management mark@mmgonline.net
Nevada Desert Pacific Maketing pat@dpmreps.com O'Connor Sales scotta@oconnorsales.net O'Connor Sales scotta@oconnorsales.net
New Hampshire Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com
New Jersey - North Advanced Hydronics sales@ahreps.com Advanced Hydronics sales@ahreps.com Advanced Hydronics sales@ahreps.com
- South Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net
New Mexico Maples Sales & Service gmaples@maplesales.com Maples Sales & Service gmaples@maplesales.com Maples Sales & Service gmaples@maplesales.com
New York Group One groupone_ne@yahoo.com Group One groupone_ne@yahoo.com Flomatic flomatic@flomatic.com
- NYC & Long Island Advanced Hydronics sales@ahreps.com Advanced Hydronics sales@ahreps.com Advanced Hydronics sales@ahreps.com
North Carolina Lewis Marketing glenn@lewismarketinginc.com Preferred Sources jwamon@preferredsources.com Preferred Sources jwamon@preferredsources.com
North Dakota Rep Rite Burk jnelson@repriteburk.com Rep Rite Burk jnelson@repriteburk.com Rep Rite Burk jnelson@repriteburk.com
Ohio - North Wynn Enterprises, LLC wynnl@wynnenterprisellc.com Wynn Enterprises, LLC wynnl@wynnenterprisellc.com Damon Superior rstummer@damonsuperior.com
- South Wynn Enterprises, LLC wynnl@wynnenterprisellc.com Wynn Enterprises, LLC wynnl@wynnenterprisellc.com Wynn Enterprises, LLC wynnl@wynnenterprisellc.com
Oklahoma DJC Sales sales@dcsalesco.com McIntire Management mark@mmgonline.net TLP Solutions inquiries@tlpsolutions.net
Oregon Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com
Pennsylvannia - West Wynn Enterprises, LLC wynnl@wynnenterprisellc.com Wynn Enterprises, LLC wynnl@wynnenterprisellc.com Wynn Enterprises, LLC wynnl@wynnenterprisellc.com
- East Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net
Rhode Island Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com
South Carolina Lewis Marketing glenn@lewismarketinginc.com Preferred Sources jwamon@preferredsources.com Preferred Sources jwamon@preferredsources.com
South Dakota Rep Rite Burk jnelson@repriteburk.com Rep Rite Burk jnelson@repriteburk.com Rep Rite Burk jnelson@repriteburk.com
Tennessee Lewis Marketing glenn@lewismarketinginc.com Preferred Sources jimgilliam@preferredsources.com Preferred Sources jimgilliam@preferredsources.com
Texas DJC Sales sales@dcsalesco.com DJC Sales sales@dcsalesco.com TLP Solutions inquiries@tlpsolutions.net
Utah Boshart todd.housley@boshart.com Boshart todd.housley@boshart.com Boshart todd.housley@boshart.com
Vermont Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com Harmon & Co greg.harmonco@gmail.com
Virginia Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net Hasco Sales margo@hascosales.net
Washington Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com Pacific NW Sales pnws@msn.com
West Virginia Wynn Enterprises wynnl@wynnenterprisellc.com Wynn Enterprises wynnl@wynnenterprisellc.com Wynn Enterprises wynnl@wynnenterprisellc.com
Wisconsin Rep Rite Burk jvalentine@repriteburk.com Rep Rite Burk jvalentine@repriteburk.com Rep Rite Burk jvalentine@repriteburk.com
Wyoming Maples Sales & Service gmaples@maplesales.com Maples Sales & Service gmaples@maplesales.com Maples Sales & Service gmaples@maplesales.com
CANADA
Alberta DA Marriner damsales1@gmail.com DA Marriner damsales1@gmail.com DA Marriner damsales1@gmail.com
Barrie Zakame Sales gemberson@sympatico.ca Zakame Sales gemberson@sympatico.ca Zakame Sales gemberson@sympatico.ca
British Columbia DA Marriner damsales1@gmail.com DA Marriner damsales1@gmail.com Engineered Pump emasse@engineeredpump.com
Southwest & East Onward Sales peter@onwardsales.com Onward Sales peter@onwardsales.com Onward Sales peter@onwardsales.com
Manitoba Quadra Sales john@quadrasales.ca Quadra Sales john@quadrasales.ca Quadra Sales john@quadrasales.ca
Peterborough Zakame Sales gemberson@sympatico.ca Zakame Sales gemberson@sympatico.ca Zakame Sales gemberson@sympatico.ca
Quebec Nimatec nimatec@nimatec.com Nimatec nimatec@nimatec.com Nimatec nimatec@nimatec.com
Saskatchewan Quadra Sales john@quadrasales.ca Quadra Sales john@quadrasales.ca Quadra Sales john@quadrasales.ca
Toronto Zakame Sales gemberson@sympatico.ca Zakame Sales gemberson@sympatico.ca Zakame Sales gemberson@sympatico.ca

1. SALES & ORDER DESK 800-833-2040 Ext. 2 We love to help with new orders and inquiries.
2. TECH SUPPORT 800-833-2040 Ext. 4 Our engineers are on stand-by for application/product support.
3. MARKETING DEPT. 518-761-9797 Ext. 3 Use this line & ext. 3 to reach the sales & marketing group.
4. FAX ORDERS 800-314-3155 The fastest and easiest way is to fax us orders and inquiries.
518-761-9798
5. PHONE 518-761-9797 If you are out of the country or can’t get through, try this line.
6. WEB SITE www.flomatic.com This page will help you get the latest information on Flomatic.
7. E-MAIL ORDERS flomatic@flomatic.com This is a quick and easy way to send us a message and communicate with us.
8. U.S. Mail 15 Pruyn’s Island Drive Put it in an envelope and lick a stamp, it’s that easy.
Glens Falls, NY 12801-4424
Flomatic Conditions of Sale
TERMS OF SALE
PRICE
Prices at date of shipment will apply. Prices are subject to change without notice.
ACCEPTANCE
Orders are accepted subject to approval of credit. Delivery is subject to strikes,
accidents, or other causes beyond our control.
ERRORS, SHORTAGES, ETC.
All claims for errors, shortages, etc. must be made within 10 days of delivery.
CANCELLATIONS OF ORDERS
Orders for standard catalog products may be cancelled only if notice is received
prior to the date of shipment.
RETURNS
Merchandise in new and saleable condition may be returned within one year after
purchase on a freight prepaid basis for credit upon return authorization approval
number, subject to inspection and acceptance at our plant. A 25% restocking
charge and original freight allowance, if any, will be deducted from the credit.
Special order products are nonreturnable, or at manufacturer’s option.
MINIMUM NET ORDER TERMS FREIGHT
$75.00 1% ten days, net 30 A&C Code $1500
B Code F.O.B Factory
WARRANTIES
LIMITED ONE-YEAR WARRANTY (Complete Product Line)
Flomatic Corporation warrants that its products are free from defects in materials
and workmanship. Flomatic will replace any valve covered by this warranty that is
found to be defective within one year, unless otherwise stated below, from the time
of sale. This warranty will be void if the product has been modified in any way by
the purchaser, or is subjected to unreasonable use.
LIMITED 5-YEAR WARRANTY (Enviro-Check®
and Enviro Foot Valves)
Flomatic warrants that its ENVIRO-CHECK®
AND FOOT VALVES, in all sizes up to 4”,
are free from defects in materials and workmanship. Flomatic will replace, upon
return authorization approval number, any ENVIRO-CHECK®
OR ENVIRO FOOT VALVE
covered by this warranty that is found to be defective within five years from the
time of sale. This warranty will be void if the product has been modified in
any way by the purchaser, or is subjected to unreasonable use. These limited
warranties extend to the original purchase from Flomatic only; they do not extend
to any other purchaser or transferee.
EXCLUSION OF WARRANTIES
Flomatic makes no warranties, expressed or implied, with respect to its valves,
other than the expressed limited warranties described herein. The implied war-
ranties of merchantability and fitness for a particular purpose are hereby dis-
claimed by Flomatic . There are no warranties that extend beyond the description
on the face hereof.
WARNING-NOT DESIGNED, INTENDED OR PERMITTED IN NUCLEAR
FACILITY APPLICATIONS. FLOMATIC VALVES ARE NOT DESIGNED
OR ENGINEERED FOR USE IN ANY NUCLEAR FACILITY OR IN
CONJUNCTION WITH ANY NUCLEAR FACILITY OR SUPPORT FACILITY.
USE OF ANY OF FLOMATIC’S PRODUCTS IN ANY SUCH APPLICATION
IS A MISUSE OF THESE PRODUCTS AND VOIDS ALL WARRANTIES
CONTAINED HEREIN, EXPRESSED AND IMPLIED, OF MERCHANTABILITY
AND FITNESS FOR PARTICULAR PURPOSE.
EXCLUSION OF INCIDENTAL
AND CONSEQUENTIAL DAMAGES
In no event shall Flomatic be liable for incidental or consequential damages,
including but without limitation, damages of personal injuries resulting from the
negligence of Flomatic, which may arise from the manufacture, sale, purchase and
/or use of Flomatic valves. It being intended that purchaser’s exclusive remedy is
limited to replacement of defective products. Some states do not allow the exclusion
or limitation of incidental or consequential damages, or limitation on how long an
implied warranty lasts, so that the above limitations may not apply to you. Contact
your distributor or Flomatic at address shown if you have any questions about the
coverage of this warranty or service under this warranty. This warranty gives you
specific legal rights, and you may have other rights which vary from state to state.
NOTE: Flomatic reserves the right the change and/or alter valve
products without prior notice. Consult factory for valve specifications.
88 WAYS YOU CAN REACH US...WAYS YOU CAN REACH US...
CONDITIONSOFSALE800.833.2040

Your global partner with innovative solutions.
Flomatic can accept no responsibility for possible errors in catalogues, brochures and other printed material. Flomatic reserves the right to alter its products without notice. This
also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies.
15 Pruyn’s Island Drive
Glens Falls, N.Y. 12801-4424
800-833-2040
518-761-9797 • Fax 518-761-9798
www.flomatic.com
e-mail: flomatic@flomatic.com
Distribution By:
This book is covered under patent numbers 6,024,121/6,581,633/5,176,171,128,088
Ward valve patent #4,757,974 and #4,849,041 and other patents.
© 2014 Flomatic Corporation YPRICE14 12M
Your global partner with innovative solutions.
When you purchase Flomatic products, you are not only
investing in reliability, you are also joining a partnership for
tomorrow’s solutions. Flomatic is known for its precise
mechanical and electronic components and for its High
Quality Products. Our R & D and product development
begins with you.
Manufacturing
Plant in Upstate
New York

2014 price list

More Related Content

What's hot

Similar to 2014 price list

Recently uploaded

2014 price list
