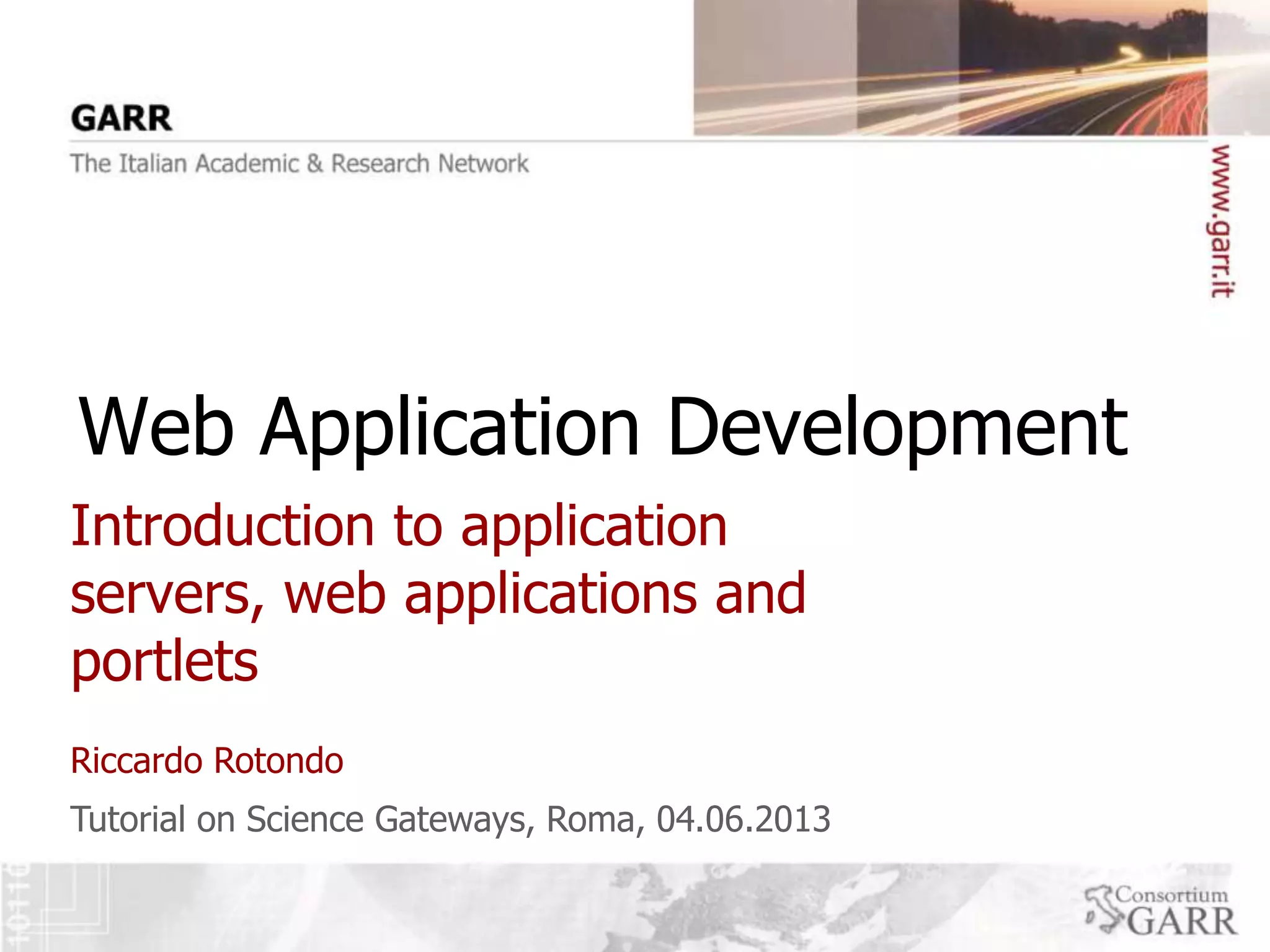

Web Application Development
Introduction to application
servers, web applications and
portlets
Riccardo Rotondo
Tutorial on Science Gateways, Roma, 04.06.2013

Outline

 Scenario

 Use Case
 Portlet Develop
 Hostname porltlet

 Catania Grid Engine API

Riccardo Rotondo

Scenario

JSR 168/268
JSR 168/268

JSR 168/268

JSR 168/268

Catania Science Gateway Framework

GRID

CLOUD

Local

Riccardo Rotondo
Tutorial on
Cluster Science Gateways, Roma, 04.06.2013

Web enviroment

 Application Server (Glassfish)
 Web application working as Portlet Container
JSR 168/268
JSR 168/268
(Liferay)
JSR 168/268
JSR 168/268
 Portlet (a custom application designed under
users needs)

Riccardo Rotondo

What is an application server?

 A software framework designed to host
applications running in a web environment
 Most of them contains a service layer model
 A set of API is available for the developers to
access the application server’s functionalities
 As long as the management of the
environment is demanded to the application
server, developers can focus on the business
logic.
Riccardo Rotondo

Most popular application servers

http://plumbr.eu/blog/most-popular-application-servers
Riccardo Rotondo

What is a web application?






An application accessed over a network
Analogy with “common” applications
User interact with them through a web-browser
A web applications can offer thousands of
services: Liferay is a web-application

Riccardo Rotondo

Liferay (www.liferay.com)
 Highly-configurable, scalable, open source
portal framework;
 Compatible with JSR 168/286 standards
and based on modern web 2.0
technologies;
 Liferay services currently used:
 Portal;
 CMS & WCM;
 Collaboration and “social” software

Riccardo Rotondo

Liferay Plugins






Portlets
Themes
Layouts
Hooks
Exts

Riccardo Rotondo

What is Porltet ?
 Defined in the Java Specification Request (JSR
168/286)
 A porlet is a web component able to set a
frame portion of a web page.
 Differently from Servlet it needs a Porltlet
Container to allow the user to interact with it.
 Standard Portlet can be deployed in any Porlet
Container in case they will use standard libray.

Riccardo Rotondo

Generic Porlets Life Cycle

YES

NO
End of
Services?

Riccardo Rotondo

Generic Porltlets Interface Method
Class GenericPortlets {
init (PortletConfig);
processAction (ActionRequest,
ActionResponse);
render (RenderRequest, RenderResponse);
destroy();
doView (Request, Response);
doEdit (Reuqest, Response);
doHelp (Request, Response);
}

Riccardo Rotondo

Portlet Mode
 A porltet works in three
different states.
 View Mode: generate a
markup ( a portion of a
web page);
 Edit Mode: allow portlet
customisation and
setting preferences.
 Help Mode: explains
portlet functionalities.
Riccardo Rotondo

Action Request
Action
Request

view.jsp

processAction()

Action
Request

edit.jsp

Render
Request

doView()

edit.jsp

doEdit()

view.jsp

Render
Request

processAction()

Riccardo Rotondo

Render Request

Render
Request

view.jsp

doView()

view2.jsp

Riccardo Rotondo

Portlets
 Standard JSR168/286
 Interaction between jsp pages and java code
Application Server (Glassfish)

JSP page
<jsp:useBean
<form … >

Java code
Class <you portlet>
Extends
GenericPortlet …

<input … />
</form>

 JSP uses <form… statements to send parameters to Java code
 Java code extends class GenericPortlet overriding methods:




Init, doView, doHelp, doEdit, processAction

Java code uses 2 Classes to exchange data from/to JSPs
Riccardo Rotondo

Portlet files (root)
build.xml

Used by ‘ant’ to compile and
deploy the portlet

docroot/
WEB_INF/
css/
images/
js/

jsp_page_1.jsp
…
jsp_page_n.jsp

Define here JSP’s styles
JSP image files
JavaScript files

Portlet JSP pages

Riccardo Rotondo

Portlet files (docroot)
WEB_INF/
Used to define database and other
glassfish-web.xml
resources settings
web.xml
lib/
Jar Library directory (local scope)
Job/
Job files (Custom dir)
liferay-display.xml
liferay-plugin-package.properties
Portlet
liferay-portlet.xml
configuration files
portlet.xml
src/
Java source files

<package_name>/code.java

tld/

XML structure file
Riccardo Rotondo

Riccardo Rotondo

Building environment

 Get Liferay with Glassfish
 Customising Liferay installation (database
connection)
 Get Liferay plug-in SDK
 Configuring Netbeans (optional)

Riccardo Rotondo

Deploying first portlet








Understanding ant scripts
Creating “hello world” portlet
Understanding portlet files
Compiling porltet
Deploying porlet
Understading portlet management on the
server

Riccardo Rotondo

References
 Liferay: https://www.liferay.com
 Liferay Bundles:
https://www.liferay.com/downloads/liferayportal/available-releases
 Liferay Plugin SDK:
https://www.liferay.com/downloads/liferayportal/additional-files
 Netbeans: https://netbeans.org
 Netbeans liferay plugin:
https://contrib.netbeans.org/portalpack/
Riccardo Rotondo

Questions ?
