The document provides a comprehensive overview of the FluidX sample storage product range, detailing various types of polypropylene tubes (including sizes, formats, and coding options) for sample storage. It includes specifications for cryo tubes, glass tubes, racks, and caps, as well as information on their compatibility and features such as 2D coding and enhanced sealing capabilities. Emphasis is placed on their suitability for cryogenic storage and the high-quality standards maintained in their manufacturing.

1. Sample Storage Product Range
version 3.2
www.fluidx.co.uk

2. CONTENTS
Tube Overview Charts
96-format tubes 1
24, 48 and 384 format tubes 2
96-Format Polypropylene Tubes (use with either screw caps or TPE septum caps) 3
Coding options 4
0.5ml polypropylene tube with internal thread 5
1.0ml polypropylene tube with internal thread 6
1.4ml polypropylene tube with internal thread 7

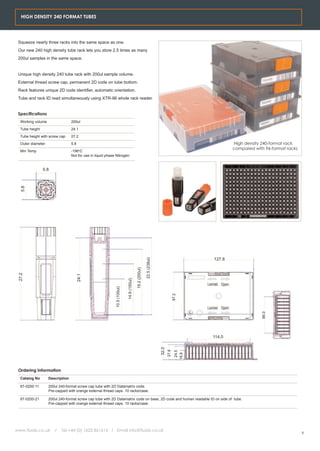

240-Format Polypropylene Tubes 8

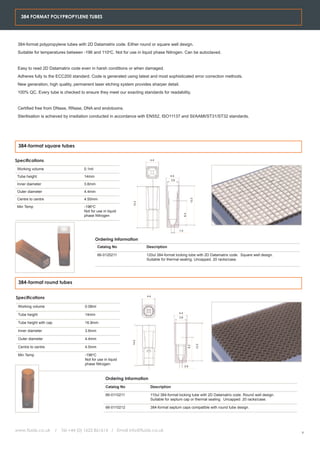

384-Format Polypropylene Tubes
384-format square tubes 9
384-format round tubes 9
96-Format Polypropylene Tubes with Protective Jacket (use with either screw caps or TPE septum caps) 10

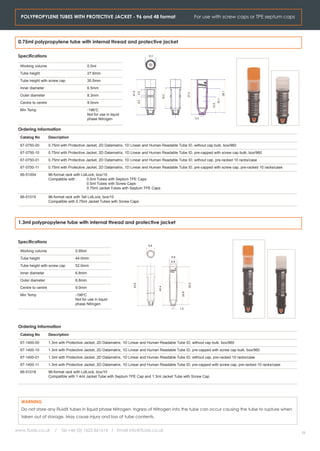

0.75ml polypropylene tube with jacket and screw top 11
1.4ml polypropylene tube with jacket and screw top 11

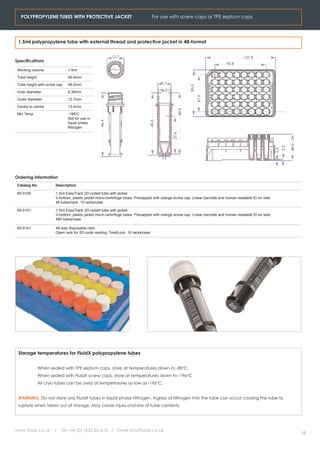

1.5ml polypropylene tube with jacket and screw top 12
6ml polypropylene tube with jacket and screw top 13
10ml polypropylene tube with jacket and screw top 13

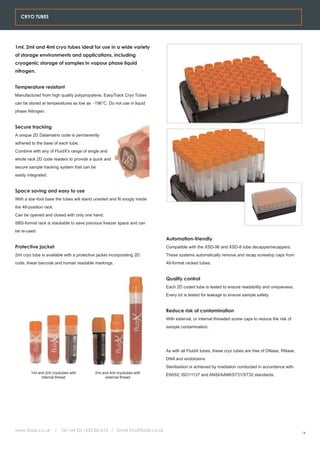

Cryo Tubes 14

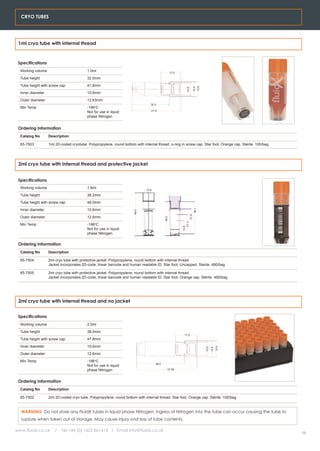

1ml cryo tube with internal thread (no jacket) 15
2ml cryo tube with internal thread and protective jacket 15
2ml cryo tube with internal thread (no jacket) 15

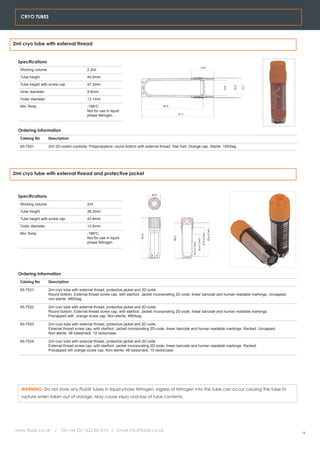

2ml cryo tube with external thread (no jacket) 16
2ml cryo tube with external thread and protective jacket 16
4ml cryo tube with external thread (no jacket) 17
Racks and caps for cryo tubes 17

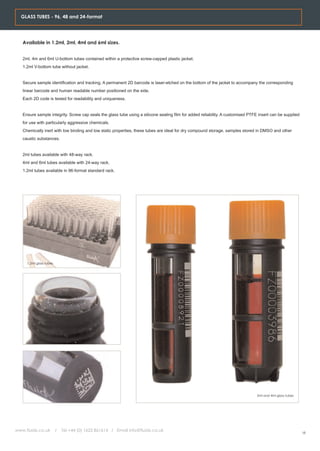

Glass Tubes in 96 and 24 Format (use with either screw caps or TPE septum caps) 18

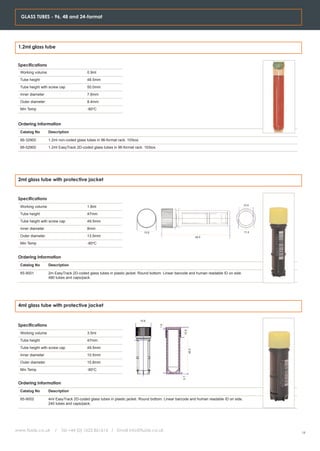

1.2ml glass tube (96-format, no jacket) 19
2ml glass tube with protective jacket 19
4ml glass tube with protective jacket 19

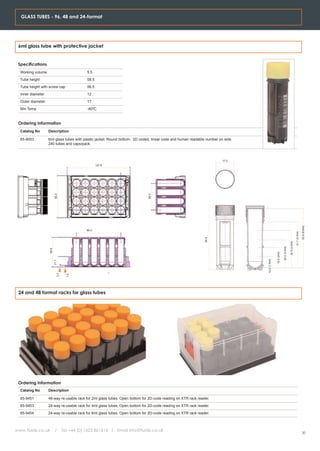

6ml glass tube with protective jacket 20
Racks for glass tubes 20
Racks and Capping Systems

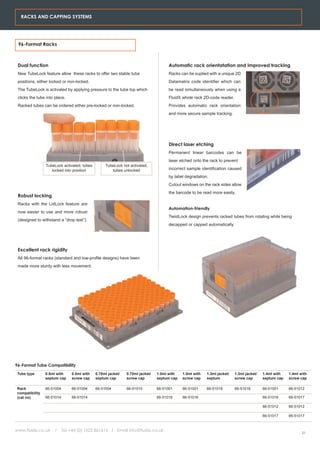

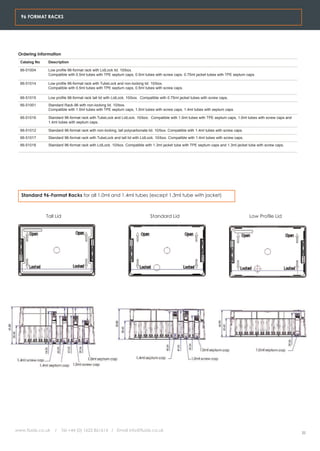

96-format racks (features and tube compatibility) 21

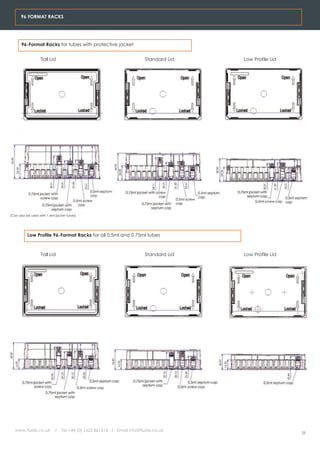

96-format racks (drawings) 22, 23
384-format racks (drawings) 24

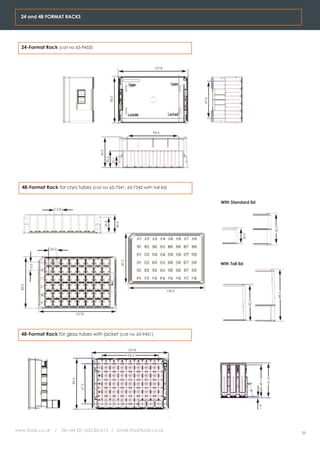

24 and 48-format racks (drawings) 25

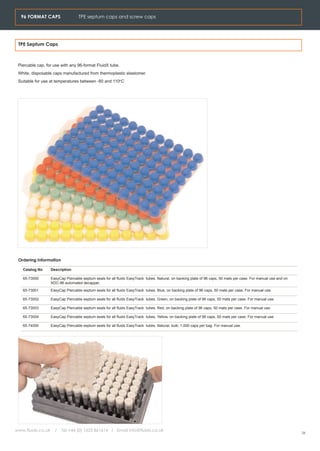

TPE septum caps 26

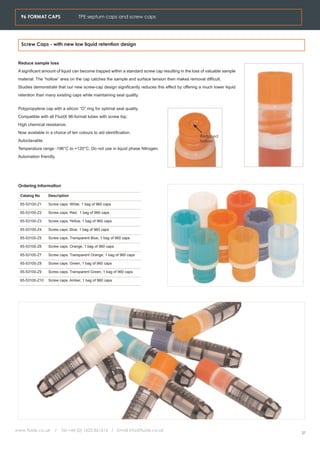

Screw caps 27
SBS format cap carrier 28

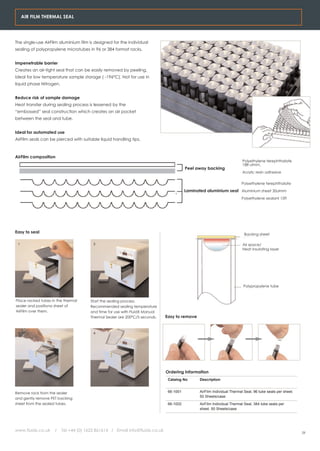

Air Film, thermal seal for 96 format tubes 29

3. Tube Overview Chart 96-format
96-FORMAT TUBES WITH INTERNAL THREAD (TPE CAPPED) 96-FORMAT TUBES WITH INTERNAL THREAD SCREW CAP TUBES WITH JACKET GLASS TUBES
(SCREW CAPPED)
TUBE TYPE 0.5ml 1.0ml 1.4ml 0.5ml 1.0ml 1.4ml 0.75ml 1.3ml 1.2ml
MAX WORKING VOLUME (ml) 0.35* 0.8* 1.0* 0.27 0.73 0.97 0.5 0.95 0.9
TUBE HEIGHT (mm) 21.0 36.6 44.0 21.0 36.6 44.0 27.6 44.0 48.5
TUBE HEIGHT WITH CAP (mm) 22.1 37.7 45.1 29.5 45.0 52.2 35.5 52.0 50.0
INNER DIAMETER (mm) 6.8 6.8 6.8 6.8 6.8 6.8 6.5 6.8 7.6
OUTER DIAMETER (mm) 8.4 8.4 8.4 8.4 8.4 8.4 8.3 8.8 8.4
CENTRE TO CENTRE (mm) 9.0 9.0 9.0 9.0 9.0 9.0 9.0 9.0 -
o -80 -80 -80 -196 -196 -196 -196 -196 -80
MIN TEMPERATURE ( C)
2D CODED Yes Yes Yes Yes Yes Yes Yes Yes Yes
2D CODE COLOUR Black on white Black on white Black on white Black on white Black on white Black on white Black on white Black on white Black on white
LINEAR BARCODE No No No No No No Yes Yes No
HUMAN READABLE No No No No No No Yes Yes No
ALPHANUMERIC Yes Yes Yes Yes Yes Yes No No No
NON-CODED OPTION Yes Yes Yes Yes Yes Yes No No Yes
CAPPING OPTIONS Available uncapped or precapped with screw cap Precapped with screwcap or without cap Uncapped
Tubes can be used with either septum cap or screw caps for TPE septum cap
THREAD TYPE Internal Internal Internal Internal Internal Internal Internal Internal None
RACK TYPE OPTIONS Low profile Standard Standard Low profile Standard Standard Low profile Standard Standard
96-format rack 96-format rack 96-format rack with 96-format rack 96-format rack 96-format rack with 96-format rack 96-format rack 96-format rack
with with non-lock lid non-lock lid with LidLock with non-lock lid non-lock lid with LidLock with LidLock
LidLock (66-51001) (66-51001) (66-51004) (66-51001) (66-51001) (66-51004) (66-51018)
(66-51004) or with TubeLock TubeLock and Lor with TubeLock or with TubeLock TubeLock and or with tall LidLock
or TubeLock and LidLock LidLock (66-51014) and LidLock LidLock lid
(66-51014) (66-51016) (66-51016) (66-51016 (66-51016) (66-51015)
or tall non-lock lid or tall non-lock lid
(66-51012) (66-51012)
or TubeLock and tall or TubeLock and tall
LidLock LidLock
(66-51017) (66-51017)
RACK MATERIAL PP PP PP (PC lid on 66-51012) PP PP PP (PC lid 66-51012) PP PP PP
1
* The Maximum working volume may be decreased from the stated values at -80oC and below depending on the freezing conditions and the nature of the sample, it is advised to carry out testing on the desired storage volume and with typical samples
to evaluate the maximum storage volumes for each of the tubes.

4. Tube Overview Chart 24, 48 and 384-format
384 FORMAT TUBES 240 FORMAT SCREW CAP TUBES WITH JACKET CRYO TUBES GLASS TUBES WITH JACKET
TUBES
TUBE TYPE SQUARE ROUND 1.5ml 6ml 10ml 1ml 2ml 2ml (jacket) 2ml (jacket) 2ml 4ml 2.0ml 4.0ml 6ml
VOLUME (ml) 0.12 0.11 0.2 1.7 6 10 1.0 2.0 2.0 2.0 2.0 4.0 2.0 4.0 6.0
MAX WORKING VOLUME (ml) 0.1 0.08 1.4 5.5 8 1.0 2.0 1.8 2.0 2.0 3.5 1.8 3.5 5.5
TUBE HEIGHT (mm) 14.0 14.0 24.1 46.4 58.5 32.0 38.0 38.2 38.2 40.0 76.0 47.0 47.0 58.5
TUBE HEIGHT WITH CAP (mm) 16.9 27.2 48.0 56.5 80.0 41.8 47.8 48.0 43.9 47.3 83.1 49.5 49.5 56.5
INNER DIAMETER (mm) 3.6 3.6 8.4 12 77.2 10.6 10.6 10.6 9.8 9.8 8 10.5 12
OUTER DIAMETER (mm) 4.4 4.4 12.7 17 12.63 12.6 12.6 12.8 13.1 13.1 13.5 15.8 17
CENTRE TO CENTRE (mm) 4.5 4.5 13.4 16.75
MIN TEMPERATURE (oC) -196 -196 -196 -196 -196 -196 -196 -196 -196 -196 -196 -196 -80 -80 -80
2D CODED Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes
2D CODE COLOUR White White White White White White White White White White White White White White White
LINEAR BARCODE No No Yes Yes Yes Yes No No Yes No No No Yes Yes Yes
HUMAN READABLE No No Yes Yes Yes Yes No No Yes No No No Yes Yes Yes
ALPHANUMERIC No No No No No No No No No No No No No No No
NON-CODED OPTION No No No No No No No No No No No No No No No
CAPPING OPTIONS No cap No cap Precapped Precapped Precapped Precapped Precapped Precapped Precapped Precapped Precapped Precapped Precapped Precapped Precapped
Film seal Septum with screw with with screw with screw screwcap screwcap screwcap screwcap screwcap screwcap screwcap screwcap screwcap
cap cap screwcap cap cap Uncapped
Film seal
THREAD TYPE NA NA External External External External Internal Internal Internal External External External External External External
RACK TYPE OPTIONS 384-format 384-format 48-format, 24 Way Rack 24 Way Rack 24-format, 24-format, 24-format, 24-format 24-format, 24-format 48-format 24-format 24-format
rack with rack with open bottom, for 2D Coded for 2D Coded open bottom open bottom open bottom open bottom open bottom open bottom reusable reusable reusable
TubeLock TubeLock disposable 6ml PP and 10ml PP (65-7521) (65-7521) (65-7521) (65-7521) (65-7521) (65-7521) open bottom open bottom open bottom
(66- (66-0110211) rack Glass Tubes Tubes 48-format, 48-format, 48-format, 48-format , 48-format, 48-format , rack rack rack with
0120211) (65-9141) (Cat Number (65-9301) locking lid locking lid open locking lid locking lid, locking lid tall locking lid with LidLock with LidLock LidLock
65-9003 & with LidLock open bottom bottom open bottom open bottom open bottom open bottom (65-9451) (65-9453) (65-9454)
65-9201) with (65-9455) (65-7541) (65-7541) (65-7541) (65-9451) (65-7541) (65-7542)
LidLock 48-format open 48-format 10x10 and 48-format 48-format
(65-9454) bottom open bottom 9x9 cryo open bottom open bottom
(65-8501) (65-8501) racks (65-8501) (65-8502)
QUANTITY IN RACK 384 384 240 48 24 24 24, 48 24, 48 24, 48 24, 48 24, 48 24, 48 48 24 24
RACK MATERIAL COC/PS COC/PS PP PP PP PP PP PP PP PP PP PP PP PP PP
2
Note:Do not immerse FluidX tubes in liquid phase Nitrogen.

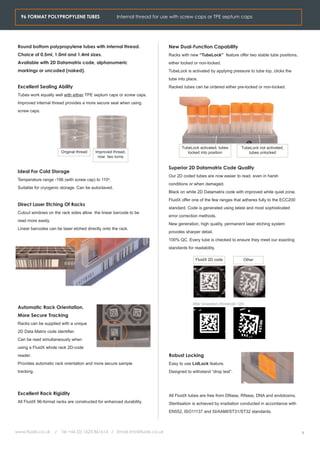

5. 96 FORMAT POLYPROPYLENE TUBES Internal thread for use with screw caps or TPE septum caps
Round bottom polypropylene tubes with internal thread. New Dual-Function Capability
Choice of 0.5ml, 1.0ml and 1.4ml sizes. Racks with new “TubeLock” feature offer two stable tube positions,
Available with 2D Datamatrix code, alphanumeric either locked or non-locked.
markings or uncoded (naked). TubeLock is activated by applying pressure to tube top, clicks the
tube into place.
Excellent Sealing Ability Racked tubes can be ordered either pre-locked or non-locked.
Tubes work equally well with either TPE septum caps or screw caps.
Improved internal thread provides a more secure seal when using
screw caps.
TubeLock activated, tubes TubeLock not activated,
Original thread Improved thread, locked into position tubes unlocked
now two turns
Superior 2D Datamatrix Code Quality
Ideal For Cold Storage
Our 2D coded tubes are now easier to read, even in harsh
Temperature range -196 (with screw cap) to 110o.
conditions or when damaged.
Suitable for cryogenic storage. Can be autoclaved.
Black on white 2D Datamatrix code with improved white quiet zone.
FluidX offer one of the few ranges that adheres fully to the ECC200
Direct Laser Etching Of Racks
standard. Code is generated using latest and most sophisticated
Cutout windows on the rack sides allow the linear barcode to be
error correction methods.
read more easily.
New generation, high quality, permanent laser etching system
Linear barcodes can be laser etched directly onto the rack.
provides sharper detail.
100% QC. Every tube is checked to ensure they meet our exacting
standards for readability.
FluidX 2D code Other
After binaration (threshold 128)
Automatic Rack Orientation,
More Secure Tracking
Racks can be supplied with a unique
2D Data Matrix code identifier.
Can be read simultaneously when
using a FluidX whole rack 2D-code
reader. Robust Locking
Provides automatic rack orientation and more secure sample Easy to use LidLock feature.
tracking. Designed to withstand “drop test”.
Excellent Rack Rigidity All FluidX tubes are free from DNase, RNase, DNA and endotoxins.
All FluidX 96-format racks are constructed for enhanced durability. Sterilisation is achieved by irradiation conducted in accordance with
EN552, ISO11137 and SI/AAMI/ST31/ST32 standards.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk 3

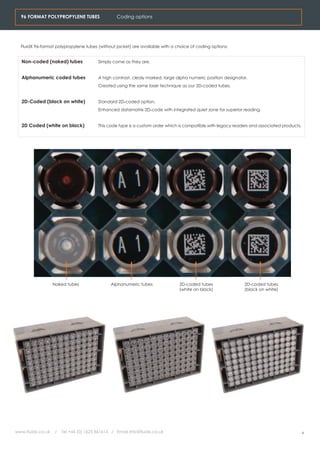

6. 96 FORMAT POLYPROPYLENE TUBES Coding options
FluidX 96-format polypropylene tubes (without jacket) are available with a choice of coding options:
Non-coded (naked) tubes Simply come as they are.
Alphanumeric coded tubes A high contrast, clealy marked, large alpha numeric position designator.
Created using the same laser technique as our 2D-coded tubes.
2D-Coded (black on white) Standard 2D-coded option.
Enhanced datamatrix 2D-code with integrated quiet zone for superior reading.
2D Coded (white on black) This code type is a custom order which is compatible with legacy readers and associated products.
Naked tubes Alphanumeric tubes 2D-coded tubes 2D-coded tubes
(white on black) (black on white)
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk 4

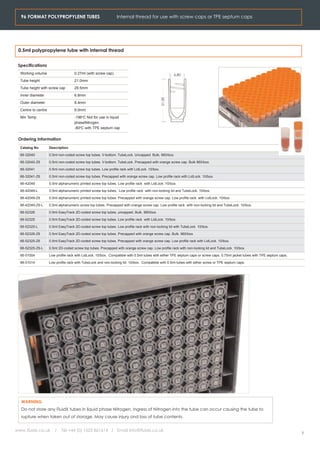

7. 96 FORMAT POLYPROPYLENE TUBES Internal thread for use with screw caps or TPE septum caps
0.5ml polypropylene tube with internal thread
Specifications
Working volume 0.27ml (with screw cap) 6.80
Tube height 21.0mm
Tube height with screw cap 29.5mm
Inner diameter 6.8mm
21.00
Outer diameter 8.4mm
Centre to centre 9.0mm
Min Temp -196oC Not for use in liquid
phaseNitrogen.
-80oC with TPE septum cap
Ordering Information
Catalog No Description
66-32040 0.5ml non-coded screw top tubes. V-bottom. TubeLock. Uncapped. Bulk, 960/box.
66-32040-Z6 0.5ml non-coded screw top tubes. V-bottom. TubeLock. Precapped with orange screw cap. Bulk 960/box.
66-32041 0.5ml non-coded screw top tubes. Low profile rack with LidLock. 10/box.
66-32041-Z6 0.5ml non-coded screw top tubes. Precapped with orange screw cap. Low profile rack with LidLock. 10/box.
66-42049 0.5ml alphanumeric printed screw top tubes. Low profile rack with LidLock. 10/box.
66-42049-L 0.5ml alphanumeric printed screw top tubes. Low profile rack with non-locking lid and TubeLock. 10/box.
66-42049-Z6 0.5ml alphanumeric printed screw top tubes. Precapped with orange screw cap. Low profile rack with LidLock. 10/box
66-42049-Z6-L 0.5ml alphanumeric screw top tubes. Precapped with orange screw cap. Low profile rack with non-locking lid and TubeLock. 10/box.
66-52326 0.5ml EasyTrack 2D-coded screw top tubes, uncapped. Bulk. 960/box
66-52325 0.5ml EasyTrack 2D-coded screw top tubes. Low profile rack with LidLock. 10/box.
66-52325-L 0.5ml EasyTrack 2D-coded screw top tubes. Low profile rack with non-locking lid with TubeLock. 10/box.
66-52326-Z6 0.5ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Bulk. 960/box.
66-52325-Z6 0.5ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Low profile rack with LidLock. 10/box.
66-52325-Z6-L 0.5ml 2D-coded screw top tubes. Precapped with orange screw cap. Low profile rack with non-locking lid and TubeLock. 10/box.
66-51004 Low profile rack with LidLock. 10/box. Compatible with 0.5ml tubes with either TPE septum caps or screw caps. 0.75ml jacket tubes with TPE septum caps.
66-51014 Low profile rack with TubeLock and non-locking lid. 10/box. Compatible with 0.5ml tubes with either screw or TPE septum caps.
WARNING
Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
5

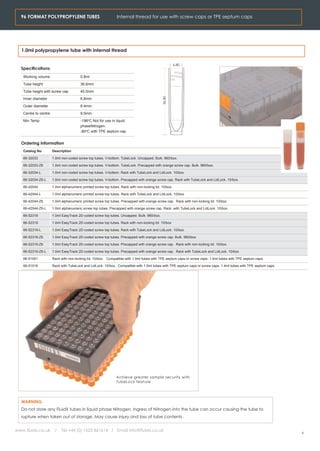

8. 96 FORMAT POLYPROPYLENE TUBES Internal thread for use with screw caps or TPE septum caps
1.0ml polypropylene tube with internal thread
6.80
Specifications
Working volume 0.8ml
Tube height 36.6mm
Tube height with screw cap 45.0mm
36.80
Inner diameter 6.8mm
Outer diameter 8.4mm
Centre to centre 9.0mm
Min Temp -196oC Not for use in liquid
phaseNitrogen.
-80oC with TPE septum cap
Ordering Information
Catalog No Description
66-32033 1.0ml non-coded screw top tubes. V-bottom. TubeLock. Uncapped. Bulk. 960/box.
66-32033-Z6 1.0ml non-coded screw top tubes. V-bottom. TubeLock. Precapped with orange screw cap. Bulk. 960/box.
66-32034-L 1.0ml non-coded screw top tubes. V-bottom. Rack with TubeLock and LidLock. 10/box.
66-32034-Z6-L 1.0ml non-coded screw top tubes. V-bottom. Precapped with orange screw cap. Rack with TubeLock and LidLock. 10/box.
66-42044 1.0ml alphanumeric printed screw top tubes. Rack with non-locking lid. 10/box.
66-42044-L 1.0ml alphanumeric printed screw top tubes. Rack with TubeLock and LidLock. 10/box.
66-42044-Z6 1.0ml alphanumeric printed screw top tubes. Precapped with orange screw cap. Rack with non-locking lid. 10/box.
66-42044-Z6-L 1.0ml alphanumeric screw top tubes. Precapped with orange screw cap. Rack with TubeLock and LidLock. 10/box
66-52318 1.0ml EasyTrack 2D-coded screw top tubes. Uncapped. Bulk. 960/box.
66-52319 1.0ml EasyTrack 2D-coded screw top tubes. Rack with non-locking lid. 10/box
66-52319-L 1.0ml EasyTrack 2D-coded screw top tubes. Rack with TubeLock and LidLock. 10/box.
66-52318-Z6 1.0ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Bulk. 960/box.
66-52319-Z6 1.0ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Rack with non-locking lid. 10/box.
66-52319-Z6-L 1.0ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Rack with TubeLock and LidLock. 10/box
66-51001 Rack with non-locking lid. 10/box. Compatible with 1.0ml tubes with TPE septum caps or screw caps. 1.4ml tubes with TPE septum caps.
66-51016 Rack with TubeLock and LidLock. 10/box. Compatible with 1.0ml tubes with TPE septum caps or screw caps. 1.4ml tubes with TPE septum caps.
Achieve greater sample security with
TubeLock feature
WARNING
Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
6

9. 96 FORMAT POLYPROPYLENE TUBES Internal thread for use with screw caps or TPE septum caps
1.4ml polypropylene tube with internal thread
6.80
Specifications
Working volume 1.0ml
Tube height 44.0mm
Tube height with screw cap 52.2mm
Inner diameter 6.8mm
44.10
Outer diameter 8.4mm
Centre to centre 9.0mm
Min Temp -196oC Not fror use in liquid
phase Nitrogen.
-80oC with TPE septum cap
Ordering Information
Catalog No Description
66-32062 1.4ml non-coded screw top tubes. Uncapped. Bulk, 960/box.
66-32062-Z6 1.4ml non-coded screw top tubes. Precapped with orange screw cap. Bulk. 960/box.
66-32042-L 1.4ml non-coded screw top tubes. Rack with TubeLock and LidLock. 10/box. (Lid suitable for TPE septum caps only).
66-32043-L 1.4ml non-coded screw top tubes. Rack with tall lid, TubeLock and LidLock. 10/box. (Lid suitable for screw caps and TPE septum caps).
66-32043-Z6-L 1.4ml non-coded screw top tubes. Precapped with orange screw cap.Rack with tall lid, TubeLock and LidLock. 10/box.
66-42047 1.4ml alphanumeric printed screw top tubes. Rack with non-locking lid. 10/box. (Lid suitable for TPE septum caps only)
66-42047-L 1.4ml alphanumeric printed screw top tubes. Rack with TubeLock and LidLock. 10/box. (Lid suitable for TPE caps only)
66-42063 1.4ml alphanumeric printed screw top tubes. Rack with high polycarbonate lid. 10/box.
66-42063-L 1.4ml alphanumeric printed screw top tubes. Rack with tall lid, TubeLock and LidLock. 10/box.
66-42063-Z6 1.4ml alphanumeric printed screw top tubes. Precapped with orange screw cap. Rack with tall non-locking lid (polycarbonate). 10/box.
66-42063-Z6-L 1.4ml alphanumeric printed screw top tubes. Precapped with orange screw cap. Tall lid Rack with TubeLock and LidLock.
66-52345 1.4ml EasyTrack 2D-coded screw top tubes. Uncapped. Bulk. 960/box.
66-52321 1.4ml EasyTrack 2D-coded screw top tubes. Rack with non-locking lid. 10/box. (Lid suitable for TPE caps only)
66-52330 1.4ml EasyTrack 2D-coded screw top tubes. Rack with high polycarbonate lid. 10/box.
66-52321-L 1.4ml EasyTrack 2D-coded screw top tubes. Rack with TubeLock and LidLock. 10/box. (Lid suitable for TPE caps only)
66-52330-L 1.4ml EasyTrack 2D-coded screw top tubes. Rack with tall lid, TubeLock and LidLock. 10/box.
66-52345-Z6 1.4ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Bulk. 960/box.
66-52330-Z6 1.4ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Rack with tall non-locking lid (polycarbonate). 10/box.
66-52330Z6-L 1.4ml EasyTrack 2D-coded screw top tubes. Precapped with orange screw cap. Rack with tall lid, TubeLock and LidLock. 10/box.
66-51001 Rack with non-locking lid. 10/box. Compatible with 1.0ml tubes with TPE septum caps and screw caps, 1.4ml tubes with septum caps
66-51016 Rack with TubeLock and LidLock. 10/box. Compatible with 1.0ml tubes with TPE septum caps and screw caps, 1.4ml tubes with septum caps
66-51012 Rack with tall non-locking lid (polycarbonate). 10/box. Compatible with 1.4ml tubes with screw cap.
66-51017 Rack with tall lid, TubeLock and LidLock. 10/box. Compatible with 1.4ml tubes with screw cap.
WARNING
Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
7

10. HIGH DENSITY 240 FORMAT TUBES
Squeeze nearly three racks into the same space as one.
Our new 240 high density tube rack lets you store 2.5 times as many
200ul samples in the same space.
Unique high density 240 tube rack with 200ul sample volume.
External thread screw cap, permanent 2D code on tube bottom.
Rack features unique 2D code identifier, automatic orientation.
Tube and rack ID read simultaneously using XTR-96 whole rack reader.
Specifications
Working volume 200ul
Tube height 24.1
Tube height with screw cap 27.2
Outer diameter 5.8 High density 240-format rack
compared with 96-format racks
Min Temp -196oC
Not for use in liquid phase Nitrogen
5.8
5.8
127.8
22.5 (238ul)
19.2 (200ul)
27.2
24.1
14.9 (150ul)
10.5 (100ul)
87.2
66.0
114.0
32.0
27.6
24.5
16.8
Ordering Information
Catalog No Description
67-0200-11 200ul 240-format screw cap tube with 2D Datamatrix code.
Pre-capped with orange external thread caps. 10 racks/case.
67-0200-21 200ul 240-format screw cap tube with 2D Datamatrix code on base, 2D code and human readable ID on side of tube.
Pre-capped with orange external thread caps. 10 racks/case.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
8

11. 384 FORMAT POLYPROPYLENE TUBES
384-format polypropylene tubes with 2D Datamatrix code. Either round or square well design.
Suitable for temperatures between -196 and 110oC. Not for use in liquid phase Nitrogen. Can be autoclaved.
Easy to read 2D Datamatrix code even in harsh conditions or when damaged.
Adheres fully to the ECC200 standard. Code is generated using latest and most sophisticated error correction methods.
New generation, high quality, permanent laser etching system provides sharper detail.
100% QC. Every tube is checked to ensure they meet our exacting standards for readability.
Certified free from DNase, RNase, DNA and endotoxins.
Sterilisation is achieved by irradiation conducted in accordance with EN552, ISO11137 and SI/AAMI/ST31/ST32 standards.
384-format square tubes
Specifications 4.4
Working volume 0.1ml
Tube height 14mm 4.4
3.6
Inner diameter 3.6mm
Outer diameter 4.4mm
Centre to centre 4.50mm
13.3
13.3
Min Temp -196oC
Not for use in liquid
8.3
phase Nitrogen
1.0
Ordering Information
Catalog No Description
66-0120211 120ul 384-format locking tube with 2D Datamatrix code. Square well design.
Suitable for thermal sealing. Uncapped. 20 racks/case.
384-format round tubes
Specifications 4.4
Working volume 0.08ml
4.4
Tube height 14mm
3.6
Tube height with cap 16.9mm
Inner diameter 3.6mm
Outer diameter 4.4mm
14.0
13.3
8.2
Centre to centre 4.5mm
Min Temp -196oC
Not for use in liquid
phase Nitrogen
0.9
Ordering Information
Catalog No Description
66-0110211 110ul 384-format locking tube with 2D Datamatrix code. Round well design.
Suitable for septum cap or thermal sealing. Uncapped. 20 racks/case.
66-0110212 384-format septum caps compatible with round tube design.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
9

12. POLYPROPYLENE TUBES WITH PROTECTIVE JACKET - 96, 48 and 24 format For use with screw caps or TPE septum
0.75ml and 1.3ml volumes suplied in 96-format.
1.5ml size available in 48-format .
6ml and 10ml sizes available in 24-format.
Ideal For Cold Storage Superior Code Quality
Temperature range -196 to 110 C, (with screw cap) suitable for
o Easy to read, even in harsh conditions or when damaged.
cryogenic storage. Do not use in liquid phase Nitrogen. Black on white 2D Datamatrix code with improved white quiet zone,
Can be autoclaved. FluidX offer one of the few ranges that adheres fully to the ECC200
standard.
Code generated using latest and most sophisticated error correction
Automation friendly
methods.
Compatible with the XSD-96 range of tube decapper/
New generation, high quality, permanent laser etching system
recappers to automatically remove and recap screw caps from
provides sharper detail.
96- or 48-format racked tubes.
100% QC. Every tube checked to ensure they meet our exacting
TwistLock feature prevents tubes rotating within the rack during
standards for readability.
capping or decapping process.
Direct Laser Etching Of Racks FluidX 2D code Other
Cutout windows on the rack sides allow the linear barcode to be
read more easily.
Linear barcodes can be laser etched directly onto the rack.
After binaration (threshold 128)
Automatic Rack Orientation,
Robust Locking
More Secure Tracking
Racks feature easy to use LidLock,
Racks can be supplied with a unique
designed to withstand a drop test.
2D Data Matrix code identifier.
Can be read simultaneously when
Free from DNase, RNase, DNA and
using a FluidX whole rack 2D-code
endotoxins.
reader.
Sterilisation is achieved by irradiation conducted in accordance with
Provides automatic rack orientation and more secure sample
EN552, ISO11137 and SI/AAMI/ST31/ST32standards.
tracking.
Excellent Rack Rigidity
All FluidX 96-format racks are constructed for enhanced durability.
WARNING
Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
10

13. POLYPROPYLENE TUBES WITH PROTECTIVE JACKET - 96 and 48 format For use with screw caps or TPE septum caps
0.75ml polypropylene tube with internal thread and protective jacket
Specifications 8.3
Working volume 0.5ml
Tube height 27.6mm
Tube height with screw cap 35.5mm
Inner diameter 6.5mm
26.1
27.6
4.2
27.2
Outer diameter 8.3mm
16.0
19.1
8.2
Centre to centre 9.0mm
12.5
Min Temp -196oC
Not for use in liquid
phase Nitrogen 0.3
Ordering Information
Catalog No Description
67-0750-00 0.75ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, without cap bulk, box/960
67-0750-10 0.75ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, pre-capped with screw cap bulk, box/960
67-0750-01 0.75ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, without cap, pre-racked 10 racks/case
67-0750-11 0.75ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, pre-capped with screw cap, pre-racked 10 racks/case
66-51004 96-format rack with LidLock, box/10
Compatible with : 0.5ml Tubes with Septum TPE Caps
0.5ml Tubes with Screw Caps
0.75ml Jacket Tubes with Septum TPE Caps
66-51015 96-format rack with Tall LidLock, box/10
Compatible with 0.75ml Jacket Tubes with Screw Caps
1.3ml polypropylene tube with internal thread and protective jacket
Specifications
8.8
Working volume 0.95ml
8.8
Tube height 44.0mm
6.8
Tube height with screw cap 52.0mm
Inner diameter 6.8mm
Outer diameter 8.8mm
42.5
43.9
Centre to centre 9.0mm
43.4
24.8
Min Temp -196oC
Not for use in liquid
phase Nitrogen
1.6
Ordering Information
Catalog No Description
67-1400-00 1.3ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, without cap bulk, box/960
67-1400-10 1.3ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, pre-capped with screw cap bulk, box/960
67-1400-01 1.3ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, without cap, pre-racked 10 racks/case
67-1400-11 1.3ml with Protective Jacket, 2D Datamatrix, 1D Linear and Human Readable Tube ID, pre-capped with screw cap, pre-racked 10 racks/case
66-51018 96-format rack with LidLock, box/10
Compatible with 1.4ml Jacket Tube with Septum TPE Cap and 1.3ml Jacket Tube with Screw Cap
WARNING
Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to rupture when
taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
11

14. POLYPROPYLENE TUBES WITH PROTECTIVE JACKET For use with screw caps or TPE septum caps
1.5ml polypropylene tube with external thread and protective jacket in 48-format
12.7 127.8
Specifications
93.8
Working volume 1.4ml
Tube height 46.4mm
Tube height with screw cap 48.0mm 9.7
85.5
Inner diameter 8.38mm 8.3
67.0
Outer diameter 12.7mm
Centre to centre 13.4mm
44.6
Min Temp -196oC
Not for use in
45.5
46.4
liquid phase
Nitrogen
27.6
48.0
2.3
0.5
Ordering Information
Catalog No Description
65-9100 1.5ml EasyTrack 2D-coded tube with jacket.
V-bottom, plastic jacket micro-centrifuge tubes. Precapped with orange screw cap. Linear barcode and human readable ID on side.
48 tubes/rack. 10 racks/case
65-9101 1.5ml EasyTrack 2D-coded tube with jacket.
V-bottom, plastic jacket micro-centrifuge tubes. Precapped with orange screw cap. Linear barcode and human readable ID on side.
480 tubes/case.
65-9141 48-way disposable rack.
Open rack for 2D-code reading. TwistLock. 10 racks/case
Storage temperatures for FluidX polypropylene tubes
When sealed with TPE septum caps, store at temperatures down to -80oC.
When sealed with FluidX screw caps, store at temperatures down to -196oC
All cryo tubes can be used at tempertaures as low as -196oC.
WARNING. Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
12

15. POLYPROPYLENE TUBES WITH PROTECTIVE JACKET For use with screw caps or TPE septum caps
6ml polypropylene tube with external thread and protective jacket in 24-format
127.6
Specifications
Working volume 5.5ml
85.5
Tube height 58.5mm
54.0
Tube height with screw cap 56.5mm
Inner diameter 13mm
Outer diameter 17mm
Min Temp -196oC
Not for use in liquid
57.3
phase Nitrogen
59.8
64.4
38.7
21.1
3.3
1.4
Ordering Information
Catalog No Description
65-9201 EasyTrack 6ml Jacketed polypropylene tubes
Plastic jacket, 2D coded tubes pre-capped with screw cap, linear code and human
readable number on side. 240 tubes per case.
65-9454 24 way rack for 2D coded 6ml PP and glass tubes (Cat Nos. 65-9003 & 65-9201)
with LidLock. Open bottom for reading on XTR range of rack reader.
10 racks per case.
10ml polypropylene tube with external thread and protective jacket in 24-format
Specifications
Working volume 8ml
Tube height 77.2mm
Tube height with screw cap 80.0mm
Inner diameter 13mm
Outer diameter 16.75mm
Min Temp -196oC
Not for use in liquid
phase Nitrogen
Ordering Information
Catalog No Description
65-9301 EasyTrack 10ml polypropylene tubes with jacket. 2D coded tubes with plastic jacket.
Pre-capped with Screw Cap, linear code and human readable number on side. 240 tubes per case.
65-9455 24 Way Rack for 2D Coded 10ml PP Tubes (Cat Number 65-9301) with LidLock. Open bottom for reading on XTR range of rack reader.
10 racks per case
127.8
17.0
85.5
54.0
63.8 (8.0ml)
90.0
48.7 (6.0ml)
77.4
79.9
41.1 (5.0ml)
75.0 (9.5ml)
78.3
33.4 (4.0ml)
80.8
38.7
21.1
17.8 (2.0ml)
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
13

16. CRYO TUBES
1ml, 2ml and 4ml cryo tubes ideal for use in a wide variety
of storage environments and applications, including
cryogenic storage of samples in vapour phase liquid
nitrogen.
Temperature resistant
Manufactured from high quality polypropylene, EasyTrack Cryo Tubes
can be stored at temperatures as low as -196°C. Do not use in liquid
phase Nitrogen.
Secure tracking
A unique 2D Datamatrix code is permanently
adhered to the base of each tube.
Combine with any of FluidX's range of single and
whole rack 2D code readers to provide a quick and
secure sample tracking system that can be
easily integrated.
Space saving and easy to use
With a star-foot base the tubes will stand unaided and fit snugly inside
the 48-position rack.
Can be opened and closed with only one hand.
SBS-format rack is stackable to save precious freezer space and can
be re-used.
Automation-friendly
Protective jacket Compatible with the XSD-96 and XSD-8 tube decapper/recappers.
2ml cryo tube is available with a protective jacket incorporating 2D These systems automatically remove and recap screwtop caps from
code, linear barcode and human readable markings. 48-format racked tubes.
Quality control
Each 2D coded tube is tested to ensure readability and uniqueness.
Every lot is tested for leakage to ensure sample safety.
Reduce risk of contamination
With external, or internal threaded screw caps to reduce the risk of
sample contamination.
As with all FluidX tubes, these cryo tubes are free of DNase, RNase,
DNA and endotoxins.
Sterilisation is achieved by irradiation conducted in accordance with
1ml and 2ml cryotubes with 2ml and 4ml cryotubes with
EN552, ISO11137 and ANSI/AAMI/ST31/ST32 standards.
internal thread external thread
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
14

17. CRYO TUBES
1ml cryo tube with internal thread
Specifications
Working volume 1.0ml 17.0
Tube height 32.0mm
Tube height with screw cap 41.8mm
12.6
12.5
10.6
Inner diameter 10.6mm
Outer diameter 12.63mm
32.0
Min Temp -196oC
41.8
Not for use in liquid
phase Nitrogen
Ordering Information
Catalog No Description
65-7503 1ml 2D-coded cryotube. Polypropylene, round bottom with internal thread. o-ring in screw cap. Star foot. Orange cap. Sterile. 100/bag
2ml cryo tube with internal thread and protective jacket
Specifications
Working volume 1.8ml 12.6
Tube height 38.2mm
Tube height with screw cap 48.0mm
Inner diameter 10.6mm
36.1
48.0
27.8
Outer diameter 12.6mm
38.2
21.3
Min Temp -196oC
14.8
Not for use in liquid
phase Nitrogen
Ordering Information
Catalog No Description
65-7504 2ml cryo tube with protective jacket. Polypropylene, round bottom with internal thread.
Jacket incorporates 2D-code, linear barcode and human readable ID. Star foot. Uncapped. Sterile. 480/bag
65-7505 2ml cryo tube with protective jacket. Polypropylene, round bottom with internal thread.
Jacket incorporates 2D-code, linear barcode and human readable ID. Star foot. Orange cap. Sterile. 480/bag
2ml cryo tube with internal thread and no jacket
Specifications
Working volume 2.0ml
Tube height 38.0mm
17.0
Tube height with screw cap 47.8mm
Inner diameter 10.6mm
12.6
12.5
10.6
Outer diameter 12.6mm
Min Temp -196oC
38.0
Not for use in liquid
phase Nitrogen 47.85
Ordering Information
Catalog No Description
65-7502 2ml 2D-coded cryo tube. Polypropylene, round bottom with internal thread. Star foot. Orange cap. Sterile. 100/bag
WARNING. Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
15

18. CRYO TUBES
2ml cryo tube with external thread
Specifications
14.5
Working volume 2.2ml
Tube height 40.0mm
Tube height with screw cap 47.3mm
13.1
12.4
9.8
Inner diameter 9.8mm
Outer diameter 13.1mm
Min Temp -196oC 40.0
Not for use in liquid
phase Nitrogen 47.1
Ordering Information
Catalog No Description
65-7501 2ml 2D-coded cryotube. Polypropylene, round bottom with external thread. Star foot. Orange cap. Sterile. 100/bag
2ml cryo tube with external thread and protective jacket
Specifications 40.0
Working volume 2ml
Tube height 38.2mm
Tube height with screw cap 43.9mm
Outer diameter 12.8mm
35.9 (2.3ml)
Min Temp -196oC
30.6 (2.0ml)
43.9
Not for use in liquid
38.2
23.4 (1.5ml)
phase Nitrogen
16.2 (1.0ml)
Ordering Information
Catalog No Description
65-7531 2ml cryo tube with external thread, protective jacket and 2D-code.
Round bottom. External thread screw cap, with starfoot. Jacket incorporating 2D-code, linear barcode and human readable markings. Uncapped,
non-sterile. 480/bag.
65-7532 2ml cryo tube with external thread, protective jacket and 2D-code.
Round bottom, External thread screw cap, with starfoot. Jacket incorporating 2D-code, linear barcode and human readable markings.
Precapped with orange screw cap. Non-sterile. 480/bag.
65-7533 2ml cryo tube with external thread, protective jacket and 2D code.
External thread screw cap, with starfoot. Jacket incorporating 2D-code, linear barcode and human readable markings. Racked. Uncapped.
Non-sterile. 48 tubes/rack, 10 racks/case.
65-7534 2ml cryo tube with external thread, protective jacket and 2D code.
External thread screw cap, with starfoot. Jacket incorporating 2D-code, linear barcode and human readable markings. Racked.
Precapped wih orange screw cap. Non-sterile. 48 tubes/rack, 10 racks/case.
WARNING. Do not store any FluidX tubes in liquid phase Nitrogen. Ingress of Nitrogen into the tube can occur causing the tube to
rupture when taken out of storage. May cause injury ond loss of tube contents.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
16

19. CRYO TUBES
4ml cryo tube with external thread
Specifications
Working volume 4.0ml
Tube height 76.0mm 14.5
Tube height with screw cap 83.1mm
12.4
9.8
13.1
Inner diameter 9.8mm
76.0
Outer diameter 13.1mm 83.1
Min Temp -196oC
Not for use in liquid
phase Nitrogen
Ordering Information
Catalog No Description
65-7511 4ml 2D-coded cryotube. Polypropylene, round bottom with external thread. Star foot. Orange cap. Sterile. 50/bag
Racks and caps for cryo tubes
Ordering Information
Catalog No Description
65-1700 Cryo rack
White 9x9 polypropylene Cryo Rack with clear lid.
10 racks/case.
65-1701 Cryo rack
White 10x10 polypropylene Cryo Rack with clear lid.
10 racks/case.
65-7551 Internal thread cap. Natural. Bulk. 1000 caps/bag.
65-7552 Internal thread cap. Orange. Bulk. 1000 caps/bag.
65-7572 External thread cap, for cryo tubes with protective jacket. Orange, Bulk. 1000 caps/bag.
65-7521 24-way disposable rack for 2D-coded cryo tubes. Suitable for use with 1ml, 2ml and 4ml cryo tubes.
Twistlock and open bottom for use on XTR 2D-code reader. 10 racks/case.
65-7541 48-way disposable rack for 2D-coded cryo tubes. With standard locking lid. Suitable for use with 1ml and 2ml cryo tubes.
Twistlock and open bottom for use on XTR 2D-code reader. 10 racks/case.
65-7542 48-way disposable rack for 2D-coded cryo tubes. With tall locking lid. Suitable for use with 4ml cryo tubes.
Twistlock and open bottom for use on XTR 2D-code reader. 10 racks/case.
65-8501 48-way re-usable rack for 2D-coded cryo tubes. Suitable for use with 1ml and 2ml cryo tubes.
Twistlock and open bottom for use on XTR 2D-code reader. 10 racks/case.
65-8502 48-way re-usable rack for 2D-coded cryo tubes. Suitable for use with 4ml cryo tubes.
Twistlock and open bottom for use on XTR 2D-code reader. 10 racks/case.
65-9451 48-way rack with LidLock, Open bottom for reading on XTR range of rack reader.
2D-coded 2ml glass tubes (Cat Number 65-9001).
2D-coded 1ml, 2ml cryo tubes (Cat Numbers 65-7501, 65-7502, 65-7503, 65-7504, 65-7505)
10 racks/case.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
17

20. GLASS TUBES - 96, 48 and 24-format
Available in 1.2ml, 2ml, 4ml and 6ml sizes.
2ml, 4m and 6ml U-bottom tubes contained within a protective screw-capped plastic jacket.
1.2ml V-bottom tube without jacket.
Secure sample identification and tracking. A permanent 2D barcode is laser-etched on the bottom of the jacket to accompany the corresponding
linear barcode and human readable number positioned on the side.
Each 2D code is tested for readability and uniqueness.
Ensure sample integrity. Screw cap seals the glass tube using a silicone sealing film for added reliability. A customised PTFE insert can be supplied
for use with particularly aggressive chemicals.
Chemically inert with low binding and low static properties, these tubes are ideal for dry compound storage, samples stored in DMSO and other
caustic substances.
2ml tubes available with 48-way rack.
4ml and 6ml tubes available with 24-way rack.
1.2ml tubes available in 96-format standard rack.
1.2ml glass tubes
2ml and 4ml glass tubes
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
18

21. GLASS TUBES - 96, 48 and 24-format
1.2ml glass tube
Specifications
Working volume 0.9ml
Tube height 48.5mm
Tube height with screw cap 50.0mm
Inner diameter 7.6mm
Outer diameter 8.4mm
Min Temp -80oC
Ordering Information
Catalog No Description
66-32900 1.2ml non-coded glass tubes in 96-format rack. 10/box.
66-52900 1.2ml EasyTrack 2D-coded glass tubes in 96-format rack. 10/box.
2ml glass tube with protective jacket
Specifications
10.4
Working volume 1.8ml
Tube height 47mm
Tube height with screw cap 49.5mm
Inner diameter 8mm
13.9 11.2
Outer diameter 13.5mm 49.5
Min Temp -80oC
Ordering Information
Catalog No Description
65-9001 2m EasyTrack 2D-coded glass tubes in plastic jacket. Round bottom. Linear barcode and human readable ID on side.
480 tubes and caps/pack.
4ml glass tube with protective jacket
15.8
Specifications
1.0
10.8
Working volume 3.5ml
Tube height 47mm
Tube height with screw cap 49.5mm
49.5
Inner diameter 10.5mm
Outer diameter 15.8mm
Min Temp -80oC
0.7
Ordering Information
Catalog No Description
65-9002 4ml EasyTrack 2D-coded glass tubes in plastic jacket. Round bottom. Linear barcode and human readable ID on side.
240 tubes and caps/pack.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
19

22. GLASS TUBES - 96, 48 and 24-format
6ml glass tube with protective jacket
Specifications
Working volume 5.5
Tube height 58.5
Tube height with screw cap 56.5
Inner diameter 12
Outer diameter 17
Min Temp -80oC
Ordering Information
Catalog No Description
65-9003 6ml glass tubes with plastic jacket. Round bottom. 2D coded, linear code and human readable number on side.
240 tubes and caps/pack.
17.0
127.6
85.5
54.0
53.9 (6.6ml)
90.0
41.7 (5.0ml)
58.9
34.0 (4.0ml)
25.2 (3.0ml)
59.8
18.2 (2ml)
10.2 (1.0ml)
21.1
3.3
1.4
24 and 48 format racks for glass tubes
Ordering Information
Catalog No Description
65-9451 48-way re-usable rack for 2ml glass tubes. Open bottom for 2D-code reading on XTR rack reader.
65-9453 24-way re-usable rack for 4ml glass tubes. Open bottom for 2D-code reading on XTR rack reader.
65-9454 24-way re-usable rack for 6ml glass tubes. Open bottom for 2D-code reading on XTR rack reader.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
20

23. RACKS AND CAPPING SYSTEMS
96-Format Racks
Dual function Automatic rack orientatation and improved tracking
New TubeLock feature allow these racks to offer two stable tube Racks can be suplied with a unique 2D
positions, either locked or non-locked. Datamatrix code identifier which can
The TubeLock is activated by applying pressure to the tube top which be read simultaneously when using a
clicks the tube into place. FluidX whole rack 2D-code reader.
Racked tubes can be ordered either pre-locked or non-locked. Provides automatic rack orientation
and more secure sample tracking.
Direct laser etching
Permanent linear barcodes can be
laser etched onto the rack to prevent
TubeLock activated, tubes TubeLock not activated,
locked into position tubes unlocked incorrect sample identification caused
by label degradation.
Cutout windows on the rack sides allow
the barcode to be read more easily.
Robust locking
Racks with the LidLock feature are
Automation-friendly
now easier to use and more robust
TwistLock design prevents racked tubes from rotating while being
(designed to withstand a “drop test”).
decapped or capped automatically.
Excellent rack rigidity
All 96-format racks (standard and low-profile designs) have been
made more sturdy with less movement.
96-Format Tube Compatibility
Tube type 0.5ml with 0.5ml with 0.75ml jacket/ 0.75ml jacket/ 1.0ml with 1.0ml with 1.3ml jacket/ 1.3ml jacket/ 1.4ml with 1.4ml with
septum cap screw cap septum cap screw cap septum cap screw cap septum screw cap septum cap screw cap
Rack 66-51004 66-51004 66-51004 66-51015 66-51001 66-51001 66-51018 66-51018 66-51001 66-51012
compatibility
(cat no) 66-51014 66-51014 66-51016 66-51016 66-51016 66-51017
66-51012 66-51012
66-51017 66-51017
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
21

24. 96 FORMAT RACKS
Ordering Information
Catalog No Description
66-51004 Low profile 96-format rack with LidLock lid. 10/box.
Compatible with 0.5ml tubes with TPE septum caps, 0.5ml tubes with screw caps. 0.75ml jacket tubes with TPE septum caps.
66-51014 Low profile 96-format rack with TubeLock and non-locking lid. 10/box.
Compatible with 0.5ml tubes with TPE septum caps, 0.5ml tubes with screw caps.
66-51015 Low profile 96-format rack tall lid with LidLock. 10/box. Compatible with 0.75ml jacket tubes with screw caps.
66-51001 Standard Rack-96 with non-locking lid. 10/box.
Compatible with 1.0ml tubes with TPE septum caps, 1.0ml tubes with screw caps, 1.4ml tubes with septum caps.
66-51016 Standard 96-format rack with TubeLock and LidLock. 10/box. Compatible with 1.0ml tubes with TPE septum caps, 1.0ml tubes with screw caps and
1.4ml tubes with septum caps.
66-51012 Standard 96-format rack with non-locking, tall polycarbonate lid. 10/box. Compatible with 1.4ml tubes with screw caps.
66-51017 Standard 96-format rack with TubeLock and tall lid with LidLock. 10/box. Compatible with 1.4ml tubes with screw caps.
66-51018 Standard 96-format rack with LidLock. 10/box. Compatible with 1.3ml jacket tube with TPE septum caps and 1.3ml jacket tube with screw caps.
Standard 96-Format Racks for all 1.0ml and 1.4ml tubes (except 1.3ml tube with jacket)
Tall Lid Standard Lid Low Profile Lid
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
22

25. 96 FORMAT RACKS
96-Format Racks for tubes with protective jacket
Tall Lid Standard Lid Low Profile Lid
(Can also be used with 1.4ml jacket tubes)
Low Profile 96-Format Racks for all 0.5ml and 0.75ml tubes
Tall Lid Standard Lid Low Profile Lid
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
23

26. 384 FORMAT RACK
384-Format Rack for Square or Round Tubes (cat no 66-51021)
127.8
67.5
85.5
103.5
10.1
12.8
With Round Tubes
127.8
103.5
85.5
67.5
17.3
0.4
1.1
With Square Tubes
127.8
103.5
0.4
1.1
14.4
67.5
85.5
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
24

27. 24 and 48 FORMAT RACKS
24-Format Rack (cat no 65-9453)
127.8
85.5
67.5
94.5
56.0
30.5
21.1
48-Format Rack for cryo tubes (cat no 65-7541, 65-7542 with tall lid)
With Standard lid
12.8
26.0
30.0
52.5
26.5
26.0
87.5
With Tall lid
13.5
85.5
130.0
88.5
82.5
127.8
48-Format Rack for glass tubes with jacket (cat no 65-9451)
127.8
94.5
51.6
85.5
49.1
67.5
1.6
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
25

28. 96 FORMAT CAPS TPE septum caps and screw caps
TPE Septum Caps
Piercable cap, for use with any 96-format FluidX tube.
White, disposable caps manufactured from thermoplastic elastomer.
Suitable for use at temperatures between -80 and 110oC
Ordering Information
Catalog No Description
65-73000 EasyCap Piercable septum seals for all fluidx EasyTrack tubes. Natural, on backing plate of 96 caps, 50 mats per case. For manual use and on
XDC-96 automated decapper.
65-73001 EasyCap Piercable septum seals for all fluidx EasyTrack tubes. Blue, on backing plate of 96 caps, 50 mats per case. For manual use.
65-73002 EasyCap Piercable septum seals for all fluidx EasyTrack tubes. Green, on backing plate of 96 caps, 50 mats per case. For manual use.
65-73003 EasyCap Piercable septum seals for all fluidx EasyTrack tubes. Red, on backing plate of 96 caps, 50 mats per case. For manual use.
65-73004 EasyCap Piercable septum seals for all fluidx EasyTrack tubes. Yellow, on backing plate of 96 caps, 50 mats per case. For manual use.
65-74000 EasyCap Piercable septum seals for all fluidx EasyTrack tubes. Natural, bulk, 1,000 caps per bag. For manual use.
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
26

29. 96 FORMAT CAPS TPE septum caps and screw caps
Screw Caps - with new low liquid retention design
Reduce sample loss
A significant amount of liquid can become trapped within a standard screw cap resulting in the loss of valuable sample
material. The “hollow” area on the cap catches the sample and surface tension then makes removal difficult.
Studies demonstrate that our new screw-cap design significantly reduces this effect by offering a much lower liquid
retention than many existing caps while maintaining seal quality.
Polypropylene cap with a silicon “O” ring for optimal seal quality.
Compatible with all FluidX 96-format tubes with screw top.
High chemical resistance.
Now available in a choice of ten colours to aid identification.
Reduced
Autoclavable. hollow
Temperature range -196°C to +120°C. Do not use in liquid phase Nitrogen.
Automation friendly.
Ordering Information
Catalog No Description
65-53100-Z1 Screw caps. White, 1 bag of 960 caps
65-53100-Z2 Screw caps. Red, 1 bag of 960 caps
65-53100-Z3 Screw caps. Yellow, 1 bag of 960 caps
65-53100-Z4 Screw caps. Blue, 1 bag of 960 caps
65-53100-Z5 Screw caps. Transparent Blue, 1 bag of 960 caps
65-53100-Z6 Screw caps. Orange, 1 bag of 960 caps
65-53100-Z7 Screw caps. Transparent Orange, 1 bag of 960 caps
65-53100-Z8 Screw caps. Green, 1 bag of 960 caps
65-53100-Z9 Screw caps. Transparent Green, 1 bag of 960 caps
65-53100-Z10 Screw caps. Amber, 1 bag of 960 caps
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
27

30. 96 FORMAT CAPS TPE septum caps and screw caps
SBS Cap Carrier
SBS format screw-cap carrier to enable un-capped 96 format tubes to be
capped.
Improve process efficiency
Pre-capped tubes (with screw caps) need to be decapped before use.
The FluidX Cap Carrier enables uncapped tubes to be used immediately and
then capped using an automated screw-cap capper / decapper, leading to
improved process efficiency and enables batch filling of tubes prior to capping.
When used manually, by transferring caps from the carrier to the tube using a
single tube transfer device, the operation also becomes faster and the risk of
contamination is reduced as cap handling is eliminated.
Pre-filled with low retention fluidx screw-caps
Fluidx cap-carriers are pre-filled with the brand new low retention cap that can
reduce sample loss by up to 90% compared with standard caps.
stackable
Ordering Information
Catalog No Description
66-53111 SBS Cap Carrier. Easy-Cap Screw-caps for all fluidx screw-cap tubes. fluidx orange, in SBS Stackable, re-usable carrier.
10 Carriers, 960 caps per case
127.7
85.5
99.0
26.9
24.5
19.5
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
28

31. AIR FILM THERMAL SEAL
The single-use AirFilm aluminium film is designed for the individual
sealing of polypropylene microtubes in 96 or 384 format racks.
Impenetrable barrier
Creates an air-tight seal that can be easily removed by peeling.
Ideal for low temperature sample storage ( -196°C). Not for use in
liquid phase Nitrogen.
Reduce risk of sample damage
Heat transfer during sealing process is lessened by the
“embossed” seal construction which creates an air pocket
between the seal and tube.
Ideal for automated use
AirFilm seals can be pierced with suitable liquid handling tips.
AirFilm composition
Polyethylene terephthalate
188 ulmm.
Peel away backing
Acrylic resin adhesive
Polyethylene terephthalate
Laminated aluminium seal Aluminium sheet 30ulmm
Polyethylene sealant 15ft
Easy to seal Backing sheet
1 2 Air space/
Heat insulating layer
Polypropylene tube
Place racked tubes in the thermal Start the sealing process.
sealer and positiona sheet of Recommended sealing temperature
AirFilm over them. and time for use with FluidX Manual
Thermal Sealer are 200°C/5 seconds. Easy to remove
3 4
Ordering Information
Catalog No Description
Remove rack from the sealer 66-1001 AirFilm Individual Thermal Seal, 96 tube seals per sheet.
50 Sheets/case
and gently remove PET backing
sheet from the sealed tubes. 66-1002 AirFilm Individual Thermal Seal, 384 tube seals per
sheet. 50 Sheets/case
www.fluidx.co.uk / Tel +44 (0) 1625 861614 / Email info@fluidx.co.uk
29

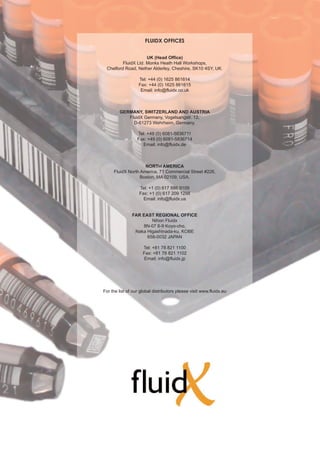

32. FLUIDX OFFICES
UK (Head Office)
FluidX Ltd. Monks Heath Hall Workshops,
Chelford Road, Nether Alderley, Cheshire, SK10 4SY, UK.
Tel: +44 (0) 1625 861614
Fax: +44 (0) 1625 861615
Email: info@fluidx.co.uk
GERMANY, SWITZERLAND AND AUSTRIA
FluidX Germany, Vogelsangstr. 12,
D-61273 Wehrheim, Germany.
Tel: +49 (0) 6081-5836711
Fax: +49 (0) 6081-5836714
Email: info@fluidx.de
NORTH AMERICA
FluidX North America, 71 Commercial Street #226,
Boston, MA 02109, USA.
Tel: +1 (0) 617 886 9109
Fax: +1 (0) 617 209 1298
Email: info@fluidx.us
FAR EAST REGIONAL OFFICE
Nihon Fluidx
8N-07 6-9 Koyo-cho,
Naka Higashinada-ku, KOBE
658-0032 JAPAN
Tel: +81 78 821 1100
Fax: +81 78 821 1102
Email: info@fluidx.jp
For the list of our global distributors please visit www.fluidx.eu
