UniLINK 220 H+ is a double coated adhesive tape with a PVC carrier film for dimensional stability. It adheres well to materials like steel, aluminum, glass, PMMA, PVC, and PP. It has high adhesion at room temperature and lower adhesion at 70C. It should be stored at 20C with 50% relative humidity and has a 12 month shelf life when stored properly.

1. 220 Version 01/
h+ 17.02.2009

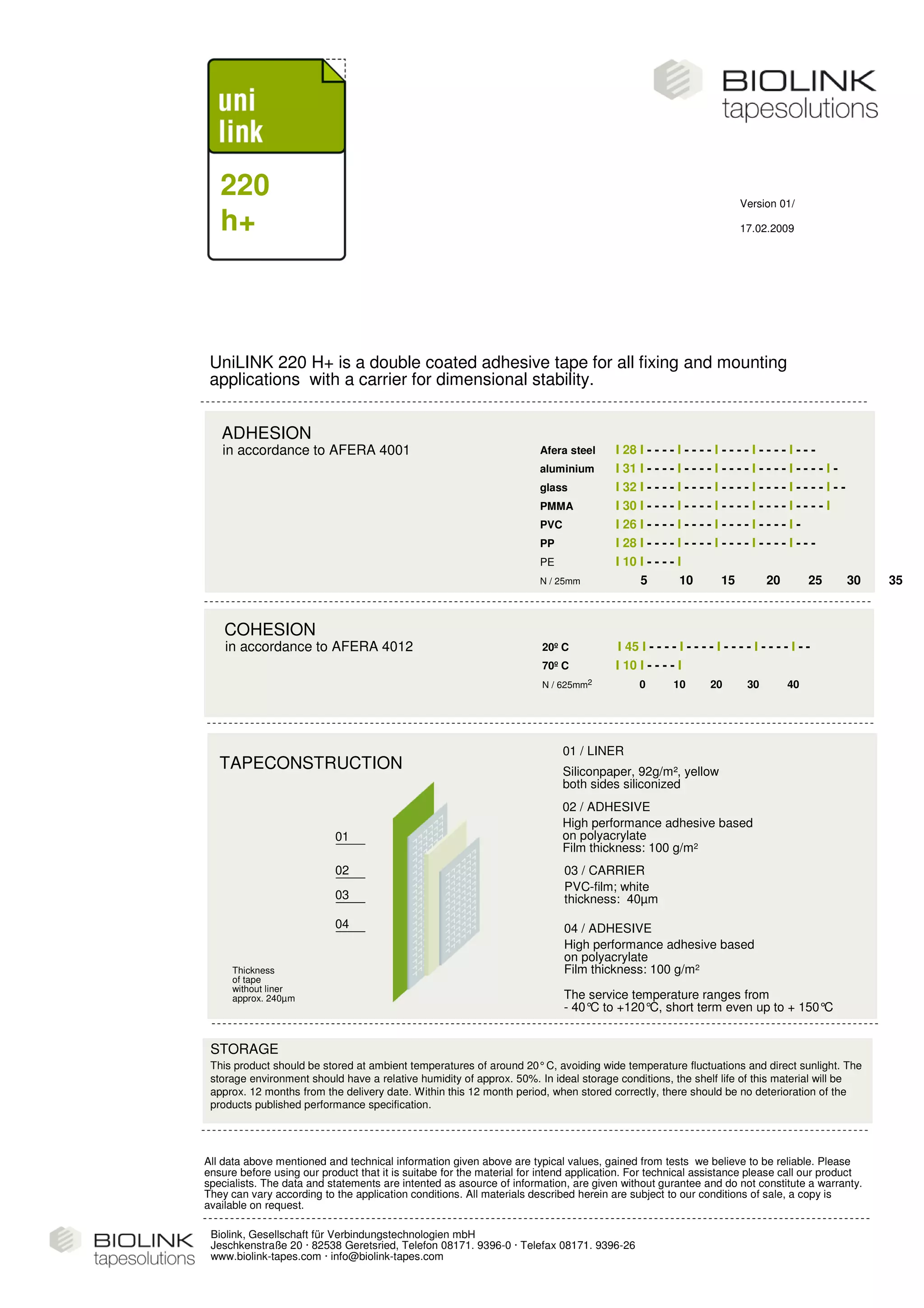

UniLINK 220 H+ is a double coated adhesive tape for all fixing and mounting
applications with a carrier for dimensional stability.
ADHESION
in accordance to AFERA 4001 Afera steel I 28 I - - - - I - - - - I - - - - I - - - - I - - -
aluminium I 31 I - - - - I - - - - I - - - - I - - - - I - - - - I -
glass I 32 I - - - - I - - - - I - - - - I - - - - I - - - - I - -
PMMA I 30 I - - - - I - - - - I - - - - I - - - - I - - - - I
PVC I 26 I - - - - I - - - - I - - - - I - - - - I -
PP I 28 I - - - - I - - - - I - - - - I - - - - I - - -
PE I 10 I - - - - I
N / 25mm 5 10 15 20 25 30 35
COHESION
in accordance to AFERA 4012 20º C I 45 I - - - - I - - - - I - - - - I - - - - I - -
70º C I 10 I - - - - I
N / 625mm2 0 10 20 30 40
01 / LINER
TAPECONSTRUCTION Siliconpaper, 92g/m², yellow
both sides siliconized
02 / ADHESIVE
High performance adhesive based
01 on polyacrylate
Film thickness: 100 g/m2
02 03 / CARRIER
PVC-film; white
03 thickness: 40µm
04 04 / ADHESIVE
High performance adhesive based
on polyacrylate
Thickness Film thickness: 100 g/m2
of tape
without liner
approx. 240µm The service temperature ranges from
- 40° to +120° short term even up to + 150°
C C, C
STORAGE
This product should be stored at ambient temperatures of around 20°C, avoiding wide temperature fluctuations and direct sunlight. The
storage environment should have a relative humidity of approx. 50%. In ideal storage conditions, the shelf life of this material will be
approx. 12 months from the delivery date. Within this 12 month period, when stored correctly, there should be no deterioration of the
products published performance specification.
All data above mentioned and technical information given above are typical values, gained from tests we believe to be reliable. Please
ensure before using our product that it is suitabe for the material for intend application. For technical assistance please call our product
specialists. The data and statements are intented as asource of information, are given without gurantee and do not constitute a warranty.
They can vary according to the application conditions. All materials described herein are subject to our conditions of sale, a copy is
available on request.
Biolink, Gesellschaft für Verbindungstechnologien mbH
Jeschkenstraße 20 · 82538 Geretsried, Telefon 08171. 9396-0 · Telefax 08171. 9396-26
www.biolink-tapes.com · info@biolink-tapes.com
