Uploaded byEing Ong
2010 bb dev con
The document describes an experimental technique for automated testing of mobile applications using simulators. It discusses setting up a BlackBerry simulator, writing reusable test cases, and creating a mobile test automation framework. The technique defines a device-agnostic application interface and implements it using a Python mobile library to write tests that are device independent and reusable across multiple mobile platforms.
2010 bb dev con
- 1. Automated Tes,ng for Mobile Applica,ons An experimental technique Eing Ong, Intuit Inc. Louis daRosa, Intuit Inc.
- 2. Session outline • Introduc,on • Simulator basics • Simulator library • Building your mobile app library • Wri,ng reusable test cases • Mobile test automa,on framework • Advantages and limita,ons • Q & A 2

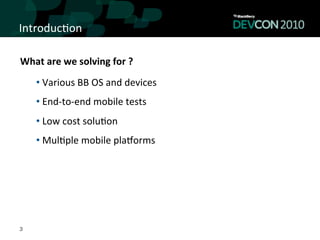

- 3. Introduc,on What are we solving for ? • Various BB OS and devices • End-‐to-‐end mobile tests • Low cost solu,on • Mul,ple mobile plaLorms 3
- 4. Simulator Basics BlackBerry® JDE tool kit • Mobile data service (MDS) • Simulators suite • App installa,on • Image capture 4

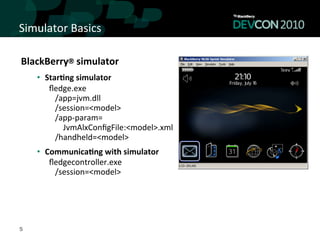

- 5. Simulator Basics BlackBerry® simulator • Star<ng simulator fledge.exe /app=jvm.dll /session=<model> /app-‐param= JvmAlxConfigFile:<model>.xml /handheld=<model> • Communica<ng with simulator fledgecontroller.exe /session=<model> 5

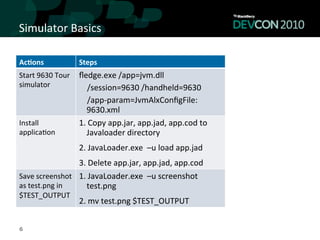

- 6. Simulator Basics Ac<ons Steps Start 9630 Tour fledge.exe /app=jvm.dll simulator /session=9630 /handheld=9630 /app-‐param=JvmAlxConfigFile: 9630.xml Install 1. Copy app.jar, app.jad, app.cod to applica,on Javaloader directory 2. JavaLoader.exe –u load app.jad 3. Delete app.jar, app.jad, app.cod Save screenshot 1. JavaLoader.exe –u screenshot as test.png in test.png $TEST_OUTPUT 2. mv test.png $TEST_OUTPUT 6
- 7. Simulator Basics Ac<ons Steps bblib.py Start 9630 Tour fledge.exe /app=jvm.dll fledgeStart() simulator /session=9630 /handheld=9630 /app-‐param=JvmAlxConfigFile: 9630.xml Install 1. Copy app.jar, app.jad, app.cod to install() applica,on Javaloader directory 2. JavaLoader.exe –u load app.jad 3. Delete app.jar, app.jad, app.cod Save screenshot 1. JavaLoader.exe –u screenshot getScreenShot(‘test’) as test.png in test.png $TEST_OUTPUT 2. mv test.png $TEST_OUTPUT 7

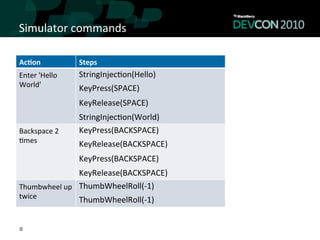

- 8. Simulator commands Ac<on Steps Enter 'Hello StringInjec,on(Hello) World' KeyPress(SPACE) KeyRelease(SPACE) StringInjec,on(World) Backspace 2 KeyPress(BACKSPACE) ,mes KeyRelease(BACKSPACE) KeyPress(BACKSPACE) KeyRelease(BACKSPACE) Thumbwheel up ThumbWheelRoll(-‐1) twice ThumbWheelRoll(-‐1) 8

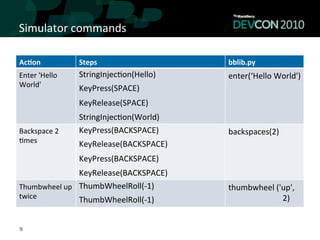

- 9. Simulator commands Ac<on Steps bblib.py Enter 'Hello StringInjec,on(Hello) enter(‘Hello World') World' KeyPress(SPACE) KeyRelease(SPACE) StringInjec,on(World) Backspace 2 KeyPress(BACKSPACE) backspaces(2) ,mes KeyRelease(BACKSPACE) KeyPress(BACKSPACE) KeyRelease(BACKSPACE) Thumbwheel up ThumbWheelRoll(-‐1) thumbwheel ('up', twice ThumbWheelRoll(-‐1) 2) 9
- 10. Simulator commands Ac<on Steps bblib.py Touch screen at TouchScreenPress(10, 100, 0) touch(10, 100) (10, 100) TouchScreenClick() TouchScreenUnclick() TouchScreenUnpress(0) 10

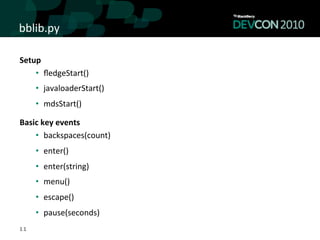

- 11. bblib.py Setup • fledgeStart() • javaloaderStart() • mdsStart() Basic key events • backspaces(count) • enter() • enter(string) • menu() • escape() • pause(seconds) 11

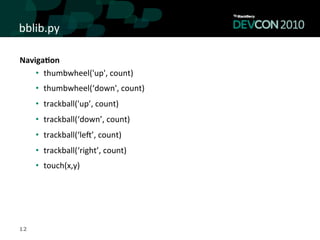

- 12. bblib.py Naviga<on • thumbwheel('up', count) • thumbwheel(‘down', count) • trackball('up’, count) • trackball(‘down’, count) • trackball(‘lek’, count) • trackball(‘right’, count) • touch(x,y) 12

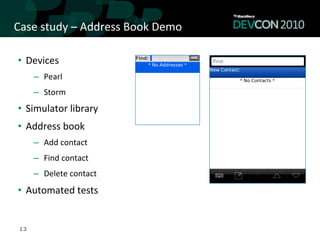

- 13. Case study – Address Book Demo • Devices – Pearl – Storm • Simulator library • Address book – Add contact – Find contact – Delete contact • Automated tests 13
- 14. Test Automa,on Overview 1. Define applica<on interface This interface is device-‐agnos,c. 2. Implement the interface Implement interface in BlackBerry® U,lize Python™ mobile libraries e.g. bblib.py. 3. Write your tests Tests are device independent and reusable. 4. Run 14

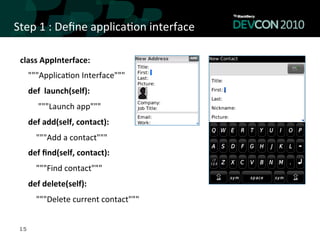

- 15. Step 1 : Define applica,on interface class AppInterface: """Applica,on Interface""" def launch(self): """Launch app""" def add(self, contact): """Add a contact""" def find(self, contact): """Find contact""" def delete(self): """Delete current contact""" 15

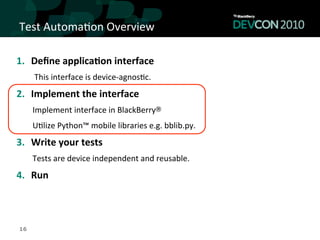

- 16. Test Automa,on Overview 1. Define applica<on interface This interface is device-‐agnos,c. 2. Implement the interface Implement interface in BlackBerry® U,lize Python™ mobile libraries e.g. bblib.py. 3. Write your tests Tests are device independent and reusable. 4. Run 16

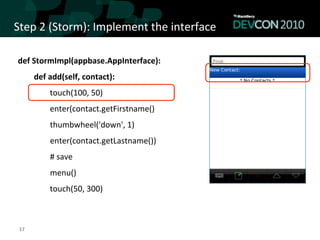

- 17. Step 2 (Storm): Implement the interface def StormImpl(appbase.AppInterface): def add(self, contact): touch(100, 50) enter(contact.getFirstname() thumbwheel('down', 1) enter(contact.getLastname()) # save menu() touch(50, 300) 17

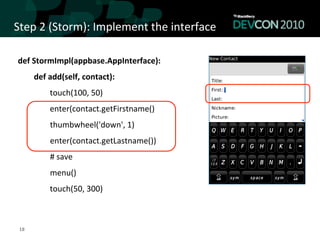

- 18. Step 2 (Storm): Implement the interface def StormImpl(appbase.AppInterface): def add(self, contact): touch(100, 50) enter(contact.getFirstname() thumbwheel('down', 1) enter(contact.getLastname()) # save menu() touch(50, 300) 18
- 19. Step 2 (Storm): Implement the interface def StormImpl(appbase.AppInterface): def add(self, contact): touch(100, 50) enter(contact.getFirstname() thumbwheel('down', 1) enter(contact.getLastname()) # save menu() touch(50, 300) 19
- 20. Step 2 (Pearl): Implement the interface def PearlImpl(appbase.AppInterface): def add(self, contact): enter() enter(contact.getFirstname() thumbwheel('down', 1) enter(contact.getLastname()) # save menu() enter() 20

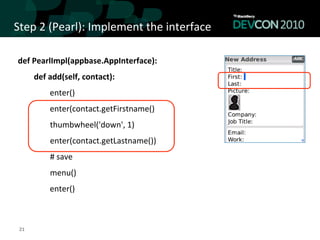

- 21. Step 2 (Pearl): Implement the interface def PearlImpl(appbase.AppInterface): def add(self, contact): enter() enter(contact.getFirstname() thumbwheel('down', 1) enter(contact.getLastname()) # save menu() enter() 21

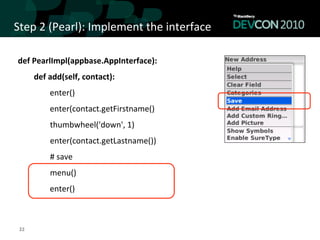

- 22. Step 2 (Pearl): Implement the interface def PearlImpl(appbase.AppInterface): def add(self, contact): enter() enter(contact.getFirstname() thumbwheel('down', 1) enter(contact.getLastname()) # save menu() enter() 22

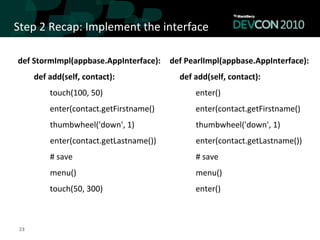

- 23. Step 2 Recap: Implement the interface def StormImpl(appbase.AppInterface): def PearlImpl(appbase.AppInterface): def add(self, contact): def add(self, contact): touch(100, 50) enter() enter(contact.getFirstname() enter(contact.getFirstname() thumbwheel('down', 1) thumbwheel('down', 1) enter(contact.getLastname()) enter(contact.getLastname()) # save # save menu() menu() touch(50, 300) enter() 23

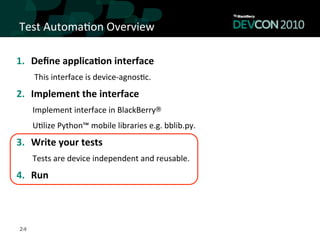

- 24. Test Automa,on Overview 1. Define applica<on interface This interface is device-‐agnos,c. 2. Implement the interface Implement interface in BlackBerry® U,lize Python™ mobile libraries e.g. bblib.py. 3. Write your tests Tests are device independent and reusable. 4. Run 24

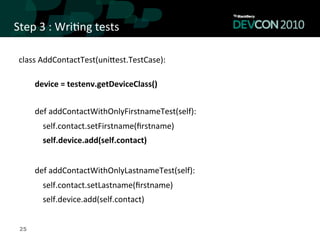

- 25. Step 3 : Wri,ng tests class AddContactTest(uniqest.TestCase): device = testenv.getDeviceClass() def addContactWithOnlyFirstnameTest(self): self.contact.setFirstname(firstname) self.device.add(self.contact) def addContactWithOnlyLastnameTest(self): self.contact.setLastname(firstname) self.device.add(self.contact) 25

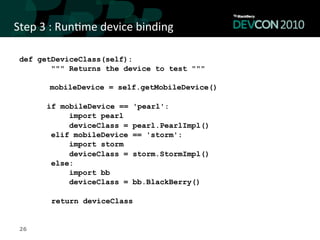

- 26. Step 3 : Run,me device binding def getDeviceClass(self): """ Returns the device to test """ mobileDevice = self.getMobileDevice() if mobileDevice == 'pearl': import pearl deviceClass = pearl.PearlImpl() elif mobileDevice == 'storm': import storm deviceClass = storm.StormImpl() else: import bb deviceClass = bb.BlackBerry() return deviceClass 26

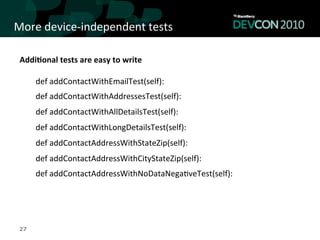

- 27. More device-‐independent tests Addi<onal tests are easy to write def addContactWithEmailTest(self): def addContactWithAddressesTest(self): def addContactWithAllDetailsTest(self): def addContactWithLongDetailsTest(self): def addContactAddressWithStateZip(self): def addContactAddressWithCityStateZip(self): def addContactAddressWithNoDataNega,veTest(self): 27

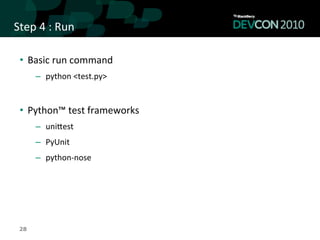

- 28. Step 4 : Run • Basic run command – python <test.py> • Python™ test frameworks – uniqest – PyUnit – python-‐nose 28

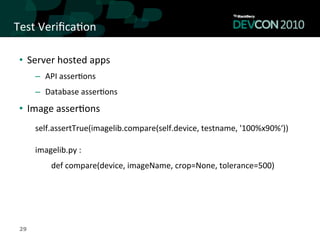

- 29. Test Verifica,on • Server hosted apps – API asser,ons – Database asser,ons • Image asser,ons self.assertTrue(imagelib.compare(self.device, testname, '100%x90%‘)) imagelib.py : def compare(device, imageName, crop=None, tolerance=500) 29

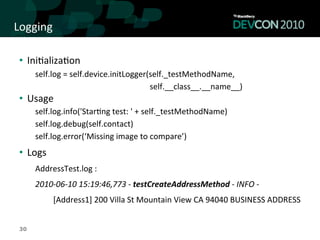

- 30. Logging • Ini,aliza,on self.log = self.device.initLogger(self._testMethodName, self.__class__.__name__) • Usage self.log.info('Star,ng test: ' + self._testMethodName) self.log.debug(self.contact) self.log.error(‘Missing image to compare’) • Logs AddressTest.log : 2010-‐06-‐10 15:19:46,773 -‐ testCreateAddressMethod -‐ INFO -‐ [Address1] 200 Villa St Mountain View CA 94040 BUSINESS ADDRESS 30
- 31. Login example on BlackBerry® Pearl Interface def login(username, passwd) Test (logintest.py) login(‘user100’,’helloworld’) enter(username) def enter(str) scroll(‘down’) def scroll(ac<on) enter(password) def enter() enter() pearlapp.py bblib.py 31

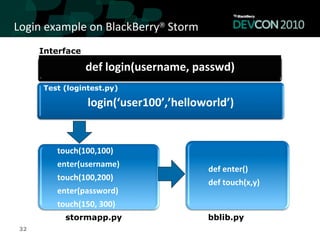

- 32. Login example on BlackBerry® Storm Interface def login(username, passwd) Test (logintest.py) login(‘user100’,’helloworld’) touch(100,100) enter(username) def enter() touch(100,200) def touch(x,y) enter(password) touch(150, 300) stormapp.py bblib.py 32

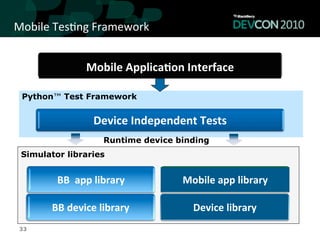

- 33. Mobile Tes,ng Framework Mobile Applica<on Interface Python™ Test Framework Device Independent Tests Runtime device binding Simulator libraries BB app library Mobile app library BB device library Device library 33

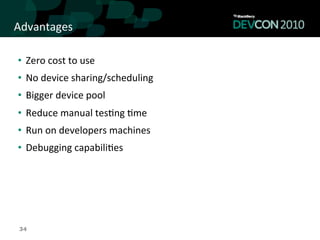

- 34. Advantages • Zero cost to use • No device sharing/scheduling • Bigger device pool • Reduce manual tes,ng ,me • Run on developers machines • Debugging capabili,es 34

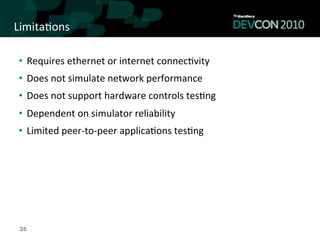

- 35. Limita,ons • Requires ethernet or internet connec,vity • Does not simulate network performance • Does not support hardware controls tes,ng • Dependent on simulator reliability • Limited peer-‐to-‐peer applica,ons tes,ng 35

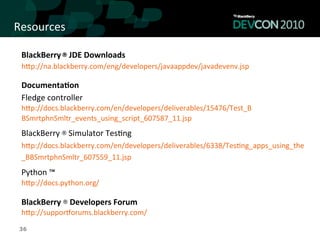

- 36. Resources BlackBerry ® JDE Downloads hqp://na.blackberry.com/eng/developers/javaappdev/javadevenv.jsp Documenta<on Fledge controller hqp://docs.blackberry.com/en/developers/deliverables/15476/Test_B BSmrtphnSmltr_events_using_script_607587_11.jsp BlackBerry ® Simulator Tes,ng hqp://docs.blackberry.com/en/developers/deliverables/6338/Tes,ng_apps_using_the _BBSmrtphnSmltr_607559_11.jsp Python ™ hqp://docs.python.org/ BlackBerry ® Developers Forum hqp://supporLorums.blackberry.com/ 36
- 37. Acknowledgments • Desiree Gosby, Mobile Architect • Paul Hau, QA Manager • Jaron Jones, QA Manager • Jason Pugh, Architect (definitely not least) 37
- 38. Q & A 38
- 39. Thanks and enjoy the rest of DevCon 2010! For more details on the presenta,on, contact devcon@intuit.com 39
