1. Use of exogenous data to
improve an artificial neural
network dedicated to daily
global radiation forecasting
C. Paoli*, C. Voyant**, M. Muselli*, M-L. Nivet*
Université de Corse - Pasquale PAOLI
{christophe.paoli, cyril.voyant, marc.muselli, marie-laure.nivet}@univ-corse.fr
*CNRS UMR 6134 SPE **Hospital of Castelluccio Radiotherapy Unit

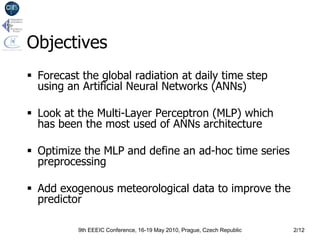

2. Objectives
 Forecast the global radiation at daily time step
using an Artificial Neural Networks (ANNs)
 Look at the Multi-Layer Perceptron (MLP) which
has been the most used of ANNs architecture
 Optimize the MLP and define an ad-hoc time series
preprocessing
 Add exogenous meteorological data to improve the
predictor
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 2/12

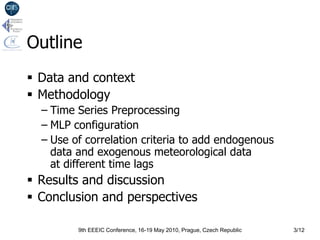

3. Outline
 Data and context
 Methodology
– Time Series Preprocessing
– MLP configuration
– Use of correlation criteria to add endogenous
data and exogenous meteorological data
at different time lags
 Results and discussion
 Conclusion and perspectives
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 3/12

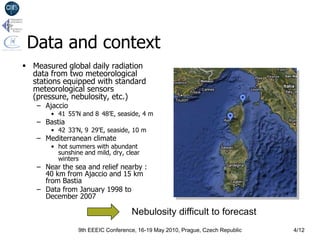

4. Data and context
 Measured global daily radiation
data from two meteorological
stations equipped with standard
meteorological sensors
(pressure, nebulosity, etc.)
– Ajaccio
• 41 55’N and 8 48’E, seaside, 4 m
– Bastia
• 42 33’N, 9 29’E, seaside, 10 m
– Mediterranean climate
• hot summers with abundant
sunshine and mild, dry, clear
winters
– Near the sea and relief nearby :
40 km from Ajaccio and 15 km
from Bastia
– Data from January 1998 to
December 2007
Nebulosity difficult to forecast
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 4/12

5. measured data ; VC=0,539
9000
Methodology
Global Radiation (W.h/m²)
8000
7000
6000
5000
4000
3000
2000
1000
0

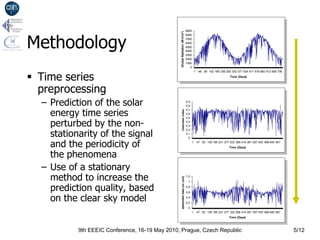

 Time series
1 48 95 142 189 236 283 330 377 424 471 518 565 612 659 706
Time (Days)
preprocessing clearness index ; VC=0,326
– Prediction of the solar 0,9
0,8
energy time series
0,7
clearness index
0,6
perturbed by the non-
0,5
0,4
0,3
stationarity of the signal
0,2
0,1
0
and the periodicity of 1 47 93 139 185 231 277 323 369 415 461 507 553 599 645 691
Time (Days)
the phenomena
– Use of a stationary
clearness index, with mobil average and periodic
coefficients ; VC=0,323
method to increase the detrended data (no unit)
1,2
1
prediction quality, based 0,8
0,6
on the clear sky model 0,4
0,2
0
1 47 93 139 185 231 277 323 369 415 461 507 553 599 645 691
Time (Days)
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 5/12

6. Input windows
xt
Methodology
 MLP configuration t
– Choice of the hidden layer Sliding window technique
number and activation function
– Choice of the time lag numbers Xt-1
Xt
for the endogenous input Xt-2
Error
– Choice of the time lag numbers
Xt-3
for the exogenous
meteorological inputs ˆ
Xt
• Daily Pressure Variation
• Wind Direction, Humidity,
Xt-p
• Insulation, Nebulosity,
• Precipitation, Mean Pressure
• Min-Max-Mean Temperatures 1 hidden layer, hyperbolic tangent
• Night Temperature, Wind Speed (hidden) and linear
(output), Levenberg-Marquardt.
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 6/12

7. Methodology

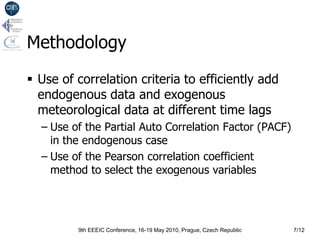

 Use of correlation criteria to efficiently add
endogenous data and exogenous
meteorological data at different time lags
– Use of the Partial Auto Correlation Factor (PACF)
in the endogenous case
– Use of the Pearson correlation coefficient
method to select the exogenous variables
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 7/12

8. Methodology
 Partial Auto Correlation
Function : PACF
– Plays an important role
in time series analysis
– Allows to identify the
extent of the time lag in

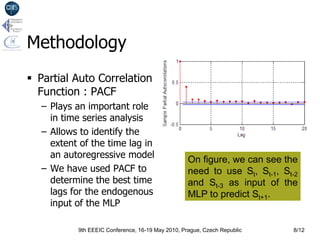

an autoregressive model On figure, we can see the
– We have used PACF to need to use St, St-1, St-2
determine the best time and St-3 as input of the
lags for the endogenous MLP to predict St+1.
input of the MLP
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 8/12

9. Methodology humidity
 Pearson correlation
– Determines the extent to
nebulosity
which values of two
variables are "proportional"
to each other
– Choice of a threshold sunshine
R = 20% duration

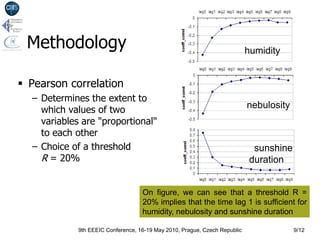

On figure, we can see that a threshold R =
20% implies that the time lag 1 is sufficient for
humidity, nebulosity and sunshine duration
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 9/12

10. Results and discussion

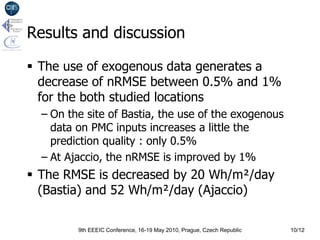

 The use of exogenous data generates a
decrease of nRMSE between 0.5% and 1%
for the both studied locations
– On the site of Bastia, the use of the exogenous
data on PMC inputs increases a little the
prediction quality : only 0.5%
– At Ajaccio, the nRMSE is improved by 1%
 The RMSE is decreased by 20 Wh/m²/day
(Bastia) and 52 Wh/m²/day (Ajaccio)
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 10/12

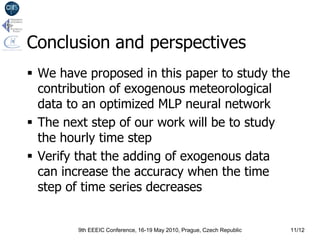

11. Conclusion and perspectives
 We have proposed in this paper to study the
contribution of exogenous meteorological
data to an optimized MLP neural network
 The next step of our work will be to study
the hourly time step
 Verify that the adding of exogenous data
can increase the accuracy when the time
step of time series decreases
9th EEEIC Conference, 16-19 May 2010, Prague, Czech Republic 11/12

12. Thank you for your attention.
Questions?
