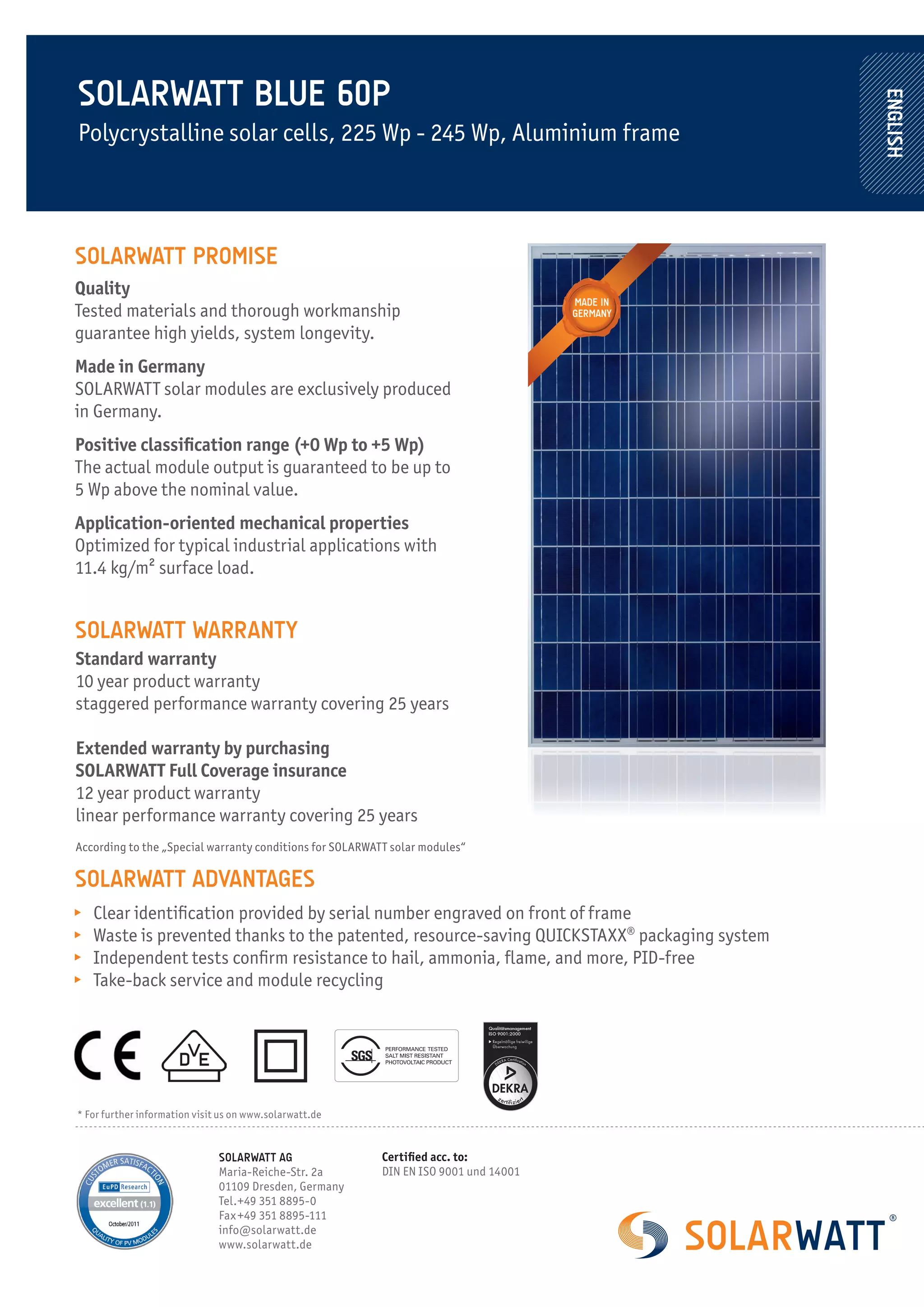

1. SOLARWATT BLUE 60P
ENGLISH
Polycrystalline solar cells, 225 Wp - 245 Wp, Aluminium frame
SOLARWATT PROMISE
Quality
MADE IN
Tested materials and thorough workmanship GERMANY
guarantee high yields, system longevity.
Made in Germany
SOLARWATT solar modules are exclusively produced
in Germany.
Positive classification range (+0 Wp to +5 Wp)
The actual module output is guaranteed to be up to
5 Wp above the nominal value.
Application-oriented mechanical properties
Optimized for typical industrial applications with
11.4 kg/m² surface load.
SOLARWATT WARRANTY
Standard warranty
10 year product warranty
staggered performance warranty covering 25 years
Extended warranty by purchasing
SOLARWATT Full Coverage insurance
12 year product warranty
linear performance warranty covering 25 years
According to the „Special warranty conditions for SOLARWATT solar modules“
SOLARWATT ADVANTAGES
Clear identification provided by serial number engraved on front of frame
Waste is prevented thanks to the patented, resource-saving QUICKSTAXX® packaging system
Independent tests confirm resistance to hail, ammonia, flame, and more, PID-free
Take-back service and module recycling
* For further information visit us on www.solarwatt.de
SOLARWATT AG Certified acc. to:
Maria-Reiche-Str. 2a DIN EN ISO 9001 und 14001
01109 Dresden, Germany
Tel. +49 351 8895-0
Fax +49 351 8895-111
info@solarwatt.de
www.solarwatt.de

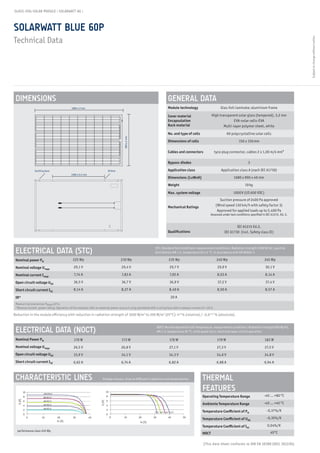

2. GLASS-FOIL-SOLAR MODULE | SOLARWATT AG |
SOLARWATT BLUE 60P
Subject to change without notice .
Technical Data
DIMENSIONS GENERAL DATA
1680 ± 2 mm Module technology Glas-foil-laminate; aluminium frame
Cover material High transparent solar glass (tempered), 3,2 mm
Encapsulation EVA-solar cells-EVA
Back material Multi-layer polymer sheet, white
No. and type of cells 60 polycrystalline solar cells
990 ± 2 mm
Dimensions of cells 156 x 156 mm
Cables and connectors tyco plug connector, cables 2 x 1,00 m/4 mm²
Bypass-diodes 3
Earthing bore Ø 9mm Application class Application class A (nach IEC 61730)
1000 ± 0,5 mm
Dimensions (LxWxH) 1680 x 990 x 40 mm
Weight 19 kg
Max. system voltage 1000 V (US 600 VDC)
Suction pressure of 2400 Pa approved
(Wind speed 130 km/h with safety factor 3)
Mechanical Ratings
Approved for applied loads up to 5,400 Pa
Assessed under test conditions specified in IEC 61215, Ed. 2.
IEC 61215 Ed.2,
Qualifications IEC 61730 (incl. Safety class II)
ELECTRICAL DATA (STC) STC: Standard Test Conditions: measurement conditions: Radiation strength 1000 W/m2, spectral
distribution AM 1.5, temperature 25 ± 2 °C, in accordance with EN 60904-3
Nominal power PN 225 Wp 230 Wp 235 Wp 240 Wp 245 Wp
Nominal voltage Umpp 29,1 V 29,4 V 29,7 V 29,9 V 30,1 V
Nominal current Impp 7,74 A 7,83 A 7,92 A 8,03 A 8,14 A
Open circuit voltage UOC 36,5 V 36,7 V 36,9 V 37,2 V 37,4 V
Short circuit current I SC 8,14 A 8,27 A 8,40 A 8,50 A 8,57 A
IR* 20 A
Measuring tolerances P max ±5 %;
*Reverse current power rating: Operation of the modules with an external power source is only permitted with a string fuse with a release current of < 20 A.
Reduction in the module efficiency with reduction in radiation strength of 1000 W/m2 to 200 W/m2 (25°C): 4±2 % (relative) / -0,6 ± 0,3 % (absolute).
ELECTRICAL DATA (NOCT) NOCT: Normal Operation Cell Temperature, measurement conditions: Radiation strength 800 W/m2,
AM 1.5, temperature 20 °C, wind speed 1m/s, electrical open-circuit operation
Nominal Power PN 170 W 173 W 176 W 179 W 183 W
Nominal voltage Umpp 26,5 V 26,8 V 27,1 V 27,3 V 27,5 V
Open circuit voltage UOC 33,9 V 34,1 V 34,3 V 34,6 V 34,8 V
Short circuit current I SC 6,62 A 6,74 A 6,82 A 6,88 A 6,94 A
CHARACTERISTIC LINES Voltage charact. lines at different irradiations and temperatures THERMAL
10 1000 W/m2
10
FEATURES
8 800 W/m2 8 Operating Temperature Range -40 … +80 °C
Is [A]
6 600 W/m2 6
Is [A]
400 W/m2 Ambiente Temperature Range -40 … +45 °C
4 4
200 W/m2
2 2
70°C 50°C 25°C 0°C Temperature Coefficient of PN -0,37%/K
0 0
0 10 20 30 40 0 10 20 30 40 50
Temperature Coefficient of UOC -0,35%/K
Us [V] Us [V]
Temperature Coefficient of I SC 0,04%/K
performance class 245 Wp
NOCT 45°C
[This data sheet conforms to DIN EN 50380:2003; 2012/04]
