1st Leonardo Helicopters SAR Workshop - AW139 SAR Overview and Updates

The document provides an overview of the AW139 helicopter, highlighting its specifications, operational capabilities, and various applications in emergency services, law enforcement, and civil protection worldwide. It emphasizes the helicopter's safety features, operational flexibility, and advanced avionics for superior situational awareness. Additionally, it discusses the customization options available for different missions, showcasing its versatility in the aerospace market.

Presentations & Public Speaking◦
Download as PDF, PPTX
Company Internal
Company Internal AW139 SAR Overview and Updates

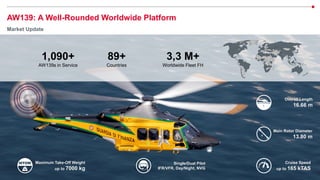

3 © 2022 Leonardo - Società per azioni Company Internal AW139: A Well-Rounded Worldwide Platform Market Update Single/Dual Pilot IFR/VFR, Day/Night, NVG Maximum Take-Off Weight up to 7000 kg Overall Length 16.66 m Main Rotor Diameter 13.80 m Cruise Speed up to 165 kTAS 1,090+ AW139s in Service 3,3 M+ Worldwide Fleet FH 89+ Countries

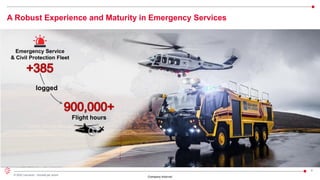

4 © 2022 Leonardo - Società per azioni Company Internal A Robust Experience and Maturity in Emergency Services Emergency Service & Civil Protection Fleet Flight hours logged
5 © 2022 Leonardo - Società per azioni Company Internal • Capitaneria di Porto (Italian Coast Guard) • Aeronautica Militare (Italian Air Force) • Vigili del Fuoco (Italian Fire Fighting) • Malta Armed Force • Cyprus National Guard – Air Command • Sociedad de Salvamento y Seguridad Marítima (SASEMAR) • Babcock International • CHC • Bristow • Draken Europe (Cobham Aviation) • Swedish Maritime Administration • UAE Air Force and Air Defence • The Helicopter Company (THC) • Trinidad and Tobago Air Guard • Malaysian Maritime Enforcement Agency • Malaysia Fire and Rescue Department (BOMBA) • BASARNAS Indonesia • Japan Coast Guard • Honda Airways Japan • South Korea Coast Guard • Royal Oman Police • Azerbaijan ASG • Miami Dade Fire Rescue • Los Angeles Fire Department and Many Others Worldwide Operators SAR / Civil Utility Operators

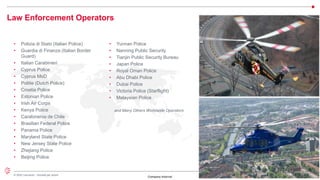

6 © 2022 Leonardo - Società per azioni Company Internal • Polizia di Stato (Italian Police) • Guardia di Finanza (Italian Border Guard) • Italian Carabinieri • Cyprus Police • Cyprus MoD • Politie (Dutch Police) • Croatia Police • Estonian Police • Irish Air Corps • Kenya Police • Carabineros de Chile • Brasilian Federal Police • Panama Police • Maryland State Police • New Jersey State Police • Zhejiang Police • Beijing Police • Yunnan Police • Nanning Public Security • Tianjin Public Security Bureau • Japan Police • Royal Oman Police • Abu Dhabi Police • Dubai Police • Victoria Police (Starflight) • Malaysian Police and Many Others Worldwide Operators Law Enforcement Operators

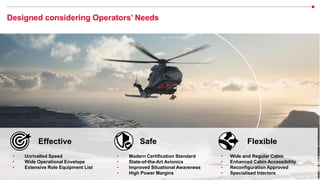

7 © 2022 Leonardo - Società per azioni Company Internal Designed considering Operators’ Needs Effective • Unrivalled Speed • Wide Operational Envelope • Extensive Role Equipment List Safe • Modern Certification Standard • State-of-the-Art Avionics • Improved Situational Awareness • High Power Margins Flexible • Wide and Regular Cabin • Enhanced Cabin Accessibility • Reconfiguration Approved • Specialised Interiors

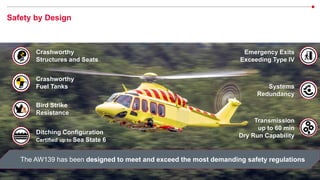

9 © 2022 Leonardo - Società per azioni Company Internal The AW139 has been designed to meet and exceed the most demanding safety regulations Safety by Design Systems Redundancy Crashworthy Structures and Seats Bird Strike Resistance Crashworthy Fuel Tanks Ditching Configuration Certified up to Sea State 6 Emergency Exits Exceeding Type IV Transmission up to 60 min Dry Run Capability

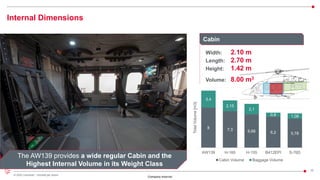

10 © 2022 Leonardo - Società per azioni Company Internal Internal Dimensions Width: 2.10 m Length: 2.70 m Height: 1.42 m Volume: 8.00 m3 Cabin 8 7,3 6,66 6,2 5,78 3,4 2,15 2,1 0,8 1,08 AW139 H-160 H-155 B412EPI S-76D Total Volume [m3] Cabin Volume Baggage Volume The AW139 provides a wide regular Cabin and the Highest Internal Volume in its Weight Class

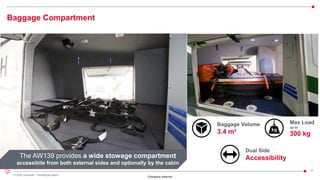

11 © 2022 Leonardo - Società per azioni Company Internal Baggage Compartment The AW139 provides a wide stowage compartment accessibile from both external sides and optionally by the cabin Baggage Volume 3.4 m³ Dual Side Accessibility Max Load up to 300 kg

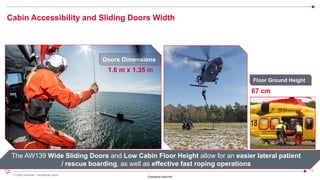

12 © 2022 Leonardo - Società per azioni Company Internal Cabin Accessibility and Sliding Doors Width 67 cm The AW139 Wide Sliding Doors and Low Cabin Floor Height allow for an easier lateral patient / rescue boarding, as well as effective fast roping operations 1.6 m x 1.35 m Doors Dimensions Floor Ground Height

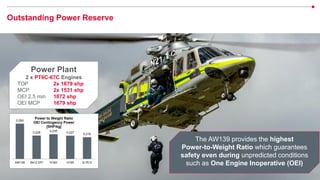

13 © 2022 Leonardo - Società per azioni Company Internal Outstanding Power Reserve Power Plant 2 x PT6C-67C Engines TOP 2x 1679 shp MCP 2x 1531 shp OEI 2.5 min 1872 shp OEI MCP 1679 shp The AW139 provides the highest Power-to-Weight Ratio which guarantees safety even during unpredicted conditions such as One Engine Inoperative (OEI) 0,293 0,228 0,235 0,227 0,219 AW139 B412 EPI H160 H155 S-76 D Power to Weight Ratio OEI Contingency Power [SHP/kg]

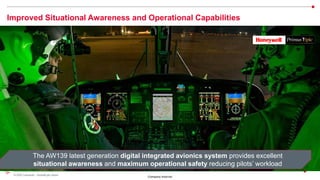

14 © 2022 Leonardo - Società per azioni Company Internal Improved Situational Awareness and Operational Capabilities The AW139 latest generation digital integrated avionics system provides excellent situational awareness and maximum operational safety reducing pilots’ workload

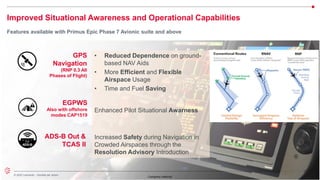

15 © 2022 Leonardo - Società per azioni Company Internal Improved Situational Awareness and Operational Capabilities Features available with Primus Epic Phase 7 Avionic suite and above • Reduced Dependence on ground- based NAV Aids • More Efficient and Flexible Airspace Usage • Time and Fuel Saving Enhanced Pilot Situational Awarness Increased Safety during Navigation in Crowded Airspaces through the Resolution Advisory Introduction GPS Navigation (RNP 0.3 All Phases of Flight) EGPWS Also with offshore modes CAP1519 ADS-B Out & TCAS II

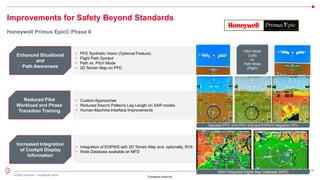

16 © 2022 Leonardo - Società per azioni Company Internal • PFD Synthetic Vision (Optional Feature) • Flight Path Symbol • Path vs. Pitch Mode • 2D Terrain Map on PFD • Custom Approaches • Reduced Search Patterns Leg Length on SAR modes • Human-Machine-Interface Improvements • Integration of EGPWS with 2D Terrain Map and, optionally, SVS • Wide Database available on MFD Improvements for Safety Beyond Standards Honeywell Primus Epic© Phase 8 Enhanced Situational and Path Awareness Reduced Pilot Workload and Phase Transition Training Increased Integration of Cockpit Display Information INAV Integrated Digital Map Database (MFD) Standard PFD, SVS PFD, SVS and EGPWS Integration PFD Pitch Mode (Left) vs. Path Mode (Right)

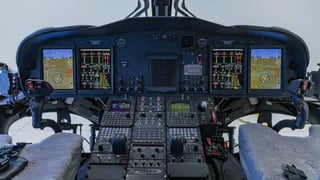

17 © 2022 Leonardo - Società per azioni Company Internal

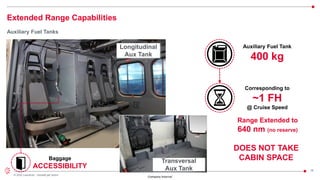

18 © 2022 Leonardo - Società per azioni Company Internal Extended Range Capabilities Auxiliary Fuel Tanks DOES NOT TAKE CABIN SPACE Transversal Aux Tank Baggage ACCESSIBILITY Auxiliary Fuel Tank 400 kg Corresponding to ~1 FH @ Cruise Speed Range Extended to 640 nm (no reserve) Longitudinal Aux Tank

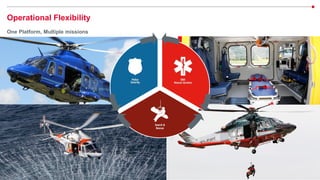

19 © 2022 Leonardo - Società per azioni Company Internal Operational Flexibility One Platform, Multiple missions

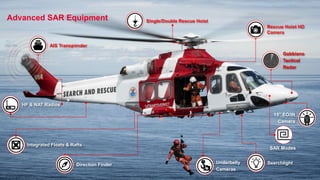

20 © 2022 Leonardo - Società per azioni Company Internal Advanced SAR Equipment HF & NAT Radios AIS Transponder Integrated Floats & Rafts 15’’ EO/IR Camera Searchlight Single/Double Rescue Hoist Underbelly Cameras Rescue Hoist HD Camera Gabbiano Tactical Radar Direction Finder SAR Modes

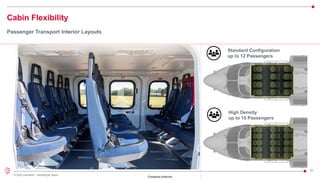

21 © 2022 Leonardo - Società per azioni Company Internal Cabin Flexibility Passenger Transport Interior Layouts Standard Configuration up to 12 Passengers High Density up to 15 Passengers

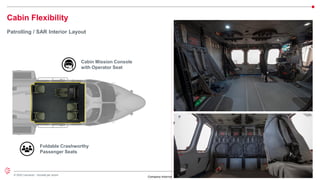

22 © 2022 Leonardo - Società per azioni Company Internal Cabin Flexibility Patrolling / SAR Interior Layout Cabin Mission Console with Operator Seat Foldable Crashworthy Passenger Seats

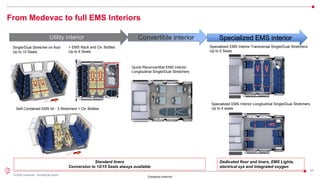

23 © 2022 Leonardo - Società per azioni Company Internal From Medevac to full EMS Interiors Utility interior Single/Dual Stretcher on floor Up to 10 Seats + EMS Rack and Ox. Bottles Up to 6 Seats Self-Contained EMS kit - 3 Stretchers + Ox. Bottles Convertible interior Specialized EMS interior Quick-Reconvertible EMS Interior Longitudinal Single/Dual Stretchers Specialized EMS Interior Longitudinal Single/Dual Stretchers Up to 4 seats Specialized EMS Interior Transversal Single/Dual Stretchers Up to 5 Seats Dedicated floor and liners, EMS Lights, electrical sys and Integrated oxygen Standard liners Conversion to 12/15 Seats always available
Company Internal Advanced SAR Capabilities

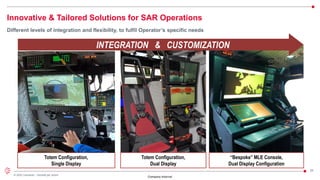

25 © 2022 Leonardo - Società per azioni Company Internal INTEGRATION & CUSTOMIZATION Totem Configuration, Single Display Totem Configuration, Dual Display “Bespoke” MLE Console, Dual Display Configuration Innovative & Tailored Solutions for SAR Operations Different levels of integration and flexibility, to fulfil Operator’s specific needs

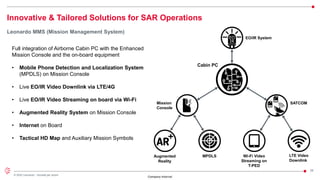

26 © 2022 Leonardo - Società per azioni Company Internal Innovative & Tailored Solutions for SAR Operations Leonardo MMS (Mission Management System) SATCOM Augmented Reality Wi-Fi Video Streaming on T-PED EO/IR System LTE Video Downlink Mission Console MPDLS Cabin PC Full integration of Airborne Cabin PC with the Enhanced Mission Console and the on-board equipment • Mobile Phone Detection and Localization System (MPDLS) on Mission Console • Live EO/IR Video Downlink via LTE/4G • Live EO/IR Video Streaming on board via Wi-Fi • Augmented Reality System on Mission Console • Internet on Board • Tactical HD Map and Auxiliary Mission Symbols

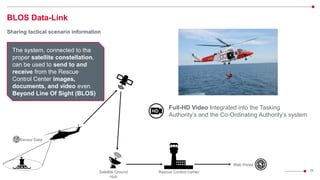

28 © 2022 Leonardo - Società per azioni Company Internal Sensor Data Web Portal Satellite Ground Hub Rescue Control Center The system, connected to the proper satellite constellation, can be used to send to and receive from the Rescue Control Center images, documents, and video even Beyond Line Of Sight (BLOS) Full-HD Video Integrated into the Tasking Authority’s and the Co-Ordinating Authority’s system BLOS Data-Link Sharing tactical scenario information

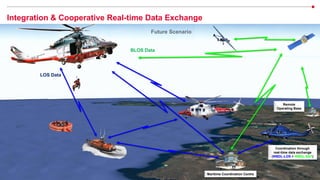

29 © 2022 Leonardo - Società per azioni Company Internal Remote Operating Base Maritime Coordination Centre Coordination through real-time data exchange (WBDL-LOS + WBDL-SAT) Integration & Cooperative Real-time Data Exchange Future Scenario LOS Data BLOS Data
30 © 2022 Leonardo - Società per azioni Company Internal Saving Lives across the World, delivering Safety and Effectiveness by means of Superior Performance and unmatched Operational Flexibility
Company Internal CONTACTS leonardo.com Product Marketing Lead AW139 / AW139M Alessandro Bertaiola alessandro.bertaiola@leonardo.com Leonardo Helicopters
THANK YOU FOR YOUR ATTENTION leonardo.com Company Internal
