Motor Vehicles and Struck By John Newquist Draft 8 22 2021

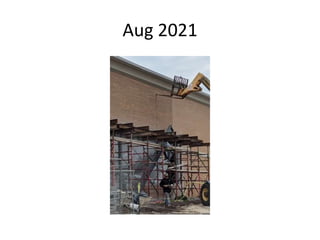

Aug 2021

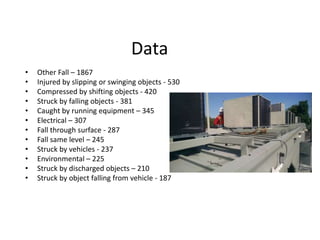

Data • Other Fall – 1867 • Injured by slipping or swinging objects - 530 • Compressed by shifting objects - 420 • Struck by falling objects - 381 • Caught by running equipment – 345 • Electrical – 307 • Fall through surface - 287 • Fall same level – 245 • Struck by vehicles - 237 • Environmental – 225 • Struck by discharged objects – 210 • Struck by object falling from vehicle - 187

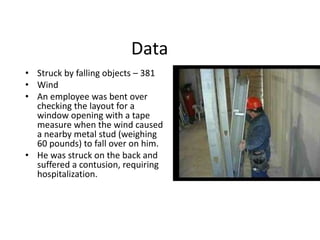

Data • Struck by falling objects – 381 • Wind • An employee was bent over checking the layout for a window opening with a tape measure when the wind caused a nearby metal stud (weighing 60 pounds) to fall over on him. • He was struck on the back and suffered a contusion, requiring hospitalization.

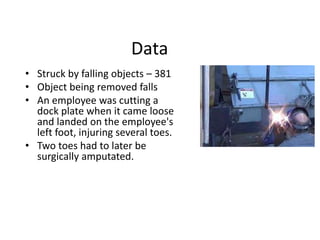

Data • Struck by falling objects – 381 • Object being removed falls • An employee was cutting a dock plate when it came loose and landed on the employee's left foot, injuring several toes. • Two toes had to later be surgically amputated.

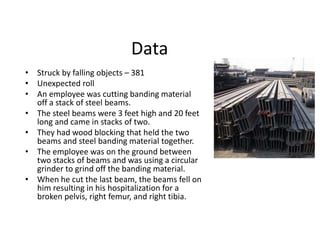

Data • Struck by falling objects – 381 • Unexpected roll • An employee was cutting banding material off a stack of steel beams. • The steel beams were 3 feet high and 20 feet long and came in stacks of two. • They had wood blocking that held the two beams and steel banding material together. • The employee was on the ground between two stacks of beams and was using a circular grinder to grind off the banding material. • When he cut the last beam, the beams fell on him resulting in his hospitalization for a broken pelvis, right femur, and right tibia.

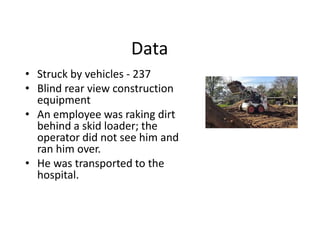

Data • Struck by vehicles - 237 • Blind rear view construction equipment • An employee was raking dirt behind a skid loader; the operator did not see him and ran him over. • He was transported to the hospital.
Data • Struck by vehicles - 237 • Motor vehicles • An employee was dismounting a vehicle at a highway construction site when a semi- truck veered into the construction zone and struck the employee. • The employee was hospitalized with cuts and lacerations.

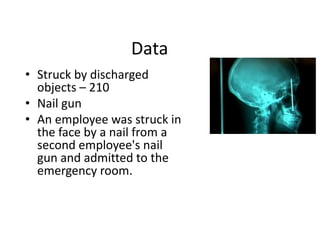

Data • Struck by discharged objects – 210 • Nail gun • An employee was struck in the face by a nail from a second employee's nail gun and admitted to the emergency room.

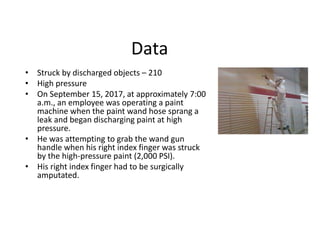

Data • Struck by discharged objects – 210 • High pressure • On September 15, 2017, at approximately 7:00 a.m., an employee was operating a paint machine when the paint wand hose sprang a leak and began discharging paint at high pressure. • He was attempting to grab the wand gun handle when his right index finger was struck by the high-pressure paint (2,000 PSI). • His right index finger had to be surgically amputated.

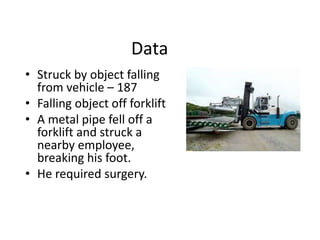

Data • Struck by object falling from vehicle – 187 • Falling object off forklift • A metal pipe fell off a forklift and struck a nearby employee, breaking his foot. • He required surgery.

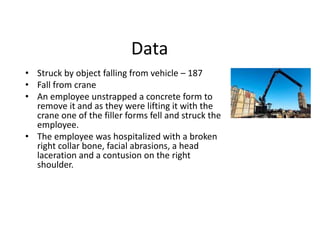

Data • Struck by object falling from vehicle – 187 • Fall from crane • An employee unstrapped a concrete form to remove it and as they were lifting it with the crane one of the filler forms fell and struck the employee. • The employee was hospitalized with a broken right collar bone, facial abrasions, a head laceration and a contusion on the right shoulder.

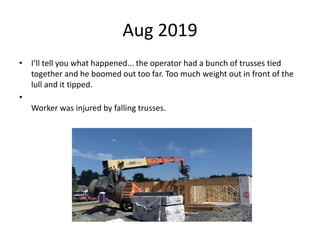

Aug 2019 • I’ll tell you what happened... the operator had a bunch of trusses tied together and he boomed out too far. Too much weight out in front of the lull and it tipped. • Worker was injured by falling trusses.

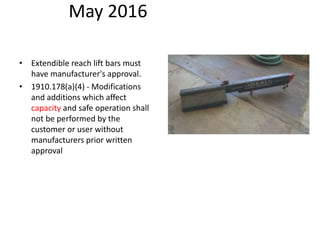

May 2016 • Extendible reach lift bars must have manufacturer's approval. • 1910.178(a)(4) - Modifications and additions which affect capacity and safe operation shall not be performed by the customer or user without manufacturers prior written approval

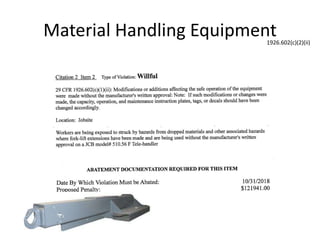

Material Handling Equipment 1926.602(c)(2)(ii)

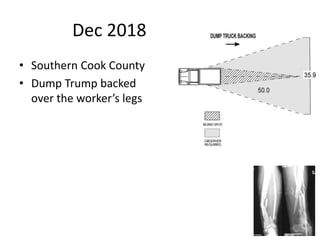

Dec 2018 • Southern Cook County • Dump Trump backed over the worker’s legs

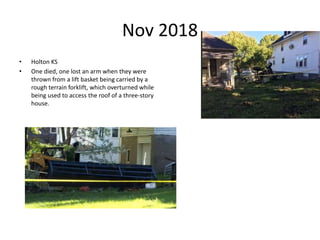

Nov 2018 • Holton KS • One died, one lost an arm when they were thrown from a lift basket being carried by a rough terrain forklift, which overturned while being used to access the roof of a three-story house.
Nov 2017 • ORANGE PARK, Fla. - A 36-year-old man died Friday afternoon after falling out of the back of a pickup truck and hitting the pavement in Orange Park, according to the Florida Highway Patrol. • Troopers said two workers were in the back of a truck at Crabapple Court and Lombard Street in Orange Park when one fell out and hit the pavement. 1926.601(b)(8) Vehicles used to transport employees shall have seats firmly secured and adequate for the number of employees to be carried.

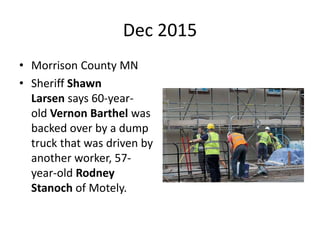

Dec 2015 • Morrison County MN • Sheriff Shawn Larsen says 60-year- old Vernon Barthel was backed over by a dump truck that was driven by another worker, 57- year-old Rodney Stanoch of Motely.

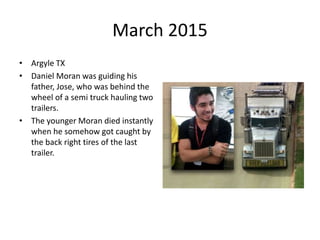

March 2015 • Argyle TX • Daniel Moran was guiding his father, Jose, who was behind the wheel of a semi truck hauling two trailers. • The younger Moran died instantly when he somehow got caught by the back right tires of the last trailer.

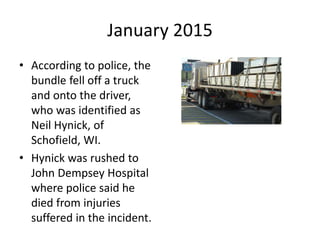

January 2015 • According to police, the bundle fell off a truck and onto the driver, who was identified as Neil Hynick, of Schofield, WI. • Hynick was rushed to John Dempsey Hospital where police said he died from injuries suffered in the incident.

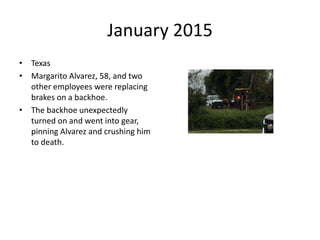

January 2015 • Texas • Margarito Alvarez, 58, and two other employees were replacing brakes on a backhoe. • The backhoe unexpectedly turned on and went into gear, pinning Alvarez and crushing him to death.

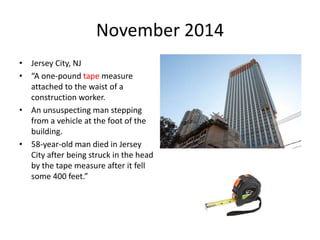

November 2014 • Jersey City, NJ • “A one-pound tape measure attached to the waist of a construction worker. • An unsuspecting man stepping from a vehicle at the foot of the building. • 58-year-old man died in Jersey City after being struck in the head by the tape measure after it fell some 400 feet.”

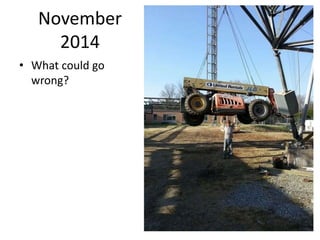

November 2014 • What could go wrong?

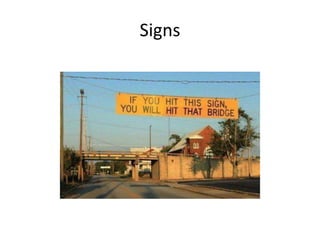

Signs

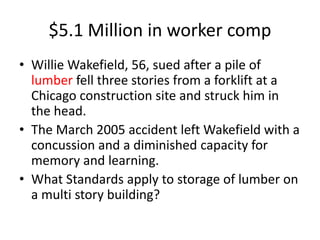

$5.1 Million in worker comp • Willie Wakefield, 56, sued after a pile of lumber fell three stories from a forklift at a Chicago construction site and struck him in the head. • The March 2005 accident left Wakefield with a concussion and a diminished capacity for memory and learning. • What Standards apply to storage of lumber on a multi story building?

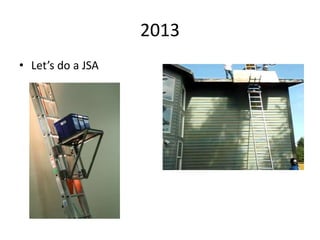

2013 • Let’s do a JSA

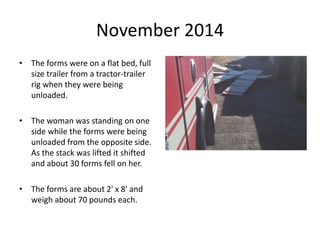

November 2014 • The forms were on a flat bed, full size trailer from a tractor-trailer rig when they were being unloaded. • The woman was standing on one side while the forms were being unloaded from the opposite side. As the stack was lifted it shifted and about 30 forms fell on her. • The forms are about 2' x 8' and weigh about 70 pounds each.

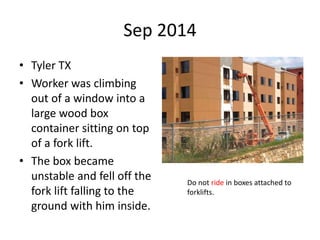

Sep 2014 • Tyler TX • Worker was climbing out of a window into a large wood box container sitting on top of a fork lift. • The box became unstable and fell off the fork lift falling to the ground with him inside. Do not ride in boxes attached to forklifts.
September 2014 • Florida • Two workers killed when falling when the lift tipped over.

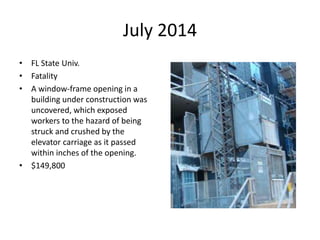

July 2014 • FL State Univ. • Fatality • A window-frame opening in a building under construction was uncovered, which exposed workers to the hazard of being struck and crushed by the elevator carriage as it passed within inches of the opening. • $149,800

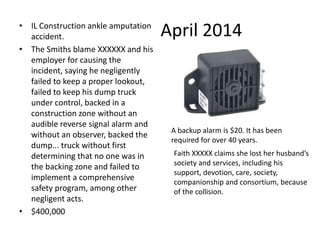

April 2014 • IL Construction ankle amputation accident. • The Smiths blame XXXXXX and his employer for causing the incident, saying he negligently failed to keep a proper lookout, failed to keep his dump truck under control, backed in a construction zone without an audible reverse signal alarm and without an observer, backed the dump... truck without first determining that no one was in the backing zone and failed to implement a comprehensive safety program, among other negligent acts. • $400,000 A backup alarm is $20. It has been required for over 40 years. Faith XXXXX claims she lost her husband’s society and services, including his support, devotion, care, society, companionship and consortium, because of the collision.

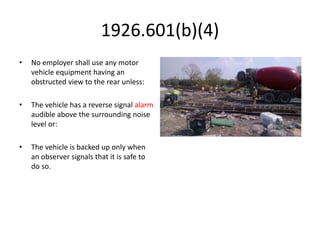

1926.601(b)(4) • No employer shall use any motor vehicle equipment having an obstructed view to the rear unless: • The vehicle has a reverse signal alarm audible above the surrounding noise level or: • The vehicle is backed up only when an observer signals that it is safe to do so.

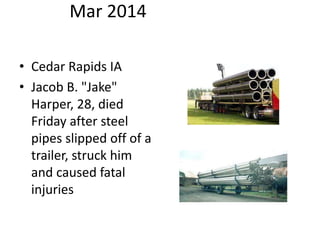

Mar 2014 • Cedar Rapids IA • Jacob B. "Jake" Harper, 28, died Friday after steel pipes slipped off of a trailer, struck him and caused fatal injuries

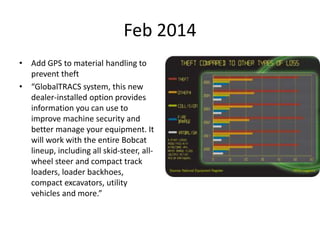

Feb 2014 • Add GPS to material handling to prevent theft • “GlobalTRACS system, this new dealer-installed option provides information you can use to improve machine security and better manage your equipment. It will work with the entire Bobcat lineup, including all skid-steer, all- wheel steer and compact track loaders, loader backhoes, compact excavators, utility vehicles and more.”

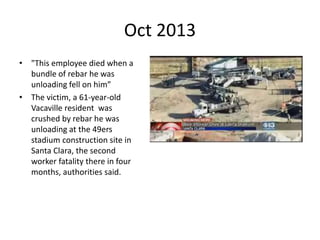

Oct 2013 • "This employee died when a bundle of rebar he was unloading fell on him” • The victim, a 61-year-old Vacaville resident was crushed by rebar he was unloading at the 49ers stadium construction site in Santa Clara, the second worker fatality there in four months, authorities said.

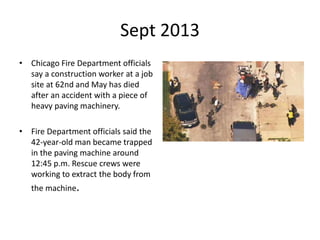

Sept 2013 • Chicago Fire Department officials say a construction worker at a job site at 62nd and May has died after an accident with a piece of heavy paving machinery. • Fire Department officials said the 42-year-old man became trapped in the paving machine around 12:45 p.m. Rescue crews were working to extract the body from the machine.

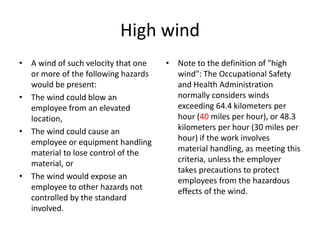

High wind • A wind of such velocity that one or more of the following hazards would be present: • The wind could blow an employee from an elevated location, • The wind could cause an employee or equipment handling material to lose control of the material, or • The wind would expose an employee to other hazards not controlled by the standard involved. • Note to the definition of "high wind": The Occupational Safety and Health Administration normally considers winds exceeding 64.4 kilometers per hour (40 miles per hour), or 48.3 kilometers per hour (30 miles per hour) if the work involves material handling, as meeting this criteria, unless the employer takes precautions to protect employees from the hazardous effects of the wind.

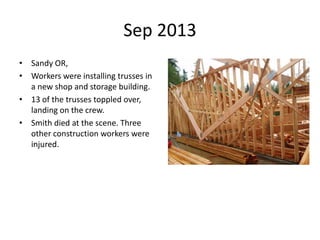

Sep 2013 • Sandy OR, • Workers were installing trusses in a new shop and storage building. • 13 of the trusses toppled over, landing on the crew. • Smith died at the scene. Three other construction workers were injured.

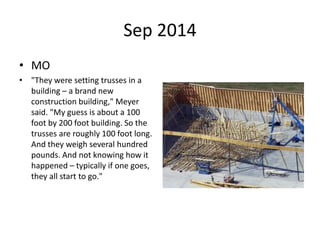

Sep 2014 • MO • "They were setting trusses in a building – a brand new construction building," Meyer said. "My guess is about a 100 foot by 200 foot building. So the trusses are roughly 100 foot long. And they weigh several hundred pounds. And not knowing how it happened – typically if one goes, they all start to go."

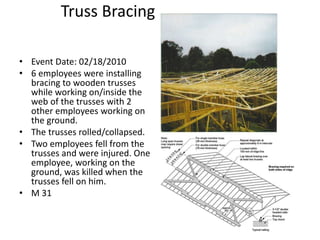

Truss Bracing • Event Date: 02/18/2010 • 6 employees were installing bracing to wooden trusses while working on/inside the web of the trusses with 2 other employees working on the ground. • The trusses rolled/collapsed. • Two employees fell from the trusses and were injured. One employee, working on the ground, was killed when the trusses fell on him. • M 31

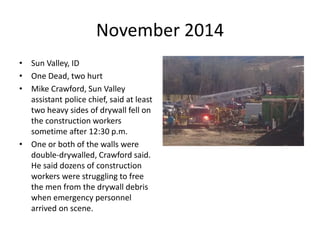

November 2014 • Sun Valley, ID • One Dead, two hurt • Mike Crawford, Sun Valley assistant police chief, said at least two heavy sides of drywall fell on the construction workers sometime after 12:30 p.m. • One or both of the walls were double-drywalled, Crawford said. He said dozens of construction workers were struggling to free the men from the drywall debris when emergency personnel arrived on scene.

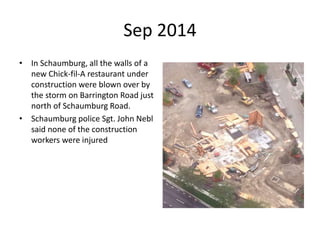

Sep 2014 • In Schaumburg, all the walls of a new Chick-fil-A restaurant under construction were blown over by the storm on Barrington Road just north of Schaumburg Road. • Schaumburg police Sgt. John Nebl said none of the construction workers were injured

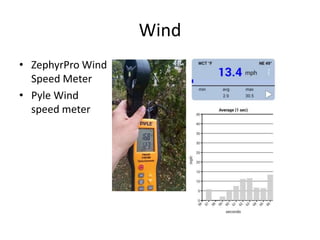

Wind • ZephyrPro Wind Speed Meter • Pyle Wind speed meter

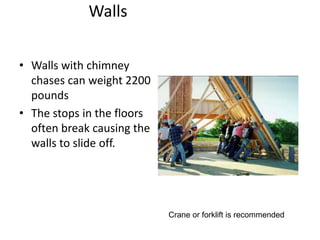

Walls • Walls with chimney chases can weight 2200 pounds • The stops in the floors often break causing the walls to slide off. Crane or forklift is recommended

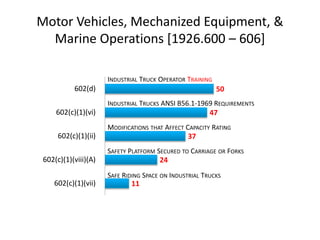

11 24 37 47 50 602(c)(1)(vii) 602(c)(1)(viii)(A) 602(c)(1)(ii) 602(c)(1)(vi) 602(d) Motor Vehicles, Mechanized Equipment, & Marine Operations [1926.600 – 606] 46 INDUSTRIAL TRUCK OPERATOR TRAINING INDUSTRIAL TRUCKS ANSI B56.1-1969 REQUIREMENTS MODIFICATIONS THAT AFFECT CAPACITY RATING SAFE RIDING SPACE ON INDUSTRIAL TRUCKS SAFETY PLATFORM SECURED TO CARRIAGE OR FORKS SUBPART O

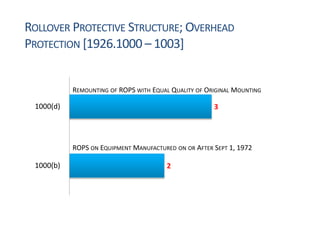

2 3 1000(b) 1000(d) 47 REMOUNTING OF ROPS WITH EQUAL QUALITY OF ORIGINAL MOUNTING ROPS ON EQUIPMENT MANUFACTURED ON OR AFTER SEPT 1, 1972 SUBPART W ROLLOVER PROTECTIVE STRUCTURE; OVERHEAD PROTECTION [1926.1000 – 1003]

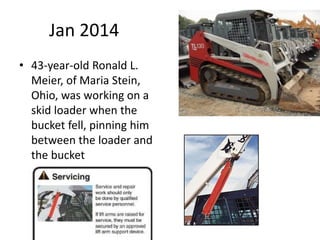

Jan 2014 • 43-year-old Ronald L. Meier, of Maria Stein, Ohio, was working on a skid loader when the bucket fell, pinning him between the loader and the bucket

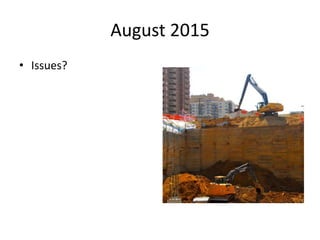

August 2015 • Issues?

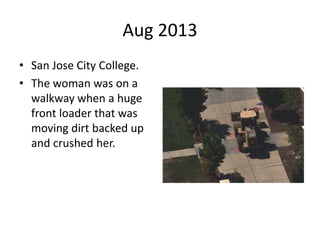

Aug 2013 • San Jose City College. • The woman was on a walkway when a huge front loader that was moving dirt backed up and crushed her.
June 2013 • A construction worker was rescued from a 40- foot scaffold in Bethpage Monday after two rolls of roofing material fell and crushed part of his leg, Bethpage fire officials said.

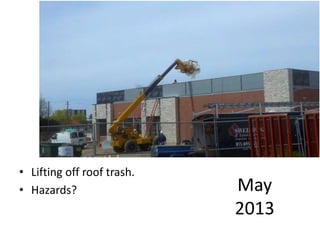

May 2013 • Lifting off roof trash. • Hazards?

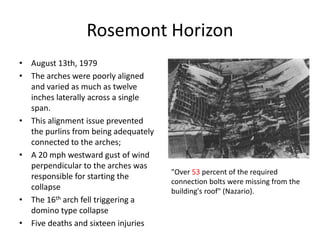

Rosemont Horizon • August 13th, 1979 • The arches were poorly aligned and varied as much as twelve inches laterally across a single span. • This alignment issue prevented the purlins from being adequately connected to the arches; • A 20 mph westward gust of wind perpendicular to the arches was responsible for starting the collapse • The 16th arch fell triggering a domino type collapse • Five deaths and sixteen injuries "Over 53 percent of the required connection bolts were missing from the building's roof" (Nazario).

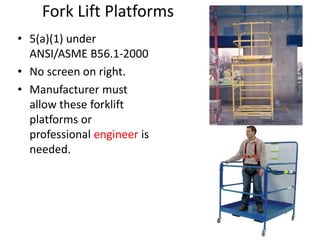

Fork Lift Platforms • 5(a)(1) under ANSI/ASME B56.1-2000 • No screen on right. • Manufacturer must allow these forklift platforms or professional engineer is needed.

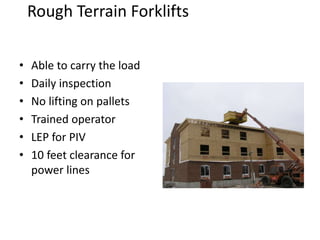

Rough Terrain Forklifts • Able to carry the load • Daily inspection • No lifting on pallets • Trained operator • LEP for PIV • 10 feet clearance for power lines

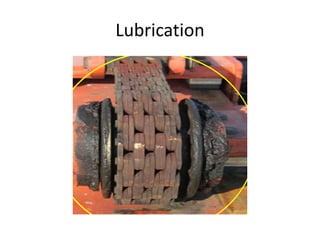

Lubrication

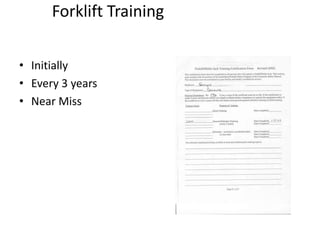

Certification Forklift Training • Initially • Every 3 years • Near Miss

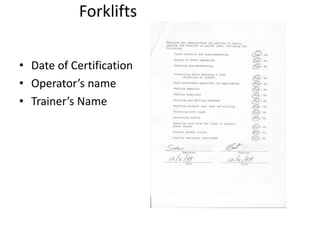

EvaluationForklifts • Date of Certification • Operator’s name • Trainer’s Name

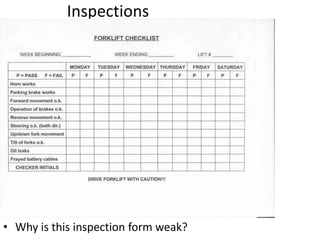

Inspections • Why is this inspection form weak?

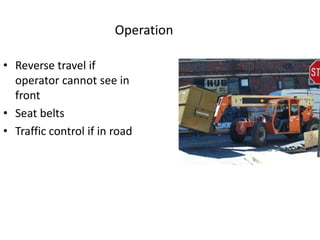

Operation • Reverse travel if operator cannot see in front • Seat belts • Traffic control if in road

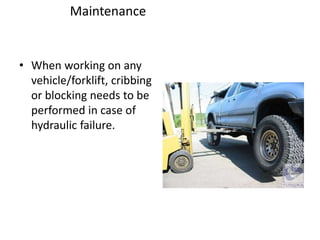

Maintenance • When working on any vehicle/forklift, cribbing or blocking needs to be performed in case of hydraulic failure.

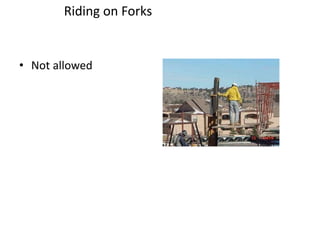

Riding on Forks • Not allowed

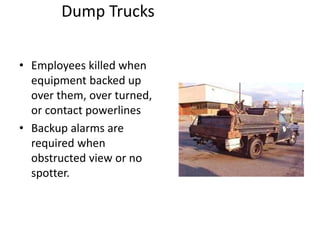

Dump Trucks • Employees killed when equipment backed up over them, over turned, or contact powerlines • Backup alarms are required when obstructed view or no spotter.

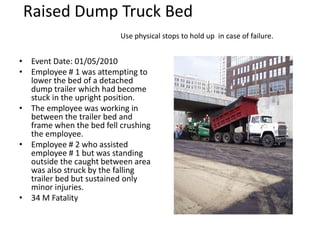

Raised Dump Truck Bed • Event Date: 01/05/2010 • Employee # 1 was attempting to lower the bed of a detached dump trailer which had become stuck in the upright position. • The employee was working in between the trailer bed and frame when the bed fell crushing the employee. • Employee # 2 who assisted employee # 1 but was standing outside the caught between area was also struck by the falling trailer bed but sustained only minor injuries. • 34 M Fatality Use physical stops to hold up in case of failure.

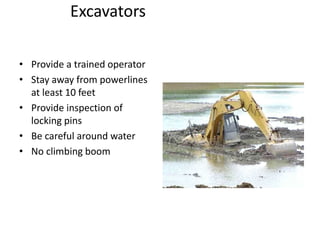

Excavators • Provide a trained operator • Stay away from powerlines at least 10 feet • Provide inspection of locking pins • Be careful around water • No climbing boom

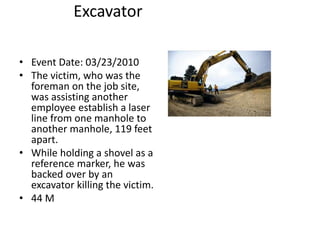

Excavator • Event Date: 03/23/2010 • The victim, who was the foreman on the job site, was assisting another employee establish a laser line from one manhole to another manhole, 119 feet apart. • While holding a shovel as a reference marker, he was backed over by an excavator killing the victim. • 44 M

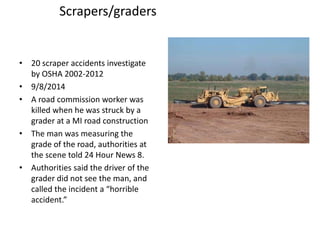

Scrapers/graders • 20 scraper accidents investigate by OSHA 2002-2012 • 9/8/2014 • A road commission worker was killed when he was struck by a grader at a MI road construction • The man was measuring the grade of the road, authorities at the scene told 24 Hour News 8. • Authorities said the driver of the grader did not see the man, and called the incident a “horrible accident.”

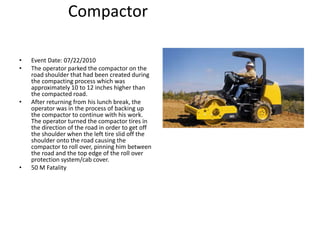

Compactor • Event Date: 07/22/2010 • The operator parked the compactor on the road shoulder that had been created during the compacting process which was approximately 10 to 12 inches higher than the compacted road. • After returning from his lunch break, the operator was in the process of backing up the compactor to continue with his work. The operator turned the compactor tires in the direction of the road in order to get off the shoulder when the left tire slid off the shoulder onto the road causing the compactor to roll over, pinning him between the road and the top edge of the roll over protection system/cab cover. • 50 M Fatality
Semi-trailers • Two fatals getting caught between truck and object. • Trailer often is not level causing load to roll off • Load straps release improperly stacked loads.

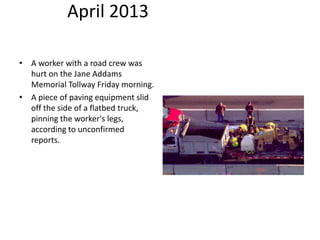

April 2013 • A worker with a road crew was hurt on the Jane Addams Memorial Tollway Friday morning. • A piece of paving equipment slid off the side of a flatbed truck, pinning the worker's legs, according to unconfirmed reports.

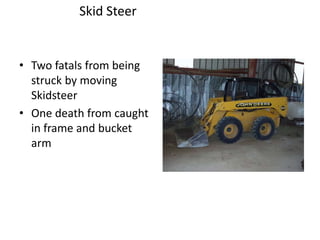

Skid Steer • Two fatals from being struck by moving Skidsteer • One death from caught in frame and bucket arm

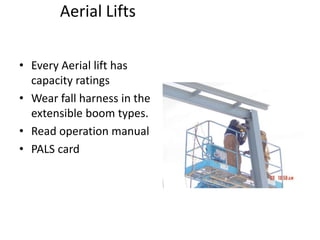

Aerial Lifts • Every Aerial lift has capacity ratings • Wear fall harness in the extensible boom types. • Read operation manual • PALS card

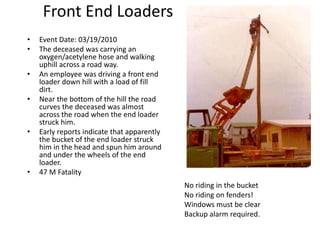

Front End Loaders • Event Date: 03/19/2010 • The deceased was carrying an oxygen/acetylene hose and walking uphill across a road way. • An employee was driving a front end loader down hill with a load of fill dirt. • Near the bottom of the hill the road curves the deceased was almost across the road when the end loader struck him. • Early reports indicate that apparently the bucket of the end loader struck him in the head and spun him around and under the wheels of the end loader. • 47 M Fatality No riding in the bucket No riding on fenders! Windows must be clear Backup alarm required.

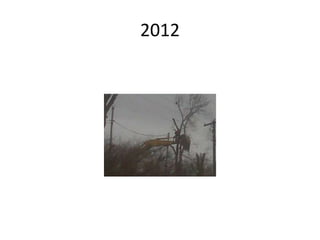

2012

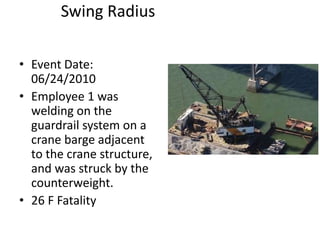

Swing Radius • Event Date: 06/24/2010 • Employee 1 was welding on the guardrail system on a crane barge adjacent to the crane structure, and was struck by the counterweight. • 26 F Fatality

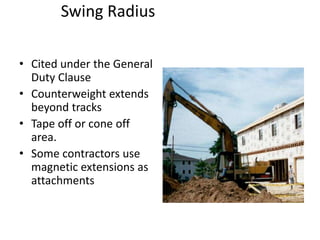

Swing Radius • Cited under the General Duty Clause • Counterweight extends beyond tracks • Tape off or cone off area. • Some contractors use magnetic extensions as attachments

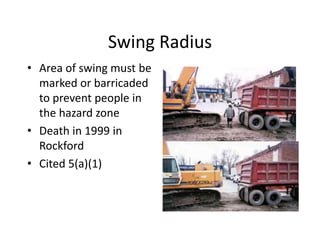

Swing Radius • Area of swing must be marked or barricaded to prevent people in the hazard zone • Death in 1999 in Rockford • Cited 5(a)(1)
January 2015 • Meriden CT • Excavator slid down the embankment • Operator had hand and head injuries.

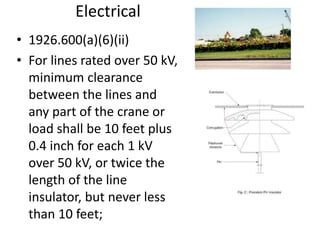

Electrical • 1926.600(a)(6)(ii) • For lines rated over 50 kV, minimum clearance between the lines and any part of the crane or load shall be 10 feet plus 0.4 inch for each 1 kV over 50 kV, or twice the length of the line insulator, but never less than 10 feet;

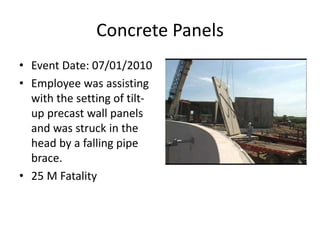

Concrete Panels • Event Date: 07/01/2010 • Employee was assisting with the setting of tilt- up precast wall panels and was struck in the head by a falling pipe brace. • 25 M Fatality

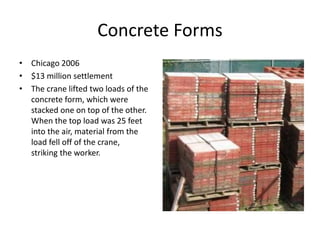

Concrete Forms • Chicago 2006 • $13 million settlement • The crane lifted two loads of the concrete form, which were stacked one on top of the other. When the top load was 25 feet into the air, material from the load fell off of the crane, striking the worker.

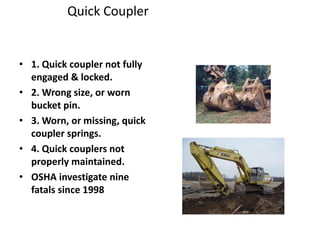

Quick Coupler • 1. Quick coupler not fully engaged & locked. • 2. Wrong size, or worn bucket pin. • 3. Worn, or missing, quick coupler springs. • 4. Quick couplers not properly maintained. • OSHA investigate nine fatals since 1998

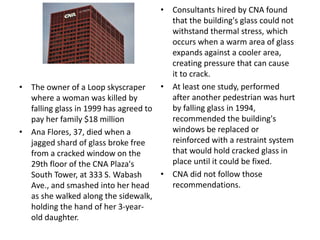

• The owner of a Loop skyscraper where a woman was killed by falling glass in 1999 has agreed to pay her family $18 million • Ana Flores, 37, died when a jagged shard of glass broke free from a cracked window on the 29th floor of the CNA Plaza's South Tower, at 333 S. Wabash Ave., and smashed into her head as she walked along the sidewalk, holding the hand of her 3-year- old daughter. • Consultants hired by CNA found that the building's glass could not withstand thermal stress, which occurs when a warm area of glass expands against a cooler area, creating pressure that can cause it to crack. • At least one study, performed after another pedestrian was hurt by falling glass in 1994, recommended the building's windows be replaced or reinforced with a restraint system that would hold cracked glass in place until it could be fixed. • CNA did not follow those recommendations.
Questions? • Any Questions?
