#174 Logistic Plan for site including silt trap design
The document outlines the site logistic layout for a project with 174 units at Aderyn Setia Alam, detailing the locations of various facilities including meeting rooms, offices, rest areas, and storage. It specifies the layout dimensions and includes information about a silt trap and septic tank, along with discharge methods to an existing silt pond. The document is dated 15/05/2023 and is marked as revision no. 0.
More Related Content
Recently uploaded
#174 Logistic Plan for site including silt trap design
- 1. SITE LOGISTIC LAYOUT– 174 UNITS ADERYN SETIA ALAM SARI Meeting room Site Office C.O.W Office Rest area LEGEND Office Rest Area Toilet Carpenter Yard Barbender Yard Sub-con Store Soil Stock Pile Area Temporary Storage Area Earth Drain Culvert Check Dam Septic Tank Silt Trap Discharge to existing silt pond Revision No. : 0 Date : 15/05/2023 60m 15m 60m 15m 30m 10m 30m 30m A1 A2 B1 & B2 A3 B3

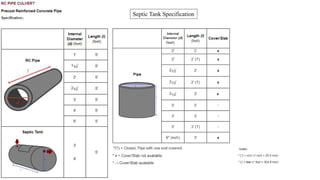

- 2. Silt Trap Specification 3m 6m SiltTrap (Depth 1.5m) Sand Bags 1m X 1m X 1.5m 4inch pipe X 2nos Discharge to existing silt pond Earth drain from Aderyn 174#
