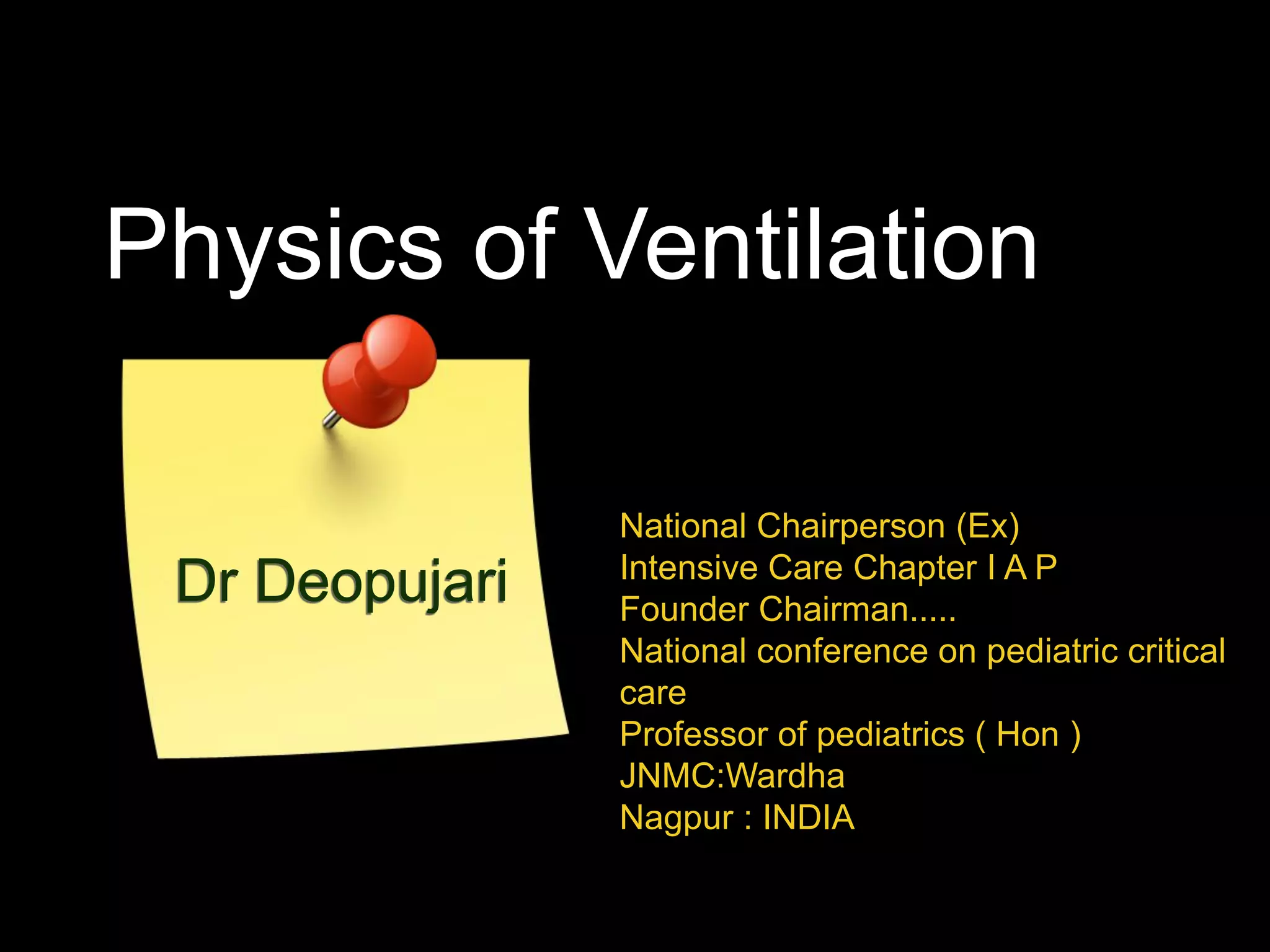

Physics of Ventilation
National Chairperson (Ex)
Intensive Care Chapter I A P
Founder Chairman.....
National conference on pediatric critical
care
Professor of pediatrics ( Hon )
JNMC:Wardha
Nagpur : INDIA
Dr Deopujari

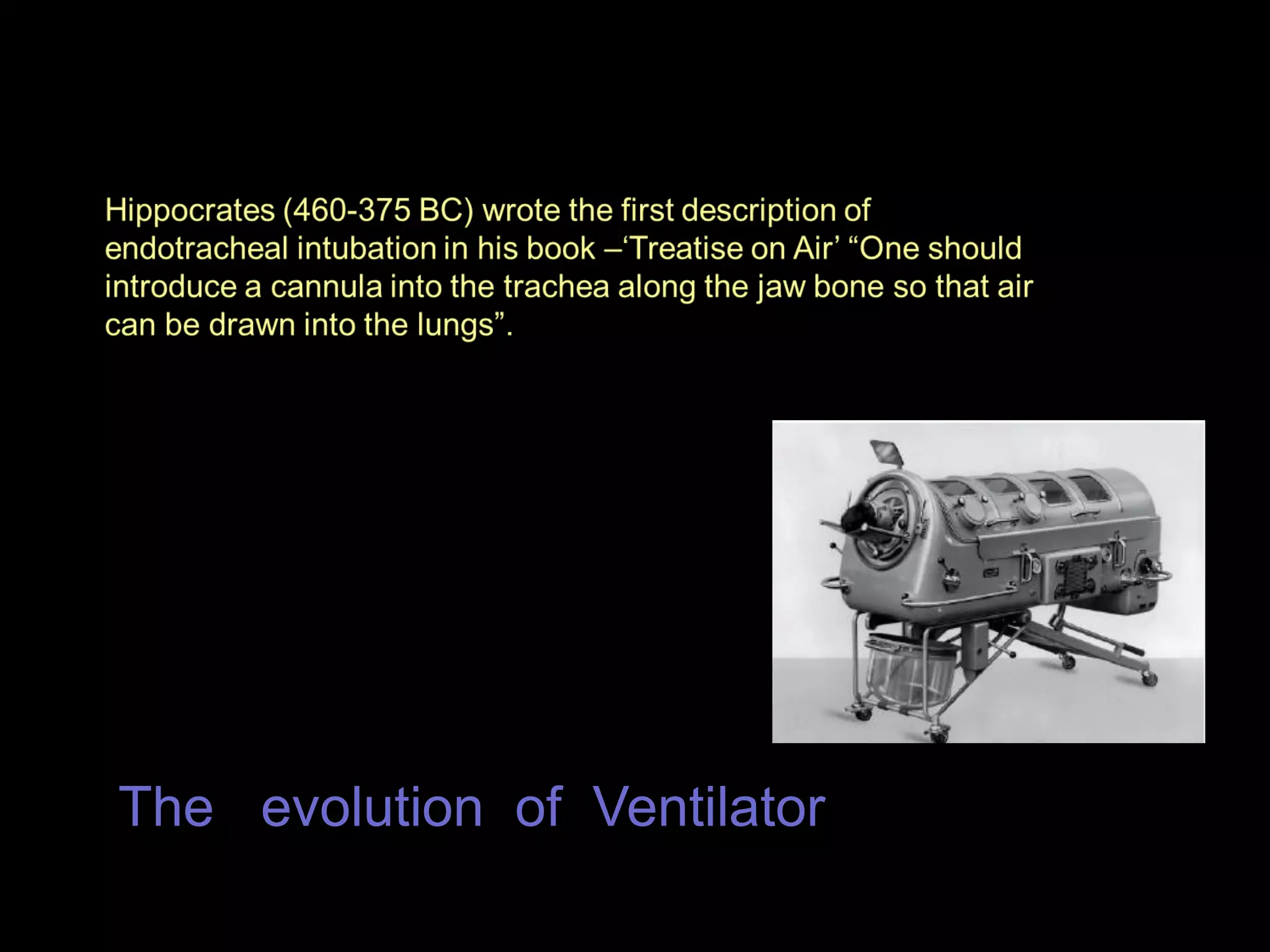

The evolution of Ventilator

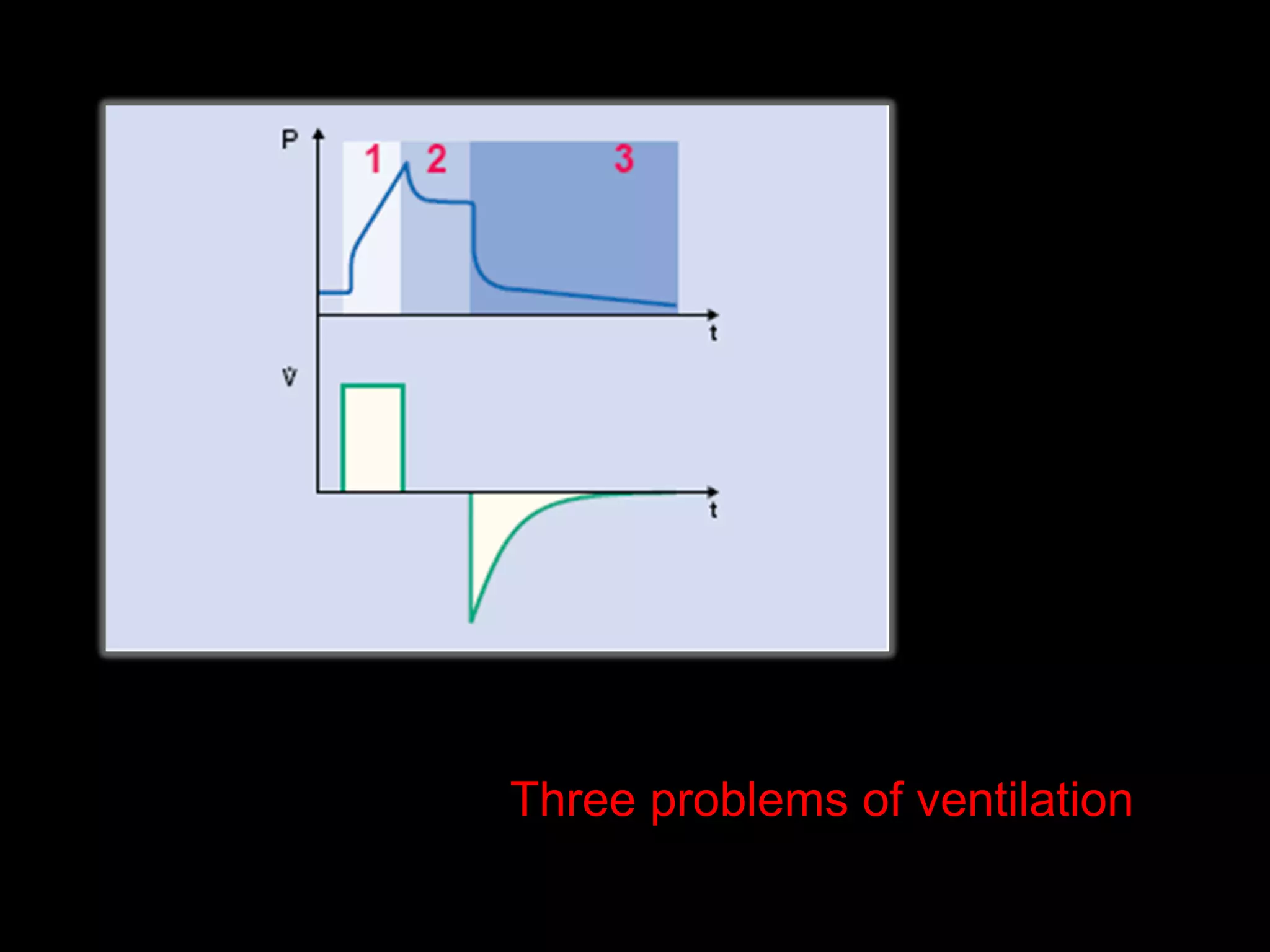

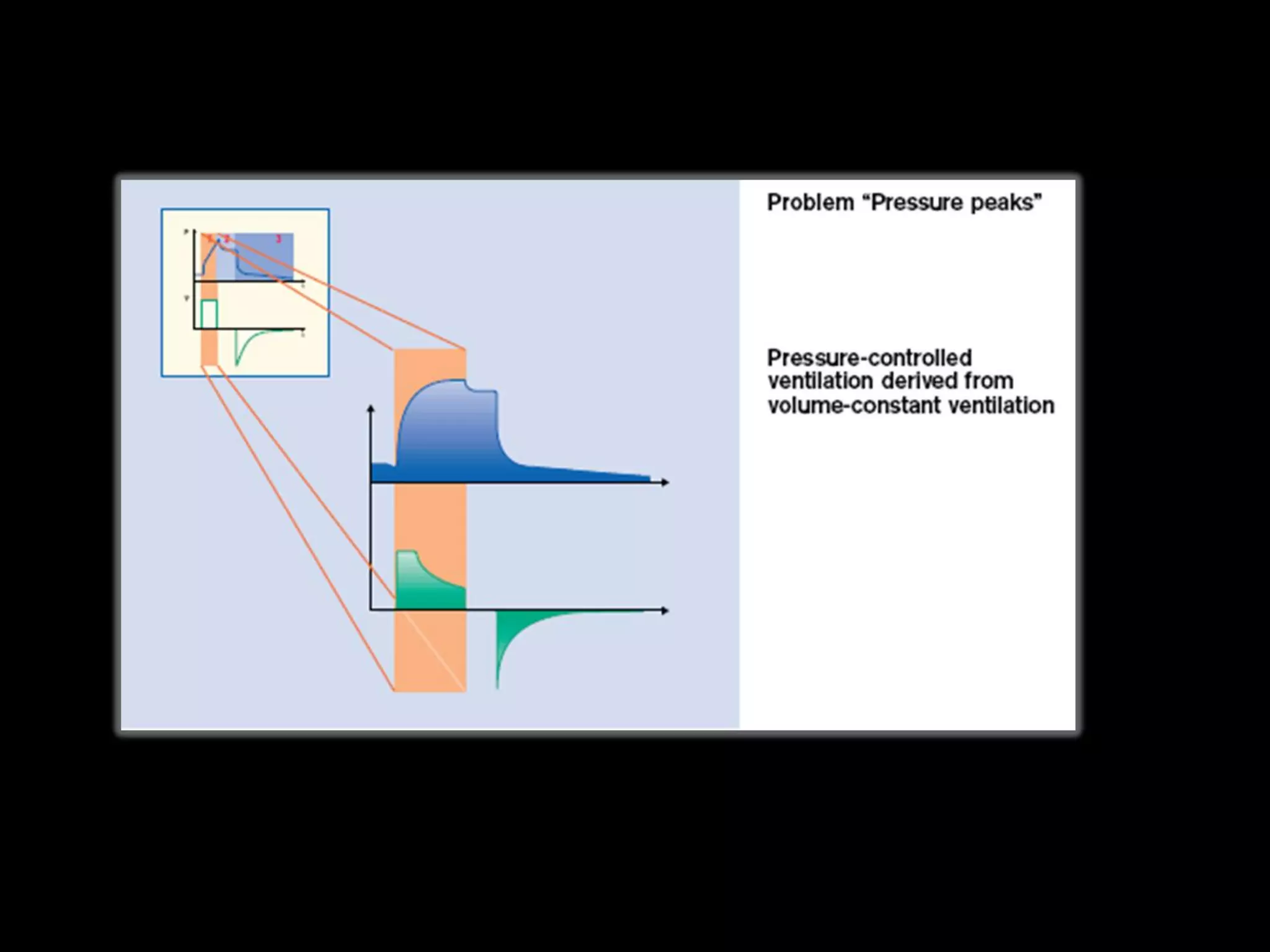

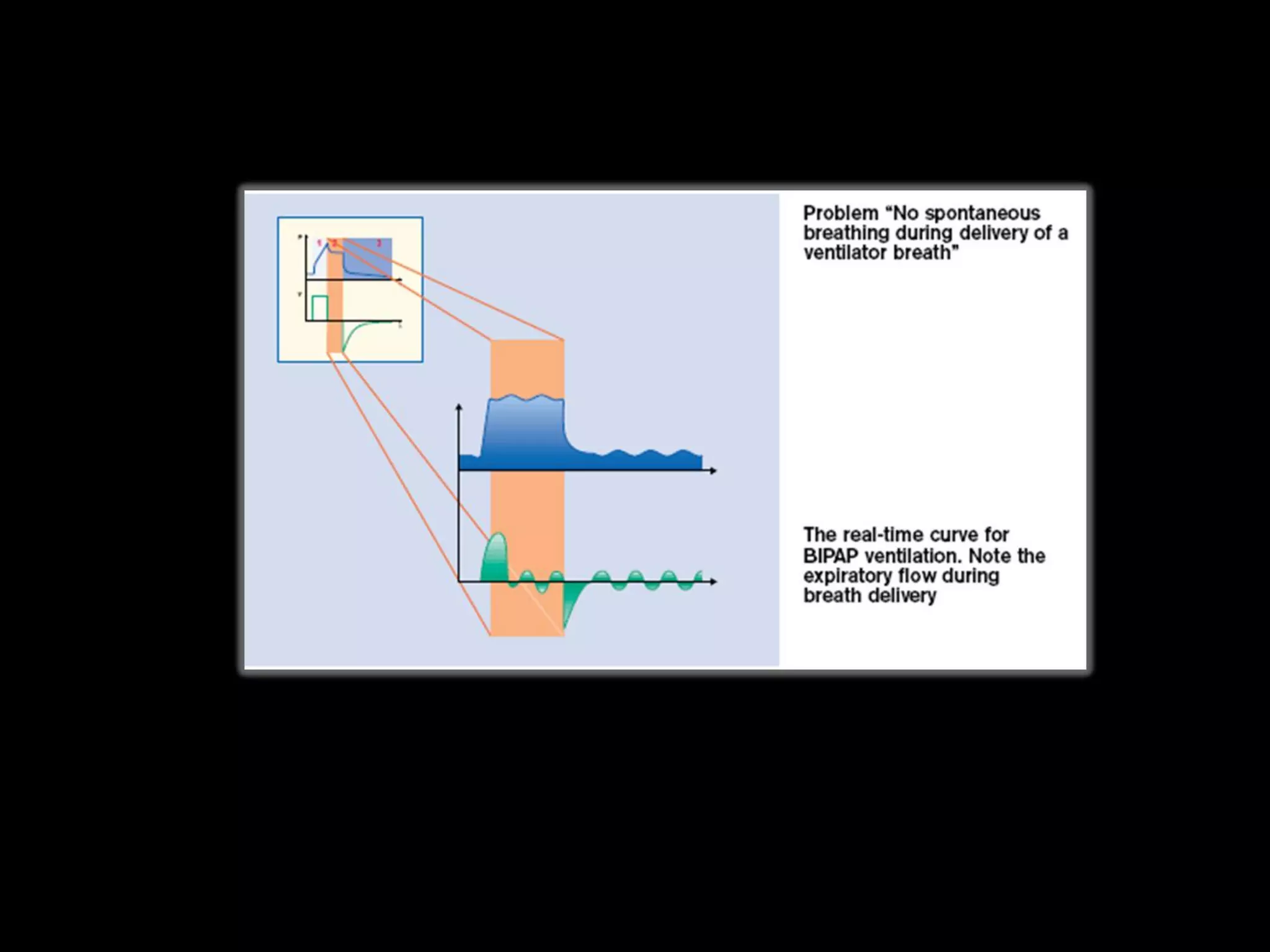

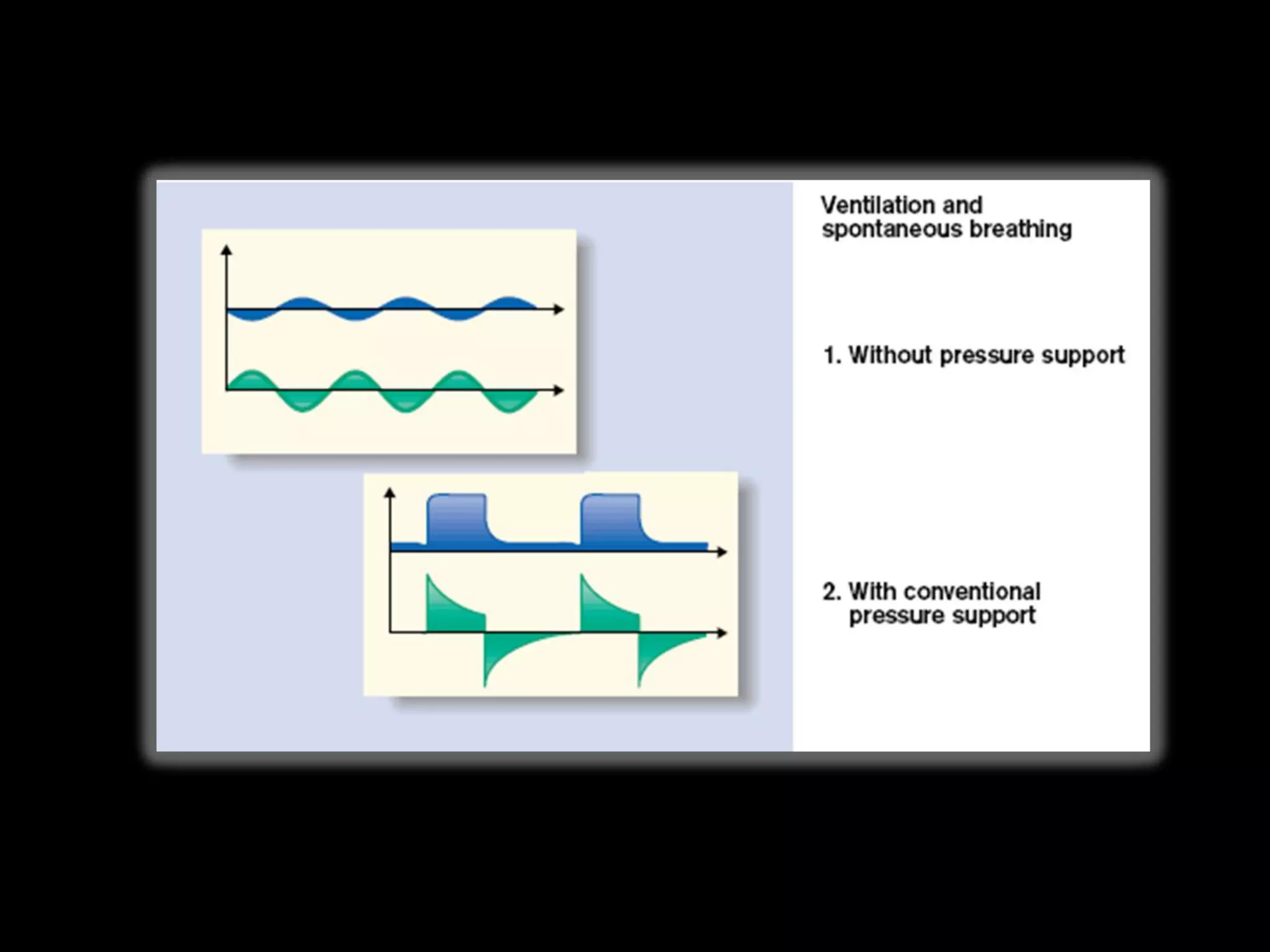

Three problems of ventilation

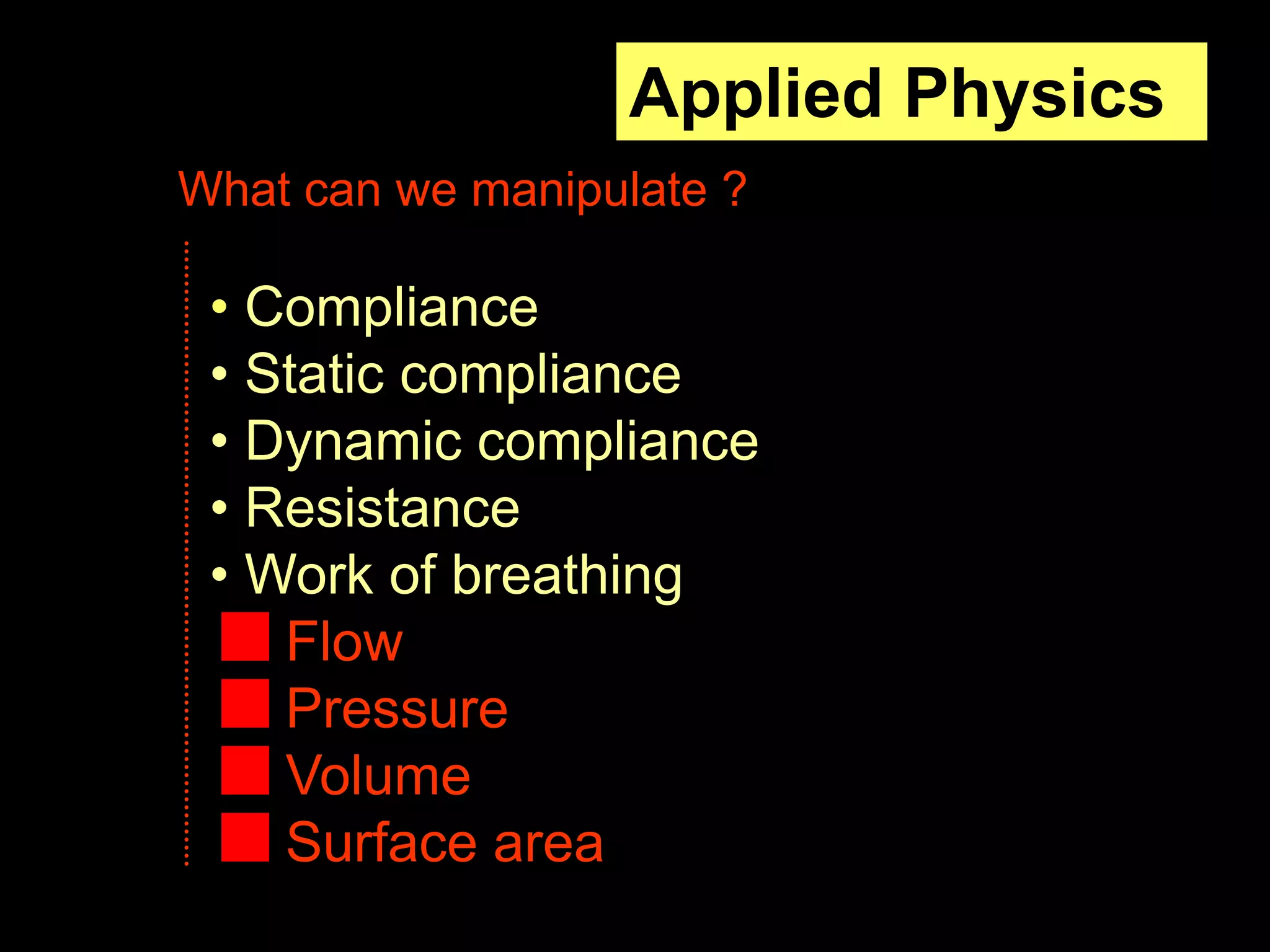

Applied Physics
• Compliance
• Static compliance
• Dynamic compliance
• Resistance
• Work of breathing
Flow
Pressure
Volume
Surface area
What can we manipulate ?

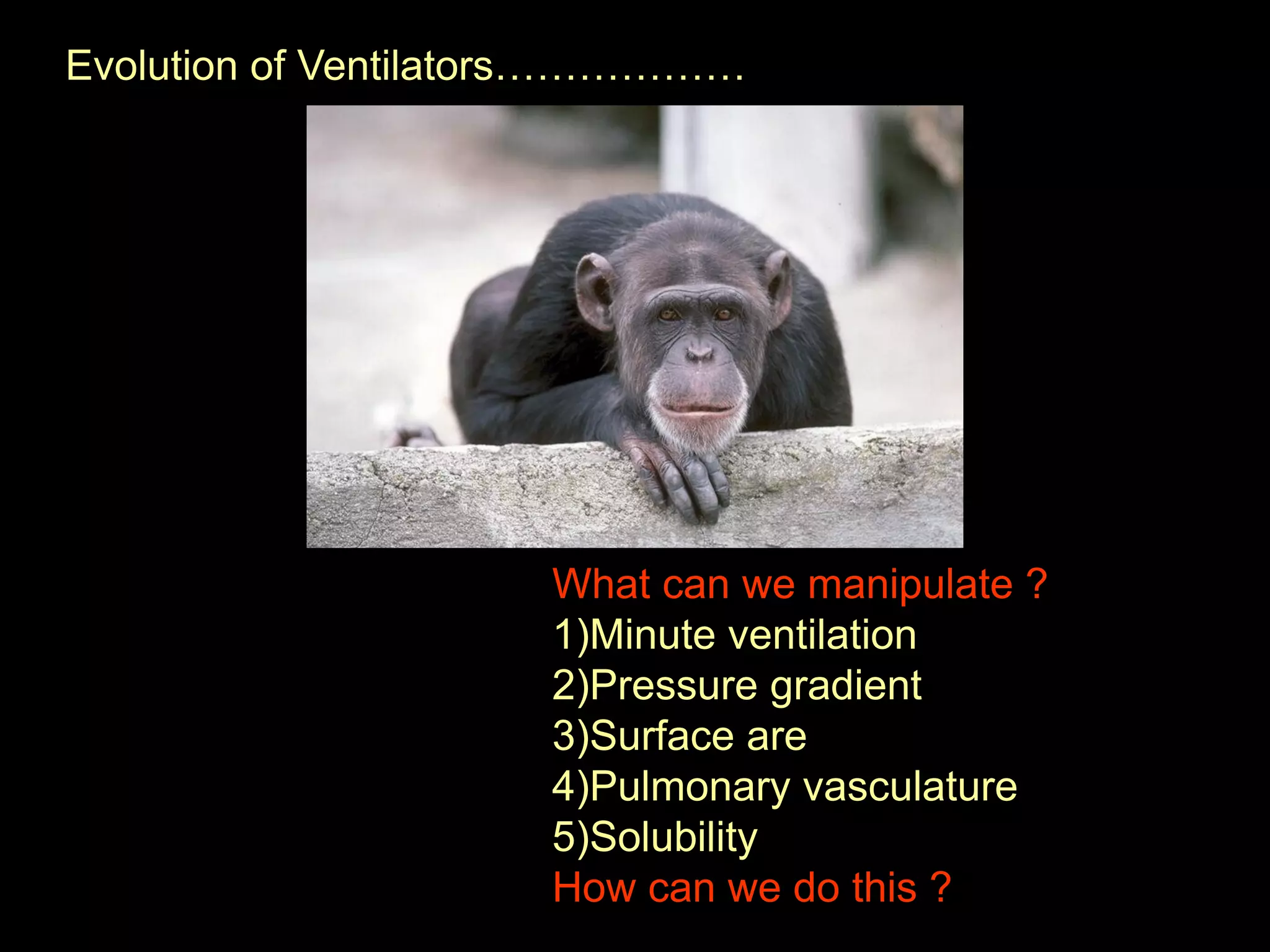

Evolution of Ventilators………………
What can we manipulate ?
1)Minute ventilation
2)Pressure gradient
3)Surface are
4)Pulmonary vasculature
5)Solubility
How can we do this ?

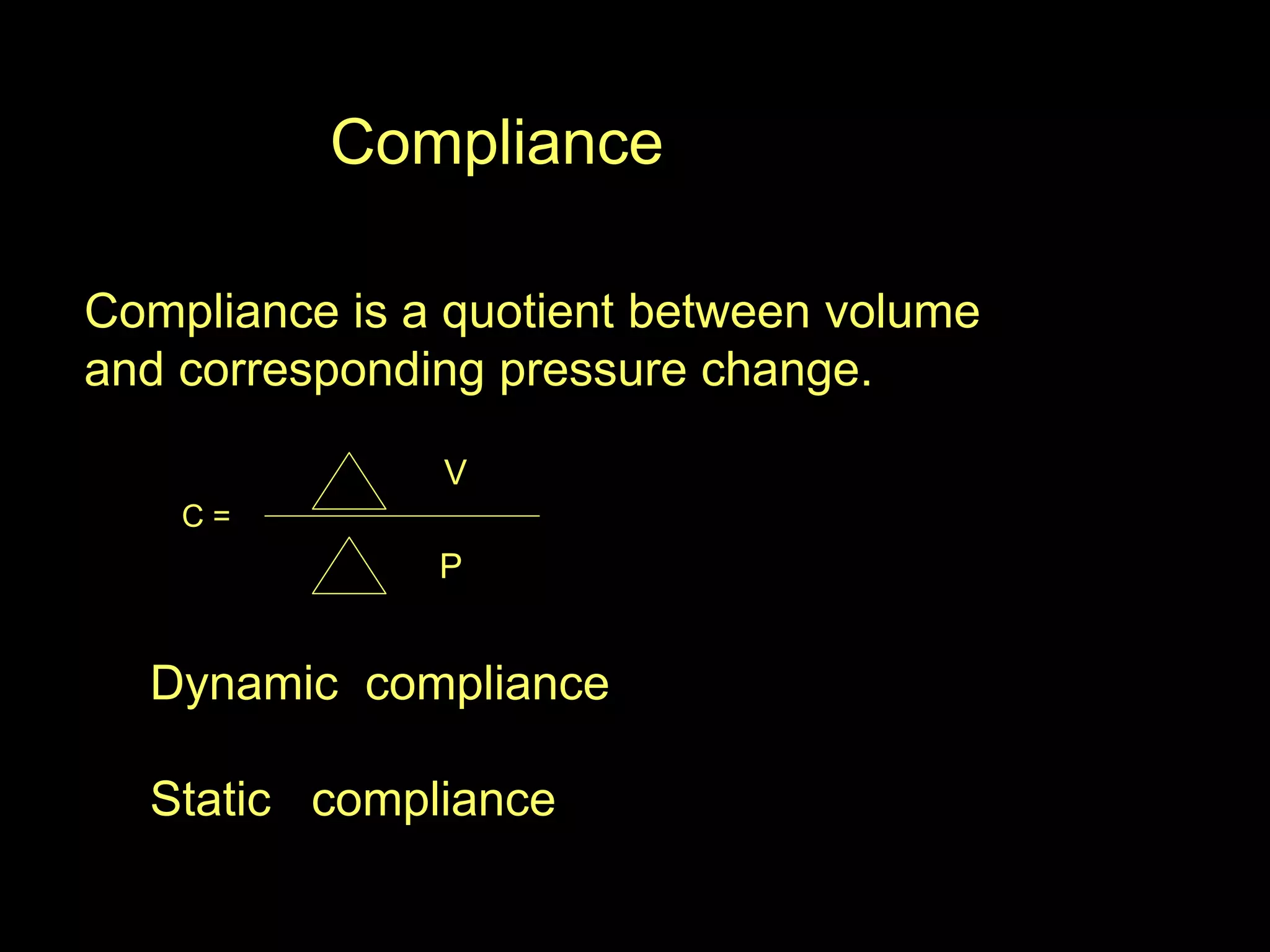

Compliance
Compliance is a quotient between volume
and corresponding pressure change.
C =
V
P
Dynamic compliance
Static compliance

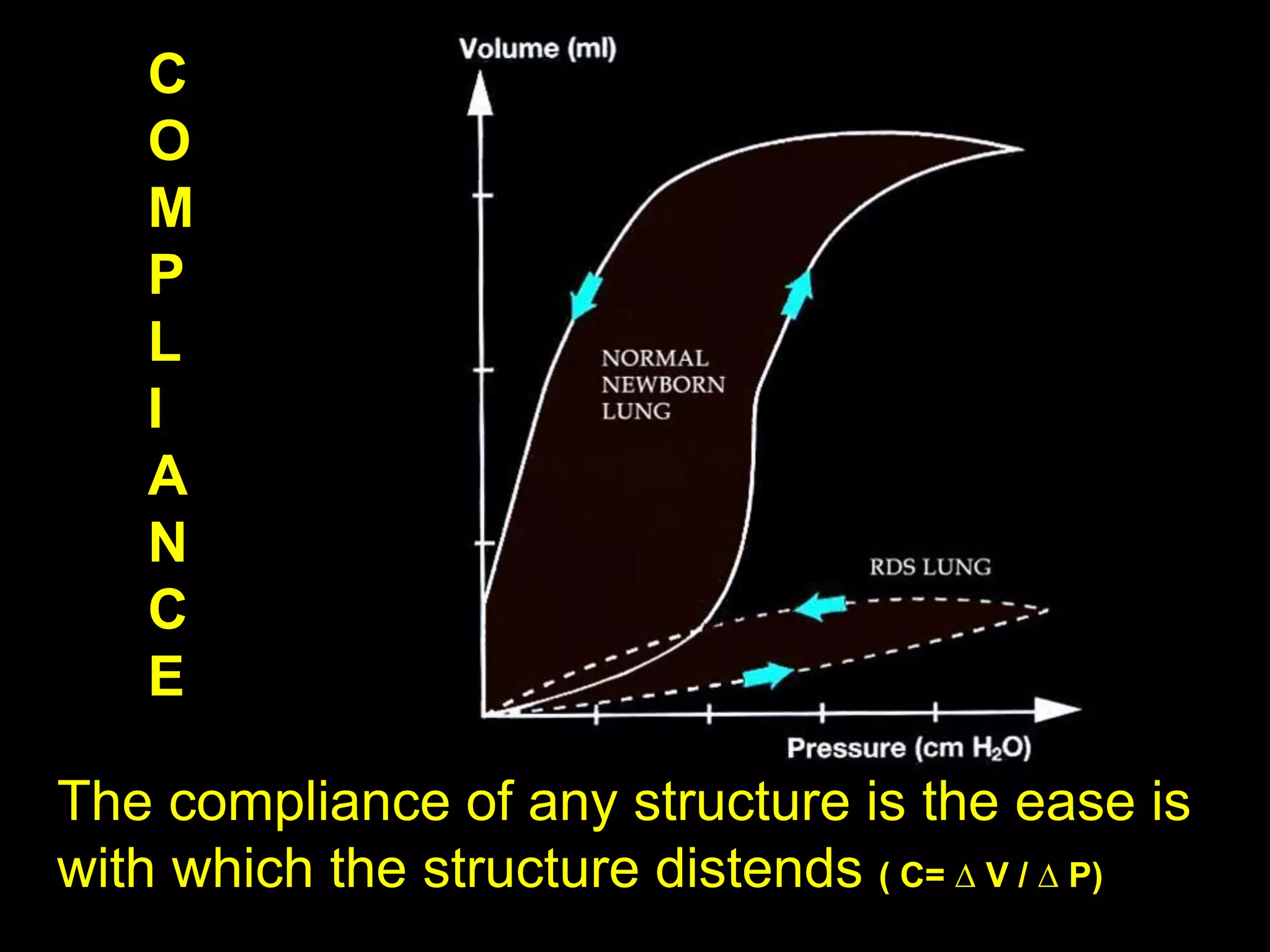

The compliance of any structure is the ease is
with which the structure distends ( C= ∆ V / ∆ P)
C
O
M
P
L
I
A
N
C
E
C.C.P.
C.O.P.
V
O
L
U
M
E
PRESSURE

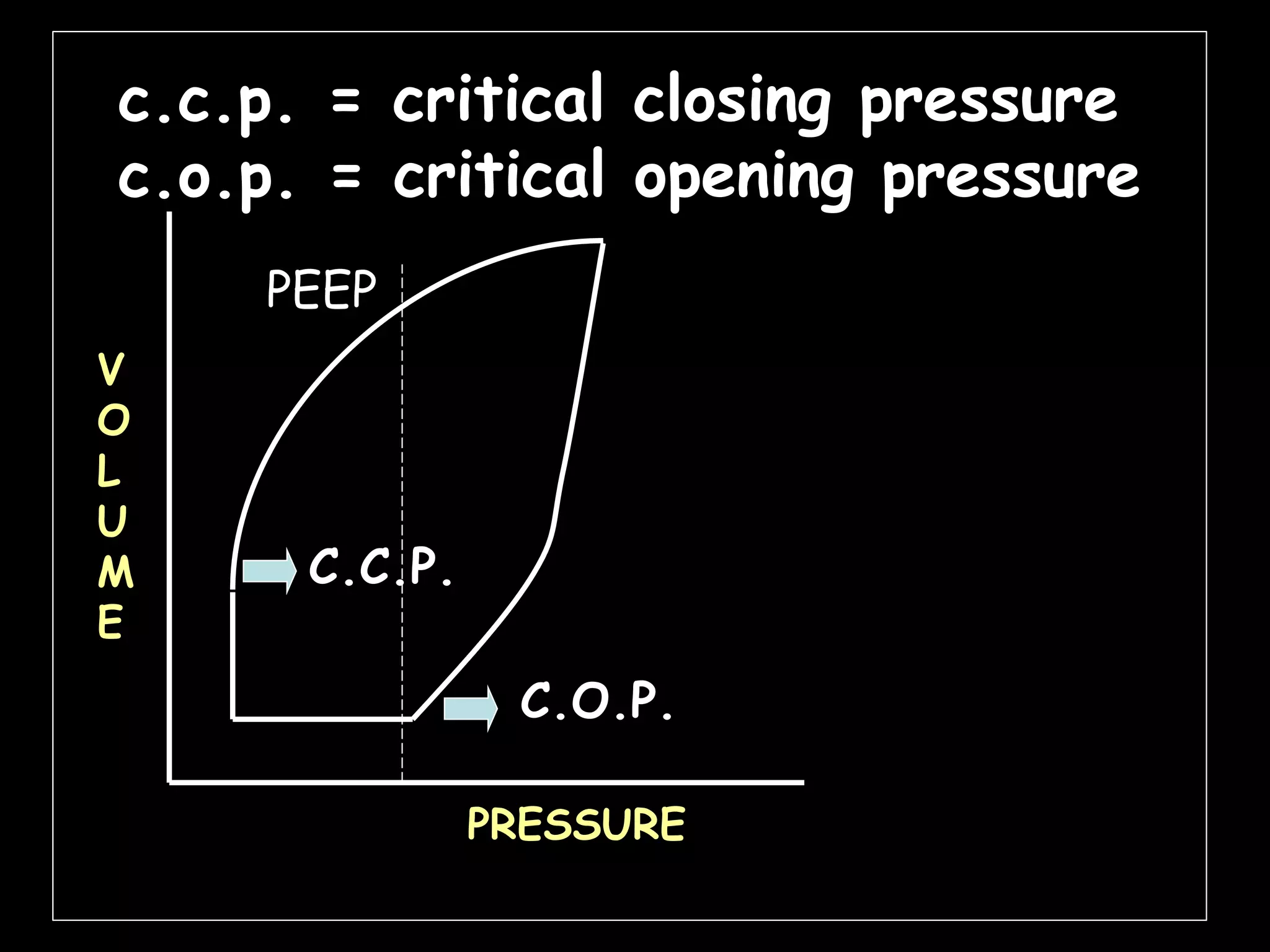

c.c.p. = critical closing pressure
c.o.p. = critical opening pressure
PEEP
Pressure
Volume

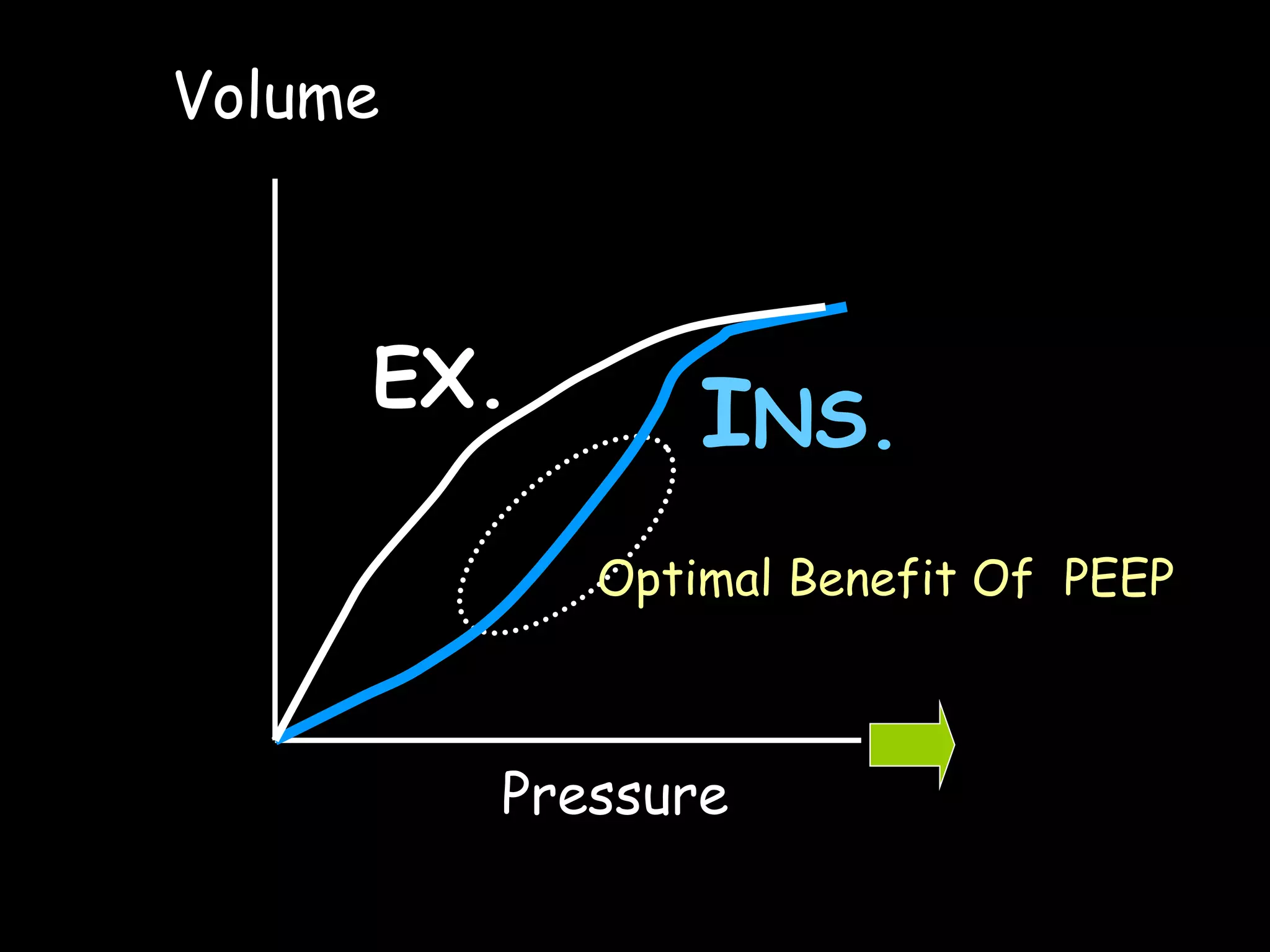

Optimal Benefit Of PEEP
EX.
INS.
Peak pressure
Plateau pressure
Pressure
Inspiratory pause
Flow
Time

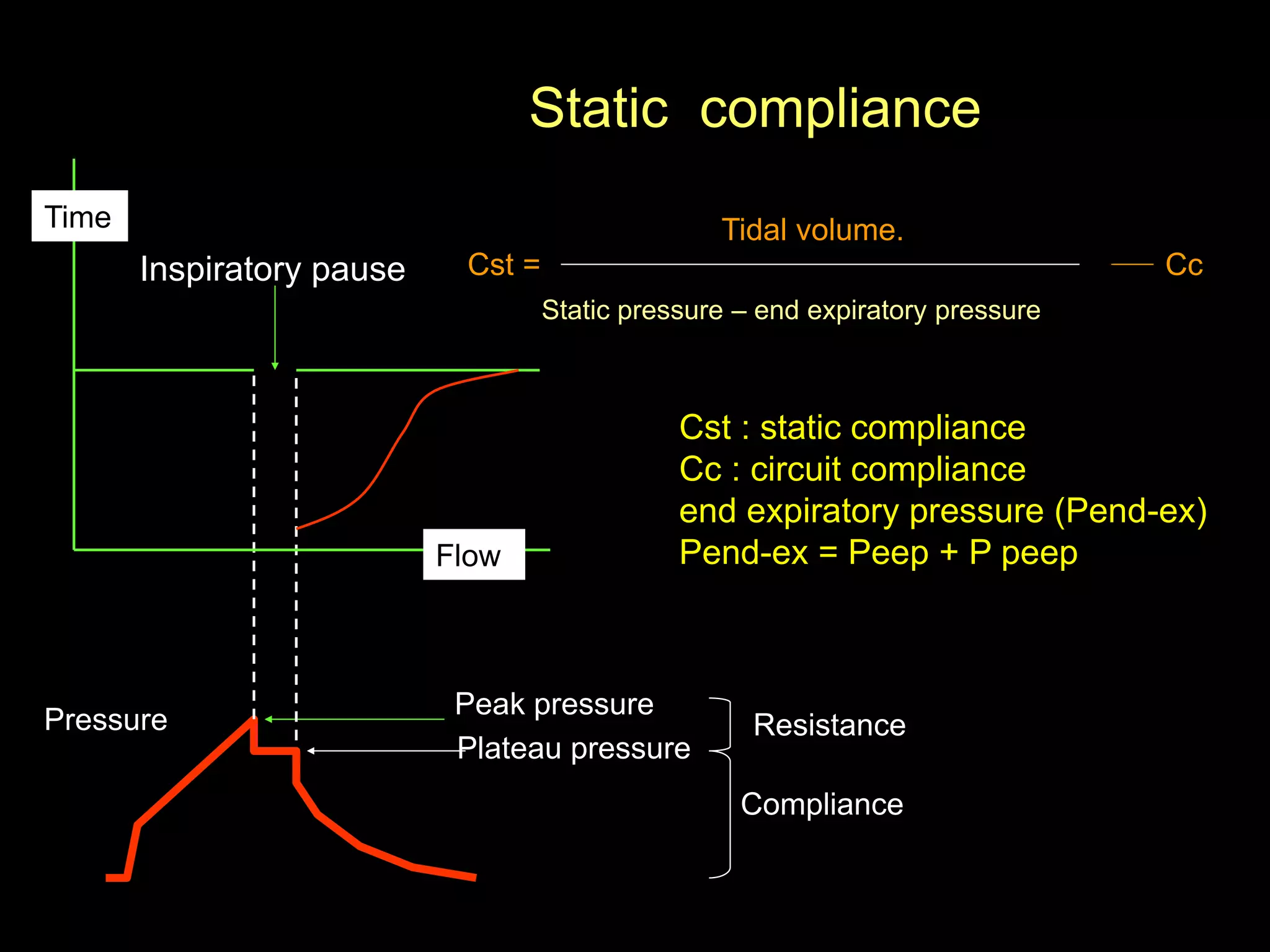

Cst =
Tidal volume.
Cc
Cst : static compliance
Cc : circuit compliance
end expiratory pressure (Pend-ex)
Pend-ex = Peep + P peep
Resistance
Compliance
Static compliance
Static pressure – end expiratory pressure

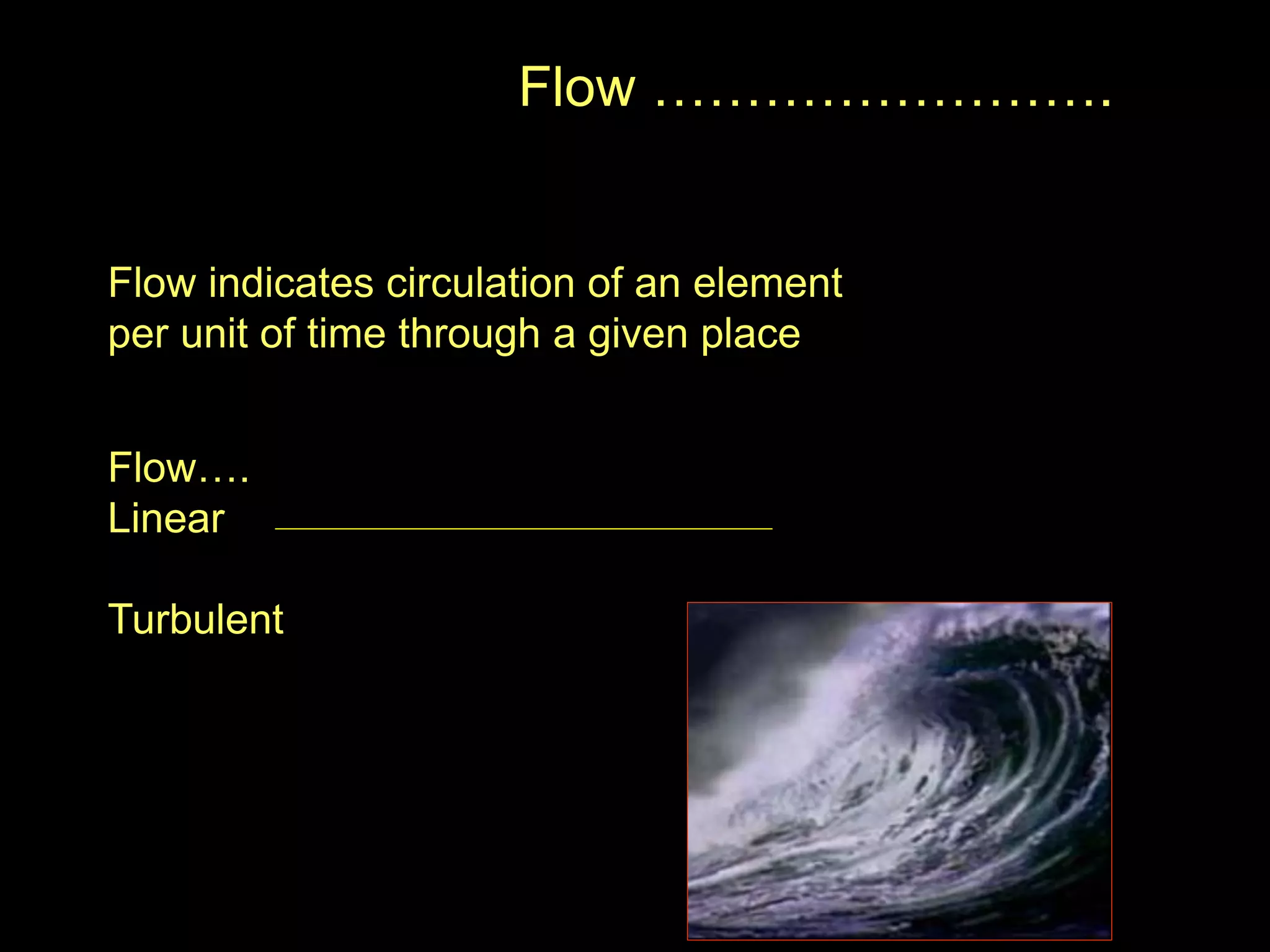

Flow …………………….
Flow indicates circulation of an element
per unit of time through a given place
Flow….
Linear
Turbulent
FLOW
Palv
Pmo

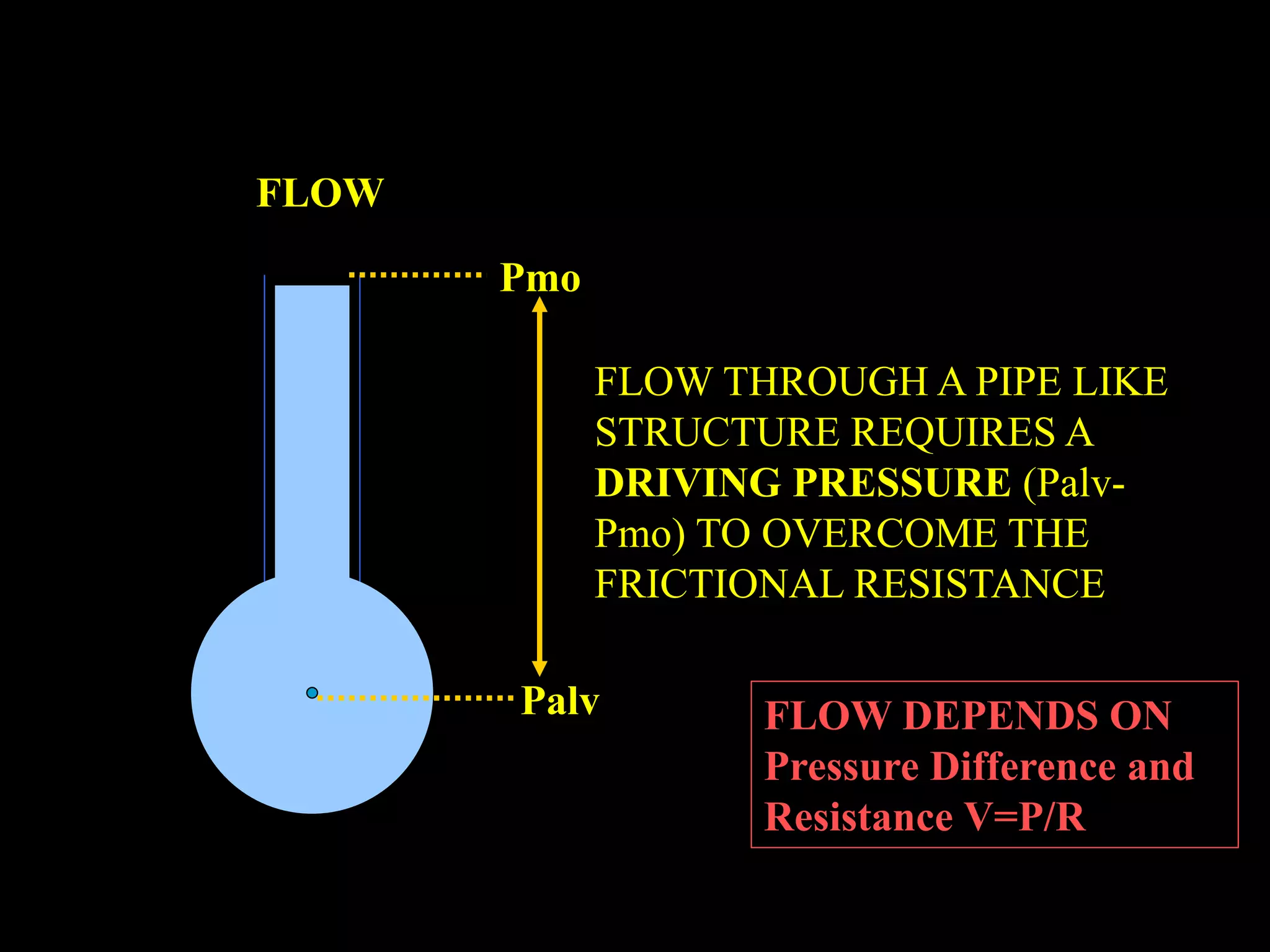

FLOW THROUGH A PIPE LIKE
STRUCTURE REQUIRES A
DRIVING PRESSURE (Palv-
Pmo) TO OVERCOME THE
FRICTIONAL RESISTANCE
FLOW DEPENDS ON
Pressure Difference and
Resistance V=P/R

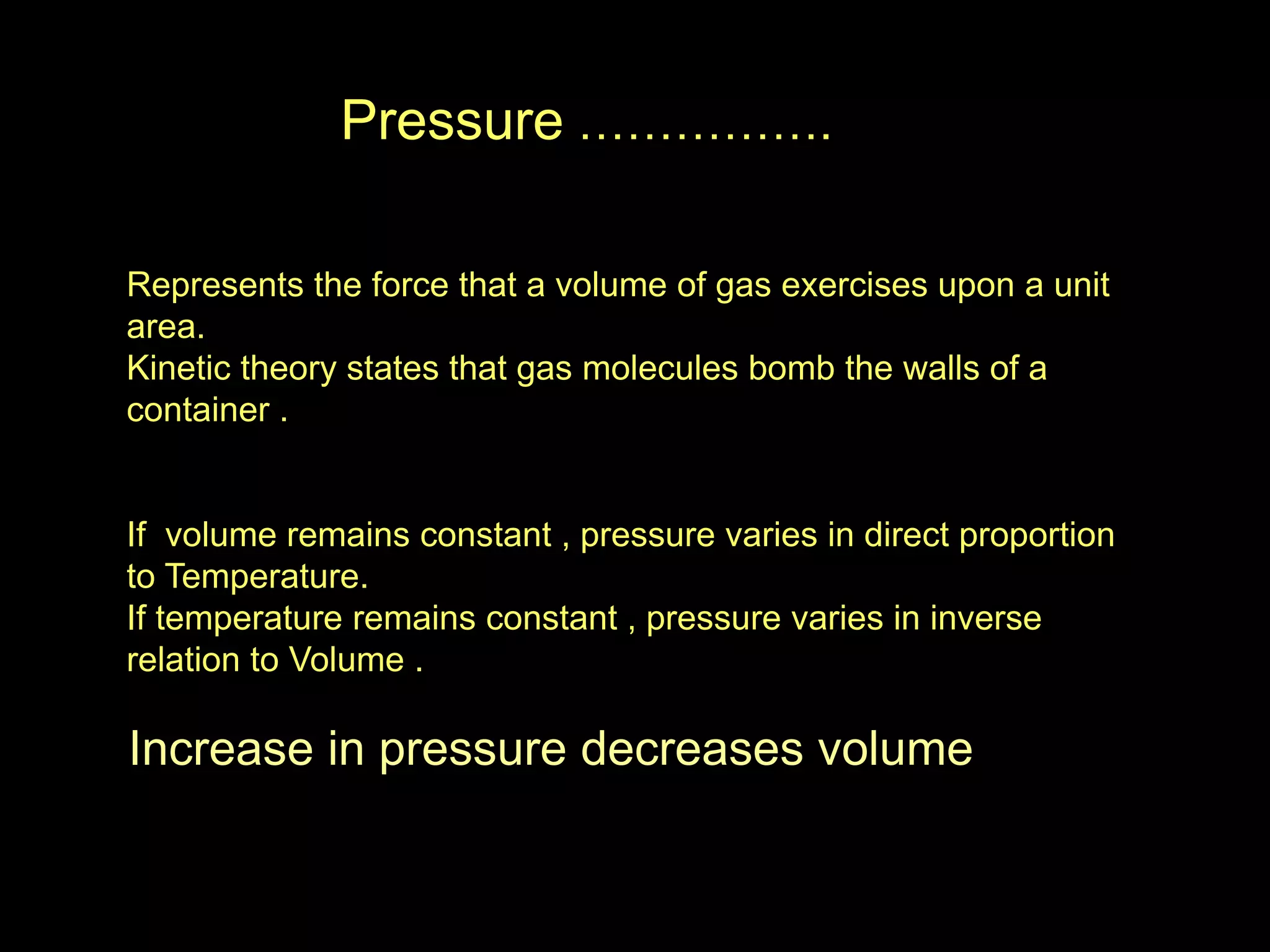

Pressure …………….
Represents the force that a volume of gas exercises upon a unit
area.
Kinetic theory states that gas molecules bomb the walls of a
container .
If volume remains constant , pressure varies in direct proportion
to Temperature.
If temperature remains constant , pressure varies in inverse
relation to Volume .
Increase in pressure decreases volume

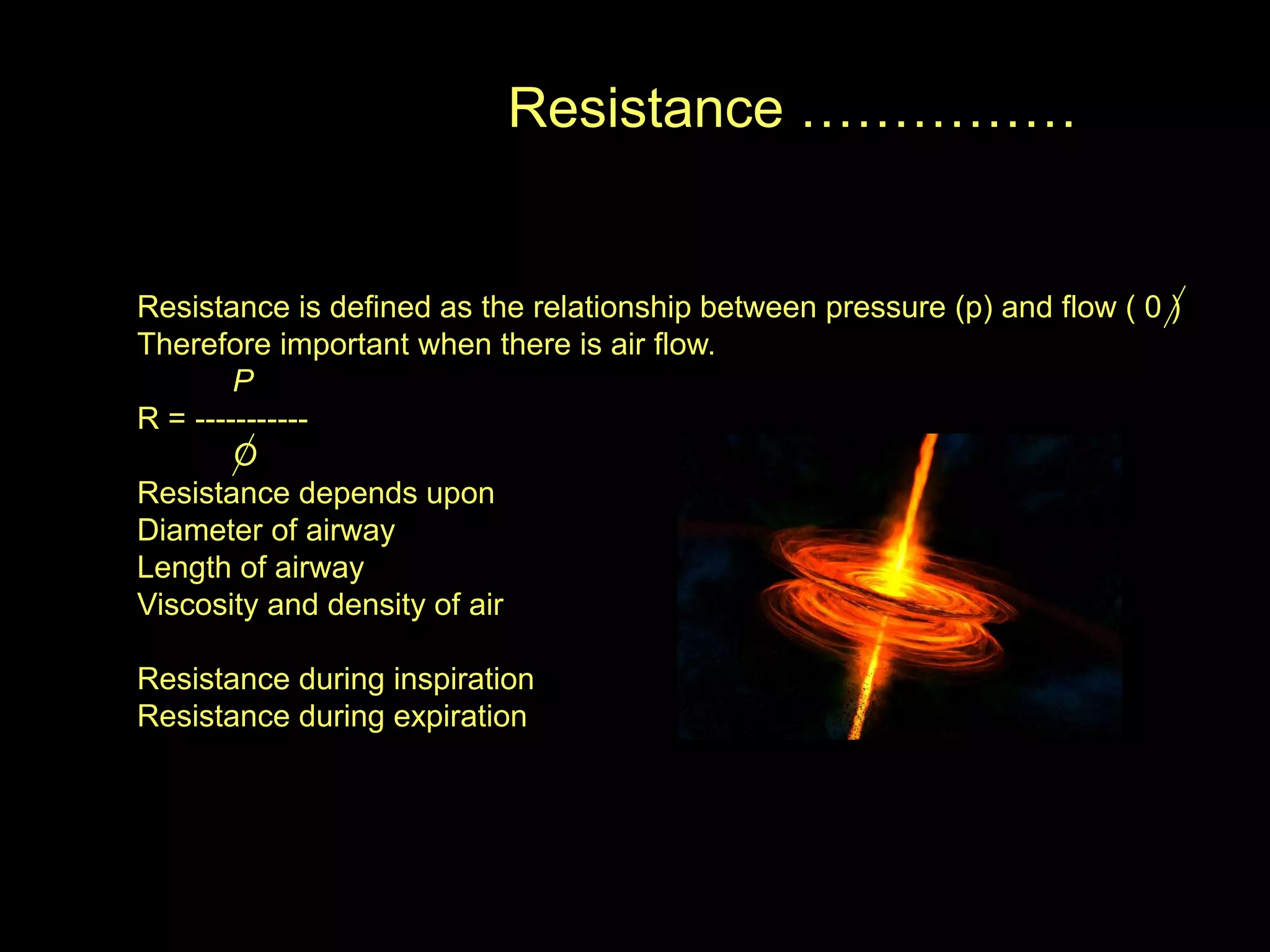

Resistance ……………
Resistance is defined as the relationship between pressure (p) and flow ( 0 )
Therefore important when there is air flow.
R = -----------
Resistance depends upon
Diameter of airway
Length of airway
Viscosity and density of air
Resistance during inspiration
Resistance during expiration
P
O
And how can we do this ?

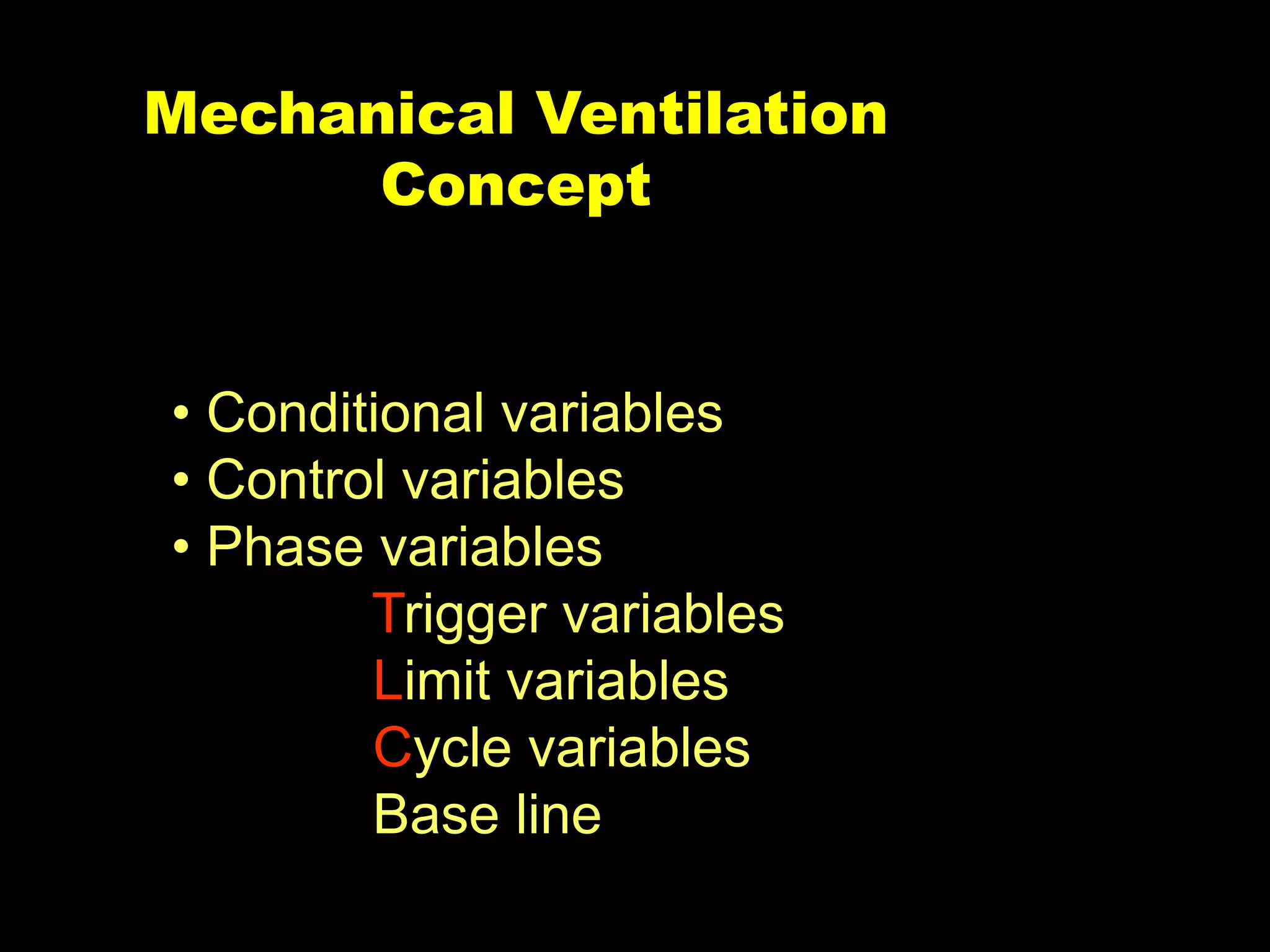

• Conditional variables
• Control variables
• Phase variables
Trigger variables
Limit variables
Cycle variables
Base line
Mechanical Ventilation
Concept

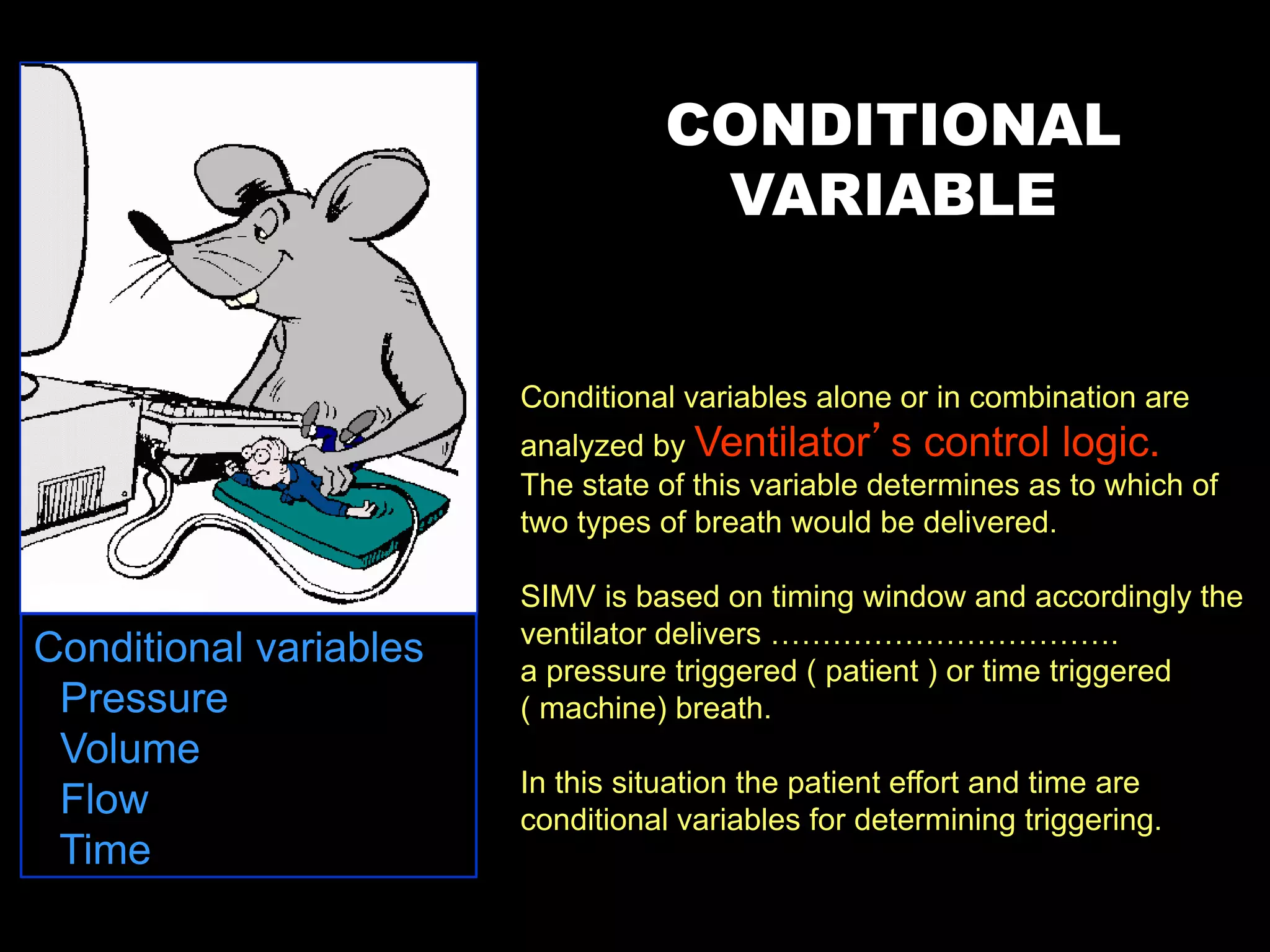

Conditional variables alone or in combination are
analyzed by Ventilator’s control logic.
The state of this variable determines as to which of
two types of breath would be delivered.
SIMV is based on timing window and accordingly the
ventilator delivers …………………………….
a pressure triggered ( patient ) or time triggered
( machine) breath.
In this situation the patient effort and time are
conditional variables for determining triggering.
CONDITIONAL
VARIABLE
Conditional variables
• Pressure
• Volume
• Flow
• Time

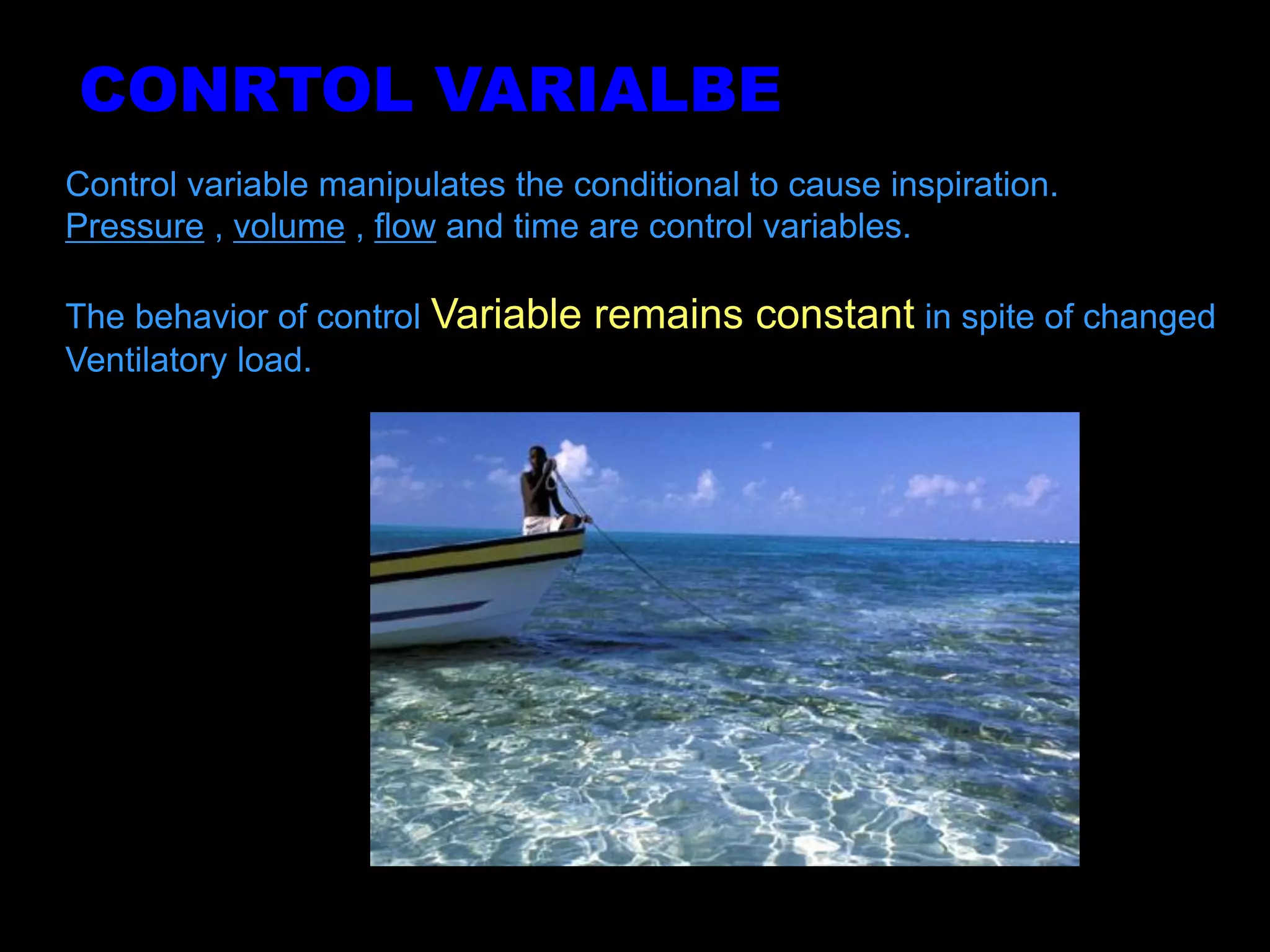

Control variable manipulates the conditional to cause inspiration.
Pressure , volume , flow and time are control variables.
The behavior of control Variable remains constant in spite of changed
Ventilatory load.
CONRTOL VARIALBE
Control variable manipulates the conditionals to cause inspiration.
PRESSURE , VOLUME , FLOW and time are control variables.
The behavior of control Variable remains constant in spite of changed
Ventilatory load.
CONRTOL VARIALBE
Pressure
Rectangular Exponential

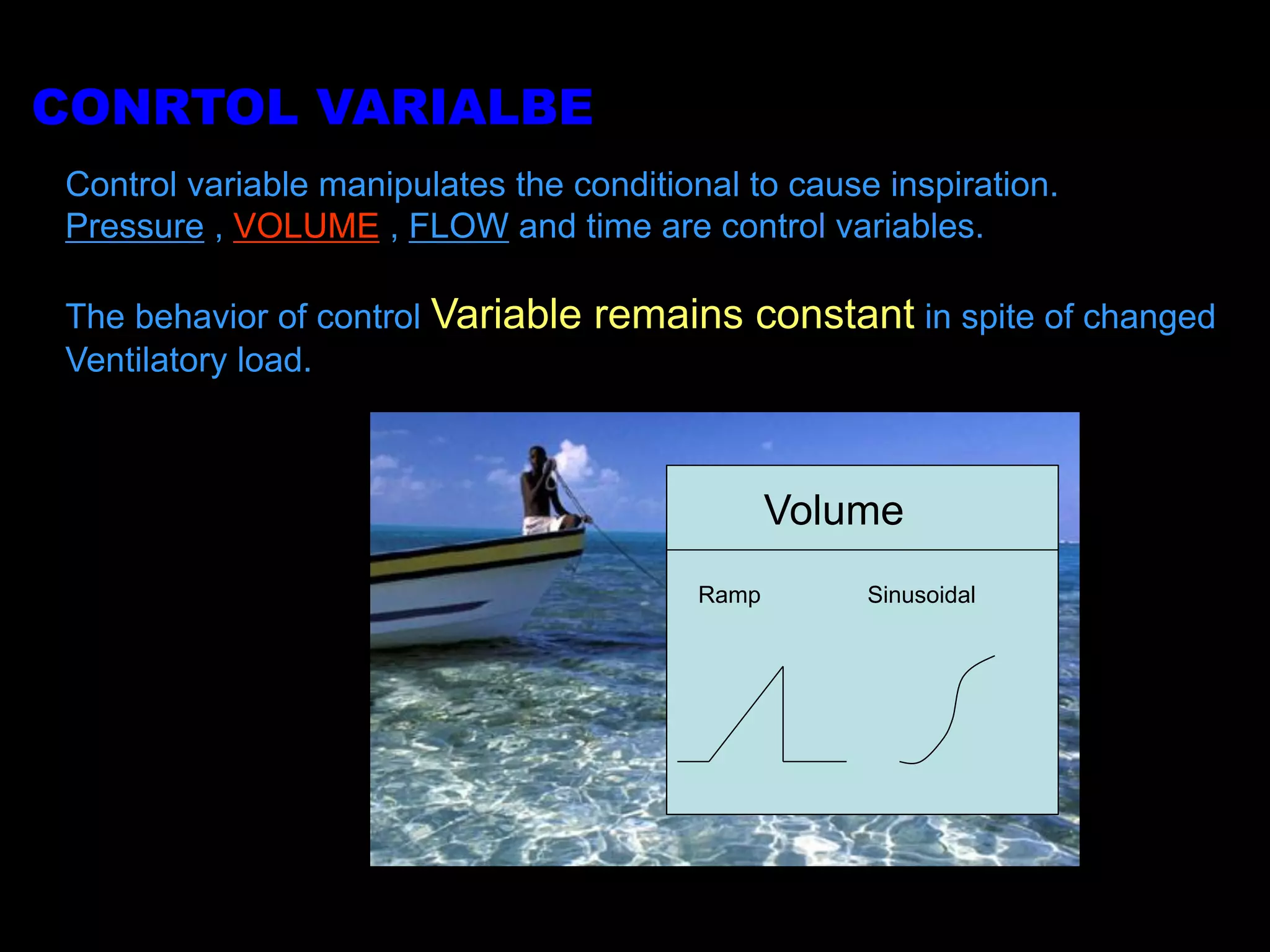

Control variable manipulates the conditional to cause inspiration.
Pressure , VOLUME , FLOW and time are control variables.
The behavior of control Variable remains constant in spite of changed
Ventilatory load.
Volume
Ramp Sinusoidal
CONRTOL VARIALBE
Control variable manipulates the conditional to cause inspiration.
PRESSURE , VOLUME , FLOW and time are control variables.
The behavior of control Variable remains constant in spite of changed
Ventilatory load.
Flow
sinusoidalrectangle ramp
ramp exponential
CONRTOL VARIALBE

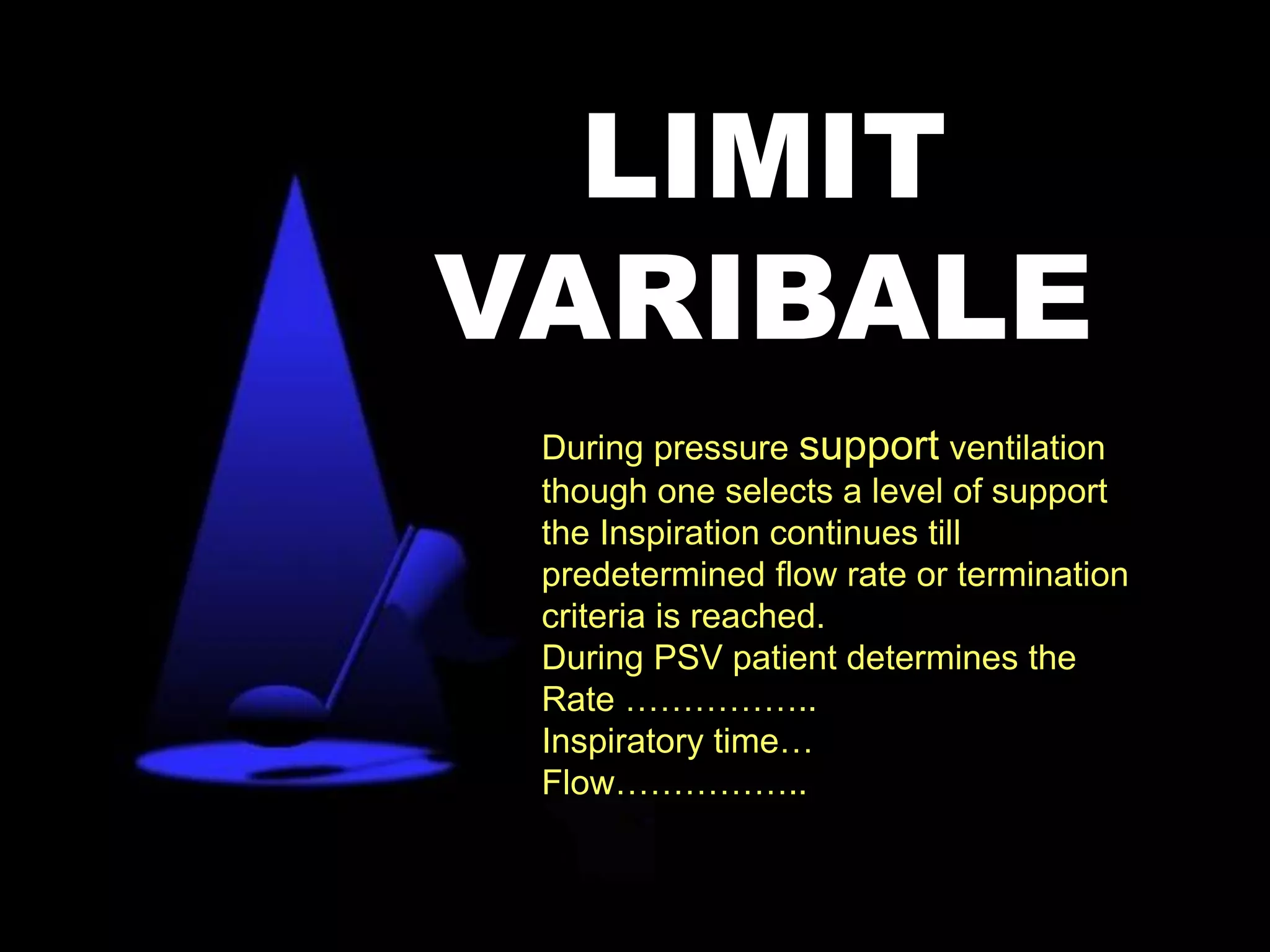

During pressure support ventilation
though one selects a level of support
the Inspiration continues till
predetermined flow rate or termination
criteria is reached.
During PSV patient determines the
Rate ……………..
Inspiratory time…
Flow……………..
LIMIT
VARIBALE
Peak pressure
Plateau pressure
Resistance
Compliance
End of inspiration
Volume
Flow
Pressure

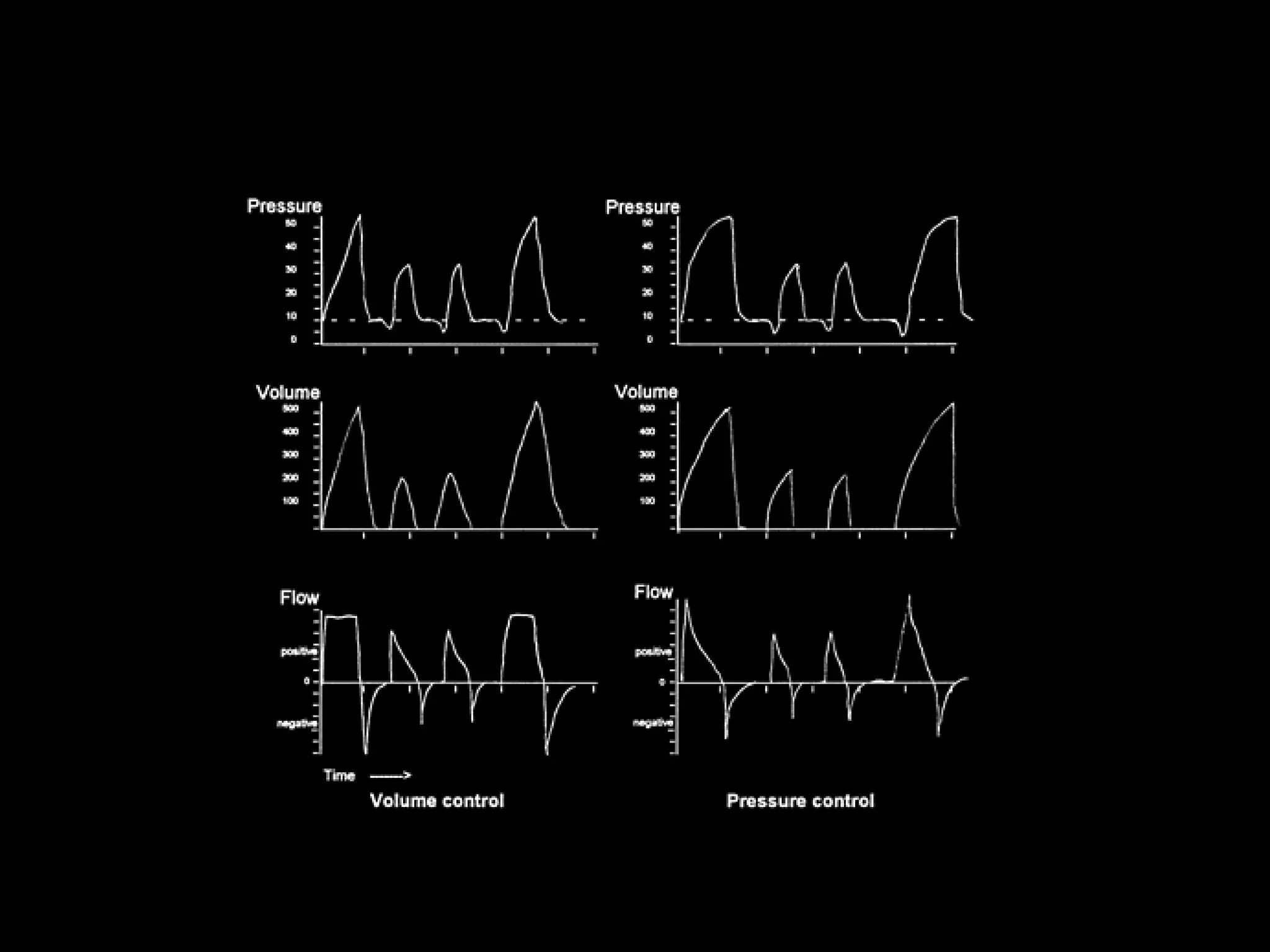

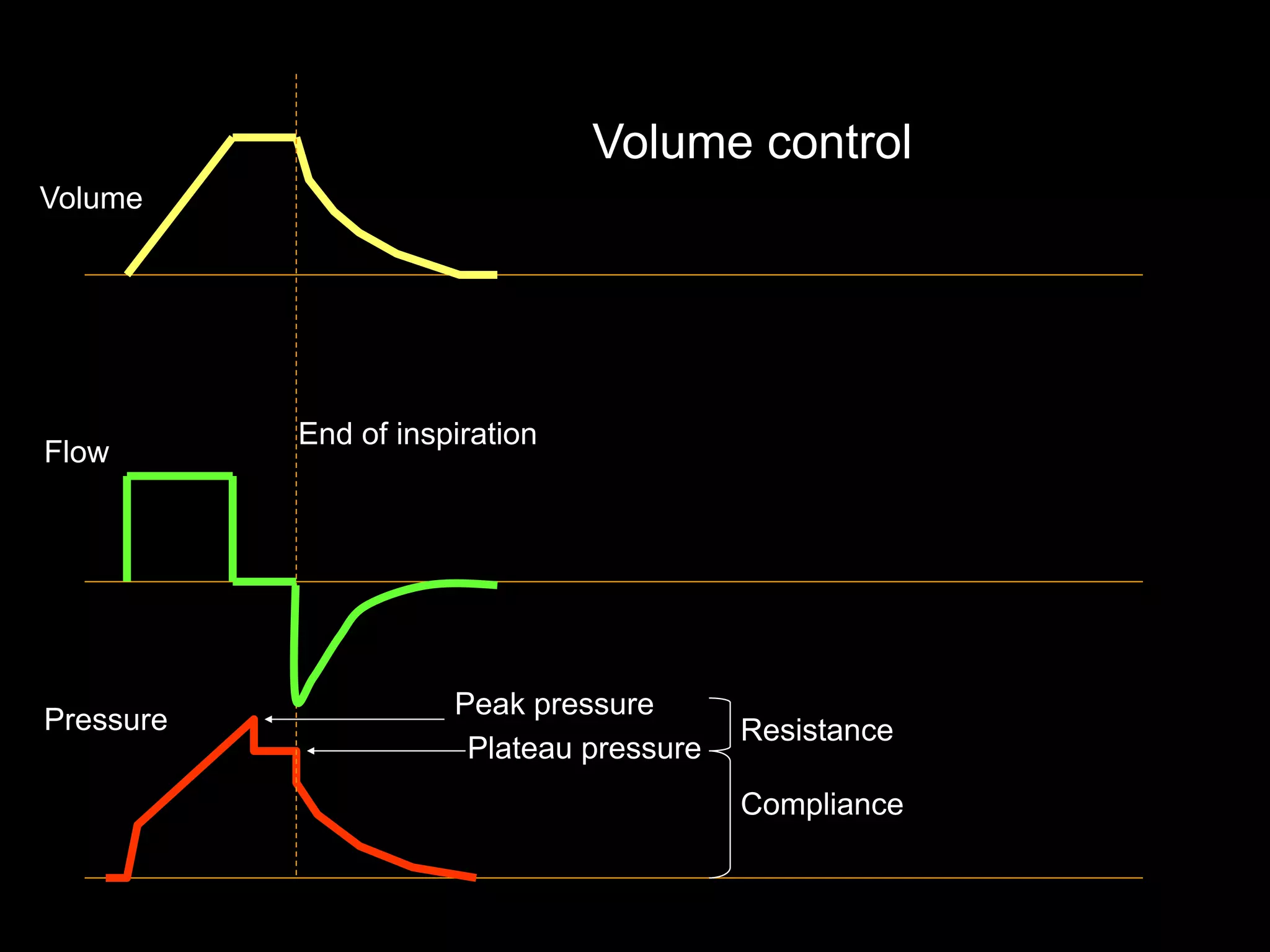

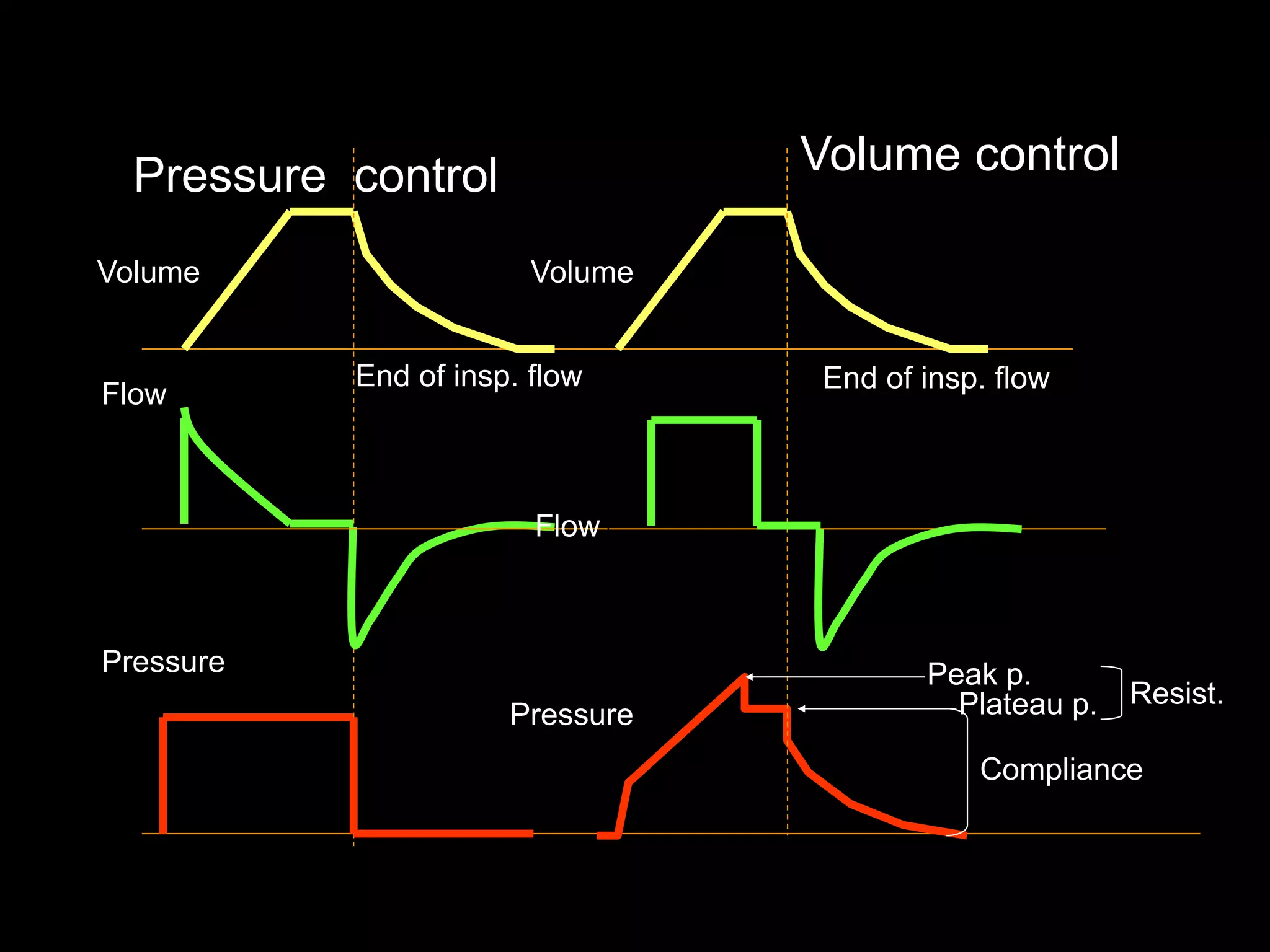

Volume control
End of insp. flow
Volume
Flow
Pressure

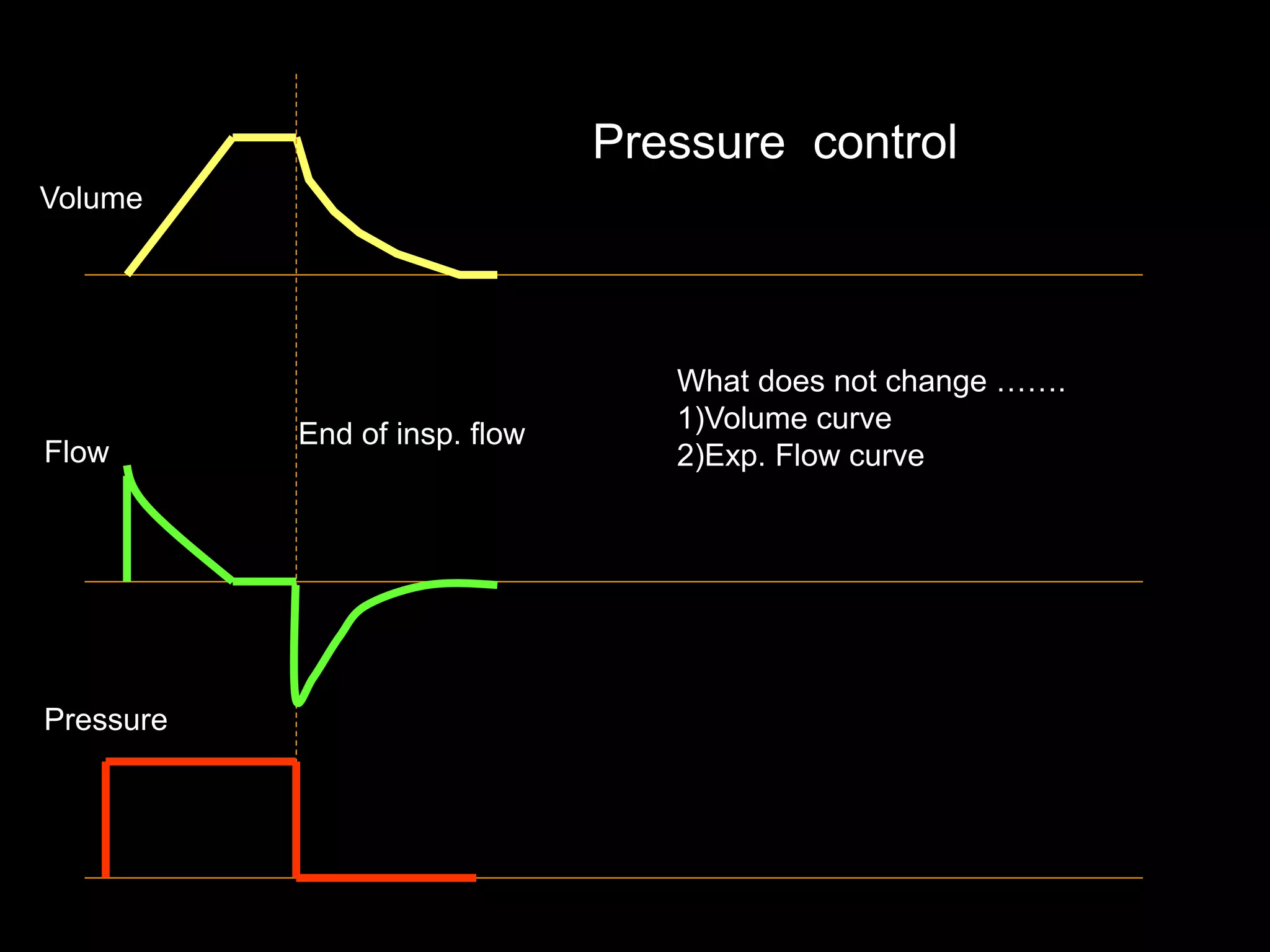

Pressure control
What does not change …….
1)Volume curve
2)Exp. Flow curve
End of insp. flow
Volume
Flow
Pressure
Pressure control
Peak p.
Plateau p. Resist.
Compliance
End of insp. flow
Volume
Flow
Pressure
Volume control

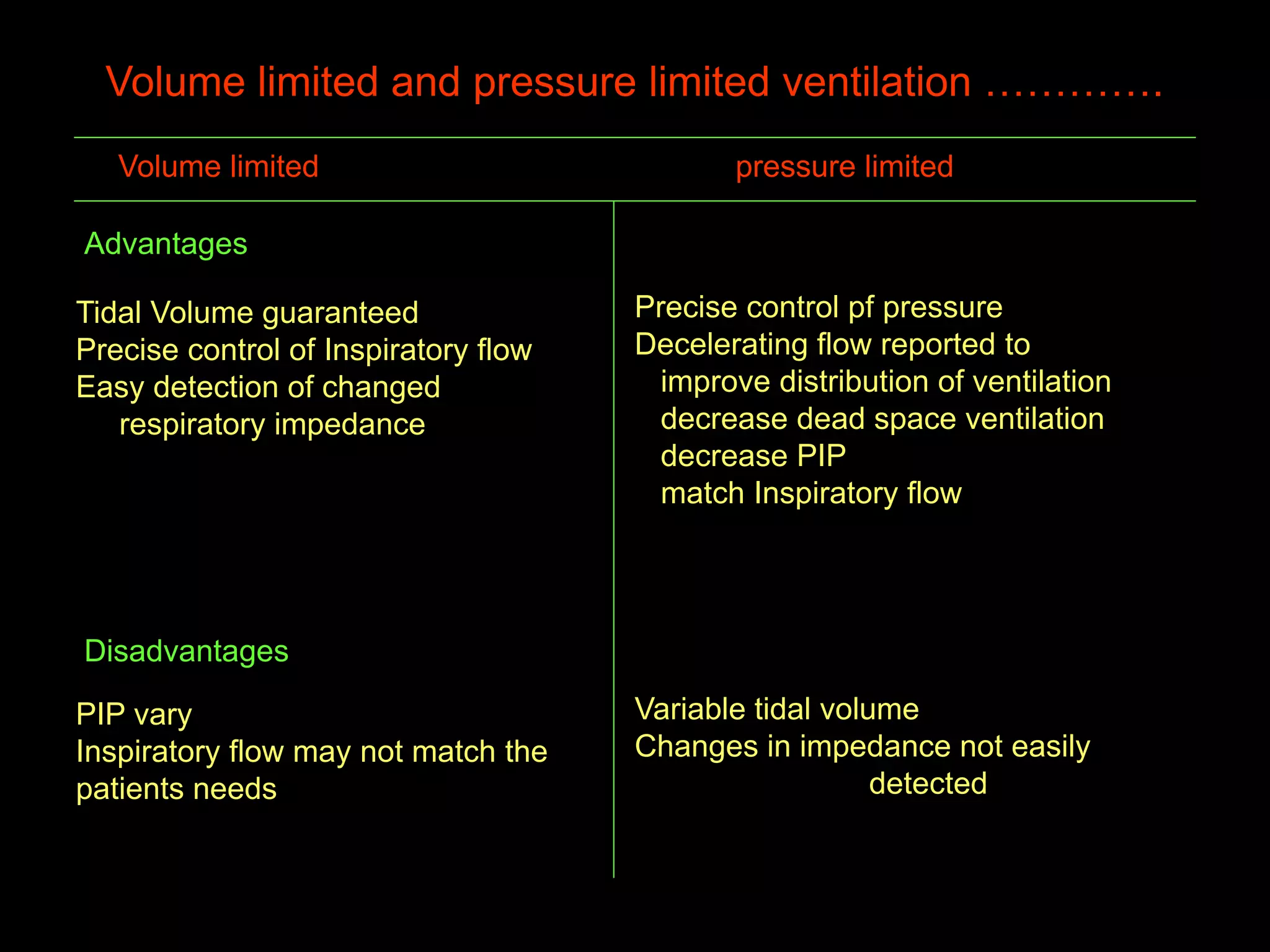

Volume limited and pressure limited ventilation ………….
Volume limited pressure limited
Advantages
Tidal Volume guaranteed
Precise control of Inspiratory flow
Easy detection of changed
respiratory impedance
Precise control pf pressure
Decelerating flow reported to
improve distribution of ventilation
decrease dead space ventilation
decrease PIP
match Inspiratory flow
Disadvantages
PIP vary
Inspiratory flow may not match the
patients needs
Variable tidal volume
Changes in impedance not easily
detected
Modes of ventilation
or moods of ventilation
P
R
E
S
S
U
R
e
F
L
O
w
V
O
L
U
M
e
A B C
A normal lung B decreased compliance C increased resistance

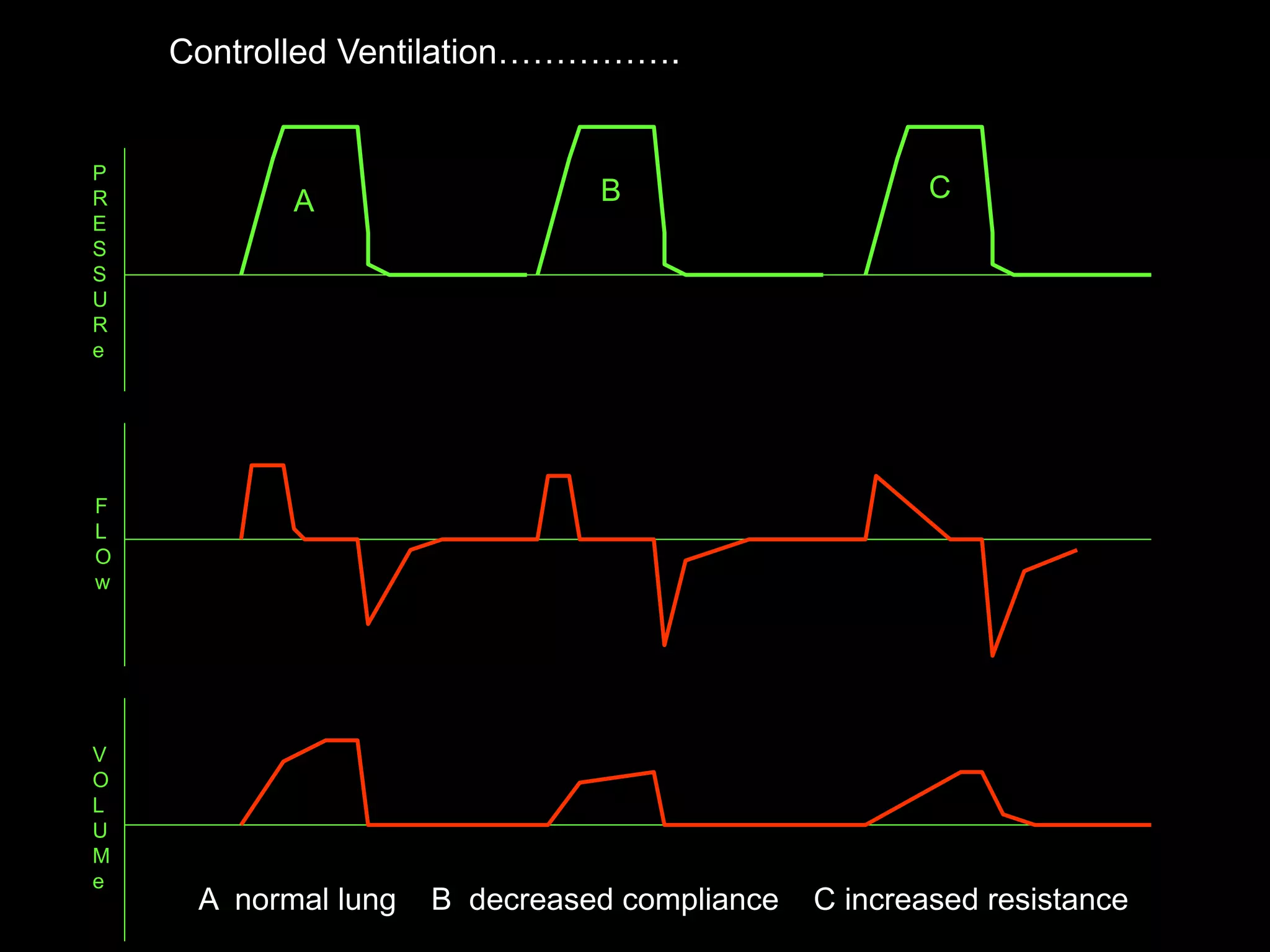

Controlled Ventilation…………….

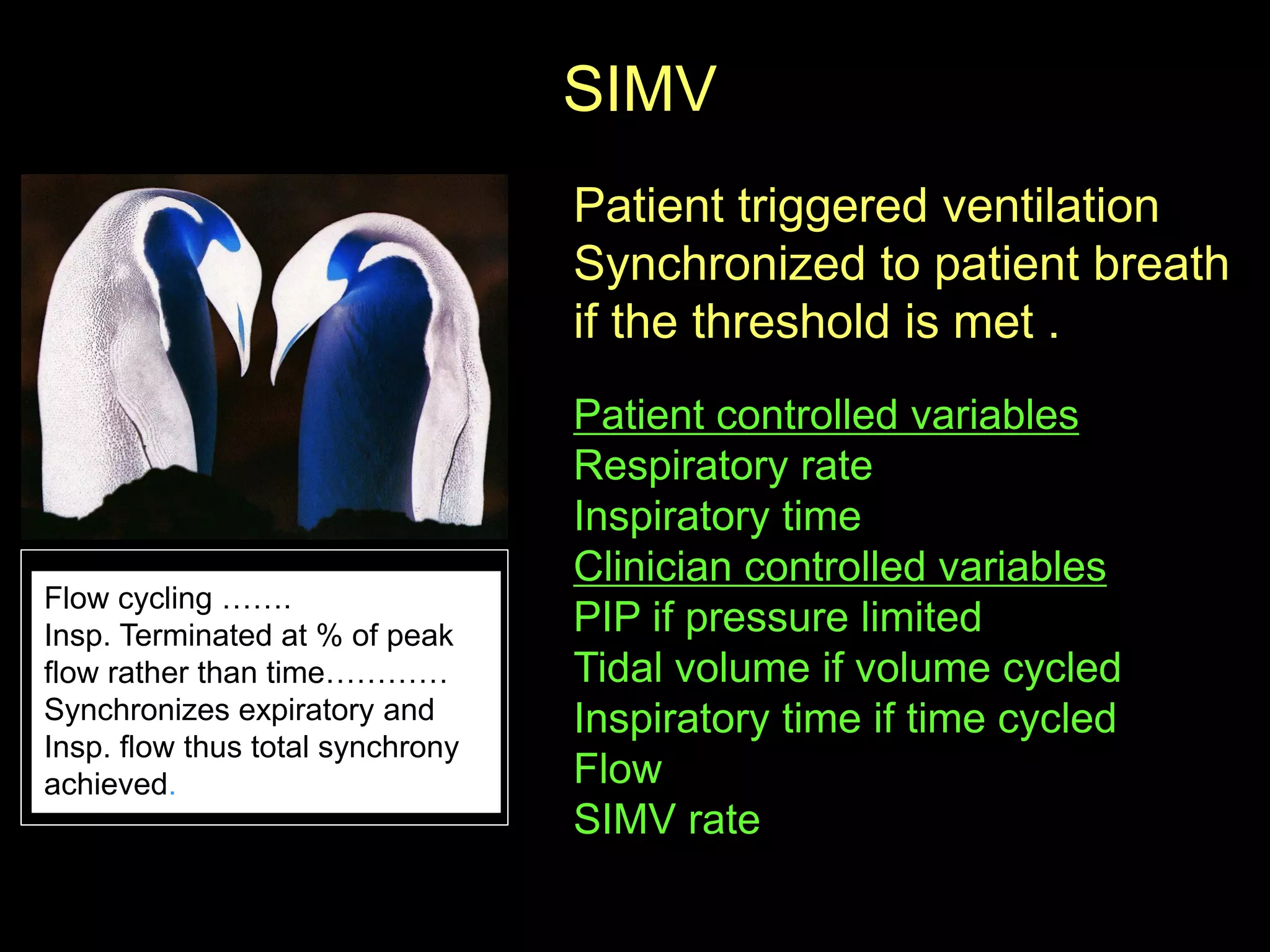

SIMV
Patient triggered ventilation
Synchronized to patient breath
if the threshold is met .
Patient controlled variables
Respiratory rate
Inspiratory time
Clinician controlled variables
PIP if pressure limited
Tidal volume if volume cycled
Inspiratory time if time cycled
Flow
SIMV rate
Flow cycling …….
Insp. Terminated at % of peak
flow rather than time…………
Synchronizes expiratory and
Insp. flow thus total synchrony
achieved.

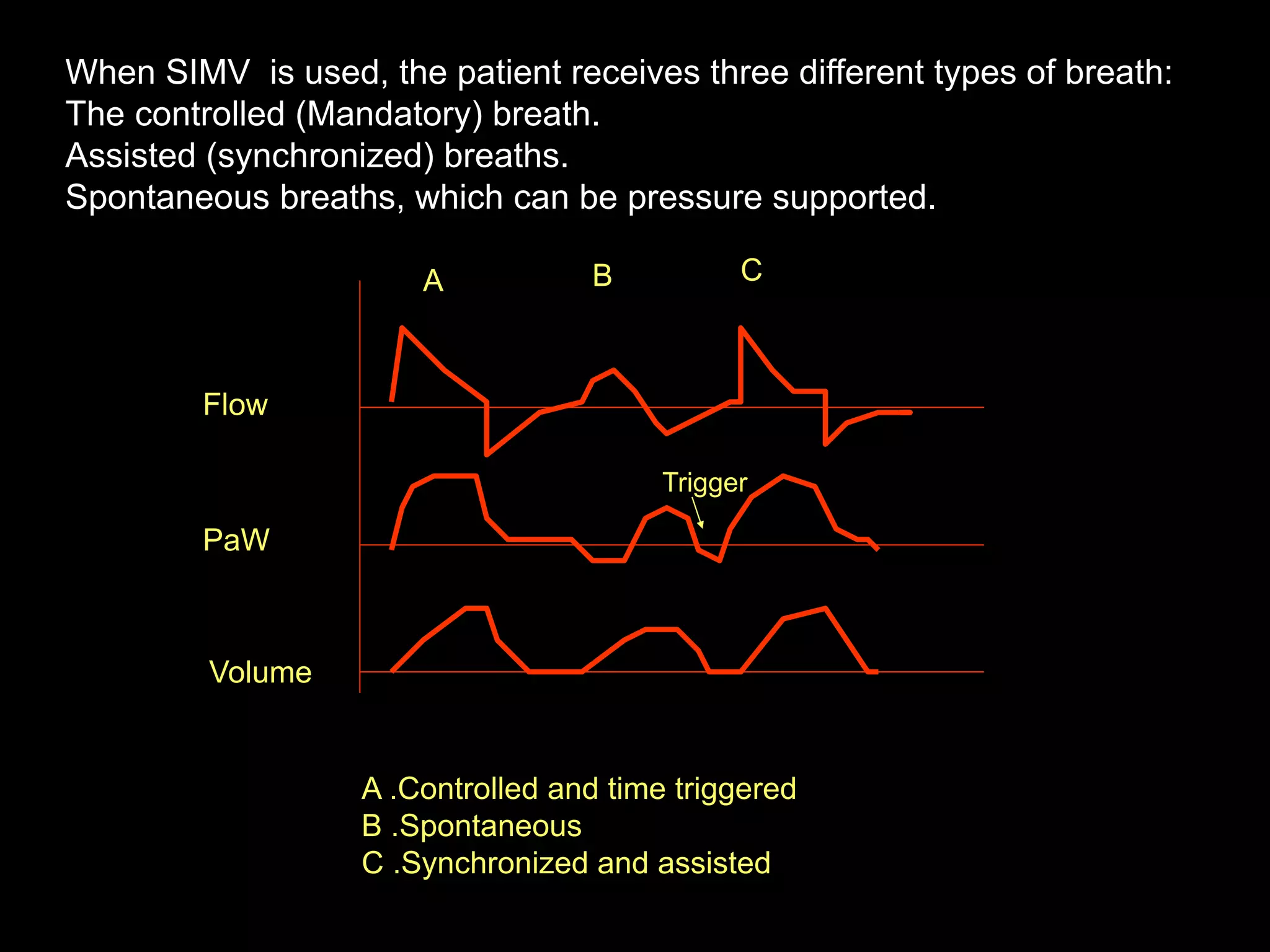

When SIMV is used, the patient receives three different types of breath:
The controlled (Mandatory) breath.
Assisted (synchronized) breaths.
Spontaneous breaths, which can be pressure supported.
A B C
A .Controlled and time triggered
B .Spontaneous
C .Synchronized and assisted
Flow
PaW
Volume
Trigger
Spontaneous
breath
Assisted breath

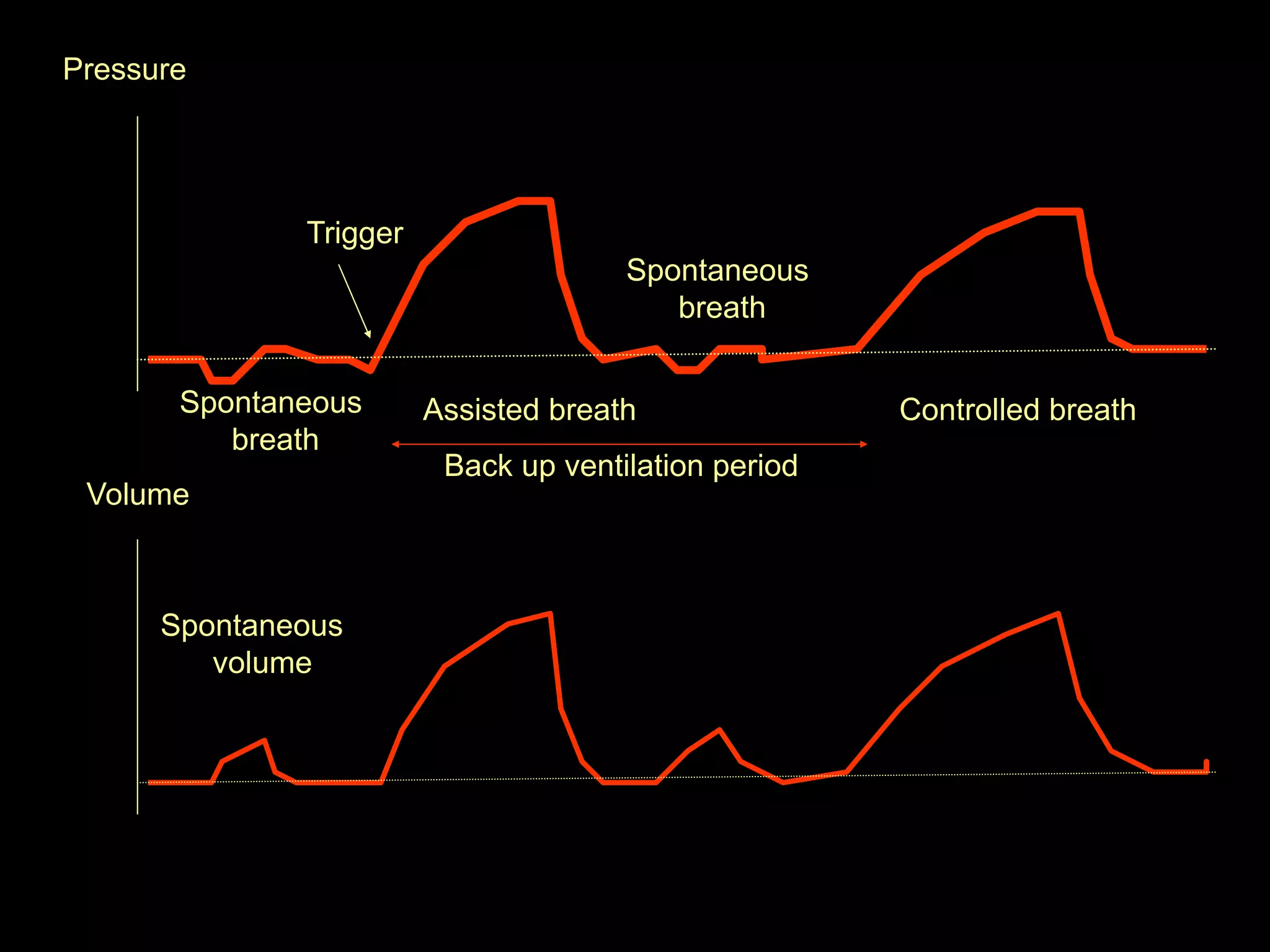

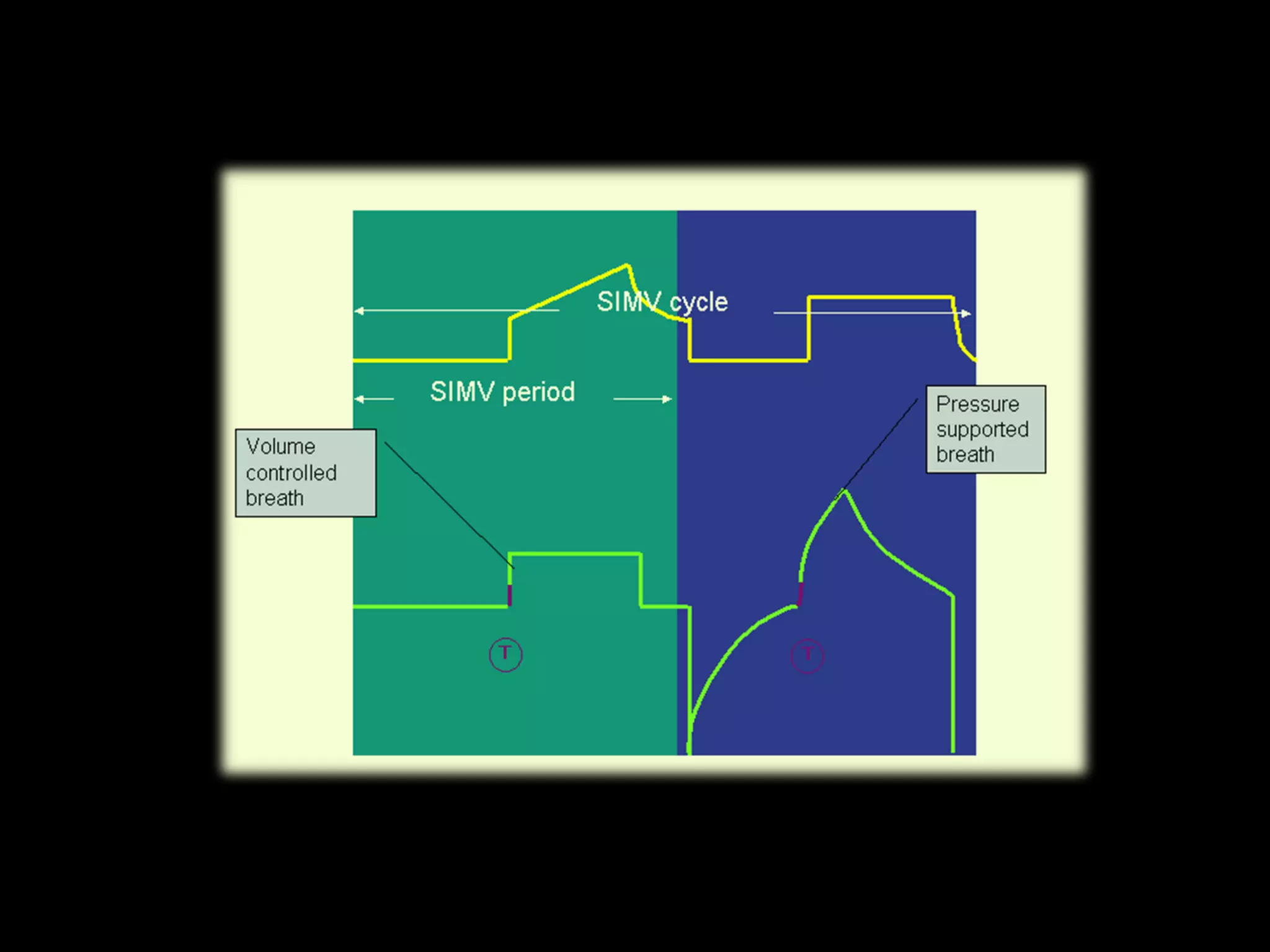

Back up ventilation period
Controlled breath
Spontaneous
volume
Trigger
Spontaneous
breath
Pressure
Volume

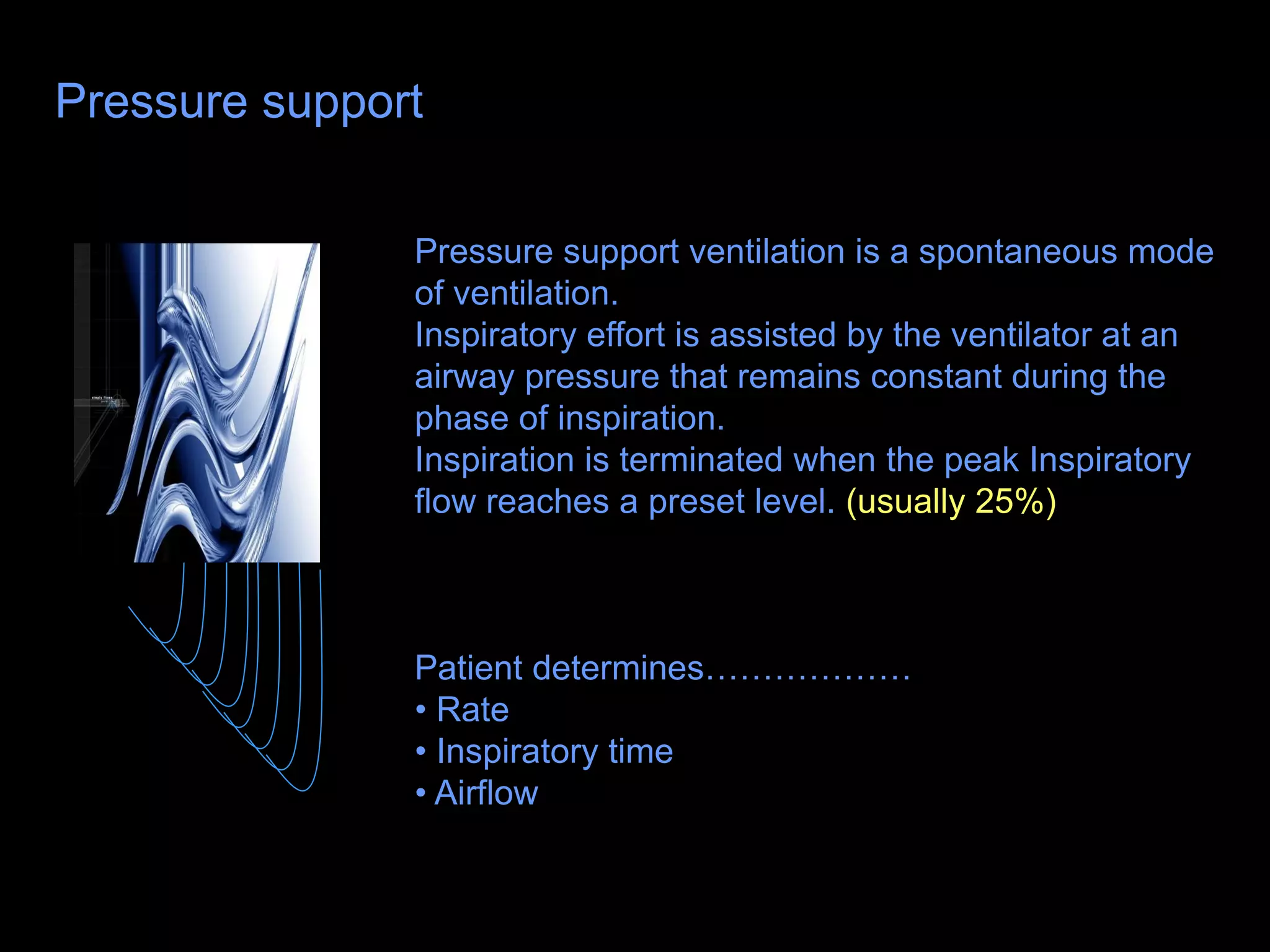

Pressure support
Pressure support ventilation is a spontaneous mode
of ventilation.
Inspiratory effort is assisted by the ventilator at an
airway pressure that remains constant during the
phase of inspiration.
Inspiration is terminated when the peak Inspiratory
flow reaches a preset level. (usually 25%)
Patient determines………………
• Rate
• Inspiratory time
• Airflow

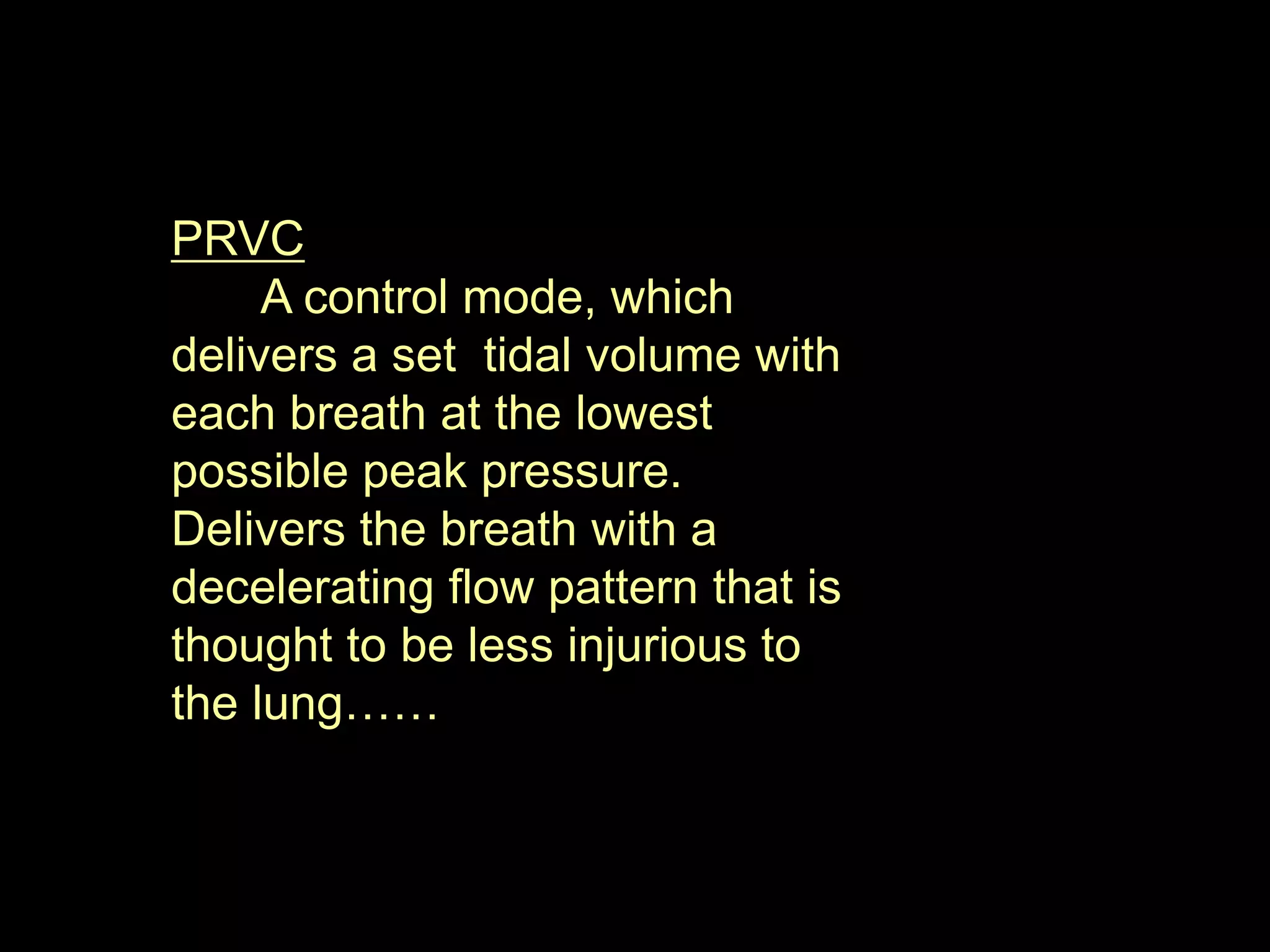

PRVC
A control mode, which
delivers a set tidal volume with
each breath at the lowest
possible peak pressure.
Delivers the breath with a
decelerating flow pattern that is
thought to be less injurious to
the lung……

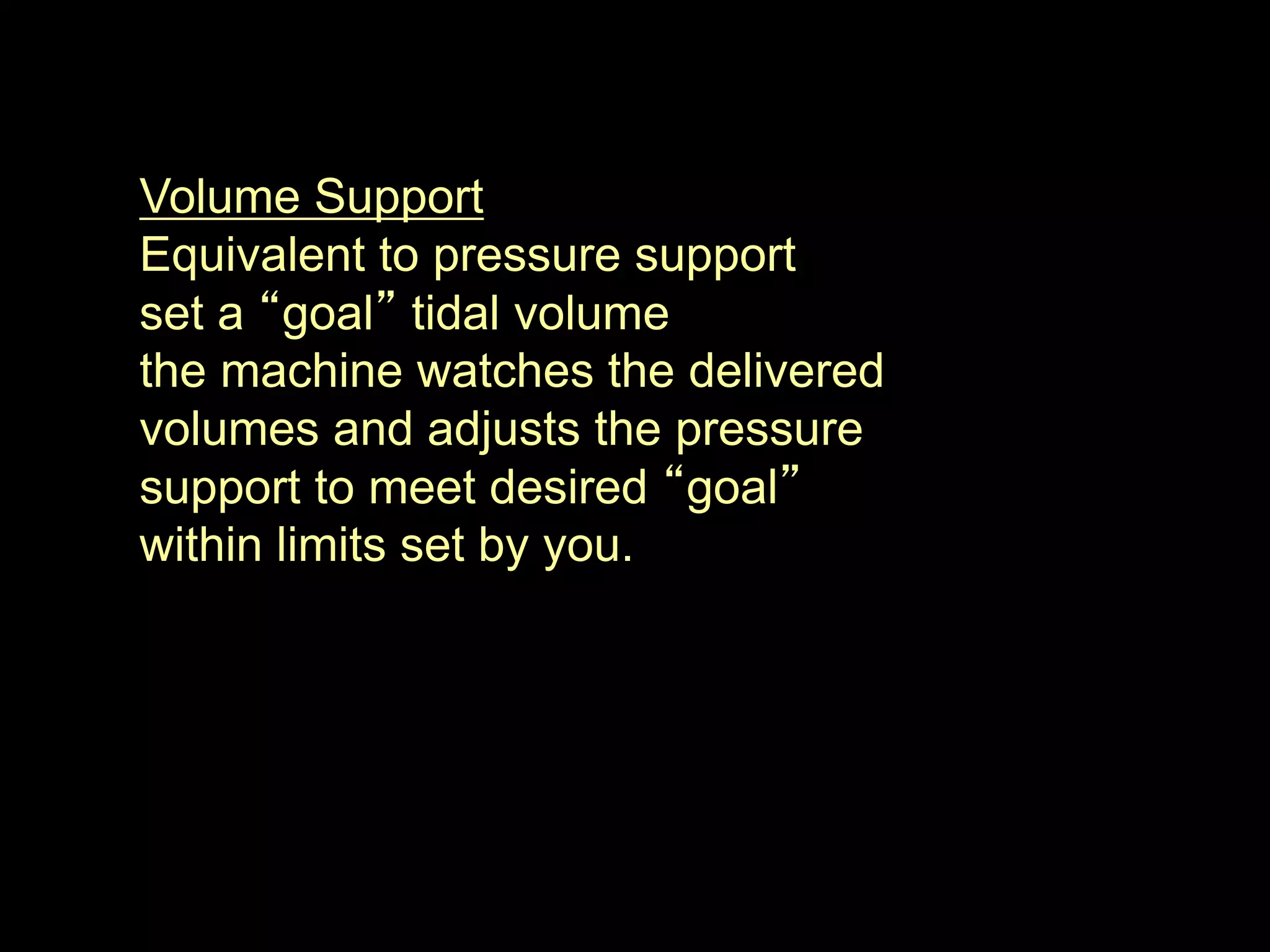

Volume Support
Equivalent to pressure support
set a “goal” tidal volume
the machine watches the delivered
volumes and adjusts the pressure
support to meet desired “goal”
within limits set by you.

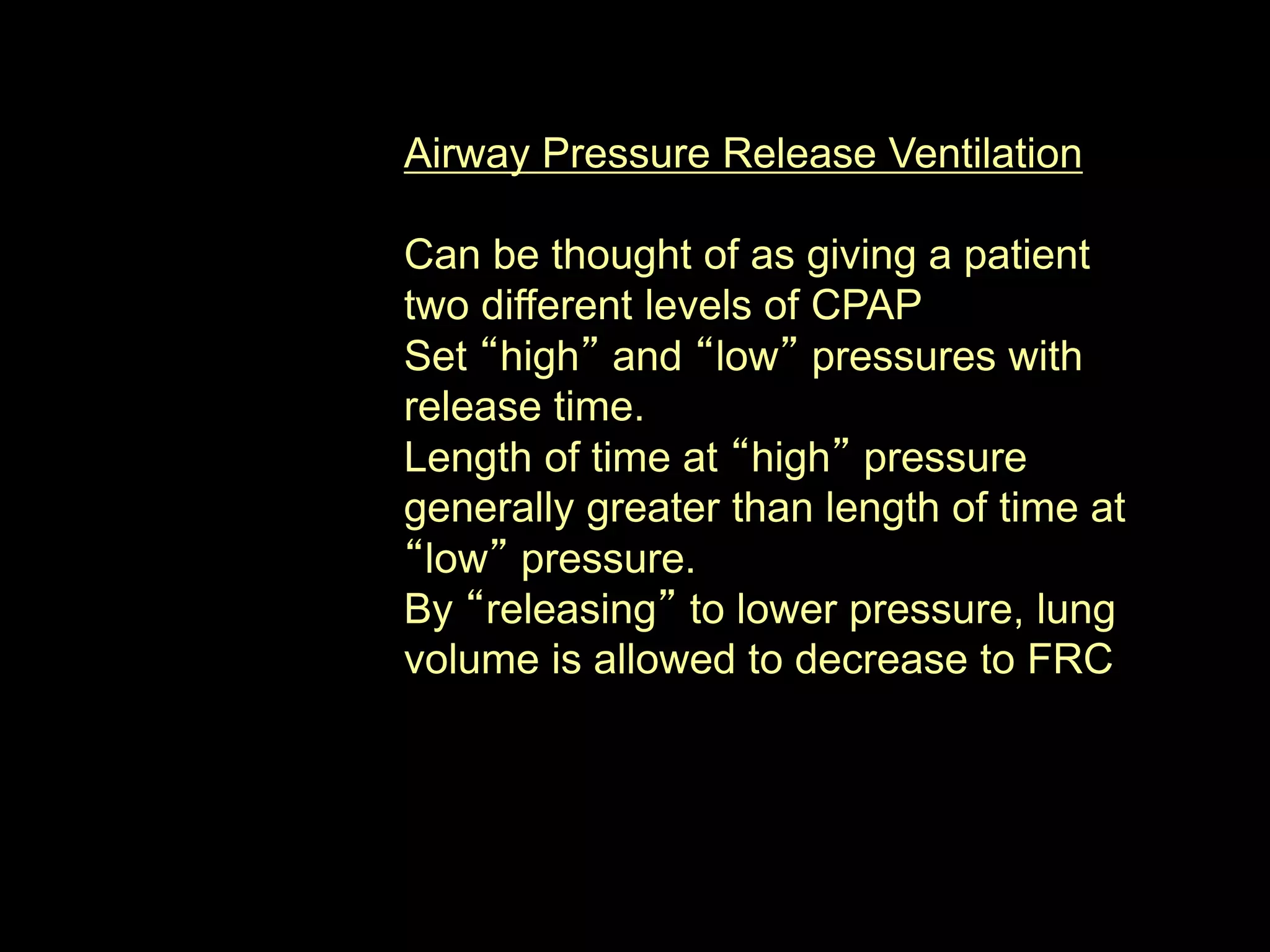

Airway Pressure Release Ventilation
Can be thought of as giving a patient
two different levels of CPAP
Set “high” and “low” pressures with
release time.
Length of time at “high” pressure
generally greater than length of time at
“low” pressure.
By “releasing” to lower pressure, lung
volume is allowed to decrease to FRC
Certain other issues

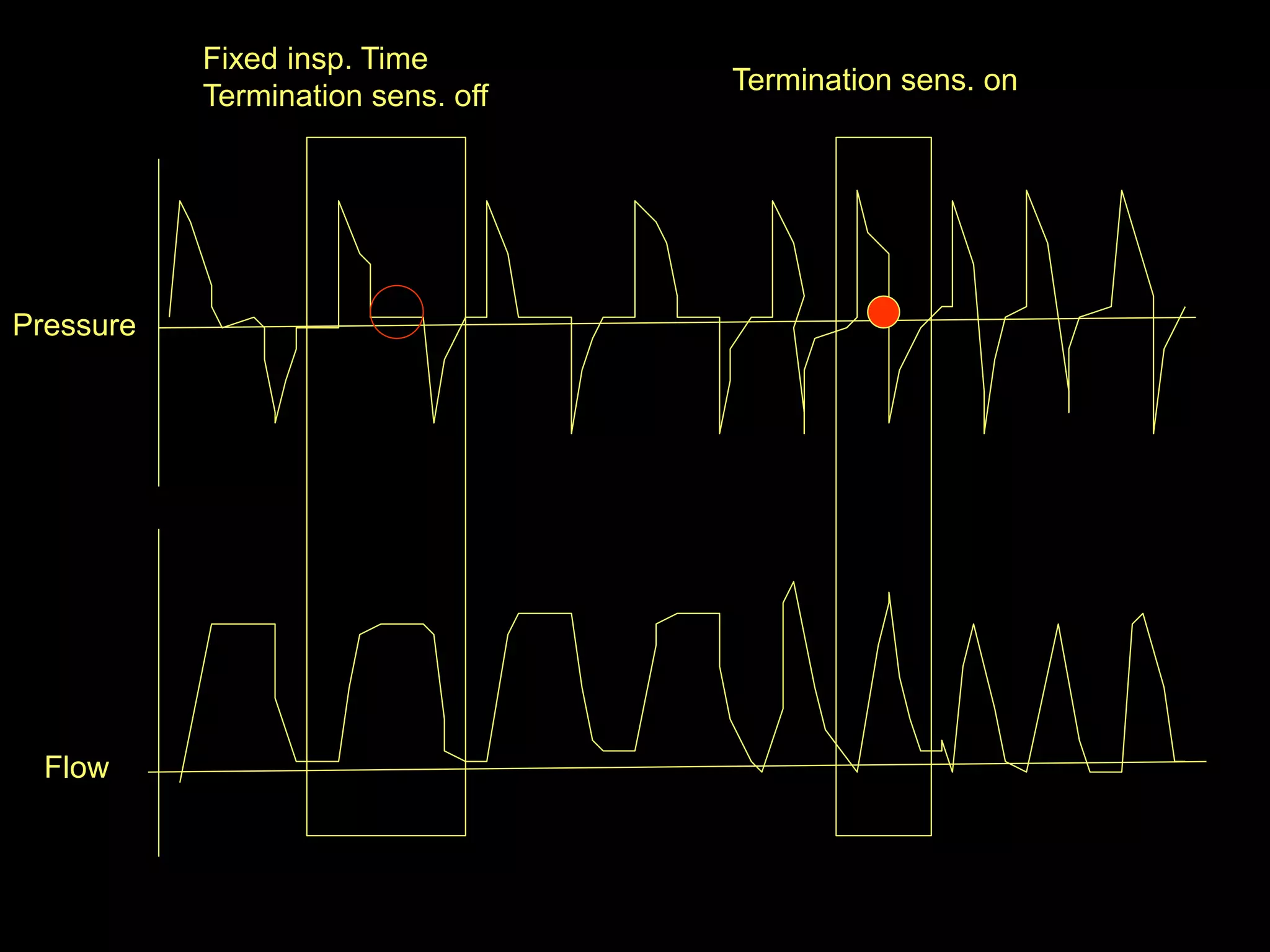

Fixed insp. Time
Termination sens. off
Termination sens. on
Flow
Pressure

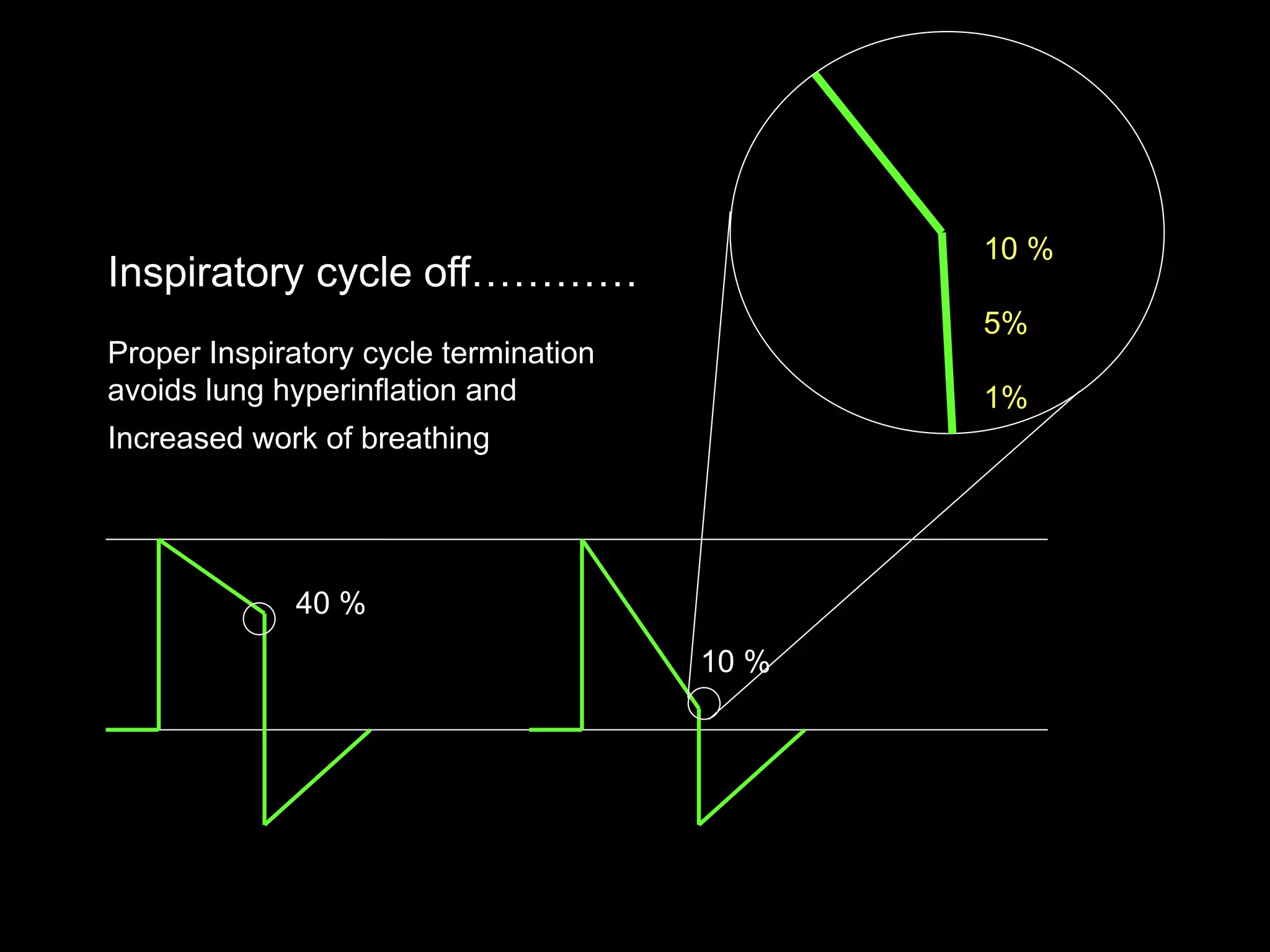

Inspiratory cycle off…………
Proper Inspiratory cycle termination
avoids lung hyperinflation and
Increased work of breathing
40 %
10 %
10 %
5%
1%
PEEP PIP
Vt.
COMPLIANCE LINE

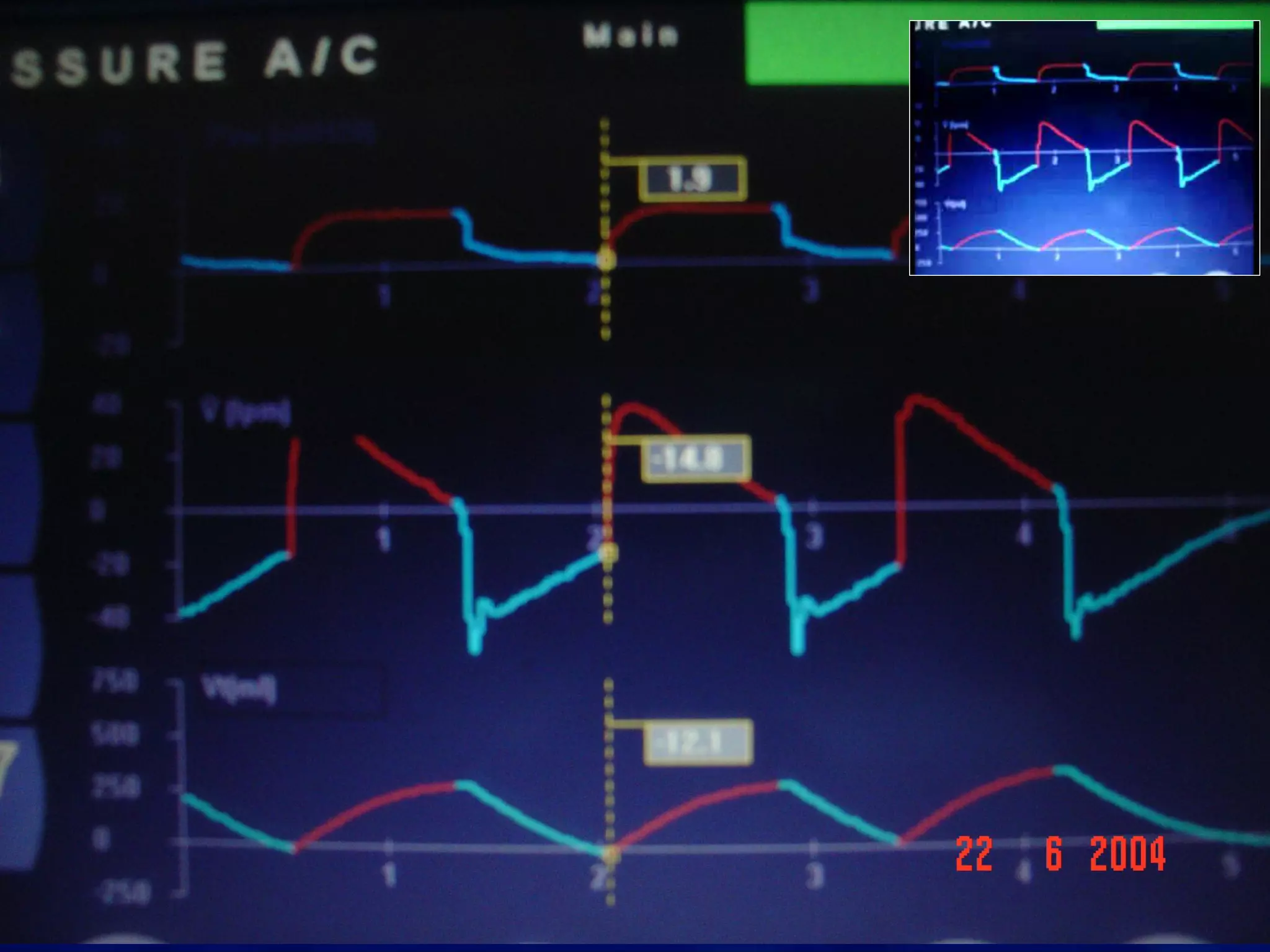

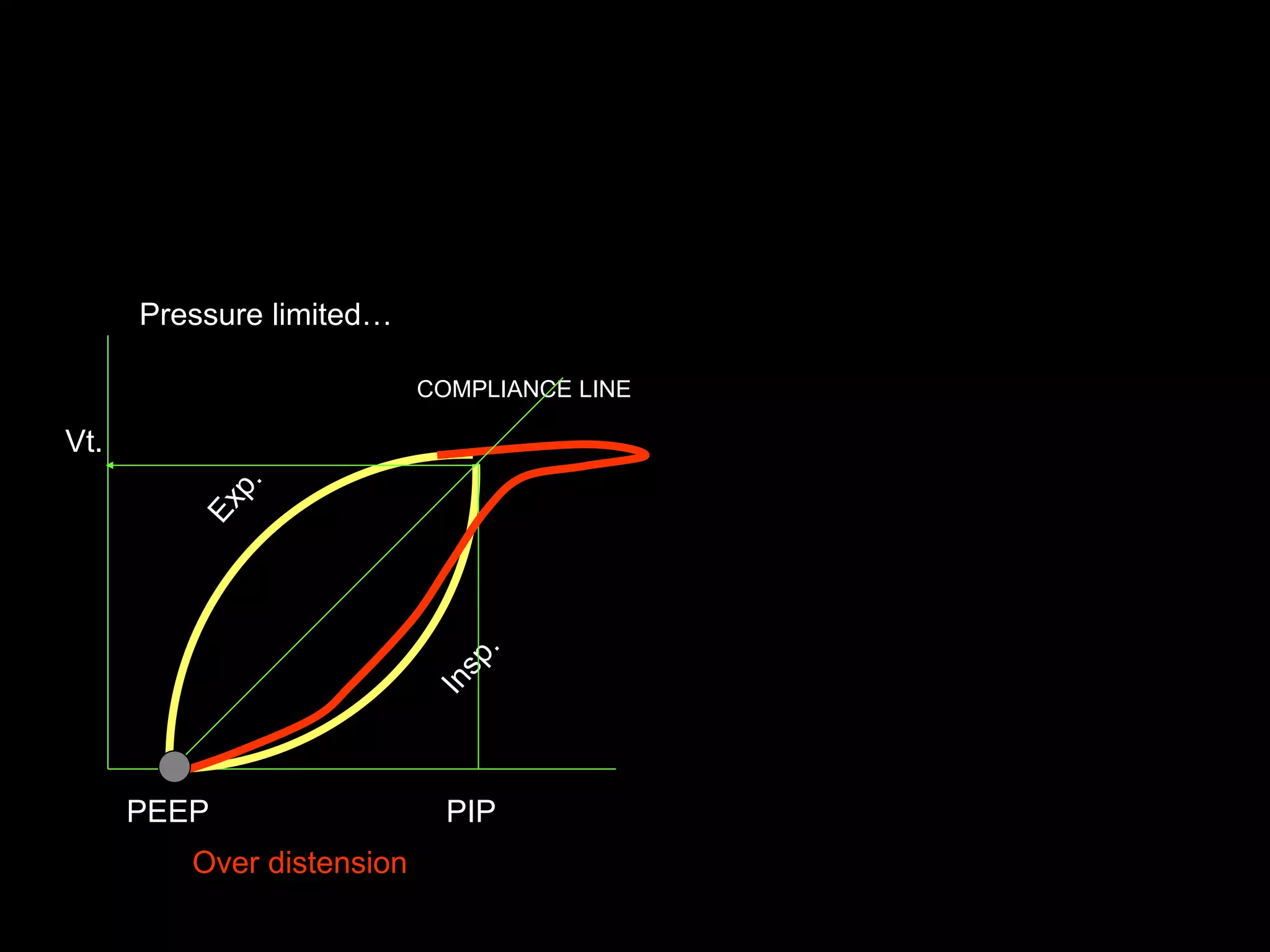

Pressure limited…
Over distension
PEEP PIP
Vt.
COMPLIANCE LINE
Pressure limited…
PEEP PIP
Vt.
COMPLIANCE LINE
Volume limited…

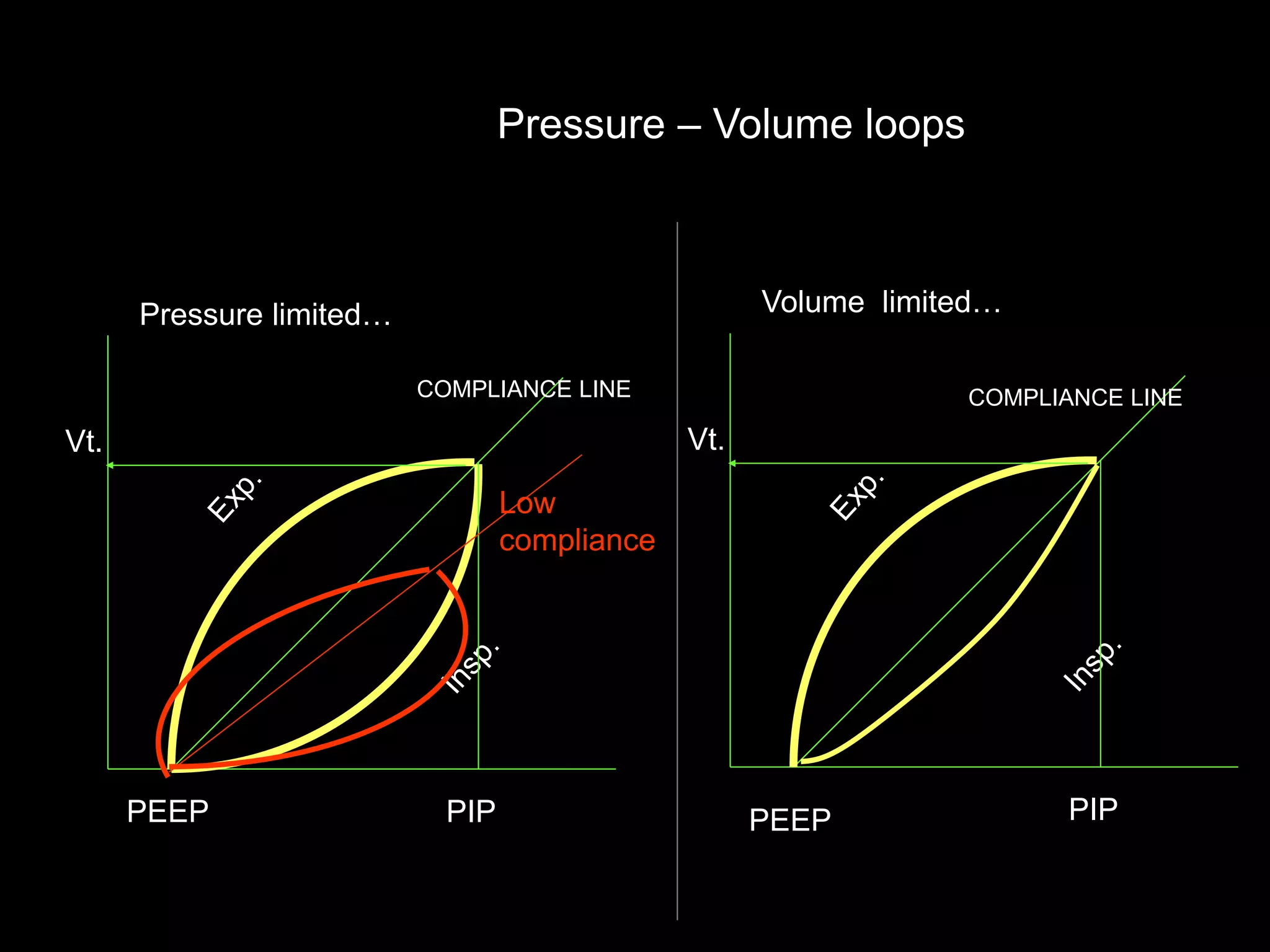

Pressure – Volume loops
Low
compliance
A
B C
D
Volume
Pressure in CM
B C
Volume
Pressure in CMA
D

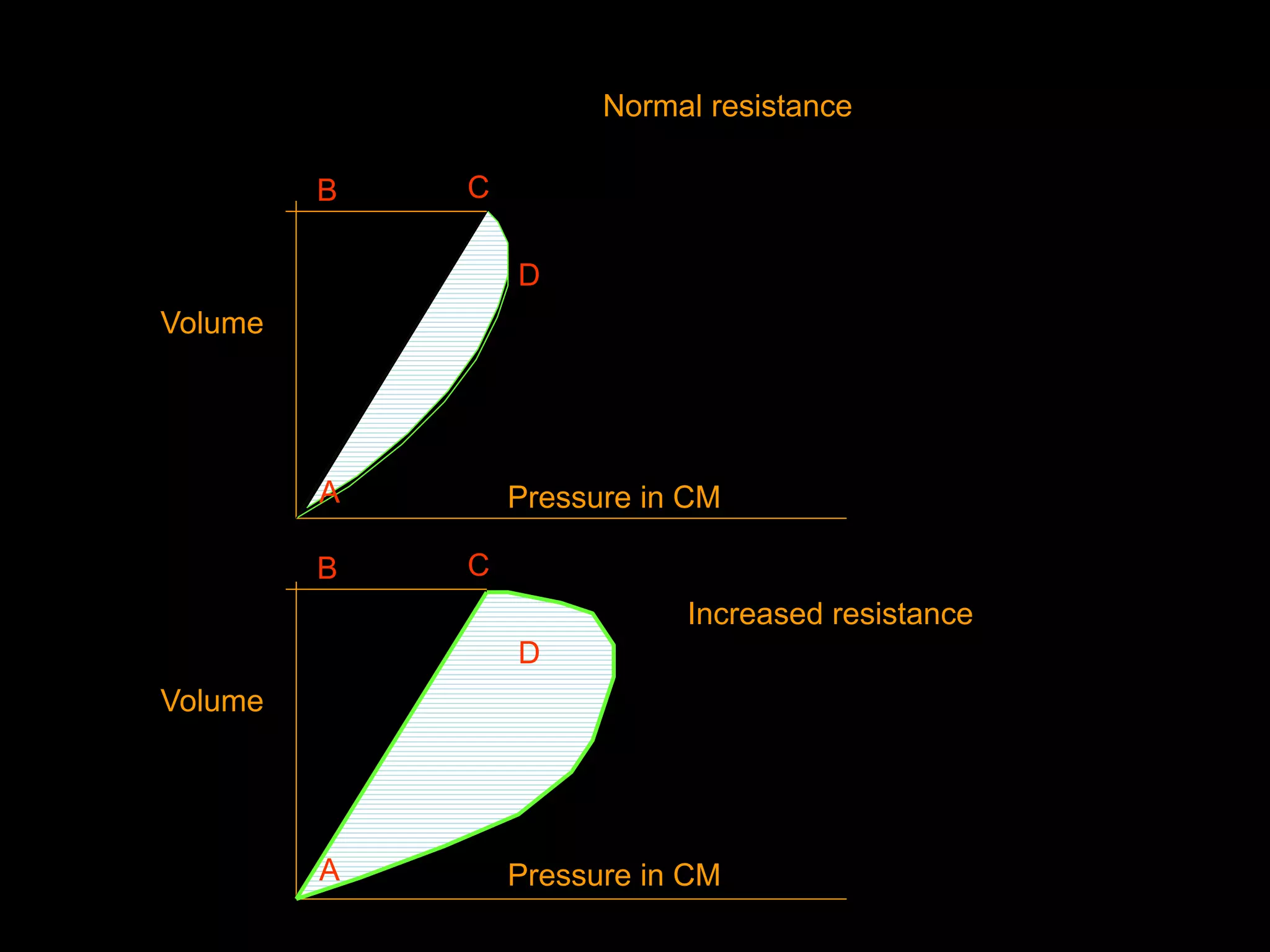

Normal resistance
Increased resistance
volume
Pressure

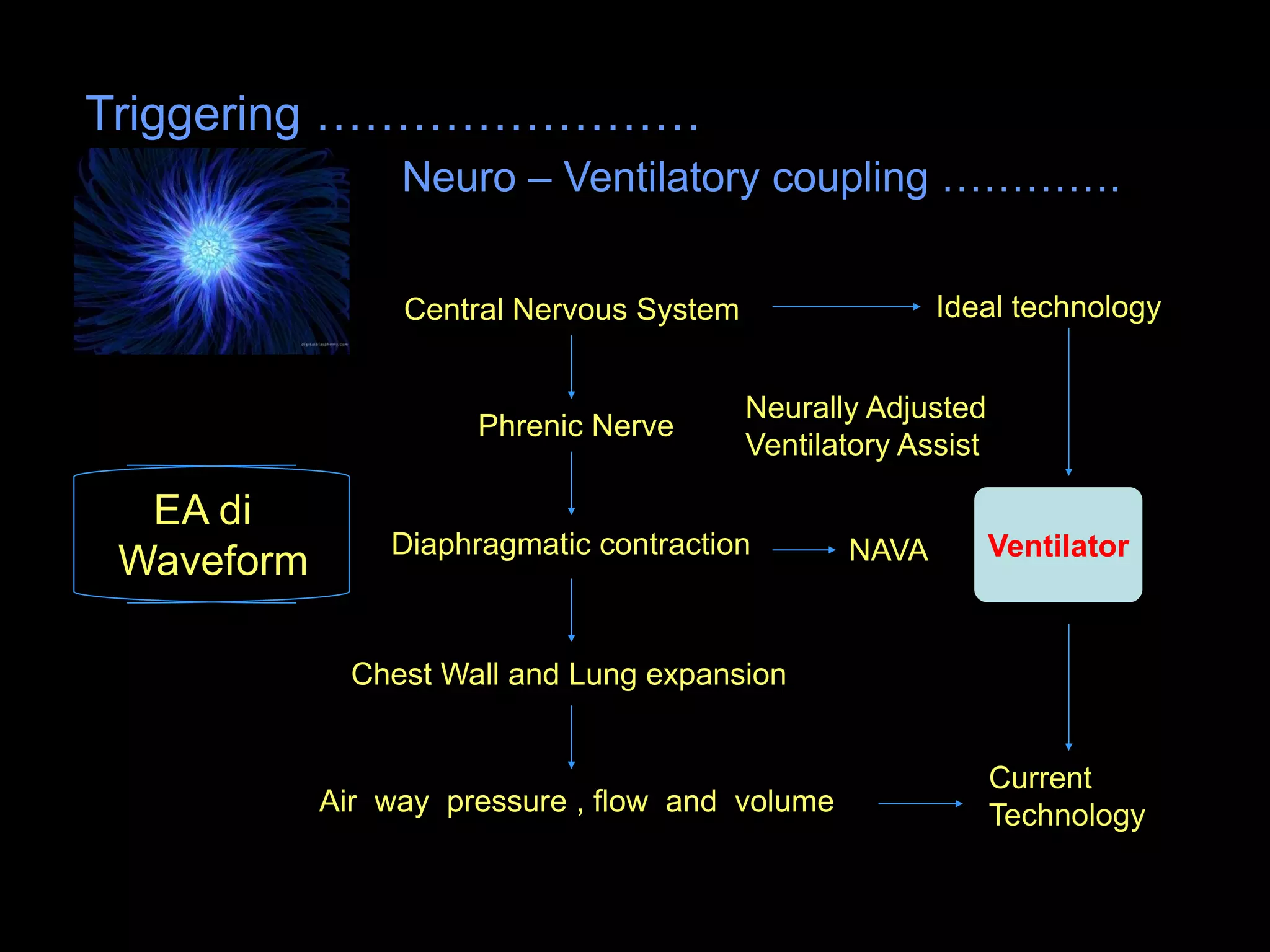

Triggering ……………………
Triggering ……………………
Neuro – Ventilatory coupling ………….
Central Nervous System
Phrenic Nerve
Diaphragmatic contraction
Chest Wall and Lung expansion
Air way pressure , flow and volume
NAVA Ventilator
Current
Technology
Ideal technology
Neurally Adjusted
Ventilatory Assist
EA di
Waveform

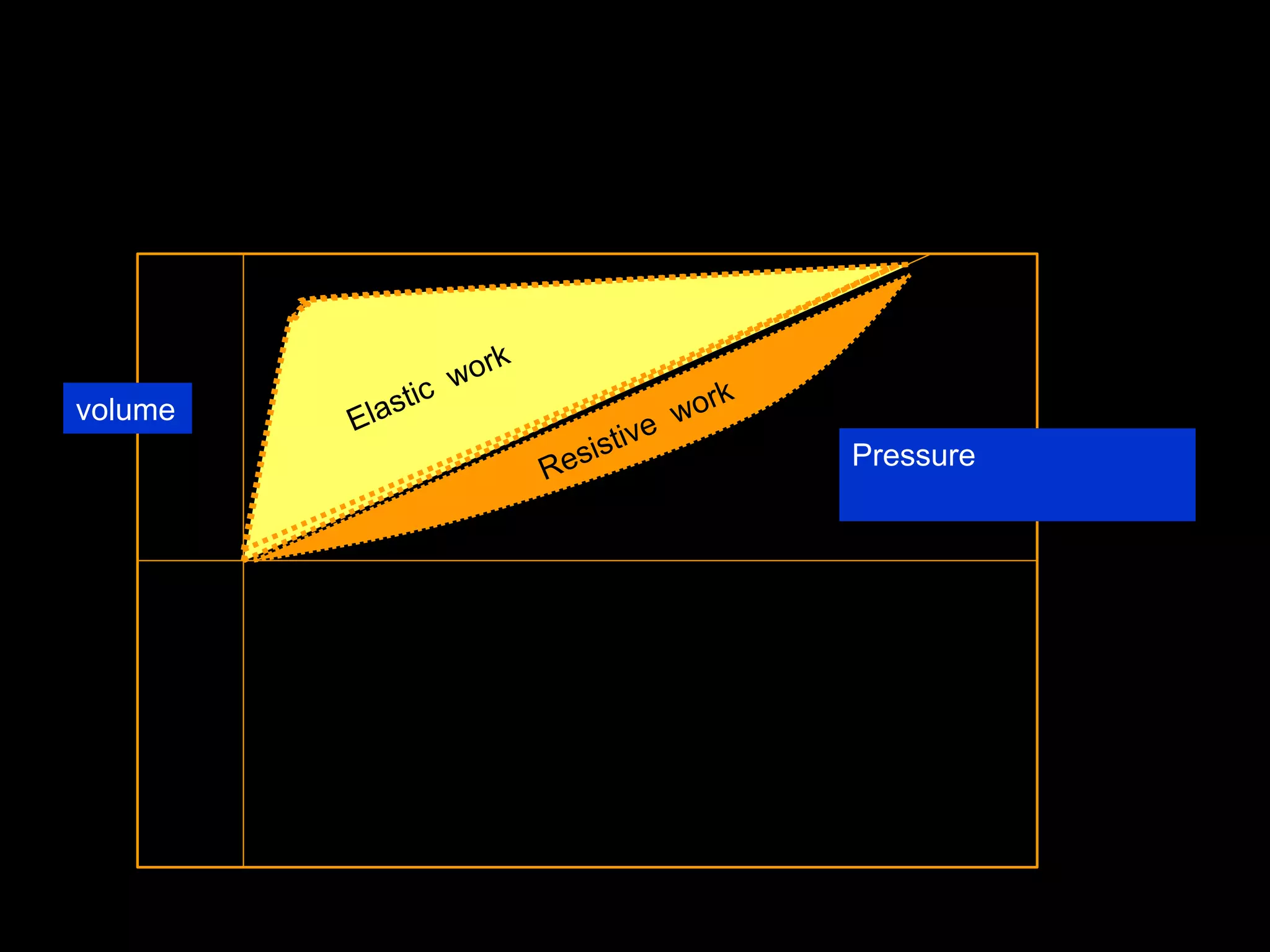

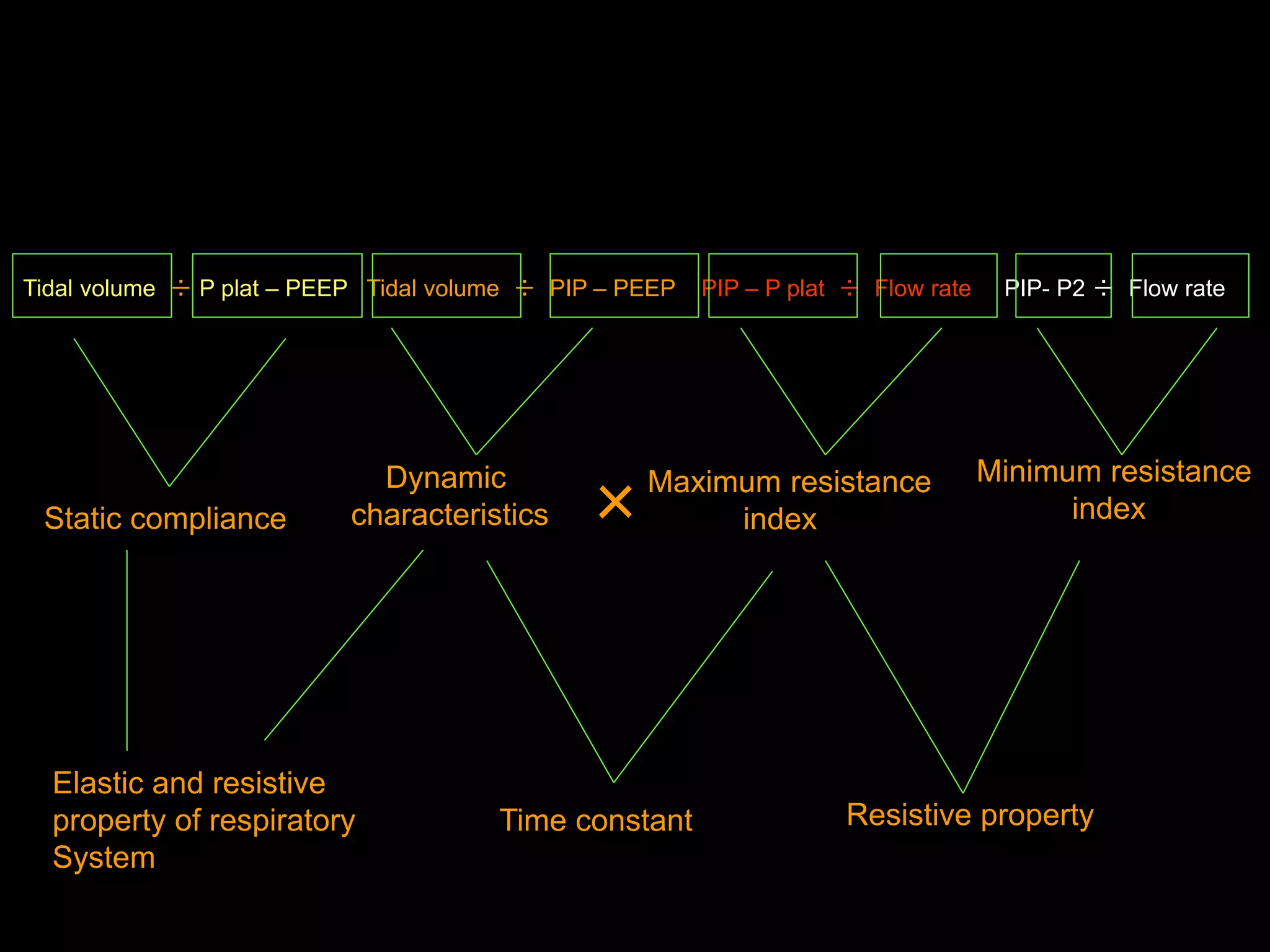

Tidal volume ÷ P plat – PEEP Tidal volume ÷ PIP – PEEP PIP – P plat ÷ Flow rate PIP- P2 ÷ Flow rate
Static compliance
Dynamic
characteristics
Maximum resistance
index
Minimum resistance
index
Elastic and resistive
property of respiratory
System
Time constant
×
Resistive property

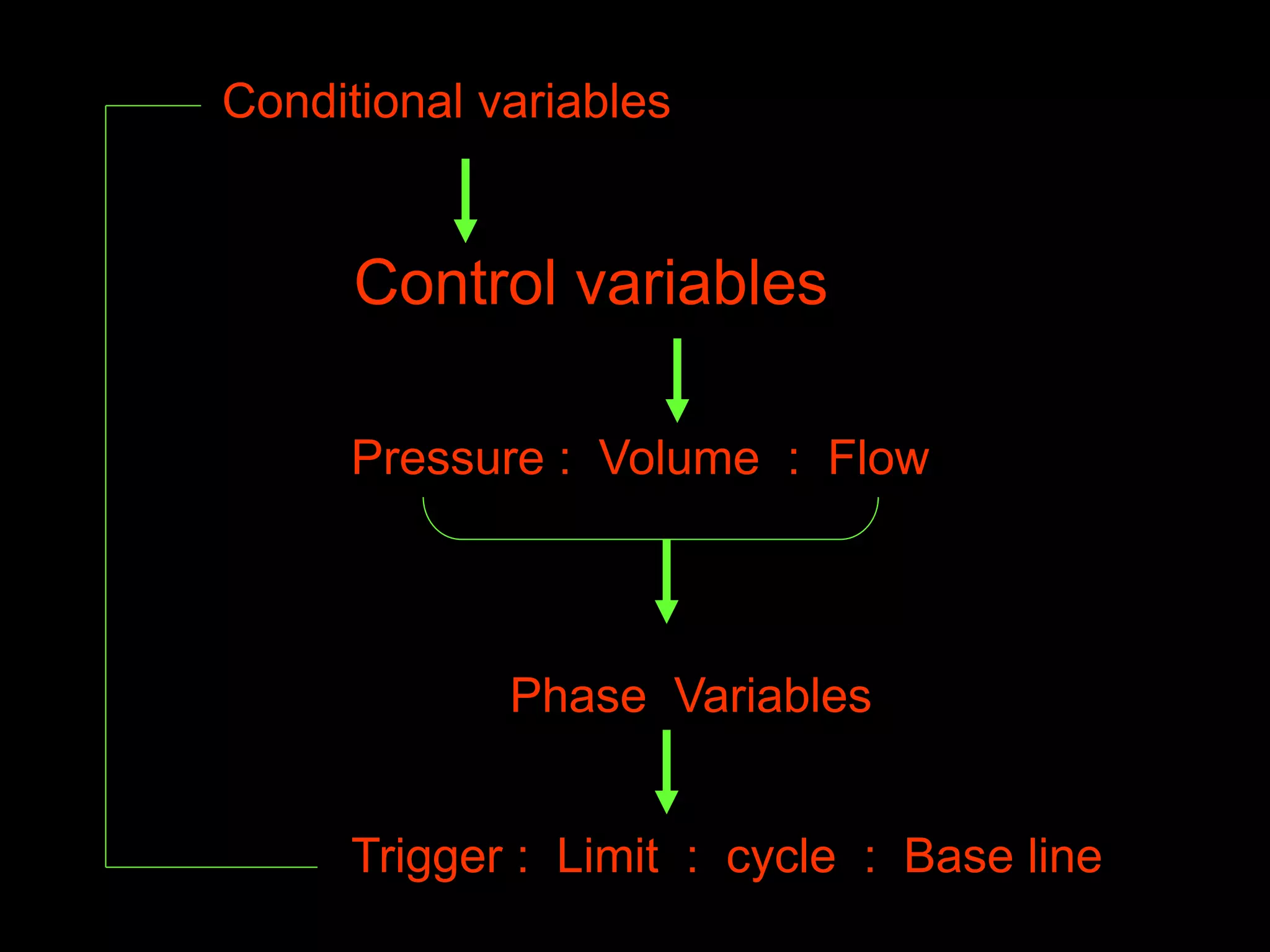

Conditional variables
Control variables
Pressure : Volume : Flow
Phase Variables
Trigger : Limit : cycle : Base line
You can comfortably SLEEP even in difficult situation
if you know your physiology well……………
Thanks
SLEEP

More Related Content

What's hot

Capnography
CapnographyCapnography
Capnography
samirelansary

High frequency oscillatory ventilation
High frequency oscillatory ventilationHigh frequency oscillatory ventilation
High frequency oscillatory ventilation
gnivri1666

Ventilator graphics
Ventilator graphicsVentilator graphics
Ventilator graphics
Prithvi Raj S J

ANESTHESIA FOR TOF SURGERY
ANESTHESIA FOR TOF SURGERYANESTHESIA FOR TOF SURGERY
ANESTHESIA FOR TOF SURGERY
Raju Jadhav

Lung protective strategies grooms
Lung protective strategies   groomsLung protective strategies   grooms
Lung protective strategies grooms
Dang Thanh Tuan

ACLS: Management of Cardiac Arrest 2015
ACLS: Management of Cardiac Arrest 2015ACLS: Management of Cardiac Arrest 2015
ACLS: Management of Cardiac Arrest 2015
Paleenui Jariyakanjana

11 capnography
11 capnography11 capnography
11 capnography
Dang Thanh Tuan

Flotrac
FlotracFlotrac
Flotrac
Vijay Anand

Perioperative myocardial infarction ppt
Perioperative myocardial infarction pptPerioperative myocardial infarction ppt
Perioperative myocardial infarction ppt
Yogasundaram Sasikumar

Vaporizers in Anesthesia
Vaporizers in AnesthesiaVaporizers in Anesthesia
Vaporizers in Anesthesia
Mohin George

Mechanical Ventilation in ARDS vs COPD
Mechanical Ventilation in ARDS vs COPDMechanical Ventilation in ARDS vs COPD
Mechanical Ventilation in ARDS vs COPD
cairo1957

Neuromuscular Monitoring
Neuromuscular MonitoringNeuromuscular Monitoring
Neuromuscular Monitoring
Mohtasib Madaoo

Trouble shooting of mechanical ventilator
Trouble shooting of mechanical ventilatorTrouble shooting of mechanical ventilator
Trouble shooting of mechanical ventilator
Ankit Gajjar

Modes of mechanical ventilation
Modes of mechanical ventilationModes of mechanical ventilation
Modes of mechanical ventilation
shashikantsharma109

Conv. ventilation physi
Conv. ventilation physiConv. ventilation physi
Conv. ventilation physi
samirelansary

Non-Invasive Ventilation
Non-Invasive VentilationNon-Invasive Ventilation
Non-Invasive Ventilation
SCGH ED CME

High Frequency Ventillation
High Frequency VentillationHigh Frequency Ventillation
High Frequency Ventillation
Dr.Mahmoud Abbas

Patient ventilator interactions during mechanical ventilation
Patient ventilator interactions during mechanical ventilationPatient ventilator interactions during mechanical ventilation
Patient ventilator interactions during mechanical ventilation
Dr.Mahmoud Abbas

Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...
Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...
Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...
Ankur Khandelwal

Recruitment Maneuvers in ARDS Dr Chennamchetty Vijay Kumar
Recruitment  Maneuvers in ARDS Dr Chennamchetty Vijay KumarRecruitment  Maneuvers in ARDS Dr Chennamchetty Vijay Kumar
Recruitment Maneuvers in ARDS Dr Chennamchetty Vijay Kumar
Vizae Kumar Chennam


What's hot (20)

Capnography
CapnographyCapnography
Capnography

High frequency oscillatory ventilation
High frequency oscillatory ventilationHigh frequency oscillatory ventilation
High frequency oscillatory ventilation

Ventilator graphics
Ventilator graphicsVentilator graphics
Ventilator graphics

ANESTHESIA FOR TOF SURGERY
ANESTHESIA FOR TOF SURGERYANESTHESIA FOR TOF SURGERY
ANESTHESIA FOR TOF SURGERY

Lung protective strategies grooms
Lung protective strategies   groomsLung protective strategies   grooms
Lung protective strategies grooms

ACLS: Management of Cardiac Arrest 2015
ACLS: Management of Cardiac Arrest 2015ACLS: Management of Cardiac Arrest 2015
ACLS: Management of Cardiac Arrest 2015

11 capnography
11 capnography11 capnography
11 capnography

Flotrac
FlotracFlotrac
Flotrac

Perioperative myocardial infarction ppt
Perioperative myocardial infarction pptPerioperative myocardial infarction ppt
Perioperative myocardial infarction ppt

Vaporizers in Anesthesia
Vaporizers in AnesthesiaVaporizers in Anesthesia
Vaporizers in Anesthesia

Mechanical Ventilation in ARDS vs COPD
Mechanical Ventilation in ARDS vs COPDMechanical Ventilation in ARDS vs COPD
Mechanical Ventilation in ARDS vs COPD

Neuromuscular Monitoring
Neuromuscular MonitoringNeuromuscular Monitoring
Neuromuscular Monitoring

Trouble shooting of mechanical ventilator
Trouble shooting of mechanical ventilatorTrouble shooting of mechanical ventilator
Trouble shooting of mechanical ventilator

Modes of mechanical ventilation
Modes of mechanical ventilationModes of mechanical ventilation
Modes of mechanical ventilation

Conv. ventilation physi
Conv. ventilation physiConv. ventilation physi
Conv. ventilation physi

Non-Invasive Ventilation
Non-Invasive VentilationNon-Invasive Ventilation
Non-Invasive Ventilation

High Frequency Ventillation
High Frequency VentillationHigh Frequency Ventillation
High Frequency Ventillation

Patient ventilator interactions during mechanical ventilation
Patient ventilator interactions during mechanical ventilationPatient ventilator interactions during mechanical ventilation
Patient ventilator interactions during mechanical ventilation

Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...
Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...
Anaesthetic management of a patient with mitral stenosis put for non-cardiac ...

Recruitment Maneuvers in ARDS Dr Chennamchetty Vijay Kumar
Recruitment  Maneuvers in ARDS Dr Chennamchetty Vijay KumarRecruitment  Maneuvers in ARDS Dr Chennamchetty Vijay Kumar
Recruitment Maneuvers in ARDS Dr Chennamchetty Vijay Kumar


Similar to Physics of Ventilation

Physics of mechanical ventilation
Physics of mechanical ventilationPhysics of mechanical ventilation
Physics of mechanical ventilation
Satish Deopujari

Peds basicprinciplesmechanicalventilation
Peds basicprinciplesmechanicalventilationPeds basicprinciplesmechanicalventilation
Peds basicprinciplesmechanicalventilation
Loveis1able Khumpuangdee

Modes of ventilation exams 2014
Modes of ventilation exams 2014 Modes of ventilation exams 2014
Modes of ventilation exams 2014
Maninder Dhaliwal

Modes of ventilation exams 2014
Modes of ventilation exams 2014 Modes of ventilation exams 2014
Modes of ventilation exams 2014
Maninder Dhaliwal

Nk mmc ventilation basics 2017
Nk mmc ventilation basics 2017 Nk mmc ventilation basics 2017
Nk mmc ventilation basics 2017
Narasimhan Krishnan

basics of mechanical ventilator Dr Asaduzzaman.pptx
basics of mechanical ventilator Dr Asaduzzaman.pptxbasics of mechanical ventilator Dr Asaduzzaman.pptx
basics of mechanical ventilator Dr Asaduzzaman.pptx
Dr. Habibur Rahim

Basic of mechanical ventilation
Basic of mechanical ventilationBasic of mechanical ventilation
Basic of mechanical ventilation
Azad Haleem

Modes of mechanical ventilation
Modes of mechanical ventilationModes of mechanical ventilation
Modes of mechanical ventilation
Dharmraj Singh

4.2-Mechanical-Ventilation-Part-II2.ppt
4.2-Mechanical-Ventilation-Part-II2.ppt4.2-Mechanical-Ventilation-Part-II2.ppt
4.2-Mechanical-Ventilation-Part-II2.ppt
Erik Efendi

Basic modes of mv
Basic modes of mvBasic modes of mv
Basic modes of mv
Kumar Abhinav

4- new modes.pptx
4- new modes.pptx4- new modes.pptx
4- new modes.pptx
Mohammed Abdelrahman

mechanical ventilation.pdf
mechanical ventilation.pdfmechanical ventilation.pdf
mechanical ventilation.pdf
Mohit Roy

Mechanical Ventilation Lecture Presentation.pptx
Mechanical Ventilation Lecture Presentation.pptxMechanical Ventilation Lecture Presentation.pptx
Mechanical Ventilation Lecture Presentation.pptx
HanineHassan2

Basic mode of mechanical ventilation..pptx
Basic mode of mechanical ventilation..pptxBasic mode of mechanical ventilation..pptx
Basic mode of mechanical ventilation..pptx
denjow87

Ventilator mode classification
Ventilator mode classificationVentilator mode classification
Ventilator mode classification
Jeevanlal K M

Mechanical ventilation
Mechanical ventilationMechanical ventilation
Mechanical ventilation
Hossam atef

Mechanical ventilation in neonates by dr naved akhter
Mechanical ventilation in neonates by dr naved akhterMechanical ventilation in neonates by dr naved akhter
Mechanical ventilation in neonates by dr naved akhter
Dr Naved Akhter

Modes of Mechanical Ventilation: The Essentials
Modes of Mechanical Ventilation: The EssentialsModes of Mechanical Ventilation: The Essentials
Modes of Mechanical Ventilation: The Essentials
Dr.Mahmoud Abbas

Basic modes of mechanical ventilation
Basic modes of mechanical ventilationBasic modes of mechanical ventilation
Basic modes of mechanical ventilation
Lokesh Tiwari

Basic Concepts -Neo Ventilation.pptx
Basic Concepts -Neo Ventilation.pptxBasic Concepts -Neo Ventilation.pptx
Basic Concepts -Neo Ventilation.pptx
MedicalSuperintenden19


Similar to Physics of Ventilation (20)

Physics of mechanical ventilation
Physics of mechanical ventilationPhysics of mechanical ventilation
Physics of mechanical ventilation

Peds basicprinciplesmechanicalventilation
Peds basicprinciplesmechanicalventilationPeds basicprinciplesmechanicalventilation
Peds basicprinciplesmechanicalventilation

Modes of ventilation exams 2014
Modes of ventilation exams 2014 Modes of ventilation exams 2014
Modes of ventilation exams 2014

Modes of ventilation exams 2014
Modes of ventilation exams 2014 Modes of ventilation exams 2014
Modes of ventilation exams 2014

Nk mmc ventilation basics 2017
Nk mmc ventilation basics 2017 Nk mmc ventilation basics 2017
Nk mmc ventilation basics 2017

basics of mechanical ventilator Dr Asaduzzaman.pptx
basics of mechanical ventilator Dr Asaduzzaman.pptxbasics of mechanical ventilator Dr Asaduzzaman.pptx
basics of mechanical ventilator Dr Asaduzzaman.pptx

Basic of mechanical ventilation
Basic of mechanical ventilationBasic of mechanical ventilation
Basic of mechanical ventilation

Modes of mechanical ventilation
Modes of mechanical ventilationModes of mechanical ventilation
Modes of mechanical ventilation

4.2-Mechanical-Ventilation-Part-II2.ppt
4.2-Mechanical-Ventilation-Part-II2.ppt4.2-Mechanical-Ventilation-Part-II2.ppt
4.2-Mechanical-Ventilation-Part-II2.ppt

Basic modes of mv
Basic modes of mvBasic modes of mv
Basic modes of mv

4- new modes.pptx
4- new modes.pptx4- new modes.pptx
4- new modes.pptx

mechanical ventilation.pdf
mechanical ventilation.pdfmechanical ventilation.pdf
mechanical ventilation.pdf

Mechanical Ventilation Lecture Presentation.pptx
Mechanical Ventilation Lecture Presentation.pptxMechanical Ventilation Lecture Presentation.pptx
Mechanical Ventilation Lecture Presentation.pptx

Basic mode of mechanical ventilation..pptx
Basic mode of mechanical ventilation..pptxBasic mode of mechanical ventilation..pptx
Basic mode of mechanical ventilation..pptx

Ventilator mode classification
Ventilator mode classificationVentilator mode classification
Ventilator mode classification

Mechanical ventilation
Mechanical ventilationMechanical ventilation
Mechanical ventilation

Mechanical ventilation in neonates by dr naved akhter
Mechanical ventilation in neonates by dr naved akhterMechanical ventilation in neonates by dr naved akhter
Mechanical ventilation in neonates by dr naved akhter

Modes of Mechanical Ventilation: The Essentials
Modes of Mechanical Ventilation: The EssentialsModes of Mechanical Ventilation: The Essentials
Modes of Mechanical Ventilation: The Essentials

Basic modes of mechanical ventilation
Basic modes of mechanical ventilationBasic modes of mechanical ventilation
Basic modes of mechanical ventilation

Basic Concepts -Neo Ventilation.pptx
Basic Concepts -Neo Ventilation.pptxBasic Concepts -Neo Ventilation.pptx
Basic Concepts -Neo Ventilation.pptx


More from Creativity Please

Kinetic Gears Company Profile - February 2024
Kinetic Gears Company Profile - February 2024Kinetic Gears Company Profile - February 2024
Kinetic Gears Company Profile - February 2024
Creativity Please

EC-Letter : Ran Chemical Pvt. Ltd.
EC-Letter : Ran Chemical Pvt. Ltd.EC-Letter : Ran Chemical Pvt. Ltd.
EC-Letter : Ran Chemical Pvt. Ltd.
Creativity Please

Diwali 2022 Art Presentation.pdf
Diwali 2022 Art Presentation.pdfDiwali 2022 Art Presentation.pdf
Diwali 2022 Art Presentation.pdf
Creativity Please

Udyog Times - June 2022 - Laghu Udyog Bharati
Udyog Times - June 2022 - Laghu Udyog BharatiUdyog Times - June 2022 - Laghu Udyog Bharati
Udyog Times - June 2022 - Laghu Udyog Bharati
Creativity Please

Kinetic Gears Profile
Kinetic Gears ProfileKinetic Gears Profile
Kinetic Gears Profile
Creativity Please

Udyog Times - January 2022 - Laghu Udyog Bharati
Udyog Times - January 2022 - Laghu Udyog BharatiUdyog Times - January 2022 - Laghu Udyog Bharati
Udyog Times - January 2022 - Laghu Udyog Bharati
Creativity Please

Udyog Times - December 2021 - laghu udyog bharati
Udyog Times - December 2021 - laghu udyog bharatiUdyog Times - December 2021 - laghu udyog bharati
Udyog Times - December 2021 - laghu udyog bharati
Creativity Please

Udyog times - Laghu udyog Bharati - November 2021
Udyog times  - Laghu udyog Bharati - November 2021Udyog times  - Laghu udyog Bharati - November 2021
Udyog times - Laghu udyog Bharati - November 2021
Creativity Please

Udyog times - Laghu udyog Bharati - May 2021
Udyog times  - Laghu udyog Bharati - May 2021Udyog times  - Laghu udyog Bharati - May 2021
Udyog times - Laghu udyog Bharati - May 2021
Creativity Please

Udyog times - Laghu udyog Bharati - March 2021
Udyog times  - Laghu udyog Bharati - March 2021Udyog times  - Laghu udyog Bharati - March 2021
Udyog times - Laghu udyog Bharati - March 2021
Creativity Please

Udyog times - Laghu udyog Bharati - February 2021
Udyog times  - Laghu udyog Bharati - February 2021Udyog times  - Laghu udyog Bharati - February 2021
Udyog times - Laghu udyog Bharati - February 2021
Creativity Please

Udyog times - Laghu udyog Bharati - January 2021
Udyog times  - Laghu udyog Bharati - January 2021Udyog times  - Laghu udyog Bharati - January 2021
Udyog times - Laghu udyog Bharati - January 2021
Creativity Please

Udyog times - Laghu udyog Bharati - April 2021
Udyog times  - Laghu udyog Bharati - April 2021Udyog times  - Laghu udyog Bharati - April 2021
Udyog times - Laghu udyog Bharati - April 2021
Creativity Please

Udyog times - Laghu udyog Bharati - August 2021
Udyog times  - Laghu udyog Bharati - August 2021Udyog times  - Laghu udyog Bharati - August 2021
Udyog times - Laghu udyog Bharati - August 2021
Creativity Please

Udyog times - Laghu udyog Bharati - September 2021
Udyog times  - Laghu udyog Bharati - September 2021Udyog times  - Laghu udyog Bharati - September 2021
Udyog times - Laghu udyog Bharati - September 2021
Creativity Please

Udyog times - Laghu udyog Bharati - June 2021
Udyog times  - Laghu udyog Bharati - June 2021Udyog times  - Laghu udyog Bharati - June 2021
Udyog times - Laghu udyog Bharati - June 2021
Creativity Please

महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021
महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021
महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021
Creativity Please

Udyog times - Laghu udyog Bharati - October 2021
Udyog times  - Laghu udyog Bharati - October 2021Udyog times  - Laghu udyog Bharati - October 2021
Udyog times - Laghu udyog Bharati - October 2021
Creativity Please

Prana Setoo brochure - Non-Invasive Ventilator
Prana Setoo brochure - Non-Invasive VentilatorPrana Setoo brochure - Non-Invasive Ventilator
Prana Setoo brochure - Non-Invasive Ventilator
Creativity Please

Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti
Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti
Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti
Creativity Please


More from Creativity Please (20)

Kinetic Gears Company Profile - February 2024
Kinetic Gears Company Profile - February 2024Kinetic Gears Company Profile - February 2024
Kinetic Gears Company Profile - February 2024

EC-Letter : Ran Chemical Pvt. Ltd.
EC-Letter : Ran Chemical Pvt. Ltd.EC-Letter : Ran Chemical Pvt. Ltd.
EC-Letter : Ran Chemical Pvt. Ltd.

Diwali 2022 Art Presentation.pdf
Diwali 2022 Art Presentation.pdfDiwali 2022 Art Presentation.pdf
Diwali 2022 Art Presentation.pdf

Udyog Times - June 2022 - Laghu Udyog Bharati
Udyog Times - June 2022 - Laghu Udyog BharatiUdyog Times - June 2022 - Laghu Udyog Bharati
Udyog Times - June 2022 - Laghu Udyog Bharati

Kinetic Gears Profile
Kinetic Gears ProfileKinetic Gears Profile
Kinetic Gears Profile

Udyog Times - January 2022 - Laghu Udyog Bharati
Udyog Times - January 2022 - Laghu Udyog BharatiUdyog Times - January 2022 - Laghu Udyog Bharati
Udyog Times - January 2022 - Laghu Udyog Bharati

Udyog Times - December 2021 - laghu udyog bharati
Udyog Times - December 2021 - laghu udyog bharatiUdyog Times - December 2021 - laghu udyog bharati
Udyog Times - December 2021 - laghu udyog bharati

Udyog times - Laghu udyog Bharati - November 2021
Udyog times  - Laghu udyog Bharati - November 2021Udyog times  - Laghu udyog Bharati - November 2021
Udyog times - Laghu udyog Bharati - November 2021

Udyog times - Laghu udyog Bharati - May 2021
Udyog times  - Laghu udyog Bharati - May 2021Udyog times  - Laghu udyog Bharati - May 2021
Udyog times - Laghu udyog Bharati - May 2021

Udyog times - Laghu udyog Bharati - March 2021
Udyog times  - Laghu udyog Bharati - March 2021Udyog times  - Laghu udyog Bharati - March 2021
Udyog times - Laghu udyog Bharati - March 2021

Udyog times - Laghu udyog Bharati - February 2021
Udyog times  - Laghu udyog Bharati - February 2021Udyog times  - Laghu udyog Bharati - February 2021
Udyog times - Laghu udyog Bharati - February 2021

Udyog times - Laghu udyog Bharati - January 2021
Udyog times  - Laghu udyog Bharati - January 2021Udyog times  - Laghu udyog Bharati - January 2021
Udyog times - Laghu udyog Bharati - January 2021

Udyog times - Laghu udyog Bharati - April 2021
Udyog times  - Laghu udyog Bharati - April 2021Udyog times  - Laghu udyog Bharati - April 2021
Udyog times - Laghu udyog Bharati - April 2021

Udyog times - Laghu udyog Bharati - August 2021
Udyog times  - Laghu udyog Bharati - August 2021Udyog times  - Laghu udyog Bharati - August 2021
Udyog times - Laghu udyog Bharati - August 2021

Udyog times - Laghu udyog Bharati - September 2021
Udyog times  - Laghu udyog Bharati - September 2021Udyog times  - Laghu udyog Bharati - September 2021
Udyog times - Laghu udyog Bharati - September 2021

Udyog times - Laghu udyog Bharati - June 2021
Udyog times  - Laghu udyog Bharati - June 2021Udyog times  - Laghu udyog Bharati - June 2021
Udyog times - Laghu udyog Bharati - June 2021

महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021
महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021
महाराष्ट्र मंडळ फ्रान्स Diwali ank 2021

Udyog times - Laghu udyog Bharati - October 2021
Udyog times  - Laghu udyog Bharati - October 2021Udyog times  - Laghu udyog Bharati - October 2021
Udyog times - Laghu udyog Bharati - October 2021

Prana Setoo brochure - Non-Invasive Ventilator
Prana Setoo brochure - Non-Invasive VentilatorPrana Setoo brochure - Non-Invasive Ventilator
Prana Setoo brochure - Non-Invasive Ventilator

Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti
Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti
Epf circular 14 feb 2020 (1) - Laghu Udyog Bharti


Recently uploaded

Artificial Intelligence Symposium (THAIS)
Artificial Intelligence Symposium (THAIS)Artificial Intelligence Symposium (THAIS)
Artificial Intelligence Symposium (THAIS)
Josep Vidal-Alaball

NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USENARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
Dr. Ahana Haroon

Osvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdf
Osvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdfOsvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdf
Osvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdf
Osvaldo Bernardo Muchanga

Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...
Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...
Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...
PVI, PeerView Institute for Medical Education

Pharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and AntagonistPharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and Antagonist
Dr. Nikhilkumar Sakle

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
NephroTube - Dr.Gawad

acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticalsacne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
MuskanShingari

Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.
Kunj Vihari

Foundation of Yoga, YCB Level-3, Unit-1
Foundation of Yoga, YCB Level-3, Unit-1 Foundation of Yoga, YCB Level-3, Unit-1
Foundation of Yoga, YCB Level-3, Unit-1
Jyoti Bhaghasra

Know the difference between Endodontics and Orthodontics.
Know the difference between Endodontics and Orthodontics.Know the difference between Endodontics and Orthodontics.
Know the difference between Endodontics and Orthodontics.
Gokuldas Hospital

Medical Quiz ( Online Quiz for API Meet 2024 ).pdf
Medical Quiz ( Online Quiz for API Meet 2024 ).pdfMedical Quiz ( Online Quiz for API Meet 2024 ).pdf
Medical Quiz ( Online Quiz for API Meet 2024 ).pdf
Jim Jacob Roy

“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
Université de Montréal

Pollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdfPollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdf
Chulalongkorn Allergy and Clinical Immunology Research Group

Recent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptxRecent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptx
DrGirishJHoogar

MRI for Surgeons introduction and basics
MRI for Surgeons  introduction and basicsMRI for Surgeons  introduction and basics
MRI for Surgeons introduction and basics
rohitsharma19711

NAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdf
NAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdfNAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdf
NAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdf
Rahul Sen

Test bank for karp s cell and molecular biology 9th edition by gerald karp.pdf
Test bank for karp s cell and molecular biology 9th edition by gerald karp.pdfTest bank for karp s cell and molecular biology 9th edition by gerald karp.pdf
Test bank for karp s cell and molecular biology 9th edition by gerald karp.pdf
rightmanforbloodline

Post-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptxPost-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptx
FFragrant

Cell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune DiseaseCell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune Disease
Health Advances

DECLARATION OF HELSINKI - History and principles
DECLARATION OF HELSINKI - History and principlesDECLARATION OF HELSINKI - History and principles
DECLARATION OF HELSINKI - History and principles
anaghabharat01


Recently uploaded (20)

Artificial Intelligence Symposium (THAIS)
Artificial Intelligence Symposium (THAIS)Artificial Intelligence Symposium (THAIS)
Artificial Intelligence Symposium (THAIS)

NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USENARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USE

Osvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdf
Osvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdfOsvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdf
Osvaldo Bernardo Muchanga-GASTROINTESTINAL INFECTIONS AND GASTRITIS-2024.pdf

Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...
Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...
Alzheimer’s Disease Case Conference: Gearing Up for the Expanding Role of Neu...

Pharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and AntagonistPharmacology of 5-hydroxytryptamine and Antagonist
Pharmacology of 5-hydroxytryptamine and Antagonist

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad

acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticalsacne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals

Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.Tele Optometry (kunj'sppt) / Basics of tele optometry.
Tele Optometry (kunj'sppt) / Basics of tele optometry.

Foundation of Yoga, YCB Level-3, Unit-1
Foundation of Yoga, YCB Level-3, Unit-1 Foundation of Yoga, YCB Level-3, Unit-1
Foundation of Yoga, YCB Level-3, Unit-1

Know the difference between Endodontics and Orthodontics.
Know the difference between Endodontics and Orthodontics.Know the difference between Endodontics and Orthodontics.
Know the difference between Endodontics and Orthodontics.

Medical Quiz ( Online Quiz for API Meet 2024 ).pdf
Medical Quiz ( Online Quiz for API Meet 2024 ).pdfMedical Quiz ( Online Quiz for API Meet 2024 ).pdf
Medical Quiz ( Online Quiz for API Meet 2024 ).pdf

“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...
“Psychiatry and the Humanities”: An Innovative Course at the University of Mo...

Pollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdfPollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdf

Recent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptxRecent advances on Cervical cancer .pptx
Recent advances on Cervical cancer .pptx

MRI for Surgeons introduction and basics
MRI for Surgeons  introduction and basicsMRI for Surgeons  introduction and basics
MRI for Surgeons introduction and basics

NAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdf
NAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdfNAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdf
NAVIGATING THE HORIZONS OF TIME LAPSE EMBRYO MONITORING.pdf

Test bank for karp s cell and molecular biology 9th edition by gerald karp.pdf
Test bank for karp s cell and molecular biology 9th edition by gerald karp.pdfTest bank for karp s cell and molecular biology 9th edition by gerald karp.pdf
Test bank for karp s cell and molecular biology 9th edition by gerald karp.pdf

Post-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptxPost-Menstrual Smell- When to Suspect Vaginitis.pptx
Post-Menstrual Smell- When to Suspect Vaginitis.pptx

Cell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune DiseaseCell Therapy Expansion and Challenges in Autoimmune Disease
Cell Therapy Expansion and Challenges in Autoimmune Disease

DECLARATION OF HELSINKI - History and principles
DECLARATION OF HELSINKI - History and principlesDECLARATION OF HELSINKI - History and principles
DECLARATION OF HELSINKI - History and principles


Physics of Ventilation

  • 1. Physics of Ventilation National Chairperson (Ex) Intensive Care Chapter I A P Founder Chairman..... National conference on pediatric critical care Professor of pediatrics ( Hon ) JNMC:Wardha Nagpur : INDIA Dr Deopujari
  • 2. The evolution of Ventilator
  • 3. Three problems of ventilation
  • 4.
  • 5.
  • 6.
  • 7. Applied Physics • Compliance • Static compliance • Dynamic compliance • Resistance • Work of breathing Flow Pressure Volume Surface area What can we manipulate ?
  • 8. Evolution of Ventilators……………… What can we manipulate ? 1)Minute ventilation 2)Pressure gradient 3)Surface are 4)Pulmonary vasculature 5)Solubility How can we do this ?
  • 9. Compliance Compliance is a quotient between volume and corresponding pressure change. C = V P Dynamic compliance Static compliance
  • 10. The compliance of any structure is the ease is with which the structure distends ( C= ∆ V / ∆ P) C O M P L I A N C E
  • 11. C.C.P. C.O.P. V O L U M E PRESSURE c.c.p. = critical closing pressure c.o.p. = critical opening pressure PEEP
  • 13. Peak pressure Plateau pressure Pressure Inspiratory pause Flow Time Cst = Tidal volume. Cc Cst : static compliance Cc : circuit compliance end expiratory pressure (Pend-ex) Pend-ex = Peep + P peep Resistance Compliance Static compliance Static pressure – end expiratory pressure
  • 14. Flow ……………………. Flow indicates circulation of an element per unit of time through a given place Flow…. Linear Turbulent
  • 15. FLOW Palv Pmo FLOW THROUGH A PIPE LIKE STRUCTURE REQUIRES A DRIVING PRESSURE (Palv- Pmo) TO OVERCOME THE FRICTIONAL RESISTANCE FLOW DEPENDS ON Pressure Difference and Resistance V=P/R
  • 16. Pressure ……………. Represents the force that a volume of gas exercises upon a unit area. Kinetic theory states that gas molecules bomb the walls of a container . If volume remains constant , pressure varies in direct proportion to Temperature. If temperature remains constant , pressure varies in inverse relation to Volume . Increase in pressure decreases volume
  • 17. Resistance …………… Resistance is defined as the relationship between pressure (p) and flow ( 0 ) Therefore important when there is air flow. R = ----------- Resistance depends upon Diameter of airway Length of airway Viscosity and density of air Resistance during inspiration Resistance during expiration P O
  • 18. And how can we do this ?
  • 19. • Conditional variables • Control variables • Phase variables Trigger variables Limit variables Cycle variables Base line Mechanical Ventilation Concept
  • 20. Conditional variables alone or in combination are analyzed by Ventilator’s control logic. The state of this variable determines as to which of two types of breath would be delivered. SIMV is based on timing window and accordingly the ventilator delivers ……………………………. a pressure triggered ( patient ) or time triggered ( machine) breath. In this situation the patient effort and time are conditional variables for determining triggering. CONDITIONAL VARIABLE Conditional variables • Pressure • Volume • Flow • Time
  • 21. Control variable manipulates the conditional to cause inspiration. Pressure , volume , flow and time are control variables. The behavior of control Variable remains constant in spite of changed Ventilatory load. CONRTOL VARIALBE
  • 22. Control variable manipulates the conditionals to cause inspiration. PRESSURE , VOLUME , FLOW and time are control variables. The behavior of control Variable remains constant in spite of changed Ventilatory load. CONRTOL VARIALBE Pressure Rectangular Exponential
  • 23. Control variable manipulates the conditional to cause inspiration. Pressure , VOLUME , FLOW and time are control variables. The behavior of control Variable remains constant in spite of changed Ventilatory load. Volume Ramp Sinusoidal CONRTOL VARIALBE
  • 24. Control variable manipulates the conditional to cause inspiration. PRESSURE , VOLUME , FLOW and time are control variables. The behavior of control Variable remains constant in spite of changed Ventilatory load. Flow sinusoidalrectangle ramp ramp exponential CONRTOL VARIALBE
  • 25. During pressure support ventilation though one selects a level of support the Inspiration continues till predetermined flow rate or termination criteria is reached. During PSV patient determines the Rate …………….. Inspiratory time… Flow…………….. LIMIT VARIBALE
  • 26. Peak pressure Plateau pressure Resistance Compliance End of inspiration Volume Flow Pressure Volume control
  • 27. End of insp. flow Volume Flow Pressure Pressure control What does not change ……. 1)Volume curve 2)Exp. Flow curve
  • 28. End of insp. flow Volume Flow Pressure Pressure control Peak p. Plateau p. Resist. Compliance End of insp. flow Volume Flow Pressure Volume control
  • 29. Volume limited and pressure limited ventilation …………. Volume limited pressure limited Advantages Tidal Volume guaranteed Precise control of Inspiratory flow Easy detection of changed respiratory impedance Precise control pf pressure Decelerating flow reported to improve distribution of ventilation decrease dead space ventilation decrease PIP match Inspiratory flow Disadvantages PIP vary Inspiratory flow may not match the patients needs Variable tidal volume Changes in impedance not easily detected
  • 30. Modes of ventilation or moods of ventilation
  • 31. P R E S S U R e F L O w V O L U M e A B C A normal lung B decreased compliance C increased resistance Controlled Ventilation…………….
  • 32. SIMV Patient triggered ventilation Synchronized to patient breath if the threshold is met . Patient controlled variables Respiratory rate Inspiratory time Clinician controlled variables PIP if pressure limited Tidal volume if volume cycled Inspiratory time if time cycled Flow SIMV rate Flow cycling ……. Insp. Terminated at % of peak flow rather than time………… Synchronizes expiratory and Insp. flow thus total synchrony achieved.
  • 33. When SIMV is used, the patient receives three different types of breath: The controlled (Mandatory) breath. Assisted (synchronized) breaths. Spontaneous breaths, which can be pressure supported. A B C A .Controlled and time triggered B .Spontaneous C .Synchronized and assisted Flow PaW Volume Trigger
  • 34. Spontaneous breath Assisted breath Back up ventilation period Controlled breath Spontaneous volume Trigger Spontaneous breath Pressure Volume
  • 35.
  • 36. Pressure support Pressure support ventilation is a spontaneous mode of ventilation. Inspiratory effort is assisted by the ventilator at an airway pressure that remains constant during the phase of inspiration. Inspiration is terminated when the peak Inspiratory flow reaches a preset level. (usually 25%) Patient determines……………… • Rate • Inspiratory time • Airflow
  • 37.
  • 38. PRVC A control mode, which delivers a set tidal volume with each breath at the lowest possible peak pressure. Delivers the breath with a decelerating flow pattern that is thought to be less injurious to the lung……
  • 39. Volume Support Equivalent to pressure support set a “goal” tidal volume the machine watches the delivered volumes and adjusts the pressure support to meet desired “goal” within limits set by you.
  • 40. Airway Pressure Release Ventilation Can be thought of as giving a patient two different levels of CPAP Set “high” and “low” pressures with release time. Length of time at “high” pressure generally greater than length of time at “low” pressure. By “releasing” to lower pressure, lung volume is allowed to decrease to FRC
  • 42. Fixed insp. Time Termination sens. off Termination sens. on Flow Pressure
  • 43. Inspiratory cycle off………… Proper Inspiratory cycle termination avoids lung hyperinflation and Increased work of breathing 40 % 10 % 10 % 5% 1%
  • 44.
  • 45. PEEP PIP Vt. COMPLIANCE LINE Pressure limited… Over distension
  • 46. PEEP PIP Vt. COMPLIANCE LINE Pressure limited… PEEP PIP Vt. COMPLIANCE LINE Volume limited… Pressure – Volume loops Low compliance
  • 47. A B C D Volume Pressure in CM B C Volume Pressure in CMA D Normal resistance Increased resistance
  • 50. Triggering …………………… Neuro – Ventilatory coupling …………. Central Nervous System Phrenic Nerve Diaphragmatic contraction Chest Wall and Lung expansion Air way pressure , flow and volume NAVA Ventilator Current Technology Ideal technology Neurally Adjusted Ventilatory Assist EA di Waveform
  • 51. Tidal volume ÷ P plat – PEEP Tidal volume ÷ PIP – PEEP PIP – P plat ÷ Flow rate PIP- P2 ÷ Flow rate Static compliance Dynamic characteristics Maximum resistance index Minimum resistance index Elastic and resistive property of respiratory System Time constant × Resistive property
  • 52. Conditional variables Control variables Pressure : Volume : Flow Phase Variables Trigger : Limit : cycle : Base line
  • 53. You can comfortably SLEEP even in difficult situation if you know your physiology well…………… Thanks SLEEP
