RoseScript is a scripting language that allows users to automate tasks and customize Rational Rose by accessing and modifying model elements. It can be used to extract information from models, generate reports, integrate with other tools, and make changes to models such as adding or renaming packages and classes. The document provides an overview of RoseScript concepts and capabilities as well as examples of scripts that obtain information from and make changes to Rose models.

1. Introduction to Rational Rose 98i Module 11: RoseScript

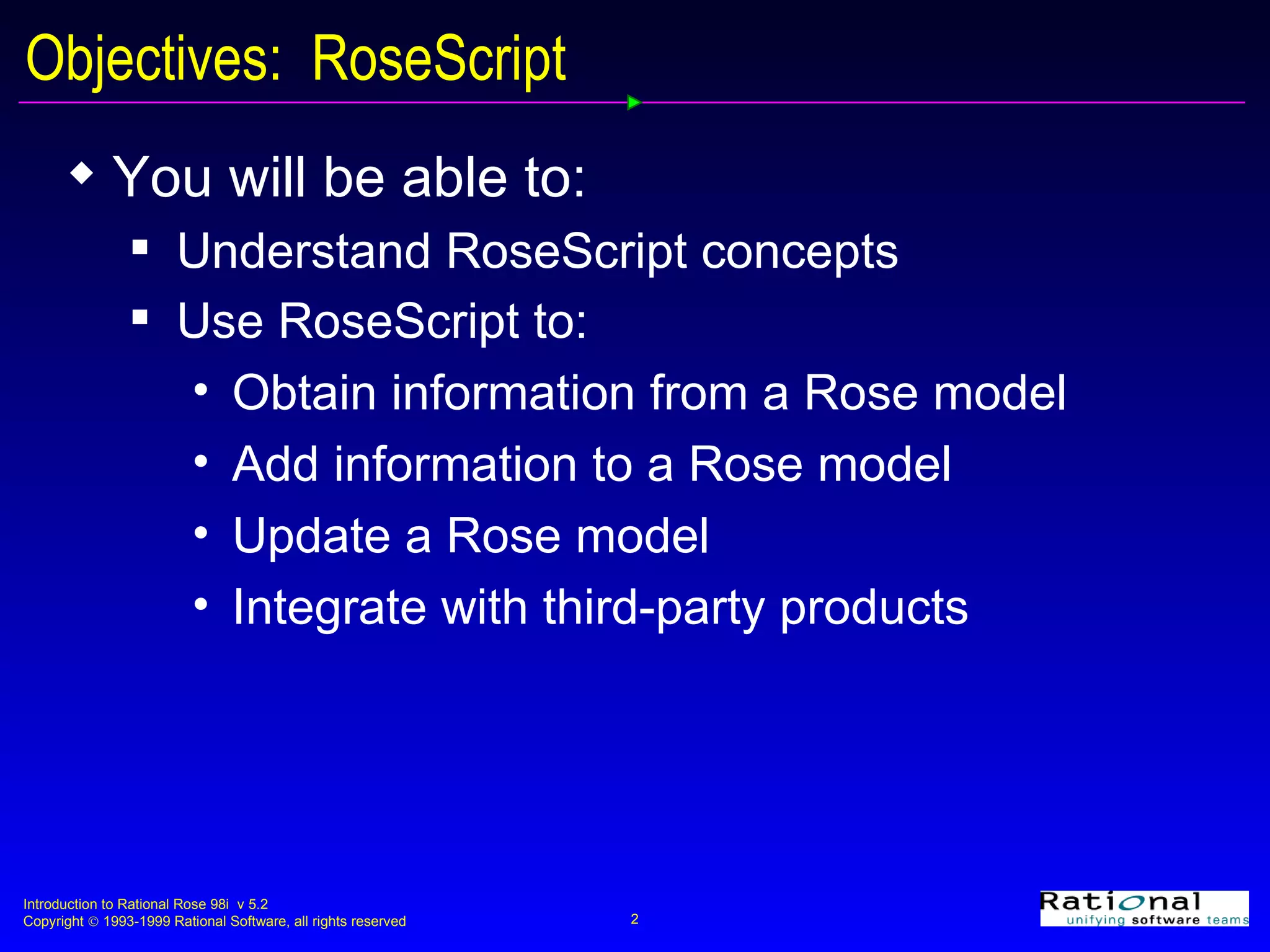

2. Objectives: RoseScript You will be able to: Understand RoseScript concepts Use RoseScript to: Obtain information from a Rose model Add information to a Rose model Update a Rose model Integrate with third-party products

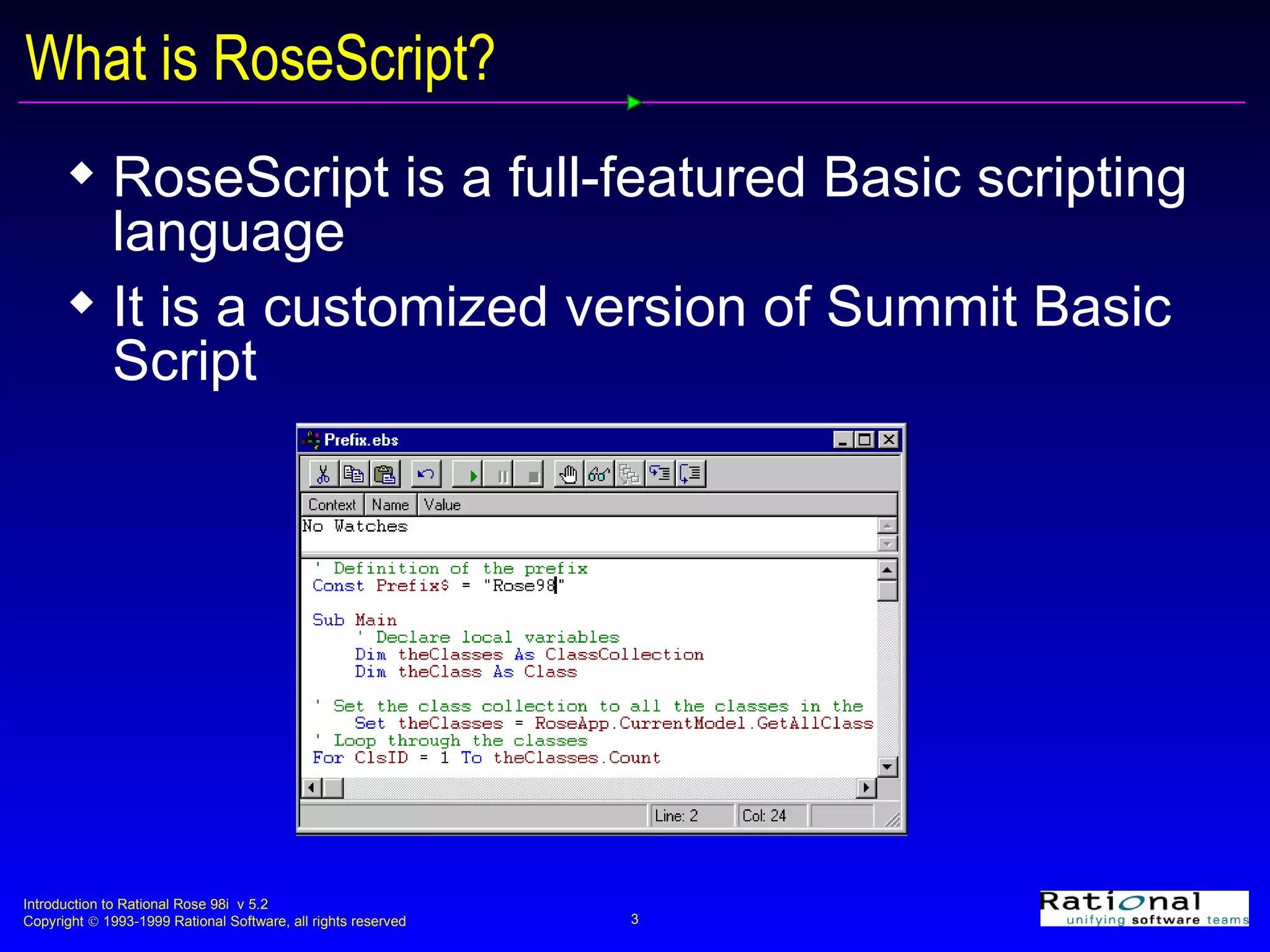

3. What is RoseScript? RoseScript is a full-featured Basic scripting language It is a customized version of Summit Basic Script

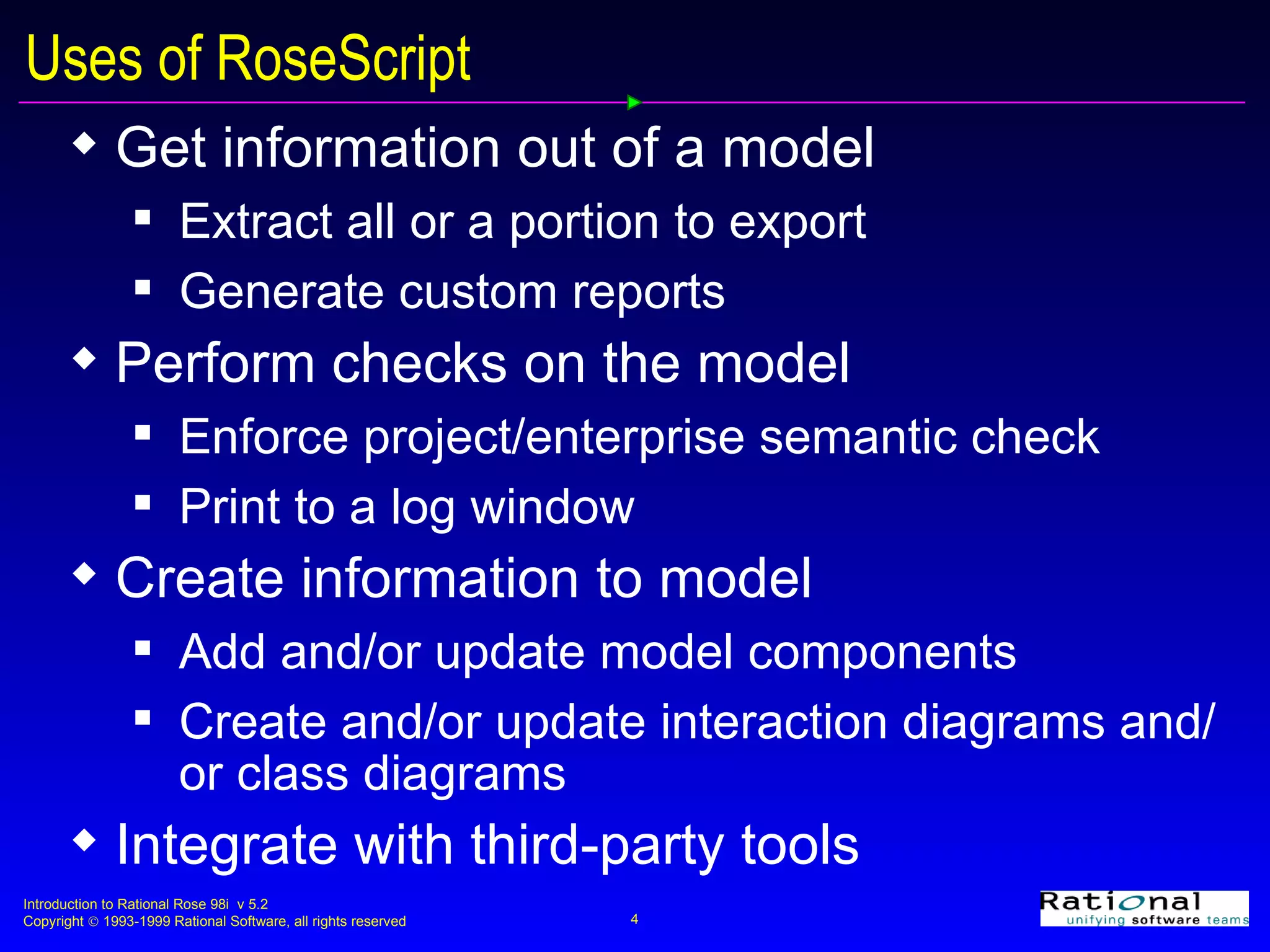

4. Uses of RoseScript Get information out of a model Extract all or a portion to export Generate custom reports Perform checks on the model Enforce project/enterprise semantic check Print to a log window Create information to model Add and/or update model components Create and/or update interaction diagrams and/or class diagrams Integrate with third-party tools

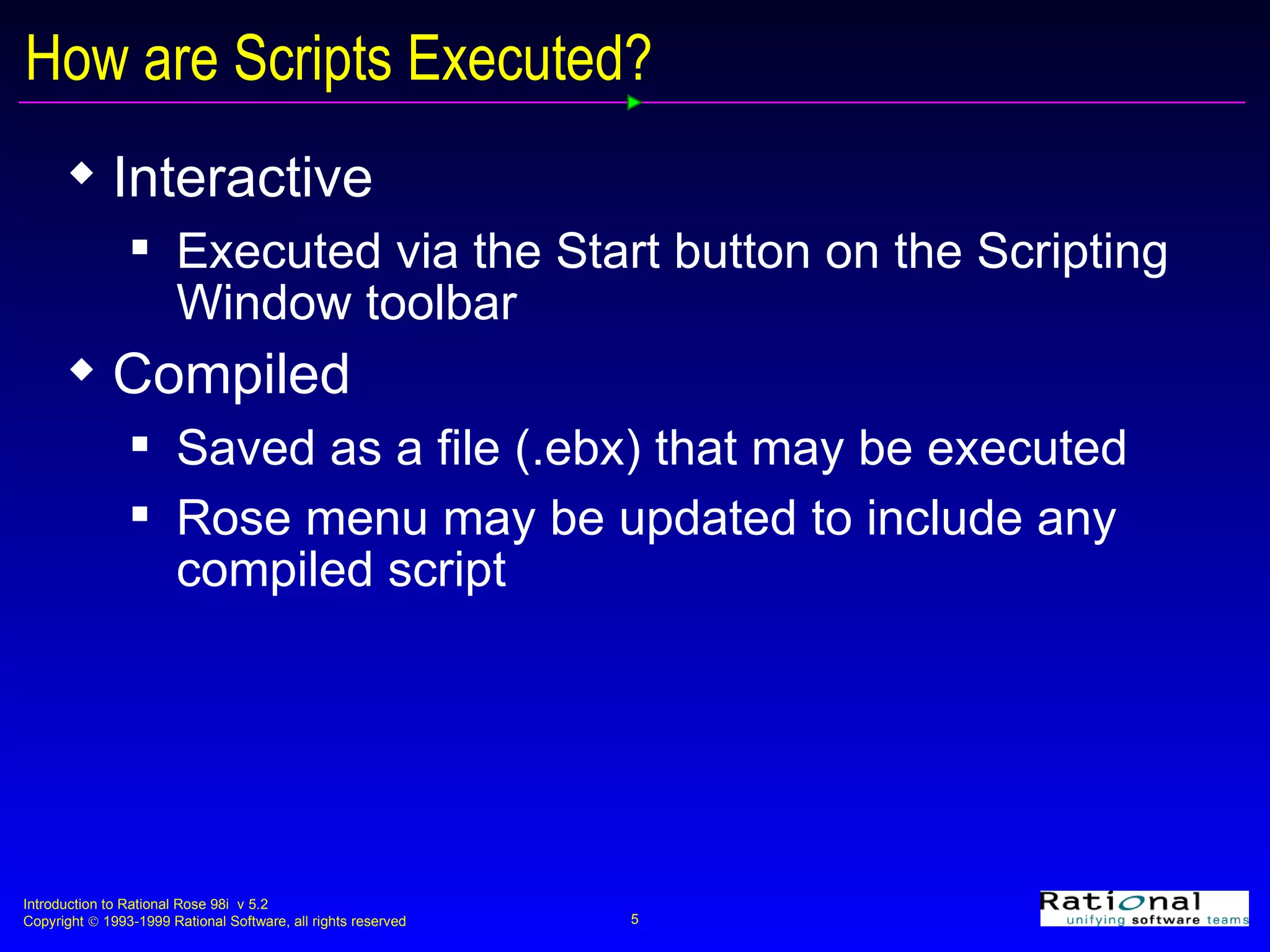

5. How are Scripts Executed? Interactive Executed via the Start button on the Scripting Window toolbar Compiled Saved as a file (.ebx) that may be executed Rose menu may be updated to include any compiled script

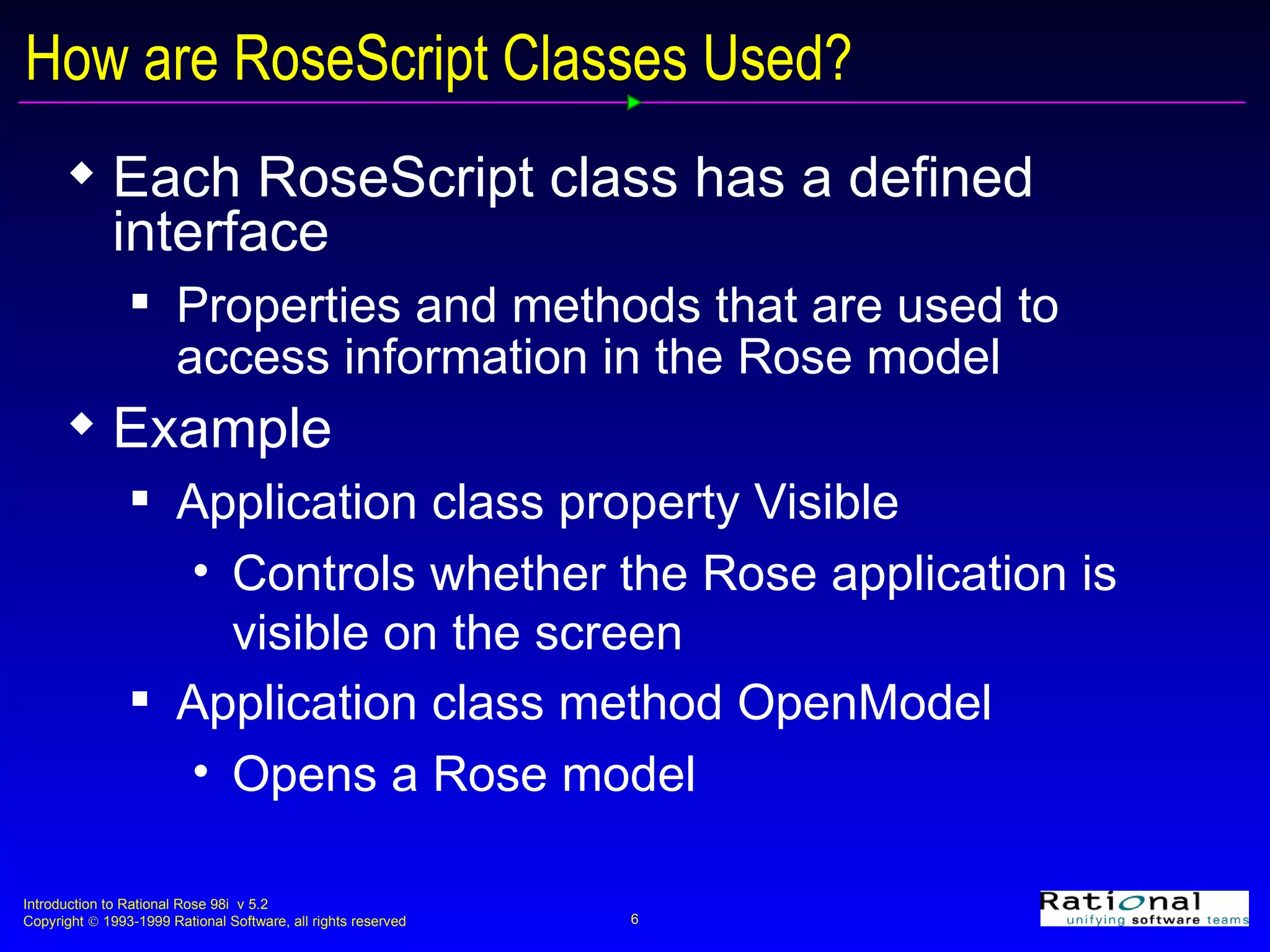

6. How are RoseScript Classes Used? Each RoseScript class has a defined interface Properties and methods that are used to access information in the Rose model Example Application class property Visible Controls whether the Rose application is visible on the screen Application class method OpenModel Opens a Rose model

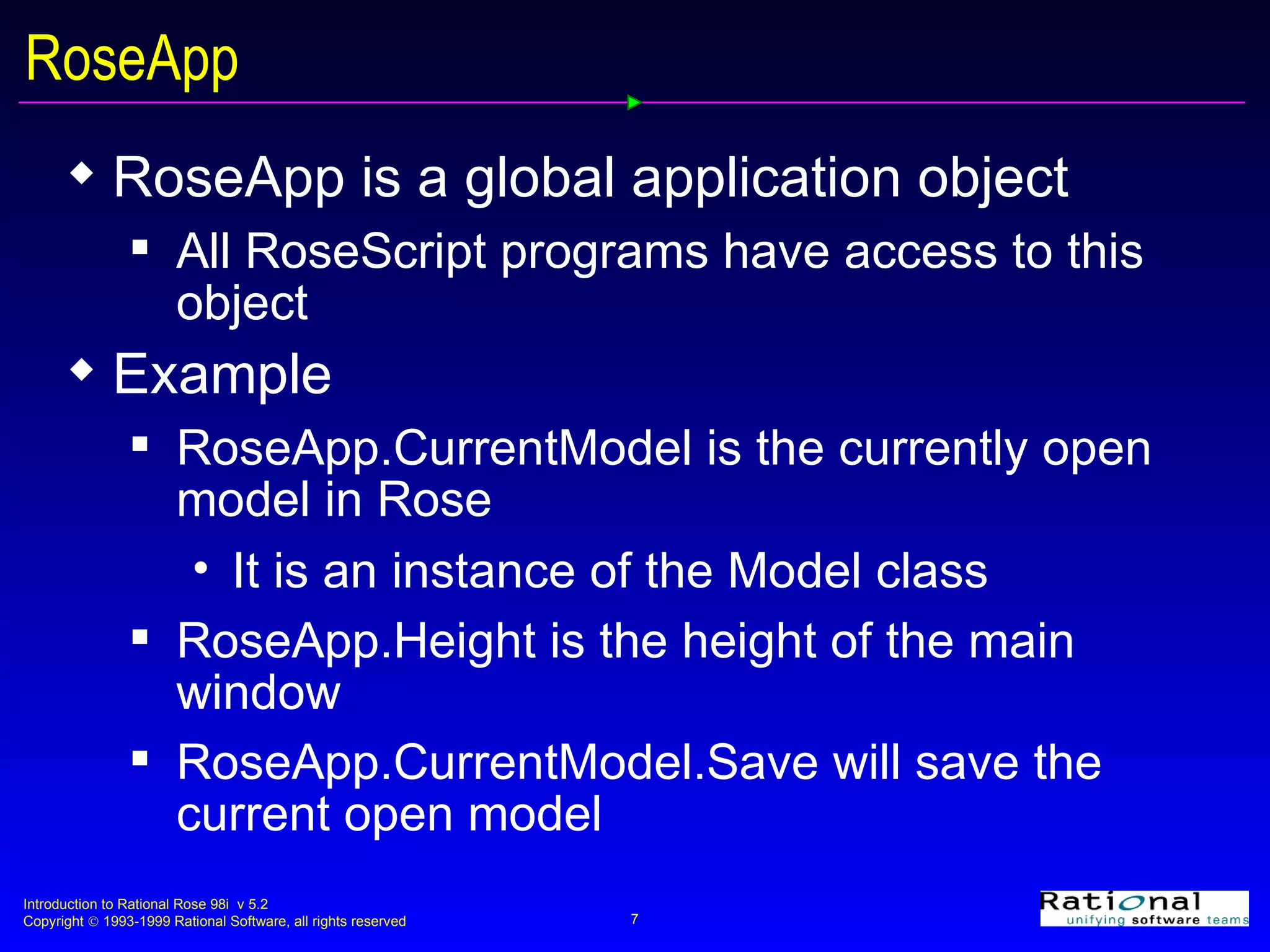

7. RoseApp RoseApp is a global application object All RoseScript programs have access to this object Example RoseApp.CurrentModel is the currently open model in Rose It is an instance of the Model class RoseApp.Height is the height of the main window RoseApp.CurrentModel.Save will save the current open model

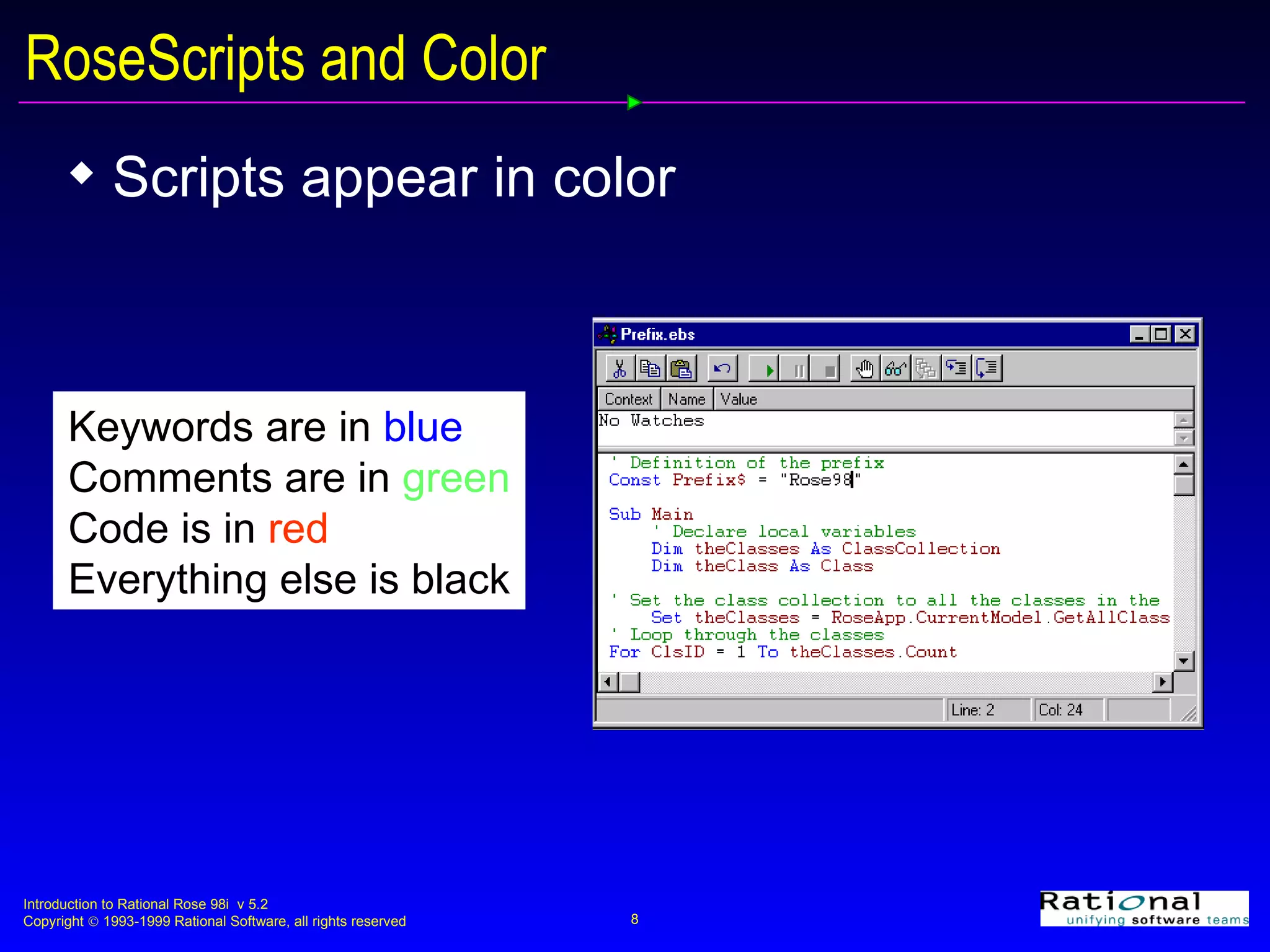

8. RoseScripts and Color Scripts appear in color Keywords are in blue Comments are in green Code is in red Everything else is black

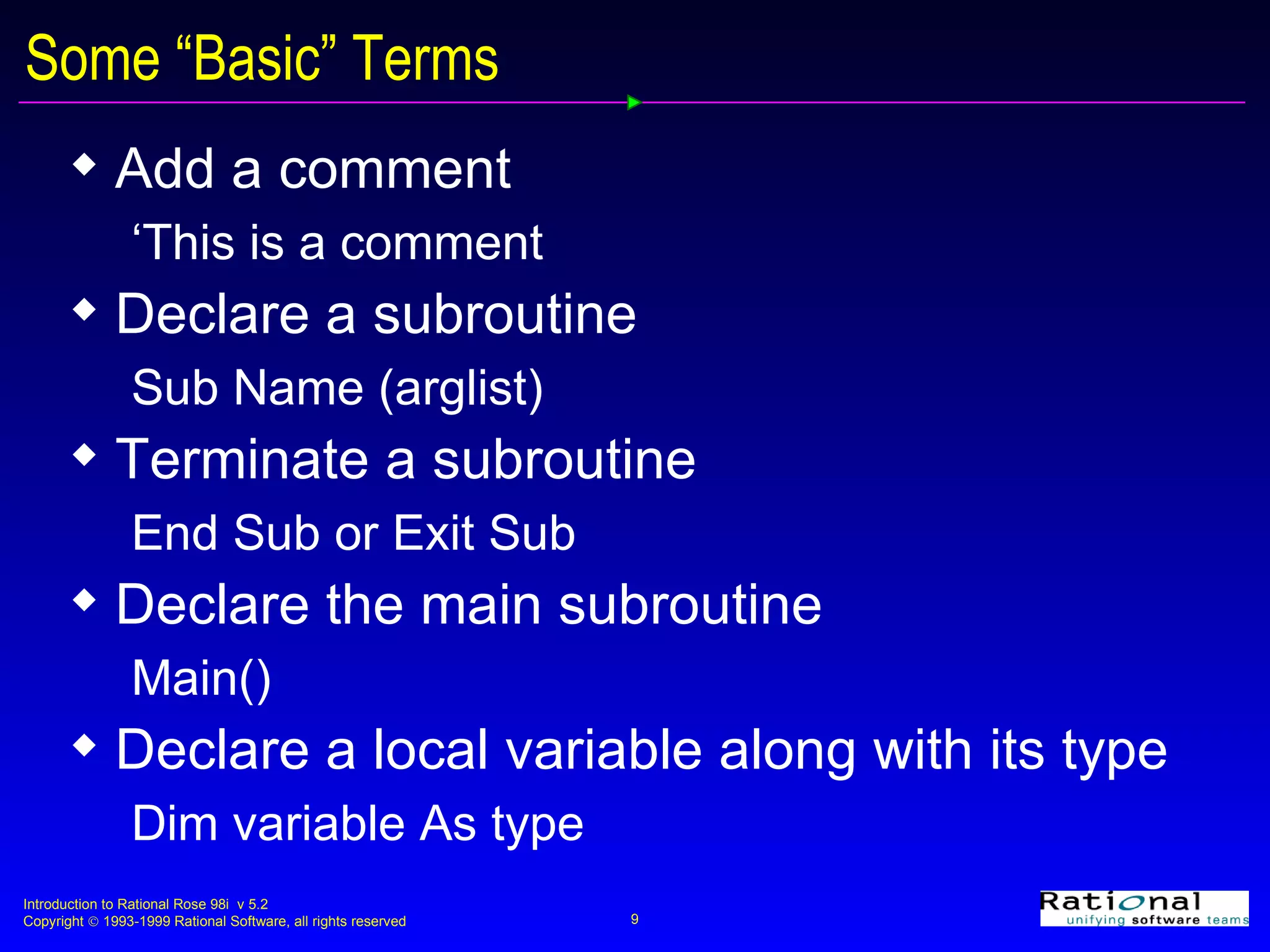

9. Some “Basic” Terms Add a comment ‘This is a comment Declare a subroutine Sub Name (arglist) Terminate a subroutine End Sub or Exit Sub Declare the main subroutine Main() Declare a local variable along with its type Dim variable As type

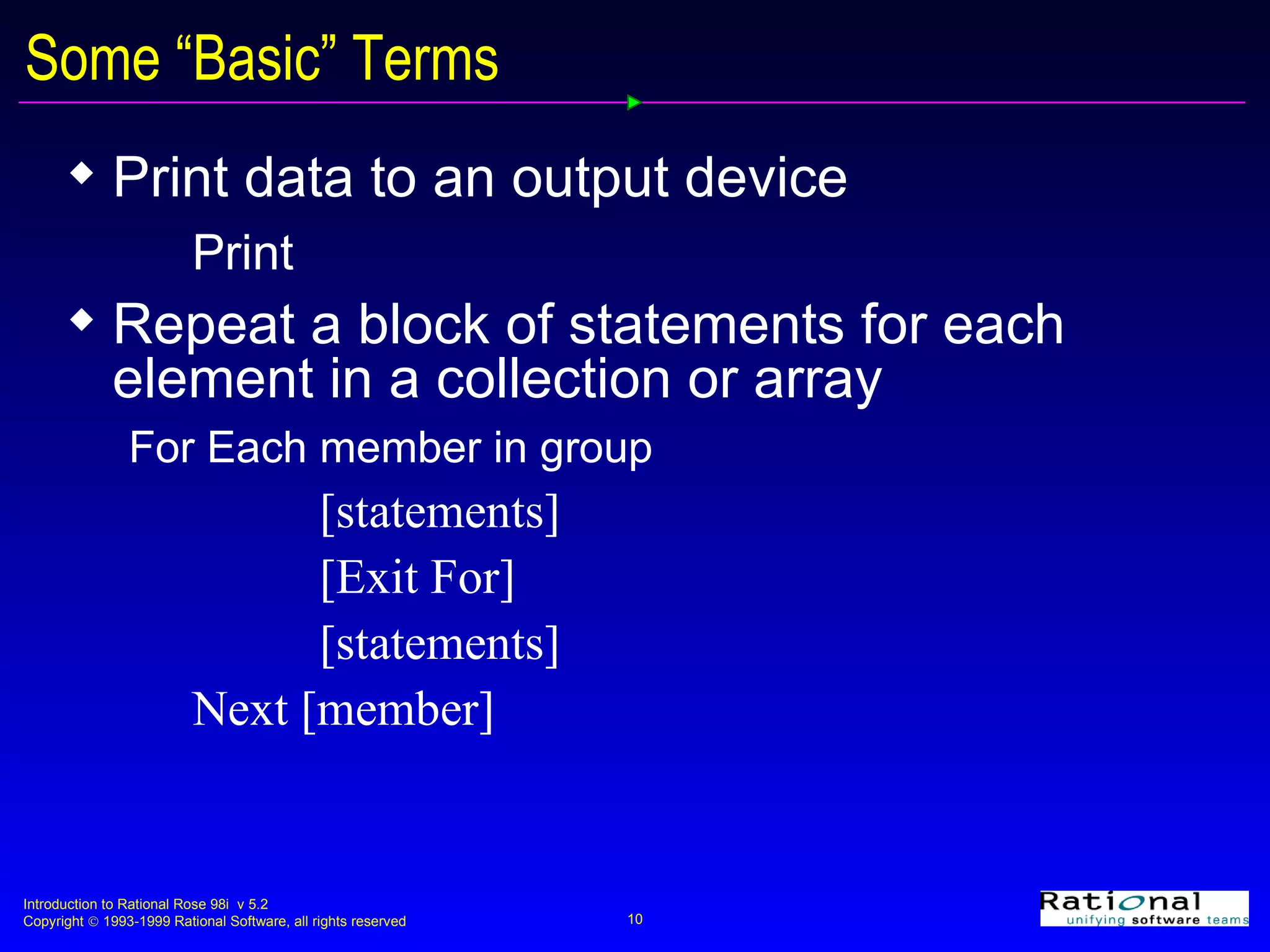

10. Some “Basic” Terms Print data to an output device Print Repeat a block of statements for each element in a collection or array For Each member in group [statements] [Exit For] [statements] Next [member]

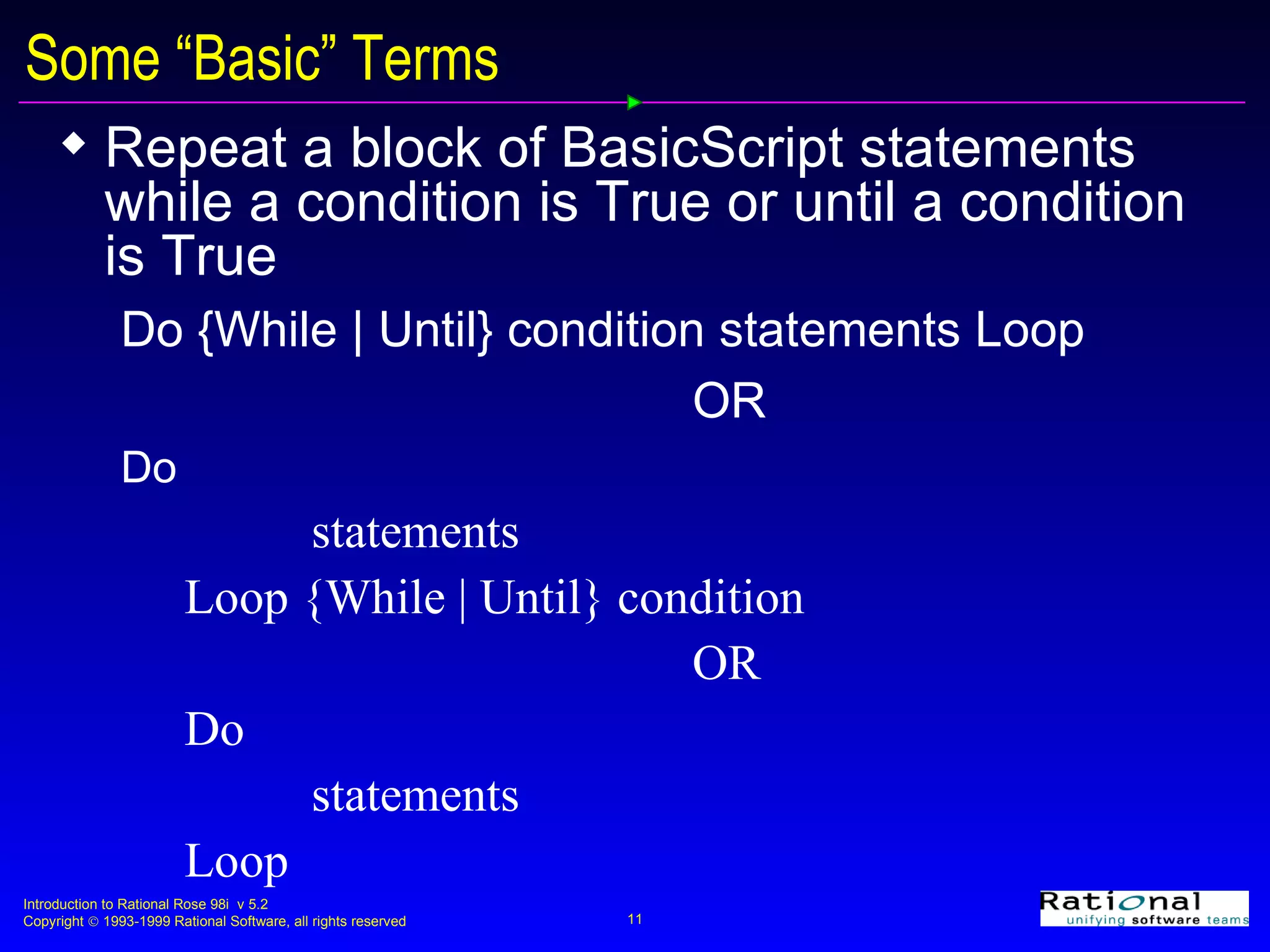

11. Some “Basic” Terms Repeat a block of BasicScript statements while a condition is True or until a condition is True Do {While | Until} condition statements Loop OR Do statements Loop {While | Until} condition OR Do statements Loop

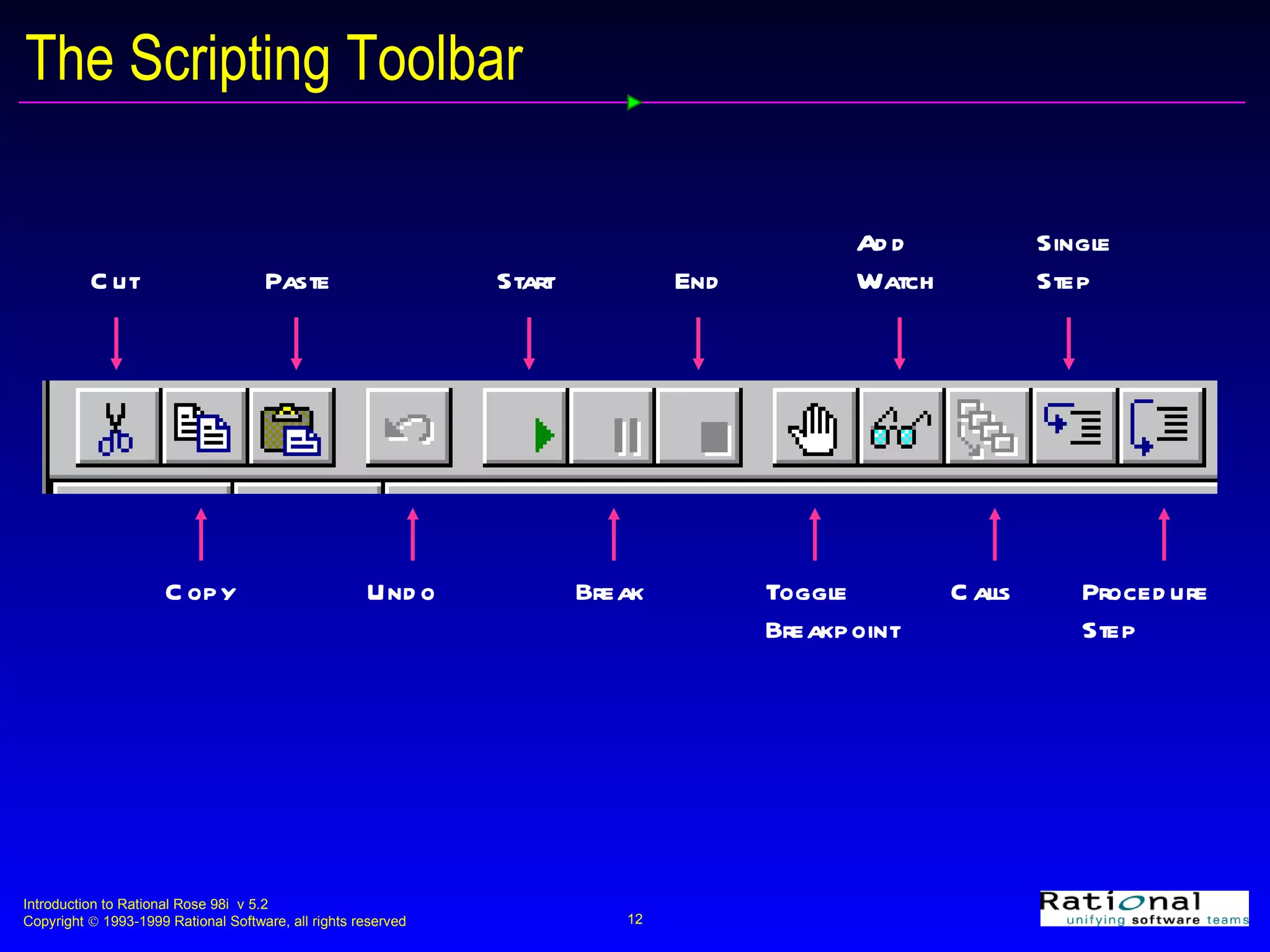

12. The Scripting Toolbar Cut Add Watch End Start Paste Procedure Step Calls Toggle Breakpoint Break Undo Copy Single Step

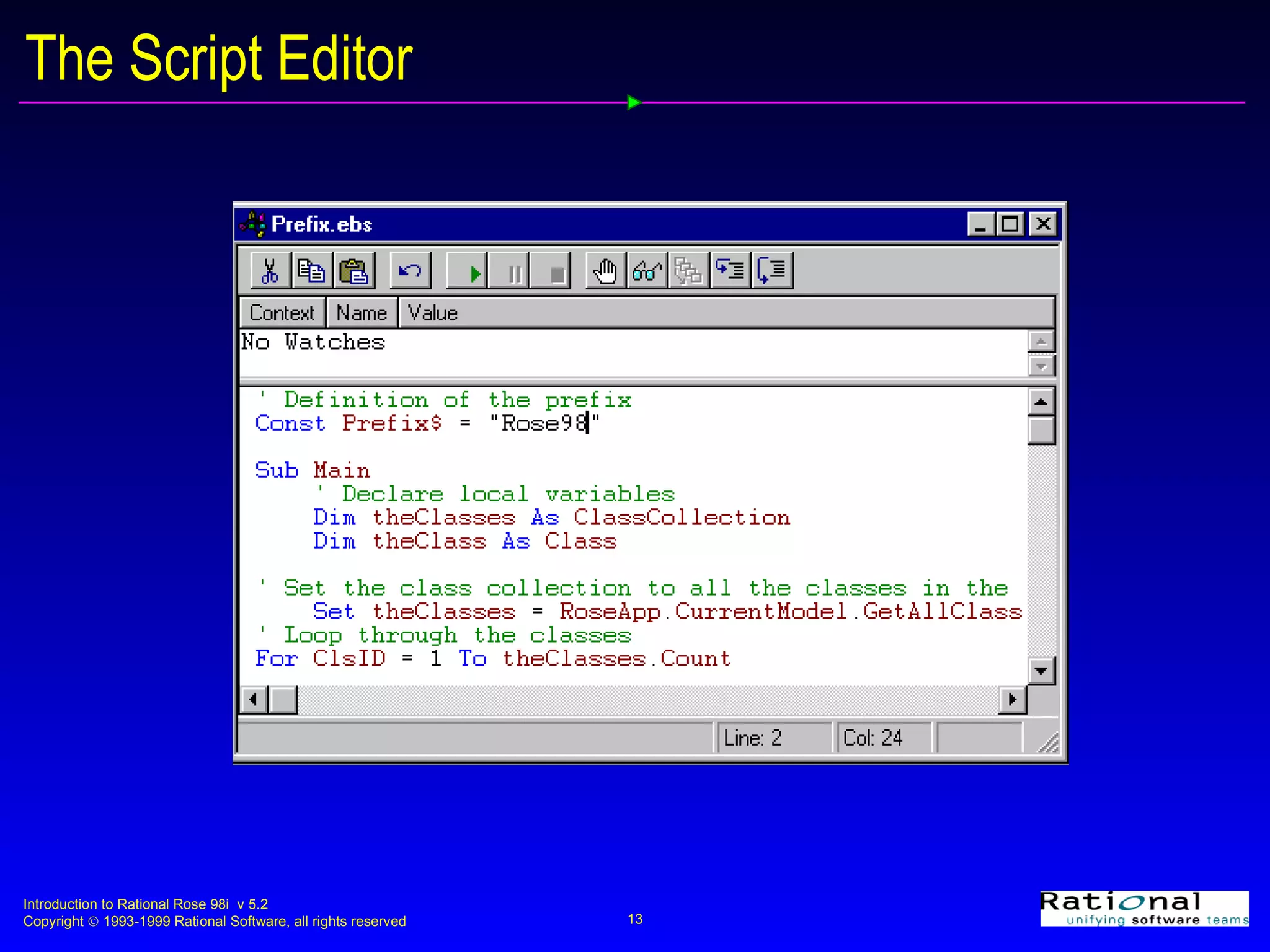

13. The Script Editor

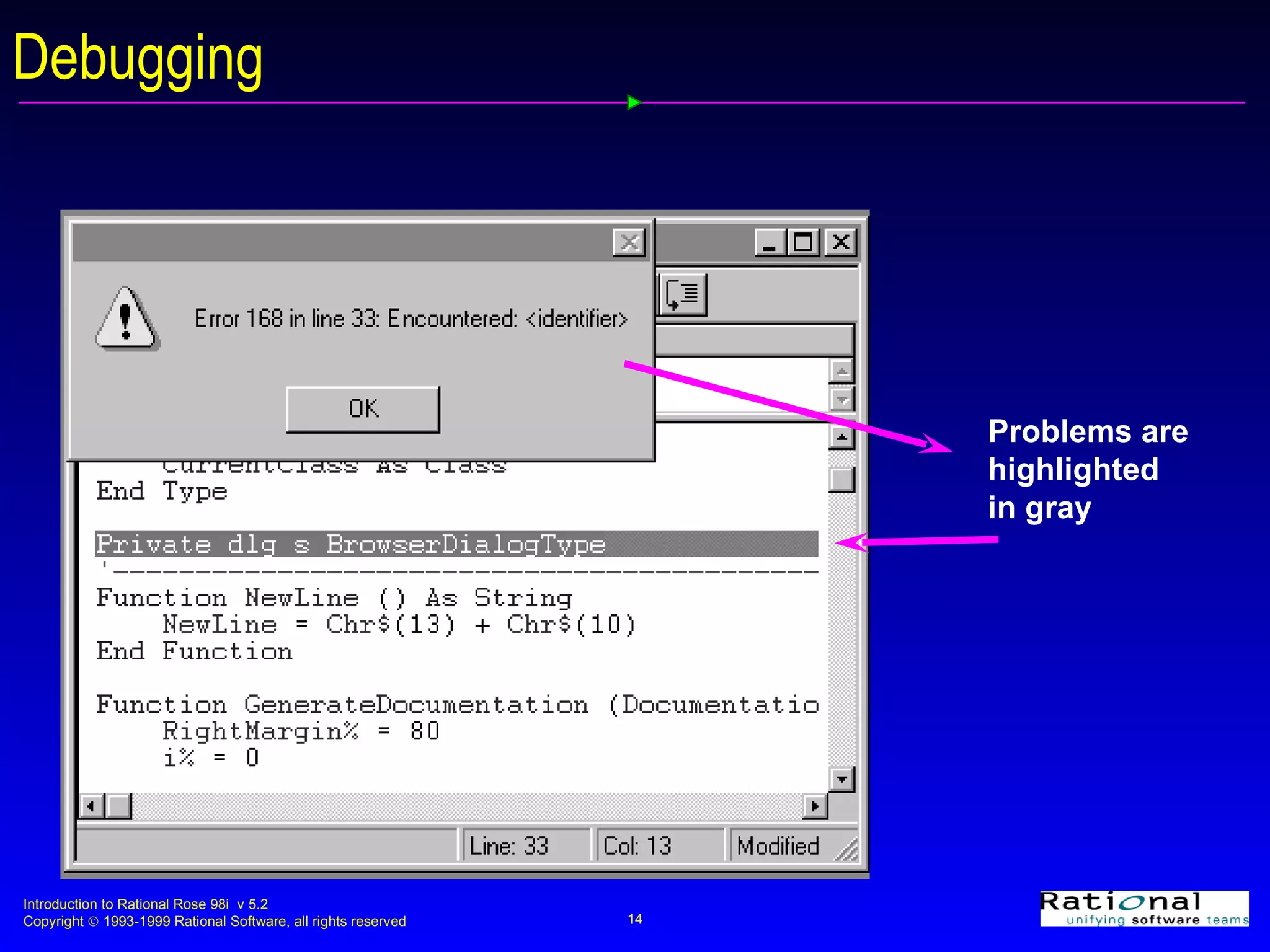

14. Debugging Problems are highlighted in gray

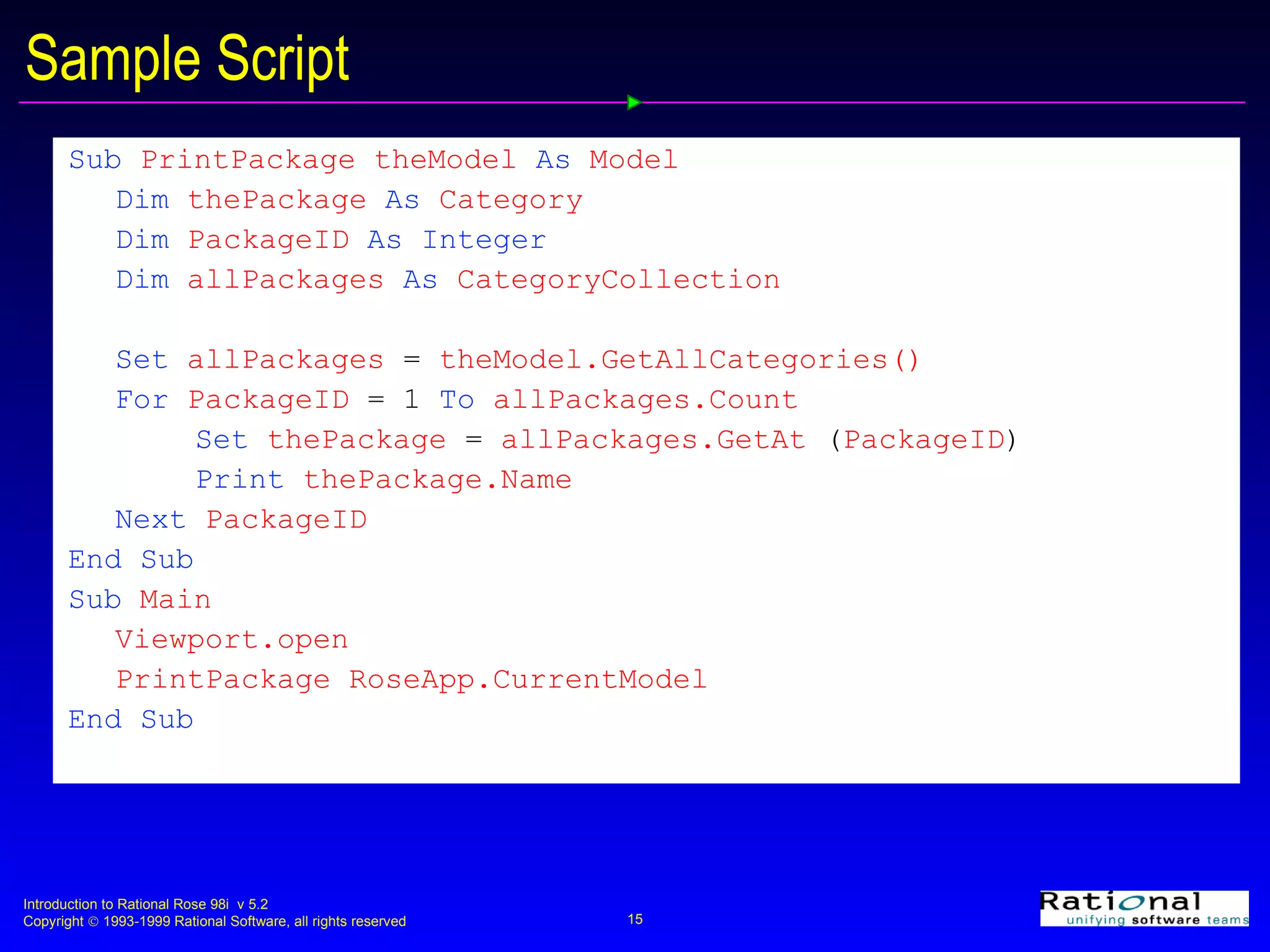

15. Sample Script Sub PrintPackage ( theModel As Model ) Dim thePackage As Category Dim PackageID As Integer Dim allPackages As CategoryCollection Set allPackages = theModel.GetAllCategories() For PackageID = 1 To allPackages.Count Set thePackage = allPackages.GetAt ( PackageID ) Print thePackage.Name Next PackageID End Sub Sub Main Viewport.open PrintPackage RoseApp.CurrentModel End Sub

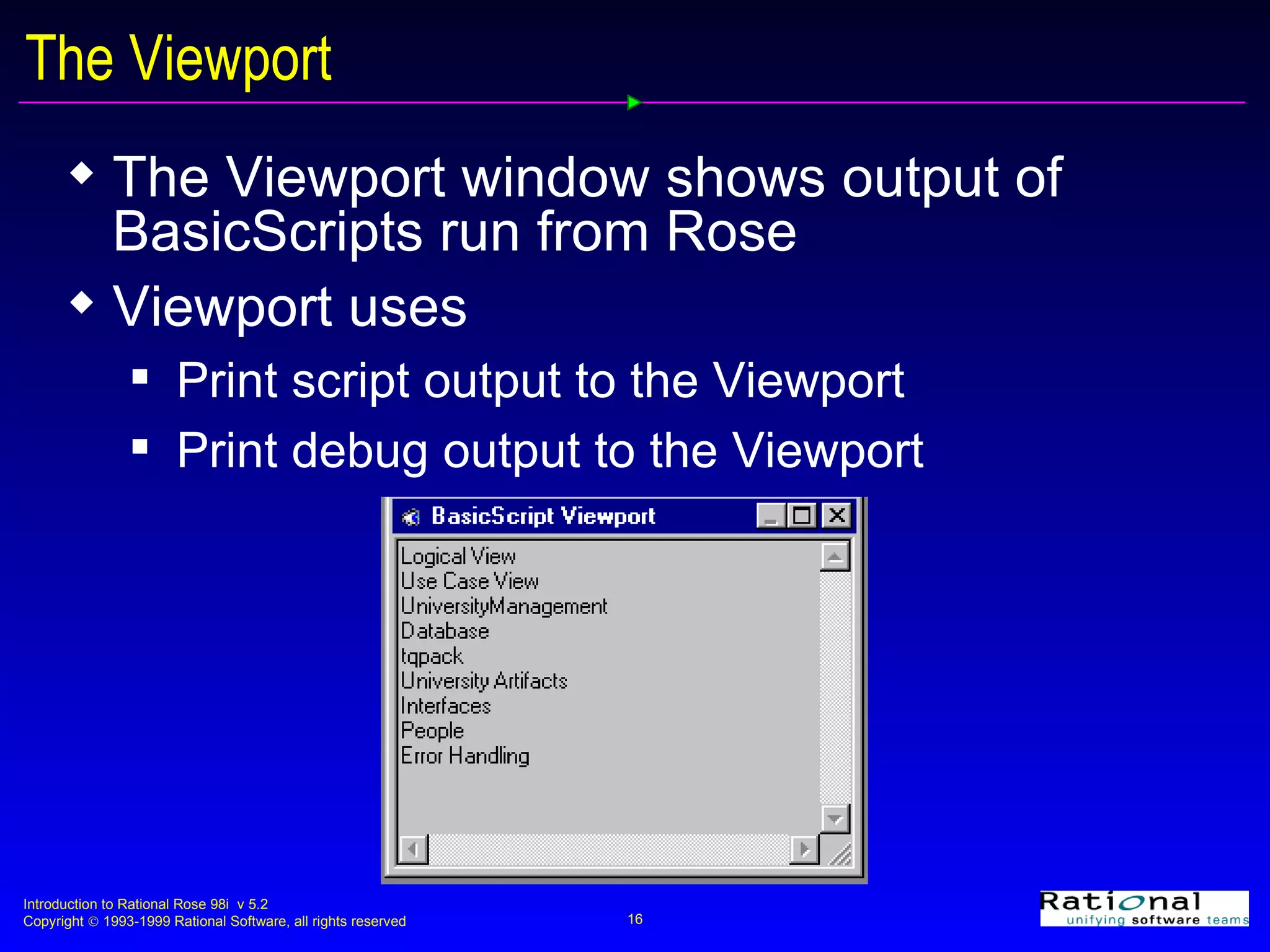

16. The Viewport The Viewport window shows output of BasicScripts run from Rose Viewport uses Print script output to the Viewport Print debug output to the Viewport

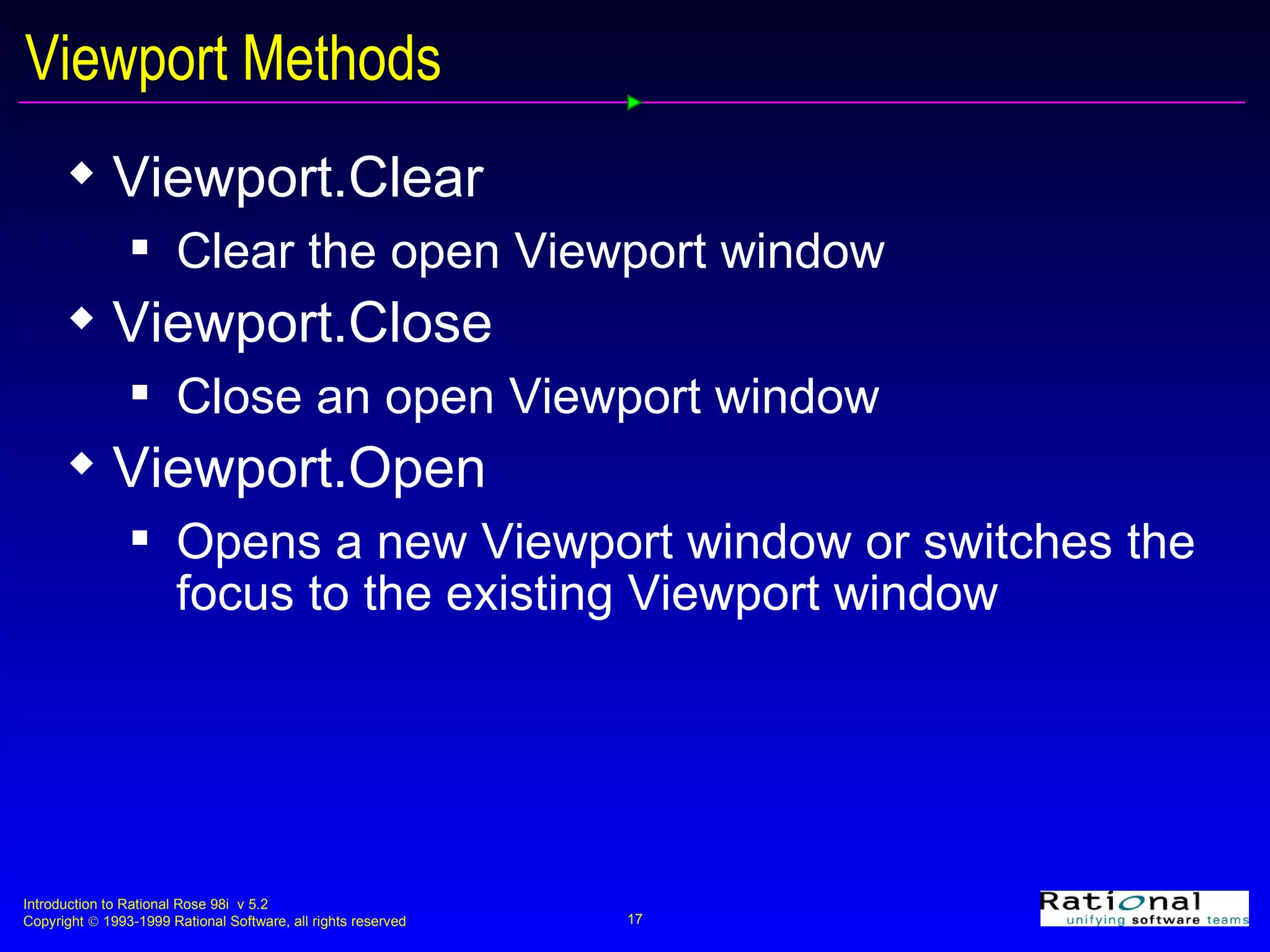

17. Viewport Methods Viewport.Clear Clear the open Viewport window Viewport.Close Close an open Viewport window Viewport.Open Opens a new Viewport window or switches the focus to the existing Viewport window

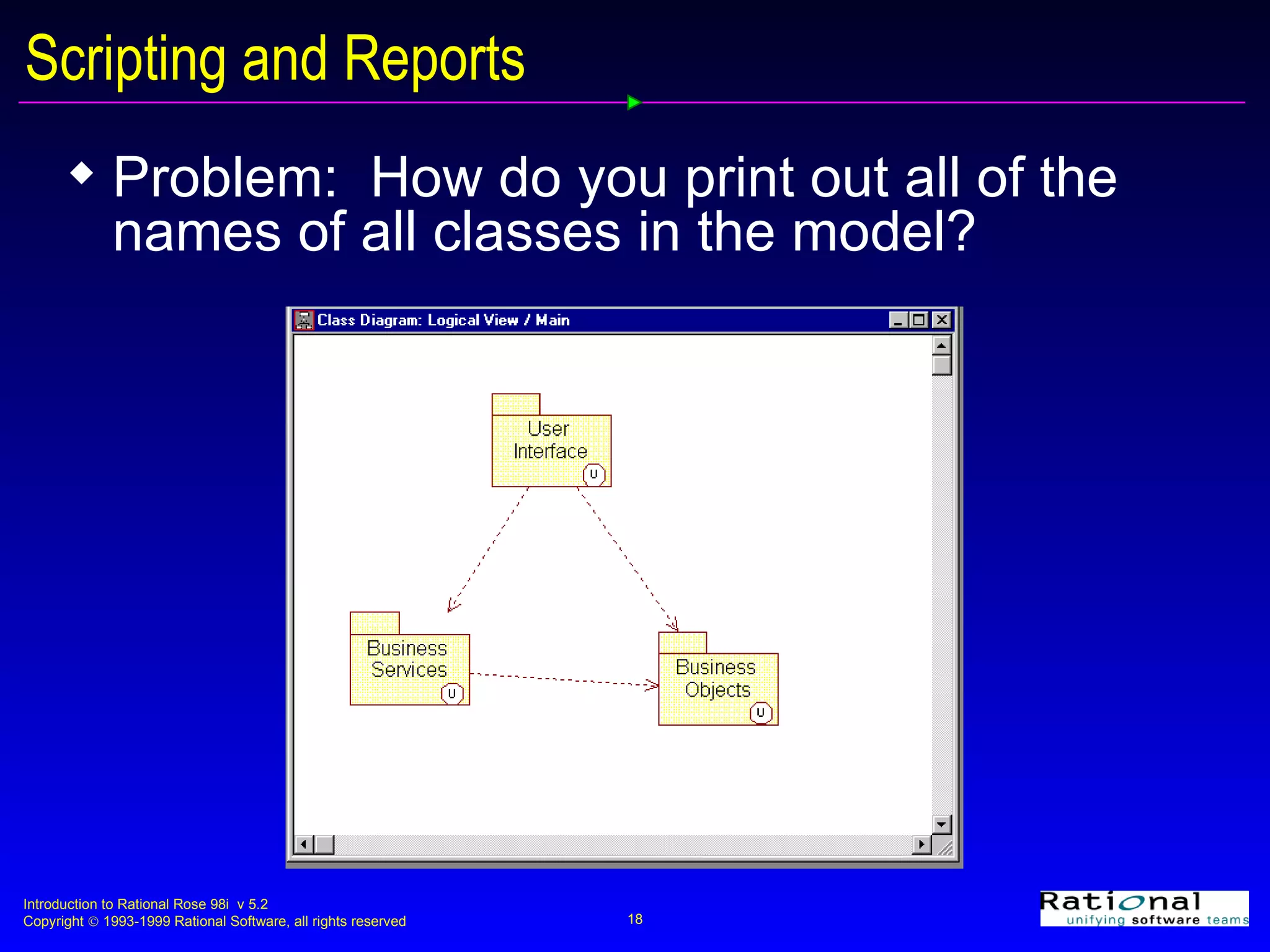

18. Scripting and Reports Problem: How do you print out all of the names of all classes in the model?

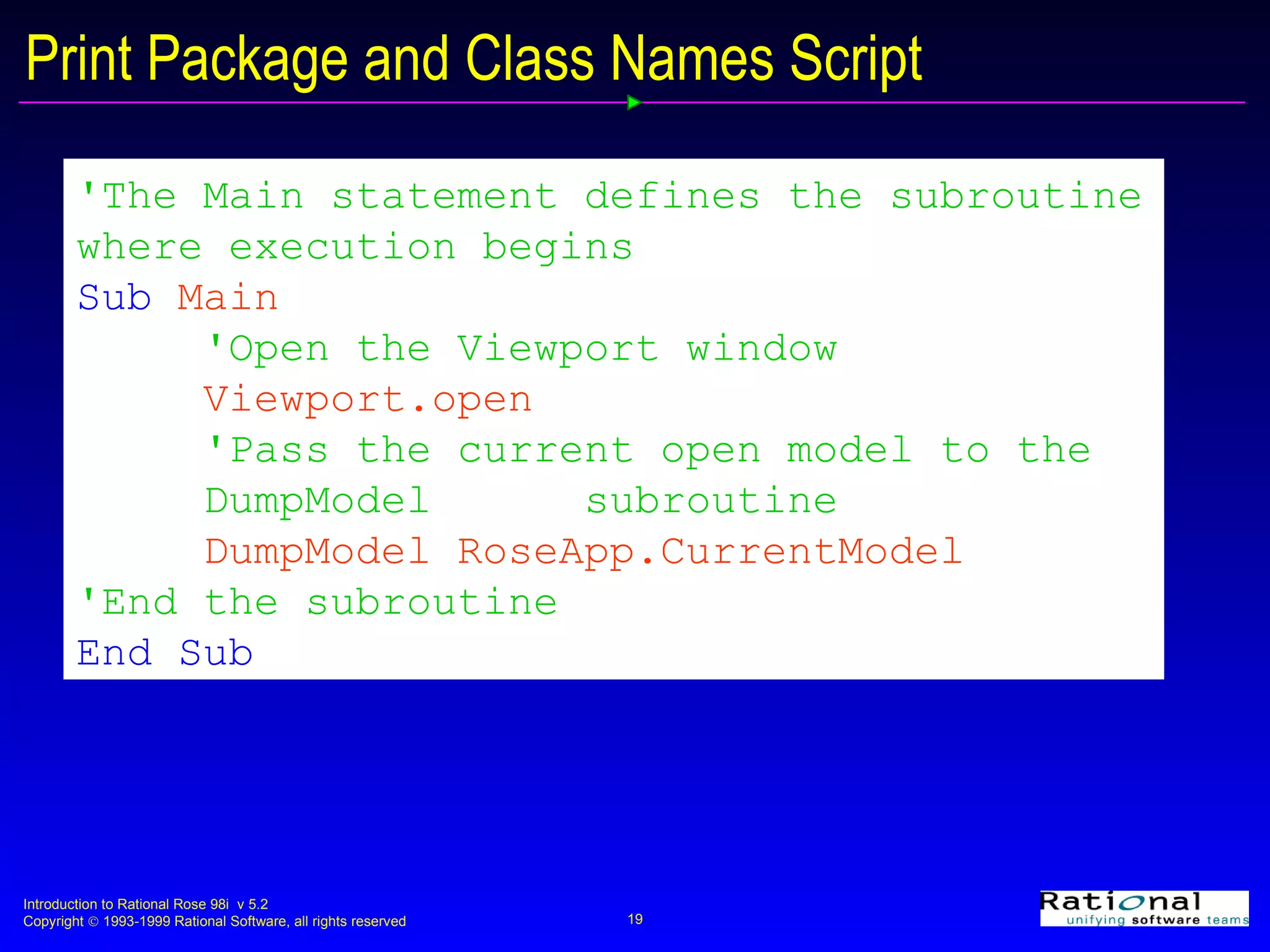

19. Print Package and Class Names Script 'The Main statement defines the subroutine where execution begins Sub Main 'Open the Viewport window Viewport.open 'Pass the current open model to the DumpModel subroutine DumpModel RoseApp.CurrentModel 'End the subroutine End Sub

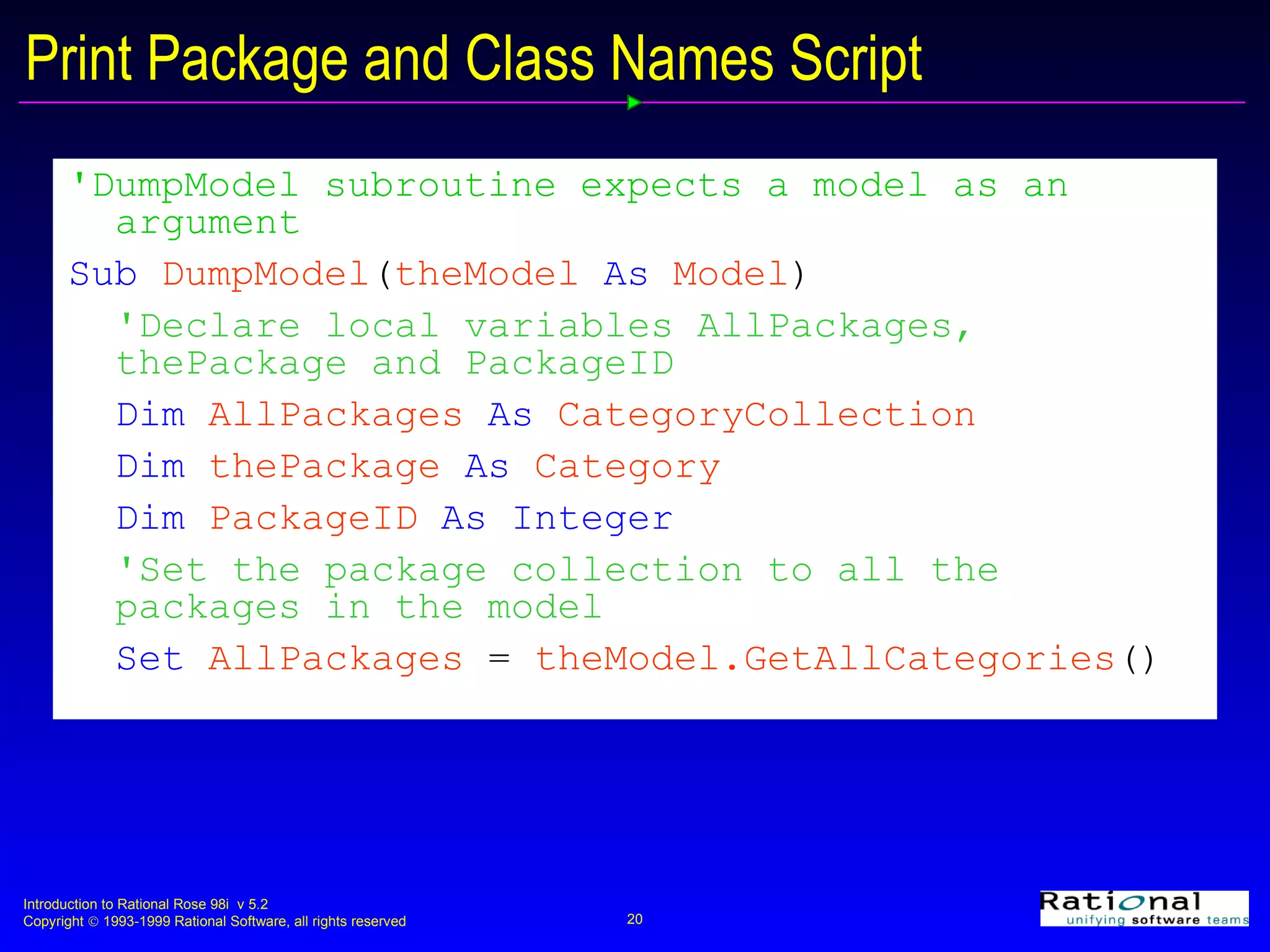

20. Print Package and Class Names Script 'DumpModel subroutine expects a model as an argument Sub DumpModel ( theModel As Model ) 'Declare local variables AllPackages, thePackage and PackageID Dim AllPackages As CategoryCollection Dim thePackage As Category Dim PackageID As Integer 'Set the package collection to all the packages in the model Set AllPackages = theModel.GetAllCategories ()

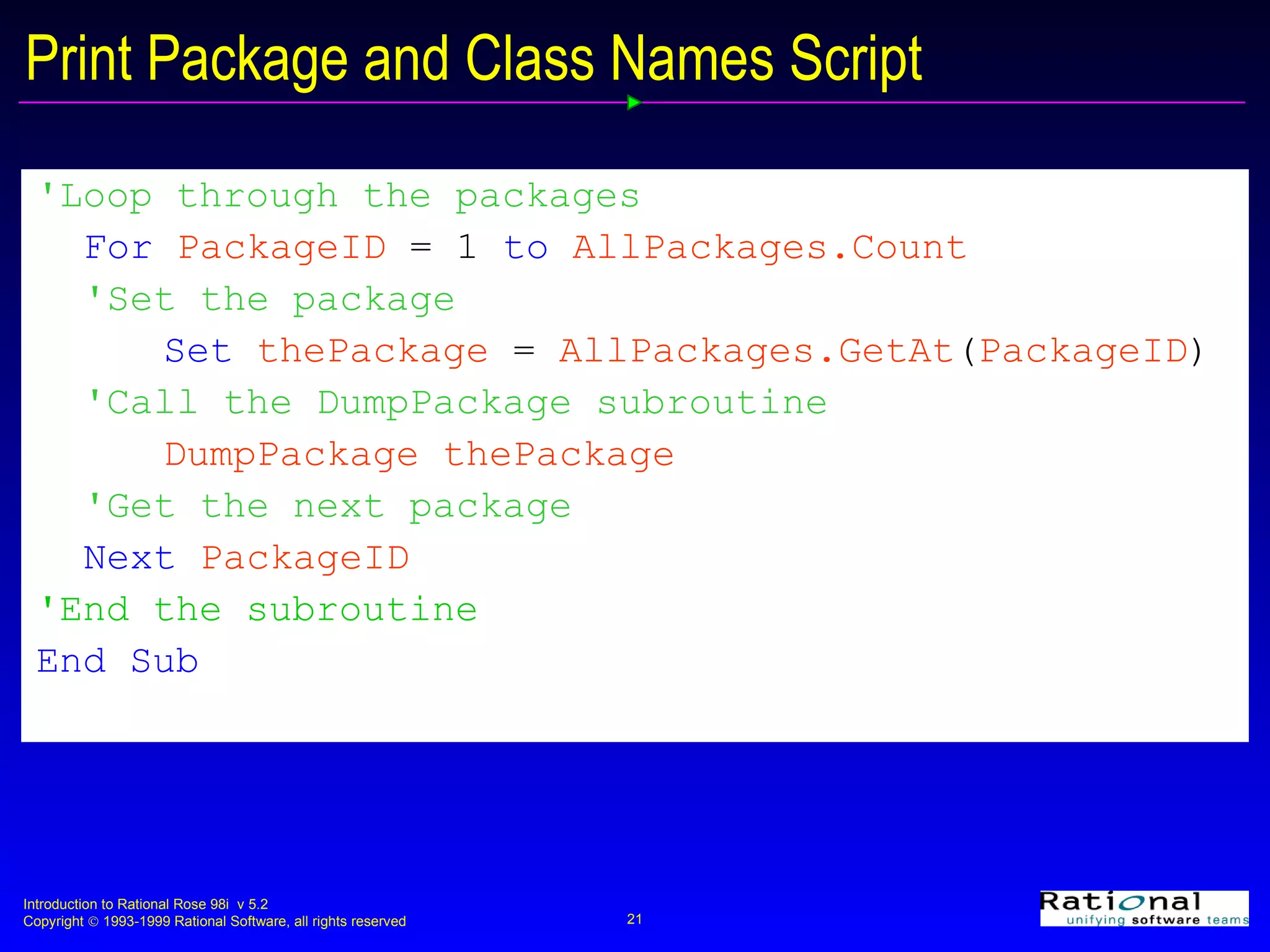

21. Print Package and Class Names Script 'Loop through the packages For PackageID = 1 to AllPackages.Count 'Set the package Set thePackage = AllPackages.GetAt ( PackageID ) 'Call the DumpPackage subroutine DumpPackage thePackage 'Get the next package Next PackageID 'End the subroutine End Sub

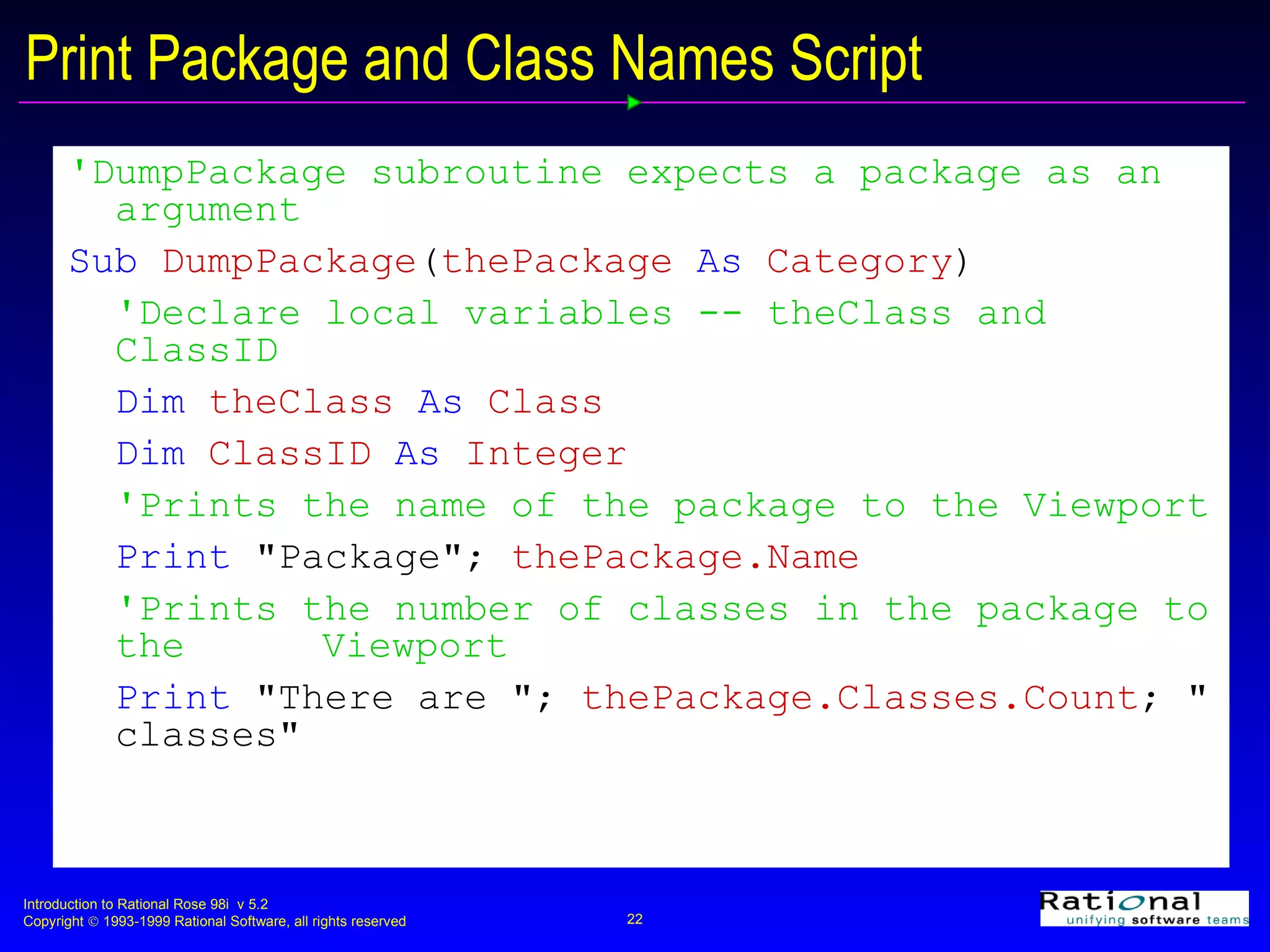

22. Print Package and Class Names Script 'DumpPackage subroutine expects a package as an argument Sub DumpPackage ( thePackage As Category ) 'Declare local variables -- theClass and ClassID Dim theClass As Class Dim ClassID As Integer 'Prints the name of the package to the Viewport Print "Package"; thePackage.Name 'Prints the number of classes in the package to the Viewport Print "There are "; thePackage.Classes.Count ; " classes"

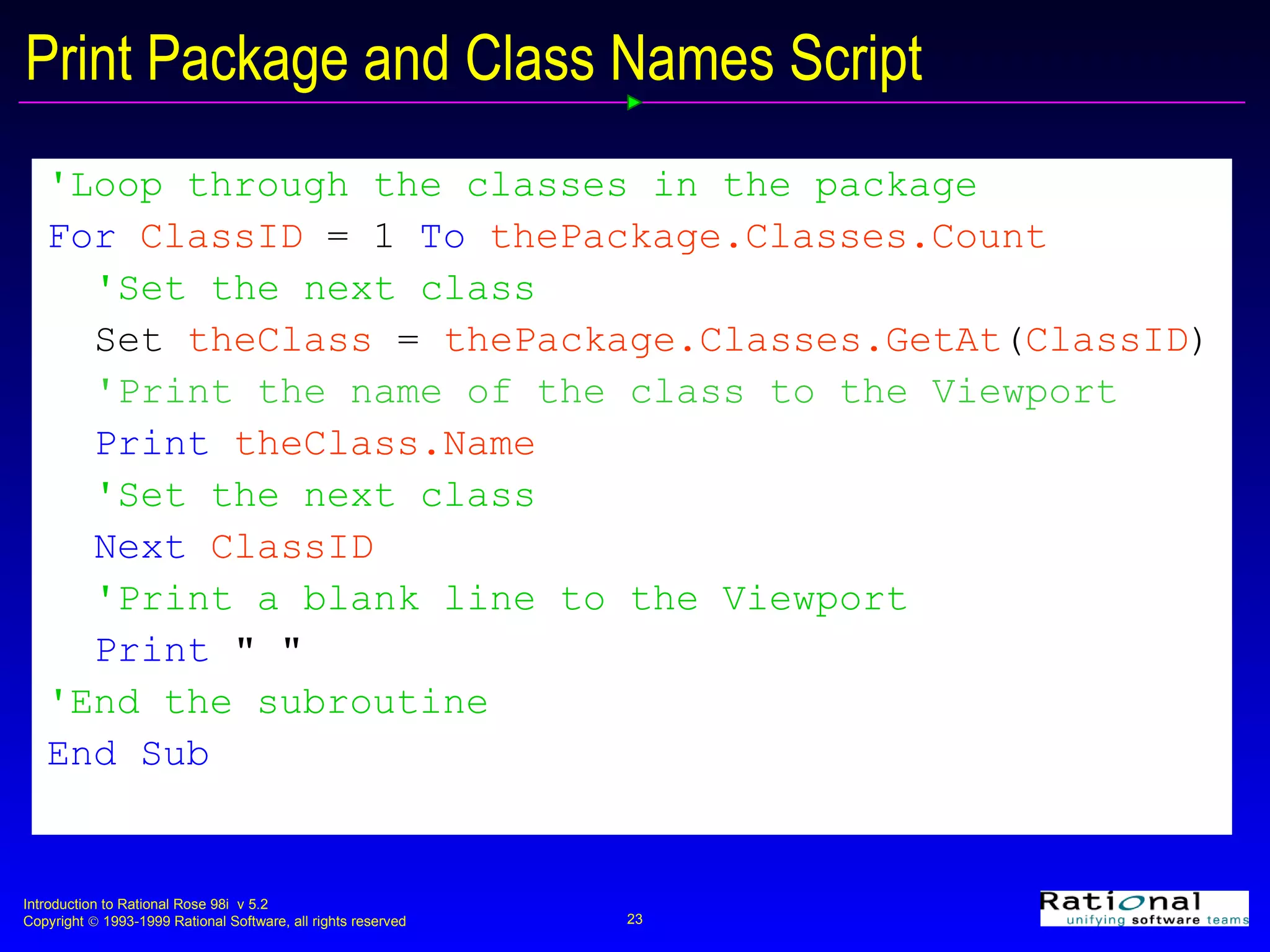

23. Print Package and Class Names Script 'Loop through the classes in the package For ClassID = 1 To thePackage.Classes.Count 'Set the next class Set theClass = thePackage.Classes.GetAt ( ClassID ) 'Print the name of the class to the Viewport Print theClass.Name 'Set the next class Next ClassID 'Print a blank line to the Viewport Print " " 'End the subroutine End Sub

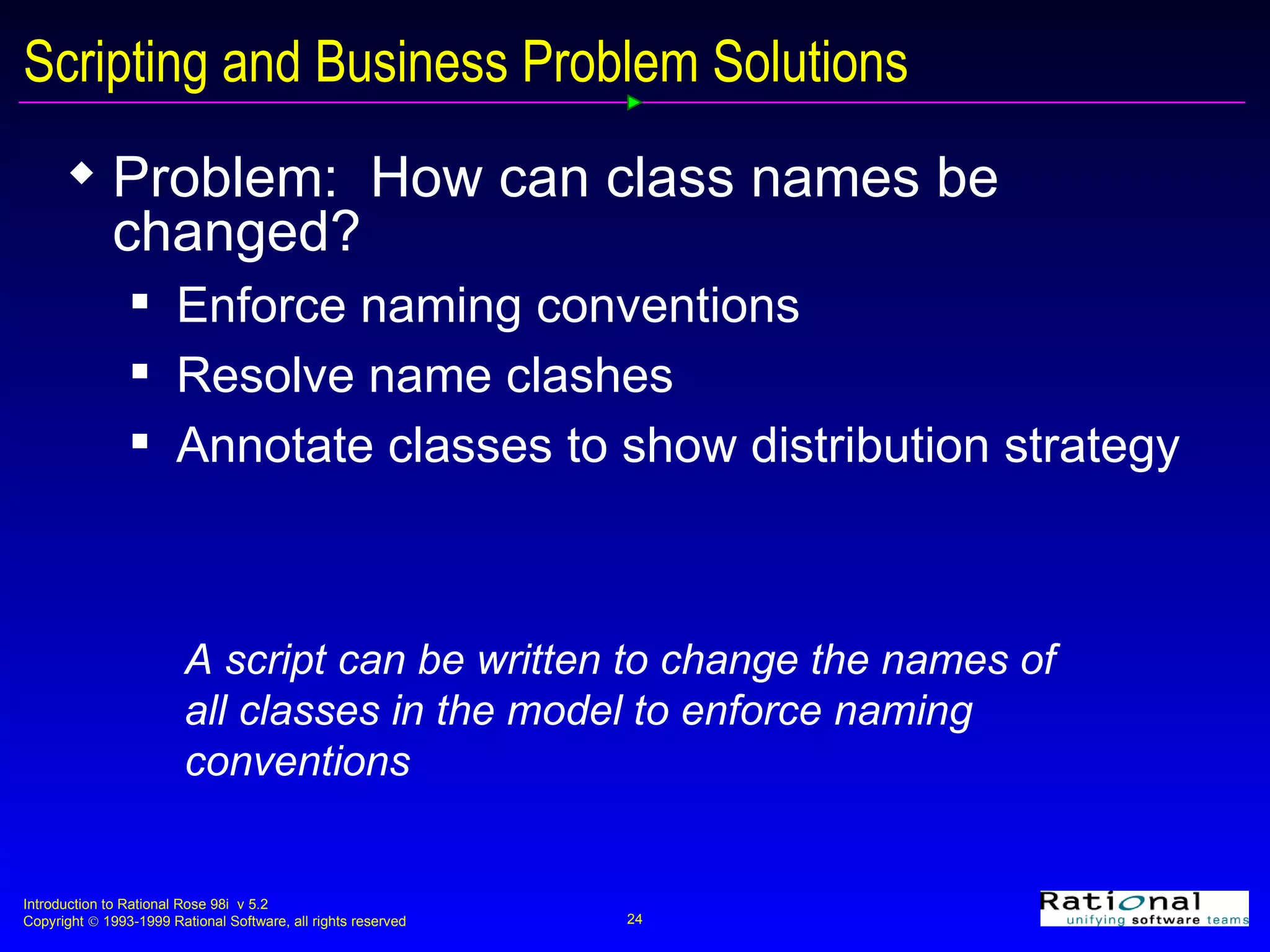

24. Scripting and Business Problem Solutions Problem: How can class names be changed? Enforce naming conventions Resolve name clashes Annotate classes to show distribution strategy A script can be written to change the names of all classes in the model to enforce naming conventions

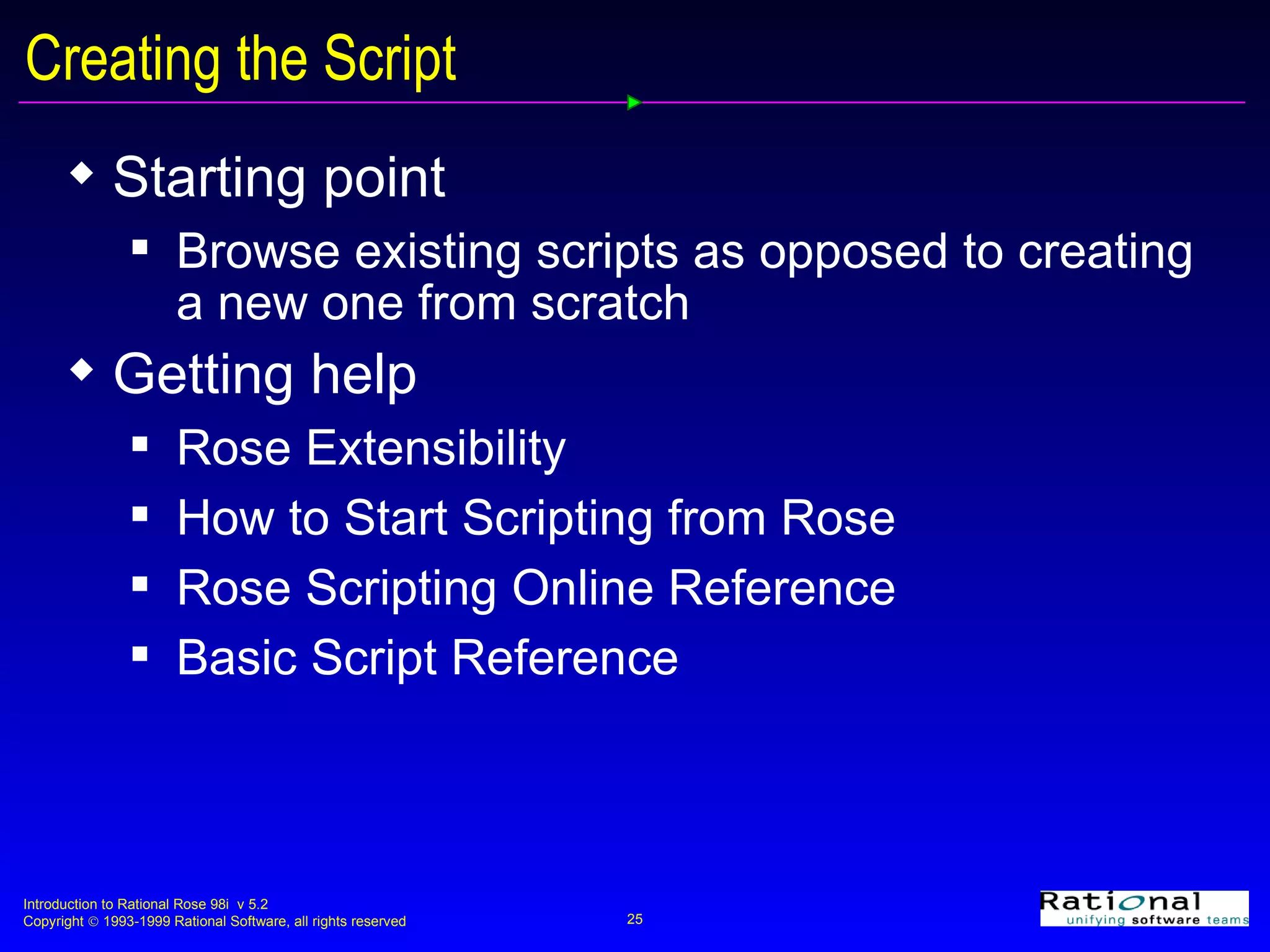

25. Creating the Script Starting point Browse existing scripts as opposed to creating a new one from scratch Getting help Rose Extensibility How to Start Scripting from Rose Rose Scripting Online Reference Basic Script Reference

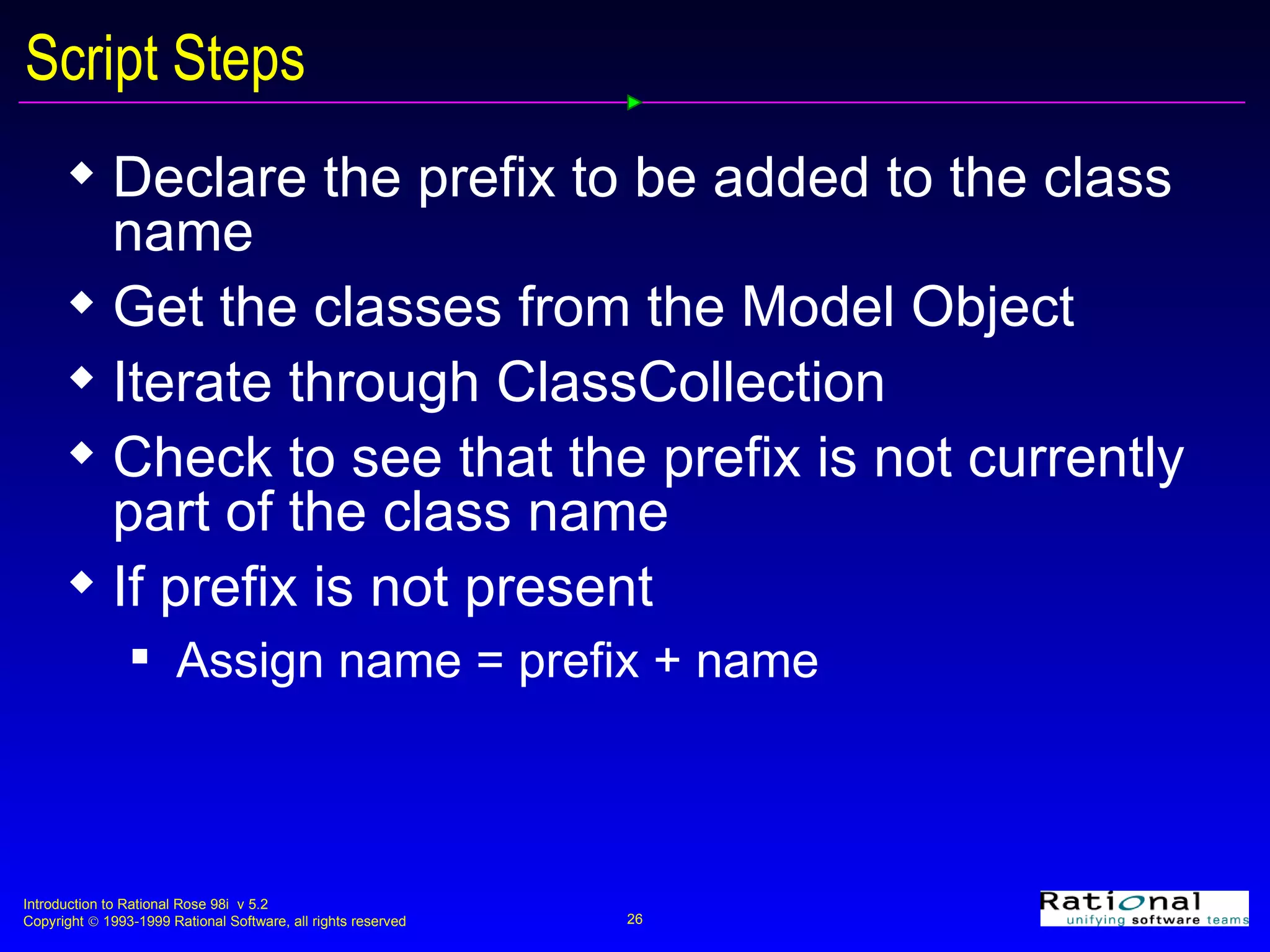

26. Script Steps Declare the prefix to be added to the class name Get the classes from the Model Object Iterate through ClassCollection Check to see that the prefix is not currently part of the class name If prefix is not present Assign name = prefix + name

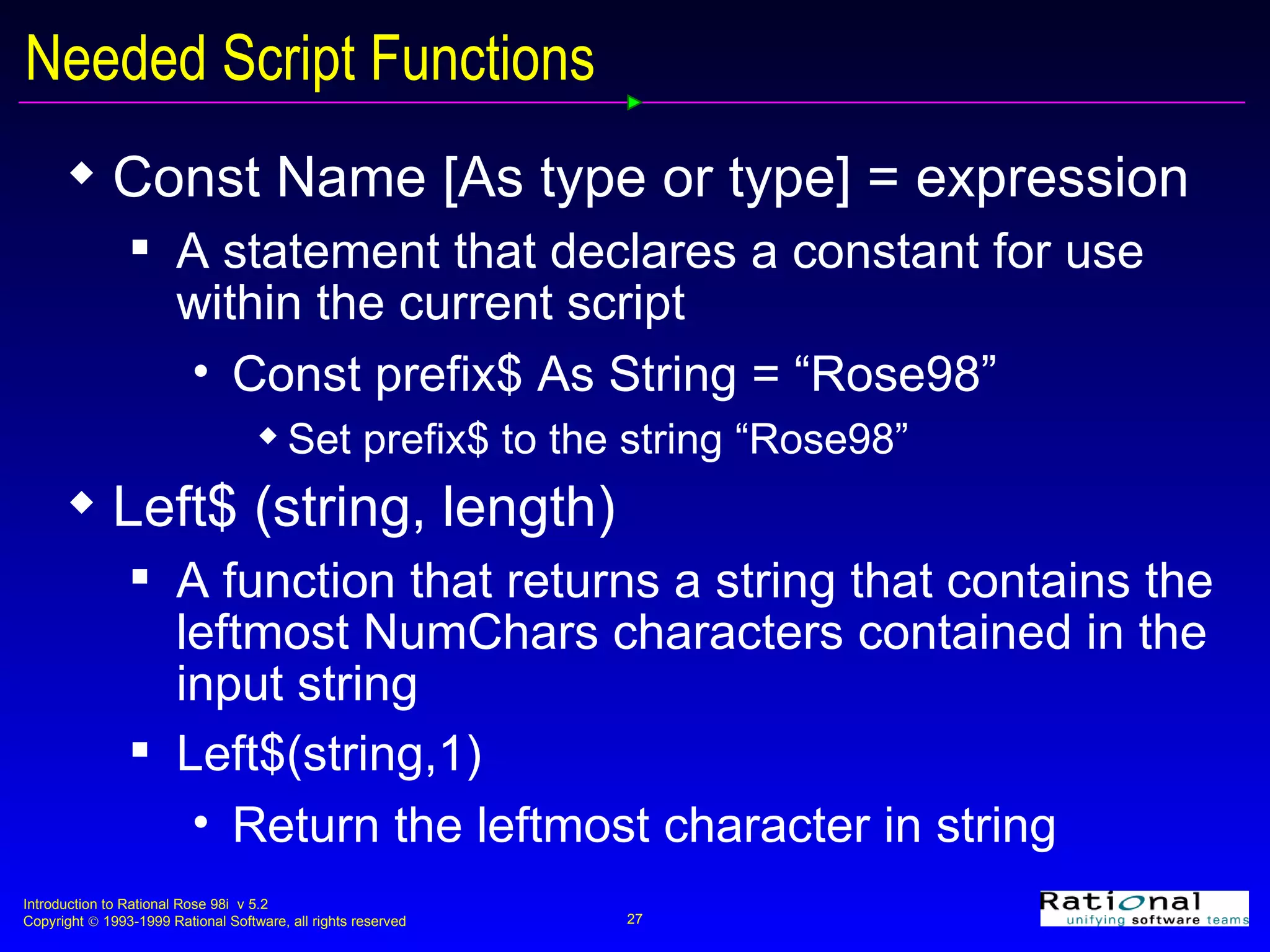

27. Needed Script Functions Const Name [As type or type] = expression A statement that declares a constant for use within the current script Const prefix$ As String = “Rose98” Set prefix$ to the string “Rose98” Left$ (string, length) A function that returns a string that contains the leftmost NumChars characters contained in the input string Left$(string,1) Return the leftmost character in string

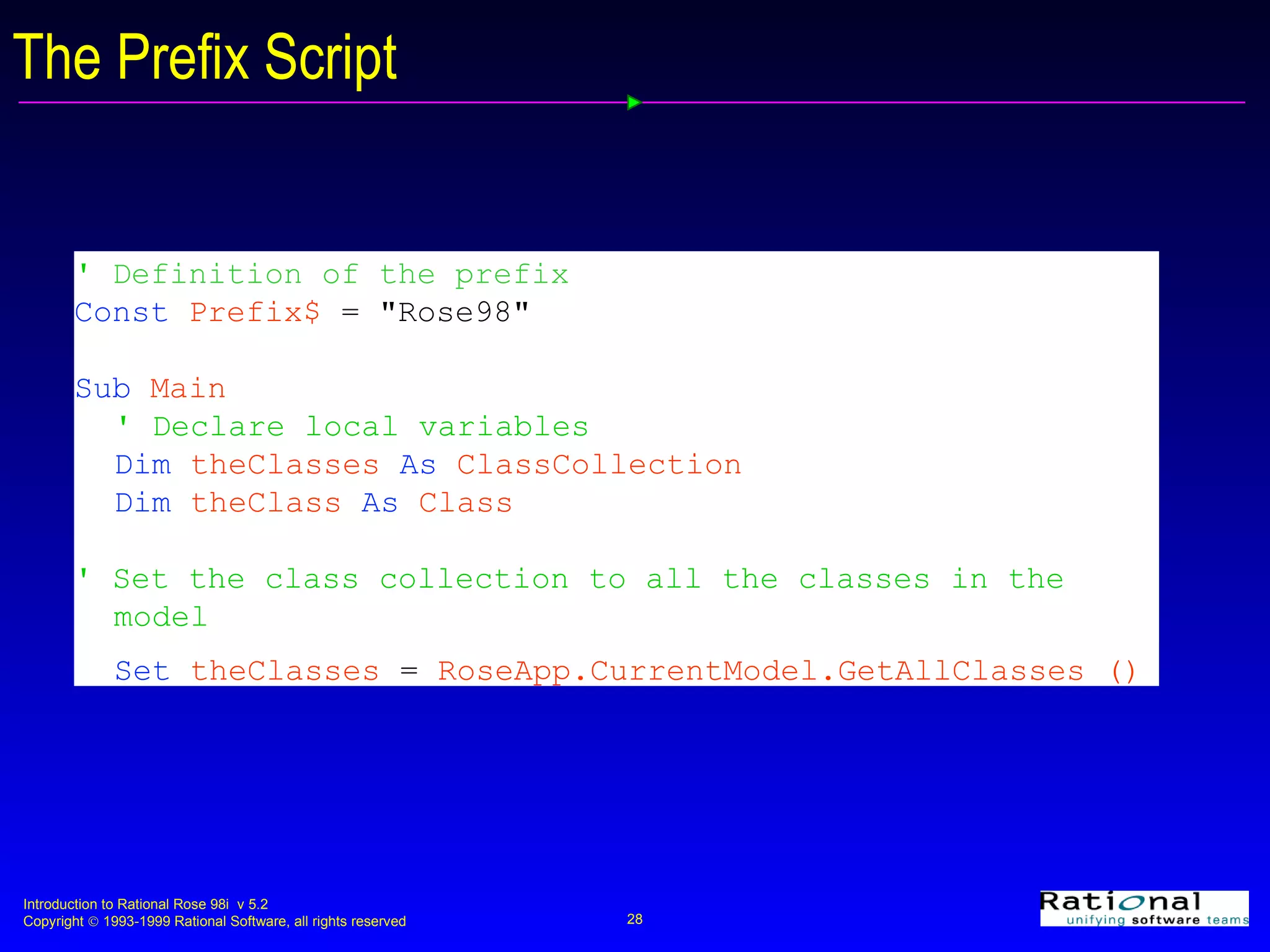

28. The Prefix Script ' Definition of the prefix Const Prefix$ = "Rose98" Sub Main ' Declare local variables Dim theClasses As ClassCollection Dim theClass As Class ' Set the class collection to all the classes in the model Set theClasses = RoseApp.CurrentModel.GetAllClasses ()

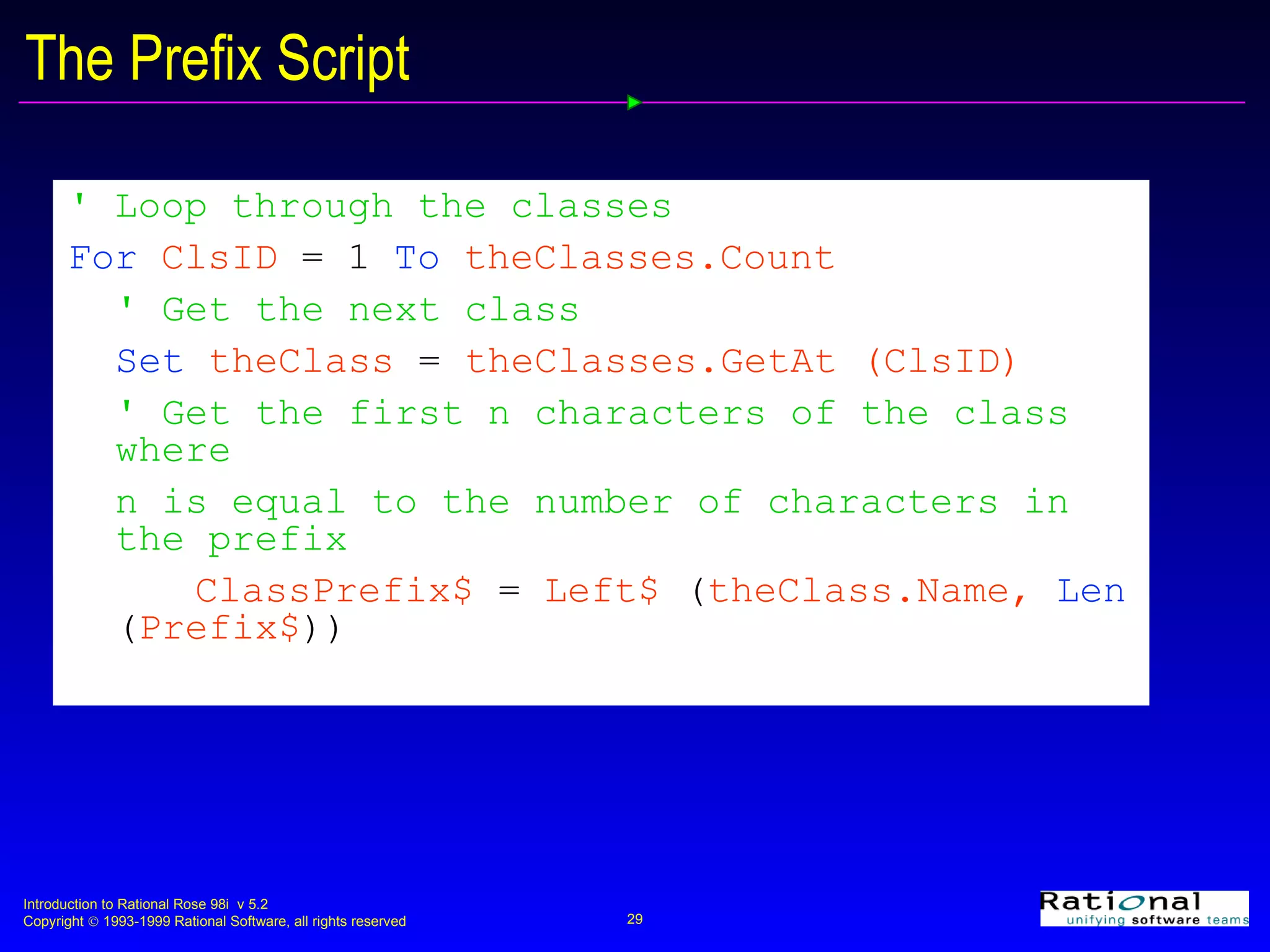

29. The Prefix Script ' Loop through the classes For ClsID = 1 To theClasses.Count ' Get the next class Set theClass = theClasses.GetAt (ClsID) ' Get the first n characters of the class where n is equal to the number of characters in the prefix ClassPrefix$ = Left$ ( theClass.Name, Len ( Prefix$ ))

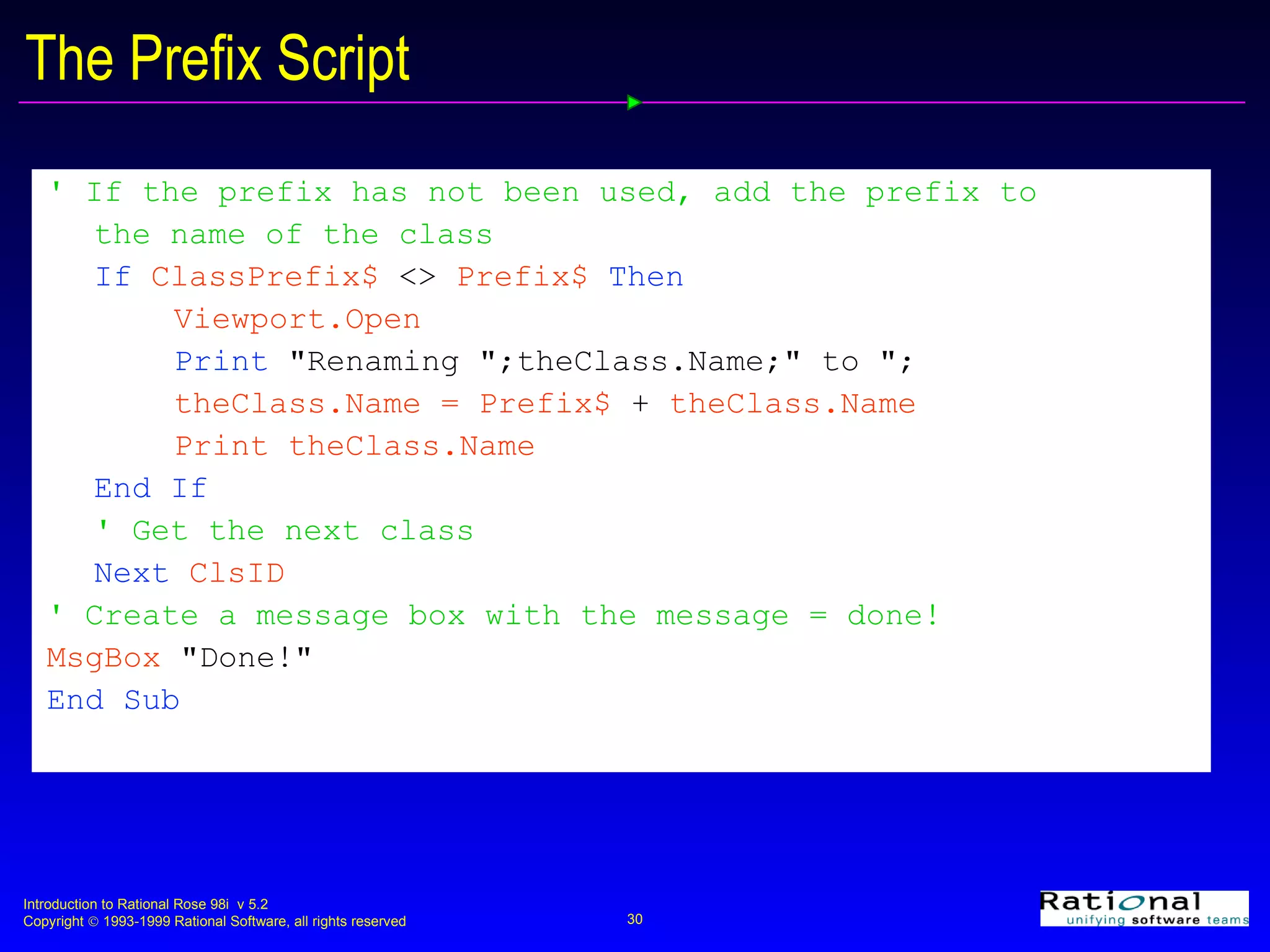

30. The Prefix Script ' If the prefix has not been used, add the prefix to the name of the class If ClassPrefix$ <> Prefix$ Then Viewport.Open Print &quot;Renaming &quot;;theClass.Name;&quot; to &quot;; theClass.Name = Prefix$ + theClass.Name Print theClass.Name End If ' Get the next class Next ClsID ' Create a message box with the message = done! MsgBox &quot;Done!&quot; End Sub

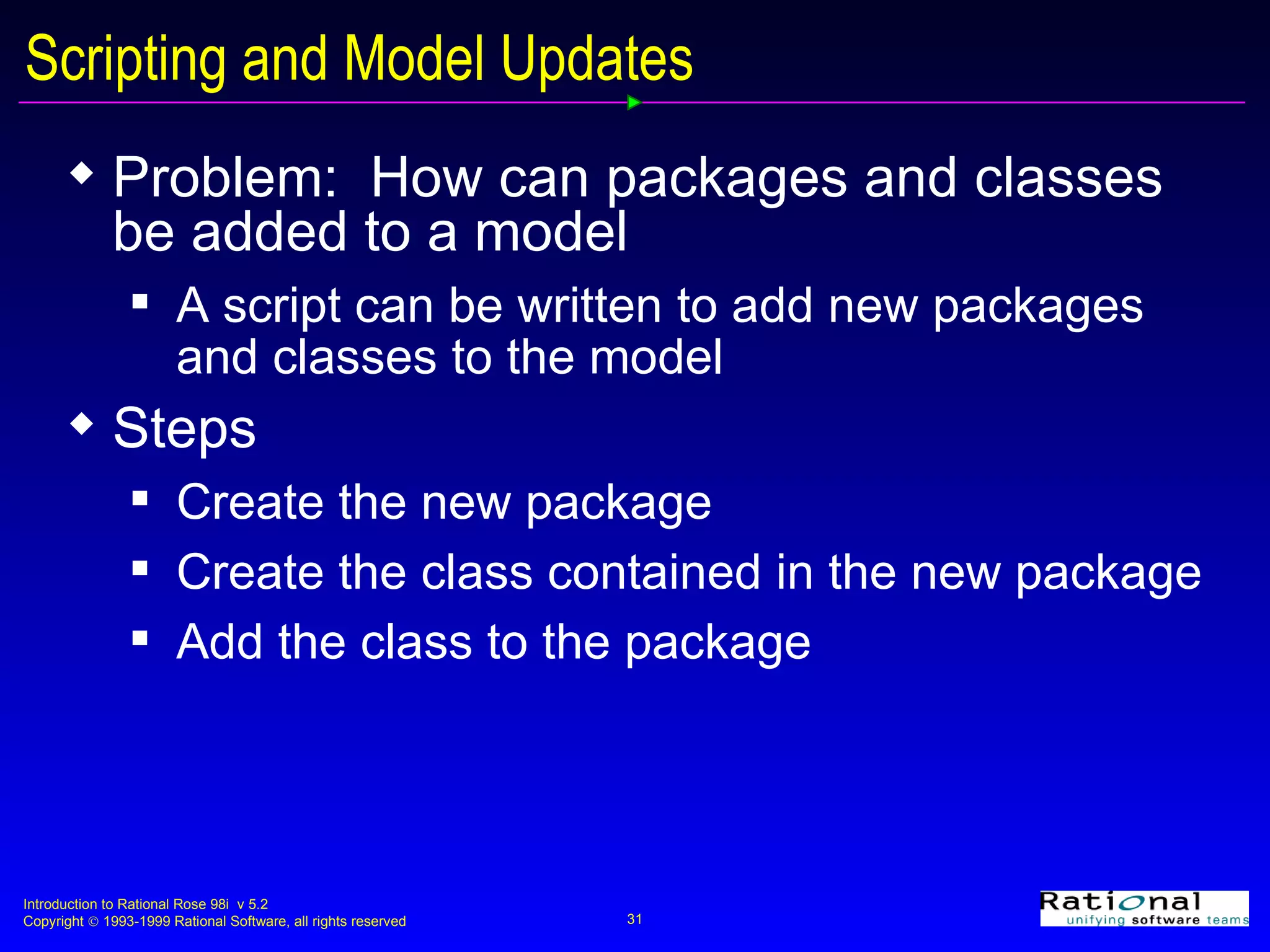

31. Scripting and Model Updates Problem: How can packages and classes be added to a model A script can be written to add new packages and classes to the model Steps Create the new package Create the class contained in the new package Add the class to the package

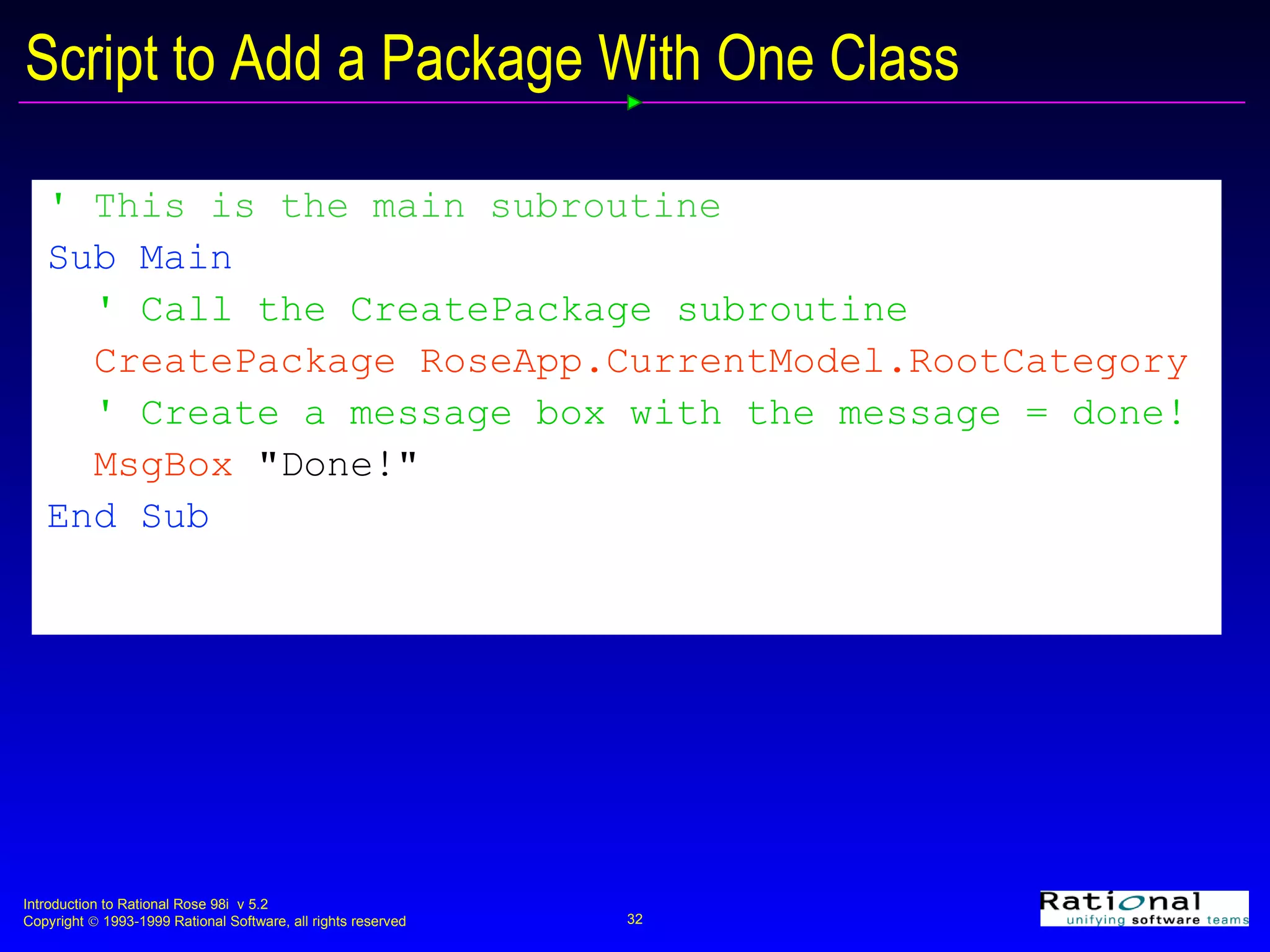

32. ' This is the main subroutine Sub Main ' Call the CreatePackage subroutine CreatePackage RoseApp.CurrentModel.RootCategory ' Create a message box with the message = done! MsgBox &quot;Done!&quot; End Sub Script to Add a Package With One Class

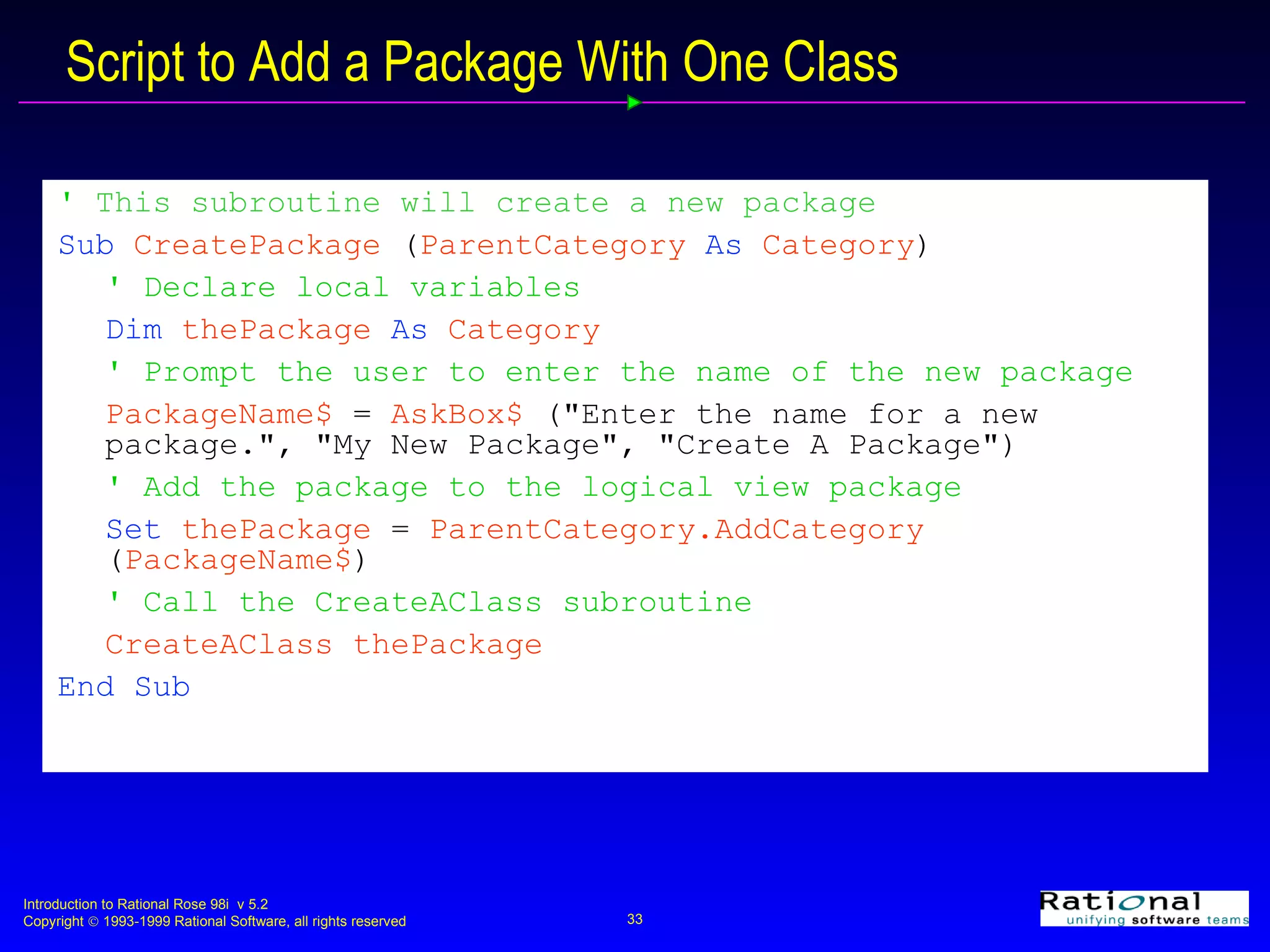

33. Script to Add a Package With One Class ' This subroutine will create a new package Sub CreatePackage ( ParentCategory As Category ) ' Declare local variables Dim thePackage As Category ' Prompt the user to enter the name of the new package PackageName$ = AskBox$ (&quot;Enter the name for a new package.&quot;, &quot;My New Package&quot;, &quot;Create A Package&quot;) ' Add the package to the logical view package Set thePackage = ParentCategory.AddCategory ( PackageName$ ) ' Call the CreateAClass subroutine CreateAClass thePackage End Sub

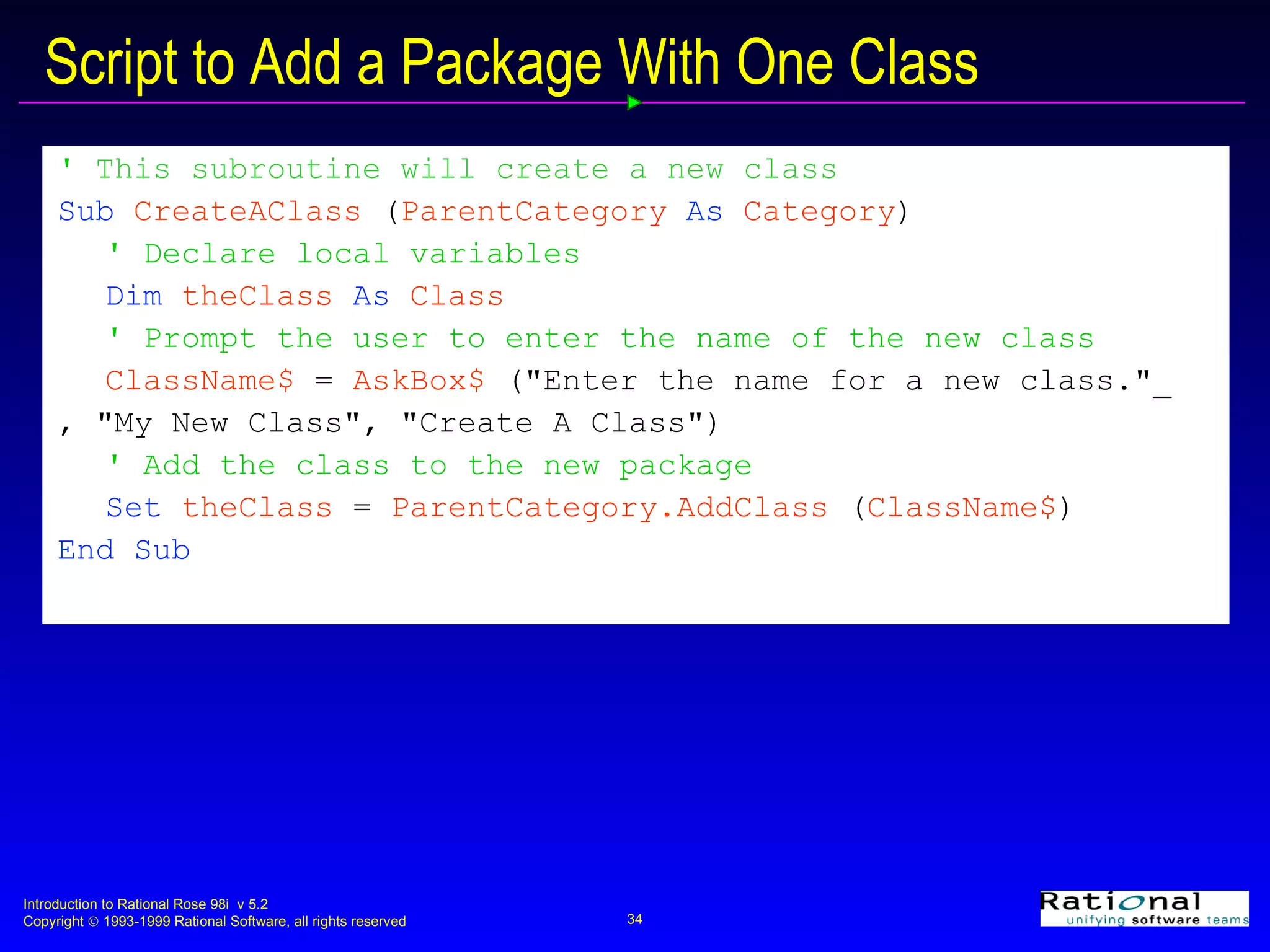

34. Script to Add a Package With One Class ' This subroutine will create a new class Sub CreateAClass ( ParentCategory As Category ) ' Declare local variables Dim theClass As Class ' Prompt the user to enter the name of the new class ClassName$ = AskBox$ (&quot;Enter the name for a new class.&quot;_ , &quot;My New Class&quot;, &quot;Create A Class&quot;) ' Add the class to the new package Set theClass = ParentCategory.AddClass ( ClassName$ ) End Sub

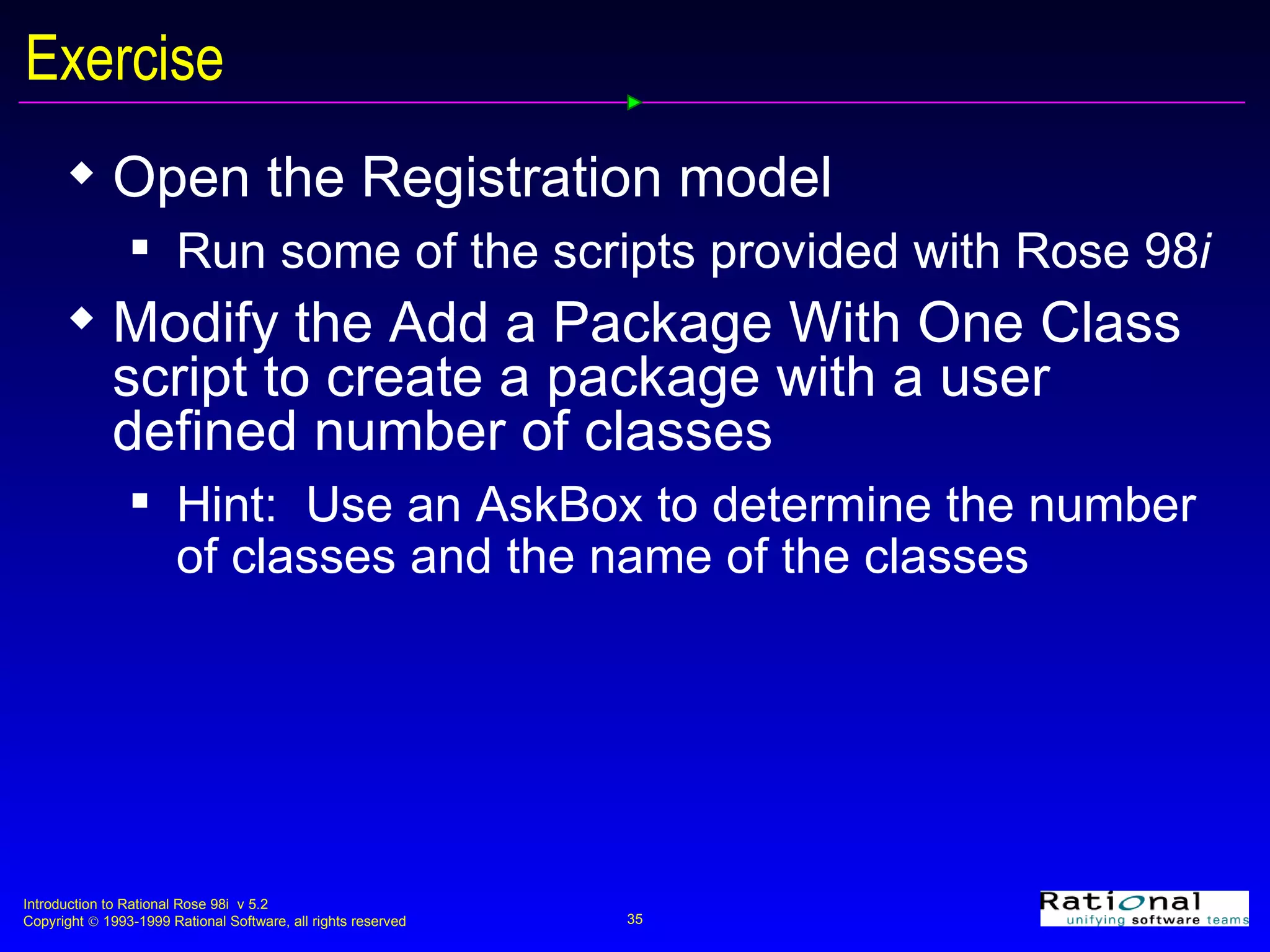

35. Exercise Open the Registration model Run some of the scripts provided with Rose 98 i Modify the Add a Package With One Class script to create a package with a user defined number of classes Hint: Use an AskBox to determine the number of classes and the name of the classes
