The document outlines the current state and challenges of non-building construction in the U.S., emphasizing the need for sustainability and detailing various rating systems and codes such as the Envision Rating System and the International Green Construction Code. It highlights significant infrastructure issues in Ohio, including the deteriorating conditions of roads, bridges, and water systems, alongside future budget shortfalls. Additionally, it introduces approaches for integrating sustainability into infrastructure projects, the role of civil engineers, and upcoming certification programs to promote standards in sustainable engineering.

1. Presenter:
Scott DeGaro, CCCA, LEED AP BD+C, O+M, ID+C
Sustainability Administrator
Barge Waggoner Sumner & Cannon, Inc.

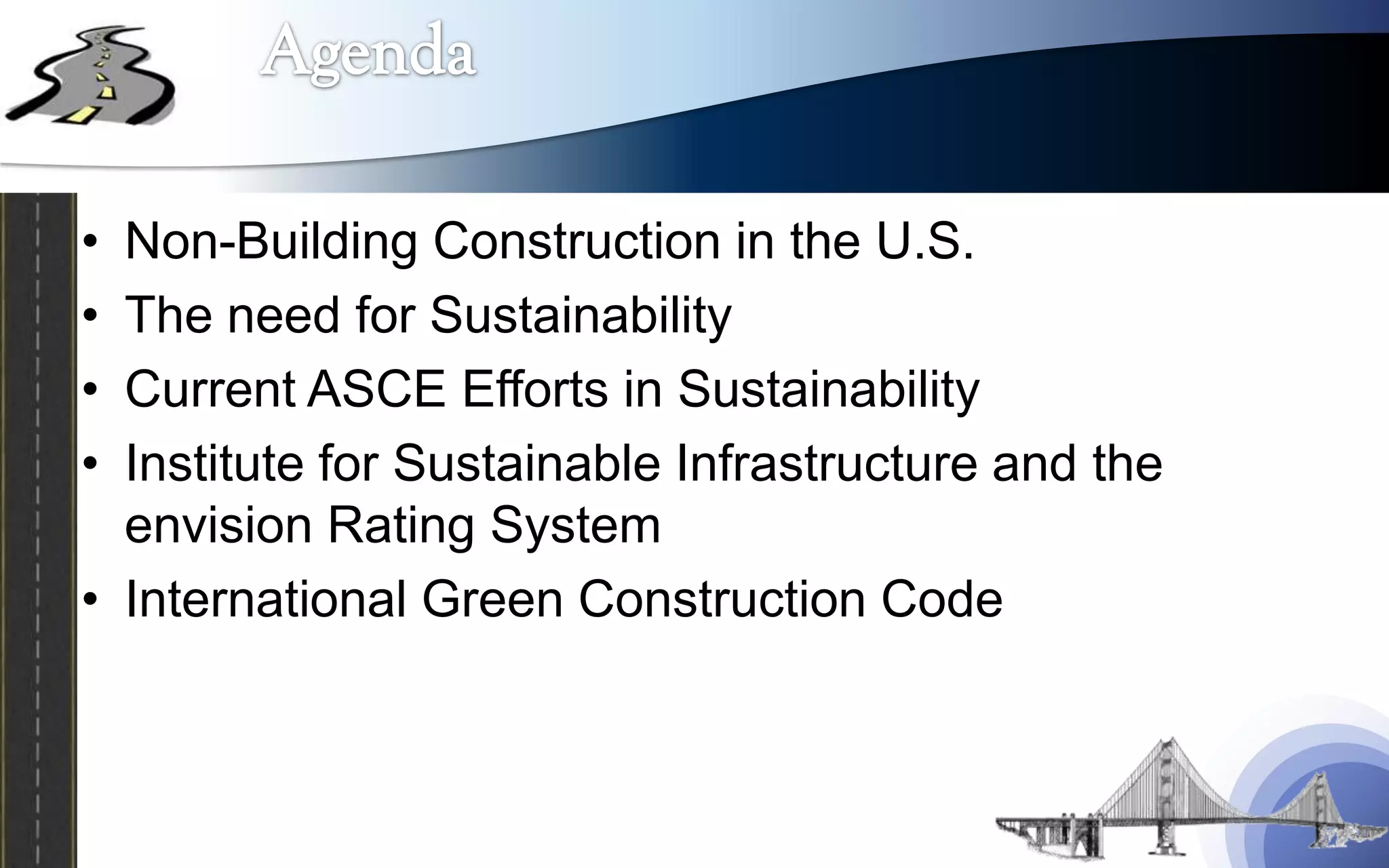

2. • Non-Building Construction in the U.S.
• The need for Sustainability
• Current ASCE Efforts in Sustainability
• Institute for Sustainable Infrastructure and the
envision Rating System
• International Green Construction Code

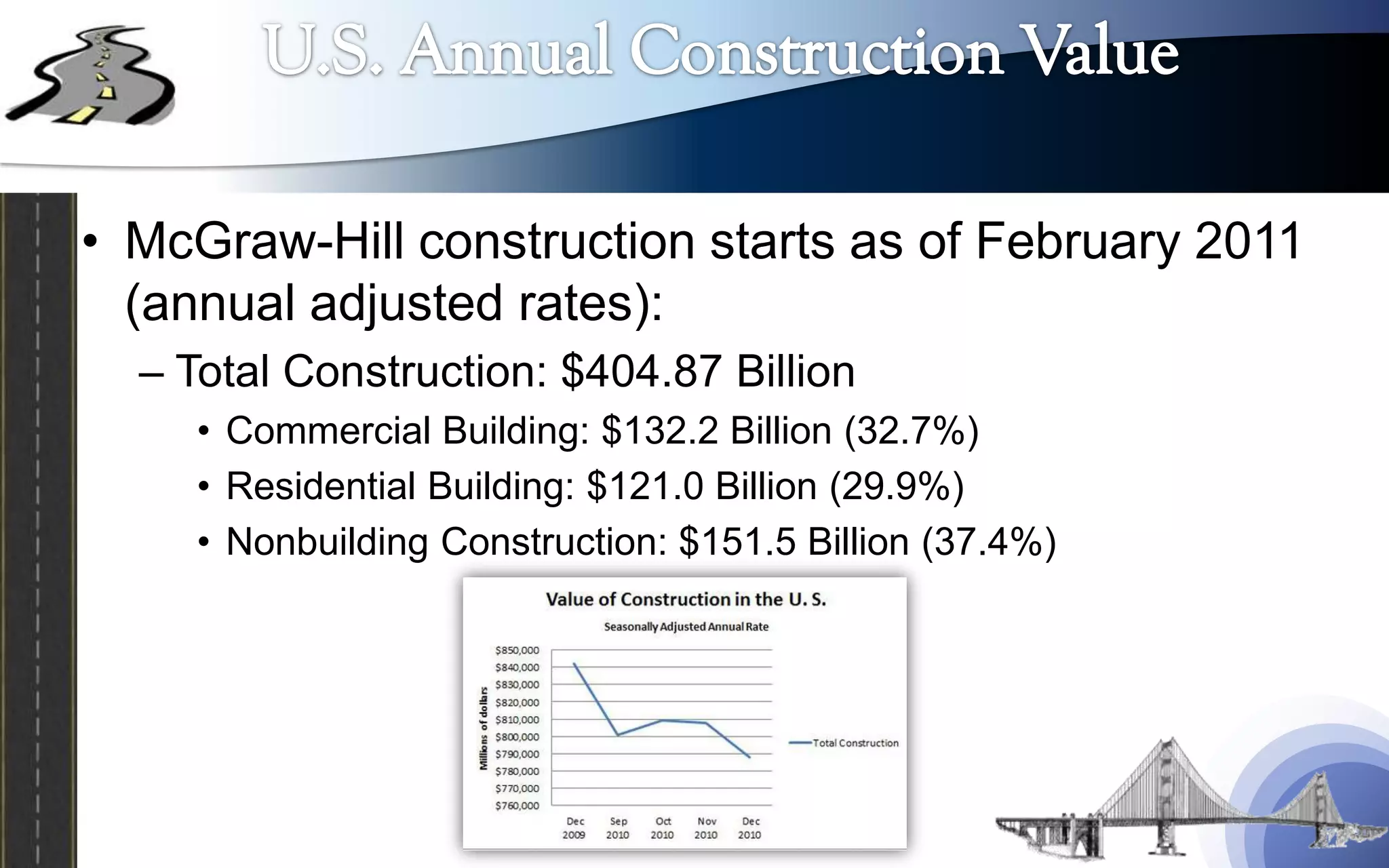

4. • McGraw-Hill construction starts as of February 2011
(annual adjusted rates):
– Total Construction: $404.87 Billion
• Commercial Building: $132.2 Billion (32.7%)
• Residential Building: $121.0 Billion (29.9%)
• Nonbuilding Construction: $151.5 Billion (37.4%)

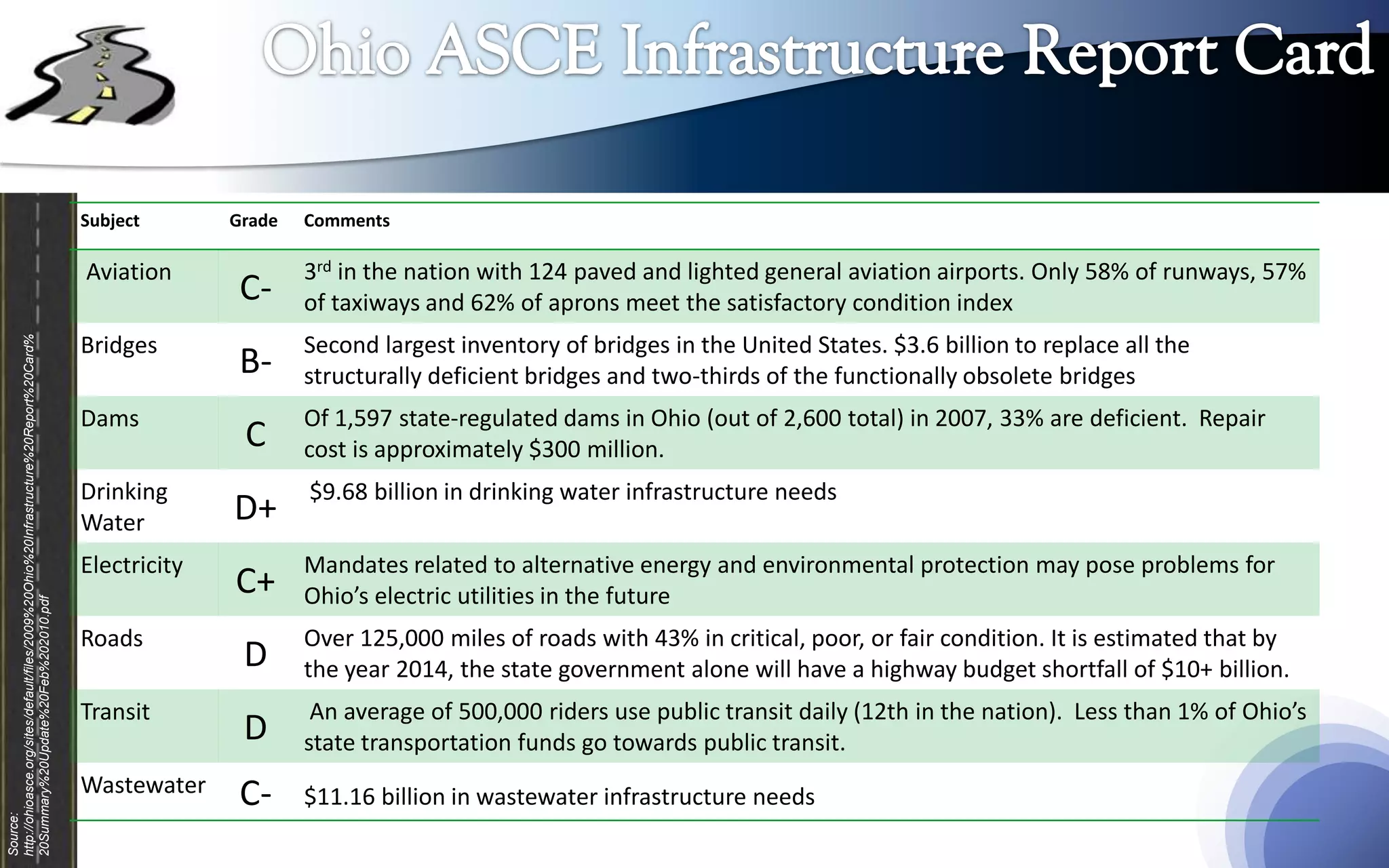

5. Subject Grade Comments
Aviation 3rd in the nation with 124 paved and lighted general aviation airports. Only 58% of runways, 57%
C- of taxiways and 62% of aprons meet the satisfactory condition index
Bridges Second largest inventory of bridges in the United States. $3.6 billion to replace all the
http://ohioasce.org/sites/default/files/2009%20Ohio%20Infrastructure%20Report%20Card%
B- structurally deficient bridges and two-thirds of the functionally obsolete bridges
Dams Of 1,597 state-regulated dams in Ohio (out of 2,600 total) in 2007, 33% are deficient. Repair
C cost is approximately $300 million.
Drinking $9.68 billion in drinking water infrastructure needs
Water D+
Electricity Mandates related to alternative energy and environmental protection may pose problems for
C+ Ohio’s electric utilities in the future
20Summary%20Update%20Feb%202010.pdf
Roads Over 125,000 miles of roads with 43% in critical, poor, or fair condition. It is estimated that by
D the year 2014, the state government alone will have a highway budget shortfall of $10+ billion.
Transit An average of 500,000 riders use public transit daily (12th in the nation). Less than 1% of Ohio’s
D state transportation funds go towards public transit.
Wastewater C- $11.16 billion in wastewater infrastructure needs
Source:

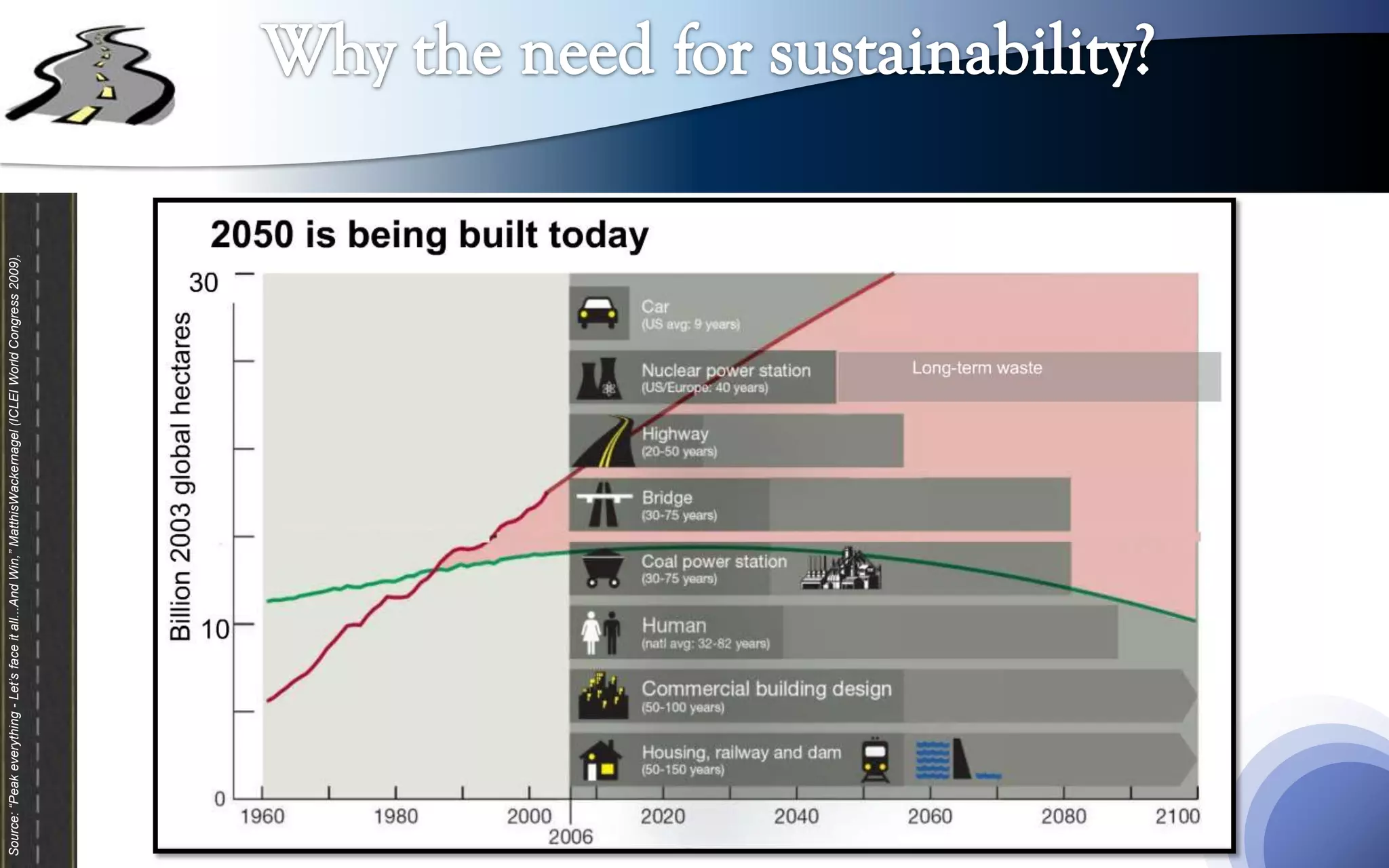

6. Source: “Peak everything - Let’s face it all...And Win,” MatthisWackernagel (ICLEI World Congress 2009),

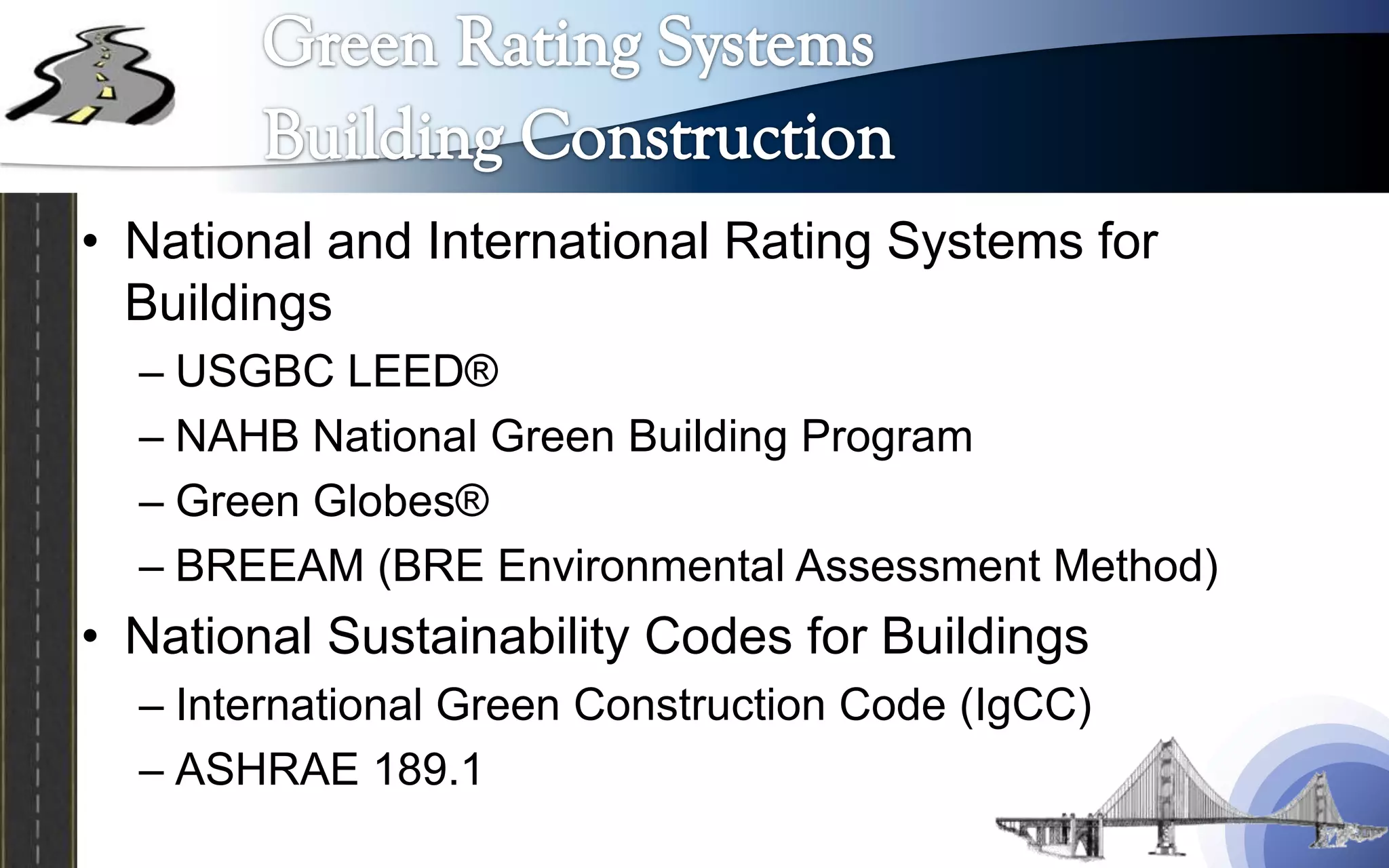

7. • National and International Rating Systems for
Buildings
– USGBC LEED®
– NAHB National Green Building Program
– Green Globes®
– BREEAM (BRE Environmental Assessment Method)
• National Sustainability Codes for Buildings
– International Green Construction Code (IgCC)
– ASHRAE 189.1

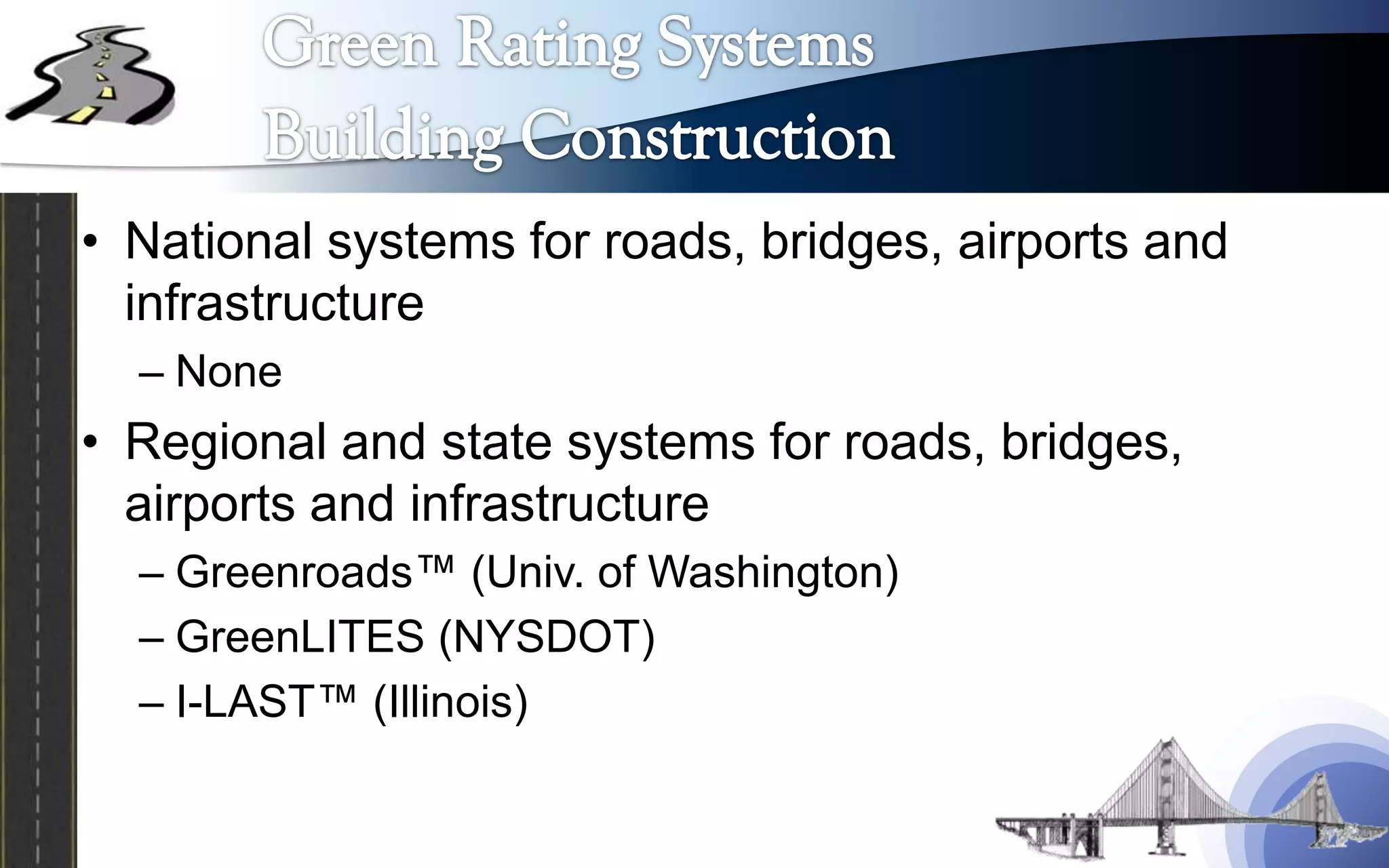

8. • National systems for roads, bridges, airports and
infrastructure
– None
• Regional and state systems for roads, bridges,
airports and infrastructure
– Greenroads™ (Univ. of Washington)
– GreenLITES (NYSDOT)
– I-LAST™ (Illinois)

10. • The Role of the Civil Engineer in Sustainable
Development
– Promote broad understanding of economic,
environmental, political, social, and technical issues and
processes as related to sustainable development
Source: http://www.asce.org/Content.aspx?id=8475
– Advance the skills, knowledge and information
necessary for a sustainable future
– Promote performance based standards and guidelines
as bases for voluntary actions and for regulations in
sustainable development for new and existing
infrastructure

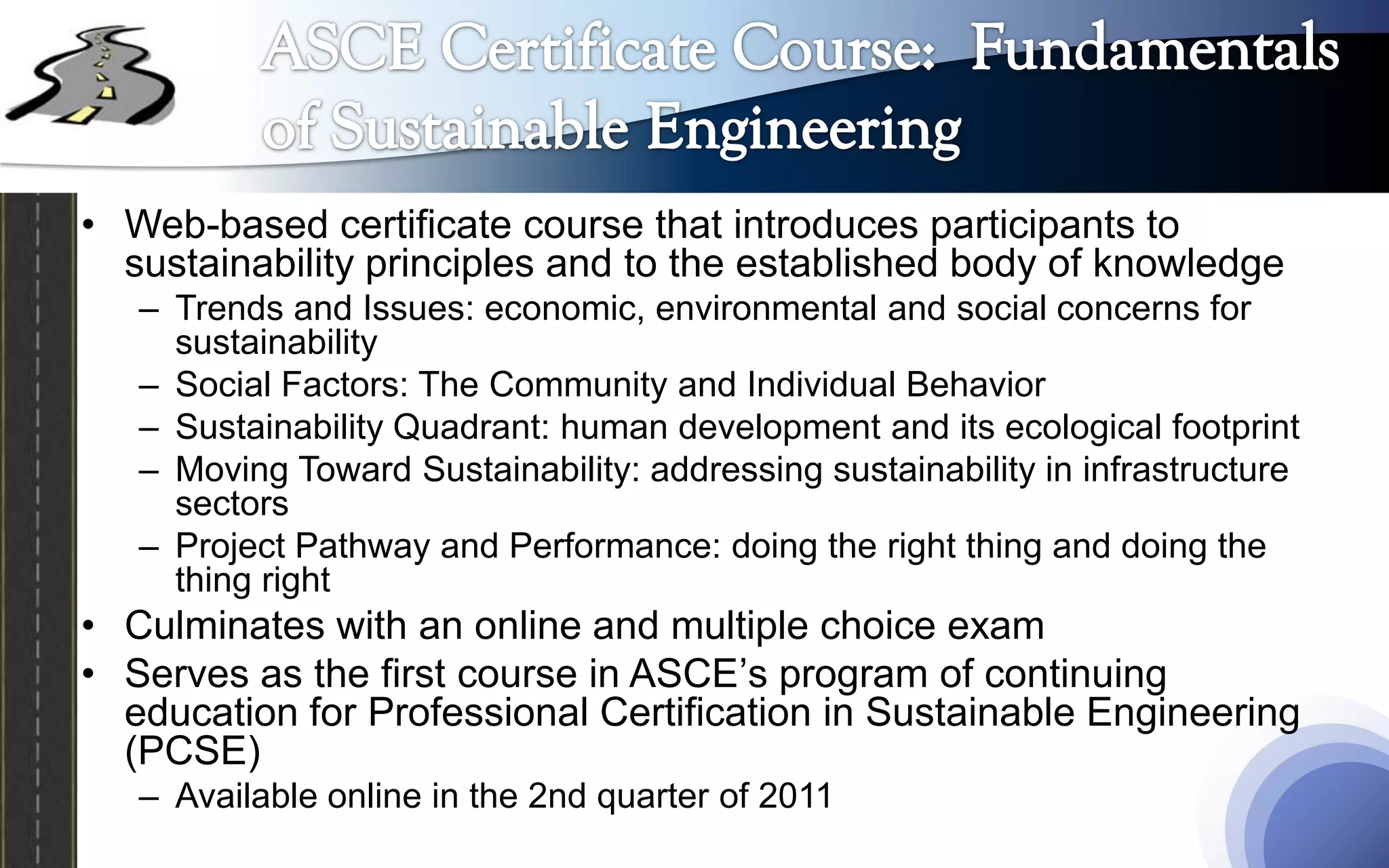

11. • Web-based certificate course that introduces participants to
sustainability principles and to the established body of knowledge
– Trends and Issues: economic, environmental and social concerns for
sustainability
– Social Factors: The Community and Individual Behavior
– Sustainability Quadrant: human development and its ecological footprint
– Moving Toward Sustainability: addressing sustainability in infrastructure
sectors
– Project Pathway and Performance: doing the right thing and doing the
thing right
• Culminates with an online and multiple choice exam
• Serves as the first course in ASCE’s program of continuing
education for Professional Certification in Sustainable Engineering
(PCSE)
– Available online in the 2nd quarter of 2011

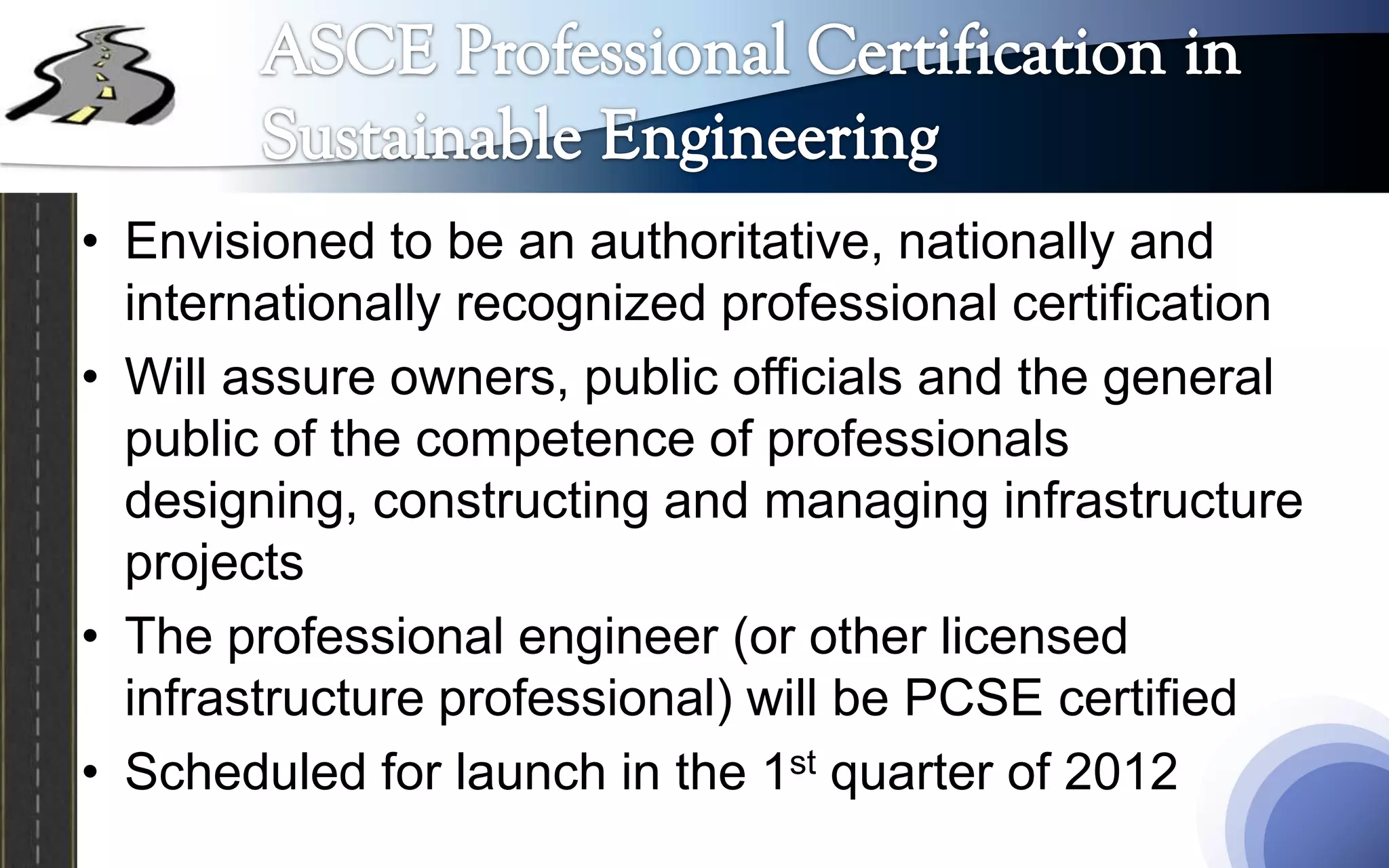

12. • Envisioned to be an authoritative, nationally and
internationally recognized professional certification
• Will assure owners, public officials and the general
public of the competence of professionals
designing, constructing and managing infrastructure
projects
• The professional engineer (or other licensed
infrastructure professional) will be PCSE certified
• Scheduled for launch in the 1st quarter of 2012

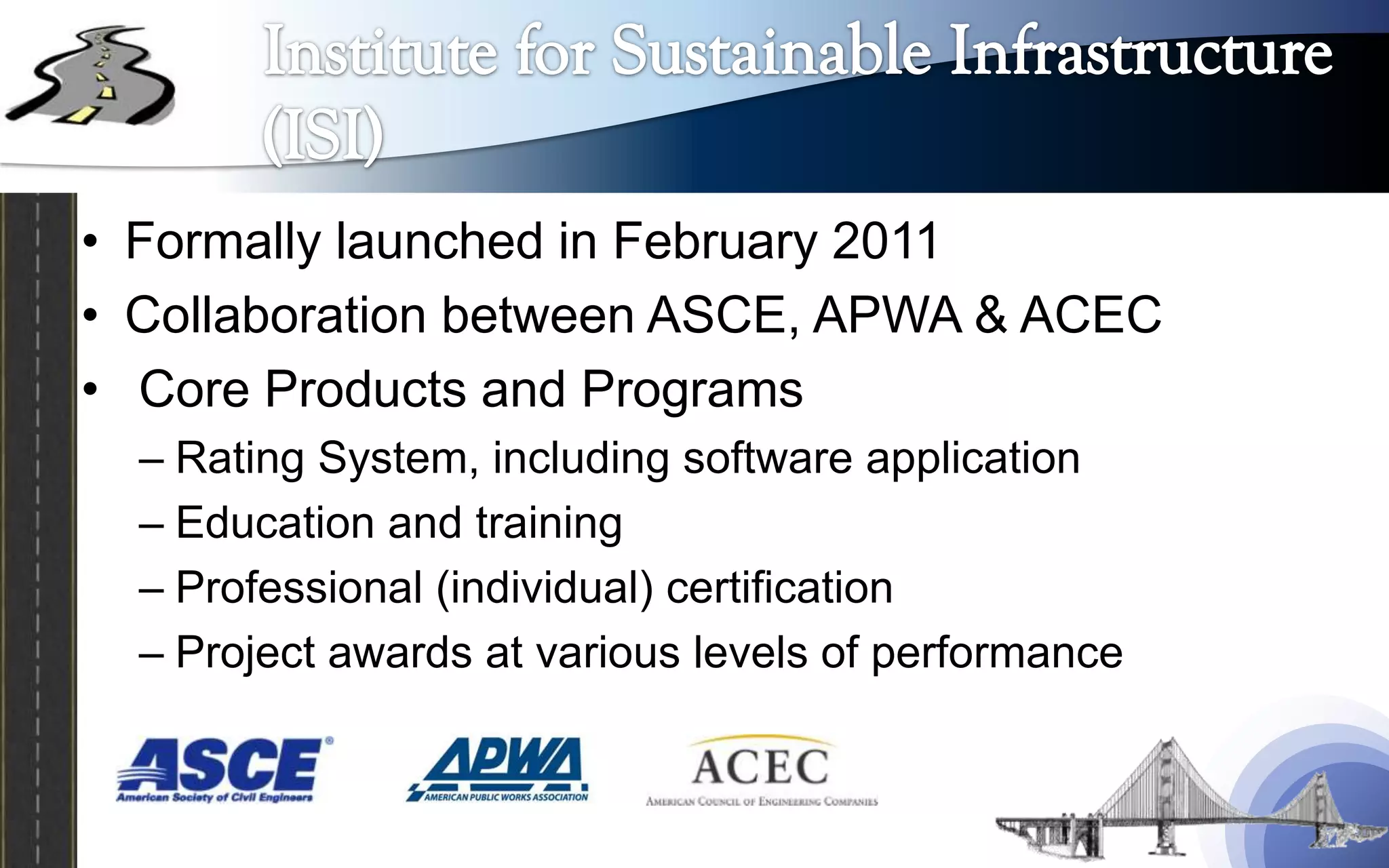

14. • Formally launched in February 2011
• Collaboration between ASCE, APWA & ACEC
• Core Products and Programs
– Rating System, including software application
– Education and training
– Professional (individual) certification
– Project awards at various levels of performance

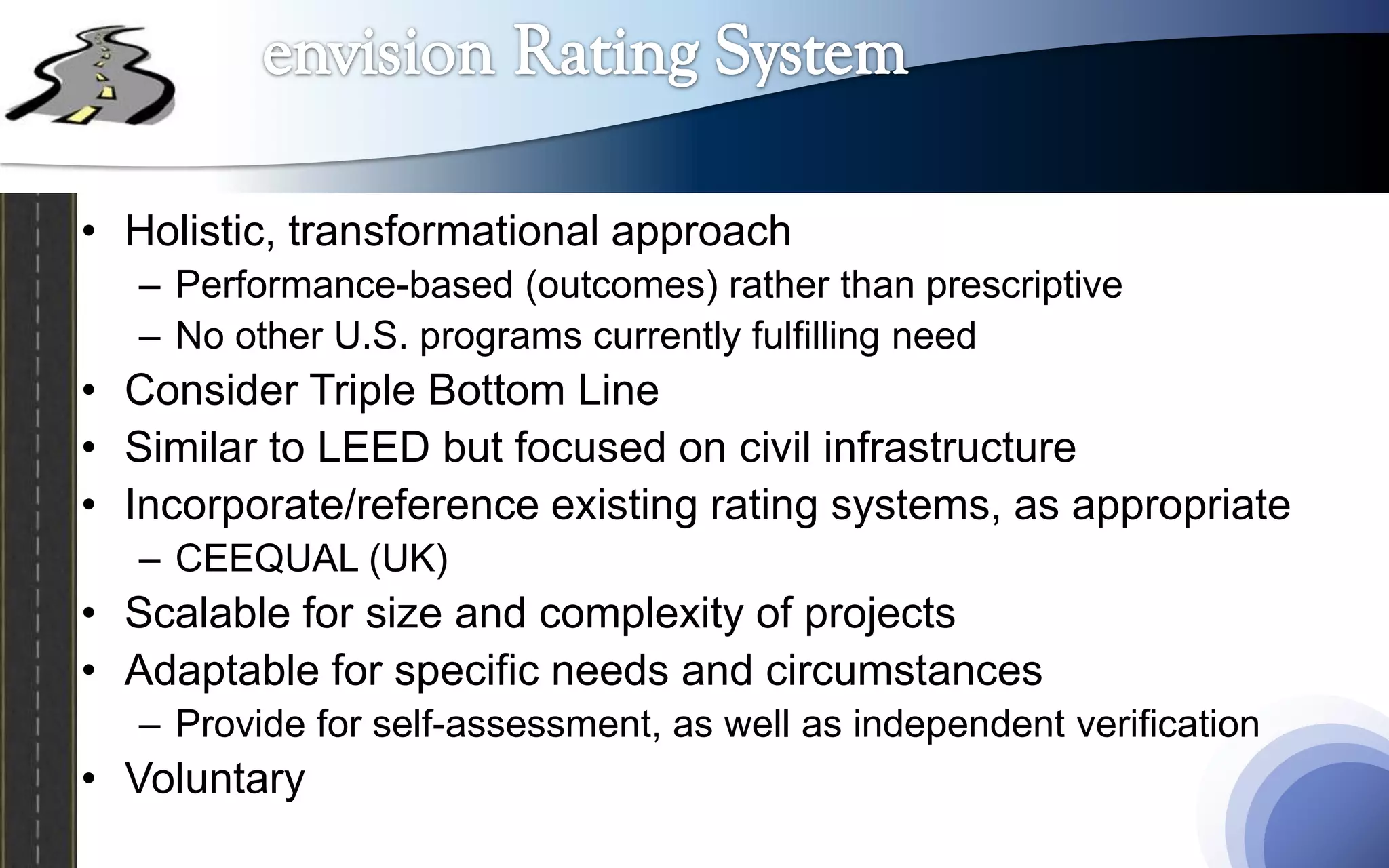

15. • Holistic, transformational approach
– Performance-based (outcomes) rather than prescriptive
– No other U.S. programs currently fulfilling need
• Consider Triple Bottom Line
• Similar to LEED but focused on civil infrastructure
• Incorporate/reference existing rating systems, as appropriate
– CEEQUAL (UK)
• Scalable for size and complexity of projects
• Adaptable for specific needs and circumstances
– Provide for self-assessment, as well as independent verification
• Voluntary

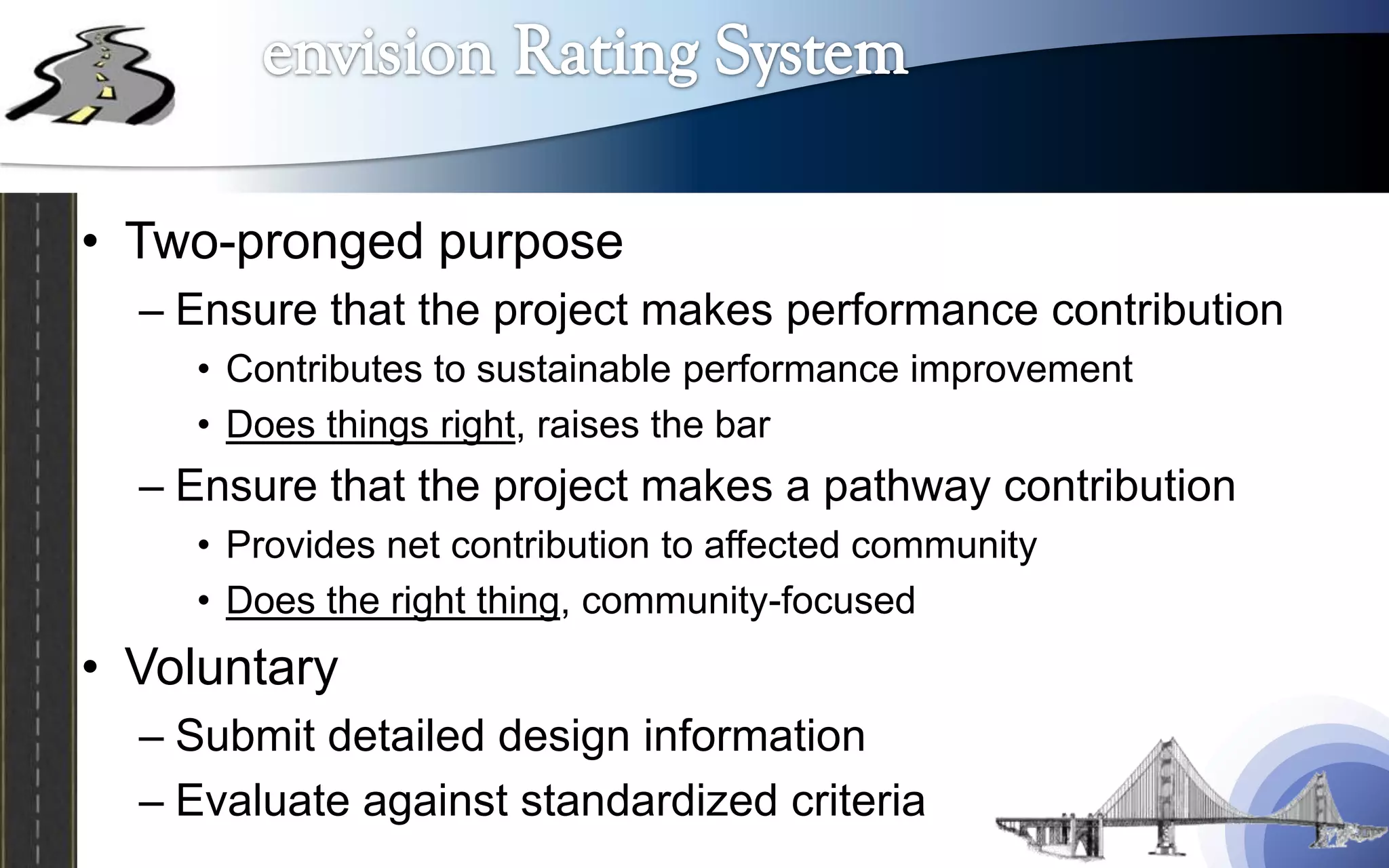

17. • Two-pronged purpose
– Ensure that the project makes performance contribution
• Contributes to sustainable performance improvement
• Does things right, raises the bar
– Ensure that the project makes a pathway contribution
• Provides net contribution to affected community
• Does the right thing, community-focused
• Voluntary
– Submit detailed design information
– Evaluate against standardized criteria

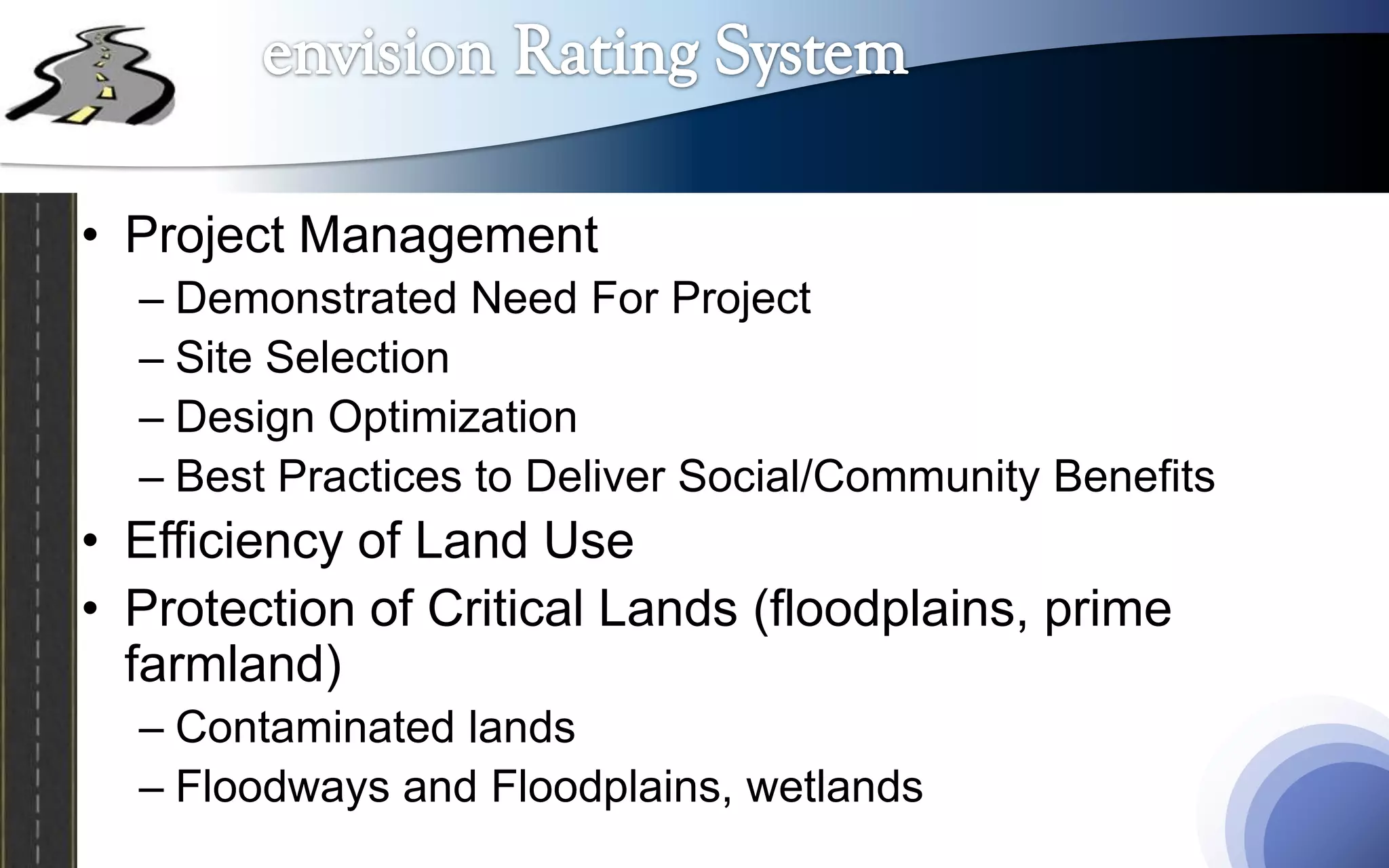

19. • Project Management
– Demonstrated Need For Project
– Site Selection
– Design Optimization
– Best Practices to Deliver Social/Community Benefits
• Efficiency of Land Use
• Protection of Critical Lands (floodplains, prime
farmland)
– Contaminated lands
– Floodways and Floodplains, wetlands

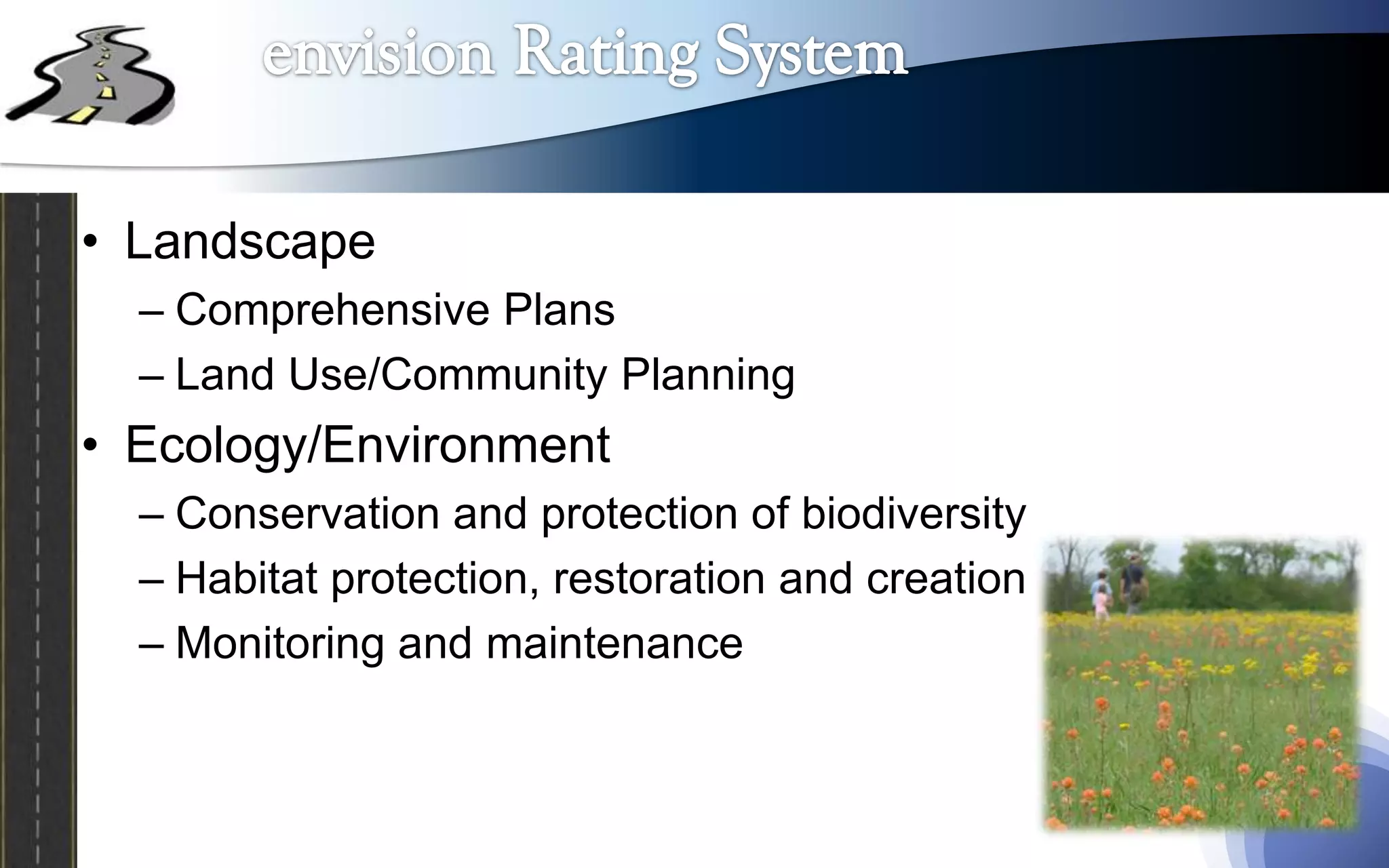

20. • Landscape
– Comprehensive Plans
– Land Use/Community Planning
• Ecology/Environment
– Conservation and protection of biodiversity
– Habitat protection, restoration and creation
– Monitoring and maintenance

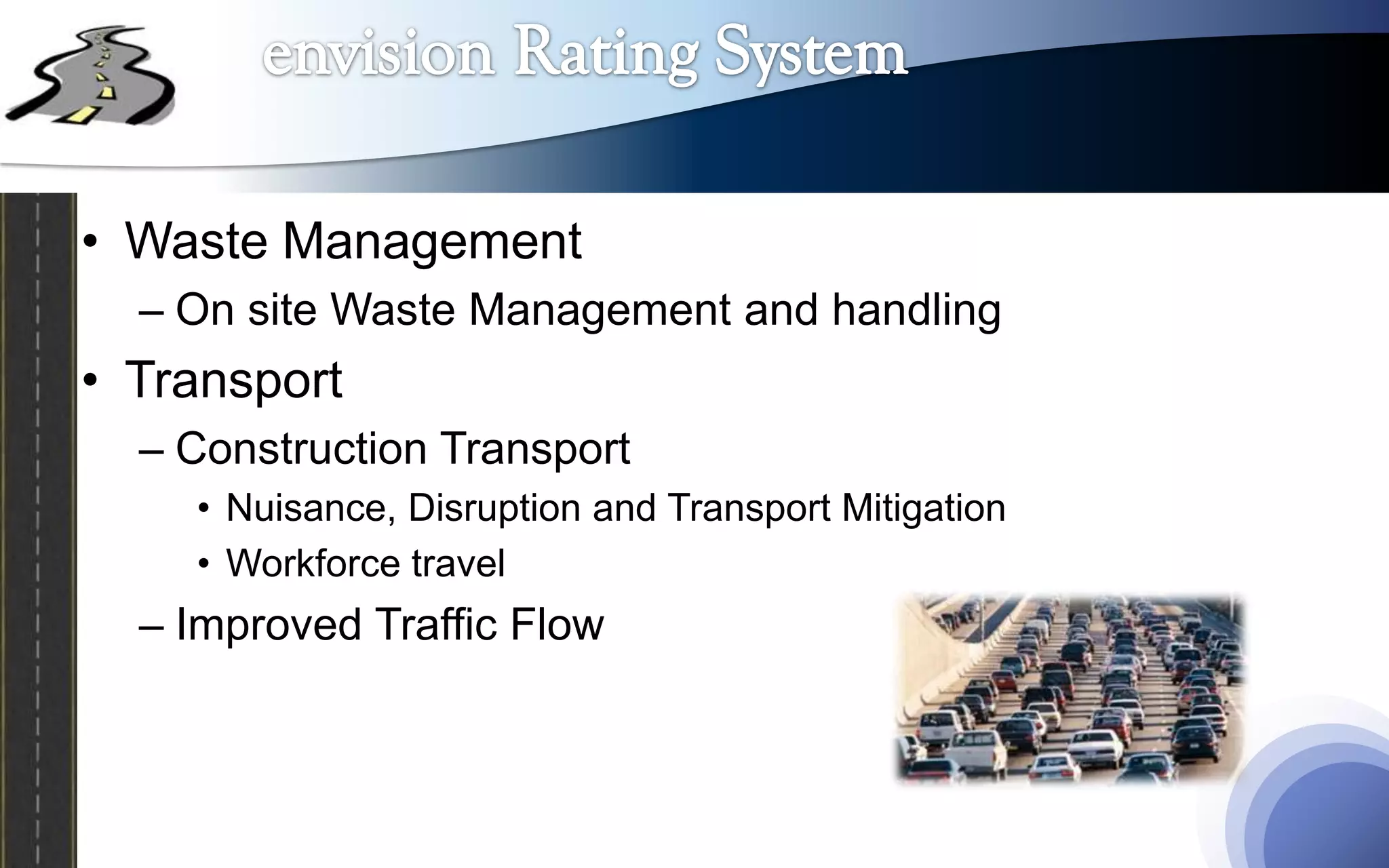

21. • Waste Management
– On site Waste Management and handling
• Transport
– Construction Transport
• Nuisance, Disruption and Transport Mitigation
• Workforce travel
– Improved Traffic Flow

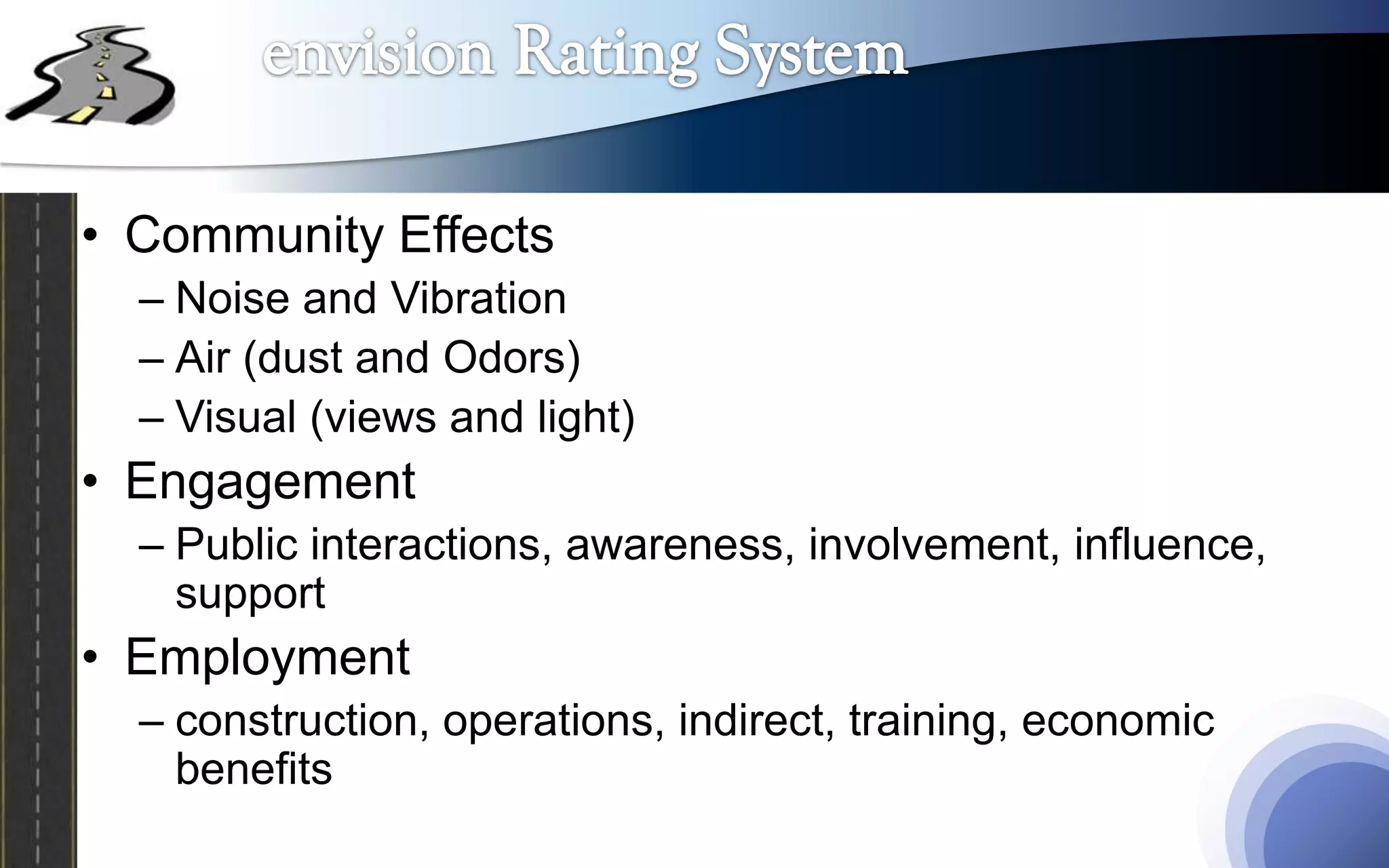

22. • Community Effects
– Noise and Vibration
– Air (dust and Odors)
– Visual (views and light)
• Engagement
– Public interactions, awareness, involvement, influence,
support
• Employment
– construction, operations, indirect, training, economic
benefits

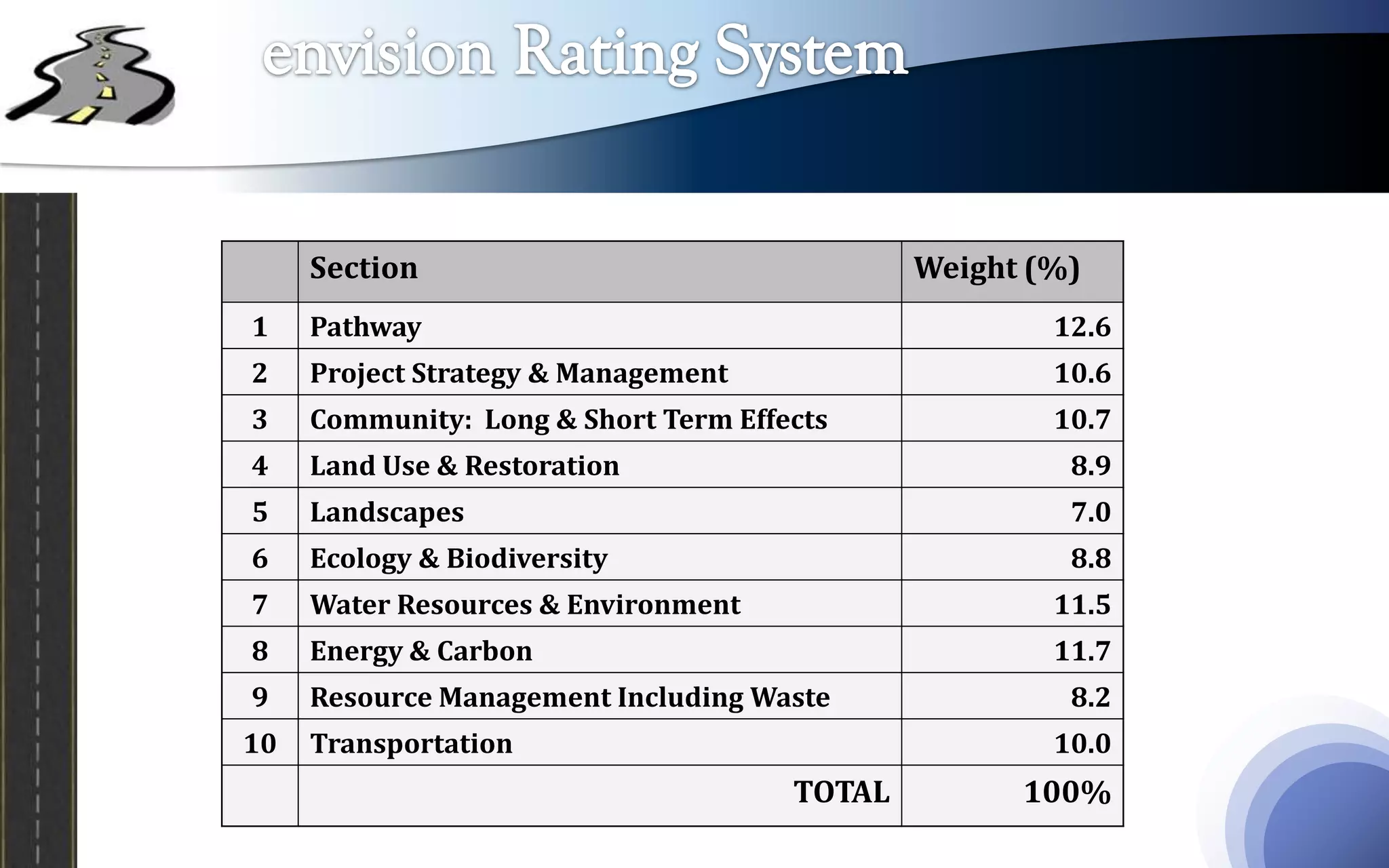

23. Section Weight (%)
1 Pathway 12.6
2 Project Strategy & Management 10.6
3 Community: Long & Short Term Effects 10.7
4 Land Use & Restoration 8.9
5 Landscapes 7.0
6 Ecology & Biodiversity 8.8
7 Water Resources & Environment 11.5
8 Energy & Carbon 11.7
9 Resource Management Including Waste 8.2
10 Transportation 10.0
TOTAL 100%

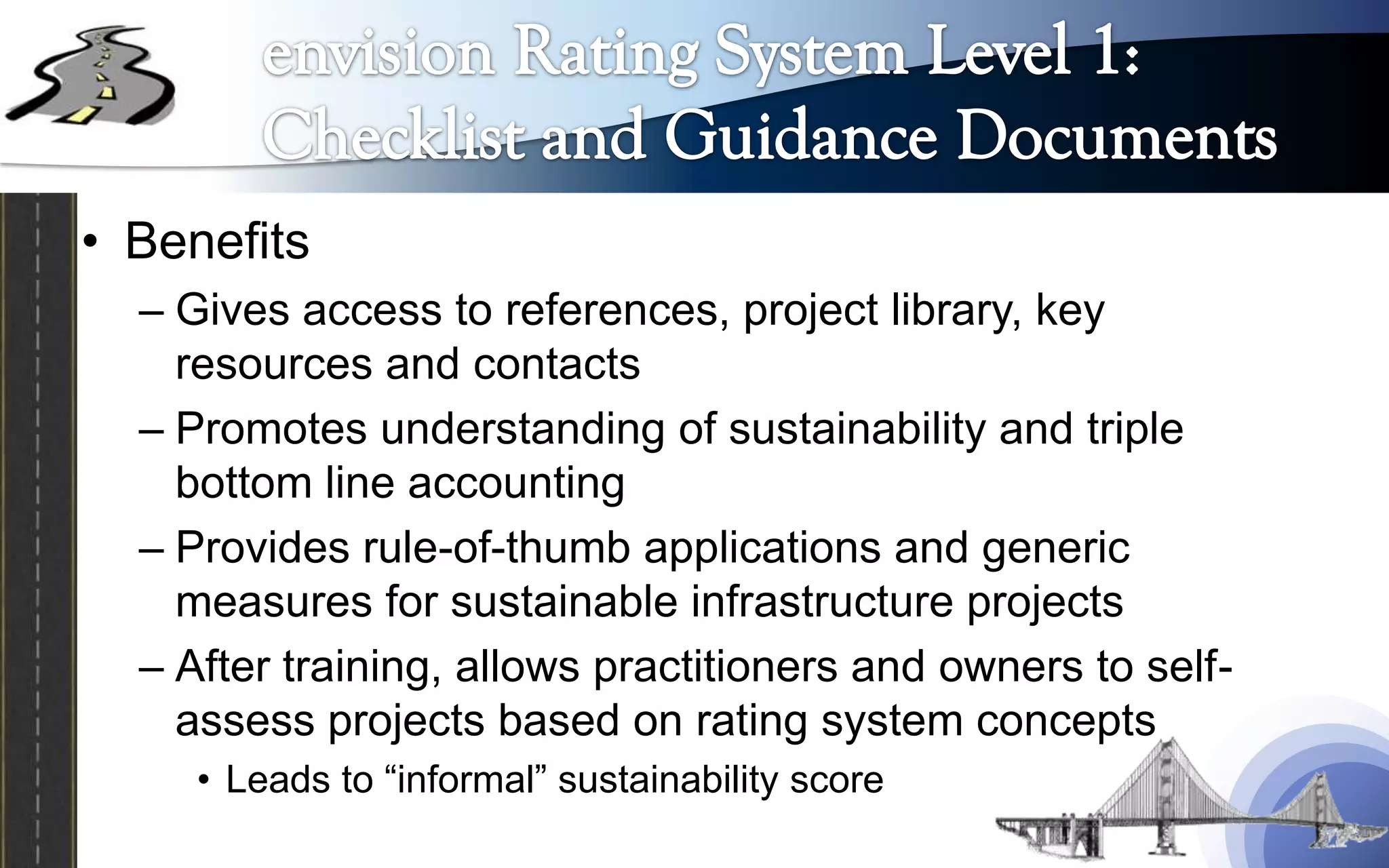

24. • Benefits
– Gives access to references, project library, key
resources and contacts
– Promotes understanding of sustainability and triple
bottom line accounting
– Provides rule-of-thumb applications and generic
measures for sustainable infrastructure projects
– After training, allows practitioners and owners to self-
assess projects based on rating system concepts
• Leads to “informal” sustainability score

25. • Benefits
– Ability to assess and rate overall project contribution to
sustainability, with third party quality assurance and
verification available
– Provides recognition of achievement through awards for
high-scoring projects
– Uses standard matrix of criteria and sums to an overall
composite score
• Similar to USGBC’s LEED

26. • Benefits
– Recognition of dimension-specific achievements based
on operational priorities
– Instead of pre-weighted scoring, discretion is provided to
weight scores according to operational imperatives of
the owner and project
– Scores in other dimensions (other than operational
focus) still must meet baseline measures
– Third-party verification available for award recognition
– Promotes continuous incremental improvement toward
sustainable solutions

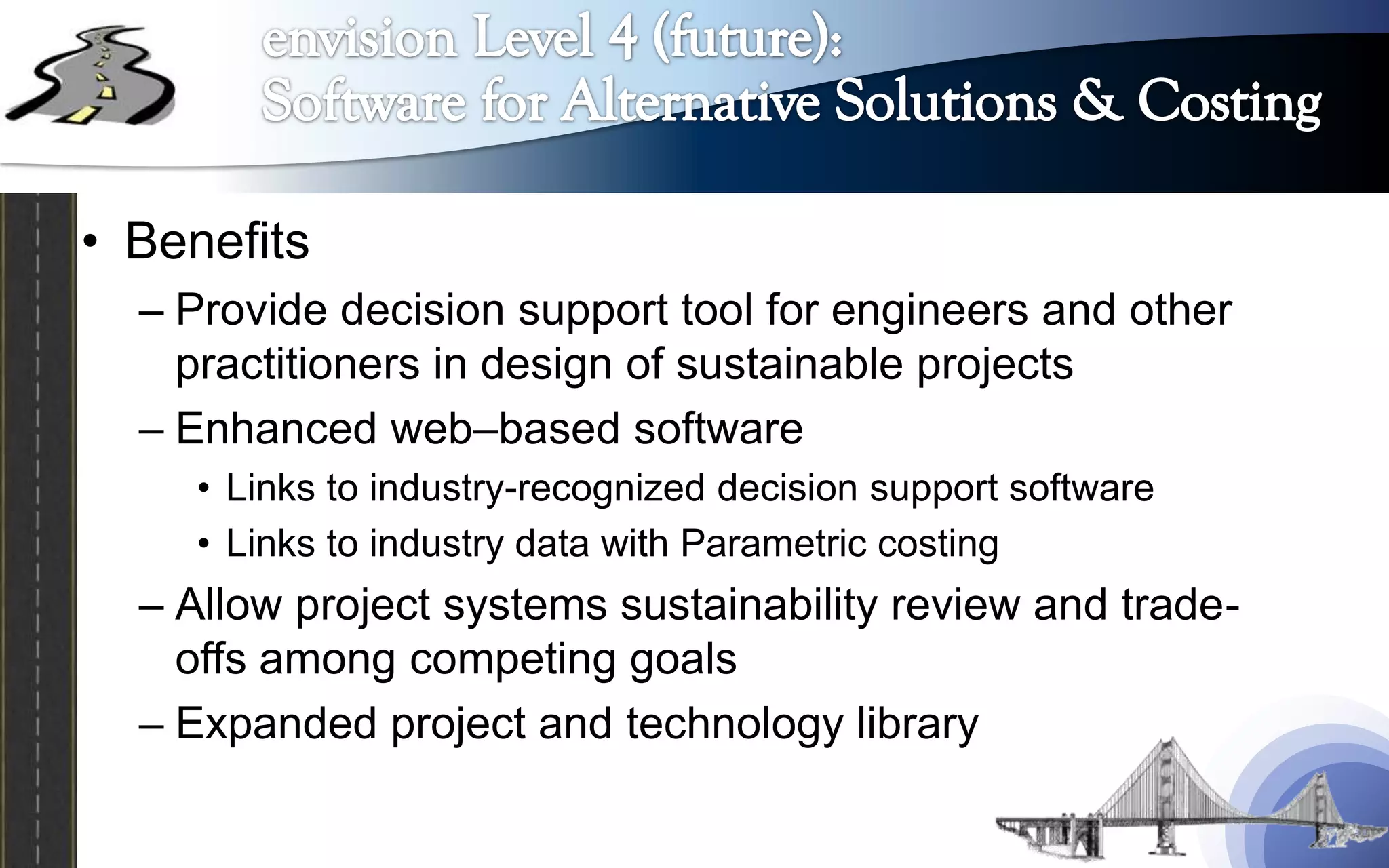

27. • Benefits
– Provide decision support tool for engineers and other
practitioners in design of sustainable projects
– Enhanced web–based software
• Links to industry-recognized decision support software
• Links to industry data with Parametric costing
– Allow project systems sustainability review and trade-
offs among competing goals
– Expanded project and technology library

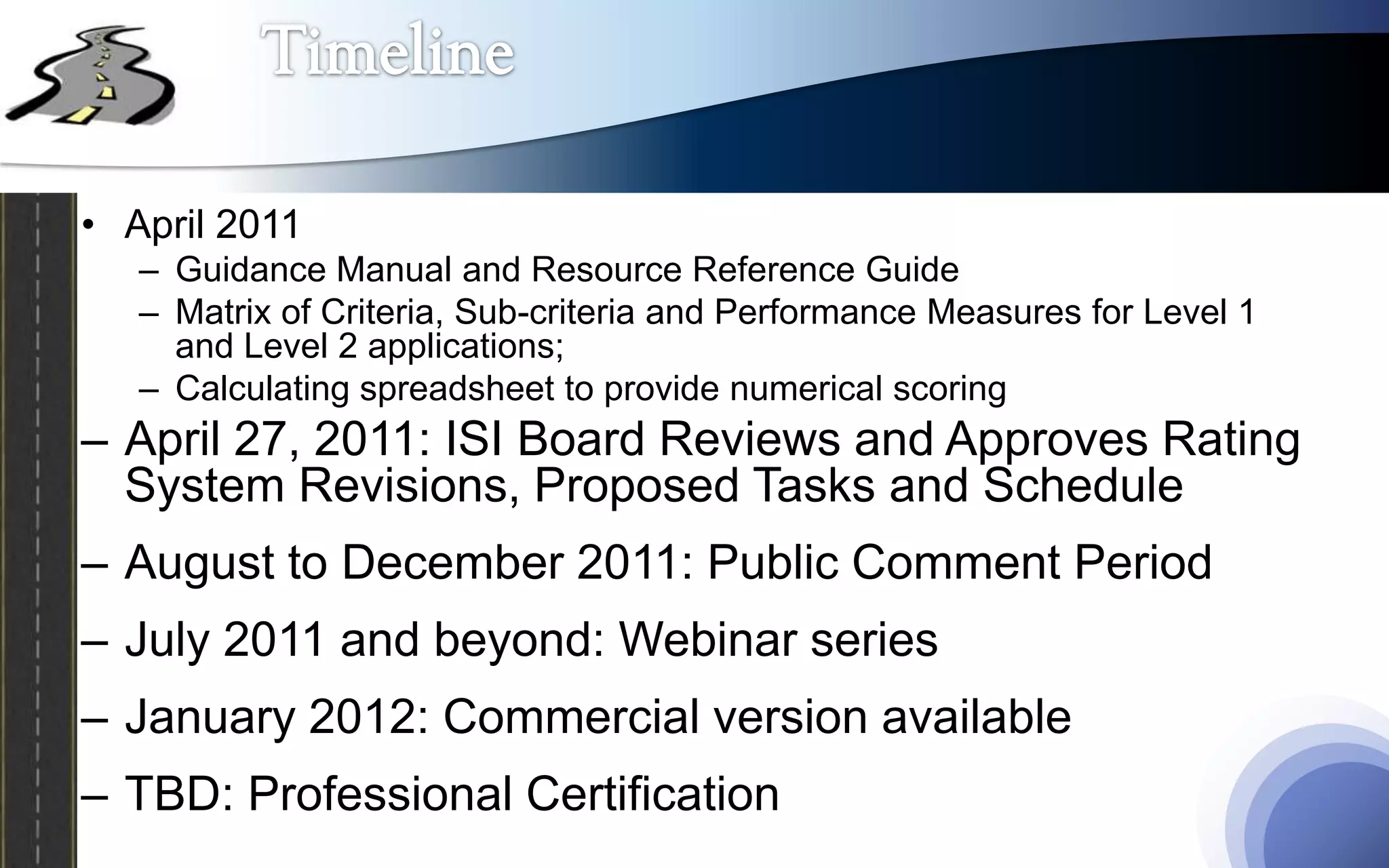

28. • April 2011
– Guidance Manual and Resource Reference Guide
– Matrix of Criteria, Sub-criteria and Performance Measures for Level 1
and Level 2 applications;
– Calculating spreadsheet to provide numerical scoring
– April 27, 2011: ISI Board Reviews and Approves Rating
System Revisions, Proposed Tasks and Schedule
– August to December 2011: Public Comment Period
– July 2011 and beyond: Webinar series
– January 2012: Commercial version available
– TBD: Professional Certification

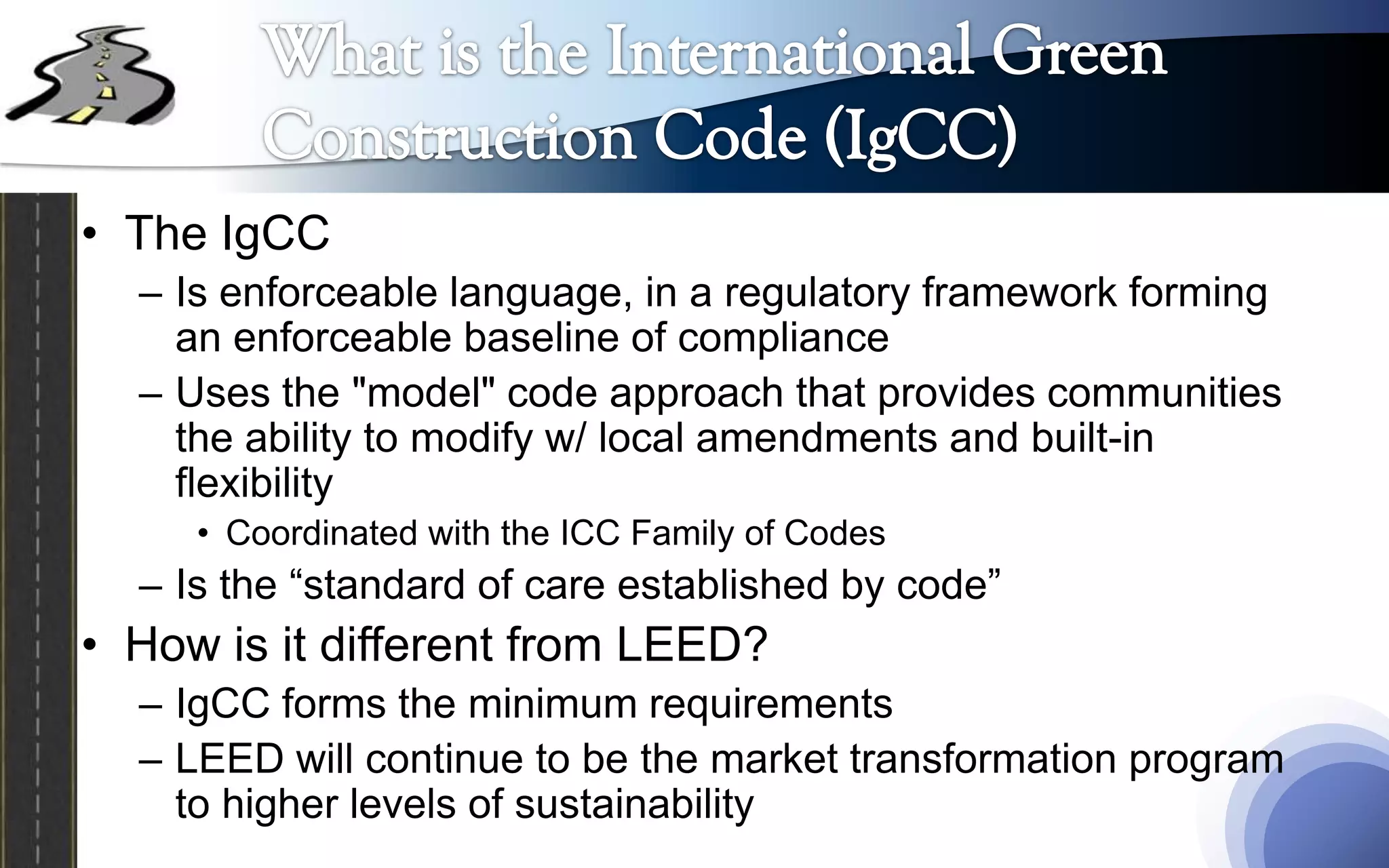

30. • The IgCC
– Is enforceable language, in a regulatory framework forming
an enforceable baseline of compliance
– Uses the "model" code approach that provides communities
the ability to modify w/ local amendments and built-in
flexibility
• Coordinated with the ICC Family of Codes
– Is the “standard of care established by code”
• How is it different from LEED?
– IgCC forms the minimum requirements
– LEED will continue to be the market transformation program
to higher levels of sustainability

31. • Developed by
– International Code Council (ICC)
– AIA
– ASTM
– ASHRAE
– USGBC
– IES
• Currently adopted by
– Rhode Island (State agencies)
– Richland, WA (voluntary to be enforced by code officials)
• Oregon has passed a law requiring compliance above the IECC
– The IgCC is considered compliant
• Actively being considered in MD
• ASHRAE 189.1 is an Alternative Compliance option

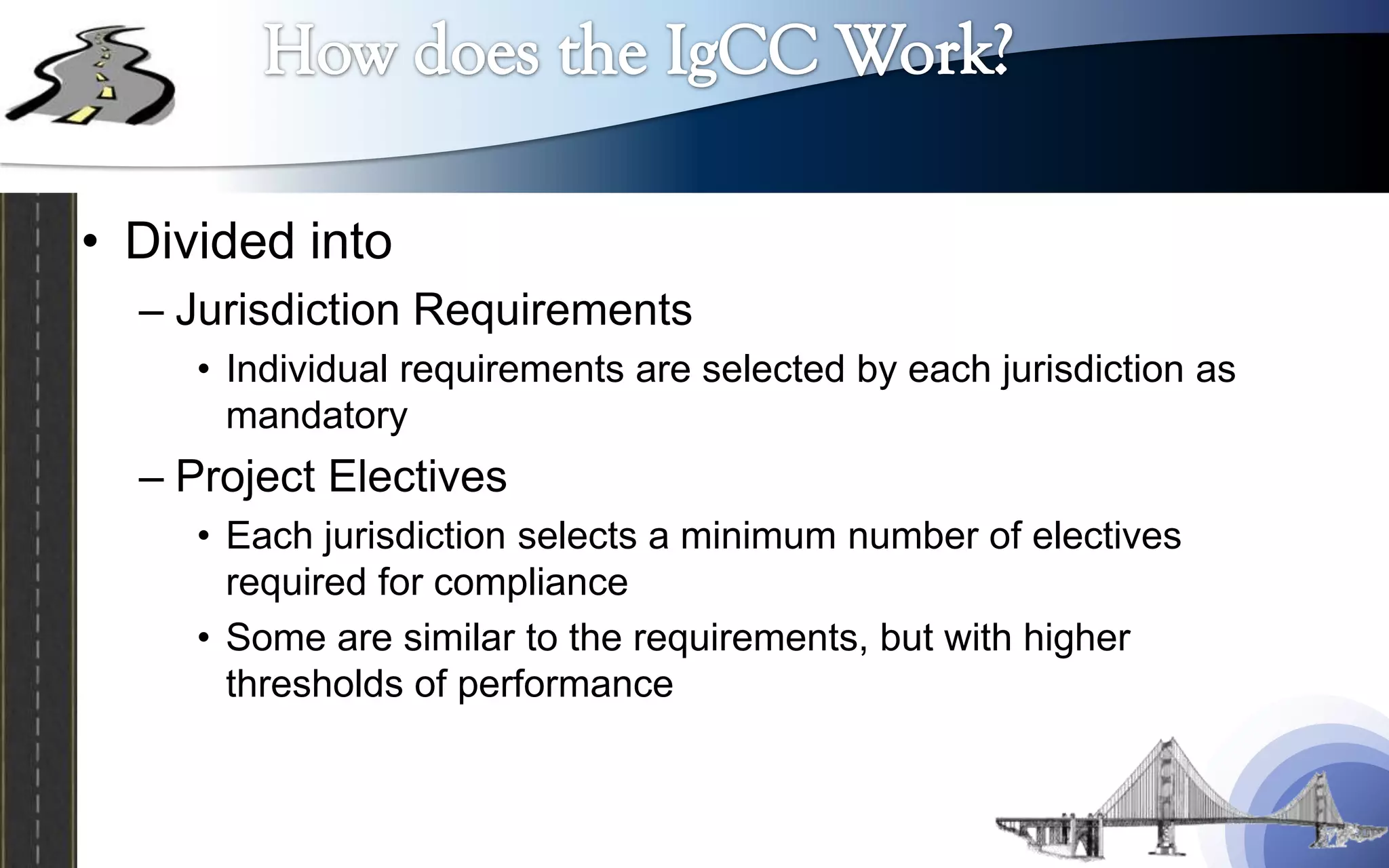

32. • Divided into
– Jurisdiction Requirements
• Individual requirements are selected by each jurisdiction as
mandatory
– Project Electives
• Each jurisdiction selects a minimum number of electives
required for compliance
• Some are similar to the requirements, but with higher
thresholds of performance

33. • Surface water protection
– Building and building site improvements shall not be
located within a buffer around a wetland: or within a
buffer around a water body, as defined as the ordinary
high-water mark
• Exception: Buildings and associated site improvements
specifically related to the use of the water…where the impacts
of the construction and location adjacent to or over the water
on the habitat is mitigated

34. • Site disturbance or development shall not be permitted on
greenfield sites
– Greenfield: Land that has not been previously developed or has a
history of only agricultural use
– Exceptions
• The jurisdiction determines that adequate infrastructure exists, or can be
provided, and where the sites comply with at least one of the following
– Development Density
– Community Connectivity
– Access to transit service
• For greenfield sites that are permitted to be developed, site
disturbances shall be limited to the following areas
– Within 40 feet of the perimeter of the building
– Within 15 feet of proposed paving and utilities
– Within 25 feet of constructed areas with permeable surfaces

35. • The design and development of buildings and
associated site improvements shall
– Conduct an inventory and assessment of the natural
resources and baseline conditions of the building site
– Determine the location of any protection areas identified
that are located on, or adjacent to the building site
– Determine the degree to which, the native soils and
hydrological conditions of the building site have been
disturbed and altered by previous use or development
– Identify invasive vegetation on the site for removal
– Identify native plant species on the site

36. • Stormwater management systems, including infiltration,
evapo-transpiration, rainwater harvest and runoff reuse
shall be provided and maintained on the building site
• Stormwater management systems shall address the
increase in post-development runoff and shall either
– Manage rainfall on-site and size the system to retain the
volume of a single storm which is equal to the 95th percentile
rainfall event and maintain the predevelopment natural
temperature of the runoff
– Maintain or restore the pre-development natural runoff
hydrology of the site throughout the development or
redevelopment process
• Post construction runoff rate, volume, duration, and temperature
shall not exceed predevelopment rates

37. • Vegetation and soil protection
– Where existing soils and vegetation are to be protected, a
vegetation and soil protection plan establishing designated
vegetation and soil protection areas
• Topsoil protection
– Topsoil that could potentially be damaged by construction
activities or equipment shall be removed and stockpiled on
the site for future reuse on the building site or other
approved location
– Topsoil stockpiles shall be secured and protected throughout
the project with temporary or permanent soil stabilization
measures to prevent erosion or compaction

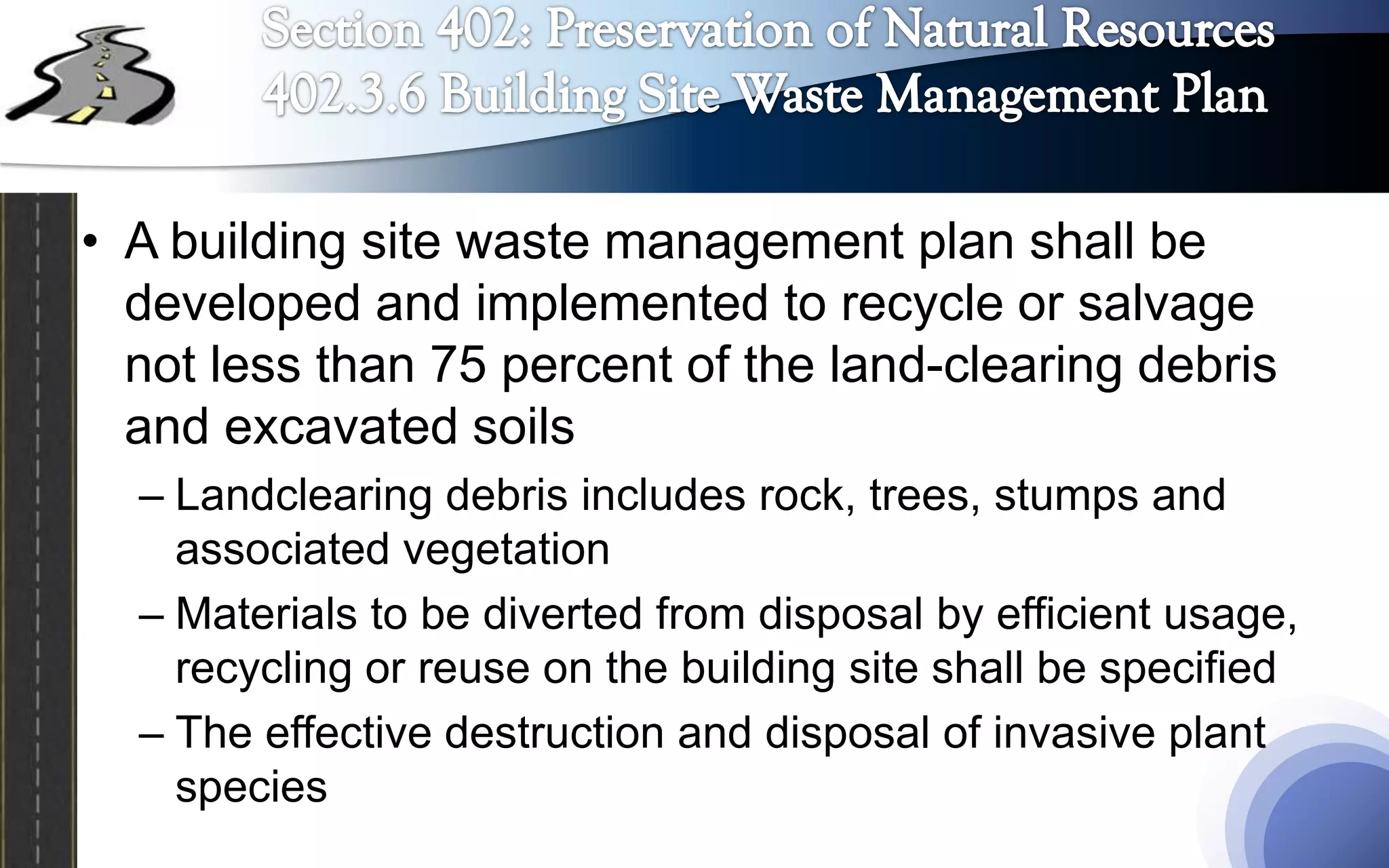

38. • A building site waste management plan shall be
developed and implemented to recycle or salvage
not less than 75 percent of the land-clearing debris
and excavated soils
– Landclearing debris includes rock, trees, stumps and
associated vegetation
– Materials to be diverted from disposal by efficient usage,
recycling or reuse on the building site shall be specified
– The effective destruction and disposal of invasive plant
species

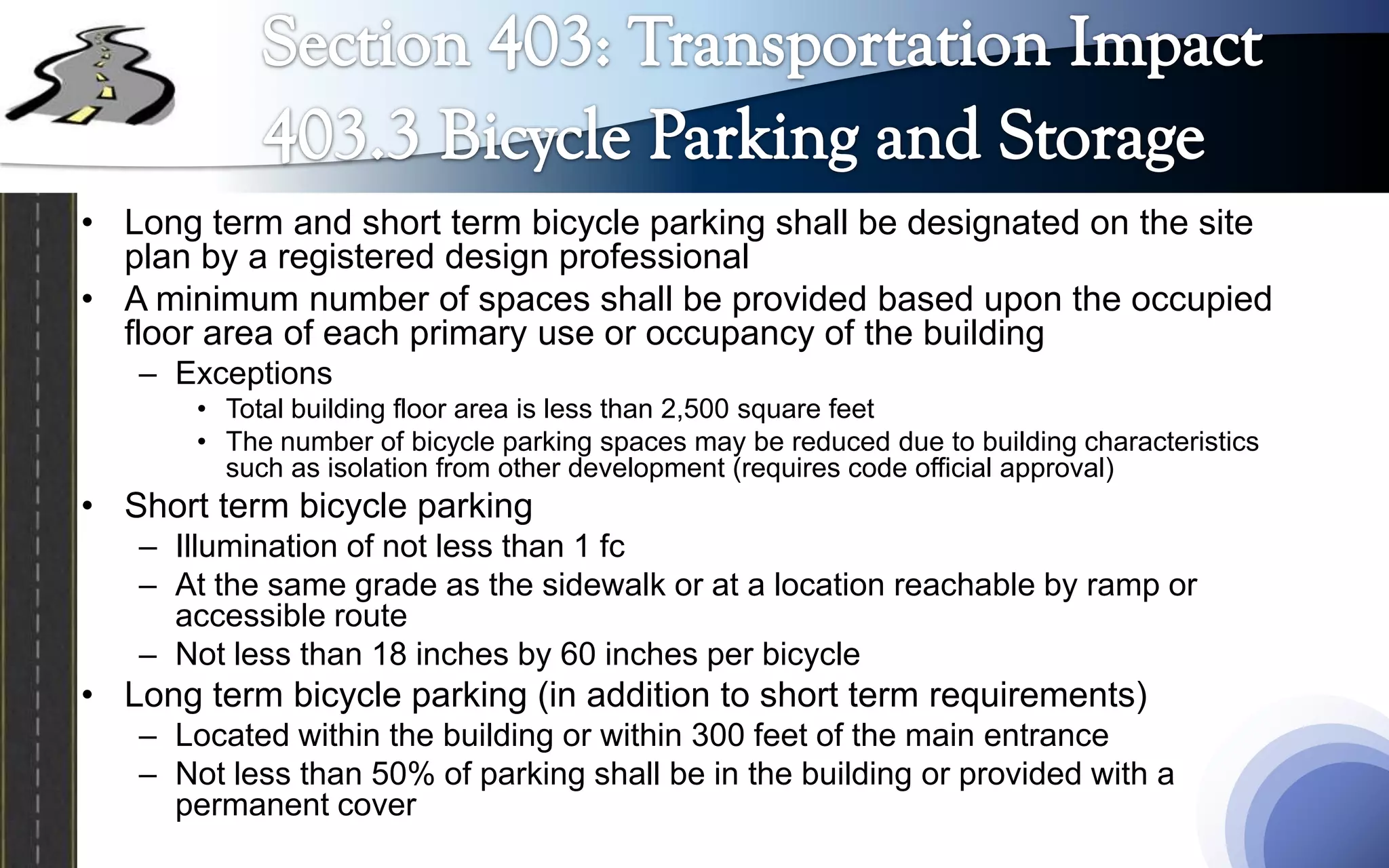

39. • Long term and short term bicycle parking shall be designated on the site
plan by a registered design professional
• A minimum number of spaces shall be provided based upon the occupied
floor area of each primary use or occupancy of the building
– Exceptions
• Total building floor area is less than 2,500 square feet
• The number of bicycle parking spaces may be reduced due to building characteristics
such as isolation from other development (requires code official approval)
• Short term bicycle parking
– Illumination of not less than 1 fc
– At the same grade as the sidewalk or at a location reachable by ramp or
accessible route
– Not less than 18 inches by 60 inches per bicycle
• Long term bicycle parking (in addition to short term requirements)
– Located within the building or within 300 feet of the main entrance
– Not less than 50% of parking shall be in the building or provided with a
permanent cover

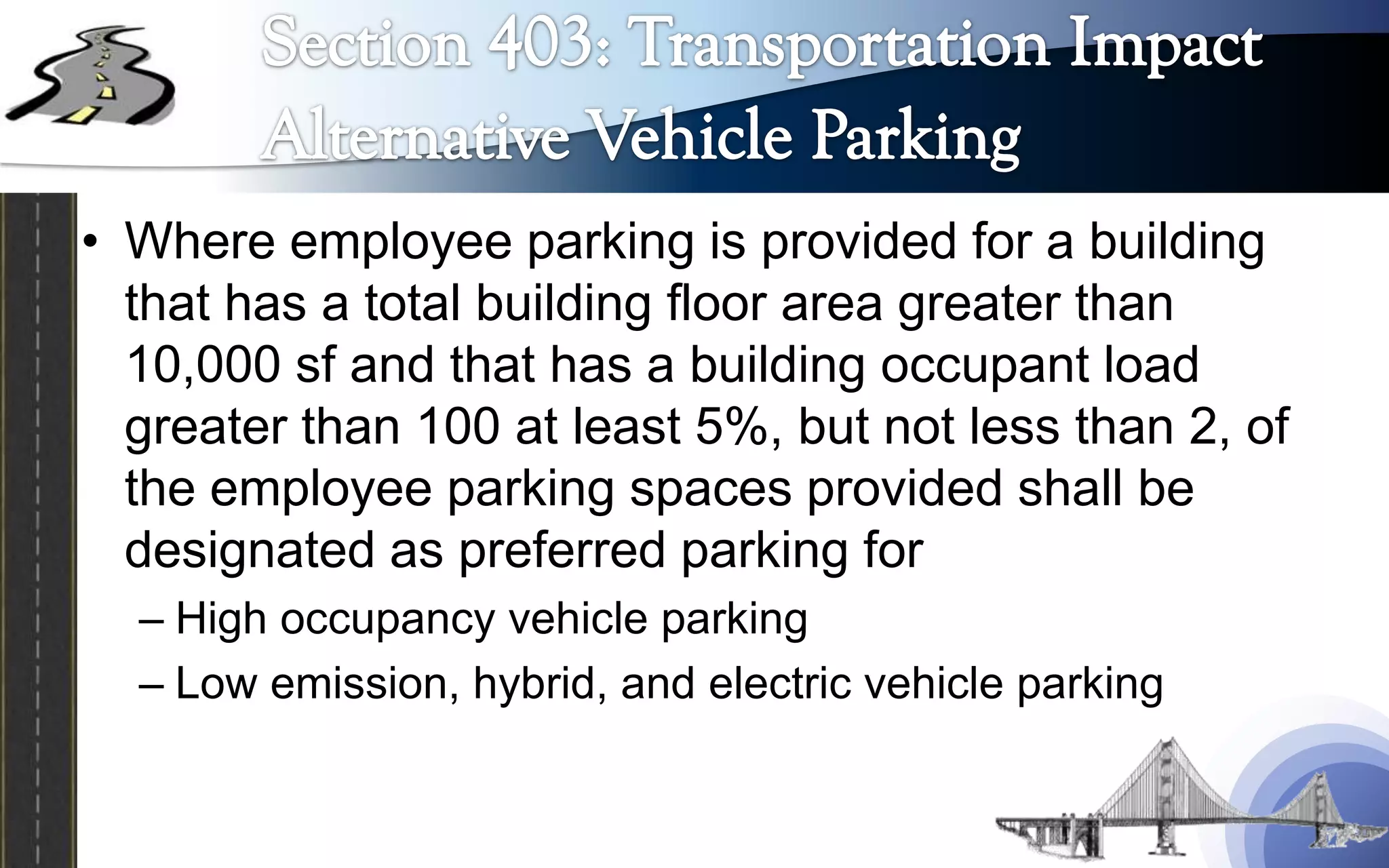

40. • Where employee parking is provided for a building
that has a total building floor area greater than
10,000 sf and that has a building occupant load
greater than 100 at least 5%, but not less than 2, of
the employee parking spaces provided shall be
designated as preferred parking for
– High occupancy vehicle parking
– Low emission, hybrid, and electric vehicle parking

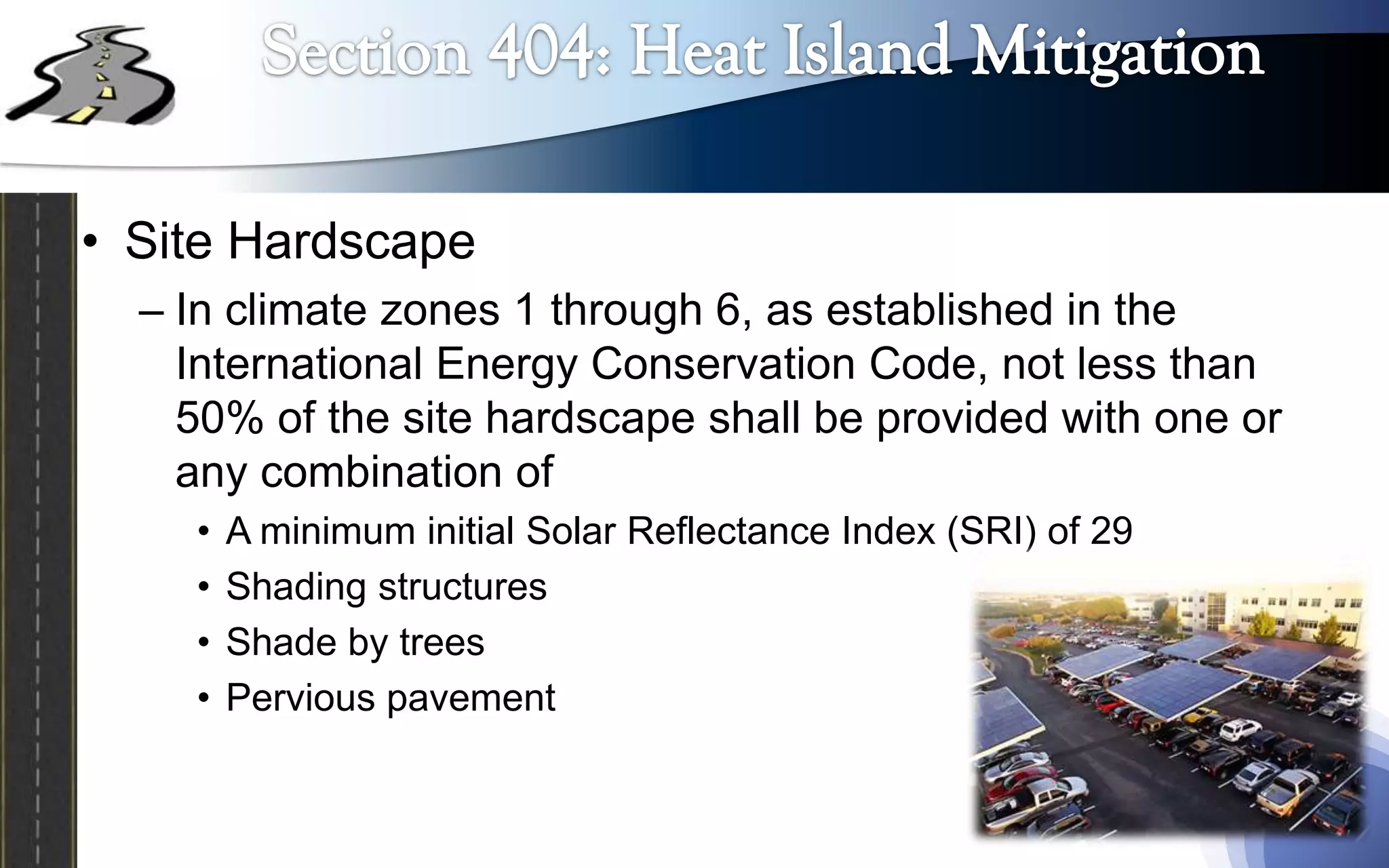

41. • Site Hardscape
– In climate zones 1 through 6, as established in the
International Energy Conservation Code, not less than
50% of the site hardscape shall be provided with one or
any combination of
• A minimum initial Solar Reflectance Index (SRI) of 29
• Shading structures
• Shade by trees
• Pervious pavement

42. • Determined by each jurisdiction
– Selection depends on which mandatory provisions are
required by the jurisdiction
• Each jurisdiction will determine a minimum number
of electives that are required to be met

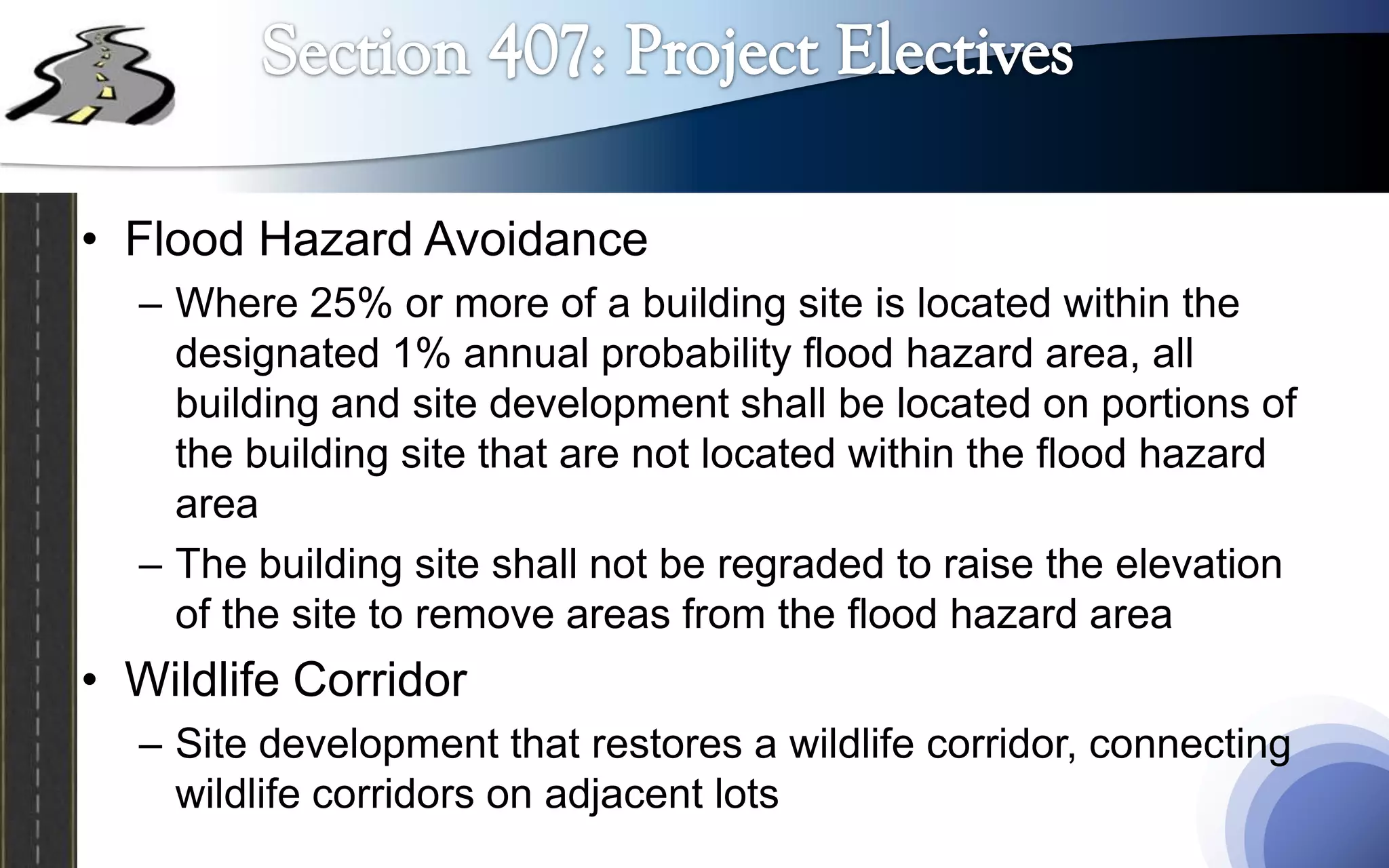

43. • Flood Hazard Avoidance
– Where 25% or more of a building site is located within the
designated 1% annual probability flood hazard area, all
building and site development shall be located on portions of
the building site that are not located within the flood hazard
area
– The building site shall not be regraded to raise the elevation
of the site to remove areas from the flood hazard area
• Wildlife Corridor
– Site development that restores a wildlife corridor, connecting
wildlife corridors on adjacent lots

44. • Native Plant Landscaping
– Where new landscaping is installed as part of a site plan
or within the building site, and where 75% or more of the
newly landscaped area is planted with native species
• Site Restoration
– Previously developed sites that restore 25% or more of
the non-building footprint building site area with native or
adaptive vegetation

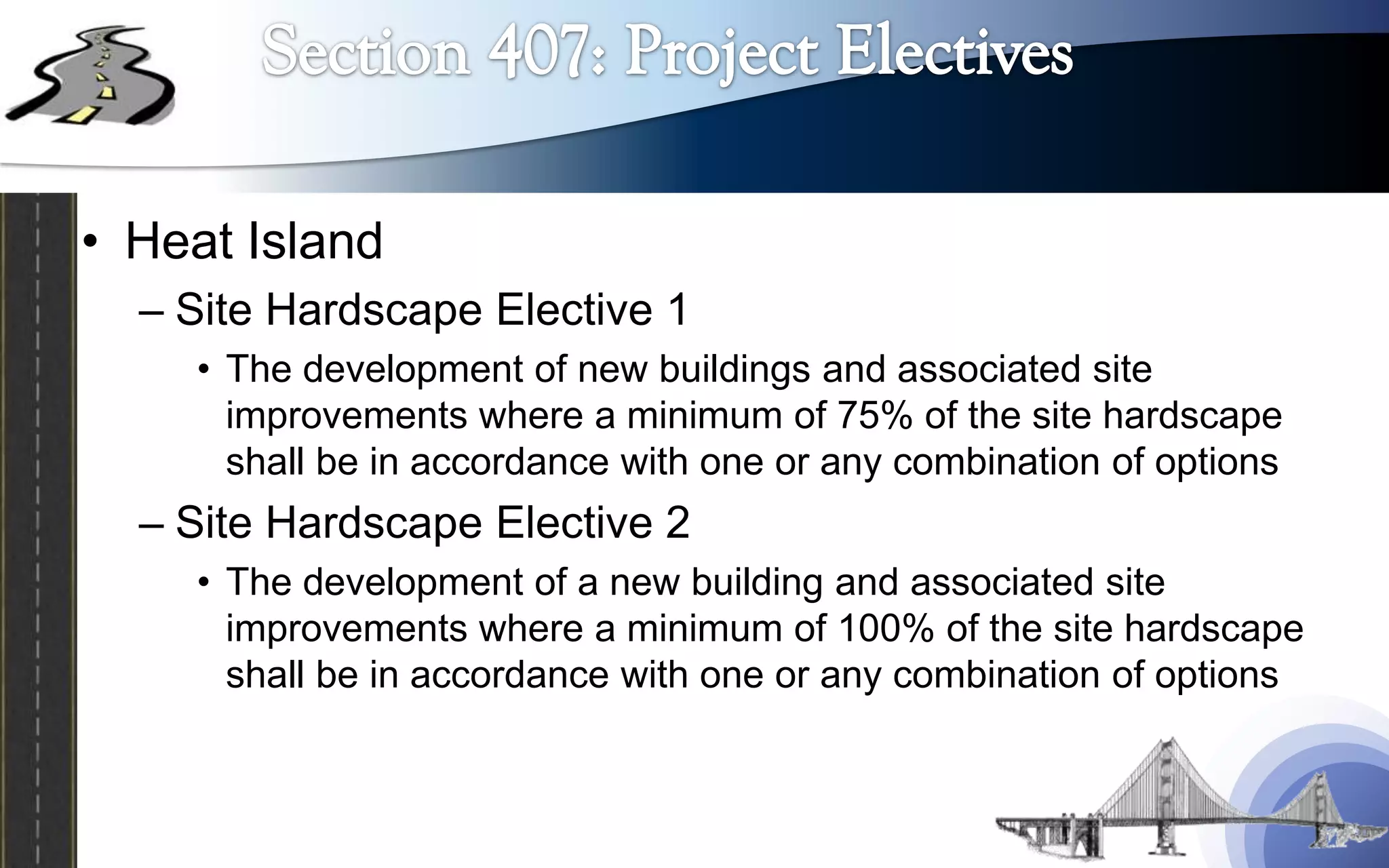

45. • Heat Island
– Site Hardscape Elective 1
• The development of new buildings and associated site
improvements where a minimum of 75% of the site hardscape
shall be in accordance with one or any combination of options
– Site Hardscape Elective 2
• The development of a new building and associated site
improvements where a minimum of 100% of the site hardscape
shall be in accordance with one or any combination of options

47. Scott DeGaro, CCCA, LEED AP BD+C, O+M, ID+C
Sustainability Administrator/Architectural Intern
Barge Waggoner Sumner & Cannon, Inc.
8280 Yankee Street
Dayton, OH 45458
937.428.5243 direct
937.438.0379 fax
scott.degaro@bwsc.net
bargewaggoner.com
