The document provides 7 points for testing a motherboard. Point 1 describes connecting different colored wires to voltage rails like 5V, 0V, and 3.3V. Point 2 involves checking voltages on the 1.5V/1.3V rails at the VRM and CPU sides. Point 3 checks the clock signal voltage on the 1.5V rail. Points 4-7 describe adjusting potentiometers to control reset signals, BIOS data, RAM signals, southbridge signals, and northbridge signals.

1. Prepared by shambhu Basnet

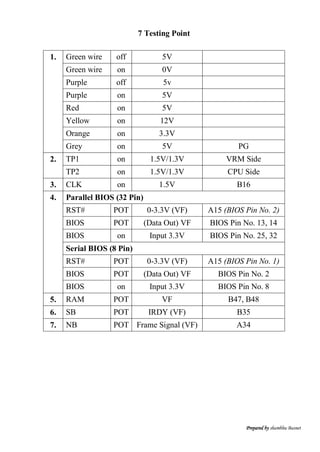

7 Testing Point
1. Green wire off 5V
Green wire on 0V
Purple off 5v
Purple on 5V
Red on 5V
Yellow on 12V
Orange on 3.3V
Grey on 5V PG
2. TP1 on 1.5V/1.3V VRM Side
TP2 on 1.5V/1.3V CPU Side
3. CLK on 1.5V B16
4. Parallel BIOS (32 Pin)
RST# POT 0-3.3V (VF) A15 (BIOS Pin No. 2)
BIOS POT (Data Out) VF BIOS Pin No. 13, 14
BIOS on Input 3.3V BIOS Pin No. 25, 32
Serial BIOS (8 Pin)
RST# POT 0-3.3V (VF) A15 (BIOS Pin No. 1)
BIOS POT (Data Out) VF BIOS Pin No. 2
BIOS on Input 3.3V BIOS Pin No. 8
5. RAM POT VF B47, B48
6. SB POT IRDY (VF) B35
7. NB POT Frame Signal (VF) A34
