1. Retrieving Data Using SQL
SELECT Statement
Ms. Amrit Kaur
gamritkaur@live.com

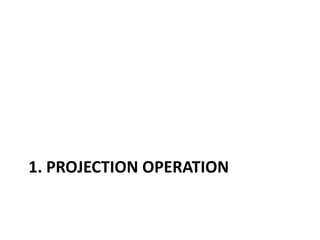

2. 1. PROJECTION OPERATION

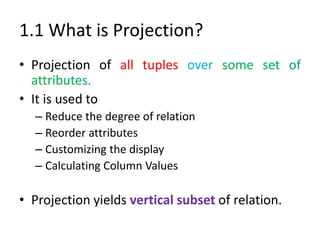

3. 1.1 What is Projection?
• Projection of all tuples over some set of
attributes.
• It is used to
– Reduce the degree of relation
– Reorder attributes
– Customizing the display
– Calculating Column Values
• Projection yields vertical subset of relation.

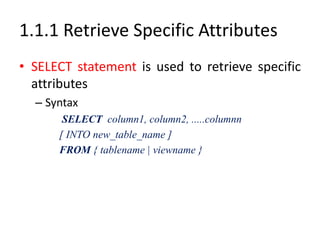

4. 1.1.1 Retrieve Specific Attributes
• SELECT statement is used to retrieve specific
attributes
– Syntax
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }

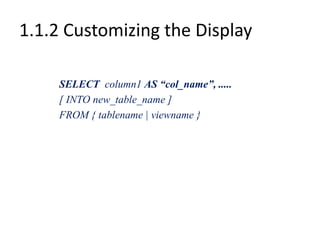

5. 1.1.2 Customizing the Display
SELECT column1 AS “col_name”, .....
[ INTO new_table_name ]
FROM { tablename | viewname }

6. 1.1.3 Calculating Column Values
• Arithmetic operators are used to show
calculated values for the columns.
• Oracle support following arithmetic operators
• + (for addition)
• - (for subtraction)
• / (for division)
• * (for multiplication)
• % (for modulo)

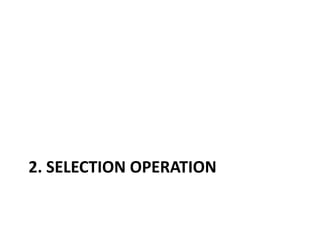

7. 2. SELECTION OPERATION

8. 2.1 What is Selection?
• Selection over complete set of attributes but
subset of tuples included .
• Only those tuples that satisfied selection
condition included in result set therefore
referred as Restriction operation.
• Selection yields horizontal subset of relation.

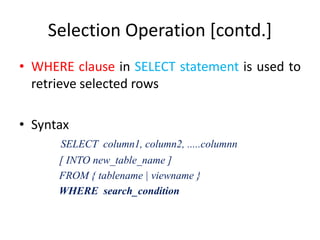

9. Selection Operation [contd.]
• WHERE clause in SELECT statement is used to
retrieve selected rows
• Syntax
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }
WHERE search_condition

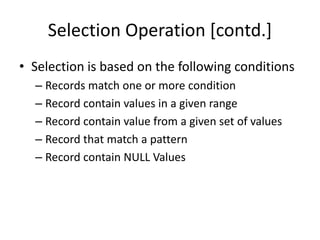

10. Selection Operation [contd.]
• Selection is based on the following conditions
– Records match one or more condition
– Record contain values in a given range
– Record contain value from a given set of values
– Record that match a pattern
– Record contain NULL Values

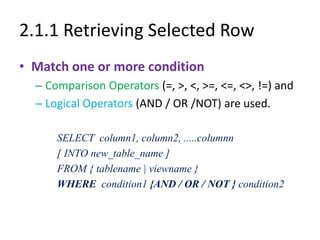

11. 2.1.1 Retrieving Selected Row
• Match one or more condition
– Comparison Operators (=, >, <, >=, <=, <>, !=) and
– Logical Operators (AND / OR /NOT) are used.
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }
WHERE condition1 {AND / OR / NOT } condition2

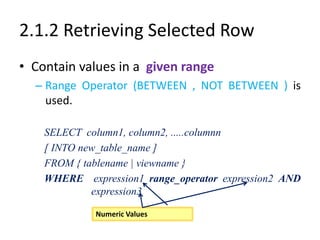

12. 2.1.2 Retrieving Selected Row
• Contain values in a given range
– Range Operator (BETWEEN , NOT BETWEEN ) is
used.
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }
WHERE expression1 range_operator expression2 AND
expression3
• Name of the ColumnNumeric Values

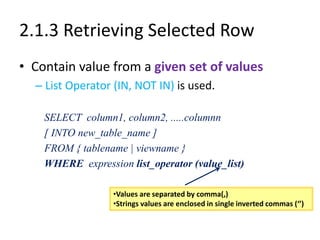

13. 2.1.3 Retrieving Selected Row
• Contain value from a given set of values
– List Operator (IN, NOT IN) is used.
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }
WHERE expression list_operator (value_list)
•Values are separated by comma(,)
•Strings values are enclosed in single inverted commas (‘’)

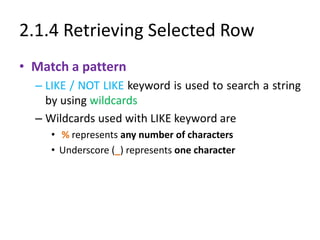

14. 2.1.4 Retrieving Selected Row
• Match a pattern
– LIKE / NOT LIKE keyword is used to search a string
by using wildcards
– Wildcards used with LIKE keyword are
• % represents any number of characters
• Underscore (_) represents one character

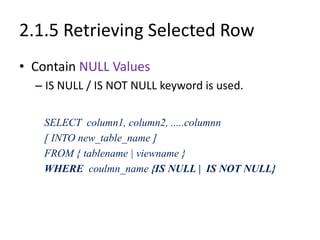

15. 2.1.5 Retrieving Selected Row
• Contain NULL Values
– IS NULL / IS NOT NULL keyword is used.
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }
WHERE coulmn_name {IS NULL | IS NOT NULL}

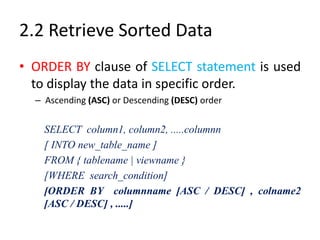

16. 2.2 Retrieve Sorted Data
• ORDER BY clause of SELECT statement is used
to display the data in specific order.
– Ascending (ASC) or Descending (DESC) order
SELECT column1, column2, .....columnn
[ INTO new_table_name ]
FROM { tablename | viewname }
[WHERE search_condition]
[ORDER BY columnname [ASC / DESC] , colname2
[ASC / DESC] , .....]

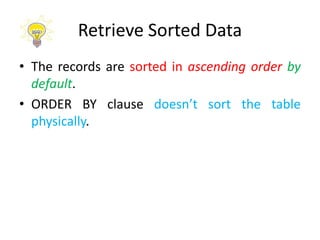

17. Retrieve Sorted Data
• The records are sorted in ascending order by
default.
• ORDER BY clause doesn’t sort the table
physically.

18. 3. SELECTION USING FUNCTIONS

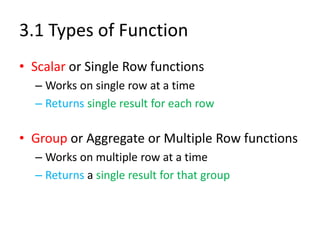

19. 3.1 Types of Function
• Scalar or Single Row functions
– Works on single row at a time
– Returns single result for each row
• Group or Aggregate or Multiple Row functions
– Works on multiple row at a time
– Returns a single result for that group

20. 3.2 Scalar Function
• Character Function
• Numeric Function
• Date Function
• Data Type Conversion Function

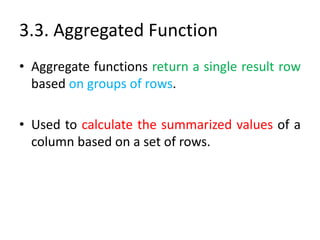

21. 3.3. Aggregated Function
• Aggregate functions return a single result row
based on groups of rows.
• Used to calculate the summarized values of a
column based on a set of rows.

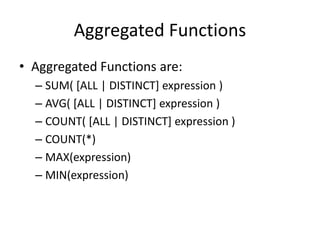

22. Aggregated Functions
• Aggregated Functions are:
– SUM( [ALL | DISTINCT] expression )
– AVG( [ALL | DISTINCT] expression )
– COUNT( [ALL | DISTINCT] expression )
– COUNT(*)
– MAX(expression)
– MIN(expression)

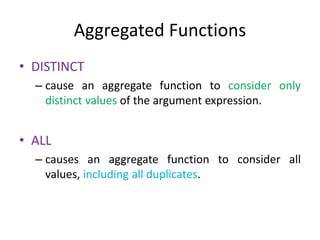

23. Aggregated Functions
• DISTINCT
– cause an aggregate function to consider only
distinct values of the argument expression.
• ALL
– causes an aggregate function to consider all
values, including all duplicates.

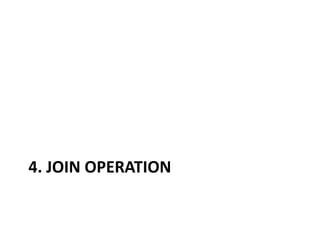

24. 4. JOIN OPERATION

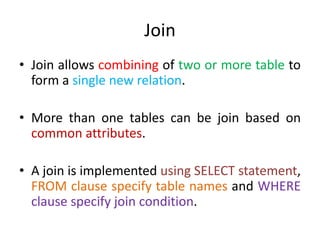

25. Join
• Join allows combining of two or more table to
form a single new relation.
• More than one tables can be join based on
common attributes.
• A join is implemented using SELECT statement,
FROM clause specify table names and WHERE
clause specify join condition.

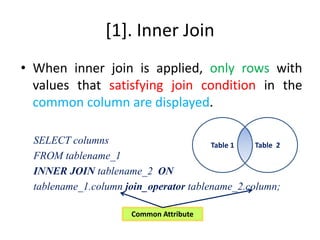

26. • When inner join is applied, only rows with
values that satisfying join condition in the
common column are displayed.
SELECT columns
FROM tablename_1
INNER JOIN tablename_2 ON
tablename_1.column join_operator tablename_2.column;
[1]. Inner Join
Table 1 Table 2
Common Attribute

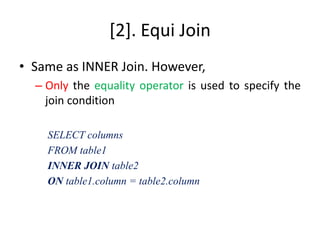

27. [2]. Equi Join
• Same as INNER Join. However,
– Only the equality operator is used to specify the
join condition
SELECT columns
FROM table1
INNER JOIN table2
ON table1.column = table2.column

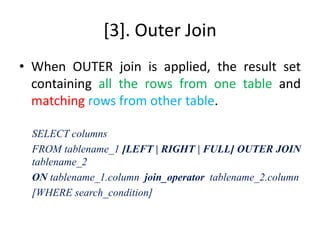

28. [3]. Outer Join
• When OUTER join is applied, the result set
containing all the rows from one table and
matching rows from other table.
SELECT columns
FROM tablename_1 [LEFT | RIGHT | FULL] OUTER JOIN
tablename_2
ON tablename_1.column join_operator tablename_2.column
[WHERE search_condition]

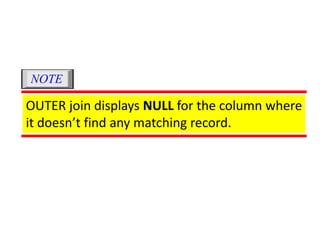

29. OUTER join displays NULL for the column where
it doesn’t find any matching record.
NOTE

30. [3]. TYPES of Outer Join
• LEFT Outer Join
– All the rows from the table specified on left side of
the LEFT OUTER JOIN keyword (Table 1) and
matching from table specified on right side (Table 2)
Table 1 Table 2Table 2Table 1
• RIGHT Outer Join
– All the rows from the table specified on right side of
the RIGHT OUTER JOIN keyword (Table 2) and
matching from table specified on left side (Table 1)
• FULL Outer Join
– Combination of LEFT and RIGHT outer join.
– Result set contain all the matching and non
matching rows from both the table.
Table 2Table 1

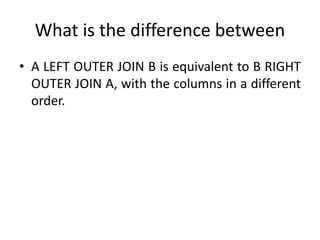

31. What is the difference between
• A LEFT OUTER JOIN B is equivalent to B RIGHT
OUTER JOIN A, with the columns in a different
order.

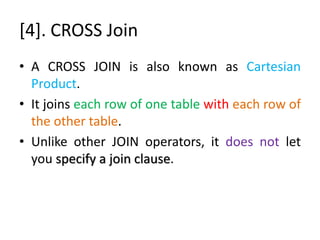

32. [4]. CROSS Join
• A CROSS JOIN is also known as Cartesian
Product.
• It joins each row of one table with each row of
the other table.
• Unlike other JOIN operators, it does not let
you specify a join clause.

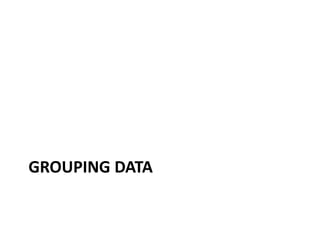

33. GROUPING DATA

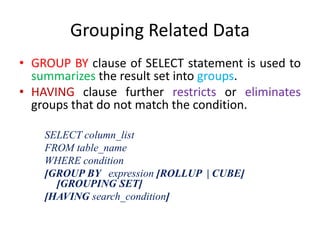

34. Grouping Related Data
• GROUP BY clause of SELECT statement is used to
summarizes the result set into groups.
• HAVING clause further restricts or eliminates
groups that do not match the condition.
SELECT column_list
FROM table_name
WHERE condition
[GROUP BY expression [ROLLUP | CUBE]
[GROUPING SET]
[HAVING search_condition]

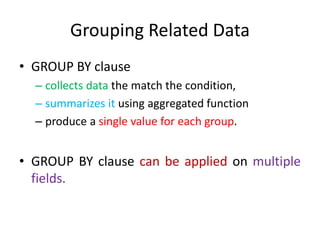

35. Grouping Related Data
• GROUP BY clause
– collects data the match the condition,
– summarizes it using aggregated function
– produce a single value for each group.
• GROUP BY clause can be applied on multiple
fields.

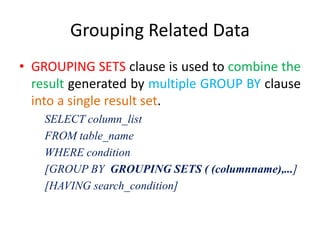

36. Grouping Related Data
• GROUPING SETS clause is used to combine the
result generated by multiple GROUP BY clause
into a single result set.
SELECT column_list
FROM table_name
WHERE condition
[GROUP BY GROUPING SETS ( (columnname),...]
[HAVING search_condition]

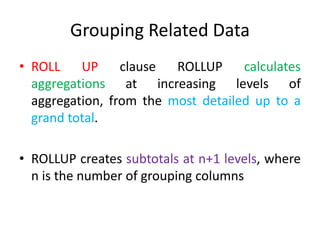

37. Grouping Related Data
• ROLL UP clause ROLLUP calculates
aggregations at increasing levels of
aggregation, from the most detailed up to a
grand total.
• ROLLUP creates subtotals at n+1 levels, where
n is the number of grouping columns

38. Grouping Related Data - ROLLUP
– ROLLUP (year, month, day), it means stepping
back to determine
(year, month, day)
(year, month)
(year)
()
SELECT column_list
FROM table_name
WHERE condition
[GROUP BY ROLLUP( (columnname),
columnname2, ...]
[HAVING search_condition]

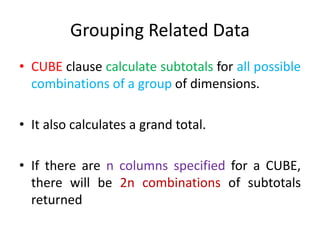

39. Grouping Related Data
• CUBE clause calculate subtotals for all possible
combinations of a group of dimensions.
• It also calculates a grand total.
• If there are n columns specified for a CUBE,
there will be 2n combinations of subtotals
returned

40. Grouping Related Data
• CUBE (year, month, day), creates a grouping for
every possible combination of columns
(year, month, day)
(year, month)
(year, day)
(year)
(month, day)
(month)
(day)
()
SELECT column_list
FROM table_name
WHERE condition
[GROUP BY CUBE( (columnname), columnname2,
...]
[HAVING search_condition]

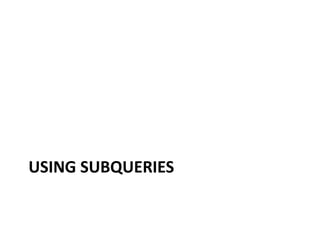

41. USING SUBQUERIES

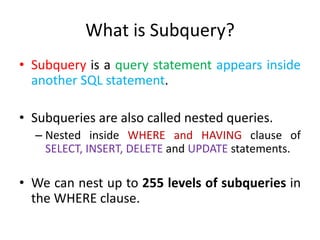

42. What is Subquery?
• Subquery is a query statement appears inside
another SQL statement.
• Subqueries are also called nested queries.
– Nested inside WHERE and HAVING clause of
SELECT, INSERT, DELETE and UPDATE statements.
• We can nest up to 255 levels of subqueries in
the WHERE clause.

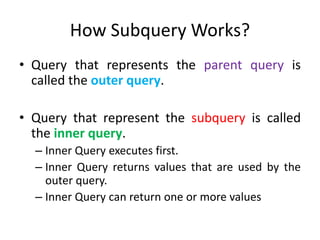

43. How Subquery Works?
• Query that represents the parent query is
called the outer query.
• Query that represent the subquery is called
the inner query.
– Inner Query executes first.
– Inner Query returns values that are used by the
outer query.
– Inner Query can return one or more values

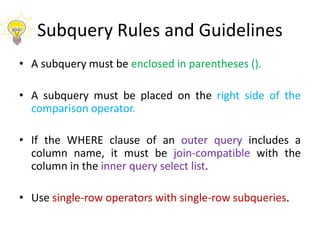

44. Subquery Rules and Guidelines
• A subquery must be enclosed in parentheses ().
• A subquery must be placed on the right side of the
comparison operator.
• If the WHERE clause of an outer query includes a
column name, it must be join-compatible with the
column in the inner query select list.
• Use single-row operators with single-row subqueries.

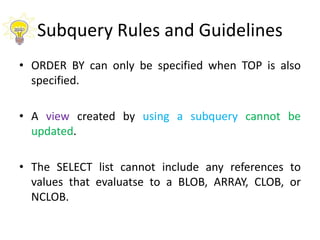

45. Subquery Rules and Guidelines
• ORDER BY can only be specified when TOP is also
specified.
• A view created by using a subquery cannot be
updated.
• The SELECT list cannot include any references to
values that evaluatse to a BLOB, ARRAY, CLOB, or
NCLOB.

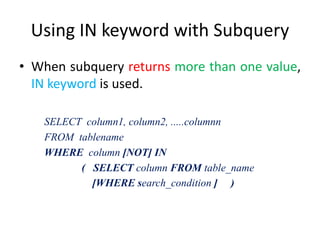

46. Using IN keyword with Subquery
• When subquery returns more than one value,
IN keyword is used.
SELECT column1, column2, .....columnn
FROM tablename
WHERE column [NOT] IN
( SELECT column FROM table_name
[WHERE search_condition ] )

47. Using EXISTS keyword with Subquery
• EXISTS keyword is used to check if a set of
records exists or not.
• EXISTS keyword always return TRUE or FALSE
value.
SELECT column1, column2, .....columnn
FROM tablename
WHERE EXISTS
( SELECT column FROM table_name
[WHERE search_condition ] )

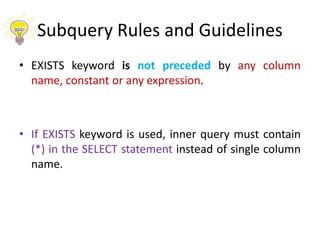

48. Subquery Rules and Guidelines
• EXISTS keyword is not preceded by any column
name, constant or any expression.
• If EXISTS keyword is used, inner query must contain
(*) in the SELECT statement instead of single column
name.

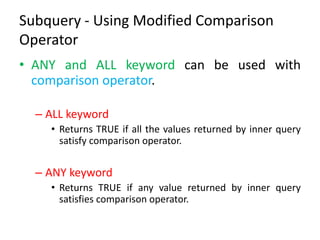

49. Subquery - Using Modified Comparison
Operator
• ANY and ALL keyword can be used with
comparison operator.
– ALL keyword
• Returns TRUE if all the values returned by inner query
satisfy comparison operator.
– ANY keyword
• Returns TRUE if any value returned by inner query
satisfies comparison operator.

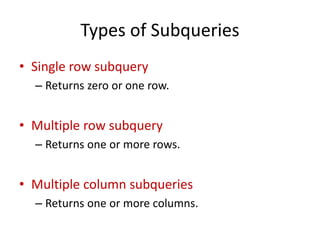

50. Types of Subqueries
• Single row subquery
– Returns zero or one row.
• Multiple row subquery
– Returns one or more rows.
• Multiple column subqueries
– Returns one or more columns.

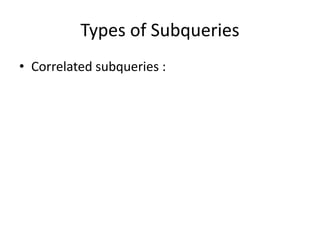

51. Types of Subqueries
• Correlated subqueries :

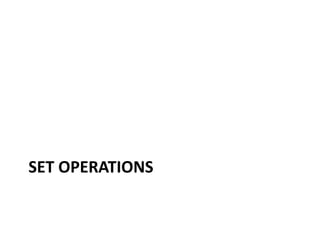

52. SET OPERATIONS

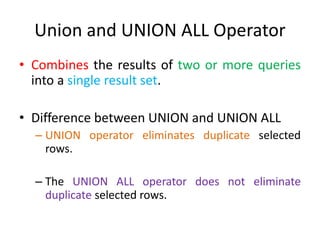

53. Union and UNION ALL Operator
• Combines the results of two or more queries
into a single result set.
• Difference between UNION and UNION ALL
– UNION operator eliminates duplicate selected
rows.
– The UNION ALL operator does not eliminate
duplicate selected rows.

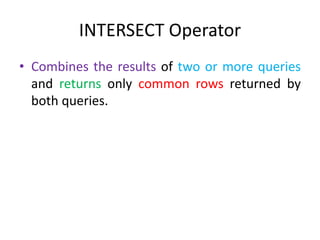

54. INTERSECT Operator
• Combines the results of two or more queries
and returns only common rows returned by
both queries.

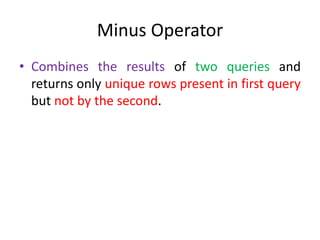

55. Minus Operator
• Combines the results of two queries and
returns only unique rows present in first query
but not by the second.

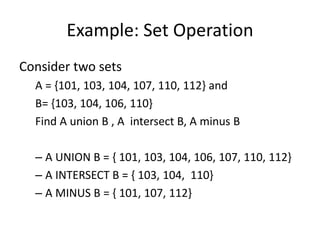

56. Example: Set Operation
Consider two sets
A = {101, 103, 104, 107, 110, 112} and
B= {103, 104, 106, 110}
Find A union B , A intersect B, A minus B
– A UNION B = { 101, 103, 104, 106, 107, 110, 112}
– A INTERSECT B = { 103, 104, 110}
– A MINUS B = { 101, 107, 112}

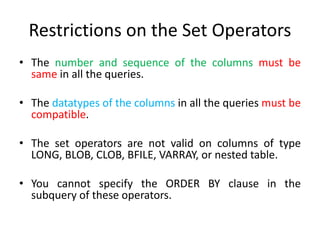

57. Restrictions on the Set Operators
• The number and sequence of the columns must be
same in all the queries.
• The datatypes of the columns in all the queries must be
compatible.
• The set operators are not valid on columns of type
LONG, BLOB, CLOB, BFILE, VARRAY, or nested table.
• You cannot specify the ORDER BY clause in the
subquery of these operators.
