The document describes different types of bag styles and filling applications that can be used on VFFS packaging machines. It discusses pillow bags, gusseted bags, sachet bags, and multipacks. It also covers different filling methods like multihead weighers, linear weighers, auger fillers, and cup fillers. Finally, it lists various wrapping materials commonly used for these vertical form fill and seal machines like polyethylene, polypropylene, oriented polypropylene, and paper laminates.

1. Variety of bag styles on VFFS-machines Examples of applications

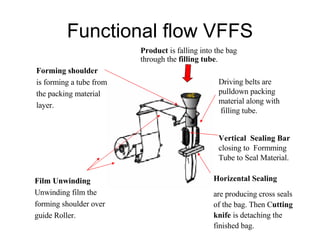

2. Functional flow VFFS Driving belts are pulldown packing material along with filling tube. Horizental Sealing are producing cross seals of the bag. Then C utting knife is detaching the finished bag. Film Unwinding Unwinding film the forming shoulder over guide Roller. Forming shoulder is forming a tube from the packing material layer. Product is falling into the bag through the filling tube . Vertical Sealing Bar closing to Formming Tube to Seal Material.

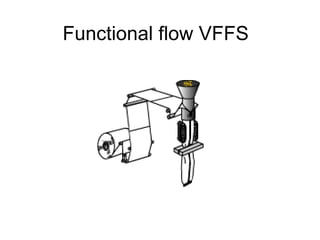

3. Functional flow VFFS

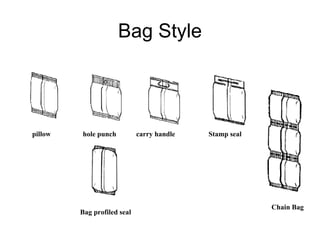

4. Bag Style pillow hole punch carry handle Stamp seal Chain Bag Bag profiled seal

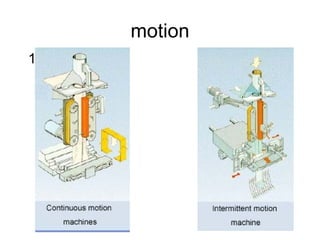

5. motion 1

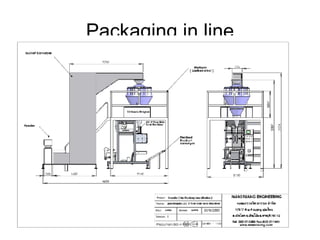

6. Packaging in line o

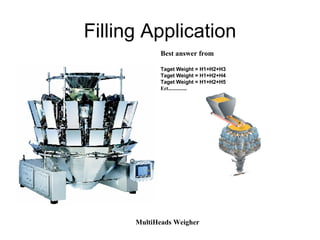

7. Filling Application MultiHeads Weigher Best answer from Taget Weight = H1+H2+H3 Taget Weight = H1+H2+H4 Taget Weight = H1+H2+H5 Ect..............

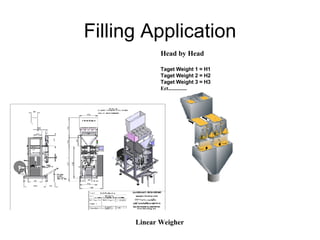

8. Filling Application Linear Weigher Head by Head Taget Weight 1 = H1 Taget Weight 2 = H2 Taget Weight 3 = H3 Ect..............

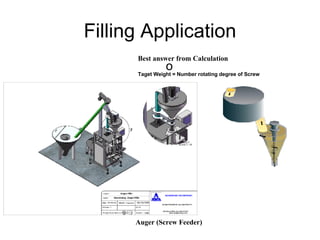

9. Filling Application o Auger (Screw Feeder) Best answer from Calculation Taget Weight = Number rotating degree of Screw

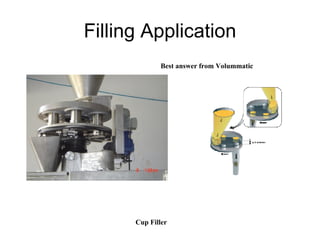

10. Filling Application Cup Filler Best answer from Volummatic

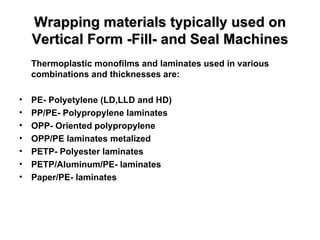

11. Wrapping materials typically used on Vertical Form -Fill- and Seal Machines Thermoplastic monofilms and laminates used in various combinations and thicknesses are: PE- Polyetylene (LD,LLD and HD) PP/PE- Polypropylene laminates OPP- Oriented polypropylene OPP/PE laminates metalized PETP- Polyester laminates PETP/Aluminum/PE- laminates Paper/PE- laminates

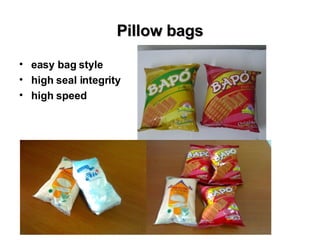

12. Pillow bags easy bag style high seal integrity high speed

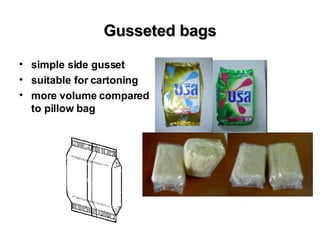

13. Gusseted bags simple side gusset suitable for cartoning more volume compared to pillow bag

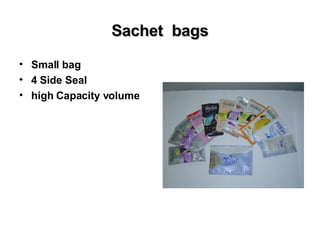

14. Sachet bags Small bag 4 Side Seal high Capacity volume

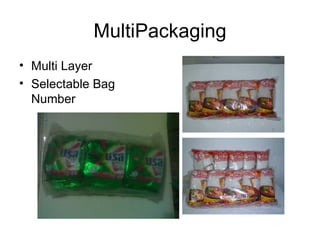

15. MultiPackaging Multi Layer Selectable Bag Number

16. MultiPack

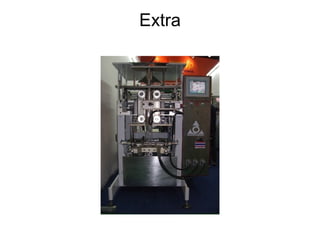

17. Extra

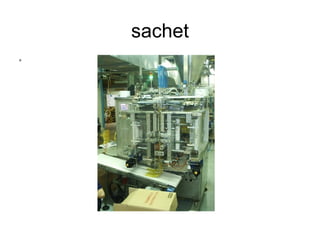

18. sachet a

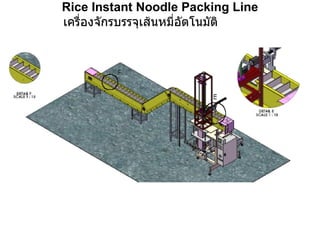

19. Rice Instant Noodle Packing Line เครื่องจักรบรรจุเส้นหมี่อัตโนมัติ

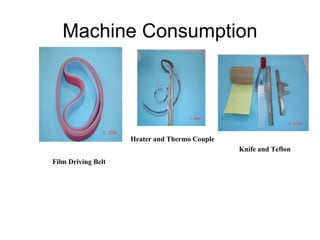

20. Machine Consumption Film Driving Belt Heater and Thermo Couple Knife and Teflon
