The document analyzes the displacements, stress, and reactions of a simple bar subjected to a load of 1000N. It provides calculated values such as deformation at different points, stress in the bar, and reaction forces, comparing theoretical results with those from ANSYS software. Key results include a deformation of 0.01mm at the free end and a stress of 2 N/mm².

1. Problem:
For the simple bar shown in the figure determine the displacements, stress
and the reaction. The cross section of the bar is 500mm2, length is 1000mm,
and the Young’s Modulus is E = 2X105 N/mm2. Take load P = 1000N.
Results:
Deformation at fixed end = 0
Deformation at mid section = 0.005mm
Deformation at free end where the load is acting = 0.01mm
Stress in the Bar = σ = 2 N/mm2

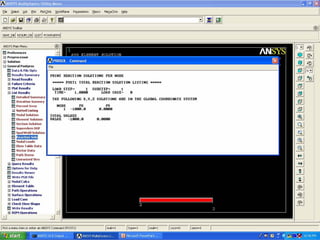

Reaction Force = R1 = -1000N

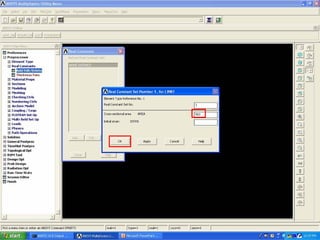

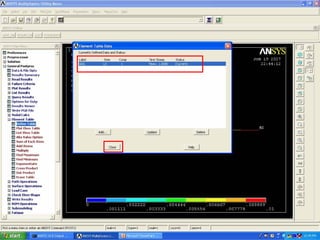

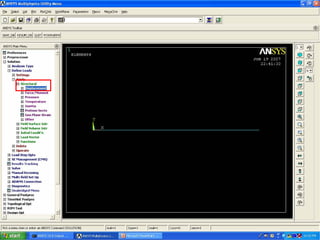

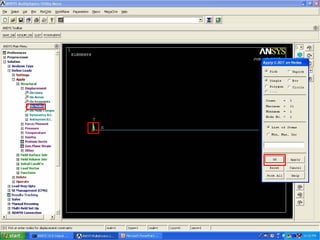

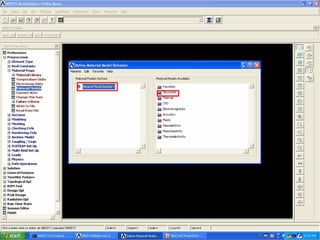

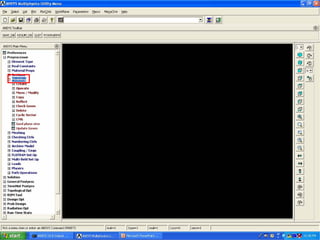

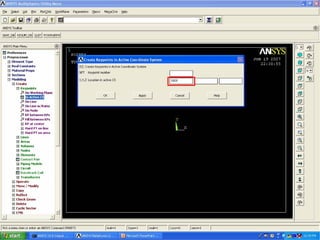

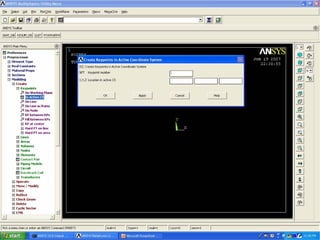

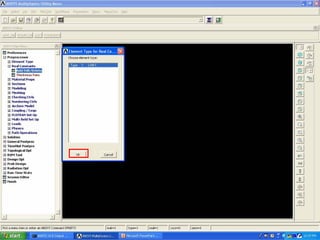

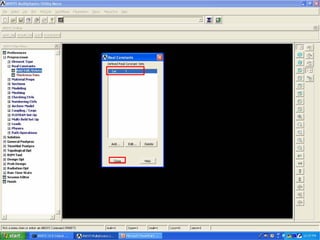

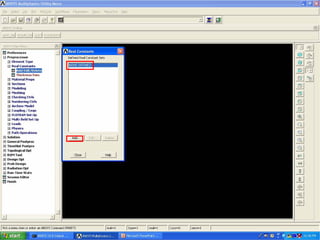

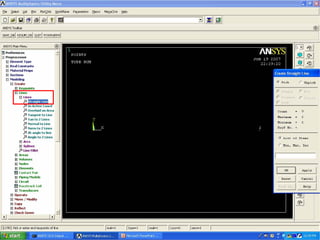

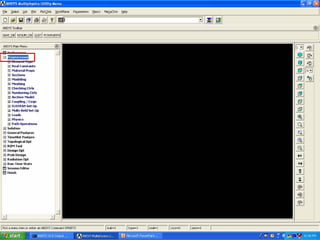

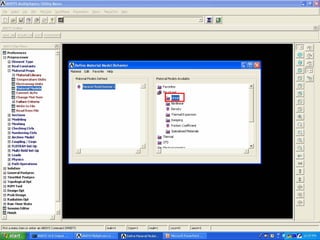

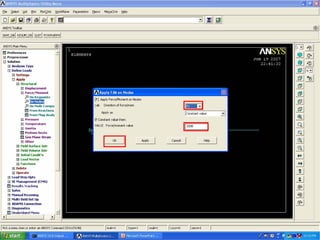

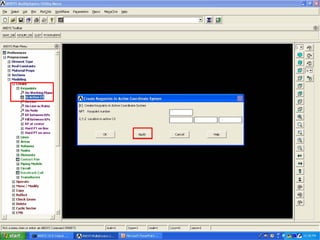

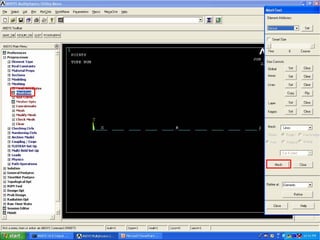

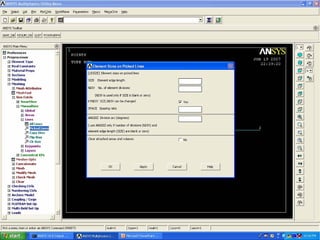

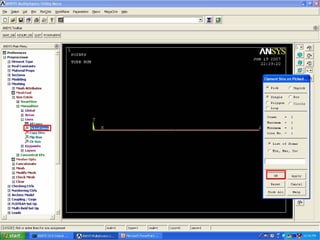

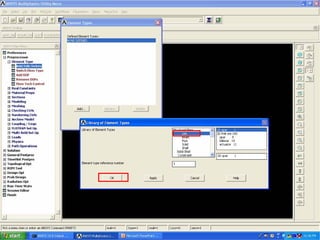

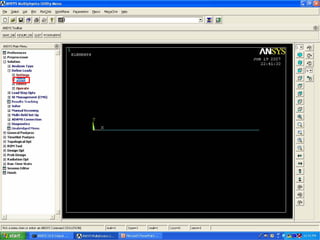

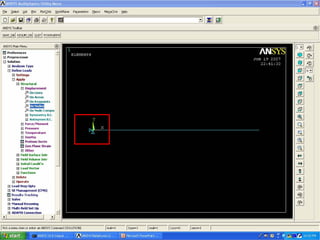

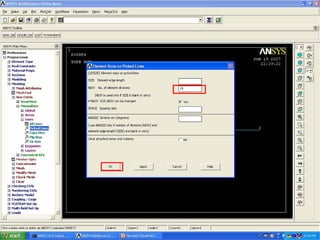

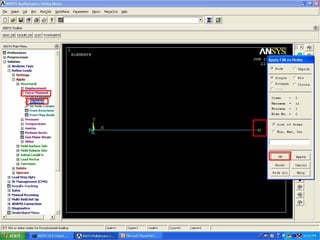

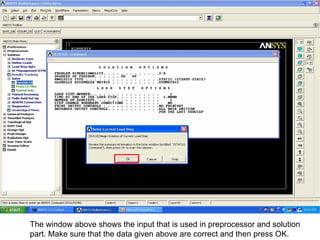

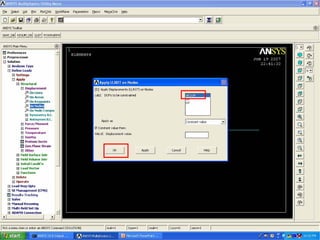

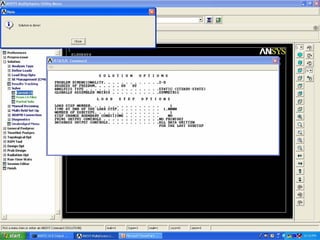

44. The window above shows the input that is used in preprocessor and solution
part. Make sure that the data given above are correct and then press OK.

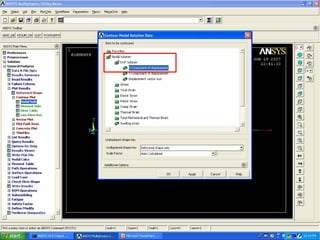

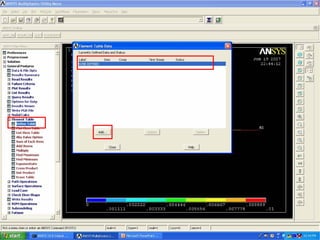

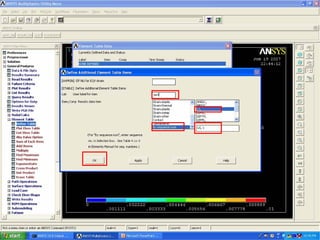

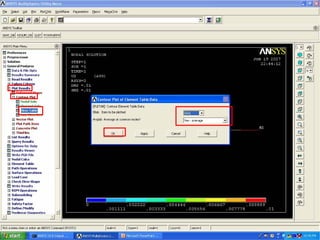

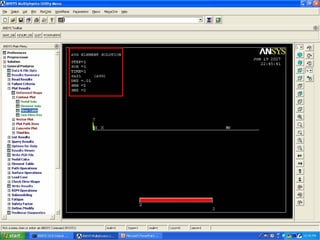

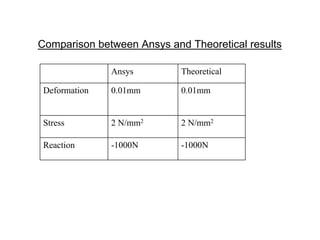

56. -1000N-1000NReaction
2 N/mm22 N/mm2Stress
0.01mm0.01mmDeformation
TheoreticalAnsys
Comparison between Ansys and Theoretical results
