Hybrid App using WordPress

  1. 1. Hybrid App using WordPress Haim Michael June 9th , 2016 All logos, trademarks and brand names used in this presentation, such as the logo of Google or any of its products, belong to their respective owners. Haim Michael and LifeMichael are independent and not related, affiliated or connected neither with Google, TinyURL, Facebook or any of the companies and the technologies mentioned in this presentation. LifeMichael.com

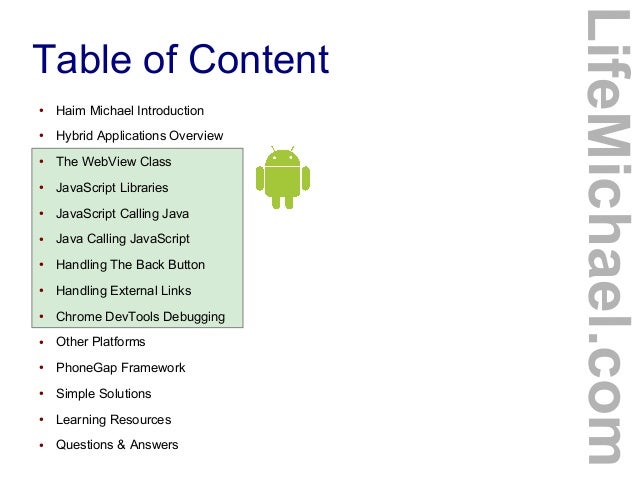

  2. 2. Table of Content LifeMichael.com ● Haim Michael Introduction ● Hybrid Applications Overview ● The WebView Class ● JavaScript Libraries ● JavaScript Calling Java ● Java Calling JavaScript ● Handling The Back Button ● Handling External Links ● Chrome DevTools Debugging ● Other Platforms ● PhoneGap Framework ● Simple Solutions ● Learning Resources ● Questions & Answers
  3. 3. Haim Michael Introduction ● Snowboarding. Learning. Coding. Teaching. More than 18 years of Practical Experience. LifeMichael.com
  4. 4. Haim Michael Introduction ● Professional Certifications Zend Certified Engineer in PHP Certified Java Professional Certified Java EE Web Component Developer OMG Certified UML Professional ● MBA (cum laude) from Tel-Aviv University Information Systems Management LifeMichael.com

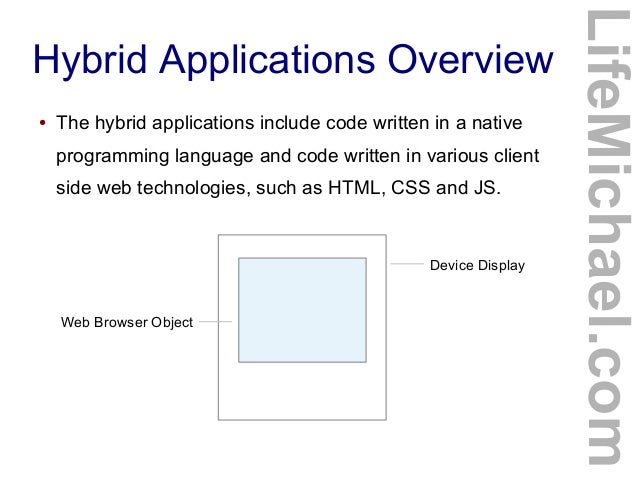

  5. 5. Hybrid Applications Overview ● The hybrid applications include code written in a native programming language and code written in various client side web technologies, such as HTML, CSS and JS. LifeMichael.com Device Display Web Browser Object

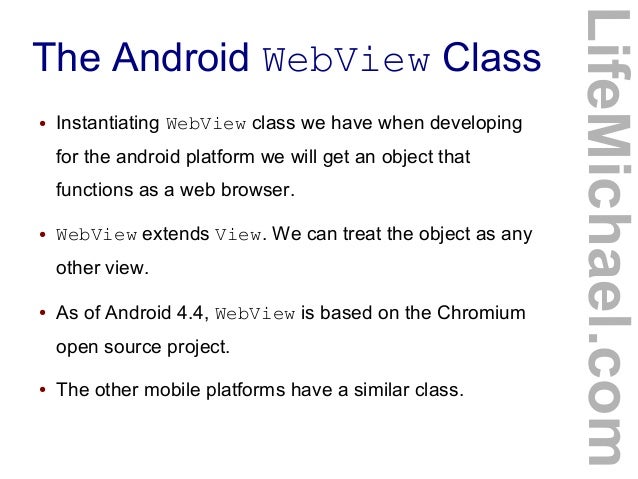

  6. 6. The Android WebView Class ● Instantiating WebView class we have when developing for the android platform we will get an object that functions as a web browser. ● WebView extends View. We can treat the object as any other view. ● As of Android 4.4, WebView is based on the Chromium open source project. ● The other mobile platforms have a similar class. LifeMichael.com

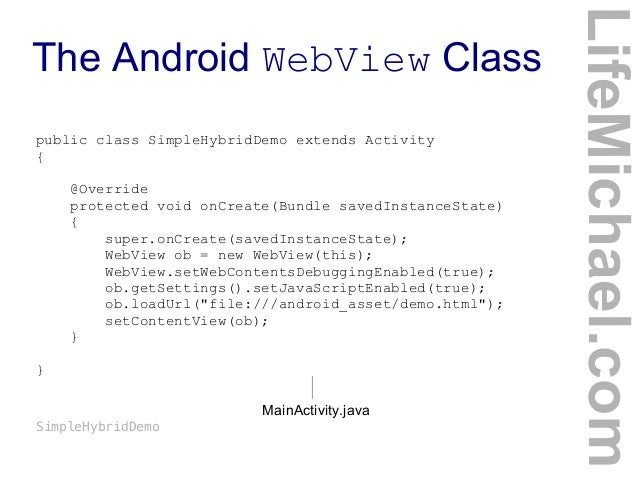

  7. 7. The Android WebView Class LifeMichael.com public class SimpleHybridDemo extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); WebView ob = new WebView(this); WebView.setWebContentsDebuggingEnabled(true); ob.getSettings().setJavaScriptEnabled(true); ob.loadUrl("file:///android_asset/demo.html"); setContentView(ob); } } MainActivity.java SimpleHybridDemo

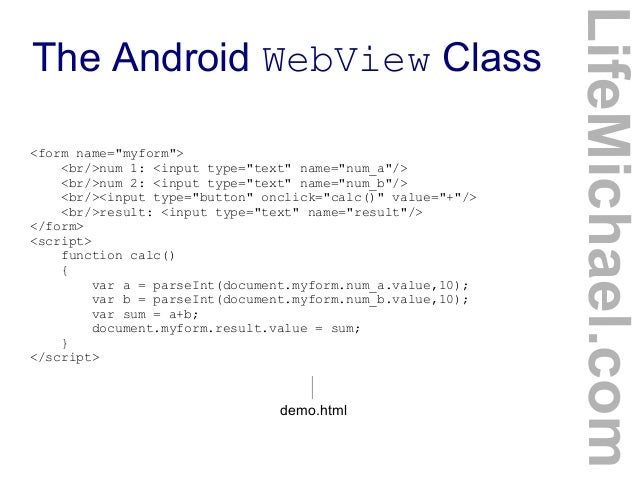

  8. 8. The Android WebView Class LifeMichael.com <form name="myform"> <br/>num 1: <input type="text" name="num_a"/> <br/>num 2: <input type="text" name="num_b"/> <br/><input type="button" onclick="calc()" value="+"/> <br/>result: <input type="text" name="result"/> </form> <script> function calc() { var a = parseInt(document.myform.num_a.value,10); var b = parseInt(document.myform.num_b.value,10); var sum = a+b; document.myform.result.value = sum; } </script> demo.html

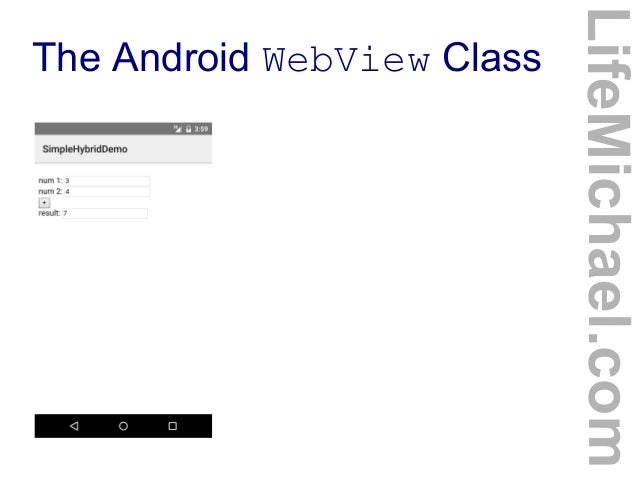

  9. 9. The Android WebView Class LifeMichael.com
  10. 10. The Android WebView Class ● Calling the getSettings() method on our WebView object we will get a WebSettings object through which we can configure the behavior of our WebView. … WebView ob; … WebSettings settings = ob.getSettings(); settings.setJavaScriptEnabled(true); settings.setDatabaseEnabled(true); … LifeMichael.com

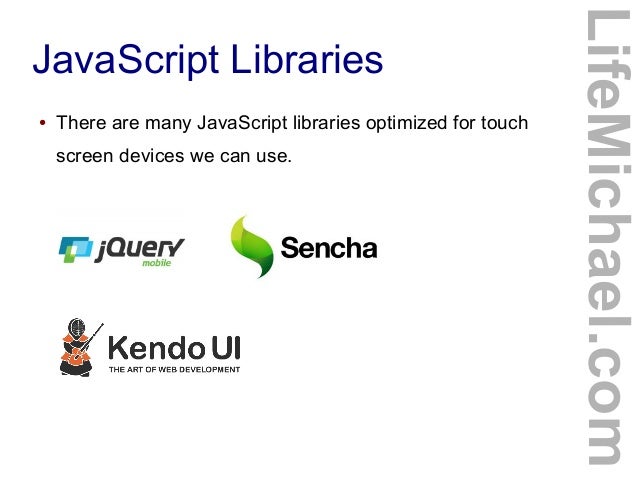

  11. 11. JavaScript Libraries ● There are many JavaScript libraries optimized for touch screen devices we can use. LifeMichael.com

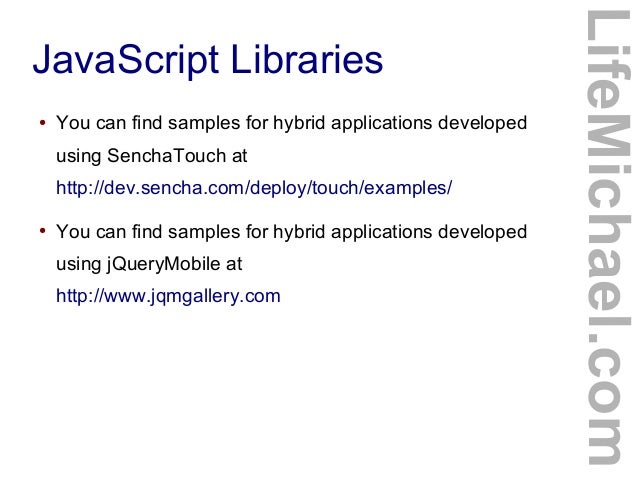

  12. 12. JavaScript Libraries ● You can find samples for hybrid applications developed using SenchaTouch at http://dev.sencha.com/deploy/touch/examples/ ● You can find samples for hybrid applications developed using jQueryMobile at http://www.jqmgallery.com LifeMichael.com

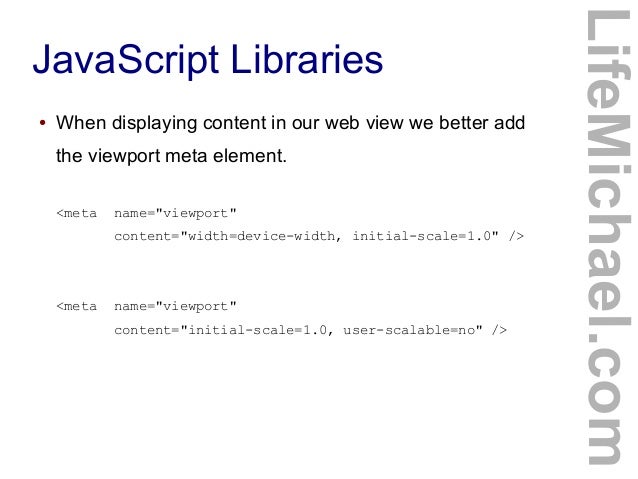

  13. 13. JavaScript Libraries ● When displaying content in our web view we better add the viewport meta element. <meta name="viewport" content="width=device-width, initial-scale=1.0" /> <meta name="viewport" content="initial-scale=1.0, user-scalable=no" /> LifeMichael.com

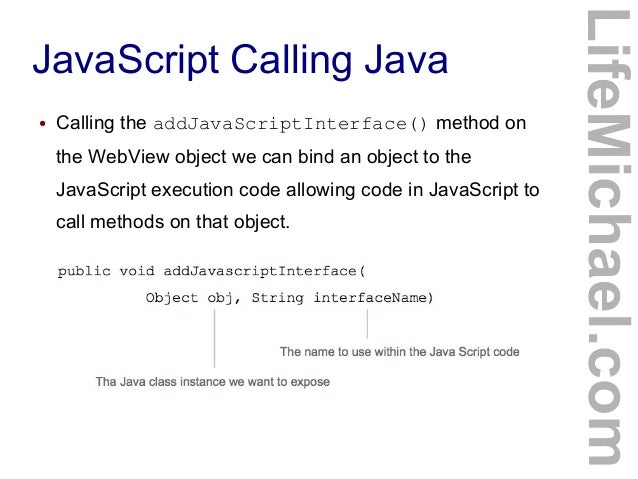

  14. 14. JavaScript Calling Java ● Calling the addJavaScriptInterface() method on the WebView object we can bind an object to the JavaScript execution code allowing code in JavaScript to call methods on that object. LifeMichael.com

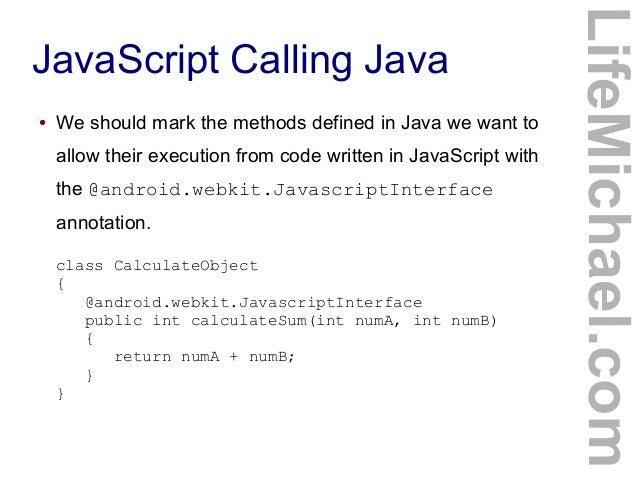

  15. 15. JavaScript Calling Java ● We should mark the methods defined in Java we want to allow their execution from code written in JavaScript with the @android.webkit.JavascriptInterface annotation. LifeMichael.com class CalculateObject { @android.webkit.JavascriptInterface public int calculateSum(int numA, int numB) { return numA + numB; } }
  16. 16. JavaScript Calling Java LifeMichael.com public class HybridActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); WebView ob = new WebView(this); WebView.setWebContentsDebuggingEnabled(true); ob.getSettings().setJavaScriptEnabled(true); ob.addJavascriptInterface(new CalculateObject(),"ob"); ob.loadUrl( "http://www.abelski.com/courses/android/simple.html"); setContentView(ob); } class CalculateObject { @android.webkit.JavascriptInterface public int calculateSum(int numA, int numB) { return numA + numB; } } } HybridActivity

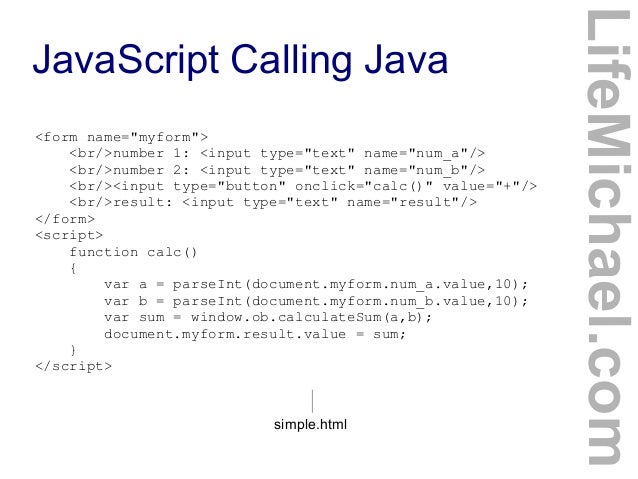

  17. 17. JavaScript Calling Java LifeMichael.com <form name="myform"> <br/>number 1: <input type="text" name="num_a"/> <br/>number 2: <input type="text" name="num_b"/> <br/><input type="button" onclick="calc()" value="+"/> <br/>result: <input type="text" name="result"/> </form> <script> function calc() { var a = parseInt(document.myform.num_a.value,10); var b = parseInt(document.myform.num_b.value,10); var sum = window.ob.calculateSum(a,b); document.myform.result.value = sum; } </script> simple.html

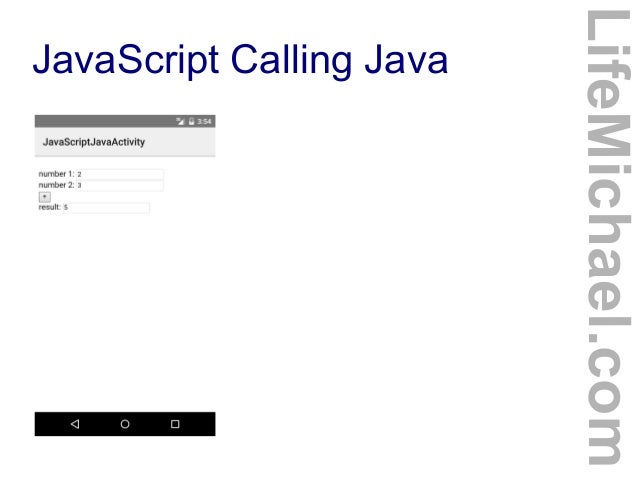

  18. 18. JavaScript Calling Java LifeMichael.com

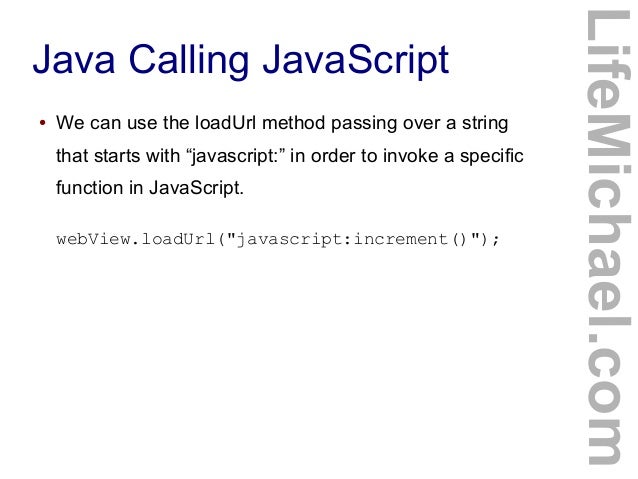

  19. 19. Java Calling JavaScript ● We can use the loadUrl method passing over a string that starts with “javascript:” in order to invoke a specific function in JavaScript. webView.loadUrl("javascript:increment()"); LifeMichael.com

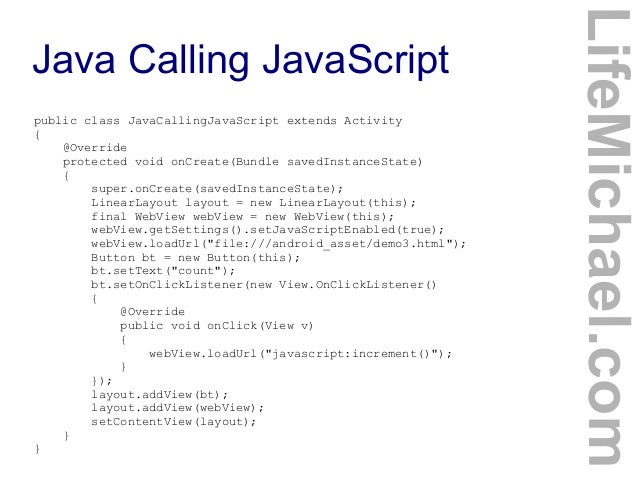

  20. 20. Java Calling JavaScript LifeMichael.com public class JavaCallingJavaScript extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); LinearLayout layout = new LinearLayout(this); final WebView webView = new WebView(this); webView.getSettings().setJavaScriptEnabled(true); webView.loadUrl("file:///android_asset/demo3.html"); Button bt = new Button(this); bt.setText("count"); bt.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { webView.loadUrl("javascript:increment()"); } }); layout.addView(bt); layout.addView(webView); setContentView(layout); } }

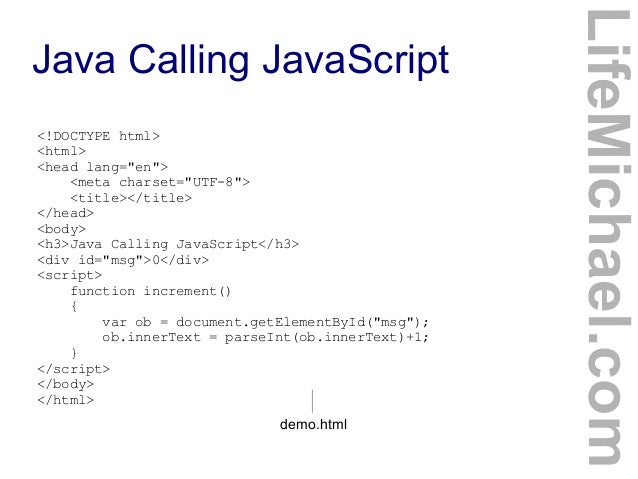

  21. 21. Java Calling JavaScript LifeMichael.com <!DOCTYPE html> <html> <head lang="en"> <meta charset="UTF-8"> <title></title> </head> <body> <h3>Java Calling JavaScript</h3> <div id="msg">0</div> <script> function increment() { var ob = document.getElementById("msg"); ob.innerText = parseInt(ob.innerText)+1; } </script> </body> </html> demo.html

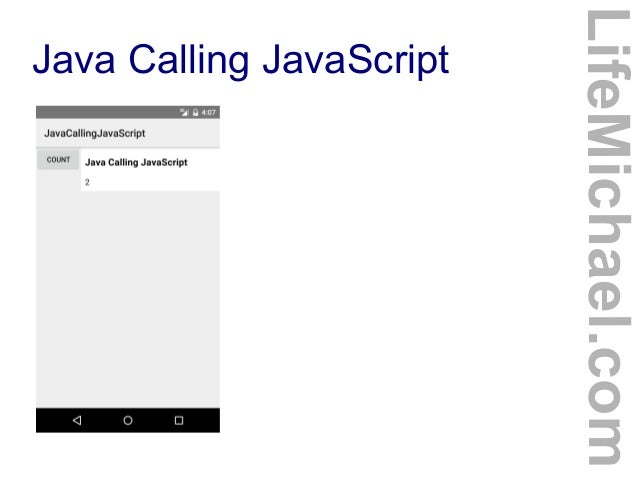

  22. 22. Java Calling JavaScript LifeMichael.com

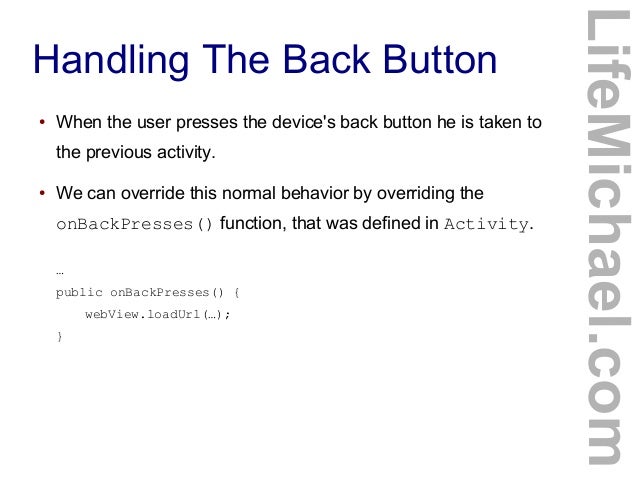

  23. 23. Handling The Back Button LifeMichael.com ● When the user presses the device's back button he is taken to the previous activity. ● We can override this normal behavior by overriding the onBackPresses() function, that was defined in Activity. … public onBackPresses() { webView.loadUrl(…); }

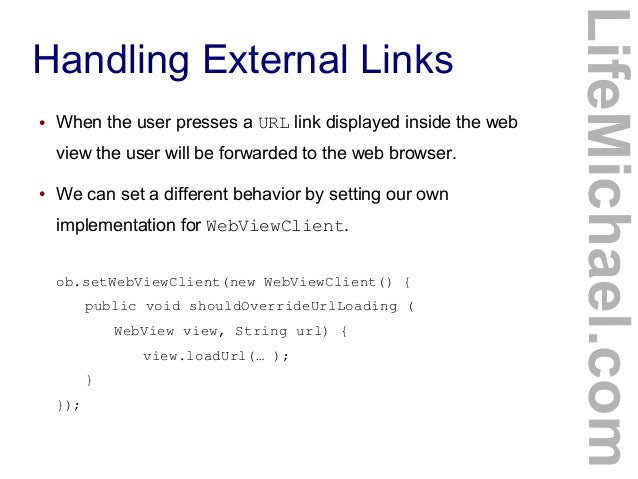

  24. 24. Handling External Links LifeMichael.com ● When the user presses a URL link displayed inside the web view the user will be forwarded to the web browser. ● We can set a different behavior by setting our own implementation for WebViewClient. ob.setWebViewClient(new WebViewClient() { public void shouldOverrideUrlLoading ( WebView view, String url) { view.loadUrl(… ); } });

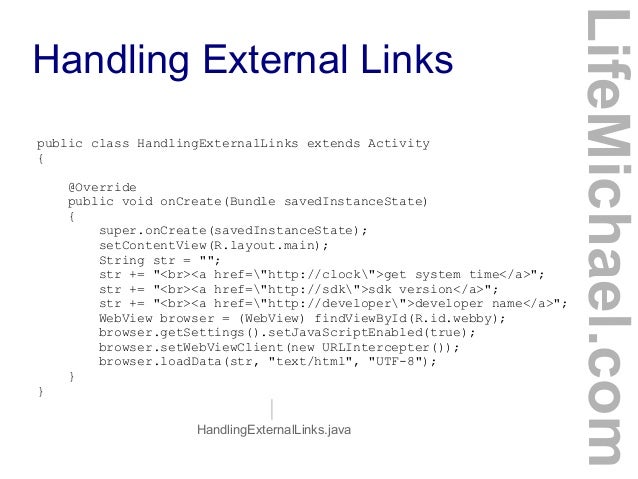

  25. 25. Handling External Links LifeMichael.com public class HandlingExternalLinks extends Activity { @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); String str = ""; str += "<br><a href="http://clock">get system time</a>"; str += "<br><a href="http://sdk">sdk version</a>"; str += "<br><a href="http://developer">developer name</a>"; WebView browser = (WebView) findViewById(R.id.webby); browser.getSettings().setJavaScriptEnabled(true); browser.setWebViewClient(new URLIntercepter()); browser.loadData(str, "text/html", "UTF-8"); } } HandlingExternalLinks.java

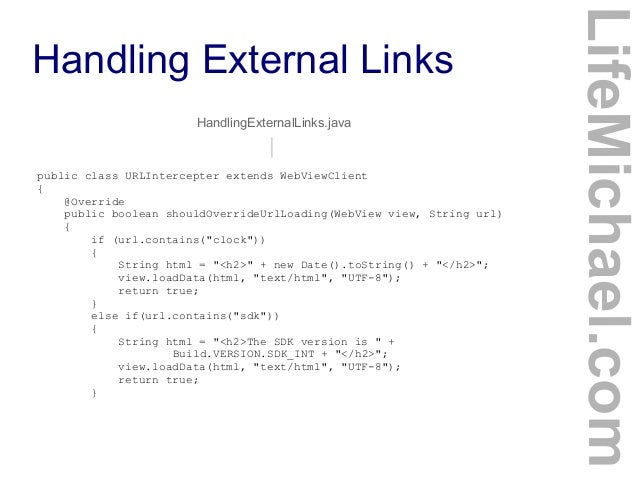

  26. 26. Handling External Links LifeMichael.com HandlingExternalLinks.java public class URLIntercepter extends WebViewClient { @Override public boolean shouldOverrideUrlLoading(WebView view, String url) { if (url.contains("clock")) { String html = "<h2>" + new Date().toString() + "</h2>"; view.loadData(html, "text/html", "UTF-8"); return true; } else if(url.contains("sdk")) { String html = "<h2>The SDK version is " + Build.VERSION.SDK_INT + "</h2>"; view.loadData(html, "text/html", "UTF-8"); return true; }

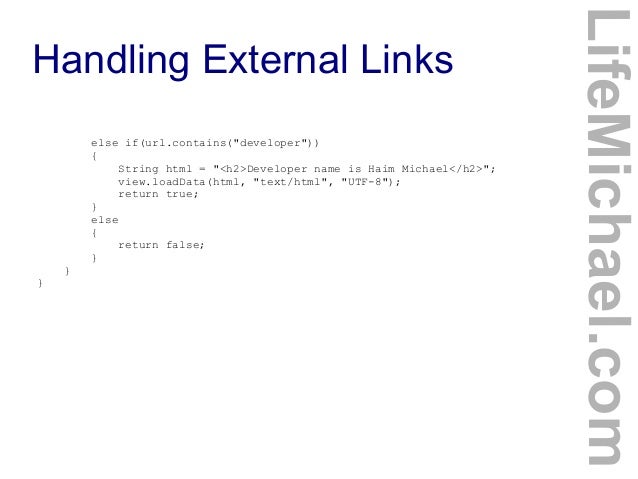

  27. 27. Handling External Links LifeMichael.com else if(url.contains("developer")) { String html = "<h2>Developer name is Haim Michael</h2>"; view.loadData(html, "text/html", "UTF-8"); return true; } else { return false; } } }

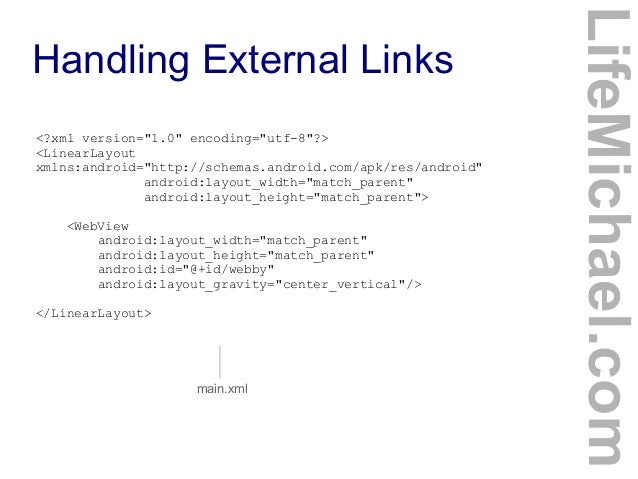

  28. 28. Handling External Links LifeMichael.com <?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent"> <WebView android:layout_width="match_parent" android:layout_height="match_parent" android:id="@+id/webby" android:layout_gravity="center_vertical"/> </LinearLayout> main.xml
  29. 29. Handling External Links LifeMichael.com

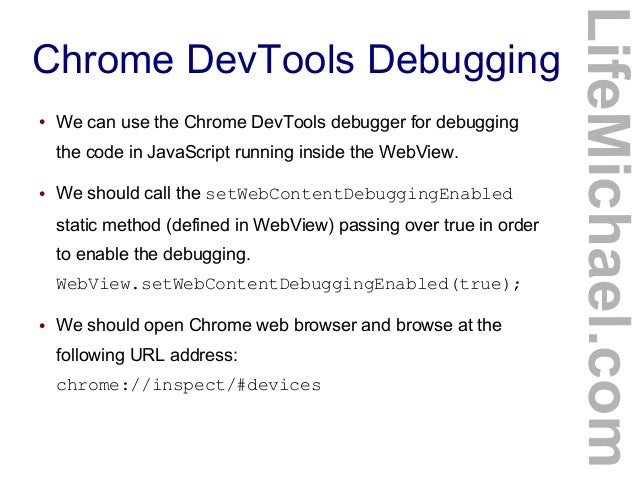

  30. 30. Chrome DevTools Debugging LifeMichael.com ● We can use the Chrome DevTools debugger for debugging the code in JavaScript running inside the WebView. ● We should call the setWebContentDebuggingEnabled static method (defined in WebView) passing over true in order to enable the debugging. WebView.setWebContentDebuggingEnabled(true); ● We should open Chrome web browser and browse at the following URL address: chrome://inspect/#devices

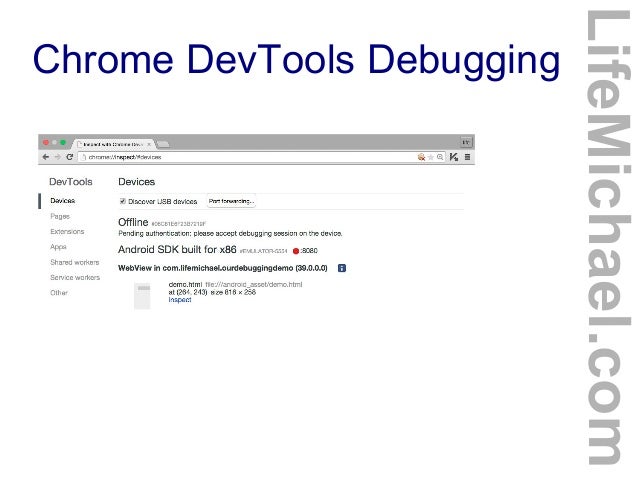

  31. 31. Chrome DevTools Debugging LifeMichael.com

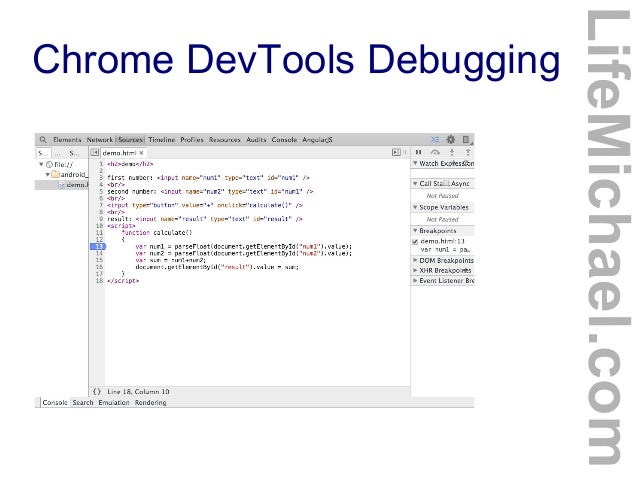

  32. 32. Chrome DevTools Debugging LifeMichael.com

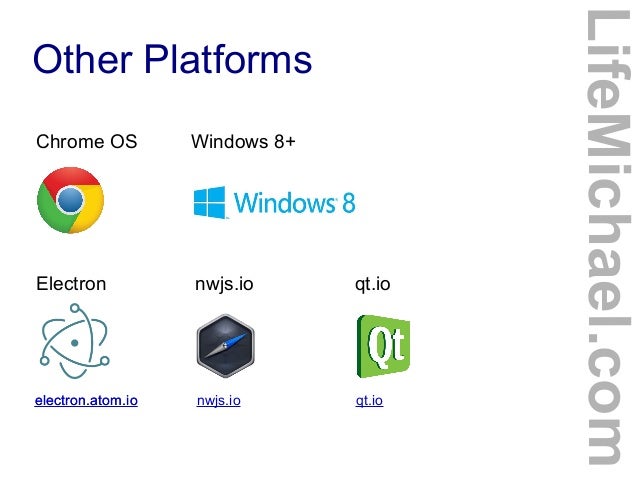

  33. 33. Other Platforms LifeMichael.com Chrome OS Windows 8+ Electron electron.atom.io nwjs.ioelectron.atom.io nwjs.io qt.io qt.io

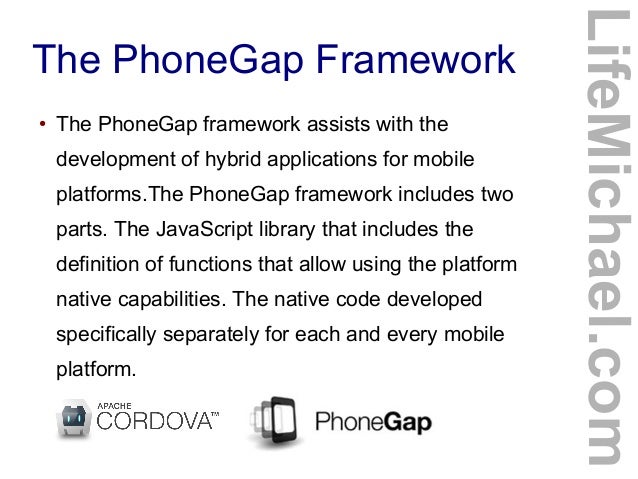

  34. 34. The PhoneGap Framework ● The PhoneGap framework assists with the development of hybrid applications for mobile platforms.The PhoneGap framework includes two parts. The JavaScript library that includes the definition of functions that allow using the platform native capabilities. The native code developed specifically separately for each and every mobile platform. LifeMichael.com

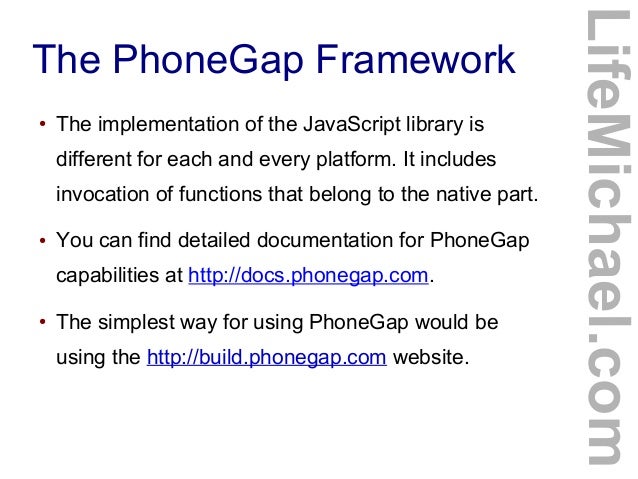

  35. 35. The PhoneGap Framework ● The implementation of the JavaScript library is different for each and every platform. It includes invocation of functions that belong to the native part. ● You can find detailed documentation for PhoneGap capabilities at http://docs.phonegap.com. ● The simplest way for using PhoneGap would be using the http://build.phonegap.com website. LifeMichael.com

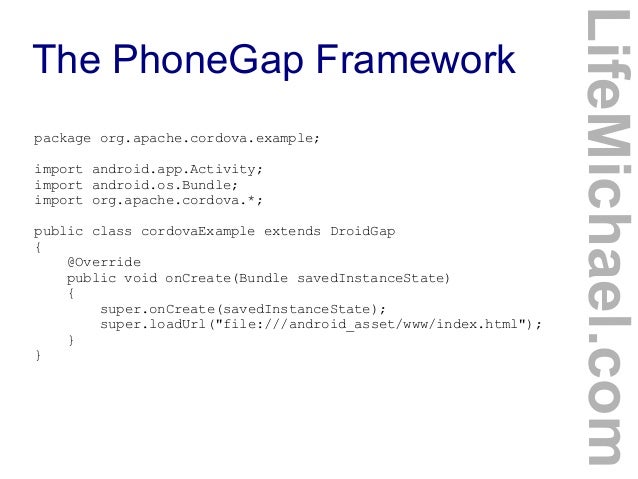

  36. 36. The PhoneGap Framework LifeMichael.com package org.apache.cordova.example; import android.app.Activity; import android.os.Bundle; import org.apache.cordova.*; public class cordovaExample extends DroidGap { @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); super.loadUrl("file:///android_asset/www/index.html"); } }

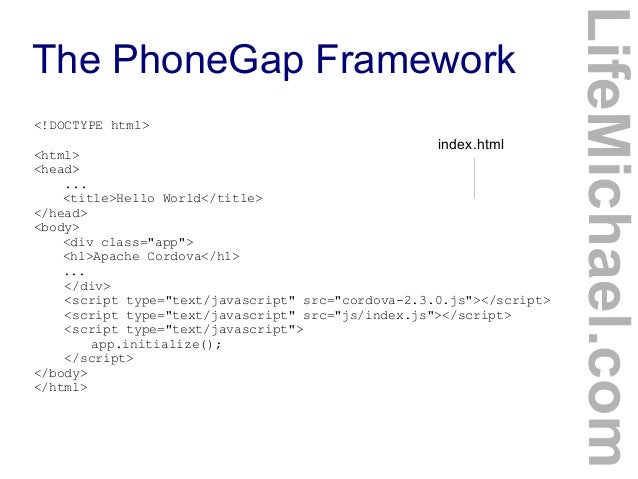

  37. 37. The PhoneGap Framework LifeMichael.com <!DOCTYPE html> <html> <head> ... <title>Hello World</title> </head> <body> <div class="app"> <h1>Apache Cordova</h1> ... </div> <script type="text/javascript" src="cordova-2.3.0.js"></script> <script type="text/javascript" src="js/index.js"></script> <script type="text/javascript"> app.initialize(); </script> </body> </html> index.html

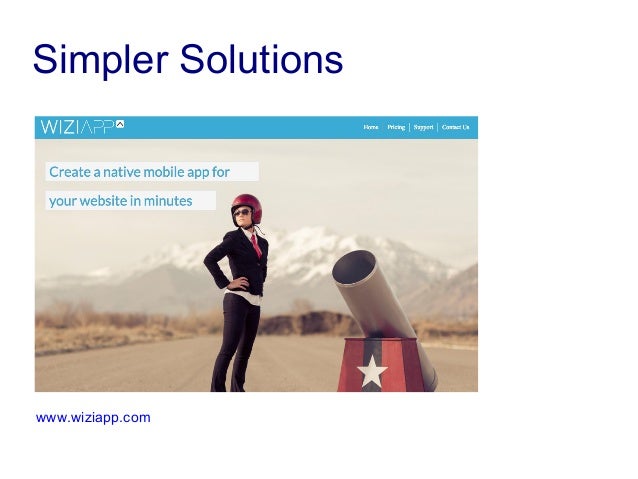

  38. 38. Simpler Solutions www.wiziapp.com

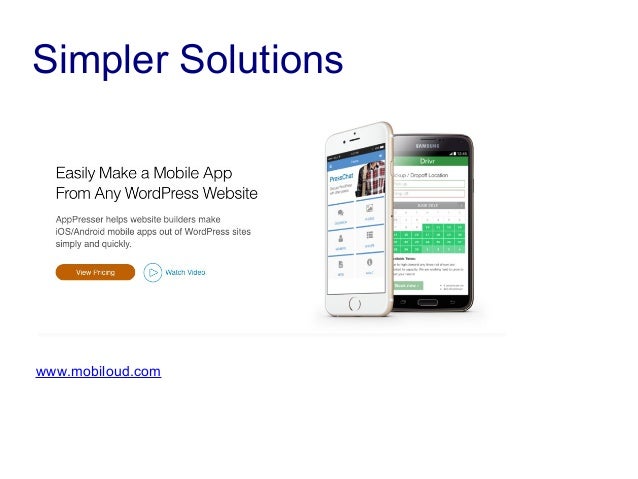

  39. 39. Simpler Solutions www.mobiloud.com
  40. 40. Simpler Solutions www.mobiloud.com

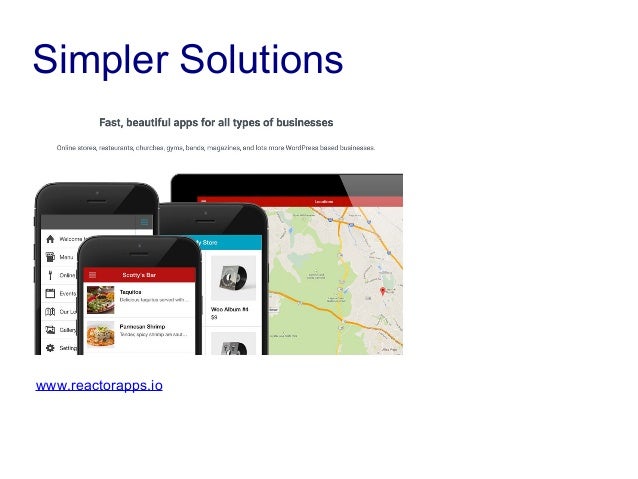

  41. 41. Simpler Solutions www.reactorapps.io

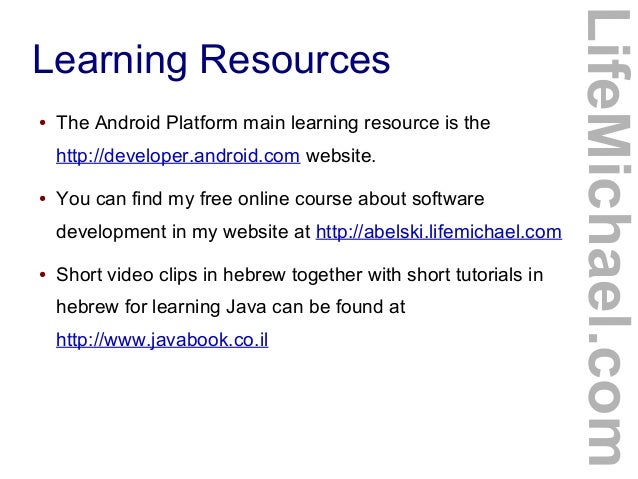

  42. 42. Learning Resources ● The Android Platform main learning resource is the http://developer.android.com website. ● You can find my free online course about software development in my website at http://abelski.lifemichael.com ● Short video clips in hebrew together with short tutorials in hebrew for learning Java can be found at http://www.javabook.co.il LifeMichael.com

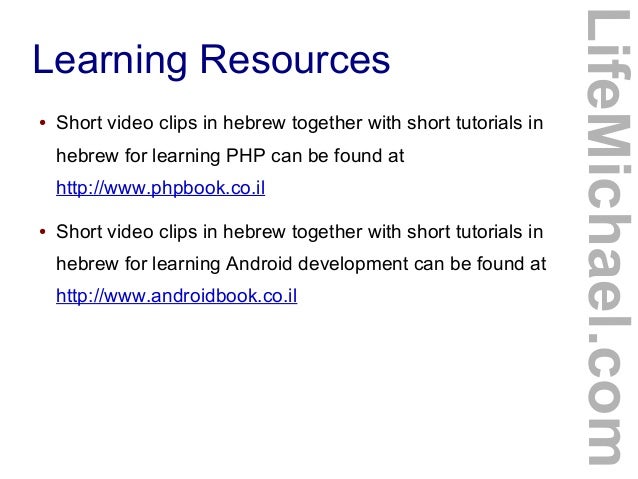

  43. 43. Learning Resources ● Short video clips in hebrew together with short tutorials in hebrew for learning PHP can be found at http://www.phpbook.co.il ● Short video clips in hebrew together with short tutorials in hebrew for learning Android development can be found at http://www.androidbook.co.il LifeMichael.com

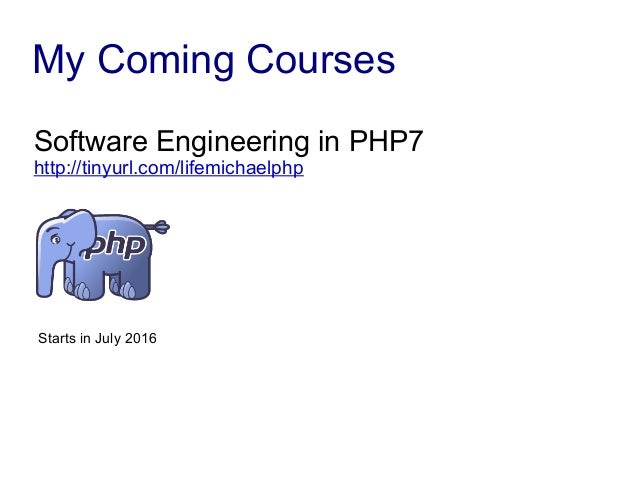

  44. 44. My Coming Courses Software Engineering in PHP7 http://tinyurl.com/lifemichaelphp Starts in July 2016

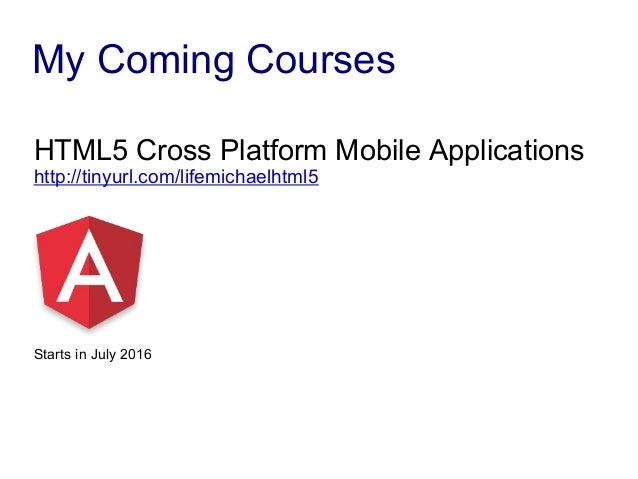

  45. 45. My Coming Courses HTML5 Cross Platform Mobile Applications http://tinyurl.com/lifemichaelhtml5 Starts in July 2016

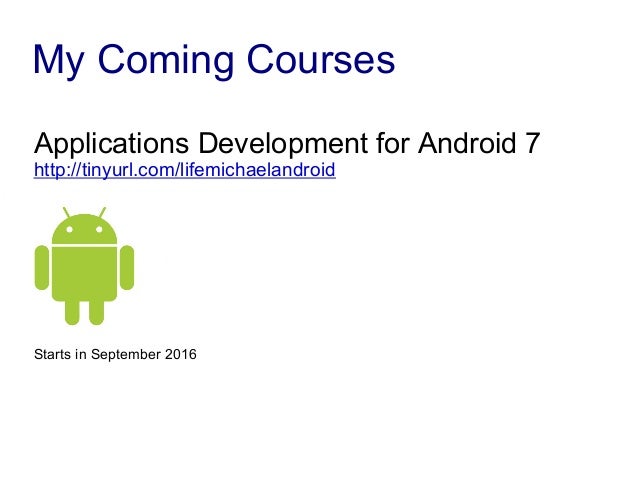

  46. 46. My Coming Courses Applications Development for Android 7 http://tinyurl.com/lifemichaelandroid Starts in September 2016
  47. 47. My Coming Courses 140 Academic Hours. 28 Weekly Meetings. Delivered in Holon Institute of Technology. On Going Project. Multiple Tiny Projects. All Meetings are Available on Video. Attractive Price of 6700 Shekels. tinyurl.com/lifemichaelhitcourses

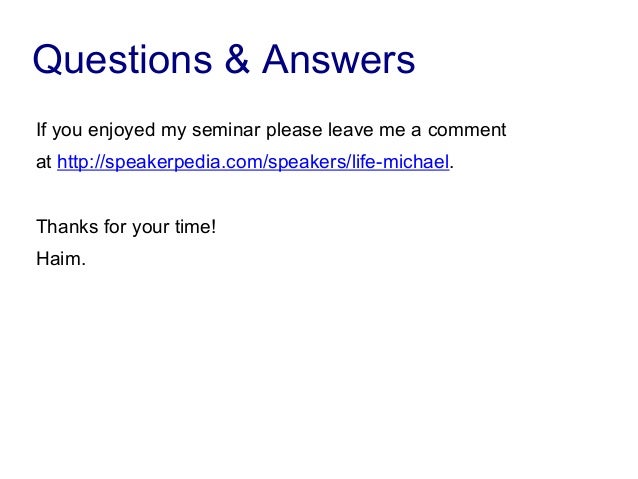

  48. 48. Questions & Answers If you enjoyed my seminar please leave me a comment at http://speakerpedia.com/speakers/life-michael. Thanks for your time! Haim.

×
