Disk Mirorring

1. Recreate Raid Array
Disk Mirroring

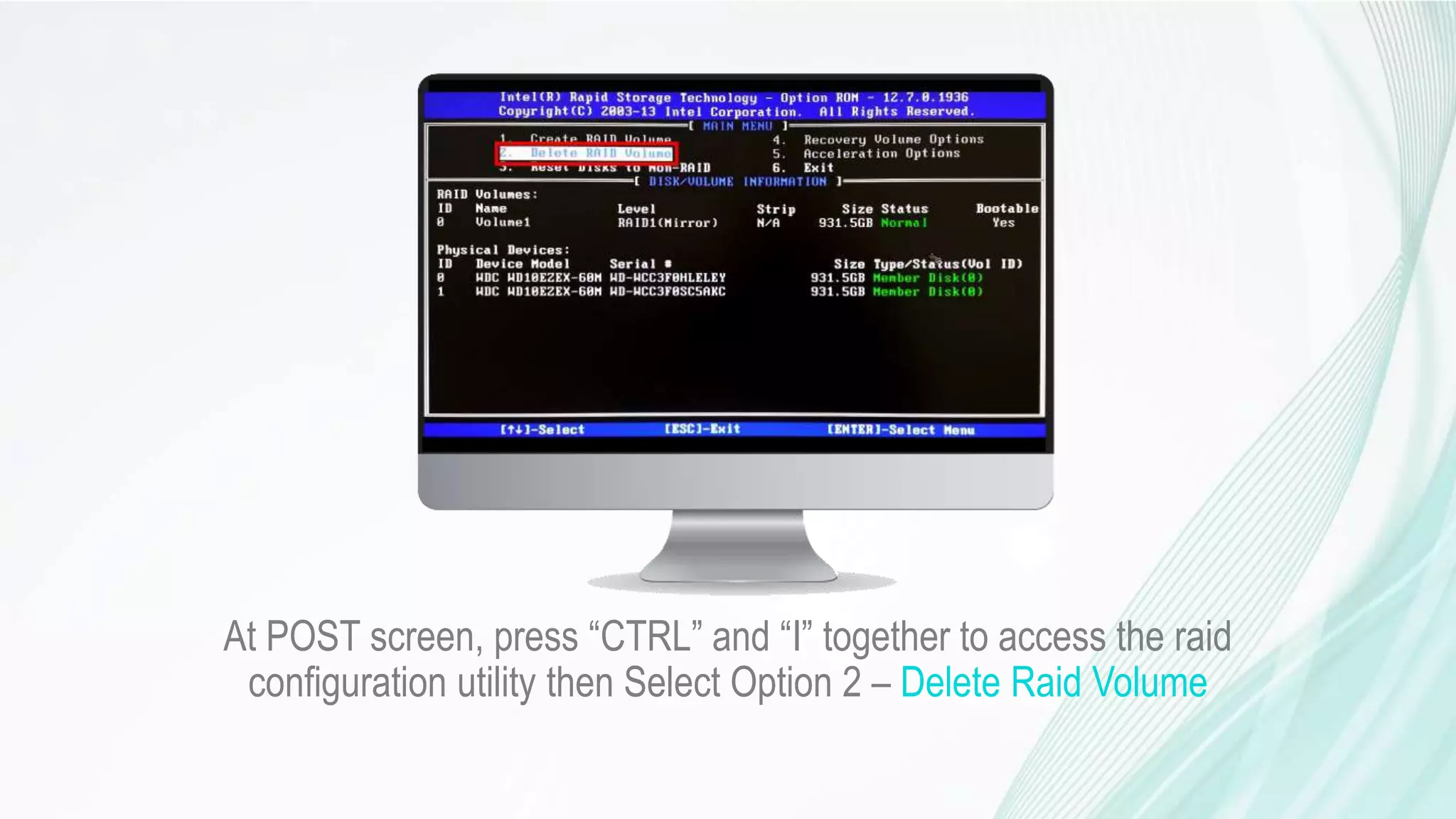

2. At POST screen, press “CTRL” and “I” together to access the raid
configuration utility then Select Option 2 – Delete Raid Volume

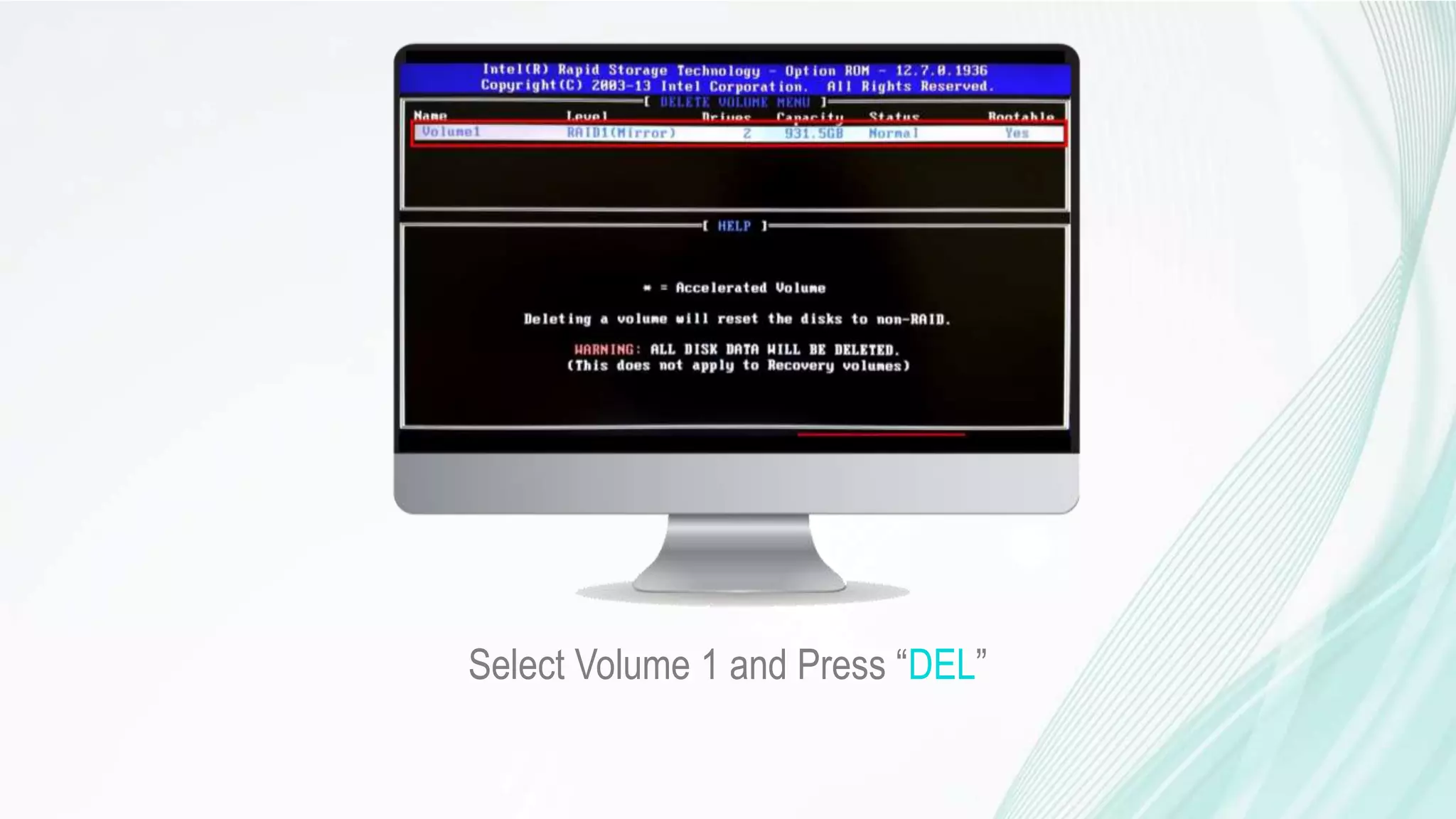

3. Select Volume 1 and Press “DEL”

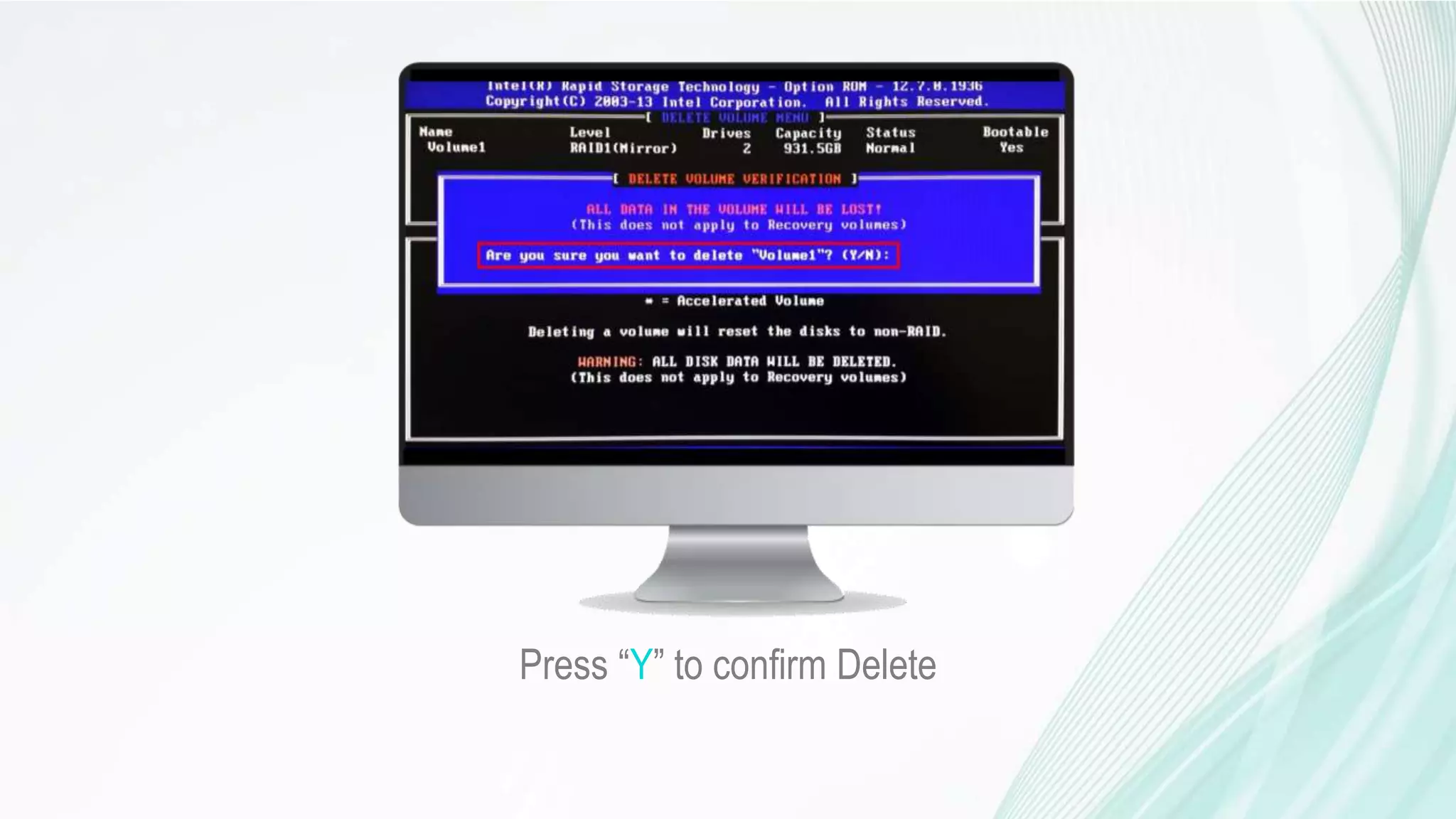

4. Press “Y” to confirm Delete

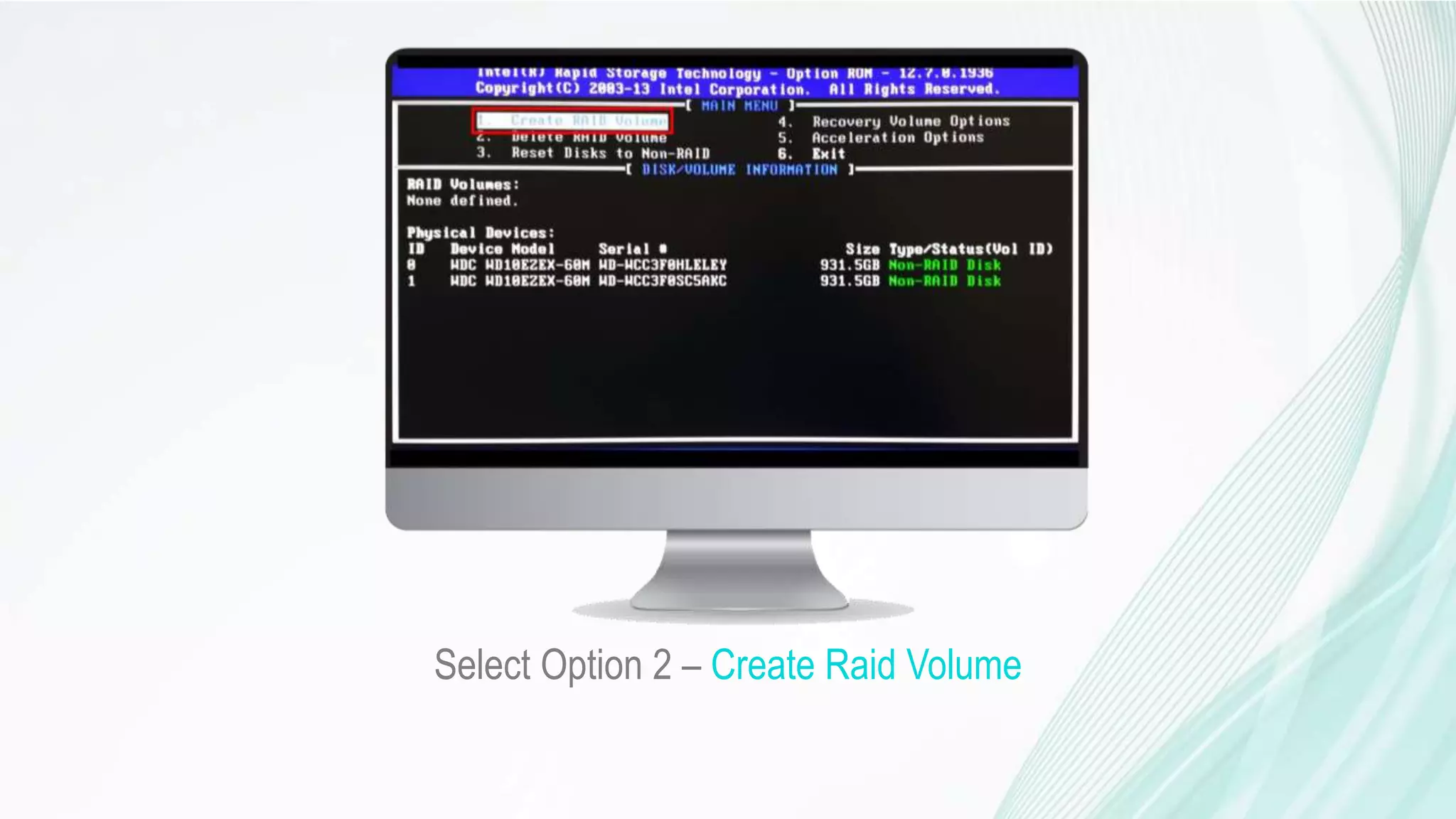

5. Select Option 2 – Create Raid Volume

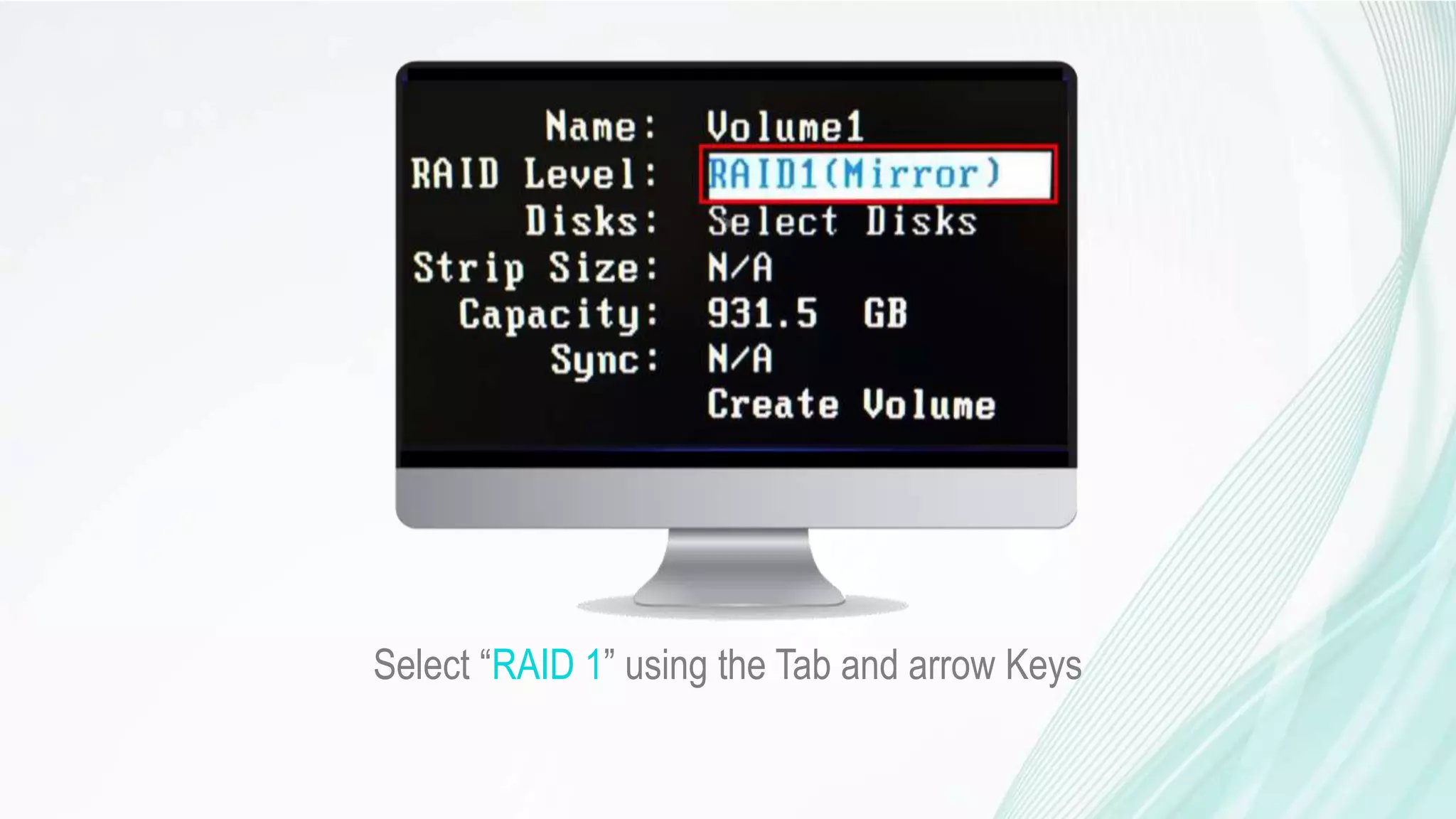

6. Select “RAID 1” using the Tab and arrow Keys

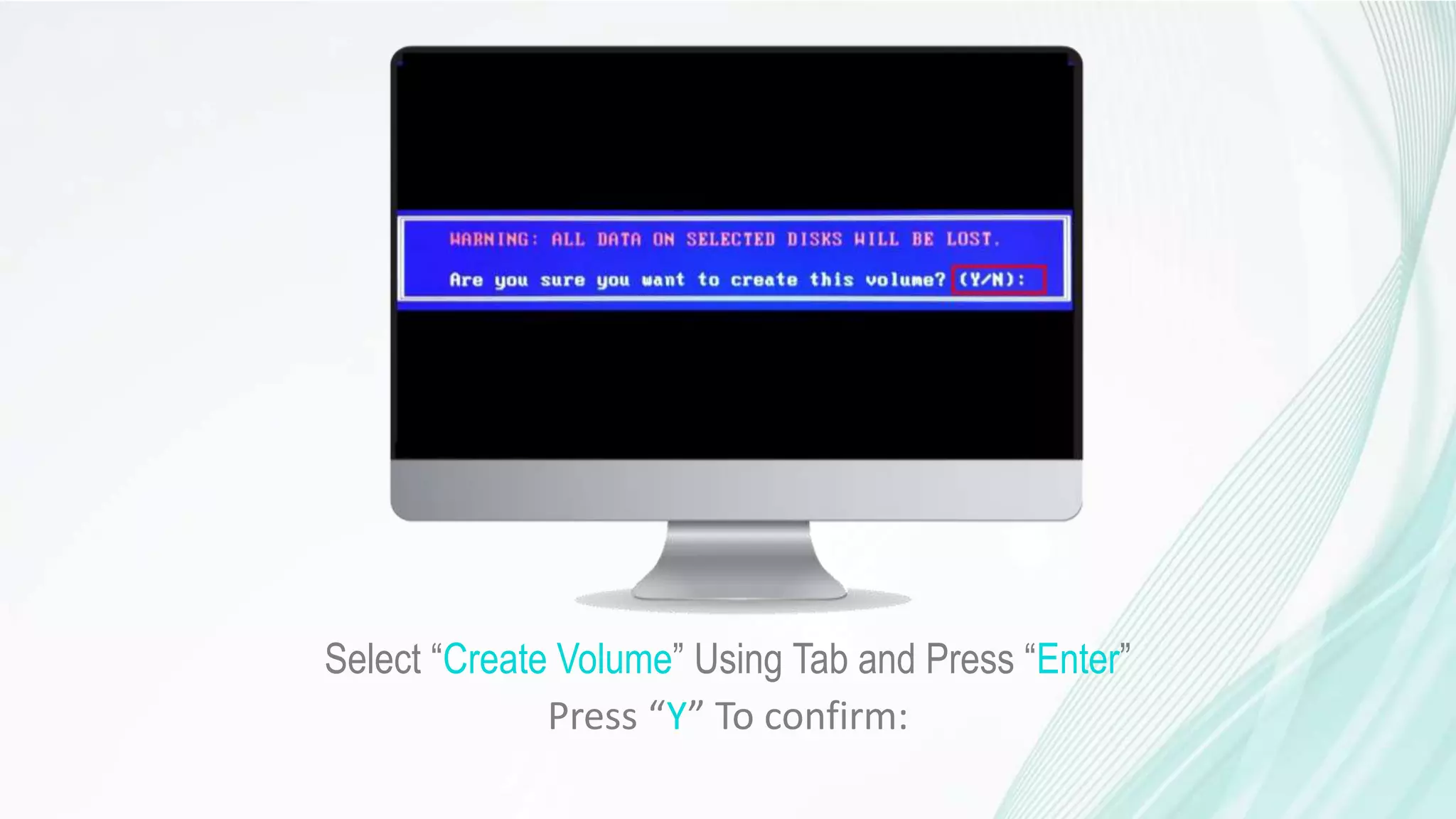

7. Select “Create Volume” Using Tab and Press “Enter”
Press “Y” To confirm:

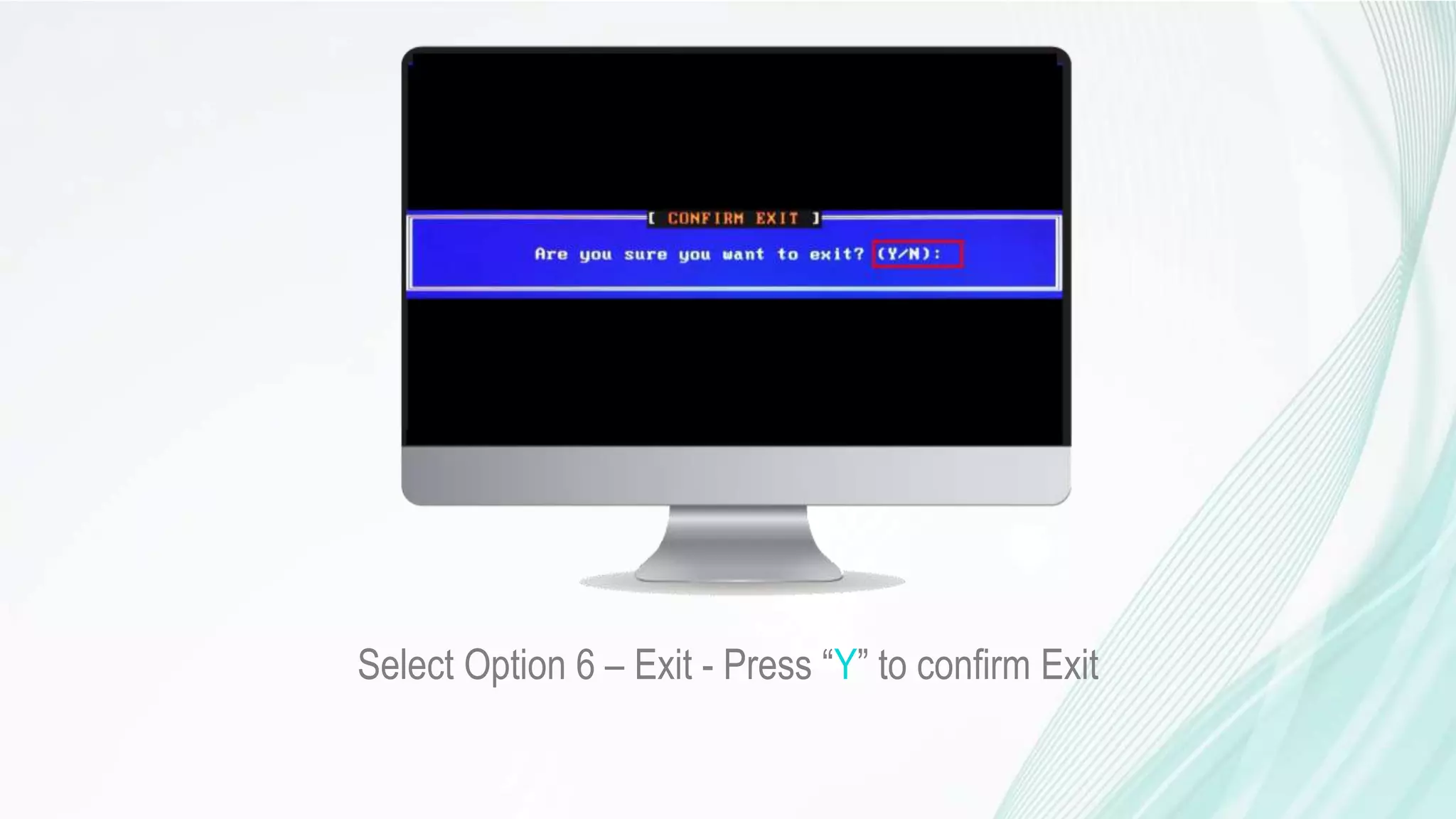

8. Select Option 6 – Exit - Press “Y” to confirm Exit
