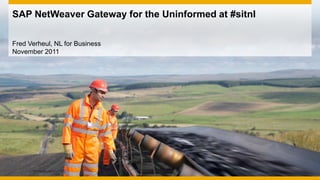

SAP NetWeaver Gateway for the Uninformed at #sitnlFred Verheul, NL for BusinessNovember 2011

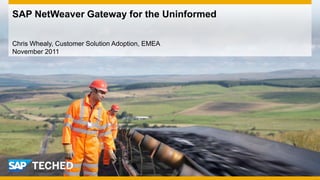

SAP NetWeaver Gateway for the UninformedChris Whealy, Customer Solution Adoption, EMEANovember 2011

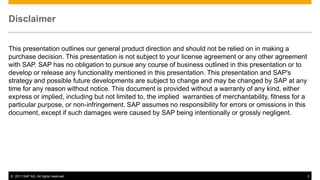

DisclaimerThis presentation outlines our general product direction and should not be relied on in making apurchase decisio...
IntroductionSetting the scene

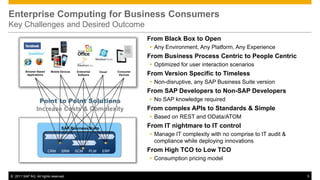

Enterprise Computing for Business ConsumersKey Challenges and Desired Outcome                                             ...

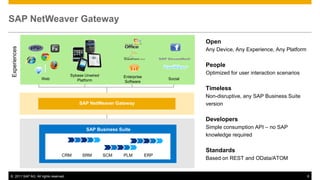

SAP NetWeaver Gateway                                                                                         OpenExperien...
© 2011 SAP AG. All rights reserved.   7
What is the Open Data Protocol (OData)?OData is a Microsoft developed extension to the AtomPublishing and Atom Syndication...
Development Paradigms inSAP NetWeaver ® Gateway
Development in the Gateway Server                                                                                         ...
Development in the Gateway Server                                                                                         ...
Development in the Backend System – OData Channel                                                                         ...
Development using the ODataChannel
Gateway Service Architecture – 1/5A Gateway Service is built from 2 different ABAP classes.      Contains the implementati...
Gateway Service Architecture – 2/5These classes are not required to have any direct programmatic communication with each o...
Gateway Service Architecture – 3/5The Service Group contains the definitions for the internal and external names of your G...
Gateway Service Architecture – 4/5A Gateway Service is created by associating the Technical Model Object with the Service ...
Gateway Service Architecture – 5/5The final configuration step is to activate the Gateway Service.The service is now acces...
Consumption of GatewayServices
Consumption of SAP NetWeaver Gateway ServicesQ: What’s the best way to consume a Gateway service?A: Well you could use…   ...
© 2011 SAP AG. All rights reserved.   21
Next steps•       Gateway docu on SDN: http://www.sdn.sap.com/irj/sdn/gateway•       Please do the tutorials of Chris Whea...
Q&A© 2011 SAP AG. All rights reserved.   23
