Brookland Middle School - ANC Meeting (April 23rd, 2014)

  1. 1. ANC 5A MEETING - 23 APRIL 2014 SCHOOL SITE N

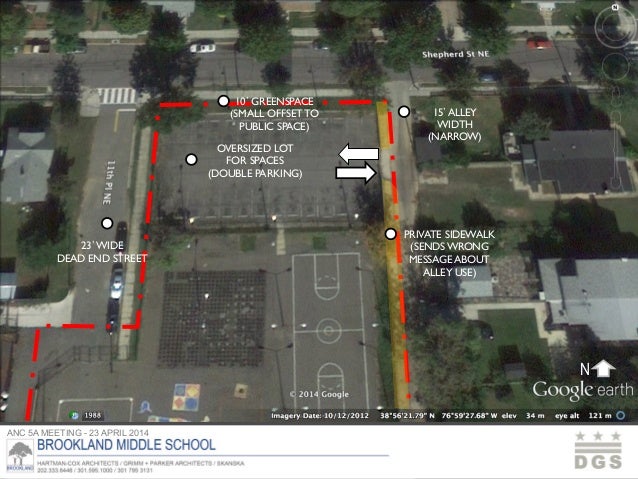

  2. 2. ANC 5A MEETING - 23 APRIL 2014 N 15 ALLEY WIDTH (NARROW) 10 GREENSPACE (SMALL OFFSET TO PUBLIC SPACE) PRIVATE SIDEWALK (SENDS WRONG MESSAGE ABOUT ALLEY USE) 23 WIDE DEAD END STREET OVERSIZED LOT FOR SPACES (DOUBLE PARKING)

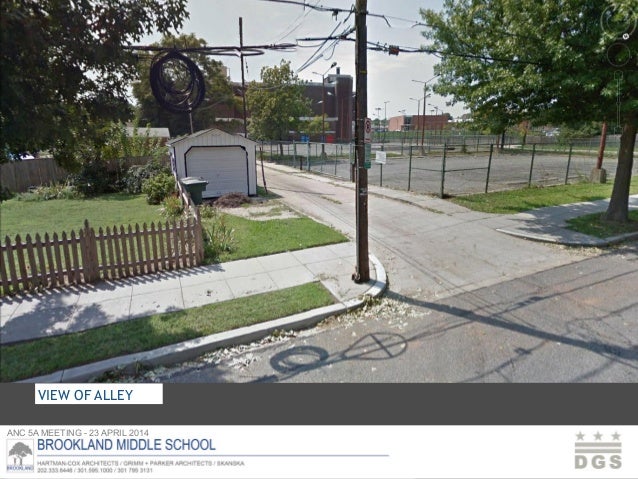

  3. 3. ANC 5A MEETING - 23 APRIL 2014 N VIEW OF ALLEY

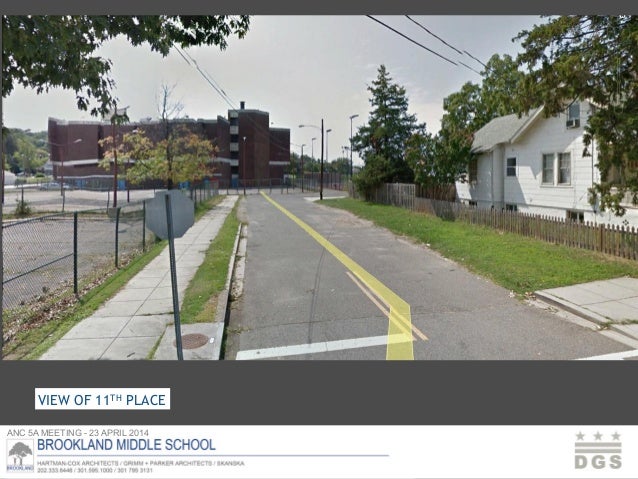

  4. 4. ANC 5A MEETING - 23 APRIL 2014 VIEW OF 11TH PLACE

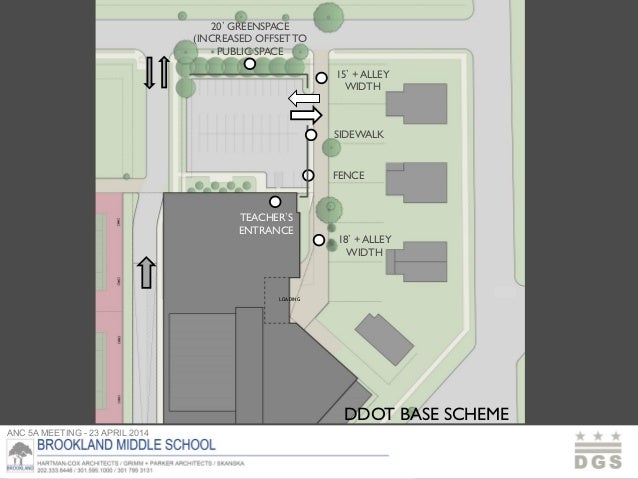

  5. 5. ANC 5A MEETING - 23 APRIL 2014 LOADING 18 + ALLEY WIDTH FENCE TEACHER S ENTRANCE 15 + ALLEY WIDTH SIDEWALK DDOT BASE SCHEME 20 GREENSPACE (INCREASED OFFSET TO PUBLIC SPACE

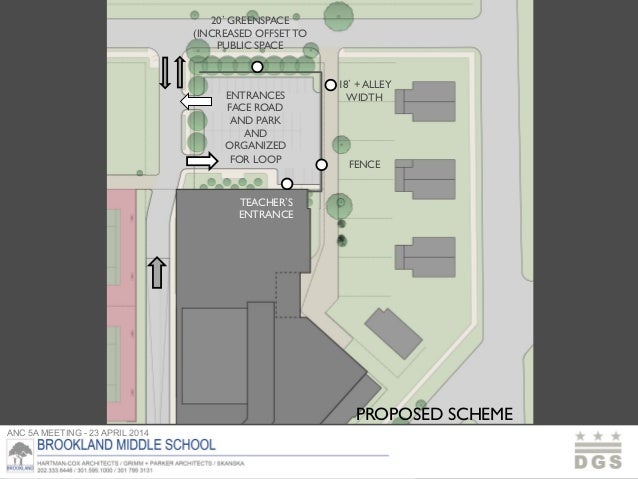

  6. 6. ANC 5A MEETING - 23 APRIL 2014 NEW DROP OFF LANE ENTRY FACULTY PARKING LOADING 18 + ALLEY WIDTH FENCE TEACHER S ENTRANCE PROPOSED SCHEME ENTRANCES FACE ROAD AND PARK AND ORGANIZED FOR LOOP 20 GREENSPACE (INCREASED OFFSET TO PUBLIC SPACE

×
