This document provides information about ZECO, a closed loop specialist serving the Rocky Mountain area since 1991. It outlines ZECO's experienced service, highly trained technicians, and hands-on training program. ZECO offers high performance, reliable equipment along with additional services like trucking, disposal, and drying agents. Customers benefit from competitive pricing, on-site technicians, and cost savings.

1. Closed Loop Specialist
Serving the Rockies since 1991
Check out our website at www.zeco.biz

2. Why Choose ZECO?
 Experienced company serving the Rocky Mountain Area with Quality Equipment and
Superior Service Since 1991;
 Highly trained dependable service technicians;
 “Green Hat” Hands On Training Program. “Green Hats” are trained for 28 days straight to allow
them to experience the entire well process form spud to TD. All new hires spend no less than a
week at either our Vernal or North Dakota shop, learning our equipment, Safety Program and
Field Procedures. A “Green Hat” accompanies two certified technicians on location at no
additional charge to the Operator;
 High performance equipment that is both durable and reliable;
 Additional services offered include trucking, disposal and drying agent to eliminate
additional invoices and time spent by the operator in regard to these services. We in
turn work for the operator to get the best trucking and disposal cost we can to help
lower over all costs. Once the cuttings come off the rig, they are ZECO’s responsibility
and the operator does not have to think about them again;
 Competitive pricing; and
 Our On-Site Technicians as well as our Service Technicians work a two week on/two
week off schedule that is staggered in such a way that only one technician leaves for
days off per week in order to ensure that there is always someone on the rig who is up
to date and has an understanding of what is happening on location rather than having
two fresh technicians arriving as the other two leave.

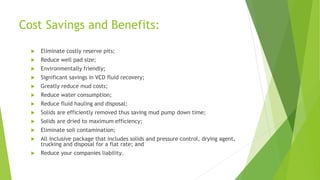

3. Cost Savings and Benefits:
 Eliminate costly reserve pits;
 Reduce well pad size;
 Environmentally friendly;
 Significant savings in VCD fluid recovery;
 Greatly reduce mud costs;
 Reduce water consumption;
 Reduce fluid hauling and disposal;
 Solids are efficiently removed thus saving mud pump down time;
 Solids are dried to maximum efficiency;
 Eliminate soil contamination;
 All inclusive package that includes solids and pressure control, drying agent,
trucking and disposal for a flat rate; and
 Reduce your companies liability.

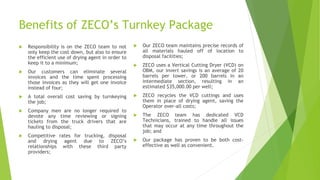

4. Benefits of ZECO’s Turnkey Package
 Responsibility is on the ZECO team to not
only keep the cost down, but also to ensure
the efficient use of drying agent in order to
keep it to a minimum;
 Our customers can eliminate several
invoices and the time spent processing
those invoices as they will get one invoice
instead of four;
 A total overall cost saving by turnkeying
the job;
 Company men are no longer required to
devote any time reviewing or signing
tickets from the truck drivers that are
hauling to disposal;
 Competitive rates for trucking, disposal
and drying agent due to ZECO’s
relationships with these third party
providers;
 Our ZECO team maintains precise records of
all materials hauled off of location to
disposal facilities;
 ZECO uses a Vertical Cutting Dryer (VCD) on
OBM, our invert savings is an average of 20
barrels per tower, or 200 barrels in an
intermediate section, resulting in an
estimated $35,000.00 per well;
 ZECO recycles the VCD cuttings and uses
them in place of drying agent, saving the
Operator over-all costs;
 The ZECO team has dedicated VCD
Technicians, trained to handle all issues
that may occur at any time throughout the
job; and
 Our package has proven to be both cost-
effective as well as convenient.

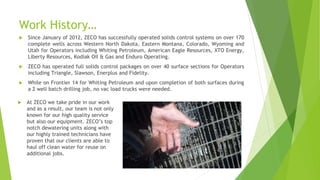

5. Work History…
 Since January of 2012, ZECO has successfully operated solids control systems on over 170
complete wells across Western North Dakota, Eastern Montana, Colorado, Wyoming and
Utah for Operators including Whiting Petroleum, American Eagle Resources, XTO Energy,
Liberty Resources, Kodiak Oil & Gas and Enduro Operating.
 ZECO has operated full solids control packages on over 40 surface sections for Operators
including Triangle, Slawson, Enerplus and Fidelity.
 While on Frontier 14 for Whiting Petroleum and upon completion of both surfaces during
a 2 well batch drilling job, no vac load trucks were needed.
 At ZECO we take pride in our work
and as a result, our team is not only
known for our high quality service
but also our equipment. ZECO’s top
notch dewatering units along with
our highly trained technicians have
proven that our clients are able to
haul off clean water for reuse on
additional jobs.

6. Past Work Performance…
 Customer Performance Evaluations:
 “Efficient with using fly ash. No spills. They take care of their camps and make
their equipment and work area look good. They are willing to help with whatever
you ask. Can’t say enough about them.”
~ American Eagle (see full Performance Evaluation on following slides)
 “They do what it takes to make the operation work. The best people and
equipment.”
~ XTO Energy (see full Performance Evaluation on following slides)
 Nabors B08 batch drilled three surfaces, once our hands finished dewatering after they
completed the third surface the company man had the water hauled up the road to another
XTO rig for additional surface drilling.
 “ZECO hands make the difference.”
~ Whiting Petroleum (see full Performance Evaluation on following slides)

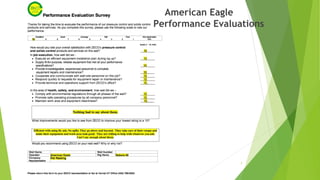

7. American Eagle
Performance Evaluations
7

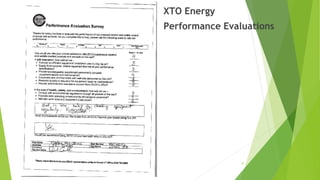

8. XTO Energy
Performance Evaluations
8

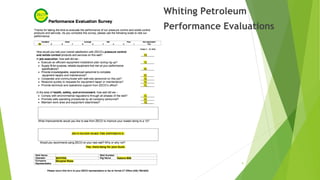

9. Whiting Petroleum
Performance Evaluations
9

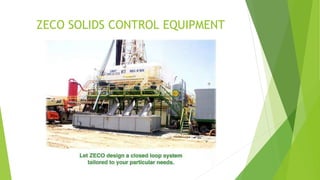

10. ZECO SOLIDS CONTROL EQUIPMENT

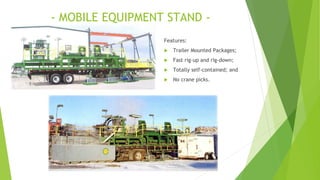

11. - MOBILE EQUIPMENT STAND -
Features:
 Trailer Mounted Packages;
 Fast rig-up and rig-down;
 Totally self-contained; and
 No crane picks.

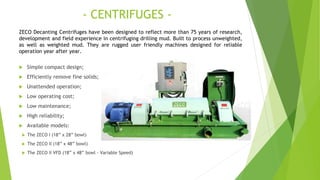

12. - CENTRIFUGES -
 Simple compact design;
 Efficiently remove fine solids;
 Unattended operation;
 Low operating cost;
 Low maintenance;
 High reliability;
 Available models:
 The ZECO I (18” x 28” bowl)
 The ZECO II (18” x 48” bowl)
 The ZECO II VFD (18” x 48” bowl - Variable Speed)
ZECO Decanting Centrifuges have been designed to reflect more than 75 years of research,
development and field experience in centrifuging drilling mud. Built to process unweighted,
as well as weighted mud. They are rugged user friendly machines designed for reliable
operation year after year.

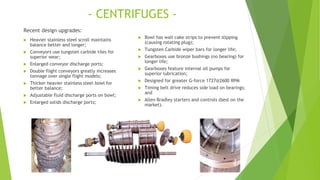

13. - CENTRIFUGES -
Recent design upgrades:
 Heavier stainless steel scroll maintains
balance better and longer;
 Conveyors use tungsten carbide tiles for
superior wear;
 Enlarged conveyor discharge ports;
 Double flight conveyors greatly increases
tonnage over single flight models;
 Thicker heavier stainless steel bowl for
better balance;
 Adjustable fluid discharge ports on bowl;
 Enlarged solids discharge ports;
 Bowl has wall cake strips to prevent slipping
(causing rotating plug);
 Tungsten Carbide wiper bars for longer life;
 Gearboxes use bronze bushings (no bearing) for
longer life;
 Gearboxes feature internal oil pumps for
superior lubrication;
 Designed for greater G-force 1727@2600 RPM
 Timing belt drive reduces side load on bearings;
and
 Allen Bradley starters and controls (best on the
market).

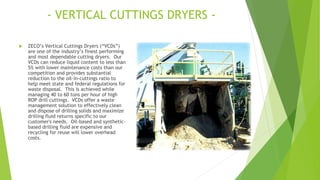

14. - VERTICAL CUTTINGS DRYERS -
 ZECO’s Vertical Cuttings Dryers (“VCDs”)
are one of the industry’s finest performing
and most dependable cutting dryers. Our
VCDs can reduce liquid content to less than
5% with lower maintenance costs than our
competition and provides substantial
reduction to the oil-in-cuttings ratio to
help meet state and federal regulations for
waste disposal. This is achieved while
managing 40 to 60 tons per hour of high
ROP drill cuttings. VCDs offer a waste
management solution to effectively clean
and dispose of drilling solids and maximize
drilling fluid returns specific to our
customer's needs. Oil-based and synthetic-
based drilling fluid are expensive and
recycling for reuse will lower overhead
costs.

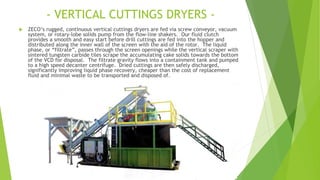

15. - VERTICAL CUTTINGS DRYERS -
 ZECO’s rugged, continuous vertical cuttings dryers are fed via screw conveyor, vacuum
system, or rotary-lobe solids pump from the flow-line shakers. Our fluid clutch
provides a smooth and easy start before drill cuttings are fed into the hopper and
distributed along the inner wall of the screen with the aid of the rotor. The liquid
phase, or “filtrate”, passes through the screen openings while the vertical scraper with
sintered tungsten carbide tiles scrape the accumulating cake solids towards the bottom
of the VCD for disposal. The filtrate gravity flows into a containment tank and pumped
to a high speed decanter centrifuge. Dried cuttings are then safely discharged,
significantly improving liquid phase recovery, cheaper than the cost of replacement
fluid and minimal waste to be transported and disposed of.

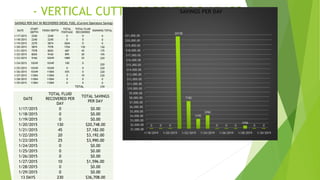

16. - VERTICAL CUTTINGS DRYERS SAVINGS -
$1,000.00
$2,000.00
$3,000.00
$4,000.00
$5,000.00
$6,000.00
$7,000.00
$8,000.00
$9,000.00
$10,000.00
$11,000.00
$12,000.00
$13,000.00
$14,000.00
$15,000.00
$16,000.00
$17,000.00
$18,000.00
$19,000.00
$20,000.00
$21,000.00
1/18/2019 1/20/2019 1/22/2019 1/24/2019 1/26/2019 1/28/2019 1/30/2019
0 0 0
20748
7182
3192
3990
0 0 0
1596
0 0
SAVINGS PER DAY
SAVINGS PER DAY IN RECOVERED DIESEL FUEL (Current Operators Saving)
DATE
START
DEPTH
FINISH DEPTH
TOTAL
FOOTAGE
TOTAL FLUID
RECOVERED
RUNNING TOTAL
1/17/2015 2240 2240 0 0 0
1/18/2015 2240 2240 0 0 0
1/19/2015 2270 5874 3604 0 0
1/20/2015 5874 7578 1704 130 130
1/21/2015 7578 8265 687 45 175
1/22/2015 8265 9160 895 20 195
1/23/2015 9160 10249 1089 25 220
1/24/2015 10249 10349 100 0
220
1/25/2015 10349 10349 0 0 220
1/26/2015 10349 11004 655 0 220
1/27/2015 11004 11004 0 10 230
1/28/2015 11004 11004 0 0 0
1/29/2015 11004 11004 0 0 0
TOTAL 230
DATE
TOTAL FLUID
RECOVERED PER
DAY
TOTAL SAVINGS
PER DAY
1/17/2015 0 $0.00
1/18/2015 0 $0.00
1/19/2015 0 $0.00
1/20/2015 130 $20,748.00
1/21/2015 45 $7,182.00
1/22/2015 20 $3,192.00
1/23/2015 25 $3,990.00
1/24/2015 0 $0.00
1/25/2015 0 $0.00
1/26/2015 0 $0.00
1/27/2015 10 $1,596.00
1/28/2015 0 $0.00
1/29/2015 0 $0.00
13 DAYS 230 $36,708.00

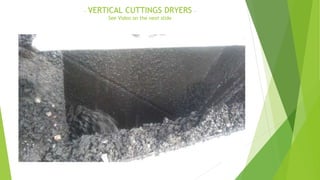

17. - VERTICAL CUTTINGS DRYERS -
See Video on the next slide

18. - DRYING SHAKERS -
 Features:
 Increased Flow Capacity;
 Longer Screen Life;
 Drier Discharge;
 Rugged and Simple; and
 Low Maintenance.

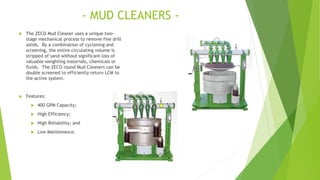

19. - MUD CLEANERS -
 The ZECO Mud Cleaner uses a unique two-
stage mechanical process to remove fine drill
solids. By a combination of cycloning and
screening, the entire circulating volume is
stripped of sand without significant loss of
valuable weighting materials, chemicals or
fluids. The ZECO round Mud Cleaners can be
double screened to efficiently return LCM to
the active system.
 Features:
 400 GPM Capacity;
 High Efficiency;
 High Reliability; and
 Low Maintenance.

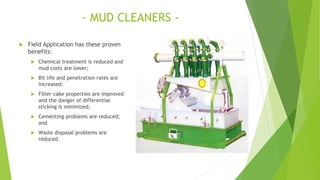

20. - MUD CLEANERS -
 Field Application has these proven
benefits:
 Chemical treatment is reduced and
mud costs are lower;
 Bit life and penetration rates are
increased;
 Filter cake properties are improved
and the danger of differential
sticking is minimized;
 Cementing problems are reduced;
and
 Waste disposal problems are
reduced.

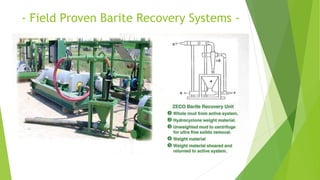

21. - Field Proven Barite Recovery Systems -

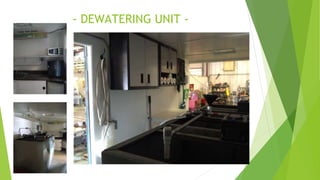

23. - DEWATERING UNIT -

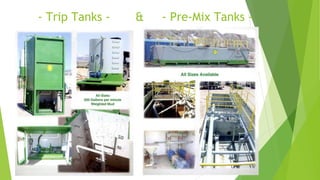

24. - Trip Tanks - & - Pre-Mix Tanks -

25. ZECO PRESSURE CONTROL
- DRILLING CHOKES -
 Features:
 Hydraulic with Manual Override;
 Rugged, Proven Dependability;
 10,000 PSI. Working Pressure;
 Unique Choke Orifice Plate Design;
 Tungsten Carbide Wear Sleeves; and
 Single or Dual Choke Operation.
 ZECO also manufactures an adapter for Pason
electric choke actuators:
 110 volt power;
 Eliminates air and hydraulic lines;
 Digital position indicator; and
 Hand crank operation if loss of power.

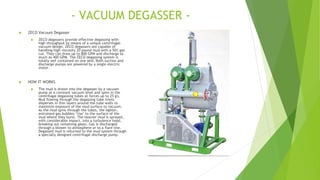

26. - VACUUM DEGASSER -
 ZECO Vacuum Degasser
 ZECO degassers provide effective degassing with
high throughput by means of a unique centrifugal-
vacuum design. ZECO degassers are capable of
handling high viscosity 20 pound mud with a 50% gas
cut. They can draw up to 800 GPM and discharge as
much as 400 GPM. The ZECO degassing system is
totally self contained on one skid. Both suction and
discharge pumps are powered by a single electric
motor.
 HOW IT WORKS
 The mud is drawn into the degasser by a vacuum
pump at a constant vacuum level and spins in the
centrifugal degassing tubes at forces up to 25 g's.
Mud flowing through the degassing tube inlets
disperses in thin layers around the tube walls to
maximize exposure of the mud surface to vacuum.
As the mud spins through the tubes, the lighter,
entrained gas bubbles "rise" to the surface of the
mud where they burst. The heavier mud is sprayed,
with considerable impact, into a turbulence hood,
breaking out remaining gases. Gas is discharged
through a blower to atmosphere or to a flare line.
Degassed mud is returned to the mud system through
a specially designed centrifugal discharge pump.

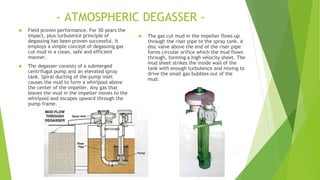

27. - ATMOSPHERIC DEGASSER -
 Field proven performance. For 30 years the
impact, plus turbulence principle of
degassing has been proven successful. It
employs a simple concept of degassing gas
cut mud in a clean, safe and efficient
manner.
 The degasser consists of a submerged
centrifugal pump and an elevated spray
tank. Spiral ducting of the pump inlet
causes the mud to form a whirlpool above
the center of the impeller. Any gas that
leaves the mud in the impeller moves to the
whirlpool and escapes upward through the
pump frame.
 The gas cut mud in the impeller flows up
through the riser pipe to the spray tank. A
disc valve above the end of the riser pipe
forms circular orifice which the mud flows
through, forming a high velocity sheet. The
mud sheet strikes the inside wall of the
tank with enough turbulence and mixing to
drive the small gas bubbles out of the
mud.

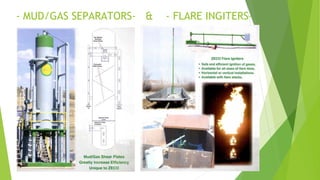

28. - MUD/GAS SEPARATORS- & - FLARE INGITERS-
