“หนึ่งหน่วยกลุ่ม” (Group 1)
Selected Topics in Computer Engineering II
XMLparser
Python
What?
กระบวนการ parse เอกสาร XML เพื่อจัดการแสดง มีได้หลายวิธี โดยหลักๆที่ใช้ ก็จะมีอยู่
2 อย่าง ซึ่งมีข้อดีข้อเสียต่างๆกันคือ
1. DOM (Document Object Model) เป็ นวิธีที่ประมวลโครงสร้างของเอกสาร XML ให้เป็น
โครงสร้างแบบต้นไม้ เพื่อให้แอพพลิเคชั่นสามารถเข้าหาจุดต่าง ๆ ของโครงสร้างต้นไม้ได้
โดยที่ DOM จะโหลดไฟล์ XML ทั้งไฟล์ใน Memory ซึ่งก็มีทั้งข้อดีและข้อเสีย
ข้อดี คือ ครั้งแรกสุดที่มีการเรียกใช้งานจะช้า แต่หลังจากนั้นการเข้าถึงจุดต่าง ๆ ของไฟล์
จะเร็วเพราะถูกเก็บใน memory แล้ว
ข้อเสีย คือ ไม่เหมาะกับ file XML ที่มีขนาดใหญ่ โดยที่ขอบเขตจะถูกจากัดด้วย
หน่วยความจาที่เรียกใช้ในขณะนั้น
2. SAX (Simple API for XML) เป็นการทางานแบบ event-based API คือจะรายงานข้อมูล
ตั้งแต่จุดเริ่มต้นและสิ้นสุดของ elements ต่าง ๆ ไปให้แอพพลิเคชั่นโดยไม่ต้องมีการสร้าง
โครงสร้างแบบต้นไม้ขึ้นมา ซึ่งจะเข้าถึงเอกสาร XML ทางานได้ง่ายและไม่ซับซ้อน และที่
สาคัญผู้ใช้สามารถทา parsing เอกสารที่มีขนาดใหญ่กว่าปริมาณหน่วยความจาได้
สร้าง XML file
จากข้อมูลดิบภาพตัวอย่างข้อมูลดิบ: รายละเอียดต่างๆของภาพยนตร์ ทั้งหมด 60 เรื่อง
สร้าง XML file
จากข้อมูลดิบ
<?xml version="1.0" encoding="UTF-8"?>
<film>
<movie>
<name>Always</name>
<types>
<type>Drama</type>
<type>Romance</type>
</types>
<stars>
<name_actor>So Ji-seob</name_actor>
<name_actor>Han Hyo-joo</name_actor>
</stars>
<director>Song Il-Gon</director>
<date>
<day>2</day>
<month>Feb</month>
<year>2012</year>
</date>
</movie>
</film>
Parse XML Python
หลังจากสร้างไฟล์ XML แล้ว ต่อมาจะไป Parse XML ด้วย Python โดยใช้ไลบรารี
xml.etree.ElementTree ในการ Parse XM โดยมีคาสั่งที่ใช้งานบ่อย ๆ ดังนี้
• parse(source) ดึงไฟล์ source เข้ามาเพื่อทาการ parse
• getroot() คืนค่า root element
• tag ดึง Element ออกมา
• attrib ดึง Attribute ออกมา
• text แสดงข้อมูลที่อยู่ใน Element
• find() , findall() ค้นหาข้อมูล

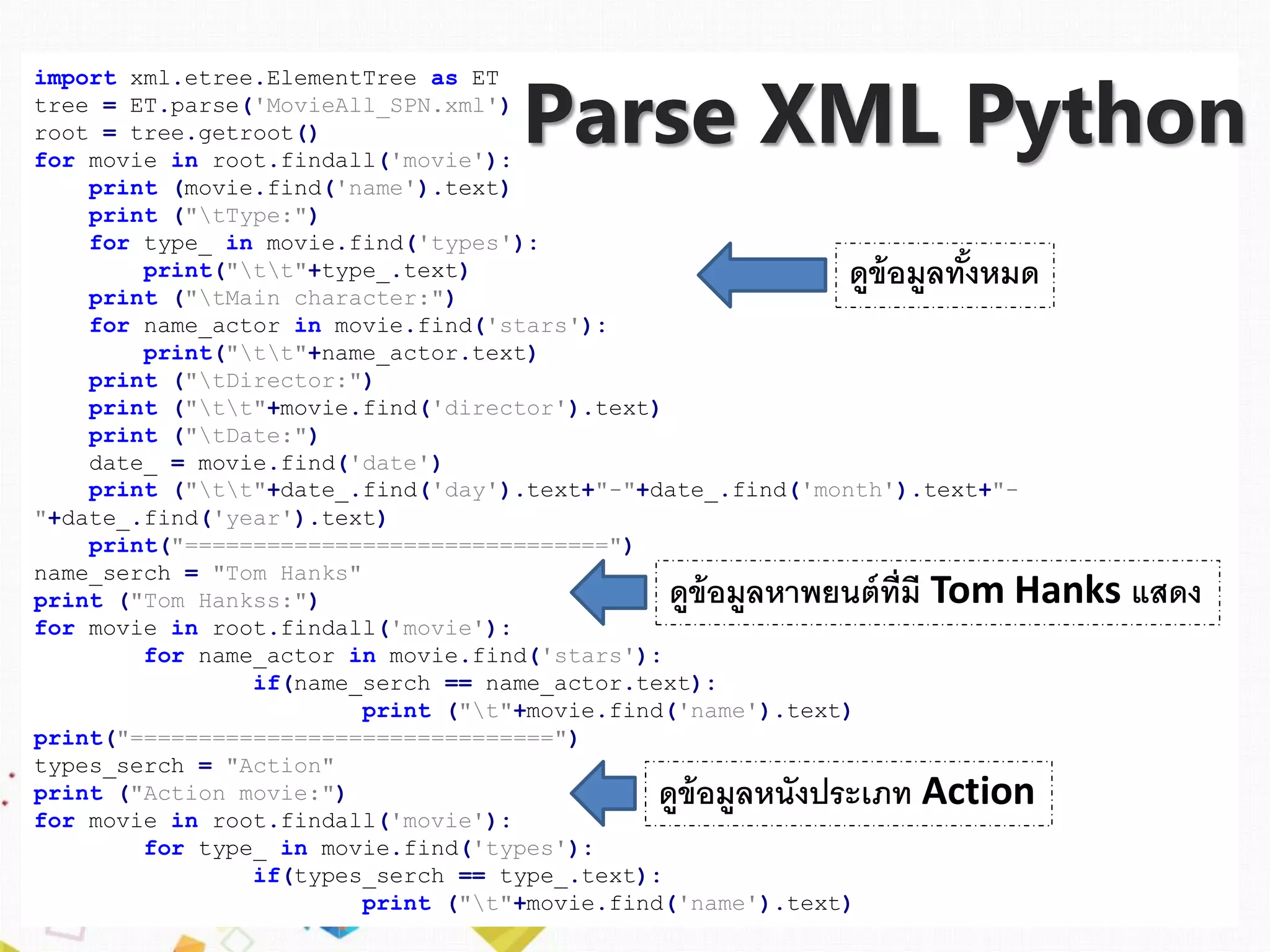

import xml.etree.ElementTree as ET
tree = ET.parse('MovieAll_SPN.xml')
root = tree.getroot()
for movie in root.findall('movie'):
print (movie.find('name').text)
print ("tType:")
for type_ in movie.find('types'):
print("tt"+type_.text)
print ("tMain character:")
for name_actor in movie.find('stars'):
print("tt"+name_actor.text)
print ("tDirector:")
print ("tt"+movie.find('director').text)
print ("tDate:")
date_ = movie.find('date')
print ("tt"+date_.find('day').text+"-"+date_.find('month').text+"-
"+date_.find('year').text)
print("===============================")
name_serch = "Tom Hanks"
print ("Tom Hankss:")
for movie in root.findall('movie'):
for name_actor in movie.find('stars'):
if(name_serch == name_actor.text):
print ("t"+movie.find('name').text)
print("===============================")
types_serch = "Action"
print ("Action movie:")
for movie in root.findall('movie'):
for type_ in movie.find('types'):
if(types_serch == type_.text):
print ("t"+movie.find('name').text)
Parse XML Python
ดูข้อมูลทั้งหมด
ดูข้อมูลหาพยนต์ที่มี Tom Hanks แสดง
ดูข้อมูลหนังประเภท Action
Parse XML Python
Type:
Drama
Romance
Main character:
So Ji-seob
Han Hyo-joo
Director:
Song Il-Gon
Date:
2-Feb-2012
===============================
Letters To Juliet
Type:
Comedy
Drama
Romance
Main character:
Christopher Egan
Amanda Seyfried
Director:
Gary Winick
Date:
4-May-2010
===============================
Parse XML Python
Tom Hanks:
The Da Vinci Code
Cloud Atlas
Forrest Gump
The Terminal
===============================

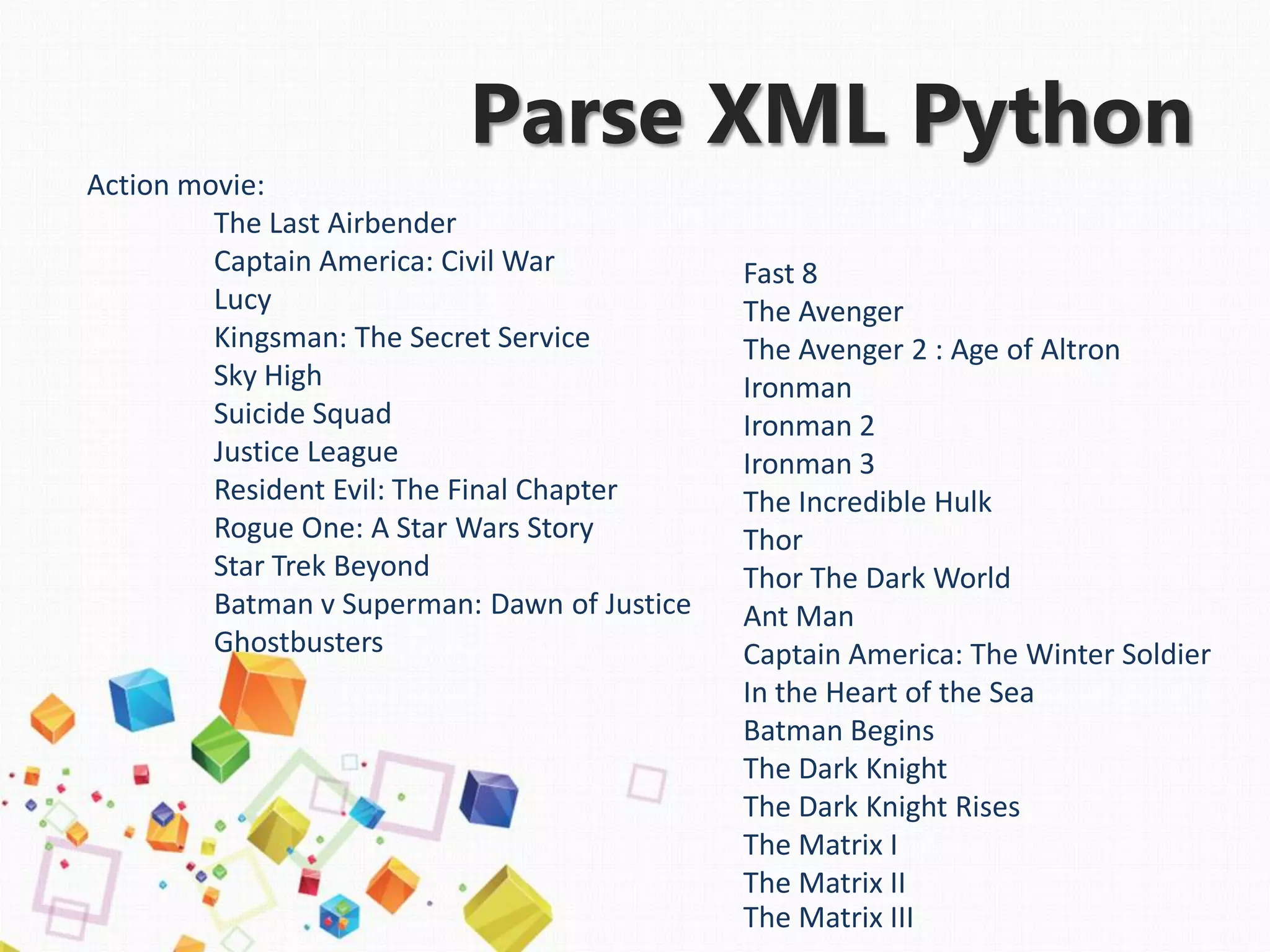

Parse XML Python
Action movie:
The Last Airbender
Captain America: Civil War
Lucy
Kingsman: The Secret Service
Sky High
Suicide Squad
Justice League
Resident Evil: The Final Chapter
Rogue One: A Star Wars Story
Star Trek Beyond
Batman v Superman: Dawn of Justice
Ghostbusters
Fast 8
The Avenger
The Avenger 2 : Age of Altron
Ironman
Ironman 2
Ironman 3
The Incredible Hulk
Thor
Thor The Dark World
Ant Man
Captain America: The Winter Soldier
In the Heart of the Sea
Batman Begins
The Dark Knight
The Dark Knight Rises
The Matrix I
The Matrix II
The Matrix III
Reference
• What?
http://www.goragod.com/knowledge/
• Parse XML Python
https://docs.python.org/2/library/xml.etree.elementtree.html
https://python3.wannaphong.com/2015/04/python-xml.html

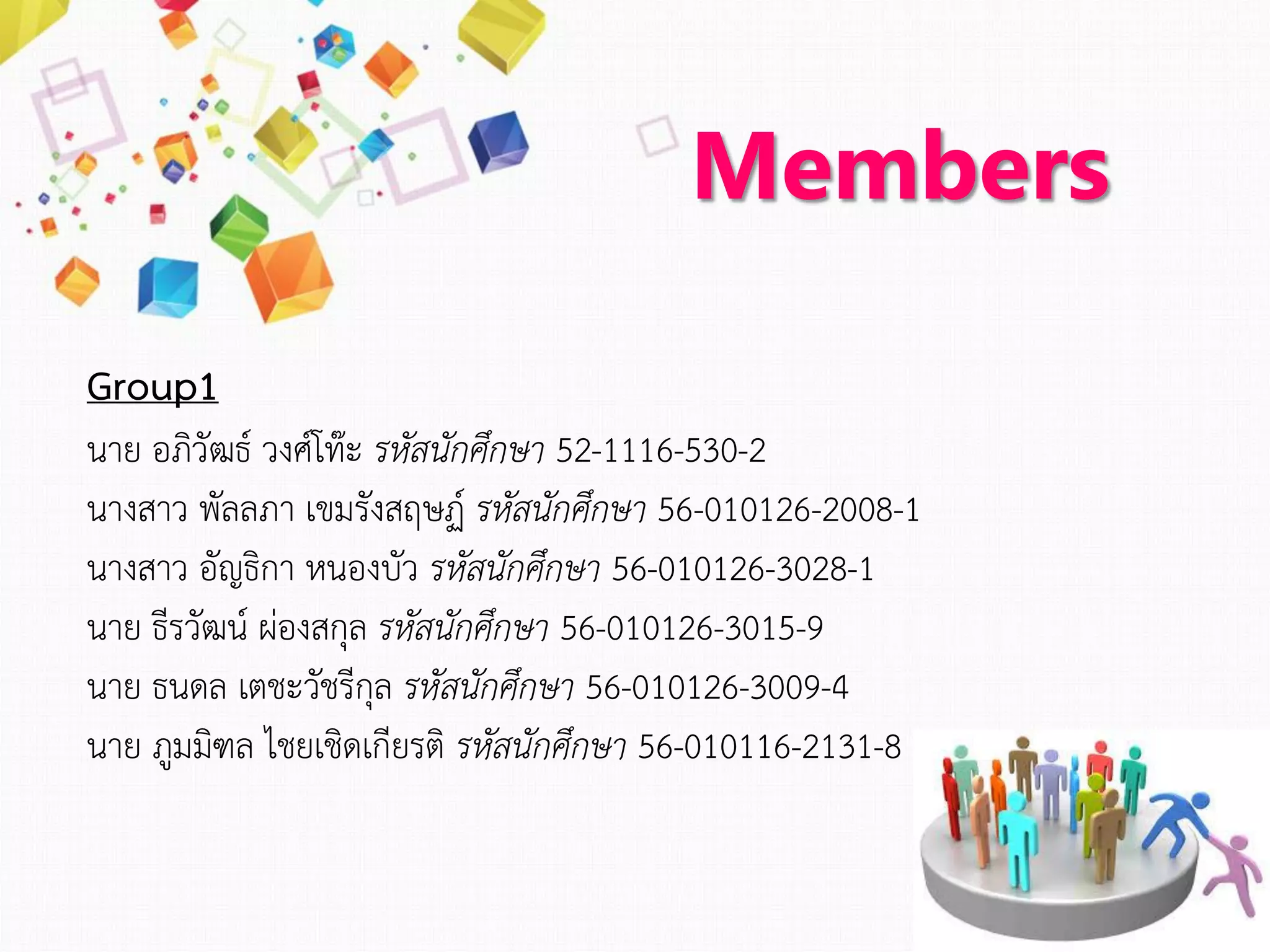

Members
Group1
นาย อภิวัฒธ์ วงศ์โท๊ะ รหัสนักศึกษา 52-1116-530-2
นางสาว พัลลภา เขมรังสฤษฏ์ รหัสนักศึกษา 56-010126-2008-1
นางสาว อัญธิกา หนองบัว รหัสนักศึกษา 56-010126-3028-1
นาย ธีรวัฒน์ ผ่องสกุล รหัสนักศึกษา 56-010126-3015-9
นาย ธนดล เตชะวัชรีกุล รหัสนักศึกษา 56-010126-3009-4
นาย ภูมมิฑล ไชยเชิดเกียรติ รหัสนักศึกษา 56-010116-2131-8
