1. Women safety application
Group members
Rabari sujal : 2204030101096
Dangi mahek : 2204030100218
Godani maitri : 2204030100318
Gohil aayushi : 2204030100339
Amin Prachi : 2204030100023
Faculty name
Nikunj raval
Semester – 6 major project

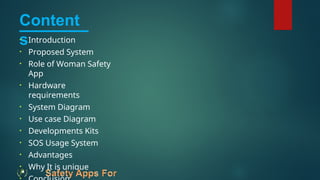

2. Content
s
• Introduction
• Proposed System
• Role of Woman Safety
App
• Hardware
requirements
• System Diagram
• Use case Diagram
• Developments Kits
• SOS Usage System
• Advantages
• Why It is unique

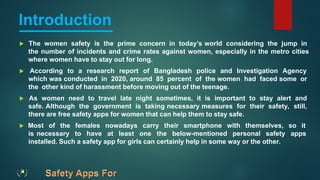

3. Introduction
 The women safety is the prime concern in today’s world considering the jump in
the number of incidents and crime rates against women, especially in the metro cities
where women have to stay out for long.
 According to a research report of Bangladesh police and Investigation Agency
which was conducted in 2020, around 85 percent of the women had faced some or
the other kind of harassment before moving out of the teenage.
 As women need to travel late night sometimes, it is important to stay alert and
safe. Although the government is taking necessary measures for their safety, still,
there are free safety apps for women that can help them to stay safe.
 Most of the females nowadays carry their smartphone with themselves, so it
is necessary to have at least one the below-mentioned personal safety apps
installed. Such a safety app for girls can certainly help in some way or the other.

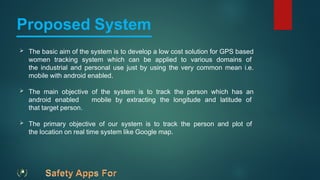

4. Proposed System
 The basic aim of the system is to develop a low cost solution for GPS based
women tracking system which can be applied to various domains of
the industrial and personal use just by using the very common mean i.e.
mobile with android enabled.
 The main objective of the system is to track the person which has an
android enabled mobile by extracting the longitude and latitude of
that target person.
 The primary objective of our system is to track the person and plot of
the location on real time system like Google map.

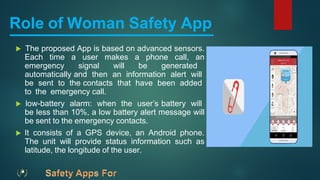

5. Role of Woman Safety App
 The proposed App is based on advanced sensors.
Each time a user makes a phone call, an
emergency signal will be generated
automatically and then an information alert will
be sent to the contacts that have been added
to the emergency call.
 low-battery alarm: when the user’s battery will
be less than 10%, a low battery alert message will
be sent to the emergency contacts.
 It consists of a GPS device, an Android phone.
The unit will provide status information such as
latitude, the longitude of the user.

6. Hardware Requirements
 External Interface Requirements
Hardware Requirements
 Processor : Snapdragon, Dual Core.
 Memory Space : 50 Mb
 RAM : 512 MB.
 GPS enabled Android Phone
Software Requirements
 Operating System - Android
 API Level - 14 or higher.
 Disk Usage – 20-50 Mb

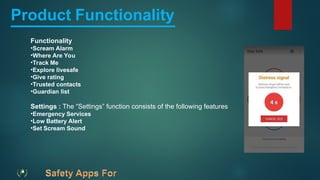

7. Product Functionality
Functionality
•Scream Alarm
•Where Are You
•Track Me
•Explore livesafe
•Give rating
•Trusted contacts
•Guardian list
Settings : The “Settings” function consists of the following features
•Emergency Services
•Low Battery Alert
•Set Scream Sound

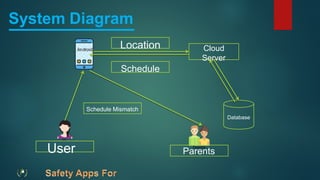

8. System Diagram
Location
Schedule
Schedule Mismatch
User Parents
Cloud
Server
Database

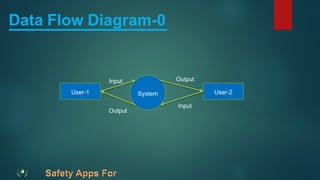

9. Input
User-1 User-2
System
Input
Output
Output
Data Flow Diagram-0

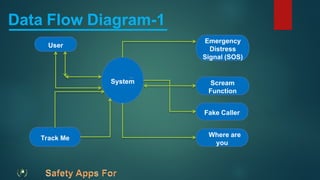

10. System
Emergency
Distress
Signal (SOS)
Scream
Function
Fake Caller
Track Me Where are
you
User
Data Flow Diagram-1

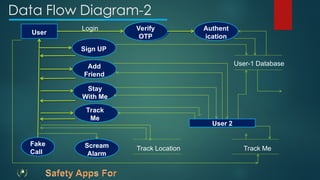

11. Data Flow Diagram-2
Sign UP
Verify
OTP
Authent
ication
Add
Friend
Stay
With Me
Track
Me
Scream
Alarm
Fake
Call
User
User 2
Track Location Track Me
User-1 Database
Login

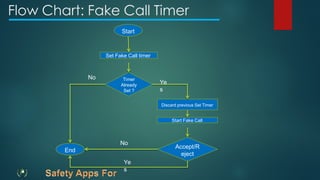

12. Set Fake Call timer
Start
Timer
Already
Set ?
End
Discard previous Set Timer
Start Fake Call
Accept/R
eject
Ye
s
Ye
s
No
No
Flow Chart: Fake Call Timer

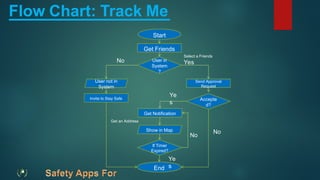

13. Flow Chart: Track Me
End
Get Friends
User not in
System
User in
System
?
Send Approval
Request
If Timer
Expired?
Invite to Stay Safe
Get Notification
Show in Map
Start
Accepte
d?
Select a Friends
Yes
No
Ye
s
No
No
Ye
s
Get an Address

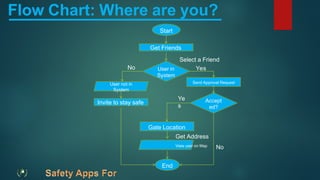

14. Flow Chart: Where are you?
End
Start
Get Friends
User in
System
User not in
System
Send Approval Request
Accept
ed?
Get Address
View user on Map
Gate Location
Invite to stay safe
No
Select a Friend
Yes
No
Ye
s

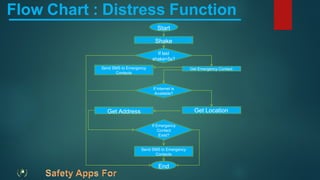

15. Flow Chart : Distress Function
Start
End
Shake
Get Emergency Contact
Send SMS to Emergency
Contacts
Get Address
Send SMS to Emergency
Contacts
Get Location
If last
shake>5s?
If Internet is
Available?
If Emergency
Contact
Exist?

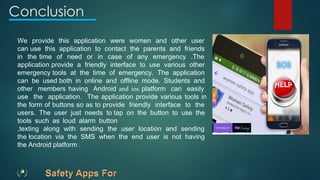

16. We provide this application were women and other user
can use this application to contact the parents and friends
in the time of need or in case of any emergency .The
application provide a friendly interface to use various other
emergency tools at the time of emergency. The application
can be used both in online and offline mode. Students and
other members having Android and ios platform can easily
use the application. The application provide various tools in
the form of buttons so as to provide friendly interface to the
users. The user just needs to tap on the button to use the
tools such as loud alarm button
,texting along with sending the user location and sending
the location via the SMS when the end user is not having
the Android platform .
Conclusion
