The document discusses testing and validating Wi-Fi networks in stadiums. It describes projects completed for the 2014 World Cup and IPL cricket matches. Methods are outlined for validating an access point design, including testing client operating systems, wireless band splits, and validating the physical infrastructure and air interface. Scripts are used to test cable throughput and perform air interface testing using a modified access point as a client to test throughput between access points.

1. TESTING & VALIDATING
STADIUM WI-FI
JARED GRIFFITH
ROBERT KRUMM
Assisted by: Michal Zakrzewski

2. PROJECTS COMPLETED:
• 4 x STADIUMS - 2014 FOOTBALL WORLD CUP BRAZIL
• 8 x STADIUMS IN INDIA – T20 WORLD CUP / IPL
• 1 x RUGBY STADIUM SOUTH AFRICA
• OTHERS…

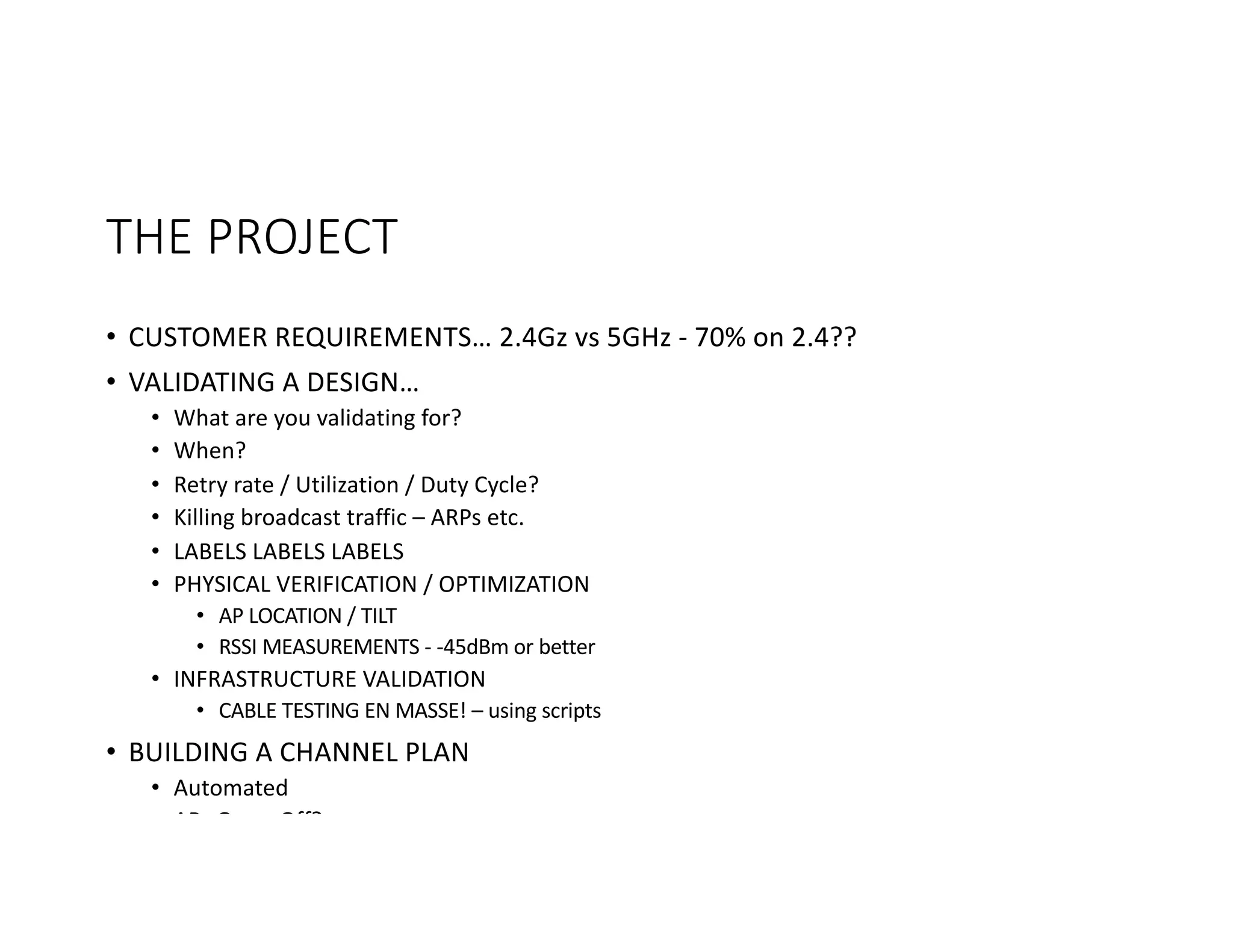

3. THE PROJECT
• CUSTOMER REQUIREMENTS… 2.4Gz vs 5GHz - 70% on 2.4??
• VALIDATING A DESIGN…
• What are you validating for?
• When?
• Retry rate / Utilization / Duty Cycle?
• Killing broadcast traffic – ARPs etc.
• LABELS LABELS LABELS
• PHYSICAL VERIFICATION / OPTIMIZATION
• AP LOCATION / TILT
• RSSI MEASUREMENTS - -45dBm or better
• INFRASTRUCTURE VALIDATION
• CABLE TESTING EN MASSE! – using scripts
• BUILDING A CHANNEL PLAN
• Automated
• APs On or Off?

4. WHY VALIDATE?

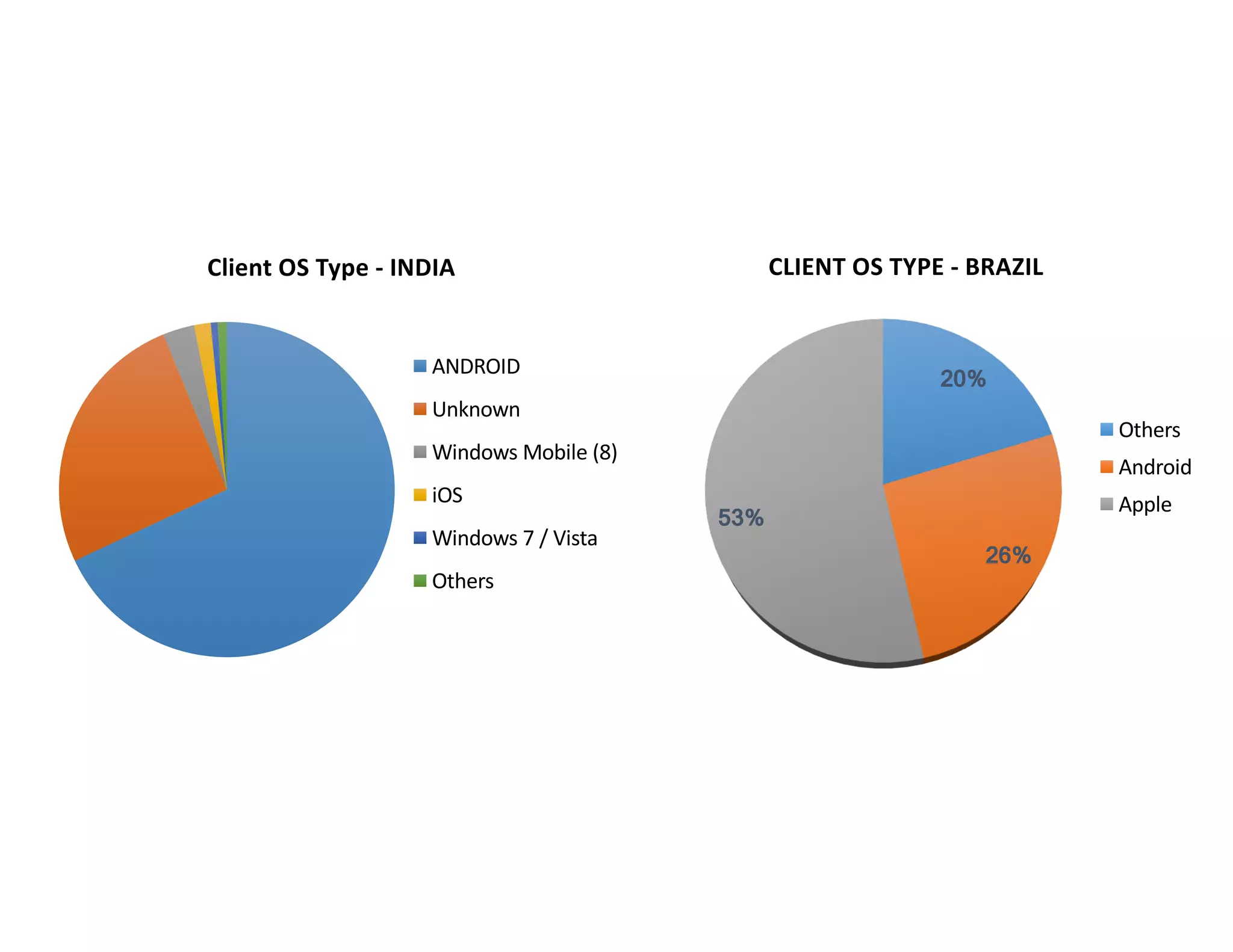

7. Client OS Type - INDIA
ANDROID
Unknown
Windows Mobile (8)
iOS
Windows 7 / Vista
Others
20%
26%
53%
CLIENT OS TYPE - BRAZIL
Others
Android
Apple

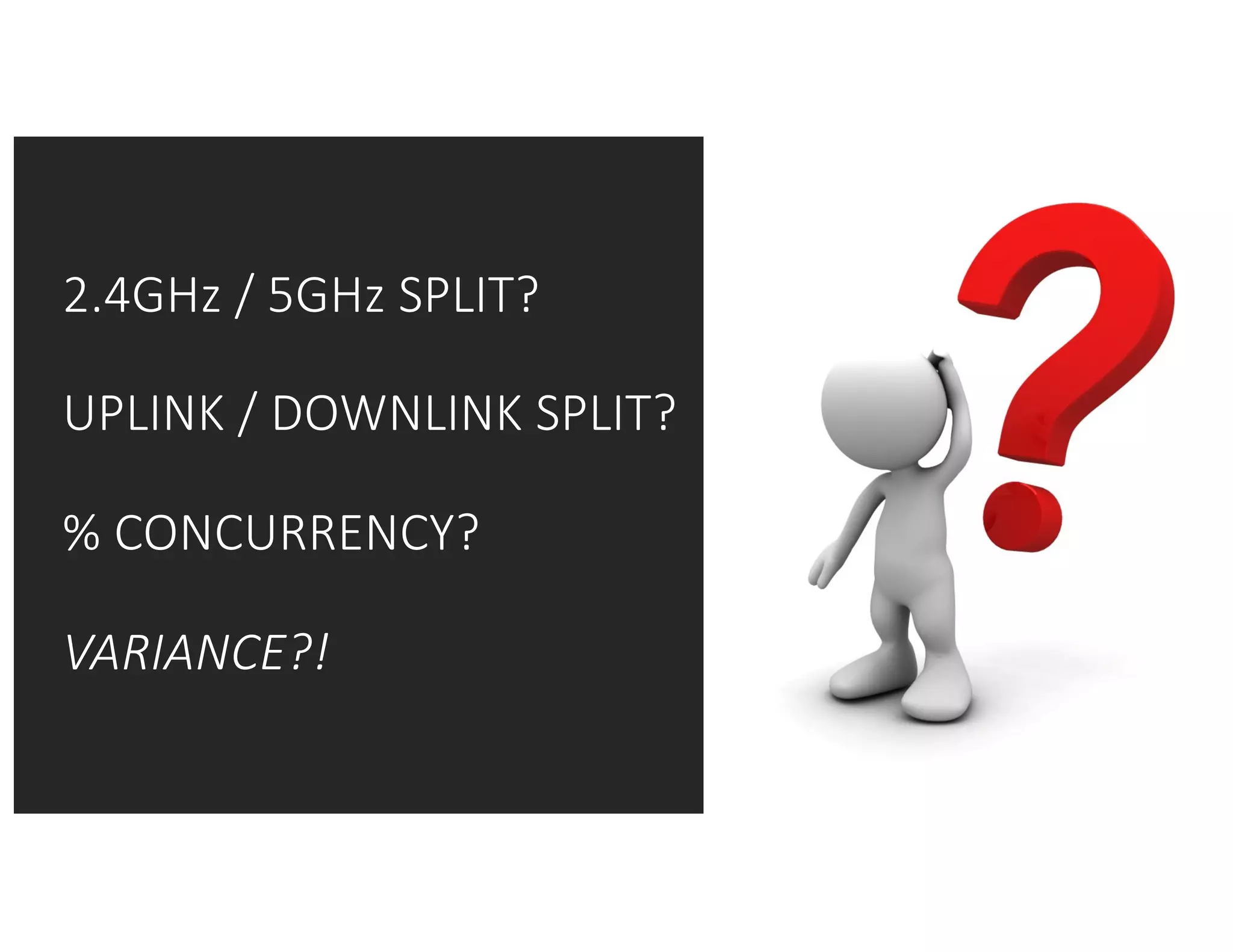

8. 2.4GHz / 5GHz SPLIT?
UPLINK / DOWNLINK SPLIT?
% CONCURRENCY?
VARIANCE?!

9. WHEN ARE YOU VALIDATING?

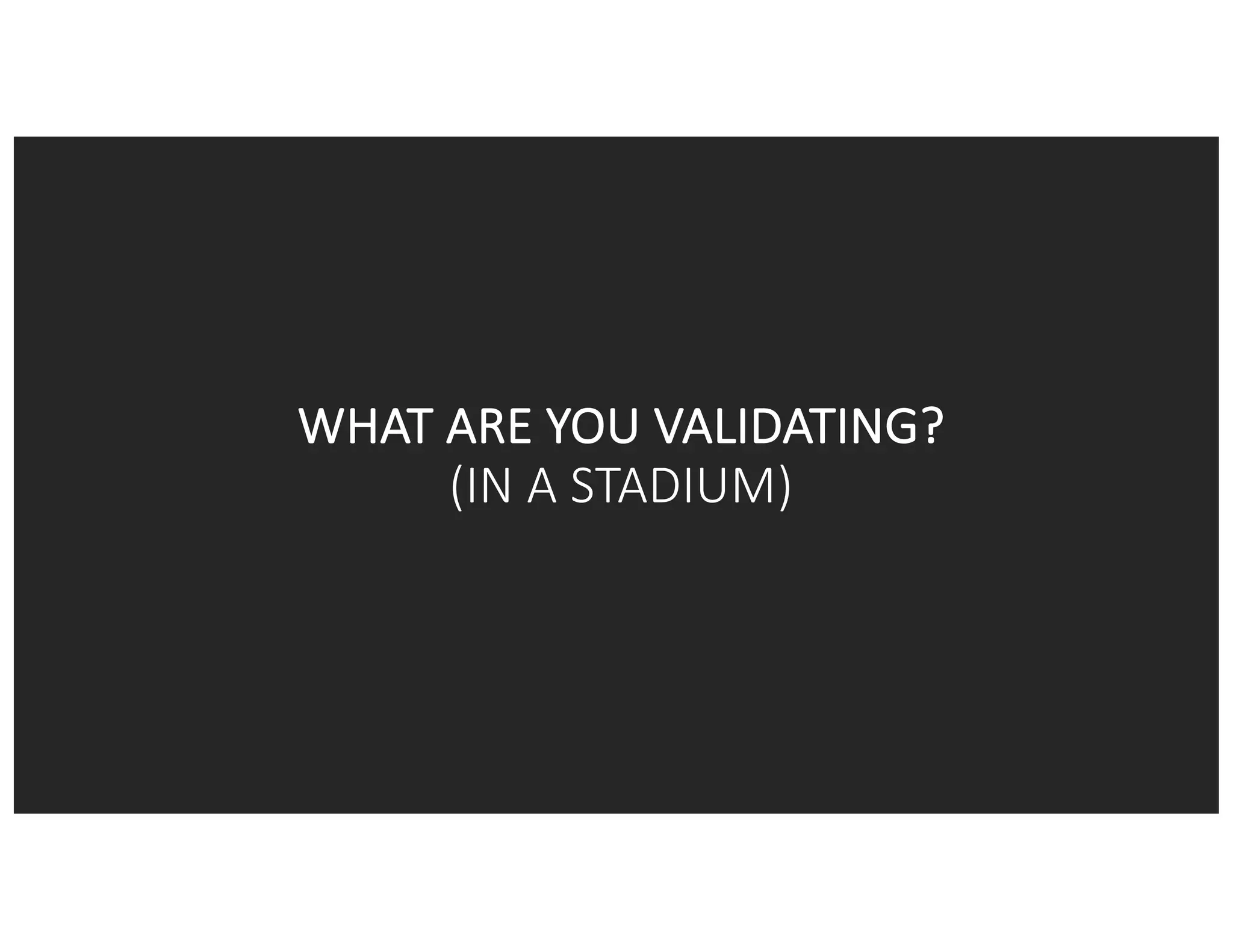

12. WHAT ARE YOU VALIDATING?
(IN A STADIUM)

13. • PHYSICAL VALIDATION

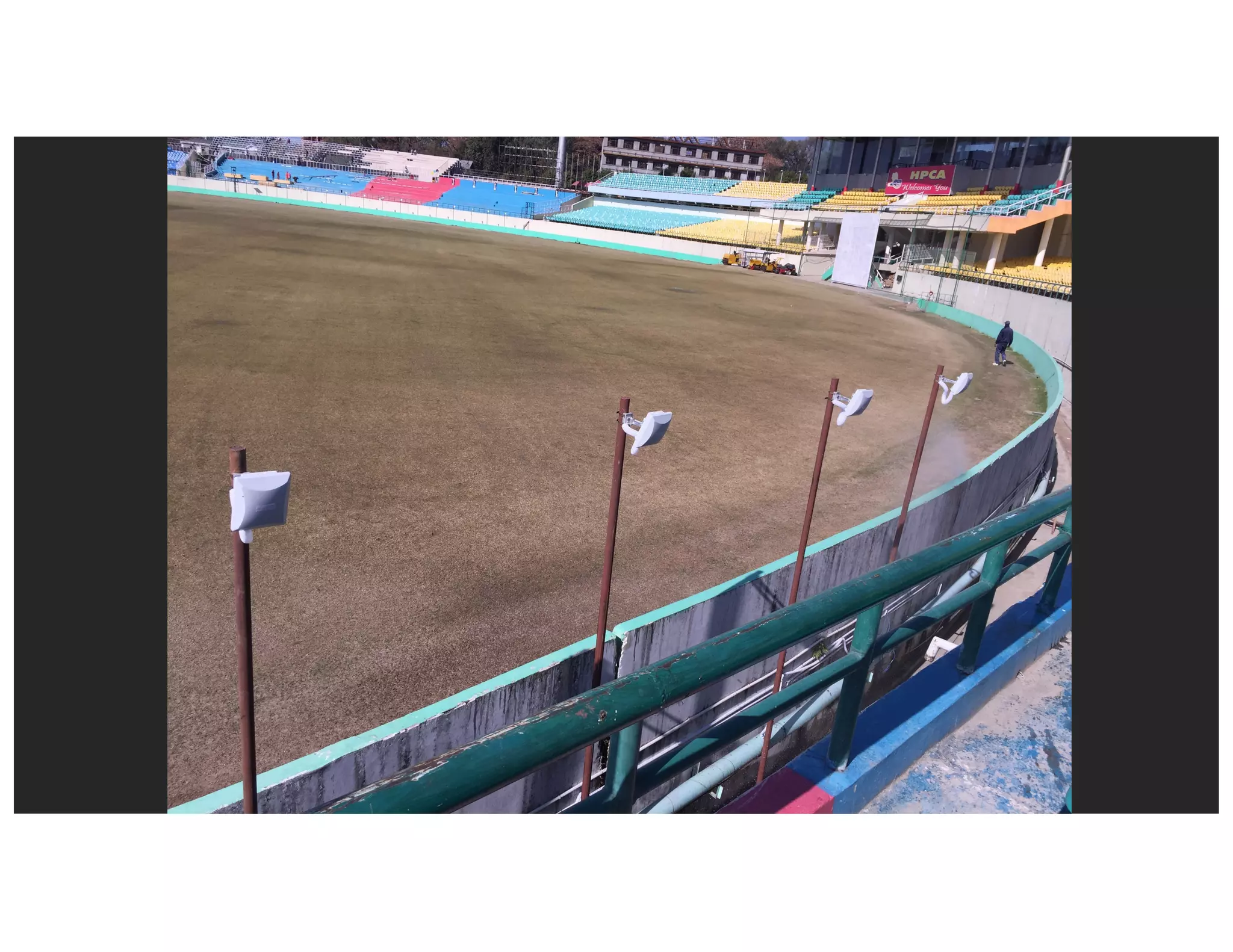

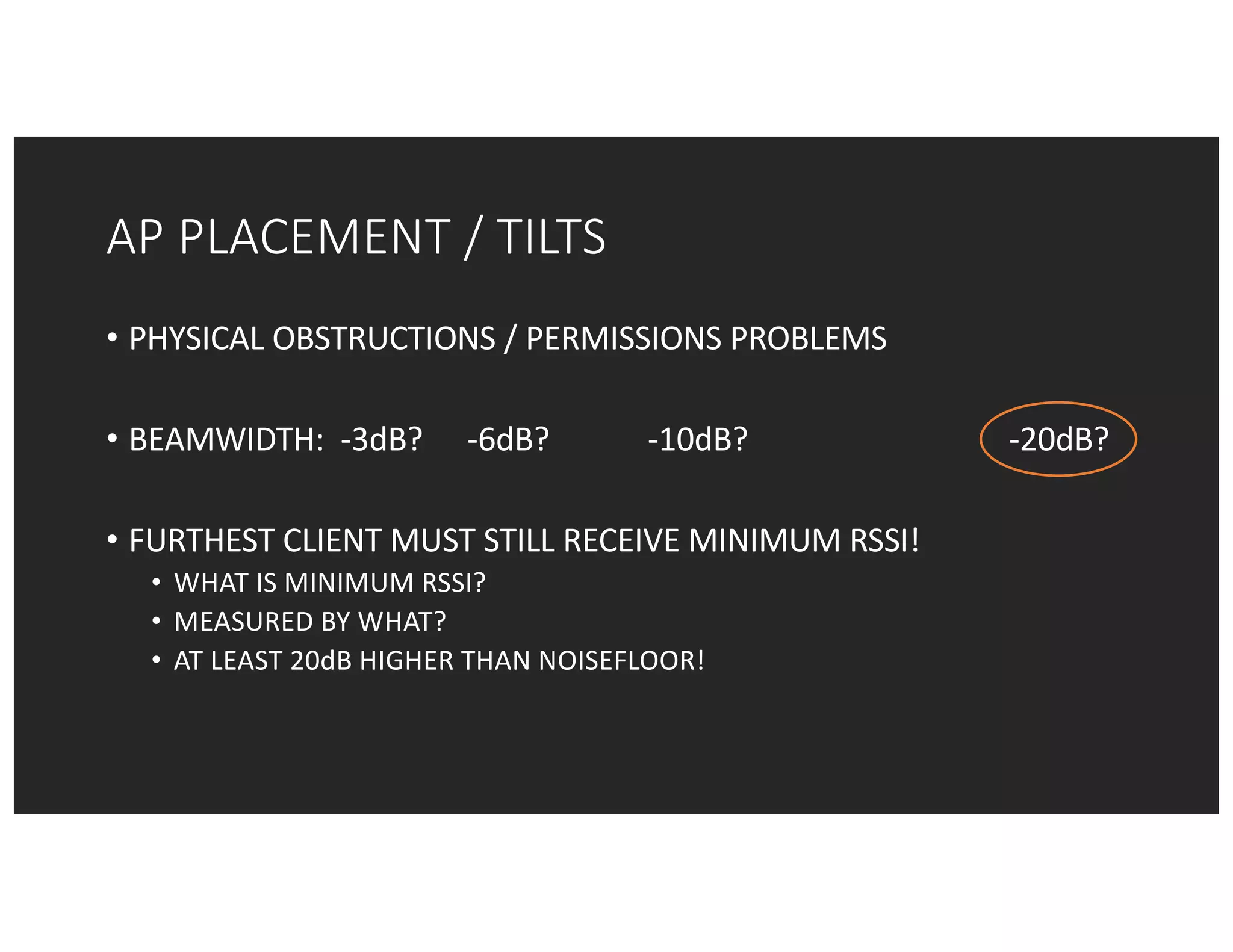

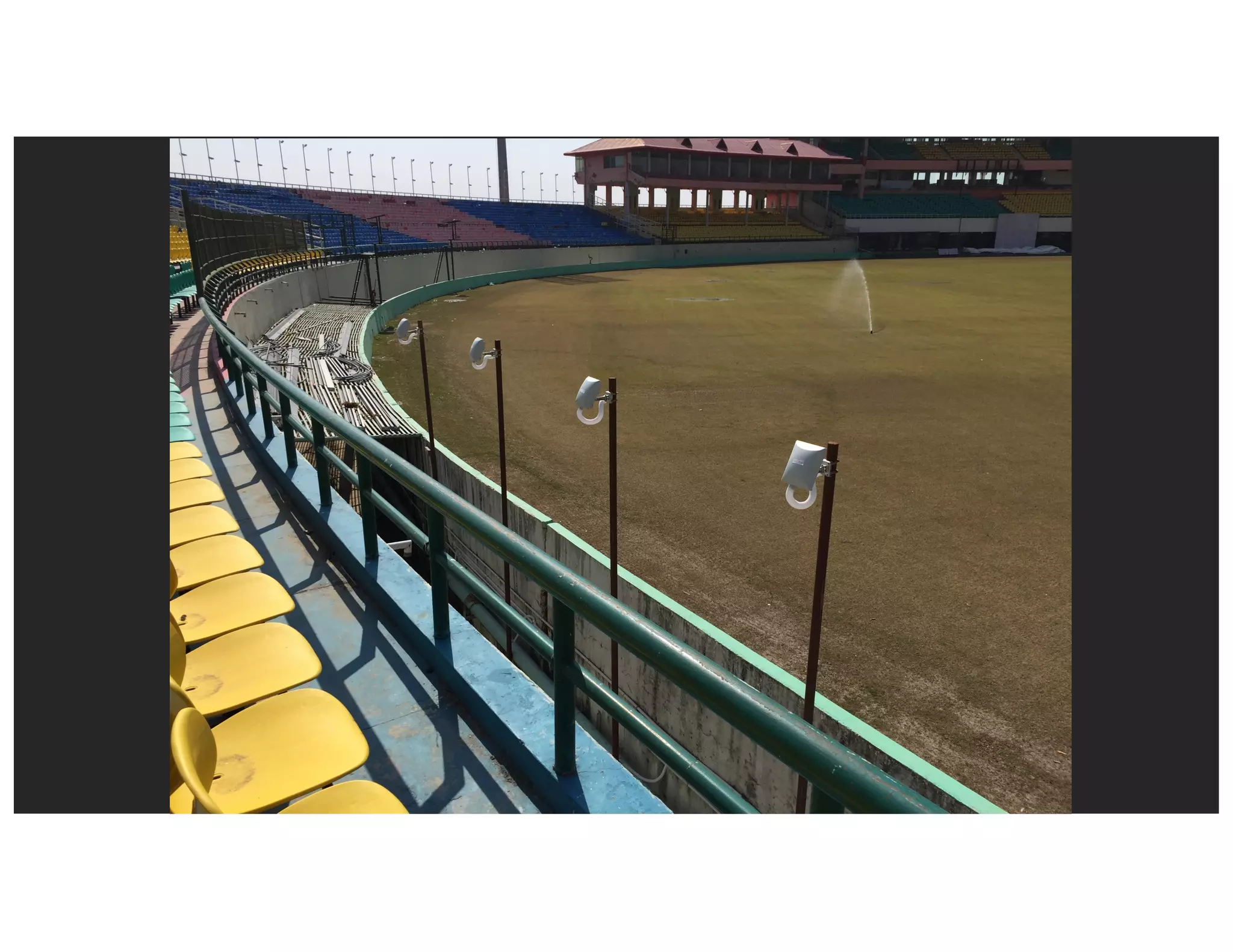

14. AP PLACEMENT / TILTS
• PHYSICAL OBSTRUCTIONS / PERMISSIONS PROBLEMS
• BEAMWIDTH: -3dB? -6dB? -10dB? -20dB?
• FURTHEST CLIENT MUST STILL RECEIVE MINIMUM RSSI!
• WHAT IS MINIMUM RSSI?
• MEASURED BY WHAT?
• AT LEAST 20dB HIGHER THAN NOISEFLOOR!

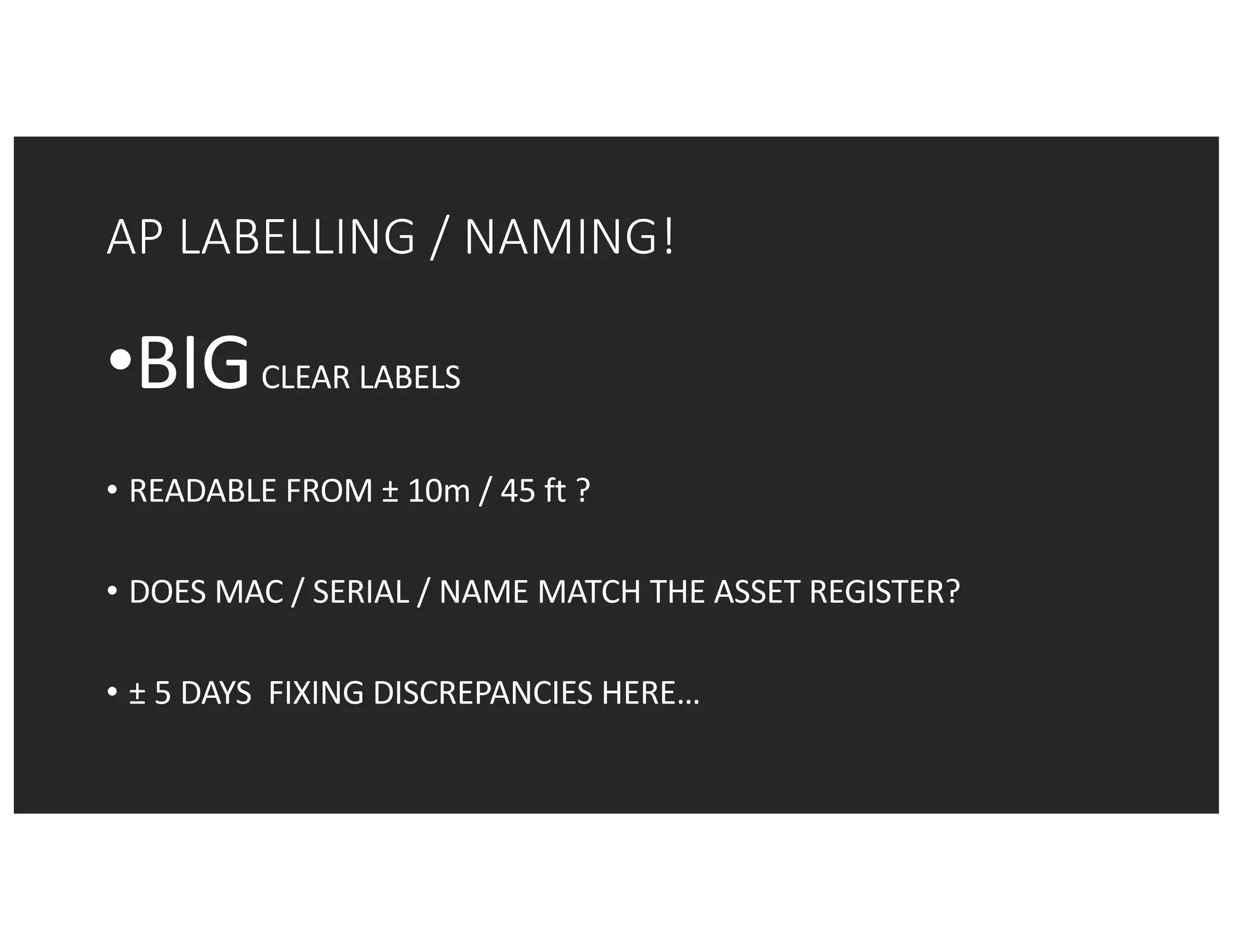

17. AP LABELLING / NAMING!
•BIGCLEAR LABELS
• READABLE FROM ± 10m / 45 ft ?
• DOES MAC / SERIAL / NAME MATCH THE ASSET REGISTER?
• ± 5 DAYS FIXING DISCREPANCIES HERE…

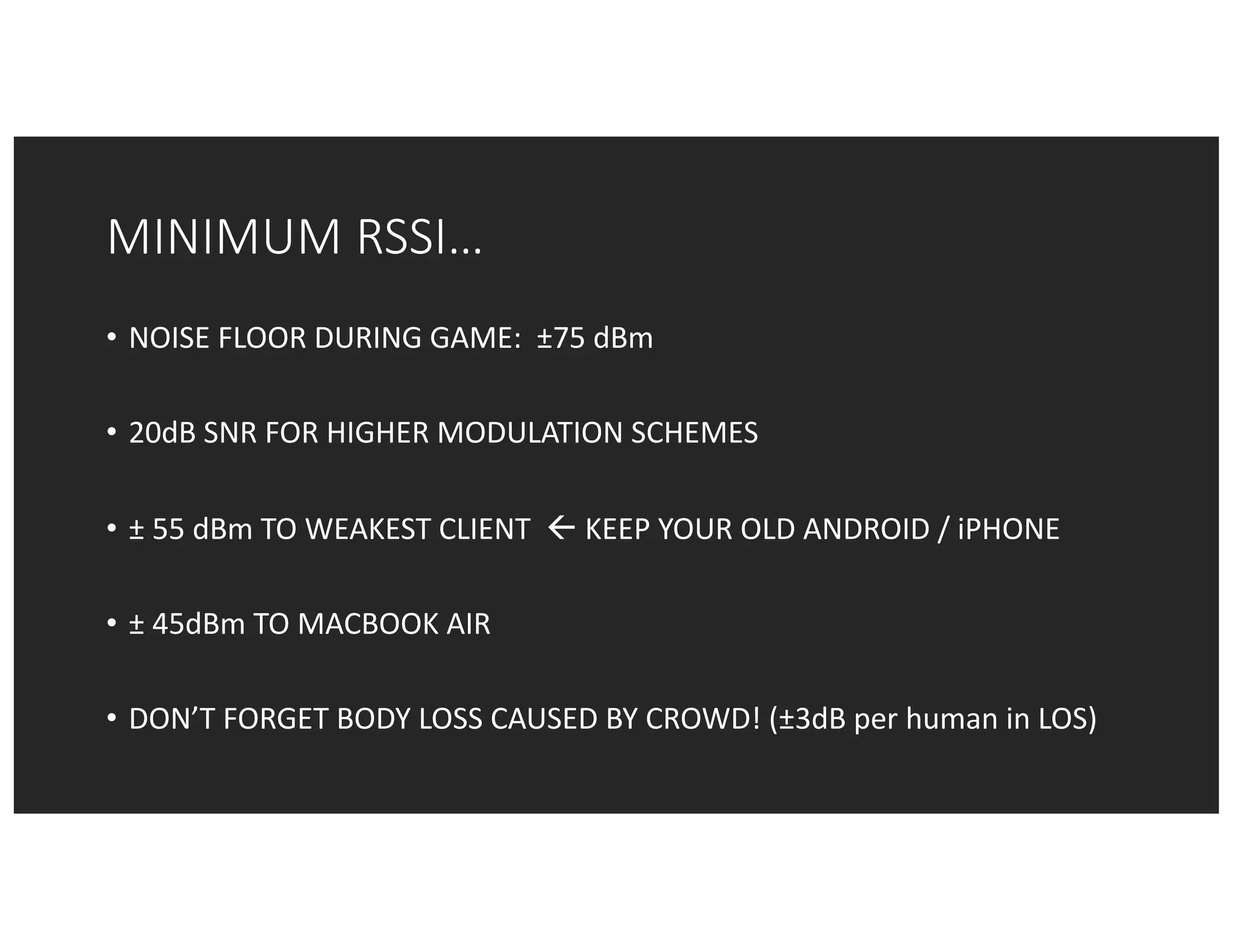

18. MINIMUM RSSI…
• NOISE FLOOR DURING GAME: ±75 dBm
• 20dB SNR FOR HIGHER MODULATION SCHEMES
• ± 55 dBm TO WEAKEST CLIENT ß KEEP YOUR OLD ANDROID / iPHONE
• ± 45dBm TO MACBOOK AIR
• DON’T FORGET BODY LOSS CAUSED BY CROWD! (±3dB per human in LOS)

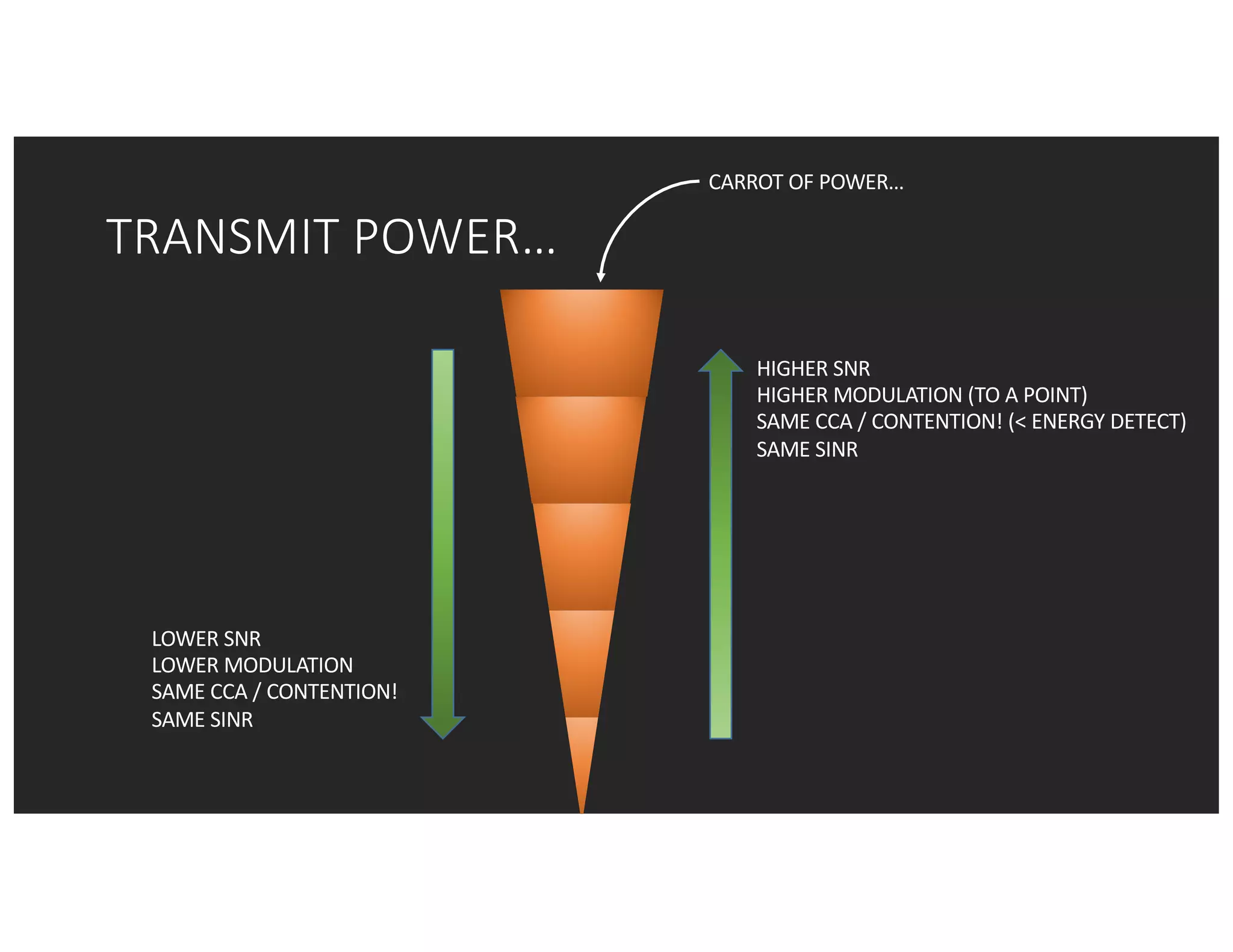

19. TRANSMIT POWER…
HIGHER SNR
HIGHER MODULATION (TO A POINT)
SAME CCA / CONTENTION! (< ENERGY DETECT)
SAME SINR
LOWER SNR
LOWER MODULATION
SAME CCA / CONTENTION!
SAME SINR
CARROT OF POWER…

20. • INFRASTRUCTURE VALIDATION

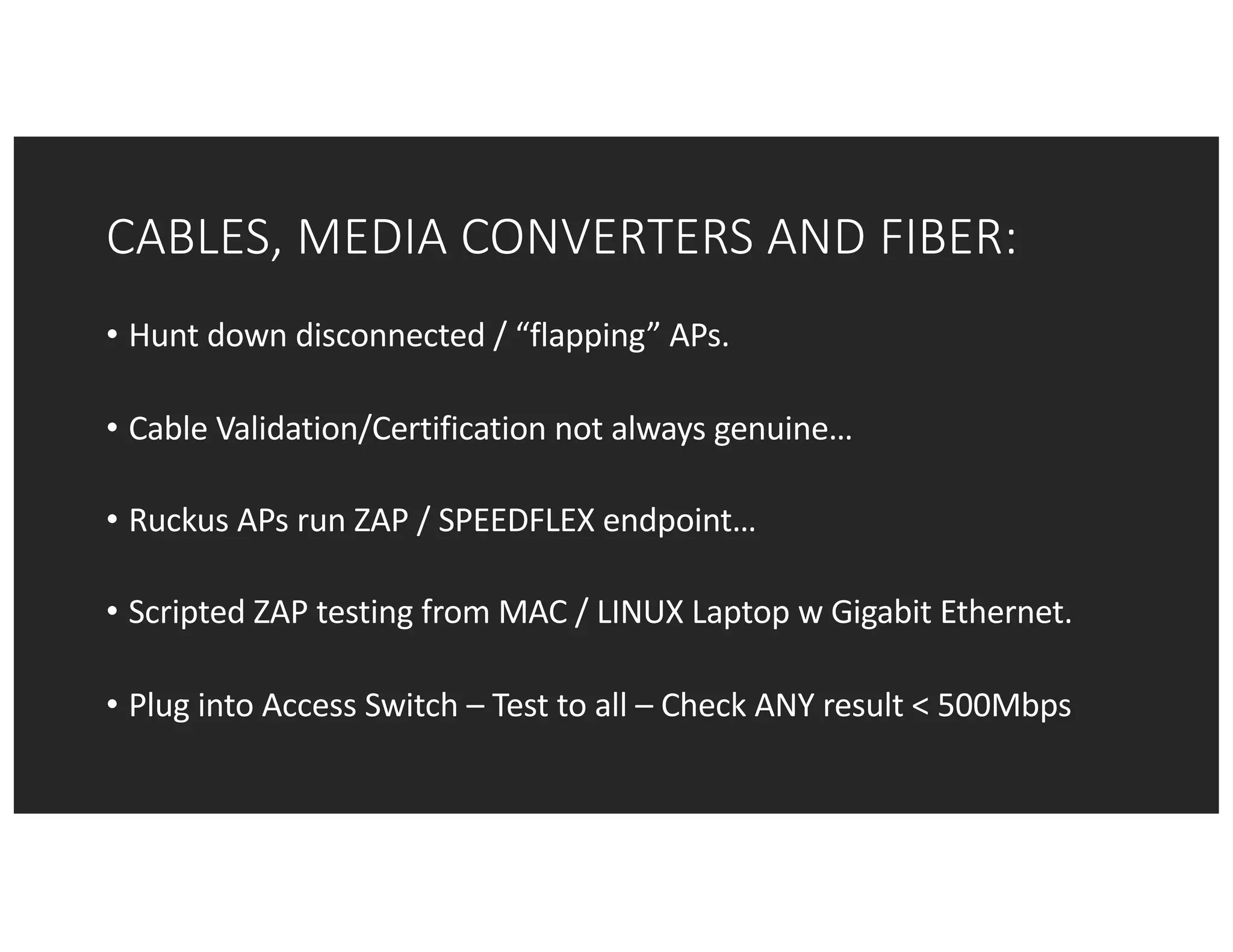

21. CABLES, MEDIA CONVERTERS AND FIBER:
• Hunt down disconnected / “flapping” APs.
• Cable Validation/Certification not always genuine…
• Ruckus APs run ZAP / SPEEDFLEX endpoint…
• Scripted ZAP testing from MAC / LINUX Laptop w Gigabit Ethernet.
• Plug into Access Switch – Test to all – Check ANY result < 500Mbps

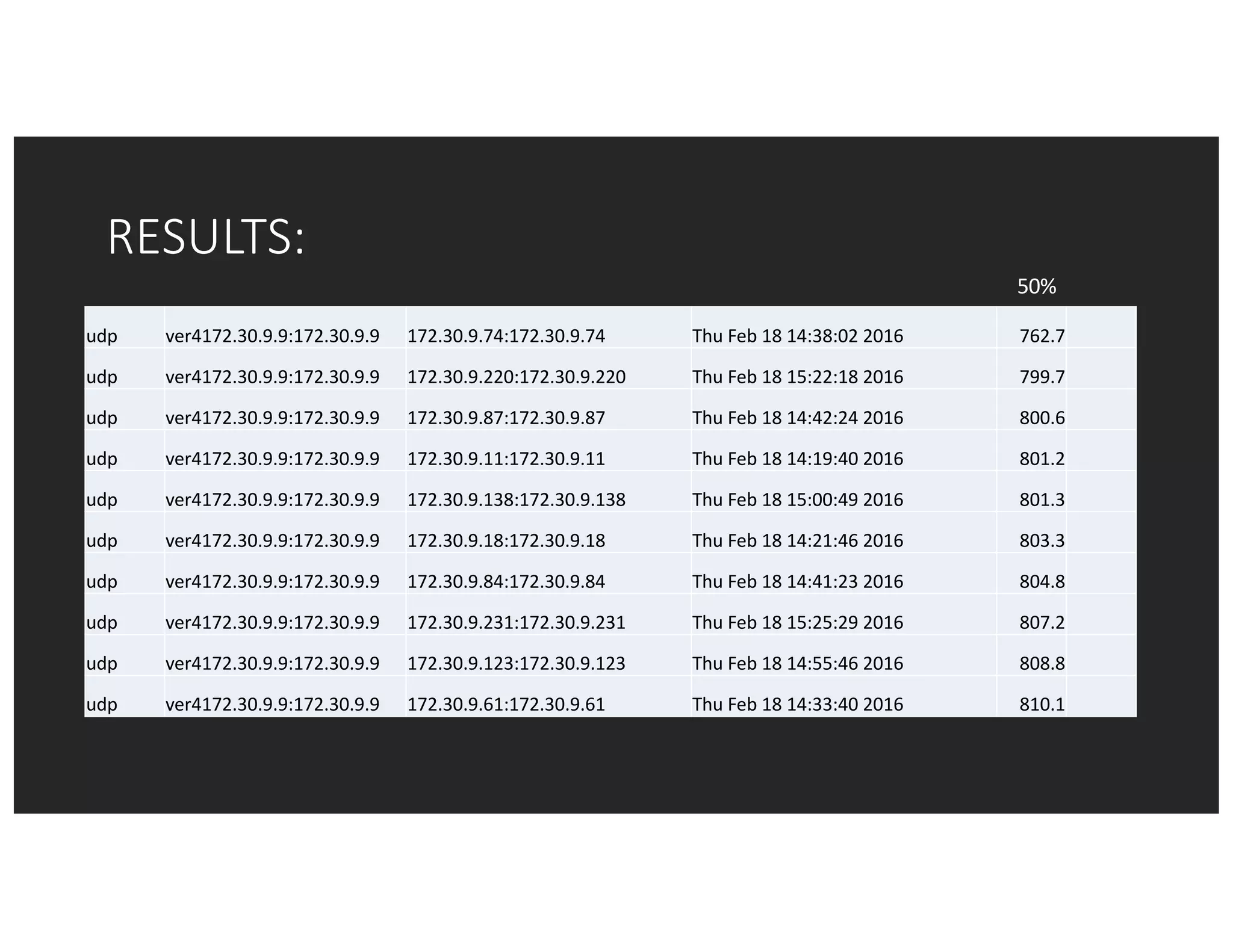

22. RESULTS:
udp ver4172.30.9.9:172.30.9.9 172.30.9.74:172.30.9.74 Thu Feb 18 14:38:02 2016 762.7
udp ver4172.30.9.9:172.30.9.9 172.30.9.220:172.30.9.220 Thu Feb 18 15:22:18 2016 799.7
udp ver4172.30.9.9:172.30.9.9 172.30.9.87:172.30.9.87 Thu Feb 18 14:42:24 2016 800.6
udp ver4172.30.9.9:172.30.9.9 172.30.9.11:172.30.9.11 Thu Feb 18 14:19:40 2016 801.2
udp ver4172.30.9.9:172.30.9.9 172.30.9.138:172.30.9.138 Thu Feb 18 15:00:49 2016 801.3
udp ver4172.30.9.9:172.30.9.9 172.30.9.18:172.30.9.18 Thu Feb 18 14:21:46 2016 803.3
udp ver4172.30.9.9:172.30.9.9 172.30.9.84:172.30.9.84 Thu Feb 18 14:41:23 2016 804.8
udp ver4172.30.9.9:172.30.9.9 172.30.9.231:172.30.9.231 Thu Feb 18 15:25:29 2016 807.2
udp ver4172.30.9.9:172.30.9.9 172.30.9.123:172.30.9.123 Thu Feb 18 14:55:46 2016 808.8
udp ver4172.30.9.9:172.30.9.9 172.30.9.61:172.30.9.61 Thu Feb 18 14:33:40 2016 810.1
50%

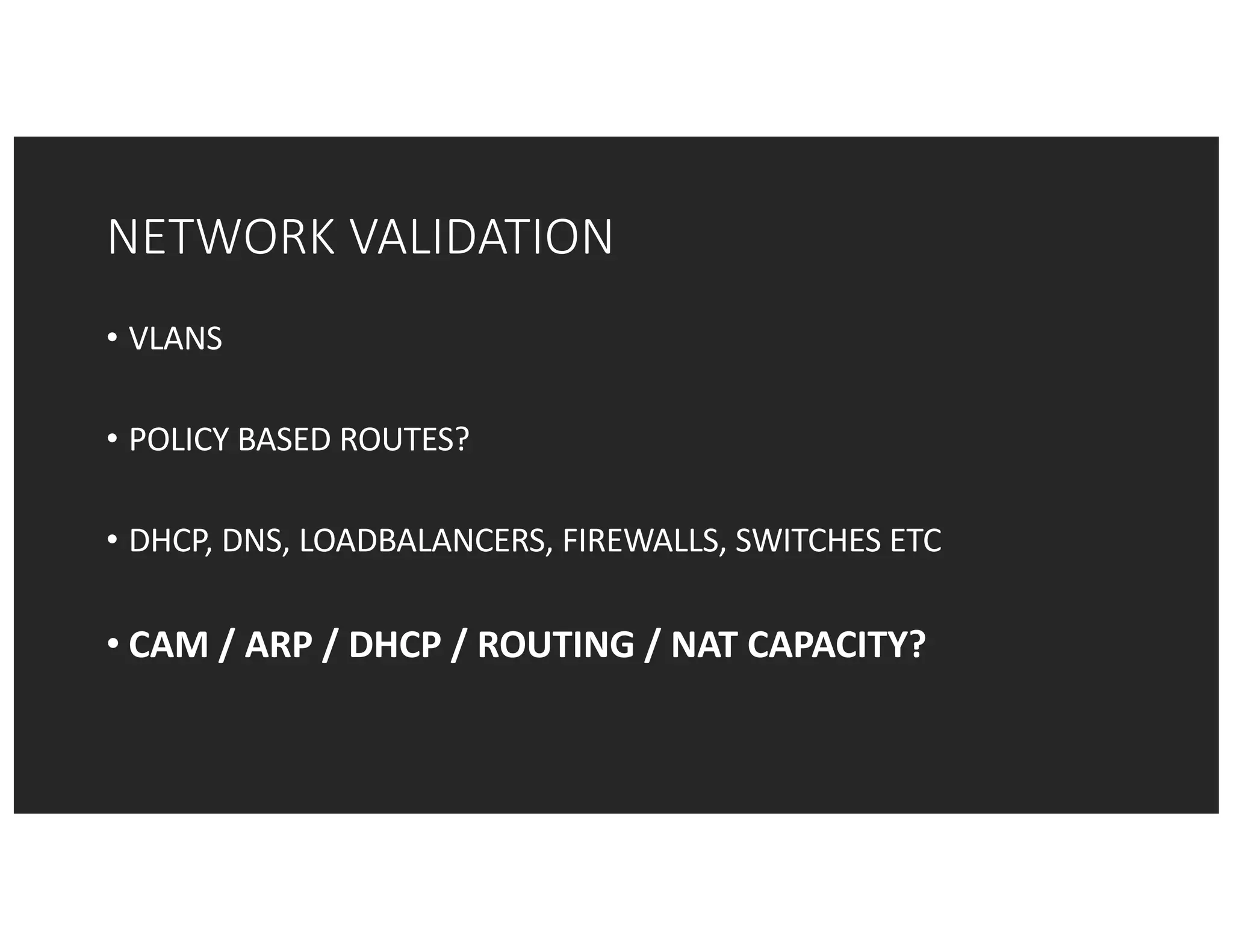

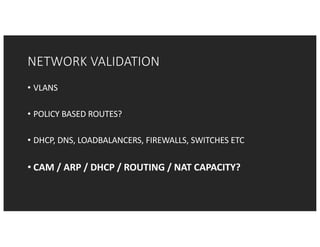

23. NETWORK VALIDATION
• VLANS
• POLICY BASED ROUTES?
• DHCP, DNS, LOADBALANCERS, FIREWALLS, SWITCHES ETC
• CAM / ARP / DHCP / ROUTING / NAT CAPACITY?

24. • AIR INTERFACE VALIDATION

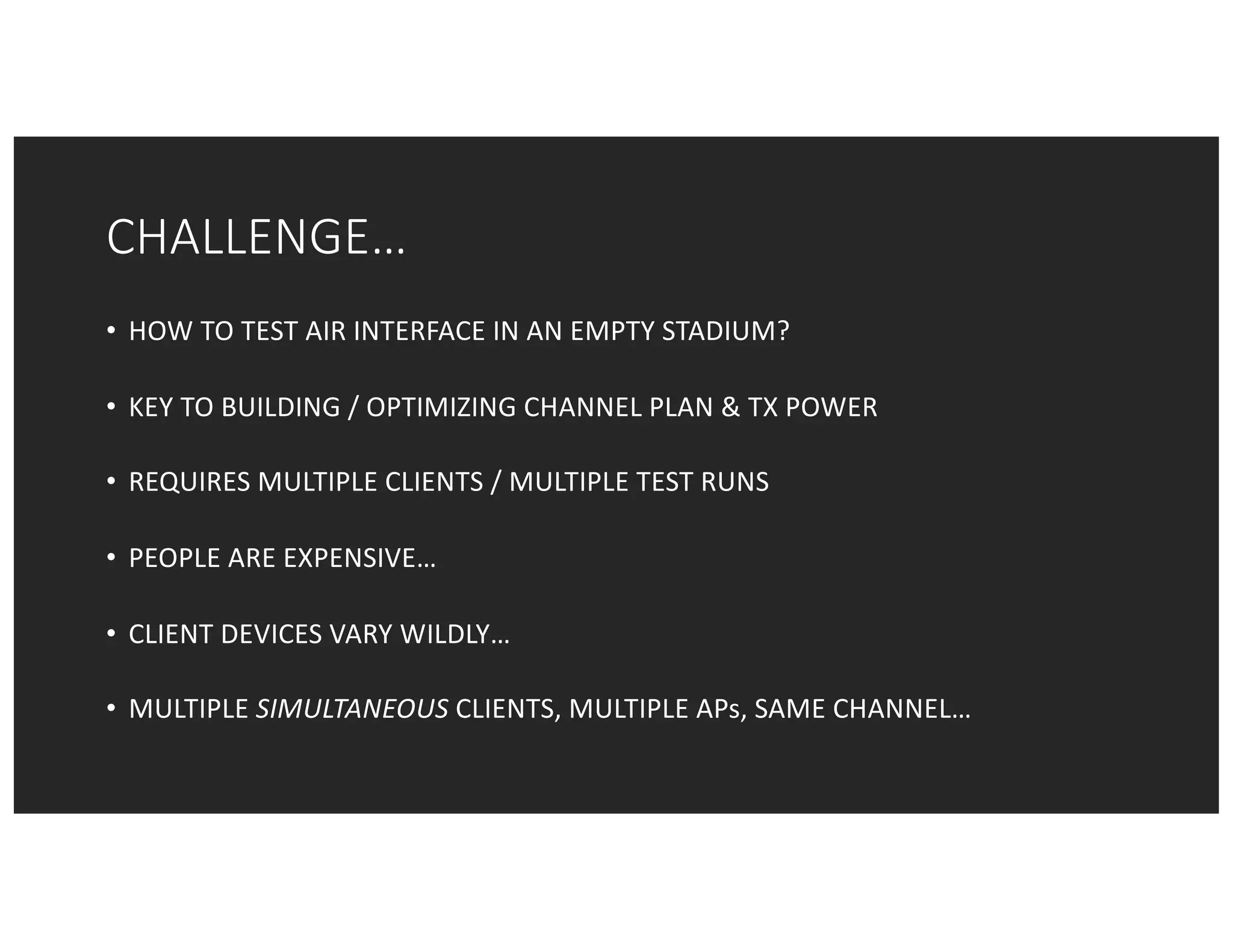

25. CHALLENGE…
• HOW TO TEST AIR INTERFACE IN AN EMPTY STADIUM?
• KEY TO BUILDING / OPTIMIZING CHANNEL PLAN & TX POWER
• REQUIRES MULTIPLE CLIENTS / MULTIPLE TEST RUNS
• PEOPLE ARE EXPENSIVE…
• CLIENT DEVICES VARY WILDLY…
• MULTIPLE SIMULTANEOUS CLIENTS, MULTIPLE APs, SAME CHANNEL…

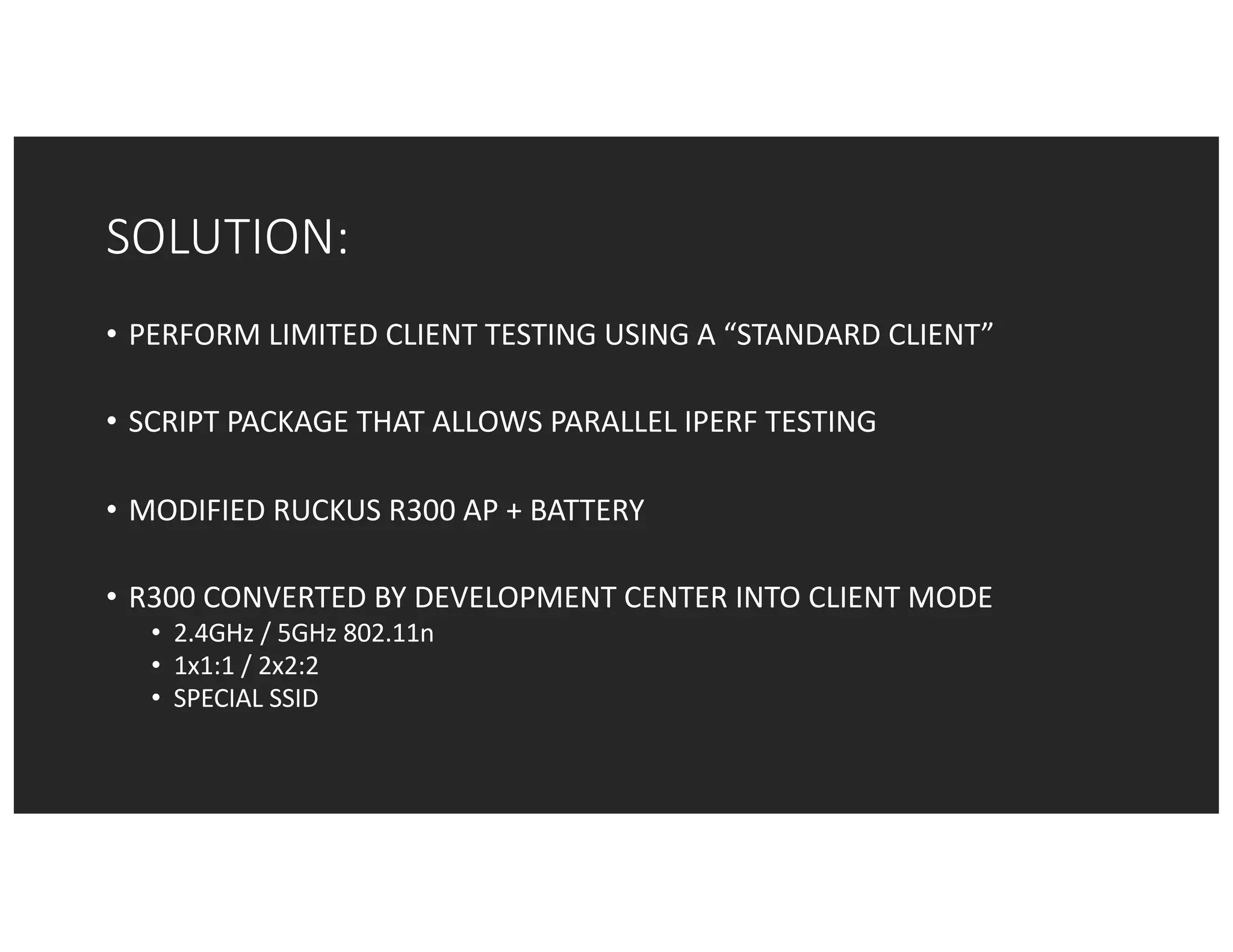

26. SOLUTION:
• PERFORM LIMITED CLIENT TESTING USING A “STANDARD CLIENT”
• SCRIPT PACKAGE THAT ALLOWS PARALLEL IPERF TESTING
• MODIFIED RUCKUS R300 AP + BATTERY
• R300 CONVERTED BY DEVELOPMENT CENTER INTO CLIENT MODE
• 2.4GHz / 5GHz 802.11n
• 1x1:1 / 2x2:2
• SPECIAL SSID

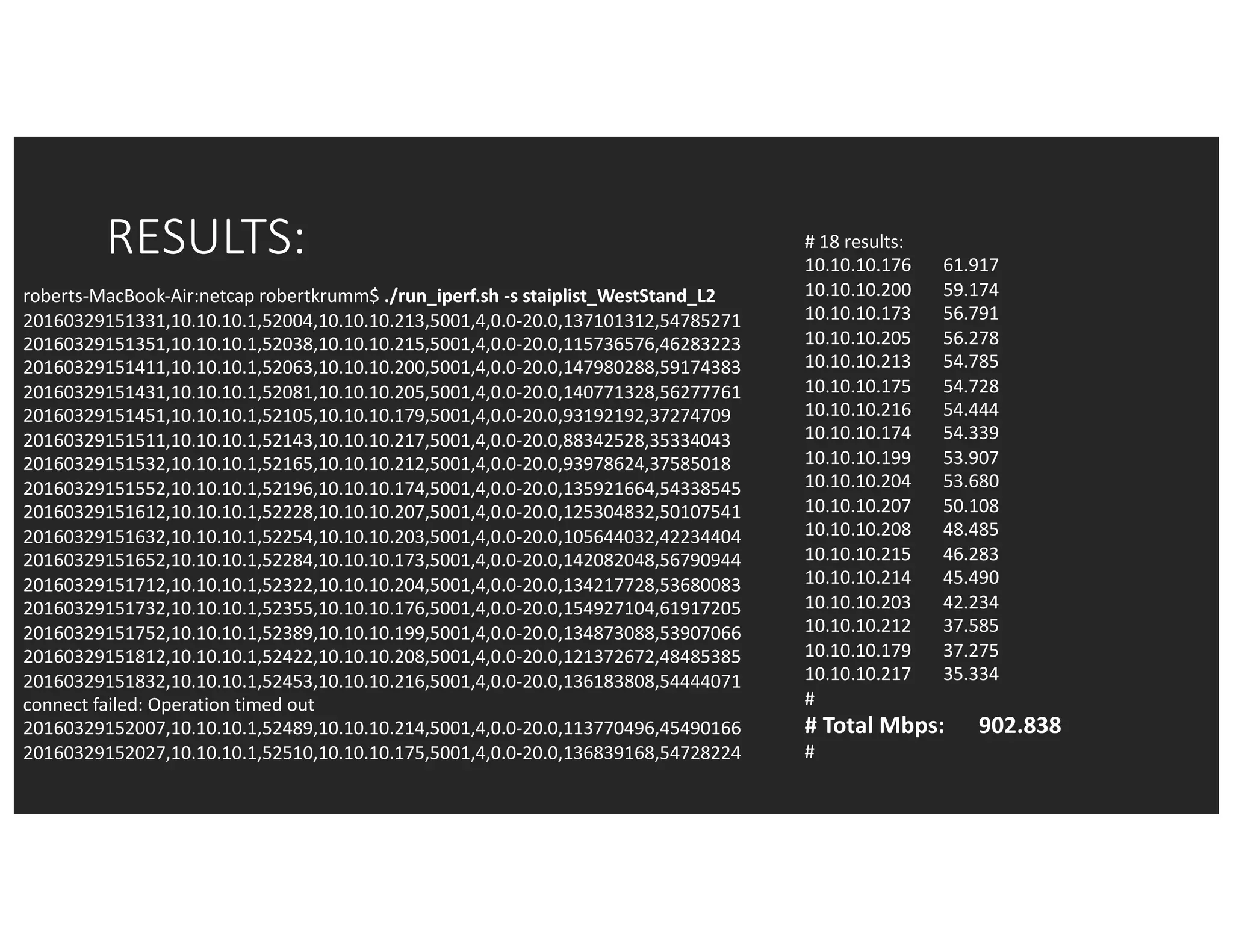

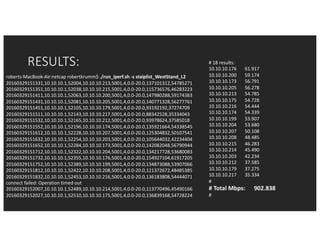

27. RESULTS: # 18 results:
10.10.10.176 61.917
10.10.10.200 59.174
10.10.10.173 56.791
10.10.10.205 56.278
10.10.10.213 54.785
10.10.10.175 54.728
10.10.10.216 54.444
10.10.10.174 54.339
10.10.10.199 53.907
10.10.10.204 53.680
10.10.10.207 50.108
10.10.10.208 48.485
10.10.10.215 46.283
10.10.10.214 45.490
10.10.10.203 42.234
10.10.10.212 37.585
10.10.10.179 37.275
10.10.10.217 35.334
#
# Total Mbps: 902.838
#
roberts-MacBook-Air:netcap robertkrumm$ ./run_iperf.sh -s staiplist_WestStand_L2
20160329151331,10.10.10.1,52004,10.10.10.213,5001,4,0.0-20.0,137101312,54785271
20160329151351,10.10.10.1,52038,10.10.10.215,5001,4,0.0-20.0,115736576,46283223
20160329151411,10.10.10.1,52063,10.10.10.200,5001,4,0.0-20.0,147980288,59174383
20160329151431,10.10.10.1,52081,10.10.10.205,5001,4,0.0-20.0,140771328,56277761
20160329151451,10.10.10.1,52105,10.10.10.179,5001,4,0.0-20.0,93192192,37274709
20160329151511,10.10.10.1,52143,10.10.10.217,5001,4,0.0-20.0,88342528,35334043
20160329151532,10.10.10.1,52165,10.10.10.212,5001,4,0.0-20.0,93978624,37585018
20160329151552,10.10.10.1,52196,10.10.10.174,5001,4,0.0-20.0,135921664,54338545
20160329151612,10.10.10.1,52228,10.10.10.207,5001,4,0.0-20.0,125304832,50107541
20160329151632,10.10.10.1,52254,10.10.10.203,5001,4,0.0-20.0,105644032,42234404
20160329151652,10.10.10.1,52284,10.10.10.173,5001,4,0.0-20.0,142082048,56790944
20160329151712,10.10.10.1,52322,10.10.10.204,5001,4,0.0-20.0,134217728,53680083
20160329151732,10.10.10.1,52355,10.10.10.176,5001,4,0.0-20.0,154927104,61917205
20160329151752,10.10.10.1,52389,10.10.10.199,5001,4,0.0-20.0,134873088,53907066
20160329151812,10.10.10.1,52422,10.10.10.208,5001,4,0.0-20.0,121372672,48485385
20160329151832,10.10.10.1,52453,10.10.10.216,5001,4,0.0-20.0,136183808,54444071
connect failed: Operation timed out
20160329152007,10.10.10.1,52489,10.10.10.214,5001,4,0.0-20.0,113770496,45490166
20160329152027,10.10.10.1,52510,10.10.10.175,5001,4,0.0-20.0,136839168,54728224

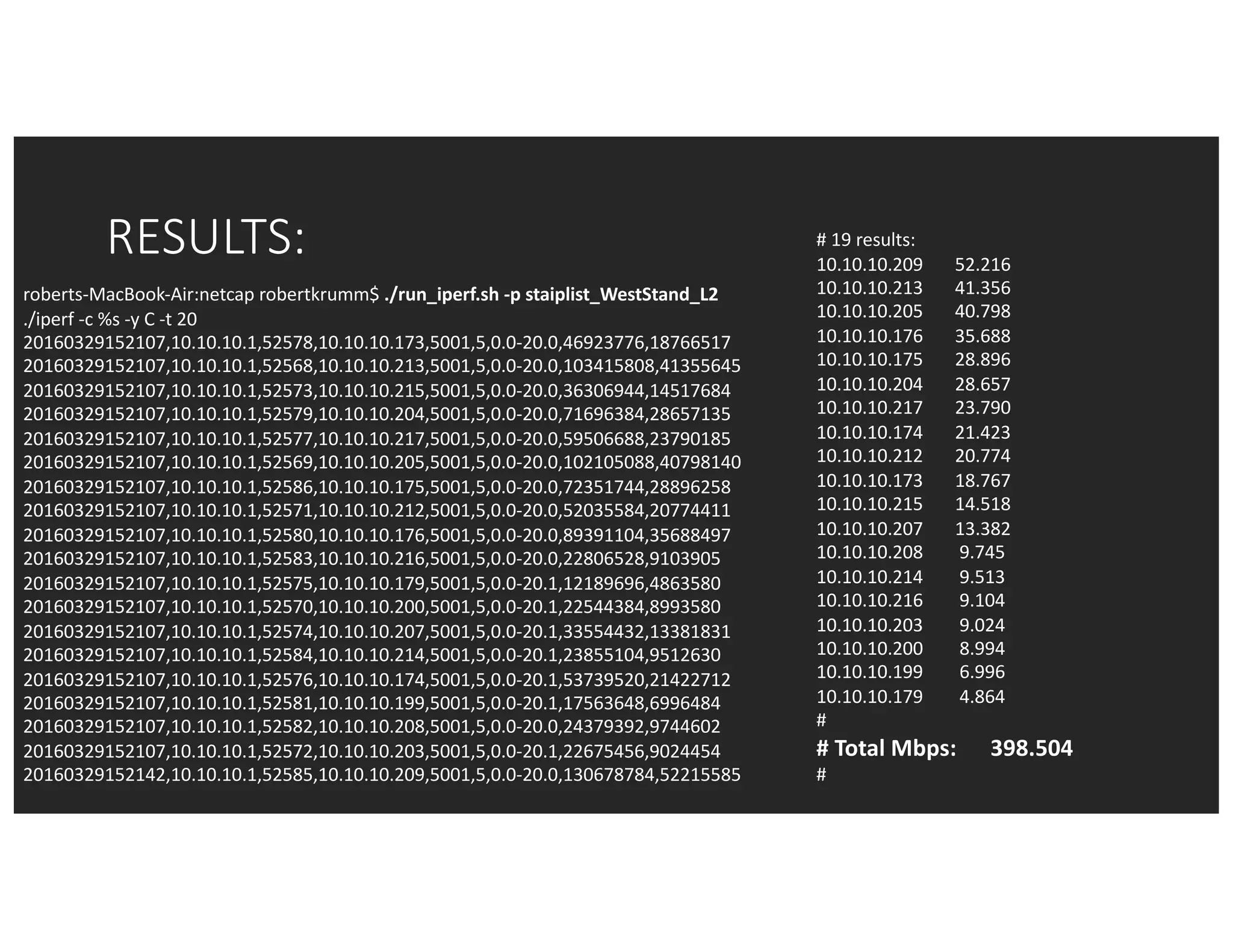

28. RESULTS: # 19 results:
10.10.10.209 52.216
10.10.10.213 41.356
10.10.10.205 40.798
10.10.10.176 35.688
10.10.10.175 28.896
10.10.10.204 28.657
10.10.10.217 23.790
10.10.10.174 21.423
10.10.10.212 20.774
10.10.10.173 18.767
10.10.10.215 14.518
10.10.10.207 13.382
10.10.10.208 9.745
10.10.10.214 9.513
10.10.10.216 9.104
10.10.10.203 9.024
10.10.10.200 8.994
10.10.10.199 6.996
10.10.10.179 4.864
#
# Total Mbps: 398.504
#
roberts-MacBook-Air:netcap robertkrumm$ ./run_iperf.sh -p staiplist_WestStand_L2
./iperf -c %s -y C -t 20
20160329152107,10.10.10.1,52578,10.10.10.173,5001,5,0.0-20.0,46923776,18766517
20160329152107,10.10.10.1,52568,10.10.10.213,5001,5,0.0-20.0,103415808,41355645
20160329152107,10.10.10.1,52573,10.10.10.215,5001,5,0.0-20.0,36306944,14517684
20160329152107,10.10.10.1,52579,10.10.10.204,5001,5,0.0-20.0,71696384,28657135
20160329152107,10.10.10.1,52577,10.10.10.217,5001,5,0.0-20.0,59506688,23790185
20160329152107,10.10.10.1,52569,10.10.10.205,5001,5,0.0-20.0,102105088,40798140
20160329152107,10.10.10.1,52586,10.10.10.175,5001,5,0.0-20.0,72351744,28896258
20160329152107,10.10.10.1,52571,10.10.10.212,5001,5,0.0-20.0,52035584,20774411
20160329152107,10.10.10.1,52580,10.10.10.176,5001,5,0.0-20.0,89391104,35688497
20160329152107,10.10.10.1,52583,10.10.10.216,5001,5,0.0-20.0,22806528,9103905
20160329152107,10.10.10.1,52575,10.10.10.179,5001,5,0.0-20.1,12189696,4863580
20160329152107,10.10.10.1,52570,10.10.10.200,5001,5,0.0-20.1,22544384,8993580
20160329152107,10.10.10.1,52574,10.10.10.207,5001,5,0.0-20.1,33554432,13381831
20160329152107,10.10.10.1,52584,10.10.10.214,5001,5,0.0-20.1,23855104,9512630
20160329152107,10.10.10.1,52576,10.10.10.174,5001,5,0.0-20.1,53739520,21422712
20160329152107,10.10.10.1,52581,10.10.10.199,5001,5,0.0-20.1,17563648,6996484
20160329152107,10.10.10.1,52582,10.10.10.208,5001,5,0.0-20.0,24379392,9744602
20160329152107,10.10.10.1,52572,10.10.10.203,5001,5,0.0-20.1,22675456,9024454
20160329152142,10.10.10.1,52585,10.10.10.209,5001,5,0.0-20.0,130678784,52215585

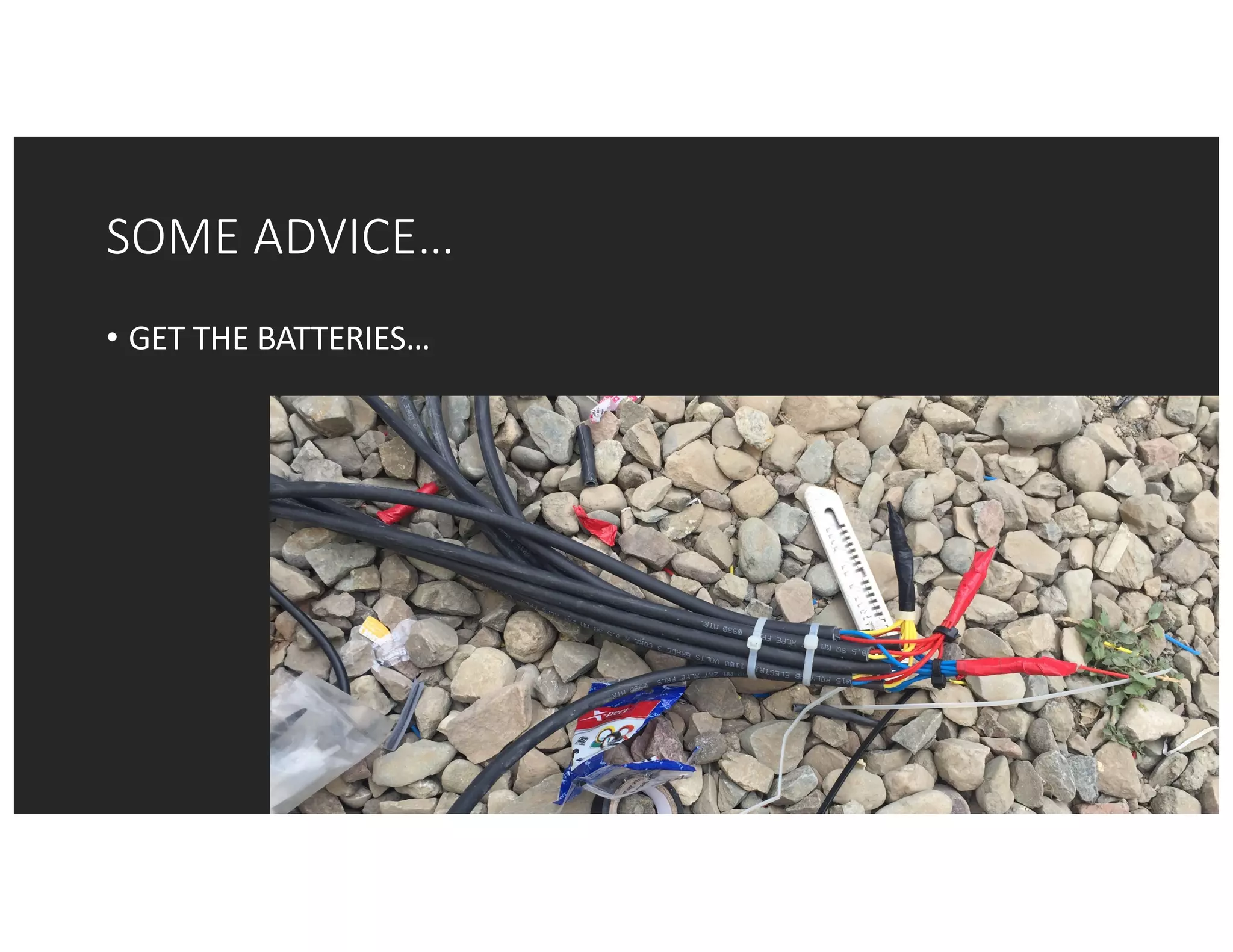

29. SOME ADVICE…

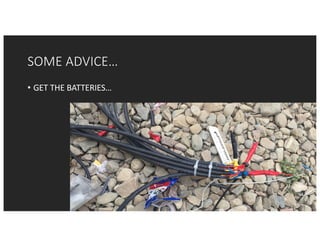

• GET THE BATTERIES…

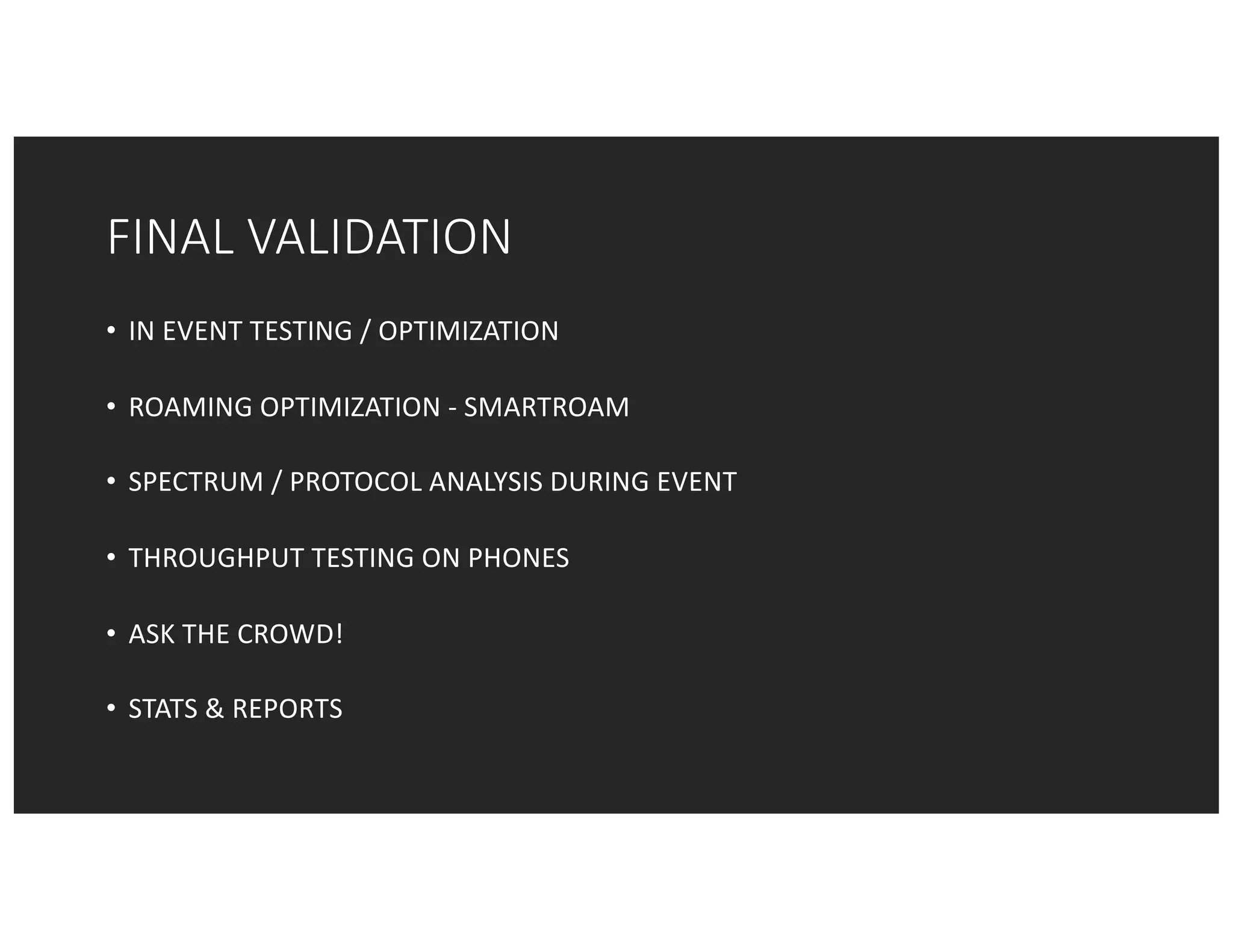

30. FINAL VALIDATION
• IN EVENT TESTING / OPTIMIZATION
• ROAMING OPTIMIZATION - SMARTROAM
• SPECTRUM / PROTOCOL ANALYSIS DURING EVENT
• THROUGHPUT TESTING ON PHONES
• ASK THE CROWD!
• STATS & REPORTS

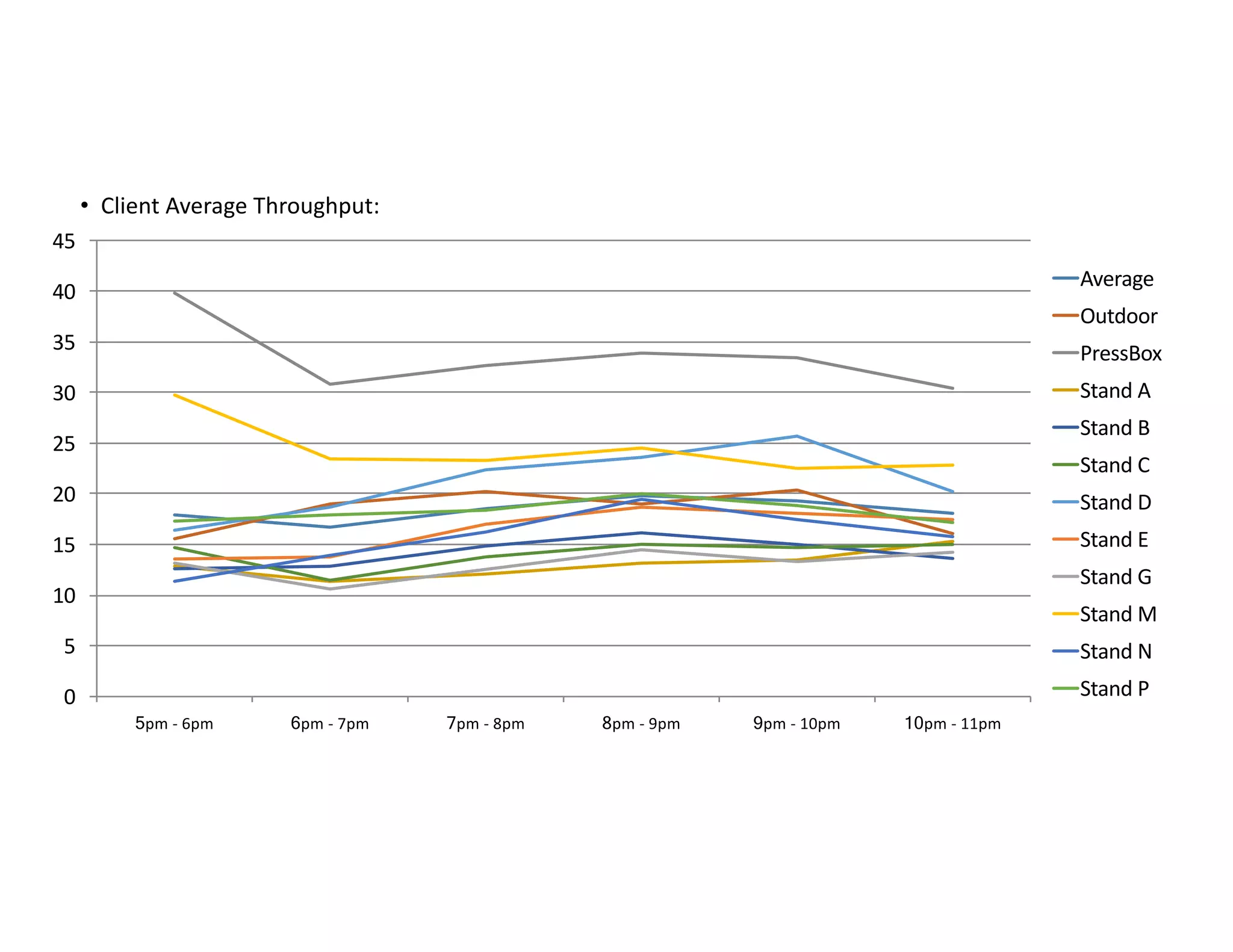

31. • Client Average Throughput:
0
5
10
15
20
25
30
35
40
45
5pm - 6pm 6pm - 7pm 7pm - 8pm 8pm - 9pm 9pm - 10pm 10pm - 11pm
Average
Outdoor
PressBox
Stand A
Stand B
Stand C
Stand D
Stand E
Stand G
Stand M
Stand N
Stand P

32. • QUESTIONS?
