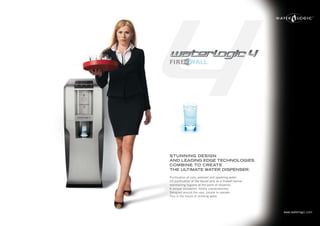

STUNNING DESIGN
AND LEADING EDGE TECHNOLOGIES
COMBINE TO CREATE
THE ULTIMATE WATER DISPENSER.

Purification of cold, ambient and sparkling water.
UV purification of the faucet acts as a firewall barrier
maintaining hygiene at the point of dispense.
A unique innovation, totally unprecedented.
Designed around the user, simple to operate.
This is the future of drinking water.




                                                           www.waterlogic.com
welcome to the world
of waterlogic




QUALITY - PURITY - INNOVATION                                                             In a world where everything is relative, Waterlogic has always stood for absolute standards.
These qualities are why Waterlogic commands such respect.                                 Our approach has always been consistent: to give our designers and engineers
Ever since the first Point of Use (POU) machines, Waterlogic innovation has helped        the freedom to set a new performance yardstick.
to shape the evolution of the modern water dispenser.                                     As the 4th generation machine, the design brief was clear.
Waterlogic International is the leading global manufacturer and distributor               To extend the boundaries of performance and purity, but also to set new industry
of superior quality water purifying and dispensing systems.                               standards in areas such as design through significantly improved looks and usability.
Since its formation in 1992, demand for Waterlogic machines has grown to such
a level that the machines are in available in over 40 countries across five continents.   meet the new benchmark
1                                                     2                                                        3                                                         4


NICE AND EASY                                         THE BEST PURIFICATION                                    NEW TECHNOLOGIES                                          SUPERIOR PERFORMANCE
Smart design is an approach which requires            The Waterlogic signature approach to refreshment         Waterlogic 4 houses all our latest technology             The novel design, results in a high capacity
the combination of form and function.                 purity takes three stages; Filtration, Firewall UV       breakthroughs. This sophistication produces               to provide Hot, Cold, Ambient or Sparkling water,
Simple buttons, mood/indicator lighting and graphic   purification and BioCote® antimicrobial protection.      a water dispenser that is designed to perform             when you want it.
icons make the Waterlogic 4 intuitive to use.         The Waterlogic 4 breaks new ground in that all cold,     to the standards expected in today’s environment.         Ideal for situations were there is high usage.
                                                      sparkling and ambient water has the maximum              - High Capacity Cold, Ambient,
                                                      (class A) UV treatment and is designed to give             Sparkling (HC2P) Technology
                                                      a 100% pure water guarantee in every cup*.               - Thermal cut-out and Leak Detection system
                                                      Firewall technology also means that no bacteria          - Firewall Class A UV purification
                                                      of viruses can get into the system, ensuring a totally   - Automatic Purification Monitoring System consistently
                                                      hygienic dispense area.                                    monitors the UV to ensure it is operating at optimum
                                                                                                                 purification efficiency.




                                                      * The Waterlogic 4 is designed to deliver a Class A
                                                        UV dosage and is pending official certification.
simply pure, when you
want it! ....8.00    12.00                                                                 16.00   20.00                               24.00...




NATURALLY                                                                                                  MODELS AVAILABLE
the Waterlogic 4 is available in a range of options of; Cold, Sparking, Ambient and Hot.                   -   Hot, cold and sparkling
All Hot machines have an “extra hot boost” feature, perfect for tea or hot snacks.                         -   Hot and cold
                                                                                           A               -   Cold and sparkling

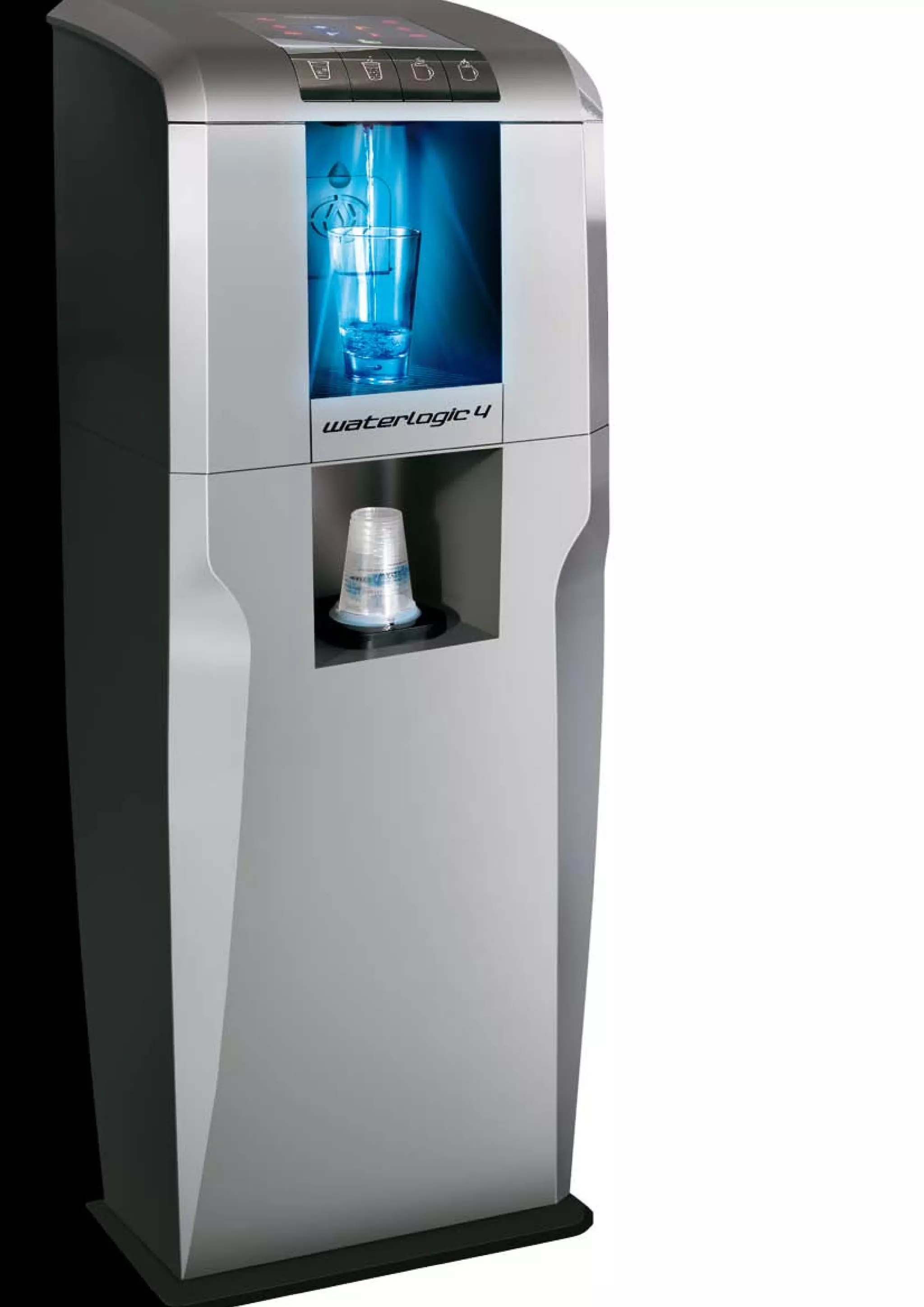

And, depending on where you would like to place the machine, the optional base cabinet                     -   Cold and ambient
converts the table top model to a freestanding unit which also serves as an integral cup                   -   Cold, ambient and sparkling
dispenser and storage space for the CO2 gas bottle.                                                        -   Cold

                                                                                                           ACCESSORIES
                                                                                                           - Base Cabinet to convert from table
                                                                                                             top to freestanding unit

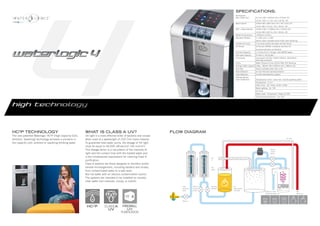

SPECIFICATIONS:
                                                                                                                                                                                   Dimensions:
                                                                                                                                                                                   Mini (Table Top)        417mm (W) x 439mm (H) x 470mm (D)
                                                                                                                                                                                                           16.4in. (W) x 17.3in. (H) x 18.5in. (D)
                                                                                                                                                                                   Base Cabinet            418mm(W) x 803.4mm (H) x 467.3mm (D)
                                                                                                                                                                                                           16.5in.(W) x 31.6in. (H) x 18.4in. (D)
                                                                                                                                                                                   Mini + Base Cabinet     418mm (W) x 1238mm (H) x 470mm (D)
                                                                                                                                                                                                           16.5in.(W) x 48.7in. (H) x 18.5in. (D)
                                                                                                                                                                                   Bottle fill dimension   >240mm (>9.5in.)
                                                                                                                                                                                   Standard filtration     1 x GAC and 1 x CBC
                                                                                                                                                                                                           Sensor alarm activated when filters need replacing
                                                                                                                                                                                   Firewall UV Lamp        11w lamp purifies the water and the faucet
                                                                                                                                                                                   UV Sensor               UV Sensor (APMS) constantly monitors UV
                                                                                                                                                                                                           to ensure optimum purification
                                                                                                                                                                                   Hot tank Capacity       1.2 litres (0.317 US gal.) with 800W heater
                                                                                                                                                                                   Cold tank Capacity      4 litres (1.18 US gal.)
                                                                                                                                                                                   Compressor              Compressor (R134a 1/8HP) 230V(or 100v)/50Hz
                                                                                                                                                                                                           thermally protected
                                                                                                                                                                                   Pump                    Water Pressure Pump (DC24) MDL R/O Boosting
                                                                                                                                                                                   CO2 gas bottle capacity 10kg - 180mm (W) x 650mm (H) x 180mm (D)
                                                                                                                                                                                   Drip Tray               Sensor activates when tray is full
                                                                                                                                                                                   Heat Detection          In-built thermal overload protector
                                                                                                                                                                                   Leak Detection          In-built leak detection system
                                                                                                                                                                                   Setting Options
                                                                                                                                                                                   upon Installation       Temperature of Hot / Extra Hot / Cold & Sparkling water
                                                                                                                                                                                                           Temperature - C or F
                                                                                                                                                                                                           Filter timer - off / 3mth / 6mth / 9mth
                                                                                                                                                                                                           Mood lighting - On / Off
                                                                                                                                                                                                           UV timer
                                                                                                                                                                                                           Sleep mode - Compressor / heater of both
                                                                                                                                                                                                           Thermal overload sensor - On / Off



high technology




HC2P TECHNOLOGY                                           WHAT IS CLASS A UV?                                           FLOW DIAGRAM
The new patented Waterlogic HC P (High Capacity Cold,
                               2
                                                          UV light is a most effective killer of bacteria and viruses
                                                                                                                                                                                                                                                 Air vent
Ambient, Sparkling) technology achieves a pinnacle in     when used at a wavelength of 253.7nm (nano-meters).
the capacity cold, ambient or sparkling drinking water.   To guarantee total water purity, the dosage of UV light
                                                          must be equal to 40,000 uW-sec/cm2 (40 mJ/cm2).
                                                          This dosage factor is a calculation of the intensity of                                                                                                            Electric
                                                                                                                                                                                                             Pump            control
                                                          light and the contact time with the treated water and                                                                                                              valves

                                                          is the fundamental requirement for claiming Class A                                                         CO2




                                                                                                                                           Activated Carbon Filters
                                                          purification.                                                                                               in

                                                          Class A systems are those designed to disinfect and/or
                                                          remove microorganisms, including bacteria and viruses,                                                      Hot
                                                                                                                                                                      water
                                                          from contaminated water to a safe level.
                                                          But not water with an obvious contamination source.
                                                          The systems are intended to be installed on visually
                                                          clear water (not coloured, cloudy, or turbid).
                                                                                                                            Inlet      Electric                       Heating   UV
                                                                                                                            solenoid   control                        element   Sterilisation
                                                                                                                            valve      valves                                   chamber
                                                                                                                                                                                                                       Ambient, Cold,                       Hot
                                                                                                                                                                                                                       Sparkling water out                  water out



                                                                                                                            Water in
www.waterlogic.com
