1. 1
Wix Automation
Itay Shmool & Roi Ashkenazi
DIY -Testing BI Events

2. 2

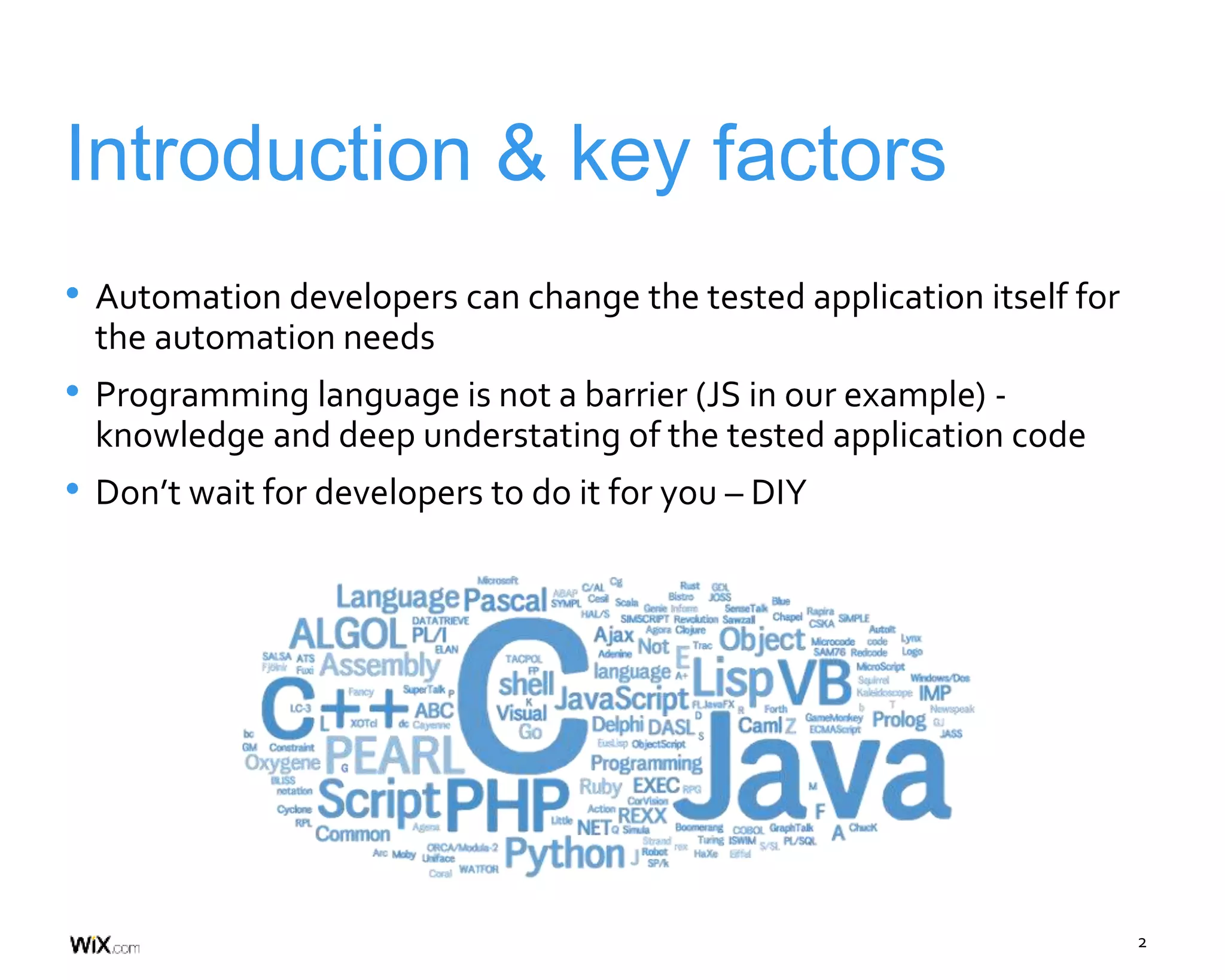

Introduction & key factors
• Automation developers can change the tested application itself for
the automation needs
• Programming language is not a barrier (JS in our example) -
knowledge and deep understating of the tested application code
• Don’t wait for developers to do it for you – DIY

3. 3

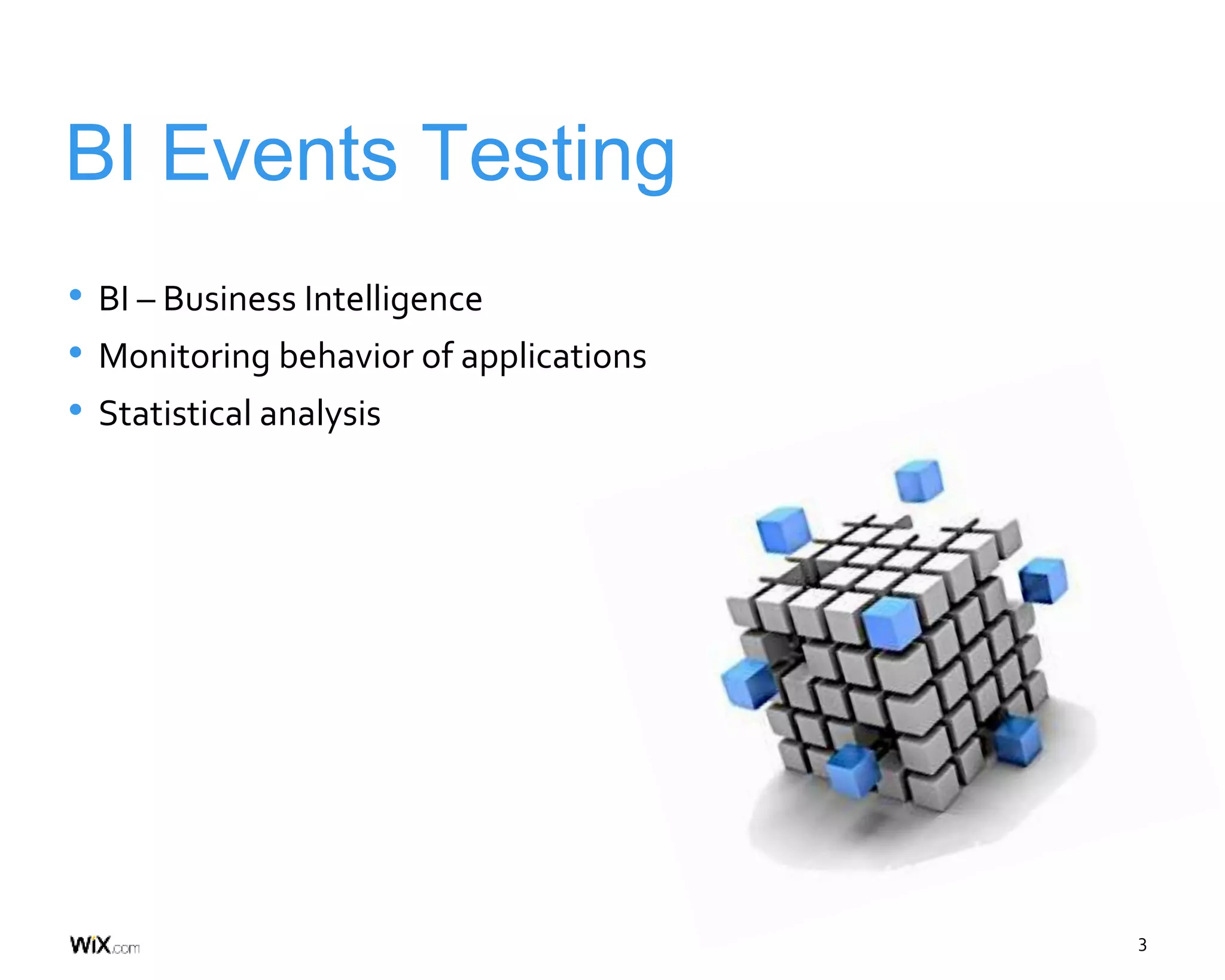

BI Events Testing
• BI – Business Intelligence
• Monitoring behavior of applications
• Statistical analysis

4. 4

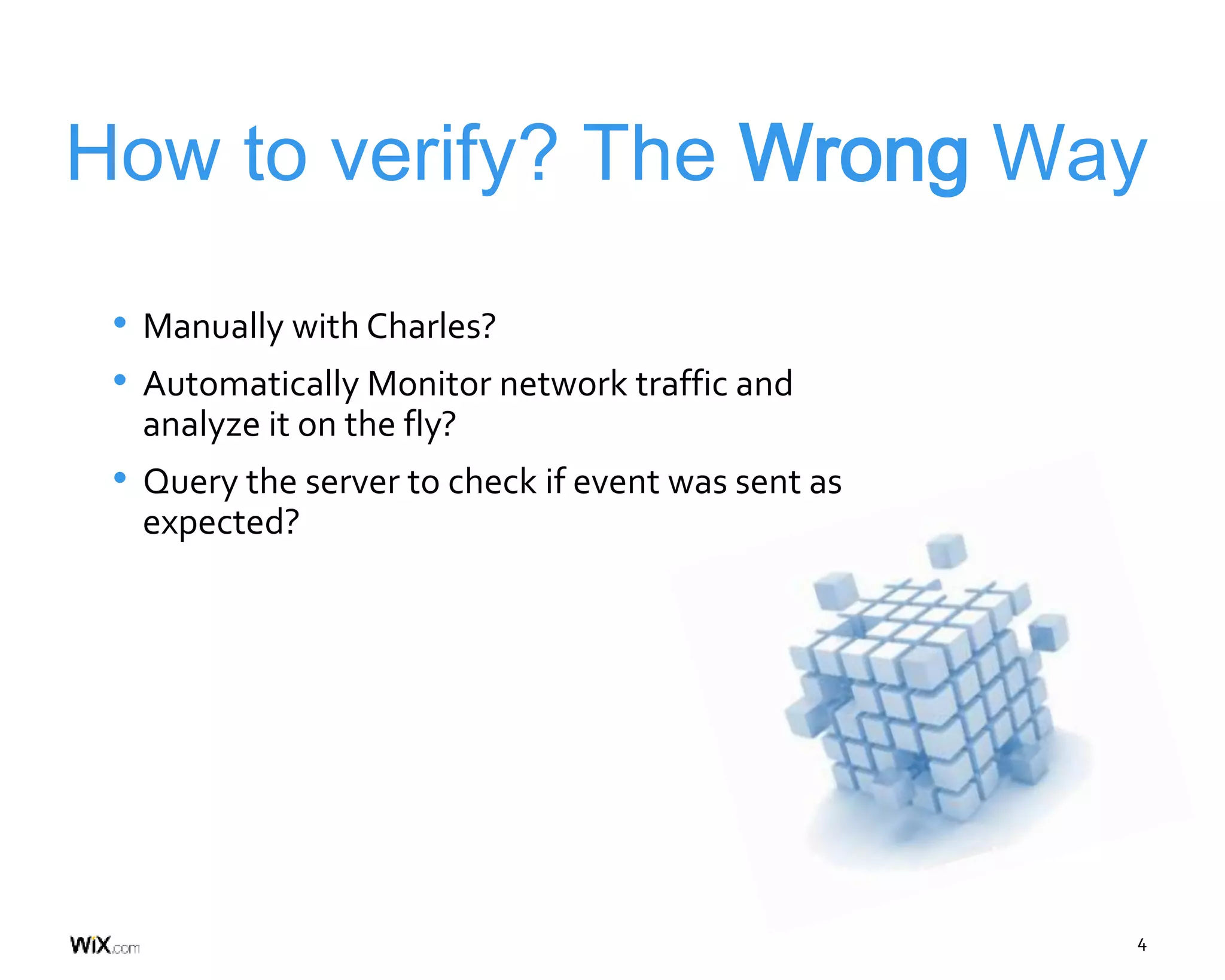

How to verify? The Wrong Way
• Manually with Charles?
• Automatically Monitor network traffic and
analyze it on the fly?
• Query the server to check if event was sent as
expected?

5. 5

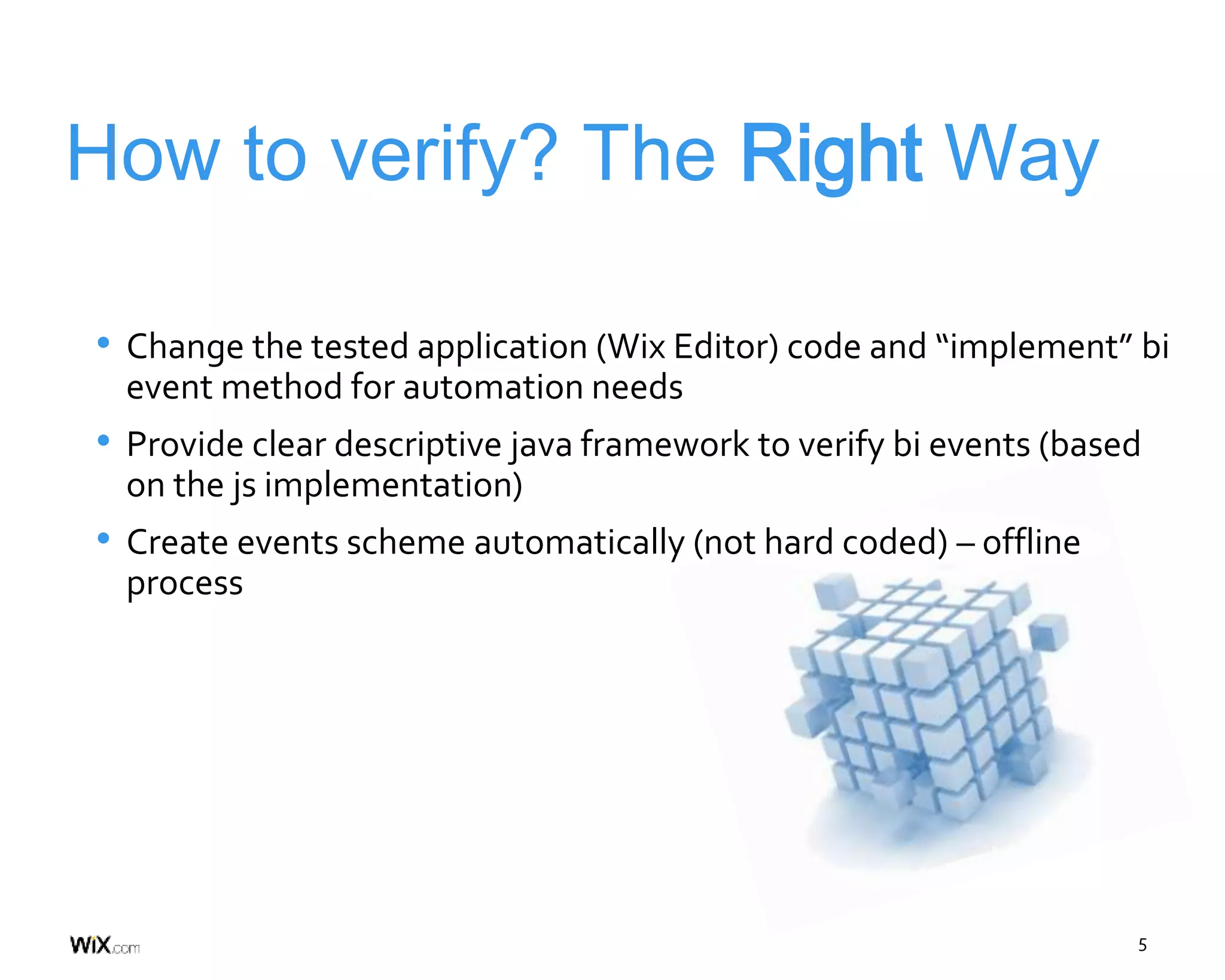

How to verify? The Right Way
• Change the tested application (Wix Editor) code and “implement” bi
event method for automation needs
• Provide clear descriptive java framework to verify bi events (based
on the js implementation)
• Create events scheme automatically (not hard coded) – offline
process

6. 6

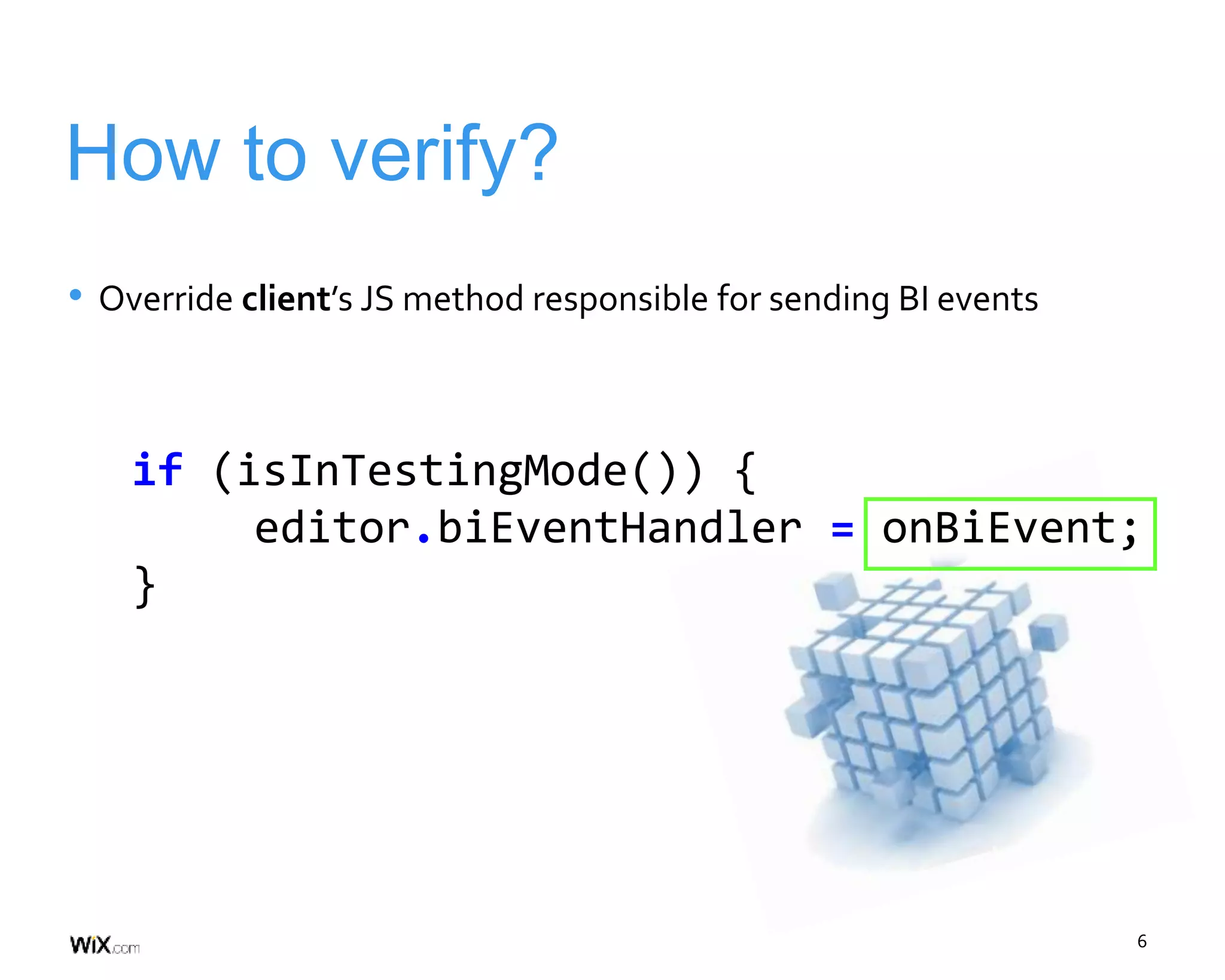

How to verify?
if (isInTestingMode()) {
editor.biEventHandler = onBiEvent;
}
• Override client’s JS method responsible for sending BI events

7. 7

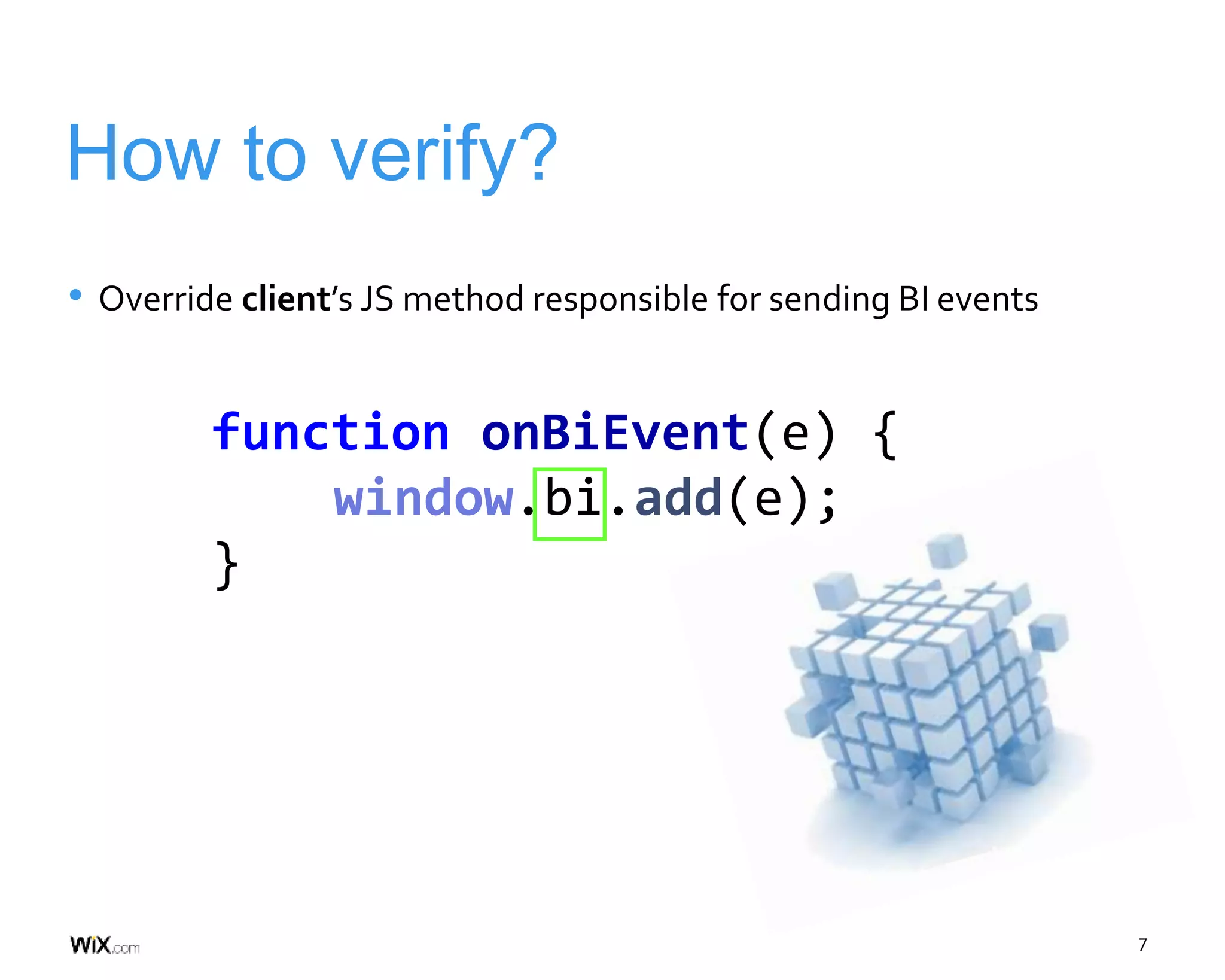

How to verify?
function onBiEvent(e) {
window.bi.add(e);
}
• Override client’s JS method responsible for sending BI events

8. 8

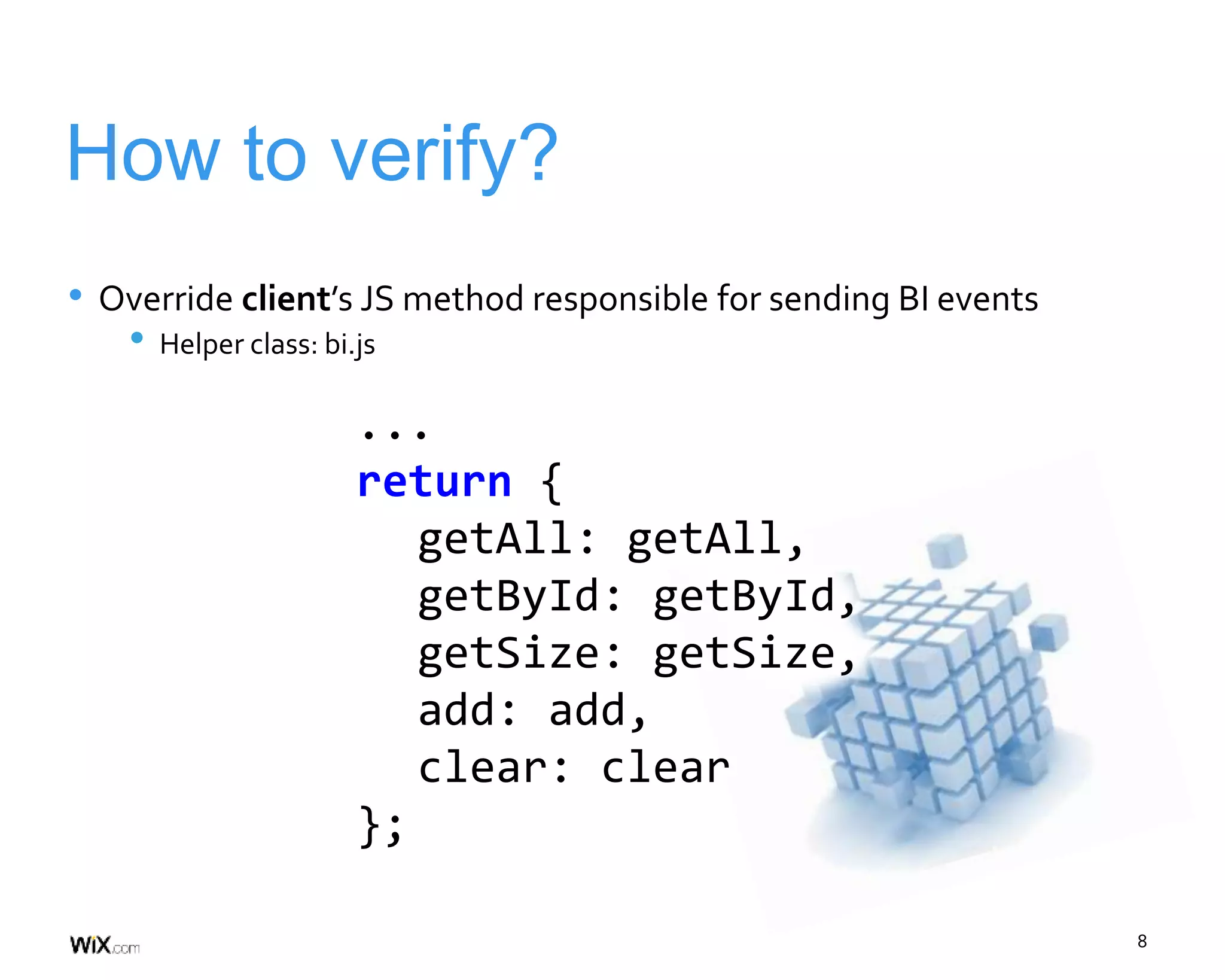

How to verify?
• Override client’s JS method responsible for sending BI events
• Helper class: bi.js
...
return {
getAll: getAll,
getById: getById,
getSize: getSize,
add: add,
clear: clear
};

9. 9

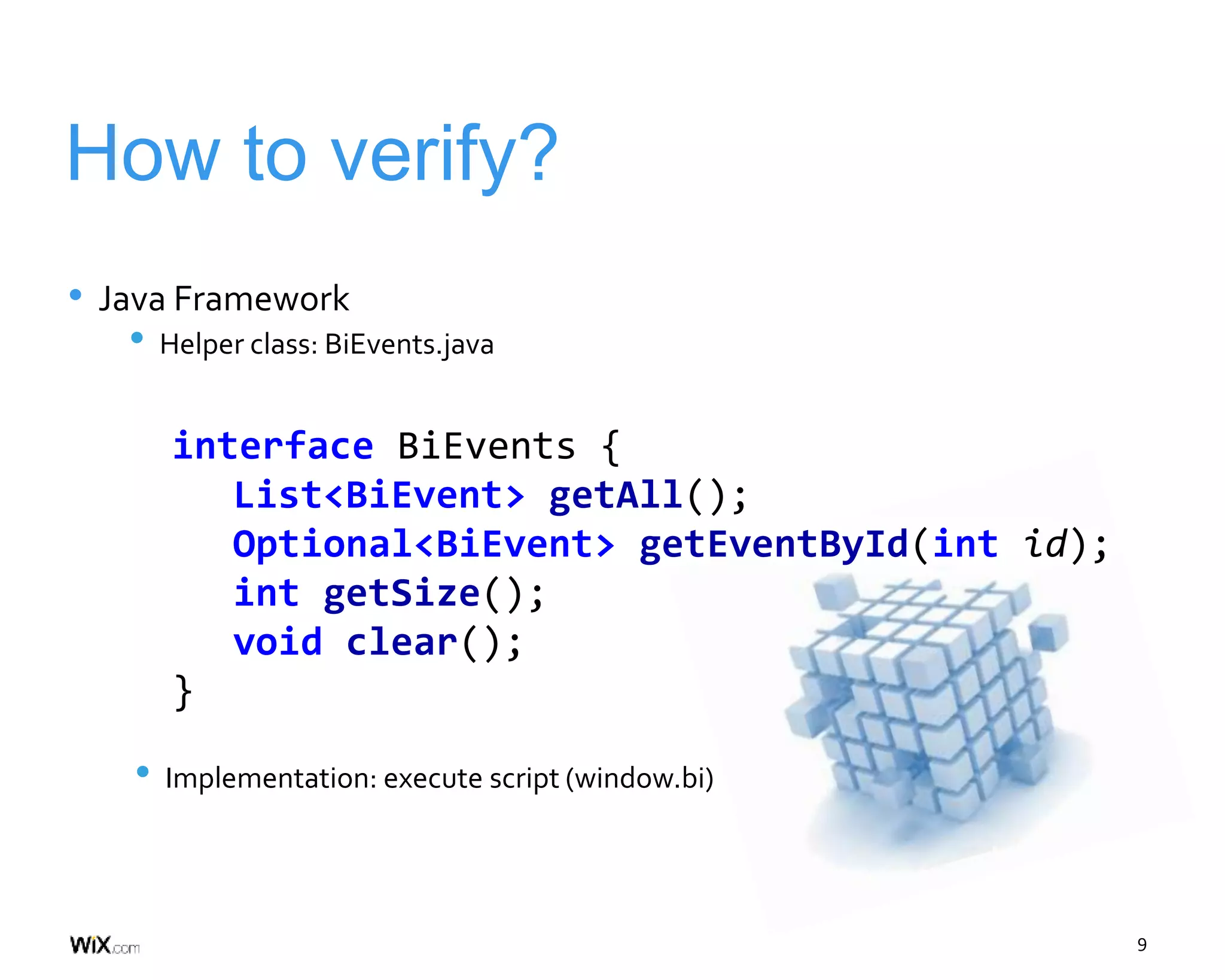

How to verify?
• Java Framework
• Helper class: BiEvents.java
• Implementation: execute script (window.bi)
interface BiEvents {
List<BiEvent> getAll();
Optional<BiEvent> getEventById(int id);
int getSize();
void clear();
}

10. 10

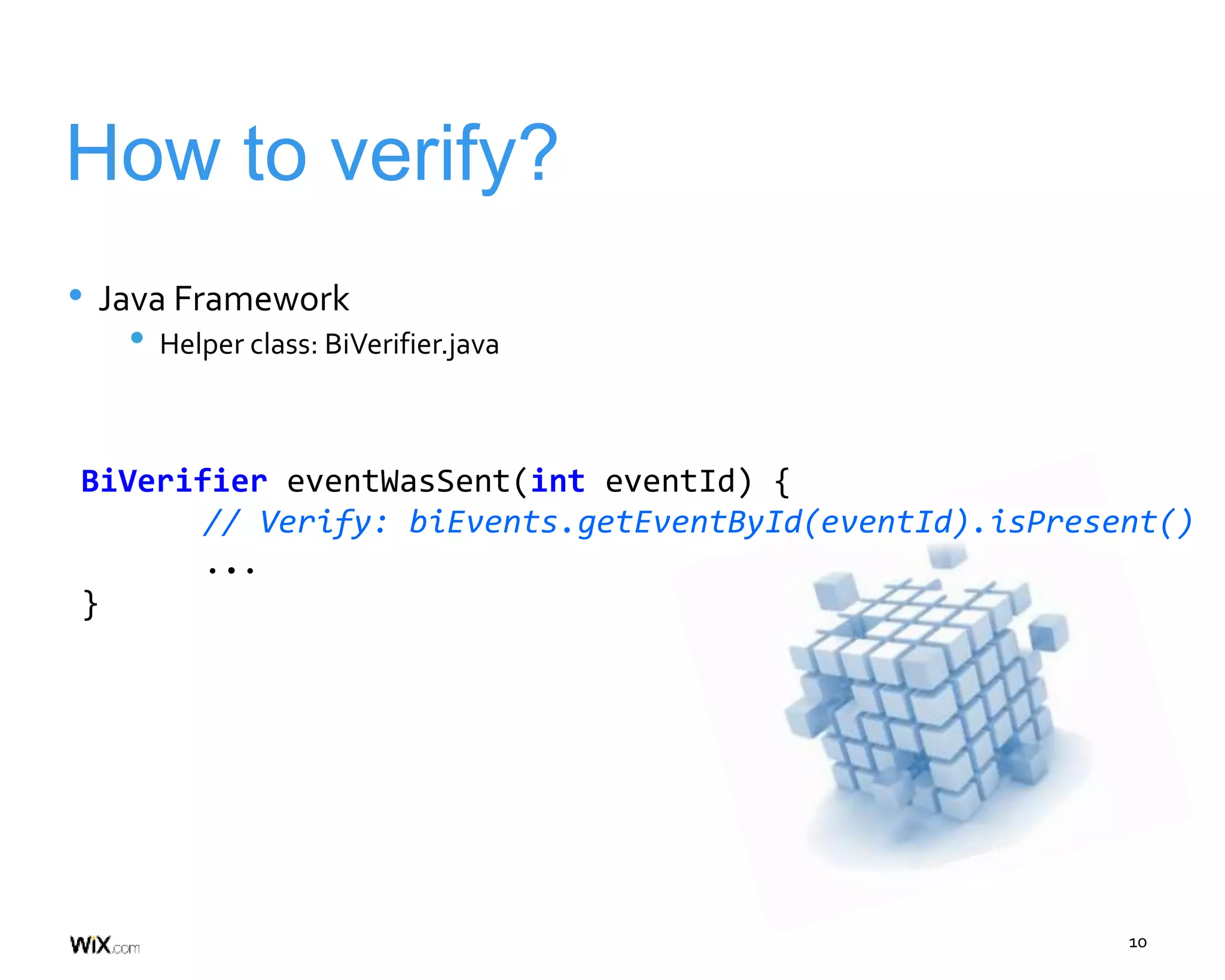

How to verify?
• Java Framework
• Helper class: BiVerifier.java
BiVerifier eventWasSent(int eventId) {
// Verify: biEvents.getEventById(eventId).isPresent()
...
}

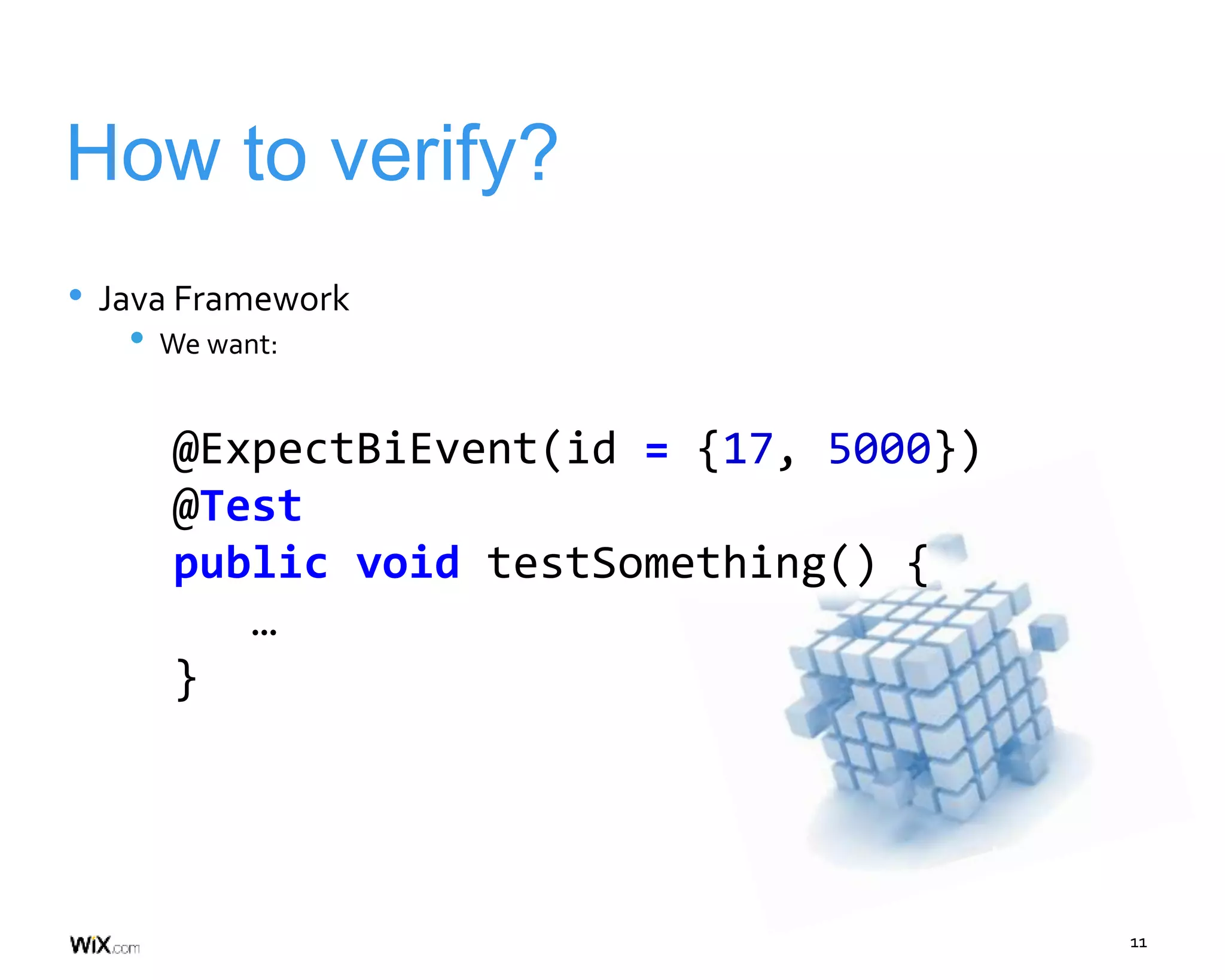

11. 11
How to verify?
• Java Framework
• We want:
@ExpectBiEvent(id = {17, 5000})
@Test
public void testSomething() {
…
}

12. 12

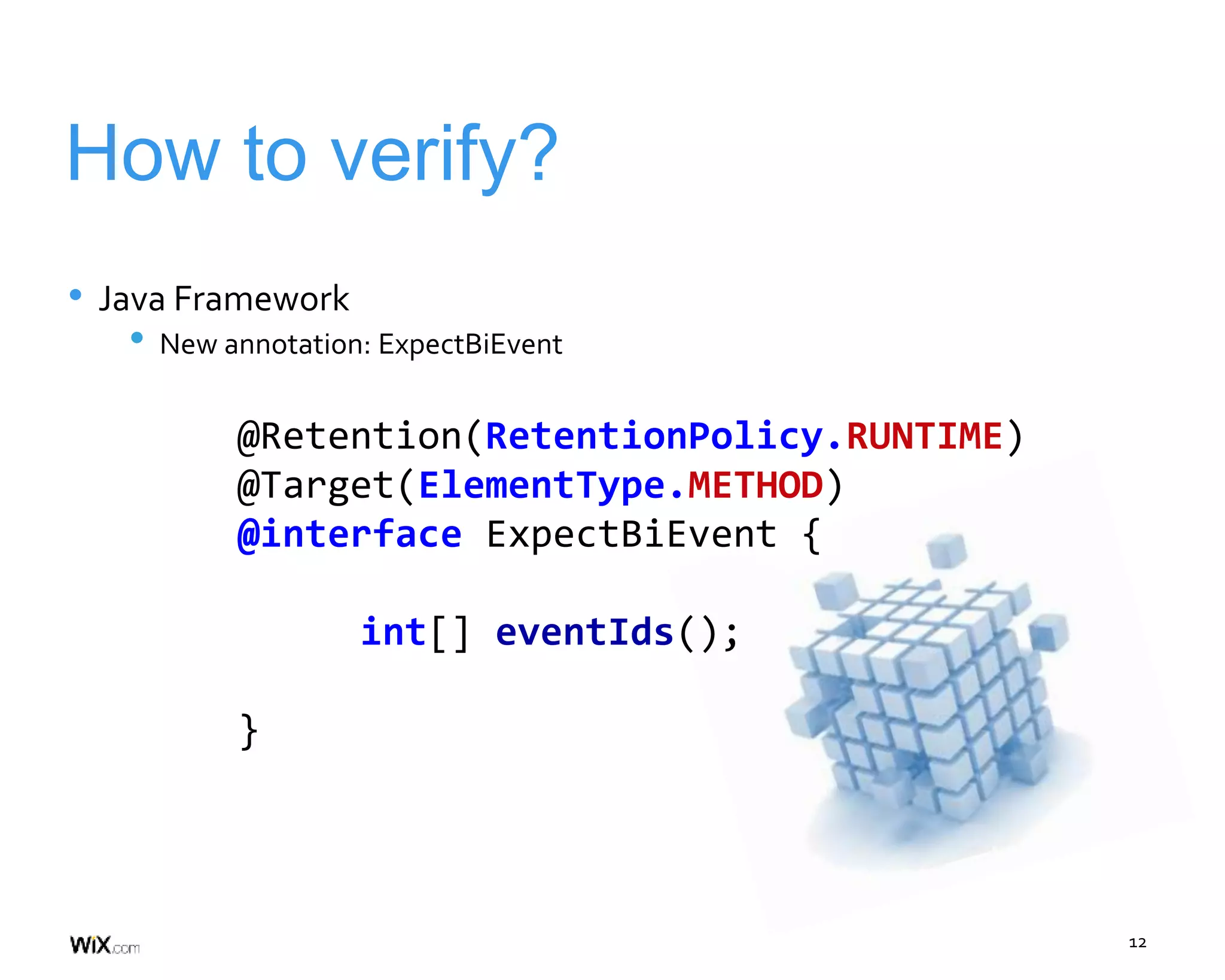

How to verify?
• Java Framework
• New annotation: ExpectBiEvent
@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.METHOD)
@interface ExpectBiEvent {
int[] eventIds();
}

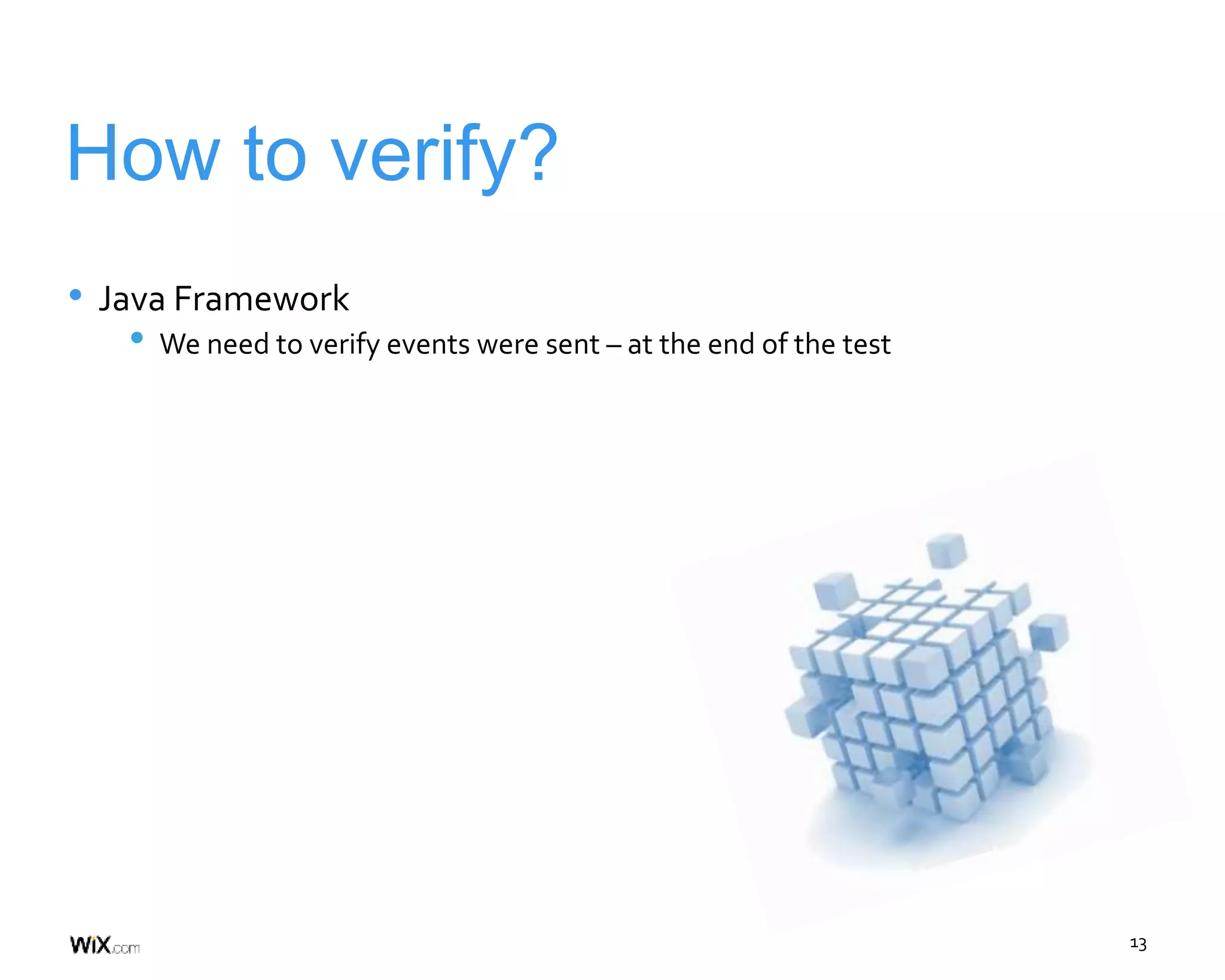

13. 13
How to verify?
• Java Framework
• We need to verify events were sent – at the end of the test

14. 14

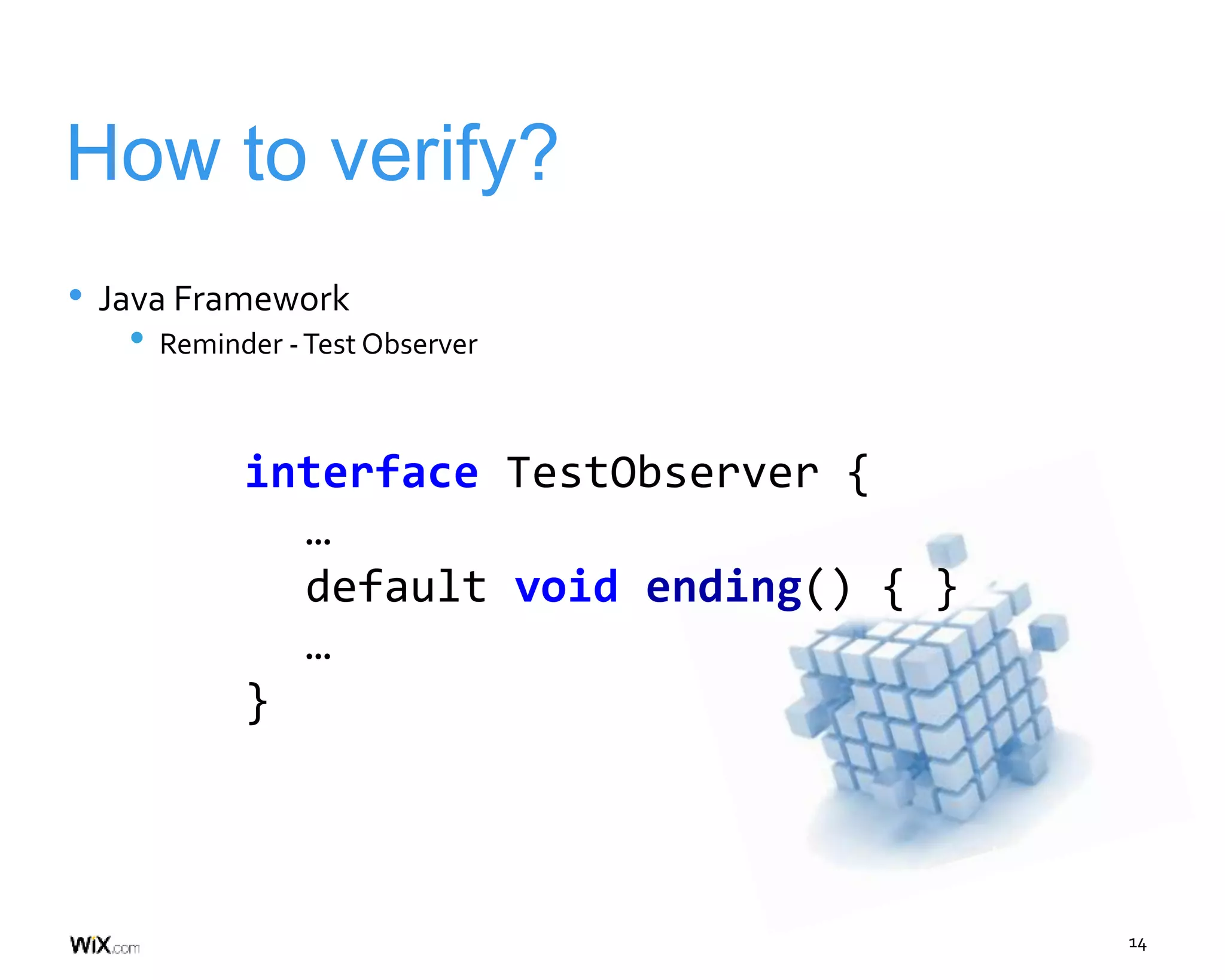

How to verify?
• Java Framework
• Reminder -Test Observer
interface TestObserver {
…
default void ending() { }
…
}

15. 15

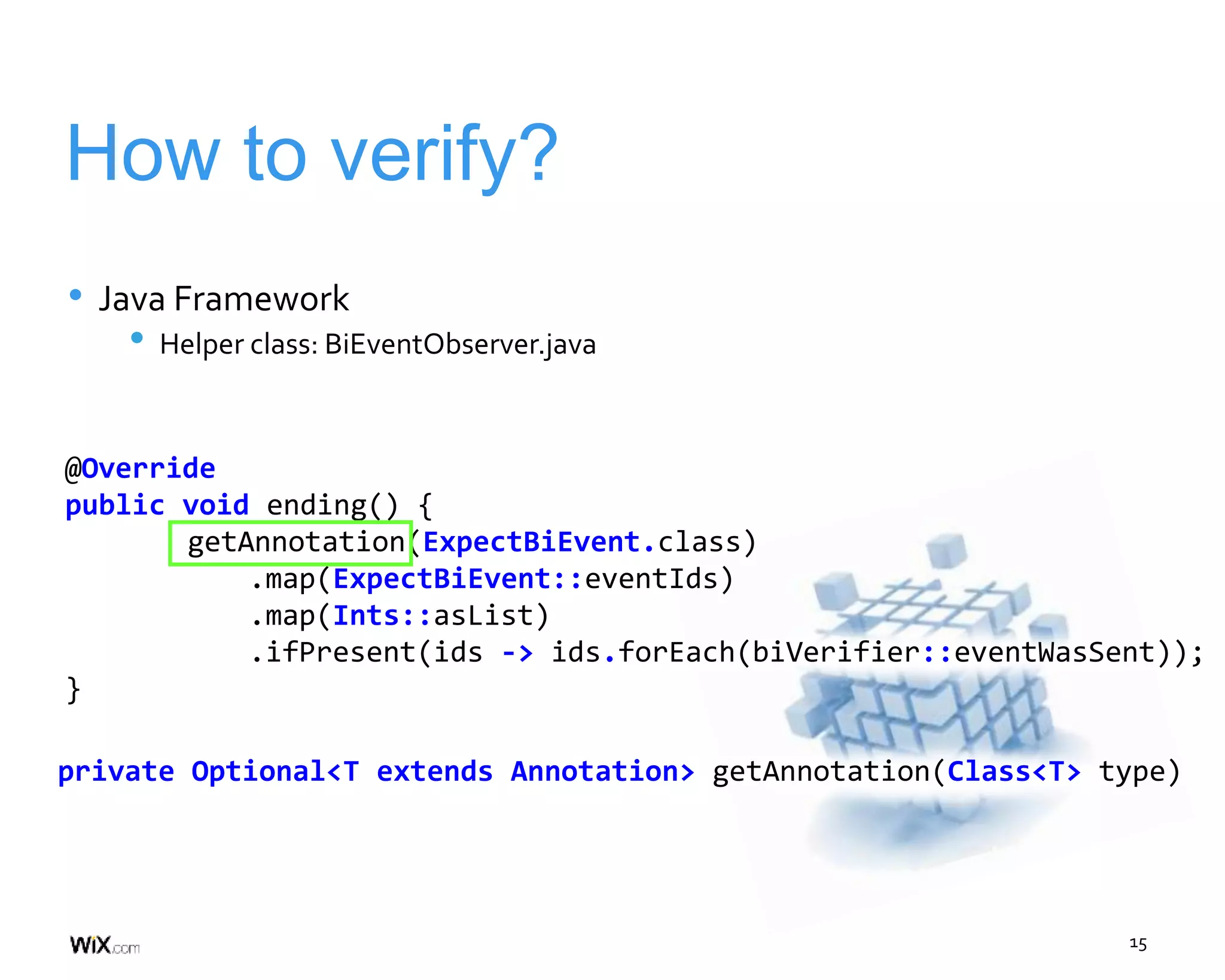

How to verify?
• Java Framework
• Helper class: BiEventObserver.java
private Optional<T extends Annotation> getAnnotation(Class<T> type)
@Override
public void ending() {
getAnnotation(ExpectBiEvent.class)
.map(ExpectBiEvent::eventIds)
.map(Ints::asList)
.ifPresent(ids -> ids.forEach(biVerifier::eventWasSent));
}

16. 16

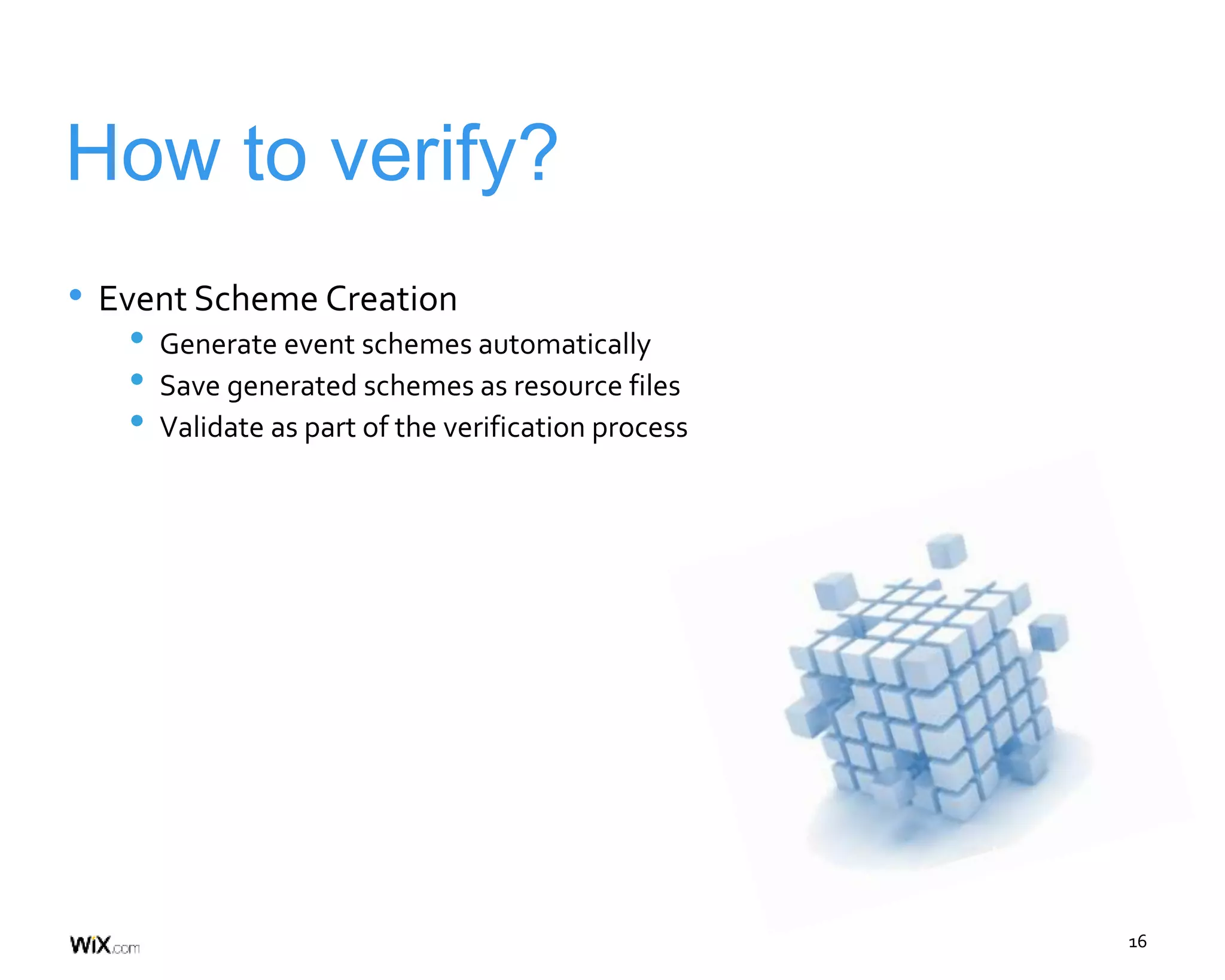

How to verify?
• Event Scheme Creation
• Generate event schemes automatically
• Save generated schemes as resource files
• Validate as part of the verification process

17. 17

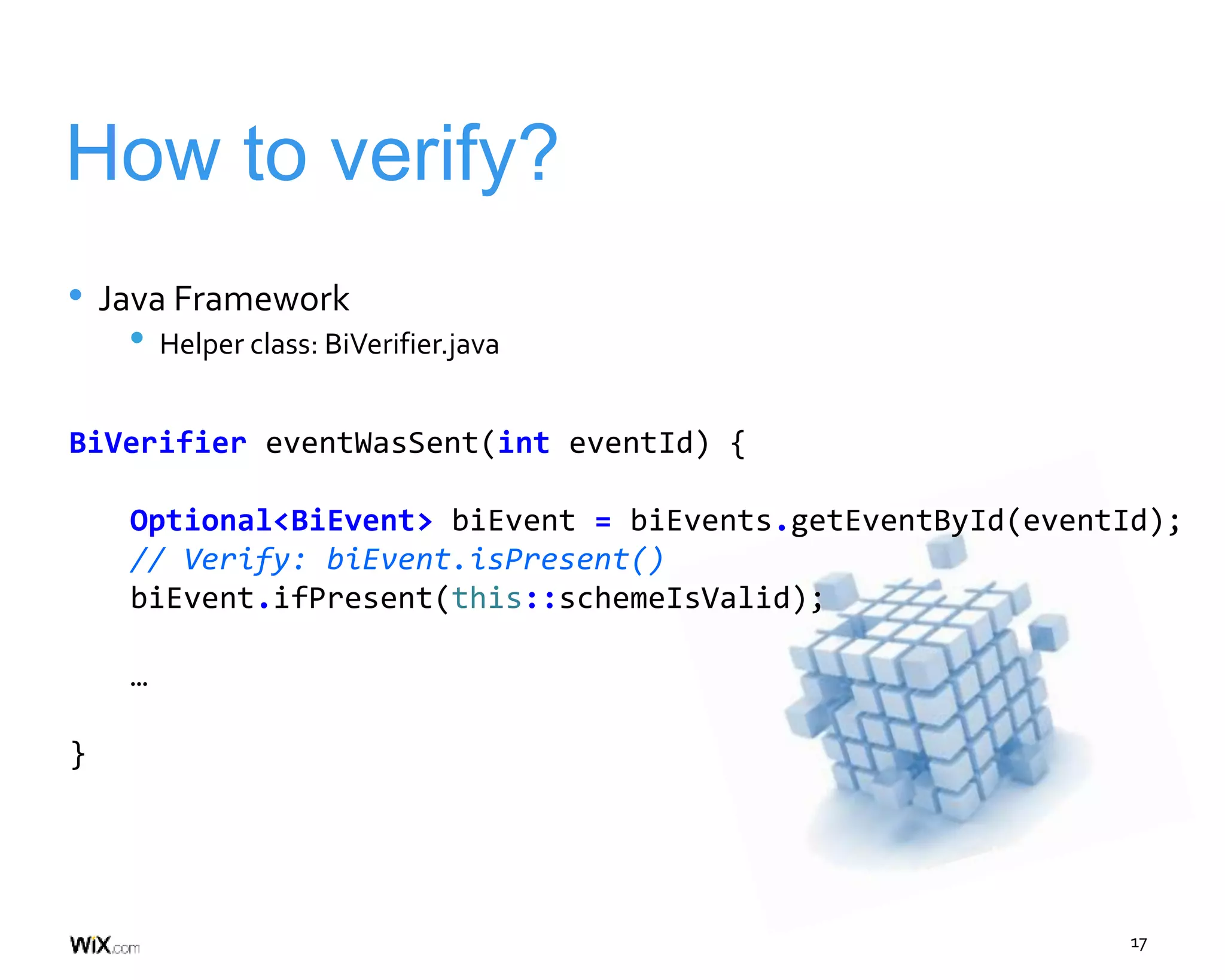

How to verify?
• Java Framework
• Helper class: BiVerifier.java
BiVerifier eventWasSent(int eventId) {
Optional<BiEvent> biEvent = biEvents.getEventById(eventId);
// Verify: biEvent.isPresent()
biEvent.ifPresent(this::schemeIsValid);
…
}

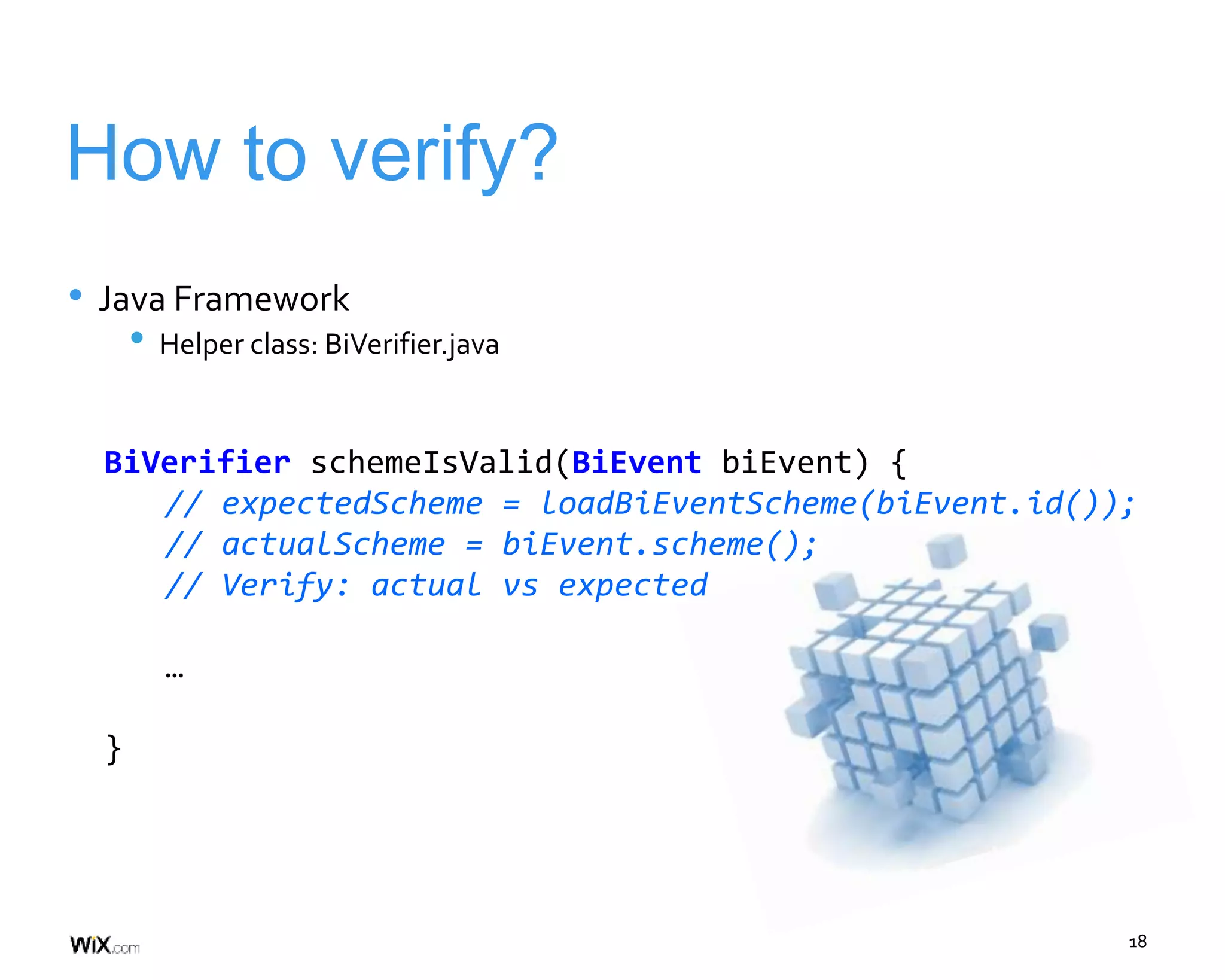

18. 18
How to verify?
• Java Framework
• Helper class: BiVerifier.java
BiVerifier schemeIsValid(BiEvent biEvent) {
// expectedScheme = loadBiEventScheme(biEvent.id());
// actualScheme = biEvent.scheme();
// Verify: actual vs expected
…
}

19. 19
Thank you!
Questions?
