The document outlines the architecture and functionality of a Wix editor automation framework, detailing methods for finding and interacting with DOM elements through various APIs and technologies such as Selenium and React.js. It discusses concepts surrounding element selection, wrapper functions for Selenium commands, and the handling of iframes within the editor. The document provides code examples for implementing these features effectively in the automation process.

1. 1
Wix Automation
Core
Roi Ashkenazi
Oded Gefen

2. 2
Introduction

3. 3
Introduction
Wix Editor

4. 4
Modeling DOM Elements

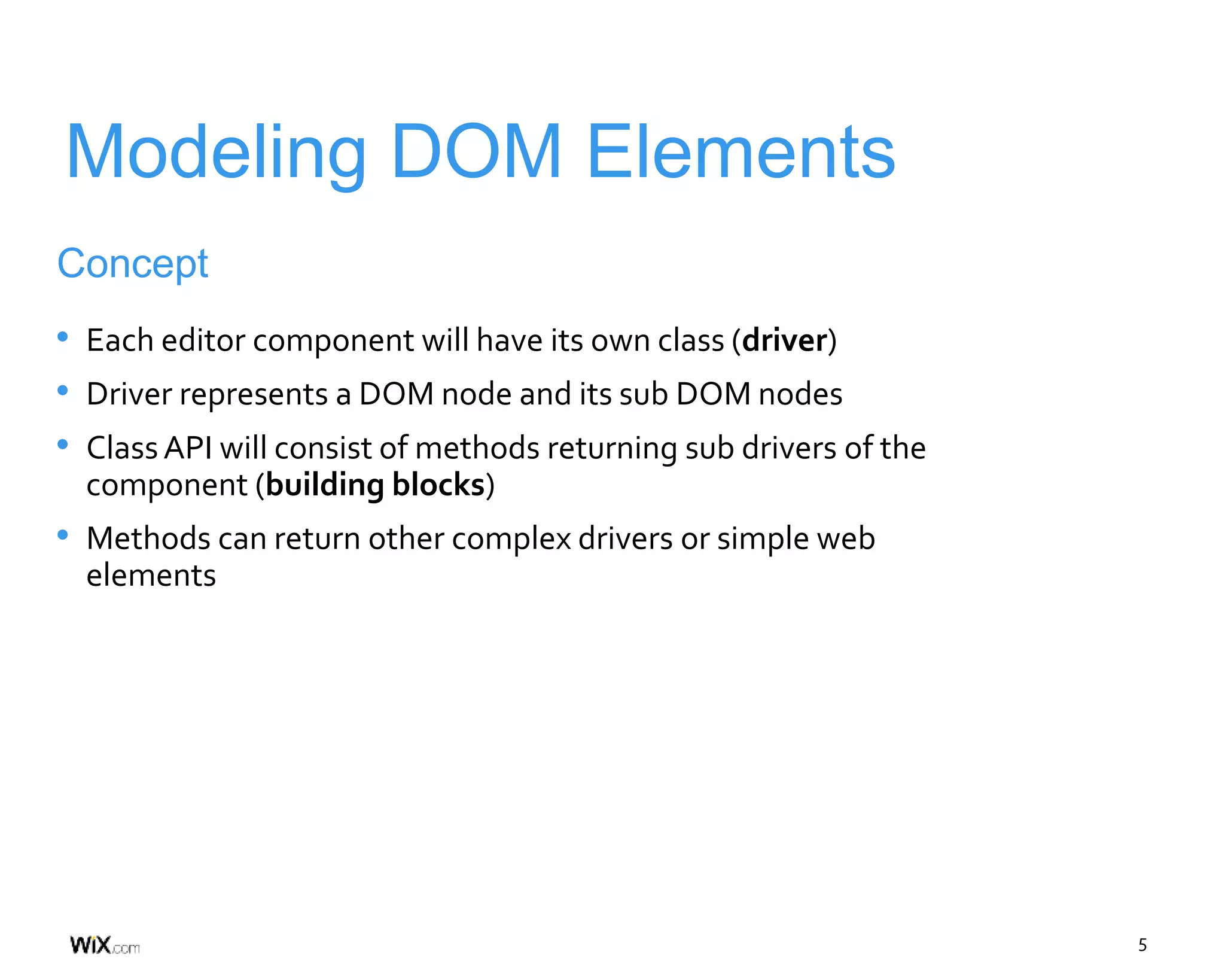

5. 5
Modeling DOM Elements
Concept
• Each editor component will have its own class (driver)
• Driver represents a DOM node and its sub DOM nodes
• ClassAPI will consist of methods returning sub drivers of the
component (building blocks)
• Methods can return other complex drivers or simple web
elements

6. 6
Finding Elements

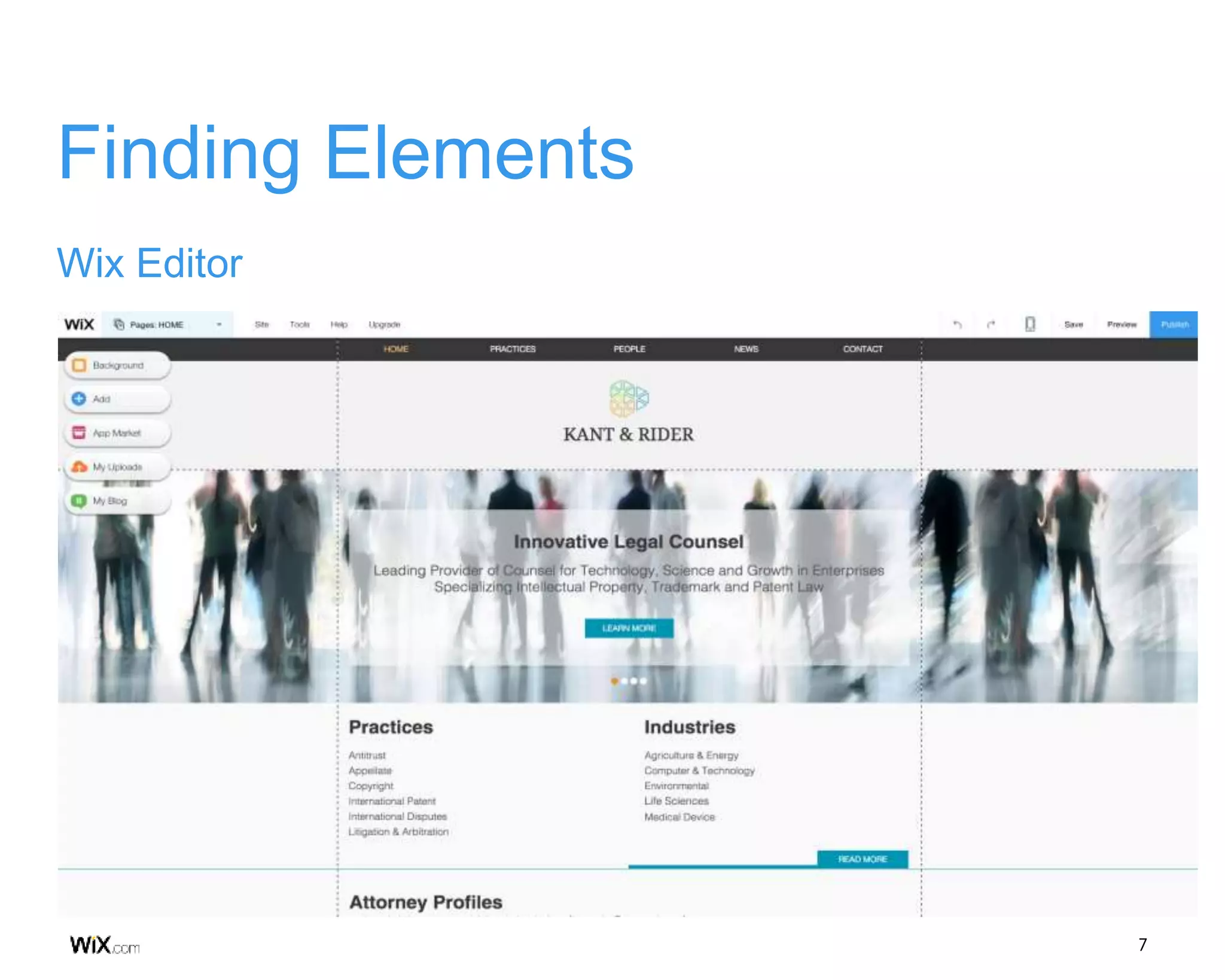

7. 7
Finding Elements
Wix Editor

8. 8

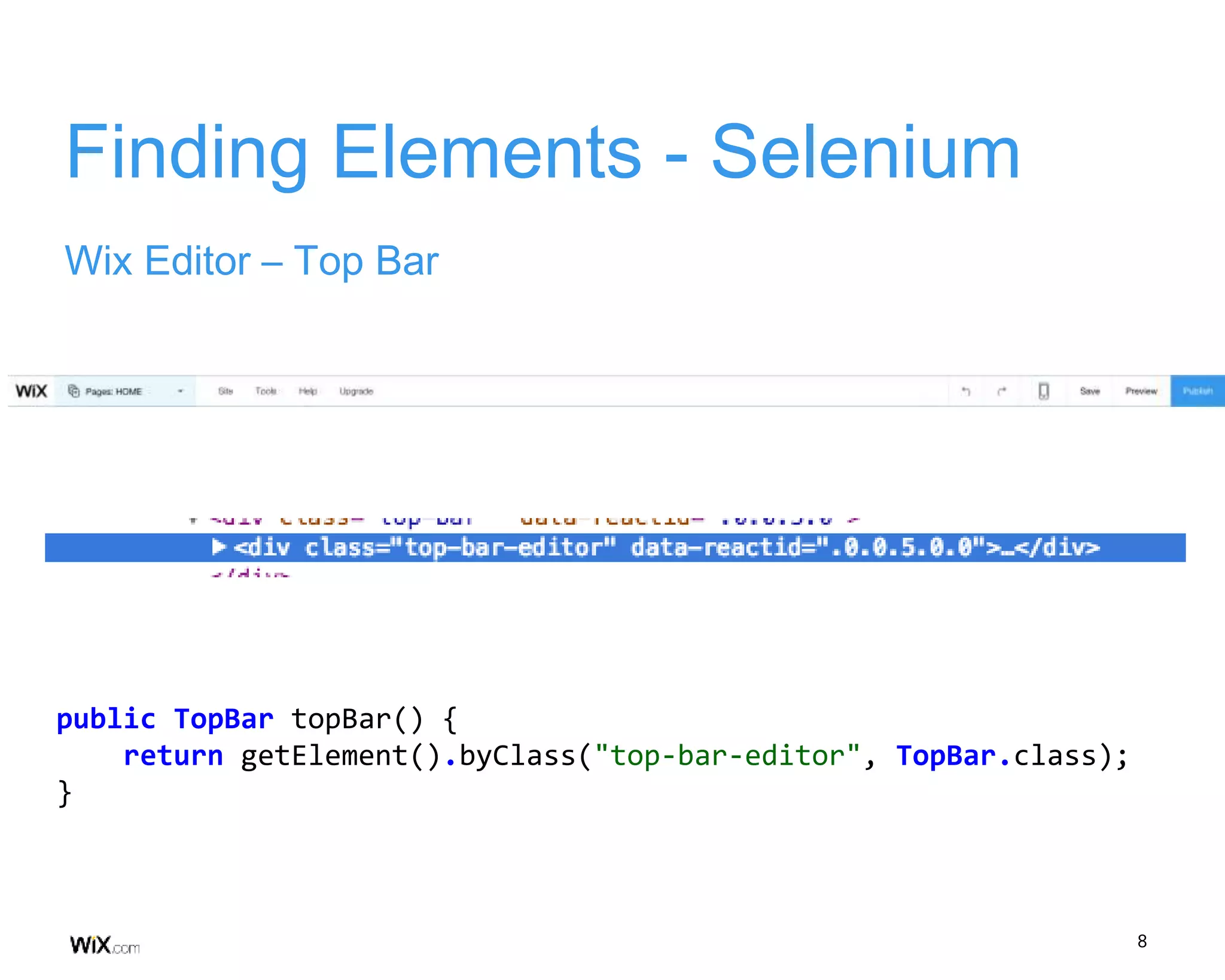

Finding Elements - Selenium
Wix Editor – Top Bar
public TopBar topBar() {
return getElement().byClass("top-bar-editor", TopBar.class);
}

9. 9

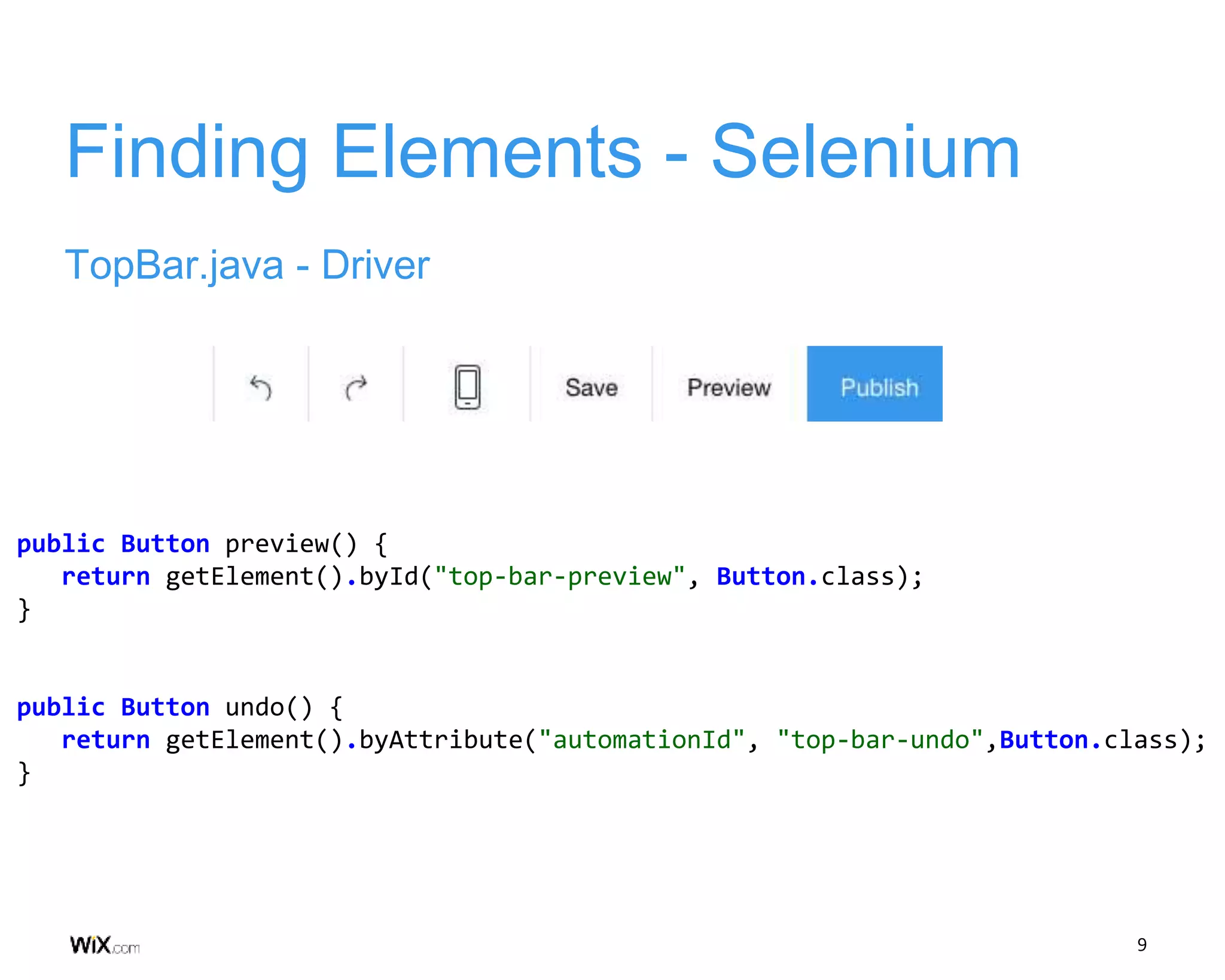

Finding Elements - Selenium
TopBar.java - Driver
public Button preview() {
return getElement().byId("top-bar-preview", Button.class);
}
public Button undo() {
return getElement().byAttribute("automationId", "top-bar-undo",Button.class);
}

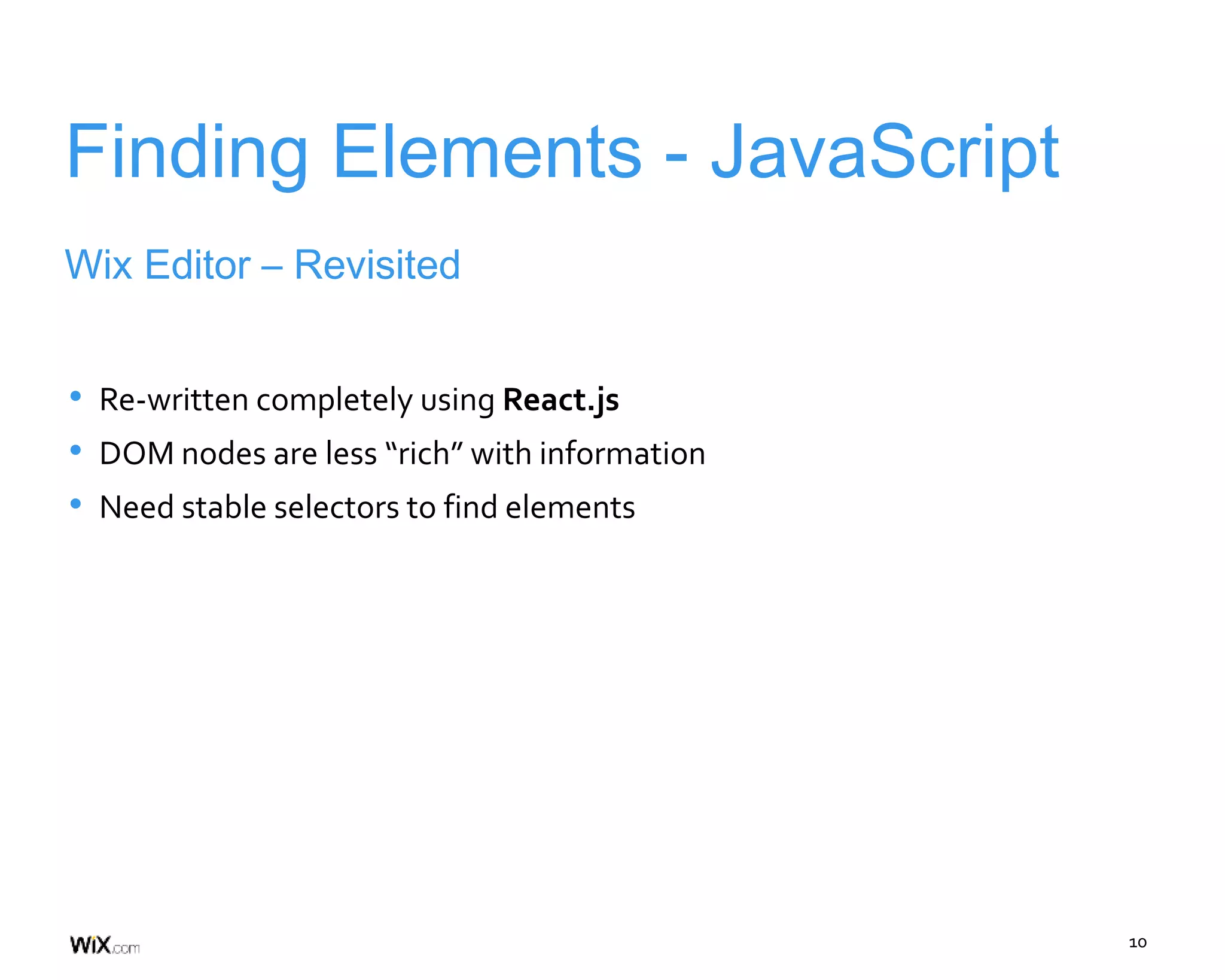

10. 10
Finding Elements - JavaScript
• Re-written completely using React.js
• DOM nodes are less “rich” with information
• Need stable selectors to find elements
Wix Editor – Revisited

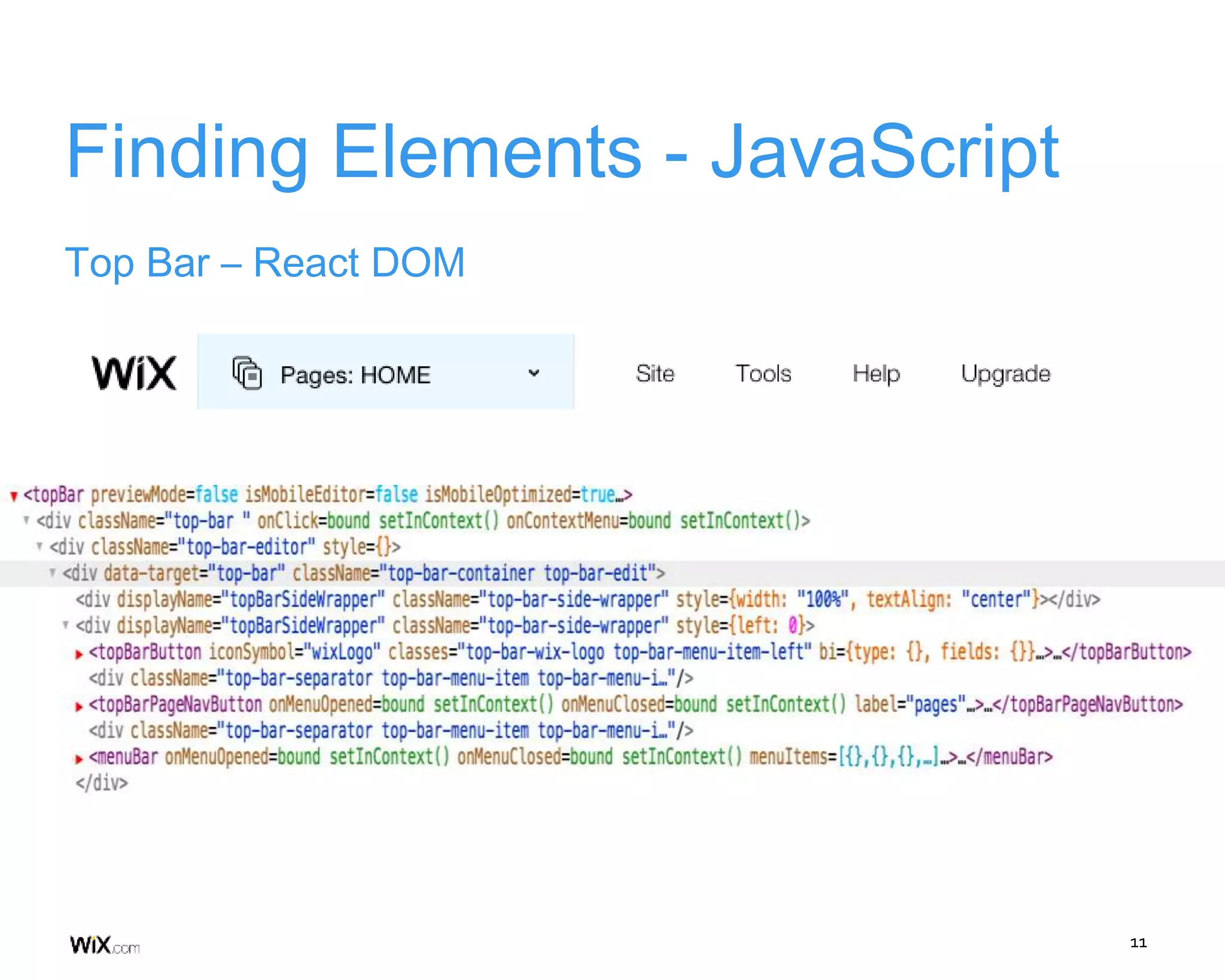

11. 11
Finding Elements - JavaScript
Top Bar – React DOM

12. 12

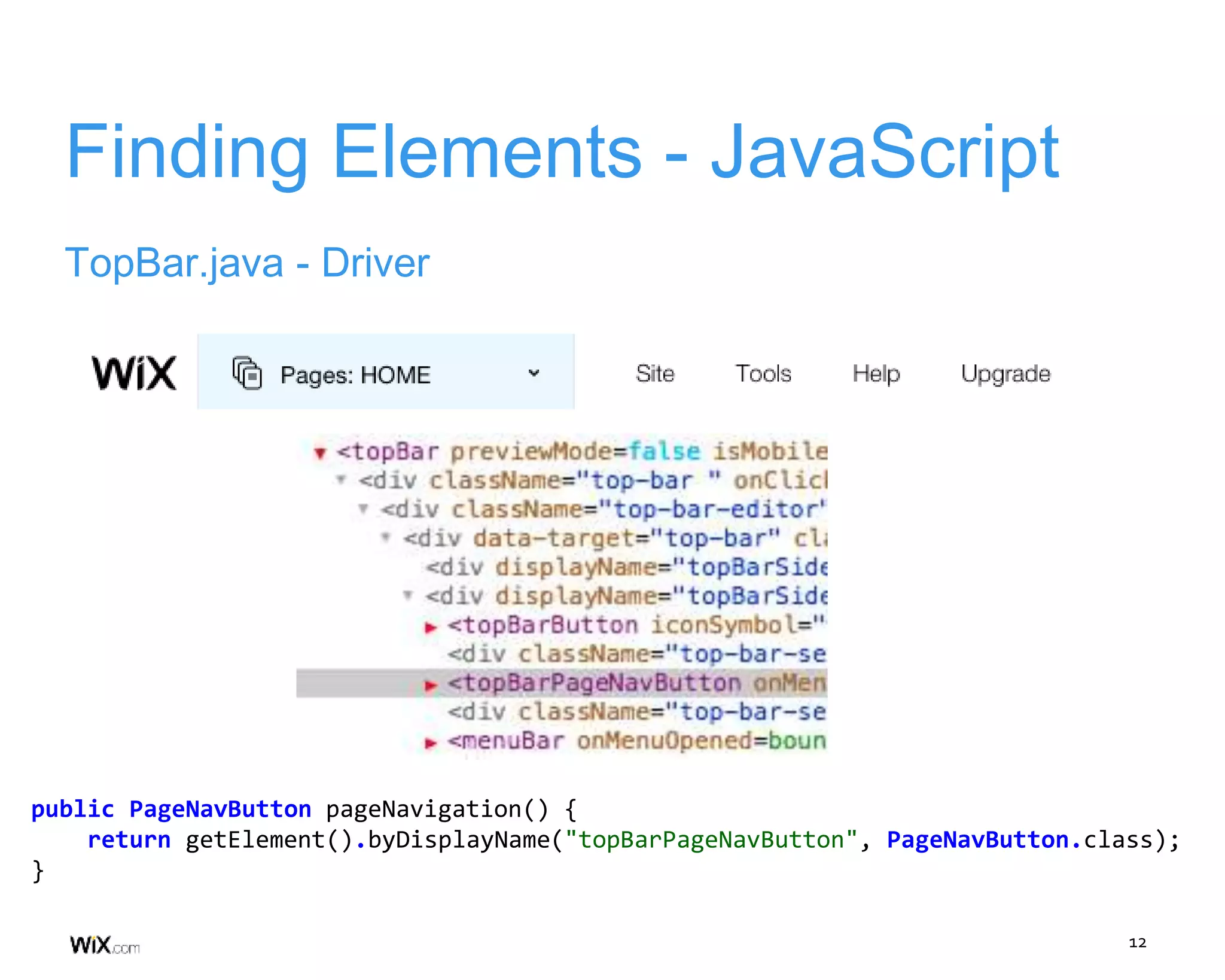

Finding Elements - JavaScript
TopBar.java - Driver
public PageNavButton pageNavigation() {
return getElement().byDisplayName("topBarPageNavButton", PageNavButton.class);
}

13. 13
Finding Elements - Core

14. 14

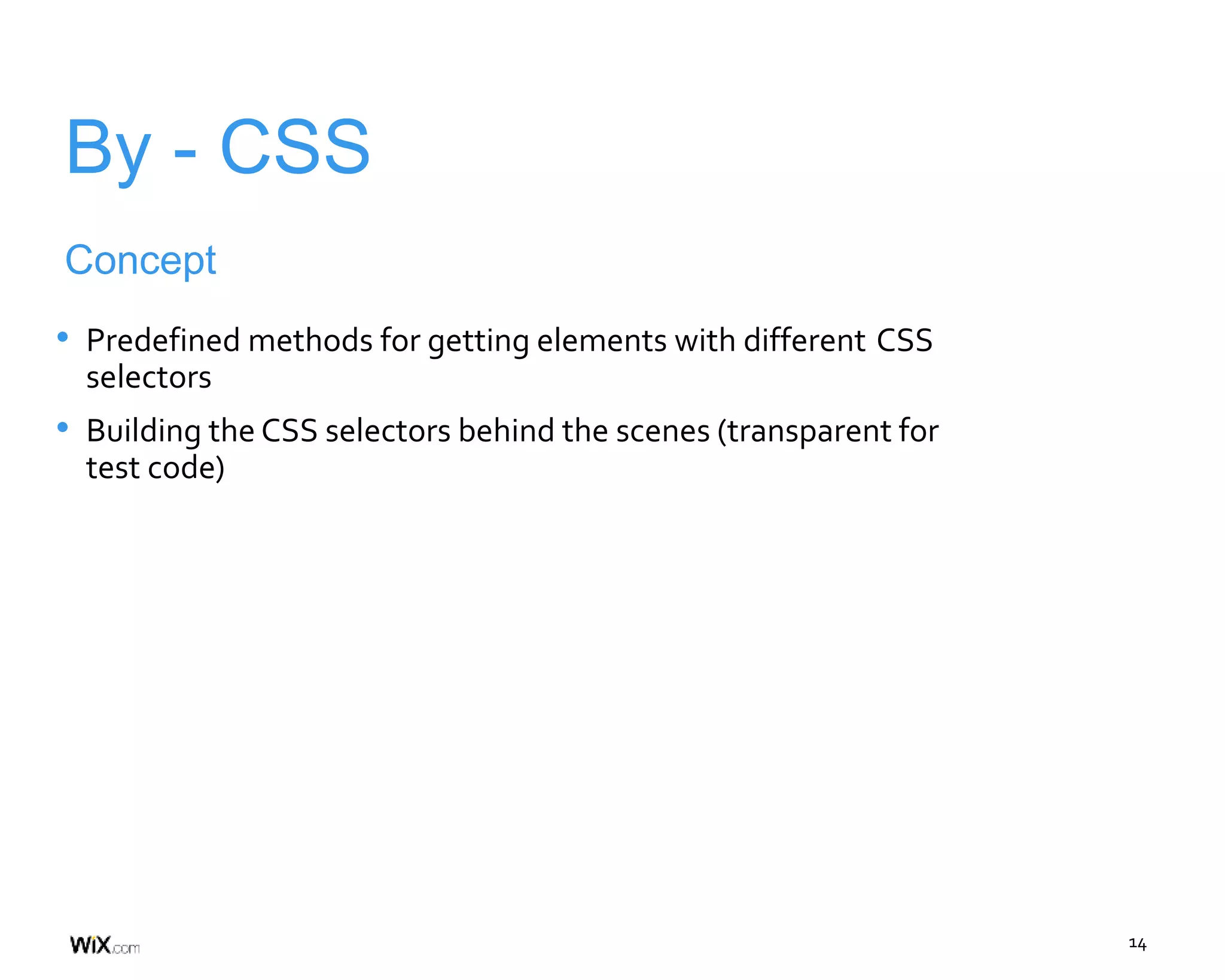

By - CSS
Concept
• Predefined methods for getting elements with different CSS
selectors
• Building the CSS selectors behind the scenes (transparent for
test code)

15. 15

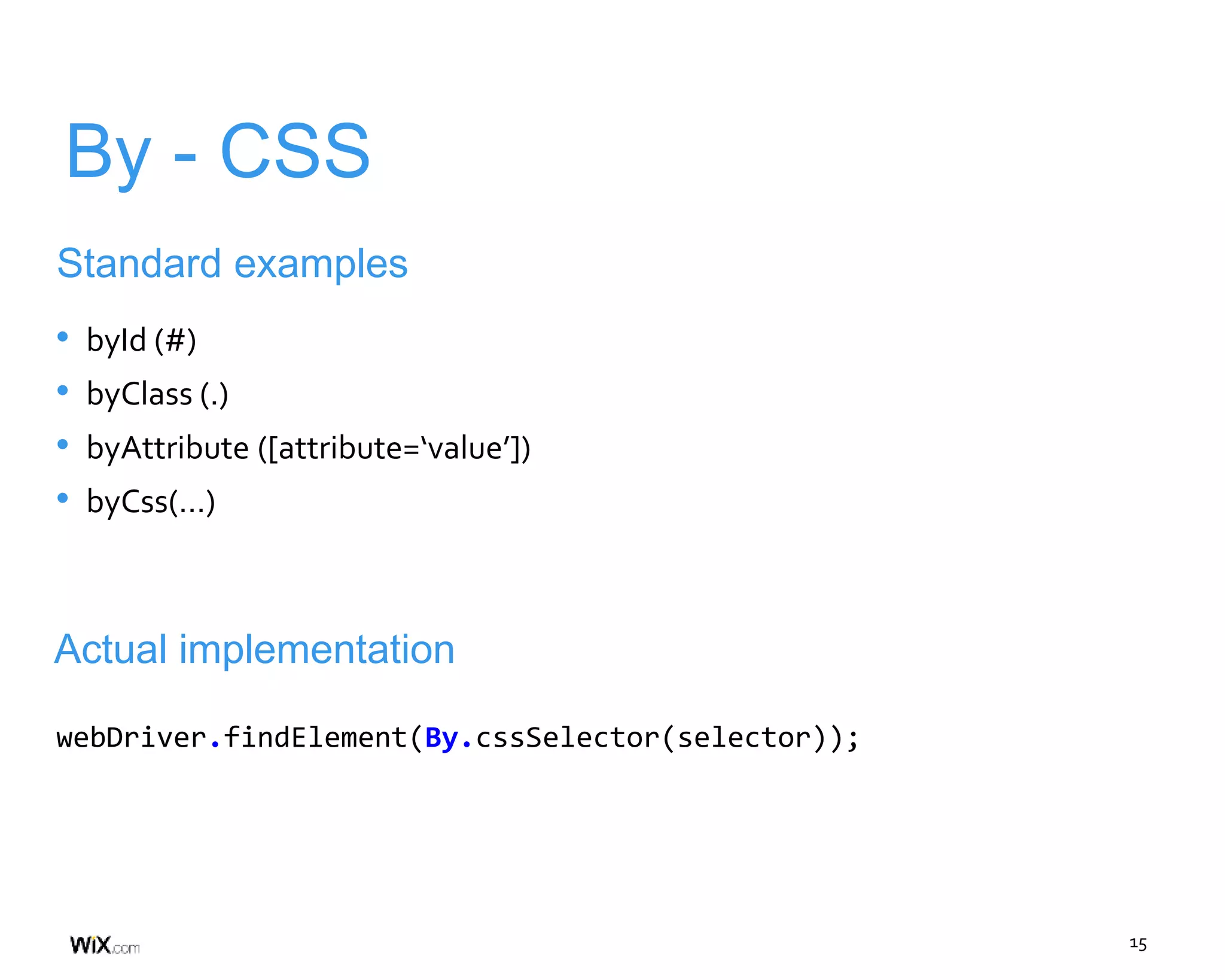

By - CSS
Standard examples
• byId (#)
• byClass (.)
• byAttribute ([attribute=‘value’])
• byCss(…)
Actual implementation
webDriver.findElement(By.cssSelector(selector));

16. 16

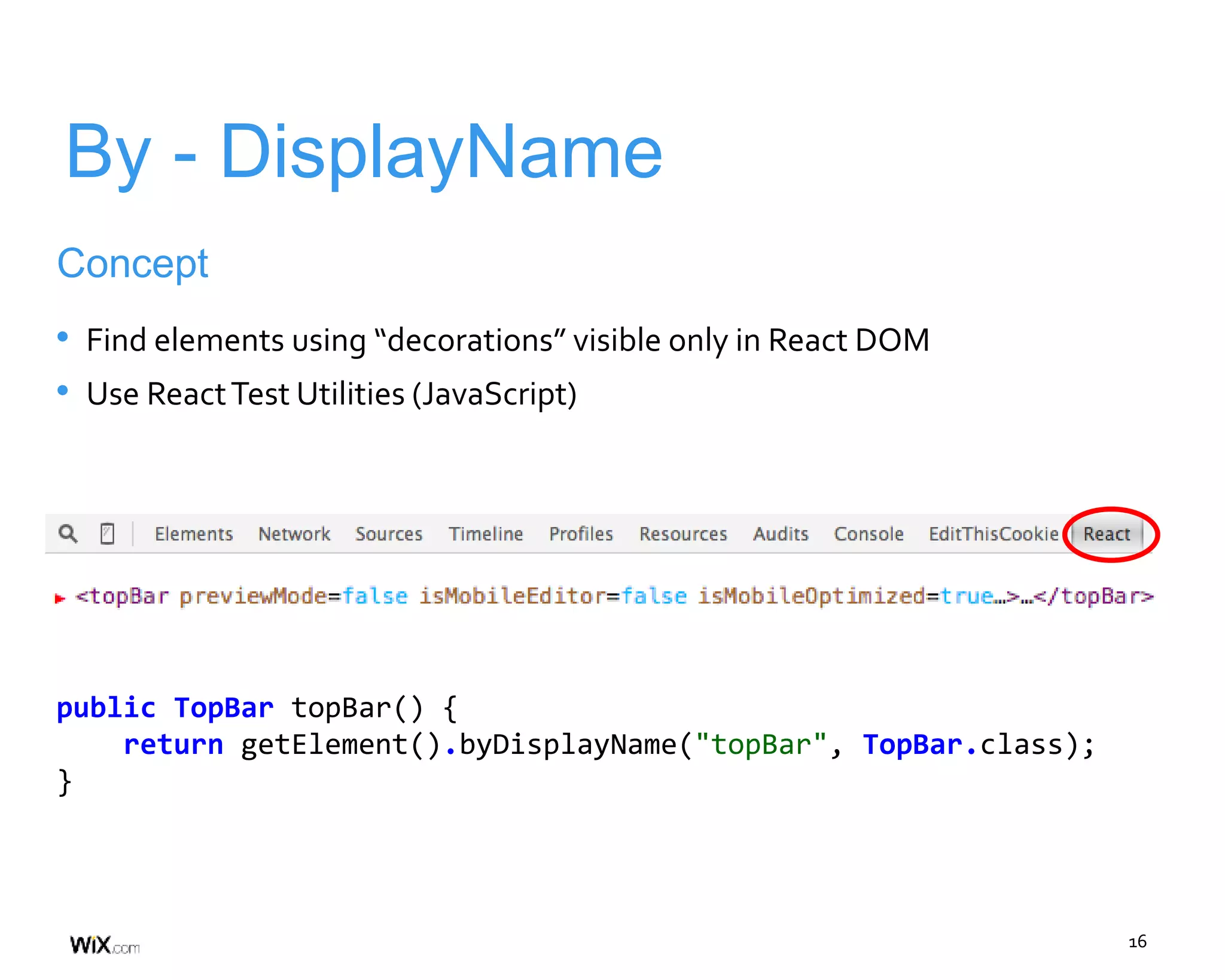

By - DisplayName
Concept
• Find elements using “decorations” visible only in React DOM
• Use ReactTest Utilities (JavaScript)
public TopBar topBar() {
return getElement().byDisplayName("topBar", TopBar.class);
}

17. 17

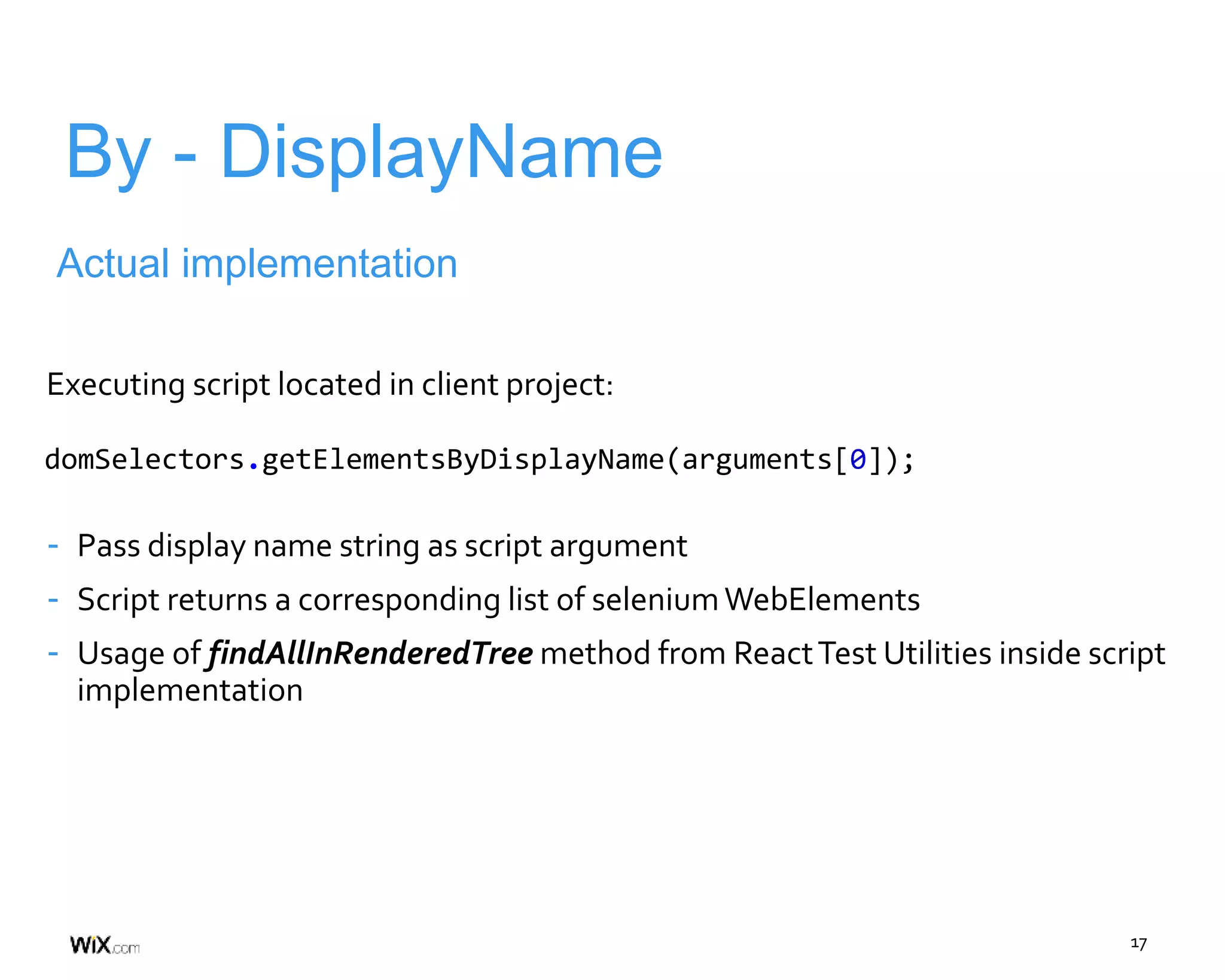

By - DisplayName
Actual implementation
Executing script located in client project:
- Pass display name string as script argument
- Script returns a corresponding list of seleniumWebElements
- Usage of findAllInRenderedTree method from ReactTest Utilities inside script
implementation
domSelectors.getElementsByDisplayName(arguments[0]);

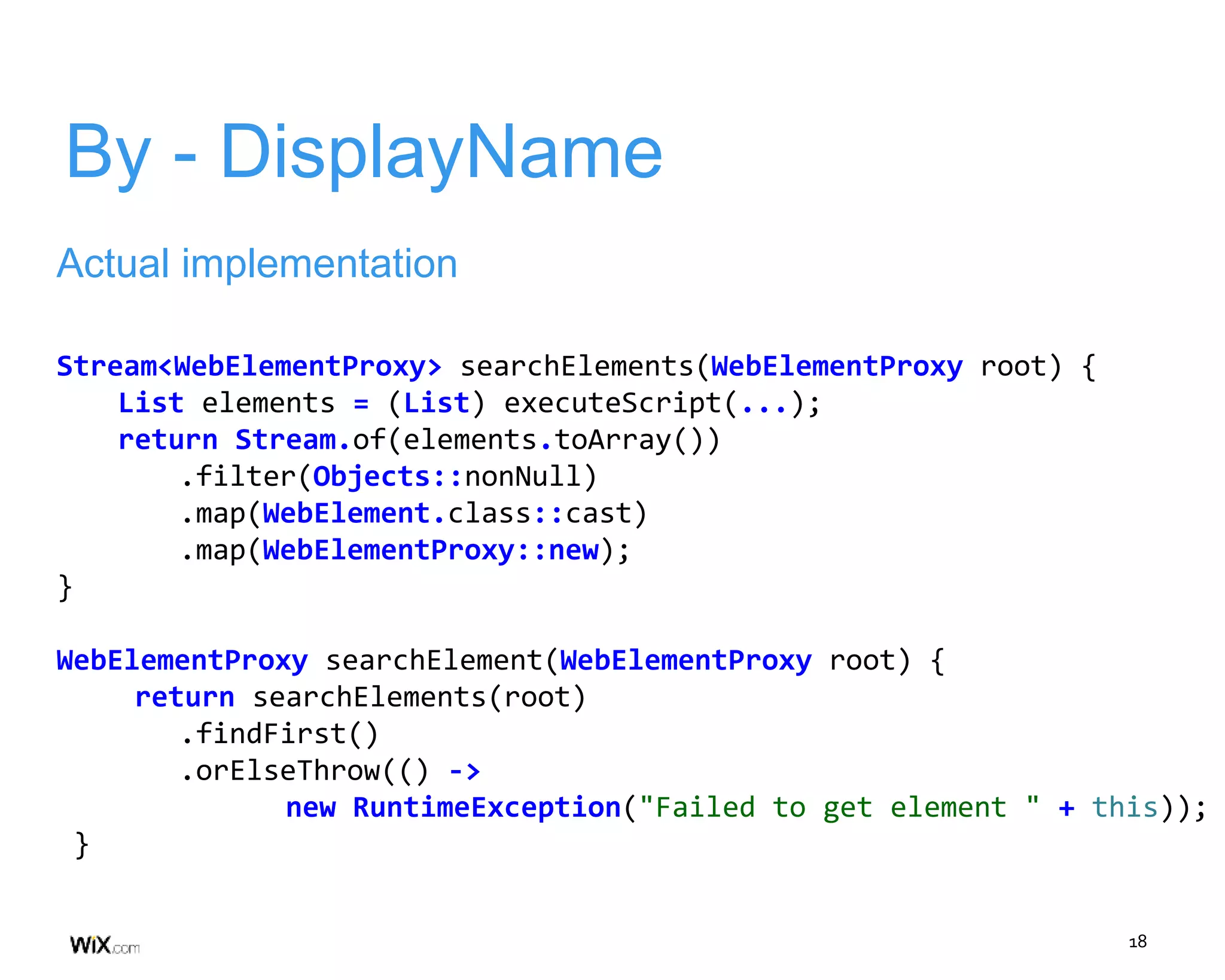

18. 18
By - DisplayName
Actual implementation
Stream<WebElementProxy> searchElements(WebElementProxy root) {
List elements = (List) executeScript(...);
return Stream.of(elements.toArray())
.filter(Objects::nonNull)
.map(WebElement.class::cast)
.map(WebElementProxy::new);
}
WebElementProxy searchElement(WebElementProxy root) {
return searchElements(root)
.findFirst()
.orElseThrow(() ->
new RuntimeException("Failed to get element " + this));
}

19. 19
Wrapping Native Selenium

20. 20
Wrapping Native Selenium
Concept
Wrapping useful selenium commands in our infrastructure
• Allows to change behavior of basic commands (e.g. wait after
click)
• Combine several actions together and create new actions (drag
and drop)
• Add smart waits instead of sleep

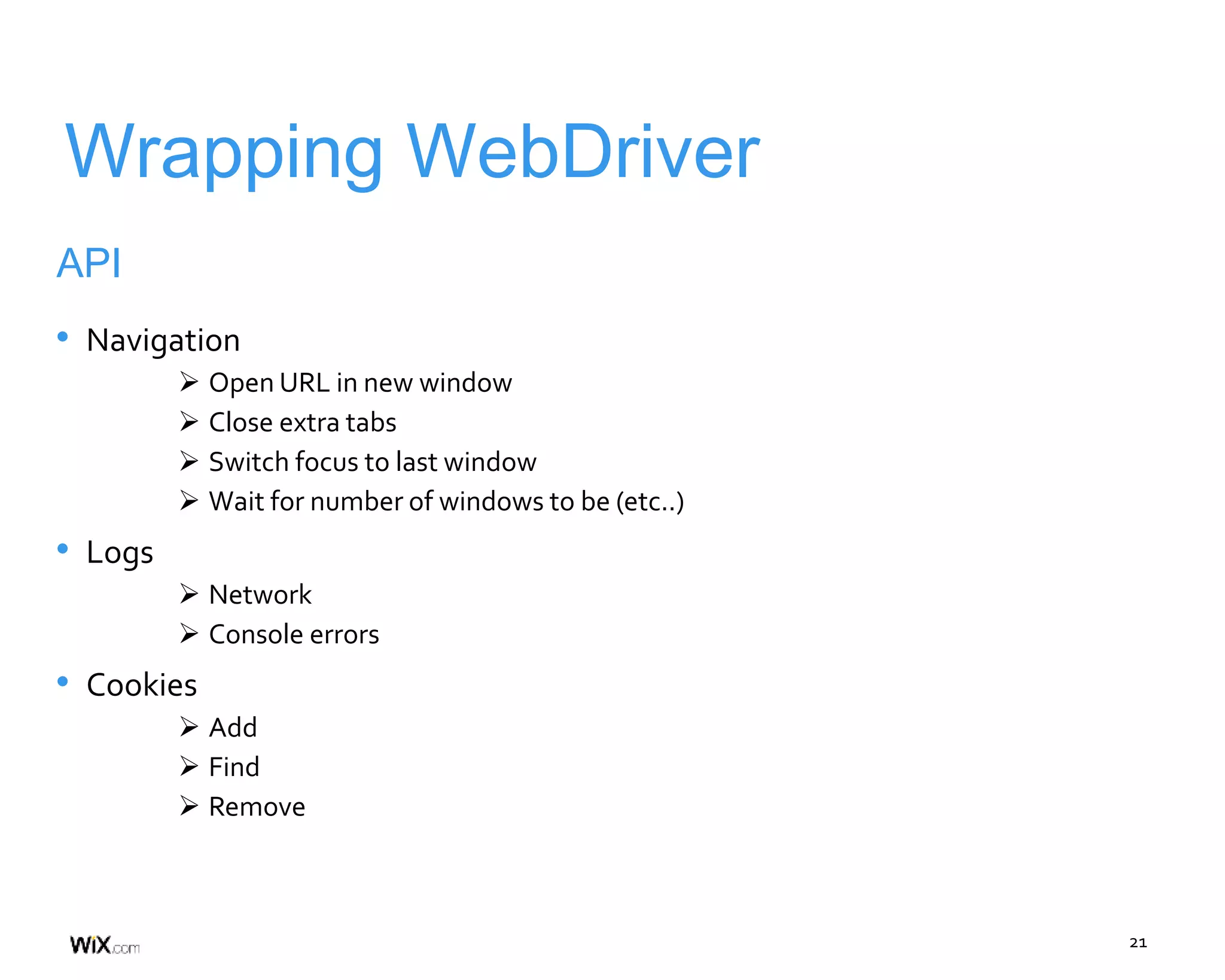

21. 21
Wrapping WebDriver
API
• Navigation
 Open URL in new window
 Close extra tabs
 Switch focus to last window
 Wait for number of windows to be (etc..)
• Logs
 Network
 Console errors
• Cookies
 Add
 Find
 Remove

22. 22
Wrapping WebDriver
API
• Navigation
 Open URL in new window
 Close extra tabs
 Switch focus to last window
 Wait for number of windows to be (etc..)
• Logs
 Network
 Console errors
• Cookies
 Add
 Find
 Remove

23. 23

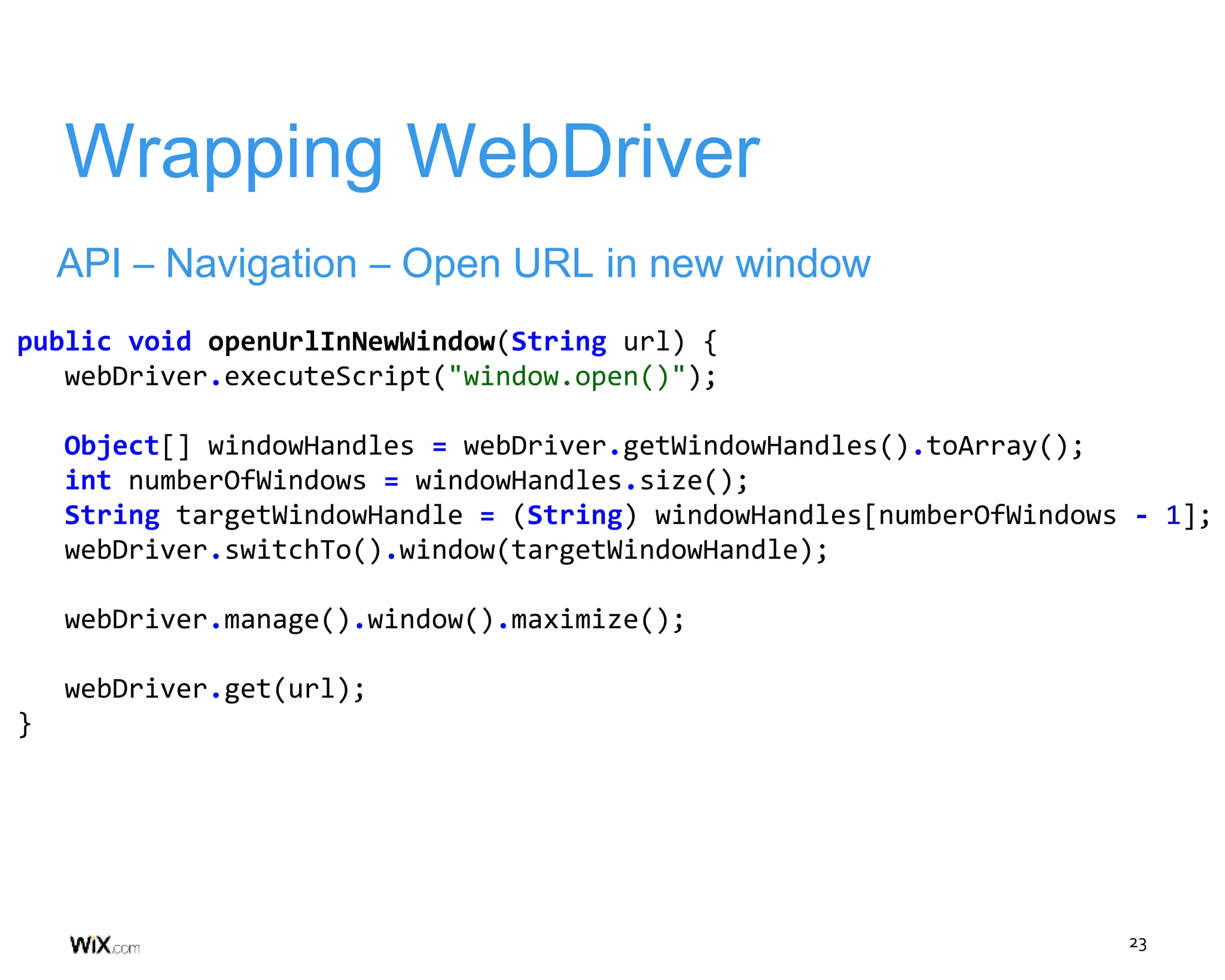

Wrapping WebDriver
API – Navigation – Open URL in new window
public void openUrlInNewWindow(String url) {
webDriver.executeScript("window.open()");
Object[] windowHandles = webDriver.getWindowHandles().toArray();
int numberOfWindows = windowHandles.size();
String targetWindowHandle = (String) windowHandles[numberOfWindows - 1];
webDriver.switchTo().window(targetWindowHandle);
webDriver.manage().window().maximize();
webDriver.get(url);
}

24. 24

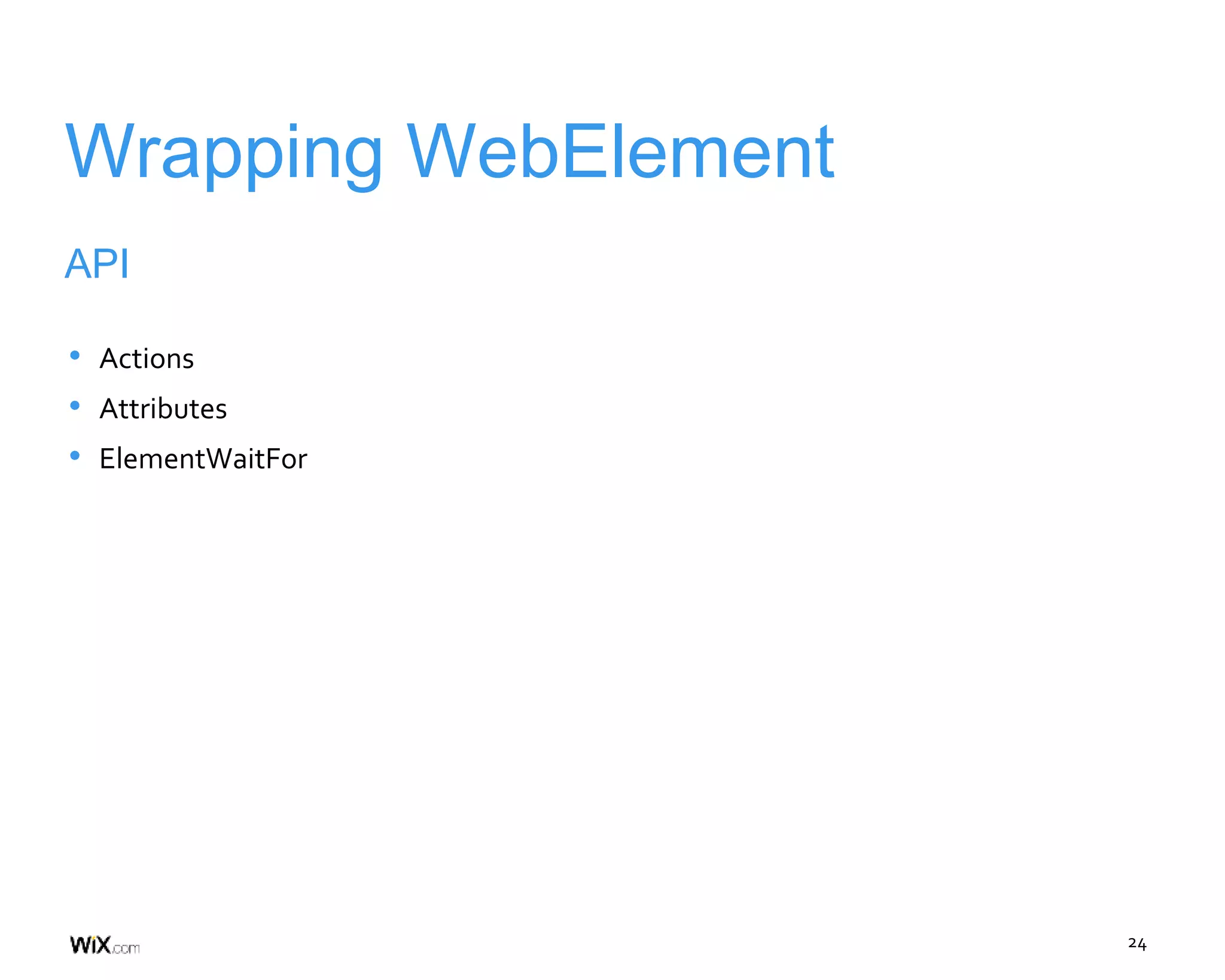

Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

25. 25
Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

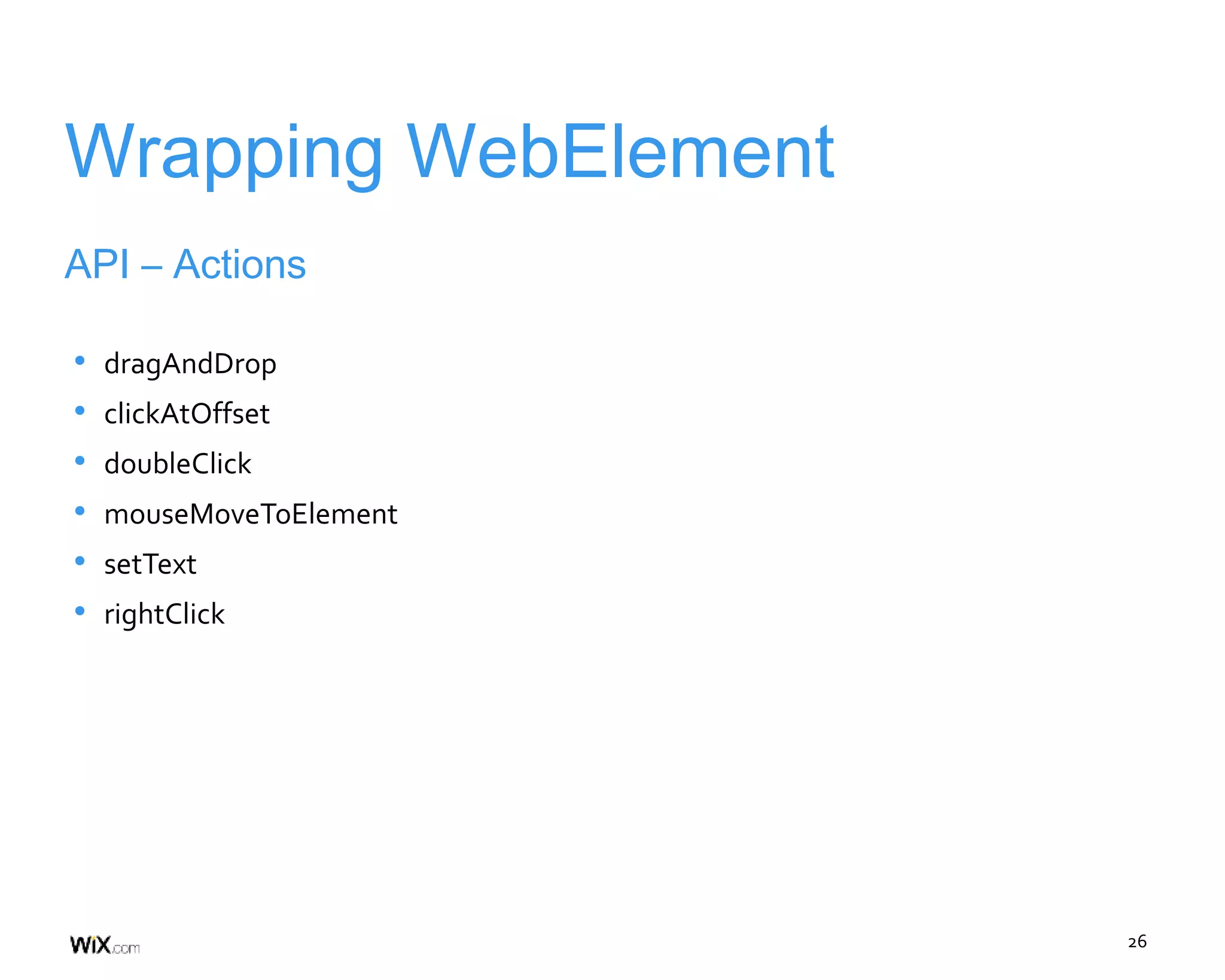

26. 26
Wrapping WebElement
API – Actions
• dragAndDrop
• clickAtOffset
• doubleClick
• mouseMoveToElement
• setText
• rightClick

27. 27

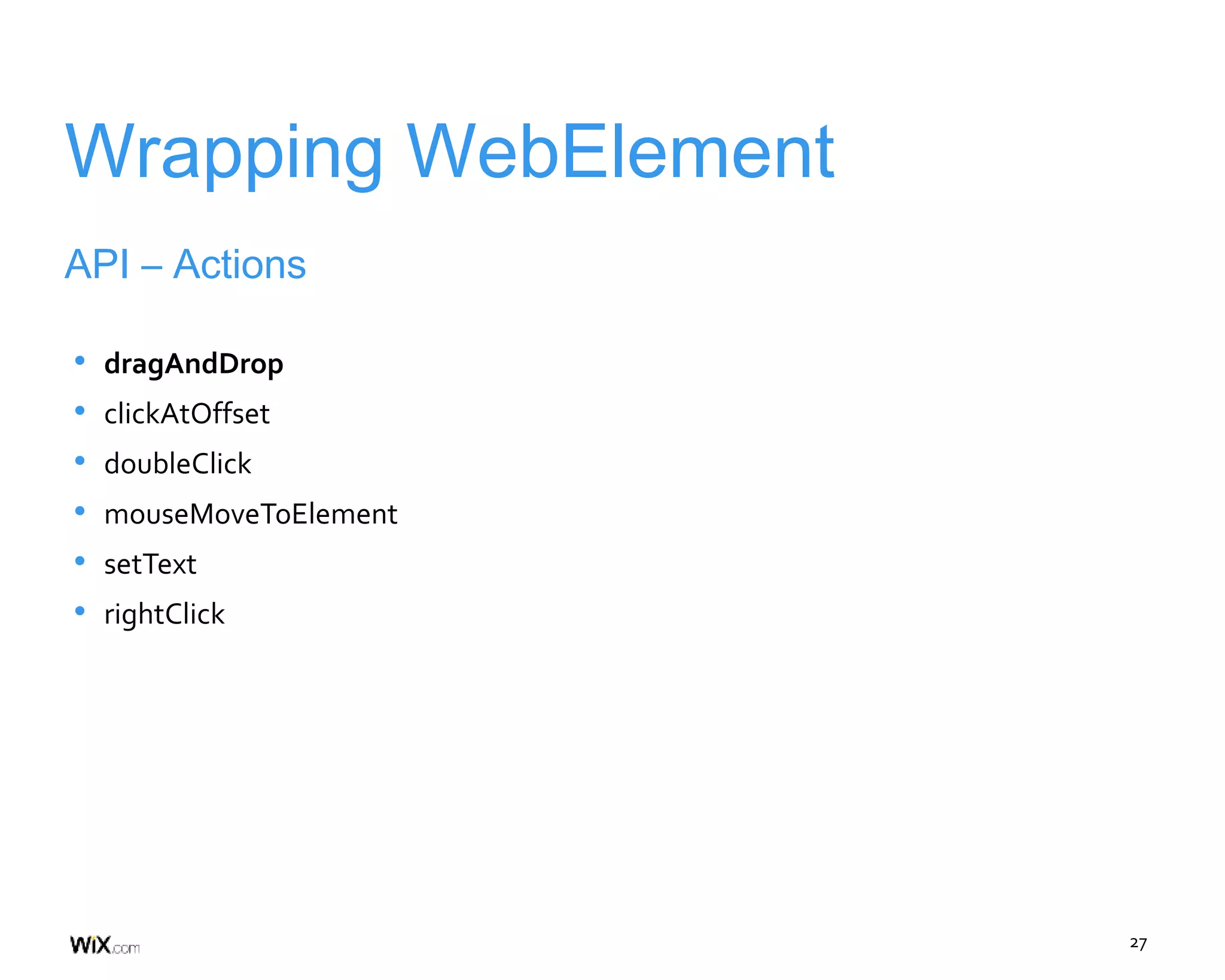

Wrapping WebElement
API – Actions
• dragAndDrop
• clickAtOffset
• doubleClick
• mouseMoveToElement
• setText
• rightClick

28. 28

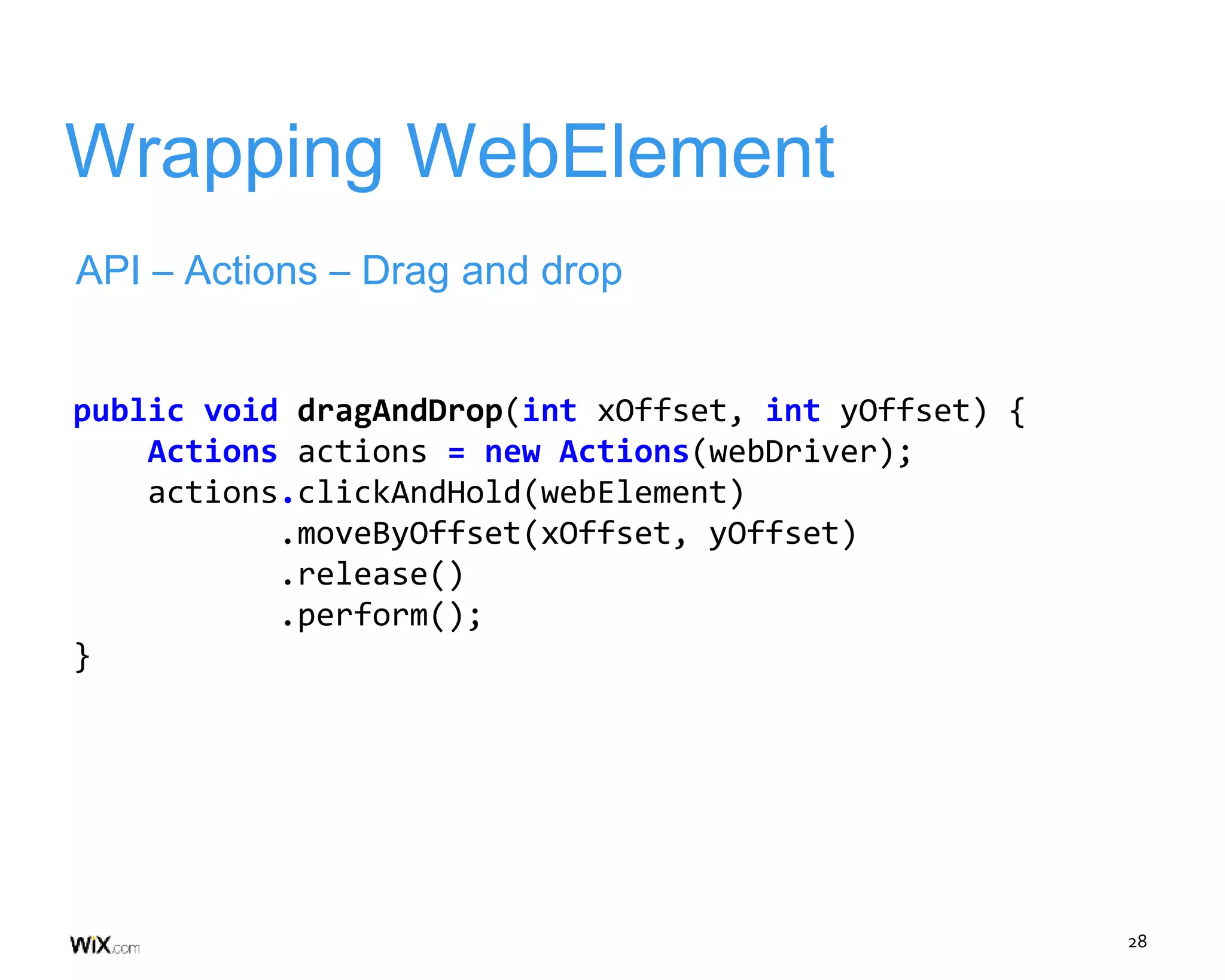

Wrapping WebElement
API – Actions – Drag and drop
public void dragAndDrop(int xOffset, int yOffset) {
Actions actions = new Actions(webDriver);
actions.clickAndHold(webElement)
.moveByOffset(xOffset, yOffset)
.release()
.perform();
}

29. 29

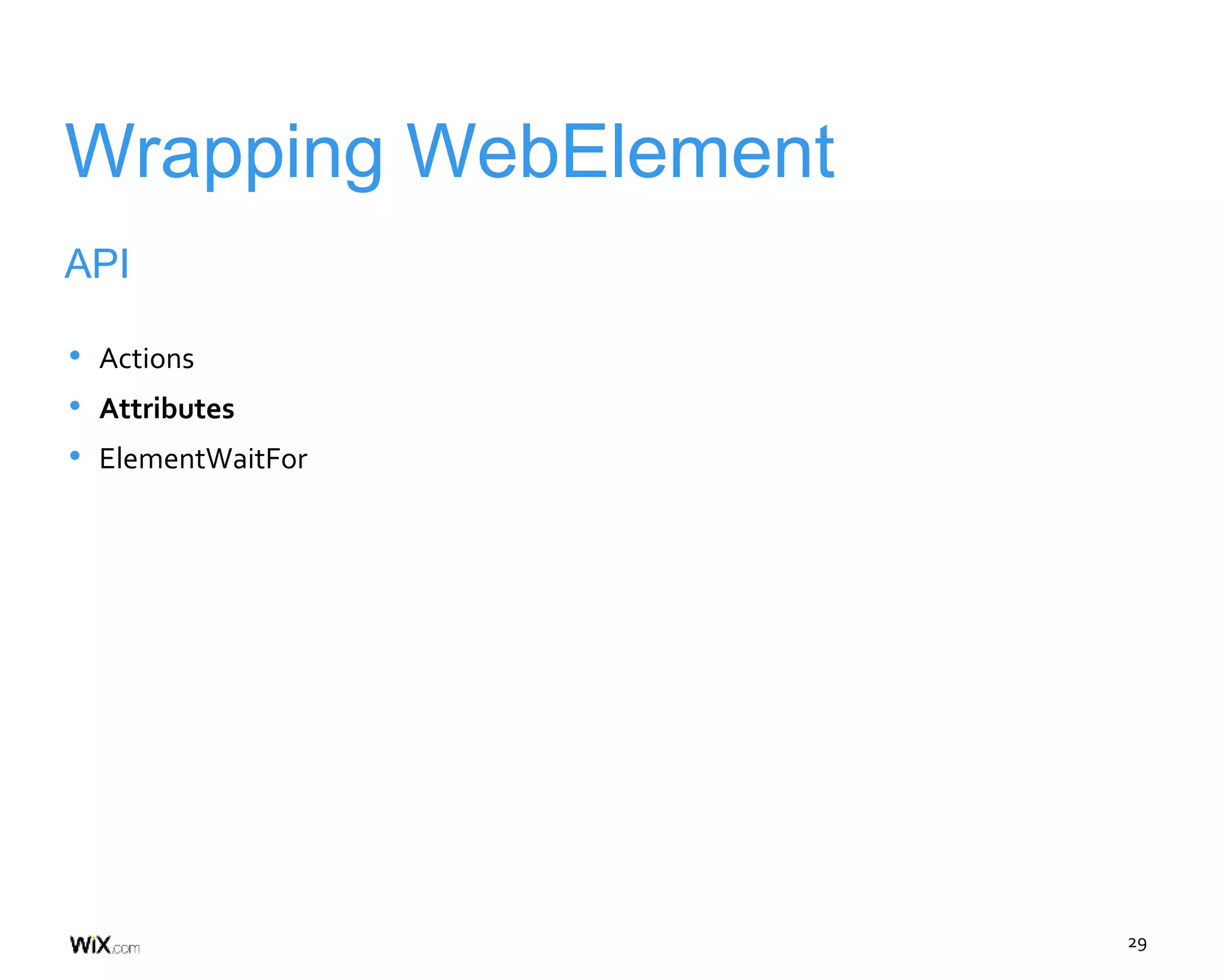

Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

30. 30
Wrapping WebElement
API – Attributes
• getInnerHTML
• getId
• getCssClasses
• getSize
• getText
• getPosition
• isVisible
• isEnabled

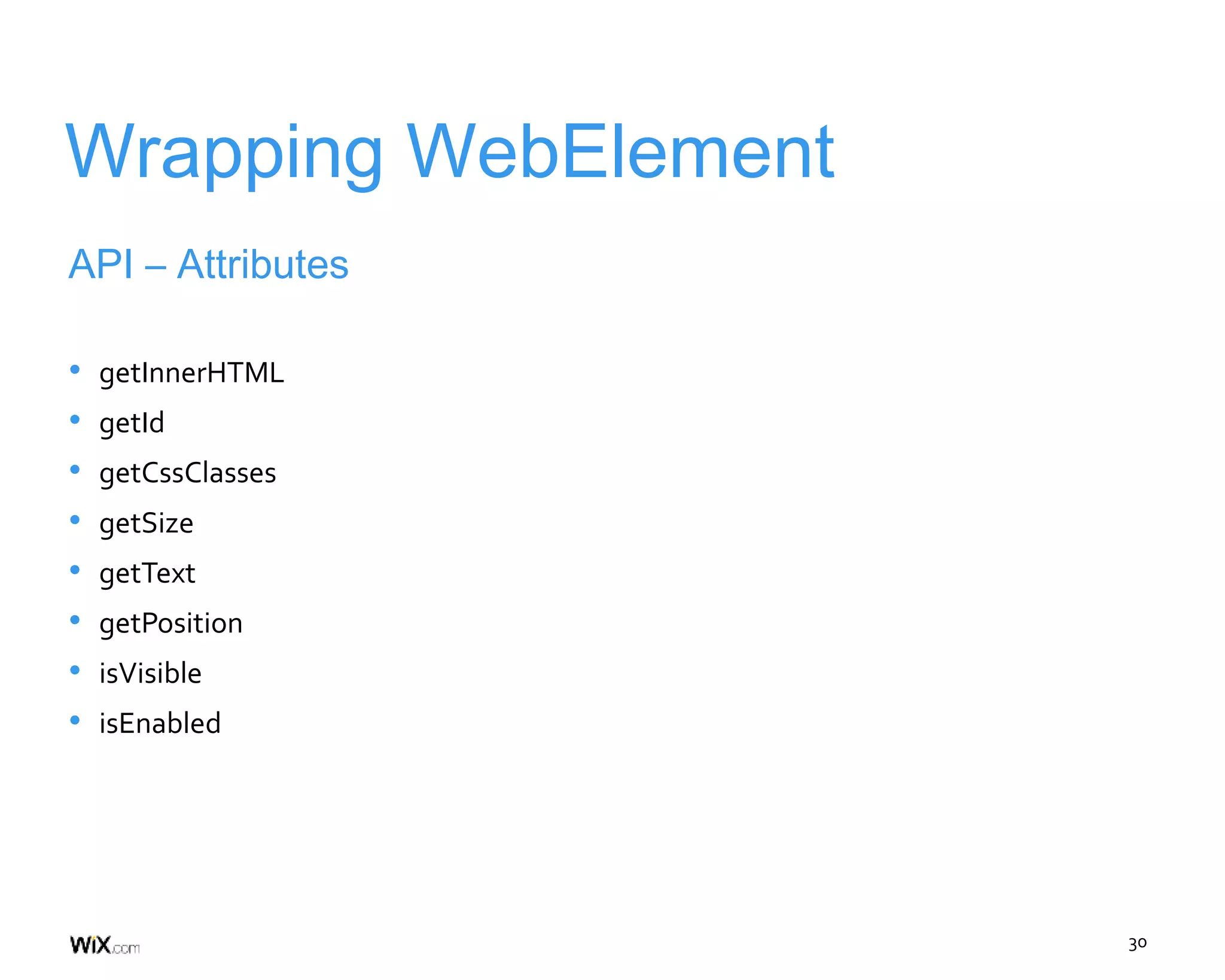

31. 31

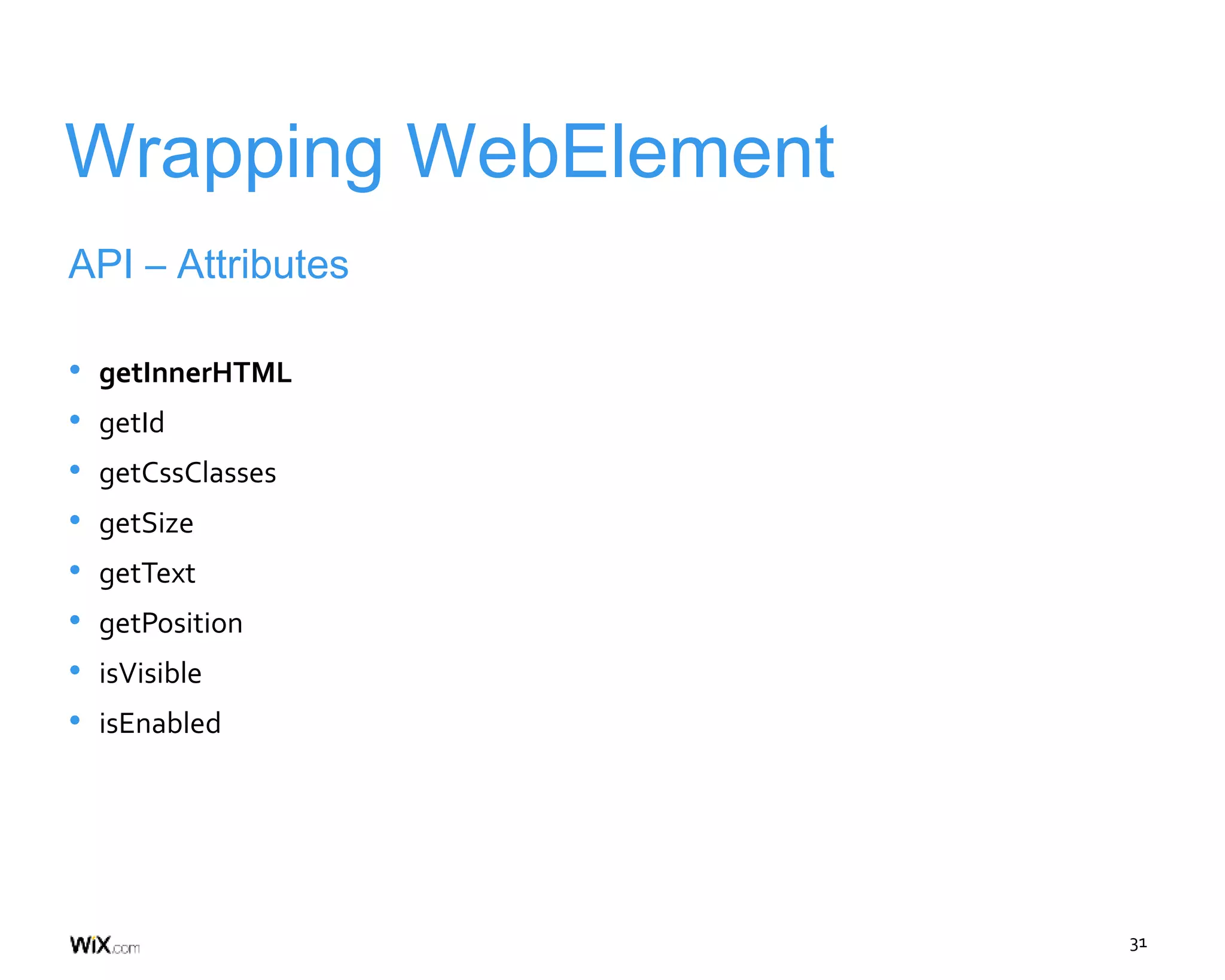

Wrapping WebElement
API – Attributes
• getInnerHTML
• getId
• getCssClasses
• getSize
• getText
• getPosition
• isVisible
• isEnabled

32. 32

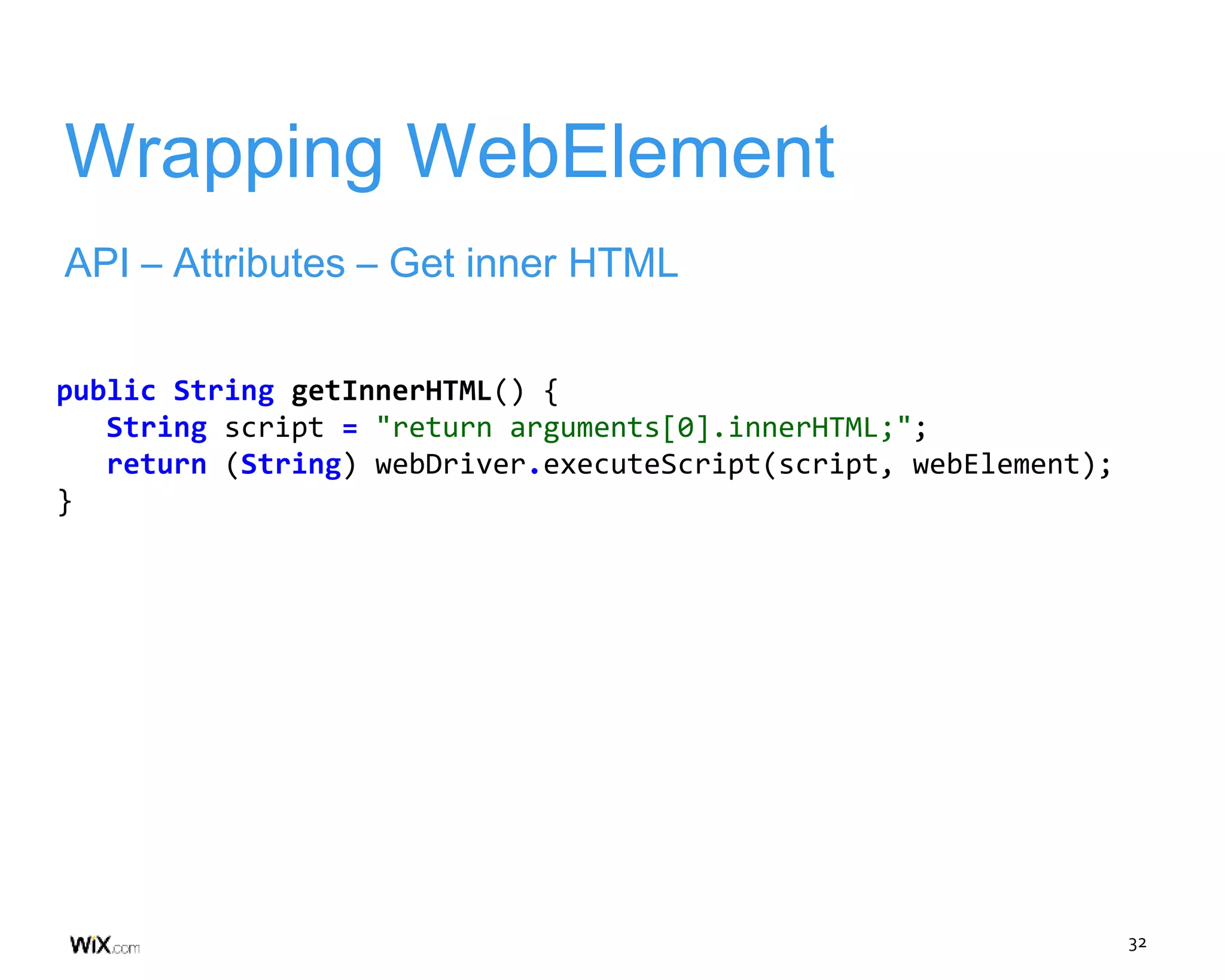

Wrapping WebElement
API – Attributes – Get inner HTML
public String getInnerHTML() {
String script = "return arguments[0].innerHTML;";
return (String) webDriver.executeScript(script, webElement);
}

33. 33

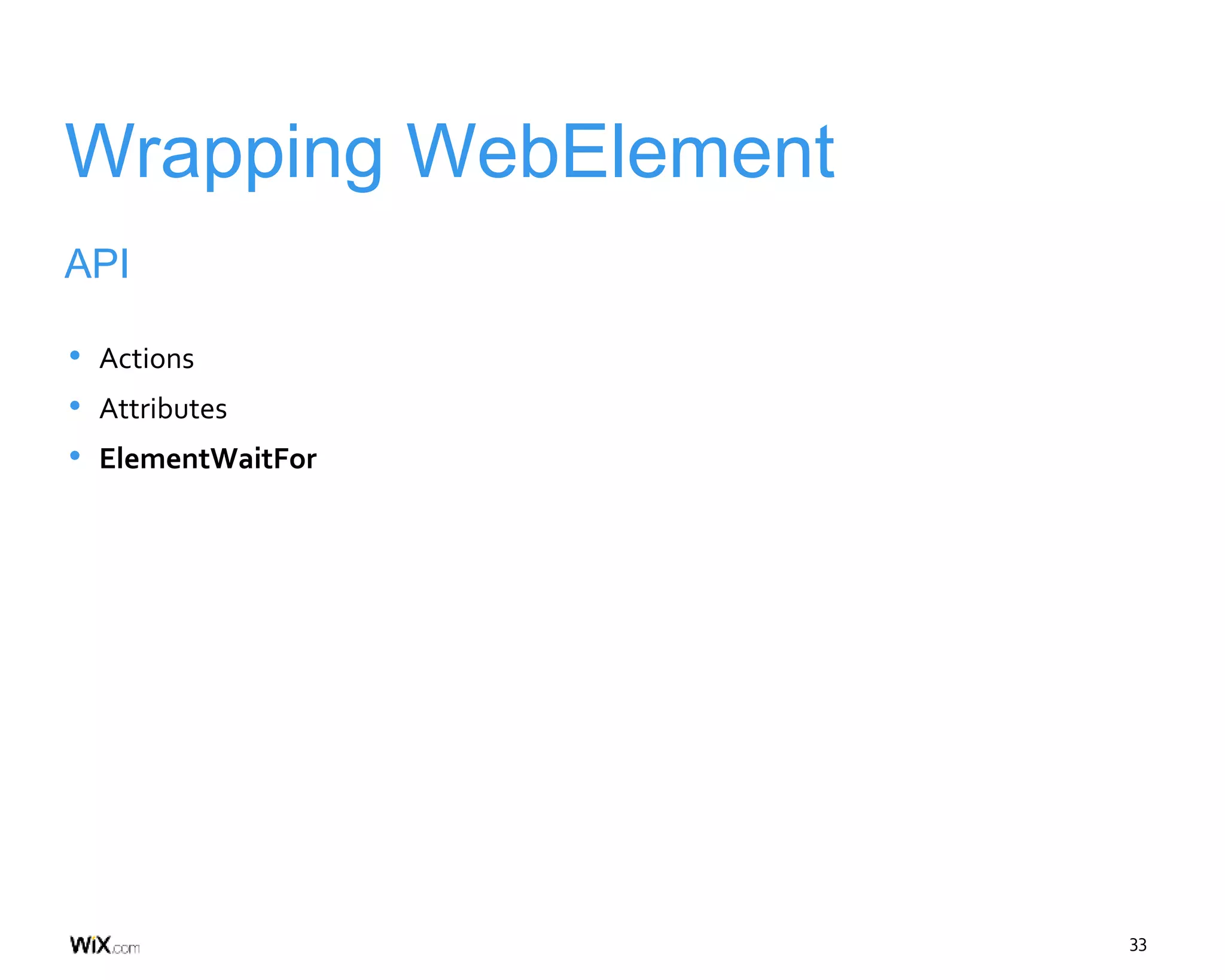

Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

34. 34
Wrapping WebElement
API – ElementWaitFor
• attributeToBe
• toExist
• toBeDisplayed
• textToBe
• toContainsCssClass

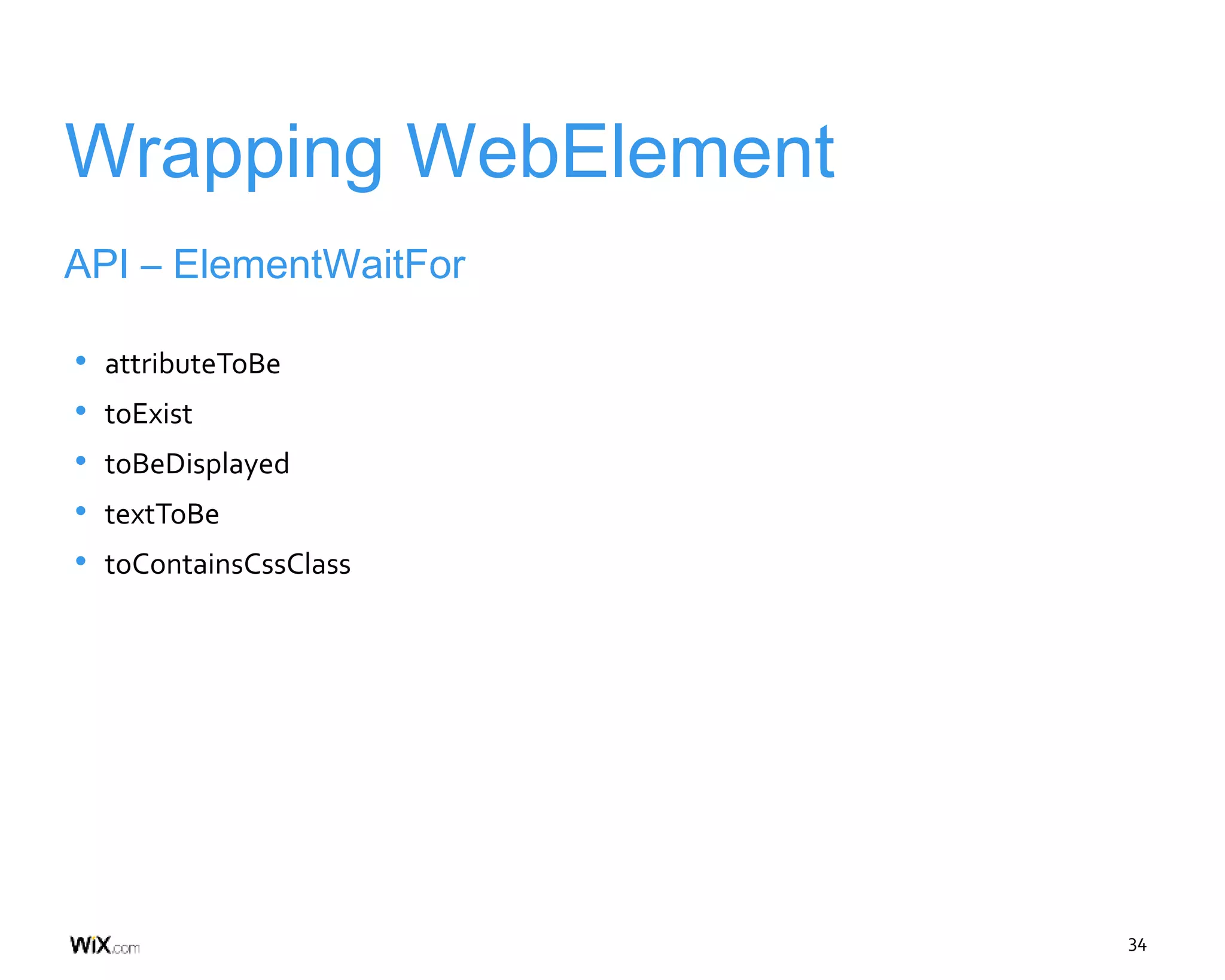

35. 35
Wrapping WebElement
API – ElementWaitFor
• attributeToBe
• toExist
• toBeDisplayed
• textToBe
• toContainsCssClass

36. 36

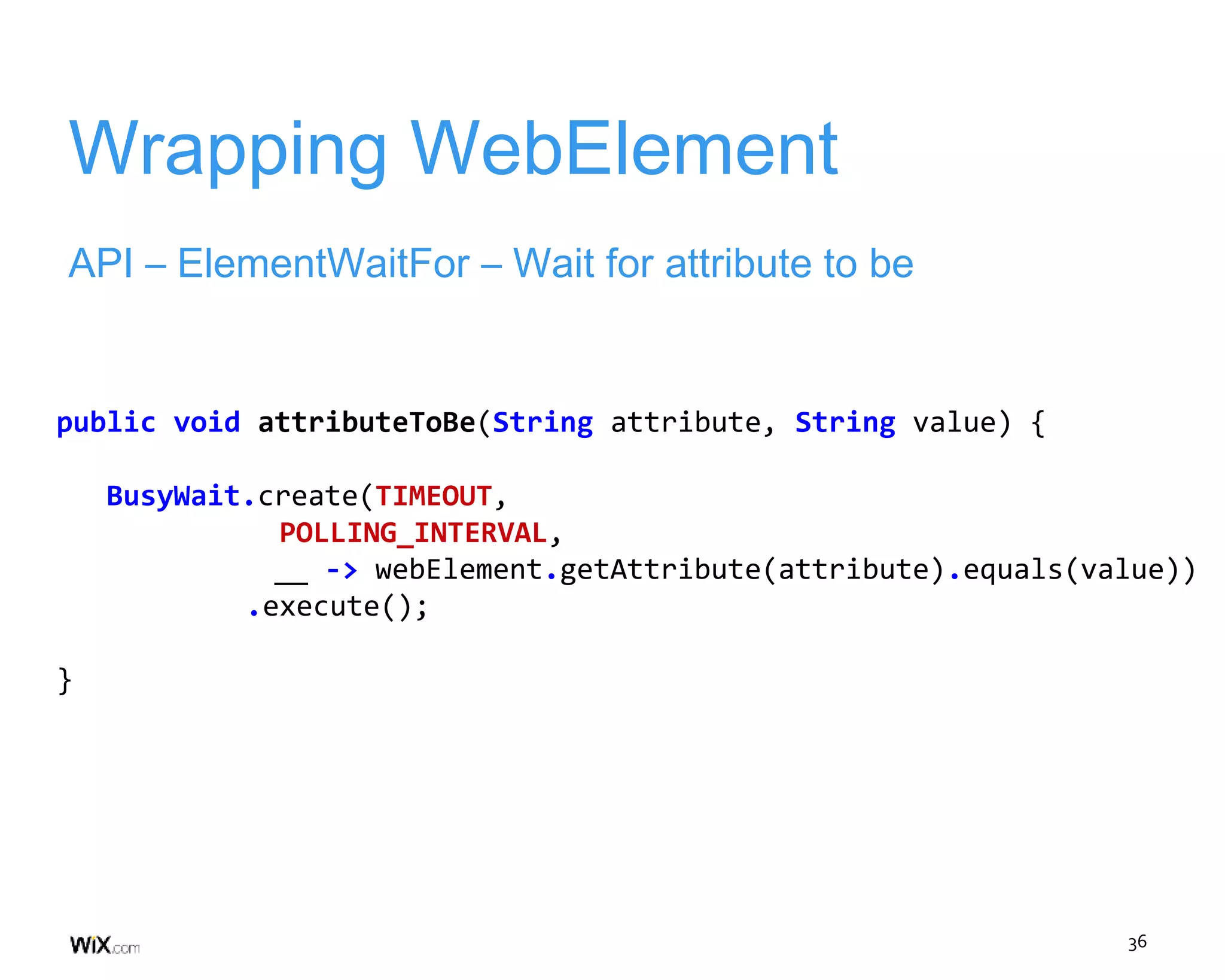

Wrapping WebElement
API – ElementWaitFor – Wait for attribute to be
public void attributeToBe(String attribute, String value) {
BusyWait.create(TIMEOUT,
POLLING_INTERVAL,
__ -> webElement.getAttribute(attribute).equals(value))
.execute();
}

37. 37

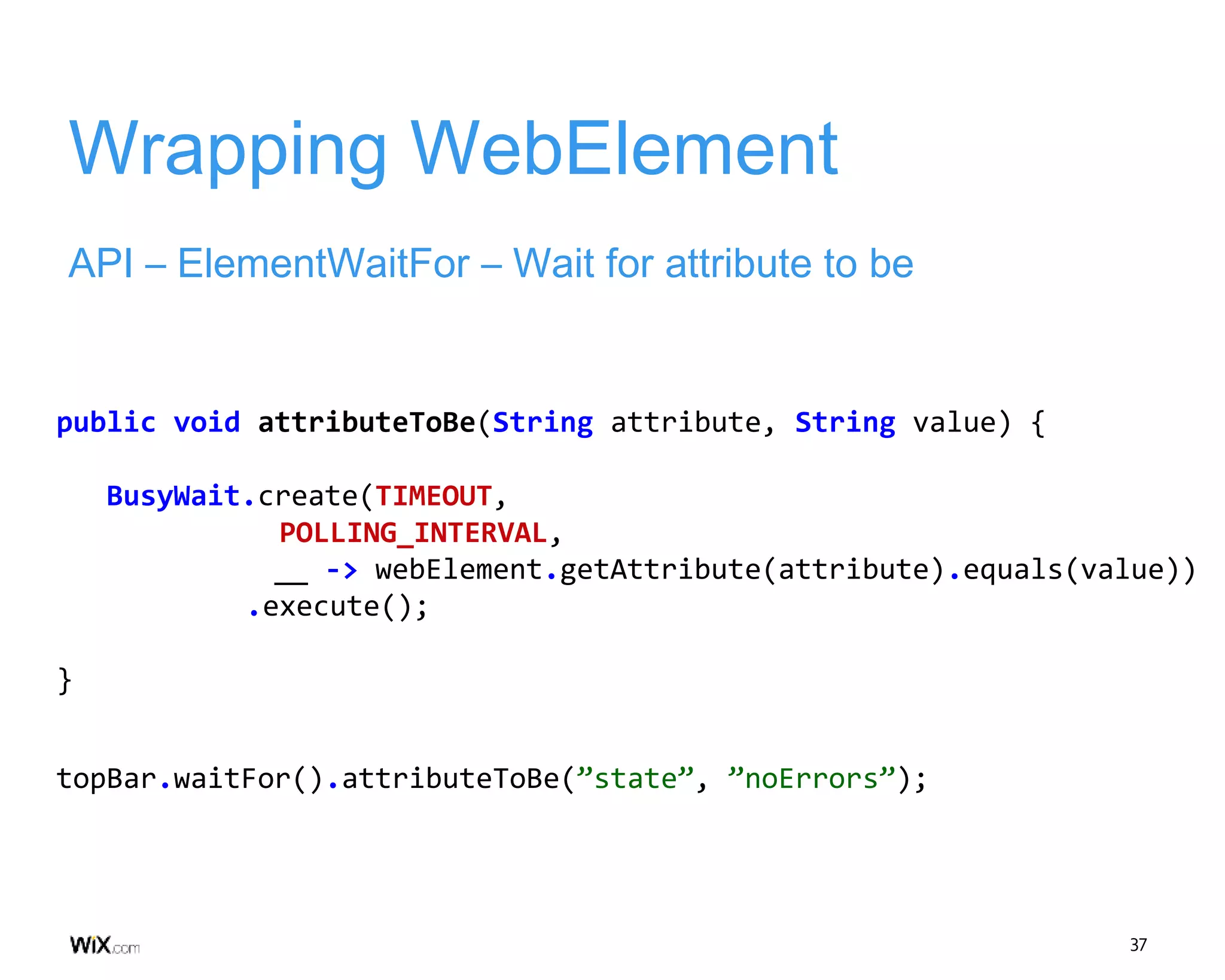

Wrapping WebElement
API – ElementWaitFor – Wait for attribute to be
public void attributeToBe(String attribute, String value) {
BusyWait.create(TIMEOUT,
POLLING_INTERVAL,
__ -> webElement.getAttribute(attribute).equals(value))
.execute();
}
topBar.waitFor().attributeToBe(”state”, ”noErrors”);

38. 38

39. 39
Iframes
Concept
• Each element “knows” if it’s inside an iframe
• Each driver “knows” if it contains an iframe
• Getting an element inside the iframe is done differently

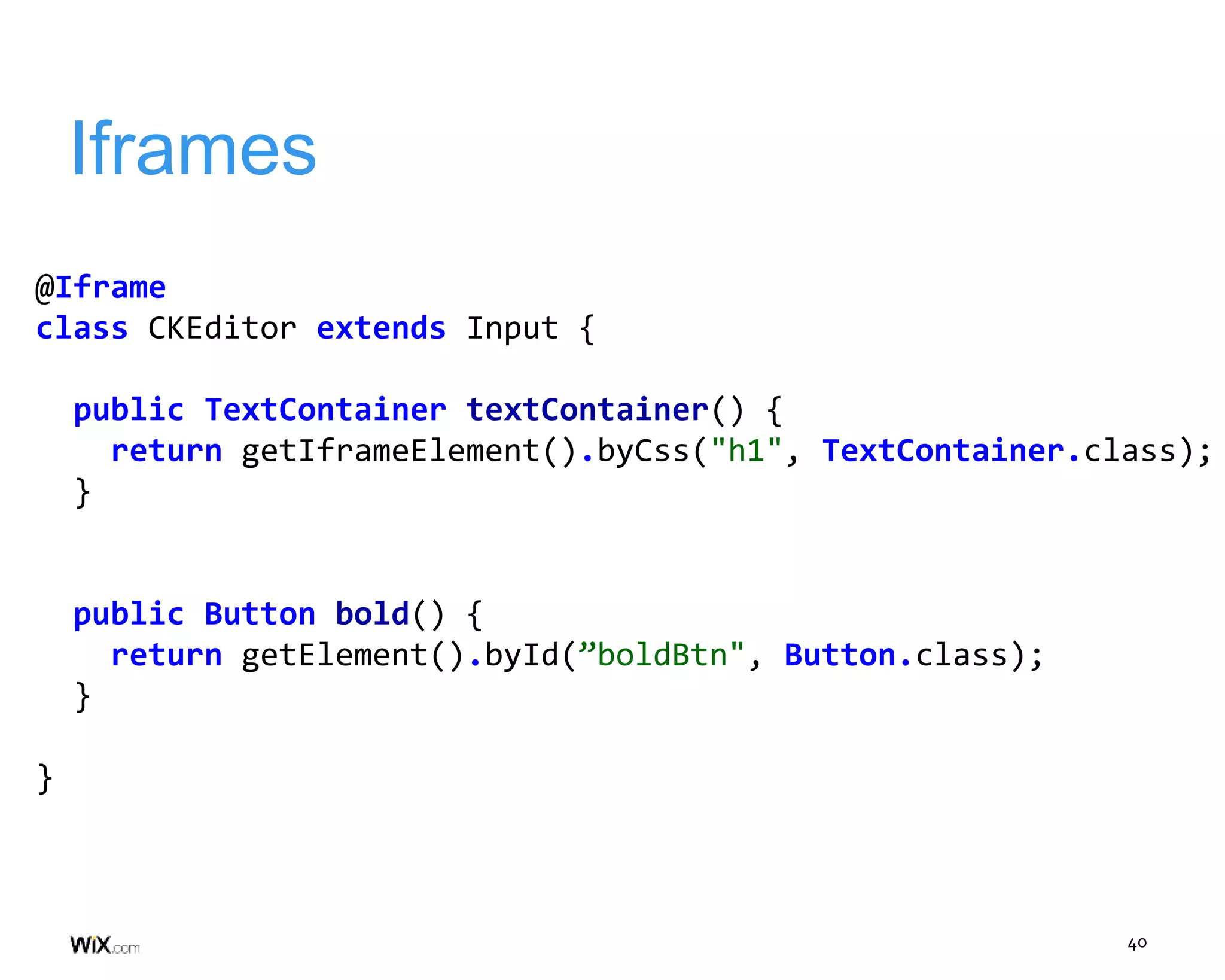

40. 40
Iframes
@Iframe
class CKEditor extends Input {
public TextContainer textContainer() {
return getIframeElement().byCss("h1", TextContainer.class);
}
public Button bold() {
return getElement().byId(”boldBtn", Button.class);
}
}
