Wintellect - Devscovery - Portable Class Library
The document discusses the Portable Class Library (PCL) feature in Visual Studio 2012, which allows developers to write managed assemblies that can be used across multiple .NET platforms without recompilation. It introduces PCLs and how they work, covering topics like profiles, extension SDKs, and how core features like MVVM and ICommand are supported across platforms. The document provides strategies for porting existing code to PCLs and building new applications, demonstrating a sample PCL project targeting both Windows Store and WPF apps.
More Related Content
Similar to Wintellect - Devscovery - Portable Class Library
Wintellect - Devscovery - Portable Class Library

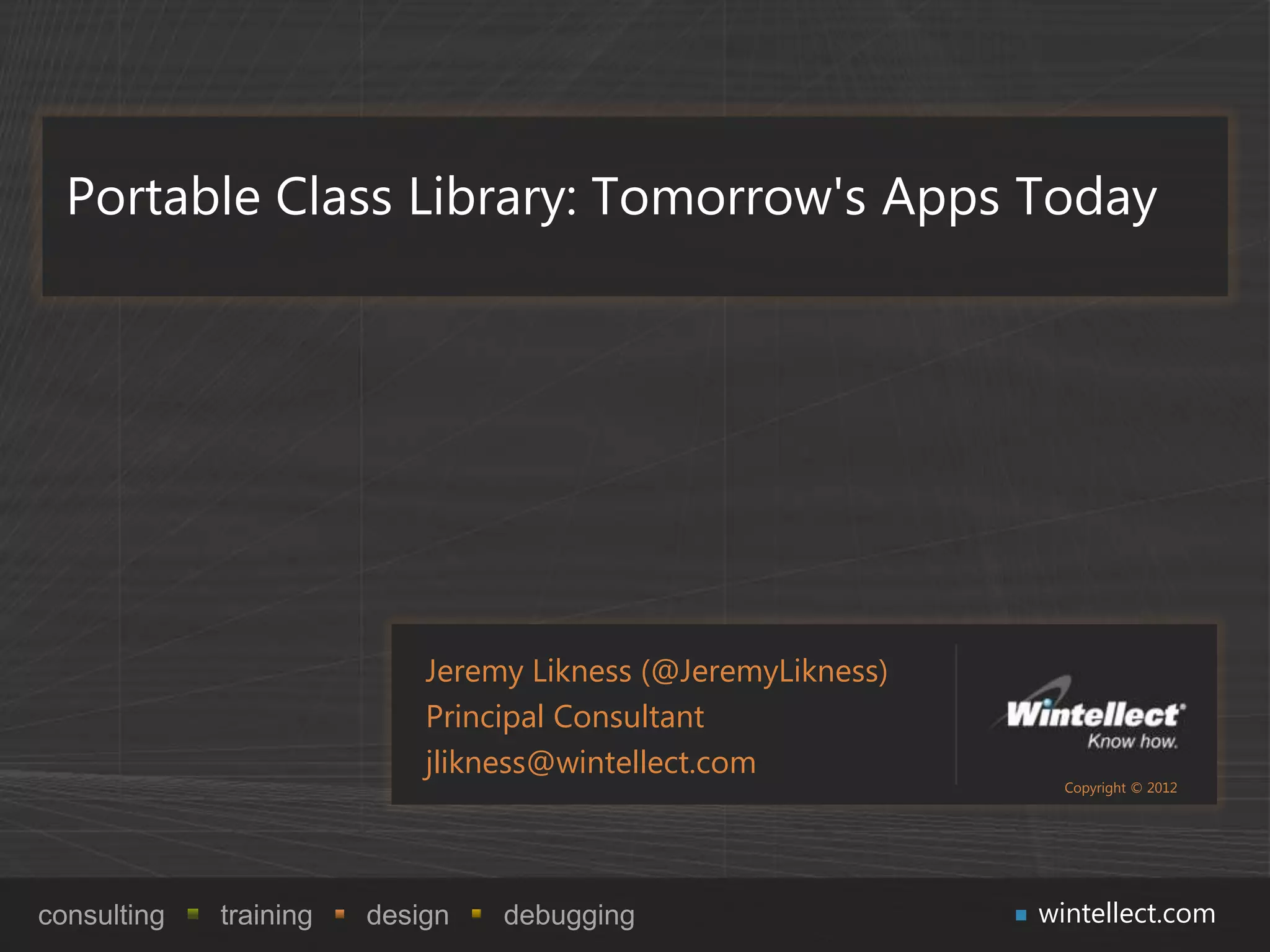

- 1. Portable Class Library:Tomorrow's Apps Today Jeremy Likness (@JeremyLikness) Principal Consultant jlikness@wintellect.com Copyright © 2012 consulting training design debugging wintellect.com
- 2. what we do consulting training design debugging who we are Founded by top experts on Microsoft – Jeffrey Richter, Jeff Prosise, and John Robbins – we pull out all the stops to help our customers achieve their goals through advanced software-based consulting and training solutions. how we do it Training • On-site instructor-led training Consulting & Debugging • Virtual instructor-led training • Architecture, analysis, and design services • Devscovery conferences • Full lifecycle custom software development • Content creation Design • Project management • User Experience Design • Debugging & performance tuning • Visual & Content Design • Video & Animation Production consulting training design debugging wintellect.com

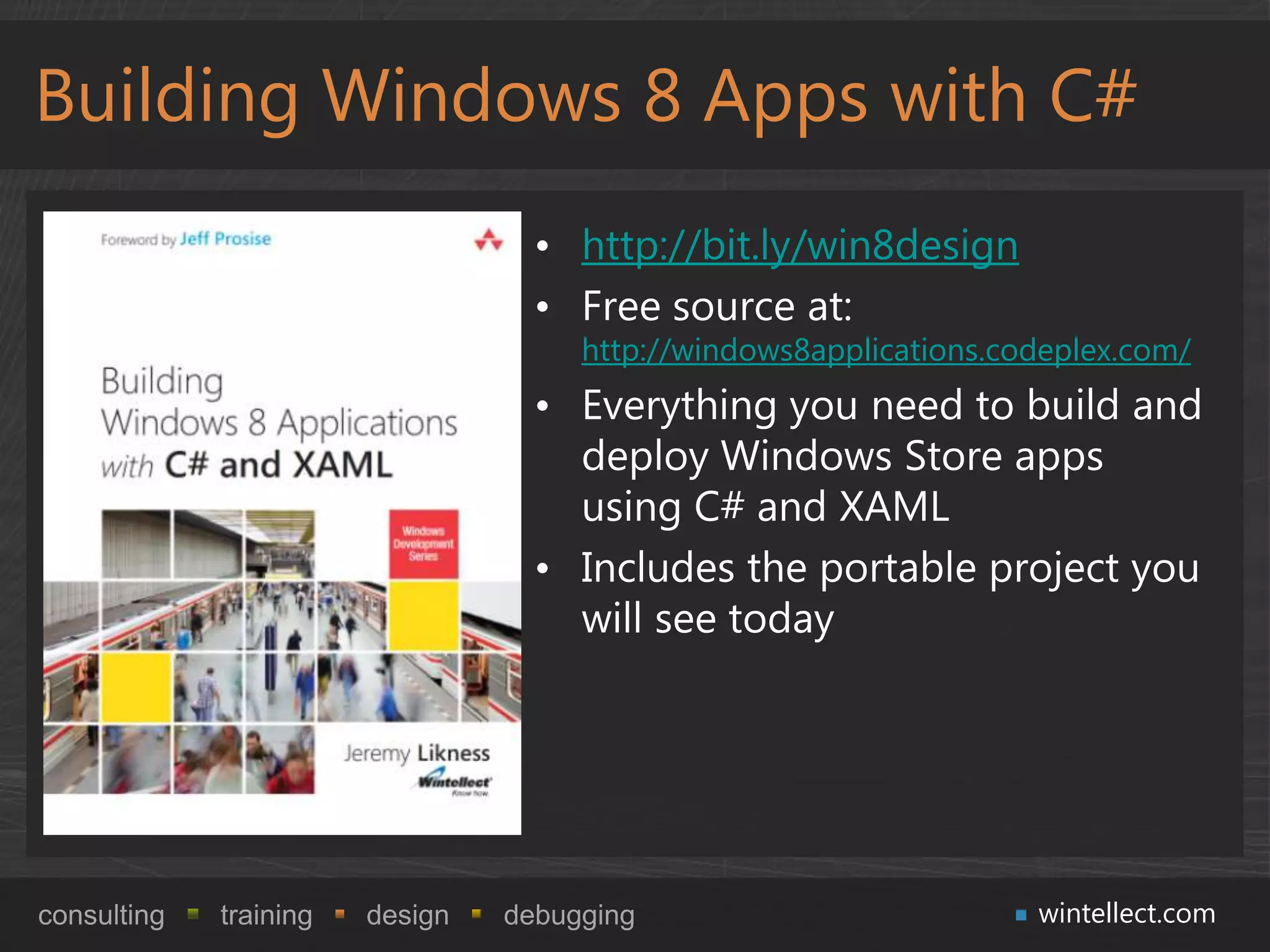

- 3. Building Windows 8Apps with C# • http://bit.ly/win8design • Free source at: http://windows8applications.codeplex.com/ • Everything you need to build and deploy Windows Store apps using C# and XAML • Includes the portable project you will see today consulting training design debugging wintellect.com

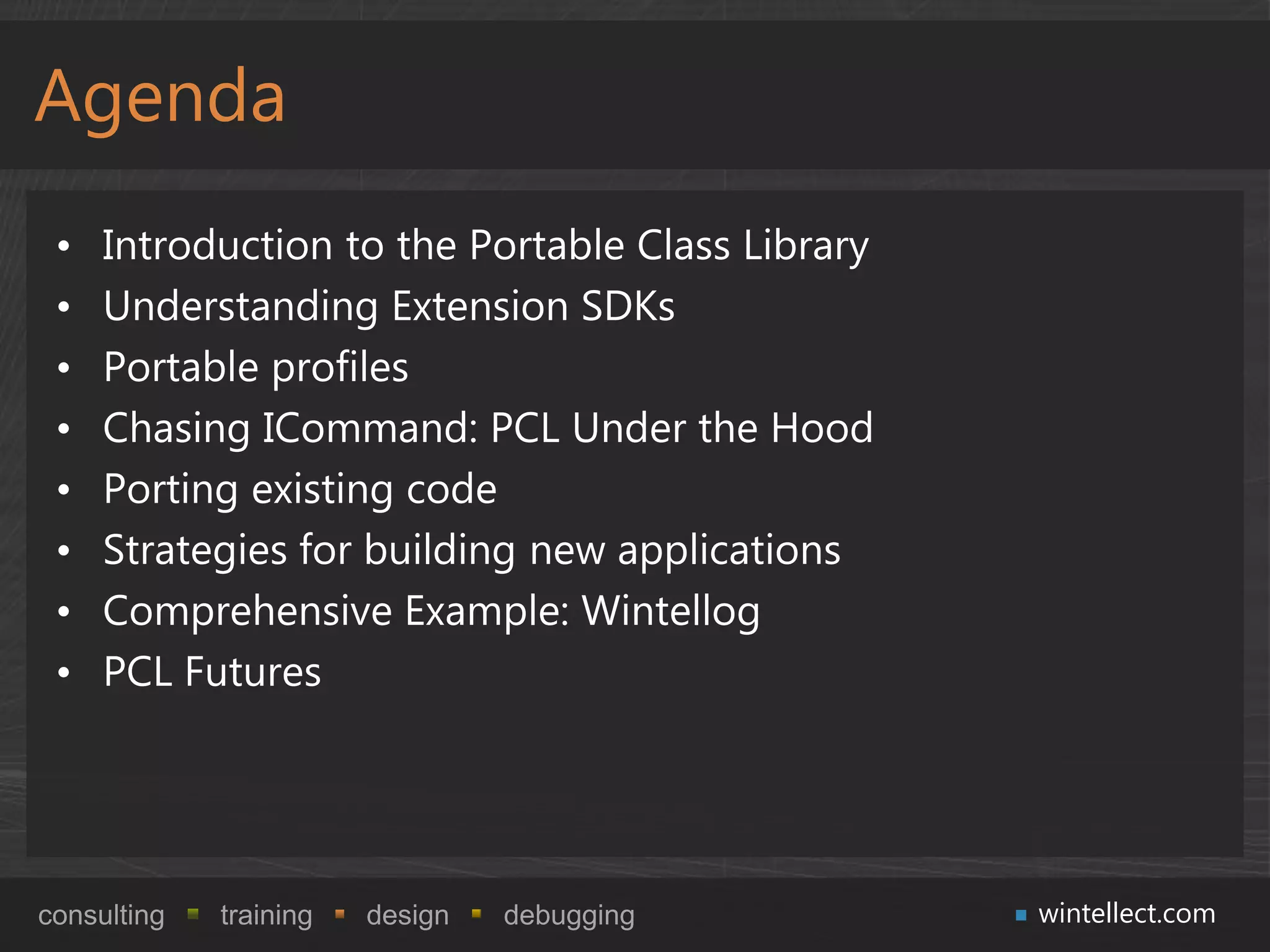

- 4. Agenda • Introduction to the Portable Class Library • Understanding Extension SDKs • Portable profiles • Chasing ICommand: PCL Under the Hood • Porting existing code • Strategies for building new applications • Comprehensive Example: Wintellog • PCL Futures consulting training design debugging wintellect.com

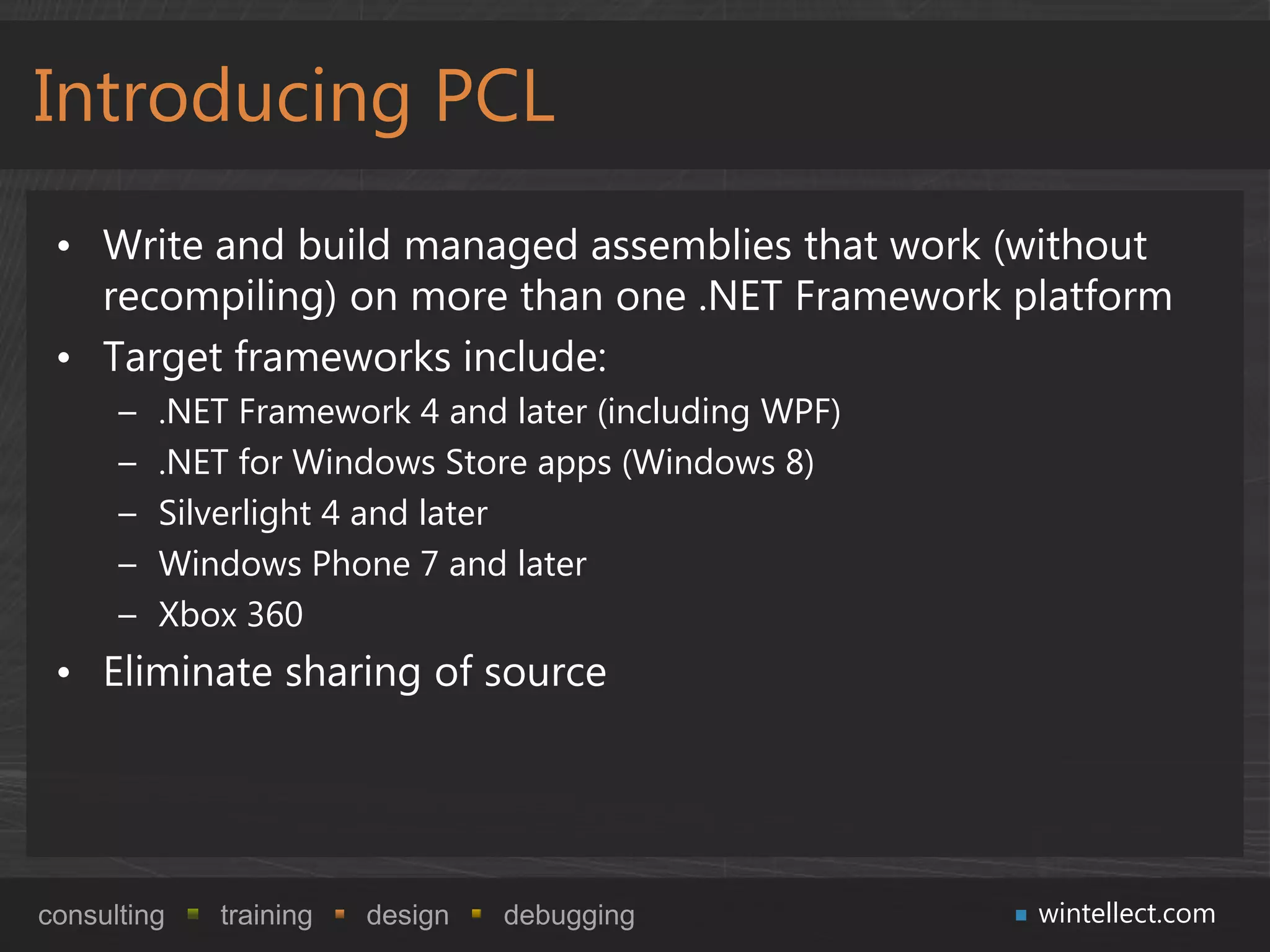

- 5. Introducing PCL •Write and build managed assemblies that work (without recompiling) on more than one .NET Framework platform • Target frameworks include: – .NET Framework 4 and later (including WPF) – .NET for Windows Store apps (Windows 8) – Silverlight 4 and later – Windows Phone 7 and later – Xbox 360 • Eliminate sharing of source consulting training design debugging wintellect.com

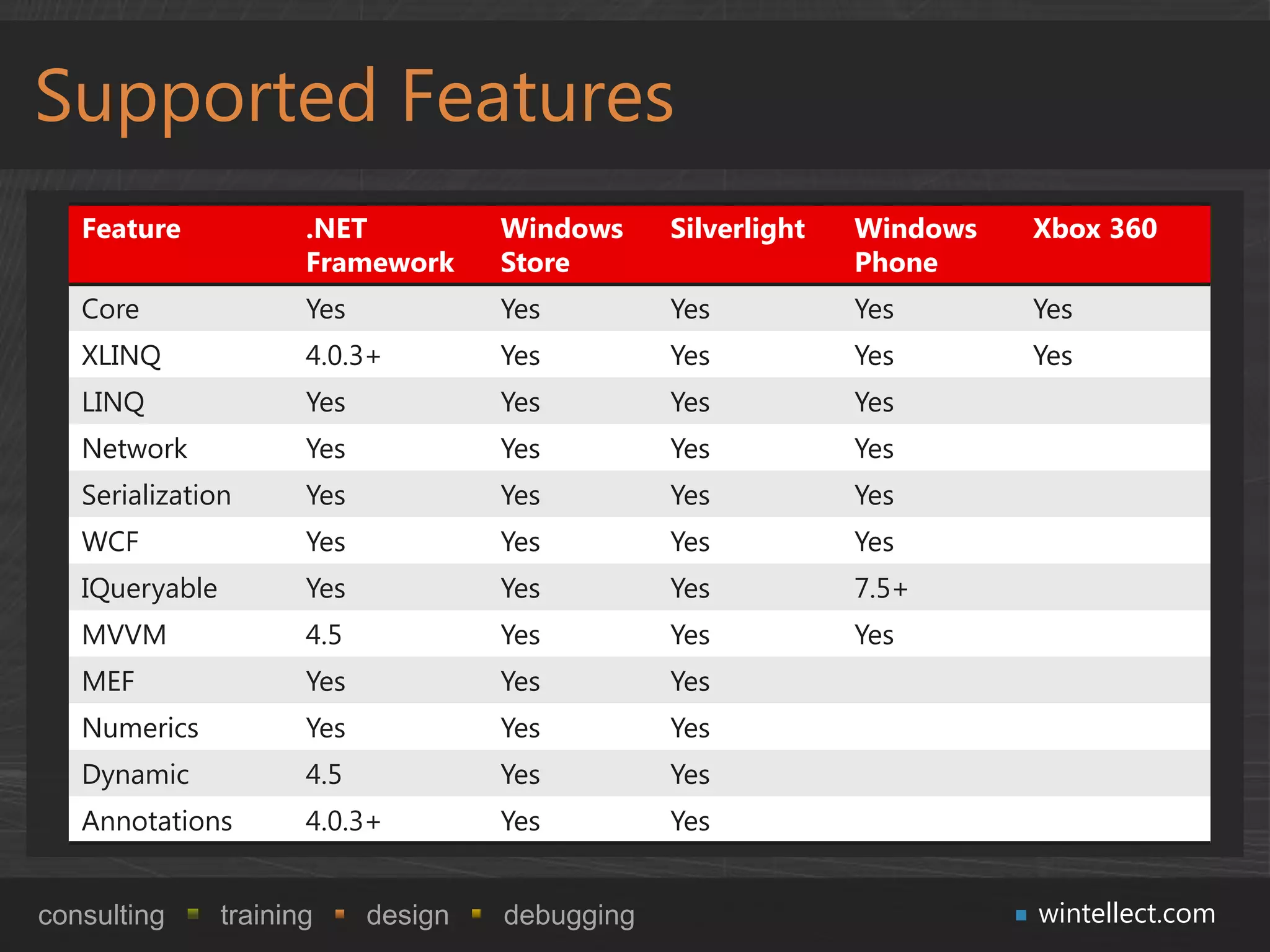

- 6. Supported Features Feature .NET Windows Silverlight Windows Xbox 360 Framework Store Phone Core Yes Yes Yes Yes Yes XLINQ 4.0.3+ Yes Yes Yes Yes LINQ Yes Yes Yes Yes Network Yes Yes Yes Yes Serialization Yes Yes Yes Yes WCF Yes Yes Yes Yes IQueryable Yes Yes Yes 7.5+ MVVM 4.5 Yes Yes Yes MEF Yes Yes Yes Numerics Yes Yes Yes Dynamic 4.5 Yes Yes Annotations 4.0.3+ Yes Yes consulting training design debugging wintellect.com

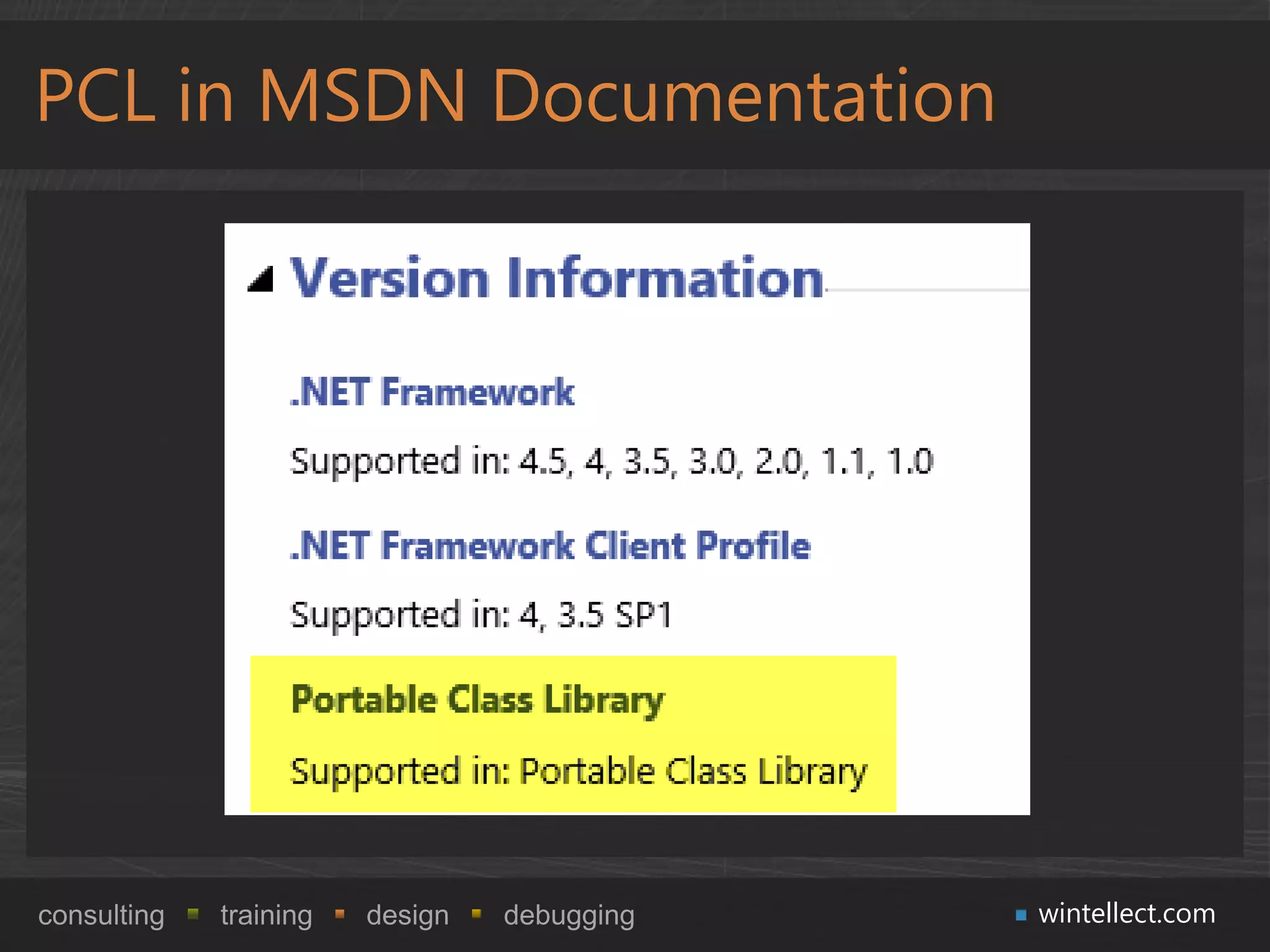

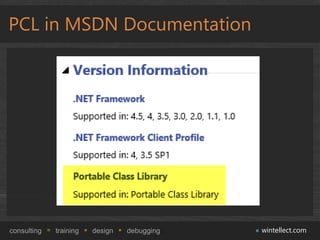

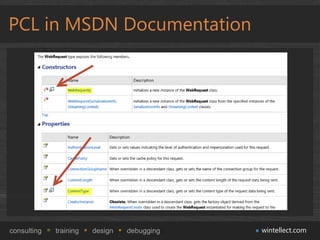

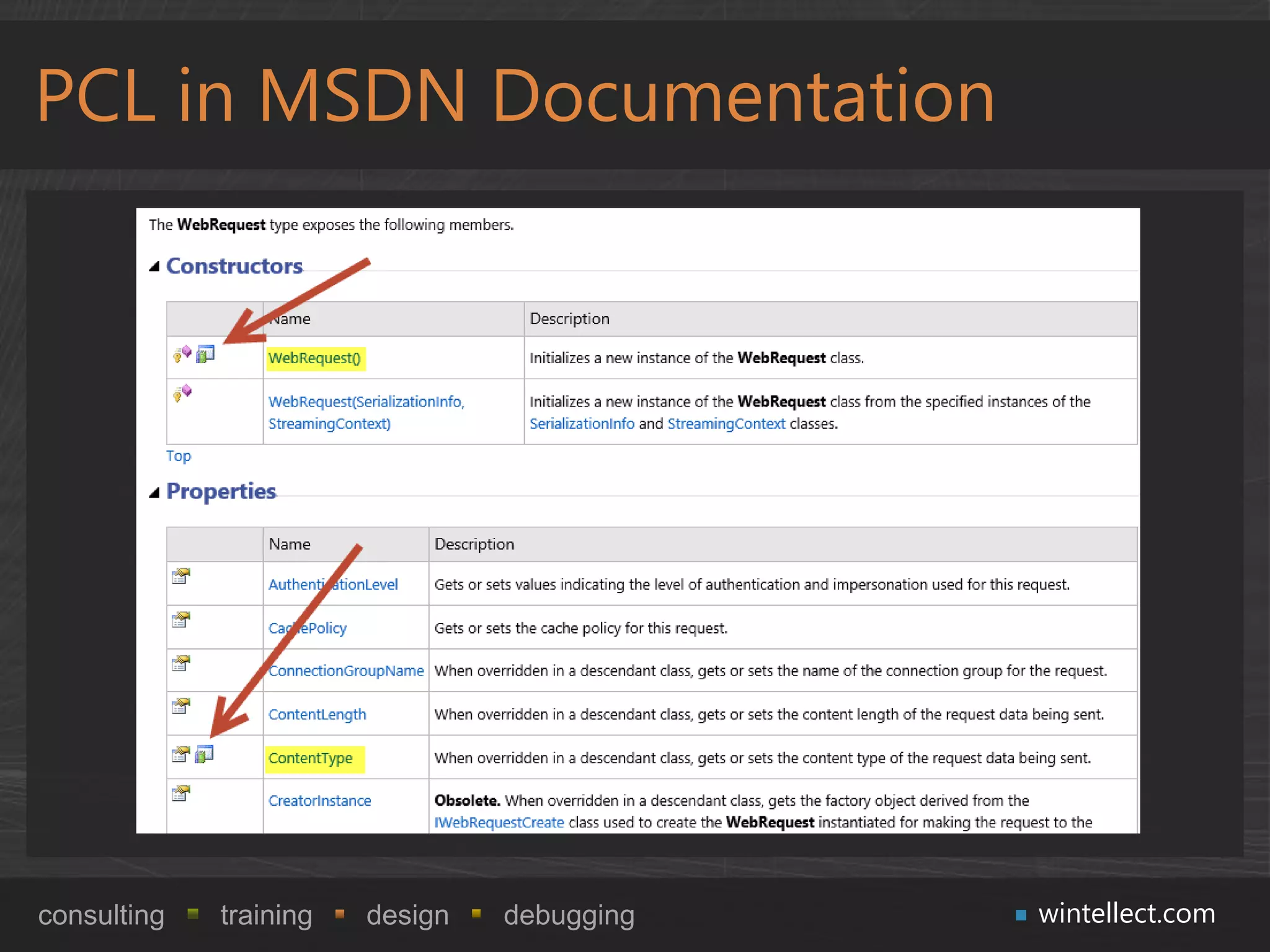

- 7. PCL in MSDNDocumentation consulting training design debugging wintellect.com
- 8. PCL in MSDNDocumentation consulting training design debugging wintellect.com

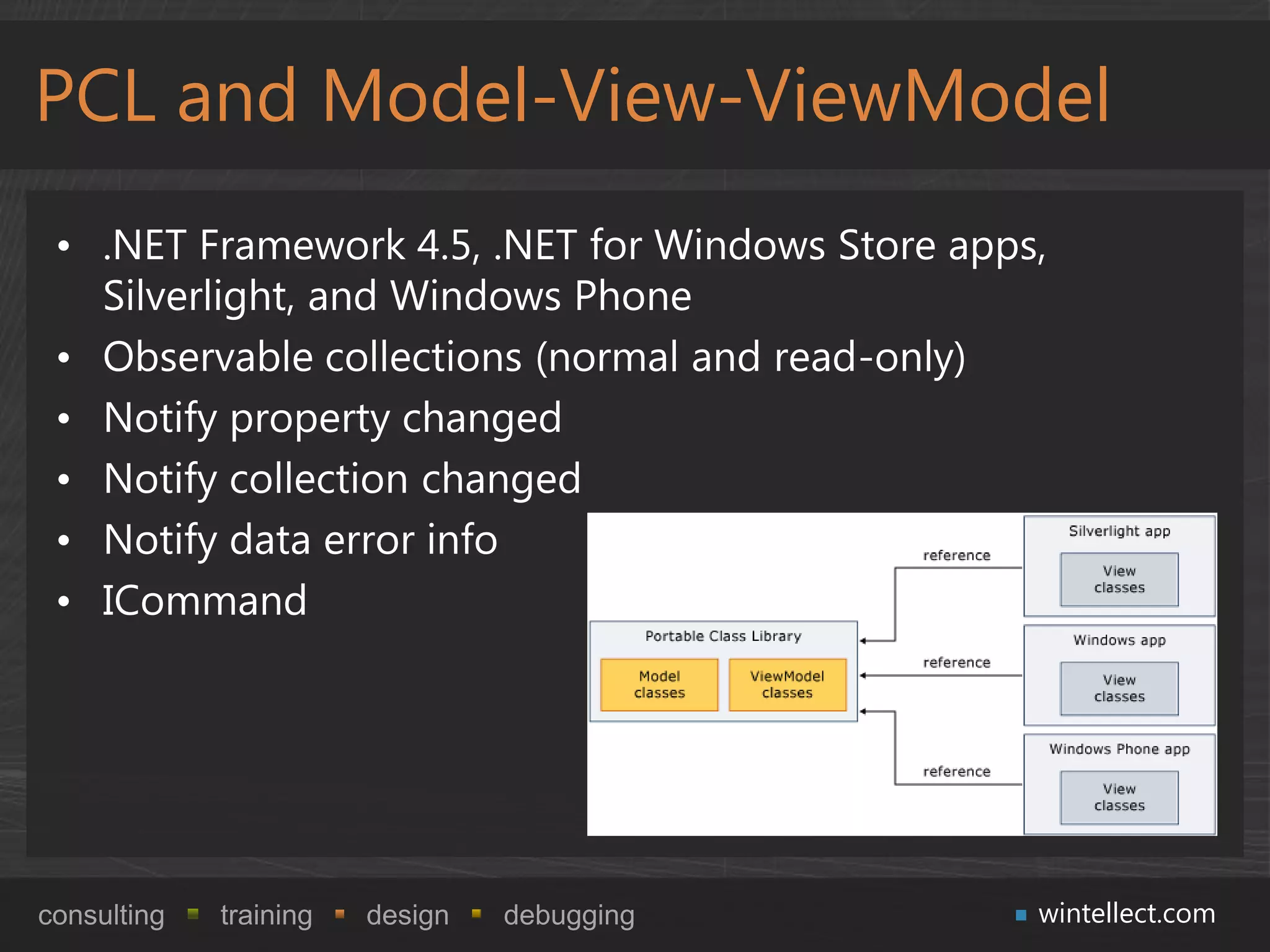

- 9. PCL and Model-View-ViewModel • .NET Framework 4.5, .NET for Windows Store apps, Silverlight, and Windows Phone • Observable collections (normal and read-only) • Notify property changed • Notify collection changed • Notify data error info • ICommand consulting training design debugging wintellect.com

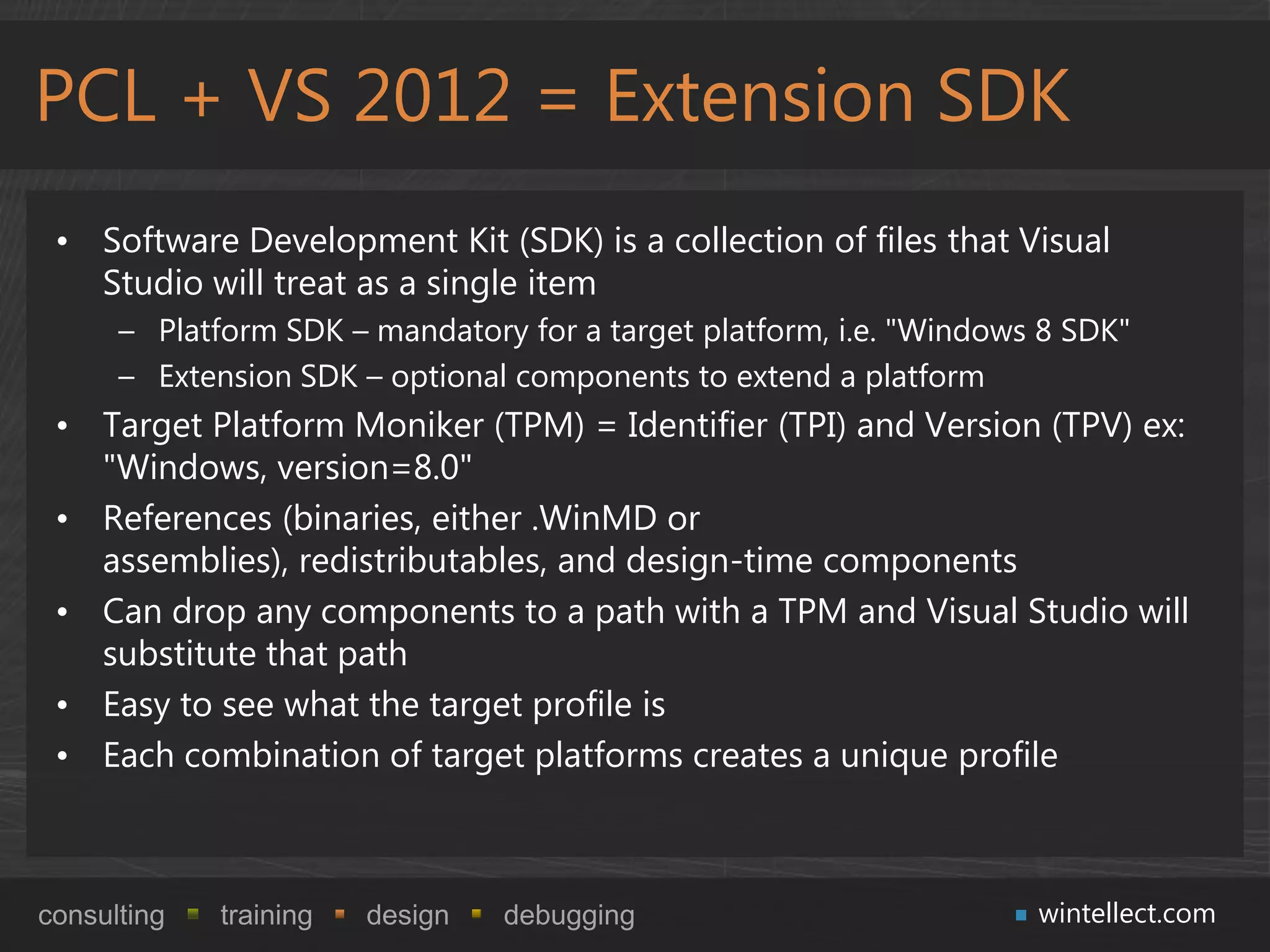

- 10. PCL + VS2012 = Extension SDK • Software Development Kit (SDK) is a collection of files that Visual Studio will treat as a single item – Platform SDK – mandatory for a target platform, i.e. "Windows 8 SDK" – Extension SDK – optional components to extend a platform • Target Platform Moniker (TPM) = Identifier (TPI) and Version (TPV) ex: "Windows, version=8.0" • References (binaries, either .WinMD or assemblies), redistributables, and design-time components • Can drop any components to a path with a TPM and Visual Studio will substitute that path • Easy to see what the target profile is • Each combination of target platforms creates a unique profile consulting training design debugging wintellect.com

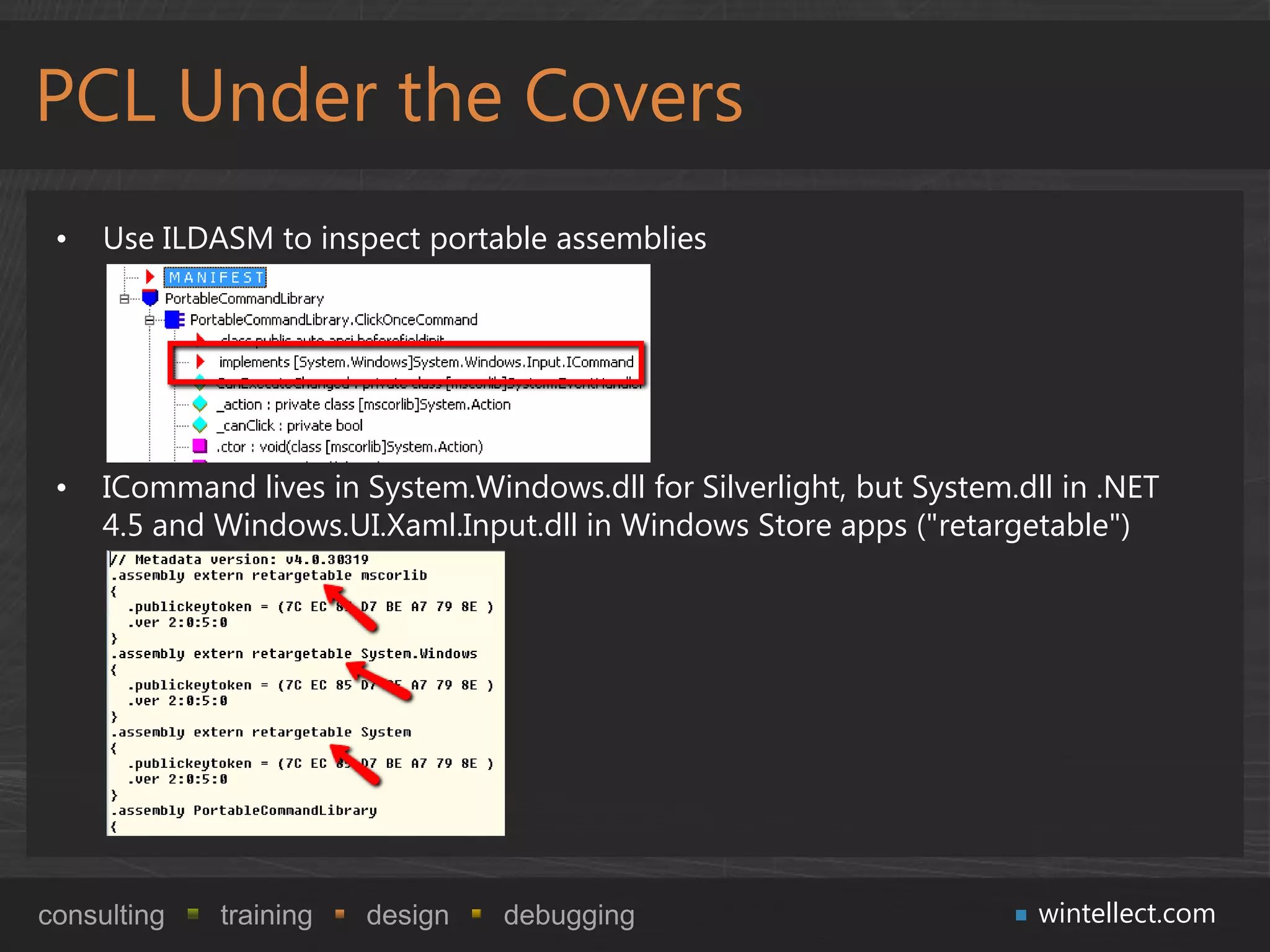

- 11. PCL Under theCovers • Use ILDASM to inspect portable assemblies • ICommand lives in System.Windows.dll for Silverlight, but System.dll in .NET 4.5 and Windows.UI.Xaml.Input.dll in Windows Store apps ("retargetable") consulting training design debugging wintellect.com

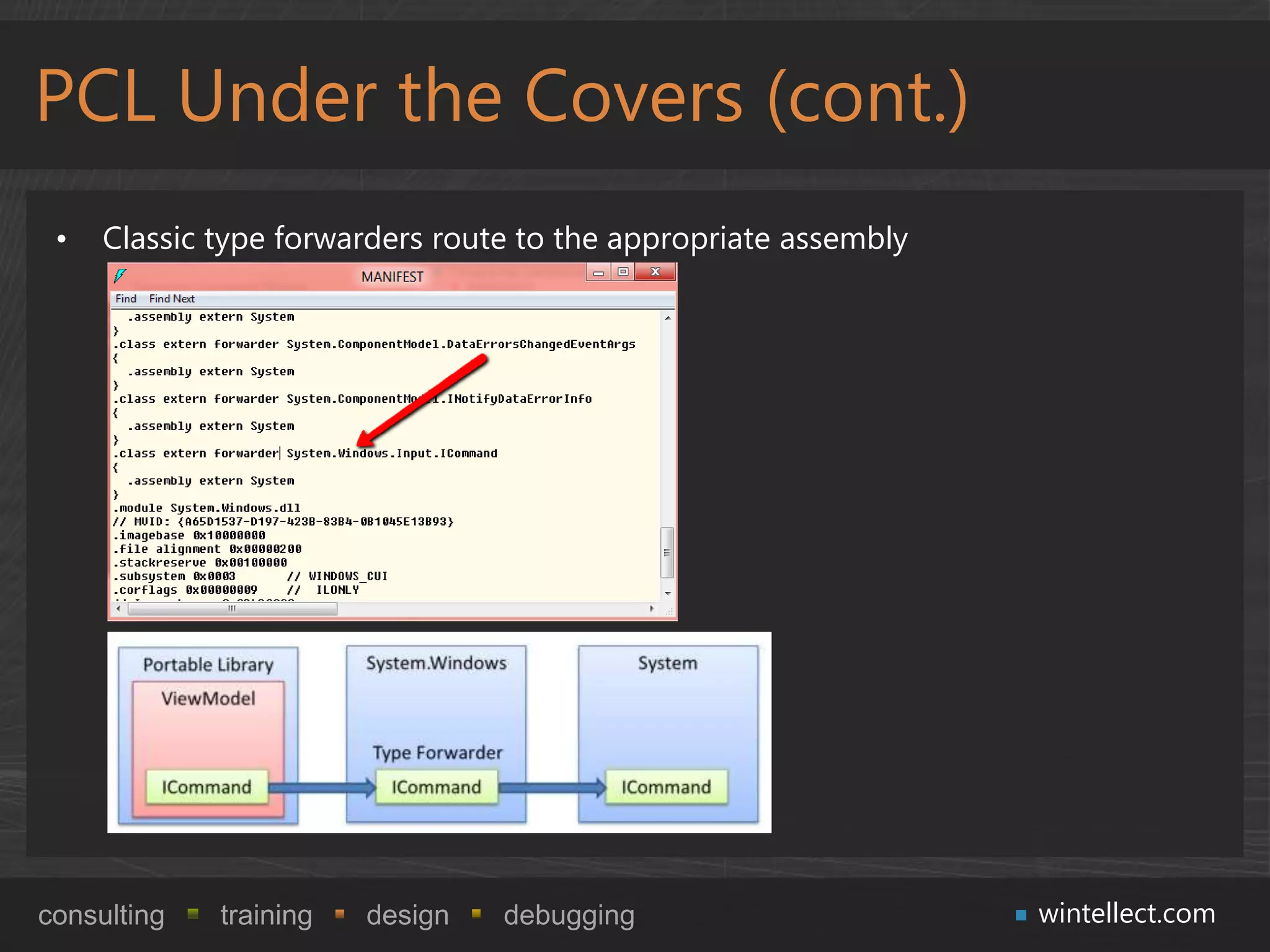

- 12. PCL Under theCovers (cont.) • Classic type forwarders route to the appropriate assembly consulting training design debugging wintellect.com

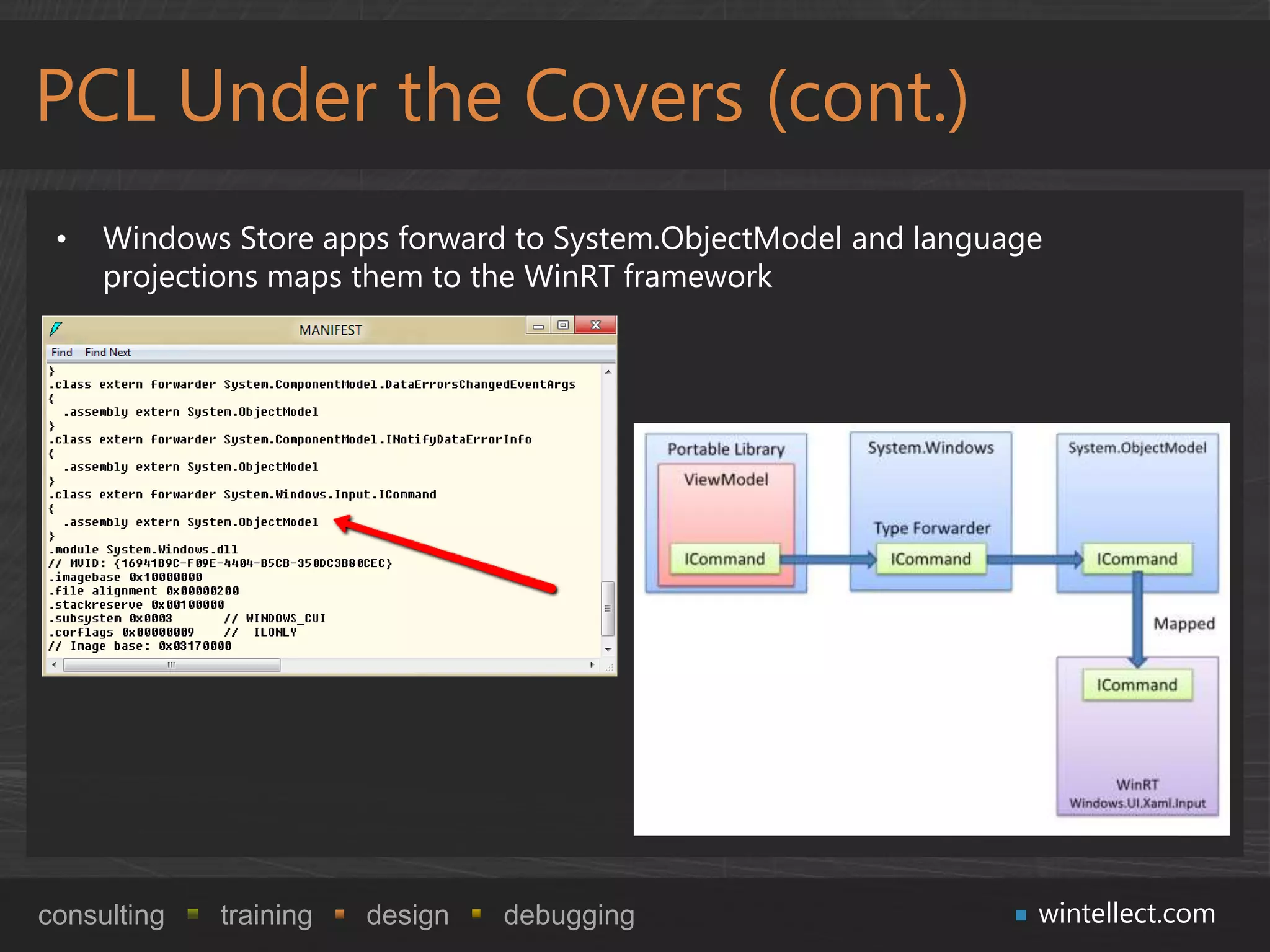

- 13. PCL Under theCovers (cont.) • Windows Store apps forward to System.ObjectModel and language projections maps them to the WinRT framework consulting training design debugging wintellect.com

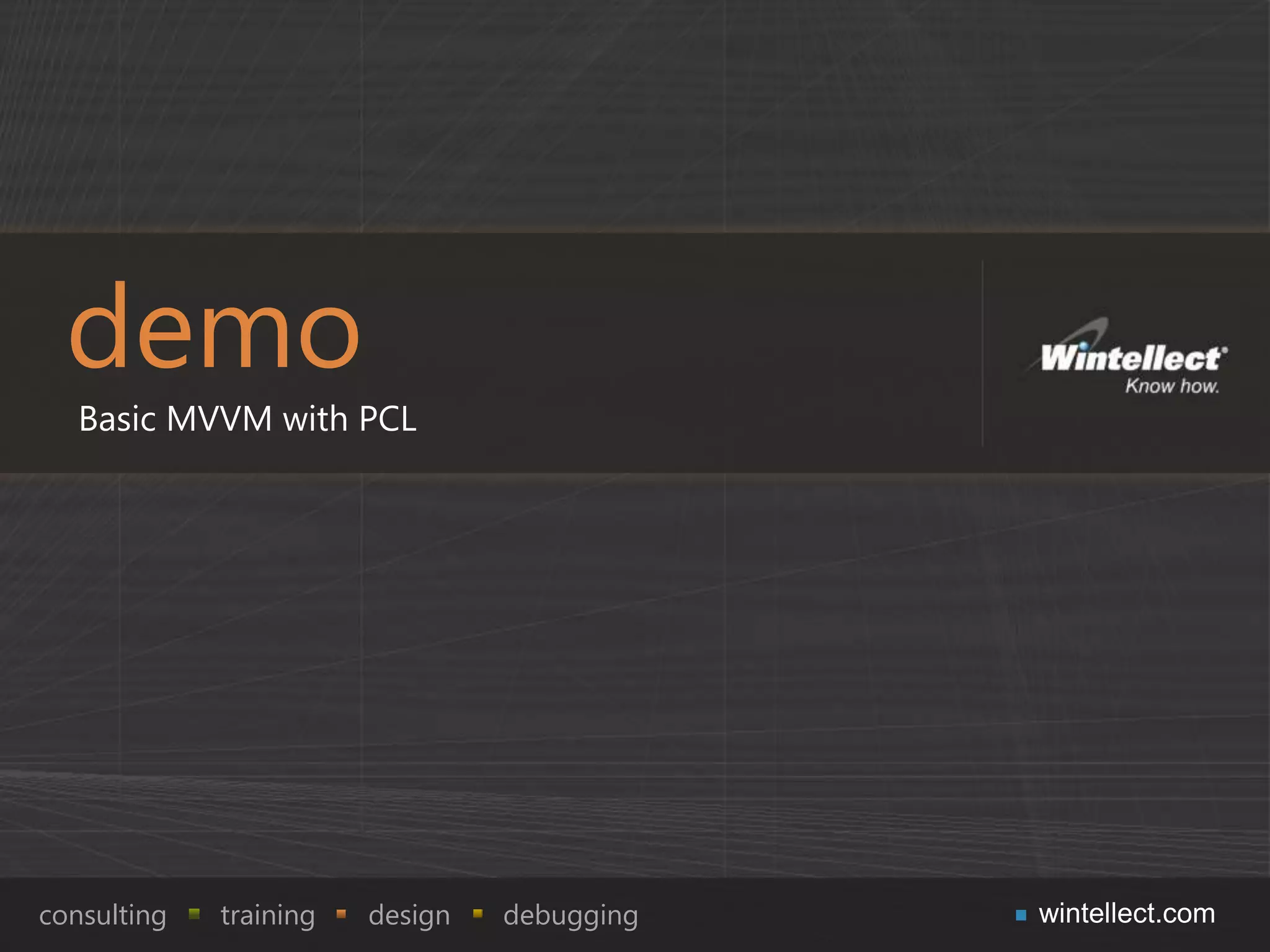

- 14. demo Basic MVVM with PCL consulting training design debugging wintellect.com

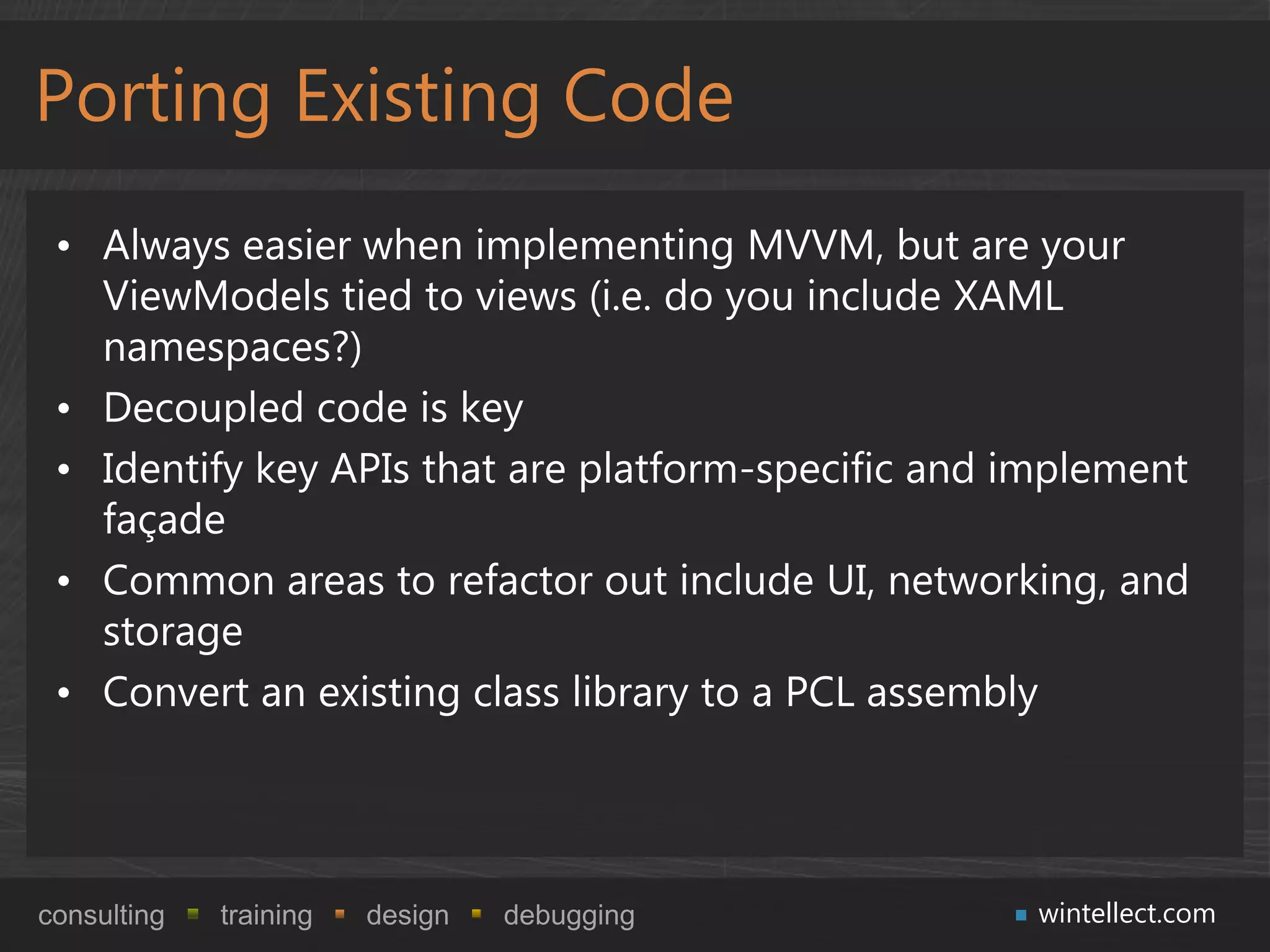

- 15. Porting Existing Code • Always easier when implementing MVVM, but are your ViewModels tied to views (i.e. do you include XAML namespaces?) • Decoupled code is key • Identify key APIs that are platform-specific and implement façade • Common areas to refactor out include UI, networking, and storage • Convert an existing class library to a PCL assembly consulting training design debugging wintellect.com

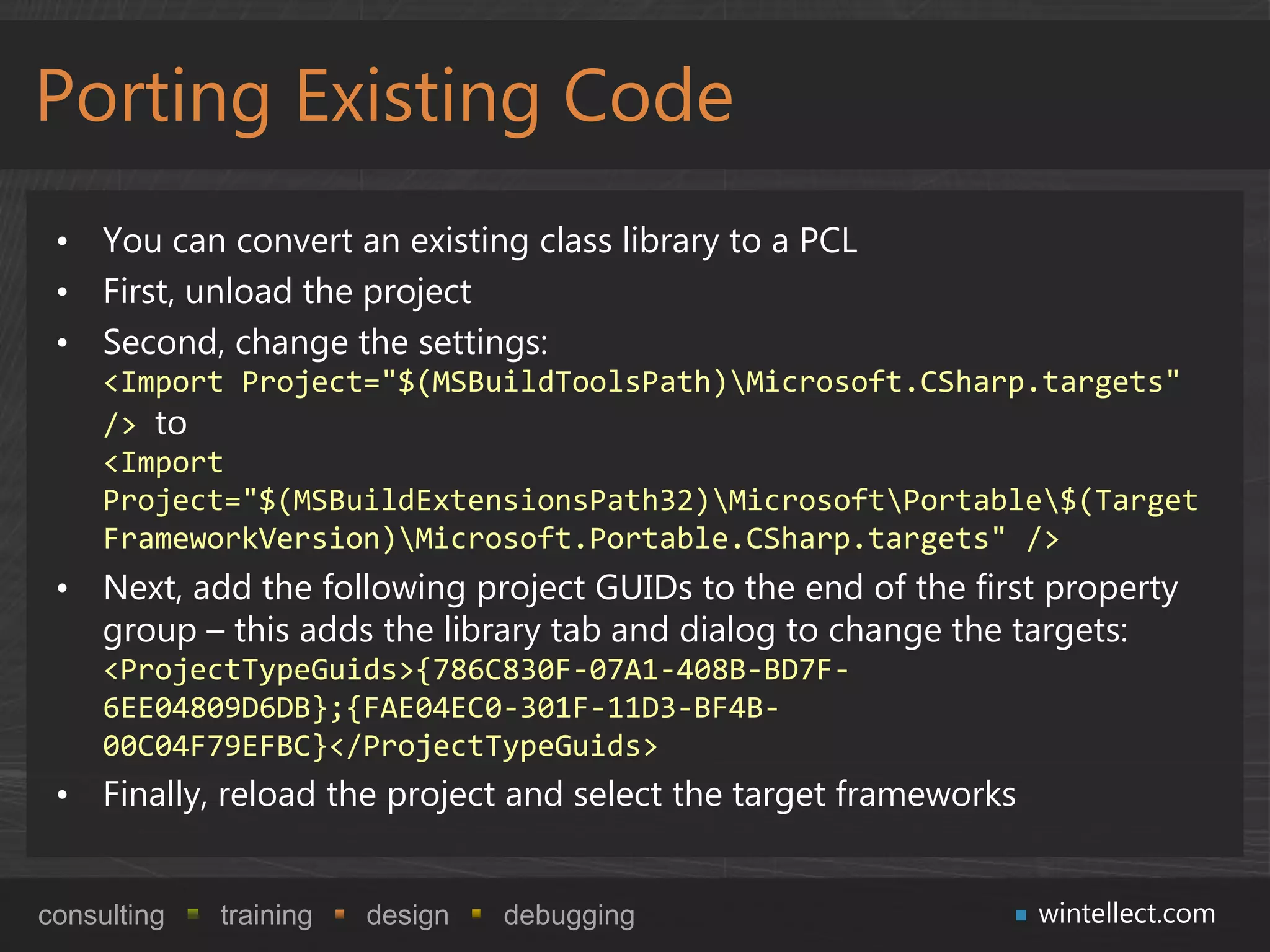

- 16. Porting Existing Code • You can convert an existing class library to a PCL • First, unload the project • Second, change the settings: <Import Project="$(MSBuildToolsPath)Microsoft.CSharp.targets" /> to <Import Project="$(MSBuildExtensionsPath32)MicrosoftPortable$(Target FrameworkVersion)Microsoft.Portable.CSharp.targets" /> • Next, add the following project GUIDs to the end of the first property group – this adds the library tab and dialog to change the targets: <ProjectTypeGuids>{786C830F-07A1-408B-BD7F- 6EE04809D6DB};{FAE04EC0-301F-11D3-BF4B- 00C04F79EFBC}</ProjectTypeGuids> • Finally, reload the project and select the target frameworks consulting training design debugging wintellect.com

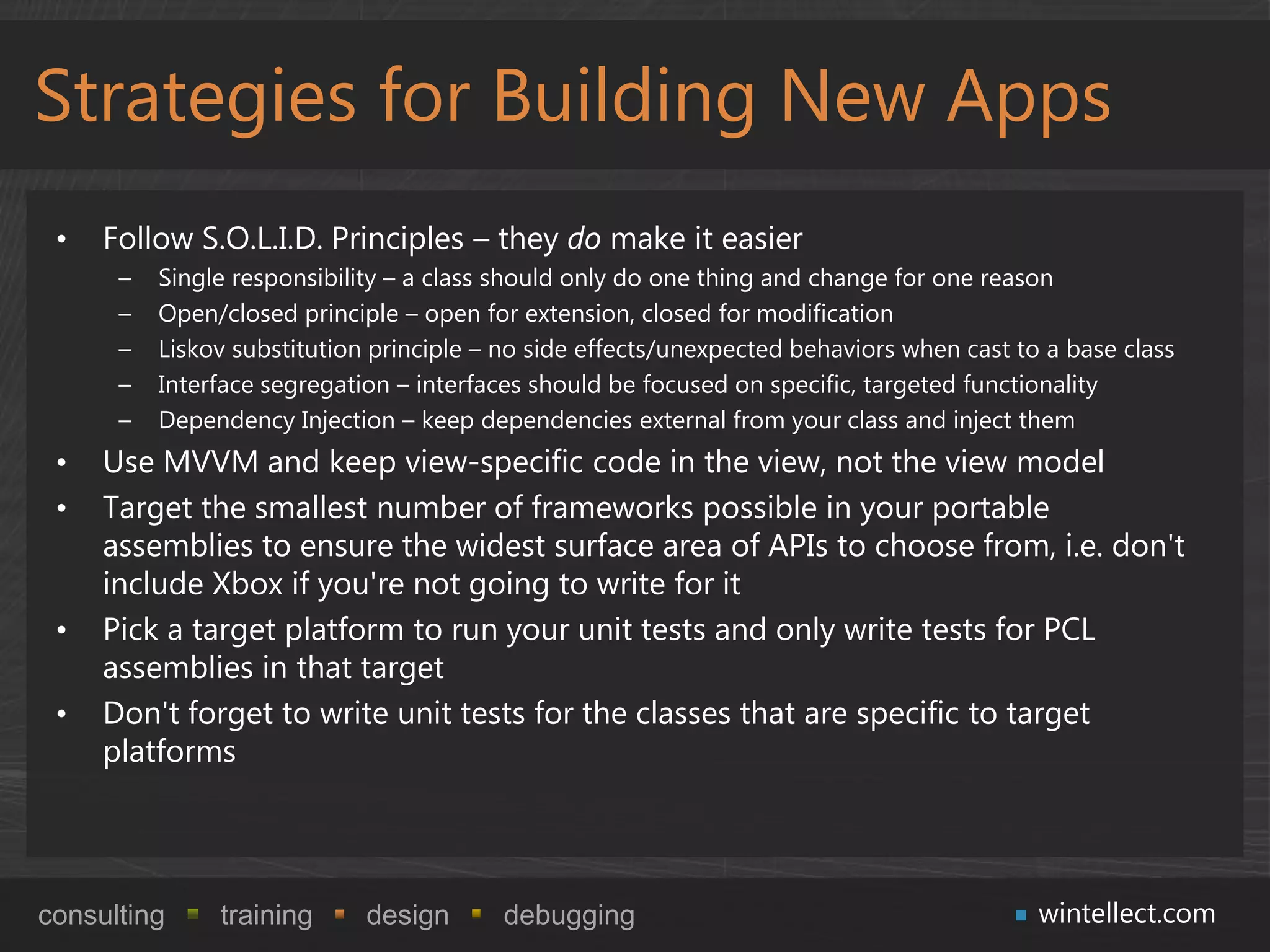

- 17. Strategies for BuildingNew Apps • Follow S.O.L.I.D. Principles – they do make it easier – Single responsibility – a class should only do one thing and change for one reason – Open/closed principle – open for extension, closed for modification – Liskov substitution principle – no side effects/unexpected behaviors when cast to a base class – Interface segregation – interfaces should be focused on specific, targeted functionality – Dependency Injection – keep dependencies external from your class and inject them • Use MVVM and keep view-specific code in the view, not the view model • Target the smallest number of frameworks possible in your portable assemblies to ensure the widest surface area of APIs to choose from, i.e. don't include Xbox if you're not going to write for it • Pick a target platform to run your unit tests and only write tests for PCL assemblies in that target • Don't forget to write unit tests for the classes that are specific to target platforms consulting training design debugging wintellect.com
- 18. demo Wintellog: Windows Store and WPF consulting training design debugging wintellect.com

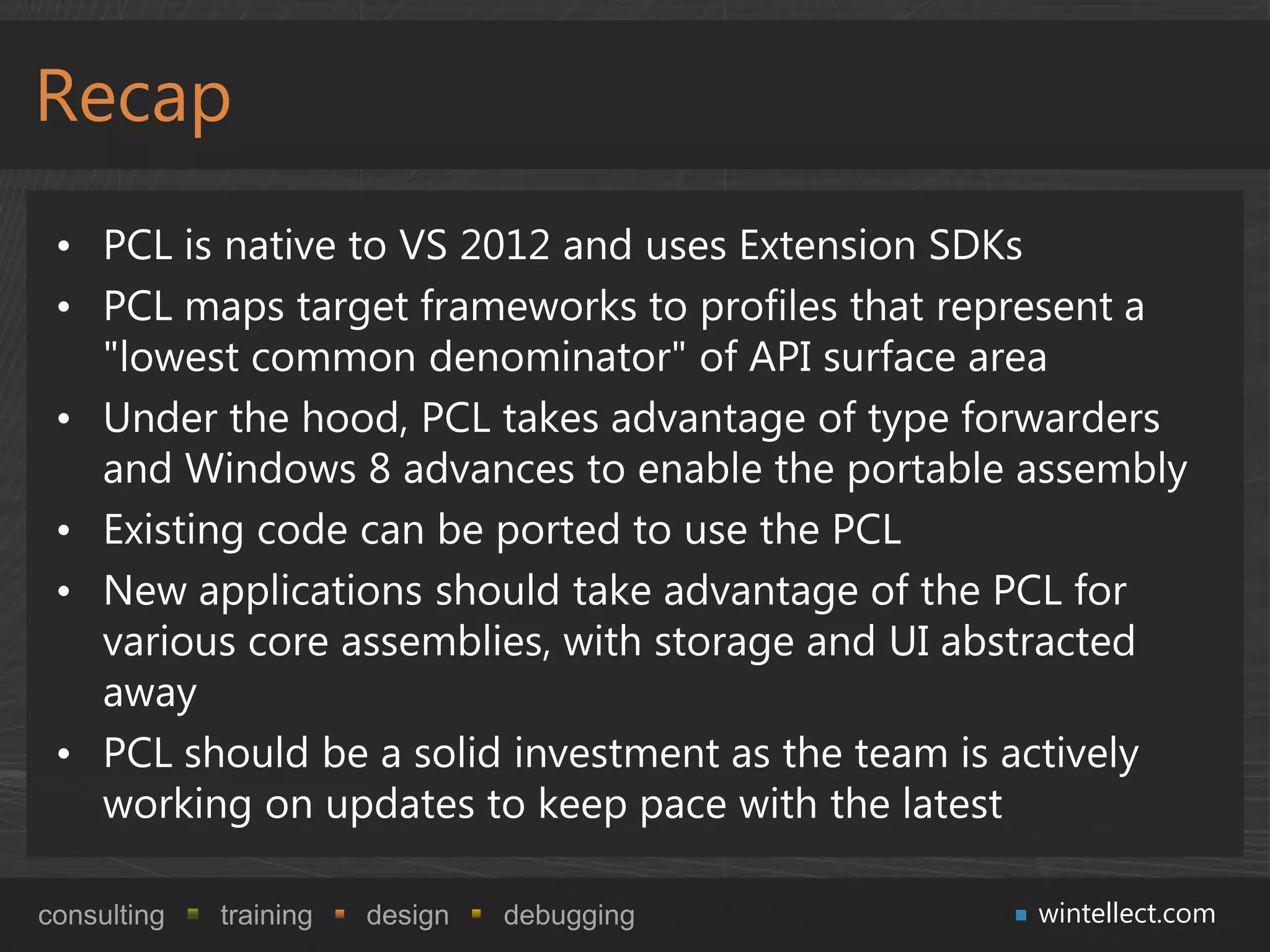

- 19. Recap • PCLis native to VS 2012 and uses Extension SDKs • PCL maps target frameworks to profiles that represent a "lowest common denominator" of API surface area • Under the hood, PCL takes advantage of type forwarders and Windows 8 advances to enable the portable assembly • Existing code can be ported to use the PCL • New applications should take advantage of the PCL for various core assemblies, with storage and UI abstracted away • PCL should be a solid investment as the team is actively working on updates to keep pace with the latest consulting training design debugging wintellect.com
- 20. Questions? Jeremy Likness (@JeremyLikness) Principal Consultant jlikness@wintellect.com consulting training design debugging wintellect.com
