What's New in Java 9

What’s New in Java 9
Richard Langlois P. Eng.
Solutions Architect
May 3rd, 2017

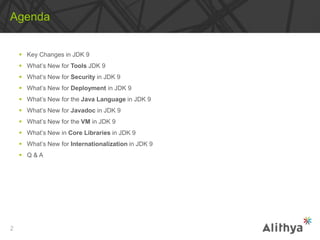

 Key Changes in JDK 9
 What’s New for Tools JDK 9
 What’s New for Security in JDK 9
 What’s New for Deployment in JDK 9
 What’s New for the Java Language in JDK 9
 What’s New for Javadoc in JDK 9
 What’s New for the VM in JDK 9
 What’s New in Core Libraries in JDK 9
 What’s New for Internationalization in JDK 9
 Q & A
Agenda
2

Will reach General Availability on July 27, 2017.
Availability
3

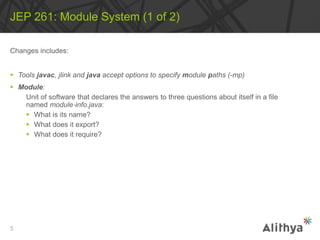

Changes includes:
 Tools javac, jlink and java accept options to specify module paths (-mp)
 Module:
Unit of software that declares the answers to three questions about itself in a file
named module‐info.java:
 What is its name?
 What does it export?
 What does it require?
JEP 261: Module System (1 of 2)
5

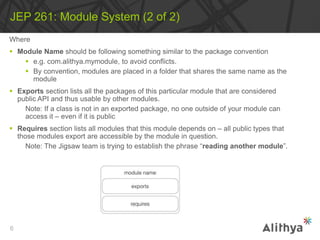

Where
 Module Name should be following something similar to the package convention
 e.g. com.alithya.mymodule, to avoid conflicts.
 By convention, modules are placed in a folder that shares the same name as the
module
 Exports section lists all the packages of this particular module that are considered
public API and thus usable by other modules.
Note: If a class is not in an exported package, no one outside of your module can
access it – even if it is public
 Requires section lists all modules that this module depends on – all public types that
those modules export are accessible by the module in question.
Note: The Jigsaw team is trying to establish the phrase “reading another module”.
JEP 261: Module System (2 of 2)
6

Module de.codecentric.addresschecker uses module de.codecentric.zipvalidator to
validate zip code.
zipvalidator is specified by the following module‐info.java:
module de.codecentric.zipvalidator{
exports de.codecentric.zipvalidator.api;
}
 Exports the de.codecentric.zipvalidator.api package and does not read any other
module (except for java.base).
Addresschecker is specified by the following module‐info.java:
module de.codecentric.addresschecker{
exports de.codecentric.addresschecker.api;
requires de.codecentric.zipvalidator;
}
 Reads de.codecentric.zipvalidator module
JEP 261: Module System – Example (1 of 12)
7

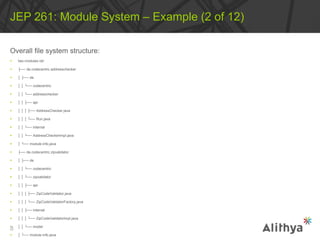

Overall file system structure:
 two‐modules‐ok/
 ├── de.codecentric.addresschecker
 │ ├── de
 │ │ └── codecentric
 │ │ └── addresschecker
 │ │ ├── api
 │ │ │ ├── AddressChecker.java
 │ │ │ └── Run.java
 │ │ └── internal
 │ │ └── AddressCheckerImpl.java
 │ └── module‐info.java
 ├── de.codecentric.zipvalidator
 │ ├── de
 │ │ └── codecentric
 │ │ └── zipvalidator
 │ │ ├── api
 │ │ │ ├── ZipCodeValidator.java
 │ │ │ └── ZipCodeValidatorFactory.java
 │ │ ├── internal
 │ │ │ └── ZipCodeValidatorImpl.java
 │ │ └── model
 │ └── module‐info.java
8

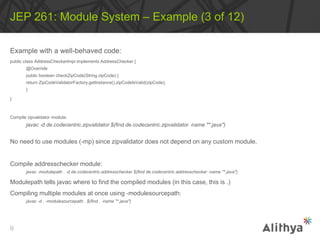

Example with a well-behaved code:
public class AddressCheckerImpl implements AddressChecker {
@Override
public boolean checkZipCode(String zipCode) {
return ZipCodeValidatorFactory.getInstance().zipCodeIsValid(zipCode);
}
}
Compile zipvalidator module:
javac ‐d de.codecentric.zipvalidator $(find de.codecentric.zipvalidator ‐name "*.java")
No need to use modules (-mp) since zipvalidator does not depend on any custom module.
Compile addresschecker module:
javac ‐modulepath . ‐d de.codecentric.addresschecker $(find de.codecentric.addresschecker ‐name "*.java")
Modulepath tells javac where to find the compiled modules (in this case, this is .)
Compiling multiple modules at once using ‐modulesourcepath:
javac ‐d . ‐modulesourcepath . $(find . ‐name "*.java")
9

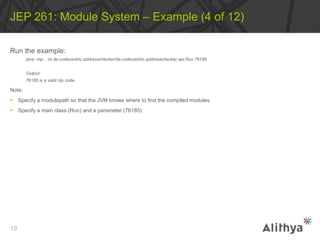

Run the example:
java ‐mp . ‐m de.codecentric.addresschecker/de.codecentric.addresschecker.api.Run 76185
Output:
76185 is a valid zip code
Note:
 Specify a modulepath so that the JVM knows where to find the compiled modules
 Specify a main class (Run) and a parameter (76185)
10

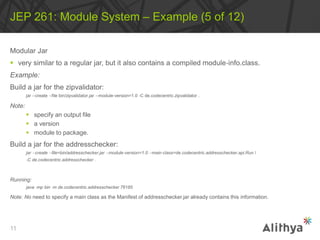

Modular Jar
 very similar to a regular jar, but it also contains a compiled module‐info.class.
Example:
Build a jar for the zipvalidator:
jar ‐‐create ‐‐file bin/zipvalidator.jar ‐‐module‐version=1.0 ‐C de.codecentric.zipvalidator .
Note:
 specify an output file
 a version
 module to package.
Build a jar for the addresschecker:
jar ‐‐create ‐‐file=bin/addresschecker.jar ‐‐module‐version=1.0 ‐‐main‐class=de.codecentric.addresschecker.api.Run
‐C de.codecentric.addresschecker .
Running:
java ‐mp bin ‐m de.codecentric.addresschecker 76185
Note: No need to specify a main class as the Manifest of addresschecker.jar already contains this information.
11

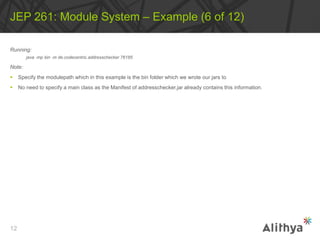

Running:
java ‐mp bin ‐m de.codecentric.addresschecker 76185
Note:
 Specify the modulepath which in this example is the bin folder which we wrote our jars to
 No need to specify a main class as the Manifest of addresschecker.jar already contains this information.
12

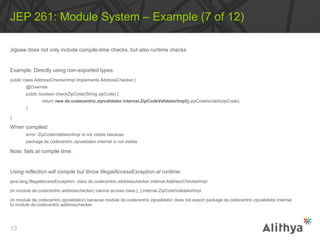

Jigsaw does not only include compile-time checks, but also runtime checks
Example: Directly using non-exported types:
public class AddressCheckerImpl implements AddressChecker {
@Override
public boolean checkZipCode(String zipCode) {
return new de.codecentric.zipvalidator.internal.ZipCodeValidatorImpl().zipCodeIsValid(zipCode);
}
}
When compiled:
error: ZipCodeValidatorImpl is not visible because
package de.codecentric.zipvalidator.internal is not visible
Note: fails at compile time.
Using reflection will compile but throw IllegalAccessException at runtime:
java.lang.IllegalAccessException: class de.codecentric.addresschecker.internal.AddressCheckerImpl
(in module de.codecentric.addresschecker) cannot access class [..].internal.ZipCodeValidatorImpl
(in module de.codecentric.zipvalidator) because module de.codecentric.zipvalidator does not export package de.codecentric.zipvalidator.internal
to module de.codecentric.addresschecker
13

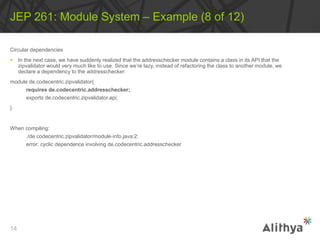

Circular dependencies
 In the next case, we have suddenly realized that the addresschecker module contains a class in its API that the
zipvalidator would very much like to use. Since we’re lazy, instead of refactoring the class to another module, we
declare a dependency to the addresschecker:
requires de.codecentric.addresschecker;
}
When compiling:
./de.codecentric.zipvalidator/module‐info.java:2:
error: cyclic dependence involving de.codecentric.addresschecker
14

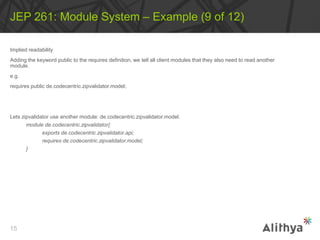

Implied readability
Adding the keyword public to the requires definition, we tell all client modules that they also need to read another
module.
e.g.
requires public de.codecentric.zipvalidator.model;
Lets zipvalidator use another module: de.codecentric.zipvalidator.model.
requires de.codecentric.zipvalidator.model;
}
15

New file structure:
three‐modules‐ok/
├── de.codecentric.addresschecker
│ │ │ ├── …
├── de.codecentric.zipvalidator
│ │ │ └── …
├── de.codecentric.zipvalidator.model
│ ├── de
│ │ └── codecentric
│ │ └── zipvalidator
│ │ └── model
│ │ └── api
│ │ └── ZipCodeValidationResult.java
│ └── module‐info.java
16

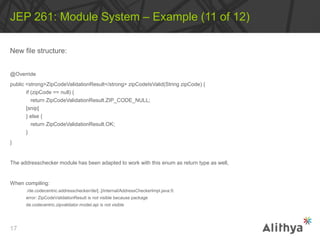

New file structure:
@Override
public <strong>ZipCodeValidationResult</strong> zipCodeIsValid(String zipCode) {
if (zipCode == null) {
return ZipCodeValidationResult.ZIP_CODE_NULL;
[snip]
} else {
return ZipCodeValidationResult.OK;
}
}
The addresschecker module has been adapted to work with this enum as return type as well,
When compiling:
./de.codecentric.addresschecker/de/[..]/internal/AddressCheckerImpl.java:5:
error: ZipCodeValidationResult is not visible because package
de.codecentric.zipvalidator.model.api is not visible
17

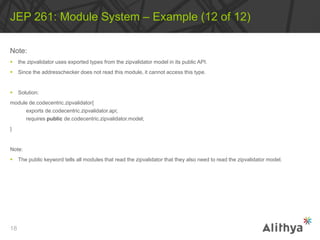

Note:
 the zipvalidator uses exported types from the zipvalidator model in its public API.
 Since the addresschecker does not read this module, it cannot access this type.
 Solution:
requires public de.codecentric.zipvalidator.model;
}
Note:
 The public keyword tells all modules that read the zipvalidator that they also need to read the zipvalidator model.
18

Modularizes the Java Platform Module System (JPMS)
The modules can be combined:
 Configurations corresponding to the JRE and JDK
 Configuration equivalent in content to each of the Compact Profiles defined in JDK 8
 e.g. compact1, compact2
 Custom configurations that contain only a specified set of modules and their required
modules.
JEP 200: The Modular JDK (1 of 3)
19

20

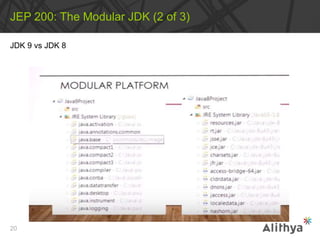

JDK 9 vs JDK 8

 You can now specify which modules of the Java Runtime you want to use
 At the bottom of the graph resides java.base.
 Every module you create reads java.base
 java.base exports packages such as java.lang, java.util, java.math, etc.
21

Restructures the JDK and JRE runtime images to accommodate modules.
 Removes the rt.jar and tools.jar from JRE:
 Class and resource files previously stored in lib/rt.jar, lib/tools.jar, lib/dt.jar and various other
internal jar files are stored in a more efficient format in implementation-specific files in the lib
directory.
 Removes the endorsed-standards override mechanism:
 The java.endorsed.dirs system property and the lib/endorsed directory are no longer present
 Remember the old days with XML parser like Xerces
 Use upgradeable modules mechanism instead
JEP 220: Modular Runtime Images
22

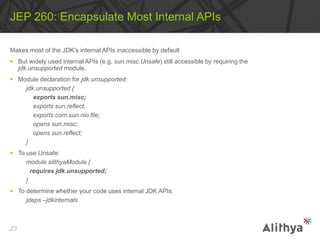

Makes most of the JDK’s internal APIs inaccessible by default
 But widely used internal APIs (e.g. sun.misc.Unsafe) still accessible by requiring the
jdk.unsupported module.
 Module declaration for jdk.unsupported:
jdk.unsupported {
exports sun.misc;
exports sun.reflect;
exports com.sun.nio.file;
opens sun.misc;
opens sun.reflect;
}
 To use Unsafe:
module alithyaModule {
requires jdk.unsupported;
}
 To determine whether your code uses internal JDK APIs:
jdeps –jdkinternals
JEP 260: Encapsulate Most Internal APIs
23

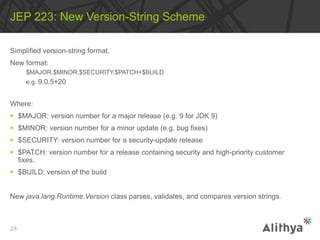

Simplified version-string format.
New format:
$MAJOR.$MINOR.$SECURITY.$PATCH+$BUILD
e.g. 9.0.5+20
Where:
 $MAJOR: version number for a major release (e.g. 9 for JDK 9)
 $MINOR: version number for a minor update (e.g. bug fixes)
 $SECURITY: version number for a security-update release
 $PATCH: version number for a release containing security and high-priority customer
fixes.
 $BUILD: version of the build
New java.lang.Runtime.Version class parses, validates, and compares version strings.
JEP 223: New Version-String Scheme
24

Considering Java 9u5 release:
 Before JDK 9, the version string would be:
1.9.0_5-b20.
 Using JDK 9:
 the Short version: 9.0.5,
 the Long version: 9.0.5+20
 Using JDK9’s Version class:
Version version = Runtime.version(); // version contains list: 9,0,5,20
String major = version.major(); // major contains 9
String minor = version.minor(); // minor contains 0
String security = version.security(); // security contains 5
String build= version.build(); // major contains 20
JEP 223: New Version-String Scheme - Example
25

What’s New for Tools
in JDK 9
26

Adds Read-Eval-Print Loop (REPL) functionality to the Java Platform. You type Java code, and it
immediately evaluates it.
The Jshell tool continually reads user input, evaluates the input, and prints the value of the input or a
description of the state change the input caused.
Some of you may recognize Venkat Subramaniam’s special REPL based editor:
Jshell API enables applications (e.g. Eclipse) to leverage REPL functionality.
JEP 223: The Java Shell (REPL)
27

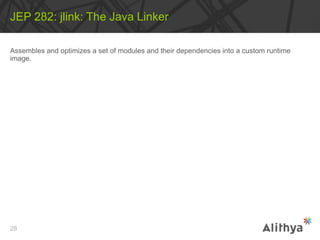

Assembles and optimizes a set of modules and their dependencies into a custom runtime
image.
JEP 282: jlink: The Java Linker
28

What’s New for Security in
JDK 9
29

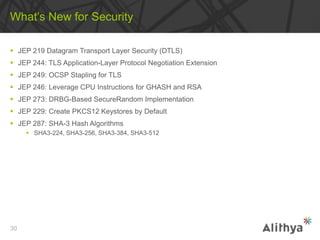

 JEP 219 Datagram Transport Layer Security (DTLS)
 JEP 244: TLS Application-Layer Protocol Negotiation Extension
 JEP 249: OCSP Stapling for TLS
 JEP 246: Leverage CPU Instructions for GHASH and RSA
 JEP 273: DRBG-Based SecureRandom Implementation
 JEP 229: Create PKCS12 Keystores by Default
 JEP 287: SHA-3 Hash Algorithms
 SHA3-224, SHA3-256, SHA3-384, SHA3-512
What’s New for Security
30

What’s New for Deployment
in JDK 9
31

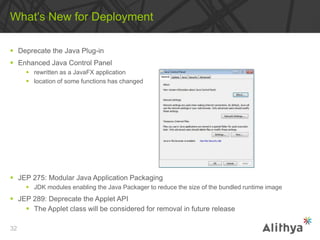

 Deprecate the Java Plug-in
 Enhanced Java Control Panel
 rewritten as a JavaFX application
 location of some functions has changed
 JEP 275: Modular Java Application Packaging
 JDK modules enabling the Java Packager to reduce the size of the bundled runtime image
 JEP 289: Deprecate the Applet API
 The Applet class will be considered for removal in future release
What’s New for Deployment
32

What’s New for the Java
Language in JDK 9
33

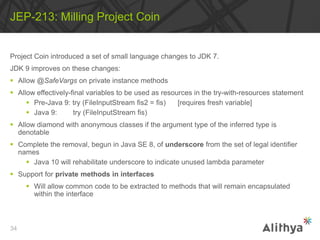

Project Coin introduced a set of small language changes to JDK 7.
JDK 9 improves on these changes:
 Allow @SafeVargs on private instance methods
 Allow effectively-final variables to be used as resources in the try-with-resources statement
 Pre-Java 9: try (FileInputStream fis2 = fis) [requires fresh variable]
 Java 9: try (FileInputStream fis)
 Allow diamond with anonymous classes if the argument type of the inferred type is
denotable
 Complete the removal, begun in Java SE 8, of underscore from the set of legal identifier
names
 Java 10 will rehabilitate underscore to indicate unused lambda parameter
 Support for private methods in interfaces
 Will allow common code to be extracted to methods that will remain encapsulated
within the interface
JEP-213: Milling Project Coin
34

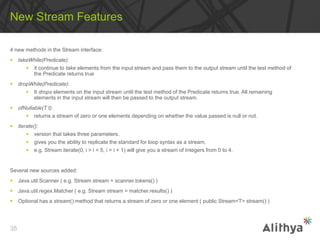

4 new methods in the Stream interface:
 takeWhile(Predicate):
 it continue to take elements from the input stream and pass them to the output stream until the test method of
the Predicate returns true
 dropWhile(Predicate):
 It drops elements on the input stream until the test method of the Predicate returns true. All remaining
elements in the input stream will then be passed to the output stream.
 ofNullable(T t):
 returns a stream of zero or one elements depending on whether the value passed is null or not.
 iterate():
 version that takes three parameters.
 gives you the ability to replicate the standard for loop syntax as a stream.
 e.g. Stream.iterate(0, i > i < 5, i > i + 1) will give you a stream of Integers from 0 to 4.
Several new sources added:
 Java.util.Scanner ( e.g. Stream stream = scanner.tokens() )
 Java.util.regex.Matcher ( e.g. Stream stream = matcher.results() )
 Optional has a stream() method that returns a stream of zero or one element ( public Stream<T> stream() )
New Stream Features
35

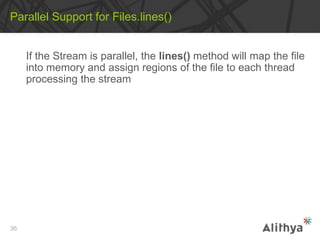

If the Stream is parallel, the lines() method will map the file
into memory and assign regions of the file to each thread
processing the stream
Parallel Support for Files.lines()
36

What’s New for Javadoc in
JDK 9
37

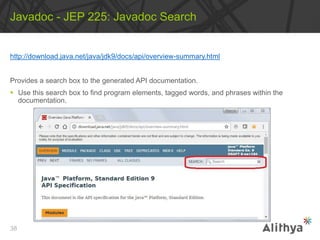

http://download.java.net/java/jdk9/docs/api/overview-summary.html
Provides a search box to the generated API documentation.
 Use this search box to find program elements, tagged words, and phrases within the
documentation.
Javadoc - JEP 225: Javadoc Search
38

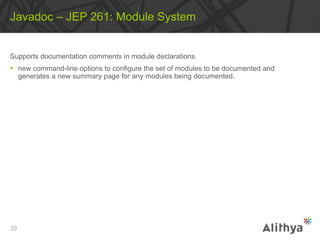

Supports documentation comments in module declarations.
 new command-line options to configure the set of modules to be documented and
generates a new summary page for any modules being documented.
Javadoc – JEP 261: Module System
39

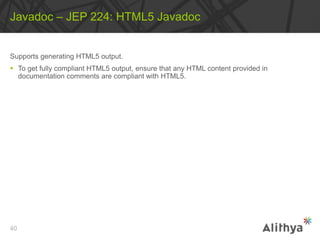

Supports generating HTML5 output.
 To get fully compliant HTML5 output, ensure that any HTML content provided in
documentation comments are compliant with HTML5.
Javadoc – JEP 224: HTML5 Javadoc
40

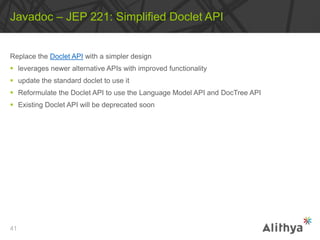

Replace the Doclet API with a simpler design
 leverages newer alternative APIs with improved functionality
 update the standard doclet to use it
 Reformulate the Doclet API to use the Language Model API and DocTree API
 Existing Doclet API will be deprecated soon
Javadoc – JEP 221: Simplified Doclet API
41

What’s New for the VM in
JDK 9
42

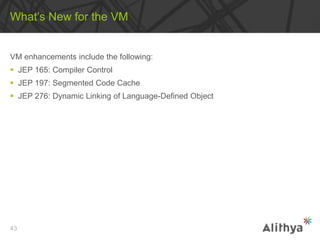

VM enhancements include the following:
 JEP 165: Compiler Control
 JEP 197: Segmented Code Cache
 JEP 276: Dynamic Linking of Language-Defined Object
What’s New for the VM
43

What’s New for JVM Tuning
in JDK 9
44

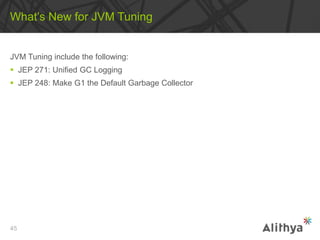

JVM Tuning include the following:
 JEP 271: Unified GC Logging
 JEP 248: Make G1 the Default Garbage Collector
What’s New for JVM Tuning
45

What’s New in Core
Libraries in JDK 9
46

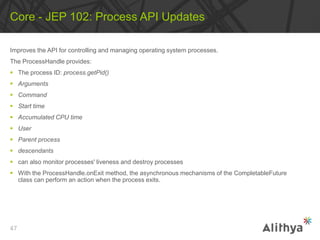

Improves the API for controlling and managing operating system processes.
The ProcessHandle provides:
 The process ID: process.getPid()
 Arguments
 Command
 Start time
 Accumulated CPU time
 User
 Parent process
 descendants
 can also monitor processes' liveness and destroy processes
 With the ProcessHandle.onExit method, the asynchronous mechanisms of the CompletableFuture
class can perform an action when the process exits.
Core - JEP 102: Process API Updates
47

@Test
public void getPid() throws IOException {
ProcessBuilder builder = new ProcessBuilder("/bin/sleep", "5");
Process proc = builder.start();
assertThat(proc.getPid()).isGreaterThan(0);
}
Core – JEP 102: Process API Improvements - Example
48

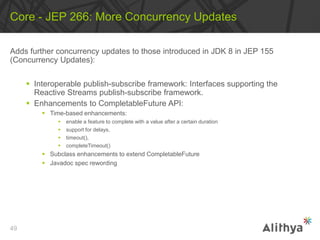

Adds further concurrency updates to those introduced in JDK 8 in JEP 155
(Concurrency Updates):
 Interoperable publish-subscribe framework: Interfaces supporting the
Reactive Streams publish-subscribe framework.
 Enhancements to CompletableFuture API:
 Time-based enhancements:
 enable a feature to complete with a value after a certain duration
 support for delays,
 timeout(),
 completeTimeout()
 Subclass enhancements to extend CompletableFuture
 Javadoc spec rewording
Core - JEP 266: More Concurrency Updates
49

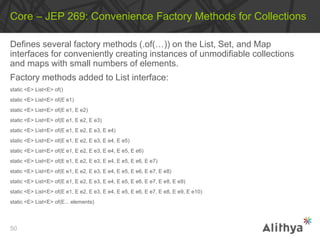

Defines several factory methods (.of(…)) on the List, Set, and Map
interfaces for conveniently creating instances of unmodifiable collections
and maps with small numbers of elements.
Factory methods added to List interface:
static <E> List<E> of()
static <E> List<E> of(E e1)
static <E> List<E> of(E e1, E e2)
static <E> List<E> of(E e1, E e2, E e3)
static <E> List<E> of(E e1, E e2, E e3, E e4)
static <E> List<E> of(E e1, E e2, E e3, E e4, E e5)
static <E> List<E> of(E e1, E e2, E e3, E e4, E e5, E e6)
static <E> List<E> of(E e1, E e2, E e3, E e4, E e5, E e6, E e7)
static <E> List<E> of(E e1, E e2, E e3, E e4, E e5, E e6, E e7, E e8)
static <E> List<E> of(E e1, E e2, E e3, E e4, E e5, E e6, E e7, E e8, E e9)
static <E> List<E> of(E e1, E e2, E e3, E e4, E e5, E e6, E e7, E e8, E e9, E e10)
static <E> List<E> of(E... elements)
Core – JEP 269: Convenience Factory Methods for Collections
50

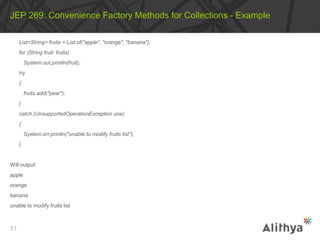

List<String> fruits = List.of("apple", "orange", "banana");
for (String fruit: fruits)
System.out.println(fruit);
try
{
fruits.add("pear");
}
catch (UnsupportedOperationException uoe)
{
System.err.println("unable to modify fruits list");
}
Will output:
apple
orange
banana
unable to modify fruits list
JEP 269: Convenience Factory Methods for Collections - Example
51

@Deprecated annotation provides better information about the status and intended future of APIs:
 forRemoval():
 This returns a boolean to indicate whether this API element is intended for removal in some future release
 E.g. @Deprecated(forRemoval=true) indicates the API will be removed in the next release of the Java SE platform.
 Since():
 This returns the release or version number, as a string, when this API element was first marked as deprecated
 @Deprecated(since="version") contains the Java SE version string that indicates when the API element was
deprecated for those deprecated in Java SE 9 and beyond.
 E.g. @Deprecated(since="9", forRemoval=true)
New tool, jdeprscan, to scan a class library (JAR file) for uses of deprecated JDK API elements.
Core - JEP 277: Enhanced Deprecation
52

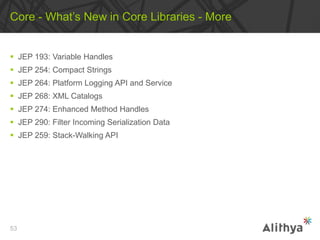

 JEP 193: Variable Handles
 JEP 254: Compact Strings
 JEP 264: Platform Logging API and Service
 JEP 268: XML Catalogs
 JEP 274: Enhanced Method Handles
 JEP 290: Filter Incoming Serialization Data
 JEP 259: Stack-Walking API
Core - What’s New in Core Libraries - More
53

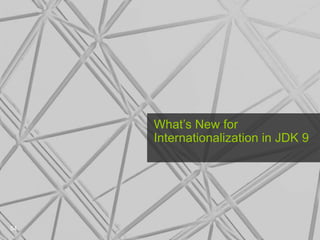

What’s New for
Internationalization in JDK 9
54

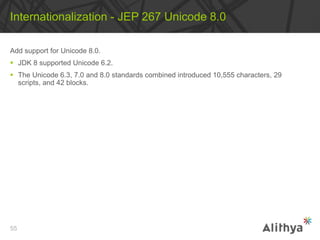

Add support for Unicode 8.0.
 JDK 8 supported Unicode 6.2.
 The Unicode 6.3, 7.0 and 8.0 standards combined introduced 10,555 characters, 29
scripts, and 42 blocks.
Internationalization - JEP 267 Unicode 8.0
55

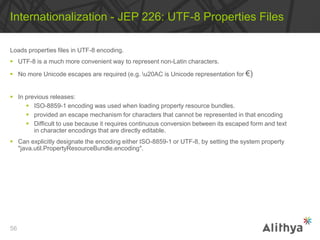

Loads properties files in UTF-8 encoding.
 UTF-8 is a much more convenient way to represent non-Latin characters.
 No more Unicode escapes are required (e.g. u20AC is Unicode representation for €)
 In previous releases:
 ISO-8859-1 encoding was used when loading property resource bundles.
 provided an escape mechanism for characters that cannot be represented in that encoding
 Difficult to use because it requires continuous conversion between its escaped form and text
in character encodings that are directly editable.
 Can explicitly designate the encoding either ISO-8859-1 or UTF-8, by setting the system property
"java.util.PropertyResourceBundle.encoding".
Internationalization - JEP 226: UTF-8 Properties Files
56

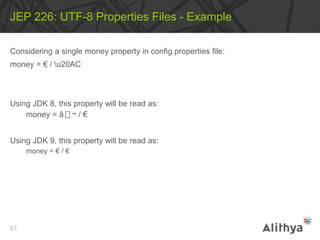

Considering a single money property in config.properties file:
money = € / u20AC
Using JDK 8, this property will be read as:
money = â▯¬ / €
Using JDK 9, this property will be read as:
money = € / €
JEP 226: UTF-8 Properties Files - Example
57

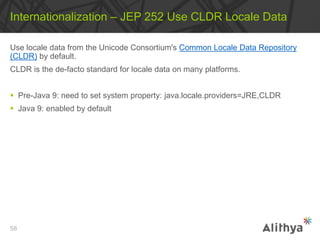

Use locale data from the Unicode Consortium's Common Locale Data Repository
(CLDR) by default.
CLDR is the de-facto standard for locale data on many platforms.
 Pre-Java 9: need to set system property: java.locale.providers=JRE,CLDR
 Java 9: enabled by default
Internationalization – JEP 252 Use CLDR Locale Data
58

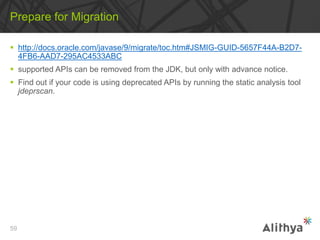

 http://docs.oracle.com/javase/9/migrate/toc.htm#JSMIG-GUID-5657F44A-B2D7-
4FB6-AAD7-295AC4533ABC
 supported APIs can be removed from the JDK, but only with advance notice.
 Find out if your code is using deprecated APIs by running the static analysis tool
jdeprscan.
Prepare for Migration
59

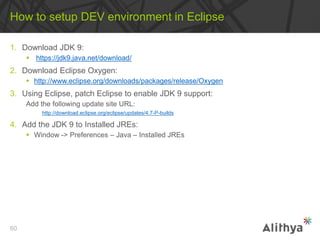

1. Download JDK 9:
 https://jdk9.java.net/download/
2. Download Eclipse Oxygen:
 http://www.eclipse.org/downloads/packages/release/Oxygen
3. Using Eclipse, patch Eclipse to enable JDK 9 support:
Add the following update site URL:
http://download.eclipse.org/eclipse/updates/4.7-P-builds
4. Add the JDK 9 to Installed JREs:
 Window -> Preferences – Java – Installed JREs
How to setup DEV environment in Eclipse
60

What's New in Java 9

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to What's New in Java 9

Similar to What's New in Java 9 (20)

More from Richard Langlois P. Eng.

More from Richard Langlois P. Eng. (7)

Recently uploaded

Recently uploaded (20)

What's New in Java 9
