This document summarizes a presentation on bringing together the NetBeans module system and OSGi module system. It discusses how both systems use modules and services, and describes a project called Netigso that allows NetBeans modules to interact with OSGi bundles and vice versa. It provides demos of creating modules and bundles that can depend on each other across the two systems. The goal is to make the NetBeans platform interchangeable with OSGi.

1. Frankenstein's IDE Anton Epple Eppleton IT Consulting http://www.eppleton.de Frankenstein's IDE: Running NetBeans on OSGi and vice versa

2. Agenda Module Systems

3. Service Infrastructure

4. Project netigso: bringing it all together

5. Demos

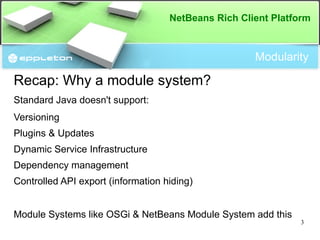

6. Modularity Recap: Why a module system? Standard Java doesn't support: Versioning

7. Plugins & Updates

8. Dynamic Service Infrastructure

9. Dependency management

10. Controlled API export (information hiding) Module Systems like OSGi & NetBeans Module System add this

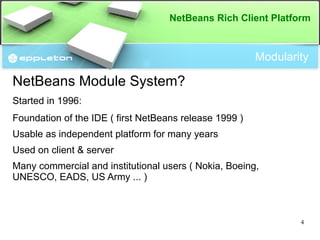

11. Modularity NetBeans Module System? Started in 1996: Foundation of the IDE ( first NetBeans release 1999 )

12. Usable as independent platform for many years

13. Used on client & server

14. Many commercial and institutional users ( Nokia, Boeing, UNESCO, EADS, US Army ... )

15. Duke's Choice Award 2009

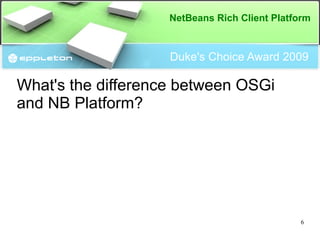

16. Duke's Choice Award 2009 What's the difference between OSGi and NB Platform?

17. Module System How does the OSGi module system work? Runtime Container manages Life cycle and dependencies of modules

18. Basic Services provide reusable functionality

19. API/SPI Modules provide Extension Points and Utility Classes

20. User Modules provide application functionality

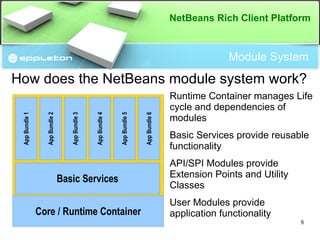

21. Module System How does the NetBeans module system work? Runtime Container manages Life cycle and dependencies of modules

22. Basic Services provide reusable functionality

23. API/SPI Modules provide Extension Points and Utility Classes

24. User Modules provide application functionality

25. Module System How does the OSGi module system work? Runtime starts up reads meta information and sets up dependencies

26. Starts the Modules

27. ClassLoader: Every Module has it's own classloader. It can only load classes from other Modules if it has declared a dependency. Loading is then delegated to the other modules ClassLoader

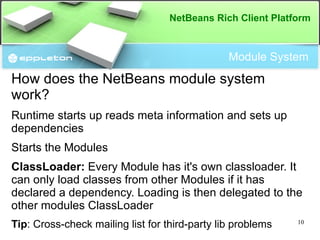

28. Module System How does the NetBeans module system work? Runtime starts up reads meta information and sets up dependencies

29. Starts the Modules

30. ClassLoader: Every Module has it's own classloader. It can only load classes from other Modules if it has declared a dependency. Loading is then delegated to the other modules ClassLoader

31. Tip : Cross-check mailing list for third-party lib problems

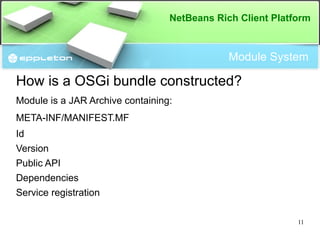

32. Module System How is a OSGi bundle constructed? Module is a JAR Archive containing: META-INF/MANIFEST.MF Id

33. Version

34. Public API

35. Dependencies Service registration

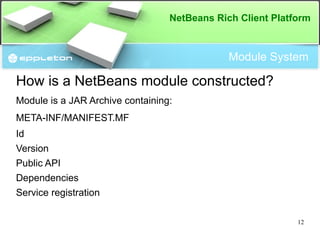

36. Module System How is a NetBeans module constructed? Module is a JAR Archive containing: META-INF/MANIFEST.MF Id

37. Version

38. Public API

39. Dependencies Service registration

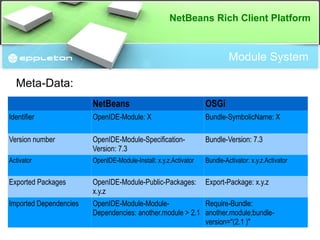

40. Module System Meta-Data: NetBeans OSGi Identifier OpenIDE-Module: X Bundle-SymbolicName: X Version number OpenIDE-Module-Specification-Version: 7.3 Bundle-Version: 7.3 Activator OpenIDE-Module-Install: x.y.z.Activator Bundle-Activator: x.y.z.Activator Exported Packages OpenIDE-Module-Public-Packages: x.y.z Export-Package: x.y.z Imported Dependencies OpenIDE-Module-Module-Dependencies: another.module > 2.1 Require-Bundle: another.module;bundle-version="(2.1 )"

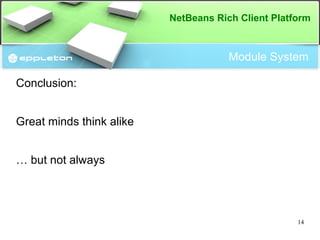

41. Module System Conclusion: Great minds think alike … but not always

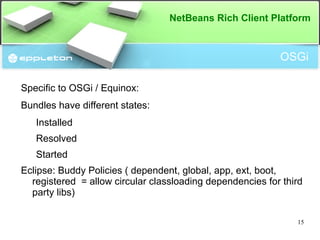

42. OSGi Specific to OSGi / Equinox: Bundles have different states: Installed

43. Resolved

44. Started Eclipse: Buddy Policies ( dependent, global, app, ext, boot, registered = allow circular classloading dependencies for third party libs)

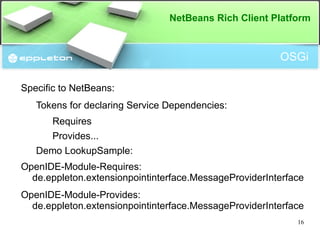

45. OSGi Specific to NetBeans: Tokens for declaring Service Dependencies: Requires

46. Provides... Demo LookupSample: OpenIDE-Module-Requires: de.eppleton.extensionpointinterface.MessageProviderInterface OpenIDE-Module-Provides: de.eppleton.extensionpointinterface.MessageProviderInterface

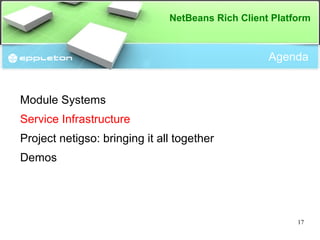

47. Agenda Module Systems

48. Service Infrastructure

49. Project netigso: bringing it all together

50. Demos

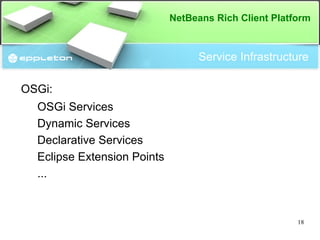

51. Service Infrastructure OSGi: OSGi Services

52. Dynamic Services

53. Declarative Services

54. Eclipse Extension Points

55. ...

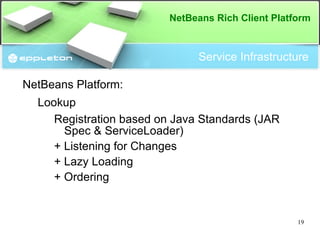

56. Service Infrastructure NetBeans Platform : Lookup Registration based on Java Standards (JAR Spec & ServiceLoader)

57. + Listening for Changes

58. + Lazy Loading

59. + Ordering

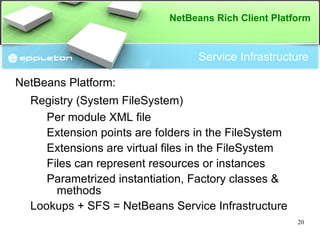

60. Service Infrastructure NetBeans Platform : Registry (System FileSystem) Per module XML file

61. Extension points are folders in the FileSystem

62. Extensions are virtual files in the FileSystem

63. Files can represent resources or instances

64. Parametrized instantiation, Factory classes & methods Lookups + SFS = NetBeans Service Infrastructure

65. Service Infrastructure NetBeans Extension Points : Extensions are declarations

66. One extension can contribute to an indefinite number of Extension points

67. Extension point definer queries registry when needed ( lazy loading )

68. Extensions need not be associated with executable Java code

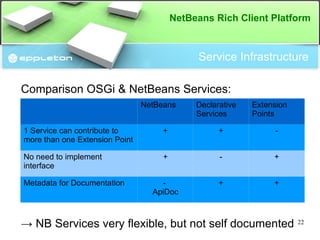

69. Service Infrastructure Comparison OSGi & NetBeans Services: -> NB Services very flexible, but not self documented NetBeans Declarative Services Extension Points 1 Service can contribute to more than one Extension Point + + - No need to implement interface + - + Metadata for Documentation - ApiDoc + +

70. Agenda Modular Systems

71. Service Infrastructure

72. Project netigso: bringing it all together

73. Demos

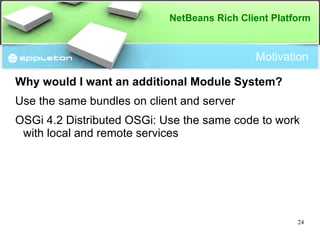

74. Motivation Why would I want an additional Module System? Use the same bundles on client and server

75. OSGi 4.2 Distributed OSGi: Use the same code to work with local and remote services

76. Project Netigso Netigso: Felix OSGi container embedded in NetBeans Interoperability for NetBeans Modules ↔ OSGi bundles Dependency Management over system boundaries Final target: Make platform interchangeable

77. http://wiki.netbeans.org/OSGiAndNetBeans

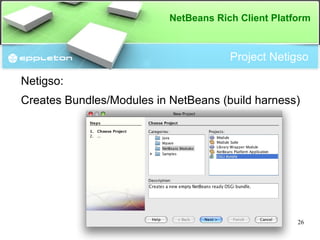

78. Project Netigso Netigso: Creates Bundles/Modules in NetBeans (build harness)

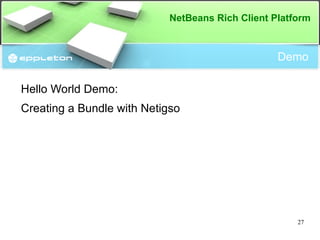

79. Demo Hello World Demo: Creating a Bundle with Netigso

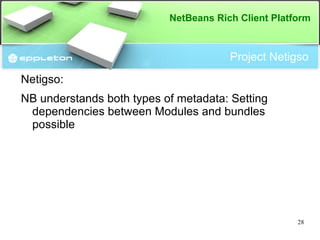

80. Project Netigso Netigso: NB understands both types of metadata: Setting dependencies between Modules and bundles possible

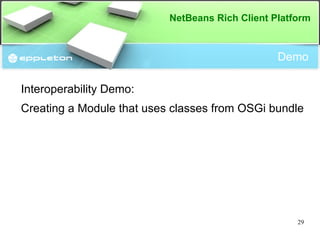

81. Demo Interoperability Demo: Creating a Module that uses classes from OSGi bundle

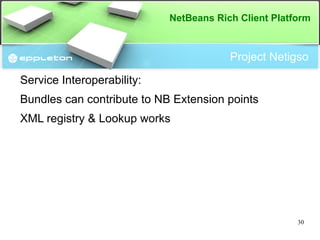

82. Project Netigso Service Interoperability: Bundles can contribute to NB Extension points

83. XML registry & Lookup works

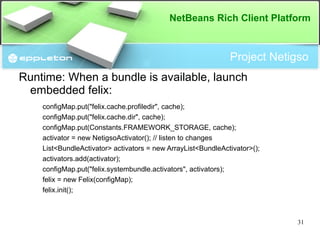

84. Project Netigso Runtime: When a bundle is available, launch embedded felix: configMap.put(&quot;felix.cache.profiledir&quot;, cache); configMap.put(&quot;felix.cache.dir&quot;, cache); configMap.put(Constants.FRAMEWORK_STORAGE, cache); activator = new NetigsoActivator(); // listen to changes List<BundleActivator> activators = new ArrayList<BundleActivator>(); activators.add(activator); configMap.put(&quot;felix.systembundle.activators&quot;, activators); felix = new Felix(configMap); felix.init();

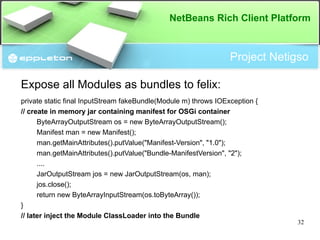

85. Project Netigso Expose all Modules as bundles to felix: private static final InputStream fakeBundle(Module m) throws IOException { // create in memory jar containing manifest for OSGi container ByteArrayOutputStream os = new ByteArrayOutputStream(); Manifest man = new Manifest(); man.getMainAttributes().putValue(&quot;Manifest-Version&quot;, &quot;1.0&quot;); man.getMainAttributes().putValue(&quot;Bundle-ManifestVersion&quot;, &quot;2&quot;); .... JarOutputStream jos = new JarOutputStream(os, man); jos.close(); return new ByteArrayInputStream(os.toByteArray()); } // later inject the Module ClassLoader into the Bundle

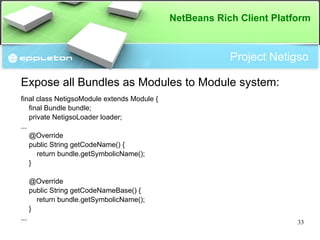

86. Project Netigso Expose all Bundles as Modules to Module system: final class NetigsoModule extends Module { final Bundle bundle; private NetigsoLoader loader; ... @Override public String getCodeName() { return bundle.getSymbolicName(); } @Override public String getCodeNameBase() { return bundle.getSymbolicName(); } ...

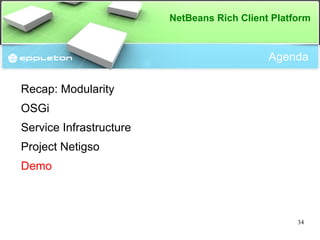

87. Agenda Recap: Modularity

88. OSGi

89. Service Infrastructure

90. Project Netigso

91. Demo

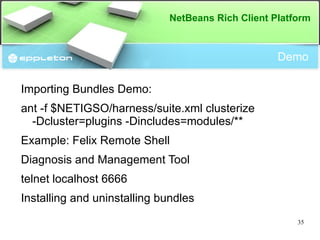

92. Demo Importing Bundles Demo: ant -f $NETIGSO/harness/suite.xml clusterize -Dcluster=plugins -Dincludes=modules/**

93. Example: Felix Remote Shell

94. Diagnosis and Management Tool

95. telnet localhost 6666

96. Installing and uninstalling bundles

97. Demo Eclipse Equinox Bundles Demo: Peter Kriens SUDOKU example:

98. HTTPService serves SUDOKU game

99. RPC Layer for communication between JavaScript frontend and server

100. Based on Eclipse Equinox

101. In Suite add to project.properties: run.args.extra=--nosplash -J-Dorg.osgi.service.http.port=8080

102. Lessons Learned Lessons learned OSGi & NB Module system are very similar and interoperable

103. Problems: Equinox core bundle contains helper classes Package import vs required bundles Services are standardized, but versioning isn't: Two bundles implementing the same service can have totally independent version numbers in different OSGi containers => Service implementations not easily interchangeable

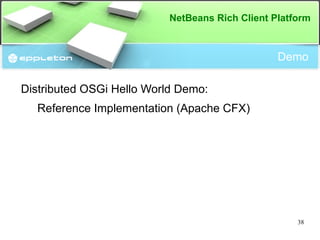

104. Demo Distributed OSGi Hello World Demo: Reference Implementation (Apache CFX)

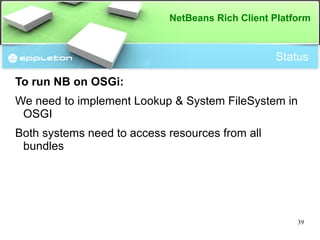

105. Status To run NB on OSGi: We need to implement Lookup & System FileSystem in OSGI Both systems need to access resources from all bundles

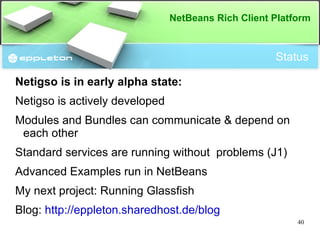

106. Status Netigso is in early alpha state: Netigso is actively developed

107. Modules and Bundles can communicate & depend on each other

108. Standard services are running without problems (J1)

109. Advanced Examples run in NetBeans

110. My next project: Running Glassfish

111. Blog: http://eppleton.sharedhost.de/blog

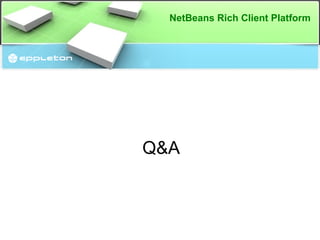

112. Q&A
