1. What’s Needed In An Ideal Cath Lab?
By: Vikki Harmonay www.atlantisworldwide.com

2. Over 1 million angiograms and 1.2 million angioplasties are performed in American Cath Labs each
year. The demand is ever growing, especially since many heath care professionals are so positive
about Cath-Lab procedures instead of open-heart surgery. As a result, more and more new Cath Labs
are being built yearly.
www.atlantisworldwide.com

3. If you are considering creating a new Cath Lab for your clinic, hospital, urgent care or other health
care facility, there are many things to consider, one being if you should purchase brand new medical
imaging equipment or look at refurbished or used equipment. After all, you can often find the
performance and technology you want on the secondary market at a much lower price, while still
getting impressive warranties.
www.atlantisworldwide.com

4. www.atlantisworldwide.com
Analog or Digital Imaging?
Most Cath Labs built prior to 2000 are analog, with recorded information seen on cine film. But newer
Cath Labs use digital equipment.
Digital equipment provides the following advantages:
• Images are clearer
• Digital provides more options for reviewing the visual information from a wide variety of angles
• Storing data is simpler and easier
• Processing time is quicker

5. www.atlantisworldwide.com

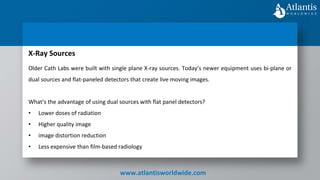

X-Ray Sources
Older Cath Labs were built with single plane X-ray sources. Today’s newer equipment uses bi-plane or
dual sources and flat-paneled detectors that create live moving images.
What’s the advantage of using dual sources with flat panel detectors?
• Lower doses of radiation
• Higher quality image
• image distortion reduction
• Less expensive than film-based radiology

6. www.atlantisworldwide.com
Floor or Ceiling Mounting?
When choosing your Cath Lab imaging equipment, remember you can choose floor or ceiling mounts
without any operation difference. However, there are different structural requirements for the room
which may influence which you choose.
Ceiling-mounted devices can weigh from 700-3,000 pounds. You have to make sure your room has the
structure and reinforcement in place to support these heavy components..

7. www.atlantisworldwide.com

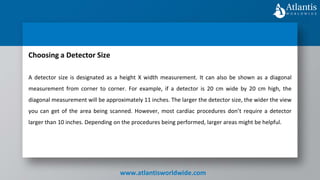

Choosing a Detector Size
A detector size is designated as a height X width measurement. It can also be shown as a diagonal
measurement from corner to corner. For example, if a detector is 20 cm wide by 20 cm high, the
diagonal measurement will be approximately 11 inches. The larger the detector size, the wider the view
you can get of the area being scanned. However, most cardiac procedures don’t require a detector
larger than 10 inches. Depending on the procedures being performed, larger areas might be helpful.

8. www.atlantisworldwide.com

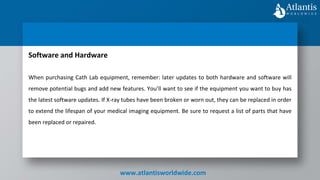

Software and Hardware
When purchasing Cath Lab equipment, remember: later updates to both hardware and software will
remove potential bugs and add new features. You’ll want to see if the equipment you want to buy has
the latest software updates. If X-ray tubes have been broken or worn out, they can be replaced in order
to extend the lifespan of your medical imaging equipment. Be sure to request a list of parts that have
been replaced or repaired.

9. www.atlantisworldwide.com
Talk To An Expert
It’s also wise to talk about your medical imaging needs with an expert in order to determine if you need
new or refurbished equipment in order to get the performance you need. The experts at Atlantis
Worldwide have been helping clients buy and sell imaging equipment for almost 30 years and would
love to help you.
To find out more, contact Atlantis Worldwide Today!

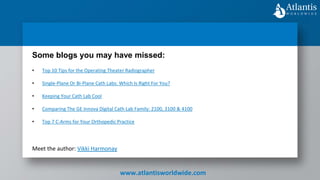

10. • Top 10 Tips for the Operating Theater Radiographer
• Single-Plane Or Bi-Plane Cath Labs: Which Is Right For You?
• Keeping Your Cath Lab Cool
• Comparing The GE Innova Digital Cath Lab Family: 2100, 3100 & 4100
• Top 7 C-Arms for Your Orthopedic Practice
Meet the author: Vikki Harmonay
Some blogs you may have missed:
www.atlantisworldwide.com

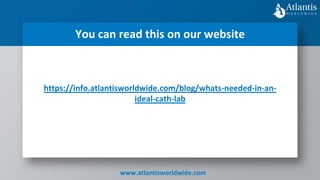

11. https://info.atlantisworldwide.com/blog/whats-needed-in-an-
ideal-cath-lab
You can read this on our website
www.atlantisworldwide.com

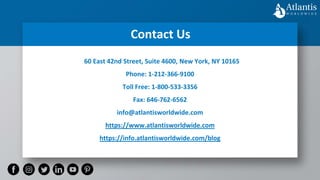

12. Contact Us
