An HMI display panel is a user-friendly interface that allows operators to monitor, control, and interact with industrial machines and processes. It displays real-time data, system status, and alerts, enabling efficient operation and quick decision-making.

1. HMI Display Panels in
Automation
A presentation covering human-machine interfaces in industrial
automation, including monitoring and visualization.

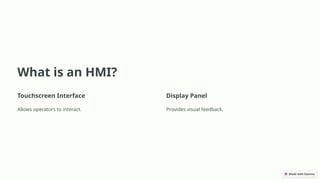

2. What is an HMI?
Touchscreen Interface
Allows operators to interact.
Display Panel
Provides visual feedback.

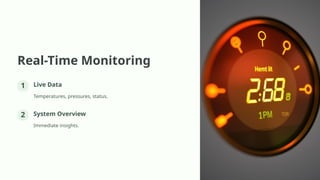

3. Real-Time Monitoring
1 Live Data
Temperatures, pressures, status.
2 System Overview
Immediate insights.

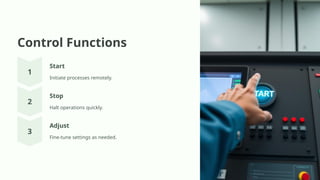

4. Control Functions
Start
Initiate processes remotely.
Stop
Halt operations quickly.
Adjust
Fine-tune settings as needed.

5. Data Visualization
Graphs
Trend analysis.
Alarms
Immediate alerts.
Performance
System efficiency.
