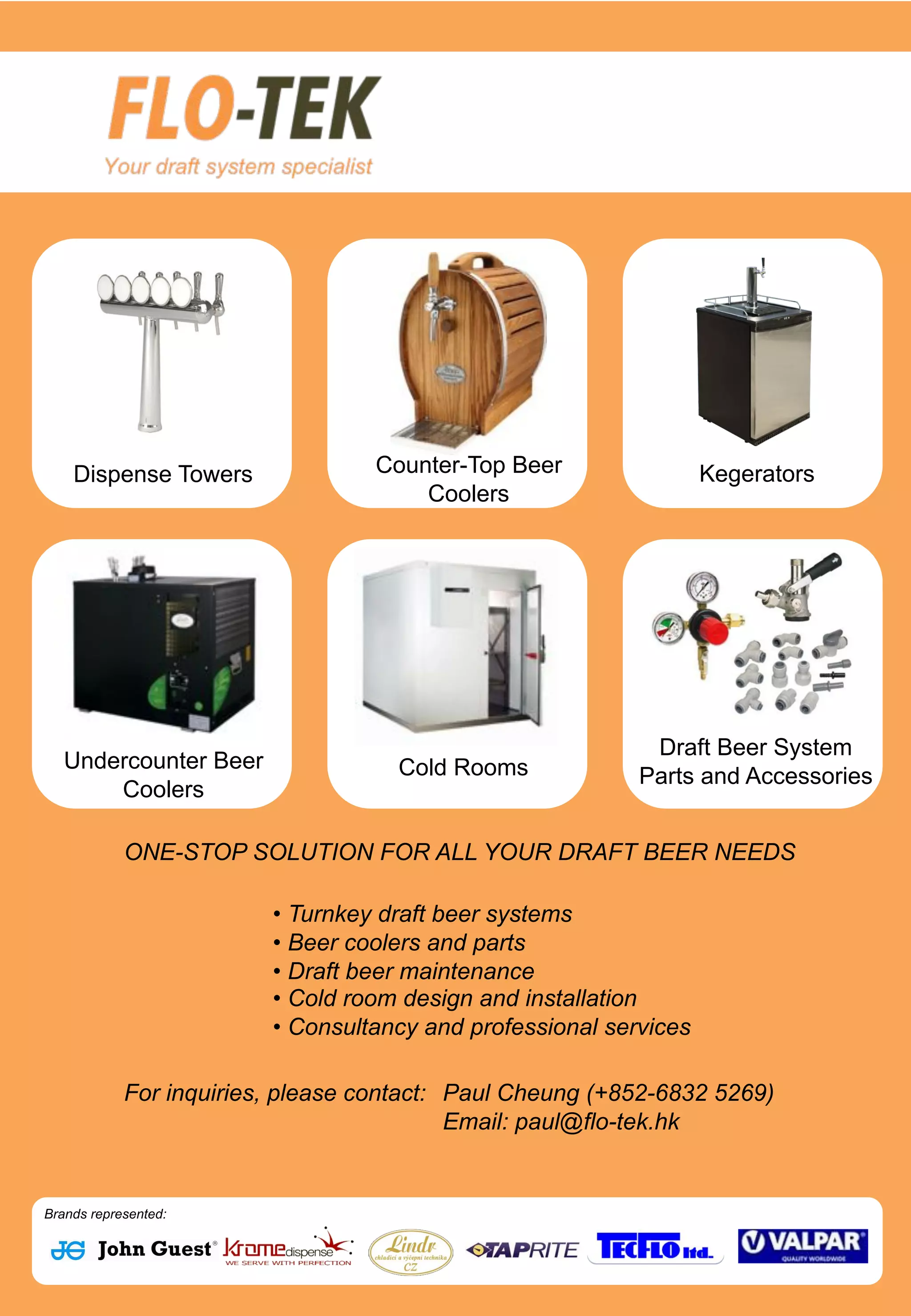

- 1. sadadsas asdAds Dispense Towers Counter-TopBeer Coolers Kegerators Undercounter Beer Coolers Cold Rooms Draft Beer System Parts and Accessories • Turnkey draft beer systems • Beer coolers and parts • Draft beer maintenance • Cold room design and installation • Consultancy and professional services ONE-STOP SOLUTION FOR ALL YOUR DRAFT BEER NEEDS For inquiries, please contact: Paul Cheung (+852-6832 5269) Email: paul@flo-tek.hk Brands represented:

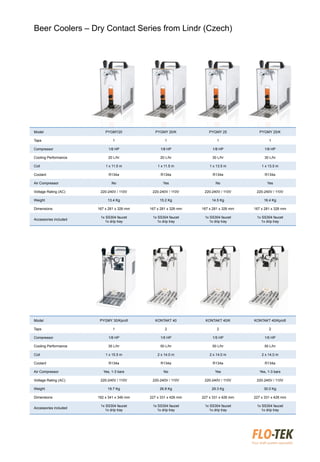

- 2. Model PYGMY20 PYGMY20/K PYGMY 25 PYGMY 25/K Taps 1 1 1 1 Compressor 1/8 HP 1/8 HP 1/8 HP 1/8 HP Cooling Performance 20 L/hr 20 L/hr 30 L/hr 30 L/hr Coil 1 x 11.5 m 1 x 11.5 m 1 x 13.5 m 1 x 13.5 m Coolant R134a R134a R134a R134a Air Compressor No Yes No Yes Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 13.4 Kg 15.2 Kg 14.5 Kg 16.4 Kg Dimensions 167 x 281 x 326 mm 167 x 281 x 326 mm 167 x 281 x 326 mm 167 x 281 x 326 mm Accessories included 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray Beer Coolers – Dry Contact Series from Lindr (Czech) Model PYGMY 30/Kprofi KONTAKT 40 KONTAKT 40/K KONTAKT 40/Kprofi Taps 1 2 2 2 Compressor 1/8 HP 1/5 HP 1/5 HP 1/5 HP Cooling Performance 35 L/hr 50 L/hr 50 L/hr 50 L/hr Coil 1 x 15.5 m 2 x 14.0 m 2 x 14.0 m 2 x 14.0 m Coolant R134a R134a R134a R134a Air Compressor Yes, 1-3 bars No Yes Yes, 1-3 bars Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 19.7 Kg 26.8 Kg 29.3 Kg 30.0 Kg Dimensions 182 x 341 x 346 mm 227 x 331 x 426 mm 227 x 331 x 426 mm 227 x 331 x 426 mm Accessories included 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray

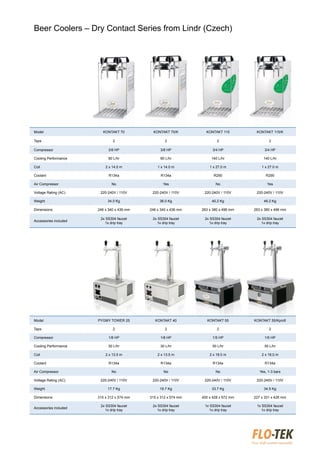

- 3. Model KONTAKT 70KONTAKT 70/K KONTAKT 115 KONTAKT 115/K Taps 2 2 2 2 Compressor 3/8 HP 3/8 HP 3/4 HP 3/4 HP Cooling Performance 90 L/hr 90 L/hr 140 L/hr 140 L/hr Coil 2 x 14.0 m 1 x 14.0 m 1 x 27.0 m 1 x 27.0 m Coolant R134a R134a R290 R290 Air Compressor No Yes No Yes Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 34.0 Kg 36.0 Kg 45.2 Kg 46.2 Kg Dimensions 246 x 340 x 436 mm 246 x 340 x 436 mm 263 x 380 x 496 mm 263 x 380 x 496 mm Accessories included 2x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray Model PYGMY TOWER 25 KONTAKT 40 KONTAKT 55 KONTAKT 55/Kprofi Taps 2 2 2 2 Compressor 1/8 HP 1/8 HP 1/5 HP 1/5 HP Cooling Performance 30 L/hr 30 L/hr 50 L/hr 50 L/hr Coil 2 x 13.5 m 2 x 13.5 m 2 x 18.0 m 2 x 18.0 m Coolant R134a R134a R134a R134a Air Compressor No No No Yes, 1-3 bars Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 17.7 Kg 19.7 Kg 33.7 Kg 34.5 Kg Dimensions 315 x 312 x 574 mm 315 x 312 x 574 mm 400 x 428 x 672 mm 227 x 331 x 426 mm Accessories included 2x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray Beer Coolers – Dry Contact Series from Lindr (Czech)

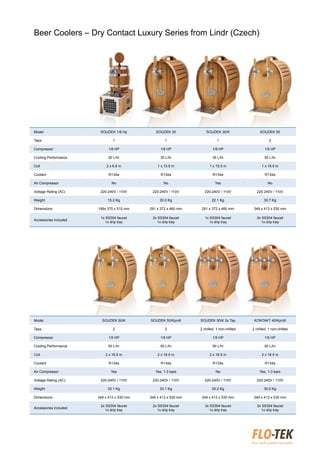

- 4. Model SOUDEK 50/KSOUDEK 50/Kprofi SOUDEK 50/K 3x Tap KONTAKT 40/Kprofi Taps 2 2 2 chilled, 1 non-chilled 2 chilled, 1 non-chilled Compressor 1/5 HP 1/5 HP 1/5 HP 1/5 HP Cooling Performance 50 L/hr 50 L/hr 50 L/hr 50 L/hr Coil 2 x 16.5 m 2 x 16.5 m 2 x 16.5 m 2 x 16.5 m Coolant R134a R134a R134a R134a Air Compressor Yes Yes, 1-3 bars No Yes, 1-3 bars Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 33.1 Kg 33.1 Kg 35.2 Kg 30.0 Kg Dimensions 349 x 413 x 530 mm 349 x 413 x 530 mm 349 x 413 x 530 mm 349 x 413 x 530 mm Accessories included 2x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray 3x SS304 faucet 1x drip tray 3x SS304 faucet 1x drip tray Beer Coolers – Dry Contact Luxury Series from Lindr (Czech) Model SOUDEK 1/8 Hp SOUDEK 30 SOUDEK 30/K SOUDEK 50 Taps 1 1 1 2 Compressor 1/8 HP 1/8 HP 1/8 HP 1/5 HP Cooling Performance 20 L/hr 35 L/hr 35 L/hr 50 L/hr Coil 2 x 6.8 m 1 x 15.5 m 1 x 15.5 m 1 x 16.5 m Coolant R134a R134a R134a R134a Air Compressor No No Yes No Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 15.2 Kg 20.0 Kg 22.1 Kg 30.7 Kg Dimensions 199x 375 x 515 mm 291 x 372 x 460 mm 291 x 372 x 460 mm 349 x 413 x 530 mm Accessories included 1x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray 1x SS304 faucet 1x drip tray 2x SS304 faucet 1x drip tray

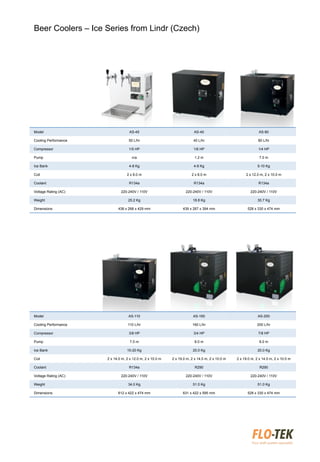

- 5. Model AS-45 AS-40AS-80 Cooling Performance 50 L/hr 40 L/hr 80 L/hr Compressor 1/5 HP 1/6 HP 1/4 HP Pump n/a 1.2 m 7.0 m Ice Bank 4-8 Kg 4-8 Kg 5-10 Kg Coil 2 x 8.0 m 2 x 8.0 m 2 x 12.0 m, 2 x 10.0 m Coolant R134a R134a R134a Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 25.2 Kg 18.8 Kg 30.7 Kg Dimensions 438 x 268 x 429 mm 439 x 267 x 394 mm 528 x 330 x 474 mm Model AS-110 AS-160 AS-200 Cooling Performance 110 L/hr 160 L/hr 200 L/hr Compressor 3/8 HP 3/4 HP 7/8 HP Pump 7.0 m 8.0 m 8.0 m Ice Bank 10-20 Kg 20.0 Kg 20.0 Kg Coil 2 x 14.0 m, 2 x 12.0 m, 2 x 10.0 m 2 x 19.0 m, 2 x 14.0 m, 2 x 10.0 m 2 x 19.0 m, 2 x 14.0 m, 2 x 10.0 m Coolant R134a R290 R290 Voltage Rating (AC) 220-240V / 110V 220-240V / 110V 220-240V / 110V Weight 34.0 Kg 51.0 Kg 51.0 Kg Dimensions 612 x 422 x 474 mm 631 x 422 x 595 mm 528 x 330 x 474 mm Beer Coolers – Ice Series from Lindr (Czech)

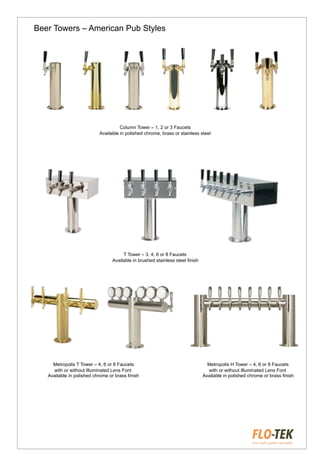

- 6. Beer Towers –American Pub Styles Column Tower – 1, 2 or 3 Faucets Available in polished chrome, brass or stainless steel T Tower – 3, 4, 6 or 8 Faucets Available in brushed stainless steel finish Metropolis T Tower – 4, 6 or 8 Faucets with or without Illuminated Lens Font Available in polished chrome or brass finish Metropolis H Tower – 4, 6 or 8 Faucets with or without Illuminated Lens Font Available in polished chrome or brass finish

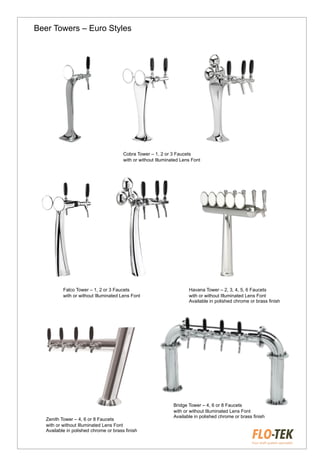

- 7. Cobra Tower –1, 2 or 3 Faucets with or without Illuminated Lens Font Falco Tower – 1, 2 or 3 Faucets with or without Illuminated Lens Font Havana Tower – 2, 3, 4, 5, 6 Faucets with or without Illuminated Lens Font Available in polished chrome or brass finish Zenith Tower – 4, 6 or 8 Faucets with or without Illuminated Lens Font Available in polished chrome or brass finish Bridge Tower – 4, 6 or 8 Faucets with or without Illuminated Lens Font Available in polished chrome or brass finish Beer Towers – Euro Styles

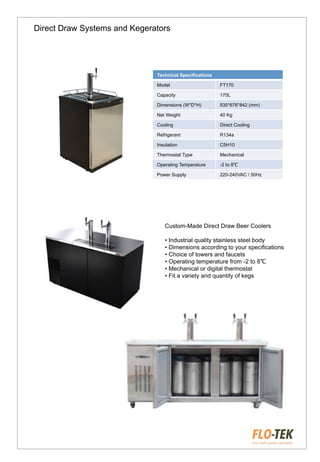

- 8. Direct Draw Systemsand Kegerators Technical Specifications Model FT170 Capacity 170L Dimensions (W*D*H) 535*676*842 (mm) Net Weight 40 Kg Cooling Direct Cooling Refrigerant R134a Insulation C5H10 Thermostat Type Mechanical Operating Temperature -2 to 8℃ Power Supply 220-240VAC / 50Hz Custom-Made Direct Draw Beer Coolers • Industrial quality stainless steel body • Dimensions according to your specifications • Choice of towers and faucets • Operating temperature from -2 to 8℃ • Mechanical or digital thermostat • Fit a variety and quantity of kegs

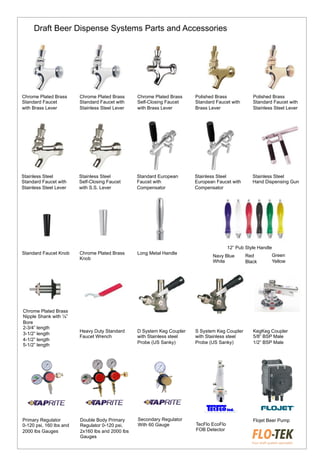

- 9. Chrome Plated Brass StandardFaucet with Brass Lever Chrome Plated Brass Standard Faucet with Stainless Steel Lever Chrome Plated Brass Self-Closing Faucet with Brass Lever Polished Brass Standard Faucet with Brass Lever Polished Brass Standard Faucet with Stainless Steel Lever Stainless Steel Standard Faucet with Stainless Steel Lever Stainless Steel Self-Closing Faucet with S.S. Lever Standard European Faucet with Compensator Stainless Steel European Faucet with Compensator Stainless Steel Hand Dispensing Gun Standard Faucet Knob Chrome Plated Brass Knob Long Metal Handle Navy Blue White Green Yellow 12” Pub Style Handle Heavy Duty Standard Faucet Wrench D System Keg Coupler with Stainless steel Probe (US Sanky) S System Keg Coupler with Stainless steel Probe (US Sanky) KegKeg Coupler 5/8” BSP Male 1/2” BSP Male Primary Regulator 0-120 psi, 160 lbs and 2000 lbs Gauges Double Body Primary Regulator 0-120 psi, 2x160 lbs and 2000 lbs Gauges Secondary Regulator With 60 Gauge TecFlo EcoFlo FOB Detector Flojet Beer Pump Chrome Plated Brass Nipple Shank with ¼” Bore 2-3/4” length 3-1/2” length 4-1/2” length 5-1/2” length Red Black Draft Beer Dispense Systems Parts and Accessories

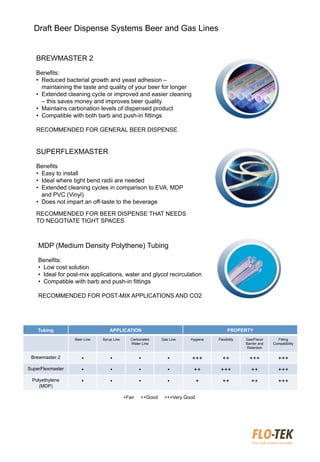

- 10. MDP (Medium DensityPolythene) Tubing Benefits: • Low cost solution • Ideal for post-mix applications, water and glycol recirculation • Compatible with barb and push-in fittings RECOMMENDED FOR POST-MIX APPLICATIONS AND CO2 BREWMASTER 2 Benefits: • Reduced bacterial growth and yeast adhesion – maintaining the taste and quality of your beer for longer • Extended cleaning cycle or improved and easier cleaning – this saves money and improves beer quality • Maintains carbonation levels of dispensed product • Compatible with both barb and push-in fittings RECOMMENDED FOR GENERAL BEER DISPENSE SUPERFLEXMASTER Benefits • Easy to install • Ideal where tight bend radii are needed • Extended cleaning cycles in comparison to EVA, MDP and PVC (Vinyl) • Does not impart an off-taste to the beverage RECOMMENDED FOR BEER DISPENSE THAT NEEDS TO NEGOTIATE TIGHT SPACES Tubing APPLICATION PROPERTY Beer Line Syrup Line Carbonated Water Line Gas Line Hygiene Flexibility Gas/Flavor Barrier and Retention Fitting Compatibility Brewmaster 2 • • • • +++ ++ +++ +++ SuperFlexmaster • • • • ++ +++ ++ +++ Polyethylene (MDP) • • • • + ++ ++ +++ +Fair ++Good +++Very Good Draft Beer Dispense Systems Beer and Gas Lines
- 11. THE PYTHON Valpar areproud to be manufacturers of the world’s first machine made python in 1982. This pioneering process today plays a vital role in delivering your brands the way you want them, whether that be: Features: • Protecting taste • Colder temperatures • Cleaner • More energy efficient • And most importantly, within your specification WHAT IS A PYTHON? The python explained … Python is a delivery system for remote draught dispense of beverages. It consists of a bundle of plastic tubes, product lines and cooling lines encased within foam insulation. Product lines and coolant lines are strategically positioned within the Python to take account of required dispense temperatures. The role of the Python is to maintain the temperature of the beverage leaving the cooler to the point of dispense. Today, Python plays a vital function in delivering high quality drinks at consistent low temperatures.
