Lisun Electronics Inc. is a leader in lighting and electrical test instruments with global offices in Hong Kong, Shanghai, Los Angeles, and Hangzhou. The document describes Lisun's Water Pressure Test Apparatus (WPD-A) which is used to pressure test water storage type water heaters in compliance with IEC60335/GB4706.12 standards. The WPD-A features a 900L water storage tank, temperature control from 5-85°C, pressure testing up to 2.5MPa controlled automatically via PLC and interface. It includes stainless steel and aluminum construction, power and control systems, flow and pressure sensors, and touch screen interface.

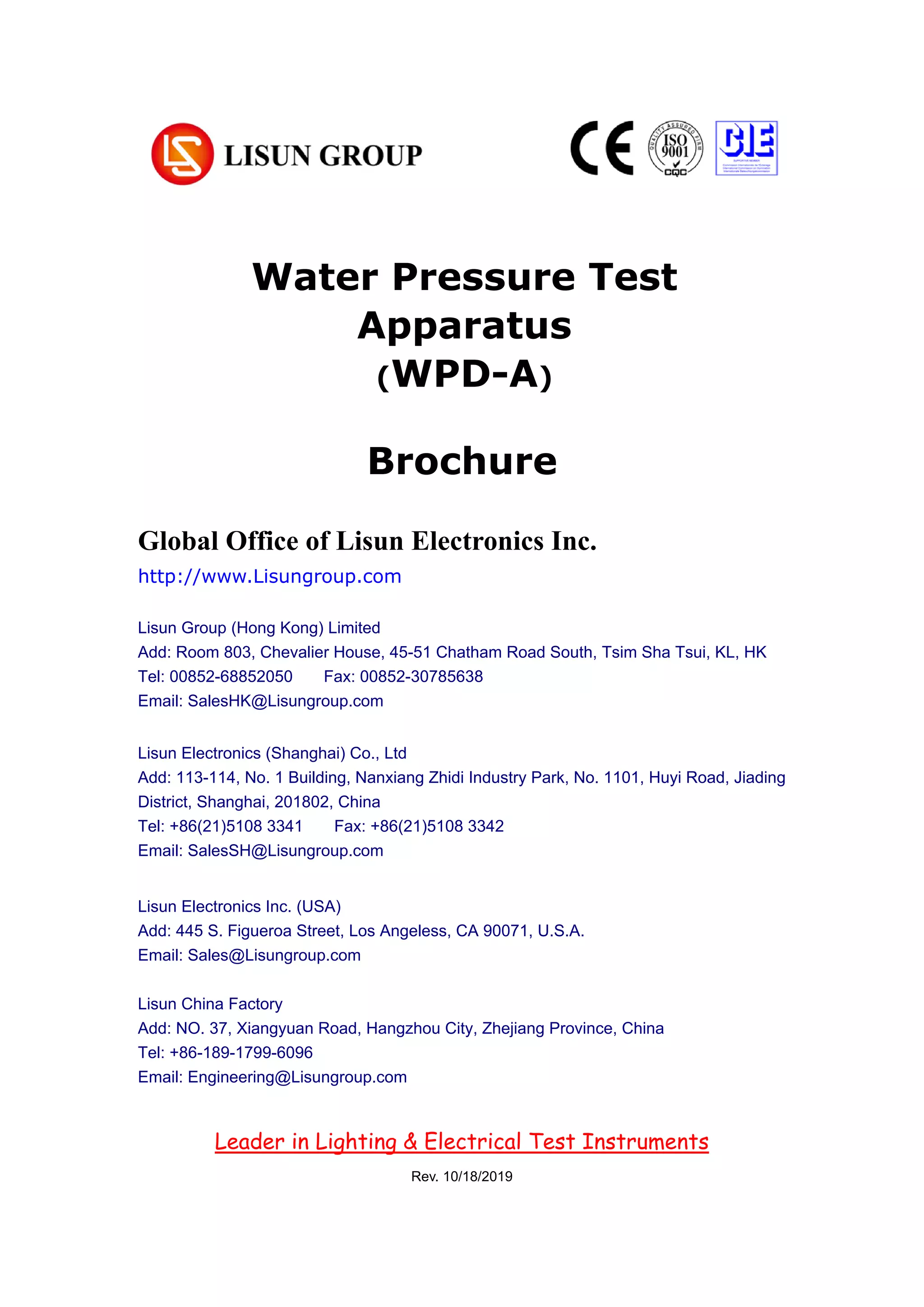

1. Brochure
Global Office of Lisun Electronics Inc.
http://www.Lisungroup.com
Lisun Group (Hong Kong) Limited
Add: Room 803, Chevalier House, 45-51 Chatham Road South, Tsim Sha Tsui, KL, HK
Tel: 00852-68852050 Fax: 00852-30785638
Email: SalesHK@Lisungroup.com
Lisun Electronics (Shanghai) Co., Ltd
Add: 113-114, No. 1 Building, Nanxiang Zhidi Industry Park, No. 1101, Huyi Road, Jiading
District, Shanghai, 201802, China
Tel: +86(21)5108 3341 Fax: +86(21)5108 3342
Email: SalesSH@Lisungroup.com
Lisun Electronics Inc. (USA)
Add: 445 S. Figueroa Street, Los Angeless, CA 90071, U.S.A.
Email: Sales@Lisungroup.com
Lisun China Factory
Add: NO. 37, Xiangyuan Road, Hangzhou City, Zhejiang Province, China
Tel: +86-189-1799-6096
Email: Engineering@Lisungroup.com
Leader in Lighting & Electrical Test Instruments
Rev. 10/18/2019
Water Pressure Test
Apparatus
(WPD-A)

2. Lisun Electronics Inc. Sales@Lisungroup.com www.Lisungroup.com
-Page 1 -

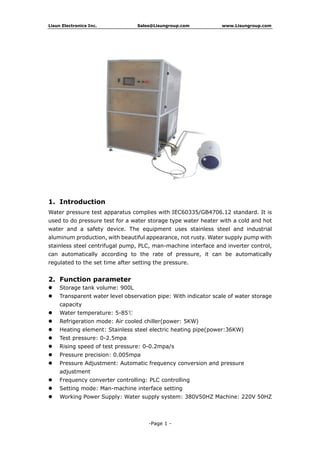

1. Introduction
Water pressure test apparatus complies with IEC60335/GB4706.12 standard. It is
used to do pressure test for a water storage type water heater with a cold and hot
water and a safety device. The equipment uses stainless steel and industrial
aluminum production, with beautiful appearance, not rusty. Water supply pump with
stainless steel centrifugal pump, PLC, man-machine interface and inverter control,
can automatically according to the rate of pressure, it can be automatically
regulated to the set time after setting the pressure.
2. Function parameter
 Storage tank volume: 900L
 Transparent water level observation pipe: With indicator scale of water storage
capacity
 Water temperature: 5-85℃
 Refrigeration mode: Air cooled chiller(power: 5KW)
 Heating element: Stainless steel electric heating pipe(power:36KW)
 Test pressure: 0-2.5mpa
 Rising speed of test pressure: 0-0.2mpa/s
 Pressure precision: 0.005mpa
 Pressure Adjustment: Automatic frequency conversion and pressure
adjustment
 Frequency converter controlling: PLC controlling
 Setting mode: Man-machine interface setting
 Working Power Supply: Water supply system: 380V50HZ Machine: 220V 50HZ

3. Lisun Electronics Inc. Sales@Lisungroup.com www.Lisungroup.com
-Page 2 -

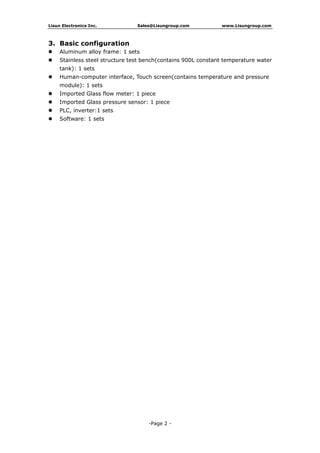

3. Basic configuration
 Aluminum alloy frame: 1 sets
 Stainless steel structure test bench(contains 900L constant temperature water
tank): 1 sets
 Human-computer interface, Touch screen(contains temperature and pressure
module): 1 sets
 Imported Glass flow meter: 1 piece
 Imported Glass pressure sensor: 1 piece
 PLC, inverter:1 sets
 Software: 1 sets
