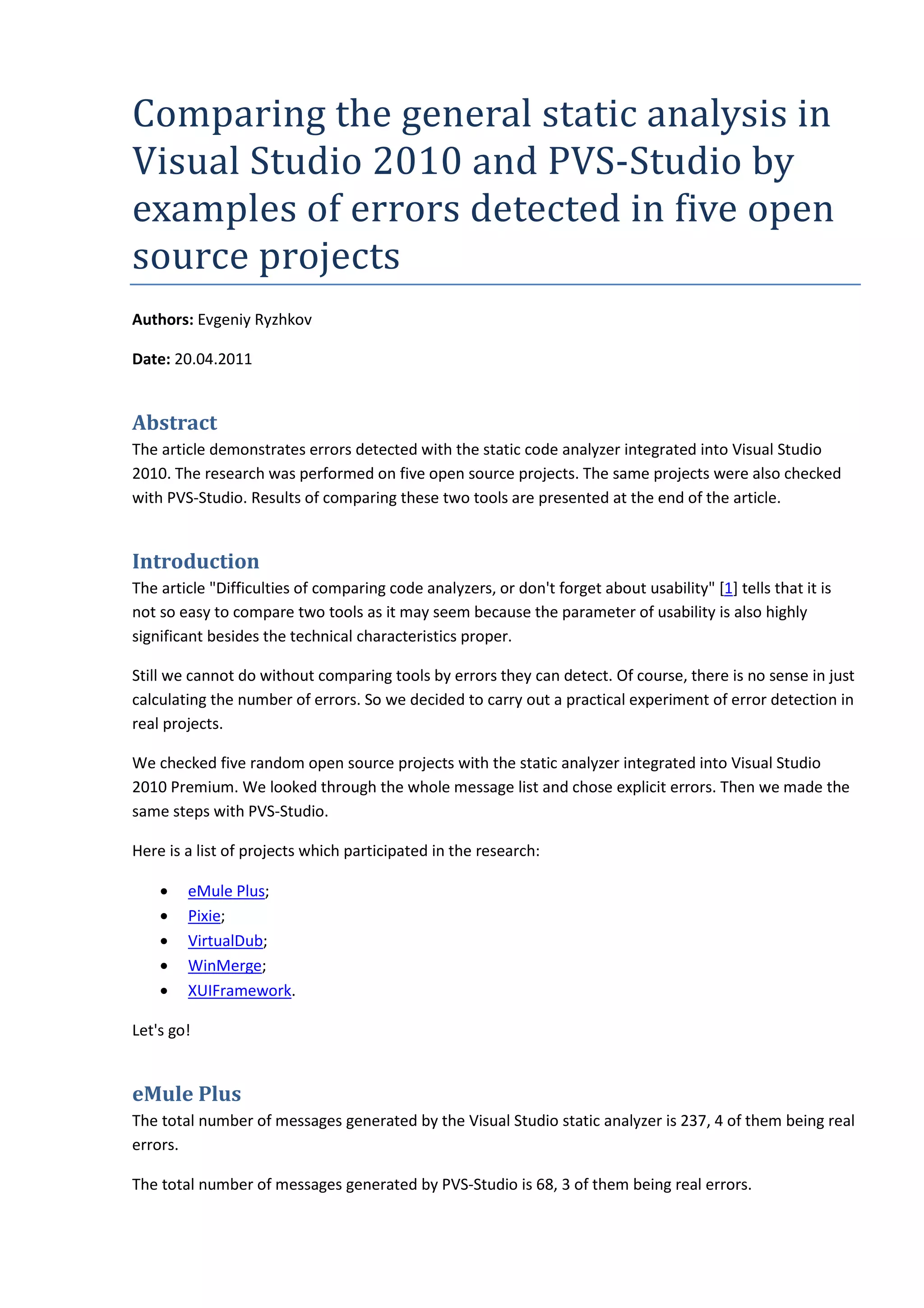

1. Comparing the general static analysis in
Visual Studio 2010 and PVS-Studio by
examples of errors detected in five open
source projects
Authors: Evgeniy Ryzhkov
Date: 20.04.2011
Abstract
The article demonstrates errors detected with the static code analyzer integrated into Visual Studio
2010. The research was performed on five open source projects. The same projects were also checked
with PVS-Studio. Results of comparing these two tools are presented at the end of the article.
Introduction
The article "Difficulties of comparing code analyzers, or don't forget about usability" [1] tells that it is
not so easy to compare two tools as it may seem because the parameter of usability is also highly
significant besides the technical characteristics proper.
Still we cannot do without comparing tools by errors they can detect. Of course, there is no sense in just
calculating the number of errors. So we decided to carry out a practical experiment of error detection in
real projects.
We checked five random open source projects with the static analyzer integrated into Visual Studio
2010 Premium. We looked through the whole message list and chose explicit errors. Then we made the
same steps with PVS-Studio.
Here is a list of projects which participated in the research:
• eMule Plus;
• Pixie;
• VirtualDub;
• WinMerge;
• XUIFramework.
Let's go!
eMule Plus
The total number of messages generated by the Visual Studio static analyzer is 237, 4 of them being real
errors.
The total number of messages generated by PVS-Studio is 68, 3 of them being real errors.

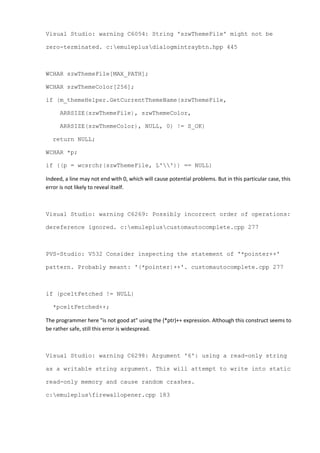

2. Visual Studio: warning C6054: String 'szwThemeFile' might not be
zero-terminated. c:emuleplusdialogmintraybtn.hpp 445
WCHAR szwThemeFile[MAX_PATH];
WCHAR szwThemeColor[256];
if (m_themeHelper.GetCurrentThemeName(szwThemeFile,
ARRSIZE(szwThemeFile), szwThemeColor,
ARRSIZE(szwThemeColor), NULL, 0) != S_OK)
return NULL;
WCHAR *p;
if ((p = wcsrchr(szwThemeFile, L'')) == NULL)
Indeed, a line may not end with 0, which will cause potential problems. But in this particular case, this
error is not likely to reveal itself.
Visual Studio: warning C6269: Possibly incorrect order of operations:
dereference ignored. c:emulepluscustomautocomplete.cpp 277
PVS-Studio: V532 Consider inspecting the statement of '*pointer++'
pattern. Probably meant: '(*pointer)++'. customautocomplete.cpp 277
if (pceltFetched != NULL)
*pceltFetched++;
The programmer here "is not good at" using the (*ptr)++ expression. Although this construct seems to
be rather safe, still this error is widespread.
Visual Studio: warning C6298: Argument '6': using a read-only string
as a writable string argument. This will attempt to write into static
read-only memory and cause random crashes.
c:emuleplusfirewallopener.cpp 183

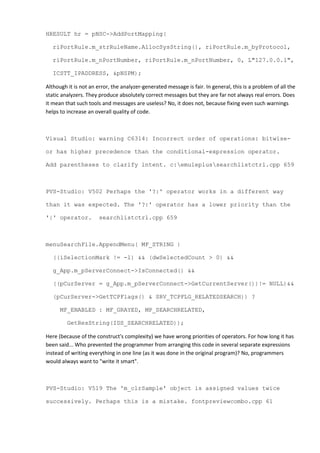

3. HRESULT hr = pNSC->AddPortMapping(
riPortRule.m_strRuleName.AllocSysString(), riPortRule.m_byProtocol,
riPortRule.m_nPortNumber, riPortRule.m_nPortNumber, 0, L"127.0.0.1",
ICSTT_IPADDRESS, &pNSPM);
Although it is not an error, the analyzer-generated message is fair. In general, this is a problem of all the
static analyzers. They produce absolutely correct messages but they are far not always real errors. Does
it mean that such tools and messages are useless? No, it does not, because fixing even such warnings
helps to increase an overall quality of code.
Visual Studio: warning C6314: Incorrect order of operations: bitwise-
or has higher precedence than the conditional-expression operator.
Add parentheses to clarify intent. c:emuleplussearchlistctrl.cpp 659
PVS-Studio: V502 Perhaps the '?:' operator works in a different way
than it was expected. The '?:' operator has a lower priority than the
'|' operator. searchlistctrl.cpp 659
menuSearchFile.AppendMenu( MF_STRING |
((iSelectionMark != -1) && (dwSelectedCount > 0) &&
g_App.m_pServerConnect->IsConnected() &&
((pCurServer = g_App.m_pServerConnect->GetCurrentServer())!= NULL)&&
(pCurServer->GetTCPFlags() & SRV_TCPFLG_RELATEDSEARCH)) ?
MF_ENABLED : MF_GRAYED, MP_SEARCHRELATED,
GetResString(IDS_SEARCHRELATED));
Here (because of the construct's complexity) we have wrong priorities of operators. For how long it has
been said... Who prevented the programmer from arranging this code in several separate expressions
instead of writing everything in one line (as it was done in the original program)? No, programmers
would always want to "write it smart".
PVS-Studio: V519 The 'm_clrSample' object is assigned values twice
successively. Perhaps this is a mistake. fontpreviewcombo.cpp 61

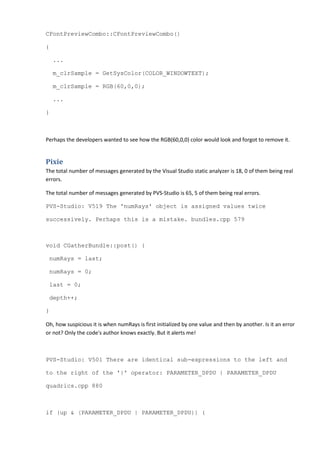

4. CFontPreviewCombo::CFontPreviewCombo()
{
...
m_clrSample = GetSysColor(COLOR_WINDOWTEXT);
m_clrSample = RGB(60,0,0);
...
}
Perhaps the developers wanted to see how the RGB(60,0,0) color would look and forgot to remove it.
Pixie
The total number of messages generated by the Visual Studio static analyzer is 18, 0 of them being real
errors.
The total number of messages generated by PVS-Studio is 65, 5 of them being real errors.
PVS-Studio: V519 The 'numRays' object is assigned values twice
successively. Perhaps this is a mistake. bundles.cpp 579
void CGatherBundle::post() {
numRays = last;
numRays = 0;
last = 0;
depth++;
}
Oh, how suspicious it is when numRays is first initialized by one value and then by another. Is it an error
or not? Only the code's author knows exactly. But it alerts me!
PVS-Studio: V501 There are identical sub-expressions to the left and
to the right of the '|' operator: PARAMETER_DPDU | PARAMETER_DPDU
quadrics.cpp 880
if (up & (PARAMETER_DPDU | PARAMETER_DPDU)) {

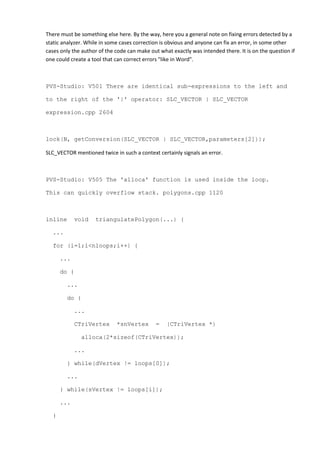

5. There must be something else here. By the way, here you a general note on fixing errors detected by a
static analyzer. While in some cases correction is obvious and anyone can fix an error, in some other
cases only the author of the code can make out what exactly was intended there. It is on the question if
one could create a tool that can correct errors "like in Word".
PVS-Studio: V501 There are identical sub-expressions to the left and
to the right of the '|' operator: SLC_VECTOR | SLC_VECTOR
expression.cpp 2604
lock(N, getConversion(SLC_VECTOR | SLC_VECTOR,parameters[2]));
SLC_VECTOR mentioned twice in such a context certainly signals an error.
PVS-Studio: V505 The 'alloca' function is used inside the loop.
This can quickly overflow stack. polygons.cpp 1120
inline void triangulatePolygon(...) {
...
for (i=1;i<nloops;i++) {
...
do {
...
do {
...
CTriVertex *snVertex = (CTriVertex *)
alloca(2*sizeof(CTriVertex));
...
} while(dVertex != loops[0]);
...
} while(sVertex != loops[i]);
...
}

6. ...
}

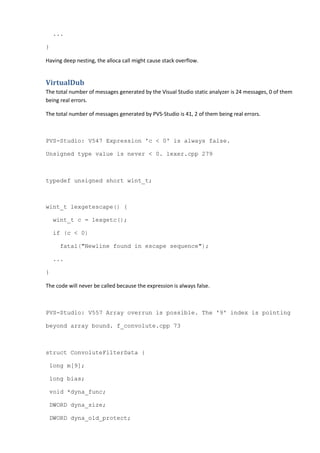

Having deep nesting, the alloca call might cause stack overflow.
VirtualDub
The total number of messages generated by the Visual Studio static analyzer is 24 messages, 0 of them
being real errors.
The total number of messages generated by PVS-Studio is 41, 2 of them being real errors.
PVS-Studio: V547 Expression 'c < 0' is always false.
Unsigned type value is never < 0. lexer.cpp 279
typedef unsigned short wint_t;
wint_t lexgetescape() {
wint_t c = lexgetc();
if (c < 0)
fatal("Newline found in escape sequence");
...
}
The code will never be called because the expression is always false.
PVS-Studio: V557 Array overrun is possible. The '9' index is pointing
beyond array bound. f_convolute.cpp 73
struct ConvoluteFilterData {
long m[9];
long bias;
void *dyna_func;
DWORD dyna_size;
DWORD dyna_old_protect;

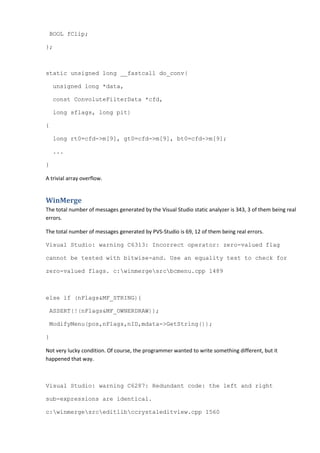

7. BOOL fClip;
};
static unsigned long __fastcall do_conv(
unsigned long *data,
const ConvoluteFilterData *cfd,
long sflags, long pit)
{
long rt0=cfd->m[9], gt0=cfd->m[9], bt0=cfd->m[9];
...
}
A trivial array overflow.
WinMerge
The total number of messages generated by the Visual Studio static analyzer is 343, 3 of them being real
errors.
The total number of messages generated by PVS-Studio is 69, 12 of them being real errors.
Visual Studio: warning C6313: Incorrect operator: zero-valued flag
cannot be tested with bitwise-and. Use an equality test to check for
zero-valued flags. c:winmergesrcbcmenu.cpp 1489
else if (nFlags&MF_STRING){
ASSERT(!(nFlags&MF_OWNERDRAW));
ModifyMenu(pos,nFlags,nID,mdata->GetString());
}
Not very lucky condition. Of course, the programmer wanted to write something different, but it
happened that way.
Visual Studio: warning C6287: Redundant code: the left and right
sub-expressions are identical.
c:winmergesrceditlibccrystaleditview.cpp 1560

8. PVS-Studio: V501 There are identical sub-expressions to the left and
to the right of the '||' operator: c == '}' || c == '}'
ccrystaleditview.cpp 1560
bool
isclosebrace (TCHAR c)
{
return c == _T ('}') || c == _T ('}') || c == _T (']')
|| c == _T ('>');
}
Not all the parentheses types are checked. Why? It is usual that "Copy-paste-technology" leads to
errors.
Visual Studio: warning C6287: Redundant code: the left and right
sub-expressions are identical. c:winmergesrcmergedoc.cpp 1165
PVS-Studio: V501 There are identical sub-expressions to the left and
to the right of the '||' operator. mergedoc.cpp 1165
if ((m_nBufferType[nBuffer] == BUFFER_UNNAMED) ||
(m_nBufferType[nBuffer] == BUFFER_UNNAMED))
nSaveErrorCode = SAVE_NO_FILENAME;
Another unlucky condition and again it seems to be the copy-paste's fault.
PVS-Studio: V551 The code under this 'case' label is unreachable.
The value range of signed char type: [-128, 127].
ccrystaltextview.cpp 1646
TCHAR ch = strText[i];

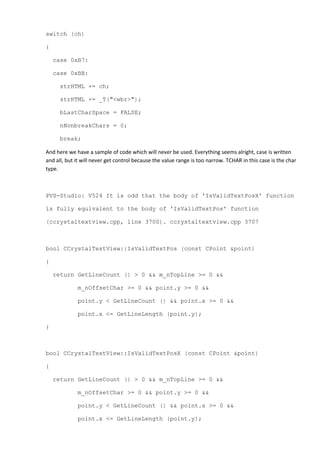

9. switch (ch)
{
case 0xB7:
case 0xBB:
strHTML += ch;
strHTML += _T("<wbr>");
bLastCharSpace = FALSE;
nNonbreakChars = 0;
break;
And here we have a sample of code which will never be used. Everything seems alright, case is written
and all, but it will never get control because the value range is too narrow. TCHAR in this case is the char
type.
PVS-Studio: V524 It is odd that the body of 'IsValidTextPosX' function
is fully equivalent to the body of 'IsValidTextPos' function
(ccrystaltextview.cpp, line 3700). ccrystaltextview.cpp 3707
bool CCrystalTextView::IsValidTextPos (const CPoint &point)
{
return GetLineCount () > 0 && m_nTopLine >= 0 &&
m_nOffsetChar >= 0 && point.y >= 0 &&
point.y < GetLineCount () && point.x >= 0 &&
point.x <= GetLineLength (point.y);
}
bool CCrystalTextView::IsValidTextPosX (const CPoint &point)
{
return GetLineCount () > 0 && m_nTopLine >= 0 &&
m_nOffsetChar >= 0 && point.y >= 0 &&
point.y < GetLineCount () && point.x >= 0 &&
point.x <= GetLineLength (point.y);

10. }
bool CCrystalTextView::IsValidTextPosY (const CPoint &point)
{
return GetLineCount () > 0 && m_nTopLine >= 0 &&
m_nOffsetChar >= 0 && point.y >= 0 &&
point.y < GetLineCount ();
}
These are very similar functions... The developers copy-pasted again and again and forgot to fix the
result. The IsValidTextPosX() function performs an excess check.
PVS-Studio: V563 It is possible that this 'else' branch must apply to
the previous 'if' statement. bcmenu.cpp 1852
if(IsLunaMenuStyle())
if(!xp_space_accelerators)return;
else
if(!original_space_accelerators)return;
Who can look at the code and say exactly to what if else refers? Was it the thing the programmer
wanted to do? Are you sure?
PVS-Studio: V556 The values of different enum types are compared:
switch(ENUM_TYPE_A) { case ENUM_TYPE_B: ... }. diffwrapper.cpp 956
enum output_style {}
...
enum DiffOutputType m_outputStyle;
switch (m_options.m_outputStyle)
{

11. case OUTPUT_CONTEXT:
enum and switch types were a bit mixed up. But it's alright, isn't it?
PVS-Studio: V530 The return value of function 'empty' is required to
be utilized. diractions.cpp 1307
void CDirView::GetItemFileNames(int sel, String& strLeft,
String& strRight) const
{
UINT_PTR diffpos = GetItemKey(sel);
if (diffpos == (UINT_PTR)SPECIAL_ITEM_POS)
{
strLeft.empty();
strRight.empty();
The case when empty() does not empty. This is an example of an extremely wrong name for a method.
PVS-Studio: V524 It is odd that the body of 'OnUpdateLastdiff'
function is fully equivalent to the body of 'OnUpdateFirstdiff'
function (DirView.cpp, line 2189). dirview.cpp 2220
void CDirView::OnUpdateLastdiff(CCmdUI* pCmdUI)
{
int firstDiff = GetFirstDifferentItem();
if (firstDiff > -1)
pCmdUI->Enable(TRUE);
else
pCmdUI->Enable(FALSE);
}
void CDirView::OnUpdateFirstdiff(CCmdUI* pCmdUI)

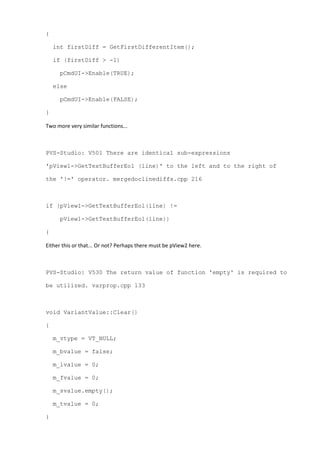

12. {
int firstDiff = GetFirstDifferentItem();
if (firstDiff > -1)
pCmdUI->Enable(TRUE);
else
pCmdUI->Enable(FALSE);
}
Two more very similar functions...
PVS-Studio: V501 There are identical sub-expressions
'pView1->GetTextBufferEol (line)' to the left and to the right of
the '!=' operator. mergedoclinediffs.cpp 216
if (pView1->GetTextBufferEol(line) !=
pView1->GetTextBufferEol(line))
{
Either this or that... Or not? Perhaps there must be pView2 here.
PVS-Studio: V530 The return value of function 'empty' is required to
be utilized. varprop.cpp 133
void VariantValue::Clear()
{
m_vtype = VT_NULL;
m_bvalue = false;
m_ivalue = 0;
m_fvalue = 0;
m_svalue.empty();
m_tvalue = 0;
}

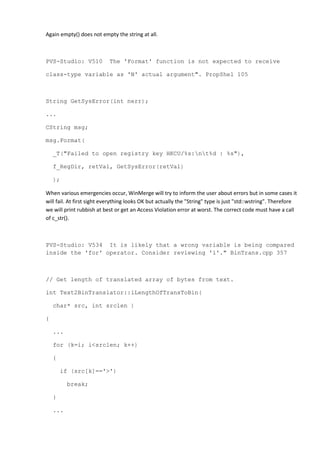

13. Again empty() does not empty the string at all.
PVS-Studio: V510 The 'Format' function is not expected to receive
class-type variable as 'N' actual argument". PropShel 105
String GetSysError(int nerr);
...
CString msg;
msg.Format(
_T("Failed to open registry key HKCU/%s:nt%d : %s"),
f_RegDir, retVal, GetSysError(retVal)
);
When various emergencies occur, WinMerge will try to inform the user about errors but in some cases it
will fail. At first sight everything looks OK but actually the "String" type is just "std::wstring". Therefore
we will print rubbish at best or get an Access Violation error at worst. The correct code must have a call
of c_str().
PVS-Studio: V534 It is likely that a wrong variable is being compared
inside the 'for' operator. Consider reviewing 'i'." BinTrans.cpp 357
// Get length of translated array of bytes from text.
int Text2BinTranslator::iLengthOfTransToBin(
char* src, int srclen )
{
...
for (k=i; i<srclen; k++)
{
if (src[k]=='>')
break;
}
...

14. }

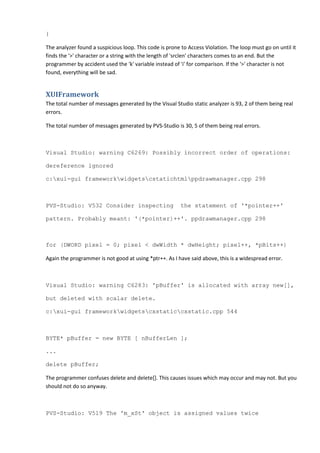

The analyzer found a suspicious loop. This code is prone to Access Violation. The loop must go on until it
finds the '>' character or a string with the length of 'srclen' characters comes to an end. But the
programmer by accident used the 'k' variable instead of 'i' for comparison. If the '>' character is not
found, everything will be sad.
XUIFramework
The total number of messages generated by the Visual Studio static analyzer is 93, 2 of them being real
errors.
The total number of messages generated by PVS-Studio is 30, 5 of them being real errors.
Visual Studio: warning C6269: Possibly incorrect order of operations:
dereference ignored
c:xui-gui frameworkwidgetscstatichtmlppdrawmanager.cpp 298
PVS-Studio: V532 Consider inspecting the statement of '*pointer++'
pattern. Probably meant: '(*pointer)++'. ppdrawmanager.cpp 298
for (DWORD pixel = 0; pixel < dwWidth * dwHeight; pixel++, *pBits++)
Again the programmer is not good at using *ptr++. As I have said above, this is a widespread error.
Visual Studio: warning C6283: 'pBuffer' is allocated with array new[],
but deleted with scalar delete.
c:xui-gui frameworkwidgetscxstaticcxstatic.cpp 544
BYTE* pBuffer = new BYTE [ nBufferLen ];
...
delete pBuffer;
The programmer confuses delete and delete[]. This causes issues which may occur and may not. But you
should not do so anyway.
PVS-Studio: V519 The 'm_xSt' object is assigned values twice

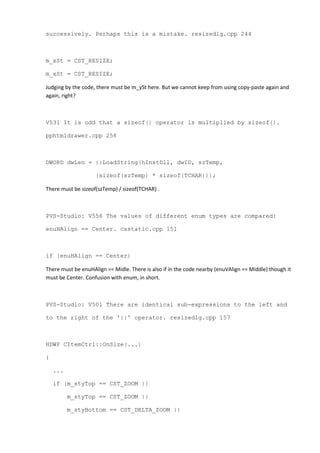

15. successively. Perhaps this is a mistake. resizedlg.cpp 244
m_xSt = CST_RESIZE;
m_xSt = CST_RESIZE;
Judging by the code, there must be m_ySt here. But we cannot keep from using copy-paste again and
again, right?
V531 It is odd that a sizeof() operator is multiplied by sizeof().
pphtmldrawer.cpp 258
DWORD dwLen = ::LoadString(hInstDll, dwID, szTemp,
(sizeof(szTemp) * sizeof(TCHAR)));
There must be sizeof(szTemp) / sizeof(TCHAR) .
PVS-Studio: V556 The values of different enum types are compared:
enuHAlign == Center. cxstatic.cpp 151
if (enuHAlign == Center)
There must be enuHAlign == Midle. There is also if in the code nearby (enuVAlign == Middle) though it
must be Center. Confusion with enum, in short.
PVS-Studio: V501 There are identical sub-expressions to the left and
to the right of the '||' operator. resizedlg.cpp 157
HDWP CItemCtrl::OnSize(...)
{
...
if (m_styTop == CST_ZOOM ||
m_styTop == CST_ZOOM ||
m_styBottom == CST_DELTA_ZOOM ||

16. m_styBottom == CST_DELTA_ZOOM)
...
}
Perhaps the code must look this way:
HDWP CItemCtrl::OnSize(...)
{
...
if (m_styTop == CST_ZOOM ||
m_styTop == CST_DELTA_ZOOM ||
m_styBottom == CST_ZOOM ||
m_styBottom == CST_DELTA_ZOOM)
...
}

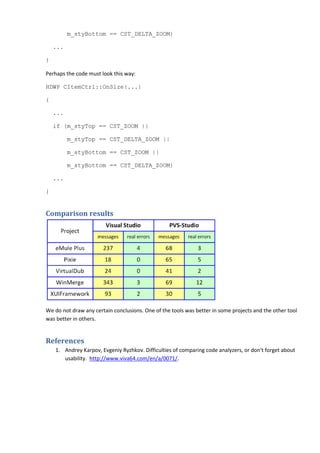

Comparison results
We do not draw any certain conclusions. One of the tools was better in some projects and the other tool
was better in others.
References
1. Andrey Karpov, Evgeniy Ryzhkov. Difficulties of comparing code analyzers, or don't forget about
usability. http://www.viva64.com/en/a/0071/.
