VRF Lab WorkBook

This document discusses VRF (Virtual Routing and Forwarding) configuration examples on routers. It shows how to create VRF instances, associate interfaces and IP addresses, and configure routing protocols like RIP, EIGRP, OSPF and BGP to operate within VRF contexts. Specific examples demonstrated include VRF-aware static routing, and configuring BGP between VRF instances to enable inter-VRF communication. The goal is to illustrate how to segment routing tables and isolate traffic between different network segments using VRF technology.

Embed presentation

Downloaded 239 times
R H C TECHNOLOGIES VRF Case Studies Prepared By Sai Linn Thu © www.rhctechnologies.com

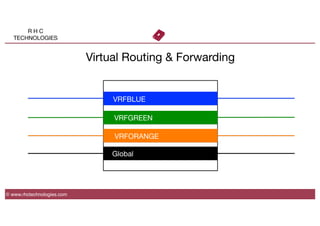

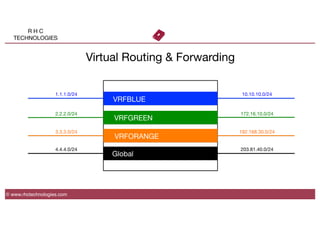

R H C TECHNOLOGIES © www.rhctechnologies.com VRFBLUE VRFGREEN VRFORANGE Global Virtual Routing & Forwarding
R H C TECHNOLOGIES © www.rhctechnologies.com VRFBLUE VRFGREEN VRFORANGE Global Virtual Routing & Forwarding 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24

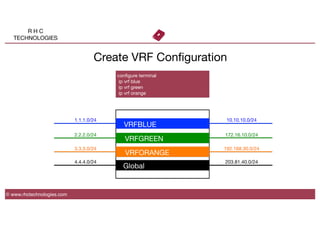

R H C TECHNOLOGIES © www.rhctechnologies.com Create VRF Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 configure terminal ip vrf blue ip vrf green ip vrf orange

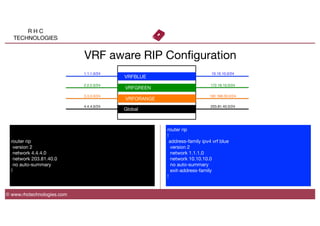

R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware RIP Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 router rip version 2 network 4.4.4.0 network 203.81.40.0 no auto-summary ! router rip ! address-family ipv4 vrf blue version 2 network 1.1.1.0 network 10.10.10.0 no auto-summary exit-address-family !
R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware EIGRP Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 router eigrp 10 network 4.4.4.0 0.0.0.255 network 203.81.40.0 0.0.0.255 no auto-summary ! router eigrp 10 ! address-family ipv4 vrf green autonomous-system 10 network 2.2.2.0 0.0.0.255 network 172.16.10.0 0.0.0.255 no auto-summary exit-address-family !
R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware OSPF Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 router ospf 1 network 4.4.4.0 0.0.0.255 area 1 network 203.81.40.0 0.0.0.255 area 0 ! router ospf 2 vrf orange network 3.3.3.0 0.0.0.255 area 1 network 192.168.30.0 0.0.0.255 area 0 exit-address-family !
R H C TECHNOLOGIES VRF aware Static Route © www.rhctechnologies.com

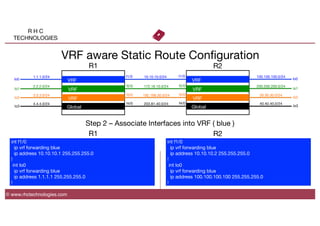

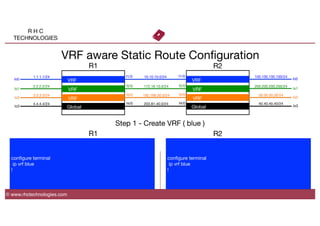

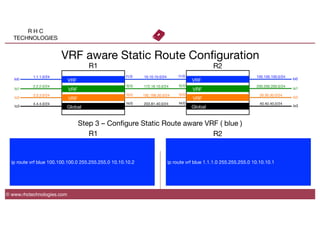

R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware Static Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 configure terminal ip vrf blue ! configure terminal ip vrf blue ! Step 1 - Create VRF ( blue ) R1 R2
R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware Static Route Configuration VRF VRF VRF Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.0/24 200.200.200.0/24 30.30.30.0/24 40.40.40.0/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 int f1/0 ip vrf forwarding blue ip address 10.10.10.1 255.255.255.0 ! int lo0 ip vrf forwarding blue ip address 1.1.1.1 255.255.255.0 ! int f1/0 ip vrf forwarding blue ip address 10.10.10.2 255.255.255.0 ! int lo0 ip vrf forwarding blue ip address 100.100.100.100 255.255.255.0 ! Step 2 – Associate Interfaces into VRF ( blue ) R1 R2
R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware Static Route Configuration VRF VRF VRF Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.0/24 200.200.200.0/24 30.30.30.0/24 40.40.40.0/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 ip route vrf blue 100.100.100.0 255.255.255.0 10.10.10.2 ip route vrf blue 1.1.1.0 255.255.255.0 10.10.10.1 Step 3 – Configure Static Route aware VRF ( blue ) R1 R2

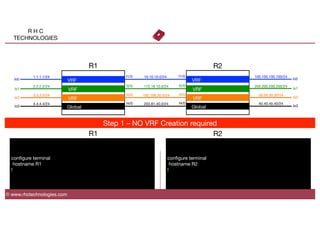

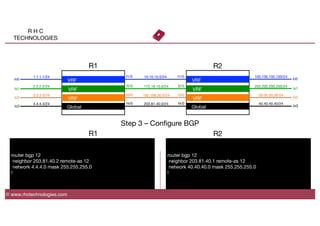

R H C TECHNOLOGIES Global Routing ( BGP ) © www.rhctechnologies.com
R H C TECHNOLOGIES © www.rhctechnologies.com VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 configure terminal hostname R1 ! configure terminal hostname R2 ! Step 1 – NO VRF Creation required R1 R2
R H C TECHNOLOGIES © www.rhctechnologies.com VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 int f4/0 ip address 203.81.40.1 255.255.255.0 ! int lo3 ip address 4.4.4.4 255.255.255.0 ! int f4/0 ip address 203.81.40.2 255.255.255.0 ! int lo3 ip address 40.40.40.40 255.255.255.0 ! Step 2 – Interface IP Configuration R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
R H C TECHNOLOGIES © www.rhctechnologies.com VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 router bgp 12 neighbor 203.81.40.2 remote-as 12 network 4.4.4.0 mask 255.255.255.0 ! router bgp 12 neighbor 203.81.40.1 remote-as 12 network 40.40.40.0 mask 255.255.255.0 ! Step 3 – Configure BGP R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
R H C TECHNOLOGIES VRF aware BGP © www.rhctechnologies.com

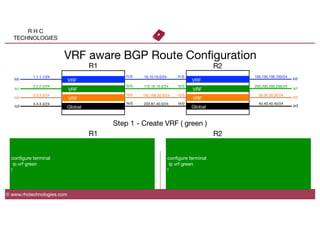

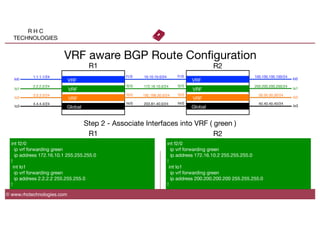

R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware BGP Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 configure terminal ip vrf green ! configure terminal ip vrf green ! Step 1 - Create VRF ( green ) R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0

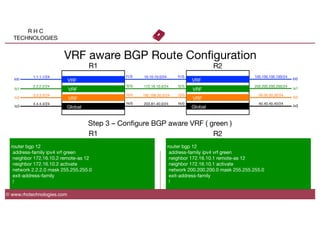

R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware BGP Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 int f2/0 ip vrf forwarding green ip address 172.16.10.1 255.255.255.0 ! int lo1 ip vrf forwarding green ip address 2.2.2.2 255.255.255.0 ! int f2/0 ip vrf forwarding green ip address 172.16.10.2 255.255.255.0 ! int lo1 ip vrf forwarding green ip address 200.200.200.200 255.255.255.0 ! Step 2 - Associate Interfaces into VRF ( green ) R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
R H C TECHNOLOGIES © www.rhctechnologies.com VRF aware BGP Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 router bgp 12 address-family ipv4 vrf green neighbor 172.16.10.2 remote-as 12 neighbor 172.16.10.2 activate network 2.2.2.0 mask 255.255.255.0 exit-address-family ! router bgp 12 address-family ipv4 vrf green neighbor 172.16.10.1 remote-as 12 neighbor 172.16.10.1 activate network 200.200.200.0 mask 255.255.255.0 exit-address-family ! Step 3 – Configure BGP aware VRF ( green ) R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0

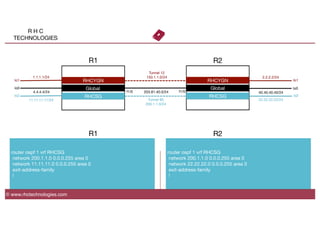

R H C TECHNOLOGIES VRF-Lite Tunnel + VRF aware BGP/OSPF Case Study © www.rhctechnologies.com

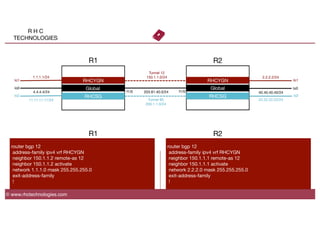

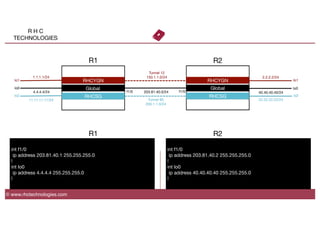

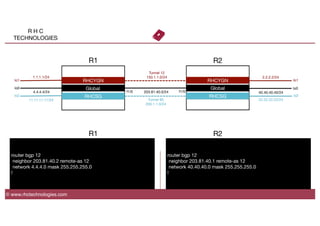

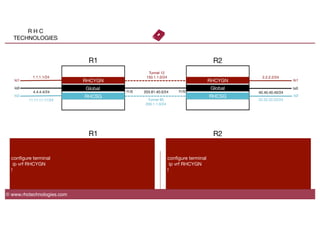

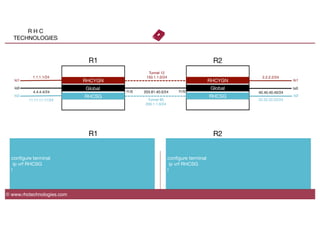

R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 int f1/0 ip address 203.81.40.1 255.255.255.0 ! int lo0 ip address 4.4.4.4 255.255.255.0 ! int f1/0 ip address 203.81.40.2 255.255.255.0 ! int lo0 ip address 40.40.40.40 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 router bgp 12 neighbor 203.81.40.2 remote-as 12 network 4.4.4.0 mask 255.255.255.0 ! router bgp 12 neighbor 203.81.40.1 remote-as 12 network 40.40.40.0 mask 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 configure terminal ip vrf RHCYGN ! configure terminal ip vrf RHCYGN ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 interface tunnel 12 ip vrf forwarding RHCYGN

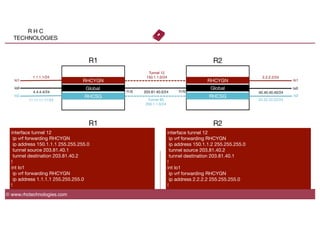

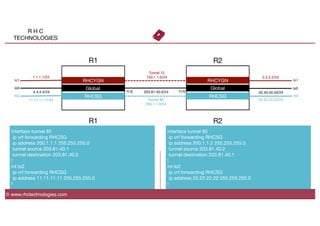

 ip address 150.1.1.1 255.255.255.0 tunnel source 203.81.40.1 tunnel destination 203.81.40.2 ! int lo1 ip vrf forwarding RHCYGN ip address 1.1.1.1 255.255.255.0 ! interface tunnel 12 ip vrf forwarding RHCYGN
 ip address 150.1.1.2 255.255.255.0 tunnel source 203.81.40.2 tunnel destination 203.81.40.1 ! int lo1 ip vrf forwarding RHCYGN ip address 2.2.2.2 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 router bgp 12 address-family ipv4 vrf RHCYGN neighbor 150.1.1.2 remote-as 12 neighbor 150.1.1.2 activate network 1.1.1.0 mask 255.255.255.0 exit-address-family ! router bgp 12 address-family ipv4 vrf RHCYGN neighbor 150.1.1.1 remote-as 12 neighbor 150.1.1.1 activate network 2.2.2.0 mask 255.255.255.0 exit-address-family ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 configure terminal ip vrf RHCSG ! configure terminal ip vrf RHCSG ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 interface tunnel 85 ip vrf forwarding RHCSG ip address 200.1.1.1 255.255.255.0 tunnel source 203.81.40.1 tunnel destination 203.81.40.2 ! int lo2 ip vrf forwarding RHCSG ip address 11.11.11.11 255.255.255.0 ! interface tunnel 85 ip vrf forwarding RHCSG ip address 200.1.1.2 255.255.255.0 tunnel source 203.81.40.2 tunnel destination 203.81.40.1 ! int lo2 ip vrf forwarding RHCSG ip address 22.22.22.22 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
R H C TECHNOLOGIES © www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 11.11.11.0 0.0.0.255 area 0 exit-address-family ! router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 22.22.22.0 0.0.0.255 area 0 exit-address-family ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24

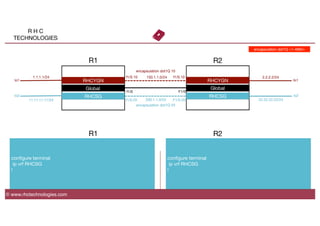

R H C TECHNOLOGIES VRF-Lite 802.1Q Sub-Interface Case Study © www.rhctechnologies.com

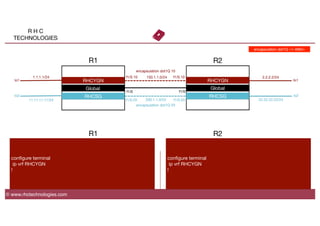

R H C TECHNOLOGIES © www.rhctechnologies.com Global Global f1/0 f1/0 R1 R2 configure terminal ip vrf RHCYGN ! configure terminal ip vrf RHCYGN ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 f1/0.10 f1/0.20 f1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
R H C TECHNOLOGIES © www.rhctechnologies.com Global Global f1/0 F1/0 R1 R2 interface f1/0 no shutdown ! Interface 1/0.10 encapsulation dot1Q 10 ip vrf forwarding RHCYGN ip address 150.1.1.1 255.255.255.0 ! int lo1 ip vrf forwarding RHCYGN ip address 1.1.1.1 255.255.255.0 ! interface f1/0 no shutdown ! Interface 1/1.10 encapsulation dot1Q 10 ip vrf forwarding RHCYGN ip address 150.1.1.2 255.255.255.0 ! int lo1 ip vrf forwarding RHCYGN ip address 2.2.2.2 255.255.255.0 ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 F1/0.10 f1/0.20 F1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>

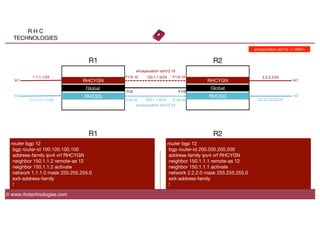

R H C TECHNOLOGIES © www.rhctechnologies.com Global Global f1/0 F1/0 R1 R2 router bgp 12 bgp router-id 100.100.100.100 address-family ipv4 vrf RHCYGN neighbor 150.1.1.2 remote-as 12 neighbor 150.1.1.2 activate network 1.1.1.0 mask 255.255.255.0 exit-address-family ! router bgp 12 bgp router-id 200.200.200.200 address-family ipv4 vrf RHCYGN neighbor 150.1.1.1 remote-as 12 neighbor 150.1.1.1 activate network 2.2.2.0 mask 255.255.255.0 exit-address-family ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 F1/0.10 F1/0.10 f1/0.20 F1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
R H C TECHNOLOGIES © www.rhctechnologies.com Global Global f1/0 F1/0 R1 R2 configure terminal ip vrf RHCSG ! configure terminal ip vrf RHCSG ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 f1/0.10 f1/0.20 F1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
R H C TECHNOLOGIES © www.rhctechnologies.com Global Global f1/0 f1/0 R1 R2 interface f1/0 no shutdown ! interface 1/0.20 encapsulation dot1Q 20 ip vrf forwarding RHCSG ip address 200.1.1.1 255.255.255.0 ! int lo2 ip vrf forwarding RHCSG ip address 11.11.11.11 255.255.255.0 ! interface f1/0 no shutdown ! interface 1/0.20 encapsulation dot1Q 20 ip vrf forwarding RHCSG ip address 200.1.1.2 255.255.255.0 ! int lo2 ip vrf forwarding RHCSG ip address 22.22.22.22 255.255.255.0 ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 F1/0.10 f1/0.20 f1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>

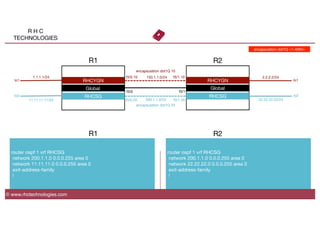

R H C TECHNOLOGIES © www.rhctechnologies.com Global Global f3/0 f3/1 R1 R2 router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 11.11.11.0 0.0.0.255 area 0 exit-address-family ! router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 22.22.22.0 0.0.0.255 area 0 exit-address-family ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f3/0.10 f3/1.10 f3/0.20 f3/1.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
R H C TECHNOLOGIES VRF Case Study 01 Prepared By Sai Linn Thu © www.rhctechnologies.com

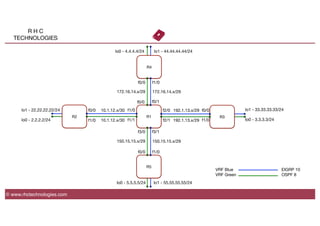

R H C TECHNOLOGIES R2 © www.rhctechnologies.com R3 R1 R4 R5 VRF Blue VRF Green EIGRP 10 OSPF 8 10.1.12.x/30 10.1.12.x/30 192.1.13.x/29 192.1.13.x/29 172.16.14.x/29 172.16.14.x/29 150.15.15.x/29 150.15.15.x/29 lo0 - 4.4.4.4/24 lo1 - 44.44.44.44/24 lo0 - 5.5.5.5/24 lo1 - 55.55.55.55/24 lo1 - 22.22.22.22/24 lo0 - 2.2.2.2/24 lo1 - 33.33.33.33/24 lo0 - 3.3.3.3/24 f0/0 f0/1 f1/0 f1/1 f2/0 f2/1 f3/0 f3/1 f0/0 f1/0 f0/0 f1/0 f0/0 f1/0 f1/0 f0/0

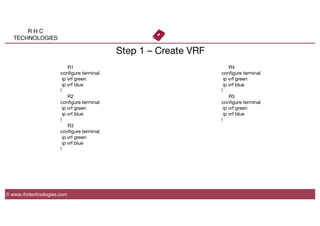

R H C TECHNOLOGIES © www.rhctechnologies.com Step 1 – Create VRF R1 configure terminal ip vrf green ip vrf blue ! R2 configure terminal ip vrf green ip vrf blue ! R3 configure terminal ip vrf green ip vrf blue ! R4 configure terminal ip vrf green ip vrf blue ! R5 configure terminal ip vrf green ip vrf blue !

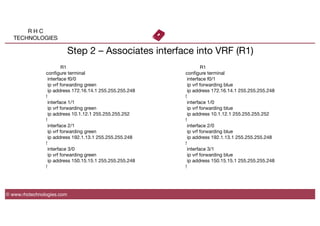

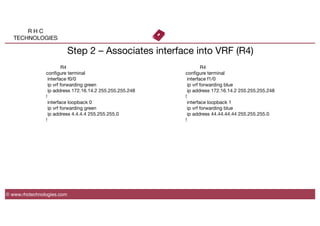

R H C TECHNOLOGIES © www.rhctechnologies.com Step 2 – Associates interface into VRF (R1) R1 configure terminal interface f0/0 ip vrf forwarding green ip address 172.16.14.1 255.255.255.248 ! interface 1/1 ip vrf forwarding green ip address 10.1.12.1 255.255.255.252 ! interface 2/1 ip vrf forwarding green ip address 192.1.13.1 255.255.255.248 ! interface 3/0 ip vrf forwarding green ip address 150.15.15.1 255.255.255.248 ! R1 configure terminal interface f0/1 ip vrf forwarding blue ip address 172.16.14.1 255.255.255.248 ! interface 1/0 ip vrf forwarding blue ip address 10.1.12.1 255.255.255.252 ! interface 2/0 ip vrf forwarding blue ip address 192.1.13.1 255.255.255.248 ! interface 3/1 ip vrf forwarding blue ip address 150.15.15.1 255.255.255.248 !
R H C TECHNOLOGIES © www.rhctechnologies.com Step 2 – Associates interface into VRF (R2) R2 configure terminal interface f1/0 ip vrf forwarding green ip address 10.1.12.2 255.255.255.252 ! interface loopback 0 ip vrf forwarding green ip address 2.2.2.2 255.255.255.0 ! R2 configure terminal interface f0/0 ip vrf forwarding blue ip address 10.1.12.2 255.255.255.252 ! interface loopback 1 ip vrf forwarding blue ip address 22.22.22.22 255.255.255.0 !
R H C TECHNOLOGIES © www.rhctechnologies.com Step 2 – Associates interface into VRF (R3) R3 configure terminal interface f1/0 ip vrf forwarding green ip address 192.1.13.2 255.255.255.248 ! interface loopback 0 ip vrf forwarding green ip address 3.3.3.3 255.255.255.0 ! R3 configure terminal interface f0/0 ip vrf forwarding blue ip address 192.1.13.2 255.255.255.248 ! interface loopback 1 ip vrf forwarding blue ip address 33.33.33.33 255.255.255.0 !
R H C TECHNOLOGIES © www.rhctechnologies.com Step 2 – Associates interface into VRF (R4) R4 configure terminal interface f0/0 ip vrf forwarding green ip address 172.16.14.2 255.255.255.248 ! interface loopback 0 ip vrf forwarding green ip address 4.4.4.4 255.255.255.0 ! R4 configure terminal interface f1/0 ip vrf forwarding blue ip address 172.16.14.2 255.255.255.248 ! interface loopback 1 ip vrf forwarding blue ip address 44.44.44.44 255.255.255.0 !

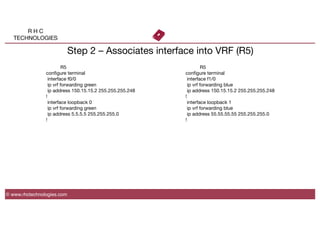

R H C TECHNOLOGIES © www.rhctechnologies.com Step 2 – Associates interface into VRF (R5) R5 configure terminal interface f0/0 ip vrf forwarding green ip address 150.15.15.2 255.255.255.248 ! interface loopback 0 ip vrf forwarding green ip address 5.5.5.5 255.255.255.0 ! R5 configure terminal interface f1/0 ip vrf forwarding blue ip address 150.15.15.2 255.255.255.248 ! interface loopback 1 ip vrf forwarding blue ip address 55.55.55.55 255.255.255.0 !

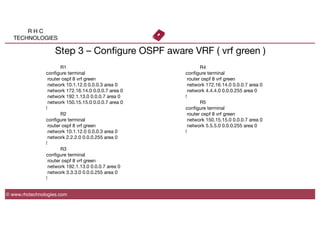

R H C TECHNOLOGIES © www.rhctechnologies.com Step 3 – Configure OSPF aware VRF ( vrf green ) R1 configure terminal router ospf 8 vrf green network 10.1.12.0 0.0.0.3 area 0 network 172.16.14.0 0.0.0.7 area 0 network 192.1.13.0 0.0.0.7 area 0 network 150.15.15.0 0.0.0.7 area 0 ! R2 configure terminal router ospf 8 vrf green network 10.1.12.0 0.0.0.3 area 0 network 2.2.2.0 0.0.0.255 area 0 ! R3 configure terminal router ospf 8 vrf green network 192.1.13.0 0.0.0.7 area 0 network 3.3.3.0 0.0.0.255 area 0 ! R4 configure terminal router ospf 8 vrf green network 172.16.14.0 0.0.0.7 area 0 network 4.4.4.0 0.0.0.255 area 0 ! R5 configure terminal router ospf 8 vrf green network 150.15.15.0 0.0.0.7 area 0 network 5.5.5.0 0.0.0.255 area 0 !

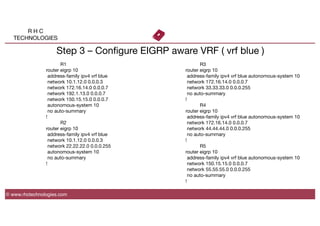

R H C TECHNOLOGIES © www.rhctechnologies.com Step 3 – Configure EIGRP aware VRF ( vrf blue ) R1 router eigrp 10 address-family ipv4 vrf blue network 10.1.12.0 0.0.0.3 network 172.16.14.0 0.0.0.7 network 192.1.13.0 0.0.0.7 network 150.15.15.0 0.0.0.7 autonomous-system 10 no auto-summary ! R2 router eigrp 10 address-family ipv4 vrf blue network 10.1.12.0 0.0.0.3 network 22.22.22.0 0.0.0.255 autonomous-system 10 no auto-summary ! R3 router eigrp 10 address-family ipv4 vrf blue autonomous-system 10 network 172.16.14.0 0.0.0.7 network 33.33.33.0 0.0.0.255 no auto-summary ! R4 router eigrp 10 address-family ipv4 vrf blue autonomous-system 10 network 172.16.14.0 0.0.0.7 network 44.44.44.0 0.0.0.255 no auto-summary ! R5 router eigrp 10 address-family ipv4 vrf blue autonomous-system 10 network 150.15.15.0 0.0.0.7 network 55.55.55.0 0.0.0.255 no auto-summary !

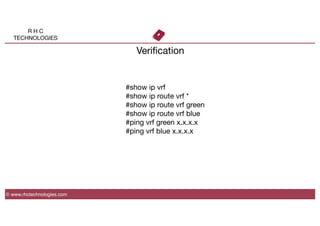

R H C TECHNOLOGIES © www.rhctechnologies.com Verification #show ip vrf #show ip route vrf * #show ip route vrf green #show ip route vrf blue #ping vrf green x.x.x.x #ping vrf blue x.x.x.x

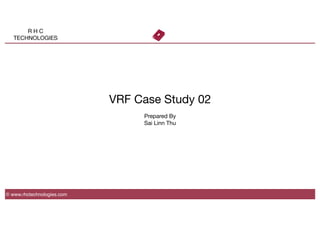

R H C TECHNOLOGIES VRF Case Study 02 Prepared By Sai Linn Thu © www.rhctechnologies.com
R H C TECHNOLOGIES © www.rhctechnologies.com CR01 CR02 Access 01 DS01 DS02 Access 02 Access 04 DS01 DS02 Access 03 VRFBlue VRFRed EIGRP 10 OSPF 8
R H C TECHNOLOGIES VRF Case Study 03 Prepared By Sai Linn Thu © www.rhctechnologies.com
R H C TECHNOLOGIES CSW 01 CSW 02 CSW 03 CSW 04 ASW 01 ASW 02 ASW 03 ASW 04 © www.rhctechnologies.com
© www.rhctechnologies.com R H C TECHNOLOGIES RHC Technologies #LIKE #FOLLOW #WATCH

More Related Content

PDF
DMVPN Lab WorkBook
byRHC Technologies

PDF
Deploying IP/MPLS VPN - Cisco Networkers 2010
byFebrian ‎

PDF
Segment routing tutorial
byYi-Sung Chiu

PDF
Traffic Engineering Using Segment Routing
byCisco Canada

PDF
Segment Routing
byAPNIC

PDF
Designing Multi-tenant Data Centers Using EVPN
byAnas

PDF
SEGMENT Routing
byBangladesh Network Operators Group

PDF
MPLS Deployment Chapter 1 - Basic
byEricsson

DMVPN Lab WorkBook
byRHC Technologies

Deploying IP/MPLS VPN - Cisco Networkers 2010
byFebrian ‎

Segment routing tutorial
byYi-Sung Chiu

Traffic Engineering Using Segment Routing
byCisco Canada

Segment Routing
byAPNIC

Designing Multi-tenant Data Centers Using EVPN
byAnas

SEGMENT Routing
byBangladesh Network Operators Group

MPLS Deployment Chapter 1 - Basic
byEricsson


What's hot

PPTX
MPLS (Multi-Protocol Label Switching)
byNetProtocol Xpert

PDF
Segment Routing
byAPNIC

PPTX
GRE Tunnel Configuration
byNetProtocol Xpert

PDF
NETCONF Call Home
byADVA

PDF
Troubleshooting BGP
byAPNIC

PPT
Bgp
byFebrian ‎

PDF
Deploy MPLS Traffic Engineering
byAPNIC

PDF
Visualizing and Troubleshooting BGP Routing
byThousandEyes

PDF
Segment Routing Lab
byCisco Canada

PPT
Juniper mpls best practice part 1
byFebrian ‎

PDF
Faster packet processing in Linux: XDP
byDaniel T. Lee

PDF
BGP Services IP Transit vs IP Peering
byGLC Networks

PDF
WAN SDN meet Segment Routing
byAPNIC

PDF
How to prevent ssh-tunneling using Palo Alto Networks NGFW
byYudi Arijanto

PPTX
Virtual Private Network
byHASHIR RAZA

PPT
DHCP Server & Client Presentation
byraini

PDF
IPv6
byPeter R. Egli

PPTX
IP Source Guard
byNetProtocol Xpert

PDF
01- intro to firewall concepts
byMostafa El Lathy

PPT
CCNA presentation.
byAjaigururaj R

MPLS (Multi-Protocol Label Switching)
byNetProtocol Xpert

Segment Routing
byAPNIC

GRE Tunnel Configuration
byNetProtocol Xpert

NETCONF Call Home
byADVA

Troubleshooting BGP
byAPNIC

Bgp
byFebrian ‎

Deploy MPLS Traffic Engineering
byAPNIC

Visualizing and Troubleshooting BGP Routing
byThousandEyes

Segment Routing Lab
byCisco Canada

Juniper mpls best practice part 1
byFebrian ‎

Faster packet processing in Linux: XDP
byDaniel T. Lee

BGP Services IP Transit vs IP Peering
byGLC Networks

WAN SDN meet Segment Routing
byAPNIC

How to prevent ssh-tunneling using Palo Alto Networks NGFW
byYudi Arijanto

Virtual Private Network
byHASHIR RAZA

DHCP Server & Client Presentation
byraini

IPv6
byPeter R. Egli

IP Source Guard
byNetProtocol Xpert

01- intro to firewall concepts
byMostafa El Lathy

CCNA presentation.
byAjaigururaj R


Viewers also liked

PDF
BGP Route Aggregation Lab WorkBook
byRHC Technologies

PDF
Introduction to VRF
byJohn Chavez

PDF
Variable refrigerant flow systems
byVAHAB ABDUL

PDF
VRF system presentation !
byMohamed Sharbudeen Ayub

PDF
IS-IS Routing Lab WorkBook
byRHC Technologies

PDF
BGP Route Reflectors Lab WorkBook
byRHC Technologies

PDF
IPv6 Basics
byRHC Technologies

PDF
Comparison between vrv vrf brands &amp; suppliers @ uae market-July 2017-by g...
byJuma Yousef J. Saleh جمعة يوسف جمعة صالح

PPTX
VRF Systems comaprison
bymusab173

PDF
Cisco ASA Firewall Lab WorkBook
byRHC Technologies

PDF
samsung vrf dvm s 2013 sac catalouge
byHaluk TOSUN

PPTX
Air conditioning system
byNoorule Inie Osman

PDF
PM-VRV10YR - 10yrs of VRV in North America (08-15)
byHolly Green

PDF
EIGRP NXOS vs IOS Differences
byJohn Berry

PPT
Zone Based Policy Firewall
bypitt2k

PDF
Climatizacion airescrollchiller_TRANE
bylopexno

PDF
designofa12kwaircooledwaterchillerwithdrawings
bySamantha Ayres

PDF
10 years of Scroll Digital
byAbhinav Barnwal

PDF
Catalogue fujitsu vrf
bytiger1202

PDF
Trg trc007-en fundamentals of hvac acoustics
byVoVi Phap Danh

BGP Route Aggregation Lab WorkBook
byRHC Technologies

Introduction to VRF
byJohn Chavez

Variable refrigerant flow systems
byVAHAB ABDUL

VRF system presentation !
byMohamed Sharbudeen Ayub

IS-IS Routing Lab WorkBook
byRHC Technologies

BGP Route Reflectors Lab WorkBook
byRHC Technologies

IPv6 Basics
byRHC Technologies

Comparison between vrv vrf brands &amp; suppliers @ uae market-July 2017-by g...
byJuma Yousef J. Saleh جمعة يوسف جمعة صالح

VRF Systems comaprison
bymusab173

Cisco ASA Firewall Lab WorkBook
byRHC Technologies

samsung vrf dvm s 2013 sac catalouge
byHaluk TOSUN

Air conditioning system
byNoorule Inie Osman

PM-VRV10YR - 10yrs of VRV in North America (08-15)
byHolly Green

EIGRP NXOS vs IOS Differences
byJohn Berry

Zone Based Policy Firewall
bypitt2k

Climatizacion airescrollchiller_TRANE
bylopexno

designofa12kwaircooledwaterchillerwithdrawings
bySamantha Ayres

10 years of Scroll Digital
byAbhinav Barnwal

Catalogue fujitsu vrf
bytiger1202

Trg trc007-en fundamentals of hvac acoustics
byVoVi Phap Danh


Similar to VRF Lab WorkBook

PDF
VRF Configuration
byNetwax Lab

PDF
BRKCRT-2601.pdf
byPhongHong86

PDF
Intrdouction to VRF Implementation.pdf
byNesibusami

PDF
CCNA300-201Day+54+(part+3)+Slides+-+VRF.pdf
byUzumakiGouyo

PPTX
Virtual Routing and Forwarding, (VRF-lite)
byNetProtocol Xpert

DOCX
Mpls layer 3 vp ns
byIT Tech

PDF
VRF (virtual routing and forwarding)
byNetwax Lab

PDF
Mpls vpn.rip
byfarhanica

PDF
Per VRF tunnel Seclection IOS-XR
byGoerge Micheal Gerges

DOCX
Network virtualization beyond vla ns-part2
byIT Tech

PPTX
Operationalizing VRF in the Data Center
byCumulus Networks

PDF
Mpls22 sg vol.2 MADE IN INDIA
byVisalini Kumaraswamy

PPTX
Mikrotik link redundancy solution
byS M Tipu

PDF
Inter as vpn option c
byGoerge Micheal Gerges

PDF
Cloud Monitors Cloud
byRaymond Burkholder

PPTX
Demystifying Networking Webinar Series- Routing on the Host
byCumulus Networks

PPTX
Multiprotocol label switching (mpls) - Networkshop44
byJisc

PDF
Practice Lab CSC
bySalachudin Emir

PDF
Dynamic Routing with FRR - pfSense Hangout December 2017
byNetgate

PDF
Fun with PRB, VRFs and NetNS on Linux - What is it, how does it work, what ca...
byMaximilan Wilhelm

VRF Configuration
byNetwax Lab

BRKCRT-2601.pdf
byPhongHong86

Intrdouction to VRF Implementation.pdf
byNesibusami

CCNA300-201Day+54+(part+3)+Slides+-+VRF.pdf
byUzumakiGouyo

Virtual Routing and Forwarding, (VRF-lite)
byNetProtocol Xpert

Mpls layer 3 vp ns
byIT Tech

VRF (virtual routing and forwarding)
byNetwax Lab

Mpls vpn.rip
byfarhanica

Per VRF tunnel Seclection IOS-XR
byGoerge Micheal Gerges

Network virtualization beyond vla ns-part2
byIT Tech

Operationalizing VRF in the Data Center
byCumulus Networks

Mpls22 sg vol.2 MADE IN INDIA
byVisalini Kumaraswamy

Mikrotik link redundancy solution
byS M Tipu

Inter as vpn option c
byGoerge Micheal Gerges

Cloud Monitors Cloud
byRaymond Burkholder

Demystifying Networking Webinar Series- Routing on the Host
byCumulus Networks

Multiprotocol label switching (mpls) - Networkshop44
byJisc

Practice Lab CSC
bySalachudin Emir

Dynamic Routing with FRR - pfSense Hangout December 2017
byNetgate

Fun with PRB, VRFs and NetNS on Linux - What is it, how does it work, what ca...
byMaximilan Wilhelm


Recently uploaded

PPT
Database Management Systems: Basics, History, Data Models, etc.
byParithi Thamizh

PDF
apidays Australia 2025 | User Brainpower vs. AI Blind Spots in API Docs
byapidays

PDF
How to Build a Crypto Wallet that Excels in 2026.pdf
byimoliviabennett

PDF
Why Are Cloud Migration Services Essential for Modern Business Growth?
byGeoPITS Global Pvt Ltd

PPTX
Achieve enterprise automation with SAP BTP solutions and SAP Signavio
bydarrellkiwi

DOCX
Best Web to Learn About Buying Verified Skrill Accounts (Los Angeles).docx
byhttps://topsellerit.com/product/buy-verified-binance-accounts/

PDF
Introduction to Linux and Basic Commands
byiDev Semarang

PDF
10 Best AI Tools for Fashion Brands in 2026
bymockitseo

PPTX
Storage-and-HCI-Positioning-update-sales.pptx
byhungungphu123

PDF
Ethical AI applied to publishing: Presenting wâsikan kisewâtisiwin, an AI too...
byBookNet Canada

PDF
CISO_2027_Playbook: Sovereign AI Resilience & Quantum-Proof Identity
bySaraDavis91

PDF
Kubernetes Cloud Native Indonesia Meetup - January 2026
byPrasta Maha

PPTX
CRM for the Insurance Industry Lessons for Insurance CIOs and Digital Leaders...
byKerry Millar

PDF
LUXHUB: a detailed look at 2025...and fast forward to 2026
byalexandrekeilmann1

PDF
Getting the Best of TrueDEM – January News & Updates
bypanagenda

PDF
Enterprise Data Services_ A Development Guide with Use Cases, Trends and Impl...
by2601harsh23

PDF
5G Explained! A High Level Overview [Introduction]
byLuciano Motta

PDF
Deploying Windows Clients & Managing Identities
byVICTOR MAESTRE RAMIREZ

PPTX
AI and Digital Transformation Solutions.
byBuildingblocks

PDF
Azure DevOps Managed Services: Driving Speed, Security, and Business Growth
byjohncarterjn

Database Management Systems: Basics, History, Data Models, etc.
byParithi Thamizh

apidays Australia 2025 | User Brainpower vs. AI Blind Spots in API Docs
byapidays

How to Build a Crypto Wallet that Excels in 2026.pdf
byimoliviabennett

Why Are Cloud Migration Services Essential for Modern Business Growth?
byGeoPITS Global Pvt Ltd

Achieve enterprise automation with SAP BTP solutions and SAP Signavio
bydarrellkiwi

Best Web to Learn About Buying Verified Skrill Accounts (Los Angeles).docx
byhttps://topsellerit.com/product/buy-verified-binance-accounts/

Introduction to Linux and Basic Commands
byiDev Semarang

10 Best AI Tools for Fashion Brands in 2026
bymockitseo

Storage-and-HCI-Positioning-update-sales.pptx
byhungungphu123

Ethical AI applied to publishing: Presenting wâsikan kisewâtisiwin, an AI too...
byBookNet Canada

CISO_2027_Playbook: Sovereign AI Resilience & Quantum-Proof Identity
bySaraDavis91

Kubernetes Cloud Native Indonesia Meetup - January 2026
byPrasta Maha

CRM for the Insurance Industry Lessons for Insurance CIOs and Digital Leaders...
byKerry Millar

LUXHUB: a detailed look at 2025...and fast forward to 2026
byalexandrekeilmann1

Getting the Best of TrueDEM – January News & Updates
bypanagenda

Enterprise Data Services_ A Development Guide with Use Cases, Trends and Impl...
by2601harsh23

5G Explained! A High Level Overview [Introduction]
byLuciano Motta

Deploying Windows Clients & Managing Identities
byVICTOR MAESTRE RAMIREZ

AI and Digital Transformation Solutions.
byBuildingblocks

Azure DevOps Managed Services: Driving Speed, Security, and Business Growth
byjohncarterjn


VRF Lab WorkBook

  • 1.
    R H C TECHNOLOGIES VRFCase Studies Prepared By Sai Linn Thu © www.rhctechnologies.com
  • 2.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRFBLUE VRFGREEN VRFORANGE Global Virtual Routing & Forwarding
  • 3.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRFBLUE VRFGREEN VRFORANGE Global Virtual Routing & Forwarding 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24
  • 4.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Create VRF Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 configure terminal ip vrf blue ip vrf green ip vrf orange
  • 5.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware RIP Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 router rip version 2 network 4.4.4.0 network 203.81.40.0 no auto-summary ! router rip ! address-family ipv4 vrf blue version 2 network 1.1.1.0 network 10.10.10.0 no auto-summary exit-address-family !
  • 6.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware EIGRP Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 router eigrp 10 network 4.4.4.0 0.0.0.255 network 203.81.40.0 0.0.0.255 no auto-summary ! router eigrp 10 ! address-family ipv4 vrf green autonomous-system 10 network 2.2.2.0 0.0.0.255 network 172.16.10.0 0.0.0.255 no auto-summary exit-address-family !
  • 7.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware OSPF Configuration VRFBLUE VRFGREEN VRFORANGE Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 router ospf 1 network 4.4.4.0 0.0.0.255 area 1 network 203.81.40.0 0.0.0.255 area 0 ! router ospf 2 vrf orange network 3.3.3.0 0.0.0.255 area 1 network 192.168.30.0 0.0.0.255 area 0 exit-address-family !
  • 8.
    R H C TECHNOLOGIES VRFaware Static Route © www.rhctechnologies.com
  • 9.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware Static Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 configure terminal ip vrf blue ! configure terminal ip vrf blue ! Step 1 - Create VRF ( blue ) R1 R2
  • 10.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware Static Route Configuration VRF VRF VRF Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.0/24 200.200.200.0/24 30.30.30.0/24 40.40.40.0/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 int f1/0 ip vrf forwarding blue ip address 10.10.10.1 255.255.255.0 ! int lo0 ip vrf forwarding blue ip address 1.1.1.1 255.255.255.0 ! int f1/0 ip vrf forwarding blue ip address 10.10.10.2 255.255.255.0 ! int lo0 ip vrf forwarding blue ip address 100.100.100.100 255.255.255.0 ! Step 2 – Associate Interfaces into VRF ( blue ) R1 R2
  • 11.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware Static Route Configuration VRF VRF VRF Global 1.1.1.0/24 2.2.2.0/24 3.3.3.0/24 4.4.4.0/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.0/24 200.200.200.0/24 30.30.30.0/24 40.40.40.0/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 ip route vrf blue 100.100.100.0 255.255.255.0 10.10.10.2 ip route vrf blue 1.1.1.0 255.255.255.0 10.10.10.1 Step 3 – Configure Static Route aware VRF ( blue ) R1 R2
  • 12.
    R H C TECHNOLOGIES GlobalRouting ( BGP ) © www.rhctechnologies.com
  • 13.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 configure terminal hostname R1 ! configure terminal hostname R2 ! Step 1 – NO VRF Creation required R1 R2
  • 14.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 int f4/0 ip address 203.81.40.1 255.255.255.0 ! int lo3 ip address 4.4.4.4 255.255.255.0 ! int f4/0 ip address 203.81.40.2 255.255.255.0 ! int lo3 ip address 40.40.40.40 255.255.255.0 ! Step 2 – Interface IP Configuration R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
  • 15.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 router bgp 12 neighbor 203.81.40.2 remote-as 12 network 4.4.4.0 mask 255.255.255.0 ! router bgp 12 neighbor 203.81.40.1 remote-as 12 network 40.40.40.0 mask 255.255.255.0 ! Step 3 – Configure BGP R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
  • 16.
    R H C TECHNOLOGIES VRFaware BGP © www.rhctechnologies.com
  • 17.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware BGP Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 configure terminal ip vrf green ! configure terminal ip vrf green ! Step 1 - Create VRF ( green ) R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
  • 18.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware BGP Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 int f2/0 ip vrf forwarding green ip address 172.16.10.1 255.255.255.0 ! int lo1 ip vrf forwarding green ip address 2.2.2.2 255.255.255.0 ! int f2/0 ip vrf forwarding green ip address 172.16.10.2 255.255.255.0 ! int lo1 ip vrf forwarding green ip address 200.200.200.200 255.255.255.0 ! Step 2 - Associate Interfaces into VRF ( green ) R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
  • 19.
    R H C TECHNOLOGIES ©www.rhctechnologies.com VRF aware BGP Route Configuration VRF VRF VRF Global 1.1.1.1/24 2.2.2.2/24 3.3.3.3/24 4.4.4.4/24 10.10.10.0/24 172.16.10.0/24 192.168.30.0/24 203.81.40.0/24 VRF VRF VRF Global 100.100.100.100/24 200.200.200.200/24 30.30.30.30/24 40.40.40.40/24 lo0 lo1 lo2 lo3 lo0 lo1 lo2 lo3 R1 R2 router bgp 12 address-family ipv4 vrf green neighbor 172.16.10.2 remote-as 12 neighbor 172.16.10.2 activate network 2.2.2.0 mask 255.255.255.0 exit-address-family ! router bgp 12 address-family ipv4 vrf green neighbor 172.16.10.1 remote-as 12 neighbor 172.16.10.1 activate network 200.200.200.0 mask 255.255.255.0 exit-address-family ! Step 3 – Configure BGP aware VRF ( green ) R1 R2 f1/0 f2/0 f3/0 f4/0 f1/0 f2/0 f3/0 f4/0
  • 20.
    R H C TECHNOLOGIES VRF-LiteTunnel + VRF aware BGP/OSPF Case Study © www.rhctechnologies.com
  • 21.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 int f1/0 ip address 203.81.40.1 255.255.255.0 ! int lo0 ip address 4.4.4.4 255.255.255.0 ! int f1/0 ip address 203.81.40.2 255.255.255.0 ! int lo0 ip address 40.40.40.40 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 22.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 router bgp 12 neighbor 203.81.40.2 remote-as 12 network 4.4.4.0 mask 255.255.255.0 ! router bgp 12 neighbor 203.81.40.1 remote-as 12 network 40.40.40.0 mask 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 23.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 configure terminal ip vrf RHCYGN ! configure terminal ip vrf RHCYGN ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 24.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 interface tunnel 12 ip vrf forwarding RHCYGN
 ip address 150.1.1.1 255.255.255.0 tunnel source 203.81.40.1 tunnel destination 203.81.40.2 ! int lo1 ip vrf forwarding RHCYGN ip address 1.1.1.1 255.255.255.0 ! interface tunnel 12 ip vrf forwarding RHCYGN
 ip address 150.1.1.2 255.255.255.0 tunnel source 203.81.40.2 tunnel destination 203.81.40.1 ! int lo1 ip vrf forwarding RHCYGN ip address 2.2.2.2 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 25.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 router bgp 12 address-family ipv4 vrf RHCYGN neighbor 150.1.1.2 remote-as 12 neighbor 150.1.1.2 activate network 1.1.1.0 mask 255.255.255.0 exit-address-family ! router bgp 12 address-family ipv4 vrf RHCYGN neighbor 150.1.1.1 remote-as 12 neighbor 150.1.1.1 activate network 2.2.2.0 mask 255.255.255.0 exit-address-family ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 26.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 configure terminal ip vrf RHCSG ! configure terminal ip vrf RHCSG ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 27.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 interface tunnel 85 ip vrf forwarding RHCSG ip address 200.1.1.1 255.255.255.0 tunnel source 203.81.40.1 tunnel destination 203.81.40.2 ! int lo2 ip vrf forwarding RHCSG ip address 11.11.11.11 255.255.255.0 ! interface tunnel 85 ip vrf forwarding RHCSG ip address 200.1.1.2 255.255.255.0 tunnel source 203.81.40.2 tunnel destination 203.81.40.1 ! int lo2 ip vrf forwarding RHCSG ip address 22.22.22.22 255.255.255.0 ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 28.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global 4.4.4.4/24 203.81.40.0/24 Global 40.40.40.40/24 f1/0 f1/0 lo0 lo0 R1 R2 router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 11.11.11.0 0.0.0.255 area 0 exit-address-family ! router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 22.22.22.0 0.0.0.255 area 0 exit-address-family ! R1 R2 Tunnel 12 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 Tunnel 85 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24
  • 29.
    R H C TECHNOLOGIES VRF-Lite802.1Q Sub-Interface Case Study © www.rhctechnologies.com
  • 30.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global Global f1/0 f1/0 R1 R2 configure terminal ip vrf RHCYGN ! configure terminal ip vrf RHCYGN ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 f1/0.10 f1/0.20 f1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
  • 31.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global Global f1/0 F1/0 R1 R2 interface f1/0 no shutdown ! Interface 1/0.10 encapsulation dot1Q 10 ip vrf forwarding RHCYGN ip address 150.1.1.1 255.255.255.0 ! int lo1 ip vrf forwarding RHCYGN ip address 1.1.1.1 255.255.255.0 ! interface f1/0 no shutdown ! Interface 1/1.10 encapsulation dot1Q 10 ip vrf forwarding RHCYGN ip address 150.1.1.2 255.255.255.0 ! int lo1 ip vrf forwarding RHCYGN ip address 2.2.2.2 255.255.255.0 ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 F1/0.10 f1/0.20 F1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
  • 32.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global Global f1/0 F1/0 R1 R2 router bgp 12 bgp router-id 100.100.100.100 address-family ipv4 vrf RHCYGN neighbor 150.1.1.2 remote-as 12 neighbor 150.1.1.2 activate network 1.1.1.0 mask 255.255.255.0 exit-address-family ! router bgp 12 bgp router-id 200.200.200.200 address-family ipv4 vrf RHCYGN neighbor 150.1.1.1 remote-as 12 neighbor 150.1.1.1 activate network 2.2.2.0 mask 255.255.255.0 exit-address-family ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 F1/0.10 F1/0.10 f1/0.20 F1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
  • 33.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global Global f1/0 F1/0 R1 R2 configure terminal ip vrf RHCSG ! configure terminal ip vrf RHCSG ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 f1/0.10 f1/0.20 F1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
  • 34.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global Global f1/0 f1/0 R1 R2 interface f1/0 no shutdown ! interface 1/0.20 encapsulation dot1Q 20 ip vrf forwarding RHCSG ip address 200.1.1.1 255.255.255.0 ! int lo2 ip vrf forwarding RHCSG ip address 11.11.11.11 255.255.255.0 ! interface f1/0 no shutdown ! interface 1/0.20 encapsulation dot1Q 20 ip vrf forwarding RHCSG ip address 200.1.1.2 255.255.255.0 ! int lo2 ip vrf forwarding RHCSG ip address 22.22.22.22 255.255.255.0 ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f1/0.10 F1/0.10 f1/0.20 f1/0.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
  • 35.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Global Global f3/0 f3/1 R1 R2 router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 11.11.11.0 0.0.0.255 area 0 exit-address-family ! router ospf 1 vrf RHCSG network 200.1.1.0 0.0.0.255 area 0 network 22.22.22.0 0.0.0.255 area 0 exit-address-family ! R1 R2 150.1.1.0/24 lo1 lo1 RHCYGN RHCYGN RHCSG RHCSG lo2 lo2 200.1.1.0/24 1.1.1.1/24 2.2.2.2/24 11.11.11.11/24 22.22.22.22/24 f3/0.10 f3/1.10 f3/0.20 f3/1.20 encapsulation dot1Q 10 encapsulation dot1Q 20 encapsulation dot1Q <1-4094>
  • 36.
    R H C TECHNOLOGIES VRFCase Study 01 Prepared By Sai Linn Thu © www.rhctechnologies.com
  • 37.
    R H C TECHNOLOGIES R2 ©www.rhctechnologies.com R3 R1 R4 R5 VRF Blue VRF Green EIGRP 10 OSPF 8 10.1.12.x/30 10.1.12.x/30 192.1.13.x/29 192.1.13.x/29 172.16.14.x/29 172.16.14.x/29 150.15.15.x/29 150.15.15.x/29 lo0 - 4.4.4.4/24 lo1 - 44.44.44.44/24 lo0 - 5.5.5.5/24 lo1 - 55.55.55.55/24 lo1 - 22.22.22.22/24 lo0 - 2.2.2.2/24 lo1 - 33.33.33.33/24 lo0 - 3.3.3.3/24 f0/0 f0/1 f1/0 f1/1 f2/0 f2/1 f3/0 f3/1 f0/0 f1/0 f0/0 f1/0 f0/0 f1/0 f1/0 f0/0
  • 38.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 1 – Create VRF R1 configure terminal ip vrf green ip vrf blue ! R2 configure terminal ip vrf green ip vrf blue ! R3 configure terminal ip vrf green ip vrf blue ! R4 configure terminal ip vrf green ip vrf blue ! R5 configure terminal ip vrf green ip vrf blue !
  • 39.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 2 – Associates interface into VRF (R1) R1 configure terminal interface f0/0 ip vrf forwarding green ip address 172.16.14.1 255.255.255.248 ! interface 1/1 ip vrf forwarding green ip address 10.1.12.1 255.255.255.252 ! interface 2/1 ip vrf forwarding green ip address 192.1.13.1 255.255.255.248 ! interface 3/0 ip vrf forwarding green ip address 150.15.15.1 255.255.255.248 ! R1 configure terminal interface f0/1 ip vrf forwarding blue ip address 172.16.14.1 255.255.255.248 ! interface 1/0 ip vrf forwarding blue ip address 10.1.12.1 255.255.255.252 ! interface 2/0 ip vrf forwarding blue ip address 192.1.13.1 255.255.255.248 ! interface 3/1 ip vrf forwarding blue ip address 150.15.15.1 255.255.255.248 !
  • 40.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 2 – Associates interface into VRF (R2) R2 configure terminal interface f1/0 ip vrf forwarding green ip address 10.1.12.2 255.255.255.252 ! interface loopback 0 ip vrf forwarding green ip address 2.2.2.2 255.255.255.0 ! R2 configure terminal interface f0/0 ip vrf forwarding blue ip address 10.1.12.2 255.255.255.252 ! interface loopback 1 ip vrf forwarding blue ip address 22.22.22.22 255.255.255.0 !
  • 41.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 2 – Associates interface into VRF (R3) R3 configure terminal interface f1/0 ip vrf forwarding green ip address 192.1.13.2 255.255.255.248 ! interface loopback 0 ip vrf forwarding green ip address 3.3.3.3 255.255.255.0 ! R3 configure terminal interface f0/0 ip vrf forwarding blue ip address 192.1.13.2 255.255.255.248 ! interface loopback 1 ip vrf forwarding blue ip address 33.33.33.33 255.255.255.0 !
  • 42.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 2 – Associates interface into VRF (R4) R4 configure terminal interface f0/0 ip vrf forwarding green ip address 172.16.14.2 255.255.255.248 ! interface loopback 0 ip vrf forwarding green ip address 4.4.4.4 255.255.255.0 ! R4 configure terminal interface f1/0 ip vrf forwarding blue ip address 172.16.14.2 255.255.255.248 ! interface loopback 1 ip vrf forwarding blue ip address 44.44.44.44 255.255.255.0 !
  • 43.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 2 – Associates interface into VRF (R5) R5 configure terminal interface f0/0 ip vrf forwarding green ip address 150.15.15.2 255.255.255.248 ! interface loopback 0 ip vrf forwarding green ip address 5.5.5.5 255.255.255.0 ! R5 configure terminal interface f1/0 ip vrf forwarding blue ip address 150.15.15.2 255.255.255.248 ! interface loopback 1 ip vrf forwarding blue ip address 55.55.55.55 255.255.255.0 !
  • 44.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 3 – Configure OSPF aware VRF ( vrf green ) R1 configure terminal router ospf 8 vrf green network 10.1.12.0 0.0.0.3 area 0 network 172.16.14.0 0.0.0.7 area 0 network 192.1.13.0 0.0.0.7 area 0 network 150.15.15.0 0.0.0.7 area 0 ! R2 configure terminal router ospf 8 vrf green network 10.1.12.0 0.0.0.3 area 0 network 2.2.2.0 0.0.0.255 area 0 ! R3 configure terminal router ospf 8 vrf green network 192.1.13.0 0.0.0.7 area 0 network 3.3.3.0 0.0.0.255 area 0 ! R4 configure terminal router ospf 8 vrf green network 172.16.14.0 0.0.0.7 area 0 network 4.4.4.0 0.0.0.255 area 0 ! R5 configure terminal router ospf 8 vrf green network 150.15.15.0 0.0.0.7 area 0 network 5.5.5.0 0.0.0.255 area 0 !
  • 45.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Step 3 – Configure EIGRP aware VRF ( vrf blue ) R1 router eigrp 10 address-family ipv4 vrf blue network 10.1.12.0 0.0.0.3 network 172.16.14.0 0.0.0.7 network 192.1.13.0 0.0.0.7 network 150.15.15.0 0.0.0.7 autonomous-system 10 no auto-summary ! R2 router eigrp 10 address-family ipv4 vrf blue network 10.1.12.0 0.0.0.3 network 22.22.22.0 0.0.0.255 autonomous-system 10 no auto-summary ! R3 router eigrp 10 address-family ipv4 vrf blue autonomous-system 10 network 172.16.14.0 0.0.0.7 network 33.33.33.0 0.0.0.255 no auto-summary ! R4 router eigrp 10 address-family ipv4 vrf blue autonomous-system 10 network 172.16.14.0 0.0.0.7 network 44.44.44.0 0.0.0.255 no auto-summary ! R5 router eigrp 10 address-family ipv4 vrf blue autonomous-system 10 network 150.15.15.0 0.0.0.7 network 55.55.55.0 0.0.0.255 no auto-summary !
  • 46.
    R H C TECHNOLOGIES ©www.rhctechnologies.com Verification #show ip vrf #show ip route vrf * #show ip route vrf green #show ip route vrf blue #ping vrf green x.x.x.x #ping vrf blue x.x.x.x
