The document summarizes the design of steel beams and joists for two floors of a building. For the second floor, it lists 5 steel beams ranging in size from W24x76 to W30x99 to support spans of 16 to 30 feet. It also specifies 32 standard steel joists of size 32LH11 or 44LH16 for joist spans of 45 to 70 feet.

1. Beam Summary
RAM Steel v14.04.06.00
DataBase: EcoPlaza 04/16/12 16:16:52
Building Code: IBC Steel Code: AISC360-05 ASD
STEEL BEAM DESIGN SUMMARY:
Floor Type: 2nd
Bm # Length +Ma -Ma Mn Fy Beam Size Studs
ft kip-ft kip-ft kip-ft ksi
29 24.00 460.9 0.0 833.3 50.0 W24X76
30 16.00 200.6 0.0 390.8 50.0 W21X44
31 30.00 744.8 0.0 1300.0 50.0 W30X99
32 20.00 321.4 0.0 558.3 50.0 W24X55
33 30.00 693.2 0.0 1179.2 50.0 W30X90
Floor Type: 1st
Bm # Length +Ma -Ma Mn Fy Beam Size Studs
ft kip-ft kip-ft kip-ft ksi
30 30.00 1.1 0.0 4.7 50.0 W8X10
31 30.00 1.1 0.0 4.7 50.0 W8X10
32 20.00 139.3 0.0 277.1 50.0 W18X35
35 18.00 103.5 0.0 184.2 50.0 W16X26
36 16.00 0.3 0.0 10.2 50.0 W8X10
37 18.00 90.2 0.0 184.2 50.0 W16X26
52 20.00 0.5 0.0 7.7 50.0 W8X10
53 30.00 1.1 0.0 4.7 50.0 W8X10
54 20.00 0.5 0.0 7.7 50.0 W8X10
55 30.00 1.1 0.0 4.7 50.0 W8X10
56 20.00 0.5 0.0 7.7 50.0 W8X10
57 30.00 1.1 0.0 4.7 50.0 W8X10
59 20.00 0.5 0.0 7.7 50.0 W8X10
60 30.00 1.1 0.0 4.7 50.0 W8X10
61 20.00 0.5 0.0 7.7 50.0 W8X10
62 30.00 1.1 0.0 4.7 50.0 W8X10
63 30.00 1.1 0.0 4.7 50.0 W8X10
64 30.00 1.1 0.0 4.7 50.0 W8X10
65 30.00 1.1 0.0 4.7 50.0 W8X10
66 10.00 89.1 0.0 184.2 50.0 W16X26
67 25.00 464.7 0.0 833.3 50.0 W24X76
68 25.00 464.7 0.0 833.3 50.0 W24X76
69 30.00 649.8 0.0 1179.2 50.0 W30X90
70 30.00 649.8 0.0 1179.2 50.0 W30X90
71 25.00 464.7 0.0 833.3 50.0 W24X76
72 25.00 464.7 0.0 833.3 50.0 W24X76
73 10.00 89.1 0.0 184.2 50.0 W16X26
74 30.00 1.1 0.0 4.7 50.0 W8X10
75 30.00 1.1 0.0 4.7 50.0 W8X10
76 25.00 464.7 0.0 833.3 50.0 W24X76
77 25.00 464.7 0.0 833.3 50.0 W24X76

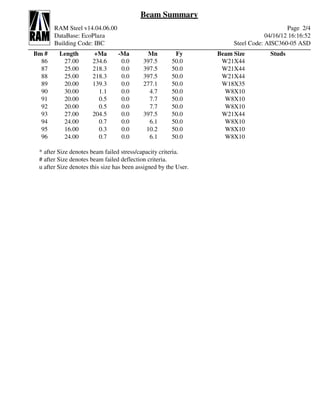

2. Beam Summary
RAM Steel v14.04.06.00 Page 2/4
DataBase: EcoPlaza 04/16/12 16:16:52
Building Code: IBC Steel Code: AISC360-05 ASD
Bm # Length +Ma -Ma Mn Fy Beam Size Studs
86 27.00 234.6 0.0 397.5 50.0 W21X44
87 25.00 218.3 0.0 397.5 50.0 W21X44
88 25.00 218.3 0.0 397.5 50.0 W21X44
89 20.00 139.3 0.0 277.1 50.0 W18X35
90 30.00 1.1 0.0 4.7 50.0 W8X10
91 20.00 0.5 0.0 7.7 50.0 W8X10
92 20.00 0.5 0.0 7.7 50.0 W8X10
93 27.00 204.5 0.0 397.5 50.0 W21X44
94 24.00 0.7 0.0 6.1 50.0 W8X10
95 16.00 0.3 0.0 10.2 50.0 W8X10
96 24.00 0.7 0.0 6.1 50.0 W8X10
* after Size denotes beam failed stress/capacity criteria.
# after Size denotes beam failed deflection criteria.
u after Size denotes this size has been assigned by the User.

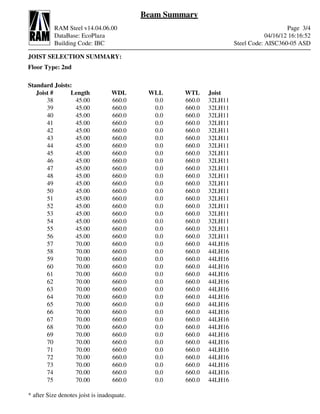

3. Beam Summary
RAM Steel v14.04.06.00 Page 3/4
DataBase: EcoPlaza 04/16/12 16:16:52
Building Code: IBC Steel Code: AISC360-05 ASD
JOIST SELECTION SUMMARY:
Floor Type: 2nd
Standard Joists:
Joist # Length WDL WLL WTL Joist
38 45.00 660.0 0.0 660.0 32LH11
39 45.00 660.0 0.0 660.0 32LH11
40 45.00 660.0 0.0 660.0 32LH11
41 45.00 660.0 0.0 660.0 32LH11
42 45.00 660.0 0.0 660.0 32LH11
43 45.00 660.0 0.0 660.0 32LH11
44 45.00 660.0 0.0 660.0 32LH11
45 45.00 660.0 0.0 660.0 32LH11
46 45.00 660.0 0.0 660.0 32LH11
47 45.00 660.0 0.0 660.0 32LH11
48 45.00 660.0 0.0 660.0 32LH11
49 45.00 660.0 0.0 660.0 32LH11
50 45.00 660.0 0.0 660.0 32LH11
51 45.00 660.0 0.0 660.0 32LH11
52 45.00 660.0 0.0 660.0 32LH11
53 45.00 660.0 0.0 660.0 32LH11
54 45.00 660.0 0.0 660.0 32LH11
55 45.00 660.0 0.0 660.0 32LH11
56 45.00 660.0 0.0 660.0 32LH11
57 70.00 660.0 0.0 660.0 44LH16
58 70.00 660.0 0.0 660.0 44LH16
59 70.00 660.0 0.0 660.0 44LH16
60 70.00 660.0 0.0 660.0 44LH16
61 70.00 660.0 0.0 660.0 44LH16
62 70.00 660.0 0.0 660.0 44LH16
63 70.00 660.0 0.0 660.0 44LH16
64 70.00 660.0 0.0 660.0 44LH16
65 70.00 660.0 0.0 660.0 44LH16
66 70.00 660.0 0.0 660.0 44LH16
67 70.00 660.0 0.0 660.0 44LH16
68 70.00 660.0 0.0 660.0 44LH16
69 70.00 660.0 0.0 660.0 44LH16
70 70.00 660.0 0.0 660.0 44LH16
71 70.00 660.0 0.0 660.0 44LH16
72 70.00 660.0 0.0 660.0 44LH16
73 70.00 660.0 0.0 660.0 44LH16
74 70.00 660.0 0.0 660.0 44LH16
75 70.00 660.0 0.0 660.0 44LH16
* after Size denotes joist is inadequate.

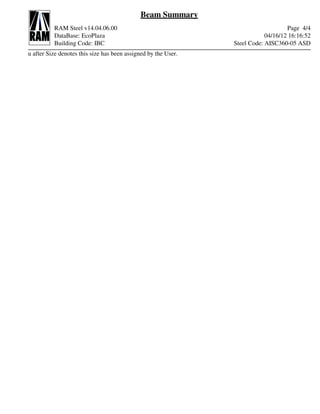

4. Beam Summary
RAM Steel v14.04.06.00 Page 4/4
DataBase: EcoPlaza 04/16/12 16:16:52
Building Code: IBC Steel Code: AISC360-05 ASD
u after Size denotes this size has been assigned by the User.
