- 1. Confidential │ ©2018VMware, Inc. VMware SD-WAN by VeloCloud Orchestrator and Gateway version 2.0
- 2. Agenda 2 Confidential ©2018 VMware,Inc. │ VMware SD-WAN Orchestrator VMware SD-WAN Gateway
- 3. 3 Confidential © │ 2018VMware, Inc. VMware SD-WAN Orchestrator Also called Velocloud Orchestrator (VCO)
- 4. 4 Confidential © │ 2018VMware, Inc. • Orchestrator and Gateway are virtual machines running on x86 infrastructure Orchestrator and Gateway

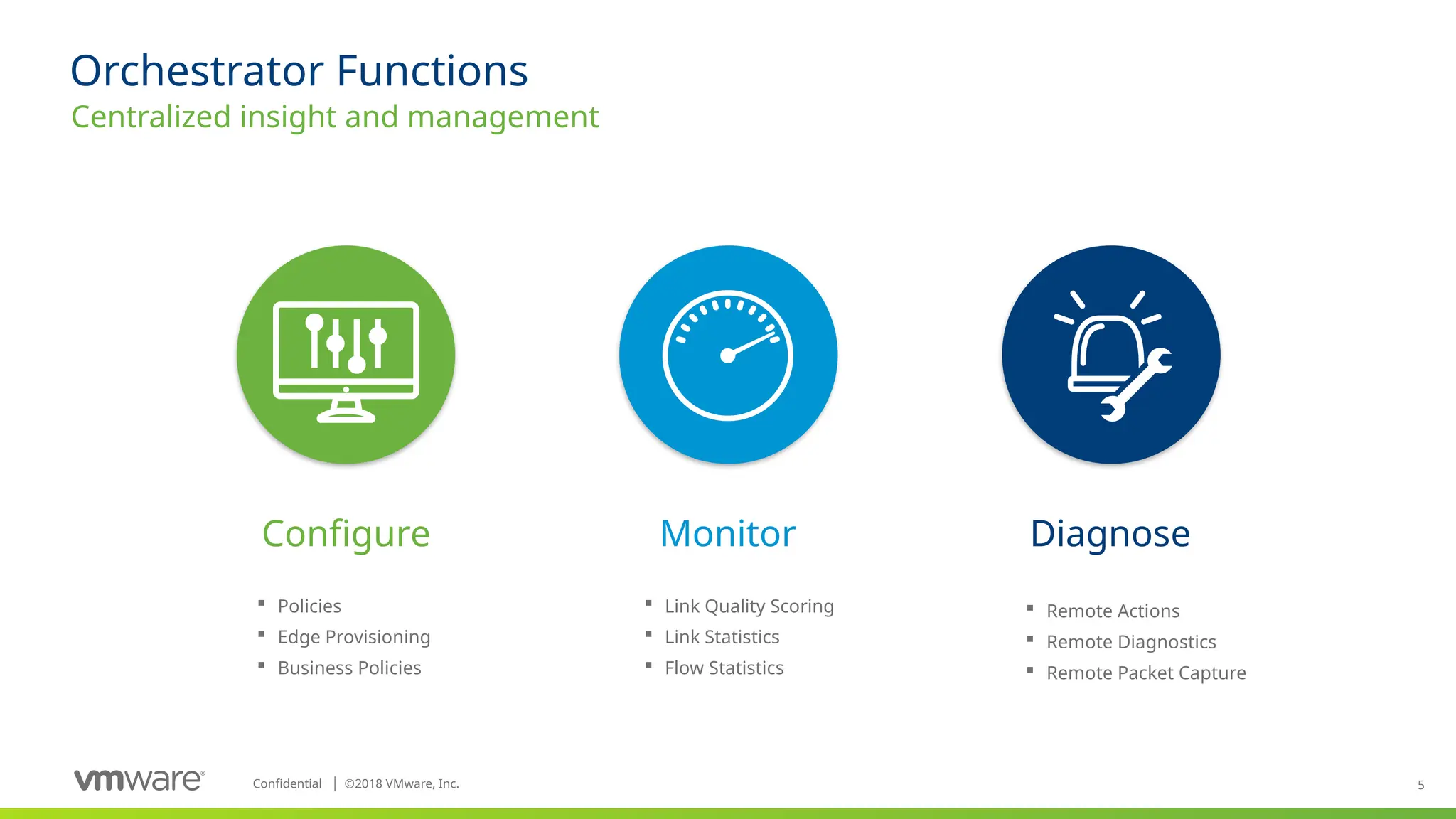

- 5. 5 Confidential © │ 2018VMware, Inc. Orchestrator Functions Centralized insight and management Configure Monitor Diagnose Policies Edge Provisioning Business Policies Link Quality Scoring Link Statistics Flow Statistics Remote Actions Remote Diagnostics Remote Packet Capture

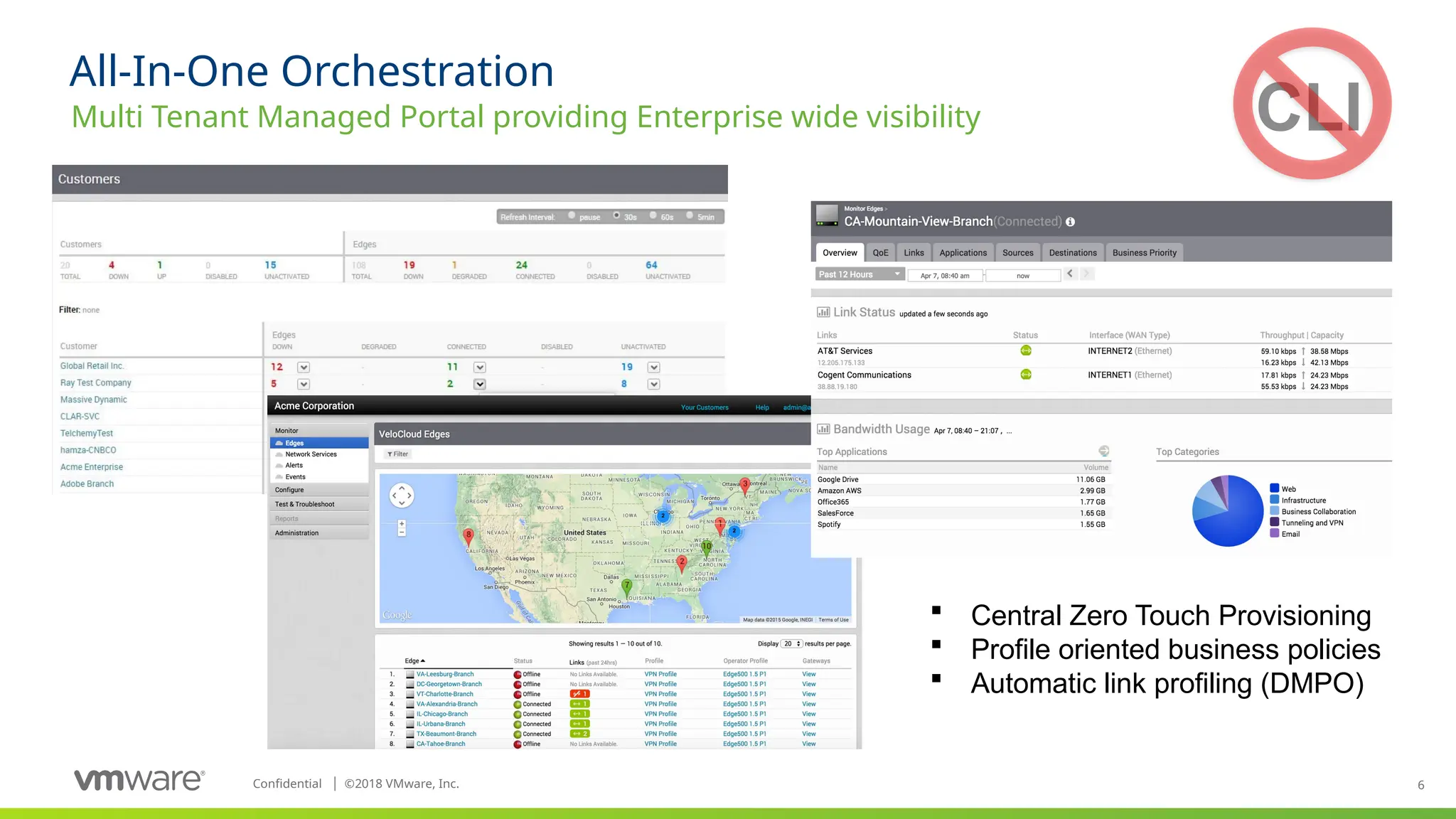

- 6. 6 Confidential © │ 2018VMware, Inc. All-In-One Orchestration Multi Tenant Managed Portal providing Enterprise wide visibility CLI Central Zero Touch Provisioning Profile oriented business policies Automatic link profiling (DMPO)

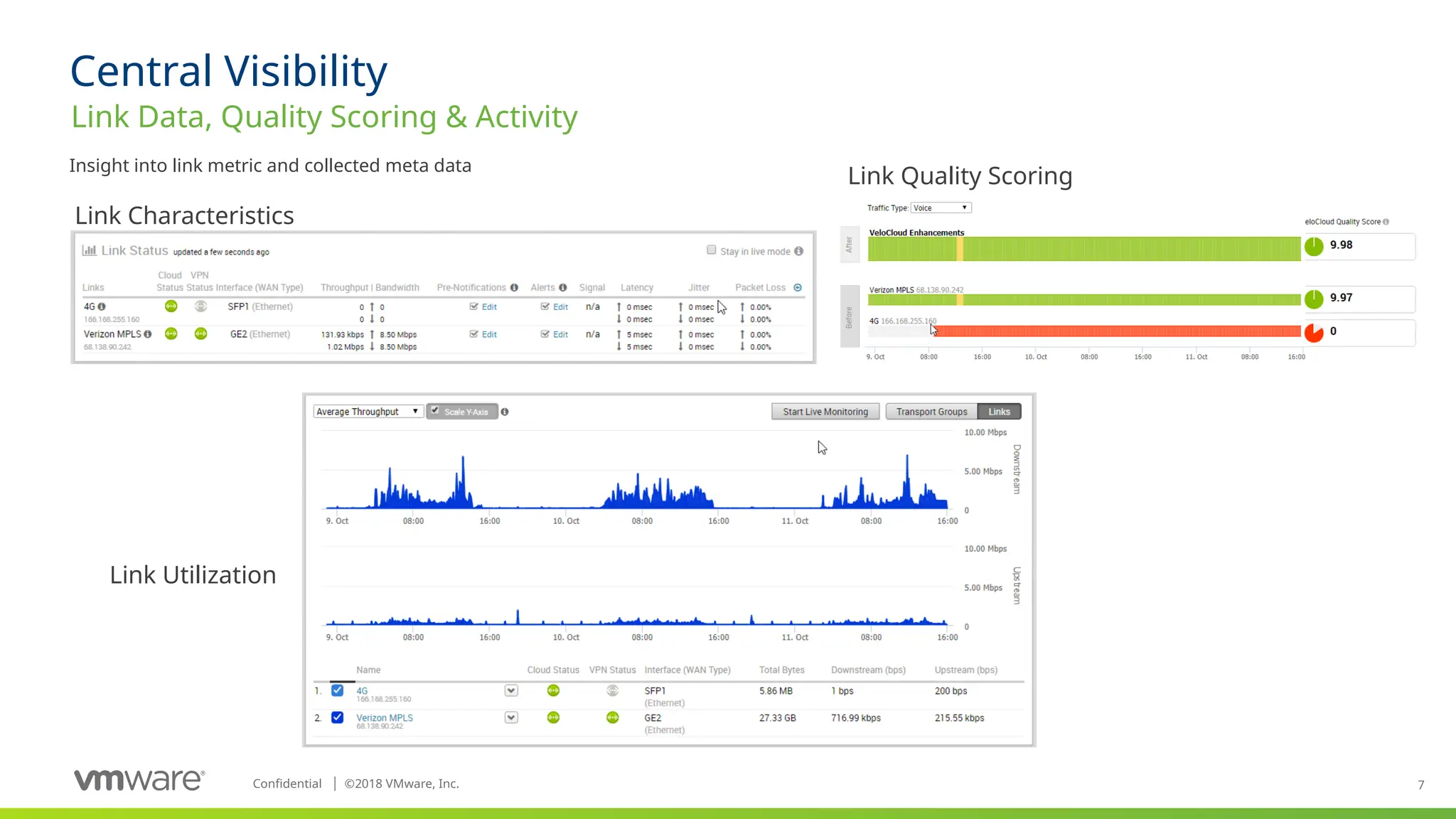

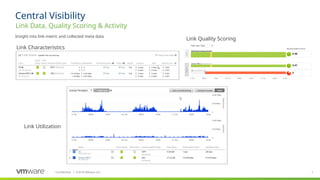

- 7. 7 Confidential © │ 2018VMware, Inc. Central Visibility Link Data, Quality Scoring & Activity Insight into link metric and collected meta data Link Utilization Link Characteristics Link Quality Scoring

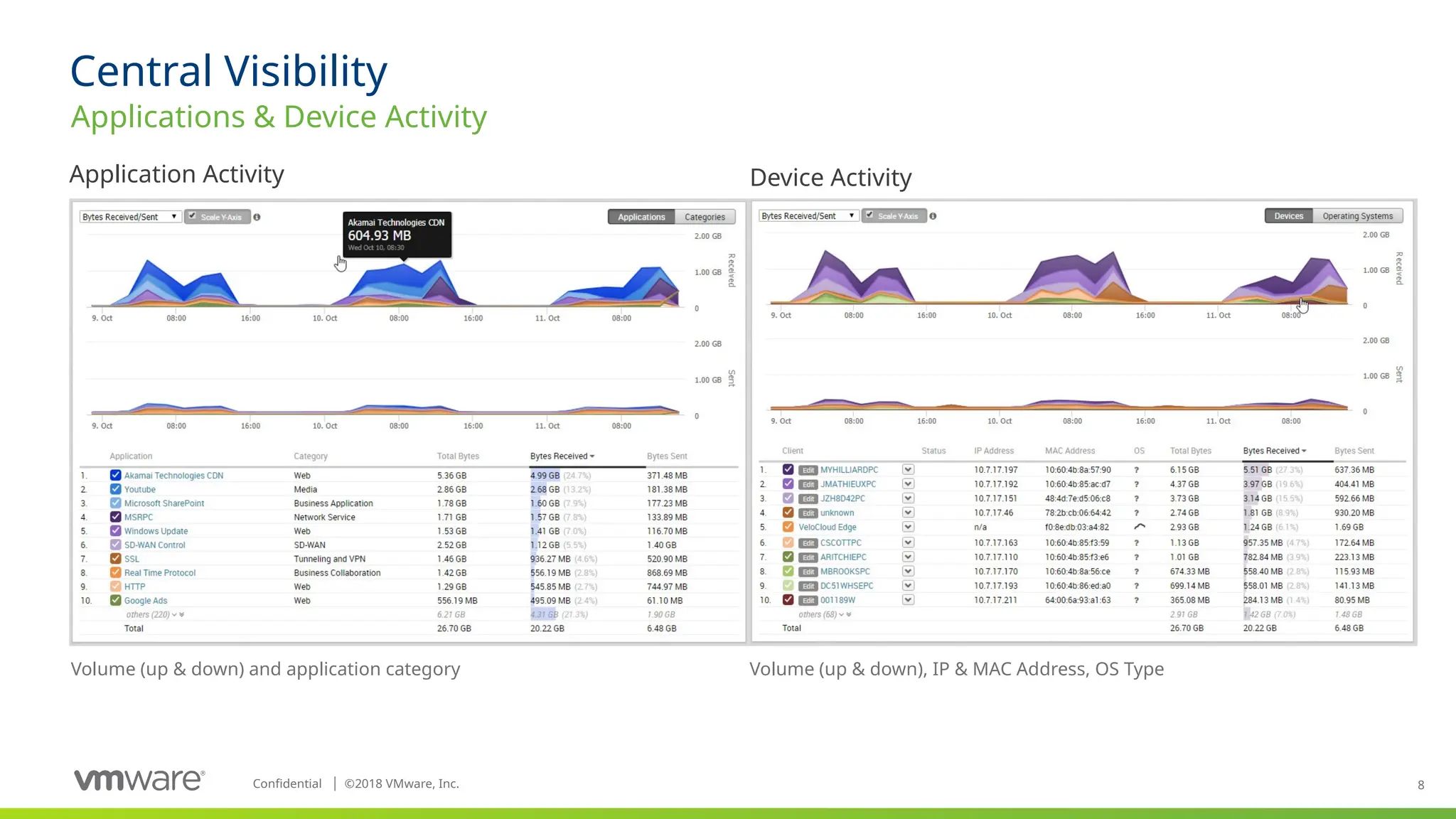

- 8. 8 Confidential © │ 2018VMware, Inc. Central Visibility Applications & Device Activity Application Activity Device Activity Volume (up & down) and application category Volume (up & down), IP & MAC Address, OS Type

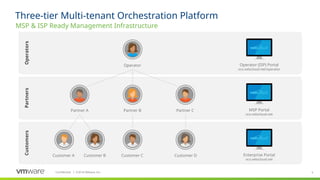

- 9. 9 Confidential © │ 2018VMware, Inc. Three-tier Multi-tenant Orchestration Platform MSP & ISP Ready Management Infrastructure Operators Partners Customers Operator Partner A Partner B Partner C Customer A Customer B Customer C Customer D Operator (ISP) Portal vco.velocloud.net/operator MSP Portal vco.velocloud.net Enterprise Portal vco.velocloud.net

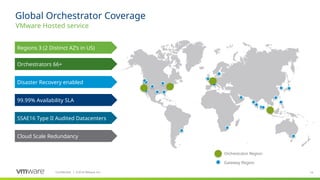

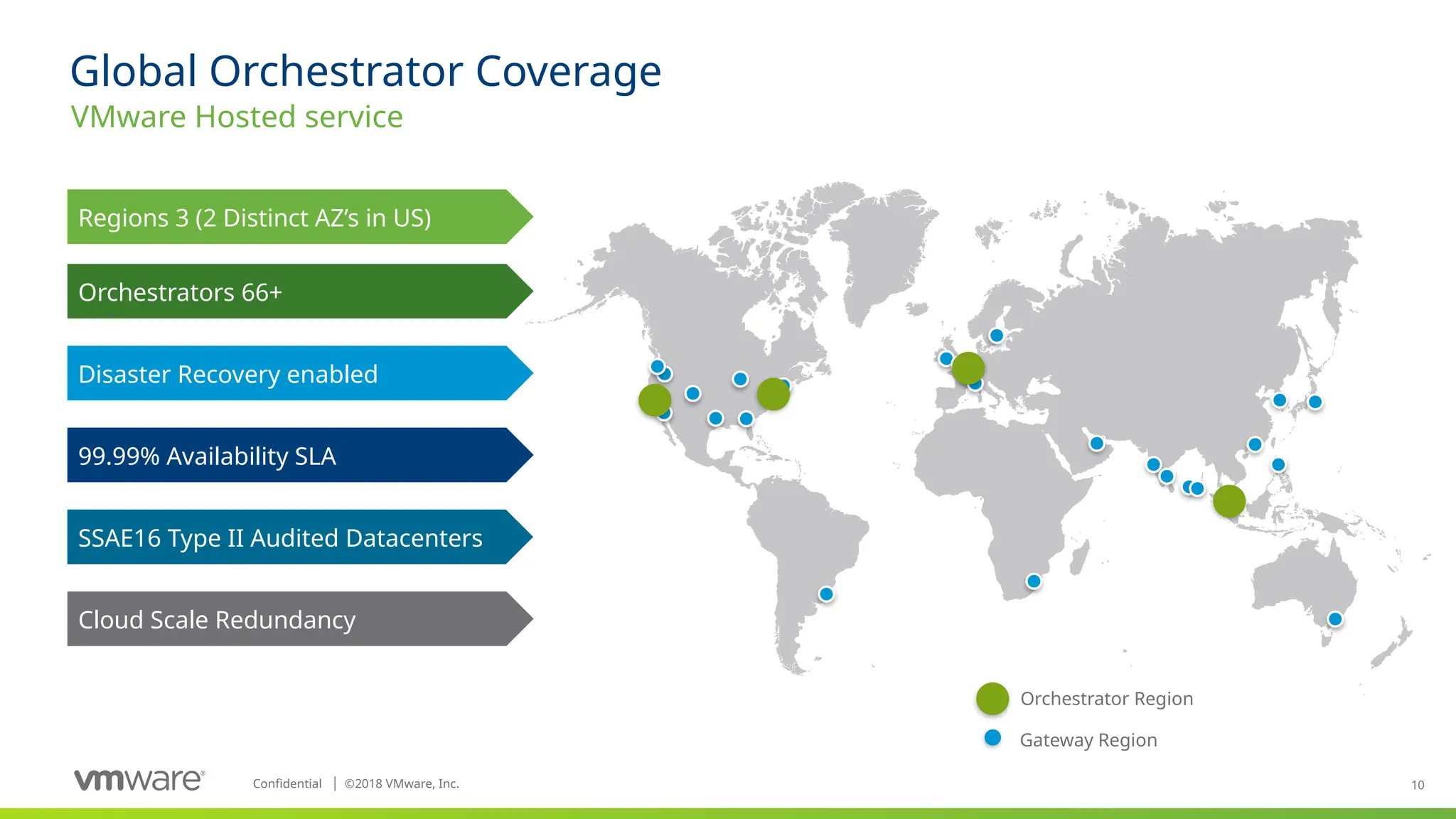

- 10. 10 Confidential © │ 2018VMware, Inc. Global Orchestrator Coverage VMware Hosted service Regions 3 (2 Distinct AZ’s in US) Orchestrators 66+ Disaster Recovery enabled 99.99% Availability SLA SSAE16 Type II Audited Datacenters Cloud Scale Redundancy Orchestrator Region Gateway Region
- 11. 12 Confidential © │ 2018VMware, Inc. VMware SD-WAN Gateway Also called Velocloud Gateway (VCG)

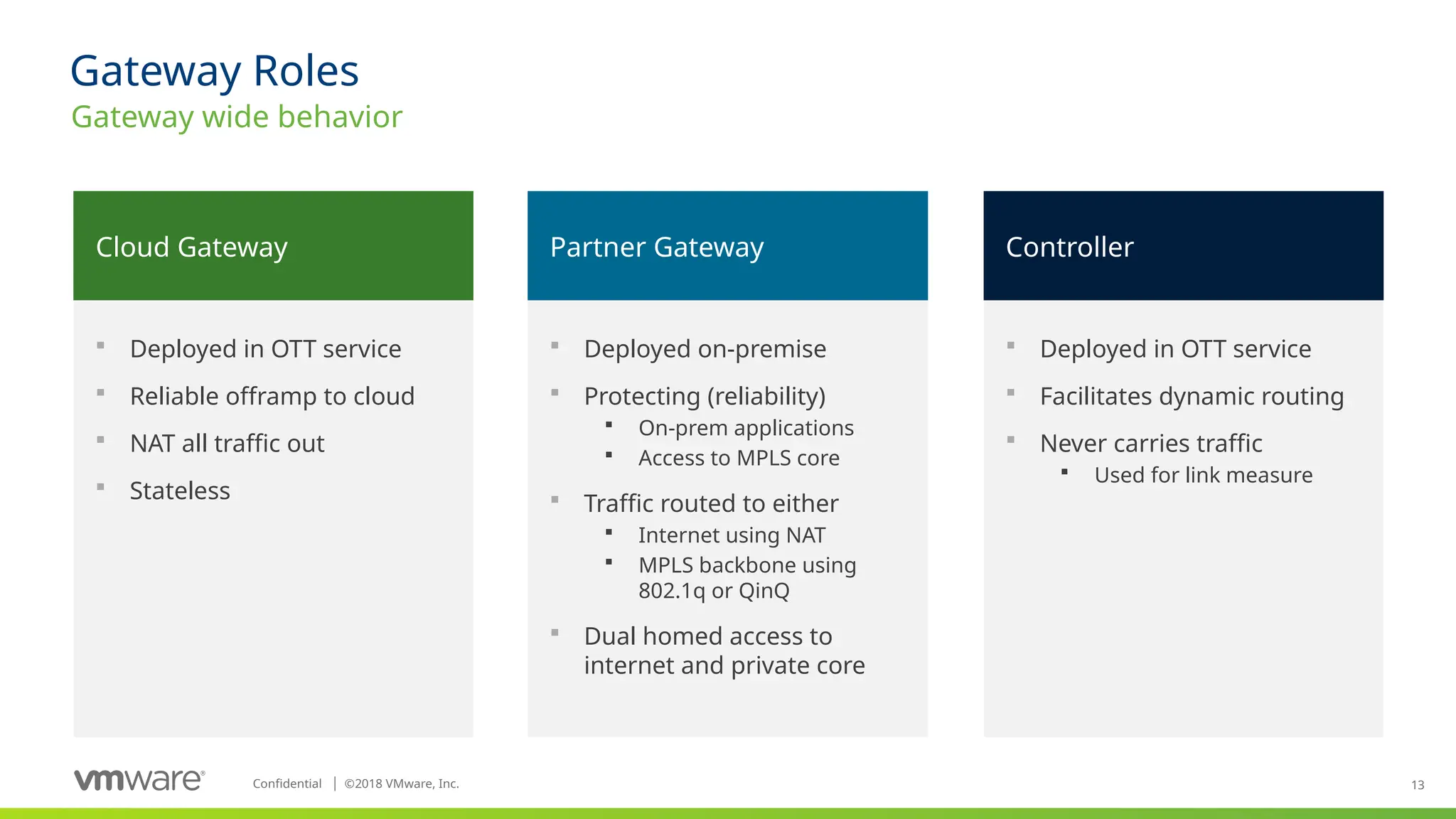

- 12. 13 Confidential © │ 2018VMware, Inc. Deployed in OTT service Reliable offramp to cloud NAT all traffic out Stateless Deployed on-premise Protecting (reliability) On-prem applications Access to MPLS core Traffic routed to either Internet using NAT MPLS backbone using 802.1q or QinQ Dual homed access to internet and private core Deployed in OTT service Facilitates dynamic routing Never carries traffic Used for link measure Gateway Roles Gateway wide behavior Cloud Gateway Partner Gateway Controller

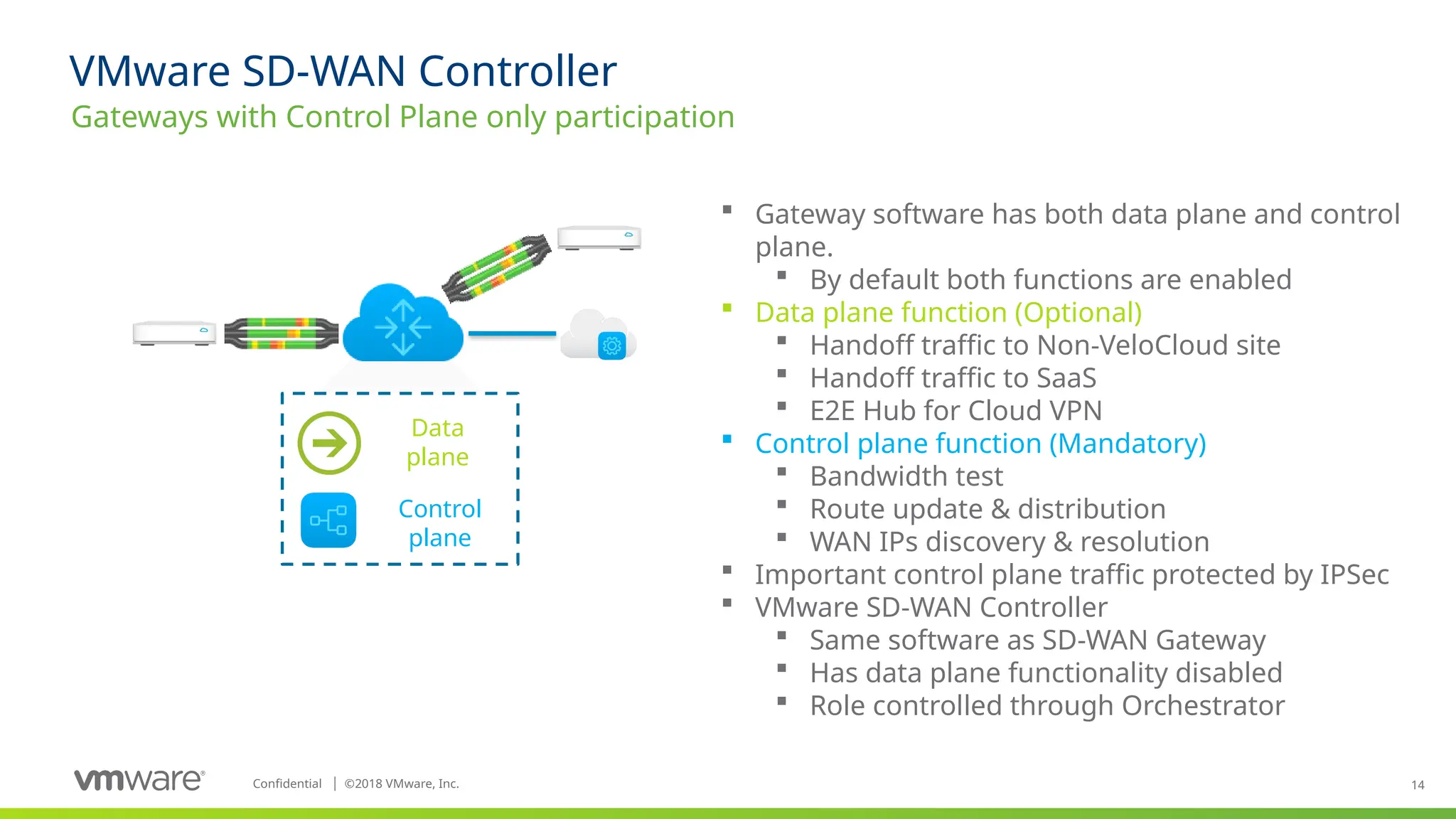

- 13. 14 Confidential © │ 2018VMware, Inc. VMware SD-WAN Controller Gateways with Control Plane only participation Data plane Control plane Gateway software has both data plane and control plane. By default both functions are enabled Data plane function (Optional) Handoff traffic to Non-VeloCloud site Handoff traffic to SaaS E2E Hub for Cloud VPN Control plane function (Mandatory) Bandwidth test Route update & distribution WAN IPs discovery & resolution Important control plane traffic protected by IPSec VMware SD-WAN Controller Same software as SD-WAN Gateway Has data plane functionality disabled Role controlled through Orchestrator

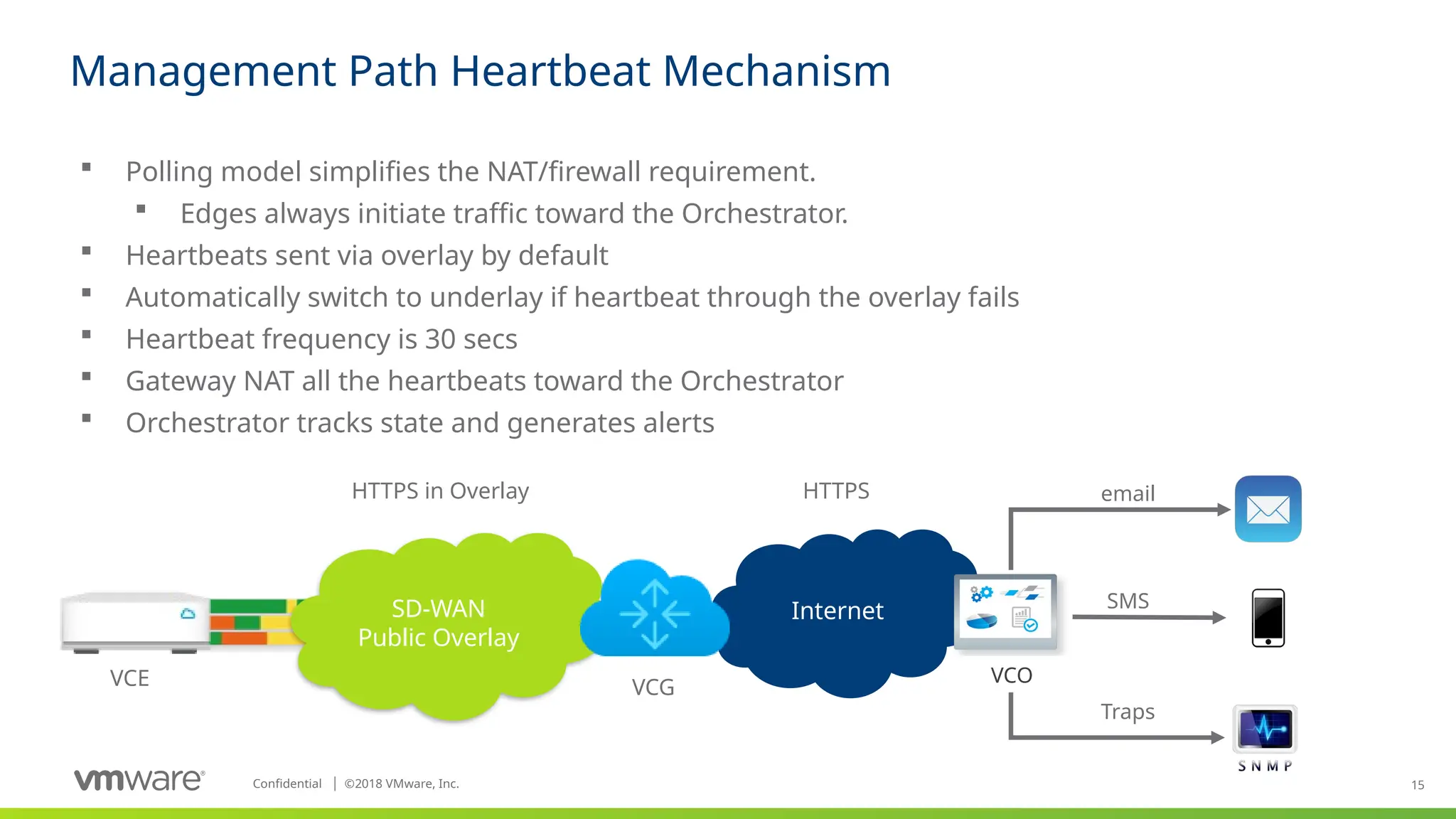

- 14. 15 Confidential © │ 2018VMware, Inc. Internet SD-WAN Public Overlay VCG VCE HTTPS HTTPS in Overlay Management Path Heartbeat Mechanism VCO SMS email Traps Polling model simplifies the NAT/firewall requirement. Edges always initiate traffic toward the Orchestrator. Heartbeats sent via overlay by default Automatically switch to underlay if heartbeat through the overlay fails Heartbeat frequency is 30 secs Gateway NAT all the heartbeats toward the Orchestrator Orchestrator tracks state and generates alerts

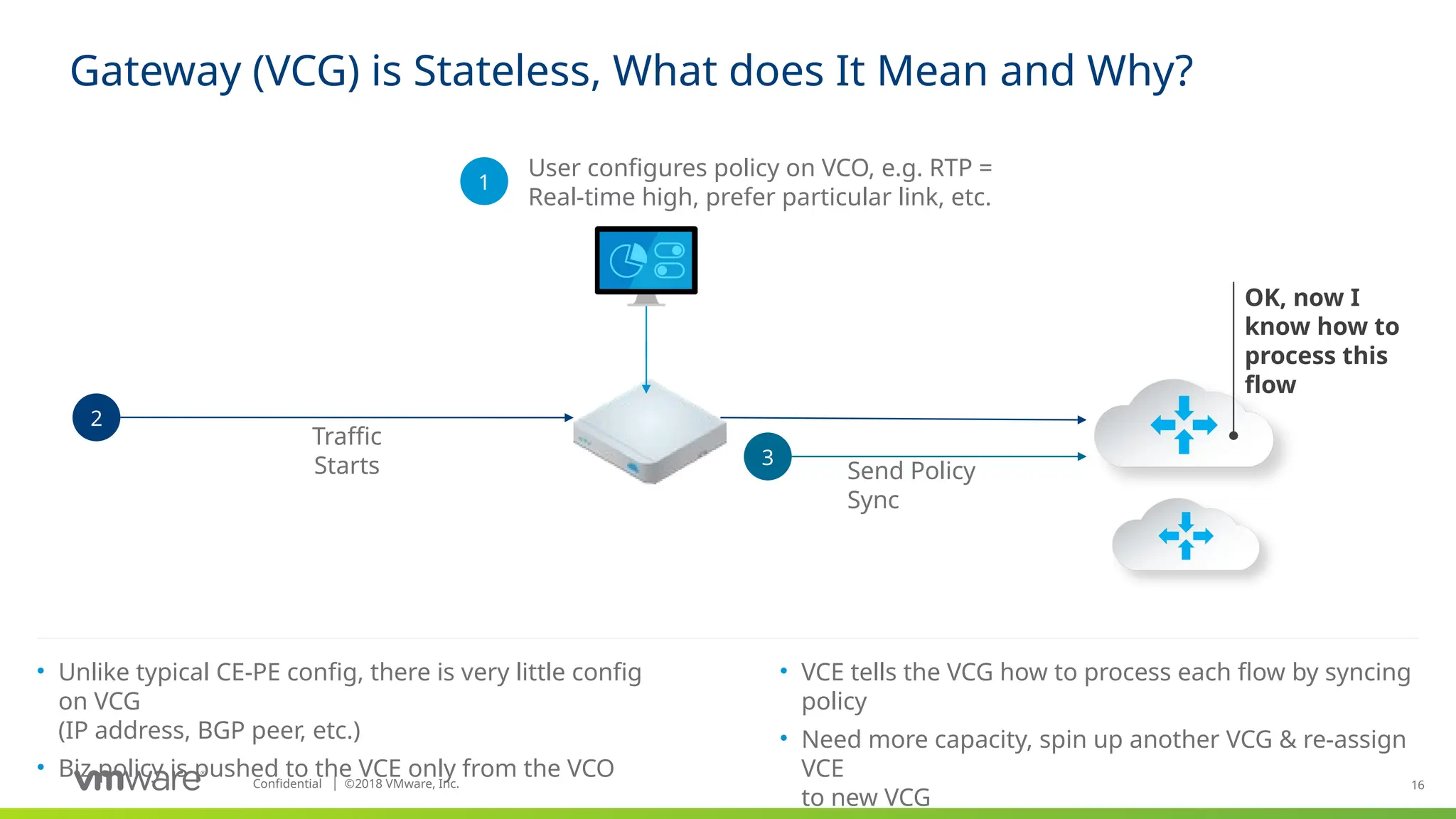

- 15. 16 Confidential © │ 2018VMware, Inc. Gateway (VCG) is Stateless, What does It Mean and Why? • Unlike typical CE-PE config, there is very little config on VCG (IP address, BGP peer, etc.) • Biz policy is pushed to the VCE only from the VCO • VCE tells the VCG how to process each flow by syncing policy • Need more capacity, spin up another VCG & re-assign VCE to new VCG User configures policy on VCO, e.g. RTP = Real-time high, prefer particular link, etc. 1 2 Traffic Starts 3 Send Policy Sync OK, now I know how to process this flow

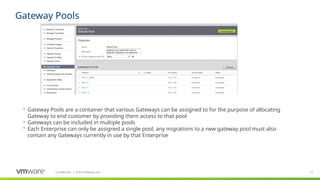

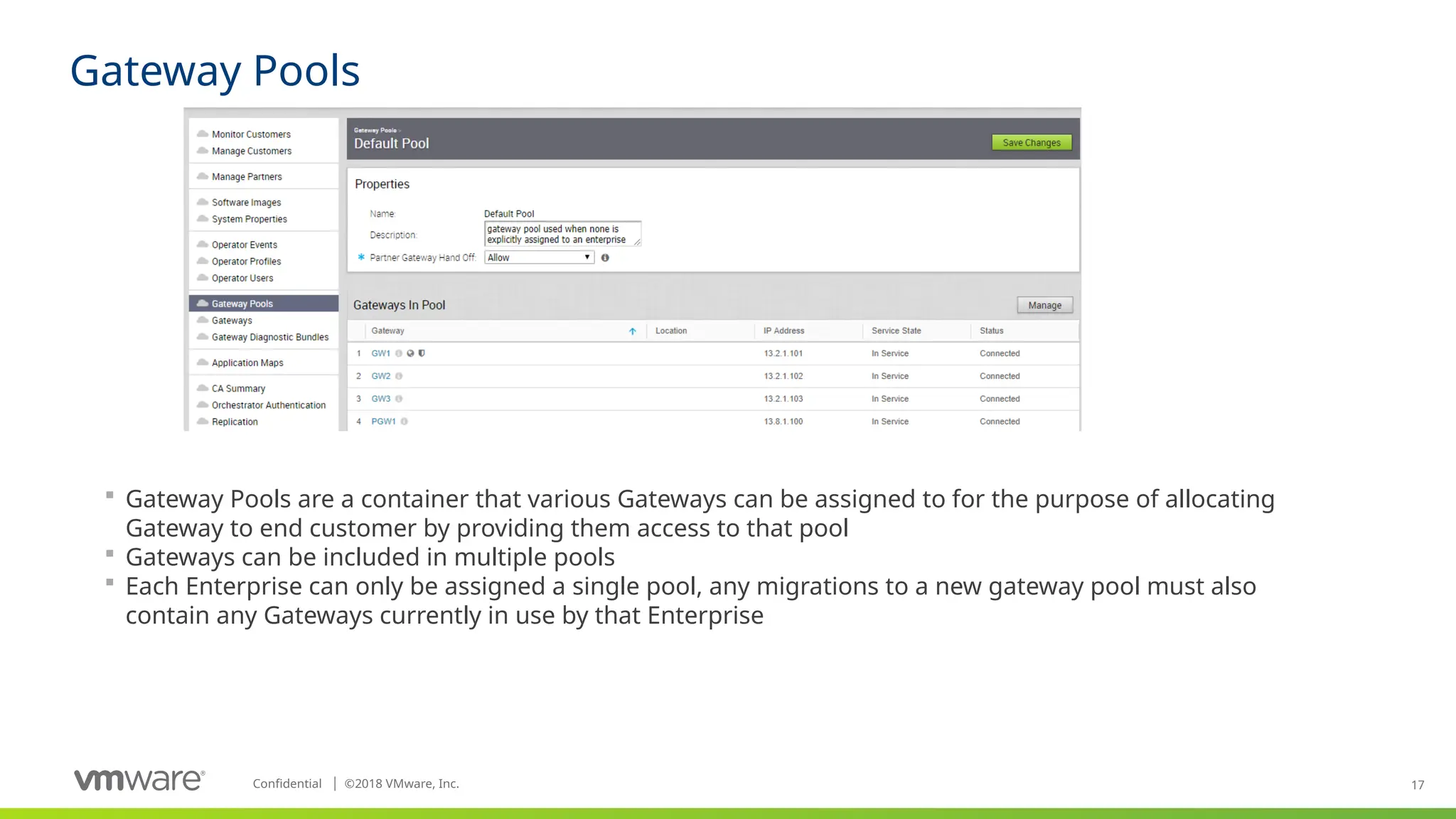

- 16. 17 Confidential © │ 2018VMware, Inc. Gateway Pools Gateway Pools are a container that various Gateways can be assigned to for the purpose of allocating Gateway to end customer by providing them access to that pool Gateways can be included in multiple pools Each Enterprise can only be assigned a single pool, any migrations to a new gateway pool must also contain any Gateways currently in use by that Enterprise

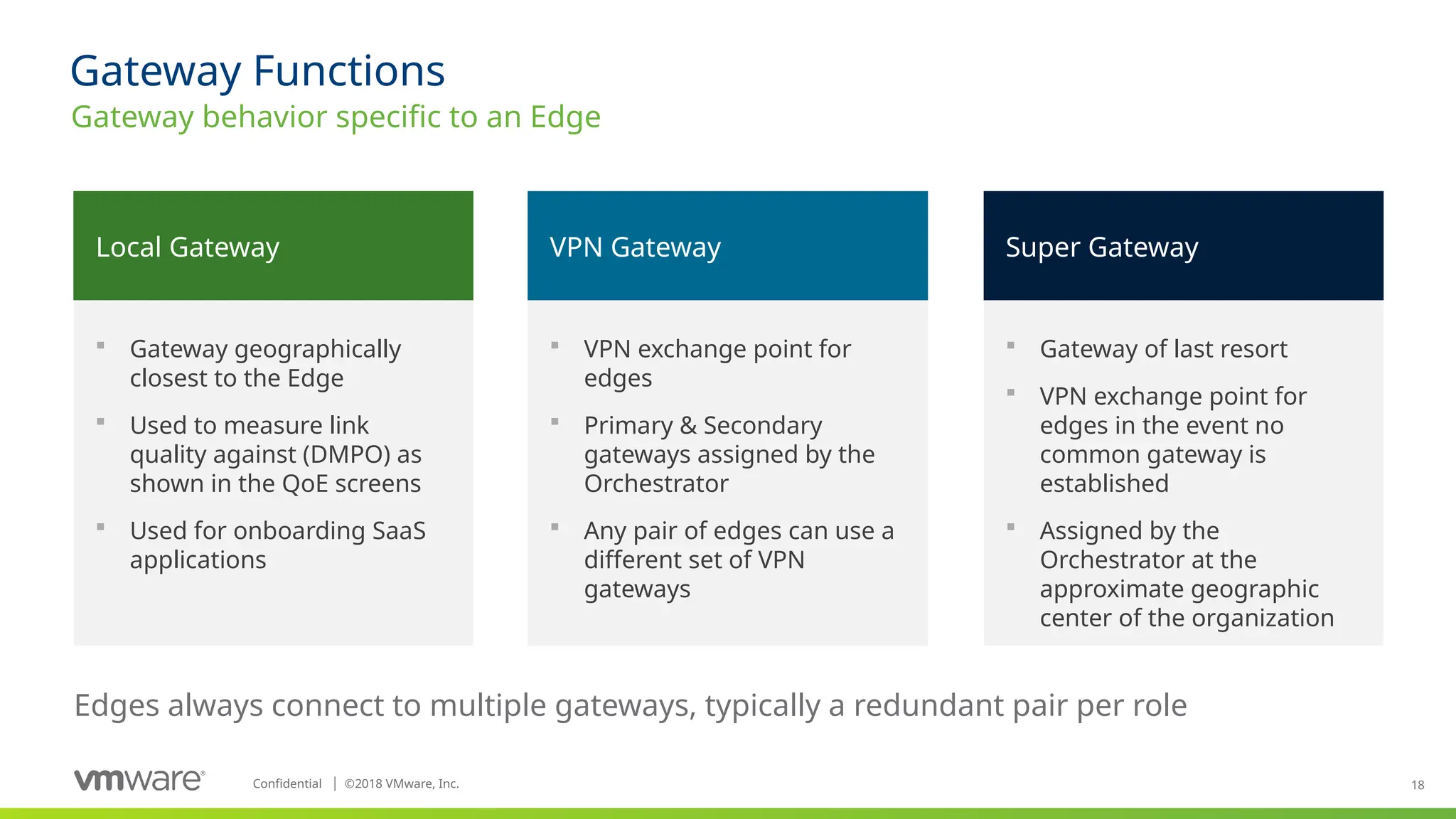

- 17. 18 Confidential © │ 2018VMware, Inc. Gateway geographically closest to the Edge Used to measure link quality against (DMPO) as shown in the QoE screens Used for onboarding SaaS applications VPN exchange point for edges Primary & Secondary gateways assigned by the Orchestrator Any pair of edges can use a different set of VPN gateways Gateway of last resort VPN exchange point for edges in the event no common gateway is established Assigned by the Orchestrator at the approximate geographic center of the organization Gateway Functions Gateway behavior specific to an Edge Local Gateway VPN Gateway Super Gateway Edges always connect to multiple gateways, typically a redundant pair per role

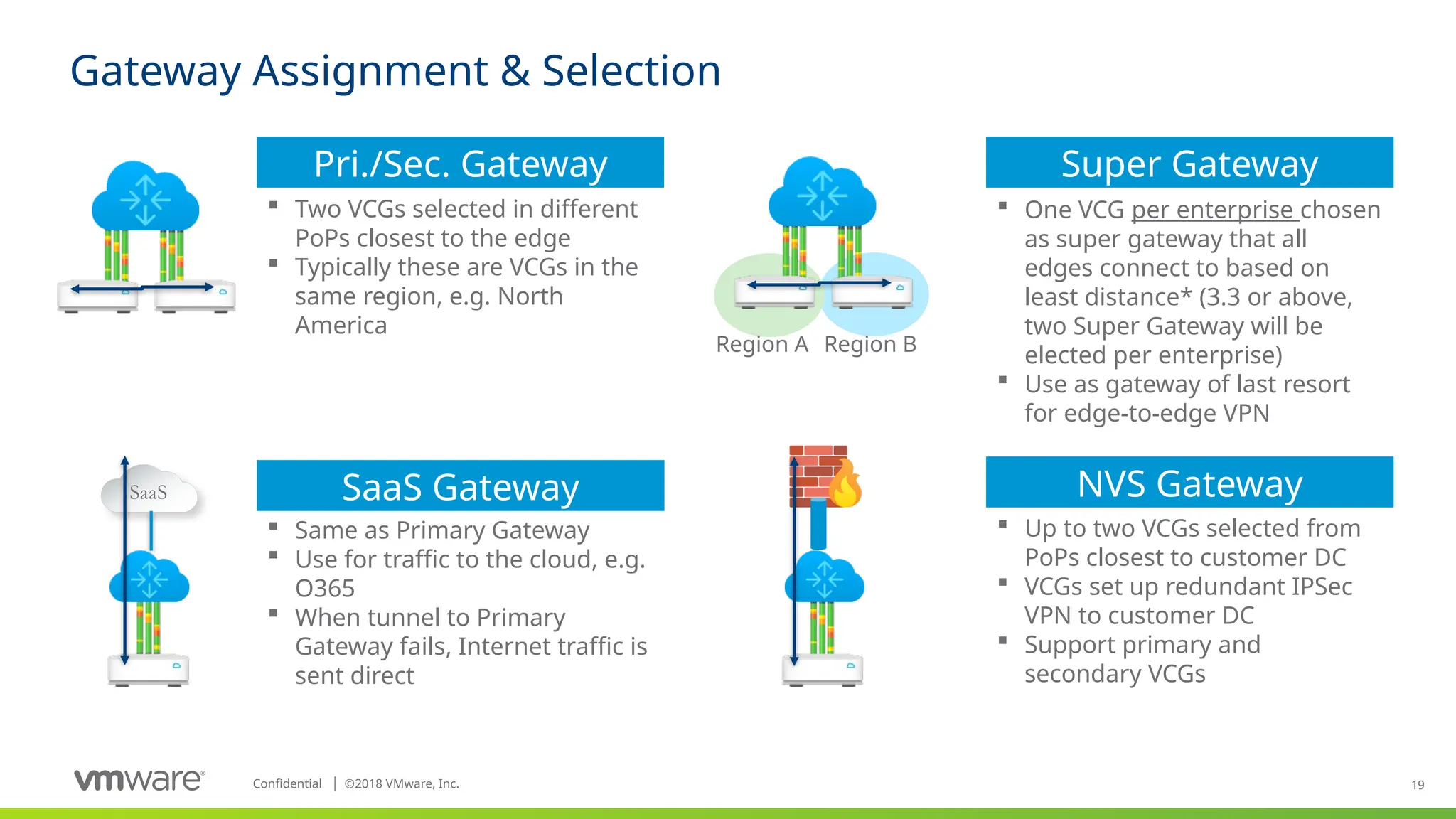

- 18. 19 Confidential © │ 2018VMware, Inc. Gateway Assignment & Selection Pri./Sec. Gateway Super Gateway SaaS Gateway NVS Gateway Two VCGs selected in different PoPs closest to the edge Typically these are VCGs in the same region, e.g. North America Region A Region B One VCG per enterprise chosen as super gateway that all edges connect to based on least distance* (3.3 or above, two Super Gateway will be elected per enterprise) Use as gateway of last resort for edge-to-edge VPN Same as Primary Gateway Use for traffic to the cloud, e.g. O365 When tunnel to Primary Gateway fails, Internet traffic is sent direct Up to two VCGs selected from PoPs closest to customer DC VCGs set up redundant IPSec VPN to customer DC Support primary and secondary VCGs
- 19. 20 Confidential © │ 2018VMware, Inc. LA Denver Frankfurt Overlay to Primary GW Overlay to Secondary GW Traffic to SaaS LEGEND LA GW DEN GW CHI GW NYC GW FRA GW LON GW Overlay to Super GW Primary & Secondary Gateway Assignment

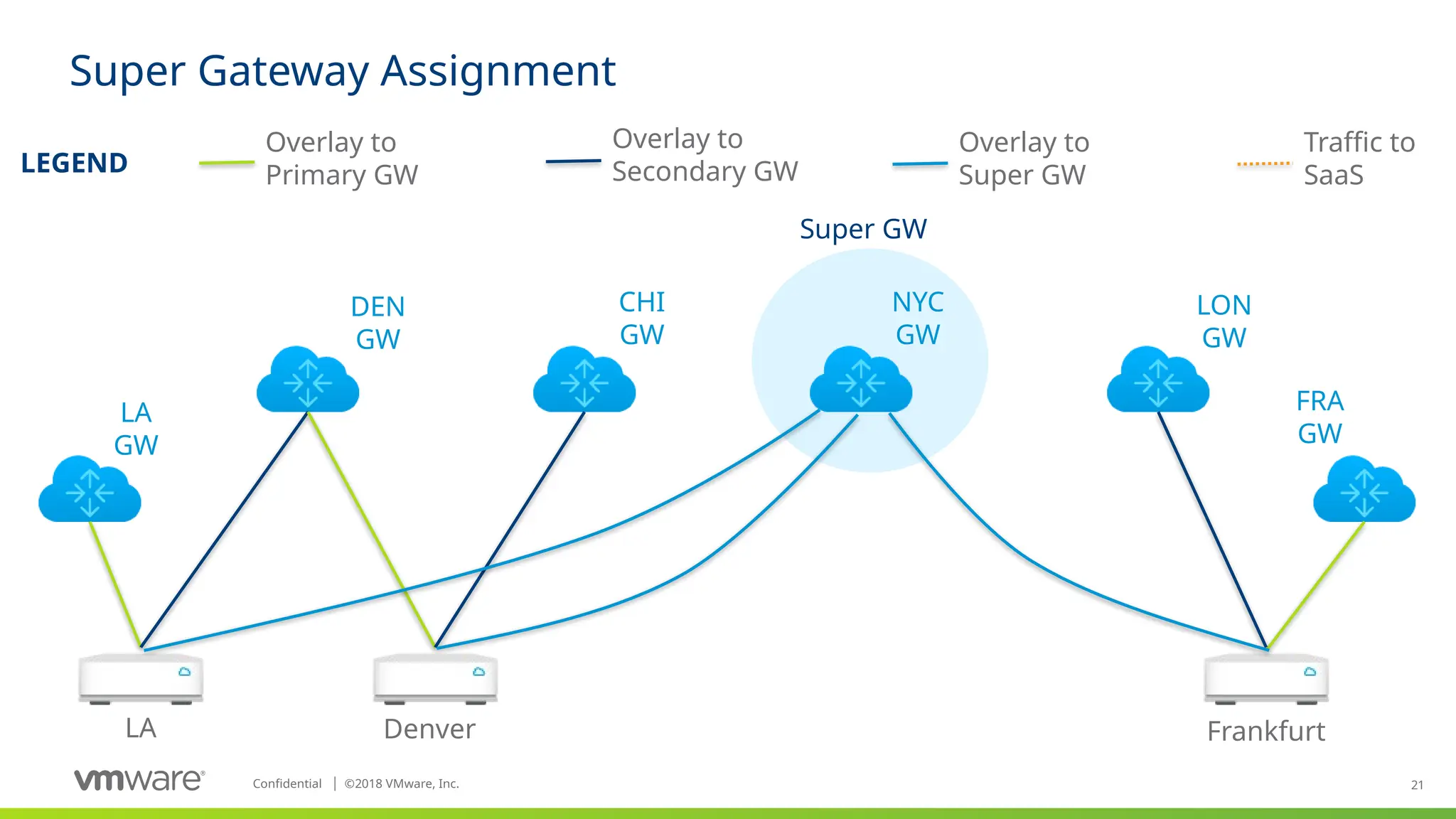

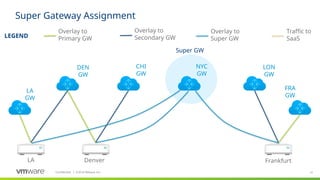

- 20. 21 Confidential © │ 2018VMware, Inc. Super GW LA Denver Frankfurt Overlay to Primary GW Overlay to Secondary GW Overlay to Super GW LA GW DEN GW CHI GW NYC GW FRA GW LON GW Traffic to SaaS LEGEND Super Gateway Assignment

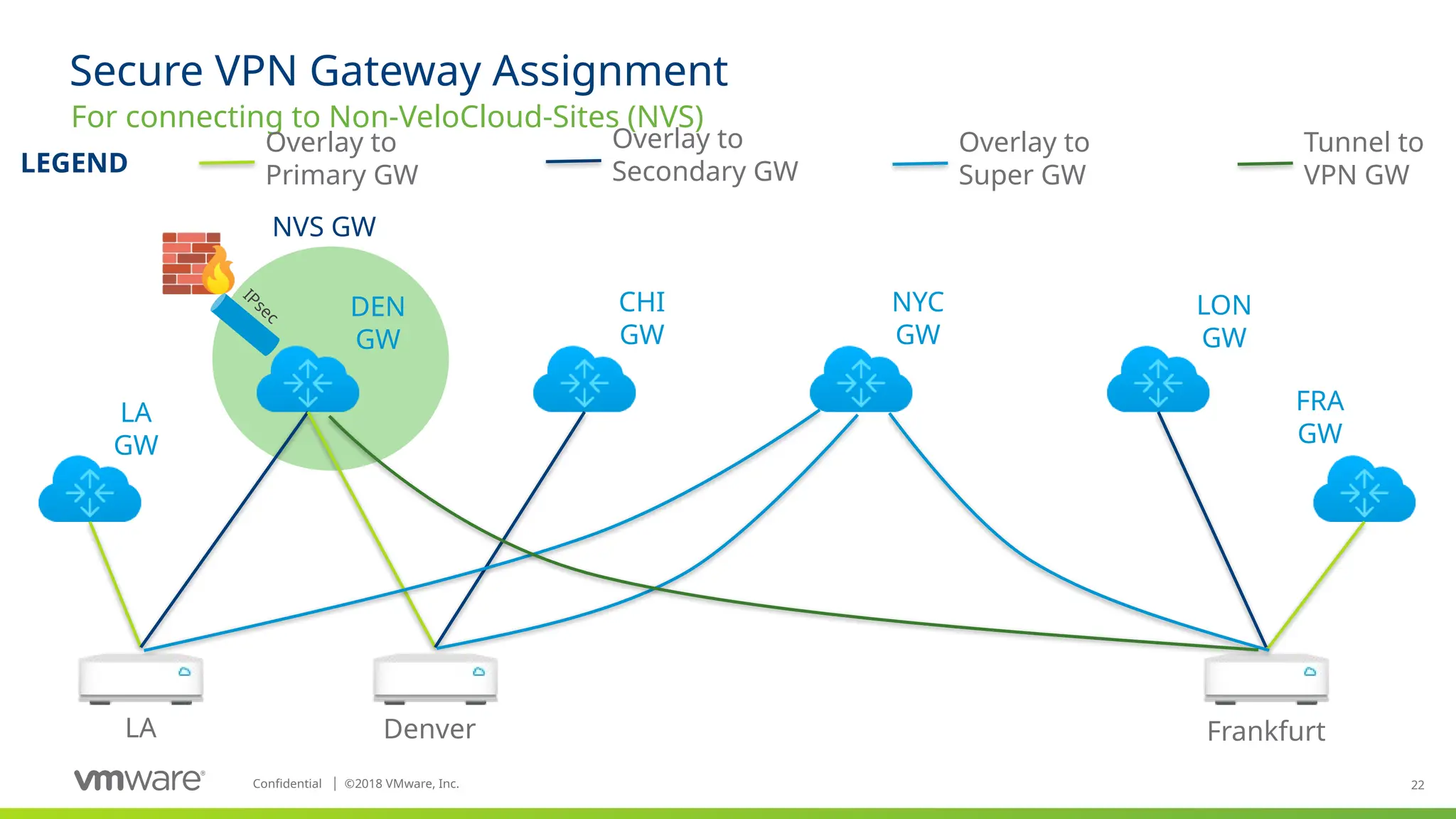

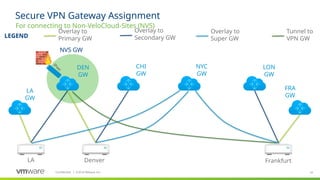

- 21. 22 Confidential © │ 2018VMware, Inc. NVS GW For connecting to Non-VeloCloud-Sites (NVS) LA Denver Frankfurt Overlay to Primary GW Overlay to Secondary GW Overlay to Super GW LA GW DEN GW CHI GW NYC GW FRA GW LON GW Tunnel to VPN GW LEGEND Secure VPN Gateway Assignment IPsec

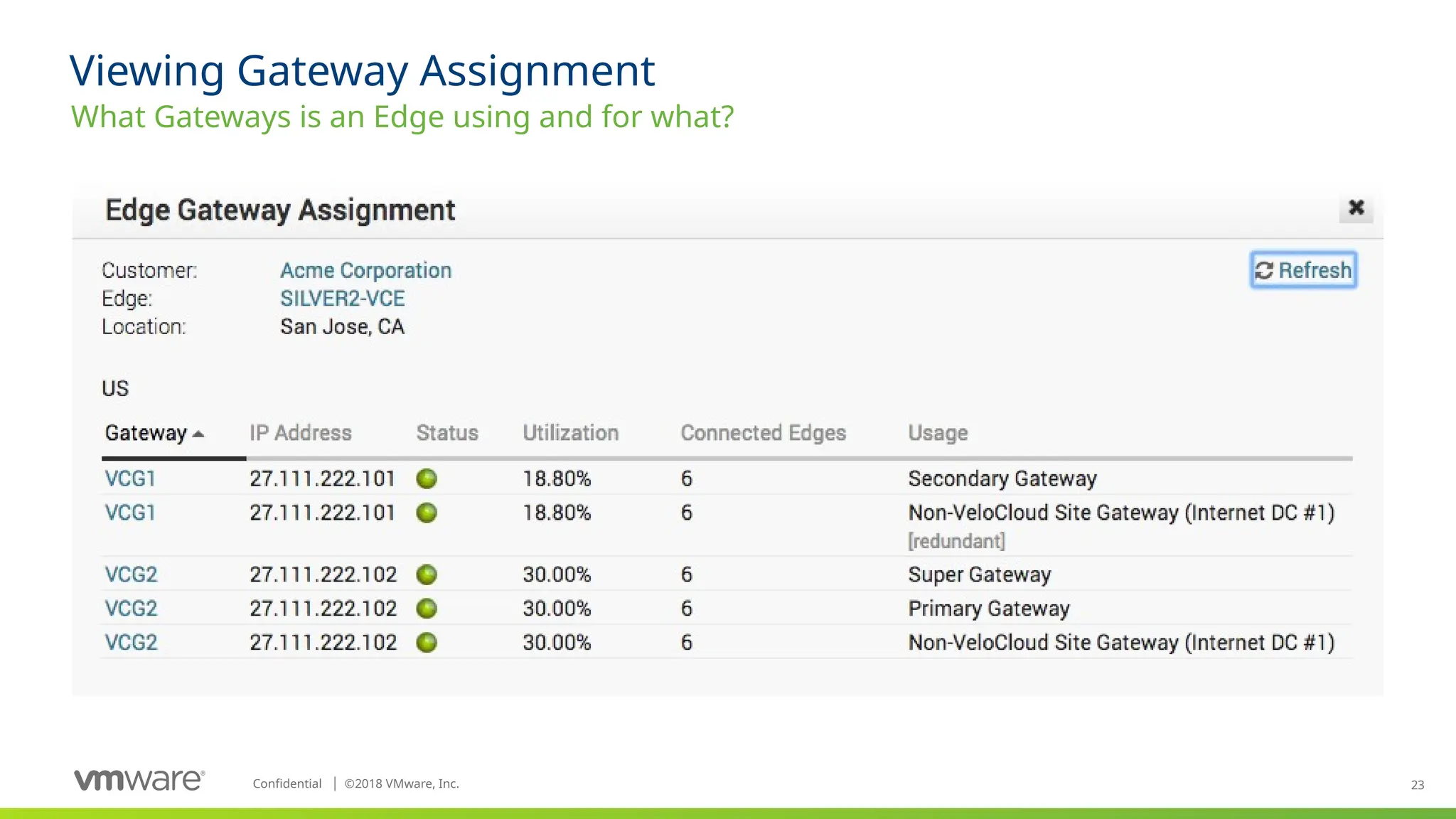

- 22. 23 Confidential © │ 2018VMware, Inc. Viewing Gateway Assignment What Gateways is an Edge using and for what?

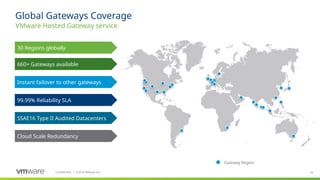

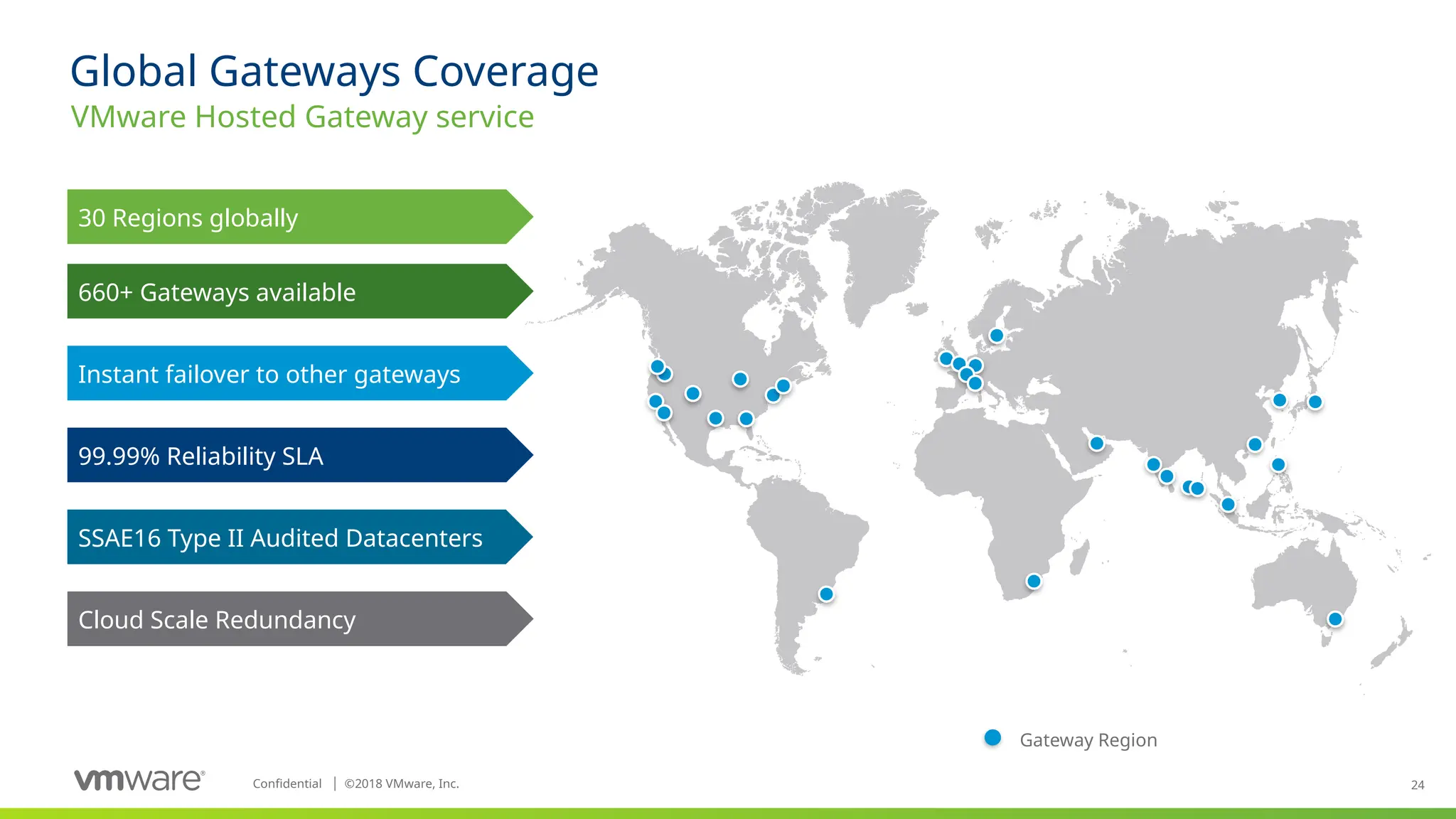

- 23. 24 Confidential © │ 2018VMware, Inc. Global Gateways Coverage 30 Regions globally 660+ Gateways available Instant failover to other gateways 99.99% Reliability SLA SSAE16 Type II Audited Datacenters Cloud Scale Redundancy Gateway Region VMware Hosted Gateway service

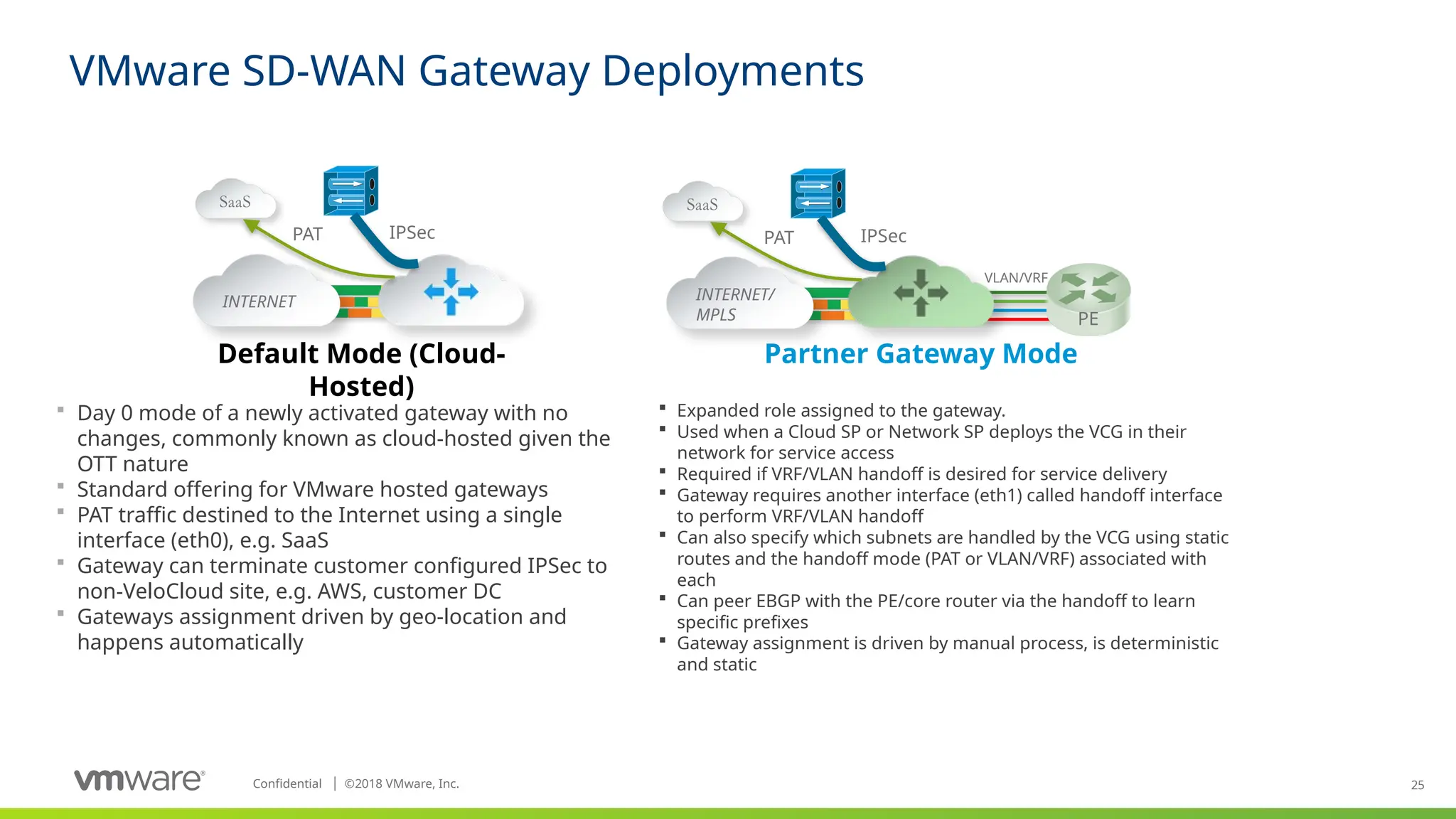

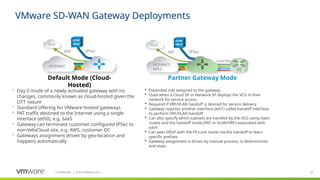

- 24. 25 Confidential © │ 2018VMware, Inc. VMware SD-WAN Gateway Deployments Default Mode (Cloud- Hosted) INTERNET IPSec PAT Partner Gateway Mode INTERNET/ MPLS PE VLAN/VRF IPSec PAT Day 0 mode of a newly activated gateway with no changes, commonly known as cloud-hosted given the OTT nature Standard offering for VMware hosted gateways PAT traffic destined to the Internet using a single interface (eth0), e.g. SaaS Gateway can terminate customer configured IPSec to non-VeloCloud site, e.g. AWS, customer DC Gateways assignment driven by geo-location and happens automatically Expanded role assigned to the gateway. Used when a Cloud SP or Network SP deploys the VCG in their network for service access Required if VRF/VLAN handoff is desired for service delivery Gateway requires another interface (eth1) called handoff interface to perform VRF/VLAN handoff Can also specify which subnets are handled by the VCG using static routes and the handoff mode (PAT or VLAN/VRF) associated with each Can peer EBGP with the PE/core router via the handoff to learn specific prefixes Gateway assignment is driven by manual process, is deterministic and static

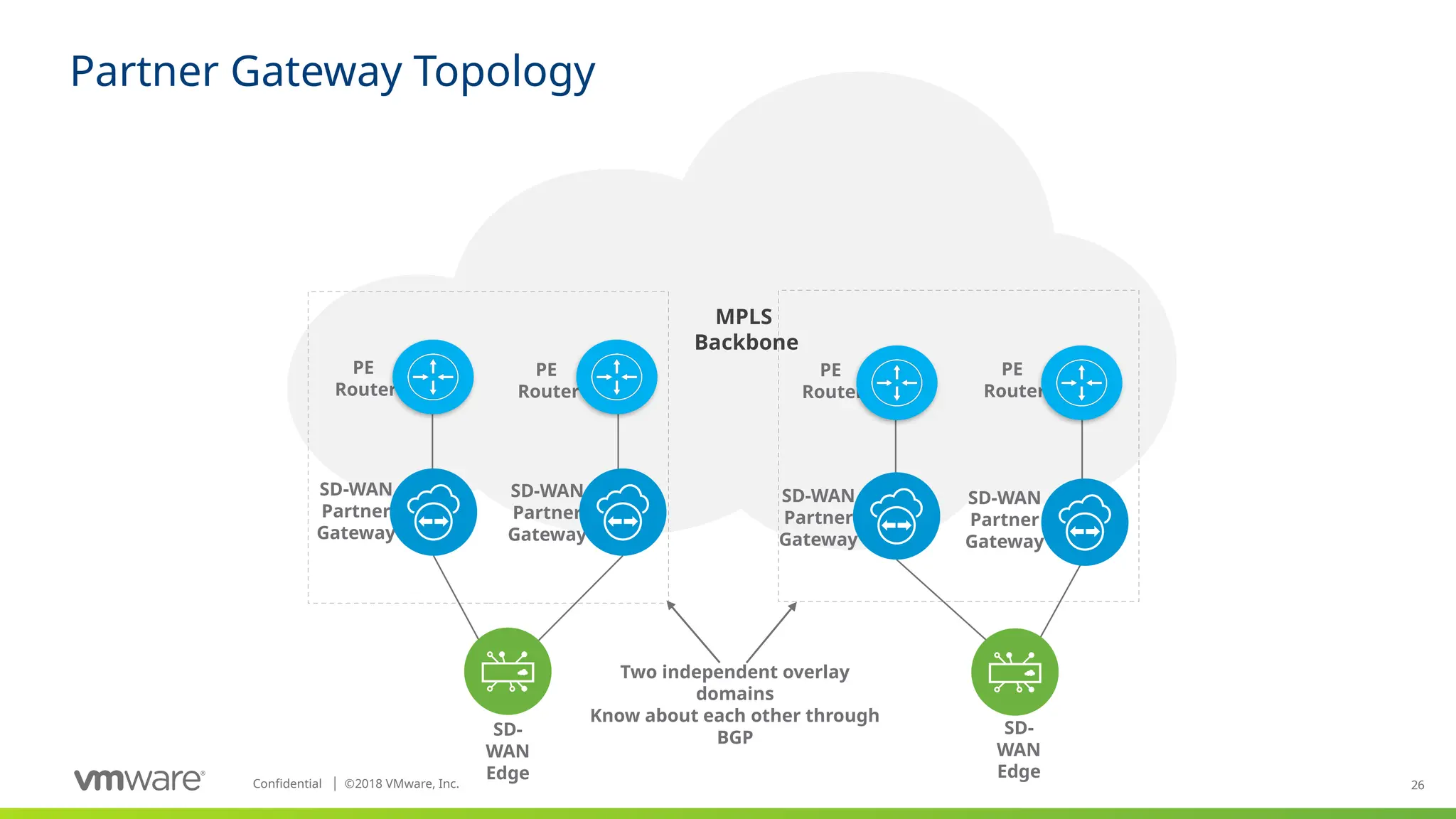

- 25. 26 Confidential © │ 2018VMware, Inc. Partner Gateway Topology MPLS Backbone SD- WAN Edge SD- WAN Edge SD-WAN Partner Gateway SD-WAN Partner Gateway SD-WAN Partner Gateway SD-WAN Partner Gateway PE Router Two independent overlay domains Know about each other through BGP PE Router PE Router PE Router

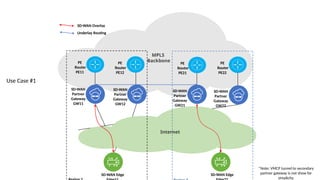

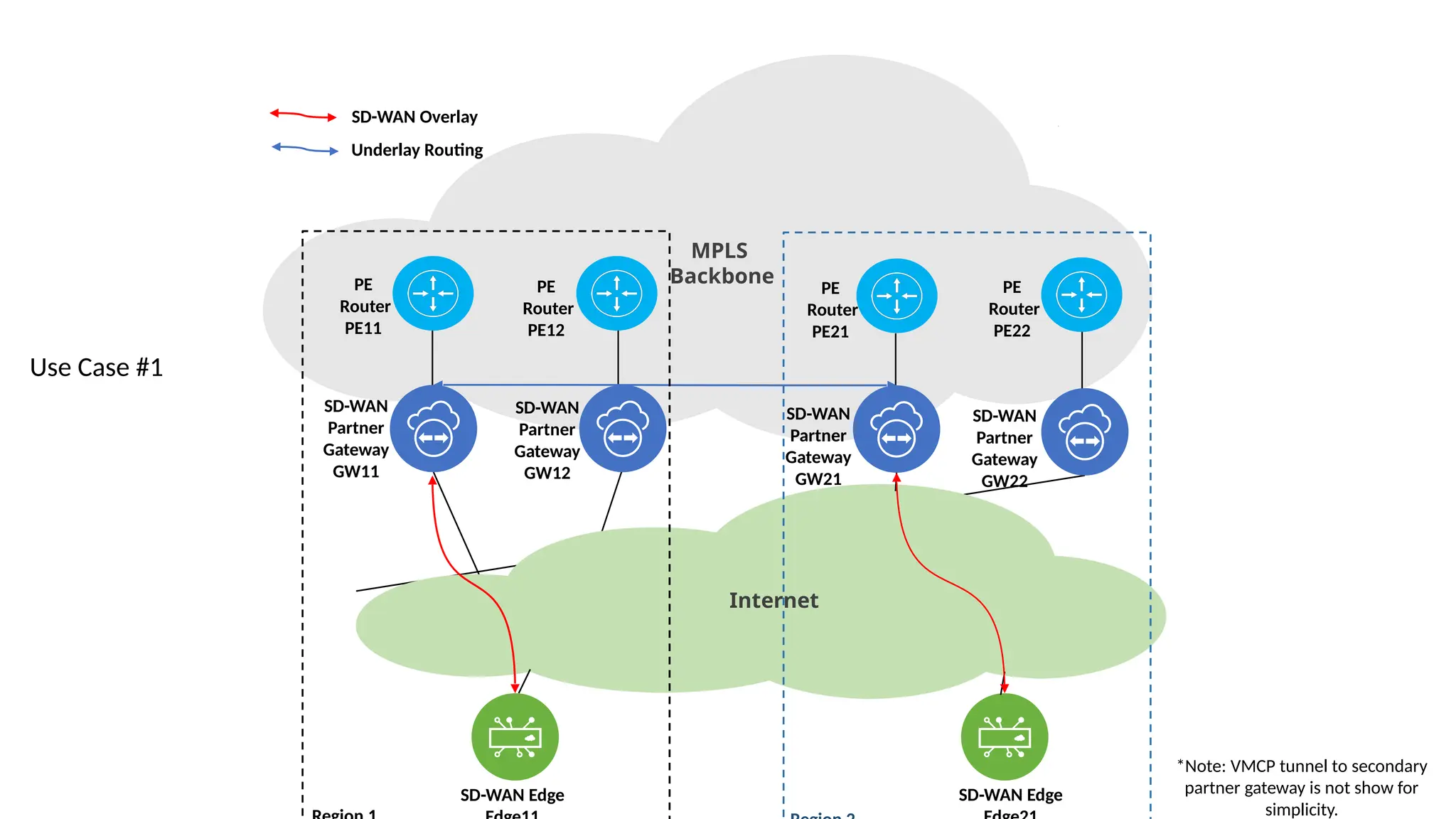

- 26. MPLS Backbone SD-WAN Edge SD-WAN Partner Gateway GW11 SD-WAN Partner Gateway GW12 SD-WAN Partner Gateway GW21 SD-WAN Partner Gateway GW22 PE Router PE11 PE Router PE12 PE Router PE21 PE Router PE22 Internet *Note: VMCPtunnel to secondary partner gateway is not show for simplicity. SD-WAN Edge SD-WAN Overlay Underlay Routing Use Case #1

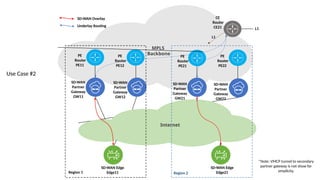

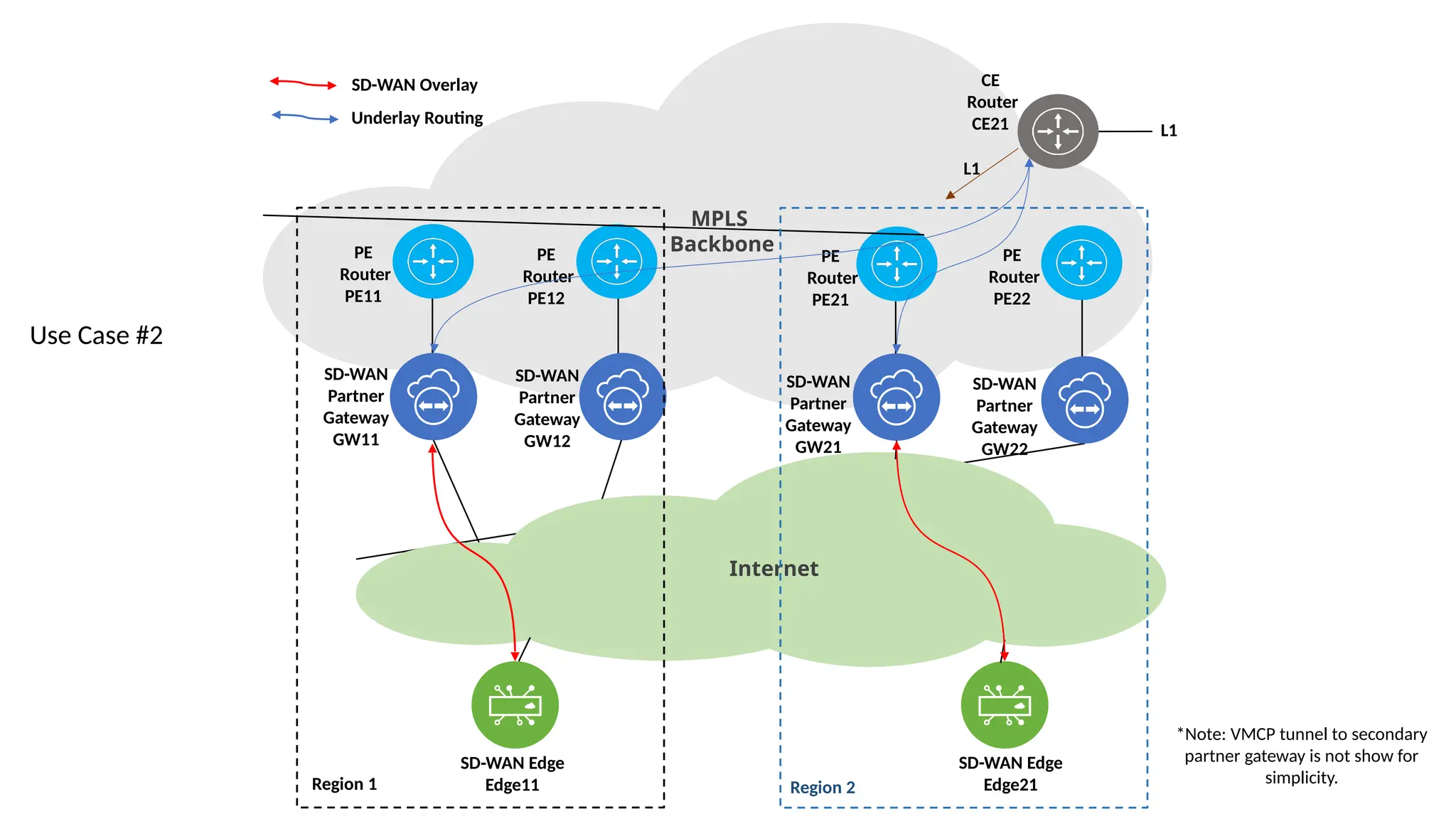

- 27. MPLS Backbone SD-WAN Edge Edge11 SD-WAN Partner Gateway GW11 SD-WAN Partner Gateway GW12 SD-WAN Partner Gateway GW21 SD-WAN Partner Gateway GW22 PE Router PE11 PE Router PE12 PE Router PE21 PE Router PE22 Internet Region 1Region 2 *Note: VMCP tunnel to secondary partner gateway is not show for simplicity. SD-WAN Edge Edge21 CE Router CE21 L1 L1 SD-WAN Overlay Underlay Routing Use Case #2

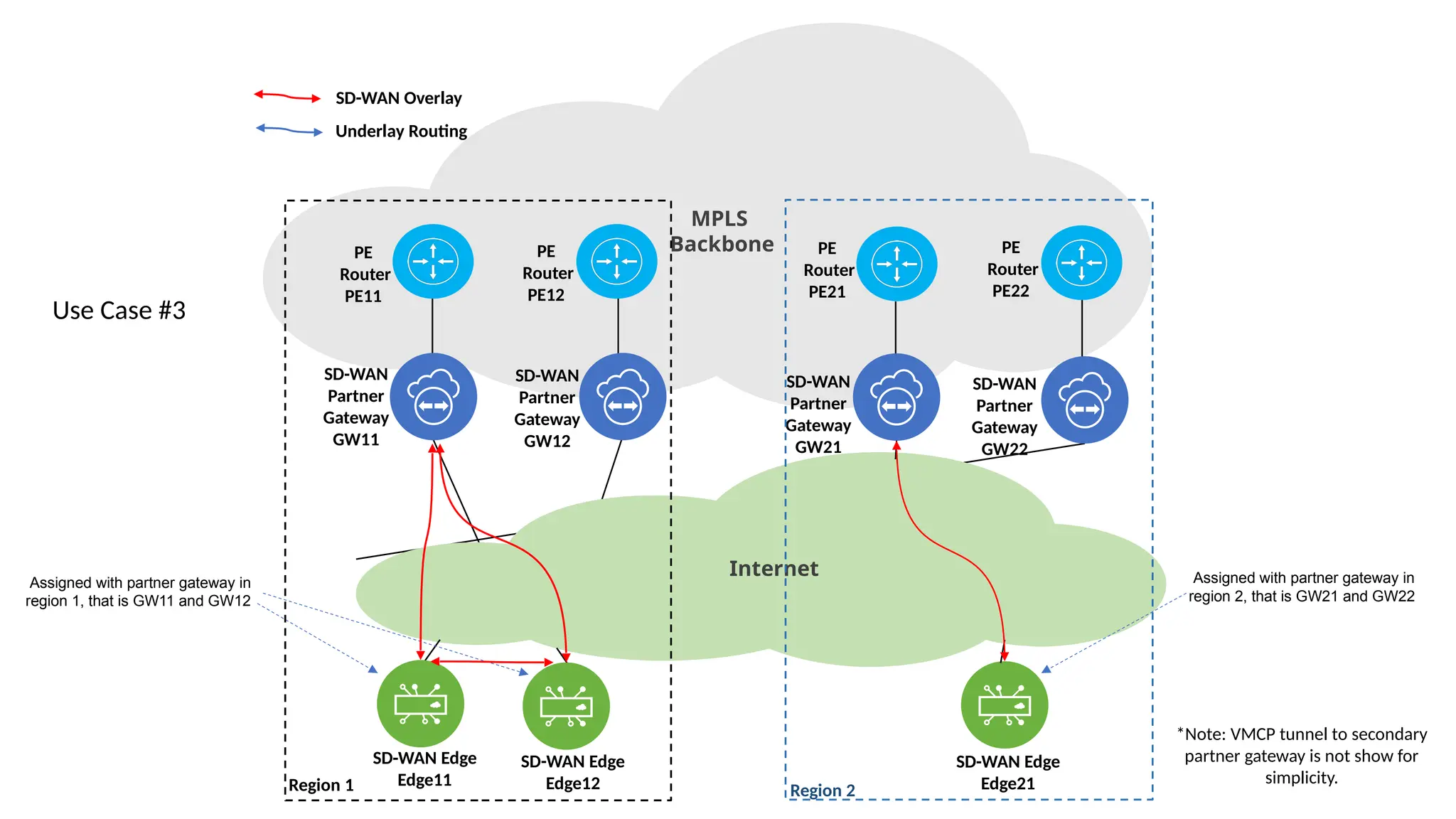

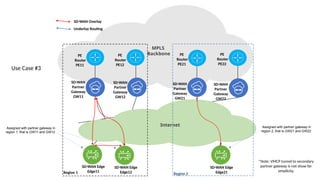

- 28. MPLS Backbone SD-WAN Partner Gateway GW11 SD-WAN Partner Gateway GW12 SD-WAN Partner Gateway GW21 SD-WAN Partner Gateway GW22 PE Router PE11 PE Router PE12 PE Router PE21 PE Router PE22 Internet Region 1 Region2 Assigned with partner gateway in region 1, that is GW11 and GW12 Assigned with partner gateway in region 2, that is GW21 and GW22 *Note: VMCP tunnel to secondary partner gateway is not show for simplicity. SD-WAN Edge Edge11 SD-WAN Edge Edge12 SD-WAN Edge Edge21 SD-WAN Overlay Underlay Routing Use Case #3
- 29. Confidential © │ 2018VMware, Inc. Thank You
Editor's Notes
