The VM-24HD is a dual-mode 1:4 HD-SDI distribution amplifier that can be configured to distribute either one dual link HD-SDI signal or two single link HD-SDI signals to four outputs. It supports SDI, HD-SDI, and dual link HD-SDI standards at data rates up to 1.485Gbps and uses Kramer equalization and re-clocking technology to rebuild signals for longer cable runs. The compact unit takes up little rack space and includes power supply and mounting bracket.

1. VM-24HD
Dual-Mode 1:4 HD-SDI Distribution Amplifier
The VM-24HD is a high-
performance distribution
amplifier for HD-SDI and dual
link HD-SDI signals. The unit
can be configured as a 1:4
distribution amplifier, or as a
1:4 dual link distribution
amplifier.

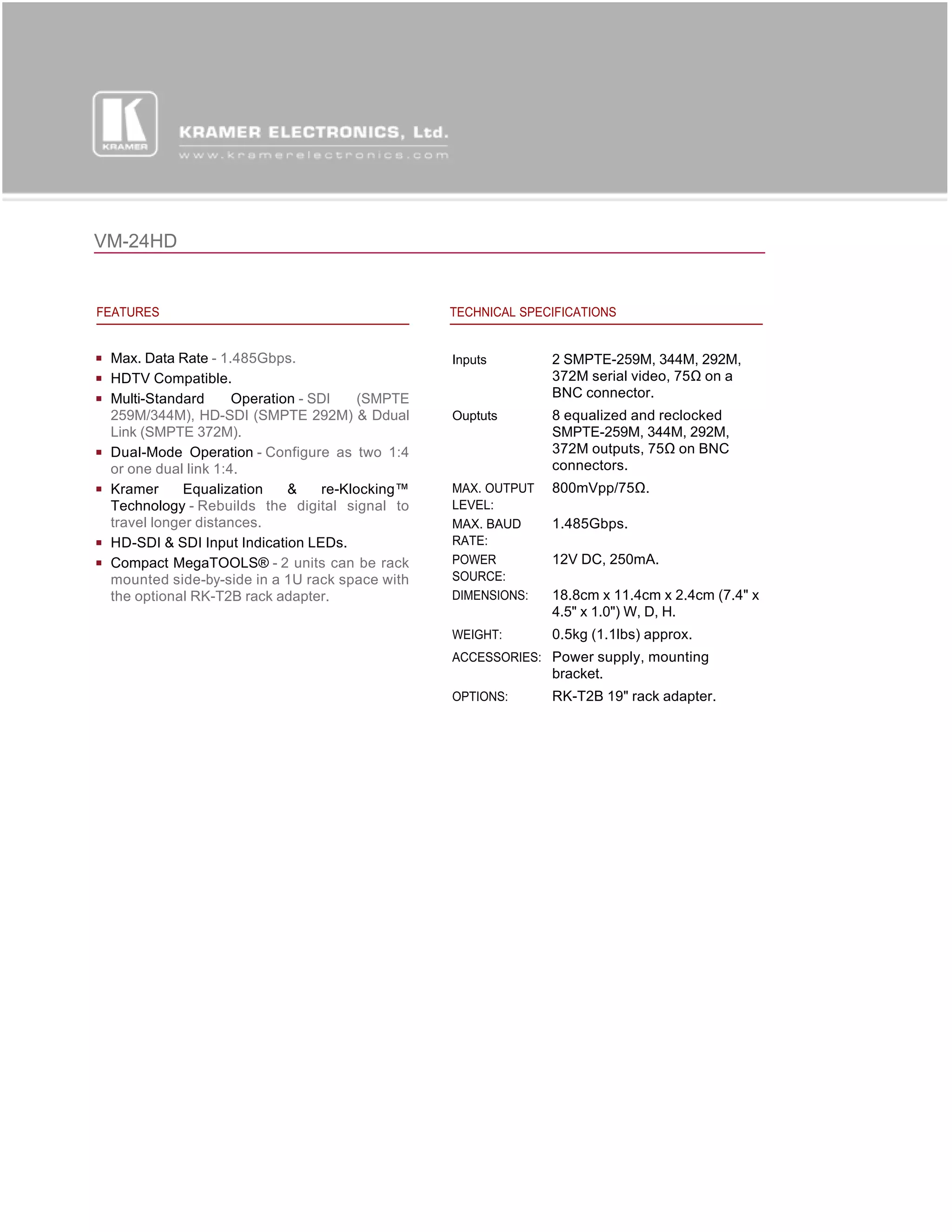

2. VM-24HD
FEATURES TECHNICAL SPECIFICATIONS
Max. Data Rate - 1.485Gbps. Inputs 2 SMPTE-259M, 344M, 292M,
HDTV Compatible. 372M serial video, 75Ω on a
Multi-Standard Operation - SDI (SMPTE BNC connector.
259M/344M), HD-SDI (SMPTE 292M) & Ddual Ouptuts 8 equalized and reclocked
Link (SMPTE 372M). SMPTE-259M, 344M, 292M,
Dual-Mode Operation - Configure as two 1:4 372M outputs, 75Ω on BNC
or one dual link 1:4. connectors.
Kramer Equalization & re-Klocking™ MAX. OUTPUT 800mVpp/75Ω.
Technology - Rebuilds the digital signal to LEVEL:
travel longer distances. MAX. BAUD 1.485Gbps.
HD-SDI & SDI Input Indication LEDs. RATE:
Compact MegaTOOLS® - 2 units can be rack POWER 12V DC, 250mA.
mounted side-by-side in a 1U rack space with SOURCE:
the optional RK-T2B rack adapter. DIMENSIONS: 18.8cm x 11.4cm x 2.4cm (7.4" x
4.5" x 1.0") W, D, H.
WEIGHT: 0.5kg (1.1lbs) approx.
ACCESSORIES: Power supply, mounting
bracket.
OPTIONS: RK-T2B 19" rack adapter.
