Installation Instructions • Rexnord® Viva® Elastomer Couplings
(Page 1 of 5) Type V, VS and VSX • Sizes 110-460
Rexnord Industries, LLC, 5555 S. Moorland Rd., New Berlin, WI 53151-7953 508-510
Telephone: 262-796-4060 Fax: 262-796-4064 February 2010
e-mail: info@rexnord.com web: www.rexnord.com Supercedes 1/08
This is the Original Document in English Language
The designation ATEX (Atmosphere Explosibles) has established itself for the new guidelines. ATEX 100a controls all
regulations for the condition of explosion-proof equipment.
Model No.______________________ Category_______________________ Reference______________________
Mfg Year________________________ Max Temperature________________
1. General Information
1.1. Viva Couplings are designed to provide a mechanical connection between the rotating shafts of mechanical equipment, using
a torsionally soft flexible element to accommodate inherent misalignment while transmitting the power and torque between the
shafts.
1.2. These instructions are intended to help you to install and maintain your Viva coupling. Please read these instructions prior to
installing the coupling, and prior to maintenance of the coupling and connected equipment. Keep these instructions near the
coupling installation and available for review by maintenance personnel.
1.3. Rexnord Industries, LLC owns the copyright of this material. These Installation and Maintenance instructions may not be
reproduced in whole or in part for competitive purposes.
1.4. Symbol descriptions:
Danger of injury to persons.
Damages on the machine possible.
Pointing to important items.
2. Safety and Advice Hints
DANGER!
2.1. Safety should be a primary concern in all aspects of coupling installation, operation, and maintenance.
2.2. All rotating power transmission products are potentially dangerous and can cause serious injury. They must be guarded in
compliance with OSHA, ANSI and any other local standard for the applications they are used. It is the responsibility of the user
to provide proper guarding.
2.3. Failure to secure capscrews properly could cause coupling component(s) to dislodge during operation and result in personal
injury. See table 3 for proper tightening torques.
2.4. Do not use on turbine drives if the coupling cannot be protected from steam leakage or overspeed situations beyond the
couplings published speed rating.
2.5. Before installing this coupling on systems involving sleeve bearings, herringbone gearsets or other axially sensitive devices,
consult Rexnord.
2.6. Elastomeric couplings can hold a static electric charge that may discharge and ignite in an explosive environment Both shafts of
the connected equipment must have a path to Both shafts of the connected equipment must have a path to ground.

508-510 Rexnord Industries, LLC, 5555 S. Moorland Rd., New Berlin, WI 53151-7953
February 2010 Telephone: 262-796-4060 Fax: 262-796-4064
Supercedes 1/08 e-mail: info@rexnord.com web: www.rexnord.com

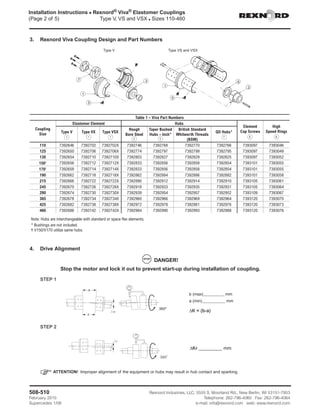

3. Rexnord Viva Coupling Design and Part Numbers
4. Drive Alignment
DANGER!
Stop the motor and lock it out to prevent start-up during installation of coupling.
Step 1
Step 2
ATTENTION! Improper alignment of the equipment or hubs may result in hub contact and sparking.
B
A
360º
b (max)__________ mm
a (min)___________ mm
∆K = (b-a)
∆Kr __________ mm
360
r
Table 1 – Viva Part Numbers
Coupling
Size
Elastomer Element Hubs
Element
Cap Screws
5
High
Speed Rings
6
Type V
1
Type VX
1
Type VSX
1
Rough
Bore Steel
2
Taper Bushed
Hubs – Inch*
3
British Standard
Whitworth Threads
(BSW)
QD Hubs*
7
110 7392646 7392702 7392702X 7392746 7392768 7392770 7392766 7393097 7393046
125 7392650 7392706 7392706X 7392774 7392797 7392799 7392795 7393097 7393049
130 7392654 7392710 7392710X 7392803 7392827 7392829 7392825 7393097 7393052
150= 7392656 7392712 7392712X 7392833 7392856 7392858 7392854 7393101 7393055
170= 7392658 7392714 7392714X 7392833 7392856 7392858 7392854 7393101 7393055
190 7392662 7392718 7392718X 7392862 7392884 7392886 7392882 7393101 7393058
215 7392666 7392722 7392722X 7392890 7392912 7392914 7392910 7393105 7393061
245 7392670 7392726 7392726X 7392918 7392933 7392935 7392931 7393105 7393064
290 7392674 7392730 7392730X 7392939 7392954 7392957 7392952 7393109 7393067
365 7392678 7392734 7392734X 7392960 7392966 7392969 7392964 7393120 7393070
425 7392682 7392738 7392738X 7392972 7392978 7392981 7392976 7393120 7393073
460 7392686 7392742 7392742X 7392984 7392990 7392993 7392988 7393120 7393076
Note: Hubs are interchangeable with standard or space flex elements.
* Bushings are not included.
= V150/V170 utilize same hubs.
2 3
5 67
7
1
3
1 2
6
Type V Type VS and VSX
5
5

Step 3

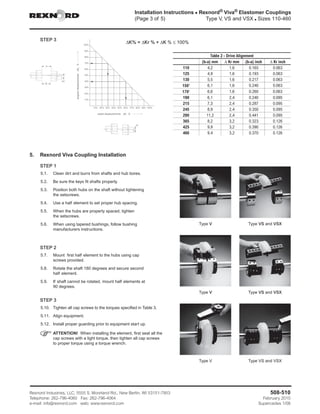

5. Rexnord Viva Coupling Installation
Step 1
5.1. Clean dirt and burrs from shafts and hub bores.
5.2. Be sure the keys fit shafts properly.
5.3. Position both hubs on the shaft without tightening
the setscrews.
5.4. Use a half element to set proper hub spacing.
5.5. When the hubs are properly spaced, tighten
the setscrews.
5.6. When using tapered bushings, follow bushing
manufacturers instructions.
Step 2
5.7. Mount first half element to the hubs using cap
screws provided.
5.8. Rotate the shaft 180 degrees and secure second
half element.
5.9. If shaft cannot be rotated, mount half elements at
90 degrees.
Step 3
5.10. Tighten all cap screws to the torques specified in Table 3.
5.11. Align equipment.
5.12. Install proper guarding prior to equipment start up.
ATTENTION! When installing the element, first seat all the
cap screws with a light torque, then tighten all cap screws
to proper torque using a torque wrench.
100%
90%
80%
70%
60%
50%
40%
30%
20%
10%
100%90%80%70%60%50%40%30%20%10%
radial displacements ∆Kr %
angulardisplacements∆Kw%
B
A
∆α
∆r
∆K% = ∆Kr % + ∆K % ≤ 100%
Table 2 - Drive Alignment
(b-a) mm ∆ Kr mm (b-a) inch ∆ Kr inch
110 4,2 1,6 0.165 0.063
125 4,9 1,6 0.193 0.063
130 5,5 1,6 0.217 0.063
150= 6,1 1,6 0.240 0.063
170= 6,6 1,6 0.260 0.063
190 6,1 2,4 0.240 0.095
215 7,3 2,4 0.287 0.095
245 8,9 2,4 0.350 0.095
290 11,2 2,4 0.441 0.095
365 8,2 3,2 0.323 0.126
425 9,9 3,2 0.390 0.126
460 9,4 3,2 0.370 0.126

508-510 Rexnord Industries, LLC, 5555 S. Moorland Rd., New Berlin, WI 53151-7953
February 2010 Telephone: 262-796-4060 Fax: 262-796-4064
Supercedes 1/08 e-mail: info@rexnord.com web: www.rexnord.com

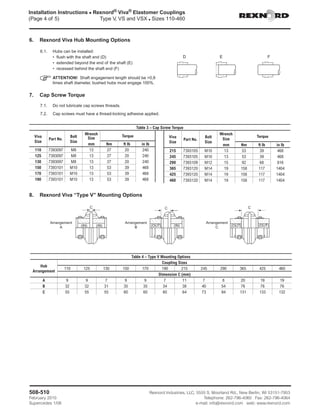

6. Rexnord Viva Hub Mounting Options
6.1. Hubs can be installed:
• flush with the shaft end (D)
• extended beyond the end of the shaft (E)
• recessed behind the shaft end (F)
ATTENTION! Shaft engagement length should be 0,8
times shaft diameter, bushed hubs must engage 100%.
7. Cap Screw Torque
7.1. Do not lubricate cap screws threads.
7.2. Cap screws must have a thread-locking adhesive applied.
8. Rexnord Viva “Type V” Mounting Options
Viva
Size
Part No.
Bolt
Size
Wrench
Size
Torque
mm Nm ft lb in lb
110 7393097 M8 13 27 20 240
125 7393097 M8 13 27 20 240
130 7393097 M8 13 27 20 240
150 7393101 M10 13 53 39 468
170 7393101 M10 13 53 39 468
190 7393101 M10 13 53 39 468
Viva
Size
Part No.
Bolt
Size
Wrench
Size
Torque
mm Nm ft lb in lb
215 7393105 M10 13 53 39 468
245 7393105 M10 13 53 39 468
290 7393109 M12 15 92 68 816
365 7393120 M14 19 158 117 1404
425 7393120 M14 19 158 117 1404
460 7393120 M14 19 158 117 1404
Table 3 – Cap Screw Torque
(IN) (IN)
C
(IN)
C
(OUT)
C
(OUT) (OUT)
Arrangement
A
Arrangement
B
Arrangement
C
Table 4 – Type V Mounting Options
Hub
Arrangement
Coupling Sizes
110 125 130 150 170 190 215 245 290 365 425 460
Dimension C (mm)
A 9 9 7 9 9 7 11 7 8 20 19 19
B 32 32 31 35 35 34 38 40 54 76 76 76
C 55 55 55 60 60 60 64 73 94 131 133 132
D E F

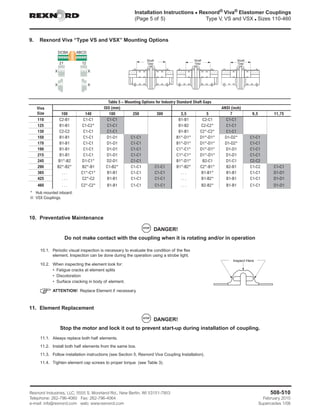

9. Rexnord Viva “Type VS and VSX” Mounting Options
10. Preventative Maintenance
DANGER!
Do not make contact with the coupling when it is rotating and/or in operation
10.1. Periodic visual inspection is necessary to evaluate the condition of the flex
element. Inspection can be done during the operation using a strobe light.
10.2. When inspecting the element look for:
• Fatigue cracks at element splits
• Discoloration
• Surface cracking in body of element.
ATTENTION! Replace Element if necessary.
11. Element Replacement
DANGER!
Stop the motor and lock it out to prevent start-up during installation of coupling.
11.1. Always replace both half elements.
11.2. Install both half elements from the same box.
11.3. Follow installation instructions (see Section 5, Rexnord Viva Coupling Installation).
11.4. Tighten element cap screws to proper torque (see Table 3).
DCBA
X
21 12
X
X
X
ABCD
Shaft
Gap
Shaft
Gap
Shaft
Gap
Table 5 – Mounting Options for Industry Standard Shaft Gaps
Viva
Size
ISO (mm) ANSI (inch)
100 140 180 250 300 3,5 5 7 9,5 11,75
110 C2-B1 C1-C1 C1-C1 B1-B1 C2-C1 C1-C1
125 B1-B1 C1-C2* C1-C1 B1-B2 C2-C2* C1-C1
130 C2-C2 C1-C1 C1-C1 B1-B1 C2*-C2* C1-C1
150 B1-B1 C1-C1 D1-D1 C1-C1 B1*-D1* D1*-D1* D1-D2* C1-C1
170 B1-B1 C1-C1 D1-D1 C1-C1 B1*-D1* D1*-D1* D1-D2* C1-C1
190 B1-B1 C1-C1 D1-D1 C1-C1 C1*-C1* D1*-D1* D1-D1 C1-C1
215 B1-B1 C1-C1 D1-D1 C1-C1 C1*-C1* D1*-D1* D1-D1 C1-C1
245 B1*-B2 D1-C1* D2-D1 C1-C1 B1*-D1* B2-C1 D1-C1 C2-C2
290 B2*-B2* B2*-B1 C1-B2* C1-C1 C1-C1 B1*-B2* C2*-B1* B2-B1 C1-C2 C1-C1
365 . . . C1*-C1* B1-B1 C1-C1 C1-C1 . . . B1-B1* B1-B1 C1-C1 D1-D1
425 . . . C2*-C2 B1-B1 C1-C1 C1-C1 . . . B1-B2* B1-B1 C1-C1 D1-D1
460 . . . C2*-C2* B1-B1 C1-C1 C1-C1 . . . B2-B2* B1-B1 C1-C1 D1-D1
* Hub mounted inboard.
n VSX Couplings.
Inspect Here
